Page 1
Laney
CPC10PoweredMonitor
ServiceInformation
PartNumber-SM3031
Page 2
Laney
Contents
1.DWG2612

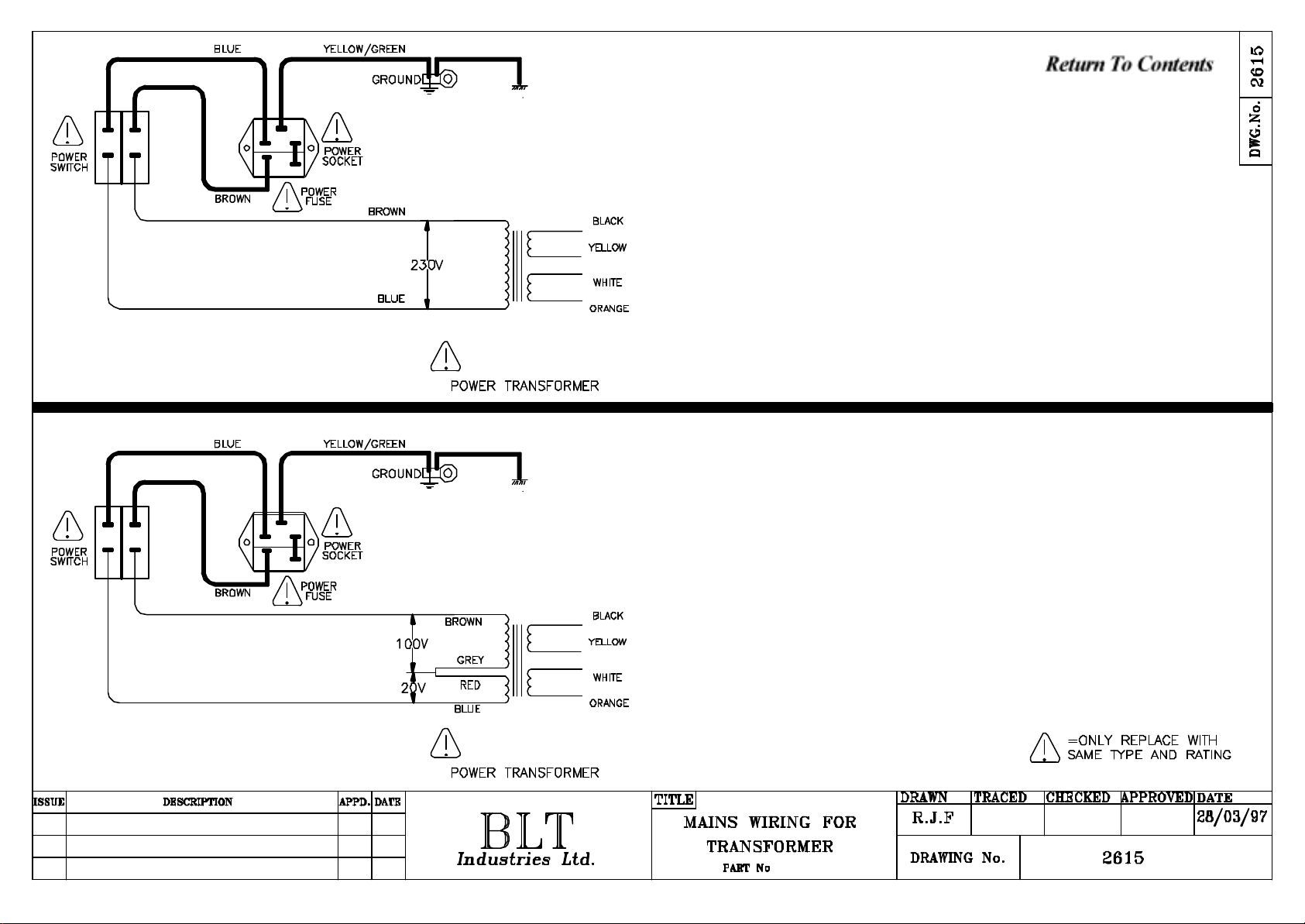

2.DWG2615MainsWiring

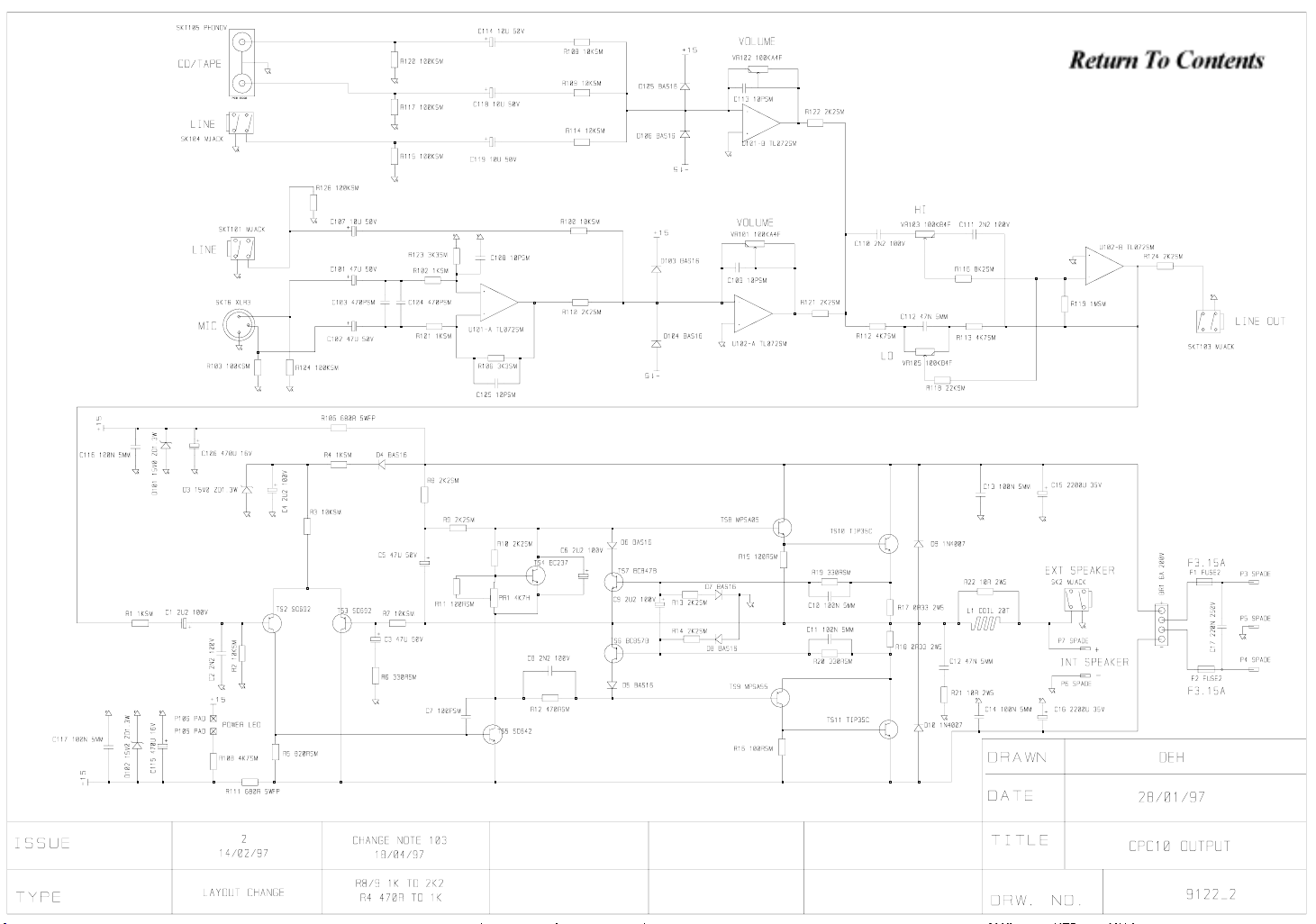

4.DWG9122CircuitDiagram
5.PCBAssemblylist
6.FinalAssemblyList
7.CabinetAssemblyList
8.Contact
ServiceSchematic
(Issue2)
Page 3
Page 4
Page 5
Page 6
Assembly List For ( 008443) PCB Assembly
Stock Code Description Qty Req
1300 ORO SHORTING LINK 9
1303 100R 5% RESISTOR 3
1304 820R 5% RESISTOR 1
1305 2K2 5% RESISTOR 7
1306 10K 5% RESISTOR 7
1309 1M 5% RESISTOR 1
1310 100K 5% RESISTOR 6
1311 470R 5% RESISTOR 2
1312 4K7 5% RESISTOR 2
1314 8K2 5% RESISTOR 1
1316 22K 5% RESISTOR 1
1326 3K3 5% RESISTOR 3
1327 1K 5% RESISTOR 5
1329 330R 5% RESISTOR 3
1500 10R 2.5W RESISTOR 2
1705 680R 5W RESISTOR 2
1717 0R33 2.5W RESISTOR 2
1920 ZERO OHM RESISTOR 4
2004 47UF 50V RADIAL 5
2013 10UF 50V CAPACITOR 4
2017 2200UF 35V RADIAL 2
2020 470UF 16V RADIAL 2
2024 2.2UF 63V RADIAL 3
2200 220NF 100V 10MM 1
2415 2.2NF 100V 5mm 4
2419 100NF 63V 5mm 6
2425 47NF 100V 5mm 2
2601 10PF 50V 10% COG 3
2603 100PF 50V 10% COG 1
2605 470PF 50V 10% COG 2
3000 1N4007 DIODE 2
3014 15V 1.3W ZENER 3
3016 6A 200V BRIDGE 1
3033 3mm LED RED 1
3405 BC237 TRANSISTOR 1
3414 MPSA05 TRANSISTOR 1
3415 MPSA55 TRANSISTOR 1
3500 BAS16 TRANSISTOR 9
3501 SO642 TRANSISTOR 1
3502 SO692 TRANSISTOR 2
3503 BC847B TRANSISTOR 1
3504 BC857B TRANSISTOR 1
3508 34072 IC (SMD TL072) 2
4018 4K7 HORIZ PRESET 1
4083 4mm 100K LIN POT 2
4095 4mm 100K LOG POT 2
5002 MONO JACK SOCKET 4
5006 20 TURN COIL 1
5022 PCB FUSE CARRIER 2
5038 1/4" SPADE TERMINAL 5
5054 XLR SOCKET FEMALE 1
5058 STEREO PHONO SOCKET 1
9122 CPC10 PCB 1
Page 7
Assembly List For ( 007416) Final Assembly
Stock Code Description Qty Req
3618 TIP35C TRANSISTOR 2
5005 NEW TYPE MAINS SOCKT 1
5011 TO3P WASHER 2
5511 5MM SOLDER TAG 2
5527 20mm F3.15A FUSE 2
5530 20mm T1A FUSE 1
5558 100mm TIE WRAP 3
5646 KNOB 4MM GREY/RED 2
5647 KNOB 4MM GREY/BLUE 2
8443 PCB Assembly 1
8757 CPC10 MAINS SWITCH 1
9150 3mm HEX NUT 2
9151 3mm INT SHAKEPROOF 2
9160 4mm HEX NUT 1
9161 4mm INT. SHAKEPROOF 2
9162 4*12mm PAN POZI 1
9171 M5 INT SHAKEPROOF 2
9173 5*12mm PAN POZI 1
9175 M6 HEX NUT 1
9181 5mm BRASS HEX NUT 1
9191 M5 W TYPE CAGE NUT 4
9204 NO 4*1/4 PLASTITE 3
9214 6*50mm CUP SQUARE 1
9228 3*12 ZINC PAN POZI 2
9229 8*3/8 FH POZI 2
540038 EARTH WARNING LABEL 1
584063 6mm SPLIT WASHER 1
588006 POP RIVET (BLACK) 4
588042 INSULATING BUSH 2
8P-8646 CP10 SINK BRACKET 1
8P-8648 CPC10 FACIA 1
8P-8837 24mm PLAIN WASHER 1
8P-9227 6MM PLAIN WASHER 1
8T-6106 CP10 65W 230V MAINS 1
Page 8
Assembly ListFor ( 20407) Cabinet Assembly
Stock Code Description Qty Req
10050 SMALL CORNER 8
10055 PLASTIC CABINET FOOT 4
10057 SMALL LANEY BADGE 2
10100 STRAP HANDLE 1
10200 M5 x 10mm TEENUT 6
10202 5mm X 25mm CSK POZI 2
10204 5mm X 25mm PAN POZI 4
10205 NO.8 X 5/8" ROUND 4
10207 NO.6 X 5/8" CSK POZI 4
10224 35mm FINISHED NAILS 35
10225 STAPLES 97/12 6
10231 No8x1/2" FLANGE POZI 4
10232 NO10x1 1/2 FLANGE HD 5
10233 M5*30 FLANGE POZI BK 2
10234 No 8 X 3/4 CSK POZI 14
10237 NO8 X 1 1/4 PAN PO 2
10240 10 * 1 CSK POZI 4
10242 No 8*16mm SPIRE CLIP 2
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10256 8*1 FLANGE POZI 4
10301 18mm CHIPBOARD 0
10316 GRANITE VYNHYDE 0
10512 J44 HORN KSN1005A 1
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 36 1
10629 MASKING TAPE 1.5" 0
10884 CARTON CC10 1
10980 GLUE/PAINT COST .75 1
41007 INVADER 10P708 1
541004 HC25/50 4.8 FASTON 6
541051 1/4" SML RECEPTACLE 2
8G-CC10 FRONT GRILL CC10 1
Page 9
ReturnToContentsPage
