Laney

CP15PoweredMonitor

ServiceInformation

PartNumber-SM3030

Laney

Contents

1. Dwg 2609 Service Diagram

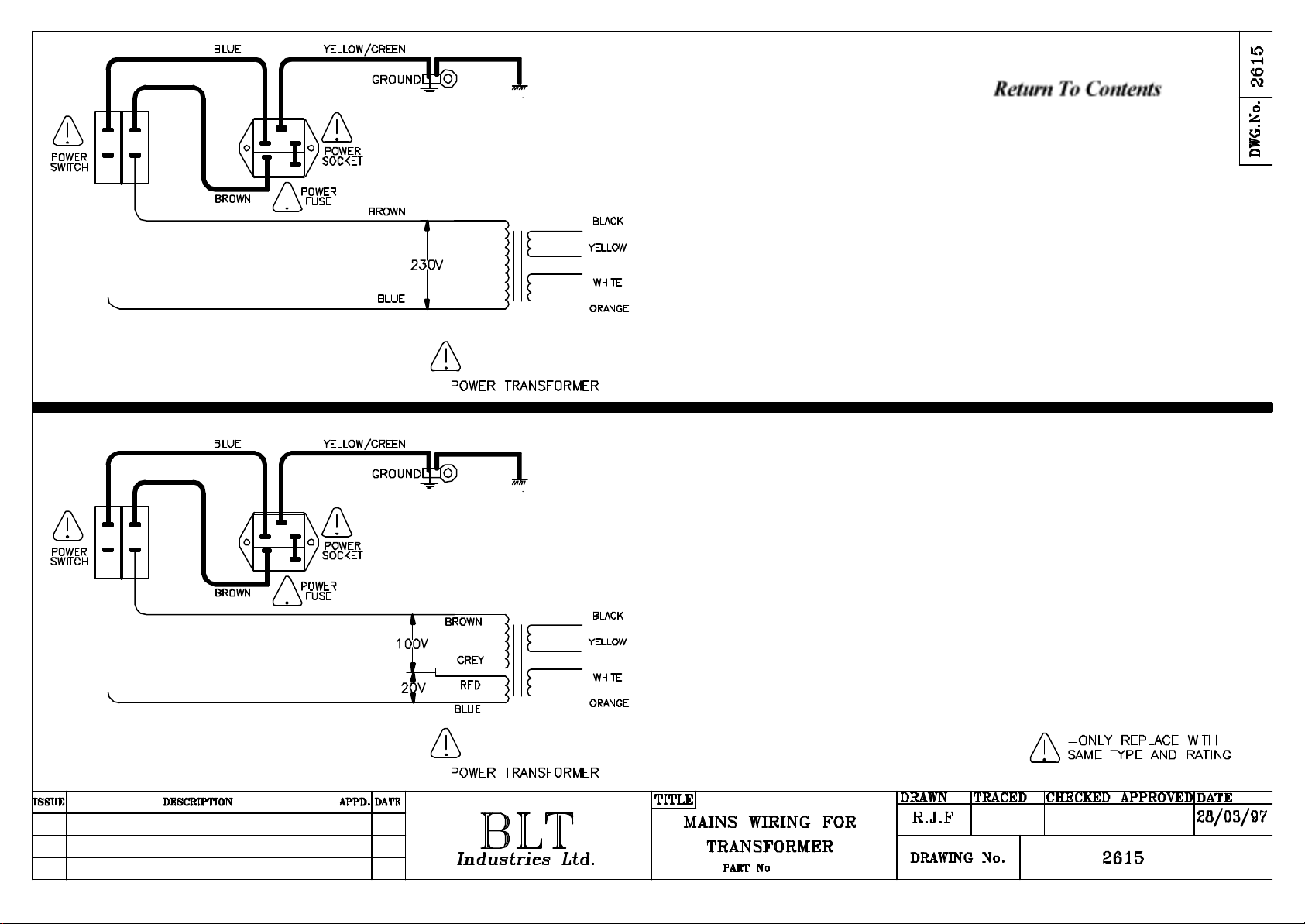

2. Dwg 2615 Transformer Wiring

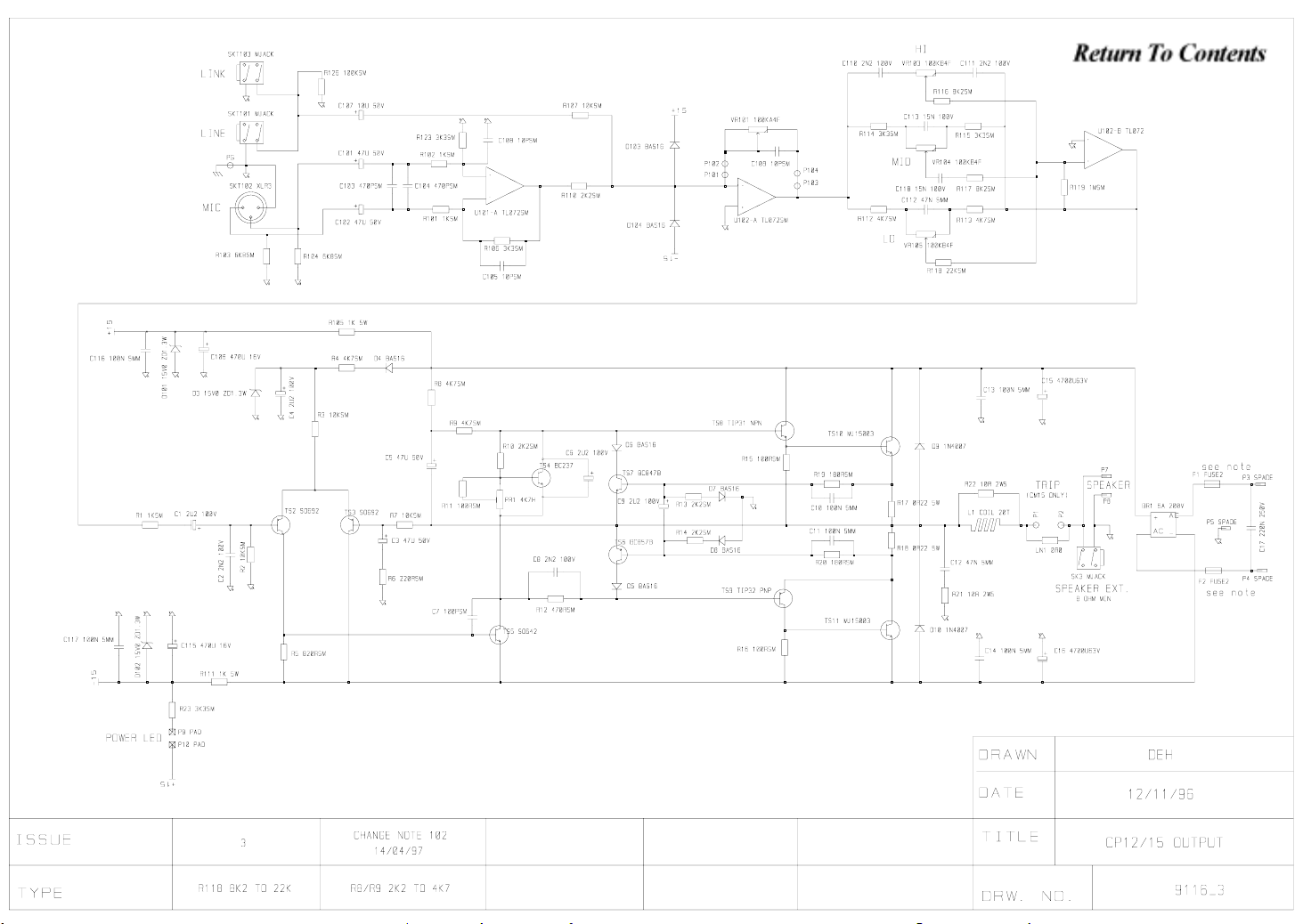

2. Dwg 9116_3 Circuit Diagram

3. Pcb Assembly List

4. Final Assembly List

5. Cabinet Assembly List

6. Contacts

Concept

Assembly 008439/A - CP15 Pcb

Stock Code Description Quantity

1005 2K2 .25W RESISTOR 1
1300 ORO SHORTING LINK 6
1303 100R 5% RESISTOR 3
1304 820R 5% RESISTOR 1
1305 2K2 5% RESISTOR 4
1306 10K 5% RESISTOR 4
1309 1M 5% RESISTOR 1
1310 100K 5% RESISTOR 1
1311 470R 5% RESISTOR 1
1312 4K7 5% RESISTOR 3
1314 8K2 5% RESISTOR 3
1318 6K8 5% RESISTOR 2
1320 220R 5% RESISTOR 1
1322 180R 5% RESISTOR 2
1326 3K3 5% RESISTOR 5
1327 1K 5% RESISTOR 3
1500 10R 2.5W RESISTOR 2
1701 1K 5W RESISTOR 2
1703 0R22 5W RESISTOR 2
1920 ZERO OHM RESISTOR 4
2004 47UF 50V RADIAL 4
2006 4700UF 63V RADIAL 2
2013 10UF 50V CAPACITOR 1
2020 470UF 16V RADIAL 2
2024 2.2UF 63V RADIAL 4
2200 220NF 100V 10MM 1
2407 15NF 400V 10MM 2
2415 2.2NF 100V 5mm 4
2419 100NF 63V 5mm 6
2425 47NF 100V 5mm 2
2426 15NF 100V 5mm 2
2601 10PF 50V 10% COG 3
2603 100PF 50V 10% COG 1
2605 470PF 50V 10% COG 2
3000 1N4007 DIODE 2
3014 15V 1.3W ZENER 3
3016 6A 200V BRIDGE 1
3405 BC237 TRANSISTOR 1
3500 BAS16 TRANSISTOR 7
3501 SO642 TRANSISTOR 1
3502 SO692 TRANSISTOR 2
3503 BC847B TRANSISTOR 1
3504 BC857B TRANSISTOR 1
3508 34072 IC (SMD TL07 2
3610 TIP31C TRANSISTOR 1
3611 TIP32C TRANSISTOR 1
4018 4K7 HORIZ PRESET 1
4083 4mm 100K LIN POT 3
4095 4mm 100K LOG POT 1
5002 MONO JACK SOCKET 3
5006 20 TURN COIL 1
5008 TV125 FLAT HEATSIN 2
5022 PCB FUSE CARRIER 2
5038 1/4" SPADE TERMINAL 4
5054 XLR SOCKET FEMALE 1
5101 20mm F4A FUSE 2
9116 CP12/15 OUTPUT 1

588006 POP RIVET (BLACK) 2

Assembly 007412 - CP15 Final Assembly

Stock code Description quantity

3800 MJ15003 TRANSISTOR 2
5005 NEW TYPE MAINS SOC 1
5007 TO3 HARDWARE WASHER 2

005007A TO3 LONG BUSH 4

5030 HEATSINK TV5 1
5031 70oC THERMAL TRIP 1
5510 3MM SOLDER TAG 2
5511 5MM SOLDER TAG 2
5526 20mm T2A FUSE 1
5542 ROCKER SWITCH 1
5558 100mm TIE WRAP 3
5646 KNOB 4MM GREY/RED 1
5647 KNOB 4MM GREY/BLUE 3

008438/A CP15 O/P 1

8859 BC RED LED 1
9150 3mm HEX NUT 4
9151 3mm INT SHAKEPROOF 6
9160 4mm HEX NUT 3
9161 4mm INT. SHAKEPROO 4
9162 4*12mm PAN POZI 5
9163 4*20mm PAN POZI 2
9167 4*8 PAN POZI TAPTE 3
9171 M5 INT SHAKEPROOF 2
9173 5*12mm PAN POZI 1
9181 5mm BRASS HEX NUT 1
9191 M5 W TYPE CAGE NUT 2
9204 NO 4*1/4 PLASTITE 2
9217 4mm NUTSERT 4

9228 3*12 ZINC PAN POZI 4
540038 EARTH WARNING LABE 1
541054 INSULATION BOOT 1
581002 3*6mm CSK POZI TPT 2
586003 M8 * 60 COACH BOLT 1
588006 POP RIVET (BLACK) 2

5P-587003 30mm WASHER 1
8P-8641 CP15 FACIA 1
8P-8647 CP15 T/X BRACKET 1
8P-8800 HTSNK BRACKET 1
8P-8801 110mm LONG THINNED 1
8T-6104 CR150 230V 150W 1

Assembly 20406 - CP15 Cabinet

Stock Code Description Quantity

10050 SMALL CORNER 4
10051 LARGE CORNER 2
10055 PLASTIC CABINET FO 4
10056 LARGE LANEY BADGE 1
10100 STRAP HANDLE 1
10155 CONCEPT EXTRUSION 1
10200 M5 x 10mm TEENUT 6
10202 5mm X 25mm CSK POZ 2
10204 5mm X 25mm PAN POZ 4
10205 NO.8 X 5/8" ROUND 6
10206 6*5/8 FLANGE POZI 4
10224 35mm FINISHED NAIL 35
10225 STAPLES 97/12 3
10233 M5*30 FLANGE POZI 2
10234 No 8 X 3/4 CSK POZ 14
10237 NO8 X 1 1/4 PAN PO 2
10240 10 * 1 CSK POZI 4
10242 No 8*16mm SPIRE CL 2
10243 NO4*1/2 TYPE B CSK 2
10244 FLAT SPIRE CLIP 2
10301 18mm CHIPBOARD 0
10314 18mm MDF 0
10316 GRANITE VYNHYDE 1
10513 J73 HORN KSN1141B 1
10600 32/18 STAPLES 12
10621 POLY. BAG 30(0) X 1
10629 MASKING TAPE 1.5" 3
10889 CARTON CM15 1
10981 GLUE/PAINT COST 1. 1
41510 INVADER 15100PA8A 1

8G-CP15 FRONT GRILL CP15 1
