INTRODUCTION
The Black Country Customs range of BASS pedals are born out of the desire to achieve the best BASS tone possible.
The result of hours of dedicated tesng and listening, each
Black Country Customs pedal is built using the highest
quality components and engineered to last a lifeme on
your board.
WHAT IS “THE 85”
tracking and sound.
The 85 gives you independent control of an Octave down
and an addional switchable “Interval” control, allowing for an extra octave up, 2 octaves down or a perfect 5th
above your original note. The FOCUS control used in con-
juncon with the two pitch controls allows you to ne tune
the character of octave and interval ranging from classic funky subs to massive synth-like chords.
Page 3
FEATURES
Each of the BCC pedals have been designed to incorporate
features that really maer: -
Transparent fully buered operaon at all mes.
Super high output drive provides an excellent
interface between bass guitar and eects pedals/
amp.
Much reduced cable loss.
Consistent bass guitar volume performance at all
sengs.
Signal phase integrity.
Excellent consistent load for passive Volume pedals.
Ultra-low noise circuitry.
Tri-coloured LED showing mode of
operaon.
Silent switching.
LAYOUT
The layout of your pedal has been ergonomically designed
by players, for players, to give you control over all the features you need, quickly and eecvely.
The following pages will give you an insight into how the controls on the The 85 work and interact with each other.
Page 4
FEATURES
1
1
3
4
2
5
6
Page 5
CONTROLS
FOCUS
1
Changes the “Focus” of the two pitch shiers. Lower sengs will remove higher harmonics, this will give a more dark and subby mbre. Higher sengs add more harmonics giving a fuller more synth like mbre.
- OC TAVE
2
Control for the -1 Octave down level.
DIRECT
3
Level control for the direct (uneected) signal.
INTERVAL SWITCH
4
Selects the interval pitch in semitones.
UP - +12 (+1 Octave Up) MID - -24 (-2 Octaves Down) DOWN - +7 (+5th Up)
5
INTERVAL
Control for the current interval pitch level. The interval is determined by the mode switch 4.
FOOTSWITCH
6
Enables / Disables the pedal.
Page 6
FEATURESFEATURES
7
8
Page 7
CONTROLS
CONTROLS
EXPRESSION PEDAL
7
Input for an expression pedal. 10K TRS style needed.
An expression pedal can be used in two dierent
8
modes.
Pitch Mode – The expression pedal controls the pitch of either the –OCTAVE or INTERVAL or both.
Level Mode – The expression pedal controls the level of either the – OCTAVE or INTERVAL or both.
EXP EDIT - Changes the expression pedal input
mode. (See above).
To change the mode, hold down the EXP EDIT (8) buon and move the INTERVAL SWITCH (4)
Interval switch UP - PITCH MODE Interval switch MID - NOTHING Interval switch DOWN - LEVEL MODE
See following diagrams.
Page 8
FEATURES
exp edit
+1
-2
th
+5
oct
PITCH MODE
1.PRESS & HOLD
2.MODE UP
exp edit
+1
-2
th
+5
oct
LEVEL MODE
1.PRESS & HOLD
2.MODE DOWN
Page 9
FEATURES
exp edit
+1
-2
th
+5
oct
-OCT
INT
-OCT
INT

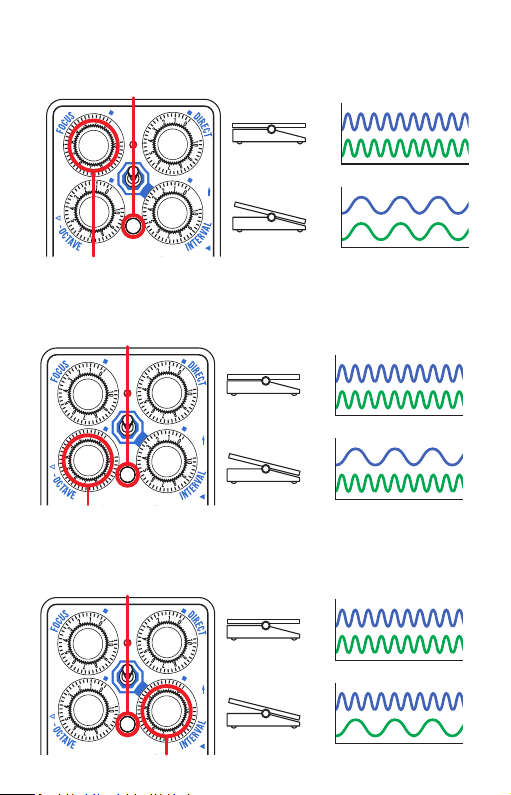

2. TURN FOCUS
1.PRESS & HOLD
DUAL CONTROL (-OCTAVE & INTERVAL)
exp edit
+1
-2
th
+5
oct
-OCT
INT
-OCT
INT
2. TURN -OCTAVE
-OCTAVE CONTROL
1.PRESS & HOLD
exp edit
+1
-2
th
+5
oct
-OCT
INT
-OCT
INT
2. TURN INTERVAL
INTERVAL CONTROL
1.PRESS & HOLD
Page 10
FEATURES
10
11
9
Page 11
CONTROLS
SIGNAL INPUT
9
Bass / Guitar / Instrument input. Opmized for bass guitar but can accept other
instruments.
FX OUTPUT
10
The main FX Output (this is a mono device).
DI RECT/DRY
11
Direct Dry “Buered” signal output with no eects / level shi.
FACTORY RESET
The expression edit sengs are stored on the on-board memory, so once set there is no need
to set them again on power cycle. Though if required it is possible reset the pedal back to factory defaults
In order to iniate a factory reset, press and Hold the EXP EDIT buon when powering on the
pedal and this will reset the pedal back to its factory shipped status.
Page 12
SPECIFICATIONS
Model : The 85
FX Type : BASS OCTAVE
Input Impedance : 1MΩ
Output Impedance : 100Ω
Noise Level (20-20KHz Filter) : <50μV
Frequency Respose Bypassed : 20-20KHz (+/- 0.5dB)
Recommended Minimum Load Impedance : 10KΩ
Power Supply : Regulated 9V DC PSU (Not Included), centre negave, 2.1x10mm connector type
Current Consumpon : 90mA
Unit Dimensions : 58.5 x 74 x 121.55mm,
2.3” x 2.9” x 4.8”
Net Weight : 0.38Kg, 0.8lbs
Carton dimensions : 78.5 x 114.5 a 158mm,
3.1” x 4.5” x 6.2”
Gross Weight : 0.6Kg, 1.3lbs
Page 13
This dev ice complies wi th Part 15 of the FC C rules.
Opera on is subject to t he following tw o condions:
1) This dev ice may not cause ha rmful interf erence
2) This dev ice must accept a ny interferen ce received, th at may cause undesired operaon. Warning: C hanges or modi caon to the equi pment not appro ved by Laney
can void t he user’s author ity to use the equ ipment.
Note: This equipm ent has been test ed and found to com ply with the limit s
for Clas s B digital devic e, pursuant to Par t 15 of the FCC Rule s. These limit s are desig ned to provide re asonable prot econ agains t harmful inter ference in a reside nal installa on. This equi pment generate s, uses and can rad iate
radio fr equency ener gy and if not ins talled and used i n accordance wi th
the instr ucons, may c ause harmful int erference to r adio communic aons. However, ther e is no guarantee t hat interfere nce will not occu r in a parcular instal laon. If this eq uipment does ca use harmful inte rference to ra dio or televis ion recepon , which can be dete rmined by turnin g the equipment o  and on, the u ser is encoura ged to try and cor rect the inter ference by one or
more of the following measures.
Reorie nt or relocate th e receiving ante nna.
Increas e the separao n between the equ ipment and rece iver.
Connec t the equipmen t into an outlet on a ci rcuit diere nt from that to whic h
the recei ver is connec ted.
Consul t the dealer or an exp erienced rad io/TV tech nician for help.
This product conforms to the requirements of the following European
Regula ons, Direc ves & Rules: CE Mark (93/6 8/EEC), Low Voltage 2 014/35/EU, EMC (2014/30/EU), R oHS (2011/65/EU), RE D (2014/30/EU), ErP 200 9/125/EU
In order to r educe environ mental damage, at t he end of its usef ul life, this produc t must not be disp osed of along wi th normal house hold waste to lan dll
sites. I t must be taken to an ap proved recyc ling centre acc ording to the
recomm endaons of the W EEE (Waste Electr ical and Elect ronic Equipmen t) direc ve applicabl e in your countr y.
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, La ney Electroni cs Ltd. declar es that the radio eq uipment is in com pli­ance wit h Direcves 2014 /53/EU, 2011/65/EU,20 09/125/EU
Full tex t of the EU declara on of conformi ty is available a t the following interne t address:
support.laney.co.uk/approvals
