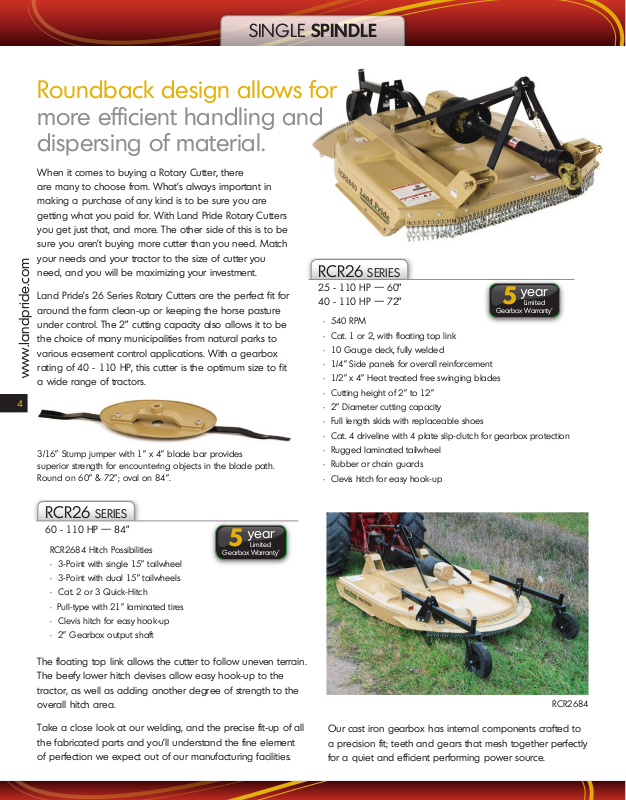

SINGLE SPINdle
Roundback design allows for
more efficient handling and
dispersing of material.
When it comes to buying a Rotary Cutter, there
are many to choose from. What’s always important in
making a purchase of any kind is to be sure you are
getting what you paid for. With Land Pride Rotary Cutters
you get just that, and more. The other side of this is to be
sure you aren’t buying more cutter than you need. Match
your needs and your tractor to the size of cutter you
need, and you will be maximizing your investment.
Land Pride’s 26 Series Rotary Cutters are the perfect fit for
around the farm clean-up or keeping the horse pasture
under control. The 2” cutting capacity also allows it to be
the choice of many municipalities from natural parks to
various easement control applications. With a gearbox
rating of 40 - 110 HP, this cutter is the optimum size to fit
www.landpride.com
a wide range of tractors.
4
3/16” Stump jumper with 1” x 4” blade bar provides
superior strength for encountering objects in the blade path.
Round on 60” & 72”; oval on 84”.
RCR26 SERIES
25 - 110 HP — 60”
40 - 110 HP — 72”
• 540 RPM
• Cat. 1 or 2, with floating top link
• 10 Gauge deck, fully welded
• 1/4” Side panels for overall reinforcement
• 1/2” x 4” Heat treated free swinging blades
• Cutting height of 2” to 12”
• 2” Diameter cutting capacity
• Full length skids with replaceable shoes
• Cat. 4 driveline with 4 plate slip-clutch for gearbox protection
• Rugged laminated tailwheel
• Rubber or chain guards
• Clevis hitch for easy hook-up
year
5
Limited
Gearbox Warranty
*
RCR26 SERIES
60 - 110 HP — 84”
RCR2684 Hitch Possibilities
• 3-Point with single 15” tailwheel
• 3-Point with dual 15” tailwheels
• Cat. 2 or 3 Quick-Hitch
• Pull-type with 21” laminated tires
• Clevis hitch for easy hook-up
• 2” Gearbox output shaft
The floating top link allows the cutter to follow uneven terrain.
The beefy lower hitch clevises allow easy hook-up to the
tractor, as well as adding another degree of strength to the
overall hitch area.
Take a close look at our welding, and the precise fit-up of all
the fabricated parts and you’ll understand the fine element
of perfection we expect out of our manufacturing facilities.
year
5
Limited
Gearbox Warranty
*
RCR2684
Our cast iron gearbox has internal components crafted to
a precision fit; teeth and gears that mesh together perfectly
for a quiet and efficient performing power source.
SKID STeeR
RCR26 SERIES
40 - 110 HP — 84”
The Pull Type model is perfect for smaller tractors,
or older tractors that may not have 3-point
capabilities.
The Pull Type has a spring cushion tied to the rear
axle to provide shock protection over rough terrain.
The all-welded deck and dual axle-to-hitch leveling
rods keep the cutter running tough in extreme
conditions.
Land Pride strongly recommends that front and
rear shielding be used with any rotary cutter.
However, they can be purchased with or without
shielding. Please understand how your cutter is to
be equipped for you.
Pull Type
year
5
Limited
Gearbox Warranty
*
RCR2684
SC26 SERIES
Various Flow Requirements: 60”
• Smooth top design
• Quick & easy attachment with universal
mounting plate
• Optional front-mounted pivoting gauge
wheel w/laminated tire
• 60” Cutting width
• 1 1/2”
• 4 Corner skid shoes
• Single row front chain guard
• Double row rear chain guard
• High, medium or low volume motors
to choose from
- 18” Cutting height - infinitely variable
Skid Steer
- optional
2
Gearbox & Motor
Warranty
5
year
Limited
*
