Page 1
Table of Contents Part Number Index
Rotary Cutter
RCR2596, RCR2510 & RCRM2510
22352
312-753P
Parts Manual
Read the Operator's manual entirely.When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception.Your life and the lives of
others depend on it!
© Copyright 2008 Printed 07/09/08
Cover photo may show optional equipment not
supplied with standard unit.
Page 2
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frame............................................................6
3-Point Wheel......................................................................6
CV Trail Type Driveline........................................................8
Deck 3-Point Hitch Components.......................................10
Deck Blade Drive..............................................................14
Equal Angle Pull Type Driveline........................................16
Hydraulic Lift.....................................................................18
Pull Type............................................................................20
Pull Type Axle and Tires....................................................22

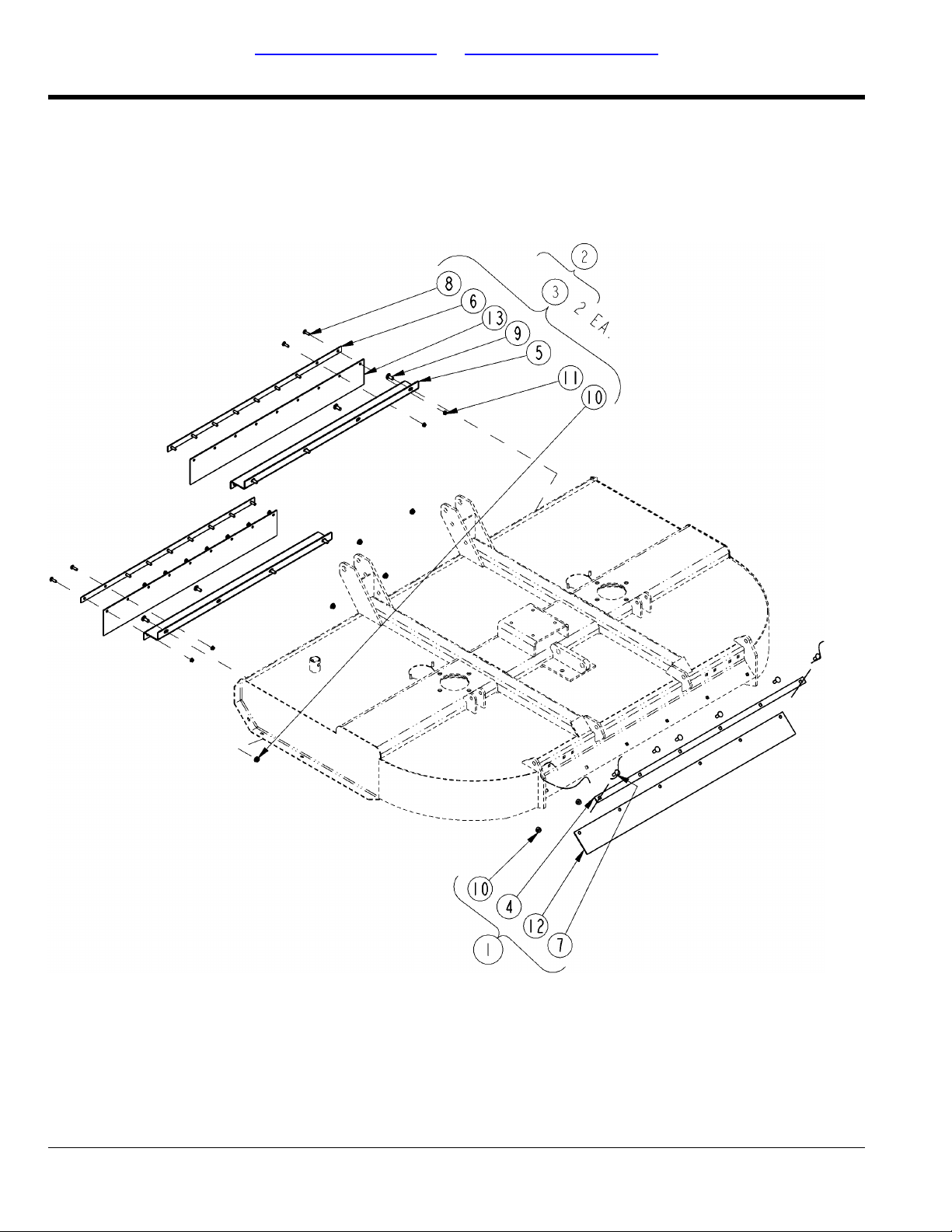

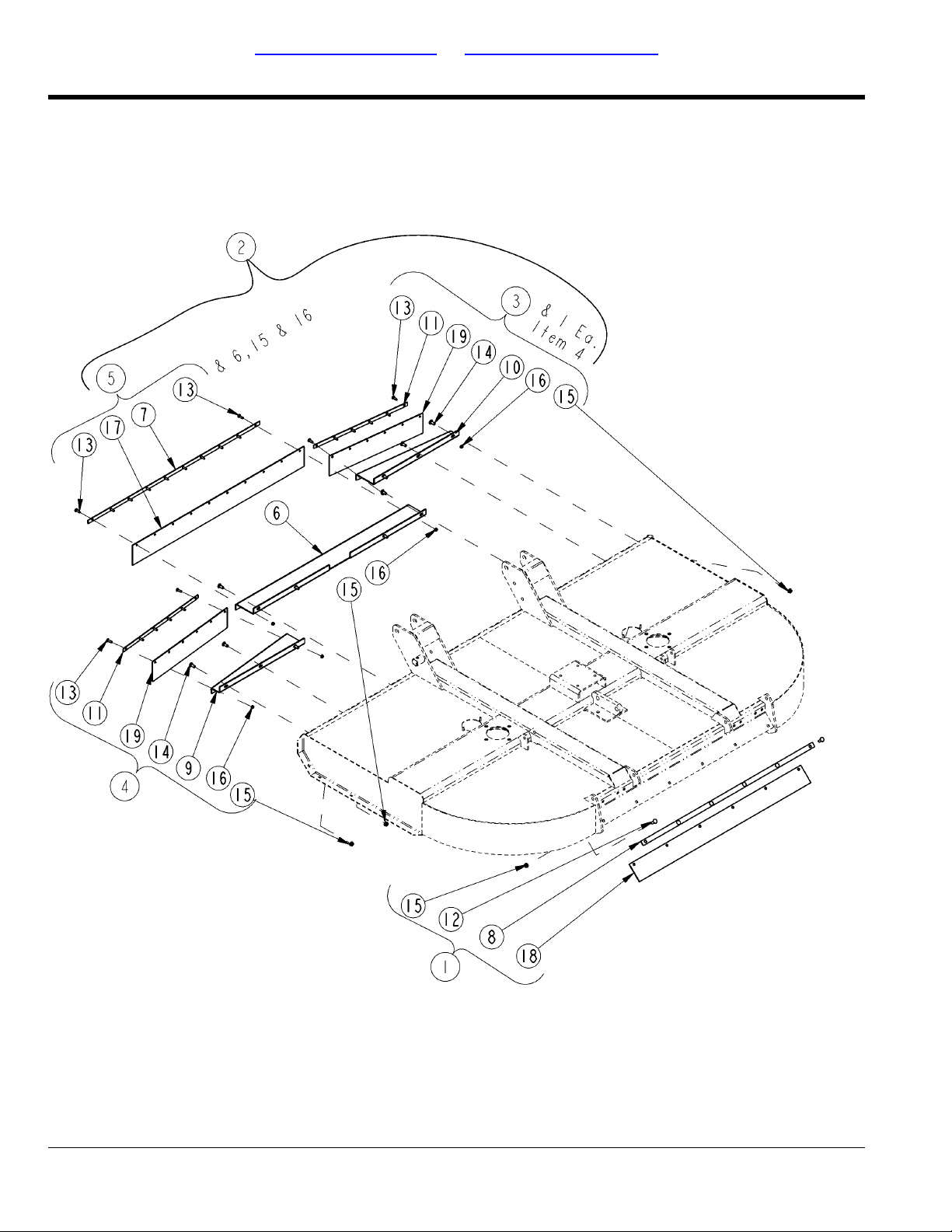

Section 3: Guards........................................................24
Guarding Chain.................................................................24
Guarding Chain.................................................................26
Guarding Rubber...............................................................28
Guarding Rubber...............................................................30

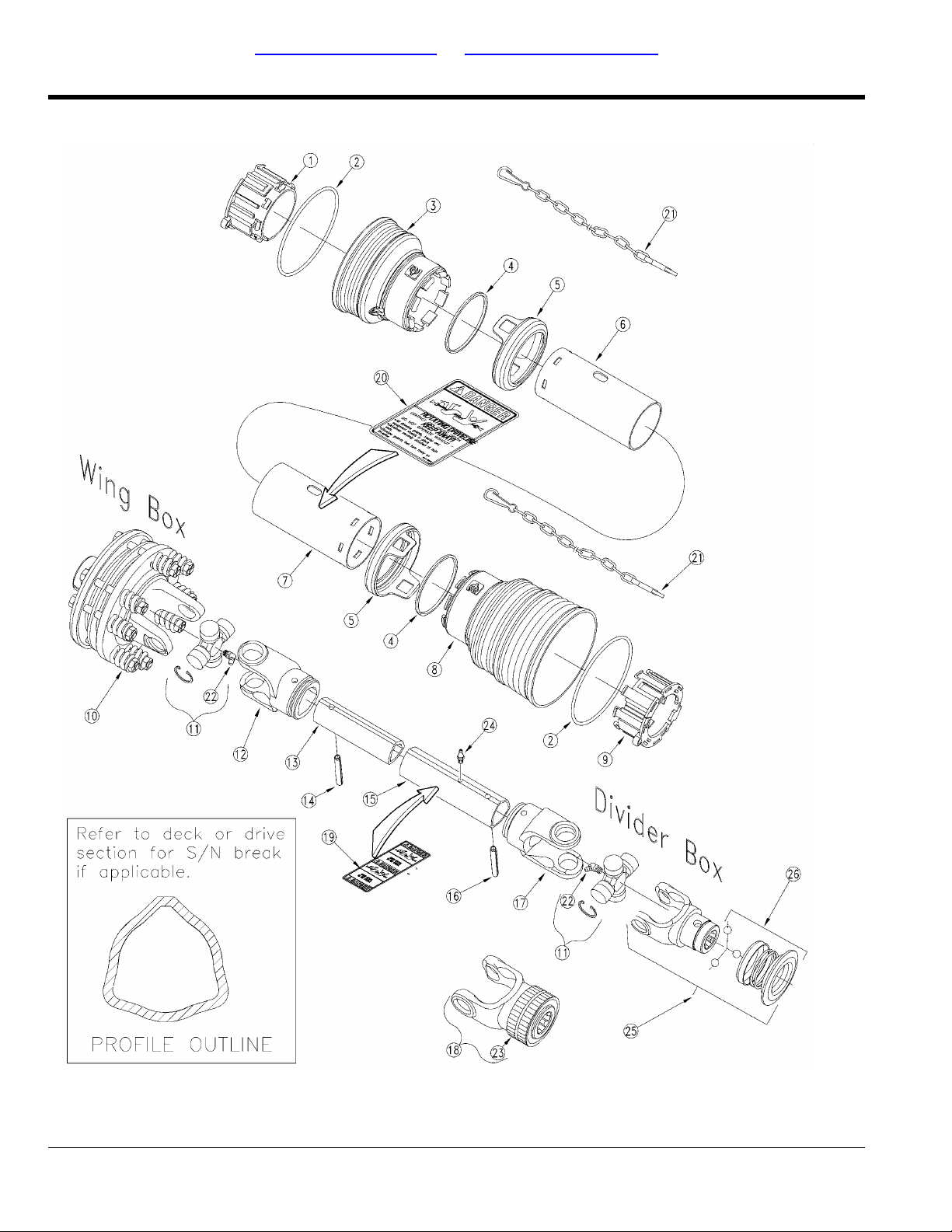

Section 4: Drivelines...................................................32
Driveline 1000 RPM (826-216C) Eurocardan...................32
Driveline 1000 RPM (826-221C) Eurocardan...................34
Driveline 1000 RPM (826-223C) Eurocardan...................36
Driveline 1000 RPM (826-226C) Eurocardan...................38
Driveline 540 RPM (826-151C) Eurocardan.....................40
Driveline 540 RPM (826-215C) Eurocardan.....................42
Driveline 540 RPM (826-220C) Eurocardan.....................44
Driveline 540 RPM (826-255C) Eurocardan.....................46
Driveline 540 RPM (826-256C) Eurocardan.....................48
Driveline CV 1000 RPM (826-063C) Walterscheid............50
Driveline CV 540 RPM (826-053C) Walterscheid..............52
Driveline Flex Coupler (826-359C) Eurocardan................54
Driveline Flex Coupler (826-360C) Eurocardan................56
Driveline Slip Clutch (1406016) Eurocardan.....................58
Driveline Slip Clutch (1406028) Eurocarda.......................60
Driveline Slip Clutch (1446016) Eurocardan.....................62
Driveline Slip Clutch (1446037) Eurocardan.....................64
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan.................................................................66
Section 5: Gearboxes..................................................68
Gearbox (826-356C) Comer.............................................68
Gearbox (826-358C) Comer.............................................70
Gearbox (826-424C) Comer.............................................72
Section 6: Hydraulics..................................................74

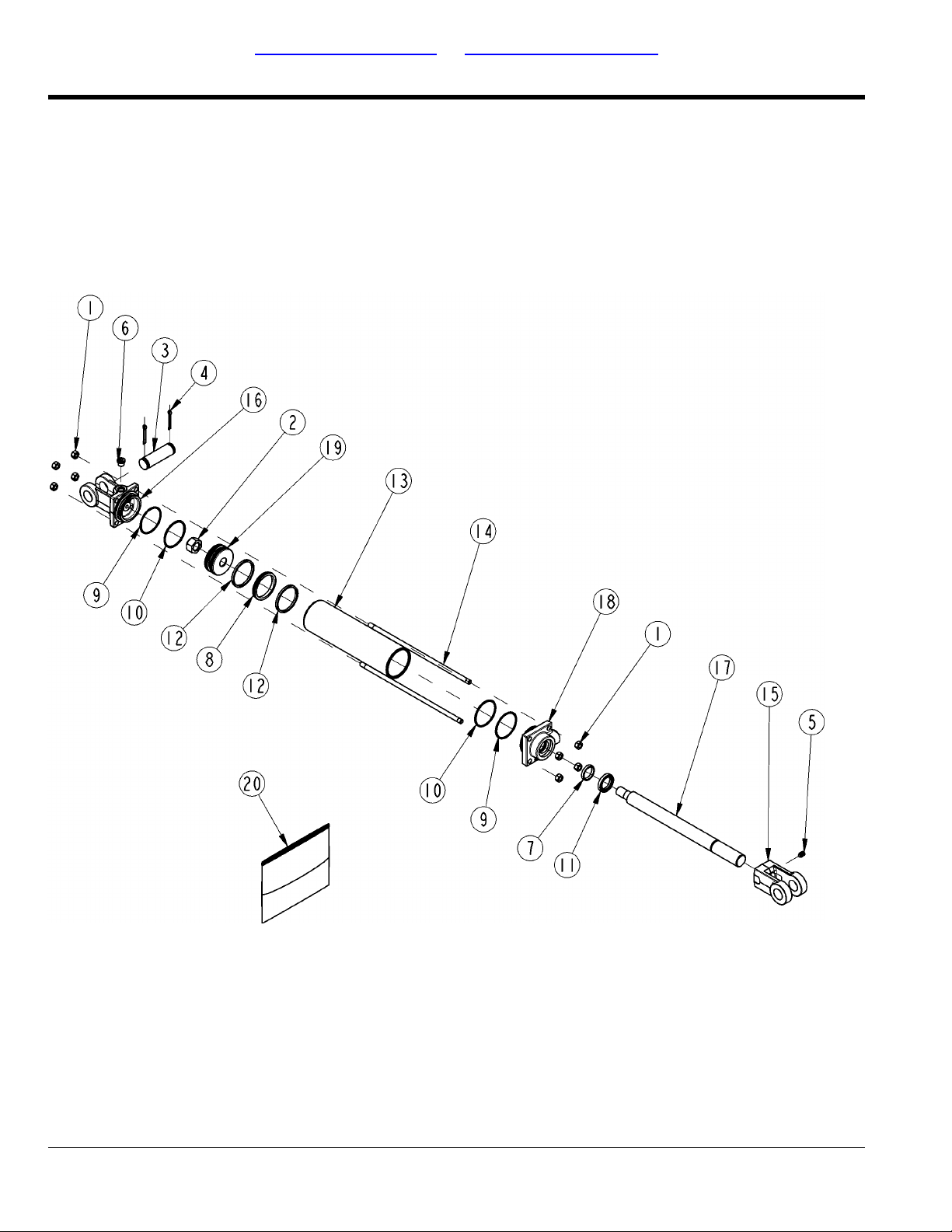

Hydraulic Cylinder (810-200C) Midway.............................74
Hydraulic Cylinder (810-200C) Red Lion..........................76
Section 7: Labels.........................................................78

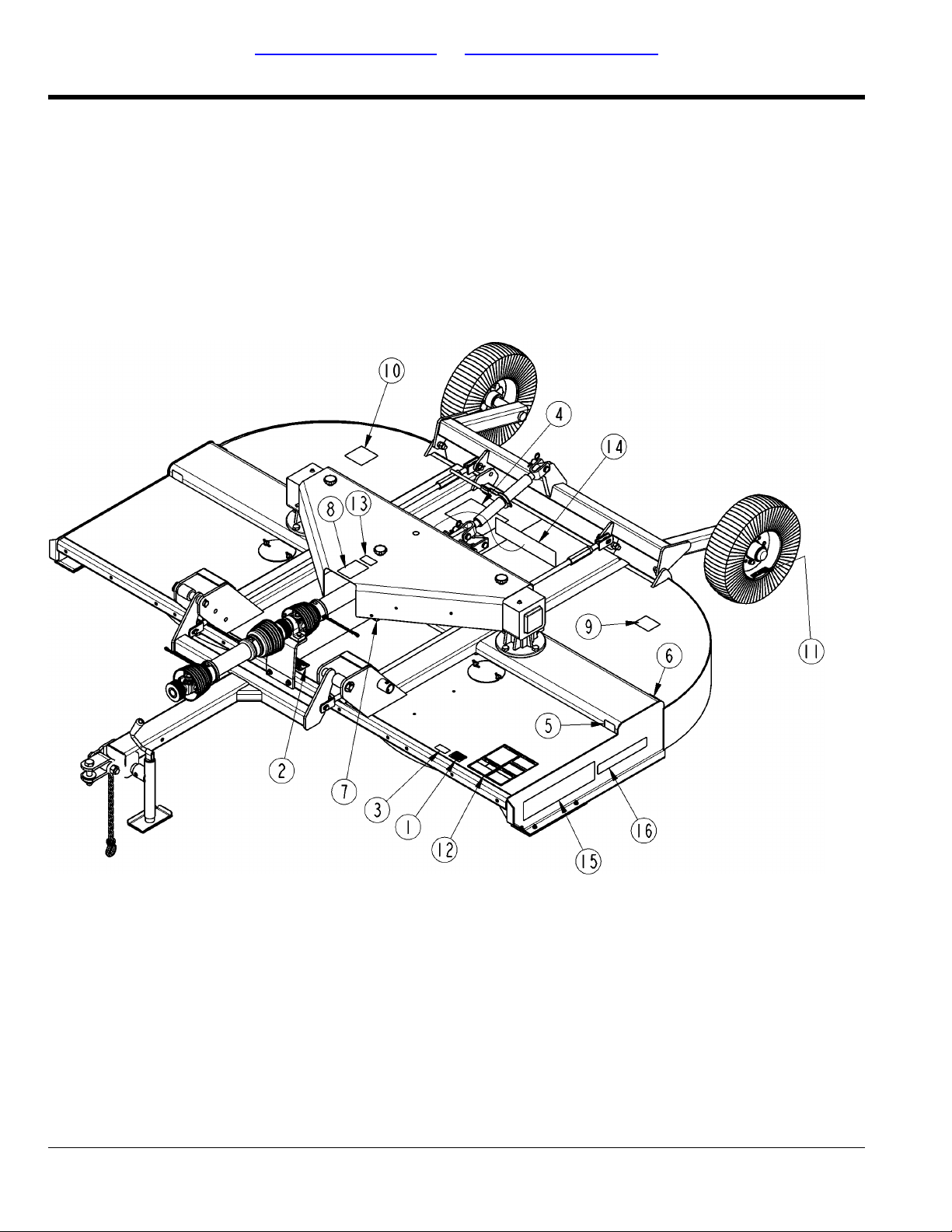

Label Placement...............................................................78
Part Number Index.......................................................80
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without w arranty of any kind, either e xpressed or implied.While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future.The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment.The illustrations are intended for
ordering parts only.
All other brands and product names are trademarks or registered trademarks of their respective holders.
2 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Land Pride is registered trademark.
Printed in the United States of America.
Page 3
Table of Contents Part Number Index
3
3-Point Wheel.................................................................6
C
CV Trail Type Driveline....................................................8
D
Deck 3-Point Hitch Components..................................10
Deck Blade Drive..........................................................14
Driveline 1000 RPM (826-216C) Eurocardan...............32
Driveline 1000 RPM (826-221C) Eurocardan...............34
Driveline 1000 RPM (826-223C) Eurocardan...............36
Driveline 1000 RPM (826-226C) Eurocardan...............38
Driveline 540 RPM (826-151C) Eurocardan.................40
Driveline 540 RPM (826-215C) Eurocardan.................42
Driveline 540 RPM (826-220C) Eurocardan.................44
Driveline 540 RPM (826-255C) Eurocardan.................46
Driveline 540 RPM (826-256C) Eurocardan.................48
Driveline CV 1000 RPM (826-063C) Walterscheid.......50
Driveline CV 540 RPM (826-053C) Walterscheid.........52
Driveline Flex Coupler (826-359C) Eurocardan...........54
Driveline Flex Coupler (826-360C) Eurocardan...........56
Driveline Slip Clutch (1406016) Eurocardan................58
Driveline Slip Clutch (1406028) Eurocarda..................60
Driveline Slip Clutch (1446016) Eurocardan................62
Driveline Slip Clutch (1446037) Eurocardan................64
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan............................................................66
Alphabetized Table of Contents
E
Equal Angle Pull Type Driveline....................................16
G
Gearbox (826-356C) Comer.........................................68
Gearbox (826-358C) Comer.........................................70
Gearbox (826-424C) Comer.........................................72
Guarding Chain............................................................24
Guarding Chain............................................................26
Guarding Rubber..........................................................28
Guarding Rubber..........................................................30
H
Hydraulic Cylinder (810-200C) Midway........................74
Hydraulic Cylinder (810-200C) Red Lion......................76
Hydraulic Lift.................................................................18
L
Label Placement..........................................................78
P
Pull Type.......................................................................20
Pull Type Axle and Tires...............................................22
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 3
Page 4
Table of Contents Part Number Index
4 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 5
Table of Contents Part Number Index
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 5
Page 6
Land Pride Section 2: Frame
Table of Contents Part Number Index
3-Point Wheel
Applies to RCR2510, RCR2596, RCRM2510
22334
6 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 7
Section 2: Frame Land Pride
Table of Contents Part Number Index
3-Point Wheel
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22334
RCR2596WLDMT TAILWHEEL BEAM312-614H1.
RCR2510 RCRM2510TAILWHEEL BEAM WELDMENT312-512H1.
RCR2596TAILWHEEL ARM ADJUST PLATE312-616D2.
RCR2510 RCRM2510TAILWHEEL BEAM ADJ. BRKT.312-810D2.
TAILWHEEL BEAM MOUNTING BRKT.312-811D3.
GREASE ZERK STRAIGHT 1/4-28800-001C4.
RHSNB 1/2-13X1 1/2 GR5802-106C5.
HHCS 5/8-11X3 1/2 GR5802-162C6.
HHCS 3/4-10X7 1/2 GR5802-280C7.
HHCS 1/2-20X1 1/4 GR5802-326C8.
NUT TOP LOCK 3/4-10 PLT803-026C9.
NUT HEX WHIZ 1/2-13 PLT803-037C10.
NUT HEX TOP LOCK 5/8-11 PLT803-271C11.
NUT HEX 1 1/4-7(MACHINED)PLAIN803-289C12.
WASHER LOCK SPRING 1/2 PLT804-015C13.
WASHER FLAT 1/2 SAE PLT804-016C14.
WASHER MACH 2.25 X 1.50 X 14GA804-066C15.
WASHER FLAT 1 3/8HARD ASTMF436804-171C16.
PIN ROLL 3/8 X 2 1/2 PLT805-255C17.
TIRE & WHEEL LAMINATED 4.0 X 8814-058C18.
LAM 4X8 TR-WL-HUB-YOKE 25 SER.814-161C19.
LAM 4 X 8 TR-WHEEL-HUB 25 SER.814-162C20.
HUB 4 BOLT815-091C21.
HUB & SPINDLE ASSY 4 BOLT815-092C22.
OIL SEAL DBL LIP 2.441 BORE816-286C23.
BEARING CONE 15123822-091C24.
BEARING CUP 15245822-092C25.
BUSHING TW 1.25ODX.78IDX5 1/4827-036C26.
RC25 TAILWHEEL YOKE890-961C27.
RPBY 890-961C890-583C27.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 7
Page 8
Land Pride Section 2: Frame
Table of Contents Part Number Index
CV Trail Type Driveline
Applies to RCR2510, RCR2596, RCRM2510
22342
8 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 9
Section 2: Frame Land Pride
Table of Contents Part Number Index
CV Trail Type Driveline
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22342
PILLOW BLOCK BRG. SUPPORT312-820D1.
GREASE ZERK 1/4-28 X 90-DEG800-073C2.
SCREW SET 5/16-18 SKT KP X 3/8801-035C3.
HHCS 1/2-13X1 1/4 GR5802-034C4.
HHCS 1/2-13X1 3/4 GR5802-082C5.
NUT HEX WHIZ 1/2-13 PLT803-037C6.
BEARING PILLOW BLOCK 1 3/8BORE822-094C7.
RCR2510PTO CV 2400 X 60 540 RPM826-053C8.
RCRM2510PTO CV 2400 X 60 1000 RPM826-063C8.
RCR2510PTO W/STUB SHAFT/SC 540 1 3/4826-225C9.
RCRM2510PTO W/STUB SHAFT/SC 1000 1 3/4826-226C9.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 9
Page 10
Land Pride Section 2: Frame
Table of Contents Part Number Index
Deck 3-Point Hitch Components
Applies to RCR2510, RCR2596, RCRM2510
22332
10 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 11
Section 2: Frame Land Pride
Table of Contents Part Number Index
Deck 3-Point Hitch Components
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22332
PIN 1 1/8 OD X 7 1/8 USABLE300-202S1.
CAT III BUSHING300-429D2.
TUBE RD 2 1/4ODX1 5/32IDX2 5/8300-431D3.
SKID SHOE312-602D4.
SKID SHOE GREEN312-602D814.
SKID SHOE ORANGE312-602H824.
SKID SHOE RED312-602D834.
RCR2596RCR2596 DECK WELDMENT312-739H5.
RCR2596 DECK WELDMENT GREEN312-739H815.
RCR2596 DECK WELDMENT ORANGE312-738H825.
RCR2596 DECK WELDMENT RED312-739H835.
RCR2510 RCRM2510RCR2510 DECK WELDMENT312-738H5.
RCR2510 DECK WELDMENT GREEN312-738H815.
RCR2510 DECK WELDMENT ORANGE312-738H825.
RCR2510 DECK WELDMENT RED312-738H835.
ACCESS COVER PLATE312-812D6.
ACCESS COVER PLATE GREEN312-812D816.
ACCESS COVER PLATE ORANGE312-812D826.
ACCESS COVER PLATE RED312-812D836.
REAR BRACE STRAIGHT SHORT312-816D7.
BUSHING 1 1/4ODX1 1/32IDX2LG312-821D8.
REAR BRACE SHORT312-822D9.
RCR2596REAR BRACE STRAIGHT LONG312-931D10.
RCR2510 RCRM2596REAR BRACE STRAIGHT LONG312-815D10.
RCR2596A-FRAME RH.312-938D11.
RCR2510 RCRM2596A-FRAME HITCH RH.312-813D11.
RCR2596A-FRAME LH.312-939D12.
RCR2510 RCRM2596A-FRAME HITCH LH.312-814D12.
RCR2596REAR BRACE FORMED326-169D13.
RCR2510 RCRM2596REAR BRACE FORMED312-817D13.
HHCS 1/4-20X1 GR5802-005C14.
HHCS 3/4-10X2 GR5802-064C15.
HHCS 1-8X3 1/2 GR5802-169C17.
HHCS 1-8X3 GR5802-368C18.
HHCS 3/4-10X1 3/4 GR5802-392C19.
PLOW 3/8-16X1 GR5802-603C20.
NUT LOCK 3/4-10 PLT803-026C21.
NUT HEX TOP LOCK 1-8 PLT803-168C22.
NUT HEX WHIZ 3/8-16 PLT803-198C23.
NUT WING 3/8-16 PLT803-231C24.
NUT HEX NYLOCK 1/4-20803-255C25.
WASHER FLAT 1/4 SAE PLT804-007C26.
WASHER FLAT 3/8 SAE PLT804-012C27.
WASHER LOCK SPRING 3/8 PLT804-013C28.
WASHER FLAT 3/4 SAE PLT804-025C29.
WASHER FLAT 1 SAE804-029C30.
PIN ROLL 1/4X1 3/4805-041C31.
PIN COTTER 3/16 X 2805-058C32.
PIN CLEVIS 1 X 3 3/16 LG805-090C33.
PIN LINCH 7/16 X 1 3/4805-103C34.
PIN CLEVIS 1 X 2 PLT805-137C35.
PIN HITCH CAT.I-II805-274C36.
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
S/N ______+HHCS 1-8X4 1/2 GR5802-098C16.
S/N ______-HHCS 1-8X4 GR5802-073C16.
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 11
Page 12
Land Pride Section 2: Frame
Table of Contents Part Number Index
Deck 3-Point Hitch Components (continued)
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
PIN 1 1/8 OD X 7 1/8 USABLE805-301C37.
MANUAL STORAGE CONTAINER816-481C38.
BUSHING 1 OD X 3/4 ID X 5/8 LG890-352C39.
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 13
Section 2: Frame Land Pride
Table of Contents Part Number Index
Deck 3-Point Hitch Components (continued)
Applies to RCR2510, RCR2596, RCRM2510
This Page Intentionally Left Blank
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 13
Page 14
Land Pride Section 2: Frame
Table of Contents Part Number Index
Deck Blade Drive
Applies to RCR2510, RCR2596, RCRM2510
22333
14 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 15
Section 2: Frame Land Pride
Table of Contents Part Number Index
Deck Blade Drive
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22333
SHIELD BRACKET WELDMENT312-765H1.
RCR2596DISHPAN WELDMENT 15" CTR312-767H2.
RCR(M)2510DISHPAN WELDMENT 17" CTR312-748H2.
Right HandRCR2596 CW BLADE CARRIER ASSY312-769S3.
Right HandRCR2510 CW BLADE CARRIER ASSY312-749S3.
Left HandRCR2596 CCW BLADE CARRIER ASSY312-770S4.
Left HandRCR2510 CCW BLADE CARRIER ASSY312-750S4.
RCR2596OUTER SHIELD326-116D5.
RCR2510OUTER SHIELD326-101D5.
HHCS 1/2-13X1 1/4 GR5802-034C6.
(S/N 558465+)HHCS 3/4-10X2 1/4 GR5802-065C7.
(S/N 558464-)HHCS 3/4-10X2 GR5802-064C7.
BLADE BOL 1 1/8-12X3 7/16 W/KY802-277C8.
HHCS M8X1.25X20 GR8.8802-314C9.
NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C10.
NUT HEX FLG TOP LK 3/4-10 PLT803-299C11.
WASHER LOCK SPRING 1/2 PLT804-015C12.
WASHER FLAT 1 HARD ASTMF436 PN804-147C13.
WASHER SPRING LOCK M8 PLT804-157C14.
WASHER FLAT M8 PLT804-161C15.
GRBOX SHAFT(1 3/4OD) PROTECTOR817-165C16.
KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C17.
RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CCW820-195C18.
RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CCW820-210C18.
RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CCW820-137C18.
RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CCW820-193C18.
RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CW820-196C19.
RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CW820-211C19.
RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CW820-112C19.
RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CW820-209C19.
RCR2596PTO STD.W/4-PLATE SC CAT4 540826-255C20.
RCR2510PTO STD.W/4-PLATE SC CAT4 540826-215C20.
RCRM2510PTO STD.W/2-PLATE SC CAT4 1000826-216C20.
RCR2596 RCR2510T-BOX 1.75-20 1:1.35826-356C21.
T-BOX 1.75-20 1:1.35 GREEN826-356C8121.
T-BOX 1.75-20 1:1.35 ORANGE826-356C8221.
T-BOX 1.75-20 1:1.35 RED826-356C8321.
RCRM2510T-BOX 1.75-20 1.35:1826-424C21.
T-BOX 1.75-20 1.35:1 GREEN826-424C8121.
T-BOX 1.75-20 1.35:1 ORANGE826-424C8221.
T-BOX 1.75-20 1.35:1 RED826-424C8321.
GBOX 1:1.50 STD. 1.38-6 SPL.826-358C22.
GBOX 1:1.50 STD. 1.38-6 SPL. GREEN826-358C8122.
GBOX 1:1.50 STD. 1.38-6 SPL. ORANGE826-358C8222.
GBOX 1:1.50 STD. 1.38-6 SPL. RED826-358C8322.
RCR2596FLEX CPLR 1.75-20 TO 1.38-6 S826-360C23.
RCR2510 RCRM2510FLEX CPLR 1.75-20 TO 1.38-6826-359C23.
As RequiredBLADE SPACER 16 GA .06 thick312-075D24.
As RequiredBLADE SPACER 18 GA .05 thick312-082D24.
As RequiredBLADE SPACER 20 GA. .04 thick312-089D24.
As RequiredBLADE SPACER 24GA .03 thick312-808D24.
GREASE ZERK STRAIGHT 1/4-28800-001C25.
COMER VENT #8.6.7.00269826-497C26.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 15
Page 16
Land Pride Section 2: Frame
Table of Contents Part Number Index
Equal Angle Pull Type Driveline
Applies to RCR2510, RCR2596, RCRM2510
22341
16 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 17
Section 2: Frame Land Pride
Table of Contents Part Number Index
Equal Angle Pull Type Driveline
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22341
BEARING FLANGE ASSY.312-681S1.
PIPE 1/2 SCH. 40 X 4 15/16312-715D2.
BEARING SUPPORT312-833D3.
BEARING FLANGE312-999D4.
TUBE 1 OD X 11/16 LG. X 5/32w326-002D5.
SNAP RING INT 2.835800-069C6.
HHCS 1/2-13X7 GR5802-260C7.
HHCS 5/8-11X7 GR5802-262C8.
NUT LOCK 1/2-13 PLT803-019C9.
NUT HEX 5/8-11 PLT803-021C10.
WASHER FLAT 5/8 SAE PLT804-021C11.
WASHER LOCK SPRING 5/8 PLT804-022C12.
BRG 1 3/8 B X 72MM OD W/COLLAR822-100C13.
RCR2596 RCR2510PTO CAT. 4 X 20.5 FIXED 540826-151C14.
RCRM2510PTO CAT. 4 X 22 FIXED 1000826-223C14.
RCR2510PTO CAT. 4 JACK SHAFT 540826-220C15.
RCR2596PTO J/S.W/4-PLATE SC CAT4 540826-256C15.
RCRM2510PTO CAT. 4 JACK SHAFT 1000826-221C15.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 17
Page 18
Land Pride Section 2: Frame
Table of Contents Part Number Index
Hydraulic Lift
Applies to RCR2510, RCR2596, RCRM2510
22343
18 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 19
Section 2: Frame Land Pride
Table of Contents Part Number Index
Hydraulic Lift
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22343
HYDRAULIC LIFT COMPLETE312-534A
HOSE HOLDER BRACKET312-729D1.
VENT PLUG - 9/16-18 PLATED800-117C2.
HHCS 3/8-16X1 1/2 GR5802-022C3.
HHCS 3/4-10X1 1/2 GR5802-184C4.
NUT LOCK 3/8-16 PLT803-013C5.
NUT TOP LOCK 3/4-10 PLT803-026C6.
WASHER FLAT 3/8 SAE PLT804-012C7.
PIN CLEVIS 1 X 2 3/4 USABLE LG805-004C8.
PIN, HAIR COTTER 3/16 WIRE DIA805-088C9.
SPRING HOSE LOOP807-023C10.
CYL 2.5X8X1.12 ROD (TIE)1 PIN810-200C11.
STROKE CONTROL SPACERS 1 1/8810-242C12.
AD 9/16MORB 9/16MJIC811-170C13.
CP 3/4FORB MALE QD POPPET TYPE811-394C14.
HH3/8R1 144 3/4MORB 9/16FJIC811-676C15.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 19
Page 20
Land Pride Section 2: Frame
Table of Contents Part Number Index
Pull Type
Applies to RCR2510, RCR2596, RCRM2510
22335
20 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 21
Section 2: Frame Land Pride
Table of Contents Part Number Index
Pull Type
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22335
RCR2510 RCRM2510PIN 1 1/8 OD X 7 1/8 USABLE300-202S1.
CLEVIS WELDMENT312-421H2.
RCR2510 RCRM2510LONG LEVEL ROD WLDMT312-516H3.
RCR2596WLDMT LEVEL ROD LONG312-613H3.
RCR2510 RCRM2510WLDMT TONGUE LONG312-536H4.
RCR2596TONGUE WELDMENT312-513H4.
RCR2510 RCRM2510ASSY. LEVEL ROD312-549L5.
RCR2596ASSY. LEVEL ROD312-629L5.
RCR2596 RCR2510 RCRM2510TUBE 1 5/8 OD X 7/32 WL X1 LG.312-733D6.
WLDMT. LEVEL ROD SHORT318-008H7.
HHCS 1-8X6 1/2 GR5802-074C8.
HHCS 1-8X4 1/2 GR5802-098C9.
HHCS 1-8X2 GR5802-634C10.
NUT HEX JAM 7/8-9803-075C11.
NUT HEX TOP LOCK 1-8 PLT803-168C12.
NUT HEX COUPLER 7/8-9 x 5803-265C13.
WASHER FLAT 3/4 SAE PLT804-025C14.
WASHER FLAT 1 USS PLT804-028C15.
WASHER FLAT 1 SAE804-029C16.
RCR2510 RCRM2510PIN LYNCH 5/16 X 1 3/4805-015C17.
RCR2510 RCRM2510PIN ROLL 1/4X1 3/4805-041C18.
PIN COTTER 5/32 X 1 1/4 LG805-045C19.
PIN CLEVIS 3/4 X 1 1/2805-083C20.
RCR2510 RCRM2510PIN 1 1/8 OD X 7 1/8 USABLE805-301C21.
SCREW JACK 2000# 14-24 TOP-WND890-118C22.
SAFETY CHAIN 10000 LB890-182C23.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 21
Page 22
Land Pride Section 2: Frame
Table of Contents Part Number Index
Pull Type Axle and Tires
Applies to RCR2510, RCR2596, RCRM2510
22336
22 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 23
Section 2: Frame Land Pride
Table of Contents Part Number Index
Pull Type Axle and Tires
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22336
HUB GREASE CAP200-001D1.
RCR2510 RCRM2510AXLE WELDMENT312-511H2.
RCR2596AXLE WELDMENT312-475H2.
SPRING SHOCK WLDMT312-515H3.
RCR2510 RCRM2510LONG LEVEL ROD WLDMT312-516H4.
RCR2596WLDMT LEVEL ROD LONG312-613H4.
RCR2510 RCRM2510ASSY. LEVEL ROD312-549L5.
RCR2596ASSY. LEVEL ROD312-629L5.
TUBE 1 OD X 12 GA X 15/16 LG.312-712D6.
SPRING SHOCK SUPPORT312-804D7.
WLDMT. LEVEL ROD SHORT318-008H8.
HHCS 3/4-10X2 1/4 GR5802-065C9.
BOLT WHEEL 1/2-20X1 90-DEG802-104C10.
HHCS 1/2-20X1 1/4 GR5802-326C11.
HHCS 3/4-10X6 1/2 GR5802-360C12.
HHCS 1-8X3 GR5802-368C13.
NUT LOCK 3/4-10 PLT803-026C14.
NUT HEX SLOTTED 7/8-14 PLT803-029C15.
NUT HEX JAM 7/8-9803-075C16.
NUT HEX TOP LOCK 1-8 PLT803-168C17.
NUT HEX COUPLER 7/8-9 x 5803-265C18.
WASHER LOCK SPRING 1/2 PLT804-015C19.
WASHER FLAT 1/2 SAE PLT804-016C20.
WASHER FLAT 3/4 USS PLT804-024C21.
WASHER FLAT 1 SAE804-029C22.
WASHER SPINDLE - 7/8804-055C23.
PIN COTTER 3/16 X 1 1/4 PLT805-016C24.
PIN COTTER 5/32 X 1 1/4 LG805-045C25.
PIN CLEVIS 3/4 X 1 1/2805-083C26.
PIN, HAIR COTTER 3/16 WIRE DIA805-088C27.
PIN CLEVIS 1 X 3 3/16 LG805-090C28.
PIN COTTER 3/16 X 1 1/2 PLT805-104C29.
PIN CLEVIS 1 X 2 1/4 GR5 PLT805-187C30.
SPRING COMP 1.88OD x .362W807-143C31.
TIRE & WHEEL LAM. 6X9X21(TALL)814-059C32.
WHEEL 15 X 5 X 4 BOLT814-066C33.
AC TIRE 24 X 7.7 2PC814-263C34.
TIRE 24X7.7-14 (814-263C)814-266C35.
RIM 2PC. 4BLT 10X6 BLACK814-267C36.
TUBE FOR 24X7.7-14 (814-263C)814-268C37.
HUB 4 BOLT WHL W/CUPS & ZERK815-093C38.
SEAL 1 3/8 ID X 2.441 OD X.313816-098C39.
BEARING CONE 15123822-091C40.
BEARING CUP 15245822-092C41.
RATCHET JACK - HEAVY DUT890-177C42.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 23
Page 24
Land Pride Section 3: Guards
Table of Contents Part Number Index
Guarding Chain
Applies to RCR2596
22338
24 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 25
Section 3: Guards Land Pride
Table of Contents Part Number Index
Guarding Chain
Applies to RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22338
96" REAR CHAIN COMPLETE312-616A1.
96" FRONT CHAIN COMPLETE312-775A2.
FRONT CHAIN GUARD ASSY. RH312-777K3.
FRONT CHAIN GUARD ASSY. LH312-778K4.
REAR CHAINGUARD BRACKET312-940D5.
ROD 1/4 X 59312-942D6.
ROD 1/4 X 51312-943D7.
96 FRONT CHAIN GUARD RH326-126D8.
96 FRONT CHAIN GUARD LH326-127D9.
RHSNB 1/2-13X1 GR5802-183C10.
RHSNB 1/2-13X1 1/4 GR5802-214C11.
NUT HEX WHIZ 1/2-13 PLT803-037C12.
CHAIN WELD 5/16 PROOF X 5 LINK890-341C13.
CHAIN WELD 5/16 PROOF X 4 LINK890-400C14.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 25
Page 26
Land Pride Section 3: Guards
Table of Contents Part Number Index
Guarding Chain
Applies to RCR2510, RCRM2510
22340
26 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 27
Section 3: Guards Land Pride
Table of Contents Part Number Index
Guarding Chain
Applies to RCR2510, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22340
3510 REAR CHAIN COMPLETE312-503A1.
2510 FRONT CHAIN COMPLETE312-751A2.
ASSY. FRONT OUTER LH. CHNGRD.312-754K3.
ASSY. FRONT OUTER RH. CHNGRD.312-755K4.
ASSY. FRONT CENTER CHAINGUARD312-758K5.
FRT. CHAINGUARD BRACKET CTR.312-823D6.
ROD 1/4 X 63312-826D7.
REAR CHAINGUARD BRACKET312-827D8.
FRONT CHAINGUARD BRACKET RH326-097D9.
FRONT CHAINGUARD BRACKET LH326-098D10.
ROUND ROD 1/4 X 32326-099D11.
RHSNB 1/2-13X1 GR5802-183C12.
NUT HEX WHIZ 1/2-13 PLT803-037C13.
CHAIN WELD 5/16 PROOF X 5 LINK890-341C14.
CHAIN WELD 5/16 PROOF X 4 LINK890-400C15.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 27
Page 28
Land Pride Section 3: Guards
Table of Contents Part Number Index
Guarding Rubber
Applies to RCR2596
22337
28 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 29
Section 3: Guards Land Pride
Table of Contents Part Number Index
Guarding Rubber
Applies to RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22337
96" REAR RUBBER COMPLETE312-618A1.
96" FRONT RUBBER COMPLETE312-774A2.
Left Hand or Right HandFRONT RUBBER DEFLECTOR ASSY.312-776K3.
DEFLECTOR STRAP312-936D4.
FRONT DEFLECTOR BRACKET326-123D5.
DEFLECTOR STRAP326-124D6.
RHSNB 1/2-13X1 1/2 GR5802-106C7.
RHSNB 3/8-16X1 1/4 GR5802-155C8.
RHSNB 1/2-13X1 1/4 GR5802-214C9.
NUT HEX WHIZ 1/2-13 PLT803-037C10.
NUT HEX WHIZ 3/8-16 PLT803-198C11.
REAR RUBBER DEFLECTOR816-299C12.
FRONT RUBBER DEFLECTOR816-397C13.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 29
Page 30
Land Pride Section 3: Guards
Table of Contents Part Number Index
Guarding Rubber
Applies to RCR2510, RCRM2510
22339
30 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 31
Section 3: Guards Land Pride
Table of Contents Part Number Index
Guarding Rubber
Applies to RCR2510, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22339
3510 REAR RUBBER COMPLETE312-505A1.
Includes 1 Ea #3,4 & 52510 FRONT RUBBER COMPLETE312-752A2.
ASSY. FRT. OUTER RH DEFLECTOR312-756K3.
ASSY. FRT. OUTER LH DEFLECTOR312-757K4.
ASSY. FRONT CENTER DEFLECTOR312-759K5.
FRT. DEFLECTOR BRACKET CTR.312-830D6.
FRT.CTR.DEFLECTOR STRAP312-834D7.
REAR DEFLECTOR STRAP312-836D8.
FRONT DEFLECTOR BRACKET LH326-088D9.
FRONT DEFLECTOR BRACKET RH326-089D10.
DEFLECTOR STRAP326-095D11.
RHSNB 1/2-13X1 1/2 GR5802-106C12.
RHSNB 3/8-16X1 1/4 GR5802-155C13.
RHSNB 1/2-13X1 1/4 GR5802-214C14.
NUT HEX WHIZ 1/2-13 PLT803-037C15.
NUT HEX WHIZ 3/8-16 PLT803-198C16.
FRT. CTR. RUBBER DEFLECTOR816-272C17.
REAR RUBBER DEFLECTOR816-274C18.
FRT OUTER RUBBER DEFLECTOR816-384C19.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 31
Page 32
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 1000 RPM (826-216C) Eurocardan
Applies to RCRM2510
22283
32 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 33
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 1000 RPM (826-216C) Eurocardan
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22283
PTO STD.W/2-PLATE SC CAT4 1000826-216C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770676.
EC OUTER TUBE SHEILD18760677.
EC STANDARD CONE18857038.
EC TUBE BEARING (OUTER TUBE)17867109.
EC CLUTCH FD2/6 1 3/4 20 SPL140601610.
EC CROSS ASSEMBLY100602011.
EC INNER TUBE YOKE170602912.
EC INNER TUBE 770MM152607713.
EC 10X70 ROLL PIN633107014.
EC OUTER TUBE 770MM152807715.
EC 10X80-DIN-1481 O/TUBE R/PIN633108016.
EC OUTER TUBE YOKE170602717.
EC YOKE ASSEMBLY (TRACT. END)101601518.
DECAL DANGER GUARD MISS PTO818-540C19.
DECAL DANGER PTO DRIVELINE818-552C20.
DRIVELINE SHIELD SAFETY CHAIN04432121.
EC GREASE ZERK 8X1 45 DEG.656050822.
EC TWIST COLLAR KIT (TRT. END)100422023.
EC GREASE ZERK M6X1 STRAIGHT656000624.
EC YOKE ASSEMBLY (TRACTOR END)101601725.
EC PULL COLLAR KIT100422526.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 33
Page 34
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 1000 RPM (826-221C) Eurocardan
Applies to RCRM2510
16173
34 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 35
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 1000 RPM (826-221C) Eurocardan
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16173
PTO CAT. 4 JACK SHAFT 1000826-221C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770796.
DRIVELINE SHIELD SAFETY CHAIN0443217.
EC OUTER TUBE SHEILD18760798.
EC EXTRA SHORT CONE (FOR MX)18857059.
EC TUBE BEARING (OUTER TUBE)178671010.
EC OUTER TUBE ASSY1896084N32711.
EC 10X70 ROLL PIN633107012.
EC INNER TUBE (1526084) 840MM152608513.
EC INNER TUBE YOKE170602914.
EC CROSS ASSEMBLY100602015.
EC TORQUE LIMITER, (FD 2)140602816.
DECAL DANGER PTO DRIVELINE818-552C17.
DECAL DANGER GUARD MISS PTO818-540C18.
EC GREASE ZERK 8X1 45 DEG.656050819.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 35
Page 36
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 1000 RPM (826-223C) Eurocardan
Applies to RCRM2510
16370
36 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 37
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 1000 RPM (826-223C) Eurocardan
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16370
PTO CAT. 4 X 22 FIXED 1000826-223C
EC TUBE BEARING (OUTER TUBE)17867101.
EC STIFFENING RING12157332.
EC LONG CONE18857043.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC OUTER TUBE 340MM1876034D6.
EC STANDARD CONE18857037.
EC YOKE ASSY 1 3/8-6(IMP. END)11160108.
EC CROSS ASSEMBLY10060209.
EC OUTER TUBE YOKE170602710.
EC OUTER TUBE1528044D11.
EC 10X80-DIN-1481 O/TUBE R/PIN633108012.
EC YOKE ASSEMBLY (TRACT. END)101601513.
DECAL DANGER GUARD MISS PTO818-540C14.
DECAL DANGER PTO DRIVELINE818-552C15.
DRIVELINE SHIELD SAFETY CHAIN04432116.
EC GREASE ZERK 8X1 45 DEG.656050817.
EC TWIST COLLAR KIT (TRT. END)100422018.
EC TWIST COLLAR KIT (IMP. END)100422419.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 37
Page 38
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 1000 RPM (826-226C) Eurocardan
Applies to RCRM2510
15995
38 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 39
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 1000 RPM (826-226C) Eurocardan
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15995
PTO W/STUB SHAFT/SC 1000 1 3/4826-226C
EC TUBE BEARING (OUTER TUBE)17867101.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
DRIVELINE SHIELD SAFETY CHAIN0443216.
EC OUTER TUBE SHEILD1876025D7.
EC EXTRA SHORT CONE (FOR MX)18857058.
Rev. 2EC OUTER TUBE ASSY (HRDND)1896028S8219.
Rev. 1EC OUTER TUBE ASSY1896028D8219.
EC 10X80-DIN-1481 O/TUBE R/PIN633108010.
EC OUTER TUBE YOKE170602711.
EC CROSS ASSEMBLY100602012.
EC CLUTCH FD2/6 1 3/4 20 SPL140601613.
DECAL DANGER PTO DRIVELINE818-552C14.
DECAL DANGER GUARD MISS PTO818-540C15.
EC GREASE ZERK 8X1 45 DEG.656050816.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 39
Page 40
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 540 RPM (826-151C) Eurocardan
Applies to RCR2510, RCR2596
16610
40 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 41
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 540 RPM (826-151C) Eurocardan
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16610
PTO CAT. 4 X 20.5 FIXED 540826-151C
EC TUBE BEARING (OUTER TUBE)17867101.
EC STIFFENING RING12157332.
EC LONG CONE18857043.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC OUTER TUBE SHIELD1876030D6.
EC STANDARD CONE18857037.
EC YOKE ASSY 1 3/8-6(IMP. END)11160108.
EC CROSS ASSEMBLY10060209.
EC OUTER TUBE YOKE170602710.
EC 10X80-DIN-1481 O/TUBE R/PIN633108011.
EC OUTER TUBE1528040D12.
EC YOKE ASSEMBLY (TRACT. END)101601013.
DECAL DANGER GUARD MISS PTO818-540C14.
DECAL DANGER PTO DRIVELINE818-552C15.
DRIVELINE SHIELD SAFETY CHAIN04432116.
EC GREASE ZERK 8X1 45 DEG.656050817.
EC TWIST COLLAR KIT (IMP. END)100422418.
EC TWIST COLLAR KIT (TRT. END)100422019.
EC YOKE ASSEMBLY101601320.
EC PULL COLLAR KIT100422521.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 41
Page 42
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 540 RPM (826-215C) Eurocardan
Applies to RCR2510
22283
42 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 43
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 540 RPM (826-215C) Eurocardan
Applies to RCR2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22283
PTO STD.W/4-PLATE SC CAT4 540826-215C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770676.
EC OUTER TUBE SHEILD18760677.
EC STANDARD CONE18857038.
EC TUBE BEARING (OUTER TUBE)17867109.
EC CLUTCH FD4/6 1 3/4 20 SPL144601610.
EC CROSS ASSEMBLY100602011.
EC INNER TUBE YOKE170602912.
EC INNER TUBE 770MM152607713.
EC 10X70 ROLL PIN633107014.
EC OUTER TUBE 770MM152807715.
EC 10X80-DIN-1481 O/TUBE R/PIN633108016.
EC OUTER TUBE YOKE170602717.
EC YOKE ASSEMBLY (TRACT. END)101601518.
DECAL DANGER GUARD MISS PTO818-540C19.
DECAL DANGER PTO DRIVELINE818-552C20.
DRIVELINE SHIELD SAFETY CHAIN04432121.
EC GREASE ZERK 8X1 45 DEG.656050822.
EC TWIST COLLAR KIT (TRT. END)100422023.
EC GREASE ZERK M6X1 STRAIGHT656000624.
EC YOKE ASSEMBLY (TRACTOR END)101601325.
EC PULL COLLAR KIT100422526.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 43
Page 44
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 540 RPM (826-220C) Eurocardan
Applies to RCR2510
16173
44 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 45
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 540 RPM (826-220C) Eurocardan
Applies to RCR2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16173
PTO CAT. 4 JACK SHAFT 540826-220C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770796.
DRIVELINE SHIELD SAFETY CHAIN0443217.
EC OUTER TUBE SHEILD18760798.
EC EXTRA SHORT CONE (FOR MX)18857059.
EC TUBE BEARING (OUTER TUBE)178671010.
EC OUTER TUBE ASSY1896084N32711.
EC 10X70 ROLL PIN633107012.
EC INNER TUBE (1526084) 840MM152608513.
EC INNER TUBE YOKE170602914.
EC CROSS ASSEMBLY100602015.
EC CLUTCH FD4/6 1 3/4 20 SPL144603716.
DECAL DANGER PTO DRIVELINE818-552C17.
DECAL DANGER GUARD MISS PTO818-540C18.
EC GREASE ZERK 8X1 45 DEG.656050819.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 45
Page 46
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 540 RPM (826-255C) Eurocardan
Applies to RCR2510, RCR2596
22283
46 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 47
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 540 RPM (826-255C) Eurocardan
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22283
PTO STD.W/4-PLATE SC CAT4 540826-255C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770526.
EC OUTER TUBE SHEILD18760527.
EC STANDARD CONE18857038.
EC TUBE BEARING (OUTER TUBE)17867109.
EC CLUTCH FD4/6 1 3/4 20 SPL144601610.
EC CROSS ASSEMBLY100602011.
EC INNER TUBE YOKE170602912.
EC INNER TUBE (1526084) 620MM152606213.
EC 10X70 ROLL PIN633107014.
EC 840MM OUT. STOCK LENGTH TB.152808415.
EC 10X80-DIN-1481 O/TUBE R/PIN633108016.
EC OUTER TUBE YOKE170602717.
YOKE ASSEMBLY PULL TYPE101601218.
DECAL DANGER GUARD MISS PTO818-540C19.
DECAL DANGER PTO DRIVELINE818-552C20.
DRIVELINE SHIELD SAFETY CHAIN04432121.
EC GREASE ZERK 8X1 45 DEG.656050822.
ShownEC TWIST COLLAR KIT (TRT. END)100422023.
EC GREASE ZERK M6X1 STRAIGHT656000624.
EC YOKE ASSEMBLY (TRACTOR END)101601725.
EC PULL COLLAR KIT100422526.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 47
Page 48
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline 540 RPM (826-256C) Eurocardan
Applies to RCR2510, RCR2596
16173
48 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 49
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline 540 RPM (826-256C) Eurocardan
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16173
PTO J/S.W/4-PLATE SC CAT4 540826-256C
EC TUBE BEARING (INNER TUBE)17867111.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
EC INNER TUBE SHEILD18770646.
DRIVELINE SHIELD SAFETY CHAIN0443217.
EC OUTER TUBE SHEILD18760648.
EC EXTRA SHORT CONE (FOR MX)18857059.
EC TUBE BEARING (OUTER TUBE)178671010.
OUT SPLNE TRIANGULAR TBE 690MM1896069N32711.
EC 10X70 ROLL PIN633107012.
EC INNER TUBE (1526084) 840MM152607013.
EC INNER TUBE YOKE170602914.
EC CROSS ASSEMBLY100602015.
EC CLUTCH FD4/6 1 3/4 20 SPL144603716.
DECAL DANGER PTO DRIVELINE818-552C17.
DECAL DANGER GUARD MISS PTO818-540C18.
EC GREASE ZERK 8X1 45 DEG.656050819.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 49
Page 50
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline CV 1000 RPM (826-063C) Walterscheid
Applies to RCRM2510
10452
50 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 51
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline CV 1000 RPM (826-063C) Walterscheid
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10452
PTO CV 2400 X 60 1000 RPM826-063C
WS YOKE 1 3/8-21 SPL3206841.
WS BOLT M12 X 750204692.
WALTERSCHEID SELF-LCKG HEX NUT0104903.
WS YOKE 1 3/8-21 SP3808834.
WS GREASE ZERK0206725.
WS DOUBLE YOKE3657226.
WS CROSS & BEARING KIT3422217.
WS INBOARD YOKE0195198.
WS SPRING PIN 10 X 200206179.
WS PROFILE & SLEEVE38308410.
WS INNER PROFILE 16 GA32124511.
WS INBOARD YOKE01951912.
WALTERSCHEID DNGR DECAL-STEEL38333413.
WS SHIELD CONE 6 RIB37733614.
WALTERSCHEID SCREW36530515.
WS BEARING RING - SC2508727616.
WALTERSCHEID SAFETY CHAIN04432117.
WS INNER SHIELD TUBE-ROUND38406418.
WALTERSCHEID DANGER DECAL-SHLD38333319.
WS OUTER SHIELD TUBE OVL38843420.
WS SHIELD CONE 3 RIB17275821.
WS CROSS BEARING KIT31241022.
WS SUPPORT BEARING35515523.
WS CV CONE & BEARING ASSY38608324.
WS ZERK38037125.
WS QUICK DISCONNECT KIT38190826.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 51
Page 52
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline CV 540 RPM (826-053C) Walterscheid
Applies to RCR2510
10452
52 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 53
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline CV 540 RPM (826-053C) Walterscheid
Applies to RCR2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10452
PTO CV 2400 X 60 540 RPM826-053C
WS YOKE 1 3/8-21 SPL3206841.
WS BOLT M12 X 750204692.
WALTERSCHEID SELF-LCKG HEX NUT0104903.
WS YOKE 1 3/8-6 SPL3808824.
WS GREASE ZERK0206725.
WS DOUBLE YOKE3657226.
WS CROSS & BEARING KIT3422217.
WS INBOARD YOKE0195198.
WS SPRING PIN 10 X 200206179.
WS PROFILE & SLEEVE38264710.
WS INNER PROFILE 16 GA09575811.
WS INBOARD YOKE34158612.
WALTERSCHEID DNGR DECAL-STEEL38333413.
WS SHIELD CONE 6 RIB37733614.
WALTERSCHEID SCREW36530515.
WS BEARING RING - SC2508727616.
WALTERSCHEID SAFETY CHAIN04432117.
WS INNER SHIELD TUBE ROUND38243718.
WALTERSCHEID DANGER DECAL-SHLD38333319.
WS OUTER SHIELD TUBE OVL38312820.
WS SHIELD CONE 3 RIB17275821.
WS CROSS BEARING KIT31241022.
WS SUPPORT BEARING35515523.
WS CV CONE & BEARING ASSY38608324.
WS ZERK38037125.
WS QUICK DISCONNECT KIT38190826.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 53
Page 54
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Flex Coupler (826-359C) Eurocardan
Applies to RCR2510, RCRM2510
22345
54 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 55
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Flex Coupler (826-359C) Eurocardan
Applies to RCR2510, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22345
FLEX CPLR 1.75-20 TO 1.38-6826-359C
EC CONNECTION HUB17052671.
EC WSH. BD. 35mm O.D/16.5mm I.D12352872.
EC RUBBER DISC17852733.
EC NUT64107164.
EC FLANGE WELDMENT10052405.
EC YOKE 1 3/8 Z6 INDUCT. HARD17062246.
EC BOLT61416607.
EC BOLT BUSHING15352758.
EC WASHER 29.8mm O.D/17.2mm I.D64120169.
CONICAL DOG KIT682148410.
EC CROSS ASSEMBLY100602011.
EC GREASE ZERK M6X1 STRAIGHT656000612.
FLEX COUPLER KIT (ONE DISC)312-600A13.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 55
Page 56
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Flex Coupler (826-360C) Eurocardan
Applies to RCR2596
22350
56 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 57
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Flex Coupler (826-360C) Eurocardan
Applies to RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22350
FLEX CPLR 1.75-20 TO 1.38-6826-360C
*
EC BOLT61416601.
EC CONNECTION HUB17052672.
EC WSH. BD. 35mm O.D/16.5mm I.D12352873.
EC BOLT BUSHING15352754.
EC RUBBER DISC17852735.
EC WASHER 29.8mm O.D/17.2mm I.D64120166.
EC NUT64107167.
EC SPIDER TUBE10052418.
EC GREASE ZERK M8 STRAIGHT65602089.
FLEX COUPLER KIT (ONE DISC)312-600A10.
CONICAL DOG KIT682148411.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 57
Page 58
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Slip Clutch (1406016) Eurocardan
Applies to RCRM2510
15523
58 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 59
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Slip Clutch (1406016) Eurocardan
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15523
EC CLUTCH FD2/6 1 3/4 20 SPL1406016
RPBY 330-297A12150121.
EC CLUTCH YOKE W/FLANGE17060332.
EC CLUTCH BUSHING17050093.
EC CLUTCH LINING RING18080104.
EC HUB WITH FLANGE17080175.
EC CONICAL DOG KIT REPLACEMENT68214836.
EC INNER DISK11380087.
EC PRESSURE DISK11380078.
EC COMPLETE BOLT66910809.
Contains 8 SpringsSV KIT, EC SLIP CLUTCH SPRING330-297A10.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 59
Page 60
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Slip Clutch (1406028) Eurocarda
Applies to RCRM2510
22375
60 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 61
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Slip Clutch (1406028) Eurocarda
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22375
EC TORQUE LIMITER, (FD 2)1406028
EC CLUTCH YOKE W/FLANGE17060331.
FD2 HUB 1 3/4 WITH FLANGE17063142.
REP BY 803-279C64110103.
EC BOLT (M10X85)60010854.
RPBY 330-297A12150125.
EC PRESSURE DISK11380076.
EC INNER DISK11380087.
EC CLUTCH LINING RING18080108.
EC BOLT67614809.
EC CLUTCH BUSHING170500910.
SV KIT, EC SLIP CLUTCH SPRING330-297A11.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 61
Page 62
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Slip Clutch (1446016) Eurocardan
Applies to RCR2510, RCR2596
15521
62 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 63
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Slip Clutch (1446016) Eurocardan
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15521
EC CLUTCH FD4/6 1 3/4 20 SPL1446016
RPBY 330-297A12150121.
EC CLUTCH YOKE W/FLANGE17060332.
EC CLUTCH BUSHING17050093.
EC CLUTCH LINING RING18080104.
EC CLUTCH MIDDLE DISK17080345.
EC INNER DISK11380086.
EC HUB WITH FLANGE17080167.
EC CONICAL DOG KIT REPLACEMENT68214838.
EC PRESSURE DISK11380079.
EC BOLT & SCREW NUT KIT REPL.669101010.
Contains 8 SpringsSV KIT, EC SLIP CLUTCH SPRING330-297A11.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 63
Page 64
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Slip Clutch (1446037) Eurocardan
Applies to RCR2510, RCR2596
16561
64 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 65
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Slip Clutch (1446037) Eurocardan
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16561
EC CLUTCH FD4/6 1 3/4 20 SPL1446037
NUT HEX M10X1.5 PLT803-279C1.
RPBY 330-297A12150122.
EC CLUTCH YOKE W/FLANGE17060333.
EC CLUTCH BUSHING17050094.
EC CLUTCH LINING RING18080105.
EC CLUTCH MIDDLE DISK17080346.
EC INNER DISK11380087.
EC HUB WITH FLANGE17063138.
EC BOLT (M14X80)61414809.
EC SCREW NUT (M14)641011410.
EC WASHER (d14)641211411.
EC PRESSURE DISK113800712.
EC BOLT (M10X100)600101013.
Contains 8 SpringsSV KIT, EC SLIP CLUTCH SPRING330-297A14.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 65
Page 66
Land Pride Section 4: Drivelines
Table of Contents Part Number Index
Driveline Stub Shaft Pull Type 540 RPM (826-225C) Eurocardan
Applies to RCR2510
15995
66 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 67
Section 4: Drivelines Land Pride
Table of Contents Part Number Index
Driveline Stub Shaft Pull Type 540 RPM (826-225C) Eurocardan
Applies to RCR2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15995
PTO W/STUB SHAFT/SC 540 1 3/4826-225C
EC TUBE BEARING (OUTER TUBE)17867101.
EC STIFFENING RING12157332.
EC SHORT CONE18857023.
EC STOP RING12157354.
EC SAFETY SLEEVE18857095.
DRIVELINE SHIELD SAFETY CHAIN0443216.
EC OUTER TUBE SHEILD1876023D7.
EC EXTRA SHORT CONE (FOR MX)18857058.
Rev. 2EC OUTER TUBE ASSY (HRDND)1896030S8219.
Rev. 1EC OUTER TUBE ASSY1896030D8219.
EC 10X80-DIN-1481 O/TUBE R/PIN633108010.
EC OUTER TUBE YOKE170602711.
EC CROSS ASSEMBLY100602012.
EC CLUTCH FD4/6 1 3/4 20 SPL144603713.
DECAL DANGER PTO DRIVELINE818-552C14.
DECAL DANGER GUARD MISS PTO818-540C15.
EC GREASE ZERK 8X1 45 DEG.656050816.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 67
Page 68
Land Pride Section 5: Gearboxes
Table of Contents Part Number Index
Gearbox (826-356C) Comer
Applies to RCR2510, RCR2596
22346
68 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 69
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
Gearbox (826-356C) Comer
Applies to RCR2510, RCR2596
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22346
T-BOX 1.75-20 1:1.35826-356C
CO CASING0.279.0305.001.
CO NUT LOCK M45 X 1.50.278.7104.002.
CO BOLT M8X22 HHB8.1.1.005013.
CO THROUGH SHAFT 1 3/4" Z200.279.3016.004.
CO SHIM 45.3X2.50.252.7525.005.
CO LABEL0.124.7135.006.
CO GEAR CROWN Z27 M5.70.279.6001.007.
CO GEAR PINION Z20 M5.70.279.5001.008.
CO SHIM (45.3X65.3X1)0.252.7510.009.
CO PARALLEL KEY B 14 X 9 X 408.4.1.0097810.
CO DUST LIP 45 X 72 X 88.7.1.0268611.
CO COVER0.279.1315.0012.
CO RL BRG 30309 (45X100X27.25)8.0.9.0010713.
CO INPUT SHAFT 1 3/4" Z200.279.2013.0014.
CO EXTENSION0.279.1313.0015.
CO BEARING 322098.0.9.0012516.
CO OIL SEAL 52 X 85 X 108.7.3.0268517.
REP BY A252.5000.252.7500.0018.
CO PLUG 3/8 GAS8.6.6.0020119.
CO OIL FILLER PLUG 3/88.6.7.0016120.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 69
Page 70
Land Pride Section 5: Gearboxes
Table of Contents Part Number Index
Gearbox (826-358C) Comer
Applies to RCR2510, RCR2596, RCRM2510
22347
70 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 71
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
Gearbox (826-358C) Comer
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22347
GBOX 1:1.50 STD. 1.38-6 SPL.826-358C
REP BY A.248.5000.248.7500.001.
CO BOLT M8X22 HHB 8.88.1.1.000412.
CO 1/2" GAS OIL PLUG W/EMB HEX8.6.6.000883.
CO COVER0.140.1302.004.
CO CROW Z21 M5.70.132.6004.005.
REP BY 822-167C8.0.9.000266.
CO CASTING & MACHINING0.140.0300.007.
CO SNAP RING INT 72 UN174378.5.2.001318.
CO OIL SEAL 35 X 72 X 108.7.3.000559.
CO INPUT SHAFT0.140.2000.0010.
CO NUT M30 X 1.50.132.7106.0011.
CO CONIC PIGNON Z14 M5.70.116.6204.0012.
CO SHIM 50.3X70.30.712.7500.0013.
REP BY 04-0118.0.9.0046914.
CO SEAL (50x90x10)8.7.1.0110715.
CO SEAL RETAINER0.139.7100.0016.
CO COTTER PIN B4 X 508.4.7.0111117.
CO OUTPUT SHAFT0.140.3002.0018.
CO BLANK WASHER0.139.7101.0019.
CO CASTLE NUT M30X2 (8.8)0.140.7102.0020.
CO PLUG 3/8 GAS8.6.6.0020121.
REP BY 822-166C8.0.1.0087022.
CO CAP 72 X 108.7.0.0074423.
CO SHIM 44X30.3X10.102.7510.0024.
CO COTTER PIN B6 X 608.4.7.0014625.
CO 1/2" GAS BREATHER PLUG8.6.7.0026926.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 71
Page 72
Land Pride Section 5: Gearboxes
Table of Contents Part Number Index
Gearbox (826-424C) Comer
Applies to RCRM2510
22348
72 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 73
Section 5: Gearboxes Land Pride
Table of Contents Part Number Index
Gearbox (826-424C) Comer
Applies to RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22348
T-BOX 1.75-20 1.35:1826-424C
CO CASING0.279.0305.001.
CO NUT LOCK M45 X 1.50.278.7104.002.
CO BOLT M8X22 HHB8.1.1.005013.
CO THROUGH SHAFT 1 3/4" Z200.279.3016.004.
CO SHIM 45.3X2.50.252.7525.005.
CO GEAR PINION Z20 M5.70.279.5001.006.
CO GEAR CROWN Z27 M5.70.279.6001.007.
CO SHIM (45.3X65.3X1)0.252.7510.008.
CO PARALLEL KEY B 14 X 9 X 408.4.1.009789.
CO DUST LIP 45 X 72 X 88.7.1.0268610.
CO COVER0.279.1315.0011.
CO RL BRG 30309 (45X100X27.25)8.0.9.0010712.
CO INPUT SHAFT 1 3/4" Z200.279.2013.0013.
CO EXTENSION0.279.1313.0014.
CO BEARING 322098.0.9.0012515.
CO OIL SEAL 52 X 85 X 108.7.3.0268516.
CO SHIM 65.3MM RTA25A252.50017.
CO PLUG 3/8 GAS8.6.6.0020118.
CO OIL FILLER PLUG 3/88.6.7.0016119.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 73
Page 74
Land Pride Section 6: Hydraulics
Table of Contents Part Number Index
Hydraulic Cylinder (810-200C) Midway
Applies to RCR2510, RCR2596, RCRM2510
10219
74 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 75
Section 6: Hydraulics Land Pride
Table of Contents Part Number Index
Hydraulic Cylinder (810-200C) Midway
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg10219
CYL 2.5X8X1.12 ROD (TIE)1 PIN810-200C
MW TUBE 2-1/2 X 8 X 1-1/8 ROD5M31161.
MW ROD2M33162.
MW ROD CLEVIS1M60063.
MW NUT CLEVIS & TIE ROD2A00124.
MW CAPSCREW2A00065.
MW TIE ROD7M33166.
MW NUT CLEVIS & TIE ROD2A00127.
MW HEAD3M33108.
Only found in seal kit item 19O-RING9.
Only found in seal kit item 19BACK-UP10.
Only found in seal kit item 19WIPER SEAL11.
Only found in seal kit item 19O-RING12.
MW PISTON 2 1/2 CYL4M310213.
MW BASE6M312614.
MW NUT, PISTON2A002215.
Only found in seal kit item 19BACK-UP16.
MW CLEVIS PIN2A020817.
MW PIN CLIP2A013218.
SEAL KIT MW 2.5 CYL 3A3102810-210C19.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 75
Page 76
Land Pride Section 6: Hydraulics
Table of Contents Part Number Index
Hydraulic Cylinder (810-200C) Red Lion
Applies to RCR2510, RCR2596, RCRM2510
25901
76 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 77
Section 6: Hydraulics Land Pride
Table of Contents Part Number Index
Hydraulic Cylinder (810-200C) Red Lion
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg25901
CYL 2.5X8X1.12 ROD (TIE)1 PIN810-200C
*
NUT HEX 3/8-16 PLT803-014C1.
MON PISTON NUT1305562.
LION PIN1349533.
MON CLEVIS PIN COTTER1359954.
SCREW SET SH 3/8-16X3/8 TYPE C801-023C5.
PLUG 9/16-18UNF MORB SOCKET HD1865616.
Only Found in Kit #20MON ROD SEALN/A7.
Only Found in Kit #20MON PISTON SEALN/A8.
Only Found in Kit #20MON END CAP BACKUP WASHERSN/A9.
Only Found in Kit #20MON END CAP O-RINGN/A10.
Only Found in Kit #20LION WIPER SEALN/A11.
Only Found in Kit #20MON PISTON WEAR RINGN/A12.
LION CYL.TUBE 2.5 X 849166813.
LION TIE ROD 3/8, 8 CYL49221814.
LION ROD CLEVIS 1 1/8-12UNF49265015.
LION CLEVIS CAP 2.5, 9/16 ORB49268816.
LION ROD 1.125 ASAE 849269917.
LION ROD CAP 2.5X1.125-9/16ORB49271118.
MON PISTON49476819.
MON SEALS REPAIR KIT64500420.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 77
Page 78
Land Pride Section 7: Labels
Table of Contents Part Number Index
Label Placement
Applies to RCR2510, RCR2596, RCRM2510
22353
78 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 79
Section 7: Labels Land Pride
Table of Contents Part Number Index
Label Placement
Applies to RCR2510, RCR2596, RCRM2510
RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22353
RCR2596 DECAL PACKAGE312-570A
RCR2510 DECAL PACKAGE312-527A
RCRM2510 DECAL PACKAGE312-533A
DECAL CAUTION 540 RPM818-130C1.
DECAL DANGER PTO DRIVELINE EN818-142C2.
DECAL FLAG818-190C3.
DECAL RC120 BLADE ROTATION818-225C4.
S/N 521802+DECAL AMBER NARROW REFLECTOR838-062C5.
S/N 521801-DECAL AMBER REFLECTOR818-229C5.
S/N 521802+DECAL RED NARROW REFLECTOR818-335C6.
S/N 521801-DECAL RED REFLECTOR818-230C6.
DECAL DANGER PD GUARD MISS SML818-543C7.
DECAL DANGER PTO DRIVELINE818-552C8.
DECAL DANGER THROWN OBJ CUTTER818-556C9.
DECAL DANGER ROTATING BLADES818-564C10.
DECAL NOTICE - 20 MPH MAX818-681C11.
DECAL SAFETY COMBO SUNWEST818-830C12.
DECAL 5 YEAR GEARBOX WARRANTY818-862C13.
DECAL LANDPRIDE 16" - BEIGE818-902C14.
Beige Colored UnitDECAL LANDPRIDE 19" - BROWN818-903C15.
Red & Green Colored UnitsDECAL LANDPRIDE 25" LG838-643C15.
DECAL RCR2510-BROWN838-420C16.
DECAL RCR2596-BROWN838-419C16.
DECAL RCRM2510-BROWN838-421C16.
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 79
Page 80
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
044321 ......................
1006020 ....................
1215733 ....................
1215735 ....................
710.102.7510.00 ...........
710.116.6204.00 ...........
690.124.7135.00 ...........
710.132.6004.00 ...........
710.132.7106.00 ...........
710.139.7100.00 ...........
710.139.7101.00 ...........
710.140.0300.00 ...........
710.140.1302.00 ...........
710.140.2000.00 ...........
710.140.3002.00 ...........
710.140.7102.00 ...........
710.248.7500.00 ...........
690.252.7500.00 ...........
69, 730.252.7510.00 ...........
69, 730.252.7525.00 ...........
69, 730.278.7104.00 ...........
69, 730.279.0305.00 ...........
69, 730.279.1313.00 ...........
69, 730.279.1315.00 ...........
69, 730.279.2013.00 ...........
69, 730.279.3016.00 ...........
69, 730.279.5001.00 ...........
69, 730.279.6001.00 ...........
710.712.7500.00 ...........
51, 53010490 ......................
51, 53019519 ......................
51, 53020469 ......................
51, 53020617 ......................
51, 53020672 ......................
33, 35, 37, 39,
41, 43, 45, 47,
49, 51, 53, 67
51, 53087276 ......................
53095758 ......................
33, 37, 41, 43, 471004220 ....................
37, 411004224 ....................
33, 41, 43, 471004225 ....................
551005240 ....................
571005241 ....................
33, 35, 37, 39,
41, 43, 45, 47,
49, 55, 67
411016010 ....................
471016012 ....................
41, 431016013 ....................
33, 37, 431016015 ....................
33, 471016017 ....................
37, 411116010 ....................
59, 61, 63, 651138007 ....................
59, 61, 63, 651138008 ....................
59, 61, 63, 651215012 ....................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
55, 571235287 ....................
77130556 ......................
77134953 ......................
77135995 ......................
33, 39, 591406016 ....................
35, 611406028 ....................
43, 47, 631446016 ....................
45, 49, 65, 671446037 ....................
471526062 ....................
491526070 ....................
33, 431526077 ....................
35, 451526085 ....................
1706027 ....................
1706029 ....................
1786710 ....................
1786711 ....................
1885702 ....................
1885709 ....................
411528040D ..................
371528044D ..................
33, 431528077 ....................
471528084 ....................
55, 571535275 ....................
59, 61, 63, 651705009 ....................
55, 571705267 ....................
33, 37, 39, 41,
43, 47, 67
33, 35, 43, 45,
47, 49
59, 61, 63, 651706033 ....................
551706224 ....................
651706313 ....................
611706314 ....................
631708016 ....................
591708017 ....................
63, 651708034 ....................
51, 53172758 ......................
55, 571785273 ....................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
33, 35, 43, 45,
47, 49
59, 61, 63, 651808010 ....................
77186561 ......................
671876023D ..................
391876025D ..................
411876030D ..................
371876034D ..................
471876052 ....................
491876064 ....................
33, 431876067 ....................
35, 451876079 ....................
471877052 ....................
491877064 ....................
33, 431877067 ....................
35, 451877079 ....................
33, 35, 39, 43,
45, 47, 49, 67
33, 37, 41, 43, 471885703 ....................
37, 411885704 ....................
35, 39, 45, 49, 671885705 ....................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
391896028D821 ............
391896028S821 ............
671896030D821 ............
671896030S821 ............
491896069N327 ............
35, 451896084N327 ............
751M6006 .....................
23200-001D ...................
752A0006 ......................
752A0012 ......................
752A0022 ......................
752A0132 ......................
752A0208 ......................
752M3316 .....................
11, 21300-202S ...................
11300-429D ...................
11300-431D ...................
15312-075D ...................
15312-082D ...................
15312-089D ...................
21312-421H ...................
23312-475H ...................
27312-503A ...................
31312-505A ...................
23312-511H ...................
7312-512H ...................
21312-513H ...................
23312-515H ...................
21, 23312-516H ...................
79312-527A ...................
79312-533A ...................
19312-534A ...................
21312-536H ...................
21, 23312-549L ...................
79312-570A ...................
55, 57312-600A ...................
11312-602D ...................
11312-602D81 ...............
11312-602D83 ...............
11312-602H82 ...............
21, 23312-613H ...................
7312-614H ...................
25312-616A ...................
7312-616D ...................
29312-618A ...................
21, 23312-629L ...................
17312-681S ...................
23312-712D ...................
17312-715D ...................
19312-729D ...................
21312-733D ...................
11312-738H ...................
11312-738H81 ...............
11312-738H82 ...............
11312-738H83 ...............
11312-739H ...................
11312-739H81 ...............
11312-739H83 ...............
15312-748H ...................
15312-749S ...................
15312-750S ...................
27312-751A ...................
31312-752A ...................
27312-754K ...................
27312-755K ...................
31312-756K ...................
31312-757K ...................
27312-758K ...................
31312-759K ...................
15312-765H ...................
15312-767H ...................
15312-769S ...................
15312-770S ...................
29312-774A ...................
25312-775A ...................
29312-776K ...................
25312-777K ...................
25312-778K ...................
23312-804D ...................
15312-808D ...................
7312-810D ...................
7312-811D ...................
11312-812D ...................
11312-812D81 ...............
11312-812D82 ...............
11312-812D83 ...............
11312-813D ...................
11312-814D ...................
11312-815D ...................
11312-816D ...................
11312-817D ...................
9312-820D ...................
11312-821D ...................
6331070 ....................
11312-822D ...................
27312-823D ...................
27312-826D ...................
27312-827D ...................
31312-830D ...................
17312-833D ...................
31312-834D ...................
31312-836D ...................
11312-931D ...................
29312-936D ...................
11312-938D ...................
11312-939D ...................
25312-940D ...................
25312-942D ...................
25312-943D ...................
17312-999D ...................
51, 53312410 ......................
21, 23318-008H ...................
51, 53320684 ......................
51321245 ......................
17326-002D ...................
31326-088D ...................
31326-089D ...................
31326-095D ...................
27326-097D ...................
27326-098D ...................
27326-099D ...................
15326-101D ...................
15326-116D ...................
29326-123D ...................
29326-124D ...................
25326-126D ...................
25326-127D ...................
11326-169D ...................
59, 61, 63, 65330-297A ...................
53341586 ......................
51, 53342221 ......................
51, 53355155 ......................
51, 53365305 ......................
51, 53365722 ......................
51, 53377336 ......................
51, 53380371 ......................
53380882 ......................
51380883 ......................
51, 53381908 ......................
53382437 ......................
53382647 ......................
51383084 ......................
53383128 ......................
51, 53383333 ......................
51, 53383334 ......................
51384064 ......................
51, 53386083 ......................
51388434 ......................
753M3310 .....................
77491668 ......................
77492218 ......................
77492650 ......................
77492688 ......................
77492699 ......................
77492711 ......................
77494768 ......................
754M3102 .....................
755M3116 .....................
656001010 ....................
616001085 ....................
656141480 ....................
55, 576141660 ....................
33, 35, 43, 45,
47, 49
80 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 07/09/08
Page 81
Table of Contents Part Number Index
Part Number Index (continued)
6331080 ....................
6560508 ....................
PagePart Number
33, 37, 39, 41,
43, 47, 67
656410114 ....................
55, 576410716 ....................
616411010 ....................
55, 576412016 ....................
656412114 ....................
77645004 ......................
33, 43, 47, 556560006 ....................
576560208 ....................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
636691010 ....................
596691080 ....................
616761480 ....................
59, 636821483 ....................
55, 576821484 ....................
756M3126 .....................
757M3316 .....................
718.0.1.00870 ...............
718.0.9.00026 ...............
69, 738.0.9.00107 ...............
69, 738.0.9.00125 ...............
718.0.9.00469 ...............
718.1.1.00041 ...............
69, 738.1.1.00501 ...............
69, 738.4.1.00978 ...............
718.4.7.00146 ...............
718.4.7.01111 ...............
718.5.2.00131 ...............
718.6.6.00088 ...............
69, 71, 738.6.6.00201 ...............
69, 738.6.7.00161 ...............
718.6.7.00269 ...............
718.7.0.00744 ...............
718.7.1.01107 ...............
69, 738.7.1.02686 ...............
718.7.3.00055 ...............
69, 738.7.3.02685 ...............
7, 15800-001C ...................
17800-069C ...................
9800-073C ...................
19800-117C ...................
77801-023C ...................
9801-035C ...................
11802-005C ...................
19802-022C ...................
9, 15802-034C ...................
11, 15802-064C ...................
15, 23802-065C ...................
11802-073C ...................
21802-074C ...................
9802-082C ...................
11, 21802-098C ...................
23802-104C ...................
7, 29, 31802-106C ...................
29, 31802-155C ...................
7802-162C ...................
11802-169C ...................
25, 27802-183C ...................
19802-184C ...................
25, 29, 31802-214C ...................
17802-260C ...................
17802-262C ...................
15802-277C ...................
7802-280C ...................
15802-314C ...................
7, 23802-326C ...................
23802-360C ...................
11, 23802-368C ...................
803-037C ...................
PagePart Number
11802-392C ...................
11802-603C ...................
21802-634C ...................
19803-013C ...................
77803-014C ...................
17803-019C ...................
17803-021C ...................
7, 11, 19, 23803-026C ...................
23803-029C ...................
7, 9, 25, 27, 29,
31
21, 23803-075C ...................
11, 21, 23803-168C ...................
15803-170C ...................
11, 29, 31803-198C ...................
11803-231C ...................
11803-255C ...................
21, 23803-265C ...................
7803-271C ...................
65803-279C ...................
7803-289C ...................
15803-299C ...................
11804-007C ...................
11, 19804-012C ...................
11804-013C ...................
7, 15, 23804-015C ...................
7, 23804-016C ...................
17804-021C ...................
17804-022C ...................
23804-024C ...................
11, 21804-025C ...................
21804-028C ...................
11, 21, 23804-029C ...................
23804-055C ...................
7804-066C ...................
15804-147C ...................
15804-157C ...................
15804-161C ...................
7804-171C ...................
19805-004C ...................
21805-015C ...................
23805-016C ...................
11, 21805-041C ...................
21, 23805-045C ...................
11805-058C ...................
21, 23805-083C ...................
19, 23805-088C ...................
11, 23805-090C ...................
11805-103C ...................
23805-104C ...................
11805-137C ...................
23805-187C ...................
7805-255C ...................
11805-274C ...................
12, 21805-301C ...................
19807-023C ...................
23807-143C ...................
19, 75, 77810-200C ...................
75810-210C ...................
19810-242C ...................
19811-170C ...................
19811-394C ...................
19811-676C ...................
7814-058C ...................
23814-059C ...................
23814-066C ...................
7814-161C ...................
7814-162C ...................
23814-263C ...................
23814-266C ...................
23814-267C ...................
818-540C ...................
818-552C ...................
PagePart Number
23814-268C ...................
7815-091C ...................
7815-092C ...................
23815-093C ...................
23816-098C ...................
31816-272C ...................
31816-274C ...................
7816-286C ...................
29816-299C ...................
31816-384C ...................
29816-397C ...................
12816-481C ...................
15817-165C ...................
15817-259C ...................
79818-130C ...................
79818-142C ...................
79818-190C ...................
79818-225C ...................
79818-229C ...................
79818-230C ...................
79818-335C ...................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67
79818-543C ...................
33, 35, 37, 39,
41, 43, 45, 47,
49, 67, 79
79818-556C ...................
79818-564C ...................
79818-681C ...................
79818-830C ...................
79818-862C ...................
79818-902C ...................
79818-903C ...................
15820-112C ...................
15820-137C ...................
15820-193C ...................
15820-195C ...................
15820-196C ...................
15820-209C ...................
15820-210C ...................
15820-211C ...................
7, 23822-091C ...................
7, 23822-092C ...................
9822-094C ...................
17822-100C ...................
9, 53826-053C ...................
9, 51826-063C ...................
17, 41826-151C ...................
15, 43826-215C ...................
15, 33826-216C ...................
17, 45826-220C ...................
17, 35826-221C ...................
17, 37826-223C ...................
9, 67826-225C ...................
9, 39826-226C ...................
15, 47826-255C ...................
17, 49826-256C ...................
15, 69826-356C ...................
15826-356C81 ...............
15826-356C82 ...............
15826-356C83 ...............
15, 71826-358C ...................
15826-358C81 ...............
15826-358C82 ...............
15826-358C83 ...............
15, 55826-359C ...................
15, 57826-360C ...................
15, 73826-424C ...................
15826-424C81 ...............
PagePart Number
15826-424C82 ...............
15826-424C83 ...............
15826-497C ...................
7827-036C ...................
79838-062C ...................
79838-419C ...................
79838-420C ...................
79838-421C ...................
79838-643C ...................
21890-118C ...................
23890-177C ...................
21890-182C ...................
25, 27890-341C ...................
12890-352C ...................
25, 27890-400C ...................
7890-583C ...................
7890-961C ...................
73A252.500 ...................
75dwg10219 ..................
51, 53dwg10452 ..................
63dwg15521 ..................
59dwg15523 ..................
39, 67dwg15995 ..................
35, 45, 49dwg16173 ..................
37dwg16370 ..................
65dwg16561 ..................
41dwg16610 ..................
33, 43, 47dwg22283 ..................
11dwg22332 ..................
15dwg22333 ..................
7dwg22334 ..................
21dwg22335 ..................
23dwg22336 ..................
29dwg22337 ..................
25dwg22338 ..................
31dwg22339 ..................
27dwg22340 ..................
17dwg22341 ..................
9dwg22342 ..................
19dwg22343 ..................
55dwg22345 ..................
69dwg22346 ..................
71dwg22347 ..................
73dwg22348 ..................
57dwg22350 ..................
79dwg22353 ..................
61dwg22375 ..................
77dwg25901 ..................
77N/A ............................
07/09/08 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 81
Page 82
Great Plains Manufacturing, Inc.
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
