Page 1
Table of Contents
Operator’s Manual
RC15, RC25, and RC35 Series
Rotary Cutter
Manufacturing, Inc.
P.O. Box 5060
● Salina, Kansas 67402-5060
Read theOperator’smanual entirely.When yousee this symbol, the subsequent instruc-
!
tions and warnings are serious - followwithout exception. Yourlife and the livesof others
depend on it!
Model RC15 Model RC25 Model RC35
14484
© Copyright 2008 Printed 9/25/08
14489
Cover illustration may show optional equipment not supplied with standard unit.
14490
312-298M
Page 2
Table of Contents
Table of Contents
Land Pride
Important Safety Information . . . . . . . . . . .1
Introduction . . . . . . . . . . . . . . . . . . . . . . . .8
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 8
Terminology: . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Definitions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . .8
Section 1 Assembly and Setup . . . . . . . . .9
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . 9
Hitch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .9
RC15 Tailwheel . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RC25 & RC35 Tailwheel . . . . . . . . . . . . . . . . . . . 10
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 10
3-Point Tractor Hookup . . . . . . . . . . . . . . . . . . . . 10
Safety Guards . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 2 Operating Instructions . . . . . .12
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Check List . . . . . . . . . . . . . . . . . . . . . . 12
Cutting Instructions . . . . . . . . . . . . . . . . . . . . . . . 12
Section 3 Adjustments . . . . . . . . . . . . . . . 13
Cutting Height . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Section 4 Troubleshooting . . . . . . . . . . .15
Section 5 Maintenance and Lubrication .17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service Cutting Blades . . . . . . . . . . . . . . . . . . . . .17
Shearbolt Driveline . . . . . . . . . . . . . . . . . . . . . . . .17
Walterscheid Slip Clutch Run-In . . . . . . . . . . . . . .17
Eurocardan Clutch Run-In . . . . . . . . . . . . . . . . . .17
Eurocardan Clutch Assembly & Disassembly . . . .18
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

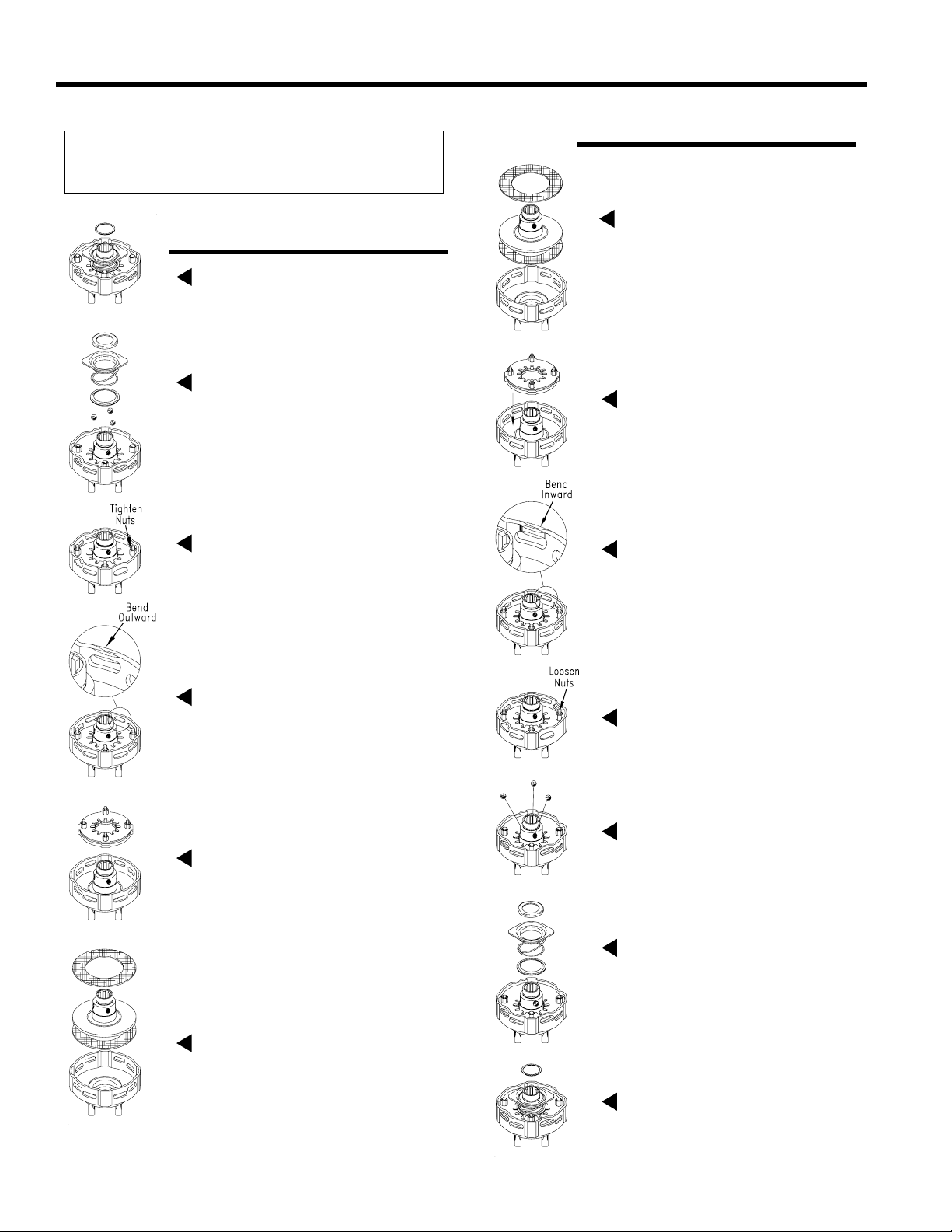

4-Plate Slip Clutch . . . . . . . . . . . . . . . . . . . . . . . .19
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . .19
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2-Plate Slip Clutch . . . . . . . . . . . . . . . . . . . . . . . .20
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . .20
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Tailwheel Spindle Hub . . . . . . . . . . . . . . . . . . .21
Tailwheel hub . . . . . . . . . . . . . . . . . . . . . . . . .21
Driveline U-Joints . . . . . . . . . . . . . . . . . . . . . .21
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Driveline . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Section 6 Specifications and Capacities 23
Section 7 Appendix . . . . . . . . . . . . . . . . .26
Torque Values Chart for Common Bolt Sizes . . . . 26
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
© Copyright 2008 All rights Reserved
LandPride provides this publication“asis”without warranty of anykind,eitherexpressedor implied. While everyprecautionhasbeen taken in the preparationofthis manual,
Land Pride assumes noresponsibility forerrors or omissions. Neither is any liability assumed fordamages resulting from the use of the information contained herein. Land
Pride reservesthe right to revise and improveits productsas it sees fit. This publication describes the stateof this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safeand proper assembly or disassemblyof equipment. The illustrations are intended for ordering parts only.
Land Pride is registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
Page 3
Land Pride
Important Safety Information
Table of Contents
Important Safety Information
For your safety and to develop a better understanding of
your equipment, thoroughly read the Operator’s Sections
of this manual before operation.
Safety Notations
The SAFETY ALERT SYMBOL indicates that there is a
potential hazard to personal safety involved and extra
safetyprecautions must be taken.Whenyousee this symbol,bealertand carefully read themessagethat followsit.
In addition to design and configuration of equipment; hazard control and accident prevention are dependent upon
the awareness, concern, prudence and proper training of
personnel involved in the operation, transport, maintenance and storage of equipment.
Watch for the following Safety Notations throughout
your Operator’s Manual:
!
DANGER!
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury. This signal word
is limited to the most extreme situations.
!
WARNING!
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
!
CAUTION!
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used
to alert against unsafe practices
!
!
Safety Rules
These rules and instructions
must be revie wed at least ann uall y
by all operators!
Most accidents are the result of negligence and carelessness,causedbyfailure of the operator to followsafety precautions. Even though your implement is designed with
manybuilt-in safetyfeatures,thefollowingprecautionsare
mandatory to prevent such accidents.
Make sure everyonethat uses this machine has read the
Operator’sManual and understands how to operate it
safely.
This Operator’s Manual is considered a part of the implement and should remain so when loaned or sold.
Prior To Operation
1. Do not allow anyone to operate this machine who has not
been properly trained in its safe operation.
2. Wear proper eye protection to prevent injury from
flying objects.
3. To prevent personal injury caused by thrown objects,
the use of front safety shields is strongly recommended.
4. Do not let children operate the implement.
5. Never allow passengers.
6. Do not leave the tractor or the implement unattended with
the engine running.
7. Before cutting, clear the area of objects and debris that
could become entangled in the blades or thrown from the
cutter.
During Operation
1. Never operate the cutter near people and do not stand near
the cutter while blades are in motion.
2. After striking anobject, disengage PTO, shutoff tractor and
inspect for damage before continuing.
3. Do not operate the cutter in reverse unless necessary. Debris maybe thrown fromthe front of thecutter; therefore, increasing the risk of injury to the operator.
4. Check thecutter periodicallyfor loosehardware andtighten
if necessary.
5. Never operate the cutter while in the raised transport position.
6. Disengage the PTO when raised for transport or backing
up.
7. Travel slowly over rough terrain and be alert to holes and
gullies.
8. Use warning flags or approved warning lights at night and
during other periods of poor visibility. Do your best to prevent highway accidents.
9. Be alert to traffic when crossing or cutting near roadways.
Always maintain complete control of the machine. Know
your state and local laws concerning highway safety and
regulations. Comply with these laws when transporting machinery.
10.Keep PTO shielding in place and in good condition. Do not
operate cutter with shields missing.
11.Always use proper PTO speed or machine damage may result. This cutteris designed to be used witha tractor using a
540 rpm rear PTO.
12.In orderto maintain steering control, add ballast to tractor.
To determine the amount of ballast required refer to your
tractor operator’s manual.
During Maintenance
1. Before performing maintenance, disconnect PTO driveline
and securely block cutter on safe supporting stands. Do not
position stands under axle or wheel supports.
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
1
Page 4
Important Safety Information
Table of Contents
Land Pride
Safety Labels
Your implement comes equipped with all safety labels in place.
They were designed to help you safely operate your implement.
1. Read and follow label directions.
2. Keep all safety labels clean and legible.
3. Replace all damaged or missing labels.
4. Some new equipment installed during repair require safety
labels to be affixed to the replaced component as specified
14217
Model RC15 & RC25
by the manufacturer. When ordering new components make
sure the correct safety labels are included in the request. To
order new labels go to your Land Pride dealer.
5. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Peel backing from label. Press firmly on surface
being careful not to cause air bubbles under label.
818-130C
Caution 540 RPM
14493
Model RC35
818-130C
Caution 540 RPM
818-161C
14217
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
2
Model RC15 & RC25
Caution Rotary Cutter
General Safety
Page 5
Land Pride
Important Safety Information
14493
Model RC35
Table of Contents
818-161C
Caution Rotary Cutter
General Safety
Model RC25 & RC35
Model RC15
14242
14218
818-187C
Danger PTO Shield
818-187C
Danger PTO Shield
9/25/08
14239
818-229C
Amber Reflector
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
3
Page 6
Important Safety Information
Table of Contents
13042
Land Pride
818-540C
Danger Guard Missing
13042
14242
ROTATING DRIVELINE
KEEP AWAY!
818-552C
Danger PTO Driveline
ROTATING DRIVELINE
KEEP AWAY!
818-552C
Danger PTO Driveline
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
4
Page 7
Land Pride
Important Safety Information
Model RC15 & RC25
Table of Contents
14217
818-554C
Warning General
Cutter Safety
14493
Model RC35
Model RC15 & RC25
14217
818-554C
Warning General
Cutter Safety
818-555C
Danger Rotating Blade
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
5
Page 8
Important Safety Information
Table of Contents
Land Pride
14493
Model RC35
Model RC15 & RC25
14217
818-555C
Danger Rotating Blade
818-556C
Thrown Object Hazard
14493
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
6
Model RC35
818-556C
Thrown Object Hazard
Page 9
Land Pride
Important Safety Information
Model RC15 & RC25
Table of Contents
14217
818-564C
Danger Chain Guard
14493
Model RC35
Model RC15 & RC25
14493
818-564C
Danger Chain Guard
818-557C
Peligro
14493
9/25/08
Model RC35
818-557C
Peligro
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
7
Page 10
Table of Contents
Introduction
Introduction
Land Pride welcomes you to the growing family of new
product owners. This implement has been designed with
care and built by skilled workers using quality materials.
Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the
machine.
Using This Manual
ThisOperator’s Section is designedtohelpfamiliarize you
with safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow
therecommendationstohelp ensure safe andefficientoperation.
The warranty sheet should be filled out by the owner and
dealer at the time of purchase. After completion give the
dealer the white copy and send the pink copy to Great
Plains. Keep your copy in the manual for use when corresponding with the dealer.
To order a new Operator or Parts Manual contact your authorized dealer or write to the address listed below in the
Owner Assistance paragraph. Include the model and serial numbers of your unit.
The information contained within this manual was current
at the time of printing.Some parts may change slightly to
assure you of the best performance.
Terminology:
"Right " or "Left" as used in this manual is determined by
facingthe direction the machine will travel while in use unless otherwise stated.
Definitions:
NOTE: A special point of information related to it’s
preceding topic. The author’s intention is that you
read and note this information before continuing.
IMPORTANT:Information,relatedtoit’s proceeding topic,
that the author feels would be of use.
Owner Assistance
If customer service or repair parts are required contact
yourlocal Land Pride dealer.He has trainedpersonnel,repair parts, and the equipment needed to service your implement.
These parts have been specially designed and should
only be replaced with genuine Land Pride parts.
Serial Number Plate
RefertotheFigure1forthe location of your serial number
plate.
Land Pride
15025
Model RC15 & RC25
14495
Model RC35
Serial Number Plate Location
Figure 1
For prompt service always use the serial number and
model number when ordering parts from your Land Pride
dealer.Be sure to include your serialand model numbers
in correspondence also.
Your dealer wants you to be satisfied with your new machine. If for any reason you do not understand any part of
this manual or are not satisfied with the service received,
the following actions are suggested:
1. Discuss the matter with your dealership Service Man-
ager make sure he is aware of any problems you may
have and that he has had the opportunity to assist
you.
2. If you are still not satisfied, seek out the Owner or
General Manager of the dealership, explain the problem and request assistance.
3. For further assistance write to:
Product Support
Land Pride, Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
8
Page 11
Land Pride
Section 1 Assembly and Setup
Section 1 Assembly and Setup
Table of Contents
Tractor Requirements
The RC15, RC25 and RC35 Rotary Cutters are designed
for use with tractors that are equipped with a Type 1 (540
RPM; 1 3/8" - 6 spline) rear power take-off (PTO) per
ASAE (American Society of Agricultural Engineers)
S203.12 APR93.
Thetractor mustalsoprovidefor3-pointhitchattachments
that fall within the scope set forth by ASAE S217.11.
RC15: Category l with tractors' rated PTO horsepowerno
lessthan15 nor morethan50; RC25: Category I standard
or II with tractors' rated PTO horsepower no less than 20
nor more than 75; RC35: Category II with tractors' rated
PTO horsepower no less than 30 nor more than 120
NOTE: In order to maintain steering control, ballast
may need to be added to your tractor. To determine
whetherornottoadd the ballast, refer toyourtractor’s
operator manual.
!
CAUTION!
Do notoverspeed PTO ormachine damagemay result. Thiscutter is designed to be used with a tractor using a 540 RPM rear
PTO.
Hitch Assembly
Refer to Figure 1-1:
NOTE: There are two mounting holes in each lower
hitch angle. The top hole is for standard category
hitch tractors; the lower hole is for smaller horsepower rated tractors without adequate ground clearance
when cutter is raised for transport.
NOTE: Do not tighten hardware until assembly is
complete.
1. Assemble hitch straps (#1) to inside of lower hitch angles welded to cutter deck with hitch pin (#2), lock
washers (#3), and nuts (#4).
2. Attach hitch braces (#5) to inside of lugs welded to
deck using 3/4” bolt (#6), lock washer (#7), and nut
(#8).
3. Installpivoting upperhitch (#9)toinside ofhitchstraps
(#1) with hitch braces (#5) on the outside. Install 1”
bolt (#10) and nut (#11). Do not overtighten as upper
must be allowed to pivot.
4. Tighten all hardwaretotorquelistedintheTorque Val-
ues Chart in the “Appendix” section on page 26.
9/25/08
Hitch Assembly Diagram
Figure 1-1
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
14244
9
Page 12
Section 1 Assembly and Setup
Table of Contents
Land Pride
RC15 Tailwheel
As shown in Figure 1-3, attach tailwheel boom (#1) in tailwheel risers welded to cutter deck using 1/2” x 3 1/4” long
bolts (#2), lock washers (#3), and nuts (#4). Attach tailwheel yoke spindle (#5) to boom weldment (#1) and secure with washers (#6) and cotter pin (#7).
14221
RC15 Tailwheel Assembly
Figure 1-3
RC25 & RC35 Tailwheel
As shown in Figure 1-3, attach tailwheel boom (#1) in tailwheel risers welded to cutter deck using 3/4” -10 x 4 1//2”
long bolts (#2), lock washers (#3), and nuts (#4). Attach
tailwheelyokespindle (#5) to boomweldment(#1) and secure with washers (#6 & #8) and roll pin (#7).
Driveline Installation
1. Grease input shaft on gearbox.
2. Slide thedrivelineendwith the slip clutch or shearbolt
oversplined shaft ofthegearboxand securewithlocking device on driveline.
3-Point Tractor Hookup
!
DANGER!
Tractor hook-upcan be hazardousto yourhealth or thatof your
helper. Do not allowanyone to stand between thecutter and the
tractor during hook-up operations. Do not operate the hydraulic 3-point lift controls while someone is directly behind the
tractor.
Refer to Figure 1-5:
1. Locate the cutter on a flat, levelsurface.
2. Determine the hitch category of the tractor that will be used:
A Category I tractor will havea lower hitch link
hole diameter of7/8".Thetoplinkholediameter
(implement end) willbe3/4".
A Category II tractor will havea lower hitch link
hole diameter of11/8".Thetoplinkholediameter(implement end) willbe1".
3. Slowlyback thetractor upto thecutter andusethetractors3point hydrauliccontrol to adjust the lower link arms up or
downtomatchtheheightofthecutter hitch pins.
RC25 & RC35 Tailwheel Assembly
Figure 1-3
14245
!
DANGER!
Engage parking brake, shut off tractor and remove key before
dismounting from the tractor.
4. If the tractor is a Category I, simply position the lower
link arms to "insert" the hitch pin into the lower hitch
linkhole. IfthetractorisCategoryII,installthe adaptor
bushingon the hitch pinbeforeinsertion into the lower
link hole. (Adapter bushing not required on RC2584
and all RC35 series rotary cutters.)
Tractor 3-Point Hitch
Figure 1-4
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
10
14249
Page 13
Land Pride
Table of Contents
Section 1 Assembly and Setup
5. Install a 7/16" lynch pin or other fastener(supplied by
customer)thruthehitch pin holetolock thelowerlinks
into position.
6. Connectthedrivelineto the tractor’sPTO outputshaft
and secure with locking device on driveline. Connect
the safety chain to the hitch brace on the cutter to restrict outer shield of driveline from rotating.
NOTE: Chain should be attached at implement end
of driveline.
7. Connect the top link to the upper pivot hitch using the
3/4" hitch pin supplied.
8. Start the tractor and slowly engage the tractors hydraulic 3-point to lift the cutter. Check for sufficient
drawbar clearance. Move the drawbar ahead, aside,
or remove if required. Watch the telescoping movement of the driveline to ensure that it does not bottom
outwhile liftingthe3-point. Ifthe drivelinedoesbottom
out, it will require shortening:
Refer to Figure 1-5:
a. Holdthehalf shafts nextto each otherintheshort-
est working position and mark them.
b. Shorten the inner and outer guard tubes equally.
c. Shorten the inner and outer profiles by the same
length as the guard tubes.
d. Proper overlap is a minimum of one-half the
lengthof eachtube,withbothtubesbeingof equal
length.
e. Round off all sharp edges and remove burrs.
grease sliding profiles before re-assembly.
14247
9. If check chain kit is added. install as shown in
Figure 1-6.
Check Chain Installation
Figure 1-6
Safety Guards
Refer to Figure 1-7:
After Rotary Cutter assembly is complete, tighten all hardware to the torque listed on Torque ValuesChart in the
“Appendix” section on page 26.
1. Install chain guard assembly (#1) to the cutter front
angle using 1/2” -13 x 1 1/2” long bolts (#2) and whiz
nuts (#3).
2. Install side chain guards (#4) to the bottom of cutter
front angle using bolts (#2) and whiz nuts (#3).
!
DANGER!
Rotary cutters have the ability to discharge objects at high
speeds; therefore, the use of front safety shields is strongly recommended when cutting along highways or in an area where
people may be present.
9/25/08
Cutting the PTO Shafts
Figure 1-5
13588
Safety Guard Assembly
Figure 1-7
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
14246
11
Page 14
Table of Contents
Section 2 Operating Instructions
Section 2 Operating Instructions
Transporting
!
CAUTION!
When traveling on public roads at night or during the day, use
accessory lights and devices for adequate warning to operator’s of other vehicles. Comply with all federal, state and local
laws.
Land Pride
!
CAUTION!
To prevent personal injury caused by thrown objects, the use of
front & rear safety guards is strongly recommended! To avoid
injury or death from entanglement in rotating drivelines, the
drive gearbox shields must be in place and secure when operating.
NOTE: Always disengage the tractor’s PTO before
raising the cutter to transport position.
1. When raising the cutter to the transport position be
sure that driveline does not contact tractor or cutter.
2. Be suretoreducetractorgroundspeed when turning;
and, leave enough clearance so the cutter does not
contact obstacles such as buildings, trees or fences.
3. Select a safe ground speed when transporting from
one area to another. When traveling on roadways,
transport in such a way that faster moving vehicles
may pass you safely.
4. When traveling overrough or hilly terrain, shift tractor
to a lower gear.
Operating Check List
In addition to design and configuration of equipment; hazard control and accident prevention are dependent upon
the awareness, concern, prudence and proper training involvedin their operation, transport,maintenance andstorage of equipment. Before beginning to cut the following
inspection should be performed.
Operating Checklist
Check Reference
“Safety Rules” in this Manual. page 1
Check oil level in gearboxes. Refer to
"Maintenance & Lubrication".
Check that all plugs in gearbox have
been replaced properly.
Be sure nuts and bolts are tight. Section 1
Be certain all guards and shields are in
place.
Lubricate the cutter as needed. Refer to
"Maintenance & Lubrication".
Section 5
page 22
Section 5
page 22
Section 1
Section 5
page 17
!
DANGER!
Rotary cutters have the ability to discharge objects at high
speeds; therefore, the use of front safety shields is strongly recommended when cutting along highways or in an area where
people may be present.
Cutting Instructions
1. Your cutter is equipped with free swinging cutting
blades to reduce shock loads to the cutter if striking
obstacles.
2. Start the machineslowly;do not use fullthrottle.Allow
10 seconds for cutter blades to become aligned properly before going to full power.
3. Thegroundspeed depends on two things;thedensity
of the material to be cut, and the size of the tractor.
Neverrun fast enough to overload the tractor.
4. It is important to maintain 540 RPM PTOspeed. Loss
of PTO speed will allow the blades to hinge back and
result in ragged, uneven cutting.
5. This cutter was designed to cut grass and light brush
in right-of-ways, pastures and for shredding row crop
residues.
!
CAUTION!
Damage may occur if exceeding the cutting capacity of the cutter!
!
CAUTION!
Do not over speed PTO or machine damage may result. This
cutter is designed to be used only with a tractor having a 540
RPM rear PTO.
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
12
Page 15
Land Pride
Section 3 Adjustments
Section 3 Adjustments
Table of Contents
Cutting Height
There are 4 primary adjustments that should be made prior to actual field operations:
a. Deck level from left to right
b. Tractor top link length
c. Tractor lower link height
d. Tailwheel height
Proper adjustment of each of these items will provide for
higher efficiency,improvedcutting performance and longer blade life.The following tools will be needed:
a. Pliable tape measure
b. Spirit or carpenters level
c. Open end or hex end wrench or socket set
d. Protective gloves
Havingcompleted 3-PointTractorHookup in the “Assem-
blyandSetup” section on page 10 locate the tractor on a
flat level surface.
1. Use the tractor’shydraulic3-pointcontrol to lower the
cutter until the tailwheel contacts ground surface.
2. Place a spirit level or other suitable leveling device on
the front of the cutter deck as shown in Figure 3-1. Adjust either one or both of the tractors lower link height
adjustments to level the deck from left to right. Some
tractors have only a single adjusting crank.
3. Similarly, place a level on either of the main deck
channels.Use the tractors3-point hydrauliccontrol to
levelthe cutter deck from front to rear.
4. With cutter in cutting position, adjust tractor lop link
until upper hitch pin is aligned vertically with lower
hitch pins, see Figure 3-2. Position"A"is for standard
category hitch tractors and position "B" is for smaller
horsepower rated tractors without adequate ground
clearance when cutter is raised for transport.
10419
Top Link Adjustment
Figure 3-2
9/25/08
14240
Deck Leveling
Figure 3-1
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
13
Page 16
Table of Contents
Section 3 Adjustments
!
DANGER!
Engage parking brake, disengage PTO, shut off tractor and remove key beforeproceeding. Ensure that all moving parts have
come to a complete stop before dismounting from the tractor.
!
CAUTION!
Wear a pairof gloves whenperforming this operation.Go to the
backof the cutter andcarefully rotateeach bladeto the position
shown in Figure3-1. Avoid direct contact with the cutting edge
of the blade.
5. Measure the distance from the end (cutting tip) of the
blade to the ground surface. This distance is the nominal cutting height, see Figure 3-3.
Land Pride
c. Adjust the tailwheel up or down to the desired cut-
ting height and replace the attaching hardware.
d. Lower the 3-point hitch and repeat steps 3 and 4
to be sure the deck is level and the top link is adjusted properly.
14223
Height Adjustment
Figure 3-4
14253
Nominal Cutting Height
Figure 3-3
Refer to Figure 3-4:
6. Ifthecuttingheightis too high or too low,the tailwheel
must be adjusted as follows:
a. Usethetractors3-point hydrauliccontroltolift the
cutter such that the tailwheel clears the ground
surface.
b. Remove attaching hardware; bolt (#1), nut (#2),
and lock washer (#3).
7. Re-adjust the tractors 3-point hydraulic control such
that the front of the cutter is 1" lower than the rear.
NOTE: This adjustment is very important. With the
deck positioned at this attitude, the blades will be
cutting material only at the front of the cutter. If the
deck is level, or the rear of the cutter is lower than
the front, the blades are subject to continuous material flow which results in additional blade wear and
horsepower loss as well as more frequent blade
sharpening. Refer to Figure 3-5.
14254
Best Deck Attitude for Cutting
Figure 3-5
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
14
Page 17
Land Pride
Table of Contents
Section 4 Troubleshooting
Section 4 Troubleshooting
Problem Cause Solution
Oil seal leaking
Driveline yoke or cross failing
Driveline clutch slipping or
Shear bolt breaking
Bent Driveline (NOTE:drivelineshould
be repaired or replaced if bent)
Driveline
telescoping tube failing
Driveline
telescoping tube wearing
Gearbox overfilled Drain to side plug hole.
Seals damaged Replace seals
Grass or wire wrapped on
shaft in seal area
Shock load Avoid hitting solid objects
Needs lubrication Lubricate every 8 hours.
Scalping the ground Raise cutting height
Cutting too fast Reduce travel speed
PTO being engaged too
fast at high engine rpm
Cutting over solid objects Avoid solid objects
Contacting frame Reduce lift height in transport position
Contacting drawbar Reposition drawbar
Bottoming out Shorten driveline
Shock load Avoid hitting solid objects
Needs lubrication Lubricate every 50 hours
check seal areas daily
Slowly engage PTO at low engine rpm
Blades wearing excessively
Blades Breaking
Blades coming loose
Blade carrier becomes loose
Blade bolt holes worn
Blade carrier bent
Excessive side skid wear
T ail wheel support failing
Cutting on
sandy ground
Contacting
ground frequently
Hitting solid objects Avoid solid objects
Blades hitting each other Blade carrier needs to be timed
Blades not
tightened properly
Running loose in the past Replace gearbox output shaft and blade carrier
Blade carrier hardware not
tight enough
Blade hardware running loose Replace blades and blade bolts if worn
Hitting solid objects Avoid hitting solid objects and replace blade carrier
Cutting height not level Adjust cutter height
Soil abrasive Adjust cutter height
Cutting too low Adjust cutter height
Lowering too fast Adjust rate of drop
Hitting objects when turning Reduce speed on turns
Raise cutting height
Raise cutting height
Tighten blade hardware (refer to
"Servicing Cutter Blades" on page 16.
Tighten to specified torque
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
15
Page 18
Table of Contents
Section 4 Troubleshooting
Problem Cause Solution
Land Pride
Excessive vibration
Blades locked together Unlock blades
Driveline bent Replace driveline
Blades loose Tighten blade bolts
Blade carrier bent Replace blade carrier
Blade broken Replace blade
Blade will not swing Remove and inspect blade
Blades have unequal weight Replace both blades
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
16
Page 19
Land Pride
Table of Contents
Section 5 Maintenance and Lubrication
Section 5 Maintenance and Lubrication
Maintenance
Proper servicing and adjustment is the key to the long life
of any farm implement. With careful and systematic inspection, you can avoid costly maintenance, time and repair.
After using your cutter forseveral hours, check all bolts to
be sure they are tight.
Replace any worn, damaged or illegible safety decals by
obtaining new decals from your Land Pride Dealer.
Service Cutting Blades
1. Both blades should be sharpened at the same angle
as the original cutting edge and must be replaced or
regroundatthe same time to maintainproperbalance
in the cutting unit.
NOTE: Care should be taken in order not to remove
any more material than necessarywhensharpening
blades.
2. Both blades should weigh the same after sharpening.
3. When replacing or sharpening the cutter blades, examine bolts for excessive wear and replace if necessary. To replace blades:
a. Order blade bolt Land Pride part # 802-277C.
b. Blade shim (#30), must be installed to insure a
tight and proper fit between the blade bolt and
blade.Tootight a fit may cause bladetonotswing
back into proper cutting position after striking obstacles. Too loose a fit will cause play between
blade bolt and blade resulting in excessivewear
on blade carrier, blade bolts and blades. Three
sizes of shims are available:16 ga., part no. 312075D; 18 ga., part no. 312-082D; & 20 ga., part
no. 312-089D.
c. Torquebladeboltlock nutto450 ft. pounds.Usea
3’ long pipe to achieve proper torque.
4. If replacing dishpan, nut on gearbox output shaft
should be torqued to 450 foot/pounds and cotter pin
installed in nut with legs securely bent around nut.
Slip Clutch Driveline
Figure 5-1
Prior to initialoperationandafter long periods of inactivity,
the Friction Clutch should be "run-in".
a. Tighten all 4 nuts uniformlyuntilthespring load is
low enough that the clutch slips freely with the
PTO engaged.
b. Turn nuts fully back. Clutch is ready for use.
!
CAUTION!
Engage parking brake, disengage PTO, shut off tractor, and remove key before making any of the following adjustments.
14221
Eurocardan Clutc h Run-In
Refer to Figure 5-2:
1. Using a pencil or other marker,scribe a line across the
exposed edges of the clutch plates and friction disks.
Shearbolt Driveline
Cutter drive components are protected from shock loads
by a 1/2" shear bolt. If shear bolt fails, replace with a 1/2"
x 3 1/2" long hex bolt, grade 2. Shear bolt failure can be
avoided by engaging the PTO slowly at low engine rpm.
Walter sc heid Slip Clutc h Run-In
Refer to Figure 5-1:
RC15 and RC25 Rotary Cutters drive components are
protected from shock loads by a two plate slip clutch and
the RC35 Rotary Cutters are protected byafourplate slip
clutch. The clutch should slip during operation to protect
the cutter from excessive loads.
9/25/08
13693
2. Carefully loosen each of the 8 spring retainer nuts on
theclutchhousinga total of EXACTLY2revolutions. It
will be necessary to hold the hex end of the retainer
bolt in order to count the exact number of revolutions.
3. Start the tractorandengage the PTOdrivefor2-3 seconds to permit slippage of the clutch surfaces. Disengage the PTO, then re-engage a second time for 2-3
seconds. Disengage the PTO, shut off tractor and remove key. Wait for all components to stop before dismounting from tractor.
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
Clutch
Figure 5-2
17
Page 20
Table of Contents
Section 5 Maintenance and Lubrication
Land Pride
4. Inspect the clutch and ensure that the scribed markingsmade ontheclutch plateshavechangedposition.
If any two marks on a friction disk and plate are still
aligned,suchindicates that slippagehasnot occurred
and the clutch must be disassembled to separate the
friction disks, see "Clutch Assembly and Disassem-
bly", on page 18.
5. Tighteneach ofthe8 springretainernuts onthe clutch
housingEXACTLY2 revolutionsto restore theoriginal
clutch setting pressure.
6. The clutch should be checked during the first hour of
cutting and periodically each week. An additional set
of scribe marks can be added to check for slippage.
See "Clutch Assembly and Disassembly", on page
18, to adjust for proper spring length.
Eurocardan Clutc h Assemb l y & Disassembly
If the clutch run-inprocedure, see "Clutch Run-In"on
page 17, indicated that one or more of the friction disks did
not slip, the clutch must be disassembled to separate the
friction discs.Referto the Parts Section of this manual fora
detailed partsbreakdown.
Refer to Figure 5-3:
Disassemblyoftheclutch is simply a matter of first removing the spring retainer nuts (#1), springs (#2) and bolts
(#3) from the assembly.Each friction disc (#4) must then
beseparatedfrom the metalsurfaceadjacenttoit.Inspect
all partsforexcessive wear and condition. Clean all parts
that do not require replacement.
Install newfrictiondiscsifneededandreassembleall components in proper order. Progressively tighten each spring
retainer bolt until the spring length is 1.010 inches,
Figure 5-4.
13741
Clutch Adjustment
Figure 5-4
Storage
Atthe endofthe workingseasonor whenthe cutterwillnot
be used for a long period, it is good practice to clean off
any dirt or grease that may have accumulated on the cutter and any of the moving parts.
1. Clean the cutter as necessary.
2. Check the blades for wear and replace if necessary.
3. Inspect the cutter for loose, damaged or worn parts
and adjust or replace as needed.
4. Lubricate as noted inLubrication, starting on page 21.
5. Store the cutter inside if possible for longer cutter life.
6. Repaint parts where paint is worn or scratched to pre-
vent rust. Ask your dealer for Aerosol Land Pride
Beige touch-up paint #821-011C.
14714
The original friction disc thickness is 1/8" (3.2mm) and
should be replaced if the thickness falls below 3/64"
(1.1mm). If the clutches have been slipped to the point of
"smoking", the friction discs maybe damaged and should
be replaced. Heatbuild-upmay also affect theyokejoints.
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
18
Clutch Disassembly
Figure 5-3
Page 21
Land Pride
Table of Contents
Section 5 Maintenance and Lubrication
4-Plate Slip Clutch
NOTE:Before proceeding, secure the clutch firmly in
a vise or other clamping device to prevent injury.
Assembly
Disassembly
Step 1
Remove snap ring.
Step 2
Remove backup ring, lock collar,
compression spring, bottom backup
ring, and balls.
Step 3
Tighten the four hex nuts uniformly
until the clutch pack and hub are
loose.
Step 1
Place the hub and friction disks into
the housing.
Step 2
Compress the Belleville Springs to
the pressure plate by tightening the
fourhexnuts and then placing the assembly into the clutch housing.
Step 3
Bend the retaining lugs inward over
the Belleville Spring edges to secure
thespringbeforebackingthe fourhex
nuts off.
14232
Step 4
Bendallfourretaining lugs outonthe
edge of the clutch housing.
Step 5
Remove the thrust plate with the
Belleville Springs and lug rings to accessfrictiondisksandhub for inspection or service.
Step 6
Inspect friction disks and hub.
Step 4
With the lugs bent in, loosen the four
hexnutscompletely to the end of the
threaded studs.
Step 5
Insert greased balls.
Step 6
Install bottom backup ring, compression spring, lock collar, and top backup ring.
Step 7
Install snap ring.
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
19
Page 22
Table of Contents
Section 5 Maintenance and Lubrication
Land Pride
2-Plate Slip Clutch
NOTE:Before proceeding, secure the clutch firmly in
a vise or other clamping device to prevent injury.
Disassembly
Step 1
Remove snap ring.
Step 2
Remove backup ring, lock collar,
compression spring, bottom backup
ring, and balls.
Step 3
Tighten the four hex nuts uniformly
until the clutch pack and hub are
loose.
Assembly
Step 1
Place the hub and friction disks into
the housing.
Step 2
Compress the Belleville Springs to
the pressure plate by tightening the
fourhexnuts and then placing the assembly into the clutch housing.
Step 3
Bend the retaining lugs inward over
the Belleville Spring edges to secure
thespringbeforebackingthe fourhex
nuts off.
10435
Step 4
Bendallfourretaining lugs outonthe
edge of the clutch housing.
Step 5
Remove the thrust plate with the
Belleville Springs and lug rings to accessfrictiondisksandhub for inspection or service.
Step 6
Inspect friction disks and hub.
10449
Step 4
With the lugs bent in, loosen the four
hexnutscompletely to the end of the
threaded studs.
Step 5
Insert greased balls.
Step 6
Install bottom backup ring, compression spring, lock collar, and top backup ring.
Step 7
Install snap ring.
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
20
Page 23
Land Pride
Table of Contents
Section 5 Maintenance and Lubrication
Lubrication
Lubrication
Legend
14250
Multipurpose
spray lube
Multipurpose
grease lube
Multipurpose
oil lube
50
Tailwheel Spindle Hub
Type of Lubrication: Multipurpose Grease
Quantity = 6 pumps
Tailwheel hub
Intervals at which
lubrication is required
24
8
14251
14190
The tailwheel hub is equipped with a relief hole located directly opposite the grease fitting. The relief hole releases
pressurefrominsidethe hub casting when itisgreased.The
hub should be greased until grease purges from the relief
hole.
Type of Lubrication: Multipurpose Grease
Quantity = Until grease purges from the relief hole
8
Driveline U-Joints
Type of Lubrication: Multipurpose Grease
Quantity = 6 pumps
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
21
Page 24
Table of Contents
Section 5 Maintenance and Lubrication
Land Pride
8
Gearbox
Check oil levelin the gearbox by removing the side plug in
thegearboxcase.Ifthe oil levelis low,removethe top plugin
the gearboxcase and fill with EP90 oil until oil flows from the
side port of gearbox case. Reinstall plugs and tighten.
14252
14191
NOTE: Do not overfill! Cutter should be level when
checking oil.
Type of Lubrication: EP90 Oil
Quantity = fill until oil flows from the side port of gearbox
case.
20
Driveline
Disconnect driveline from the tractor and slide apart
Quantity = Clean & coat the inner tube of the driveline with a
light film of grease and then reassemble
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
22
Page 25
Land Pride
Table of Contents
Section 6 Specifications and Capacities
Section 6 Specifications and Capacities
RC15 Series Rotary Cutter
RC1548 RC1560 RC1572
Cutting Width
Overall Width
Overall Length (Including Tailwheel)
Blade Tip Speed
Gearbox
Machine Weight (with Chain Guards)
Recommended Tractor PTO HP
Cutting Height
Hitch
Deck Material Thickness
Deck Height
Blades (2)
Blade Holders
Drive Shaft
Slip Protection
Tailwheel
45 1/2" 57" 69"
50" 62" 74"
84" 96" 108"
13,096 fpm /
1,042 rpm
540 RPM PTO Driven Gear-
box 1.93:1 Speed-Up Beveled Gears Cast Iron
Housing
420# 489# 641#
15-50 20-50 25-50
1" - 9" 1" - 9" 1" - 9"
Category I Category I Category I
12 Gauge 12 Gauge 10 Gauge
7 1/2" 7 1/2" 7 1/2"
1/2" x 3" Heat Treated Alloy
Steel Free-Swinging Suction
Blades
Round Pan 3/16" x 21 1/2" Round Pan 3/16" x 21 1/2" Round Pan 3/16" x 21 1/2"
ASAE Category 3 ASAE Category 3 ASAE Category 3
Standard - 1/2" Center Shear
Bolt Protection Optional Center Bolt 2 Plate Slip
Clutch
4.00 x 8 x 15 Laminated Tire
or 16" Solid Rubber Tire
12,469 fpm /
794 fpm
540 RPM PTO Driven Gearbox 1.47:1 Speed-Up Beveled Gears Cast Iron
Housing
1/2" x 3" Heat Treated Alloy
Steel Free-Swinging Suction
Blades
Standard - 1/2" Center Shear
Bolt Protection Optional Center Bolt 2 Plate Slip
Clutch
4.00 x 8 x 15 Laminated Tire
or 16" Solid Rubber Tire
14,955 fpm /
794 rpm
540 RPM PTO Driven Gearbox 1.47:1 Speed-Up Beveled Gears Cast Iron
Housing
1/2" x 3" Heat Treated Alloy
Steel Free-Swinging Suction
Blades
Standard - 1/2" Center Shear
Bolt Protection Optional Center Bolt 2 Plate Slip
Clutch
4.00 x 8 x 15 Laminated Tire
or 16" Solid Rubber Tire
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
23
Page 26
Table of Contents
Section 6 Specifications and Capacities
RC25 Series Rotary Cutter
Model
Cutting Width
Overall Width
Overall Length (Including Tailwheel)
Offset Distance
Blade Tip Speed
Gearbox
Machine Weight (with Chain Guards)
Recommended Tractor PTO HP
Cutting Height
Hitch
Hitch Pins
Deck Material Thickness
Deck Height
(Bottom of Deck to Bottom of Skid Shoe)
Blades (2)
Blade Holders
Drive Shaft
Slip Protection
Tailwheel
RC2560 RC2572/RCO2572 RC2584/RCO2584
60” 72” 84”
63” 75” 87”
107” 119” 131”
- 18” {RCO2572 Only} 18” {RCO2584 Only}
12,384 fpm / 788 rpm 14,861 fpm / 788 rpm 14,369 fpm / 653 rpm
540 RPM PTO Driven
Gearbox
1.46:1 Speed-Up
Beveled Gears
Cast Iron Housing
725# 905# 1165#
20-75 25-75 30-75
2” - 11” 2” - 11” 2” - 11”
Category II Category II Category II
Category I (With Bushing to
Category II)
10 Gauge 10 Gauge 10 Gauge
8 1/2” 8 1/2” 8 1/2”
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
Round Pan 3/16” x 21 1/2” Round Pan 3/16” x 21 1/2” Round Pan 3/16” x 39”
ASAE Category 4 ASAE Category 4 ASAE Category 4
4 Plate Slip Clutch 4 Plate Slip Clutch 4 Plate Slip Clutch
4.00 x 8 x 15 Laminated Tire 4.00 x 8 x 15 Laminated Tire 4.00 x 8 x 15 Laminated Tire
540 RPM PTO Driven
Gearbox
1.46:1 Speed-Up
Beveled Gears
Cast Iron Housing
Category I (With Bushing to
Category II)
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
Land Pride
540 RPM PTO Driven
Gearbox
1.21:1 Speed-Up
Beveled Gears
Cast Iron Housing
Category II
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
24
Page 27
Land Pride
Table of Contents
Section 6 Specifications and Capacities
RC35 Series Rotary Cutter
Model
Cutting Width
Overall Width
Overall Length (Including Tailwheel)
Blade Tip Speed
Gearbox
Machine Weight (with Chain Guards)
Recommended Tractor PTO HP
Cutting Height
Hitch
Deck Material Thickness
Deck Height
(Bottom of Deck to Bottom of Skid Shoe)
Blades (2)
Blade Holders
Drive Shaft
Slip Protection
Tailwheel
RC3560 RC3572 RC3584
57 1/2” 69” 81”
63” 75” 87”
110” 118” 130”
12,384 fpm / 788 rpm 14,861 fpm / 788 rpm 14,369 fpm / 653 rpm
540 RPM PTO Driven
Gearbox
1.46:1 Speed-Up
Beveled Gears
Cast Iron Housing
1168# 1341# 1514#
30-120 30-120 35-120
2” - 14” 2” - 14” 2” - 14”n
Category II Category II Category II
3/16” 3/16” 3/16”
9 1/2” 9 1/2” 9 1/2”
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
Round Pan 3/16” x 39” Round Pan 3/16” x 39” Round Pan 3/16” x 39”
ASAE Category 4 ASAE Category 4 ASAE Category 4
4 Plate Slip Clutch 4 Plate Slip Clutch 4 Plate Slip Clutch
6.00 x 9 x 21 Laminated Tire 6.00 x 9 x 21 Laminated Tire 6.00 x 9 x 21 Laminated Tire
540 RPM PTO Driven
Gearbox
1.46:1 Speed-Up
Beveled Gears
Cast Iron Housing
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
540 RPM PTO Driven
Gearbox
1.21:1 Speed-Up
Beveled Gears
Cast Iron Housing
1/2” x 3” Heat Treated
Alloy Steal
Free-Swinging
Suction Blades
9/25/08
RC15, RC25, and RC35 Series Rotary Cutter 312-298M
25
Page 28
Table of Contents
Section 7 Appendix
Section 7 Appendix
Torque V alues Chart for Common Bolt Sizes
Land Pride
Bolt Head Identification
Bolt Size
(Inches)
1
in-tpi
1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16 - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 23801 in-tpi = nominal thread dia .in inches-threads per inch
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 31603 ft-lb= foot pounds
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
Grade 2 Grade 5
N · m2ft-lb3N · m ft-lb N · m ft-lb mm x pitch
Grade 8
Bolt Size
(Metric)
4
N · m ft-lb N · m ft-lb N · m ft-lb
2
N· m = newton-meters
4
mm x pitch = nominal thread dia. in millimeters x thread pitch
Bolt Head Identification
5.8 8.8 10.9
Class 5.8 Class 8.8 Class 10.9
RC15, RC25, and RC35 Series Rotary Cutter 312-298M 9/25/08
26
Page 29
Warranty
Land Pride warrants to the original purchaser that this Land Pride product will
be free from defects in material and workmanship for a period of one year, from
the date of delivery to the end user, when used as intended and under normal service and conditions for personal use; and 6 months for municipalities, golf courses, sod farms and rental purposes. This Warranty is limited to the replacement of
any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts,
tines, etc. Land Pride reserves the right to inspect any equipment or parts which
are claimed to have been defective in material or workmanship.
This Warranty does not apply to any part or product which in Land Pride’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely
affects its performance or reliability, or which has been used for a purpose for
which the product is not designed. Misuse also specifically includes failure to
properly maintain oil levels, grease points, and driveline shafts.
Claims under this Warranty must be made to the dealer which originally sold
the product and all warranty adjustments must be made through such dealer.
Land Pride reserves the right to make changes in materials or design of the product at any time without notice.
This Warranty shall not be interpreted to render Land Pride liable for damages
of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its reasonable control. This Warranty does not extend to loss of crops, any expense or loss
for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is made
with respect to this sale; and all implied warranties of merchantability and
fitness for a particularpurposewhich exceed the obligations set forth in this
written warranty are hereby disclaimed and excluded from this sale.
This Warranty isnotvalidunless registered with Land Pride within 30 days from
the date of delivery to the end user.
Page 30
Land Pride Division
Great Plains Manufacturing, Inc.
Corporate Office: PO. Box 5060
Salina, Kansas 67402-5060 USA
Loading...
