Primary Seeders

PSN2096

20583

313-306M

Operator’s Manual

Read the Operator’s manual entirely.
When you see this symbol, the
subsequent instructions and

!

warnings are serious - follow without
exception. Your life and the lives of
others depend on it!

© Copyright 2008 Printed

Cover photo may show optional
equipment not supplied with
standard unit.

4/03/08

Table of Contents

T ab le of Contents

Land Pride

Important Safety Information . . . . . . . . . . . . . . . . . . 1

Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1

Look For The Safety Alert Symbol . . . . . . . . . . . . .1

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . 7

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Owner Assistance. . . . . . . . . . . . . . . . . . . . . . . . . 7

Serial Number Plate . . . . . . . . . . . . . . . . . . . . .7

Further Assistance . . . . . . . . . . . . . . . . . . . . . .7

Section 1: Assembly & Set-Up (Standard) . . . . . . . 8

Pre-Assembly Checklist . . . . . . . . . . . . . . . . . . . . 8

Sling Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tire Track Remover Assembly . . . . . . . . . . . . . . . 8

Section 2: Assembly & Set-Up (Optional) . . . . . . . . 9

Small Seeds Box Dealer Installation. . . . . . . . . . . 9

Small Seeds Box Assembly . . . . . . . . . . . . . . .9

Small Seeds Drive Assembly . . . . . . . . . . . . . 10

Standard Seeds Box Assembly . . . . . . . . . . . . 11

Standard Seeds Drive Assembly . . . . . . . . . . . 12

Pull Tongue Hook-Up . . . . . . . . . . . . . . . . . . . 13

Pull Tongue Disconnect . . . . . . . . . . . . . . . . . 13

Section 3: Operating . . . . . . . . . . . . . . . . . . . . . . . 14

General Description . . . . . . . . . . . . . . . . . . . . . . 14

Operating Check List . . . . . . . . . . . . . . . . . . . . . 14

Seeder Preparation. . . . . . . . . . . . . . . . . . . . . . . 14

Tractor Requirements. . . . . . . . . . . . . . . . . . . . . 14

Tractor 3-Point Hook-Up. . . . . . . . . . . . . . . . . . . 14

Pull Tongue Hook-Up . . . . . . . . . . . . . . . . . . . . . 15

Seeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Roller Packing Wheels . . . . . . . . . . . . . . . . . . . . 16

Section 4: Seeding Adjustments . . . . . . . . . . . . . . 17

Seed Rate Adjustment . . . . . . . . . . . . . . . . . . . . 17

Main Native Grass Box . . . . . . . . . . . . . . . . . .17

Seed Rate Calibration . . . . . . . . . . . . . . . . . . .17

Seed Rate Speed Change . . . . . . . . . . . . . . . . . 18

Standard Seed Box Option . . . . . . . . . . . . . . .18

Seeding Adjustments . . . . . . . . . . . . . . . . . . . . . 19

Standard Seed Box Option . . . . . . . . . . . . . . .19

Small Seeds Box Option . . . . . . . . . . . . . . . . .19

Seed Rate Charts (Small Seed Box Option) . . . . 20

Seed Rate Charts (Standard Seed Box Option) . 21
Seed Rate Charts (Metric) (Standard Seed Box) 23

Section 5: Maintenance and Lubrication . . . . . . .25

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Drive Sprocket Hanger Bearing . . . . . . . . . . . .25

Roller Bearings . . . . . . . . . . . . . . . . . . . . . . . .25

Roller Bearings . . . . . . . . . . . . . . . . . . . . . . . .26

Roller Chains (4 chains) . . . . . . . . . . . . . . . . .26

Roller Chains . . . . . . . . . . . . . . . . . . . . . . . . . .26

Roller Chains . . . . . . . . . . . . . . . . . . . . . . . . . .27

Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Section 6: Specifications and Capacities . . . . . . .28

Section 7: Features and Benefits . . . . . . . . . . . . .29

Section 8: Troubleshooting . . . . . . . . . . . . . . . . . .30

Section 9: Appendix . . . . . . . . . . . . . . . . . . . . . . . . 31

Torque Values Chart For Common Bolt Size . . . .31

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

© Copyright2008All rights Reserved

Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land
Pride assumes no responsibility for errors oromissions.Neither is any liability assumed for damages resultingfrom the use of the informationcontained herein. Land Pride reserves
the right to revise and improveits productsas it sees fit. This publication describes the state ofthis product at the timeof its publication, and may not reflectthe product in the future.

Land Pride is a registered trademark.

All other brands and product names are trademarks or registered trademarks of their respective holders.

Printed in the United States of America.

PSN2096 Primary Seeders 313-306M

4/03/08

Land Pride

▲

Table of Contents

Important Safety Information

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Safety at All Times

Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.

Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.

▲ Operator should be familiar with

all functions of the unit.

▲ Operate implement from the

driver’s seat only.

▲ Make sure all guards and shields

are in place and secured before
operating implement.

▲ Do not leave tractor or implement

unattended with engine running.

▲ Dismounting from a moving

tractor could cause serious injury
or death.

▲ Do not stand between tractor and

implement during hitching.

▲ Keep hands, feet, and clothing

away from power-driven parts.

▲ Wear snug fitting clothing to avoid

entanglement with moving parts.

▲ Watch out for wires, trees, etc.,

when raising implement. Make
sure all persons are clear of
working area.

▲ Turning tractor too tight may

cause implement to ride up on
wheels. This could result in injury
or equipment damage.

Look For The Safety Alert Symbol

The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of

!

Be Aware of
Signal Words

A Signal word designates a degree or
level of hazard seriousness. The
signal words are:

!

DANGER

Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.

For Your Protection

▲ Thoroughly read and understand

the “Safety Label” section, read all
instructions noted on them.

equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnel involvedin
the operation, transport, maintenance and storage of
equipment.

!

WARNING

Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.

!

CAUTION

Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.

Shutdown and Storage

▲ Lower machine to ground, put

tractor in park, turn off engine, and
remove the key.

▲ Detach and store implements in a

area where children normally do
not play. Secure implement by
using blocks and supports.

4/03/08

OFF

REMO

VE

PSN2096 Primary Seeders 313-306M

1

Table of Contents

Land Pride

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Use Safety
Lights and Devices

▲ Slow moving tractors, self-

propelled equipment, and towed
implements can create a hazard
when drivenon public roads. They
are difficult to see, especially at
night.

▲ Flashing warning lights and turn

signals are recommended
whenever driving on public roads.
Use lights and devices provided
with implement.

Transport
Machinery Safely

▲ Comply with state and local laws.
▲ Maximum transport speed for

implement is 20 mph. DO NOT
EXCEED.Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.

▲ Sudden braking can cause a

towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.

▲ Use the following maximum

speed - tow load weight ratios as
a guideline:

20 mph when weight is less
than or equal to the weight of
tractor.

10 mph when weight is double
the weight of tractor.

▲ IMPORTANT: Do not tow a load

that is more than double the
weight of tractor.

Use A Safety Chain

▲ A safety chain will help control

drawn machinery should it
separate from the tractor
drawbar.

▲ Use a chain with the strength

rating equal to or greater than
the gross weight of the towed
machinery.

▲ Attach the chain to the tractor

drawbar support or other
specified anchor location. Allow
only enough slack in the chain to
permit turning.

▲ Do not use safety chain for

towing.

Practice Safe Maintenance

▲ Understand procedure before

doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.

▲ Work in a clean dry area.
▲ Lower the implement to the

ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.

▲ Allow implement to cool

completely.

▲ Do not grease or oil implement

while it is in operation.

▲ Inspect all parts. Make sure parts

are in good condition & installed
properly.

▲ Remove buildup of grease, oil or

debris.

▲ Remove all tools and unused

parts from implement before
operation.

PSN2096 Primary Seeders 313-306M

2

4/03/08

Land Pride

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Prepare for Emergencies

▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire

extinguisher handy.

▲ Keep emergency numbers for

doctor, ambulance, hospital and
fire department near phone.

911

Wear
Protective Equipment

▲ Protective clothingand equipment

should be worn.

▲ Wear clothing and equipment

appropriate for the job. Avoid
loose fitting clothing.

▲ Prolonged exposure to loud noise

can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.

▲ Operating equipment safely

requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.

Avoid High
Pressure Fluids Hazard

▲ Escaping fluid under pressure can

penetratethe skincausing serious
injury.

▲ Avoid the hazard by relieving

pressure before disconnecting
hydraulic lines or performing work
on the system.

▲ Make sure all hydraulic fluid

connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.

▲ Use a piece of paper or

cardboard, NOTBODYPARTS, to
check for suspected leaks.

▲ Wear protective glovesand safety

glasses or goggles when working
with hydraulic systems.

▲ If an accident occurs, see a

doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.

Keep Riders
Off Machinery

▲ Riders obstruct the operator’s

view, they could be struck by
foreign objects or thrown from the
machine.

▲ Never allow children to operate

equipment.

Handle
Chemicals Properly

▲ Protective clothing should be

worn.

▲ Handle all chemicals with care.
▲ Follow instructions on container

label.

▲ Agricultural chemicals can be

dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.

▲ Inhaling smoke from any type of

chemical fire is a serious health
hazard.

▲ Store or dispose of unused

chemicals as specified by the
chemical manufacturer.

4/03/08

PSN2096 Primary Seeders 313-306M

3

Important Safety Information

Table of Contents

Land Pride

Safety Labels

Your Primary Seeder comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.

1. Keep all safety labels clean and legible.

2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.

3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as

20586

specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.

4. Refer to this section for proper label placement.
To install new labels:

a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to

be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of a credit card.

818-543C

DANGER: Guard Missing
(Beneath Guard)

PSN2096 Primary Seeders 313-306M

4

20586

20586

838-111C

DANGER: Keep away,
Moving Parts

818-055C

SMV: Slow Moving Vehicle

4/03/08

Land Pride

Important Safety Information

Table of Contents

20586

20583

818-230C

Red Reflector

818-229C

Amber Reflector

4/03/08

20591

20591

818-543C

Small Grass Seed Option

DANGER: Guard Missing
(Beneath Guard)

838-111C

Small Grass Seed Option

DANGER: Keep away,
Moving Parts

PSN2096 Primary Seeders 313-306M

5

Important Safety Information

Table of Contents

Land Pride

20583

20593

818-229C

Small Grass Seed Option

Amber Reflector

818-543C

Standard Seed Option

DANGER: Guard Missing
(Beneath Guard)

PSN2096 Primary Seeders 313-306M

6

20593

20592

818-230C

Standard Seed Option

Red Reflector

818-055C

Standard Seed Option

SMV: Slow Moving Vehicle

4/03/08

Land Pride

Table of Contents

Introduction

Introduction

Land Pride welcomes you to the growing family of new
product owners.

This Primary Seeder has been designed with care and
built by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices will
help you get years of satisfactory use from the Primary
Seeder.

Application

The PSN2096 Primary Seeder is ideal for landscaping,
sod farms, grain farmsor highway reclamation work. You
canseed Alfalfa,nearlyall typesof NativeGrassand most
types of turfgrass with this seeder. If the majority of your
seedingis done with NativeGrass or “fluffy” seedslike Big
Blue Stem, Indian Grass or Side Oats Grama, the main
seedbox on the PSN2096 is equipped with anaggressive
picker wheel feed design to keep seed moving allows for
consistent seeding rates.

Byutilizingsmaller bushel boxes added to themainbox, it
ispossible toseed three differenttypes ofseedat different
rates. A 4.8 bushel boxcan beadded to the Native Grass
Box and is equipped with our standard fluted seed cups
and agitation to seed most turf type grasses, as well as a
variety of other seeds from peas to alfalfa. An optional
Small Seeds Box can be used for seeds such as alfalfa,
cloverand othertypes ofsmallseeds. See“Features and

Benefits”, “Section 6” for additional information.

Owner Assistance

The Warranty Registration card should be filledoutbythe
dealer at the time of purchase. This information is
necessary to provide you with quality customer service.

If customer service or repair parts are required contact a
Land Pride dealer. A dealer has trained personnel, repair
parts and equipment needed to service the implement.

The parts on your PSN2096 Primary Seeder have been
specially designed and should only be replaced with
genuineLand Pride parts. Therefore, shouldyour Primary
Seeder require replacement parts go to your Land Pride
Dealer.

Serial Number Plate

For prompt service always use the serial number and
model number when ordering parts from your Land Pride
dealer.Be sureto include yourserial andmodel numbers in
correspondence also. Refer to Figure 1 for the location of
your serial number plate.

Using This Manual

This Operator’s Manual is designed to help familiarize

•

you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.

• The information contained within this manual was

current at the time of printing. Some parts may change
slightly to assure you of the best performance.

• To ordera new Operator’s or PartsManualcontact your

authorized dealer. Manuals can also be downloaded,
free-of-charge from our website at www.landpride.com
orprinted fromtheLand PrideService & SupportCenter
which is already at your dealership.

Terminology

“Right” or “Left” as used in this manual is determined by
facing the direction the machine will operate while in use
unless otherwise stated.

Definitions

NOTE:Aspecial pointofinformation thatthe operator

must be aware of before continuing.

IMPORTANT: A specialpointof information related to
its preceding topic. Land Pride’s intention is that this
information should be read and noted before
continuing.

20584

Serial Number Plate Location

Figure 1

Further Assistance

Your dealer wants you to be satisfied with your new
Primary Seeder. If for any reason you do not understand
anypart of this manual orarenot satisfied with the service
received, the following actions are suggested:

1. Discussthe matter with your dealership service
managermaking sure heisaware of anyproblems you
may haveand that he has had the opportunity toassist
you.

2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.

3. For further assistance write to:

Land Pride

Service Department

P.O. Box 5060

Salina, KS 67402-5060

E-mail address

[e-mail]

4/03/08

PSN2096 Primary Seeders 313-306M

7

Table of Contents

Section 1: Assembly & Set-Up (Standard)

Section 1: Assembly & Set-Up (Standard)

Land Pride

Pre-Assembly Checklist

Check Reference
All major frame components.

Fasteners and pins that were
shipped with the seeder.
NOTE: All hardware from the factory
has been installed in the location
where it will be used. If a part or
fastener is temporarily removed for
assembly reasons, remember where
it goes. Keep the parts separated.

All working parts are moving freely,
bolts are tight and cotter pins are
spread.

If a pin, bolt or other part has been
removed, and you are unsure where
it is used, refer to the Parts Manual
to identify it. Be sure the part gets
used in the correct location. By
double checking while you
assemble, you will lessen the
chance of using a bolt incorrectly
that may be needed later.

Operator’s
Manual

Operator’s
Manual

Operator’s
Manual

Parts
Manual

Tire Track Remover Assembly

The Tire Track Removers are assembled 180 degrees
from their operating position for shipping purposes.

Refer to Figure 1-2:

1. Remove Track Remover (#1).

2. Flip Track Remover over 180 degrees and
reassemble as shown with 1/2” u-bolt (#4), lock
washer (#3) and nut (#2).

All grease fittings are in place and
lubricated.

Safety decals are correctly located
and legible. Replace if damaged.

Section 4
Page 25

Important
Safety
Information

Sling Bracket

Refer to Figure 1-1:

The sling brackets allow points at each end to hook the
chain for lifting of the unit.

20589

Tire Track Remover

Figure 1-2

20577

Sling Bracket

Figure 1-1

PSN2096 Primary Seeders 313-306M

8

4/03/08

Land Pride

Table of Contents

Section 2: Assembly & Set-Up (Optional)

Section 2: Assembly & Set-Up (Optional)

Small Seeds Box Dealer Installation

Small Seeds Box Assembly

1. Remove the eight bolts, lock washers and nuts that
areassembledin the front ofthe main box. Retaintwo
bolts,lock washersand nutsand use these toplug the
two holes in the front of the Small Seeds Box.

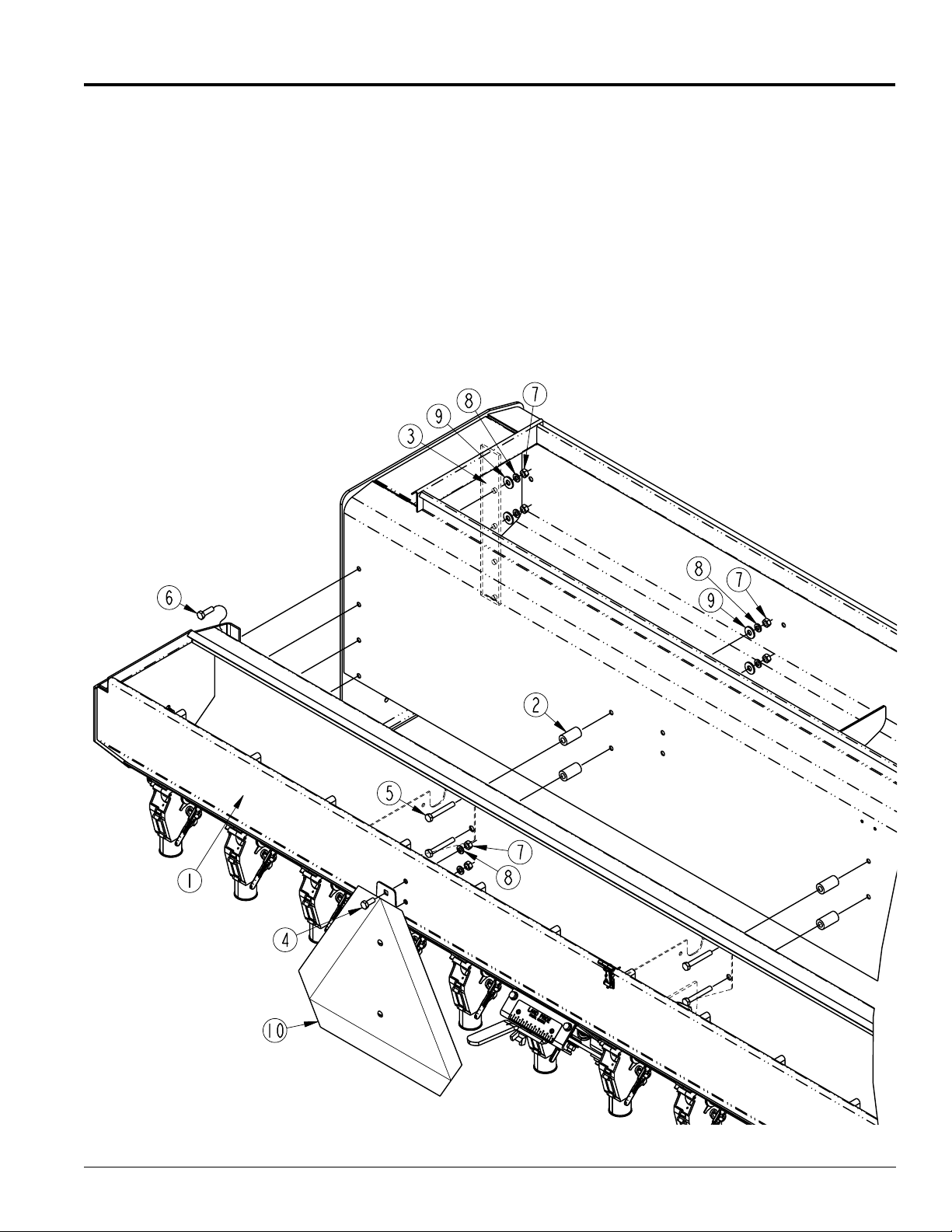

Refer to Figure 1-3:

2. Assemble the Small Seeds Box (#1) at the ends with
the four 5/16” bolts (#3), flat washers (#7), lock
washers (#6) and nuts (#5). Do not tighten until
spacers (step 3) are installed.

3. Align the four box spacers (#2) to the inner holes of
the Small SeedsBoxand the main box and assemble
the four longer5/16”bolts (#4), flat washers (#7), lock
washers (#6) and nuts (#5).

4. Refer to Figure 1-4. Remove small rubber caps
attached to the small tubes on theseeder. Attach the
rubber seed tubes to thefeeder cups with the clamps
provided and then to the small tubes in the seeder
with no clamp. Trim rubber hoses as required to
remove any excess slack.

Plug 2 Holes

Small Seeds Box Assembly

Figure 1-3

Rubber seed hoses

clamped to feeder cups

Remove small rubber caps

Small Seeds Tube Assembly

Figure 1-4

20587

and attach seed tubes

20596

4/03/08

PSN2096 Primary Seeders 313-306M

9

Table of Contents

Section 2: Assembly & Set-Up (Optional)

Land Pride

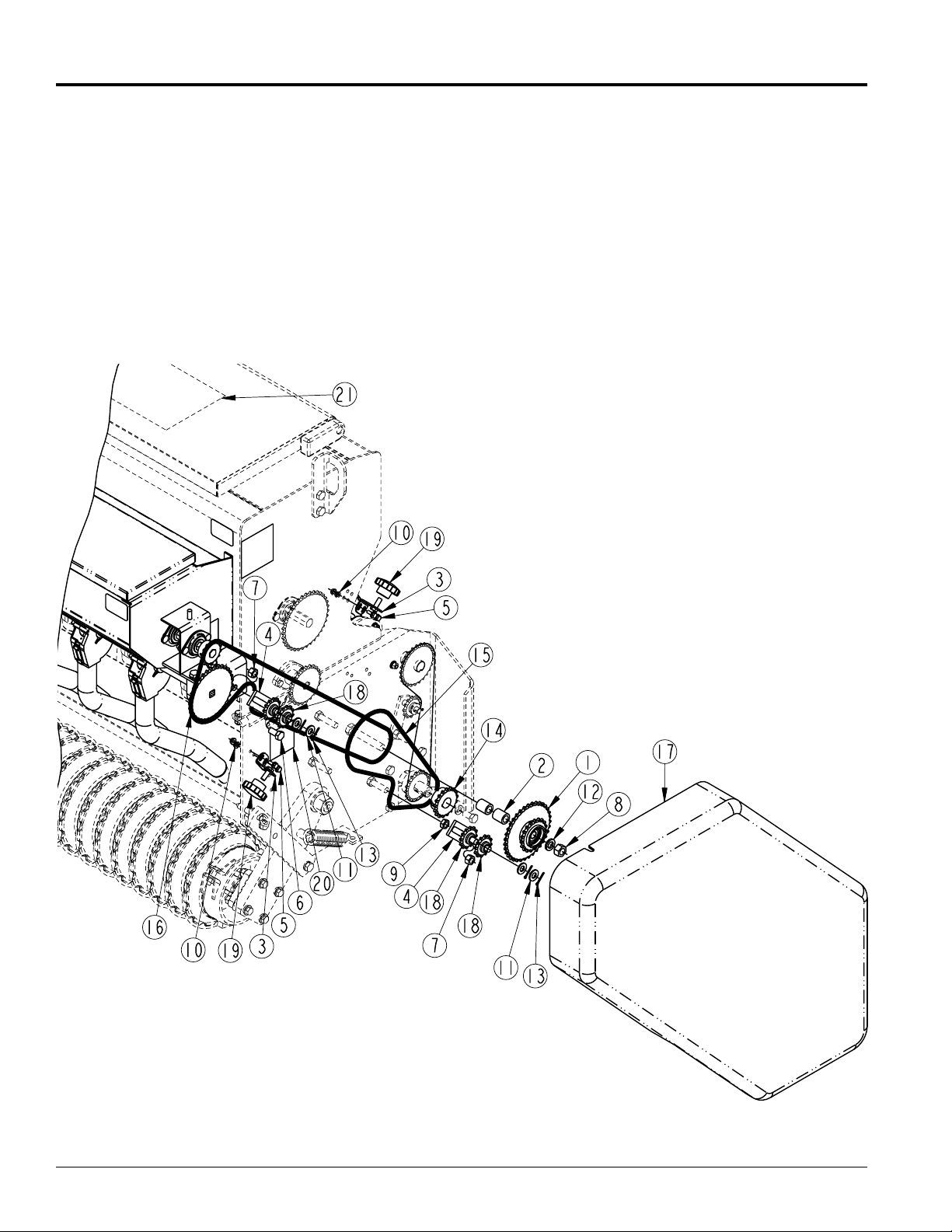

Small Seeds Drive Assembly

Refer to Figure 1-5:

1. Place decal “Danger Guard Missing” (#18),
“Danger Moving Parts” (#19) and “Seed Rate
Chart” (#20) in locations shown.

2. Assemble chain guard mounts (#5) with the 1/4”
flange bolts (#8) and flange nuts (#11). Do not tighten
until the complete drive has been assembled and the
chain guard (#16) installs properly. The chain guard
mounts are slotted for easier chain guard mounting.

3. Install chain idler with welded on spacer (#2) and
chain idler (#3) with 1/2” nut (#9).

4. Assemblethespacer(#4)and speedchange sprocket
assembly (#7) to the 5/8” welded on bolt withthe 5/8”
lock washer (#12) and nut (#10).

5. Assemble the front roller sprocket (#13) and key (#1)
to the front roller shaft.

6. Install chain (#14) first and then chain (#15). Tighten
chains with idlers (#2) and (#3).

7. Assemble chain guard (#16). Position chain guard
mounts (#5) where needed and tighten hardware.

PSN2096 Primary Seeders 313-306M

10

Small Seeds Drive Assembly

Figure 1-5

20588

4/03/08

Land Pride

Table of Contents

Section 2: Assembly & Set-Up (Optional)

Standard Seeds Box Assembly

Refer to Figure 1-6:

1. Remove the SMV (#10) and SMV mounting bracket
from the main box.

2. Remove the 14 bolts, lock washers and nuts that are
assembled in the rear of the main box. Retain two
bolts,lock washers andnuts andusethese toplug the
two holes in the rear of the Standard Seed Box where
the SMV was removed.

3. Assemble the Standard Seed Box Assembly (#1) at
theends with theeight 5/16” bolts(#6), backing plates
(#3), flat washers (#9), lock washers (#8) and nuts
(#7). Do not tighten until spacers (#2) (step 4) are
assembled.

4. Align the sixboxspacers(#2) to the inner holes of the
Standard Seed Box and the main box and assemble
the four longer5/16”bolts (#5), flat washers (#9), lock
washers (#8) and nuts (#7).

5. Remove larger rubber caps attached to the tubes on
theseeder. Attachthe rubber seedtubes tothefeeder
cups and then to the tubes in the seeder.

6. Install SMV (#10) with SMV mounting bracket to
Standard Seed Box Assembly (#1).

4/03/08

Standard Seeds Box Assembly

Figure 1-6

PSN2096 Primary Seeders 313-306M

20594

11

Table of Contents

Section 2: Assembly & Set-Up (Optional)

Land Pride

Standard Seeds Drive Assembly

Refer to Figure 1-7:

1. Place decal “Danger Guard Missing” (#20) and
“Seed Rate Chart” (#21) in locations shown.

2. Assemble chain guard mounts (#3) with the 1/4”
flange bolts (#5) and flange nuts (#10). Do not tighten
until the complete drive has been assembled and the
chain guard (#17) installs properly. The chain guard
mounts are slotted for easier chain guard mounting.

3. Install 1/2” jamnut(#9)first and then lower chain idler
(#4) and nut (#7). Install upper chain idler (#4) with
1/2”bolt (#6) and nut.

4. Assemble idler sprockets (#18) to idlers. Secure with
1/2” flat washers (#11) and cotter pins (#13).

5. Assemble the spacers (#2) and speed change
sprocketassembly (#1) to the5/8” welded on boltwith
the 5/8” lock washer (#12) and nut (#8), determine
which drive type required. See “Seed Rate Speed
Change” page 18.

6. Assemble the sprocket (#14) with existing bolt and
lock washer as shown.

7. Install chain (#16) first and then chain (#15). Adjust
chain tension with Idlers.

8. Assemble chain guard (#17). Position chain guard
mounts (#3) where needed and tighten hardware.

PSN2096 Primary Seeders 313-306M

12

Standard Seeds Drive Assembly

Figure 1-7

20605

4/03/08

Land Pride

Table of Contents

Section 2: Assembly & Set-Up (Optional)

Pull Tongue Hook-Up

Refer to Figure 1-8:

The lower link handles should be in the down position
before preceding.

1. Mount Pull Tongue to tractor drawbar and secure with
safety chain.

2. Connect hydraulic hoses to tractor.

3. Fully extend the lift cylinder to rase the transport
wheels and lower the hitch links.

4. Backthe pulltongueup to theseeder to alignthe hitch
links with the seeder’s inside smaller pins.

5. Retract the lift cylinder to rase the hitch links up
around the seeder’s inside smaller pins until the pins
lockintothe lowerhitch links.Oncethepinsarelocked
in,adjust thelift cylinderupor downas neededto level
the seeder.

6. Withthe seeder leveland thetransport wheelsresting
on the ground, adjust the top center link of the pull
tongue so that it will install in the bottom holes of the
seeder’s upper center hitch. (Top center link pin is
provided by the customer)

Pull Tongue Disconnect

!

CAUTION

The seeder will have negative tongue weight when it is lifted off
the ground. Lower the seeder to the ground before proceeding
with Pull Tongue disconnect. (Negative tongue weight is when
most of the weight is to the rear of the implement causing the
front of the tongue to be light and may rise up when
disconnected.)

1. Remove top link pin.

2. Flip locking release handles up on pull tongue.

3. Fully extendlift cylinderto lower tongue until the hitch
links are free from the seeders lower pins.

Bottom Holes of

Upper Center

Hitch

Locking Release

Top Center Link

Handles

Inside Smaller

Pins

4/03/08

Lift Cylinder

Pull Tongue Assembly

Figure 1-8

Hitch Link

PSN2096 Primary Seeders 313-306M

20739

13

Section 3: Operating

Section 3: Operating

Table of Contents

Land Pride

General Description

The following information is a briefdescription ofhow this
Primary Seeder works. It is included to help you
understand the operation of this seeder.

The power to drive the seeding function of this seeder
comes from the ground speed of the tractor. The seed
metering is powered by the front roller at a rate
proportional to the distance driven. This ensures that the
rate applied in pounds per acre or pounds per 1000
square feet remains constant as ground speed is varied.
Thepower istransmitted viadrive chainstotheseedcups.
This drive can be adjusted to a high or low range to
broadcast more or less seed. The seed rate is adjustable
using theseedrate lever located at the rear of the seeder.
The seed is dropped between cast iron rollers. The front
roller crushes clods, presses down small stones and
forms a firm seedbed. The rear roller firms the soil around
the seeds.

Operating Check List

In addition to design and configuration of equipment,
hazard control and accident prevention are dependent
upon the awareness, concern, prudence and proper
training involved in its operation, transport, maintenance
and storage of equipment. Before beginning to operate
your Primary Seeder, the following inspection should be
performed.

Seeder Preparation

Before proceeding with the first time set-up, or before
making any adjustments mentioned in this section, make
every effort to attach the seeder to a tractor.

1. Thisseeder can betransported witha full boxof seed.
It is best notto do this unless necessary because the
increased weight does increase the chances for
problems on the road. Do not exceed 20 miles per
hour.

2. Calibrate your seeder for a proper rate based on the
seed you are using. Calibration information is located
on the inside of your box lid or on page 17.

3. Make sure the seed cup door adjustment handle on
each cup is set the same across the seeder.

4. Never allow anyone to ride on the seeder.

5. Maximum seeding speed will vary according to soil
conditions.

6. Check that all plugs and caps have been replaced
properly.

7. Be sure all bolts and nuts are tight.

8. Be certain all guards are in place and secure.

9. Clear the area to be seeded of rocks, branches and
other foreign objects.

10. Atfirst beginseeding ataslow forwardspeed andshift
up until the desired speed is achieved.

Check Reference

Read and follow the “Safety Rules”
carefully.

Read all of the “Tractor Hook-Up” and
preparation instructions.

“Basic Operations” in this Manual Operator’s

Lubricate the seeder as needed. Refer to
“Lubrication”

Checkthe seeder initially and periodically for
loose bolts & pins, “T orque Values Chart”.

Make sure all guards and shields are in
place.

Checkinitiallyand periodically for loose bolts,
pins, and chains.

Inspect the seed cups and seed tubes for
foreign matter.

Set speed change sprocket for drive type
desired.

Set seed rate. See “Seed Rate Charts”. Section 3

Important Safety
Information

Section 2
page 14

Manual
Section 4

page 25
Section 8

page 31
Operator’s

Manual
Operator’s

Manual
Section 4

page 30
Section 3

page 17

page 17

Tractor Requirements

This Primary Seeder is designed for tractors with a
3-point.Category 2or3 andCat. 2Quick-Hitch.Check the
tractor’s 3-point lifting capacity. Refer to “Section 6:
Specifications and Capacities” on Page 28 for seeder
weight.

A Pull-Type hitch is available as an option. This Pull-Type
Hitchcan be used withsmaller HP tractors, whichmay not
have the necessary capacity to maneuver a 3-point
configuration.

NOTE: In order to maintain steering control, ballast
may have to be added to your tractor. To determine
whether or not to add ballast, refer to your tractor
Operator’s Manual.

Tractor 3-Point Hook-Up

1. Back tractor up to seeder until 3-Point links are
aligned with hitch clevises on seeder.

2. Secure the tractor’s 3-Point lower arms to the lower
hitch clevises using hitch pins supplied.

3. Secure tractor’stop center link to theseeder top hitch
using a 1” diameter hitch pin.

4. With the seeder resting on level ground, adjust the
tractor’stop link until the seeder is level.

5. Removerear roller lock pin from parking position and
place in storage position. Figure 2-1

PSN2096 Primary Seeders 313-306M

14

4/03/08

Land Pride

Section 3: Operating

Table of Contents

Pull Tongue Hook-Up

1. See Section 1 page page 15 for a description of
connecting a tractor to the pull tongue and seeder.

IMPORTANT: Always operate the seeder with the
transport wheels on the ground and the seeder level
to prevent dirt build-up and damage to the seeder.

2. At the field site, lower the seeder to the ground by
raisingthetransport wheels until the seeder is resting
on the ground. Transport wheels must also beresting
onthe ground to support some oftheseeder’sweight.

3. Set the tractor’s hydraulic lever to return the lift
cylinder to this positioneachtimethe seeder is raised
and lowered.

4. With the seeder and transport wheels resting on level
ground,readjust the pulltongue top centerlink to level
the seeder if needed.

5. Removerear roller lock pin from parking position and
place in storage position. Refer to Figure 2-1

Transporting

!

CAUTION

When traveling on public roads whether at night or during the
day, use accessory light and devices for adequate warning to
operators of other vehicles. Comply with all federal, state and
local laws.

1. Select a safe ground travel speed when transporting
from one area to another. When travelingon
roadways,transport in such a waythat faster moving
vehicles may pass you safely.

2. Reduce tractor ground speed when turning. Leave
enough clearance so the seeder does not contact
obstacles such as buildings, trees or fences.

3. When traveling over rough or hillyterrain, shifttractor
to a lower gear.

Parking

The following steps should be done when preparing to
store the seeder or unhitch it from the tractor. See also
“Section 5: Maintenance and Lubrication” on Page25
for additional information on long term storage of your
seeder.

1. Park the seeder on a level, solid area.

2. Shut off tractor engine and engage parking brake.

3. Toprevent the seeder fromtippingbackward, remove
rear roller lock pin from storage position and place in
parking position. Refer to Figure 2-2.

4. Unhitch from tractor.

20585

Rear Roller Pin in Field Position

Figure 2-1

!

CAUTION

Never back up with the seeder down. This will loosen the drive
chain and possibly damage the seeder.

Seeding

Slowly lower the Primary Seeder to the ground with the
tractor’shydraulics. Begin in a low gear as the full seeder
can be a heavy load. Ground speed is determined based
on safety, ground conditions and terrain.In most cases do
not exceed 6 MPH. The seeding mechanism is ground
driven. Therefore,seeding can be discontinuedby raising
the seeder off the ground with the 3-point lever before
making a turnaround and when transporting from one
area to another.

4/03/08

20579

Rear Roller Pin Parking Position

Figure 2-2

PSN2096 Primary Seeders 313-306M

15

Table of Contents

Section 3: Operating

Drive System

Your Primary Seeder uses standard no. 40 roller chain
throughout its drive system. The drive system is simple
and designed for low maintenance.

1. Check the drive idler arms to insure that they are
taking up any excess chain slack.

2. Check each chain to insure that it is not
over-tightened.

3. Annually clean and lubricate chain with chain oil.

Roller Pac king Wheels

Thefront andrear rollerpackingwheels shouldturn freely.
In field position, the rear rollerassembly shouldbe freeto
float up and down to follow the terrain of your field. See
Figure 2-1.

Land Pride

PSN2096 Primary Seeders 313-306M

16

4/03/08

Land Pride

Table of Contents

Section 4: Seeding Adjustments

Section 4: Seeding Adjustments

Seed Rate Adjustment

Main Native Grass Box

The setting should be INCREASED for lighter than
average seed.

The setting should be DECREASED for heavier than
average seed.

Forseed notlistedon thecharts, compareweightand size
to those listed and use similar setting.

Seed Rate Calibration

1. Raise the seeder & support it in asafe manner so the

drive roller assembly will rotate.

2. Partition off the outer end of the box so that seed can

be placed only over 3 cups. To adjust your seeding
rate, first find the desired pounds/acre on the native
grass seed rate chart below. Determine which
sprocket is required for Native Grass Box along with
proper drive type on the gearbox. Drive types 1, 2, 3,
or 4. To change sprockets on the Native Grass Box
loosen the chain idler and remove the chain. Loosen
the two set screws on the sprocket to remove.
Replacewith thedesired sprocket.(The sprocketsare
stored on the right hand side of the gearbox.) Set
gearbox handle on the proper drive type.

3. Rotate the drive roller assembly to see that the drive

system is working properly and that seed cups are
free from foreign matter.

4. Placea container under the threeseedcups to gather

the seed as it is metered.

5. Rotate the drive roller assembly: for 96” seeder - 38

rotations to get 1,000 sq. feet or 1,640 rotations per
acre. Be sure to check the three seed cups to make
sure each cup has plenty of seed coming into it.

6. Weigh the seed which has been metered. Divide by

three. This will give you the ounces/pounds metered
by each seed cup. Multiply by thenumber ofthe cups
on your seeder to arrive at the total pounds per 1,000
square feet your seeder would meter at that setting. If
this figure is different than desired, set your feed cup
adjustment lever accordingly.

You may want to repeat the calibration procedure if the
results of your first calibration vary greatly from the
suggested settings contained in the chart.

NOTE: Seeding rates vary greatly with variations in
types of seeds being seeded. The seed rate chart
belowis based ona seed mixof 5.7# of purelive seed
per 11.1# of bulk. The pure live seed mix was Big
Blue - 1.5#, Little Blue -.8#, Side Oats Grama -.6#
Western Wheat Grass - 1#, Switch Grass -.3# and
Indian Grass - 1.5#. Factors which will affect seeding
rates are: weight of seed, size of seed, relative
humidity and moisture content of theseed itself,ratio
of inert material to seed, different proportions of seed
types affecting density, and ground preparation. WE
RECOMMEND THAT YOU TEST AND ADJUST
YOUR SEEDER. USE THE PROCEDURESLISTED
TOHELP INSURE AN ACCURATE SEEDING RATE.

See Figure 3-1 for sprocket changes.

33 Tooth

19 Tooth

27 Tooth

Native Grass Seed Drive Sprocket

Figure 3-1

15 Tooth

Gearbox Drive Type

4/03/08

Seeding Rate (Pounds per acre)
Native Grass Seed Drive Sprockets
15 Teeth 19 Teeth 27 Teeth 33 Teeth

1
2
3
4

2.8 lbs. per acre 3.5 lbs. per acre 5.0 lbs. per acre 6.2 lbs. per acre

5.8 lbs. per acre 7.3 lbs. per acre 10.4 lbs. per acre 12.7 lbs. per acre

8.6 lbs. per acre 10.9 lbs. per acre 15.5 lbs. per acre 19.0 lbs. per acre

14.1 lbs. per acre 17.8 lbs. per acre 25.4 lbs. per acre 31.0 lbs. per acre

PSN2096 Primary Seeders 313-306M

17

Section 4: Seeding Adjustments

Table of Contents

Land Pride

Seed Rate Speed Change

Standard Seed Box Option

The seed rate speed change is designed to give you two
speeds for different types of seeds and rates. The two
drive types are high range (fast speed) and low range

35 Tooth

Sprocket

19 Tooth
Sprocket

20601

High Range

(slowspeed). To change thedrive type refertoFigure 3-2.
Remove 5/8” nut, 5/8” lock washer and 5/8” flat washer.
Flip speed change sprocket for desired drivetype. Adjust
chain idler to tension chain.

See Figure 3-3 for sprocket alignment.

35 Tooth

Sprocket

19 Tooth

Sprocket

20602

Low Range

Speed Change & Chain Pitches Standard Seed Box Option

Figure 3-2

12939

Sprocket Alignment

Figure 3-3

PSN2096 Primary Seeders 313-306M

18

4/03/08

Land Pride

Table of Contents

Section 4: Seeding Adjustments

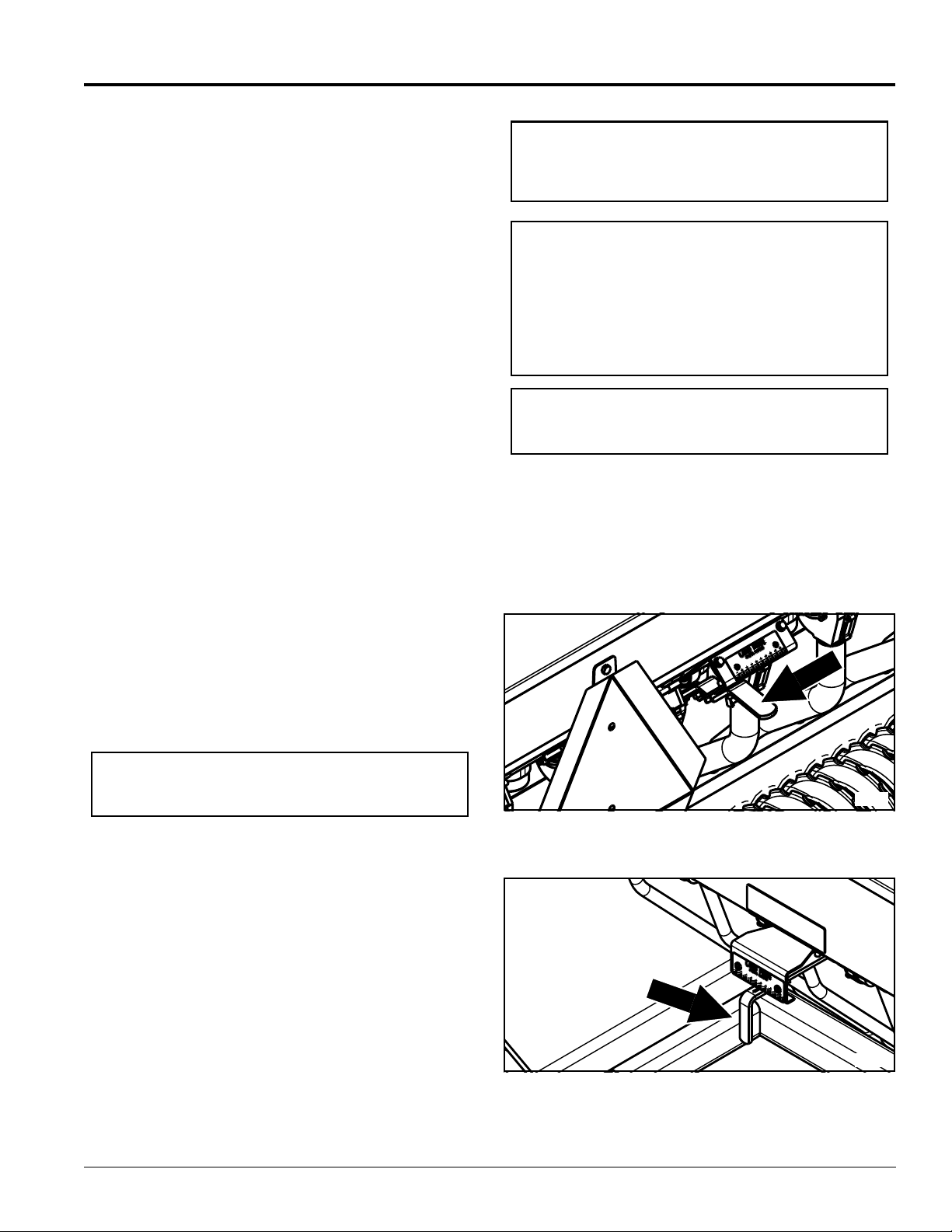

Seeding Adjustments

Standard Seed Box Option
Small Seeds Box Option

1. Using the seed rate charts, beginning on page 20,

determine the seeding rate forthe seed youwill be
planting and make the following adjustments.

a. Decide whether you need the slow or fast drive

type. Change the speed change sprocketif
necessary, to the desired drive type, see
Figure 3-2 & Figure 3-3 on page 18.

b. Locate the seed rate adjustment handle at the

rear of the seeder and move it to the indicator
number obtained from the charts, see Figure 3-4.
For best results, first move adjustment handle all
the way to the left. Then move the handle to the
desired setting, moving from a lower to a higher
number.

2. There are many factors which will affect seeding

rates: seed treatment, weight of seed, surface
conditionofseedorroller slippage.Minor adjustments
may be needed to compensate for these factors.

3. Theseed rate chartsare based onaverage size seed.

This may differ from the seed you are using. Use the
seed rate charts as a guide. For lighter than average
seed, the setting should be increased. For heavier
than average seed, the setting should be decreased.

4. Completethe following procedure tocalibrate the rate

for your specific seed.
a. Place several pounds of seed over three of the

seed cups at the outboard end of the seeder.

b. Raise the seeder off the ground and support

safely, leaving front roller to rotate freely.

NOTE: To determine seed rates for seeds not listed
onthe charts, compareweight andsizeto thoselisted
and use a similar setting. Follow steps 4 and 5 to
calibrate the seed rate.

NOTE: This Standard Seed Option is equipped with
a four-position door on each seed cup. The highest
handle position is for small seeds, the second and
third positions are for larger seeds. For application
with this seeder, you will only need to use the highest
position. MAKE SURE all handles are in the same
position before seeding. The wide open position will
allow complete clean out of the seed cup.

IMPORTANT: DONOTopen the cup to the wideopen
positionwith seedin thebox unlesscomplete cleanout
is desired.

REMEMBER: Field conditions will affect seeding rates.
When seeding, check the amount of seed you are using
by noting acres or square feet seeded, amount of seed
added to seeder, and level of seed in the seedbox. If you
suspect that you are seeding more or less seed than
desired, and you have accurately calibrated the seeder to
your seed, you may need to adjust the seeding rate
slightly to compensate for field conditions.

Rotate the front roller to see that the drive system
is working properly and the seed cups are free
from foreign matter.

NOTE: A 1/2” bolt is threaded into the right hand end
of the front roller shaft. Turn the bolt clockwise for
proper seed cup rotation.

c. Place adrop clothunder the seeder to gather the

seed as it is metered.

d. Rotate the front roller 38 rotations to get 1000

square feet or 1,640 rotations to get oneacre. Be
sure to check the three seed cups to make sure
each cup has plenty of seed coming into it.

e. Weigh the seed which has been metered. Divide

by three. This will give you the ounces/pounds
metered by each seed cup. Convert to pounds
and multiply by the number of cups on your
seeder to arrive at the total pounds per 1000
square feet your seeder would meter at that
setting. If this figure is different than desired, set
your seed cup adjustment lever accordingly.

5. You may want to repeat the calibration procedure if

the results of your calibration vary greatly from the
suggested settings on the chart.

20592

Standard Seeds Rate Adjustment Handle

Figure 3-4

20591

Small Seeds Rate Adjustment Handle

Figure 3-3

4/03/08

PSN2096 Primary Seeders 313-306M

19

Table of Contents

Section 4: Seeding Adjustments

Seed Rate Charts (Small Seed Box Option)

Cup Setting 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Alfalfa (Pounds per Acre)

0 0 2.82 4.51 6.20 7.75 9.58 11.27 12.68 14.37 16.21 17.76 19.45 21.14 22.55 24.52 26.07 27.62 29.45 31.00 32.55

Alfalfa (Pounds per 1000 Square Feet)

0 0 .06 .10 .14 .18 .22 .26 .29 .33 .37 .41 .45 .49 .52 .56 .60 .63 .68 .71 .75

Sudan Grass (Pounds per Acre)

0 0 0 2.82 4.23 7.89 10.43 13.81 16.35 19.73 22.55 25.36 28.18 31.00 33.82 36.64 39.46 42.56 45.09 47.91 50.73

Sudan Grass (Pounds per 1000 Square Feet)

0 0 0 .06 .10 .18 .24 .32 .38 .45 .52 .58 .65 .71 .78 .84 .91 .98 1.04 1.10 1.16

Turnips - Purple Top (Pounds per Acre)

0 0 2.11 3.95 5.35 7.19 9.30 10.71 12.68 14.66 16.63 18.46 20.57 22.55 24.52 26.77 28.75 30.44 32.69 34.95 37.34

Turnips - Purple Top (Pounds per 1000 Square Feet)

0 0 .05 .09 .12 .16 .21 .25 .29 .34 .38 .42 .47 .52 .56 .61 .66 .70 .75 .80 .86

Orchard Grass (Pounds per Acre)

0 0 0 .28 .85 1.13 1.69 1.97 2.54 3.10 3.66 4.23 4.51 5.07 5.64 6.20 6.48 7.05 7.33 7.89 8.17

Orchard Grass (Pounds per 1000 Square Feet)

0 0 0 .01 .02 .03 .04 .05 .06 .07 .08 .10 .10 .12 .13 .14 .15 .16 .17 .18 .19

Sweet Clover (Pounds per Acre)

0 0 1.97 4.37 6.76 9.16 11.55 14.66 17.05 19.73 21.98 24.52 26.77 29.03 31.56 34.10 36.50 38.89 41.43 43.68 45.94

Sweet Clover (Pounds per 1000 Square Feet)

0 0 .05 .10 .16 .21 .27 .34 .39 .45 .50 .56 .61 .67 .72 .78 .84 .89 .95 1.00 1.05

Ladino Clover (Pounds per Acre)

0 .85 2.25 4.23 6.06 7.75 10.15 12.54 14.94 16.91 18.88 21.14 23.39 25.08 27.06 29.03 30.86 32.97 35.23 37.77 39.46

Ladino Clover (Pounds per 1000 Square Feet)

0 .02 .05 .10 .14 .18 .23 .29 .34 .39 .43 .49 .54 .58 .62 .67 .71 .76 .81 .87 .91

Red Clover (Pounds per Acre)

0 .28 2.54 4.79 7.05 9.30 11.55 14.09 16.35 18.60 20.86 23.11 25.36 27.62 30.16 32.41 34.66 36.92 39.17 41.43 43.97

Red Clover (Pounds per 1000 Square Feet)

0 .01 .06 .11 .16 .21 .27 .32 .38 .43 .48 .53 .58 .63 .69 .74 .80 .85 .90 .95 1.01

Timothy Grass (Pounds per Acre)

0 0 1.41 3.10 4.79 6.76 8.74 10.99 13.25 15.50 17.76 20.01 22.26 24.52 26.77 29.31 31.28 33.82 36.07 38.05 40.30

Timothy Grass (Pounds per 1000 Square Feet)

0 0 .03 .07 .11 .16 .20 .25 .30 .36 .41 .46 .51 .56 .61 .67 .72 .78 .83 .87 .93

Canary Grass (Pounds per Acre)

0 0 1.97 3.80 5.64 7.61 9.58 11.55 13.53 15.50 17.47 19.73 21.98 23.96 26.49 28.46 30.72 32.83 35.23 37.20 39.46

Canary Grass (Pounds per 1000 Square Feet)

0 0 .05 .09 .13 .17 .22 .27 .31 .36 .40 .45 .50 .55 .61 .65 .71 .75 .81 .85 .91

Birdsfoot Trefoil (Pounds per Acre)

0 0 2.25 4.51 7.05 9.86 12.68 15.22 18.04 20.57 23.39 26.21 29.03 31.85 34.66 37.77 40.58 43.40 45.94 48.76 51.57

Birdsfoot Trefoil (Pounds per 1000 Square Feet)

0 0 0.5 .10 .16 .23 .29 .35 .41 .47 .54 .60 .67 .73 .80 .87 .93 1.00 1.05 1.12 1.18

Red Top Grass (Pounds per Acre)

0 0 .85 1.69 2.54 3.95 5.07 6.20 7.05 8.17 9.30 10.15 10.71 11.55 12.12 12.96 13.81 14.94 15.78 16.91 17.76

Red Top Grass (Pounds per 1000 Square Feet)

0 0 .02 .04 .06 .09 .12 .14 .16 .19 .21 .23 .25 .27 .28 .30 .32 .34 .36 .39 .41

Kentucky Blue Grass (Pounds per Acre)

0 0 .28 1.52 2.17 3.72 4.37 5.33 6.12 6.90 7.61 8.40 9.02 9.72 10.40 10.99 11.64 12.29 12.82 13.39 13.95

Kentucky Blue Grass (Pounds per 1000 Square Feet)

0 0 .01 .03 .05 .09 .10 .12 .14 .16 .17 .19 .21 .22 .24 .25 .27 .28 .29 .31 .32

Land Pride

PSN2096 Primary Seeders 313-306M

20

4/03/08

Land Pride

Table of Contents

Section 4: Seeding Adjustments

Seed Rate Charts (Standard Seed Box Option)

Cup Setting 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Alfalfa (Pounds per Acre)

High Range 0 54 125 198 269 341 41248 485 555 626 699 769 842 913 985 1056 1129 1199 1270 1343 1413
Low Range 0 17 40 63 85 108 131 154 176 198 221 244 267 289 312 335 358 380 402 425 448

Alfalfa (Pounds per 1000 Square Feet)

High Range 0.0 1.2 2.9 4.5 6.2 7.8 9.2 11.1 12.8 14.4 16.1 17.7 19.4 21 22.6 24.3 25.9 27.6 29.2 30.9 32.5
Low Range 0.0 0.4 0.9 1.4 2 2.5 3 3.5 4 4.6 5.1 5.6 6.1 6.6 7.2 7.7 8.2 8.7 9.2 9.8 10.3

Bent Grass (Pounds per Acre)

High Range 0 37 80 115 152 185 206 239 265 293 326 358 380 413 439 467 499 528 554 586 619
Low Range 0 17 29 42 54 66 77 89 99 110 122 131 140 149 159 168 175 184 191 198 205

Bent Grass (Pounds per 1000 Square Feet)

High Range 0.0 0.8 1.8 2.6 3.5 4.2 4.7 5.5 6.1 6.7 7.5 8.2 8.7 9.5 10.1 11.5 12.1 12.7 12.7 13.5 14.2
Low Range 0.0 0.4 0.7 1 1.2 1.5 1.8 2 2.3 2.5 2.8 3 3.2 3.4 3.6 3.9 4 4.2 4.4 4.5 4.7

Bermuda - Unhulled (Pounds per Acre)

High Range 0 61 101 161 206 250 295 341 386 430 475 521 565 610 654 701 745 789 834 880 925
Low Range 0 19 32 51 65 79 93 108 122 136 150 165 179 193 207 222 236 250 264 279 293

Bermuda - Unhulled (Pounds per 1000 Square Feet)

High Range 0.0 1.4 2.3 3.7 4.7 5.8 6.8 7.8 8.9 9.9 10.9 12 13 14 15 16.1 17.1 18.1 19.2 20.2 21.3
Low Range 0.0 0.4 0.7 1.2 1.5 1.8 2.1 2.5 2.8 3.1 3.8 3.8 4.1 4.4 4.8 5.1 5.4 5.7 6.1 6.4 6.7

Buffalo Grass Sharps Improved (Pounds per Acre)

High Range 000225276106130159185213241259293321352371395417430434
Low Range 0001321293846566573839299109118127134143147150

Buffalo Grass Sharps Improved (Pounds per 1000 Square Feet)

High Range 0.0 0 0 0.5 1.2 1.7 2.4 3 3.6 4.2 4.9 5.5 6.2 6.7 7.4 8.1 8.5 9.1 9.6 9.9 10
Low Range 0.0 0 0 0.30 0.5 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.1 2.3 2.5 2.7 2.9 3.1 3.3 3.4 3.5

Clover - Red (Pounds per Acre)

High Range 0 77 143 202 263 321 380 438 499 557 616 676 734 793 852 913 971 1030 190 1149 1207
Low Range 0 24 45 64 83 102 120 139 158 177 195 214 233 251 270 289 308 326 346 364 383

Clover - Red (Pounds per 1000 Square Feet)

High Range 0.0 1.8 3.3 4.6 6 7.4 8.7 1.1 11.5 12.8 14.2 15.5 16.9 18.2 19.6 21 22.3 23.7 25.1 26.4 27.8
Low Range 0.0 0.6 1 1.5 1.9 2.3 2.8 3.2 3.6 4.1 4.5 4.9 5.4 5.8 6.2 6.6 7.1 7.5 7.9 8.4 8.8

Clover - White (Pounds per Acre)

High Range 0 77 151 224 297 372 444 517 592 664 737 812 884 957 1032 1104 1177 1252 1324 1397 1472
Low Range 0 24 48 71 94 118 141 164 187 211 234 257 280 303 327 350 373 397 420 443 466

Clover - White (Pounds per 1000 Square Feet)

High Range 0.0 1.8 3.5 5.2 6.8 8.5 10.2 11.9 13.6 15.3 16.9 18.7 20.3 22 23.7 25.4 27.1 28.8 30.4 32.1 33.8
Low Range 0.0 0.6 1.1 1.6 2.2 2.7 3.2 3.8 4.3 4.8 5.4 5.9 6.4 7 7.5 8 8.6 9.1 9.6 10.2 10.7

Fescue - Fine Blade, Turf Type (Pounds per Acre)

High Range 0 20 46 75 103 131 160 188 216 242 271 299 327 355 384 412 440 468 497 525 553
Low Range 0 6 15 24 33 42 51 60 69 77 86 95 104 113 122 131 140 148 157 166 175

Fescue - Fine Blade, Turf Type (Pounds per 1000 Square Feet)

High Range 0.0 0.5 1.1 1.7 2.4 3 3.7 4.3 5 5.6 6.2 6.9 7.5 8.2 8.8 9.5 10.1 10.8 11.4 12.1 12.7
Low Range 0.0 0.1 0.3 0.5 0.7 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6 3.8 4

Fescue K-31 (Pounds per Acre)

High Range 0 0 21 50 83 113 140 165 186 223 243 272 305 328 355 382 48 433 439 450 454
Low Range 00615263544515869768495102110118127134136140141

Fescue K-31 (Pounds per 1000 Square Feet)

High Range 0.0 0.0 0.5 1.1 1.9 2.6 3.2 3.8 4.3 5.1 5.6 6.3 7 7.5 8.2 8.8 9.4 10 10.1 10.3 10.4
Low Range 0.0 0.0 0.1 0.4 0.6 0.8 1 1.2 1.3 1.6 1.7 1.9 2.2 2.3 2.5 2.7 2.9 3.1 3.1 3.2 3.2

Kentucky Blue Grass (Pounds per Acre)

High Range 0 23 48 73 103 125 155 178 205 227 250 274 293 322 334 365 387 406 426 442 455
Low Range 0 8 16 24 34 41 51 58 67 74 82 90 96 106 109 119 127 133 140 145 149

Kentucky Blue Grass (Pounds per 1000 Square Feet)

High Range 0.0 0.5 1.1 1.7 2.4 2.9 3.6 4.1 4.7 5.2 5.7 6.3 6.7 7.4 7.7 8.4 8.9 9.3 9.8 10.1 10.5
Low Range 0.0 0.2 0.4 0.5 0.8 0.9 1.2 1.3 1.5 1.7 1.9 2.1 2.2 2.4 2.5 2.7 2.9 3.1 3.2 3.3 3.4

Lovegrass - Sand (Pounds per Acre)

High Range 0 89 140 191 242 293 343 394 445 496 547 598 649 700 751 802 852 925 977 1029 1081
Low Range 0 28 44 61 77 93 109 125 141 157 173 189 206 222 238 254 270 286 302 319 335

4/03/08

PSN2096 Primary Seeders 313-306M

21

Table of Contents

Land Pride

Section 4: Seeding Adjustments

Cup Setting 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Lovegrass - Sand (Pounds per 1000 Square Feet)

High Range 0.0 2 3.2 4.4 5.6 6.7 7.9 9.1 10.2 11.4 12.6 13.7 14.9 16.1 17.3 18.4 19.6 21.3 22.5 23.7 24.9
Low Range 0.0 0.6 1 1.4 1.8 2.1 2.5 2.9 3.2 3.6 4 4.4 4.7 5.1 5.5 5.8 6.2 6.6 6.9 7.3 7.7

Lovegrass - Weeping (Pounds per Acre)

High Range 0 109 176 226 287 343 396 448 501 553 606 658 711 763 816 868 921 973 1026 1078 1133
Low Range 0 35 56 72 91 109 125 142 159 175 192 209 225 242 259 275 292 308 325 342 359

Lovegrass - Weeping (Pounds per 1000 Square Feet)

High Range 0.0 2.5 4 5.2 6.6 7.9 9.1 10.3 11.5 12.7 13.9 15.1 16.3 17.5 18.7 20 21.2 22.4 23.6 24.8 26
Low Range 0.0 0.8 1.3 1.6 2.1 2.5 2.9 3.3 3.6 4 4.4 4.8 5.2 5.6 5.9 6.3 6.7 7.1 7.5 7.8 8.2

Orchard Grass (Pounds per Acre)

High Range 046101520273441495866758594103112121130138146
Low Range 01235791215182225293336404448515558

Orchard Grass (Pounds per 1000 Square Feet)

High Range 0.0 0.1 0.1 0.2 0.3 0.5 0.6 0.8 0.9 1.1 1.3 1.5 1.7 1.9 2.2 2.4 2.6 2.8 3.0 3.2 3.3
Low Range 0.0 0.0 0.0 0.1 0.1 0.2 0.2 0.3 0.3 0.4 0.5 0.6 0.7 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.3

Rye Grass - Annual (Pounds per Acre)

High Range 0 21 59 95 131 168 204 242 279 315 351 388 426 462 499 535 573 610 646 682 719
Low Range 0 7 19 30 42 53 65 77 88 100 111 123 135 147 158 170 182 193 205 216 228

Rye Grass - Annual (Pounds per 1000 Square Feet)

High Range 0.0 0.5 1.3 2.2 3 3.9 4.7 5.6 6.4 7.2 8.1 8.9 9.8 10.6 11.5 12.3 13.2 14 14.9 15.7 16.5
Low Range 0.0 0.2 0.4 0.7 1 1.2 1.5 1.8 2 2.3 2.6 2.8 3.1 3.4 3.6 3.9 4.2 4.4 4.7 5 5.2

Rye Grass - Perennial (Pounds per Acre)

High Range 0 36 77 115 156 196 234 275 315 353 394 434 475 513 553 594 632 672 713 751 791
Low Range 0 12 24 37 49 62 74 87 100 112 125 138 150 163 175 188 200 213 226 238 251

Rye Grass - Perennial (Pounds per 1000 Square Feet)

High Range 0.0 0.8 1.8 2.6 3.6 4.5 5.4 6.2 7.2 8.1 9 10 10.9 11.8 12.7 13.6 14.5 15.5 16.4 17.3 18.2
Low Range 0.0 0.3 0.6 0.8 1.1 1.4 1.7 2 2.3 2.6 2.9 3.2 3.5 3.7 4 4.3 4.6 4.9 5.2 5.5 5.8

Sudan Grass (Pounds per Acre)

High Range 0 35 68 103 141 179 220 262 306 352 398 446 495 545 596 648 701 754 808 862 916
Low Range 0 18 28 41 55 71 89 107 127 147 168 189 210 231 252 271 290 308 325 339 352

Sudan Grass (Pounds per 1000 Square Feet)

High Range 0.0 0.8 1.6 2.4 3.2 4.1 5.1 6.0 7.0 8.1 9.1 10.2 11.4 12.5 13.7 14.9 16.1 17.3 18.5 19.8 21.0
Low Range 0.0 0.4 0.6 0.9 1.3 1.6 2.0 2.5 2.9 3.4 3.9 4.3 4.8 5.3 5.8 6.2 6.7 7.1 7.5 7.8 8.1

Vetch (Pounds per Acre)

High Range 0 78 135 191 245 302 358 415 471 525 582 638 695 749 805 862 918 973 1029 1089 1142
Low Range 0 21 38 56 73 90 108 125 142 159 177 194 211 228 246 263 280 298 315 333 350

Vetch (Pounds per 1000 Square Feet)

High Range 0.0 1.8 3.1 4.4 5.6 6.9 8.2 9.5 10.8 12.1 13.4 14.7 16 17.2 18.5 19.8 21.1 22.4 23.7 25.1 26.2
Low Range 0.0 0.5 0.9 1.3 1.7 2.1 2.5 2.9 3.3 3.7 4.1 4.5 4.9 5.2 5.6 6 6.4 6.9 7.2 7.6 8

Wheatgrass - Crested (Pounds per Acre)

High Range 0 22 36 51 67 81 95 111 125 139 153 170 184 198 214 228 242 258 273 287 301
Low Range 0 7 12 16 21 26 30 35 40 44 49 54 58 63 68 72 77 82 86 91 95

Wheatgrass - Crested (Pounds per 1000 Square Feet)

High Range 0.0 0.5 0.8 1.2 1.5 1.9 2.2 2.6 2.9 3.2 3.5 3.9 4.2 4.5 4.9 5.2 5.6 5.9 6.3 6.6 6.9
Low Range 0.0 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.6 1.7 1.8 1.9 2 2.1 2.2

Wheatgrass - Western (Pounds per Acre)

High Range 0 7 24 41 58 76 93 110 127 144 161 179 196 213 230 247 265 282 299 316 333
Low Range 02813192429354446515762677378848995100106

Wheatgrass - Western (Pounds per 1000 Square Feet)

High Range 0.0 0.2 0.5 0.9 1.3 1.7 2.1 2.5 2.9 3.3 3.7 4.1 4.5 4.9 5.3 5.7 6.1 6.5 6.9 7.3 7.7
Low Range 0.0 0.0 0.2 0.3 0.4 0.5 0.7 0.8 0.9 1 1.2 1.3 1.4 1.5 1.7 1.8 1.9 2.1 2.2 2.3 2.4

PSN2096 Primary Seeders 313-306M

22

4/03/08

Land Pride

Table of Contents

Section 4: Seeding Adjustments

Seed Rate Charts (Metric) (Standard Seed Box)

Cup Setting 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Alfalfa (Kilograms per Hectare)

High Range 0 60 140 222 301 382 461 543 621 700 782 860 942 1021 1102 1181 1263 1341 1421 1503 1581
Low Range 0 19 45 70 95 121 147 172 197 222 247 273 299 323 349 375 401 425 450 475 501

Alfalfa (Kilograms per 1000 Square Meters)

High Range 0 6 14 22 30 38 45 54 62 70 79 86 95 103 110 119 126 135 143 151 159
Low Range 02471012151720222527303235384042454850

Bent Grass (Kilograms per Hectare)

High Range 0 41 90 129 170 207 230 267 296 328 365 401 425 462 491 522 558 591 620 656 693
Low Range 0 19 32 47 60 74 86 100 111 123 136 147 157 167 178 188 196 206 214 222 229

Bent Grass (Kilograms per 1000 Square Meters)

High Range 049131721232730333740424649565962626669
Low Range 02356791011121415161718192021212223

Bermuda (Kilograms per Hectare)

High Range 0 68 113 180 230 280 330 382 432 481 531 583 632 682 732 784 834 883 933 985 1035
Low Range 0 21 36 57 73 88 104 121 136 152 168 185 200 216 232 248 264 280 295 312 328

Bermuda (Kilograms per 1000 Square Meters)

High Range 0 7 11 18 23 28 33 38 43 48 53 59 63 68 73 79 83 88 94 99 104
Low Range 023679101214151919202123252628303133

Buffalo Grass (Kilograms per Hectare)

High Range 000255885119145178207238270290328359394415442467481486
Low Range 000152332435163738293103111122132142150160164168

Buffalo Grass (Kilograms per 1000 Square Meters)

High Range 000268121518212427303336404244474849
Low Range 000123456789101112131415161717

Clover - Red (Kilograms per Hectare)

High Range 0 86 160 226 294 359 425 490 558 623 689 756 821 887 953 1021 1086 1152 1219 1286 1350
Low Range 0 27 50 72 93 114 134 156 177 198 218 239 261 281 302 323 345 365 387 407 429

Clover - Red (Kilograms per 1000 Square Meters)

High Range 0 9 16 22 29 36 42 49 56 62 69 76 83 89 96 103 109 116 123 129 136
Low Range 0357911141618202224262830323537394143

Clover - White (Kilograms per Hectare)

High Range 0 86 169 251 332 416 497 578 662 743 825 908 989 1071 1155 1235 1317 1401 1481 1563 1647
Low Range 0 27 54 79 105 132 158 183 209 236 262 288 313 339 366 392 417 444 470 496 521

Clover - White (Kilograms per 1000 Square Meters)

High Range 0 9 17 25 33 42 50 58 66 75 83 91 99 107 116 124 132 141 148 157 165
Low Range 03581113161921232629313437394244475052

Fescue - Fine Blade, Turf Type (Kilograms per Hectare)

High Range 0 22 51 84 115 147 179 210 242 271 303 335 366 397 430 461 492 524 556 587 619
Low Range 0 7 17 27 37 47 57 67 77 86 96 106 116 126 136 147 157 166 176 186 196

Fescue - Fine Blade, Turf Type (Kilograms per 1000 Square Meters)

High Range 02581215182124273034374043464953565962
Low Range 00123567891011121314151617181920

Fescue K-31(Kilograms per Hectare)

High Range 0 0 23 56 93 126 157 185 208 249 272 304 341 367 397 427 456 484 491 503 508
Low Range 007172939495765778594106114123132142150152157158

Fescue K-31 (Kilograms per 1000 Square Meters)

High Range 0025913161921252731343740434649495051
Low Range 000534566889111112131415151616

Kentucky Blue Grass (Kilograms per Hectare)

High Range 0 26 54 82 115 140 173 199 229 254 280 307 328 360 374 408 433 454 477 495 509
Low Range 0 9 18 27 38 46 57 65 75 83 92 101 107 119 122 133 142 149 157 162 167

Kentucky Blue Grass (Kilograms per 1000 Square Meters)

High Range 02581214182023252831333638414345484951
Low Range 0122446678910111212131415161617

Lovegrass - Sand (Kilograms per Hectare)

High Range 0 100 157 214 271 328 384 441 498 555 612 669 726 783 840 897 953 1035 1093 1151 1209
Low Range 0 31 49 68 86 104 122 140 158 176 194 211 230 248 266 284 302 320 338 357 375

Lovegrass - Sand (Kilograms per 1000 Square Meters)

High Range 0 10 16 21 27 33 39 44 50 56 62 67 73 79 84 90 96 104 110 116 122
Low Range 0357910121416182021232527283032343638

4/03/08

PSN2096 Primary Seeders 313-306M

23

Table of Contents

Land Pride

Section 4: Seeding Adjustments

Cup Setting 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Lovegrass - Weeping (Kilograms per Hectare)

High Range 0 122 197 253 321 384 443 501 561 619 678 736 795 854 913 971 1030 1089 1148 1206 1268
Low Range 0 39 63 81 102 122 140 159 178 196 215 234 252 271 290 308 327 345 364 383 402

Lovegrass - Weeping (Kilograms per 1000 Square Meters)

High Range 0 12 20 25 32 39 44 50 56 62 68 74 80 85 91 98 104 109 115 121 127
Low Range 04681012141618202123252729313335373840

Orchard Grass (Kilograms per Hectare)

High Range 0471117233038465565748495105115126136145155164
Low Range 012458101417202428323741454953576165

Orchard Grass (Kilograms per 1000 Square Meters)

High Range 0011223456678911121314151516
Low Range 000011112223344555666

Rye Grass - Annual (Kilograms per Hectare)

High Range 0 23 66 106 147 188 228 271 312 352 393 434 477 517 558 599 641 682 723 763 804
Low Range 0 8 21 34 47 59 73 86 98 112 124 138 151 164 177 190 204 216 229 242 255

Rye Grass - Annual (Kilograms per 1000 Square Meters)

High Range 026111519232731354043485256606468737781
Low Range 0123567910111314151718192121232425

Rye Grass - Perennial (Kilograms per Hectare)

High Range 0 40 86 129 175 219 262 308 352 395 441 486 531 574 619 665 707 752 798 840 885
Low Range 0 13 27 41 55 69 83 97 112 125 140 154 168 182 196 210 224 238 253 266 281

Rye Grass - Perennial (Kilograms per 1000 Square Meters)

High Range 049131822263035404449535862667176808489
Low Range 01345781011131416171820212224252728

Sudan Grass (Kilograms per Hectare)

High Range 0 39 77 116 157 201 247 294 343 394 446 500 555 611 668 726 785 845 905 966 1027
Low Range 0 20 32 46 62 80 99 120 142 165 188 212 236 259 282 304 325 345 364 380 395

Sudan Grass (Kilograms per 1000 Square Meters)

High Range 0481216202529343945505661677379849197103
Low Range 023568101214161921242628303335363839

Vetch (Kilograms per Hectare)

High Range 0 87 151 214 274 338 401 464 527 587 651 714 778 838 901 964 1027 1089 1151 1218 1278
Low Range 0 23 43 63 82 101 121 140 159 178 198 217 236 255 275 294 313 333 352 373 392

Vetch (Kilograms per 1000 Square Meters)

High Range 0 9 15 21 27 34 40 46 53 59 65 72 78 84 90 97 103 109 116 123 128
Low Range 0246810121416182022242527293134353739

Wheatgrass - Crested (Kilograms per Hectare)

High Range 0 25 40 57 75 91 106 124 140 156 171 190 206 222 239 255 271 289 305 321 337
Low Range 0 8 13 18 23 29 34 39 45 49 55 60 65 70 76 81 86 92 96 102 106

Wheatgrass - Crested (Kilograms per 1000 Square Meters)

High Range 024679111314161719212224252729313234
Low Range 011223344556678899101011

Wheatgrass - Western (Kilograms per Hectare)

High Range 0 8 27 46 65 85 104 123 142 161 180 200 219 238 257 276 296 316 335 354 373
Low Range 0291521273239455157646975828794100106112119

Wheatgrass - Western (Kilograms per 1000 Square Meters)

High Range 012468101214161820222426283032343638
Low Range 0011223445667789910111112

PSN2096 Primary Seeders 313-306M

24

4/03/08

Land Pride

Table of Contents

Section 5: Maintenance and Lubrication

Section 5: Maintenance and Lubrication

Maintenance

Properservicing andadjustment is thekeytothe long lifeof
anyimplement.Withcareful andsystematic inspection,you
can avoid costly maintenance, time and repair.

6. After using your seeder for several hours, check all

bolts to be sure they are tight.

7. After transporting your seeder for several hours,

check all bolts and nuts to be sure they are tight.

Storage

1. At the end of the working season or when your

Primary Seeder will notbe used fora long period, it is
good practice to clean off any dirt or grease that may
have accumulated on the seeder and any of the
moving parts.

2. Be sure that the seed box is completely cleaned

before storing.

3. PlaceRear Roller Pin in Parkingposition. (See Figure

2-2, page 15.)

4. The square bore of the seed cup drive sprocket hub
should be oiled to prevent seizing. Squirt oil on to the
squarefeed cup shaft and moveseed cup adjustment
leverback and forth inorder to get theoil back into the
square.

5. Lubricate all fittings as indicated.

6. When in storage, lower the seeder with rollers on a
board or hard surface and adjust theparking standor
tongue jack.

7. Repaint parts where paint is worn or scratched to
prevent rust.

8. Replace all damaged or missing decals.

9. Store the seeder inside if possible.Inside storagewill
reduce maintenance and make for a longer seeder
life.

10. Inspect the Primary Seeder for loose, damaged or
worn parts and adjust or replace if needed.

Lubrication

Lubrication
Legend

Multi-purpose
spray lube

20596

Multi-purpose
grease lube

Multi-purpose
oil lube

50

Intervals in hours at which
lubrication is required

hrs

25

Hours

Drive Sprocket Hanger Bearing

(Small Grass Seeds Box)

Type of Lubrication: Multi-Purpose
Quantity = Coat sprocket bore thoroughly; move seed-rate

handle back and forth to get oil into sprocket bore.

IMPORTANT: DO NOT use petroleum lubricant on
the plastic seed cups. Petroleumwill absorb into the
plastic and swell the plastic components.

25

Hours

4/03/08

20585

Roller Bearings

Type of Lubrication: Multi-Purpose
Quantity = Coat Generously

PSN2096 Primary Seeders 313-306M

25

Table of Contents

Section 5: Maintenance and Lubrication

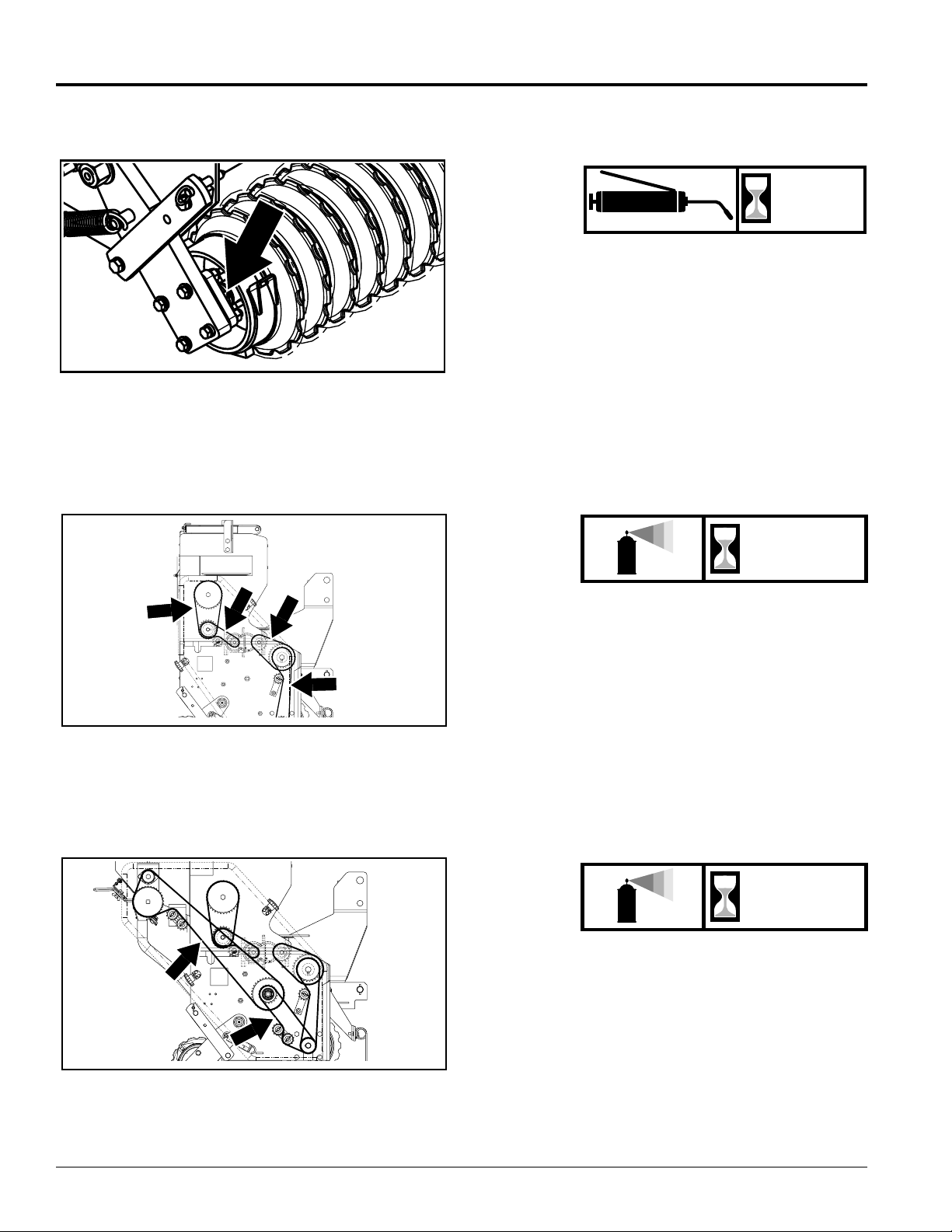

20585

Land Pride

25

Hours

Roller Bearings

Type of Lubrication: Multi-Purpose
Quantity = Coat Generously

20597

As

Required

Roller Chains (4 chains)

Type of Lubrication: Chain Lubricant
Quantity = Generously

As

Required

Roller Chains

(Standard Seed Box Option)

PSN2096 Primary Seeders 313-306M

26

20602

Type of Lubrication: Chain Lubricant
Quantity = Generously

4/03/08

Land Pride

Table of Contents

Section 5: Maintenance and Lubrication

20602

As

Required

Roller Chains

(Small Seed Box Option)

Type of Lubrication: Chain Lubricant
Quantity = Generously

As

Required

Gearbox

The gearbox is lubricated and sealed at the factory.
Under normal conditions, it does not require
maintenance or lubrication.

If the gearbox has been opened for repair, repack all
gears and around shaft bearings using at least 7 oz. of
gear lube, Part No. 788067.

Keepmoisture anddirt outofgearbox. Inspect(replace if
needed) the rubber seals on gearbox drive and shifter
shafts.

Spread a small skin coat of anaerobic sealant (Loctite
525 or equivalent) to gear case mating surfaces before
bolting them back together.

IMPORTANT: Use sparingly. Excess sealant may
squeeze off the intended surfaceand lock bearings or
gears.

14757

4/03/08

PSN2096 Primary Seeders 313-306M

27

Table of Contents

Section 6: Specifications and Capacities

Section 6: Specifications and Capacities

PSN20 Series Primary Seeder

Model PSN2096 (Base Unit)

Overall Width
Seeding Width
Height
Overall Length
Empty Weight
Minimum HP Required
Maximum HP
Main Seedbox Construction
Lid construction
Main Seedbox Capacity
Seed Cup Drive
Seed Cup Agitation
Number of Seed Cups
Seed Settings
Seed Drop
Track Removers
Packer Wheels- Front
Packer Wheels- Rear

Hitch

9’ 4”
8’ 6”
45”
42 1/2”
1810 lbs. (Includes base unit with standard seeds box and small seeds box)
See tractor’s 3-point hitch and/or capacity
Cat. 3 Tractor
Continuous welded, 14 gauge steel
Heavy duty precision fit with seed splash guard
8 1/2 bushels
Chain Driven from right side of front roller
Chain driven paddle type agitators above seed cups
14
Wide range of calibration
Wind guarded
Double torsion spring height adjustable and replaceable, Two each
12” OD notched, cast iron, 42 each with 1 1/2” sealed greaseable bearings
9 1/2” OD notched, cast iron, 43 each with free floating mounting tube and 1”

greaseable bearing mounted on pivoting spring loaded arms
Category 2 & 3; Quick-Hitch Adaptable, See optional pull-type hitch below

Land Pride

Standard Seeds box

Small Seeds Box

Wheel Base
Length
Hook-Up
Tires - 2 ea.
Cylinders
Tongue Jack
Weight (Approximate Pounds)

PSN2096 Primary Seeders 313-306M

28

Optional Add-on Seed Boxes

5 bushels capacity with:

• Chain driven seed cups.

• Chain driven paddle type agitators above seed cups.

2 bushels capacity with:

• Chain driven seed cups.

Optional Pull Type Hitch

69” Center to Center
95”
Quick Attach Type Hook-Up

9.5” L X 15” 12 Ply Tires
4” X 14” with Transport Lock valve
Standard
720 lbs.

4/03/08

Land Pride

Table of Contents

Section 7: Features and Benefits

Section 7: Features and Benefits

PSN20 Series Primary Seeder

Features Benefits

Cat. 2 & 3, Cat. 2 Quick-Hitch

adaptable

Seeding width 8’ 6” Seeding width is just right for small acreage, roadside native grass work, and small

Native Grass model Native Grass model allows the user who works primar ily with native grasses to use the

Seedbox construction All-welded seedbox construction prevents twisting from uneven ground, offers years of

Water tight lids All boxes have precision fitting lids to keep seeds dry and rodents out.
Native grass main box 1 Bushel per foot (8 1/2 bushel) capacity keeps filling to a minimum, Increases productivity.
Native grass seed cup Large aluminum seed cup with aggressive picker wheel is used on Native Grass main box.

Native grass agitator Native Grass main box uses an aggressive paddle style agitator to keep the fluffy native

Cast iron packer wheels 12” diameter front rings and 9” diameter rear r ings are used to crush the clods and pack

Spring mounted rear packers Rear packer wheels are spring loaded for additional down pressure, and to stay in contact

Adjustable track removers Spring tine track removers effectively scratch out the tracks from the tractor tires.

#40 Roller chain All dr ives utilize #40 roller chain for smooth running.

4-Speed transmission Easy and fast speed change, saves time from removing chains.

Cat. 2 & 3 offers a wide variety of tractors, Cat. 2 Quick-Hitch allows for easy connecting
and disconnecting.

turf farms.

main box for native grass seed.

service.

grass from bridging.

the seed in to promote seed to soil contact.

with the ground.

Optional Features (PSN20 Primary Seeder)

Features Benefits

Standard seeds box A .6 bushel per foot standard seed box can be bolted to the front of the main box for

seeding turf grass seeds.

• Seed cups are powder metal flutes for accurate seed rates.

• Seed agitator is paddle style to keep seeds from bridging.

Small seeds box A bolt-on Small Seeds Box can be added to the rear of the main box to mix small seeds in

with other types, allowing them to be seeded at rates that compliment each other.

Pull type hitch Allows for easier hook-up to tractor, adaptable to smaller tractors.

4/03/08

PSN2096 Primary Seeders 313-306M

29

Section 8: Troubleshooting

Section 8: Troubleshooting

Problem Solution

Table of Contents

Land Pride

Uneven seed spacing or uneven
stand.

Actual seeding rate is different than
desired.

Feed cup sprocket locked up or
twisted feed cup drive shaft.

Rollers not turning freely.

Check for plugging in seed cup.
Reduce ground speed.
Check for trash or mud build-up on rollers.
Seed treatment will affect seeding rate if the chemicals build-up in seed cup.

Unless cleaned regularly, this build-up can cause breakage of the seed cup shaft.
Check for foreign matter lodged in seed cup sprocket.

Check for trash or mud build-up on roller end.

PSN2096 Primary Seeders 313-306M

30

4/03/08

Land Pride

Section 9: Appendix

Section 9: Appendix

Table of Contents

Torque Values Chart For Common Bolt Size

Bolt Head Identification

Bolt Head Identification

Bolt Size
(Inches)

1

in-tpi

1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.

Grade 2 Grade 5

Grade 8

N·m ft-lb3N · m ft-lb N · m ft-lb mm x pitch N · m ft-lb N · m ft-lb N · m ft-lb

Bolt Size
(Metric)

1

in-tpi = nominal thread diameter in inches-threads per inch

2

N· m = newton-meters

3

ft-lb= foot pounds

4

mm x pitch = nominal thread diameter in millimeters x thread

pitch

5.8

Class 5.8 Class 8.8 Class 10.9

8.8 10.9

4/03/08

PSN2096 Primary Seeders 313-306M

31

Section 9: Appendix

NOTES:

Table of Contents

Land Pride

PSN2096 Primary Seeders 313-306M

32

4/03/08

Land Pride

Section 9: Appendix

be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.

Pride and the installation by the dealer of any such replacement part, and does
not cover common wear items. Land Pride reserves the right to inspect any
equipment or parts which are claimed to have been defective in material or
workmanship.

judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.

the product and all warranty adjustments must be made through an authorized
Land Pride dealer. Land Pride reserves the right to make changes in materials
or design of the product at any time without notice.

of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.

with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in
this written warranty are hereby disclaimed and excluded from this sale.

from the date of purchase by the end user.

Table of Contents

Warranty

Land Pride warrants to the original purchaser that this Land Pride product will

Overall Unit: One year Parts and Labor
Packer Wheels: Considered wear items
Optional Pull Tongue: One year Parts and Labor

This Warranty is limited to the replacement of any defective part by Land

This Warranty does not apply to any part or product which in Land Pride’s

Claims underthis Warranty should be made to the dealerwhich originally sold

This Warranty shall not be interpreted torender Land Pride liable fordamages

No other warranty of any kind whatsoever, express or implied, is made

This Warranty is not valid unless registered with Land Pride within 30 days

4/03/08

PSN2096 Primary Seeders 313-306M

33

Corporate Office: P.O. Box 5060

Salina, Kansas 67402-5060 USA

www.landpride.com
