Land Pride LR1584, LR1596 User Manual
Table of Contents

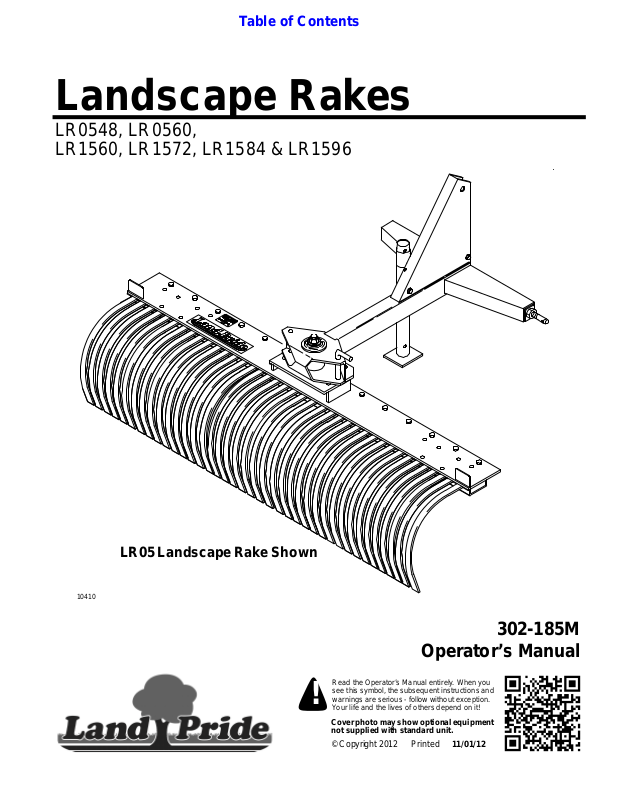

Landscape Rakes
LR0548, LR0560,
LR1560, LR1572, LR1584 & LR1596
10410
LR05 Landscape Rake Shown
Operator’s Manual
Read the Operator’sManual entirely.When you
see this symbol, the subsequent instructions and
warnings are serious - follow without exception.
!
Your life and the lives of others depend on it!
Coverphoto may show optional equipment
not supplied with standard unit.
© Copyright 2012 Printed
302-185M
11/01/12
Table of Contents
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look For The Safety Alert Symbol . . . . . . . . . . . . . .1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Section 1: Assembly & Set-up . . . . . . . . . . . . 6
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . 6
Landscape Rakes . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Support Stand Assembly . . . . . . . . . . . . . . . . . . . . . 7
Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Section 2: Optional Equipment Set-up . . . . . . 8
Dual Gauge Wheel (LR05 Series) . . . . . . . . . . . . . . 8
Gauge Wheel Assembly . . . . . . . . . . . . . . . . . . . . 8
Dual Gauge Wheel Installation (LR15) . . . . . . . . . . 9
Gauge Wheel Assembly . . . . . . . . . . . . . . . . . . . . 9
Grader Blade Installation (LR15) . . . . . . . . . . . . . . . 9
Grader Blade with Gauge Wheels . . . . . . . . . . . . 9
Grader Blade without Gauge Wheels . . . . . . . . . 10
Grader Blade Side Plate Assembly . . . . . . . . . . 10
LR15 Support Stand (Accessory) . . . . . . . . . . . . . 10
Section 3: Operating Instructions . . . . . . . . 11
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . 11
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . 11
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . 11
Section 4: Adjustments . . . . . . . . . . . . . . . . . 13
Angling and reversing . . . . . . . . . . . . . . . . . . . . . .13
Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rake Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Gauge Wheels (Optional) . . . . . . . . . . . . . . . . . . . 13
LR15 Flip Down Blade (Optional) . . . . . . . . . . . . .13
Section 5: Maintenance & Lubrication . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LR15 Gauge Wheel . . . . . . . . . . . . . . . . . . . . . .14
Rake Teeth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Section 6: Options . . . . . . . . . . . . . . . . . . . . . 15
LR05 Dual Gauge Wheel . . . . . . . . . . . . . . . . . . . . 15
LR15 Dual Gauge Wheel . . . . . . . . . . . . . . . . . . . . 15
LR15 Flip Down Grader Blade . . . . . . . . . . . . . . . .15
LR15 Grader Blade Mounting Arm . . . . . . . . . . . . .15
LR15 Support Stand (Accessory) . . . . . . . . . . . . .15
Rear Blade Attachments (Accessory) . . . . . . . . . .15
Section 7: Specifications & Capacities . . . . .16
Section 8: Features &Benefits . . . . . . . . . . . 17
Section 9: Torque Values Chart . . . . . . . . . . 18
Section 10: Warranty . . . . . . . . . . . . . . . . . . . 19
© Copyright 2012 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparationof this manual,Land Pride assumesno responsibility forerrors oromissions. Neither isany liabilityassumedfor damagesresulting from theuse
oftheinformation contained herein. LandPridereservesthe right to reviseandimprove its productsasit sees fit. This publicationdescribes the state of this
product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
11/01/12
▲
Table of Contents
Important Safety Information
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Safety at All Times
Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.
Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.
▲ Operator should be familiar with
all functions of the unit.
▲ Operate implement from the
driver’s seat only.
▲ Make sure all guards and shields
are in place and secured before
operating implement.
▲ Do not leave tractor or implement
unattended with engine running.
▲ Dismounting from a moving
tractor could cause serious injury
or death.
▲ Do not allow anyone to stand
between tractor and implement
while backing up to implement.
▲ Keep hands, feet, and clothing
away from power-driven parts.
▲ Wear snug fitting clothing to avoid
entanglement with moving parts.
▲ Watch out for wires, trees, etc.,
when raising implement. Make
sure all persons are clear of
working area.
▲ Turning tractor too tight may
cause implement to ride up on
wheels. This could result in injury
or equipment damage.
▲ Do not carry passengers on
implement at any time.
Look For The Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
!
Be Aware of
Signal Words
A Signal word designates a degree or
level of hazard seriousness. The
signal words are:
!
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.
For Your Protection
▲ Thoroughly read and understand
the “Safety Label” section, read all
instructions noted on them.
equipment, hazard control, and accident prevention
are dependent upon the awareness, concern,
prudence, and proper training of personnel involved
in the operation, transport, maintenance, and storage
of equipment.
!
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may also
be used to alert against unsafe
practices.
!
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
Shutdown and Storage
▲ Lower machine to ground, put
tractor in park, turn off engine, and
remove the key.
▲ Detach and store implements in an
area where children normally do
not play. Secure implement by
using blocks and supports.
OFF
11/01/12
Parts Manual QR Locator
The QR (Quick Reference) code on the front
cover and to the left will take you to the
Parts Manual for this equipment. Download
the appropriate App on your smart phone,
open the App, point your phone on the QR
code and take a picture.
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
REMO
VE
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Land Pride products.
Refer to Parts Manual
QR Locator on this page for
detailed instructions.
1
Table of Contents
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Use Safety
Lights and Devices
▲ Slow moving tractors, self-
propelled equipment, and towed
implements can create a hazard
whendriven on publicroads.They
are difficult to see, especially at
night.
▲ Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Transport
Machinery Safely
▲ Comply with state and local laws.
▲ Maximum transport speed for
implement is 20 mph. DO NOT
EXCEED.Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.
▲ Sudden braking can cause a
towed load to swerve and upset.
Reduce speed if towed load is not
equipped with brakes.
▲ Use the following maximum
speed - tow load weight ratios as
a guideline:
▲ 20 mph when weight is less than
or equal to the weight of tractor.
▲ 10 mph when weight is double
the weight of tractor.
▲ IMPORTANT: Do not tow a load
that is more than double the
weight of tractor.
Use A Safety Chain
▲ A safety chain will help control
drawn machinery should it
separate from the tractor
drawbar.
▲ Use a chain with the strength
rating equal to or greater than
the gross weight of the towed
machinery.
▲ Attach the chain to the tractor
drawbar support or other
specified anchor location. Allow
only enough slack in the chain
to permit turning.
▲ Do not use safety chain for
towing.
Practice Safe Maintenance
▲ Understand procedure beforedoing
work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.
▲ Work in a clean dry area.
▲ Lower the implement to the ground,
put tractor in park, turn off engine,
and remove key before performing
maintenance.
▲ Allow implement to cool completely.
▲ Do not grease or oil implement
while it is in operation.
▲ Inspect all parts. Make sure parts
are in good condition & installed
properly.
▲ Remove buildup of grease, oil, or
debris.
▲ Remove all tools and unused
parts from implement before
operation.
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
2
11/01/12
Table of Contents
Important Safety Information
These are common practices that may or may not be applicable to the products described in
this manual.
Prepare for Emergencies
▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire
extinguisher handy.
▲ Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Wear
Protective Equipment
▲ Wear protective clothing and
equipment appropriate for the job.
Avoid loose fitting clothing.
▲ Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
▲ Operating equipment safely
requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.
Avoid High
Pressure Fluids Hazard
▲ Escaping fluid underpressure can
penetrate the skin causing
serious injury.
▲ Avoid the hazard by relieving
pressure before disconnecting
hydrauliclines or performing work
on the system.
▲ Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
▲ Use a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
▲ Wear protective glovesand safety
glasses or goggles when working
with hydraulic systems.
▲ If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.
Keep Riders
Off Machinery
▲ Riders obstruct the operator’s
view, they could be struck by
foreign objects or thrown from the
machine.
▲ Never allow children to operate
equipment.
Tire Safety
▲ Tire changing can be dangerous
and should be preformed by
trained personnel using the
correct tools and equipment.
▲ When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
▲ When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Handle
Chemicals Properly
▲ Protective clothing should be
worn.
▲ Handle all chemicals with care.
▲ Follow instructions on container
label.
▲ Agricultural chemicals can be
dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.
▲ Inhaling smoke from any type of
chemical fire is a serious health
hazard.
▲ Store or dispose of unused
chemicals as specified by the
chemical manufacturer.
11/01/12
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
3
Important Safety Information
Table of Contents
Safety Labels
Your Landscape Rake comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Land Pride dealer. To find your nearest dealer,
visit our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
12057
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to
be placed.
c. Peel backing from label. Press firmly onto the surface.
d. Squeeze out air bubbles with the edge of a credit card
or with a similar type straight edge.
818-202C
Caution: Retaining Nut
Model LR1596
Model LR1596
818-230C
Red Reflector (Back side of plate)
15066
818-229C
Amber Reflector (Front side of plate)
(Left side only)
20981
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
4
11/01/12
Table of Contents
Introduction
Introduction
Land Pride welcomes you to the growing family of new
product owners.
This Landscape Rake has been designed with care and
built by skilled workers using quality materials. Proper
assembly, maintenance,andsafeoperatingpracticeswill
help youget years of satisfactory use from this machine.
Application
The LR05 and LR15 Series Landscape Rakes are
designed and built by Land Pride to perform final soil
surfacepreparation and reshaping soil and/or aggregate
profile. LR05 Series are offered in 4 ft., 5 ft.,and 6 ft.
working widths with category 0-1 3-Point hitch for
mounting to compact tractors in the 20hp range. LR15
Series rakes are offer in 5 ft., 6 ft., 7 ft.,and 8 ft. working
widths with category 1 three point hitch for mounting to
tractors with 17 to 35hp capabilities. Both models offer
angling and reversing capabilities to meet specific
finishing needs. Optional gauge wheel packages are
also available on both models to enable a more
consistent finish over uneven or undulating terrain. Both
series offers a flip-down grader to expedite material
distribution and contouring tasks.
These Land Pr ide Landscape Rakes are perfectlysuited
for use by landscapers, contractors, and rental yards.
Theyhaveapplications at housingand road construction
projects, golf courses, terracing sites, run-off control
projects, and reforestation sights.
See “Specifications & Capacities” on page 16 and
“Features & Benefits” on page 17 for additional
information and performance enhancing options.
Using This Manual
This Operator’s Manual is designed to helpfamiliarize
•
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
• The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
• To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com.
Terminology
“Right” or “Left” as used in this manual is determined by
facing forward in the direction the machine will operate
while in use unless otherwise stated.
Owner Assistance
The Online Warranty Registration or Warranty
Registration card should be completed by the dealer at
the time of purchase. This information is necessary to
provide you with quality customer ser vice.
The parts on your Landscape Rake have been specially
designedbyLand Prideand shouldonly be replacedwith
genuine Land Pride parts. Contact a Land Pride dealer if
customer service or repair parts are required. Your Land
Pride dealer has trained personnel, repair parts, and
equipment needed to service the implement.
Serial Number
Model No. _____________Serial No. _______________
For quick reference and prompt service, record model
number and ser ial number in the spaces provided above
and again on warranty page 19. Always provide model
and serial number when ordering parts and in all
correspondences with your Land Pride dealer. Refer to
Figure 1 for location of your ser ial number plate.
LR05 Series
LR15 Series
15065
Serial Number Plate Location (LR15 Series shown)
Figure 1
Further Assistance
Your dealer wants youto be satisfied with your new
Landscape Rake. If for any reason you do not
understand any part of this manual or are not satisfied
with the service received, the following actions are
suggested:
1. Discuss the matter with your dealership service
manager making sure that person is aware of any
problemsyou mayhave and has had the opportunity
to assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem, and request assistance.
3. For further assistance write to:
Definitions
IMPORTANT: A special point of information related
to the following topic. Land Pride’s intention is this
information must be read & noted beforecontinuing.
NOTE: A special point of information that the
operator should be aware of before continuing.
11/01/12
LR0548, LR0560, LR1560, LR1572, LR1584 & LR1596 Landscape Rakes 302-185M
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
5
Loading...
