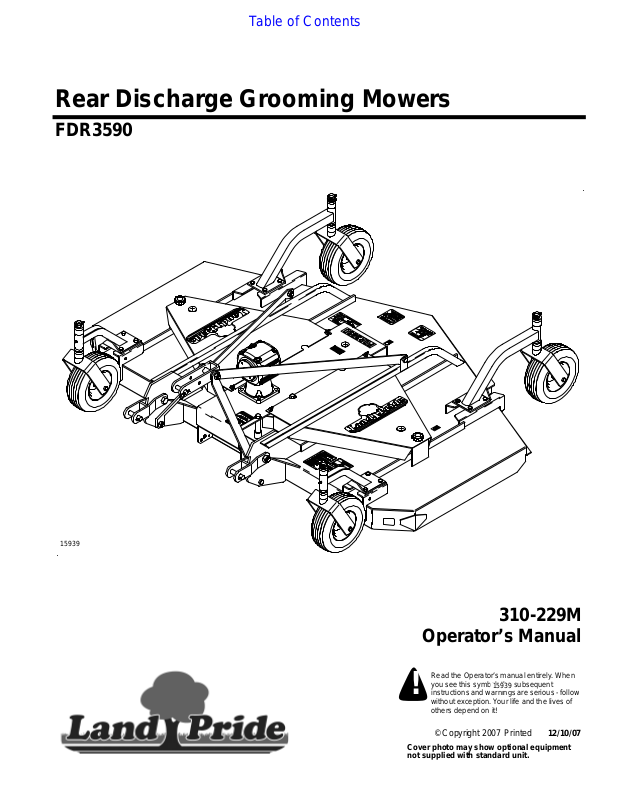

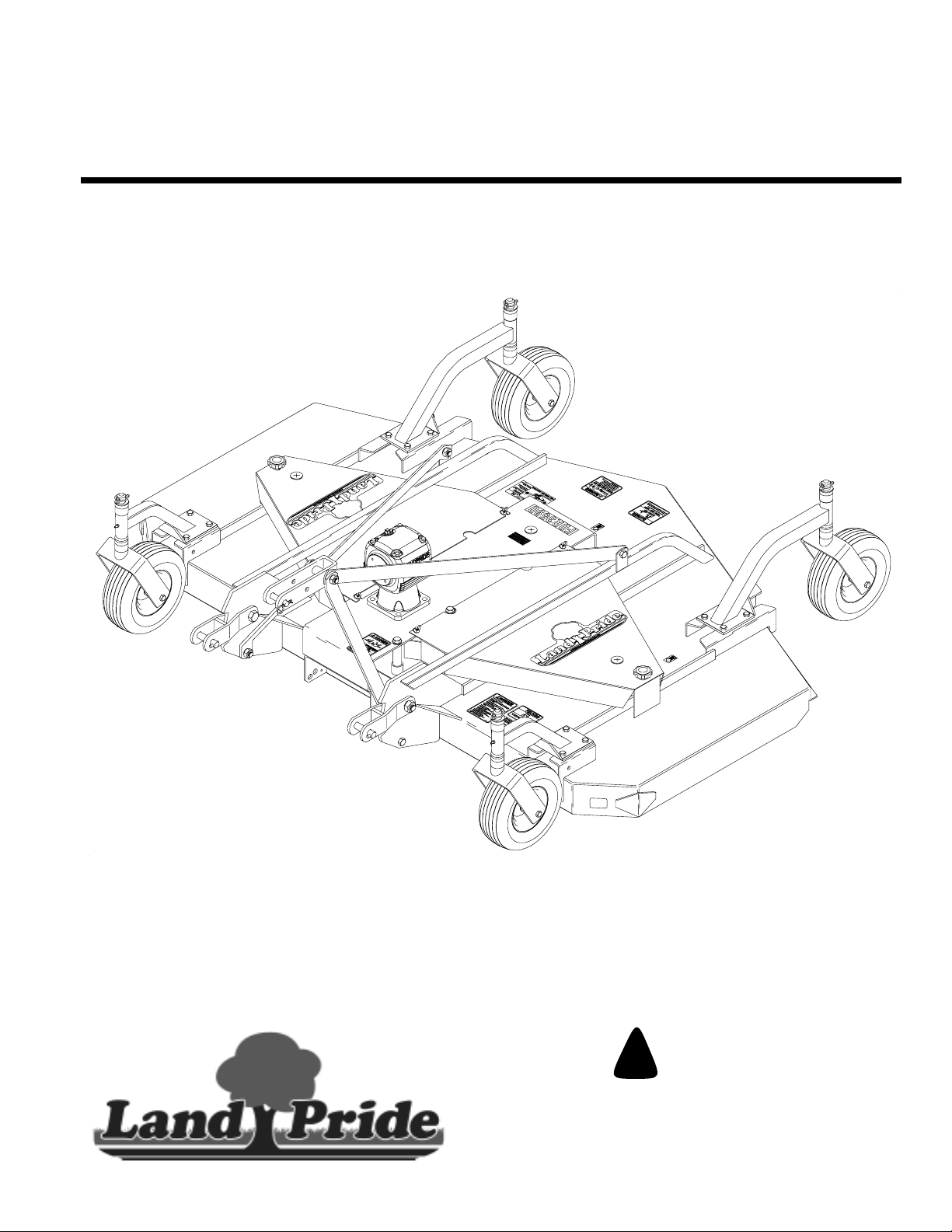

Land Pride FDR3590 User Manual

Table of Contents

Rear Discharge Grooming Mowers

FDR3590

15939

310-229M

Operator’s Manual

Read the Operator’s manual entirely. When
you see this symbol, the subsequent

!

instructions andwarningsare serious - follow
without exception. Your life and the lives of
others depend on it!

© Copyright 2007 Printed

Cover photo may show optional equipment
not supplied with standard unit.

15939

12/10/07

Table of Contents

Table of Contents

L and Pride

Important Safety Information . . . . . . . . . . .1

Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1

Look For The Safety Alert Symbol . . . . . . . . . . . . .1

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . .7

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . .7

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 7

Serial Number Plate . . . . . . . . . . . . . . . . . . . . . 7

Further Assistance . . . . . . . . . . . . . . . . . . . . . .7

Section 1: Assembly and Set-up . . . . . . . .8

Tractor Requirements . . . . . . . . . . . . . . . . . . . . . .8

Upper Hitch Arms . . . . . . . . . . . . . . . . . . . . . . . . .8

Gauge Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PTO Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

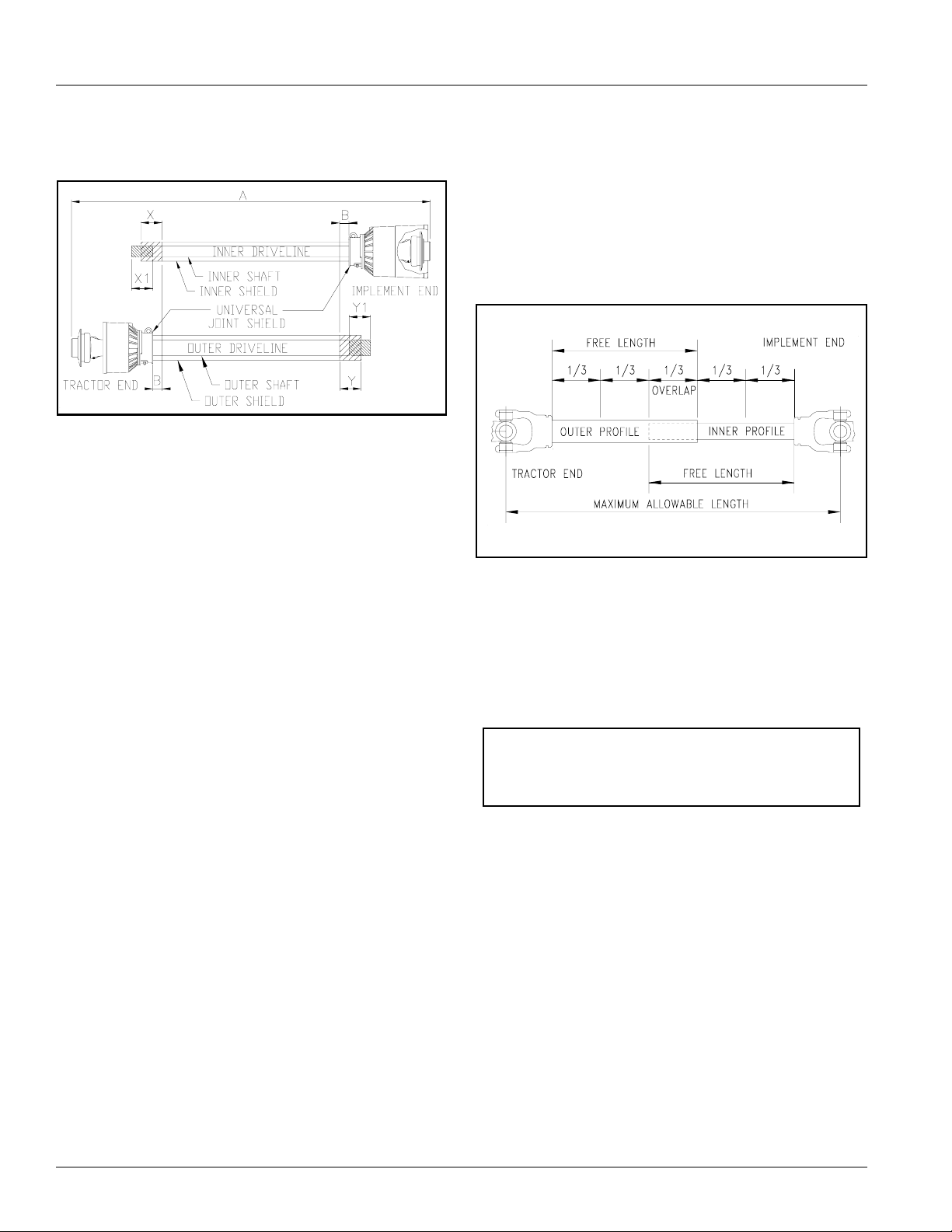

Checking Driveline Minimum Length . . . . . . . . .9

Checking Driveline Maximum Length . . . . . . .10

Accessory Equipment . . . . . . . . . . . . . . . . . . . . . 11

Anti-Scalping Front Roller . . . . . . . . . . . . . . . . . . 11

Cutting Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Low Lift Blades . . . . . . . . . . . . . . . . . . . . . . . . 11

Medium Lift Blades . . . . . . . . . . . . . . . . . . . . . 11

High Lift Blades . . . . . . . . . . . . . . . . . . . . . . . . 11

Mulching Blades . . . . . . . . . . . . . . . . . . . . . . . 11

Accessory Part Numbers . . . . . . . . . . . . . . . . . . . 11

Section 3: Adjustments . . . . . . . . . . . . . .15

Leveling the Mower . . . . . . . . . . . . . . . . . . . . . . .15

Cutting Height Adjustment . . . . . . . . . . . . . . . . . .15

3-Point Hitch Adjustments . . . . . . . . . . . . . . . . . .16

Belt Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Section 4: Maintenance and Lubrication 17

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Service Mowing Blades . . . . . . . . . . . . . . . . . . . .17

Blade Inspection . . . . . . . . . . . . . . . . . . . . . . .17

Blade Removal And Installation . . . . . . . . . . . .17

Blade Sharpening or Replacement . . . . . . . . .18

V-Belt Installation . . . . . . . . . . . . . . . . . . . . . . . . .19

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Driveline Shaft U-Joints . . . . . . . . . . . . . . . . . .20

Inner Tube Bearings . . . . . . . . . . . . . . . . . . . .20

Driveline Profiles . . . . . . . . . . . . . . . . . . . . . . .20

Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Wheel Support Bushings & Wheel Bearings . .21

Bearing in Blade Spindle Hubs . . . . . . . . . . . .21

Section 5: Specifications & Capacities . .22

Section 6: Features and Benefits . . . . . .23

Section 7: Troubleshooting . . . . . . . . . . .24

Section 8: Appendix . . . . . . . . . . . . . . . . .25

Torque Values Chart . . . . . . . . . . . . . . . . . . . . . .25

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Section 2: Operating Instructions . . . . . .12

Tractor Shut Down Procedure . . . . . . . . . . . . . . .12

Operation Check . . . . . . . . . . . . . . . . . . . . . . . . . 12

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Mowing Instructions . . . . . . . . . . . . . . . . . . . . . . .12

Un-hooking the Mower . . . . . . . . . . . . . . . . . . . . . 13

General Operating Instructions . . . . . . . . . . . . . .14

© Copyright 2007 All rights Reserved

Land Pride provides this publication “asis” without warranty ofany kind, either expressedor implied. While every precaution has beentaken in the preparationof this manual, Land
Pride assumesno responsibility forerrors oromissions. Neither isany liability assumedfor damagesresulting from theuse of theinformation contained herein.Land Pride reserves
the rightto revise andimprove itsproducts as it sees fit. This publicationdescribes the stateof this productat the time of its publication,and may notreflect the productin the future.

Land Pride isa registered trademark.

All other brands and product names are trademarksor registered trademarks of their respectiveholders.

Printed in the United States of America.

FDR3590 Rear Discharge Grooming Mowers 310-229M

12/10/07

Land Pride

Table of Contents

Important Safety Information

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Safety at All Times

Thoroughly read and understand
the instructions given in this
manual before operation. Refer to
the “Safety Label” section, read
all instructions noted on them.

Do not allow anyone to operate
this equipment who has not fully
read and comprehended this
manual and who has not been
properly trained in the safe
operation of the equipment.

▲ Operator should be familiar with

all functions of the unit.

▲ Operate implement from the

driver’s seat only.

▲ Do not leave tractor or implement

unattended with engine running.

▲ Dismounting from a moving

tractor could cause serious injury
or death.

▲ Do not stand between the tractor

and implement during hitching.

▲ Keep hands, feet, and clothing

away from power-driven parts.

▲ Wear snug fitting clothing to avoid

entanglement with moving parts.

▲ Watch out for wires, trees, etc.,

when raising implement. Make
sure all persons are clear of
working area.

▲ Turning tractor too tight may

cause implement to ride up on
wheels. This could result in injury
or equipment damage.

Look For The Safety Alert Symbol

The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of

!

Be Aware of
Signal Words

A Signal word designates a degree or
level of hazard seriousness. The
signal words are:

!

DANGER

Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury. This
signal word is limited to the most
extreme situations, typically for
machine components that, for
functional purposes, cannot be
guarded.

For Your Protection

▲ Thoroughly read and understand

the “Safety Label” section, read all
instructions noted on them.

equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnelinvolved in
the operation, transport, maintenance and storage of
equipment.

!

WARNING

Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It mayalso
be used to alert against unsafe
practices.

!

CAUTION

Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.

Shutdown and Storage

▲ Lower machine to ground, put

tractor in park, turn off engine, and
remove the key.

▲ Detach and store implements in a

area where children normally do
not play. Secure implement by
using blocks and supports.

12/10/07

OFF

REMO

VE

FDR3590 Rear Discharge Grooming Mowers 310-229M

1

Table of Contents

Land Pride

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

Use Safety
Lights and Devices

▲ Slow moving tractors, self-

propelled equipment, and towed
implements can create a hazard
when driven on public roads. They
are difficult to see, especially at
night.

▲ Flashing warning lights and turn

signals are recommended
whenever driving on public roads.
Use lights and devices provided
with implement.

Transport
Machinery Safely

▲ Comply with state and local laws.
▲ Maximum transport speed for

implement is 20 mph. DO NOT
EXCEED.Never travel at a speed
which does not allow adequate
control of steering and stopping.
Some rough terrain require a
slower speed.

▲ Sudden braking can cause a

towed load to swerve and upset.

Reduce speed if towed load is not
equipped with brakes.

▲ Use the following maximum

speed - tow load weight ratios as
a guideline:

20 mph when weight is less
than or equal to the weight of
tractor.

10 mph when weight is double
the weight of tractor.

IMPORTANT: Do not tow a load that

is more than double the weight of
tractor.

Keep Riders
Off Machinery

▲ Riders obstruct the operator’s

view they could be struck by
foreign objects or thrown from the
machine.

▲ Never allow children to operate

equipment.

Practice Safe Maintenance

▲ Understand procedure before

doing work. Use proper tools and
equipment, refer to Operator’s
Manual for additional information.

▲ Work in a clean dry area.
▲ Lower the implement to the

ground, put tractor in park, turn off
engine, and remove key before
performing maintenance.

▲ Allow implement to cool

completely.

▲ Do not grease or oil implement

while it is in operation.

▲ Inspect all parts. Make sure parts

are in good condition & installed
properly.

▲ Remove buildup of grease, oil or

debris.

▲ Remove all tools and unused

parts from implement before
operation.

FDR3590 Rear Discharge Grooming Mowers 310-229M

2

12/10/07

Land Pride

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in
this manual.

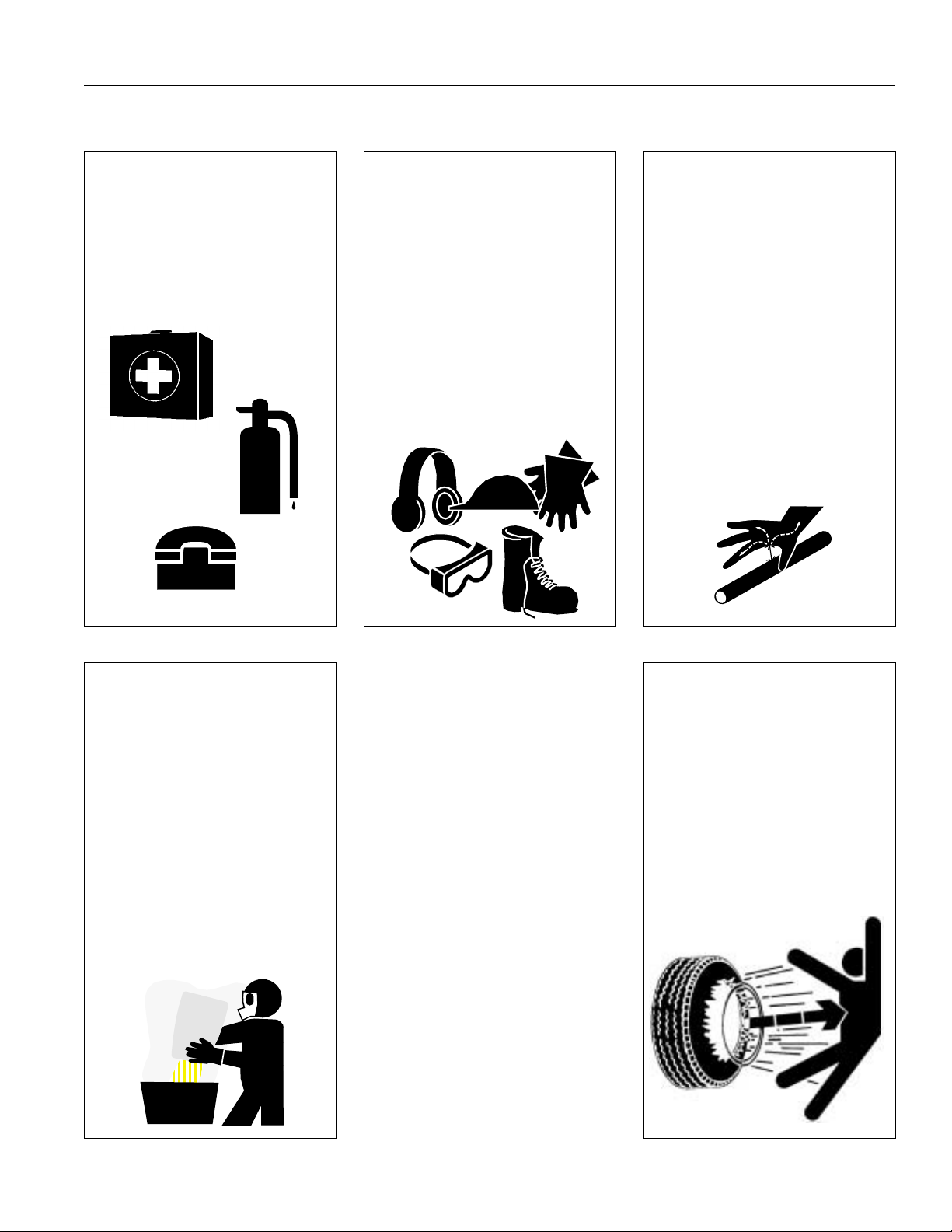

Prepare for Emergencies

▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire

extinguisher handy.

▲ Keep emergency numbers for

doctor, ambulance, hospital and
fire department near phone.

911

Wear
Protective Equipment

▲ Protectiveclothingandequipment

should be worn.

▲ Wear clothing and equipment

appropriate for the job. Avoid
loose fitting clothing.

▲ Prolonged exposure to loud noise

can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.

▲ Operating equipment safely

requires the full attention of the
operator. Avoid wearing radio
headphones while operating
machinery.

Avoid High
Pressure Fluids Hazard

▲ Escaping fluid underpressurecan

penetratetheskincausingserious
injury.

▲ Avoid the hazard by relieving

pressure before disconnecting
hydraulic lines.

▲ Use a piece of paper or

cardboard, NOT BODYPARTS, to
check for suspected leaks.

Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.

▲ If an accident occurs, see a

doctor immediately. Any fluid
injected into the skin must be
treated within a few hours or
gangrene may result.

Handle
Chemicals Properly

▲ Protective clothing should be

worn.

▲ Handle all chemicals with care.
▲ Follow instructions on container

label.

▲ Agricultural chemicals can be

dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.

▲ Inhaling smoke from any type of

chemical fire is a serious health
hazard.

▲ Store or dispose of unused

chemicals as specified by the
chemical manufacturer.

Tire Safety

▲ Tire changing can be dangerous

and should be preformed by
trained personnel using the
correct tools and equipment.

▲ When inflating tires, use a clip-on

chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.

▲ When removing and installing

wheels, use wheel handling
equipment adequate for the
weight involved.

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

3

Important Safety Information

Table of Contents

Land Pride

Safety Labels

Your Grooming Mower comes equipped with all safety
labels in place. They were designed to help you safely
operate your implement. Read and follow their
directions.

1. Keep all safety labels clean and legible.

2. Replace all damaged or missing labels. To order new
labels go to your nearest Land Pride dealer or visit our
dealer locator at landpride.com.

3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as

13304

specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.

4. Refer to this section for proper label placement.
To install new labels:

a. Clean the area the label is to be placed.
b. Spray soapy water on the surface where the label is to

be placed.
c. Peel backing from label.Pressfirmlyontothe surface.
d. Squeeze out air bubbles with the edge of a credit card.

818-130C

Caution

FDR3590 Rear Discharge Grooming Mowers 310-229M

4

15947

15946

818-229C

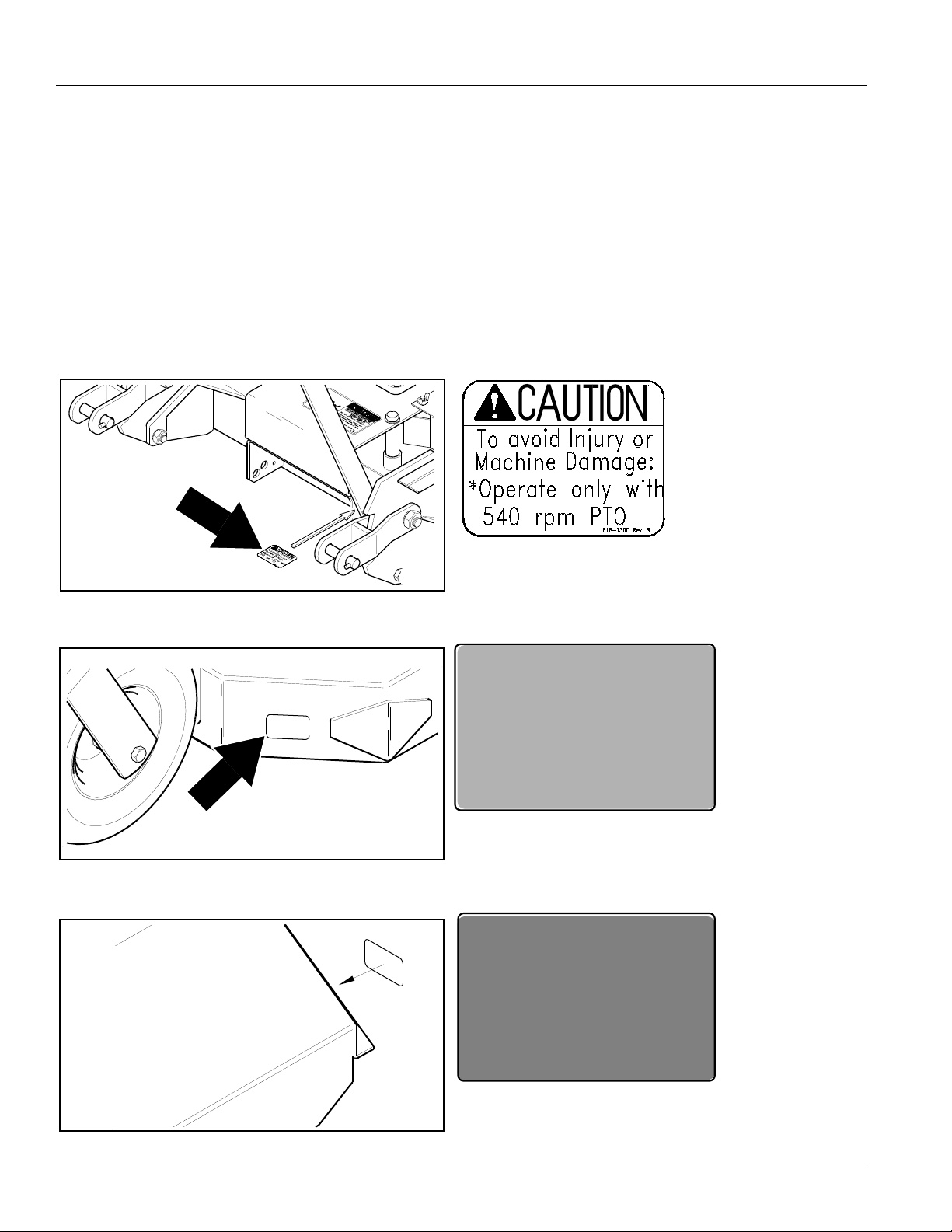

Amber Reflector

818-230C

Red Reflector

12/10/07

Land Pride

Important Safety Information

Table of Contents

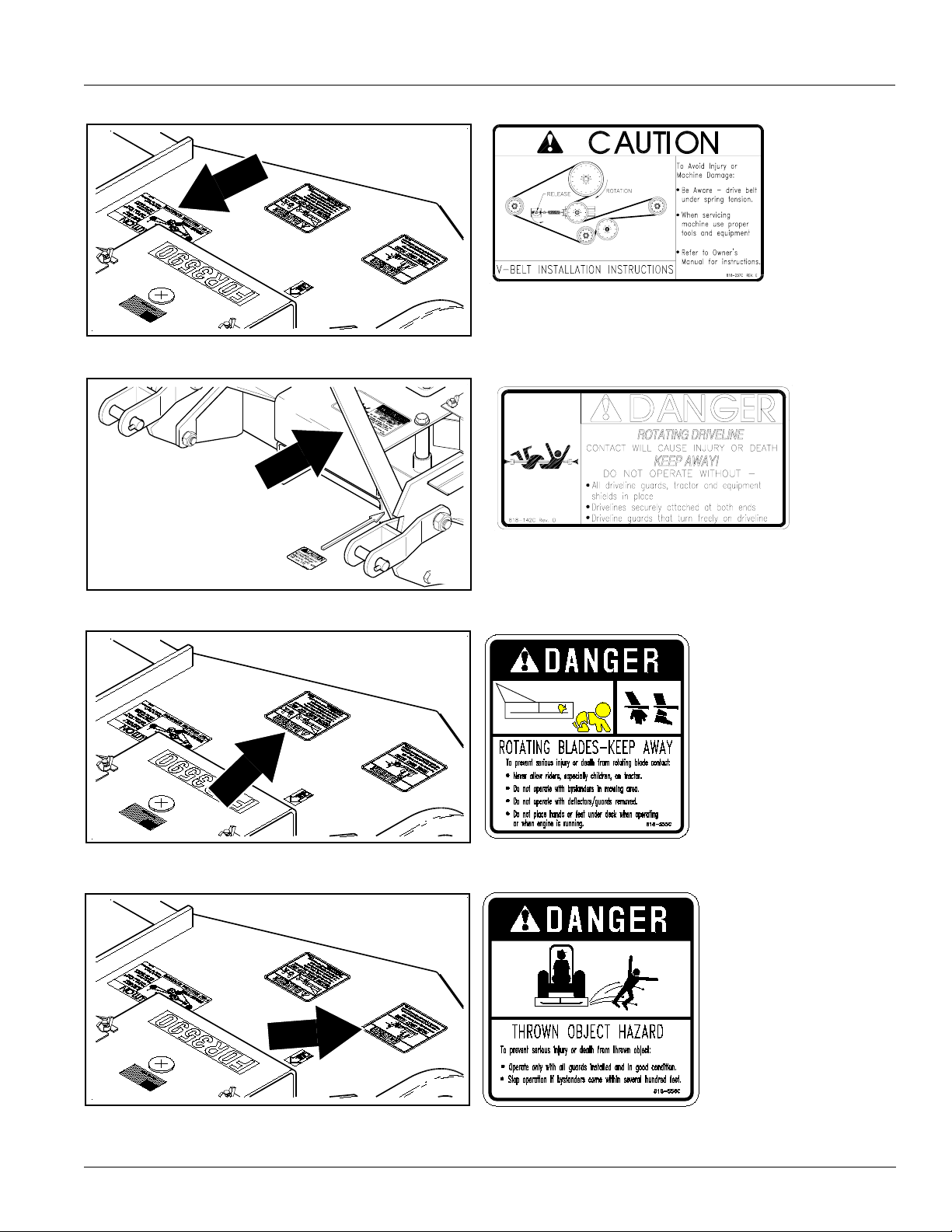

15945

818-237C

Caution: V-Belt

15944

15945

818-142C

Danger:
Rotating Driveline

818-555C

Danger: Rotating Blade

12/10/07

15945

818-556C

Danger: Thrown Object

FDR3590 Rear Discharge Grooming Mowers 310-229M

5

Important Safety Information

Table of Contents

Land Pride

15943

13314

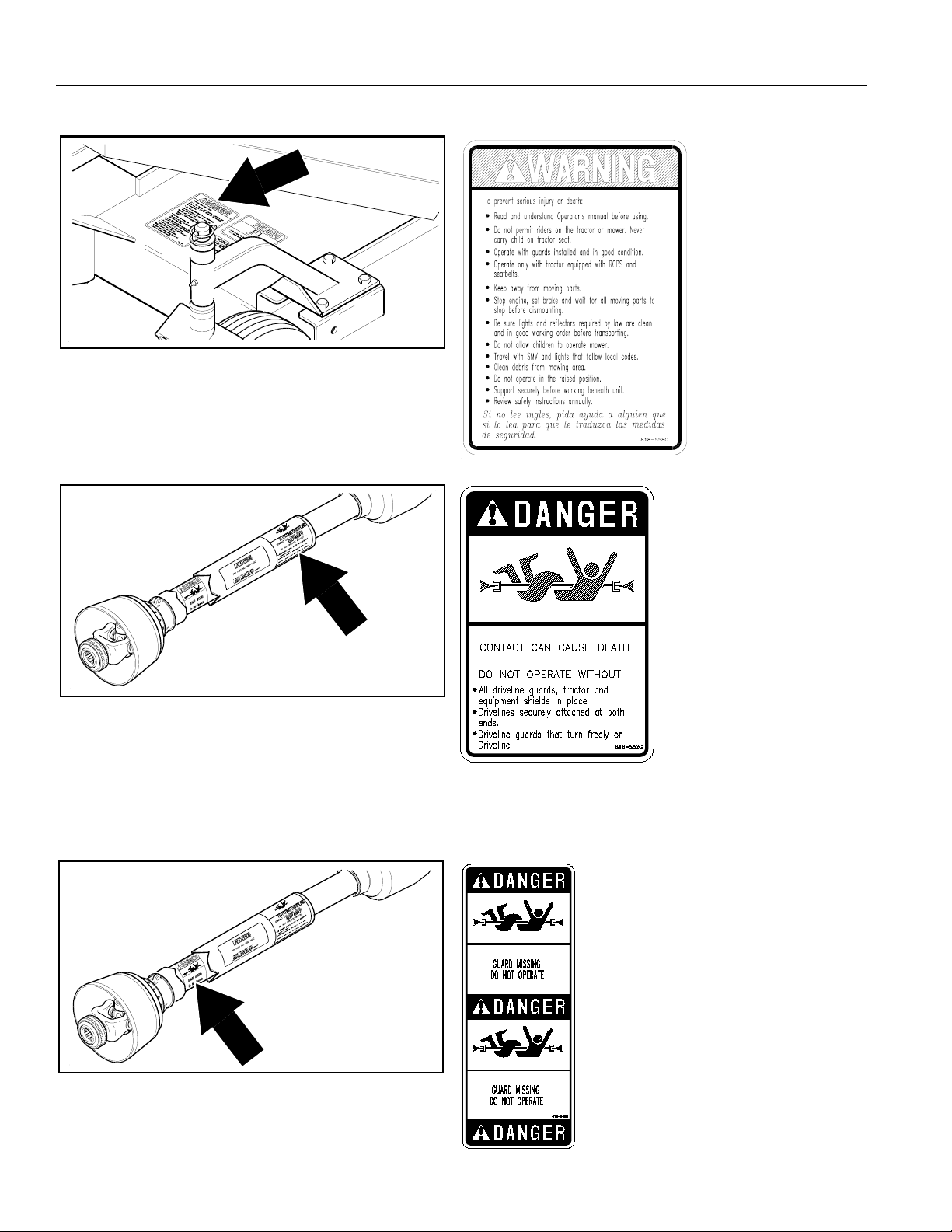

ROTATING DRIVELINE

KEEP AWAY!

818-558C

Warning:
General Safety

818-552C

Danger:
Rotating Driveline

FDR3590 Rear Discharge Grooming Mowers 310-229M

6

13314

818-540C

Danger: Guard Missing

12/10/07

Land Pride

Table of Contents

Introduction

Introduction

Land Pride welcomes you to the growing family of new
product owners.

This Grooming Mower has been designed with care and
built by skilled workers using quality materials. Proper
assembly,maintenanceand safe operating practices will
help you get years of satisfactory use from the machine.

Application

The Land Pride FDR3590 Rear Discharge Grooming
Mowers are designed and built to provide high
productivity and excellent cutting quality on well­maintained lawn and turf surfaces. These mowers are
adapted for category 1 attachment and operation on 25­60hputilitytractors.The90"rear discharge cutting decks
andhighly durable construction makethemwellsuited to
meet the mowing needs of large estate owners, golf
course, theme parks, municipalities, ranchers, horse
breeders, and commercial mowing and landscape
operations.Thereardischargecuttingdeckwillprovidea
superb quality of cut and superior clipping distribution
when grass is cut on a frequent basis and ground
conditions are not wet.

See “Section 5: Specifications & Capacities” on page
22 and “Section 6: Features and Benefits” on page 23
for additional information and performance enhancing
options.

Owner Assistance

The Warranty Registration card should be filled out by
the dealer at the time of purchase. This information is
necessary to provide you with quality customer service.

If customer service or repair parts are required contact a
LandPridedealer. A dealer has trained personnel, repair
parts and equipment needed to service the Grooming
Mower.

The parts on your Grooming Mowerhave been specially
designedandshouldonlybe replaced with genuine Land
Pride parts. Therefore, should your Grooming Mower
require replacement parts go to your Land Pride Dealer.

Serial Number Plate

For prompt service always use the serial number and
modelnumber when ordering partsfromyour Land Pride
dealer.Besuretoincludeyourserialandmodel numbers
incorrespondencealso. Refer to Figure 1forthelocation
of your serial number plate.

Using This Manual

This Operator’s Manual is designed to help familiarize

•

you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.

• The information contained within this manual was

current at thetime of printing. Some partsmay change
slightly to assure you of the best performance.

• To order a new Operator’s or Parts Manual contact

your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com or printed from the Land Pride
Service & Support Center by your dealer.

Terminology

“Right” or “Left” as used in this manual is determined by
facing the directionthe machine will operate while in use
unless otherwise stated.

Definitions

NOTE: A special point of information that the

operator must be aware of before continuing.

IMPORTANT: A special point of information related
to its preceding topic. Land Pride’s intention is that
this information should be read and noted before
continuing.

15942

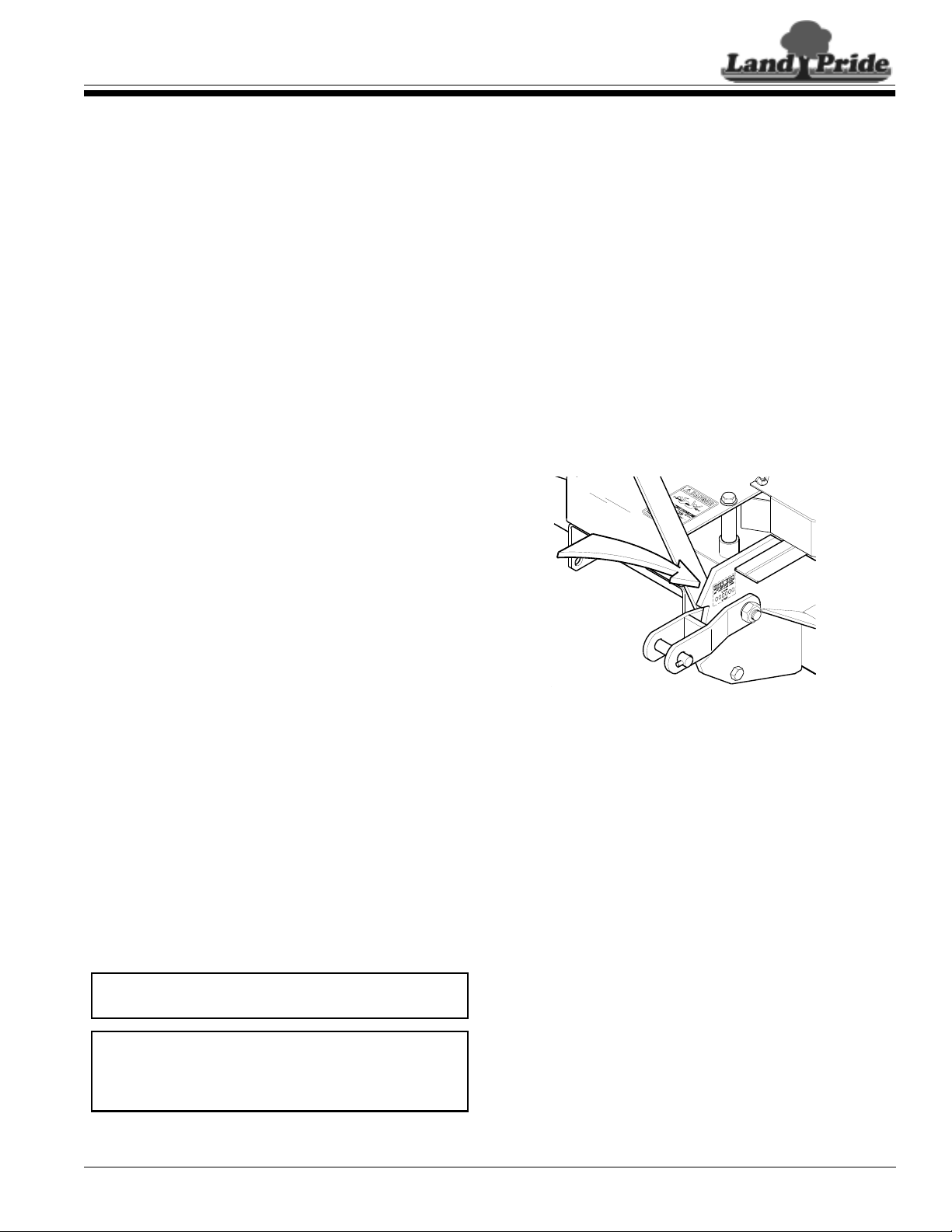

Serial Number Plate Location

Figure 1

Further Assistance

Your dealer wants you to be satisfied with your new
Grooming Mower. If for any reason you do not
understand any part of this manual or are not satisfied
with the service received, the following actions are
suggested:

1. Discuss the matter with your dealership ser vice

manager making sure he is aware of any problems

youmay haveand that he has had the opportunity to

assist you.

2. If you are still not satisfied, seek out the owner or

general manager of the dealership, explain the

problem and request assistance.

3. For further assistance write to:

Land Pride Service Department

1525 East North Street

P.O.Box 5060

Salina, Ks. 67402-5060

E-mail address

[email protected]

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

7

Table of Contents

Section 1: Assembly and Set-up

Section 1: Assembly and Set-up

Tractor Requirements

This mower is designed with a 3-Point category I hitch.
Horsepower rating of tractor shouldnotexceed60 horse
power. Tractor’s rear power take-off (PTO) speed and
spline type must be capable of 540 RPM and 1 3/8”-6
spline rear power take-off.

NOTE: In order to maintain steering control, ballast
may need to be added to your tractor. To determine
whether or not to add the ballast, refer to your
tractors’ operator manual.

Land Pride

4. Remove5/8"-18 x 5"GR5 long bolt(#8), lock washer
(#10),and hexnut(#11)from the upper pivoting hitch
subassembly.

5. Swing upper hitch bars (#1) up to a vertical position.
Raise upper hitch braces (#2) up inside the upper
hitch bars as shown.

6. Assemble upper pivoting hitch (#3), spacer top hitch
(#9), 5/8" x 5" long bolt (#8), lock washer (#10), and
hex nut (#11) as shown.

7. Tighten all installed 5/8” nuts to proper torque. See
Torque Values Chart on page 25.

Upper Hitch Arms

Refer to Figure 1-1:

1. Remove upper hitch bars (#1), upper hitch braces
(#2),andupperpivotinghitchsubassembly(#3)from
storage position on top of mower deck.

2. Bolt upper hitch braces (#2) to the mounting tabs
locatedon the back of thedeckusing 5/8"-18 x 11/2”
GR5 bolts (#4), lock washer (#5), and hex nut (#6).

3. Mount upper hitchbars (#1), tothe inside of the front
hitch plates on the frame using 5/8"-18 x 1 3/4" GR5
bolts (#7), lock washers (#5) and hex nuts (#6).

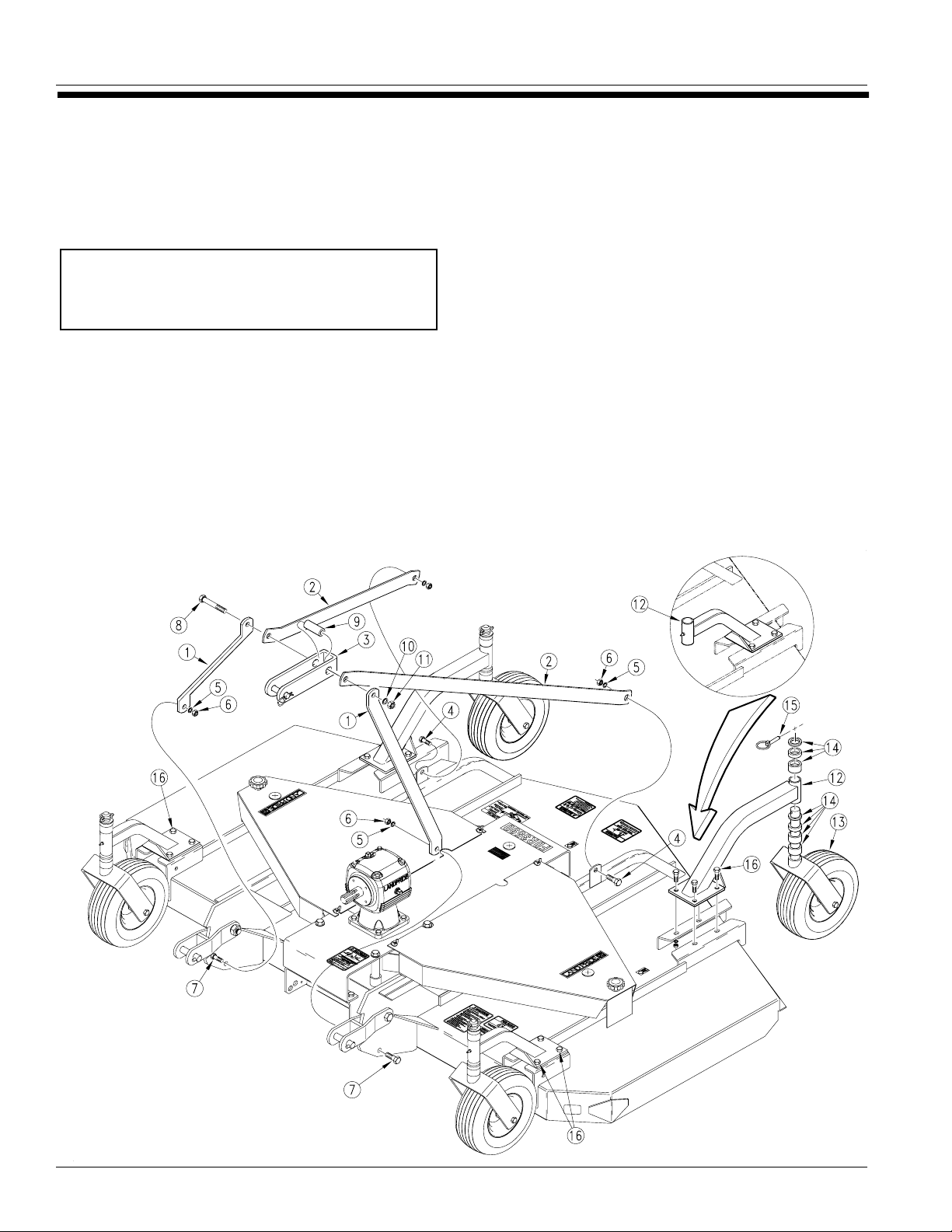

Gauge Wheels

Refer to Figure 1-1:

1. Remove 1/2”-13 x 1 1/4” GR5 bolts (#16) securing
gauge wheel arms (#12) and turn gauge wheelarms
180 degrees as shown. Replace bolts and retighten
to proper torque per Torque Values Char t on page

25.

2. Mount gauge wheels (#13) to gauge wheel arms
(#12), placing the 1/4”, 1/2” and 1” spacers (#14) at
the desired depth. Secure gauge wheels with the
linchpins (#15).

Upper Hitch Arms Assembly

Figure 1-1

FDR3590 Rear Discharge Grooming Mowers 310-229M

8

15941

12/10/07

Land Pride

Section 1: Assembly and Set-up

Table of Contents

Tractor Hook-Up

Refer to Figure 1-2:

1. Be certain tractor draw bar will not interfere. Move
draw bar ahead or remove if required. Draw bar
should also be checked for clearance when unit is
being raised for the first time.

2. Align lower link arms of tractor to the hitch clevises
on the mower. Insert lower hitch pins into lower ball
swivels and attach linchpins.

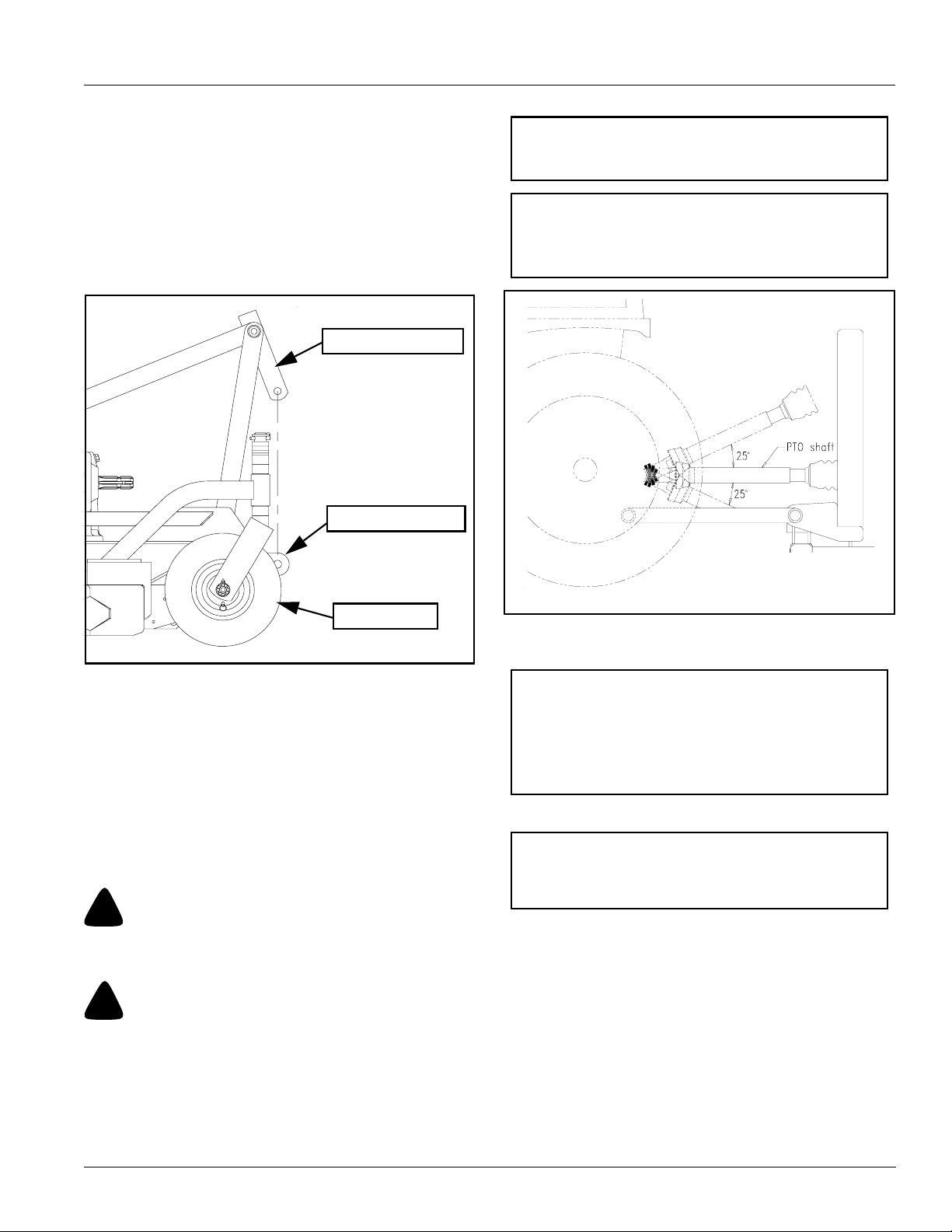

15948

Upper Floating Hitch

Lower Hitch Clevis

IMPORTANT: Some tractors are equipped with

multi-speed PTO ranges . Be certain your tractor ‘s
PTO is set f or 540 rpm.

IMPORTANT: Avoid premature driveline
breakdown. A driveline that is operating must not
exceed an angle of 25 degrees up or down while
operating the 3-point lift. See Figure 1-3 below.

Gauge Wheel

Tractor Hook-Up

Figure 1-2

3. Attach tractor top link to upper floating hitch on
mower with pin supplied. Secure with hairpin cotter.

4. To allow mower flotation, adjust tractor top link in or
outtoplace upper hitch pin verticallyabovethelower
hitch pins as shown in Figure 1-2.

PTO Hookup

If the Grooming Mower is to be used on more than one
tractor, an additional driveline may be required.

!

WARNING

Do not operate a damaged driveline. Damaged drivelines can
cause serious injury or death.

!

CAUTION

Tractor PTO shield and all Grooming Mower guards must be
in place at all times during operation!

13800

Maximum PTO driveline Movement During Operation

Figure 1-3

IMPORTANT: Alwa ys check driveline maximum and

minimum length during initial setup, when connecting
to a different tractor and when alternating between
using a quick hitch and a standard 3-point hitch. More
than one driveline may be required to fit all
applications.

Checking Driveline Minimum Length

IMPORTANT: Aligningtractor’sPTOshaftlevelwith

theGroomingMower’sPTOshaftisnecessary when
checking to see if the driveline will fit correctly
between tractor and Grooming Mower.

Refer to Figure 1-4 on page 10

1. Start tractor and slowly engage tractor’s hydraulic
3-point to lift the lower arms until the Grooming
Mower’s driveline shaft is approximately level with
tractor's PTO shaft.

2. Slide inner driveline universal joint over the splined
inputshaftof the gearbox. Secure with dr iveline yoke
locking device.

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

9

Section 1: Assembly and Set-up

Table of Contents

Land Pride

3. Slide tractor outer driveline universal joint over the
tractor’ssplined drivelineshaft.Securewith driveline
yoke locking device. Skip to step 5 if driveline fits
between tractor and implement.

22009

Driveline Shortening

Figure 1-4

4. The driveline will require shortening if it is too long.
Shorten driveline as follows:

a. Raise 3-point lower arms until Grooming Mower

and tractor PTO shafts are approximately level
with each other. Securely block Grooming Mower
frame in this position. Set tractor in park, shut
tractor engine off, set park brake and remove
switch key.

b. Pull driveline apart into two sections as shown in

Figure1-4.Attach outer driveline universal joint to
thetractor PTOshaftand inner dr iveline universal
joint to the Grooming Mower gearbox shaft. Pull
on each driveline section to be sure the universal
joints are secured to the shafts.

c. Hold driveline sections parallel to each other to

determine if theyaretoolong. The inner and outer
shieldsoneachsectionshouldendapproximately
1" short of reaching the universal joint shield on
the adjacent section (see “B” dimension). If they
are too long, measure 1" (“B” dimension) back
fromthe universal joint shieldand make a markat
this location on the inner and outer driveline
shields.

d. Cut off the inner shield at the mark (“X”

dimension). Cut the same amount off the inner
shaft (“X1” dimension). Repeat cut off procedure
(“Y”&“Y1”dimensions) to the outer driveline half.

e. Remove all burrs and cuttings.

Checking Driveline Maximum Length

Make sure you check “Checking Driveline Minimum
Length” on page 9 before checking Checking Driveline
Maximum Length.

Refer to Figure 1-5

The driveline maximum length must, when fully
extended,haveaminimumoverlapoftheprofiletubesby

notless than 1/3 thefree length with bothinnerand outer
profile tubes being of equal length.

1. Apply multi-purpose greaseto the inside of the outer
shaft and reassemble the driveline.

2. Assemblethe two driveline profiles togetherwith just
1/3 overlapping of the profile tubes as shown in
Figure1-5.Measureandrecordthisoveralllength for
checking driveline length in step 9 below.

3. Attach inner driveline yoke end to the Grooming
Mower gearbox input shaft.

24513

Outer Shielding has been removed for clarity.

Driveline Maximum Length

Figure 1-5

4. Attach outer driveline yokeend to the tractor's PTO
shaft.

5. Thedriveline should now bemovedbackandforth to
insure that both ends are secured to the tractor and
Grooming Mower PTOshafts. Reattach anyend that
is loose.

IMPORTANT: A small chain is supplied with the
driveline. This chain must be attached to the inner
driveline shield and to the Grooming Mower to
restrict shield rotation.

6. Hook driveline safety chain in the hole in the inner
driveline guard. Attach the other end to the
Grooming Mower’s main frame.

7. Start tractor and raise Grooming Mower just enough
to remove blocks.

8. Slowlyengagethe tractor’shydraulic3-point tolower
the Grooming Mower. Check for sufficient drawbar
clearance. Move drawbar ahead, aside or remove if
required.

9. Raise and lower implement to find maximum
extended dr iveline length. Check to make certain
that the driveline overall length does not extend
beyond the maximum recorded length in step 2
above.

FDR3590 Rear Discharge Grooming Mowers 310-229M

10

12/10/07

Land Pride

Section 1: Assembly and Set-up

Table of Contents

Accessory Equipment
Anti-Scalping Front Roller

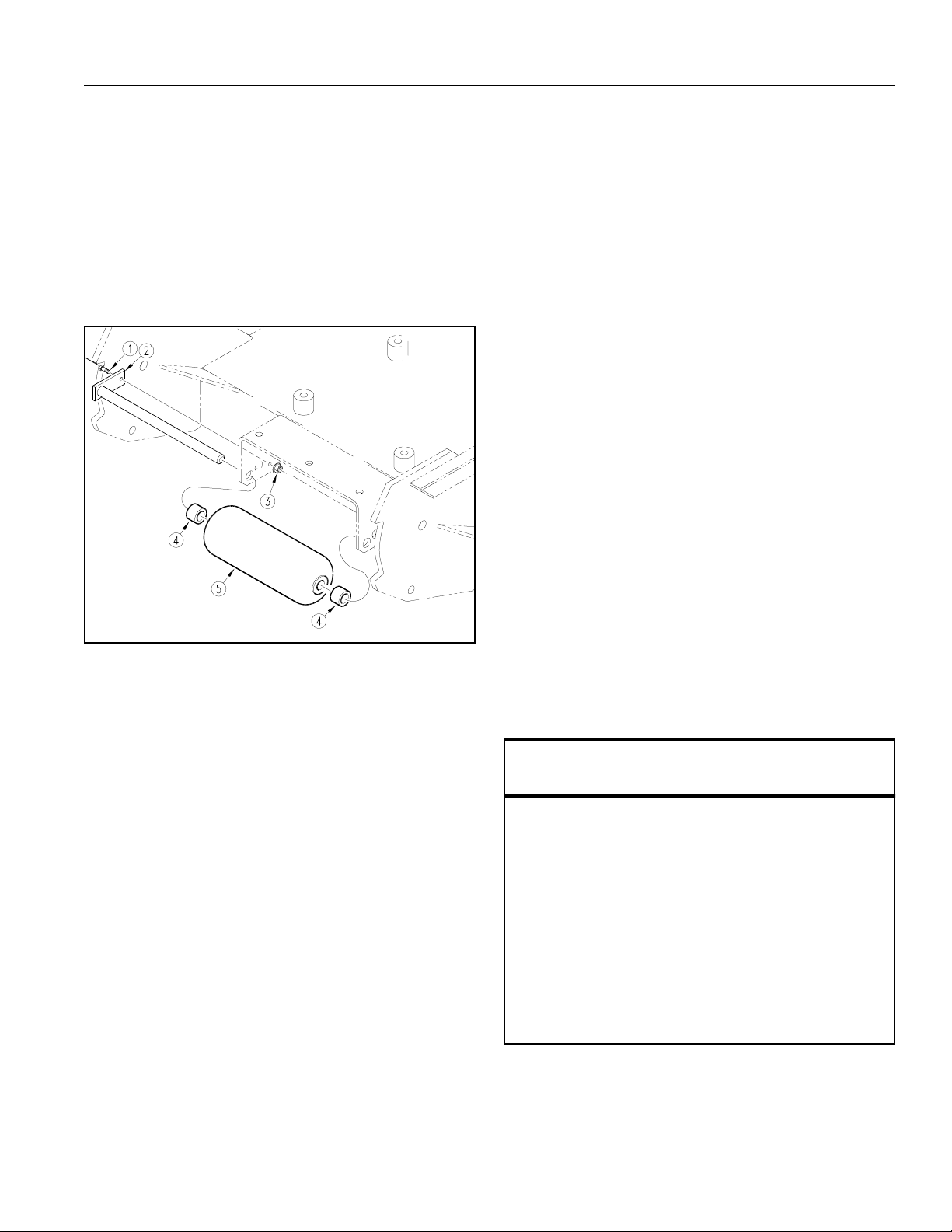

Refer to Figure 1-6:

1. Insert4x10rollerwheel (#5) and spacer tubes (#4)
between mounting bracket flanges as shown.

2. Install front roller shaft (#2) through the bracket
flanges, spacers and roller.

3. Secure roller shaft with 3/8”-16 x 1” GR5 hex head
cap screw(#1) and locknut (#3). Tighten lock nut to
proper torque. See Torque Values Chart on page 25.

Cutting Blades

There are four blade choices to select from based upon
soil condition, density of grass, and tractor horsepower.
The appearance of the finish cut may vary between low
lift and high lift blades. See your Land Pride dealer for
blade availability.

Low Lift Blades

LandPride’slowlift blades are designed for mowing over
sandy soil terrain where high suction lift is not crucial.
Sand sucked into the blades accelerates blade wear
more than normal. Low lift blades are recommended
because they produce a lower suction keeping sand
uplift and blade wear to a minimum.

Medium Lift Blades

Land Pride’s medium lift blades are great when
horsepower is a concern. They produce a medium
suction for lifting grass requiring less horsepower than
high lift blades. Medium Lift Blades are factory furnished
with your mower.

High Lift Blades

Land Pride’s high liftblades develop the greatestsuction
forliftinggrassbeforecuttingforthatfreshcleancutlook.
However, they may require more horsepower especially
when cutting tall dense grass. They are not
recommended for sandy soil conditions.

16570

Front Roller Assembly

Figure 1-6

Mulching Blades

Land Pride’s mulching blades are designed to chop
leaves and/or grass into smaller parts leaving your lawn
looking fresher and cleaner than ever before.

Accessory Part Numbers

Land Pride All-Flex Mower Accessories

Part No. Part Description

Front Roller

310-233A FDR3590 Front Roller

Low Lift Blades (3 blades needed)

890-205A Mower Blade 5/16 x 31 17/32 SD LL CW

Medium Lift Blades (3 blades needed)

890-533C Mower Blade 5/16 x 31 17/32 SD ML CW

High Lift Blades (3 blades needed)

890-223C Mower Blade 5/16 x 31 17/32 SD HL CW

Mulching Blades (3 blades needed)

890-704C Mower Blade 1/46 x 31 17/32 SD CW

12/10/07

See your Land Pride dealer for blade availability.

FDR3590 Rear Discharge Grooming Mowers 310-229M

11

Section 2: Operating Instructions

Table of Contents

Land Pride

Section 2: Operating Instructions

Tractor Shut Down Procedure

It is essential that the tractor be shut down as noted
below before making any inspections, maintenance and/
or repairs to the tractor and/or mower.

1. Parktractor on a level surface.Don’t workunder or
around an implement parked on a steep incline.

2. Place tractor in park and set park brake.

3. Disengage PTO if operating.

4. Shut engine off and removeswitch key.

5. Wait for PTO to come to a complete stop before
dismounting tractor.

6. Wear safety glasses.

Operation Check

It is absolutely essential that no one operates the
Grooming Mower without first having read, fully
understood and become totally familiar with the
Operator’s Manual. Make sure the operator has paid
particular attention to:

• Important Safety Information, page 1

• Section 1: Assembly and Set-up, page 8

• Section 2: Operating Instructions, page 12

• Section 3: Adjustments, page 15

• Section 4: Maintenance and Lubrication, page 17

Make the following inspections after attaching the
GroomingMowertothe tractor. See hook-up instructions
beginning on page 9. Make certain PTO is disengaged
and completely stopped before continuing.

1. Inspect tractor safetyequipment to make sure it is in
good working condition.

2. Complete the Operating Checklist below:

Operating Checklist

Check Reference
Check oil level in gearboxes. Section 5

Page 21

Check that all plugs in gearbox
have been replaced properly.

Check initially and periodically for
loose bolts and pins. Be sure all
nuts and bolts are tight. Especially
make sure mower blades, bolts and
nuts are tight.

Be certain all guards and shields
are in place and in good condition.

Lubricate the mower as needed.
Refer to “Maintenance and

Lubrication”.

Section 5
Page 21

Section 8
Page 25

Section 1
Page 1

Section 5
Page 17

3. Carefully raise and lower the implement to ensure
that the drawbar, tires, and other equipment on the
tractor do not contact the frame or PTO driveline.

4. With the PTO disengaged and completely stopped,
checkthemowerbladesforsharpness.See“Service
Mowing Blades” on page 17.

IMPORTANT: Do not exceed rated PTO speed of
mower. Excessive engine speed will cause damage
to the power train components.

IMPORTANT: Stop PTO rotation immediately if
vibration occurs during operation. Wait for mowerto
come to a complete stop. Follow all tractor shut
down procedures before dismounting from the
tractor to check for probable causes.

5. Set tractor throttle to idle or slightly above idle and
slowly engage the PTO. Once the Grooming Mower
is running smoothly, increase tractor PTO speed to
540 r pm PTOspeed. Stop PTOrotation immediately
if vibration occurs at any time. Wait for the PTO to
come to a completestop and thendismount from the
tractor to check for probable causes.

Transporting

!

CAUTION

Whentravelingonpublicroads, whether at night orduringthe
day,use accessory lights and devices for adequate warning to
operators of other vehicles. Comply with all Federal, State,
and local laws.

NOTE: Always disengage PTO before raising the
mower to transport position.

1. When raising mower to transpor t position, be sure
driveline does not contact tractor or mower. Adjust
and set tractor’s 3-point hitch lift height so that the
PTO shaft does not contact mower deck in the fully
raised position.

2. Be sure to reduce tractor ground speed when
turning; and leave enough clearance so the mower
does not contact obstacles such as buildings, trees
or fences.

3. Select a safeground travel speed when transporting
from one area to another. When travelingon
roadways,transport in sucha waythat faster moving
vehicles may pass you safely. A slow moving vehicle
sign should always be properly displayed when
traveling on public roads or right-of ways.

4. Shift tractor to a lower gear when traveling over
rough or hilly terrain.

FDR3590 Rear Discharge Grooming Mowers 310-229M

12

12/10/07

Land Pride

Section 2: Operating Instructions

Table of Contents

Mowing Instructions

!

DANGER

Gearbox shields must be secured in place when operating to
avoid injury or death from entanglement in rotating drivelines.

!

CAUTION

Do not over speed PTO or machine damage may result. Know
what your tractor requirements are.

!

DANGER

Do not use deck as a fan. Cutting blades are not properly
designed or guarded for this use. Using the deck as a fan can
result in injury and/or death.

!

DANGER

Do not operate and/or travel across steep inclines where a
tractor can roll-over resulting in serious injury or death.
Consult your tractor’s manual for acceptable inclines the
tractor is capable of traveling across.

!

CAUTION

When mowing in sandy soil areas, wear may occur to your
mower blades caused from sand erosion. Frequent inspection
should be made and blades replaced if damaged. Low lift
blades are available from your Land Pride dealer.

1. Clear the area to be mowed of rocks, branches and
other foreign objects that might be picked up and
thrown by the mower blades.

IMPORTANT: Do not exceed rated PTO speed of
mower. Excessive engine speed will cause damage
to the power train components.

6. Do not make sharp turns orattempt to backupwhile
mower is on the ground.

7. Do not engage PTO with mower in the fully raised
position. Do not engage or disengage PTO at full
throttle.

8. Grass is best cut when it is dr y. Mowing wet grass
can cause plugging resulting in grassclumpsbehind
the mower.

9. Mower blades will cut better at a faster blade speed
than at reduced throttle.

10. Grass should be mowed frequently as shorter
clippings deteriorate faster.

11. If mowing extremely tall grass, it is best to raise
cutting height and mow the area, then lower cutting
height and mow a second time at the desired height.

12. Periodically check for foreign objects wrapped
around the Grooming Mower blades. Remove
foreign objects only after following “Tractor Shut

Down Procedure” on page 12.

Un-hooking the Mower

Thefollowingstepsshould be done when un-hooking the
Grooming Mower from the tractor.

1. Park on a level solid surface.

2. Shut tractor engine off and engage parking brake.

3. Lowerdeckto levelgroundor onto blocks supporting
the deck just above ground level.

4. Follow all tractor shut down procedures outlined on
page 12 before dismounting from the tractor.

5. Unhitch Grooming Mower from tractor.

6. See “Storage” on page 19 if mower is not going to
be used for a long time.

IMPORTANT: Stop PTO rotation immediately if
vibration occurs during operation. Wait for mowerto
come to a complete stop. Follow all tractor shut
down procedures before dismounting from the
tractor to check for probable causes.

2. Lower mower to ground. Set tractor throttle at idle.
Engage PTO to start blades rotating.

3. Operatewith540 r pm PTOtractor.Mowerbladeswill
cut better at a 540 RPM than at reduced throttle.

4. At first, begin mowing in a lowgear and shift up until
the desired speed is achieved - maintain 540 PTO
rpm regardless of gear selection.

5. After mowing the first 50 feet, stop and check to see
that the mower is adjusted properly.

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

13

Section 2: Operating Instructions

Table of Contents

Land Pride

General Operating Instructions

By now you should have thoroughly read your FDR
Grooming Mower Operator’s Manual, properly attached
your Land Pride FDR3590 to your tractor, and reviewed
the operating checklist. You should have also inspected
thearea where you intend tomowandcleared it of safety
hazards and foreign objects. If you have not yet
completed all of these functions, it is an absolute must
that you do so now before proceeding.

Now that you are properly briefed and prepared its time
to start thetractor and move to your starting point.When
transporting to your mowing site, select a safe ground
transport speed. When traveling on roadways, transport
in such a manner that faster moving vehicles can easily
seeyou and passyou safely. When travellingover rough
andhilly terrain, reduceyourspeed, avoid quickorsharp
steering corrections. Take extra care to insure that the
mower doesn’t come into contact with obstaclessuch as
trees, buildings or fences.

When you have arrived at the mowing site, start the
tractor, raise the deck to make sure that everything is
properly attached and that the driveline isnot in abind or
in contact with the mounting frame. Also make sure the
tractor tires aren’tin contact withthe deck. Withthe deck
still in the raised position, proceed to your starting point
and lower your deck to the ground in mowing position.
Reduce your tractor engine rpm to idle and engage the
PTO. Gradually raise the tractor engine rpm to achieve
the 540-rpm PTOspeed. Now beginmowing at a ground
speed of approximately 4-5mph.

The proper mowing speed will ultimately be determined
bygroundconditions,desiredfinish,common sense, and
good safe mowing practices by the operator. Grass is
best cut when it is dry. Mowing in wet grass can cause
plugging resulting in grass clumps behind the mower.
Grass should be mowed frequently as shorter clippings
deteriorate faster. When mowing in tall grass it is best to
raise the cutting height, mow the area, then lower the
cutting height, and mow a second time.

After mowing approximately 50 ft., stop the tractor,
disengage the PTO, set the brake, turn off the engine,
remove the key, and dismount the tractor to see if the
mower is adjusted properly. If you need to dismount the
tractor on a hill or incline to inspect, adjust, or park the
mower for any reason, place wheel chocks under the
rear tires for added safety. Once you have made
necessary adjustments, you may continue mowing. Do
not engage the PTO at high engine rpm and avoid
making sharp turns if at all possible. If some one
approaches while you are mowing, disengage the PTO
and stop the tractor.

Withalittlepracticeandexperienceyouwillbecomevery
good at operating your Land Pride FDR3590 Rear
Discharge Grooming Mower. Always remember that
there is no substitute for proper maintenance and good
safe operating practices.

See “Section 5: Specifications & Capacities” on page
22 and “Section 6: Features and Benefits” on page 23
for additional information and performance enhancing
options.

FDR3590 Rear Discharge Grooming Mowers 310-229M

14

12/10/07

Land Pride

Table of Contents

Section 3: Adjustments

Section 3: Adjustments

Leveling the Mower

NOTE: Tractor and mower should be on level

ground.

1. Set lower hitches and upper floating hitch, as shown
below in Figure 3-1.

2. Start tractor and raise mower, watching that tractor
draw bar (if not removed) does not interfere with
mower.

3. Slowly lower mower until gauge wheels touch the
ground and the lower mower 3-point hitch bars are
parallel to the ground in floating position. Set tractor
3-point stop.

4. Set park brakeand tur n off tractor. Remove key from
ignition.

5. Rotate blades parallelto direction of travel as shown
in Figure 3-2 below.

6. Measure clearance from the cutting edge to the
ground at front and rear of the blade. This
measurement should be equal or have the blade at
the front of the mower not more than 1/2" lower than
the blade at the rear of the mower.

Upper Floating Hitch

15948

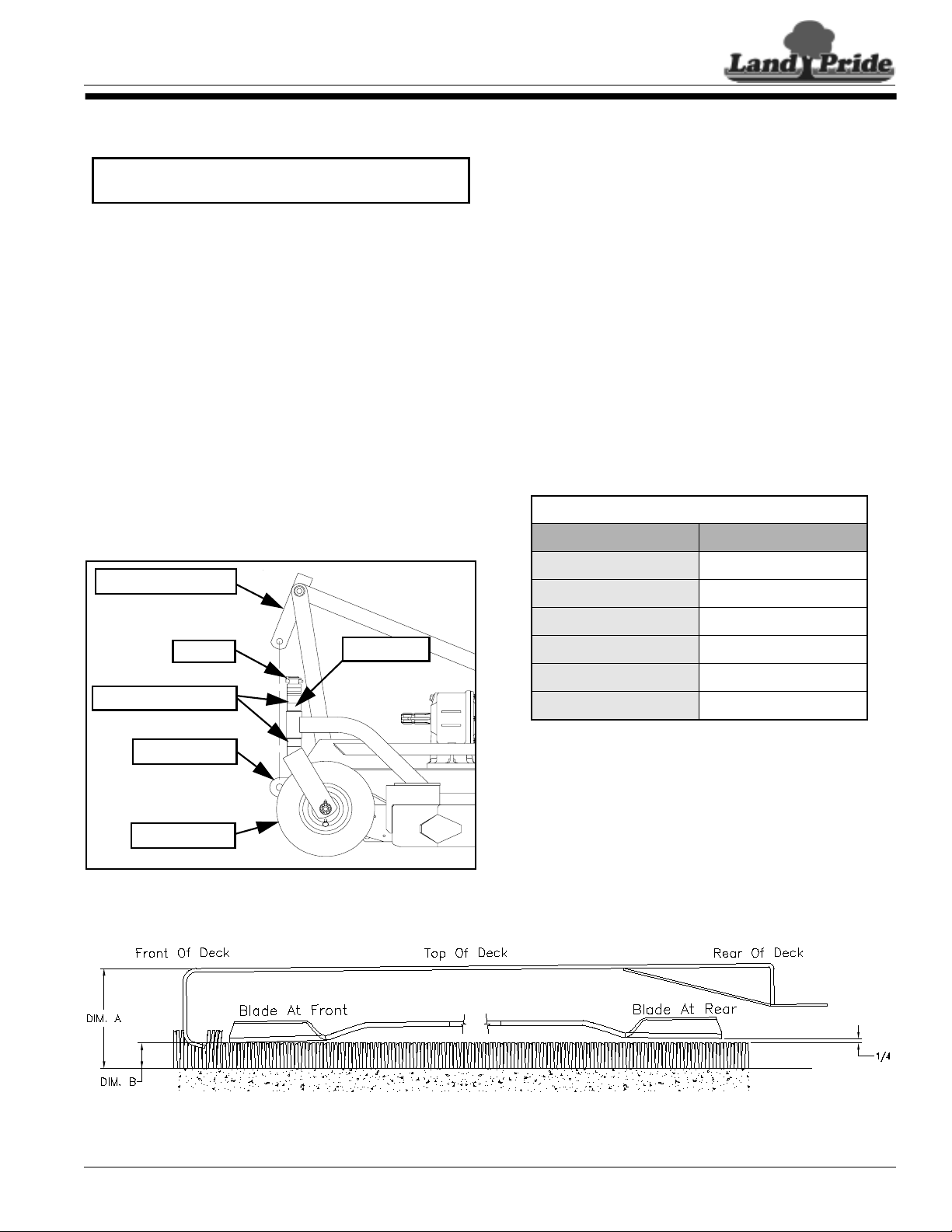

Cutting Height Adjustment

Refer to Figure 3-1:

1. Using the tractor, raise the moweroffthe ground and
support underit with secureblockingso not to letthe
mower drift down dur ing maintenance.

2. Holding wheel and yoke assembly up, remove
quick-lock pin from top of gauge wheel spindle.

3. Position1” spacers, 1/2” spacer and 1/4” spacers as
required.All spacers on topofspindle tube allows for
approximately 3/4" cutting height. Adjustments
range from 3/4" to a maximum of 3-1/4" in 1/4"
increments.

Refer to “Leveling the Mower” beginning on this
page.

For a guide on measuring cutting height refer to
Cutting Height Chart below.

Cutting Height Chart

A B
5 5/8" 3/4"
6 1/8" 1 1/4"

Linchpin

Gauge Wheel Spacers

Lower Hitches

Gauge Wheel

3-Point Hitch

Figure 3-1

Spindle Tube

7 1/8" 2 1/4"
8 1/8" 3 1/4"
9 1/8" 4 1/4"

10 1/8" 5 1/4"

12/10/07

Cutting Height

Figure 3-2

FDR3590 Rear Discharge Grooming Mowers 310-229M

12742

15

Section 3: Adjustments

Table of Contents

Land Pride

3-Point Hitch Adjustments

The 3-point hitch system on this mower has been
designed for front to back flotation when mowing on
uneventerrain.Adjusttractor’stoplink to place the upper
hitchpin vertically above the lowerhitchpinsas shown in
Figure 3-1 on page 15.

!

CAUTION

Engage parking brake, shut off tractor, remove key and
disengage PTO before making any height adjustments!

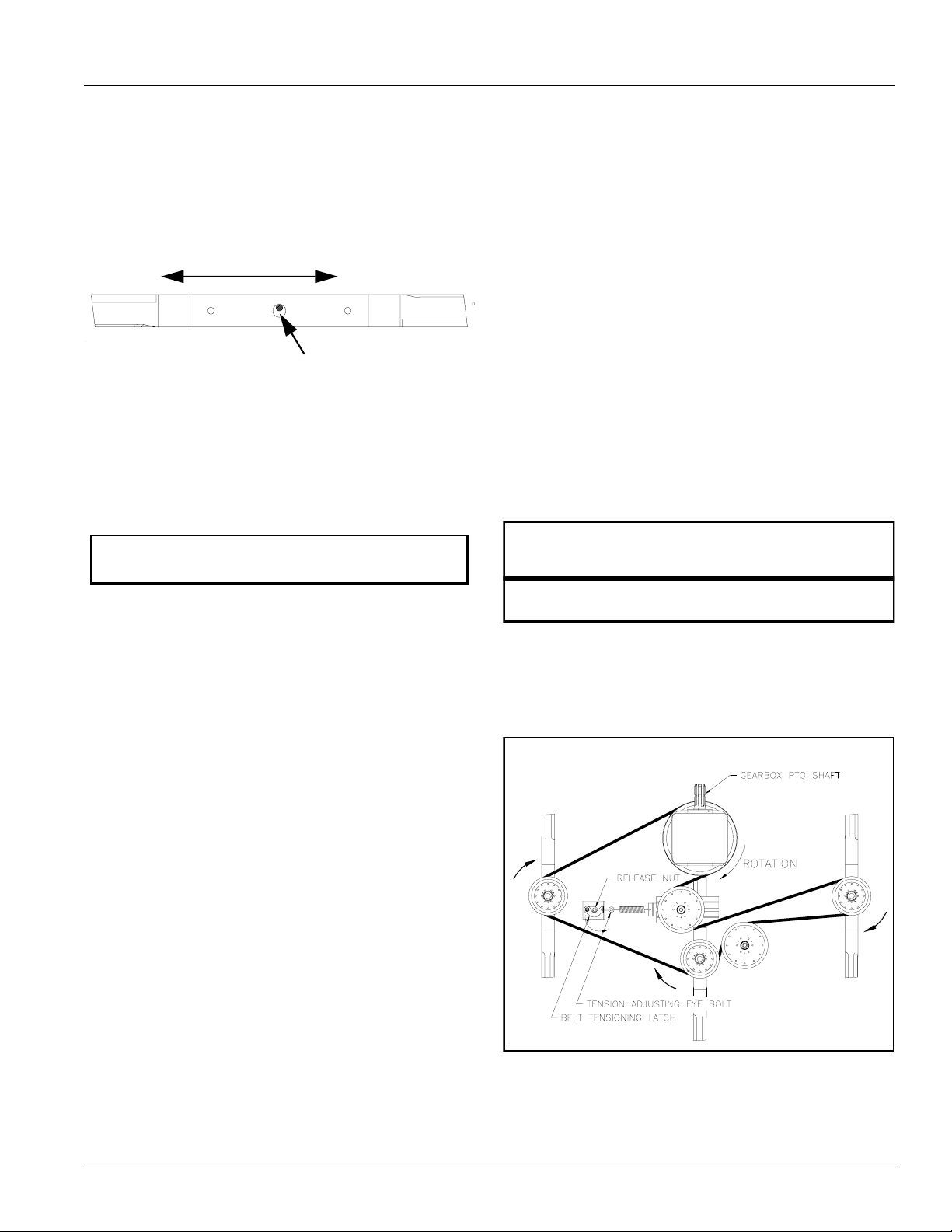

Belt Tension

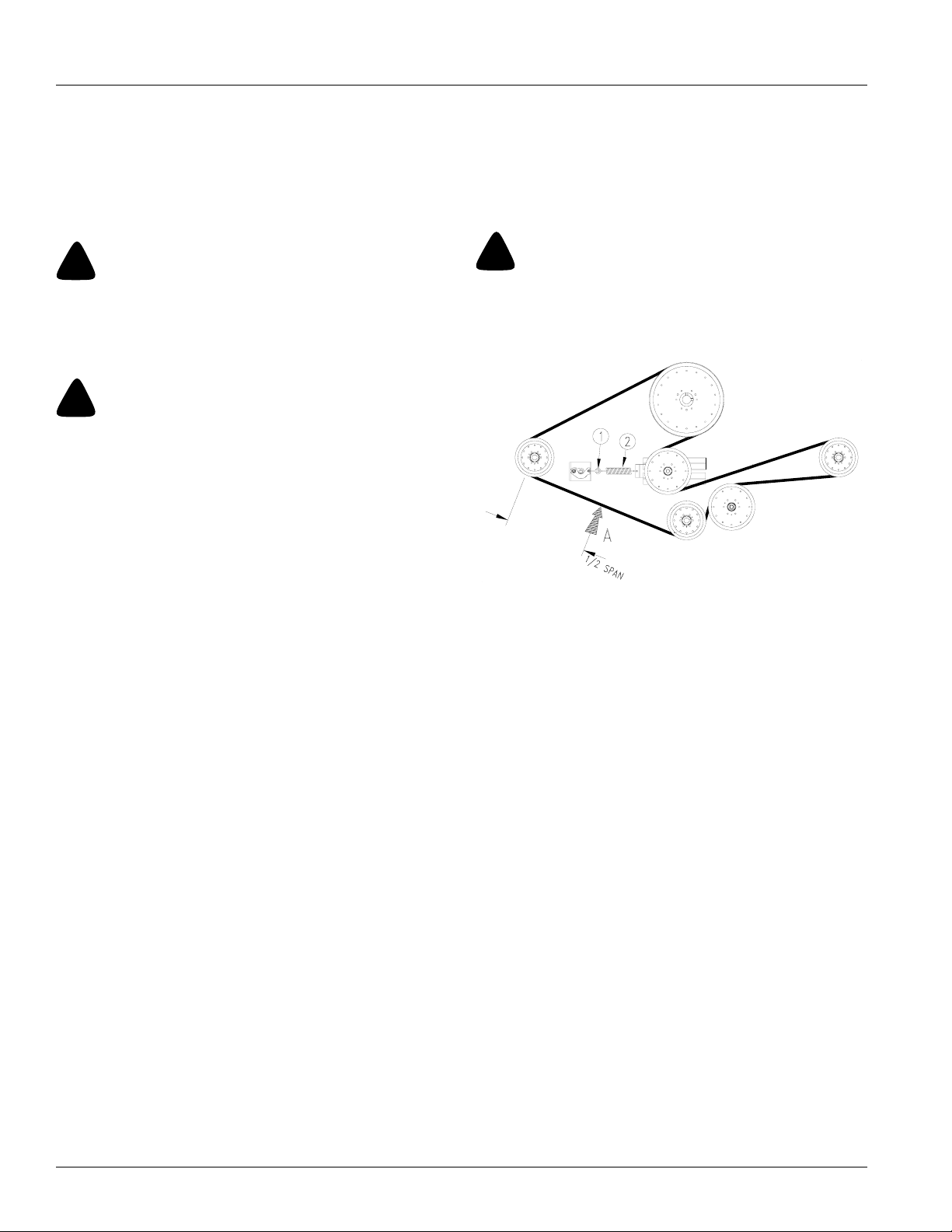

Refer to Figure 3-3:

!

CAUTION

Belt drive system under spring tension; use care to avoid
bodily harm!

1. To check tension, apply force at arrow A. With a
tension tester and deflect belt 1/4". The force
required to get this deflection should range from 7 to
10 lbs.

2. To adjust belt tension, adjust eyebolt (#1), as
necessary.Thisadjustmentwillincrease or decrease
tension on spring (#2).

3. Excessivetension on the belt mayleadto premature
failure of belt and drive components. Excessive
tension on the belt may also lead to a safety hazard
totheoperatoror bystanders.Notenough tension on
the belt may lead to premature failureof the belt due
to excessive slipping.

!

WARNING

Excessive tension on the belt may shorten the usefullifeofbelt
and drive components. Excessive tension on the belt may also
lead to a safety hazard to the operator or bystanders.

16642

Belt Tension

Figure 3-3

FDR3590 Rear Discharge Grooming Mowers 310-229M

16

12/10/07

Land Pride

Table of Contents

Section 4: Maintenance and Lubrication

Section 4: Maintenance and Lubrication

Maintenance

Properservicingand adjustment is the key to thelonglife
of any implement. With careful and systematic
inspection, you can avoid costly maintenance, time and
repair.

!

CAUTION

For safety reasons, each maintenance operation must be
performed with the tractor’s PTO disengaged, the mower
lowered completely to the ground or on safely supported
blocking, tractor engine shut off and ignition key removed.

• After using the mower for several hours, check all bolts

to be sure they are tight and check the tension of the
drive belt. Refer to Belt Tension in the “Adjustments”
section on page 16.

• Also check drive belt tension after several hours of

mowing. Refer to Belt Tension in the “Adjustments”
section on page 16.

• Lubricate itemsaslisted under Lubrication,thissection,

starting on page 20.

• Replace anyworn, damagedor illegible safety labels by

obtaining new labels from your Land Pride Dealer.
Information about labels is located under Safety Labels in
the “Important Safety Information” section starting on
page 1.

Service Mowing Blades

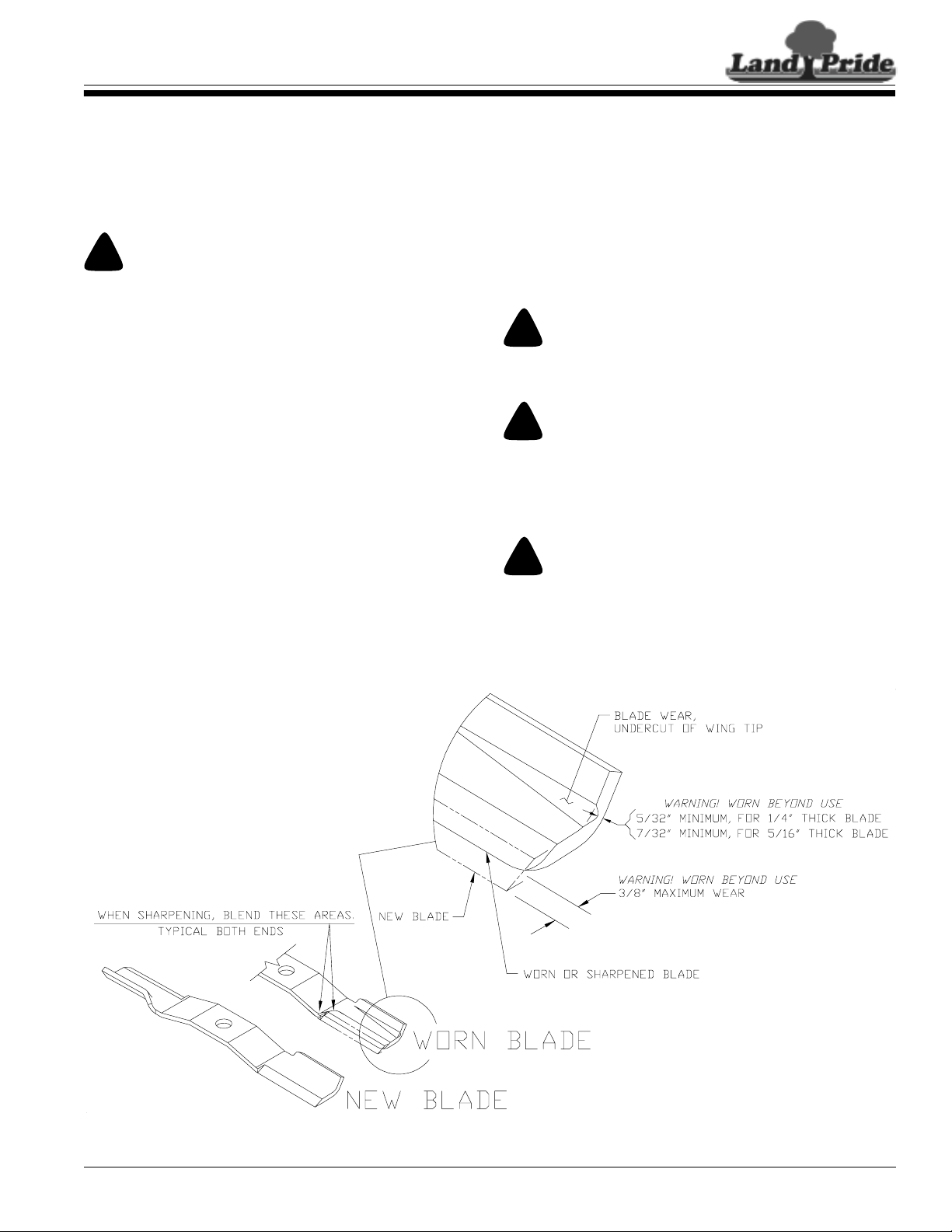

Blade Inspection

Refer to Figure 4-1:

Blade Wear: As blades wear and are resharpened, the
blade performance will be reduced.

Bent, Deformed or Split Blades: Should be removed from
unit and discarded. DO NOT attempt to straighten for
reuse.

!

WARNING

DO NOT attempt to modify blade, such as hard surfacing, heat
or cold treating and/or by any other method.

!

WARNING

DO NOT try to straighten a blade that is bent. Never weld a
broken or cracked blade. ALWAYS replace with a new Land
Pride blade to assure safety.

Blade Removal And Installation

!

CAUTION

Depending on blade rotation, bolts attaching mower blades to
their respectivespindles may be either left hand or righthand.
Prevent spindle and/or bolt damage by knowing which hand
the threads are before removing and/or tightening any blade
mounting bolts.

12/10/07

Inspection of Blades & Sharpening

Figure 4-1

FDR3590 Rear Discharge Grooming Mowers 310-229M

19328

17

Table of Contents

Section 4: Maintenance and Lubrication

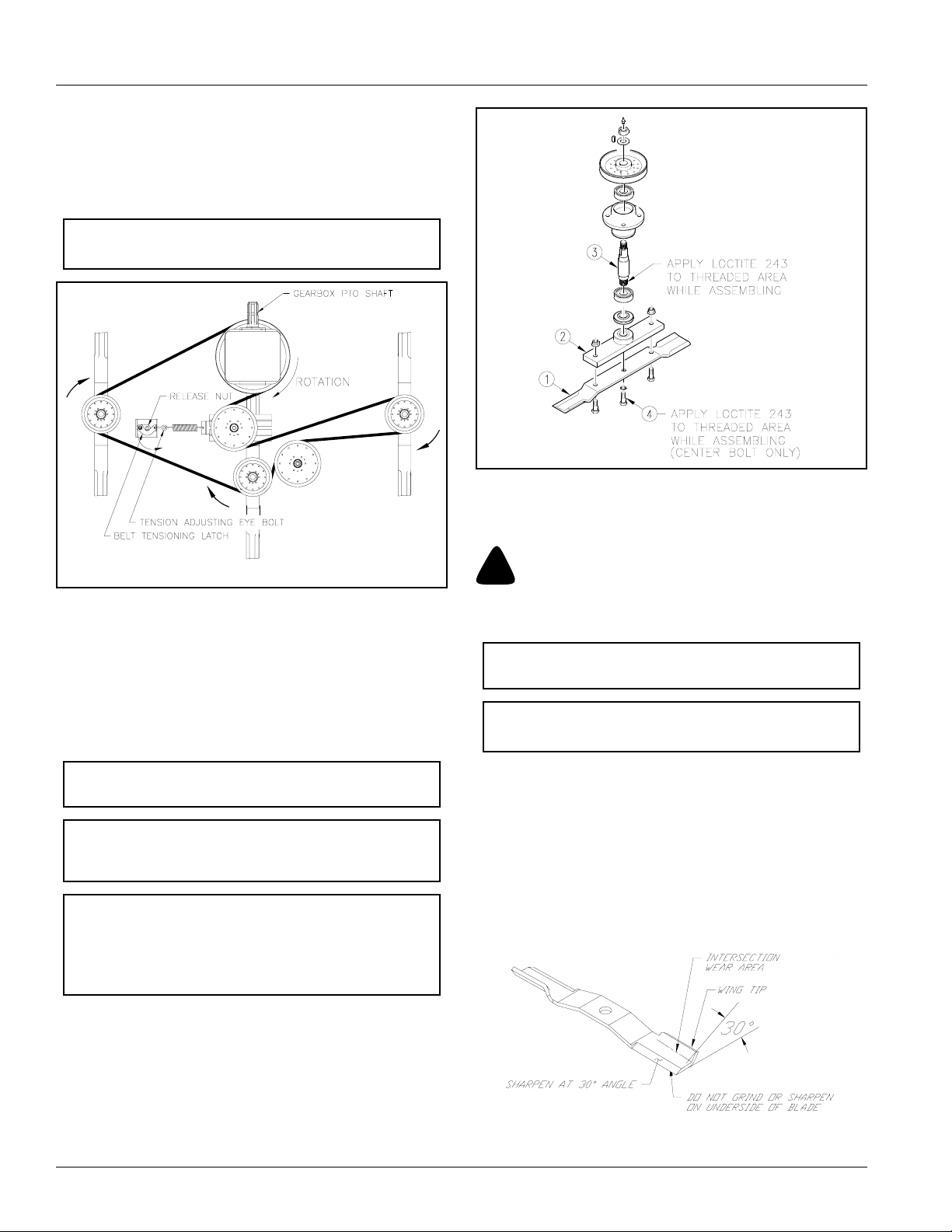

Refer to Figure 4-2 & Figure 4-2:

1. Verify bladerotation and bolt thread type (right hand
or left hand) before loosening center blade bolts and
removing blade to be sharpened or replaced. The
FDR3590 is equipped with righthandthreadedcenter
blade bolts.

IMPORTANT: Center Blade bolts have right hand
threads.

23789

Land Pride

24524

Blade & Blade Bar Removal

Figure 4-3

Blades Rotation: CW / Center Blade Bolt: R.H Threads

Blade Placement

Figure 4-2

Refer to Figure 4-3:

2. Removebladesby grasping theblade end witha rag
or thick padded glove while loosening the blade
mounting bolt.

3. Removecenterbladebolt(#4) and two outside blade
bar bolts fromthe bottom of the bladeto be replaced.

IMPORTANT: Replace blades with Land Prideblades
only.

IMPORTANT: Alwaysinstall blades with cutting edge
facingdirectionofbladespindlerotationandwithwing
tips pointing up towards bottom of deck.

IMPORTANT: See Figure 4-3. Loctite is notrequired
if blade (#1) is removed without removing blade bar
(#2). However, If blade bar (#2) is removed from
spindle shaft (#3), then apply loctite 243 to spindle
shaft threads and to center bolt threads (#4).

Blade Sharpening or Replacement

!

CAUTION

ALWAYS wear eye protection and gloves when sharpening a
blade.

IMPORTANT: Always install blade with the cutting
edge facing direction of rotation.

IMPORTANT: Replace bladeswith LandPrideblades
only.

1. If the blade cutting edge is dull or nicked, it should be
replaced or sharpened. Removeblades for replacing
orsharpeningbygraspingend of the bladeusingarag
or a thick, padded glove, while loosening and
removing the bolt/bolts that mount the blade.

2. Clean blade, bladewasher and mounting surfaceof
all debris before replacing or sharpening. Grind
cutting edge at the same bevel as the original. See
Figure 4-4. Sharpen only the top of the cutting edge
to maintain sharpness.

19327

4. Reinstall blade, blade washer and bolt. Care should
be taken when installing the blade bolt to not get it
crossthreaded and toknowif the bolt isright hand or
left hand. Do not exceed 55 ft.-lbs. of torque on bolt.

5. Reinstall the two outside bolts. Tighten to correct
torque listed in the Torque Values Char t in the
“Appendix” section on page 25.

FDR3590 Rear Discharge Grooming Mowers 310-229M

18

Blade Sharpening

Figure 4-4

12/10/07

Land Pride

Section 4: Maintenance and Lubrication

Table of Contents

3. Check blade balance by positioning the blade

horizontallyonanailorshaftthroughthecenterhole.
See Figure 4-5. If either end of the blade rotates
downward, grind (remove) metal on that end until
blade will balance. The blade is properly balanced
when neither end drops. Balance of a blade is
generally maintained by removing an equal amount
of material from each end of bladewhen shar pening.

HORIZONTAL

19046

Blade Balancing

Figure 4-5

NAIL OR SHAFT

4. Mount blade with wing tips pointing up towards

bottom of deck. Reinstall blade, blade washer and
bolt. Care should be takenwhen installing blade bolt
not to get it cross threaded. Do not exceed55 ft.-lbs.
of torque on bolt.

NOTE: Care should be taken in order not to remove
any more material than necessary to sharpen blade.

Storage

At end of working season or when the mower will not be
used for a long period, it is good practice to clean off any
dirt or grease that may have accumulated on the mower
and any of the moving parts.

1. Clean off any dirt or grease that may have
accumulated on the deck and moving parts. Scrape
off compacted dirt from the bottom of the deck and
thenwash the surfacethoroughlywith a gardenhose.
A coating of oil may also be applied to the lower deck
area to minimize oxidation.

2. Check blades for wearand replaceif necessary, see
Servicing Mowing Blades, this section on page 17.

3. Inspectmowerforloose,damagedor worn parts and
adjust or replace as needed.

4. Lubricate as noted in the Lubrication portion of this
section starting on page 20.

5. Store unit inside if possible for longer life.

6. Repaint parts where paint is worn or scratched to
preventrust. Ask your dealer forAerosol Land Pride
touch-up paint.

Land Pride Touch-up Paint

Part No. Part Description
821-011C PAINT LP BEIGE SPRAY CAN

821-002C PAINT GP BLACK SPRAY CAN

V-Belt Installation

Refer to Figure 4-6:

This illustration is also on the label located on the top of
the mower deck.

1. Remove right hand and left hand belt covers.

2. Disengage belt tension by loosening eyebolt (#1)
and removing spring (#2) from the tension-chain
link (#3).

3. With tension relieved from belt remove old belt from
pulleys.

4. To install a new belt be sure belt is positioned in all
the pulley grooves. Engage belt tension by
assembling the tension spr ing back on the eyebolt
and tightening eyebolt to apply tension to the new
belt. Check belt tension, refer to Figure 3-3 on page

16.

5. Reinstall all belt covers and secure in place with
hardware.

12/10/07

Front of Mower

V-Belt Installation

Figure 4-6

FDR3590 Rear Discharge Grooming Mowers 310-229M

23789

19

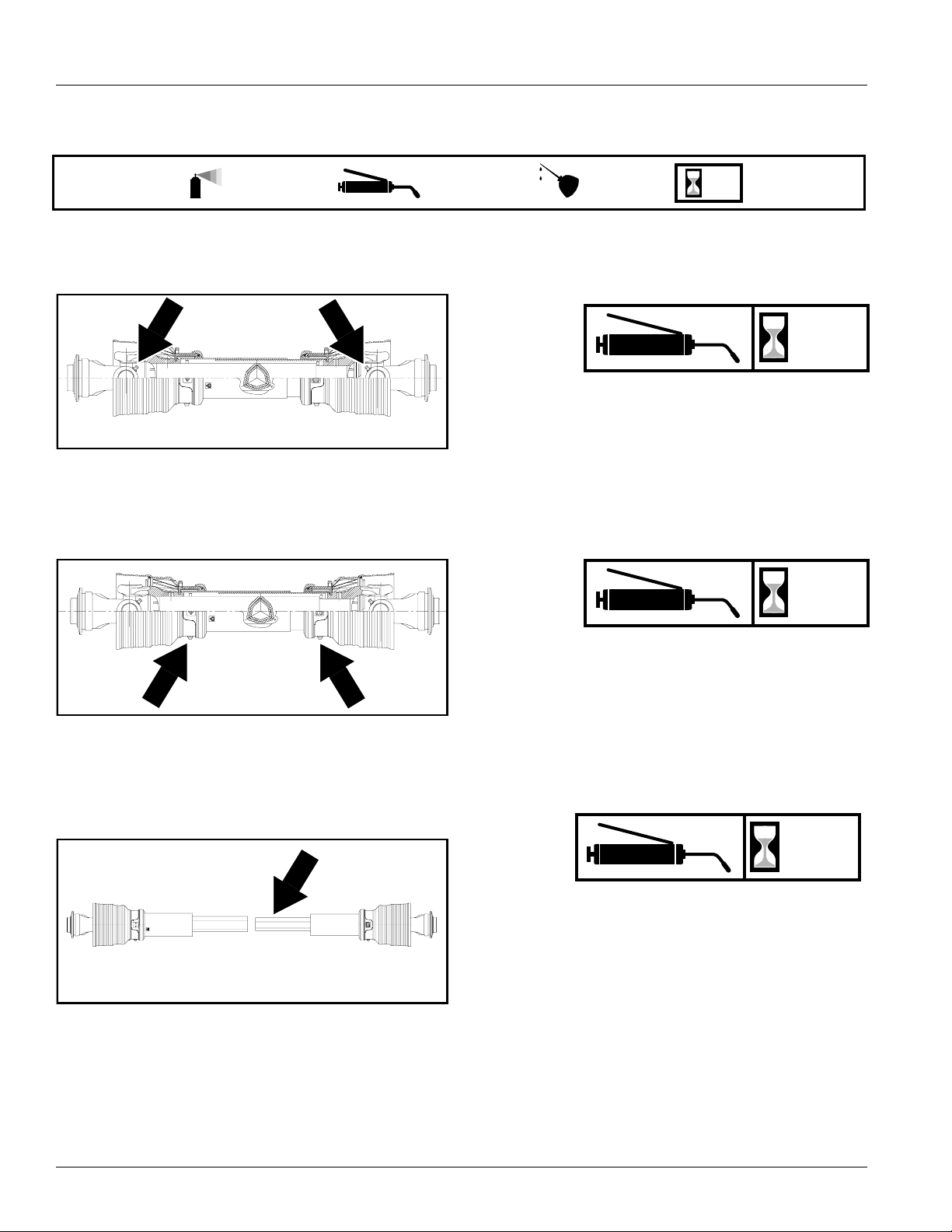

Section 4: Maintenance and Lubrication

Lubrication

Table of Contents

Land Pride

Lubrication
Legend

24871

Multi-purpose
spray lube

Multi-purpose
grease lube

Multi-purpose
oil lube

50

Intervals in hours
at which lubrication
is required

Driveline Shaft U-Joints

Type of Lubrication: Multi-purpose Grease
Quantity - 4 to 8 Pumps

25

Hours

20

Hours

24871

24873

Inner Tube Bearings

Type of Lubrication: Multi-purpose Grease
Quantity - As Required

20

Hours

Driveline Profiles

Type of Lubrication: Multi-purpose Grease
Quantity- Clean & coatinnerprofile tube of drivelinewith

a light film of grease and then reassemble.

FDR3590 Rear Discharge Grooming Mowers 310-229M

20

12/10/07

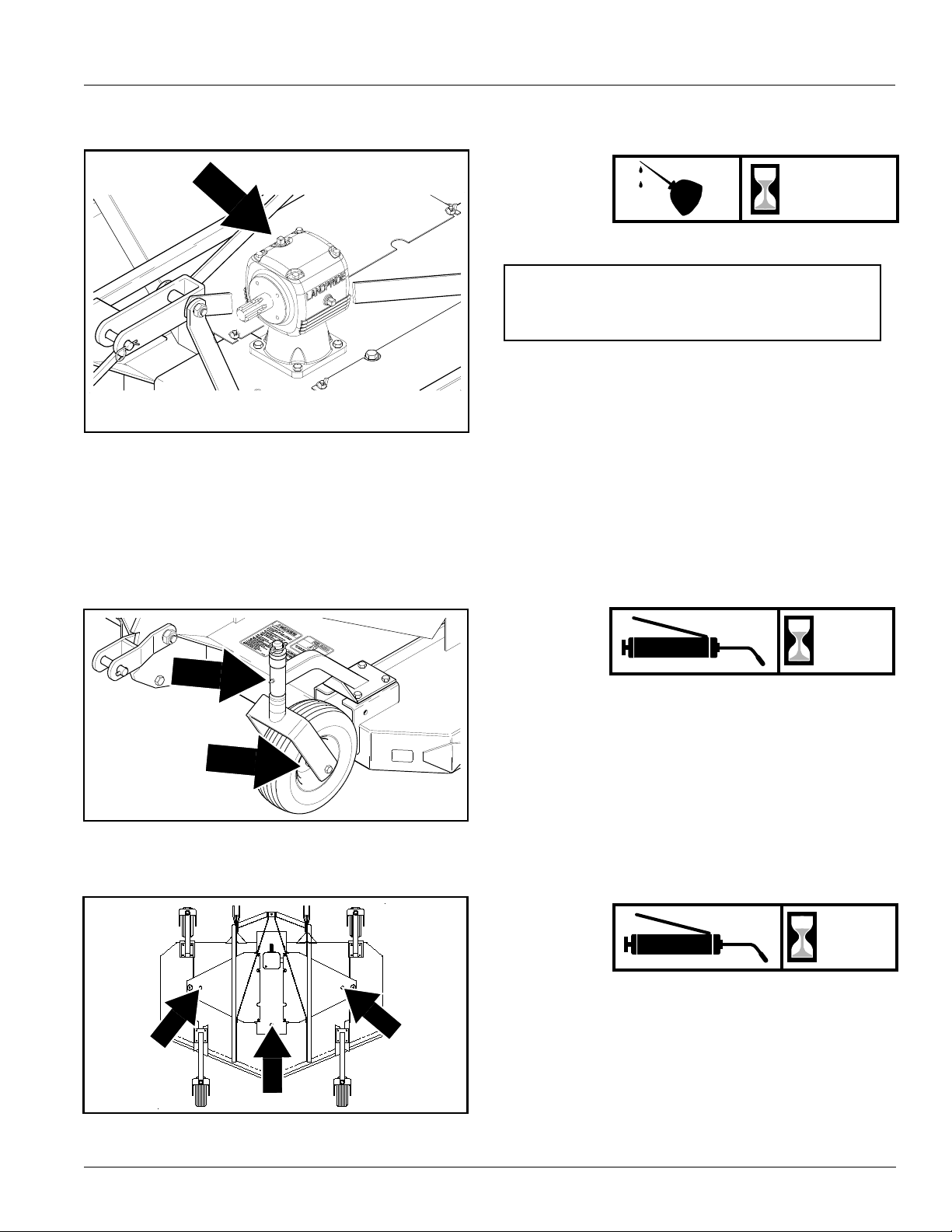

Land Pride

Section 4: Maintenance and Lubrication

15951

Table of Contents

As

Required

Gearbox

IMPORTANT: Do not overfill!Level mower and wait

for gearbox oil to cool before checking. mower that
is not level or a gearbox with hot oil will not show
correct oil level on the dipstick.

Unscrew top ventplug in gearboxto remove dipstick. Wipe
oil from dipstick and screw it back in without tightening.
Unscrew dipstick and check oil level mark. If low, fill
throughtopplughole in gearbox with EP 80-90W oil until oil
reaches full mark on the dipstick. Reinstall vent plug with
dipstick and tighten.

Take your gearbox to a Land Pride dealer if it requires
service.

Type of Lubrication: Gear Lube EP 80-90W
Quantity = Fill until oil reaches full mark on dipstick.

15949

25

Hours

Wheel Suppor t Bushings & Wheel Bearings

Type of Lubrication: Multi-purpose Grease

25

Hours

Bearing in Blade Spindle Hubs

15950

12/10/07

Type of Lubrication: Multi-purpose Grease

FDR3590 Rear Discharge Grooming Mowers 310-229M

21

Table of Contents

Section 5: Specifications & Capacities

Section 5: Specifications & Capacities

FDR35 Series Rear Discharge Grooming Mowers

Max. Engine HP. 60 HP.

Cutting Width 90"

Overall Width 92”

Height 40”

Length 81”

Weight (Semi-Solid Tires) 1026 lbs.

Cutting Height 3/4” to 5 1/4” in 1/2” Increments

Deck Material Thickness 3/16”

Blades-3 5/16” x 2 1/2” x 31 1/2” Medium lift - Hardened

Blade Overlap 2 1/4”

Blade Tip Speed 18,500 F.P.M.

Blade Spindles Cast Iron Greasable hubs: 1 3/8”

Hitch Categor y l,

Lower Hitch: Floating Clevis with Plated Pins
Top Link: Floating Clevis

Quick Hitch Fits Land Pride Quick-Hitch after S/N 294658

Gauge Wheels Castered 5” x 13” Semi-Solid Tire with Bearings

Caster Wheel Spindle 1 1/4” Diameter with Nylon Bushings

Drive Train 540 RPM PTO

Gearbox
1:2.83 Ratio
Cast Iron Housing
Spring Loaded Single V-Belt

Driveline Heavy-Duty W/Quick Coupler Cat. 2

Optional Equipment Front Roller

Land Pride

FDR3590

FDR3590 Rear Discharge Grooming Mowers 310-229M

22

12/10/07

Land Pride

Table of Contents

Section 6: Features and Benefits

Section 6: Features and Benefits

FDR35 Series Rear Discharge Mowers

Features Benefits

Cutting width 90” Cutting width

Gearbox HP rating 25 - 60 HP

Rear discharge The wide, even dispersal of grass leaves a fine thin layer directly behind the mower vs. a

possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow
around objects.

3/16” Deck thickness Heavy deck material to aid in overall strength and longevity. Reinforced spindle mounts.

Clevis type lower hitch points Allows for easy hook-up by being able to remove pins and back into clevises.

Floating 3-point Top and bottom hitch points float up and down which allows themower to float over uneven

terrain.

Lower hitch points

adjust in and out

13” Semi solid tires

with roller bearings

Heavy-duty Gauge wheel arms 1/4” Gauge wheel arms increases strength.

Non-aligned gauge wheels Rear wheels do not track behind the front wheels to reduce laying grass over.

High blade tip speed 18,500 fpm for cleaner cutting and better dispersion of clippings.

Heavy-duty roller bearings

& 1 3/8" machined spindles

Blade choices Low, medium or high lift blades are available to match the customer’s desires and needs for

Blade overlap Blade overlap of 2 1/4” assures no skipping in tight turns.

Single C-section Kevlar belt Simple one belt design. Kevlar material adds additional strength.

Spring loaded adjustable idler Allows for constant and proper pressure on the belt.

Blade bar Bar gives additional support to blade.

Top greasing spindles Assures top bearing gets greased. No shields to remove.

5 Year Limited Gear Box

warranty

Quick Hitch Compatible Compatible with Land Pride Quick Hitch (S/N 294658+) for easy attachment and removal and

Accommodates many tractor configurations by adjusting in and out.

13” Tires offer premium flotation. Roller bearings allow for a long life. Semi solid tires offer
shock absorption.

Roller bearings for smooth running and quiet operation, 1 3/8" machined spindles for
durability, balanced performance, and accuracy. Cast iron housings for added protection and
durability.

his particular uses. Mulching blades also available.

Shows our confidence in the gearbox integrity. 5 year housing, gears, shafts,
3 year bearings and seals.

increased productivity.

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

23

Section 7: Troubleshooting

Section 7: Troubleshooting

Problem Solution

Table of Contents

Land Pride

Discharge chute plugged

!

CAUTION

Check installation of belt.
Wait until grass dries.
Raise cutting height of mower and cut grass twice.
Mow at full throttle (540 PTO rpm), check PTO speed and tractor engine.
Shift transmission to a lower gear.

Do not try to clean discharge chute when mower is running. Bodily harm may occur!

Belt slipping

Patches of uncut grass

Excessive vibration

Unplug and clean mower deck.
Remove belt guard shields and clean sheaves.
Tighten spring take-up eyebolt.
Replace belt.
Mow at full throttle (540 PTO rpm), check PTO speed and tractor engine.
Shift transmission to a lower gear.
Tighten spring take-up eyebolt.
Sharpen and balance or replace blade.
Remove belt guard shield and clean debris from belt area and sheaves. Replace

the belt guard shield.

Gearbox noisy
Blades scalping grass

Uneven cut

T ractor loaded down b y mower

Replace drive belt.
Replace sheaves or align.
Readjust 3-point hitch to raise mower to maximum of 14 inches.
Check lubricant level.

Raise cutting height by adjusting wheels.
Change mowing pattern.
Reduce speed turns.
Shift to a lower gear.
Level mower.
Sharpen blades & balance or replace. Shimming of bladehubs may be required to

level out all three blades. Blade hub shim part no. 310-367D (Optional).
Mow at full throttle (540 PTO rpm).
Shift to a lower gear.
Clean mower.

FDR3590 Rear Discharge Grooming Mowers 310-229M

24

12/10/07

Land Pride

Section 8: Appendix

Section 8: Appendix

Bolt Head Identification

Table of Contents

Torque Values Chart

Bolt Head Identification

Bolt Size
(Inches)

1

in-tpi

1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8436597
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.

Grade 2 Grade 5

Grade 8

N·m ft-lb3N · m ft-lb N · m ft-lb mm x pitch N · m ft-lb N · m ft-lb N · m ft-lb

Bolt Size
(Metric)

1

in-tpi = nominal thread diameter in inches-threads per in.

2

N· m = newton-meters

3

ft-lb= foot pounds

4

mm x pitch = nominal thread diameter in millimeters x thread

pitch

5.8

Class 5.8 Class 8.8 Class 10.9

8.8 10.9

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

25

Section 8: Appendix

Notes

Table of Contents

Land Pride

FDR3590 Rear Discharge Grooming Mowers 310-229M

26

12/10/07

Land Pride

Section 8: Appendix

be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.

and the installation by the dealer of any such replacement part, and does not cover
common wear items. Land Pride reserves the right to inspect any equipment or
parts which are claimed to have been defective in material or workmanship.

judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.

the product and all warranty adjustments must be made through an authorized
Land Pride dealer. Land Pride reserves the right to make changes in materials or
design of the product at any time without notice.

of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.

with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in this
written warranty are hereby disclaimed and excluded from this sale.

the date of purchase by the end user.

Table of Contents

Warranty

Land Pride warrants to the original purchaser that this Land Pride product will

Overall Unit and Driveline: One year Parts and Labor
Gearboxes: (S/N 329841+) 5 Years Parts and Labor

(S/N 329840-) One year Parts and Labor.
Belt, Blades, Friction Disc in Slip Clutches & Tires: Considered wear items.
This Warranty is limited to the replacement of any defective part by Land Pride

This Warranty does not apply to any part or product which in Land Pride’s

Claims under this Warranty should be made to the dealer which originally sold

This Warranty shall not be interpreted to render Land Pride liable for damages

No other warranty of any kind whatsoever, express or implied, is made

This Warranty is not valid unless registered with Land Pride within 30 days from

12/10/07

FDR3590 Rear Discharge Grooming Mowers 310-229M

27

Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA

www.landpride.com
