Grooming Mower, 3-spindle

FD2560, FD2572, AT2560 & AT2572

10618

14326

310-148M

Operator’s Manual

Read the Operator’s manual entirely. When you see this symbol, the subsequent

instructions andwarningsare serious - follow without exception. Your life and the lives of others depend on it!

Cover photo may show optional equipment not supplied with standard unit.

10/11/06

Page 2

Table of Contents

Land Pride

Important Safety Information . . . . . . . . . . .1

Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1

Look For The Safety Alert Symbol . . . . . . . . . . . . .1

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . .8

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . .8

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 8

Serial Number Plate . . . . . . . . . . . . . . . . . . . . . 8

Further Assistance . . . . . . . . . . . . . . . . . . . . . .8

Section 1: Assembly & Set-up . . . . . . . . . .9

General Description . . . . . . . . . . . . . . . . . . . . . . . .9

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . 9

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 9

Upper Hitch Arms . . . . . . . . . . . . . . . . . . . . . . .9

Lower Hitch Lugs . . . . . . . . . . . . . . . . . . . . . . . 9

Initial Hitch Arm Position . . . . . . . . . . . . . . . . . .9

Gauge Wheel Assembly . . . . . . . . . . . . . . . . . 10

Grass Chute Assembly . . . . . . . . . . . . . . . . . . 10

Final Inspection . . . . . . . . . . . . . . . . . . . . . . . . 10

Section 2: Operating Instructions . . . . . .11

General Description . . . . . . . . . . . . . . . . . . . . . . .11

Pre-Start Instructions . . . . . . . . . . . . . . . . . . . . . .11

Tractor Requirements . . . . . . . . . . . . . . . . . . .11

Tractor Hook-Up . . . . . . . . . . . . . . . . . . . . . . . 11

Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 11

Checking Driveline Minimum Length . . . . . . . .12

Operating Instructions . . . . . . . . . . . . . . . . . . . . . 13

Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Section 3: Adjustments . . . . . . . . . . . . . .14

Mower Chute . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Floating & Front To Back Hitch Adjustments . . . . 14

Leveling The Mower . . . . . . . . . . . . . . . . . . . . . . 14

Four Gauge Wheels . . . . . . . . . . . . . . . . . . . .14

Cutting Height Adjustment . . . . . . . . . . . . . . . . . . 15

Belt Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Section 4: Maintenance and Lubrication 16

General Maintenance . . . . . . . . . . . . . . . . . . . . . .16

Blade Inspection . . . . . . . . . . . . . . . . . . . . . . .16

Blade Sharpening . . . . . . . . . . . . . . . . . . . . . .16

Blade Replacement . . . . . . . . . . . . . . . . . . . . .17

AIR TIRES (AIR PRESSURE): . . . . . . . . . . . .17

V-Belt Installation . . . . . . . . . . . . . . . . . . . . . .17

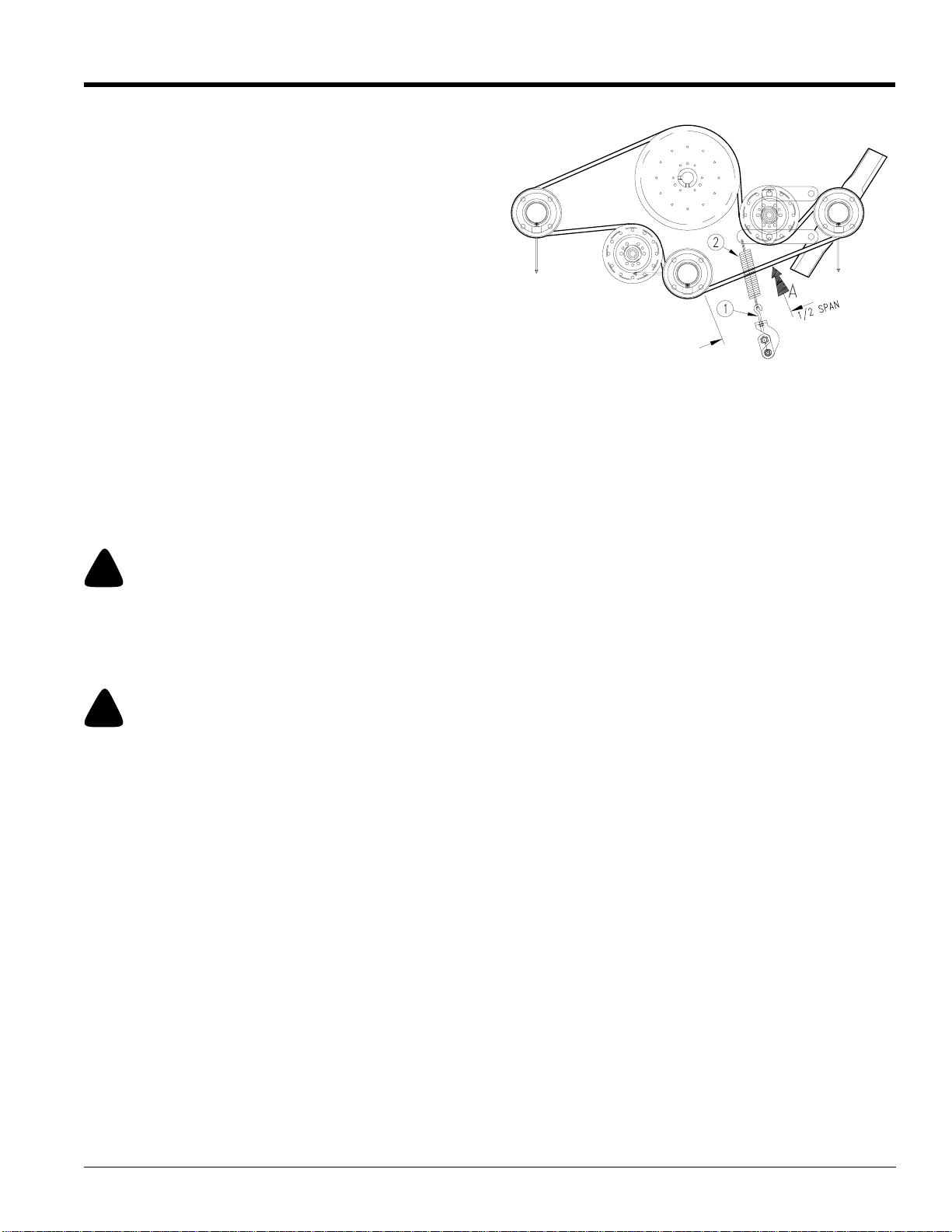

Belt Tension . . . . . . . . . . . . . . . . . . . . . . . . . .17

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Service Daily . . . . . . . . . . . . . . . . . . . . . . . . . .18

Service Every 50 Hours Of Operation: . . . . . .18

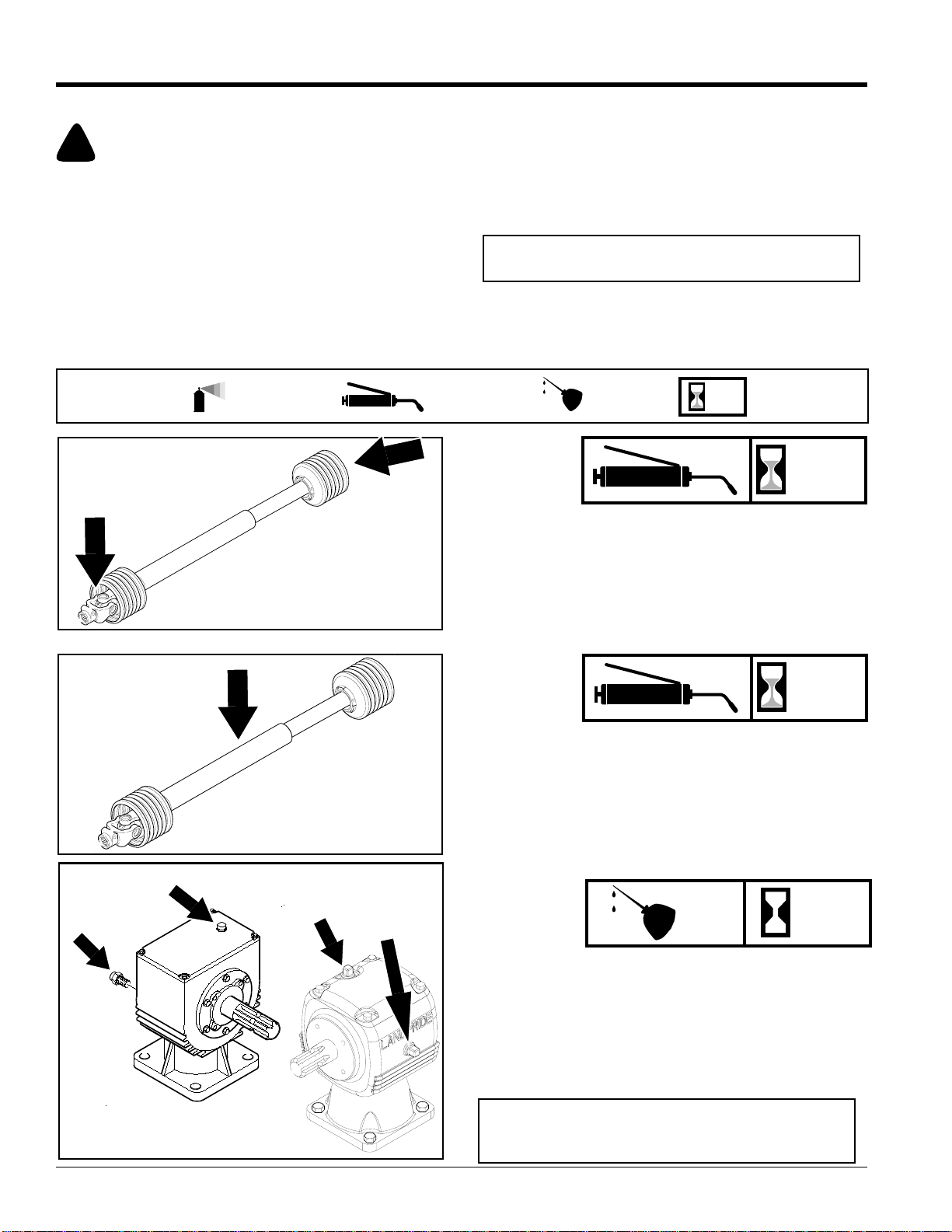

PTO U-Joint . . . . . . . . . . . . . . . . . . . . . . . . . . .18

PTO Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

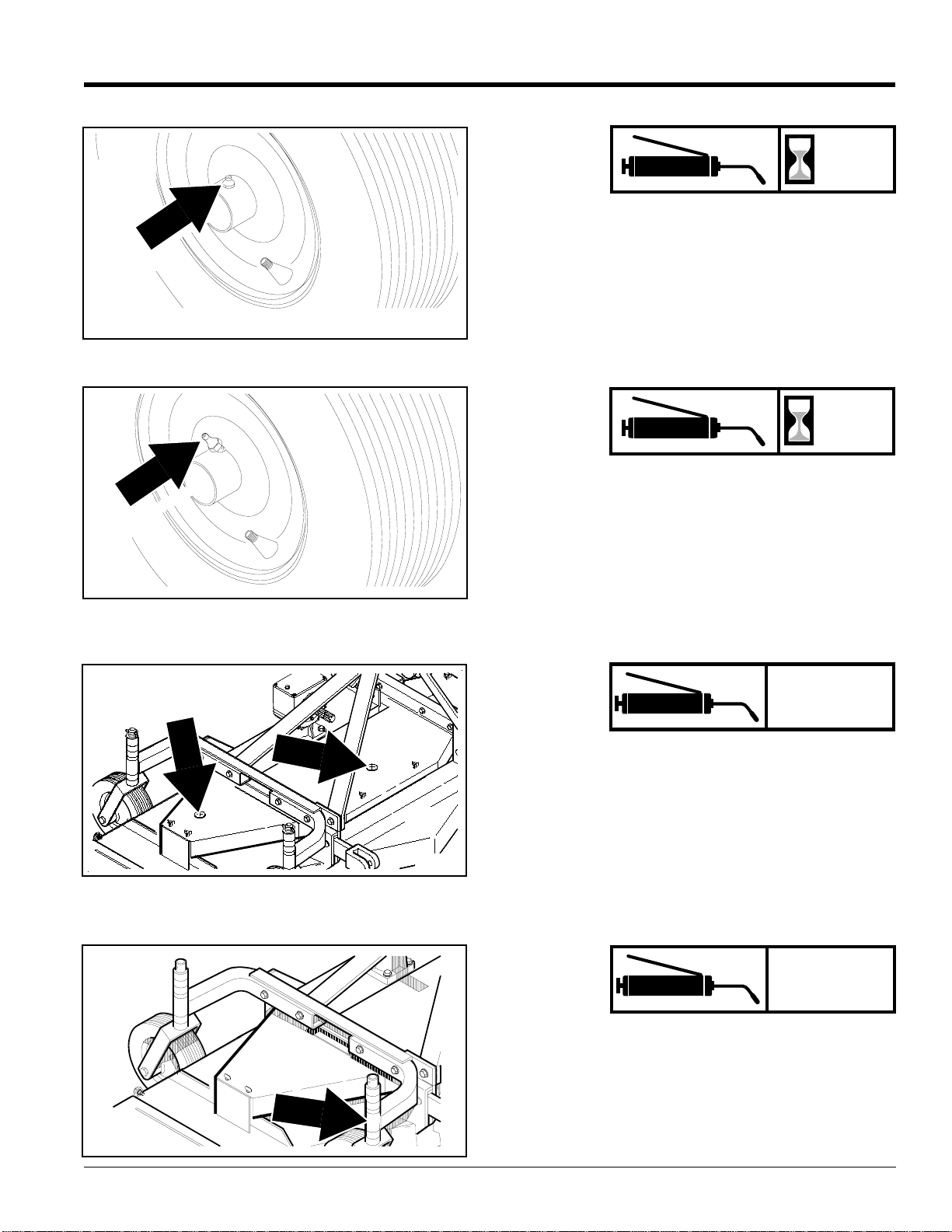

Wheel Bushing (Martin) . . . . . . . . . . . . . . . . . . 19

Wheel Bushing (Neilson) . . . . . . . . . . . . . . . . .19

Bearing in Blade Spindle Hubs . . . . . . . . . . . .19

Wheel Support Bushings . . . . . . . . . . . . . . . . .19

Section 5: Options . . . . . . . . . . . . . . . . . .20

Section 6: Specifications & Capacities . .21

Section 7: Troubleshooting . . . . . . . . . . .22

Section 8: Appendix . . . . . . . . . . . . . . . . .23

Torque Values Chart . . . . . . . . . . . . . . . . . . . . . .23

Tire Inflation Chart . . . . . . . . . . . . . . . . . . . . . . . .23

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Land Pride provides this publication “asis” without warranty ofany kind, either expressedor implied. While every precaution has beentaken in the preparationof this manual, Land Pride assumesno responsibility forerrors oromissions. Neither isany liability assumedfor damagesresulting from theuse of theinformation contained herein.Land Pride reserves the rightto revise andimprove itsproducts as it sees fit. This publicationdescribes the stateof this productat the time of its publication,and may notreflect the productin the future.

Land Pride isa registered trademark.

All other brands and product names are trademarksor registered trademarks of their respectiveholders.

Printed in the United States of America.

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 3

Land Pride

▲

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Safety at All Times

Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Label” section, read all instructions noted on them.

Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment.

▲ Operator should be familiar with

all functions of the unit.

▲ Operate implement from the

driver’s seat only.

▲ Make sure all guards and shields

are in place and secured before operating the implement.

▲ Do not leave tractor or implement

unattended with engine running.

▲ Dismounting from a moving

tractor could cause serious injury or death.

▲ Do not stand between the tractor

and implement during hitching.

▲ Keep hands, feet, and clothing

away from power-driven parts.

▲ Wear snug ﬁtting clothing to avoid

entanglement with moving parts.

▲ Watch out for wires, trees, etc.,

when raising implement. Make sure all persons are clear of working area.

▲ Turning tractor too tight may

cause implement to ride up on wheels. This could result in injury or equipment damage.

Look For The Safety Alert Symbol

The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and conﬁguration of

Be Aware of Signal Words

A Signal word designates a degree or level of hazard seriousness. The signal words are:

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme situations, typically for machine components that, for functional purposes, cannot be guarded.

For Your Protection

▲ Thoroughly read and understand

the “Safety Label” section, read all instructions noted on them.

equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnelinvolved in the operation, transport, maintenance and storage of equipment.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It mayalso be used to alert against unsafe practices.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

Shutdown and Storage

▲ Lower machine to ground, put

tractor in park, turn off engine, and remove the key.

▲ Detach and store implements in a

area where children normally do not play. Secure implement by using blocks and supports.

10/11/06

OFF

REMO

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 4

Table of Contents

Land Pride

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Use Safety Lights and Devices

▲ Slow moving tractors, self-

propelled equipment, and towed implements can create a hazard when driven on public roads. They are difﬁcult to see, especially at night.

▲ Flashing warning lights and turn

signals are recommended whenever driving on public roads. Use lights and devices provided with implement.

Transport Machinery Safely

▲ Comply with state and local laws. ▲ Maximum transport speed for

implement is 20 mph. DO NOT EXCEED.Never travel at a speed which does not allow adequate control of steering and stopping. Some rough terrain require a slower speed.

▲ Sudden braking can cause a

towed load to swerve and upset. Reduce speed if towed load is not equipped with brakes.

▲ Use the following maximum

speed - tow load weight ratios as a guideline:

▲ 20 mph when weight is less than

or equal to the weight of tractor.

▲ 10 mph when weight is double

the weight of tractor.

▲ IMPORTANT: Do not tow a load

that is more than double the weight of tractor.

Use A Safety Chain

▲ A safety chain will help control

drawn machinery should it separate from the tractor drawbar.

▲ Use a chain with the strength

rating equal to or greater than the gross weight of the towed machinery.

▲ Attach the chain to the tractor

drawbar support or other speciﬁed anchor location. Allow only enough slack in the chain to permit turning.

▲ Do not use safety chain for

towing.

Practice Safe Maintenance

▲ Understand procedure before

doing work. Use proper tools and equipment, refer to Operator’s Manual for additional information.

▲ Work in a clean dry area. ▲ Lower the implement to the

ground, put tractor in park, turn off engine, and remove key before preforming maintenance.

▲ Allow implement to cool

completely.

▲ Install all transport locks on raised

drillbeforeworking underneath, refer to the Operator’sManualforquantity and location of transport locks.

▲ Do not grease or oil implement

while it is in operation.

▲ Move the opener handle to the

“ROAD” position and complete raising the openers to lock them up before working underneath them.

▲ Disk edges are sharp. Be careful

when working in this area.

▲ Disconnect battery ground cable

(-) before servicing or adjusting electrical systems or before welding on implement.

▲ Inspect all parts. Make sure parts

are in good condition & installed properly.

▲ Remove buildup of grease, oil or

debris.

▲ Removeall tools and unused pars

from implement before operation.

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 5

Land Pride

Table of Contents

Important Safety Information

These are common practices that may or may not be applicable to the products described in this manual.

Prepare for Emergencies

▲ Be prepared if a ﬁre starts. ▲ Keep a ﬁrst aid kit and ﬁre

extinguisher handy.

▲ Keep emergency numbers for

doctor, ambulance, hospital and ﬁre department near phone.

911

Wear Protective Equipment

▲ Protectiveclothingandequipment

should be worn.

▲ Wear clothing and equipment

appropriate for the job. Avoid loose ﬁtting clothing.

▲ Prolonged exposure to loud noise

can cause hearing impairment or hearing loss. Wear suitable hearing protection such as earmuffs or earplugs.

▲ Operating equipment safely

requires the full attention of the operator. Avoid wearing radio headphones while operating machinery.

Keep Riders Off Machinery

▲ Riders obstruct the operator’s

view, they could be struck by foreign objects or thrown from the machine.

▲ Never allow children to operate

equipment.

Tire Safety

▲ Tire changing can be dangerous

and should be preformed by trained personnel using the correct tools and equipment.

▲ When inﬂating tires, use a clip-on

chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly. Use a safety cage if available.

▲ When removing and installing

wheels, use wheel handling equipment adequate for the weight involved.

10/11/06

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 6

Important Safety Information

Table of Contents

Land Pride

Safety Labels

Your Grooming Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions.

1. Keep all safety labels clean and legible.

2. Replace all damaged or missing labels. To order new labels go to your nearest Land Pride dealer or visit our dealer locator at landpride.com.

3. Some new equipment installed during repair requires

13098

safety labels to be affixed to the replaced component as specified by Land Pride. When ordering new components make sure the correct safety labels are included in the request.

4. Refer to this section for proper label placement. To install new labels:

a. Clean the area the label is to be placed. b. Spray soapy water on the surface where the label is to

be placed. c. Peel backing from label.Press firmly onto the surface. d. Squeeze out air bubbles with the edge of a credit card.

818-555C

Rotating Blade Hazard (Flat Deck)

13100

13098

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

818-555C

Rotating Blade Hazard (Air Tunnel)

818-556C

ThrownObjectHazard (Flat Deck)

10/11/06

Page 7

Land Pride

Important Safety Information

Table of Contents

13100

818-556C

Thrown Object Hazard (Air Tunnel)

13099

13101

818-130C

Operate at 540 RPM PTO (Flat Deck)

818-130C

Operate at 540 RPM PTO (Air Tunnel)

10/11/06

13099

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

818-142C

Rotating Driveline Hazard (Flat Deck)

Page 8

Important Safety Information

Table of Contents

13101

Land Pride

818-142C

Rotating Driveline Hazard (Air Tunnel)

13099

13101

818-144C

V-Belt Instructions (Flat Deck)

818-144C

V-Belt Instructions (Air Tunnel)

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 9

Land Pride

Important Safety Information

Table of Contents

13102

818-540C

Danger Guard Missing

10/11/06

ROTATING DRIVELINE

KEEP AWAY!

13102

818-552C

Danger Rotating Driveline

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 10

Introduction

Table of Contents

Land Pride

Land Pride welcomes you to the growing family of new product owners.

This Grooming Mower has been designed with care and built by skilled workers using quality materials. Proper assembly,maintenanceand safe operating practices will help you get years of satisfactory use from the machine.

Using This Manual

•

This Operator’s Manual is designed to help familiarize you with safety, assembly, operation, adjustments, troubleshooting, and maintenance. Read this manual and follow the recommendations to help ensure safe and efficient operation.

• The information contained within this manual was

current at the time of printing. Some parts may change slightly to assure you of the best performance.

• To order a new Operator’s or Parts Manual contact

your authorized dealer. Manuals can also be downloaded, free-of-charge from our website at www.landpride.com or printed from the Land Pride Service & Support Center by your dealer.

Terminology

“Right” or “Left” as used in this manual is determined by facing the direction the machine will operate while in use unless otherwise stated.

Definitions

NOTE: A special point of information that the

operator must be aware of before continuing.

IMPORTANT: A special point of information related to its preceding topic. Land Pride’s intention is that this information should be read and noted before continuing.

Owner Assistance

The Warranty Registration card should be filled out by the dealer at the time of purchase. This information is necessary to provide you with quality customer service.

If customer service or repair parts are required contact a LandPridedealer. A dealer has trained personnel, repair parts and equipment needed to service the Grooming Mower.

The parts on your Grooming Mower have been specially designedandshouldonlybe replaced with genuine Land Pride parts. Therefore, should your mower require replacement parts go to your Land Pride Dealer.

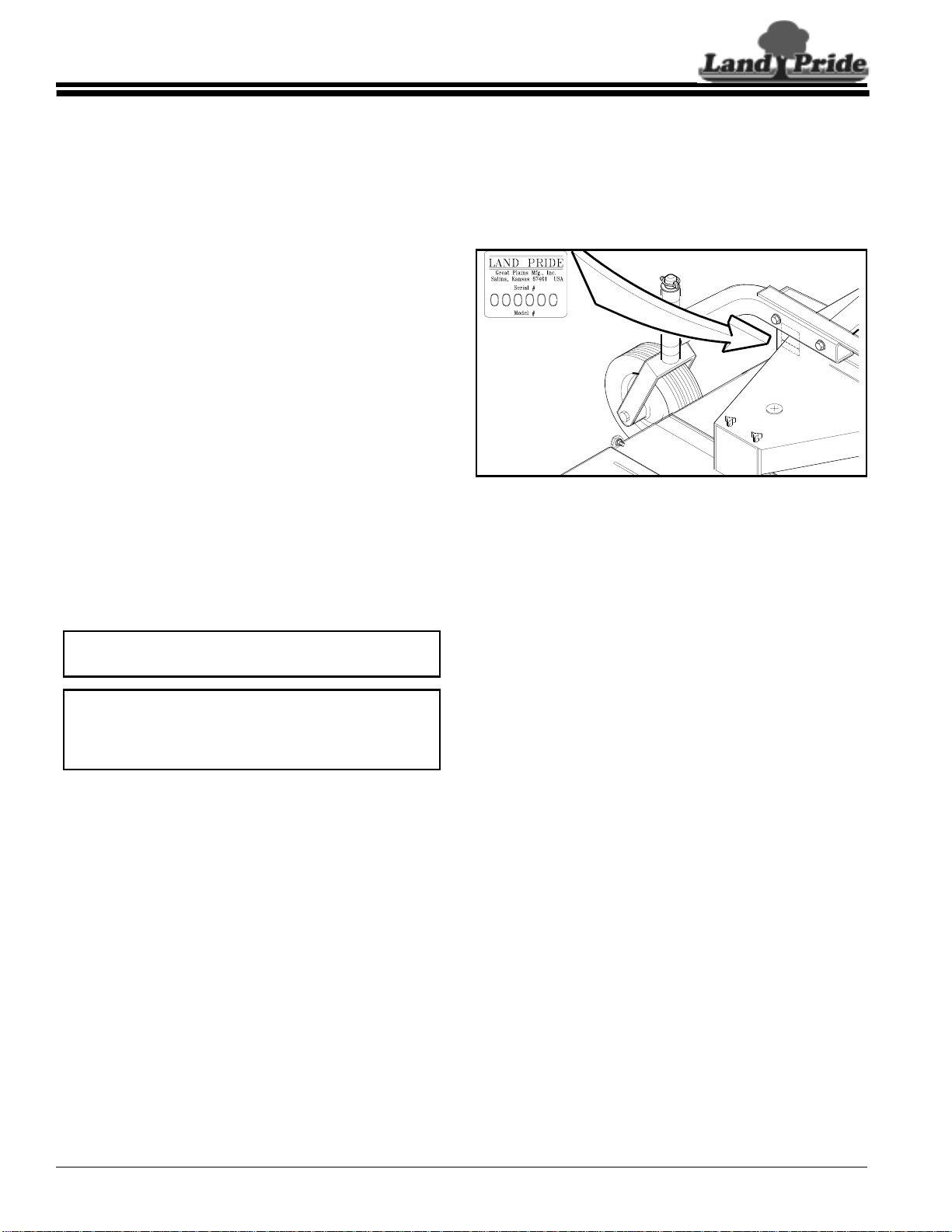

Serial Number Plate

For prompt service always use the serial number and modelnumber when ordering partsfrom your Land Pride dealer.Besuretoincludeyourserialandmodel numbers incorrespondencealso. Refer to Figure 1forthelocation of your serial number plate.

15035

Serial Number Plate Location

Figure 1

Further Assistance

Your dealer wants you to be satisfied with your new Grooming Mower. If for any reason you do not understand any part of this manual or are not satisfied with the service received, the following actions are suggested:

1. Discuss the matter with your dealership service manager making sure he is aware of any problems youmay haveand that he has had the opportunity to assist you.

2. If you are still not satisfied, seek out the owner or general manager of the dealership, explain the problem and request assistance.

3. For further assistance write to:

Land Pride Service Department

1525 East North Street

P.O.Box 5060

Salina, Ks. 67402-5060

E-mail address

[email protected]

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 11

Land Pride

Section 1: Assembly & Set-up

Table of Contents

General Description

The 25 Series Grooming Mower is shipped crated and partially assembled. Unloading and assembly of this grooming mower is the responsibility of the Land Pride Dealer. The mower should be completely assembled, lubricated, and Adjusted for normal mowing operations before delivery to the customer.

Tools Required

• Sufficient Lifting device (e.g., fork lift, hoist, tractor) see

“Specification Chart” for unit weight.

• Support Stands

• Regular Hand Tools

• Grease Gun

Always wear personal protection devices such as eye, ear, and feet protectors during assembly operations.

CAUTION

Assembly Instructions

Using a safe lifting device, set the crate on safe supporting stands. Remove crate. Remove loose components - gauge wheels, gauge wheel arms and miscellaneous hardware from the top of deck. Arrange parts for easy identification.

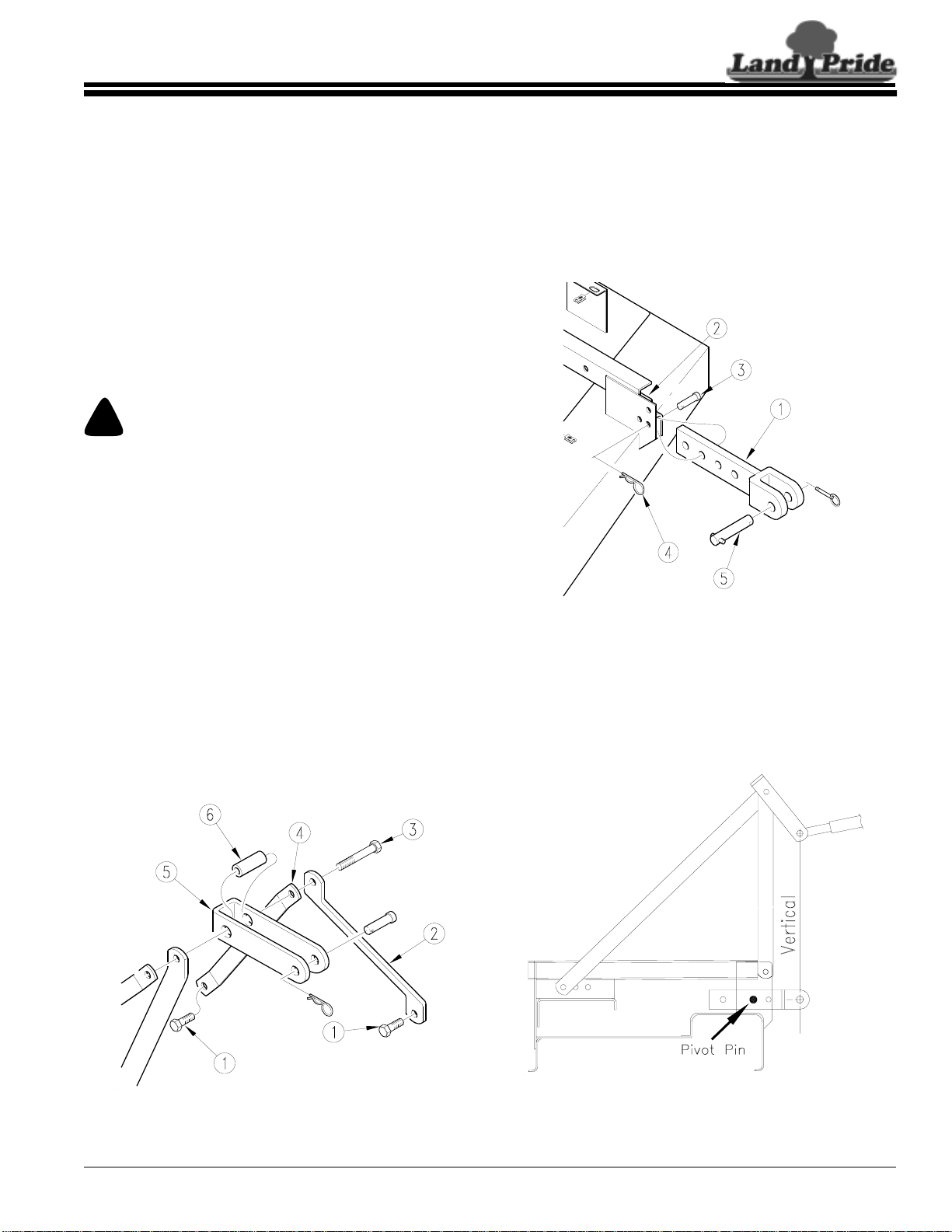

Upper Hitch Arms

Refer to Figure 1-2:

1. Loosen 5/8" x 1 3/4" long bolts (#1) and swing upper hitch (#2) up to a vertical position.

2. Remove5/8" x 5 1/2" long bolt (#3) and install upper hitch brace (#4), upper pivoting hitch (#5), and hitch spacer (#6) with 5/8" x 5 1/2" long bolt (#3).

3. RefertoFigure1-4,forinitial bolting locationofupper hitch brace (#4).

Lower Hitch Lugs

Refer to Figure 1-3

The Hitch Lug (#1) is installed from the factory in the inward most position on the mower channel (#2).

1. Remove hair pin (#4). Remove pivot pin (#3)

2. Slide hitch lugs (#1) into the initial position as shown in Figure 1-4.

13543

Lower Hitch Lugs

Figure 1-3

Initial Hitch Arm Position

Refer to Figure 1-4

1. Bolt the upper hitch arms and lowerhitch lugs on the mower to the positions shown

2. Tighten hardware to listed torque values.

10/11/06

Upper Hitch Arms Assembly

Figure 1-2

13542

Initial Hitch Arm Position

Figure 1-4

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

11915

Page 12

Section 1: Assembly & Set-up

Table of Contents

Land Pride

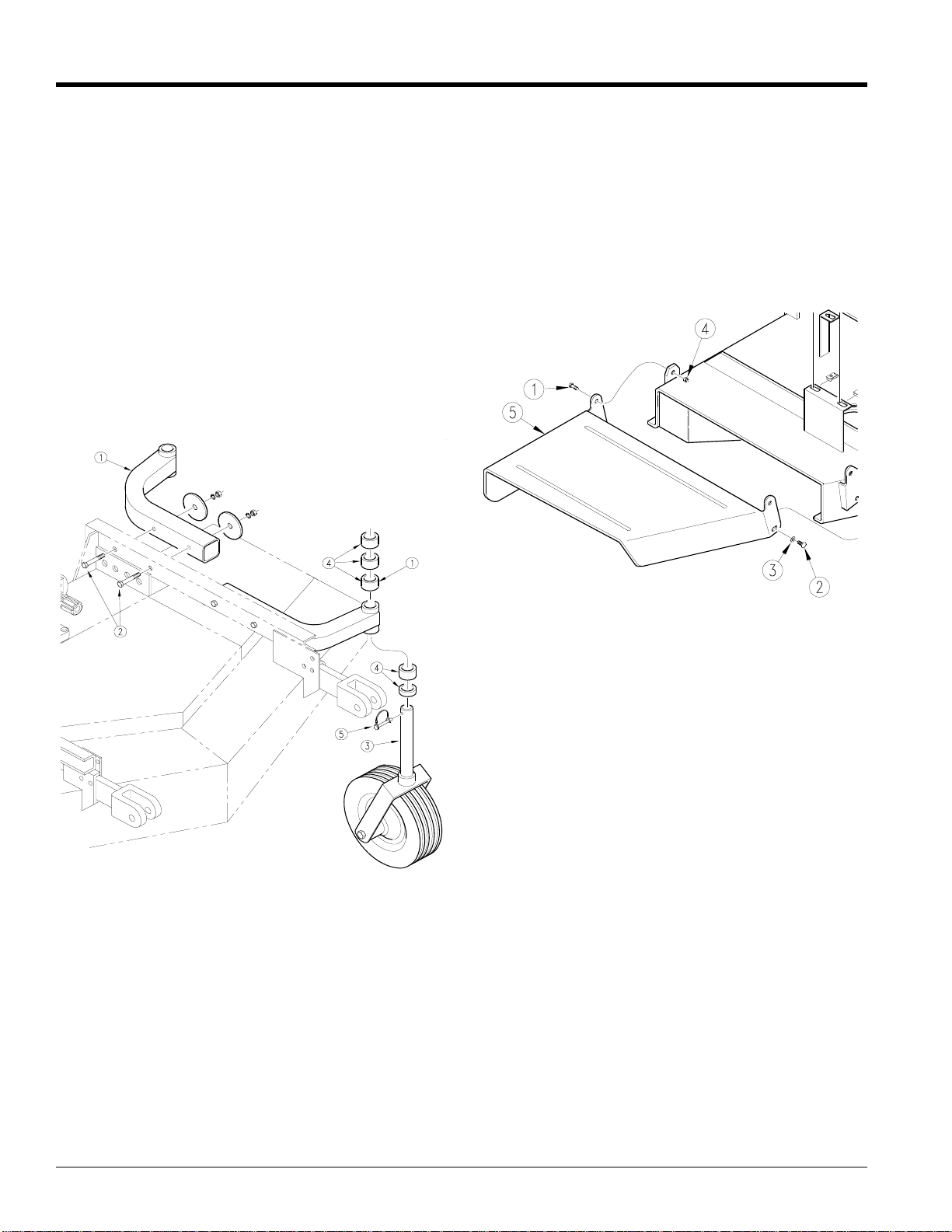

Gauge Wheel Assembly

Refer to Figure 1-5:

1. The rear gauge wheel arms (#1) are bolted to the frame backwards from factory. Remove the 3/8" x 3" long bolt (#2), hardware and gauge wheel arm (#1).

2. Bolt the rear gauge wheel arms (#1) to the mounting channels on the mower frame using 3/8" x 3" long bolt (#2) and hardware shown.

3. Insert the 1" diameter shaft of the gauge wheel yoke (#3) into the bushings on the gauge wheel arm (#1), noting the amount of spacers (#4) added to top or bottom depending on cutting height {refer to Section 3“Cutting Height Adjustments” on Page 15}.

4. Secure shaft to wheel arm with 1/4" lock pin (#5). Be sure all the spacers are arranged the same on each wheel assembly. Tighten all hardware to values listed in the “Torque Values Chart” in the appendix.

Grass Chute Assembly

Refer to Figure 1-5:

1. Loosen upper pivot bolt (#1) and remove lower thumb screw (#2).

Hinge chute down and install thumb screw (#2) and flat washer(#3). When set at position desired, tighten down upper pivot bolt (#1) and lock nut (#4). Do not tighten completely. Allow chute to hinge. Lock down lower thumb screw (#2) with flat washer (#3).

13577

13544

Grass Chute Assembly

Figure 1-6

Final Inspection

After completing the “Dealer Assembly and Setup” section, fill out the “Warranty Registration Form &

Inspection Report” in this manual.

Gauge Wheel Assembly

Figure 1-5

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 13

Land Pride

Table of Contents

Section 2: Operating Instructions

General Description

The operator is responsible for the safe use of this machine.Readandunderstand the safety section before continuing.

This section covers the procedures needed to operate this machine. Properly read and understand this section before operating.

Pre-Start Instructions

Tractor Requirements

This mower is designed with a 3-Point category I hitch. Horsepowerratingofthetractorshouldnotexceed30 PTO horse power on 60 inch units and 35 PTO horse power on 72 inch units. PTO Speed of tractor should be 540 RPM.

NOTE: In order to maintain steering control, ballast may have to be added to your tractor. To determine whether or not to add ballast, refer to your tractor operator’s manual for weight requirements and to the “Specificationsand Capacities”chart for the weight of the unit.

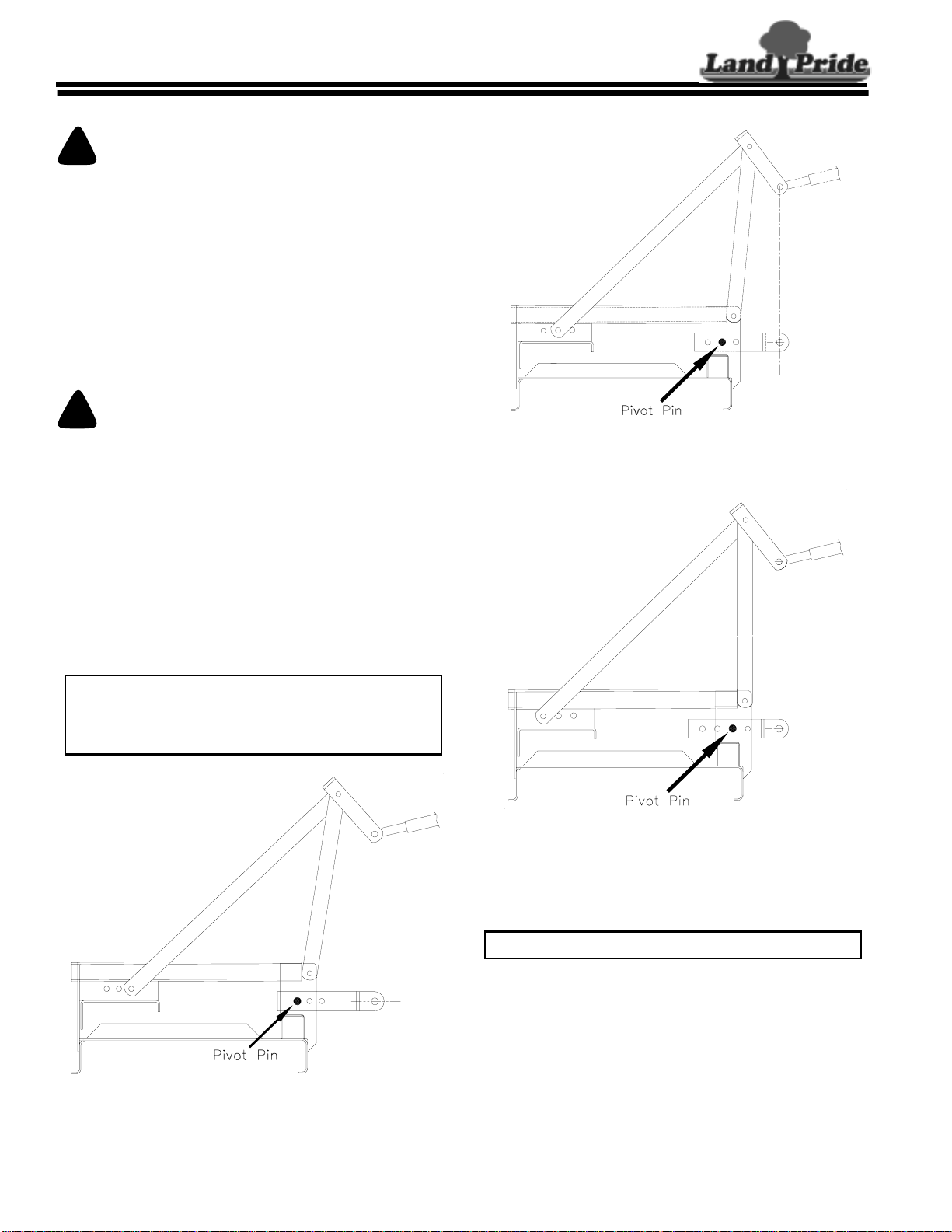

Front Position Hitch Adjustment

Figure 2-1

Tractor Hook-Up

1. Be certain that the tractor draw bar will not interfere. Movedrawbaraheadorremoveifrequired.Drawbar should also be checked for clearance when unit is being raised for the first time.

2. Align lower link arms of tractor to hitch lugs on mower. Insert lowerhitch pins into lower ball swivels and attach lynch pins.

3. Referring to Figure 2-1, attach tractor top link to upper floating hitch on mower with pin supplied.

4. Adjust the tractor top link in or out to place the upper hitch pin vertically above the lower hitch pins as shown in Figure 2-2, to allow mower flotation.

NOTE: The initial position of the Upper Hitch Arms and the Lower Hitch Lugs should be in the back position. If there is a clearance problem refer to the “Adjustment Section” under “Floating & Front To

Back Hitch Adjustments” page 14.

Driveline Installation

An additional driveline may be requiredif the mower is to be used on more than one tractor especially if a quick hitch is used.

11915

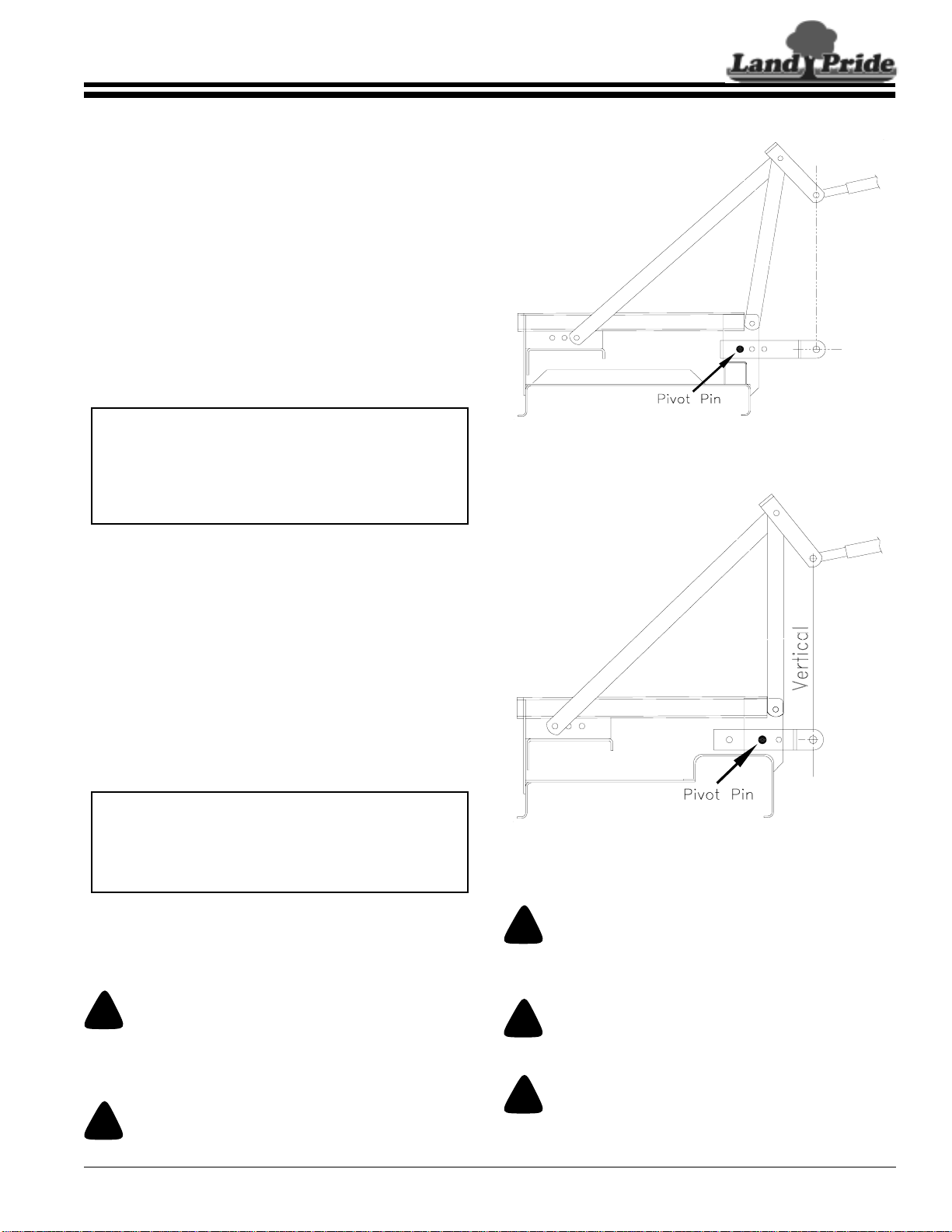

Back Position Floating Hitch Adjustment

Figure 2-2

Tractor PTO shield and all Grooming Mower guards must be in place at all times during operation!

CAUTION

Do not use a PTO adaptor with a quick hitch. A PTO adapter will increase strain on the tractor’s PTO shaft resulting in possible damage the shaft and driveline.

Damaged drivelines can cause serious injury or death.

10/11/06

CAUTION

WARNING

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Damaged drivelines can cause serious injury or death.

Always engage parking brake,shut off tractor and removekey before dismounting from tractor.

WARNING

CAUTION

Page 14

Section 2: Operating Instructions

Table of Contents

Land Pride

IMPORTANT: Some tractors are equipped with

multi-speed PTO ranges. Be certain your tractor ‘s PTO is set for 540 rpm.

IMPORTANT: Avoid premature driveline breakdown. A driveline that is operating must not exceed an angle of 25 degrees up or down while operating the 3-point lift. See Figure 2-3 below.

13800

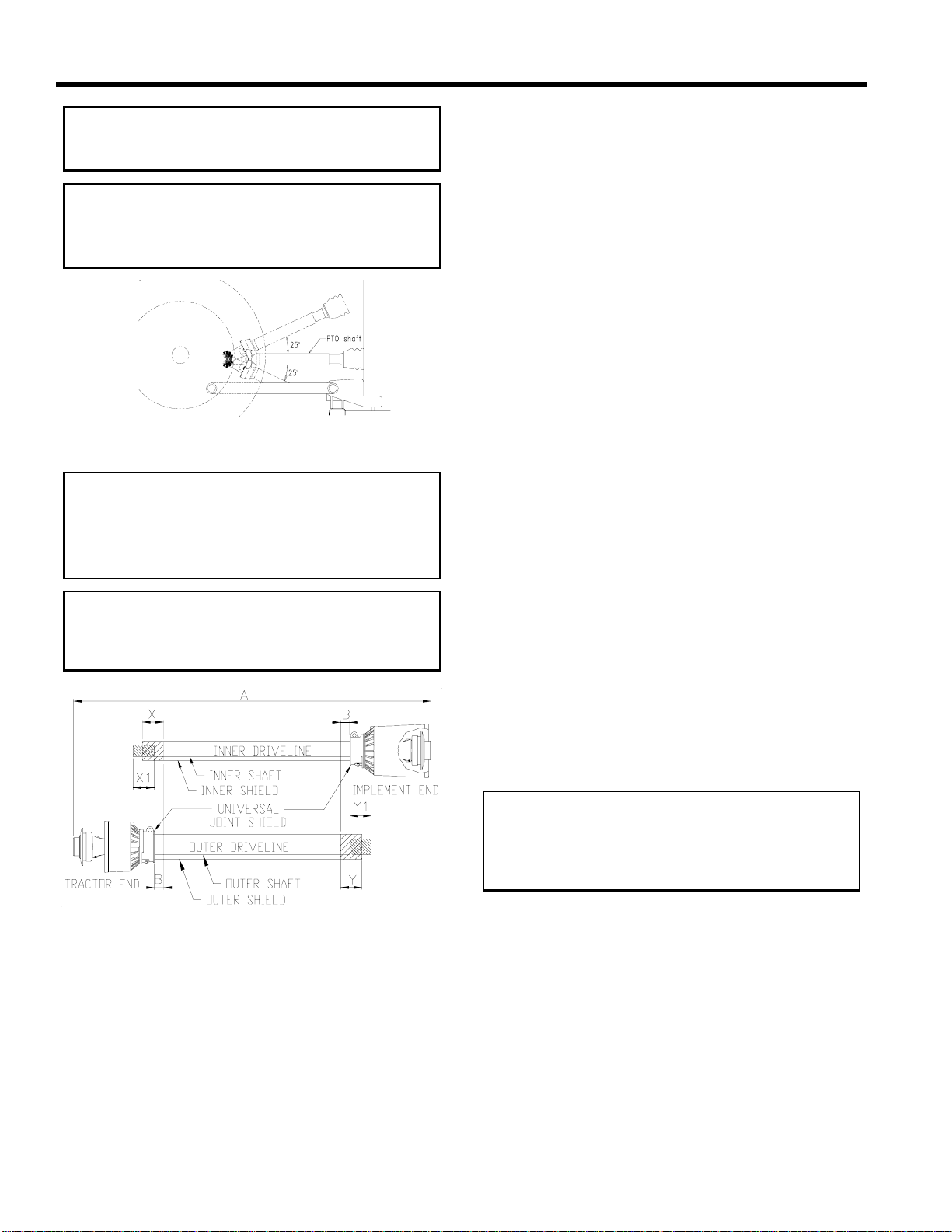

Maximum PTO driveline Movement During Operation

Figure 2-3

IMPORTANT: Always check driveline minimum

length during initial setup, when connecting to a differenttractorand when alternatingbetween using aquickhitch and a standard3-point hitch. More than one driveline may be required to fit all applications.

IMPORTANT: Itisnecessary to aligningthe tractor’s PTO shaft level with the gearbox shaft when checking driveline minimum length. Too long a driveline can damage tractor, gearbox and driveline.

4. The driveline willrequire shortening if it is toolong to fit between tractor and gearbox. Shor ten drivelineas follows:

a. Raise or lower 3-point lower arms until gearbox

and tractor PTO shafts are approximately level with each other. Securely block mower frame in this position.

b. Settractorinpark, shut tractor engine off,setpark

brake and removeswitch key.

c. Pull dr iveline apart into two sections as shown in

Figure2-4.Attach outer driveline universal joint to the tractor PTO shaft. Attach inner driveline universal joint to the gearbox shaft. Pull on each driveline section to be sure universal joints are secured to the shafts.

d. Hold driveline sections parallel to each other to

determine if theyaretoolong. The inner and outer shieldsoneachsectionshouldendapproximately 1" short of reaching the universal joint shield on the adjacent section (see “B” dimension). If they are too long, measure 1" (“B” dimension) back from the universal joint shieldand make a mark at this location on the inner and outer dr iveline shields.

e. Cut off inner shield at mar k (“X” dimension). Cut

same amount off inner shaft (“X1” dimension). Repeat cut off procedure (“Y”&“Y1”dimensions) to cut outer driveline half.

f. Remove all burrs and cuttings.

5. Apply multi-purpose grease to theinside of the outer driveline shaft and reassemble the two shafts.

6. Attach inner driveline yoke to the gearbox shaft.

7. Attach outer driveline yoke to the tractor's PTOshaft.

8. Thedriveline should now bemovedbackand forth to insure that both ends are secured to the tractor and gearbox PTO shafts. Reattach any end that is loose.

22009

Shortening the PTO Shafts

Figure 2-4

Checking Driveline Minimum Length

Refer to Figure 2-4:

1. Start tractor and slowly engage 3-point to move lower arms until the gearbox shaft is approximately level with tractor's PTO shaft.

2. Slide inner yoke of the driveline over the gearbox shaft and secure with locking collar.

3. Slide outer yoke of driveline over the tractor PTO shaftand secure withlockingcollar.Skipto step 5 on page 12 if driveline fits between tractor and gearbox.

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

IMPORTANT: Two small chains are supplied with

the driveline. These chains must be attached to outer and inner driveline yoke shields and to the cutter deck and tractor to restrict driveline shields from rotating.

9. Hook one of the driveline safety chains in a hole on the outer driveline yoke shield and the opposite end to the tractor to restr ict outer shield rotation.

10. Hook the second driveline safety chain in a hole on the inner driveline yoke shield and the opposite end to the mower to restrict inner shield rotation.

11. Start tractor and raise the Grooming Mower just enough to remove blocks used to suppor t the mower frame in step 4a above.

12. Slowlyengage the tractor’shydraulic3-pointtolower the mower. Check for sufficient drawbar clearance. Move drawbar ahead, aside or remove if required.

10/11/06

Page 15

Land Pride

Section 2: Operating Instructions

Table of Contents

Operating Instructions

Pre-Start-up Checklist

Read and follow the “Safety Rules” carefully. Oil Level in gearbo x All plugs and caps in gearbox have been replaced and tight-

ened properly. All mower blades, bolts & nuts are tight Inspect the blades. Make note of the wear to the blades and

the sharpness of the blades. All guards and shields are in place and secure. Grease PTO shaft and all other grease ﬁttings. Make a thorough examination of the PTO shafts. Also check

the connection to the gearbox and tractor PTO. Clear the area to be mowed of rocks, branches and other for-

eign objects.

1. Clear the area to be mowed of objects and debris that might be picked up and thrown by the mower blades.

2. Grass is best cut when it is dr y. Mowing wet grass can cause plugging resulting in grassclumps behind the mower.

3. Grass should be mowed frequently as shorter clippings deteriorate faster.

4. If mowing extremely tall grass, it is best to raise cutting height and mow the area, then lower cutting height and mow a second time at the desired height.

5. Lower mower to ground. Set tractor throttle at approximately1/4open. Engage PTOto start blades rotating.

6. Operate only with 540rpm PTO tractor.

7. At first, begin mowing at a slow forward speed and shift up until the desired speed is achieved maintaining 540 PTO rpm.

8. Mower blades will cut better at a faster rotor speed than at reduced throttle.

9. After mowing the first 50 feet, stop and check to see that the mower is adjusted properly.

10. Do not make sharp turns or attempt to back up while mower is on the ground.

11. Do not engage PTO with mower in the fully raised position. Do not engage PTO at full throttle.

12. After mowing disconnect tractor PTO and follow transporting procedures.

Transporting

Always disengage tractor PTO before transporting mower to avoid injury from thrown objects or blade contact.

When traveling on public roads whether at night or during the day, use accessory lights and devices for adequate warning to operator’sof other vehicles. Comply with all federal, state and local laws.

The mower is wider than your tractor so care should be taken when encountering oncoming trafﬁc and roadside obstructions.

1. When raising the mower to the transport position, be

2. Be sure to reduce tractor ground speed when

3. Select a safeground travel speed when transporting

4. Whentravelingover rough or hilly terrain, shift tractor

CAUTION

IMPORTANT: Alwaysdisengage PTO before raising

the mower to transport position.

sure that dr iveline does not contact tractor ormower. Adjust the tractor’s3-pointhitch lift height so that the PTO shaft does not contact the mower deck. Mower should not be transported without tractor’s upper 3Point link attached.

turning; and, leave enough clearance so the mower does not contact obstacles such as buildings, trees or fences.

from one area to another. When traveling on roadways,transport in sucha way that fastermoving vehicles may pass you safely.

to a lower gear.

When mowing in sandy soil areas, wear may occur to your mower blades caused from sand erosion. Frequent inspection should be made and blades replaced if damaged

10/11/06

CAUTION

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 16

Table of Contents

Section 3: Adjustments

CAUTION

Disengage PTO, engage parking brake, shut off tractor, and remove key before making any adjustments!

Mower Chute

This mower is equipped with an adjustable grass dischargechute. Adjustments can bemadeby loosening the bolts on the front and rear of mower chute. With the mower chute in the raised operating position, grass is expelled away from the mower for a more even distributionofgrassclippings.Loweringthe mower chute will decrease the distance the grass is discharged from the mower.

Land Pride

DANGER

DO NOT in any condition operate mower with chute removed

Floating & Front To Back Hitch Adjustments

The 3-point hitch system on this mower has been designed for front to back flotation when mowing on uneven terrain. The lower 3-point hitch blocks also are adjustable from front to back for additional field float and tractorclearance.Thelowerhitchblocksandtoplinkrear braces can be adjusted front to back as shown in Figure 3-1 and Figure 3-2, Middle Position Floating Hitch Adjustment, in lFigure 3-2. Deviation from the 3 setting will limit field float.

NOTE: Positioning the Upper Hitch Arms and Lower HitchLugs to thebacksetting shortensoveralltractor/ mower length allowing tighter turns and increasing lifting power.

11023

Middle Position Floating Hitch Adjustment

Figure 3-2

11917

Back Position Hitch Adjustment

Figure 3-3

Front Position Hitch Adjustment

Figure 3-1

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Leveling The Mower

Four Gauge Wheels

NOTE: Tractorand mowershouldbe on levelground.

1. Set lower hitches and upper floating hitch, as shown in Figure 3-1, Figure 3-2, or Figure 3-3.

2. Make sure PTO is disengaged and start tractor.

3. Raise mower,watching that tractor draw bar (if not removed) does not interfere with mower.

4. Slowlylowerthemoweruntilgaugewheels touch the ground and the lower mower 3-point hitch bars are parallel to the ground in floating position. Set the tractor’s 3-point stop.

10/11/06

Page 17

Land Pride

Table of Contents

Section 3: Adjustments

5. Set the parking brake and turn off tractor. Remove key from ignition.

6. Adjust the tractor top link in or out to place the upper hitch pin vertically above the lower hitch pin as shown in Figure 3-1, Figure 3-2, or Figure 3-3, to allow mower flotation.

7. Rotate blades in line with direction of travel.

8. Measure the clearance from the cutting edge to the ground at front and rear of the blade. This measurement should be equal or have the blade at the front of the mower not more than 1/2" lower than the blade at the rear of the mower.

Cutting Height Adjustment

1. Using the tractor, raise the moweroff the groundand support underit with secure blockingso not to let the mower drift down during maintenance.

2. Holding wheel and yoke assembly up, remove quicklockpinfrom top of gauge wheelspindle.Positionfull length spacers and half spacer as required. All spacers on top of spindle tube allows for approximately 1" cutting height. Adjustments range from 1" to a maximum of 5 1/2" in 1/2" increments. Refer to “Leveling The Mower” page 14.

Engage parking brake, shut off tractor, remove key and disengage PTO before making any height adjustments!

CAUTION

Belt Tension

Refer to Figure 3-4:

Belt drive system under spring tension; use careto avoid bodily harm!

1. To check tension apply force at arrow A. With a

2. To adjust belt tension, adjust eyebolt (#1), as

3. Excessivetension on the belt maylead to premature

4. Excessivetension on the belt maylead to premature

CAUTION

tension tester and deflect the belt 1/4". The force required to get this deflection should range from 7 to 10 lbs.

necessary.Thisadjustmentwillincrease or decrease the tension on spring (#2).

failure of belt and drive components. Excessive tension on the belt may also lead to a safety hazard totheoperatoror bystanders.Notenough tension on the belt may lead to premature failure of the belt due to excessive slipping.

failure of belt and drive components. Excessive tension on the belt may also lead to a safety hazard to the operator or bystanders.

12732

Belt Tension

Figure 3-4

10/11/06

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 18

Table of Contents

Section 4: Maintenance and Lubrication

Properservicingand adjustment is the key to thelonglife of any implement. With careful and systematic inspection, you can avoid costly maintenance, time and repair.

After using your Grooming Mower for several hours, check all bolts to be sure they are tight.

Replace any worn, damaged or illegible safety labels by obtaining new labels from your Land Pride Dealer.

CAUTION

For Safety reasons, each maintenance operation must be performed with the tractor’s PTO disengaged, the mower lowered completely, tractor engine shut off and ignition key removed.

General Maintenance

Blade Inspection

Refer to Figure 4-1:

NOTE: Blade Wear: As blades wear and are sharpened, the blade performance will be reduced.

DANGER

Bent, Deformed or Split Blades: Should be removed from unit and discarded. DO NOT attempt to straighten for reuse.

Land Pride

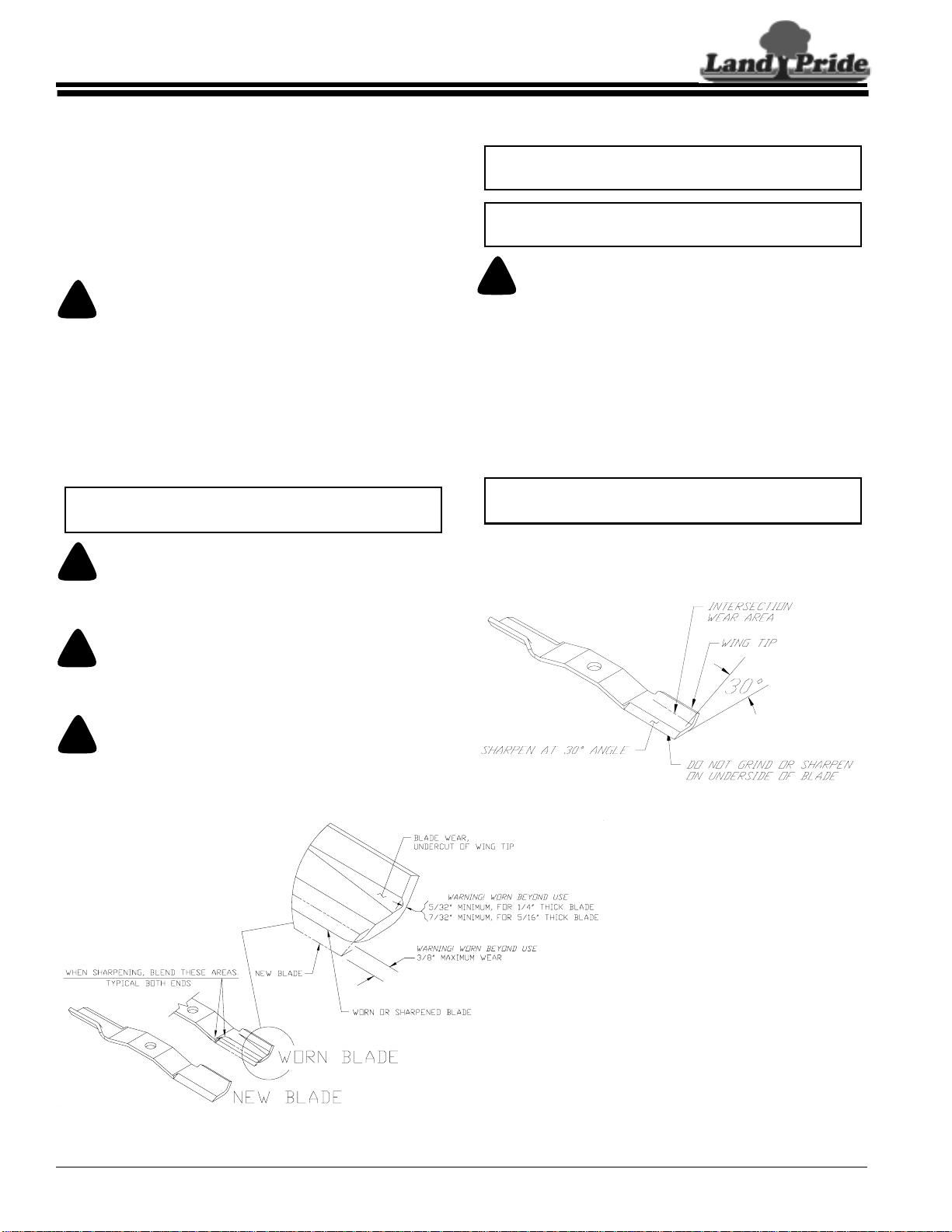

Blade Sharpening

IMPORTANT: Always install blade with the cutting

edge facing direction of rotation.

IMPORTANT: Replace blades with Land Pride blades only.

ALWAYS wear eye protection and gloves when sharpening a blade.

1. Ifthe blade cutting edge is dull ornicked,it should be

2. Clean blade, blade washer and mounting surface of

3. Grind cutting edge at the same bevelas the original.

CAUTION

replacedor sharpened. Removeblades for replacing or sharpening bygrasping the end of the blade using a rag or a thick, padded glove, while loosening and removing the bolt/bolts that mount the blade.

all debris before replacing or sharpening.

NOTE: Care should be taken in order not to remove any more material than necessary to sharpen blade.

See Figure 4-2. Sharpen only the top of the cutting edge to maintain sharpness.

WARNING

DO NOTattempt tomodifyblade,suchashardsurfacing, heat or cold treating and/or by any other method.

DANGER

DO NOT try to straighten a blade that is bent. Never weld a broken or cracked blade. ALWAYS replace with a new Land Pride blade to assure safety.

19327

Blade Sharpening

Figure 4-2

Inspection of Blades & Sharpening

Figure 4-1

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 19

Land Pride

Table of Contents

Section 4: Maintenance and Lubrication

4. Check blade balance by positioning the blade horizontallyonanailorshaftthroughthecenterhole. See Figure 4-3. If either end of the blade rotates downward,grind(remove)metalon that end untilthe blade will balance. The blade is properly balanced when neither end drops. Balance of a blade is generally maintained by removing an equal amount of material from each end of the blade when sharpening.

HORIZONTAL

19046

Blade Balancing

Figure 4-3

NAIL OR SHAFT

Blade Replacement

IMPORTANT: Always install blade with cutting edge

facing direction of blade spindle rotation and wing tips pointing up towards bottom of deck.

1. Remove cap screw and blade washer from blade to be replaced. Remove blade.

2. Install blade washer into center hole on blade.

3. Replace cap screw. Tighten bolts to proper torque, see the “TorqueValuesChart” section on page 23.

IMPORTANT: Replace blades with Land Pride blades only.

AIR TIRES (AIR PRESSURE):

Tire Sealant: Heavy Duty tire sealant has been added in Air tires to help reduce air loss from punchers due to

nails/thorns etc....

NOTE: Under inﬂated tires can roll off of rim. Maintainingair pressure within5 PSI of maximumtire pressure reduces the risk of tires rolling off of rim.

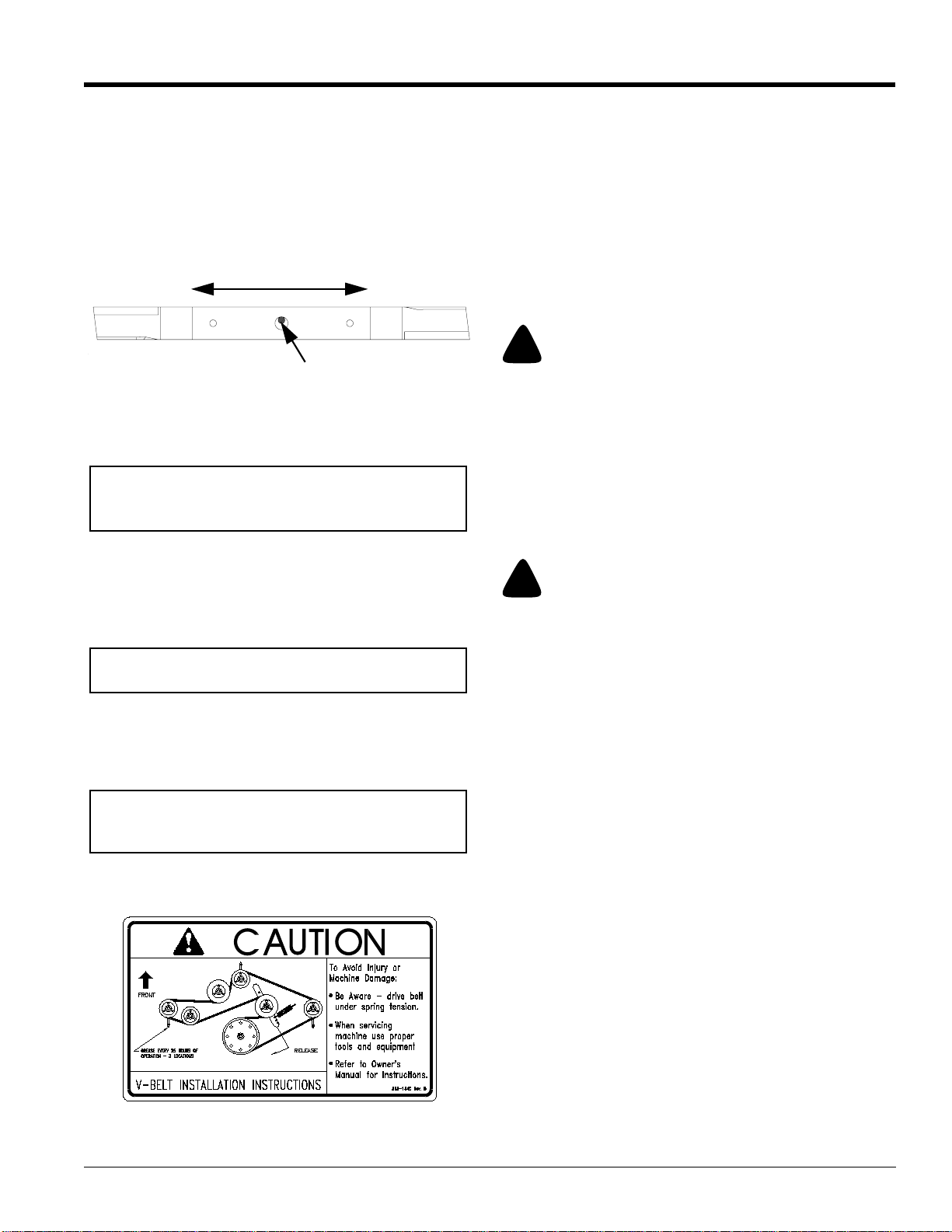

V-Belt Installation

1. Removeright hand, left hand and center belt covers.

V-Belt Installation, Routing & Rotation Decal

Figure 4-4

2. Move belt take-up handle in a clockwise direction to relieve tension on belt.

3. With tension relieved from belt remove old belt from pulleys.

4. Install new belt referring to the figure below (also refertothe decal ontop of mower deck).Besure belt is positioned in all the pulley grooves. Release belt take-up handle to apply tension to new belt.

5. Reinstall all belt covers and secure in place with hardware.

Belt Tension

Belt drive system under spring tension; use careto avoid bodily harm!

1. Belt tension should be checked after approximately

2. Not enough tension on the belt may lead to

Refer to “Belt Tension” on page 15 for proper adjustment of belt tension.

Excessive tension on the belt may lead to premature failure of belt and drive components. Excessive tension on the belt may also lead to a safety hazard to the operator or bystanders.

CAUTION

20 hours of operation on a new belt.

premature failure of the belt due to excessive slipping of the belt.

WARNING

Storage

At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated on the mower and anyof the moving parts. It may be necessary to scrape off compacted dirt from the bottom of the deck, then use a garden hose to thoroughly clean the surface.

1. Clean the mower as necessary.Be sure that the mower is completely cleaned before stor ing.

2. Check the blades for wear and replace if necessary, see “Maintenance” section on page 16.

3. Inspect the mower for loose, damaged or worn parts and adjust or replace if needed.

4. Lubricate as noted in the “Lubrication” section on page 18.

5. Removemower drive belt from one pulley to release drive belt tension.

6. Remove belt guards, thoroughly clean the top and bottom of the mower frame.

7. Repaint parts where paint is worn or scratched to prevent rust. Aerosol beige touch-up paint is available from your dealer. Order Land Pride part #821-011C.

8. Store mower in a clean, dry place for longer mower life.

10/11/06

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 20

Table of Contents

Section 4: Maintenance and Lubrication

Land Pride

Lubrication

For Safety reasons, each lubrication operation must be performed with the tractor’s PTO disengaged, the mower lowered completely, tractor engine shut off and ignition key removed.

Service Daily

1. Grease the PTO u-joints.

2. Wheel support bushings.

3. Wheel bushing.

4. Bearing in blade spindle hubs.

CAUTION

Lubrication Legend

Multi-purpose spray lube

Service Every 50 Hours Of Operation:

1. With the mower on levelground,checktheoil levelin the gearbox by removing the plug in the side of the box. The oil should reach the plug hole. If oil level is low, remove the top plug in the gearcase and fill with SAE 90 oil until oil flows from side port of the gearbox. Reinstall plugs and retighten.

IMPORTANT: Do not overﬁll! Should your gearbox require repair, take it to your Land Pride dealer.

2. Disconnect PTO shaft from the tractor and slide apart. Clean andcoat the inner tube ofthe PTOshaft with a light film of grease and then reassemble.

Multi-purpose grease lube

Multi-purpose oil lube

Intervals in hours at which lubrication is required

PTO U-Joint

Coat PTO u-joint with grease every 8 hours of operation

Hours

Oil

Level

16648

Fill

DO NOT OVERFILL!

Fill

23582

12559

Oil Level

Type of Lubrication: Multipurpose Quantity = Coat Generously

Hours

PTO Shaft

Disconnect PTO shaft from the tractor and slide apart. Clean and coat the inner tube of the PTO shaft with a light film of grease and then reassemble.

Type of Lubrication: Multipurpose Quantity = Light Film

Hours

Gearbox

Check the oil level in the gearbox by removing the bottom plugintheback of the box. Add oil if necessary intotheplug on the top of the gearbox. Retighten both plugs.

Type of Lubrication: SAE 90 Oil Quantity = Until oil reaches outside plug hole

IMPORTANT: Should your gearbox require repair, take it to your Land Pride Dealer! Check oil level in gearbox every 50 hours of operation.

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 21

Land Pride

Table of Contents

Section 4: Maintenance and Lubrication

13105

Hours

Wheel Bushing (Martin)

Until grease starts to purge.

Type of Lubrication: Multipurpose grease Quantity = Until grease starts to purge

Hours

Wheel Bushing (Neilson)

13106

16656

Type of Lubrication: Multipurpose grease Quantity = Until grease starts to purge

Seasonally

Bearing in Blade Spindle Hubs

Type of Lubrication: Multipurpose Grease Quantity = Until grease starts to purge from the top bearing. Top

bearing has a purge gap which allows grease to purge from it.

13111

10/11/06

Seasonally

Wheel Support Bushings

Type of Lubrication: Multipurpose Grease Quantity = Until grease starts to purge.

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 22

Table of Contents

Section 5: Options

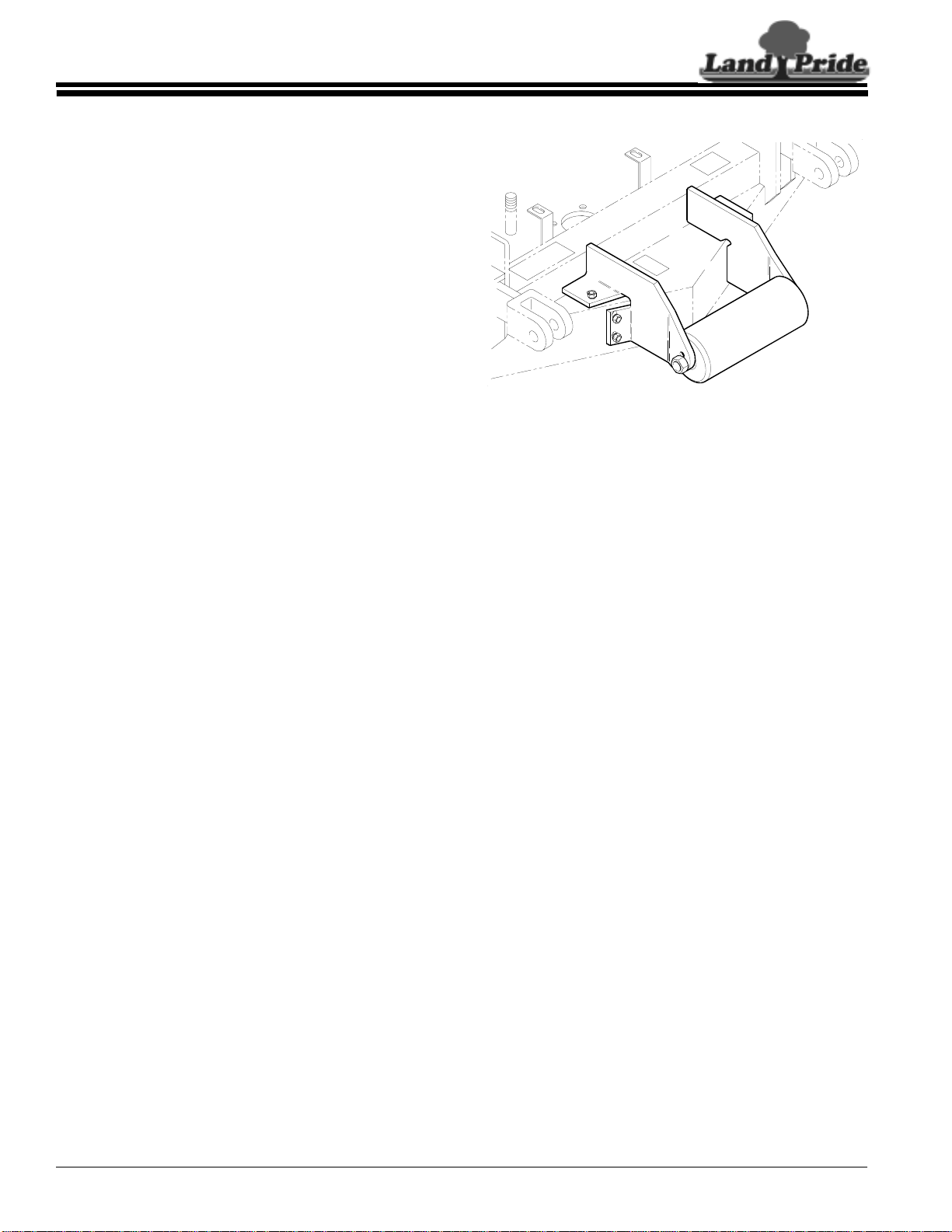

310-050A. . . . . . . . FRONT ROLLER REPL 310-050S

310-041S. . . . . . . .FRONT ROLLER BUNDLE

This Anti-Scalping Roller Package is available for those customers who are concerned about scalping the grass and ground with deck/blades. The roller will not allow deck to scalp the ground with the leading edge of the mower.

Land Pride

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 23

Land Pride

Section 6: Speciﬁcations & Capacities

Section 6: Specifications & Capacities

FD2560, FD2572, AT2560 & AT2572 3-Spindle Grooming Mower

Description FD2560 FD2572 AT2560 AT2572

Cutting Width Overall Width Height Length Weight Blades - 3

Blade Tip Speed Cutting Height Deck Material Thickness Blade Overlap Blade Spindles Hitch Gauge Wheels: Optional Air Gauge Wheels: Opt. Solid Caster Wheel Spindle Drive Train Grass Chute

1/4 x 2.5 x 20 29/32

540 RPM PTO; Gearbox 1:2.5 Ratio; BeveledGears; Cast Iron Housing; Single V-Belt

60” 72” 60” 72”

71 1/2" 83" 71 1/2" 83"

36" 36" 36" 36" 56" 62" 56 62"

652# 718 # 652# 718#

Heat Treated

Alloy Steel

15,000 FPM 16,195 FPM 14,500 FPM 15,500 FPM

Table of Contents

1/4 x 2.5 x 25

Heat Treated

Alloy Steel

1"-5 1/2" {1/2" Increments}

Greasable-Side

Cat. 1 Floating Clevis

Castered 10" x 4" Air Tires with Sealant

Castered 10" x 3 1/4" Solid Tire

1" Diameter With Greasable Bushing

Hinged-Adjustable

1/4 x 2.5 x 20 29/32

Heat Treated

Alloy Steel

3/16"

1 1/2"

1/4 x 2.5 x 25

Heat Treated

Alloy Steel

10/11/06

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

Page 24

Table of Contents

Land Pride

Section 7: Troubleshooting

Troubleshooting Chart

Problem Cause Solution

Discharge chute plugged

Do not try to clean discharge opening when mower is running. Bodily harm may occur.

Belt slipping Plugged grooming mower Unplug and clean mower deck

Patches of uncut grass RPM of tractor too low Mow at full throttle (540 PTO rpm). Check

Excessive vibration Power Take Off shaft or distribution shafts

Gearbox noisy Low lubricant level Check lubricant level Blades scalping grass Cutting too low Raise cutting height by adjusting wheels

Blades scalping grass Cutting too low Raise cutting height by adjusting wheels

Uneven cut Ground speed too fast Shift to a lower gear

Tractor loaded down by mower RPM of engine too low Mow at full throttle (540 PTO rpm)

CAUTION

Belt not installed correctly Check installation of belt Grass too wet Wait until grass dries Grass too tall Raise cutting height of mower and cut

grass twice

RPM of tractor too low Mow at full throttle (540 PTO rpm) Check

PTO speed & tractor engine

Ground speed too fast Shift transmission to a lower gear

Debris in sheaves Remove belt guard shields and clean

sheaves

Worn belt Replace belt

PTO

speed & tractor engine Ground speed too fast Shift transmission to a lower gear Blade damaged or dull Sharpen & balance or replace blade

Replace Power Take Off or distribution bend

Blade broken or bent Replace blade Sheaves damaged or out of alignment Replace sheaves or align Drive belt damaged Replace drive belt Inadequate clearance between belt guard

shields & belt Mower in raised position & mower running Readjust 3-point hitch to raise mower to

Ridges in terrain Change mowing pattern Fast turning speed Reduce speed on turns

Mower not level Level mower Dull blades Sharpen blades & balance or replace

Ground speed too fast Shift to a lower gear Debris wrapped around mower spindles or

blades

shafts

Remove belt guard shields & clean debris

from belt area & sheaves

maximum of 14 inches

Clean mower

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 25

Land Pride

Section 8: Appendix

Table of Contents

Torque Values Chart

Bolt Head Identification

Bolt Size (Inches)

in-tpi

1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 4 3 6 5 9 7 1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11 5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27 5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29 3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53 3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62 7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93 7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97 1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105 1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150 9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160 9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230 5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245 5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300 3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355 3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450 7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665 7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780 1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845 1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550 1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710 1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700 1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220 1 1/4" - 12 750 555 1680 1240 2730 2010 1 3/8" - 6 890 655 1990 1470 3230 2380 1 3/8" - 12 1010 745 2270 1670 3680 2710 1 1/2" - 6 1180 870 2640 1950 4290 3160 1 1/2" - 12 1330 980 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.

Grade 2 Grade 5

Grade 8

N·m ft-lb3N · m ft-lb N · m ft-lb mm x pitch N · m ft-lb N · m ft-lb N · m ft-lb

Bolt Size (Metric)

in-tpi = nominal threadia. in inches-threads per inch

N· m = newton-meters

ft-lb= foot pounds

mm x pitch = nominal thread diameter in millimeters x

5.8 8.8 10.9

Class 5.8 Class 8.8 Class 10.9

10/11/06

Tire Inflation Chart

TireSize Inflation

10 x 4 Saw Tooth 50

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

PSI

Page 26

Section 8: Appendix

be free from defects in material and workmanship for a period of one year, from the date of delivery to the end user, when used as intended and under normal service and conditions for personal use; and 6 months for municipalities, golf courses, sod farms and rental purposes. This Warranty is limited to the replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.

judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product is not designed. Misuse also specifically includes failure to properly maintain oil levels, grease points, and driveline shafts.

theproductandallwarrantyadjustmentsmustbemadethroughsuchdealer.Land Pride reserves the right to make changes in materials or design of the product at any time without notice.

of any kind, direct, consequential, or contingent to property. Furthermore, Land Pride shall not be liable for damages resulting from any cause beyond its reasonable control. This Warranty does not extend to loss of crops, any expense or loss for labor, supplies, rental machinery or for any other reason.

with respect to this sale; and all implied warranties of merchantability and fitness for a particular purpose which exceed the obligationsset forth in this written warranty are hereby disclaimed and excluded from this sale.

the date of delivery to the end user.

RCM6015, RC5015, RCM5015, RC5010, RCM5010, PD15, PD25, and PD35. A Three- Year Limited Warranty onGearbox Components on RCR3596, RCR3510, andRCRM3510, provided they have beenproperly maintained, and not subjected to misuse or abuse. Misuse specifically includes, but is not limited to, maintaining proper oil levels of the correct lubricant, and adjusting slip-clutches to provide proper protection to Gearbox Components. Warranty is One Year for seals. Seals are viewed as normal wear items and replacement will be the customer’s responsibility. Gearboxes will either be replaced or rebuilt at Land Pride’s discretion.

Table of Contents

Warranty

Land Pride warrants to the original purchaser that this Land Pride product will

This Warranty does not apply to any part or product which in Land Pride’s

Claims under this Warranty must be made to the dealer which originally sold

This Warranty shall not be interpreted to render Land Pride liable for damages

No other warranty of any kind whatsoever, express or implied, is made

ThisWarranty is not valid unless registered withLand Pride within 30 days from

In addition to the Standard Limited Warranty Land Pride also provides: A Five - Year Limited Warranty on Gearbox Components, on RC6015,

Land Pride

FD2560, FD2572, AT2560 & AT2572 Grooming Mower, 3-spindle 310-148M

10/11/06

Page 27

Corporate Ofﬁce: P.O. Box 5060 Salina, Kansas 67402-5060 USA

www.landpride.com
