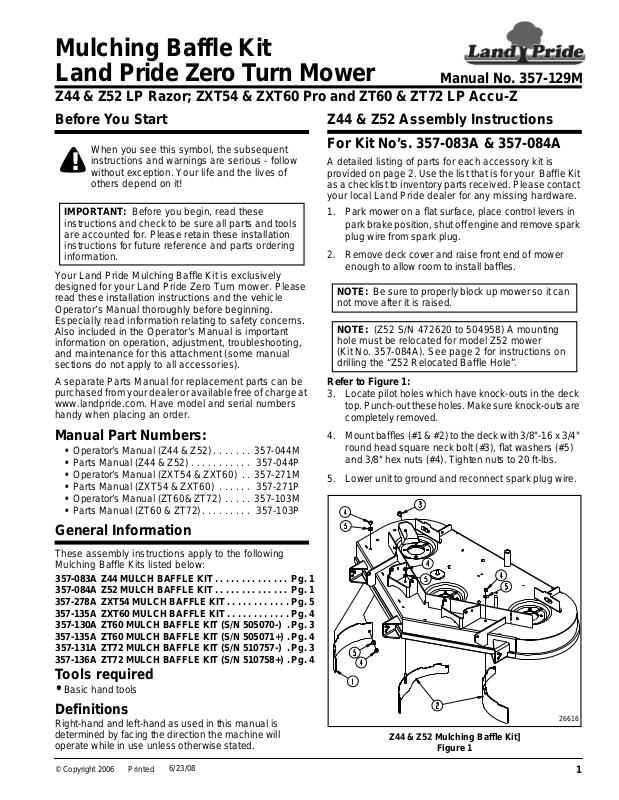

Page 1
Mulching Baffle Kit
Land Pride Zero Turn Mower
Manual No. 357-129M
Z44 & Z52 LP Razor; ZXT54 & ZXT60 Pro and ZT60 & ZT72 LP Accu-Z
Before You Start
When you see this symbol, the subsequent
instructions and warnings are serious - follow
!
without exception. Your life and the lives of
others depend on it!
IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.
Your Land Pride Mulching Baffle Kit is exclusively
designed for your Land Pride Zero Turn mower. Please
read these installation instructions and the vehicle
Operator’s Manual thoroughly before beginning.
Especially read information relating to safety concerns.
Also included in the Operator’s Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all accessories).
A separate Parts Manual for replacement parts can be
purchasedfromyourdealeroravailablefreeofchargeat
www.landpride.com. Have model and serial numbers
handy when placing an order.
Z44 & Z52 Assembly Instructions
For Kit No’s. 357-083A & 357-084A
A detailed listing of parts for each accessory kit is
provided on page 2. Use thelist that is for your Baffle Kit
asachecklisttoinventoryparts received. Please contact
your local Land Pride dealer for any missing hardware.
1. Park mower on a flat surface, place control levers in
park brakeposition,shutoff engine and remove spark
plug wire from spark plug.
2. Remove deck cover and raise front end of mower
enough to allow room to install baffles.
NOTE: Be sure to properly block up mower so it can
not move after it is raised.
NOTE: (Z52 S/N 472620 to 504958) A mounting
hole must be relocated for model Z52 mower
(Kit No. 357-084A). See page 2 for instructions on
drilling the “Z52 Relocated Baffle Hole”.
Refer to Figure 1:
3. Locate pilot holes which have knock-outs in the deck
top.Punch-out theseholes.Make sureknock-outsare
completely removed.
Manual Part Numbers:
• Operator’sManual (Z44 & Z52). . . . . . . 357-044M
• Parts Manual (Z44 & Z52) . . . . . . . . . . . 357-044P
• Operator’sManual (ZXT54 & ZXT60) . . 357-271M
• Parts Manual (ZXT54 & ZXT60) . . . . . . 357-271P
• Operator’sManual (ZT60& ZT72) . . . . . 357-103M
• Parts Manual (ZT60 & ZT72). . . . . . . . . 357-103P
General Information
These assembly instructions apply to the following
Mulching Baffle Kits listed below:
357-083A Z44 MULCH BAFFLE KIT . . . . . . . . . . . . . . Pg. 1
357-084A Z52 MULCH BAFFLE KIT . . . . . . . . . . . . . . Pg. 1
357-278A ZXT54 MULCH BAFFLE KIT . . . . . . . . . . . . Pg. 5
357-135A ZXT60 MULCH BAFFLE KIT . . . . . . . . . . . . Pg. 4
357-130A ZT60 MULCH BAFFLE KIT (S/N 505070-) .Pg. 3
357-135A ZT60 MULCH BAFFLE KIT (S/N 505071+) .Pg. 4
357-131A ZT72 MULCH BAFFLE KIT (S/N 510757-) .Pg. 3
357-136A ZT72 MULCH BAFFLE KIT (S/N 510758+) .Pg. 4
Tools required
Basic hand tools
•
Definitions
Right-hand and left-hand as used in this manual is
determined by facing the direction the machine will
operate while in use unless otherwise stated.
4. Mount baffles (#1 & #2) to the deck with 3/8"-16 x3/4"
round head square neck bolt (#3), flat washers (#5)
and 3/8" hex nuts (#4). Tighten nuts to 20 ft-lbs.
5. Lower unit to ground and reconnect spark plug wire.
26616
Z44 & Z52 Mulching Baffle Kit]
Figure 1
© Copyright 2006 Printed
6/23/08
1
Page 2
Z44 & Z52 Assembly Instructions
Land Pride
Z52 Relocated Baffle Hole
Refer to Figure 2:
If the serial number of your model Z52 mower is between
472620 and 504958 inclusive, then your Mulching Baffle
Kit No. 357-084A will require relocating a knock-out as
shown in Figure 2.
6. Measure 1 3/16" from face of stiffener plate towards
thecenterofthedeckand 10 21/32" from second face
of stiffener plate towards the front of the deck as
shown.
7. Center punch this location and drill one 13/32"
diameter hole.
NOTE: Do not use the old pilot hole location when
installing baffle.
1 3/16"
10 21/32"
Z52 LAND PRIDE DECK
S/N 472620 to 504958
VIEWING DECK FROM THE TOP
Z52 Baffle Mulch Kit Hole Relocation
Figure 2
357-083A Z44 MULCHING BAFFLE KIT (BLADES NOT INCLUDED)
Your kit includes:
Item Qty. Part No. Part Description
1 1 357-087H ZR44" MULCH BAFFLE 12.6" CHORD LENGTHG
2 2 357-085H ZR44" MULCH COMMON BAFFLE 13.3" CHORD LG
3 1 802-149C RHSNB 3/8-16X3/4 GR5
4 4 803-014C NUT HEX 3/8-16 PLT
5 4 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
357-084A Z52 MULCHING BAFFLE KIT (BLADES NOT INCLUDED)
Your kit includes:
Item Qty. Part No. Part Description
1 1 357-088H ZR52" MULCH BAFFLE 13.1" CHORD LENGTHG
2 2 357-086H ZR52" MULCH COMMON BAFFLE 14.3" CHORD LG
3 1 802-149C RHSNB 3/8-16X3/4 GR5
4 4 803-014C NUT HEX 3/8-16 PLT
5 4 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
DRILL 13/32" DIA. HOLE
Old Knock-Out Location
Mulching Blade Ordering
Information
MowerModel Requires 3 Blades
Z44 890-934C 15.5" Mulch Blade
Z52 839-270C 18" Mulch Blade
Manual No. 357-129M 6/23/08
2
■
Page 3
ZT60 & ZT72 Assembly Instructions
ZT60 & ZT72 Assembly Instructions
ZT60 Kit No. 357-130A (S/N 505070-)
ZT72 Kit No. 357-131A (S/N 510757-)
Use the list below that is for your Mulching Baffle Kit as
a checklist to inventory parts received. Please contact
your local Land Pride dealer for any missing hardware.
1. Park mower on a flat surface, place control levers in
park brake position, shut off engine and remove
spark plug wire from spark plug.
2. Remove deck cover and raise front end of mower
enough to allow room to install the baffles.
NOTE: Be sure to properly block up mower so it can
not move after it is raised.

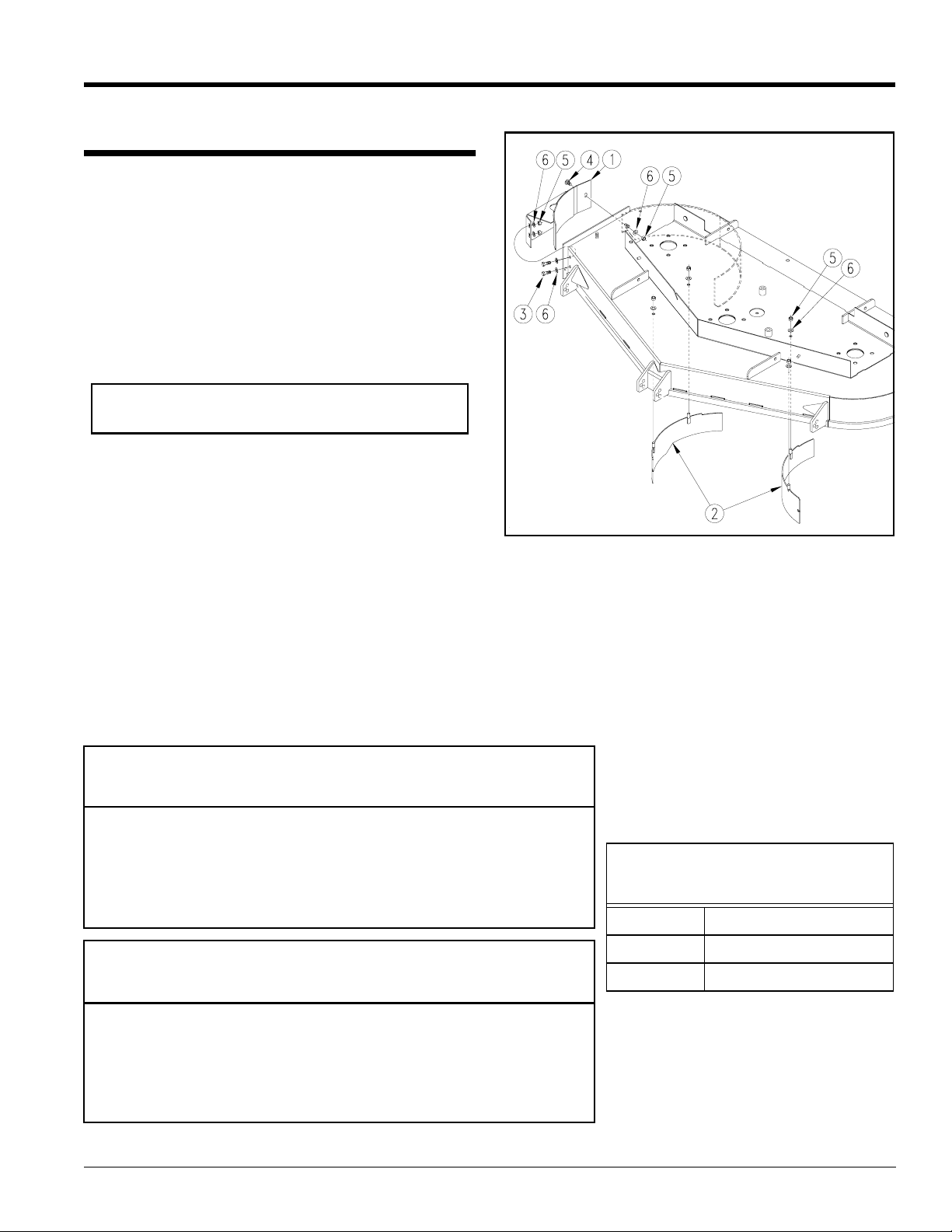

Refer to Figure 3:
3. Locate pilot holes which have knock-outs in the deck.
Punch-out these holes. Make sure knock-outs are
completely removed.
4. Mount baffles (#2) to the deck with 3/8" flat washers
(#6) and 3/8"-16 hex nuts (#5). Tighten nuts to
20 ft-lbs.
Land Pride
23790
ZT60 & ZT72 Mulching Baffle Kit
Figure 3
5. Mount baffle (#1) to the deck with 3/8"-16 x 1" GR5
hex head cap screws, 3/8"-16 x 3/4" round head
square neck bolt (#4), 3/8" flat washers (#6) and
3/8" hex whiz nuts (#5). Tighten nuts to 31 ft-lbs.
6. Lower unit and reconnect spark plug wire.
357-130A ZT60 MULCHING BAFFLE KIT (S/N 505070-)
Your kit includes: (Note: Blades Are Not Included)
Item Qty. Part No.Part Description
1 1 356-034H MULCH BAFFLE WELDMENT
2 2 356-143H BAFFLE, Z60
3 2 802-017C HHCS 3/8-16X1 GR5
4 1 802-149C RHSNB 3/8-16X3/4 GR5
5 7 803-014C NUT HEX 3/8-16 PLT
6 9 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
357-131A ZT72 MULCHING BAFFLE KIT (S/N 510757-)
Your kit includes: (Note: Blades Are Not Included)
Item Qty. Part No. Part Description
1 1 356-034H MULCH BAFFLE WELDMENT
2 2 356-144H MULCH KIT BAFFLE Z72
3 2 802-017C HHCS 3/8-16X1 GR5
4 1 802-149C RHSNB 3/8-16X3/4 GR5
5 7 803-014C NUT HEX 3/8-16 PLT
6 9 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
Mulching Blade Ordering
Information
MowerModel Requires 3 Blades
ZT60 890-702C 20.9" Mulch Blade
ZT72 890-698C 25" Mulch Blade
6/23/08
■
Manual No. 357-129M
3
Page 4
ZXT60, ZT60 & ZT72 Assembly Instructions
ZXT60, ZT60 & ZT72 Assembly Instructions
ZXT60 & ZT60 Kit No. 357-135A (S/N 505071+)
ZT72 Kit No. 357-136A (S/N 510758+)
Use the list below that is for your Mulching Baffle Kit as
a checklist to inventory parts received. Please contact
your local Land Pride dealer for any missing hardware.
1. Park mower on a flat surface, move control levers
fully out, (ZXT60 only: set park brake lever to on),
shut engine off and remove spark plug wire from
spark plug.
2. Remove deck cover and raise front end of mower
enough to allow room to install the baffles.
NOTE: Be sure to properly block up mower so it can
not move after it is raised.

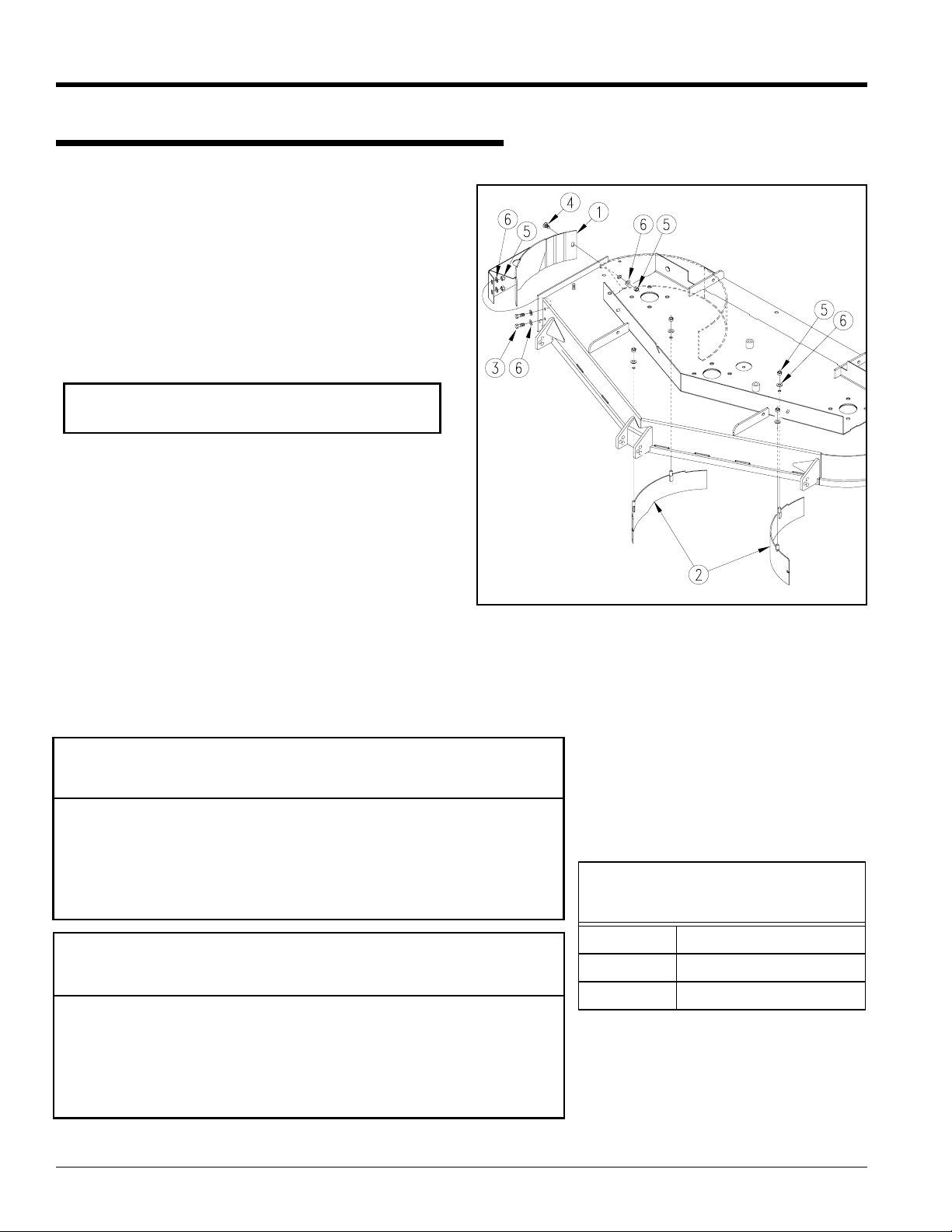

Refer to Figure 4:
3. Locate pilot holes which have knock-outs in the deck.
Punch-out these holes. Make sure knock-outs are
completely removed.
Land Pride
4. Mount baffles (#2) to the deck with 3/8" flat washers
(#6) and 3/8"-16 hex nuts (#5). Tighten nuts to
20 ft-lbs.
5. Mount baffle (#1) to the deck with 3/8"-16 x 1" GR5
hex head cap screws, 3/8"-16 x 3/4" round head
square neck bolt (#4), 3/8" flat washers (#6) and
3/8" hex whiz nuts (#5). Tighten nuts to 31 ft-lbs.
6. Lower unit and reconnect spark plug wire.
357-135A ZXT60 & ZT60 MULCHING BAFFLE KIT (S/N 505071+)
Your kit includes: (Note: Blades Are Not Included)
Item Qty. Part No.Part Description
1 1 357-134H MULCH BAFFLE WELDMENT
2 2 356-143H BAFFLE, Z60
3 2 802-017C HHCS 3/8-16X1 GR5
4 1 802-149C RHSNB 3/8-16X3/4 GR5
5 7 803-014C NUT HEX 3/8-16 PLT
6 9 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
357-136A ZT72 MULCHING BAFFLE KIT (S/N 510758+)
Your kit includes: (Note: Blades Are Not Included)
Item Qty. Part No. Part Description
1 1 357-133H MULCH BAFFLE WELDMENT
2 2 356-144H MULCH KIT BAFFLE Z72
3 2 802-017C HHCS 3/8-16X1 GR5
4 1 802-149C RHSNB 3/8-16X3/4 GR5
5 7 803-014C NUT HEX 3/8-16 PLT
6 9 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
24688
ZT60 & ZT72 Mulching Baffle Kit
Figure 4
Mulching Blade Ordering
Information
MowerModel Requires 3 Blades
ZXT60 & ZT60 890-702C 20.9" Mulch Blade
ZT72 890-698C 25" Mulch Blade
Manual No. 357-129M 6/23/08
4
■
Page 5
ZXT54 Assembly Instructions
ZXT54 Assembly Instructions
ZXT54 Kit No. 357-278A
Use the list below that is for your Mulching Baffle Kit as
a checklist to inventory parts received. Please contact
your local Land Pride dealer for any missing hardware.
1. Park mower on a flat surface, move control levers
fully out, set park brake lever to on, shut engine off
and remove spark plug wire from spark plug.
2. Remove deck cover and raise front end of mower
enough to allow room to install the baffles.
NOTE: Be sure to properly block up mower so it can
not move after it is raised.

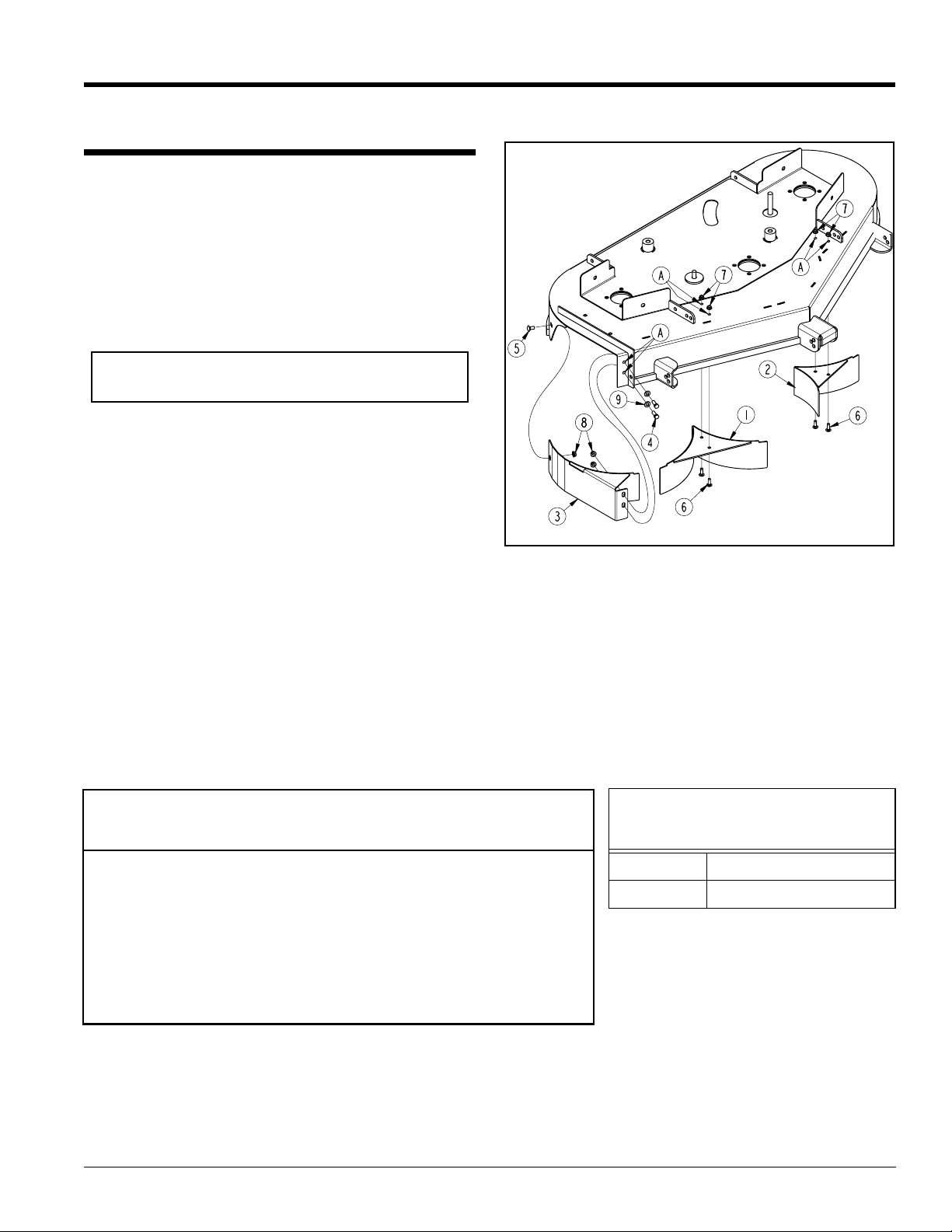

Refer to Figure 5:
3. Locate pilot holes (A) which have knock-outs in the
deck. Punch-out these holes. Make sure knock-outs
are completely removed.
Land Pride
4. Mount baffles (#1 and #2) to the deck with
5/16"-18 x 1" GR5 round head square neck bolts (#6)
and hex whiz nut (#7). Tighten nuts to 17 ft-lbs.
5. Mount baffle (#3) to the deck with two 3/8"-16 x 1"
GR5 hex head cap screws, 3/8" flat washers and one
3/8"-16 x 3/4" round head square neck bolt (#5).
Secureboltswith 3/8" hexwhiz nuts (#8).Tightennuts
to 31 ft-lbs.
6. Lower unit and reconnect spark plug wire.
357-278A ZXT54 MULCHING BAFFLE KIT
Your kit includes: (Note: Blades Are Not Included)
Item Qty. Part No.Part Description
1 1 357-248H MULCH BAFFLE, FRONT, RIGHT
2 1 357-249H MULCH BAFFLE, FRONT, LEFT
3 1 357-250H MULCH PLUG
4 2 802-017C HHCS 3/8-16 x 1 GR5
5 1 802-149C RHSNB 3/8-16 x 3/4 GR5
6 4 802-282C RHSNB 5/16-18 X 1 GR5
7 4 803-043C NUT HEX WHIZ 5/16-18 PLT
8 3 803-198C NUT HEX WHIZ 3/8-16 PLT
9 2 804-012C WASHER FLAT 3/8 SAE PLT
1 357-129M MULCHING BAFFLE KIT MANUAL Z MOWER
26588
ZXT54 Mulching Baffle Kit
Figure 5
Mulching Blade Ordering
Information
MowerModel Requires 3 Blades
ZXT54 890-991C 18.77" Mulch Blade
6/23/08
■
Manual No. 357-129M
5
Page 6
Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
Loading...
