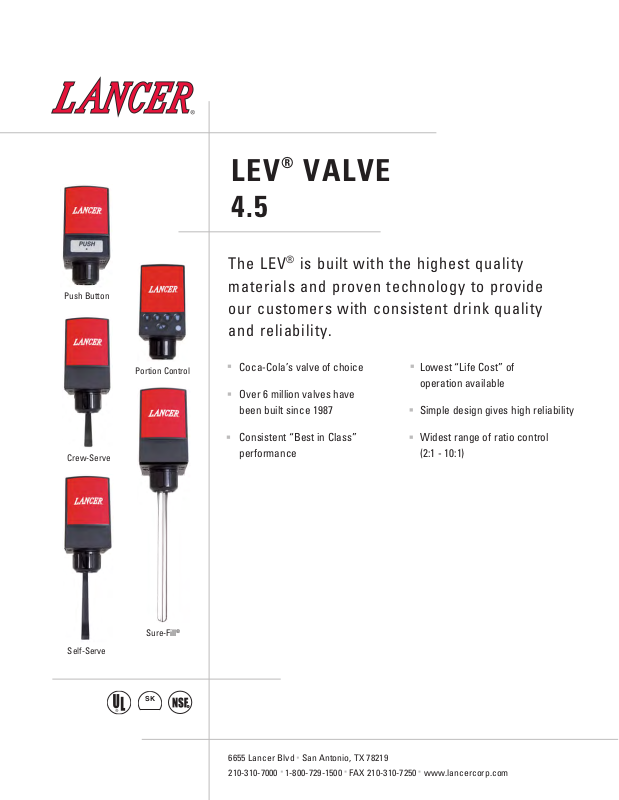

Lancer LEV 4.5 User Manual
LEV® VALVE
4.5
The LEV® is built with the highest quality
Push Button
Crew-Serve
Portion Control
materials and proven technology to provide
our customers with consistent drink quality
and reliability.
Coca-Cola’s valve of choice
Over 6 million valves have
been built since 1987
Consistent “Best in Class”
performance
Lowest “Life Cost” of
operation available
Simple design gives high reliability
Widest range of ratio control
(2:1 - 10:1)
Self-Serve
Sure-Fill
SK
®
6655 Lancer Blvd San Antonio, TX 78219
210-310-7000 1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
Bare Valve
Nozzle
Assembly
LEV® Valve 4.5
S P E C I F I C A T I O N S
Syrup
Separator
Nozzle
Front Water Lever
Warranty: For warranty specifics by product,
contact your Lancer Sales Representatives.
Equipment design and/or specifications may change without notice.
PRESSURE REQUIREMENTS
(FLOWING PRESSURE)
ELECTRICAL REQUIREMENTS
24 VAC, 50/60 Hz
Water: 40 - 110 psig (2.8 - 7.7 bar)
Syrup (Sugar): 20 - 70 psig (1.4 - 4.9 bar)
Syrup (Diet/Light): 10 - 70 psig (0.7 - 4.9 bar)
MOUNTING
Uses
LEV® Mounting Block -
LEV® mounting block has the same mounting
DRINK FLOW RATES
2.5 oz/s - 4.5 o/s (88.8 ml/s - 133.2 ml/s)
screw hole pattern as the following:
Dole SEV
Dole FFV
RATIO ADJUSTMENT RANGE
2.0 - 10.0 Water/Syrup by Volume
Cornelius UF1, SF1
McCann Turbo Flo Jr.
(dependent on finished drink flow rate)
CORPORATE OFFICE 6655 Lancer Blvd San Antonio, TX 78219
210-310-7000
“Lancer” is the registered trademark of Lan cer Corporation © 2011 Lancer, al l rights reserved.
1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
LEVValve-4.5_SS 06/11
