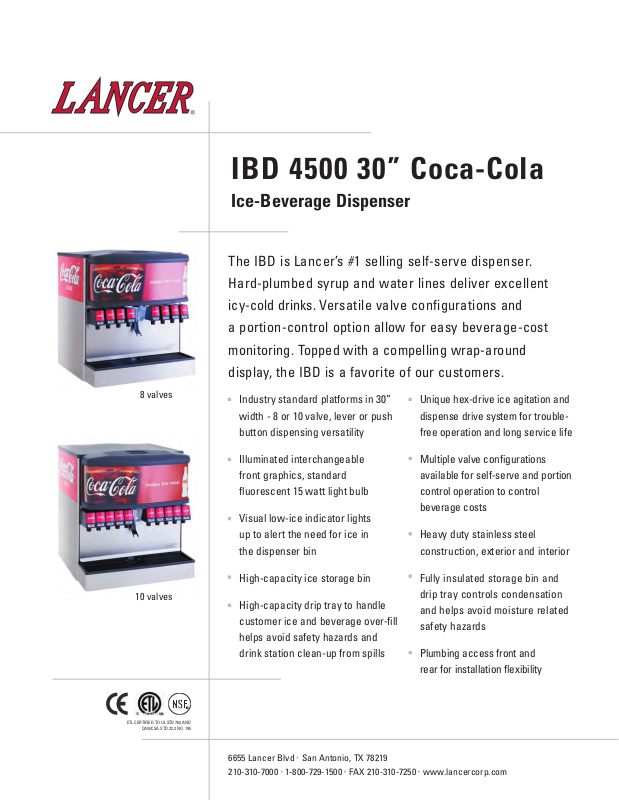

IBD 4500 30” Coca-Cola
Ice-Beverage Dispenser
The IBD is Lancer’s #1 selling self-serve dispenser.
Hard-plumbed syrup and water lines deliver excellent
icy-cold drinks. Versatile valve configurations and
a portion-control option allow for easy beverage-cost
monitoring. Topped with a compelling wrap-around
display, the IBD is a favorite of our customers.
8 valves
10 valves
Industry standard platforms in 30”
width - 8 or 10 valve, lever or push
button dispensing versatility
Illuminated interchangeable
front graphics, standard
fluorescent 15 watt light bulb
Visual low-ice indicator lights
up to alert the need for ice in
the dispenser bin
High-capacity ice storage bin
High-capacity drip tray to handle
customer ice and beverage over-fill
helps avoid safety hazards and
drink station clean-up from spills
Unique hex-drive ice agitation and
dispense drive system for troublefree operation and long service life
Multiple valve configurations
available for self-serve and portion
control operation to control
beverage costs
Heavy duty stainless steel
construction, exterior and interior
Fully insulated storage bin and
drip tray controls condensation
and helps avoid moisture related
safety hazards
Plumbing access front and
rear for installation flexibility
ETL CERTIFIED TO UL STD 763 AND
CAN/CSA STD 22.2 NO. 195
6655 Lancer Blvd San Antonio, TX 78219
210-310-7000 1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
ICE MAKER COMPATIBILITY
Æ
30"
(762 mm)
34 3/16"
(868 mm)
without lid
35 3/8"
(899 mm)
23"
(584 mm)
30 1/2"
(775 mm)
9 3/4"
(248 mm)
®
®
®
Accepts 30” and 22”
wide ice makers
(adapters may be required)
IBD 4500 30” Coca-Cola
S P E C I F I C A T I O N S
Manual front load when
ice maker installed
Variable automatic
agitation timer
Pellet capable dispense
is available-specifications
on request
Warranty: For warranty specifics by product,
contact your Lancer Sales Representatives.
Equipment design and/or specifications may change without notice.
DIMENSIONS
Width: 30 in (762 mm)
Depth: 30.5 in (775 mm)
WEIGHT
With ice: 525 lbs (238 kg)
Shipping: 305 lbs (138 kg)
VALVES
LEV®other valves
available upon request
Height: 35.375 in (899 mm)
SPACE REQUIRED
Width: 30 in (775 mm)
Deep: 30.5 (775 mm)
ICE (CUBE)
Capacity: 250 lbs (113 kg)
Dispensable: 175 lbs (79 kg)
FLEX MANIFOLD
CONFIGURATION
8 Valve: 3-1-1-3
10 Valve: 3-1-2-1-3
FITTINGS
ELECTRICAL
115VAC/60Hz, 3AMPs
230VAC/50Hz, 1.5AMPs
D R A W P E R F O R M A N C E
Number of Drinks Below 40
750F (240C) Ambient Temperature
12 oz./11 drinks per minute
24 oz./5 drinks per minute
Soda inlets: 3/8” male barb
Syrup inlets: 3/8” male barb
0
F
900F (320 C) Ambient Temperature
12 oz./8.5 drinks per minute
24 oz./3.5 drinks per minute
KEY LOCK SWITCH
Note: specifications are the
same for 8 and 10 valve
Units can supply drinks under 400F at rated draw performance continuously as long as ice is kept on cold plate.
(Draw performance for 8 valve)
CORPORATE OFFICE 6655 Lancer Blvd San Antonio, TX 78219
210-310-7000 1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
“Lancer” is the registered trademark of Lancer Corporation © 2010 Lancer, all rights reserved.
IBD 4500 30 CC Spec Sheet 01/10
