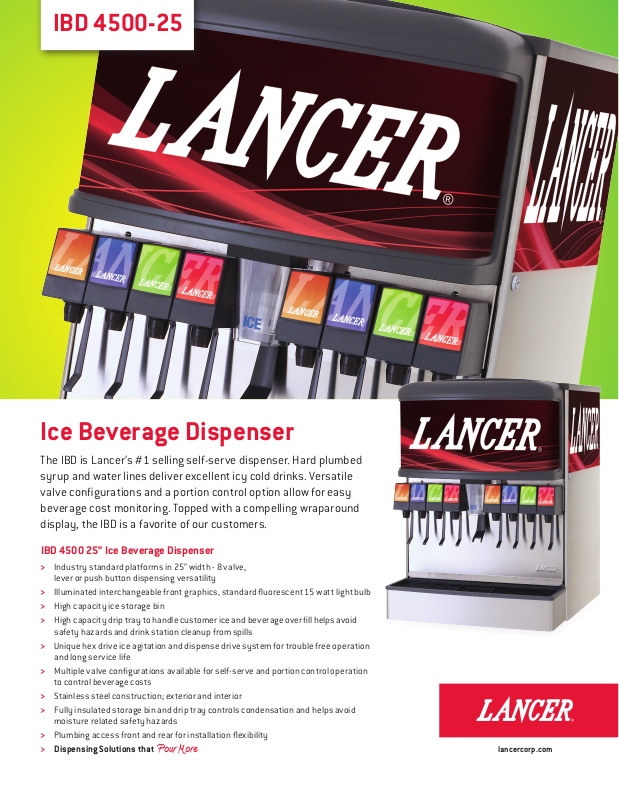

Lancer IBD 4500-25 User Manual

IBD 4500-25

Ice Beverage Dispenser

The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed
syrup and water lines deliver excellent icy cold drinks. Versatile
valve configurations and a portion control option allow for easy
beverage cost monitoring. Topped with a compelling wraparound
display, the IBD is a favorite of our customers.

IBD 4500 25” Ice Beverage Dispenser

> Industry standard platforms in 25” width - 8 valve,

lever or push button dispensing versatility

> Illuminated interchangeable front graphics, standard fluorescent 15 watt light bulb
> High capacity ice storage bin
> High capacity drip tray to handle customer ice and beverage overfill helps avoid

safety hazards and drink station cleanup from spills

> Unique hex drive ice agitation and dispense drive system for trouble free operation

and long service life

> Multiple valve configurations available for self-serve and portion control operation

to control beverage costs

> Stainless steel construction; exterior and interior
> Fully insulated storage bin and drip tray controls condensation and helps avoid

moisture related safety hazards

> Plumbing access front and rear for installation flexibility
> Dispensing Solutions that Pour More

lancercorp.com

* For pellet/cubelet ice maximum height is 40 5/8” (1032 mm)

ICE MAKER COMPATIBILITY

> Accepts 25” wide ice makers

(adapter may be required)

> Variable automatic agitation timer
> Pellet/Cubelet ice dispense capability,

is available with an IBD conversion kit
that requires a riser

> Riser will increase the height of the

IBD from 34 3/16” to 39 5/8”

> The required adapter plate will add

another 1”

> When dispensing Pellet/Cubelet ice,

an ice level bin control (bin stat)
is required when using a riser,
it must be set at a minimum 9” drop
from the top of the ice bin.

IBD 4500-25

SPECIFICATIONS

DIMENSIONS

Height: 35.375” (899 mm)
Height with riser 40.625” (1032 mm)
Width: 25” (635 mm)
Depth: 30.5” (775 mm)

SPACE REQUIRED

Width: 25” (635 mm)
Deep: 30.5” (775 mm)
Height:

manually filling with ice or refer to ice maker
recommendation for top clearance.

ELECTRICAL

115V/60Hz, 3AMPs
230V/50Hz, 1.5 AMPs

WEIGHT

With Ice: 460 lbs (208 kg)
Shipping: 290 lbs (132 kg)

IC E (cube)

Capacity: 205 lbs (93 kg)
Dispensable: 160 lbs (68 kg)

FITTINGS

Soda Inlets: 3/8” male barb
Syrup Inlets: 3/8” male barb

VALVES

LEV® other valves available upon request

FLEX MANIFOLD CONFIGURATION

3-1-1-3

KEY LOCK SWITCH

Allow sufficient clearance for

Customer Ser vice:
Should you require more information about our products, please do not
hesitate to contact our customer service desk at custser [e-mail].

Warranty:
For warranty specifics by product, contact your Lancer Sales Representative.
Equipment design and/or specifications are subject to change without notice.

Lancer Corp. 6655 Lancer Boulevard · San Antonio, TX 78219

210-310-7000 · 1-800-729-1500 · Fax: [phone]

Model
4500

Pour More

lancercorp.com

IBD 4500-25 Spec S heet 11/16
