Lancer CED MM Juice 2v User Manual

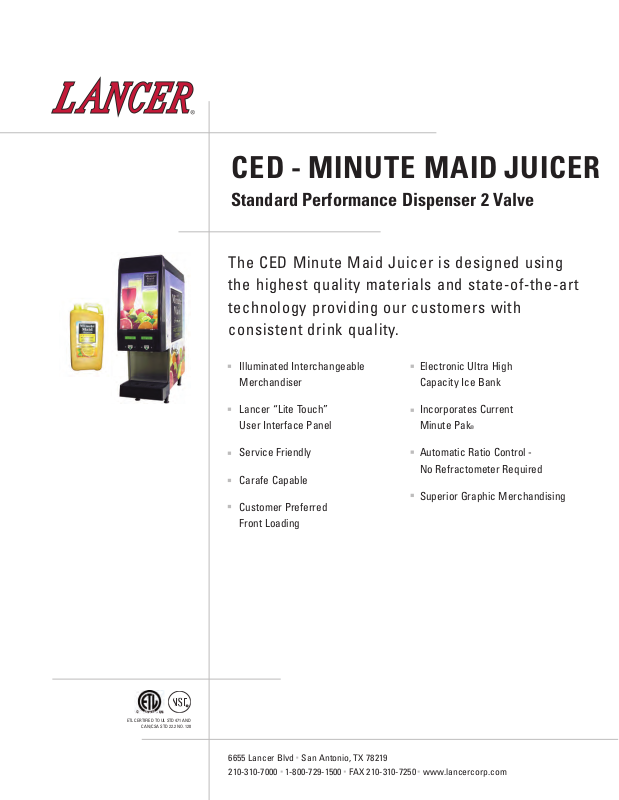

CED - MINUTE MAID JUICER
Standard Performance Dispenser 2 Valve
The CED Minute Maid Juicer is designed using
the highest quality materials and state-of-the-art
technology providing our customers with
consistent drink quality.
Illuminated Interchangeable
Merchandiser
Lancer “Lite Touch”
User Interface Panel
Service Friendly
Carafe Capable
Customer Preferred
Front Loading
Electronic Ultra High
Capacity Ice Bank
Incorporates Current
Minute Pak
Automatic Ratio Control No Refractometer Required
Superior Graphic Merchandising
®
ETL CERTIFIED TO UL STD 471 AND
CAN/CSA STD 22.2 NO. 120
6655 Lancer Blvd San Antonio, TX 78219
210-310-7000 1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
CED - Minute Maid Juicer 2v
OPTIONS
Push button or Portion control
S P E C I F I C A T I O N S
33”
(838 mm)
37”
(940 mm)
(4” legs included)
25.5”
(648 mm)
10.1”
(257 mm)
Warranty: For warranty specifics by product,
contact your Lancer Sales Representatives.
Equipment design and/or specifications may change without notice.
DIMENSIONS
Width: 10.1 in (257 mm)
Depth: 25.5 in (648 mm)
Height: 37 in (940 mm)
ELECTRICAL
115V electrical system
(220V 50/60Hz available)
(4” legs included)
WEIGHT
SPACE REQUIRED
Width: 18.1 in
Depth: 29.5 in
Empty: 112 lbs (50.8 kg)
Operating: 160 lbs (72.7 kg)
Shipping: 125 lbs (56.7 kg)
Height: 39 in
CORPORATE OFFICE 6655 Lancer Blvd San Antonio, TX 78219
210-310-7000 1-800-729-1500 FAX 210-310-7250 www.lancercorp.com
“Lancer” is the registered trademark of Lancer Corporation © 2010 Lancer, all rights reserved.
WATER
3/8 in barb, 25 psi (min)
KEY LOCK SWITCH
ACCESS TO FLOOR
DRAIN SUGGESTED
CED MM Juice 2v STND Spec Sheet 07/10
