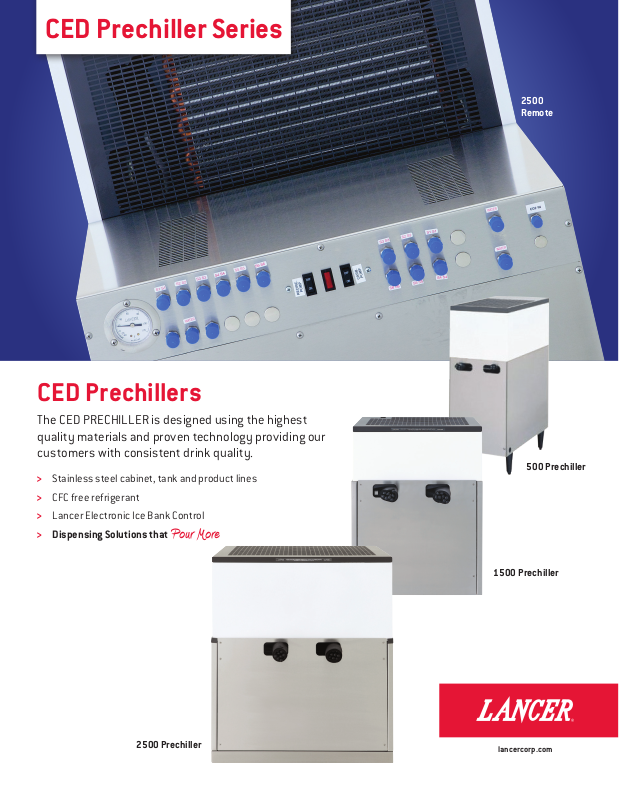

CED Prechiller Series
2500
Remote
CED Prechillers
The CED PRECHILLER is designed using the highest
quality materials and proven technology providing our
customers with consistent drink quality.
> Stainless steel cabinet, tank and product lines
> CFC free refrigerant
> Lancer Electronic Ice Bank Control
> Dispensing Solutions that
Pour M ore
500 Prechiller
1500 Prechiller
2500 Prechiller
lancercorp.com
CED Prechillers
500 Prechiller
2500 Prechiller
1500 Prechiller
2500 Remote
500 PRECHILLER
DIMENSIONS
Width: 10.375” (264 mm)
Depth: 19.688” (500 mm)
Height: 23.5” (597 mm)
WEIGHT
Shipping: 108 lbs (49 kg)
With water: 145 lbs (66 kg)
ELECTRICAL
115VAC/60Hz, 7AMPs
230VAC/50Hz, 3.3AMPs
FITTINGS
Stainless steel inlet and
outlet labeled 3/8” barb
COMPRESSOR 1/4 hp
MOTORS
Agitator: 15 W
Condenser Fan: 9 W
2500 PRECHILLER
DIMENSIONS
Width: 26” (660 mm)
Depth: 22” (559 mm)
Height: 31.25” (794 mm)
WEIGHT
Shipping: 300 lbs (136 kg)
With water: 479 lbs (217kg)
ELECTRICAL
115VAC/60Hz, 16AMPs
230VAC/50Hz, 9AMPs
FITTINGS
Stainless steel inlet and
outlet labeled 3/8” barb
COMPRESSOR 3/4 hp
MOTORS
Agitator: 25 W
Condenser Fan: 35 W
1500 PRECHILLER
DIMENSIONS
Width: 19.188” (487 mm)
Depth: 19.125” (486 mm)
Height: 25.375” (645 mm)
WEIGHT
Shipping: 150 lbs (68 kg)
With water: 261 lbs (118 kg)
ELECTRICAL
115VAC/60Hz, 7AMPs
230VAC/50Hz, 3.3AMPs
FITTINGS
Stainless steel inlet and
outlet labeled 3/8” barb
COMPRESSOR 1/3 hp
MOTORS
Agitator: 25 W
Condenser Fan: 9 W
2500 REMOTE
DIMENSIONS
Width: 26” (660 mm)
Depth: 37.25” (946 mm)
Height: 31.25” (794 mm)
WEIGHT
Shipping: 360 lbs (163 kg)
With water: 529 lbs (240 kg)
ELECTRICAL
115VAC/60Hz, 16AMPs
230VAC/50Hz, 9AMPs
FITTINGS
Stainless steel 3/8” Flare
Inlet and Outlet; water, soda,
syrup; 1/4” Flare, CO2 Inlet
COMPRESSOR 3/4 hp
MOTORS
Agitator: 25 W
Condenser Fan: 35 W
LANCER TURBO
CARBONATOR
LANCER SODA PUMP
Customer Ser vice:
Should you require more information about our products, please do not
hesitate to contac t our customer ser vice desk at custserv@lancercorp.com.
Warranty:
For warranty specifics by product, contact your Lancer Sales Representative.
Equipment design and/or specifications are subject to change without notice.
Lancer Corp. 6655 Lancer Boulevard · San Antonio, TX 78219
210-310-7000 · 1-800-729-1500 · Fax: 210-310-7250
ETL Certified to UL STD 471 and CAN/CSA STD 22.2 No. 120
Pour More
lancercorp.com
CED Pr echiller Ser ies Spec Sheet 08/14
