P|Flux 1 Cyclone
Extractor
HEPA 230V
Code: 113046
Distributed by
N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations
which differ slightly from the machine you purchased
Version: 2
Date: 1/10/25
DIGITAL MANUAL
Page 2
1.
5HP Mobile Dust Cyclone Manual
1
CONTENTS
Safety: 02
Important Safety Instructions 03
General Safety Rules 06

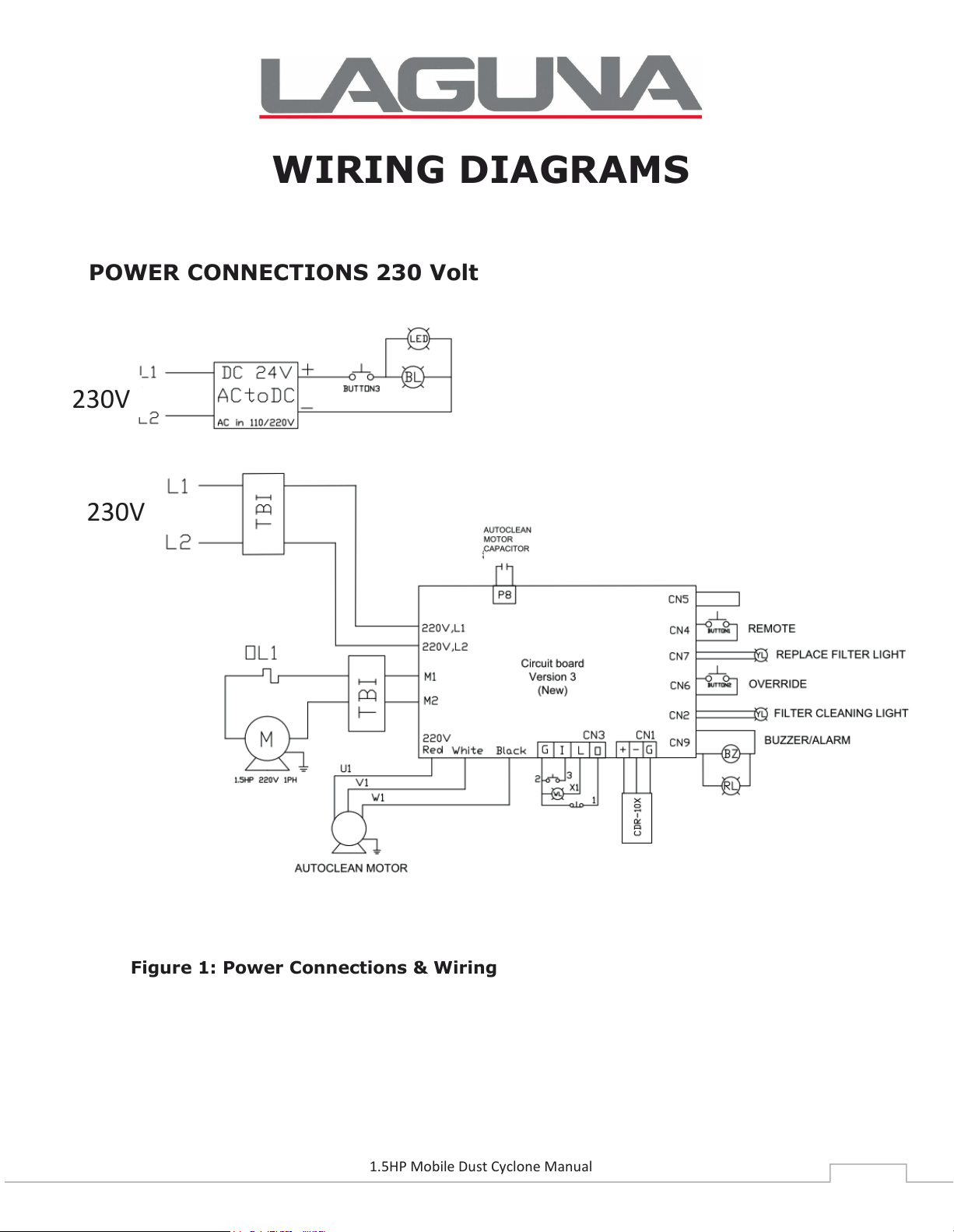

Wiring Diagrams: 09
Power Connections 10
Unpacking: 14
Assembly: 15
Power Supply 31
Programming Remote Control 32
Operation: 33
Maintenance: 33
Trouble Shooting: 37
Parts Breakdown / Exploded Views: 39
Parts List 44
Specifications: 48
Contents
Safety: 3
Important Safety Instructions 4
General Safety Rules 6
Wiring Diagrams: 9
Power Connections 11
Function 13
Power Supply 28
Programming Remote Control 13
Specifications: 15
Unpacking: 16
Assembly: 17
Operation: 27
Maintenance: 28
Trouble Shooting: 30
Parts Breakdown / Exploded Views: 32
Parts List 37
Specifications: 41
Declaration of Conformity CE/UKCA 41
Warranty 43
1
Page 3
Warranty Registration
Register your machine at https://lagunatools.com/policies/warranty/
To prevent voiding this warranty, all products sold must be registered within thirty (30) days of
receiving the product. Registering the product will enable the original purchaser to receive
notifications about important product changes, receive customer service, and be able to file a warranty
claim against defective workmanship, parts, or materials.

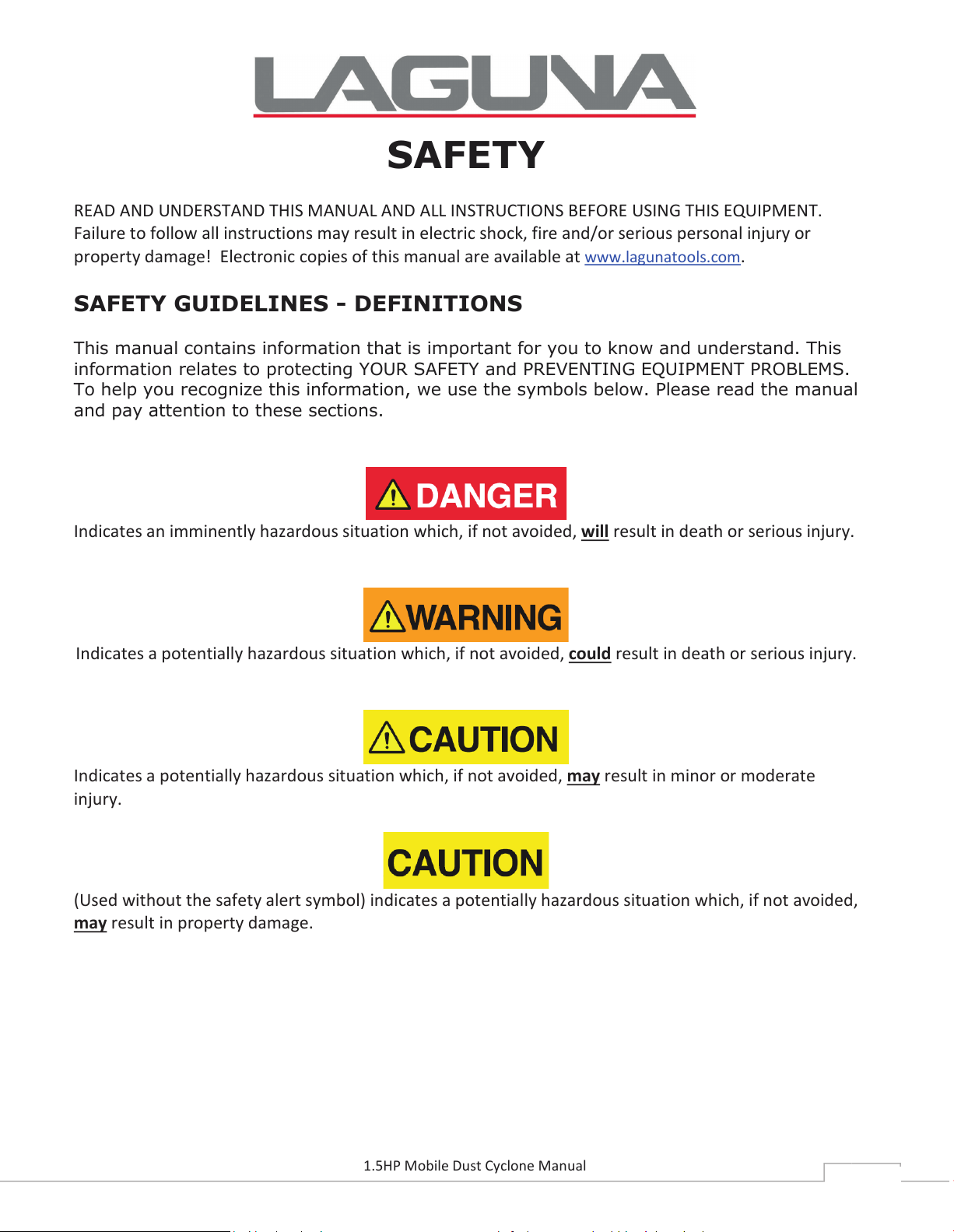

SAFETY
READ AND UNDERSTAND THIS MANUAL AND ALL INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
Failure to follow all instructions may result in electric shock, fire and/or serious personal injury or
property damage! Electronic copies of this manual are available at www.lagunatools.com.
SAFETY GUIDELINES - DEFINITIONS
T
his manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
To help you recognize this information, we use the symbols below. Please read the manual
and pay attention to these sections.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
(Used without the safety alert symbol) indicates a potentially hazardous situation which, if not avoided,
may result in property damage.
1.
5HP Mobile Dust Cyclone Manual
3
Warranty Registration
Register your machine at https://lagunatools.com/policies/warranty/
To prevent voiding this warranty, all products sold must be registered within thirty (30) days of
receiving the product. Registering the product will enable the original purchaser to receive
notifications about important product changes, receive customer service, and be able to file a warranty
claim against defective workmanship, parts, or materials.
SAFETY
READ AND UNDERSTAND THIS MANUAL AND ALL INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
Failure to follow all instructions may result in electric shock, fire and/or serious personal injury or
property damage! Electronic copies of this manual are available at www.lagunatools.com.
SAFETY GUIDELINES - DEFINITIONS
T
his manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
To help you recognize this information, we use the symbols below. Please read the manual
and pay attention to these sections.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
(Used without the safety alert symbol) indicates a potentially hazardous situation which, if not avoided,
may result in property damage.
2
Page 4
1.5HP Mobile Dust Cyclone Manual
4

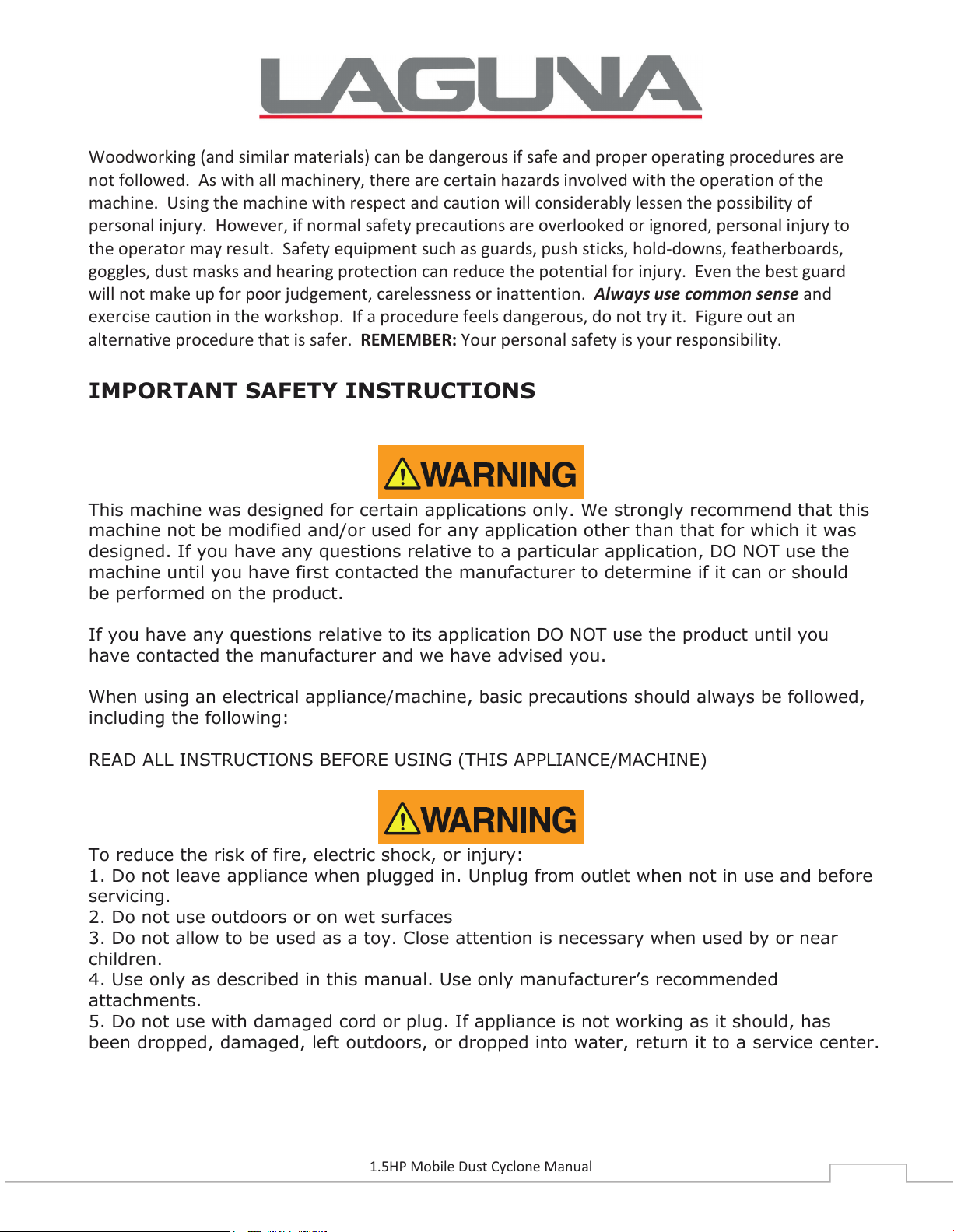

Woodworking (and similar materials) can be dangerous if safe and proper operating procedures are
not followed. As with all machinery, there are certain hazards involved with the operation of the
machine. Using the machine with respect and caution will considerably lessen the possibility of
personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to
the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce the potential for injury. Even the best guard
will not make up for poor judgement, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, do not try it. Figure out an
alternative procedure that is safer. REMEMBER: Your personal safety is your responsibility.
IMPORTANT SAFETY INSTRUCTIONS
This machine was designed for certain applications only. We strongly recommend that this
machine not be modified and/or used for any application other than that for which it was
designed. If you have any questions relative to a particular application, DO NOT use the
machine until you have first contacted the manufacturer to determine if it can or should
be performed on the product.
If you have any questions relative to its application DO NOT use the product until you
have contacted the manufacturer and we have advised you.
When using an electrical appliance/machine, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE/MACHINE)
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
2. Do not use outdoors or on wet surfaces
3. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
4. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
3
Page 5
1.
5HP Mobile Dust Cyclone Manual
5

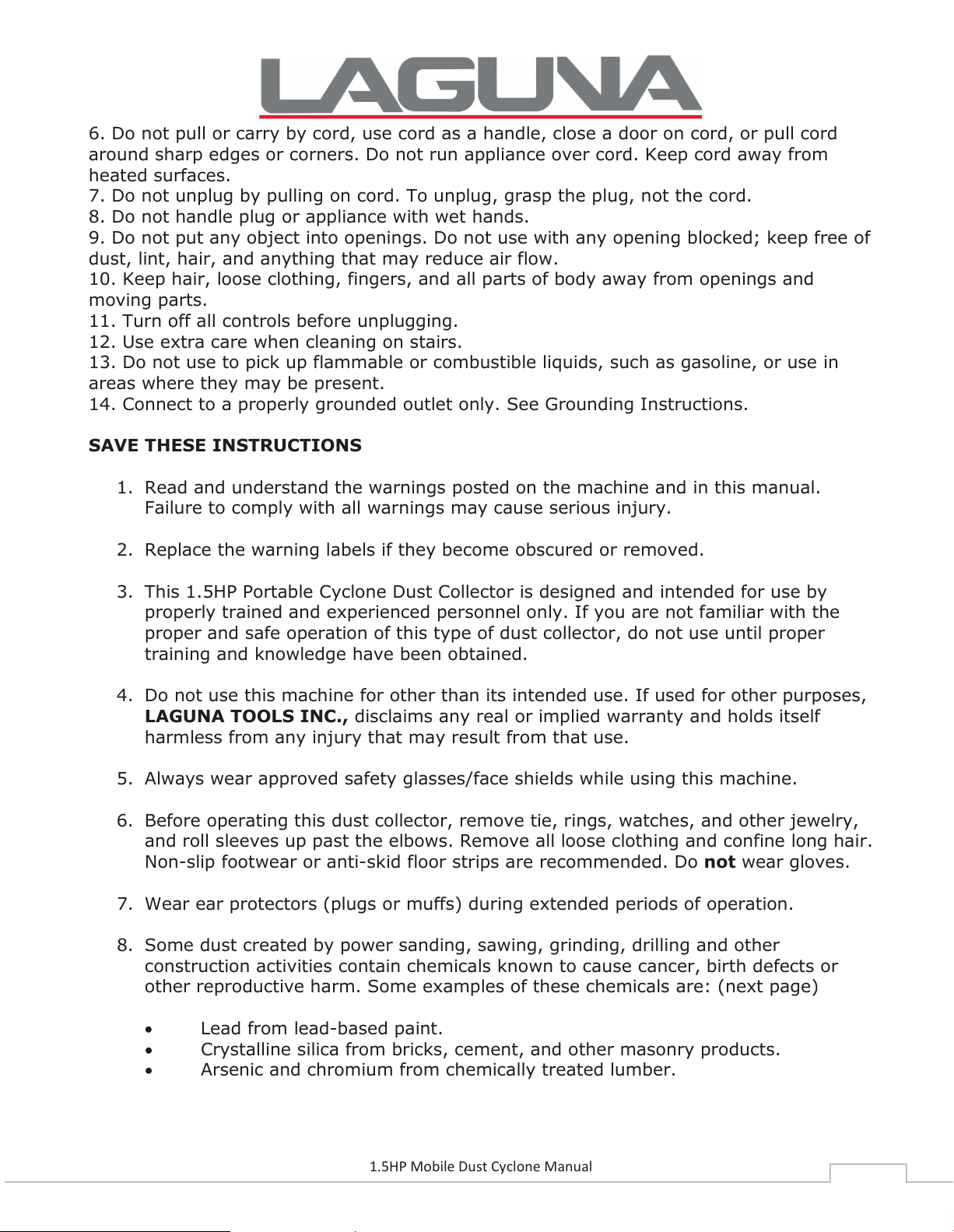

6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air flow.
10.Keep hair, loose clothing, fingers, and all parts of body away from openings
and
m
oving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use i
n
are
as where they may be present.
14. Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
1. Read and understand the warnings posted on the machine and in this manual.
Failure to comply with all warnings may cause serious injury.
2. Replace the warning labels if they become obscured or removed.
3. This 1.5HP Portable Cyclone Dust Collector is designed and intended for use by
properly trained and experienced personnel only. If you are not familiar with the
proper and safe operation of this type of dust collector, do not use until prope
r
training and knowledge have been obtained.
4. Do not use this machine for other than its intended use. If used for other purposes,
LAGUNA TOOLS INC., disclaims any real or implied warranty and holds itself
harmless from any injury that may result from that use.
5. Always wear approved safety glasses/face shields while using this machine.
6. Before operating this dust collector, remove tie, rings, watches, and other jewelry,
and roll sleeves up past the elbows. Remove all loose clothing and confine long hair.
Non-slip footwear or anti-skid floor strips are recommended. Do not wear gloves.
7. Wear ear protectors (plugs or muffs) during extended periods of operation.
8. Some dust created by power sanding, sawing, grinding, drilling and othe
r
construction activities contain chemicals known to cause cancer, birth defects or
ot
her reproductive harm. Some examples of these chemicals are: (next page)
• Lead from lead-based paint.
• Crystalline silica from bricks, cement, and other masonry products.
• Arsenic and chromium from chemically treated lumber.
4
Page 6
1.5HP Mobile Dust Cyclone Manual
6

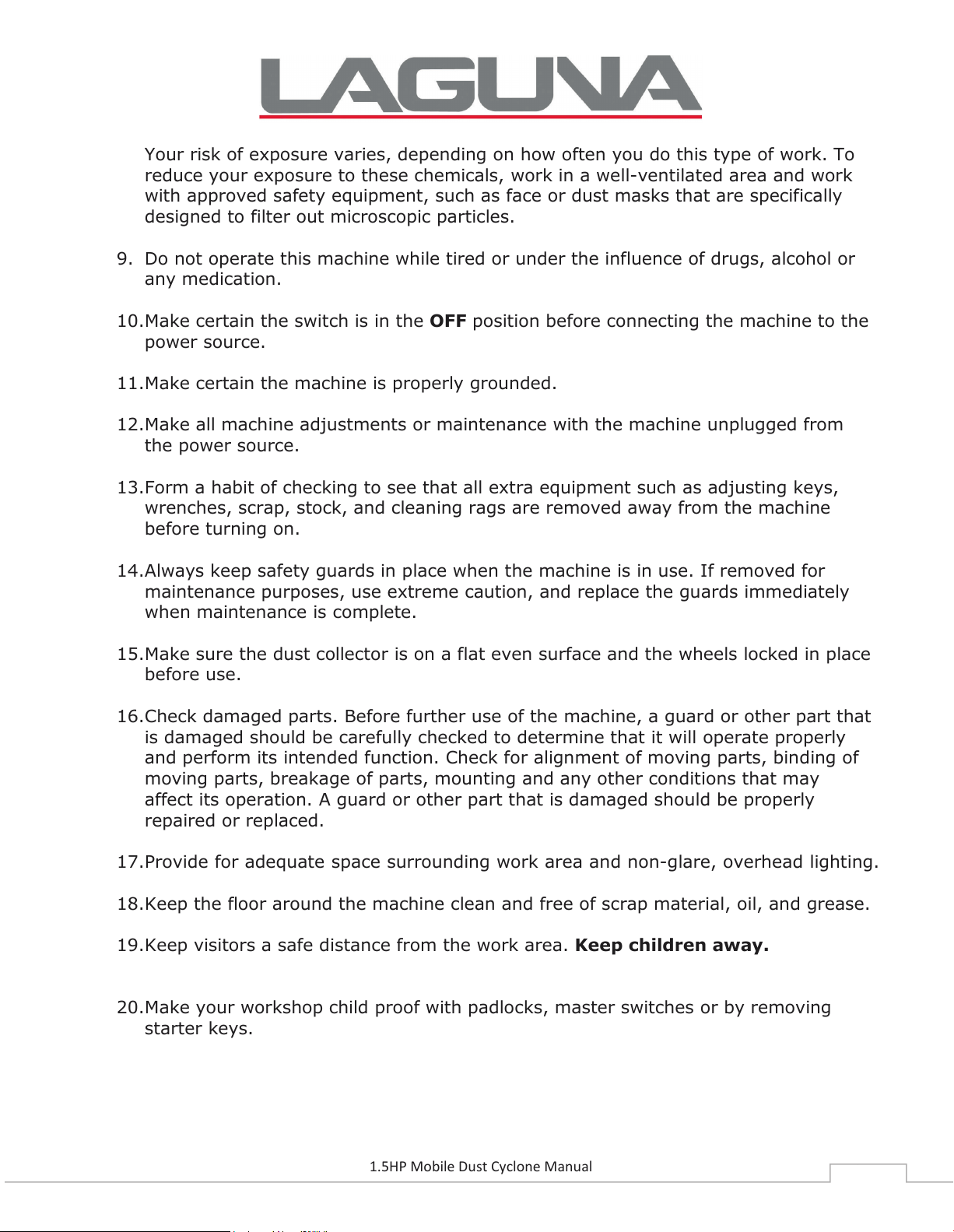

Your risk of exposure varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a well-ventilated area and work
with approved safety equipment, such as face or dust masks that are specifically
designed to filter out microscopic particles.
9. Do not operate this machine while tired or under the influence of drugs, alcohol or
any medication.
10.Make certain the switch is in the OFF position before connecting the machine to the
power source.
11.Make certain the machine is properly grounded.
12.Make all machine adjustments or maintenance with the machine unplugged from
the power source.
13.Form a habit of checking to see that all extra equipment such as adjusting keys,
wrenches, scrap, stock, and cleaning rags are removed away from the machine
before turning on.
14.Always keep safety guards in place when the machine is in use. If removed for
maintenance purposes, use extreme caution, and replace the guards immediately
when maintenance is complete.
15.Make sure the dust collector is on a flat even surface and the wheels locked in place
before use.
16.Check damaged parts. Before further use of the machine, a guard or other part that
is damaged should be carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and any other conditions that may
affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.
17.Provide for adequate space surrounding work area and non-glare, overhead lighting.
18.Keep the floor around the machine clean and free of scrap material, oil, and grease.
19.Keep visitors a safe distance from the work area. Keep children away.
20.Make your workshop child proof with padlocks, master switches or by removing
starter keys.
5
Page 7
1.5HP Mobile Dust Cyclone Manual
7

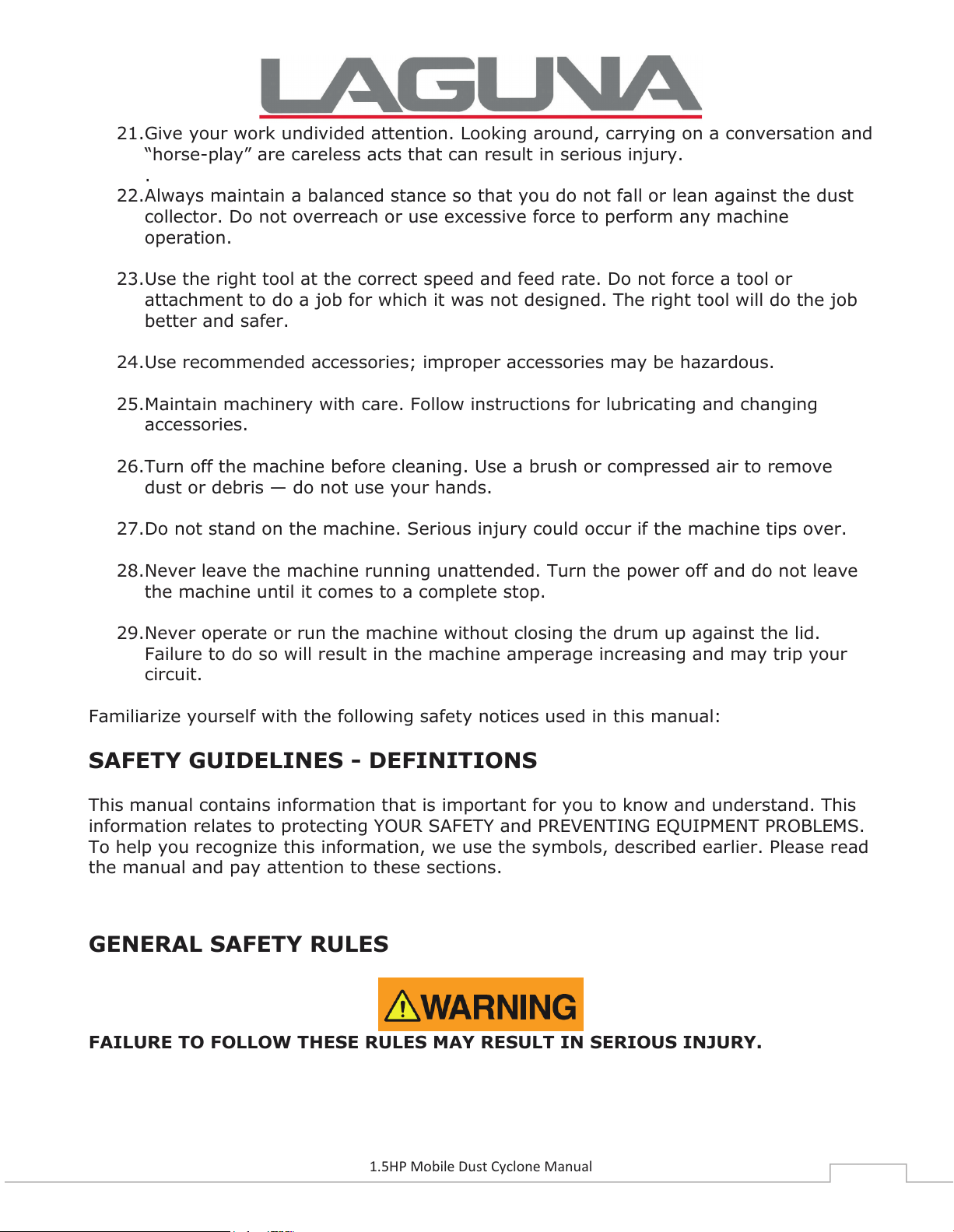

21.Give your work undivided attention. Looking around, carrying on a conversation and
“horse-play” are careless acts that can result in serious injury.
.
22.Always maintain a balanced stance so that you do not fall or lean against the dust
collector. Do not overreach or use excessive force to perform any machine
operation.
23.Use the right tool at the correct speed and feed rate. Do not force a tool or
attachment to do a job for which it was not designed. The right tool will do the job
better and safer.
24.Use recommended accessories; improper accessories may be hazardous.
25.Maintain machinery with care. Follow instructions for lubricating and changing
accessories.
26.Turn off the machine before cleaning. Use a brush or compressed air to remove
dust or debris — do not use your hands.
27.Do not stand on the machine. Serious injury could occur if the machine tips over.
28.Never leave the machine running unattended. Turn the power off and do not leave
the machine until it comes to a complete stop.
29.Never operate or run the machine without closing the drum up against the lid.
Failure to do so will result in the machine amperage increasing and may trip your
circuit.
Familiarize yourself with the following safety notices used in this manual:
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
To help you recognize this information, we use the symbols, described earlier. Please read
the manual and pay attention to these sections.
GENERAL SAFETY RULES
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
6
Page 8
1.
5HP Mobile Dust Cyclone Manual
8
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL
BEFORE OPERATING THE MACHINE. Learn the unit’s application and limitations as well
as the specific hazards peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet
locations or expose it to rain. Keep work area well-lighted.

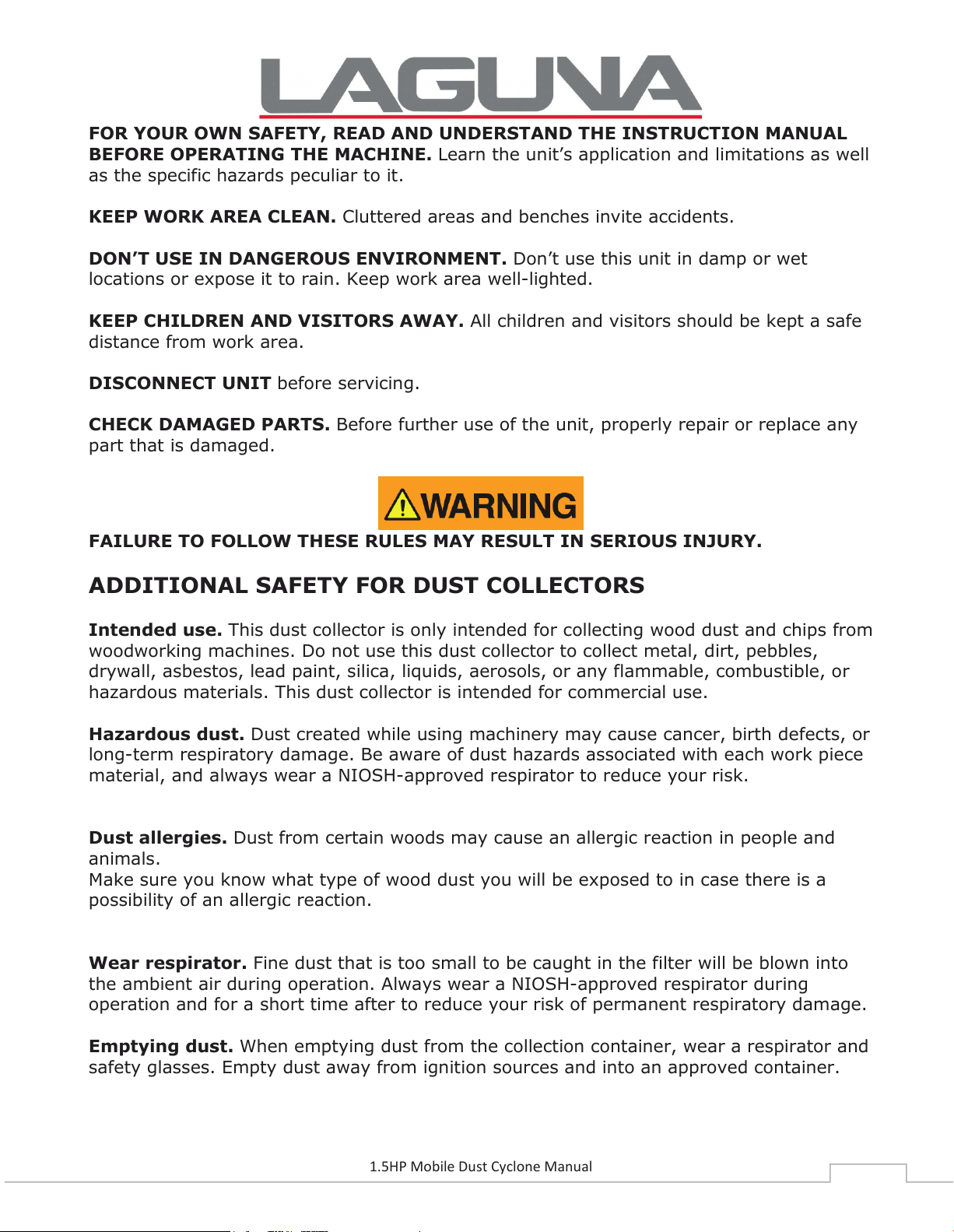

KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe
distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any
part that is damaged.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
ADDITIONAL SAFETY FOR DUST COLLECTORS
In
tended use. This dust collector is only intended for collecting wood dust and chips from
woodworking machines. Do not use this dust collector to collect metal, dirt, pebbles,
drywall, asbestos, lead paint, silica, liquids, aerosols, or any flammable, combustible, or
hazardous materials. This dust collector is intended for commercial use.
Hazardous dust. Dust created while using machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust hazards associated with each work piece
material, and always wear a NIOSH-approved respirator to reduce your risk.
Dust allergies. Dust from certain woods may cause an allergic reaction in people and
animals.
Make sure you know what type of wood dust you will be exposed to in case there is a
possibility of an allergic reaction.
Wear respirator. Fine dust that is too small to be caught in the filter will be blown into
the ambient air during operation. Always wear a NIOSH-approved respirator during
operation and for a short time after to reduce your risk of permanent respiratory damage.
Emptying dust. When emptying dust from the collection container, wear a respirator and
safety glasses. Empty dust away from ignition sources and into an approved container.
7
Page 9
1.5HP Mobile Dust Cyclone Manual
9

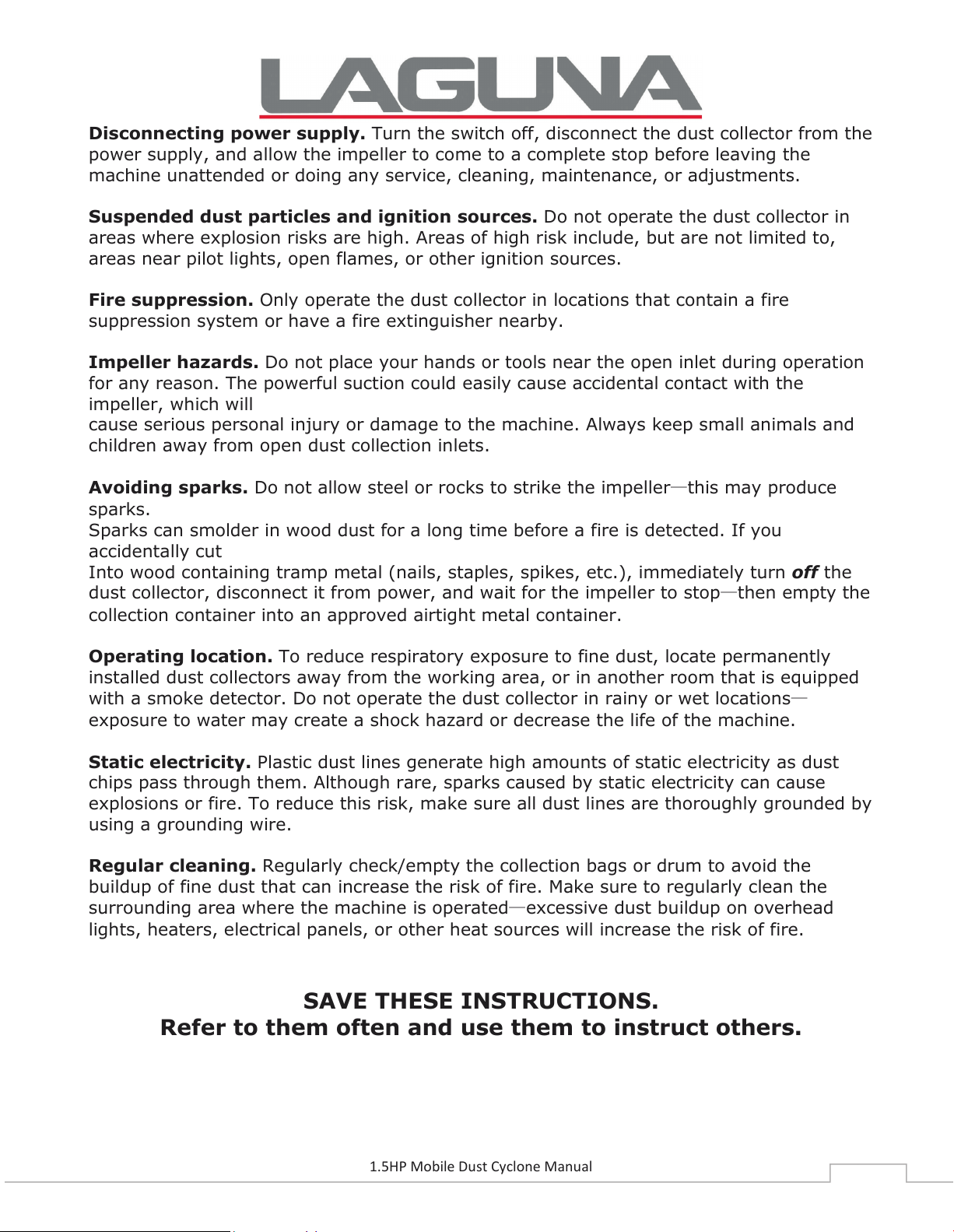

Disconnecting power supply. Turn the switch off, disconnect the dust collector from the
power supply, and allow the impeller to come to a complete stop before leaving the
machine unattended or doing any service, cleaning, maintenance, or adjustments.
Suspended dust particles and ignition sources. Do not operate the dust collector in
areas where explosion risks are high. Areas of high risk include, but are not limited to,
areas near pilot lights, open flames, or other ignition sources.
Fire suppression. Only operate the dust collector in locations that contain a fire
suppression system or have a fire extinguisher nearby.
Impeller hazards. Do not place your hands or tools near the open inlet during operation
for any reason. The powerful suction could easily cause accidental contact with the
impeller, which will
cause serious personal injury or damage to the machine. Always keep small animals and
children away from open dust collection inlets.
Avoiding sparks. Do not allow steel or rocks to strike the impeller—
this may produce
sparks.
Sparks can smolder in wood dust for a long time before a fire is detected. If you
accidentally cut
Into wood containing tramp metal (nails, staples, spikes, etc.), immediately turn off the
dust collector, disconnect it from power, and wait for the impeller to stop—
then empty the
collection container into an approved airtight metal container.
Operating location. To reduce respiratory exposure to fine dust, locate permanently
installed dust collectors away from the working area, or in another room that is equipped
with a smoke detector. Do not operate the dust collector in rainy or wet locations—
exposure to water may create a shock hazard or decrease the life of the machine.
Static electricity. Plastic dust lines generate high amounts of static electricity as dust
chips pass through them. Although rare, sparks caused by static electricity can cause
explosions or fire. To reduce this risk, make sure all dust lines are thoroughly grounded by
using a grounding wire.
Regular cleaning. Regularly check/empty the collection bags or drum to avoid the
buildup of fine dust that can increase the risk of fire. Make sure to regularly clean the
surrounding area where the machine is operated—
excessive dust buildup on overhead
lights, heaters, electrical panels, or other heat sources will increase the risk of fire.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
8
Page 10
1.5HP Mobile Dust Cyclone Manual
10
WIRING DIAGRAMS
POWER CONNECTIONS 230 Volt
Figure 1: Power Connections & Wiring
230V
230V
9
Page 11
1.5HP Mobile Dust Cyclone Manual
11

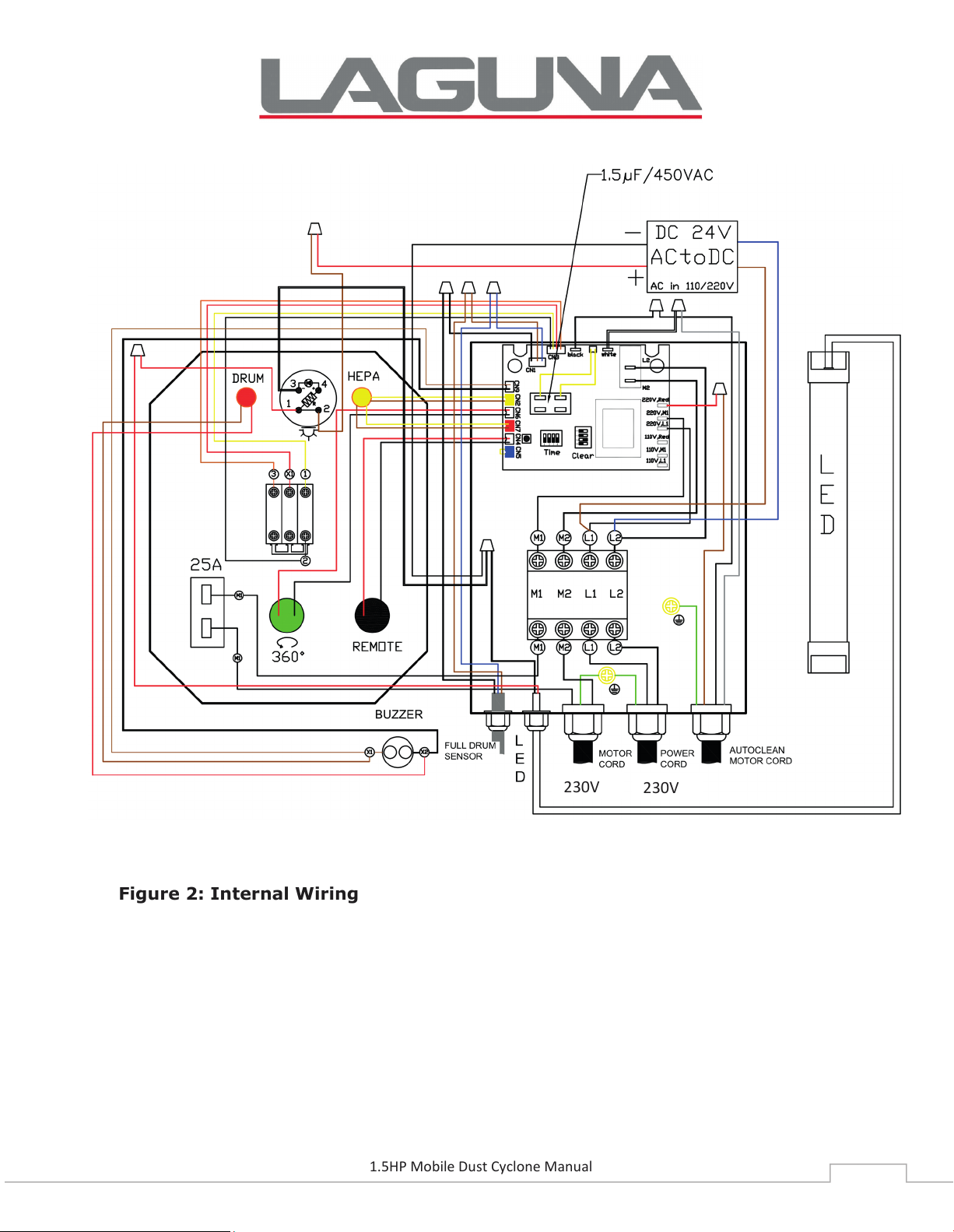

Figure 2: Internal Wiring
230V
230V
10
Page 12
1.5HP Mobile Dust Cyclone Manual
12

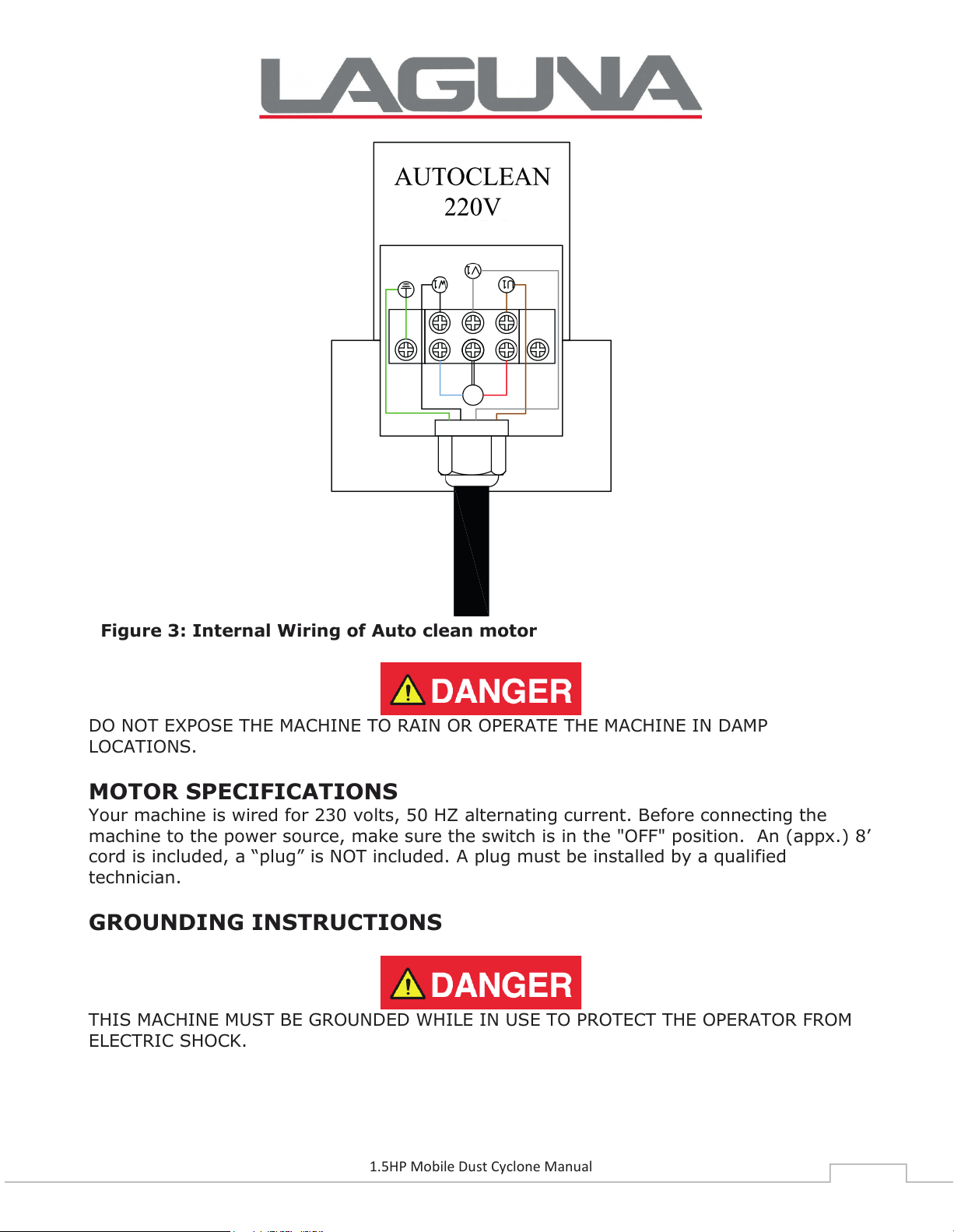

Figure 3: Internal Wiring of Auto clean motor
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP
LOCATIONS.
MOTOR SPECIFICATIONS
Your machine is wired for 230 volts, 50 HZ alternating current. Before connecting the
machine to the power source, make sure the switch is in the "OFF" position. An (appx.) 8’
cord is included, a “plug” is NOT included. A plug must be installed by a qualified
technician.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
11
Page 13
1.5HP Mobile Dust Cyclone Manual
13

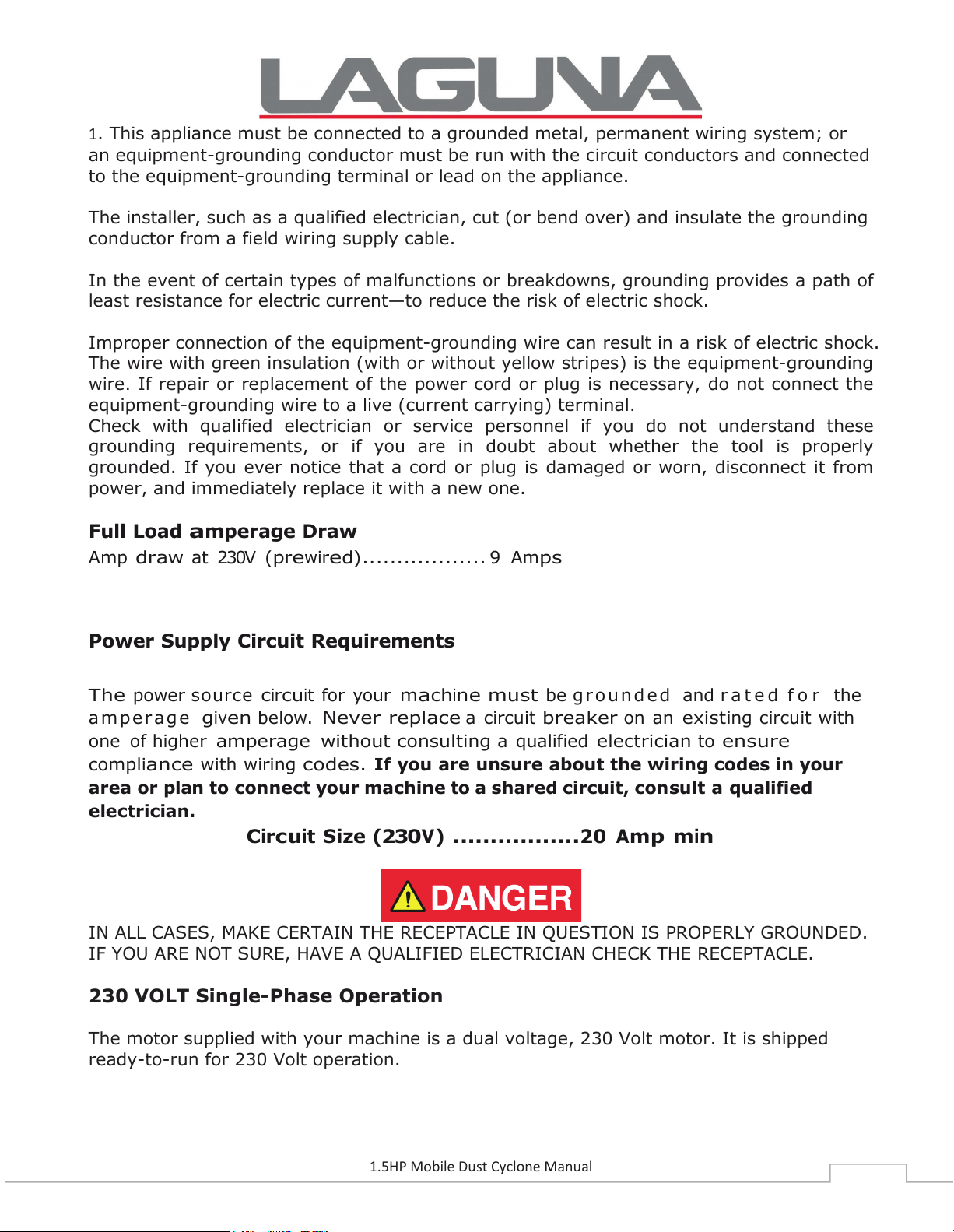

1. This appliance must be connected to a grounded metal, permanent wiring system; or
an equipment-grounding conductor must be run with the circuit conductors and connected
to the equipment-grounding terminal or lead on the appliance.
The installer, such as a qualified electrician, cut (or bend over) and insulate the grounding
conductor from a field wiring supply cable.
In the event of certain types of malfunctions or breakdowns, grounding provides a path of
least resistance for electric current—to reduce the risk of electric shock.
Improper connection of the equipment-grounding wire can result in a risk of electric shock.
The wire with green insulation (with or without yellow stripes) is the equipment-grounding
wire. If repair or replacement of the power cord or plug is necessary, do not connect the
equipment-grounding wire to a live (current carrying) terminal.
Check with qualified electrician or service personnel if you do not understand these
grounding requirements, or if you are in doubt about whether the tool is properly
grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from
power, and immediately replace it with a new one.
Full Load amperage Draw
Amp
draw
at 230V (prewired)
..................
9 Amps
Power Supply Circuit Requirements
The
power source circuit
for
your machi
ne must
be grounded and rated for the
amperage
given below.
Never replace
a circuit
breaker
on an
exist
ing circuit with
one of higher
amperage without
consulting
a qualified
electrician
to
ensure
compliance
with wiring
codes.
If you are unsure about the wiring codes in your
area or plan to connect your machine to a shared circuit, consult a qualified
electrician.
Circui
t Size (
230V)
.................
20 Amp min
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
230 VOLT Single-Phase Operation
The motor supplied with your machine is a dual voltage, 230 Volt motor. It is shipped
ready-to-run for 230 Volt operation.
12
Page 14
1.5HP Mobile Dust Cyclone Manual
14
*Used to match up a new handheld
remote control with the remote switch
FUNCTION

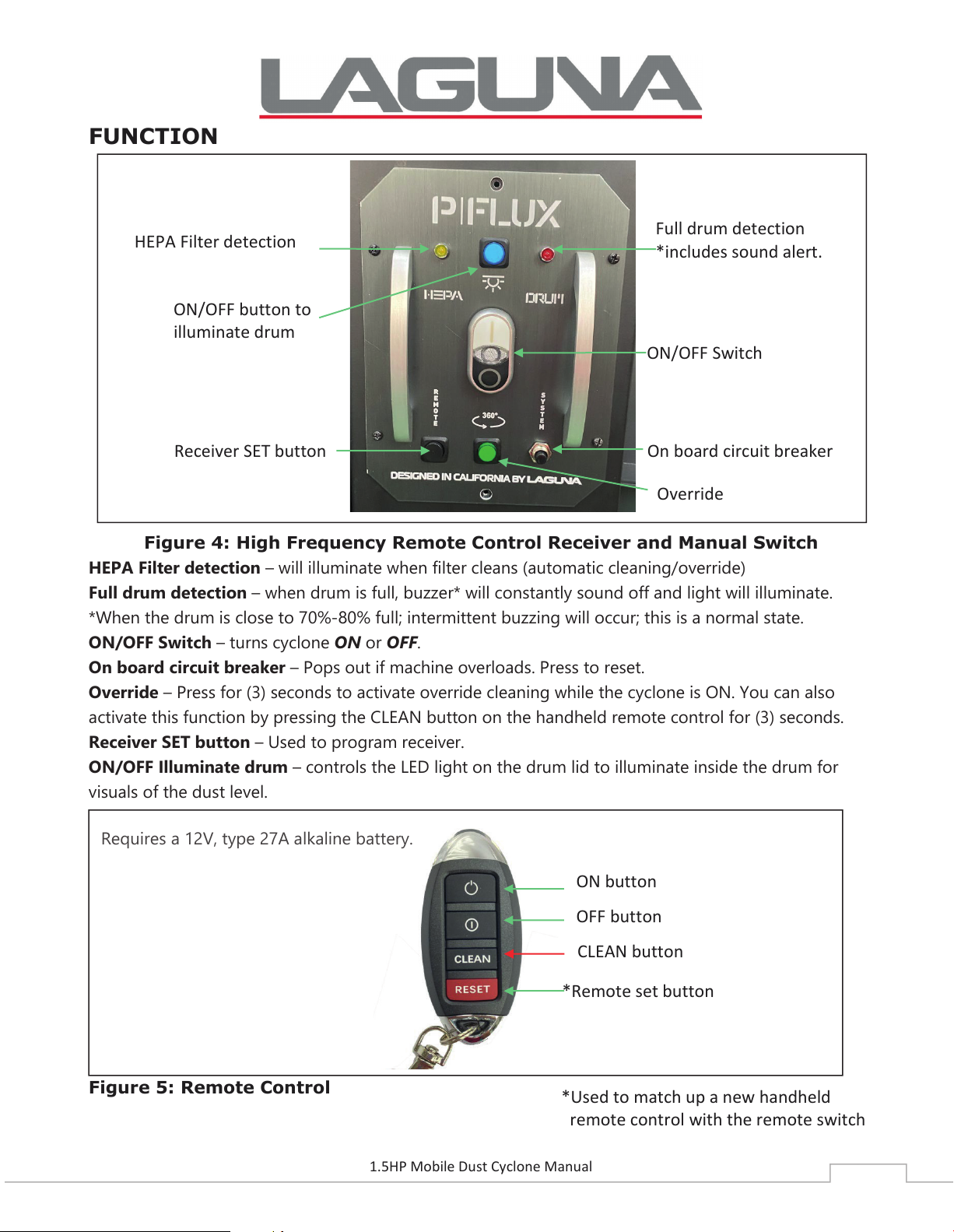

Figure 4: High Frequency Remote Control Receiver and Manual Switch
HEPA Filter detection – will illuminate when filter cleans (automatic cleaning/override)
Full drum detection – when drum is full, buzzer* will constantly sound off and light will illuminate.
*When the drum is close to 70%-80% full; intermittent buzzing will occur; this is a normal state.
ON/OFF Switch – turns cyclone ON or OFF.
On board circuit breaker – Pops out if machine overloads. Press to reset.
Override – Press for (3) seconds to activate override cleaning while the cyclone is ON. You can also
activate this function by pressing the CLEAN button on the handheld remote control for (3) seconds.
Receiver SET button – Used to program receiver.
ON/OFF Illuminate drum – controls the LED light on the drum lid to illuminate inside the drum for
visuals of the dust level.
Figure 5: Remote Control
OFF button
ON button
*Remote set button
CLEAN button
ON/OFF Switch
Receiver SET button
Full drum detection
*includes sound alert.
HEPA Filter detection
On board circuit breaker
Override
ON/OFF button to
illuminate drum
Requires a 12V, type 27A alkaline battery.
13
Page 15
1.5HP Mobile Dust Cyclone Manual
15

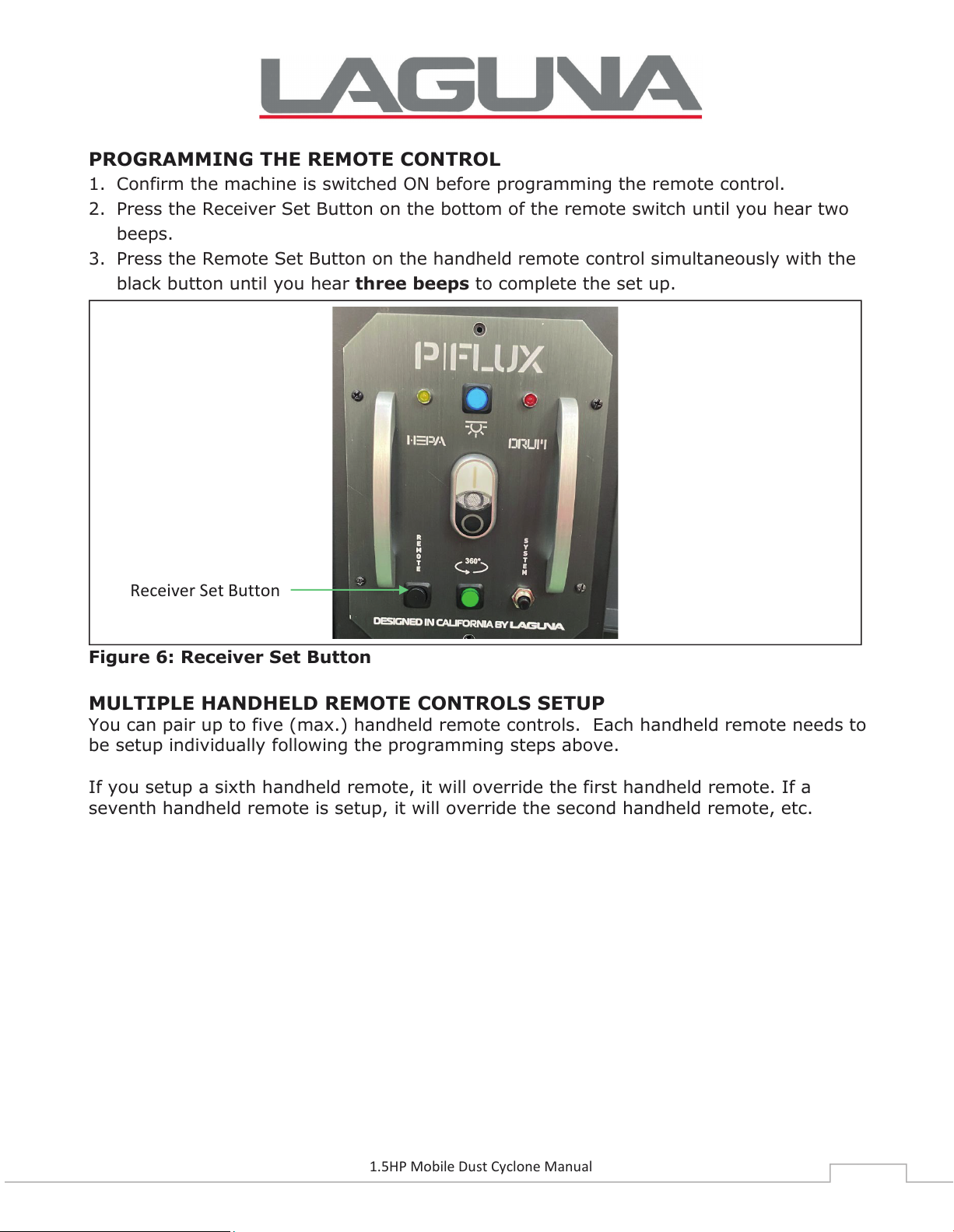

PROGRAMMING THE REMOTE CONTROL
1. Confirm the machine is switched ON before programming the remote control.
2. Press the Receiver Set Button on the bottom of the remote switch until you hear two
beeps.
3. Press the Remote Set Button on the handheld remote control simultaneously with the
black button until you hear three beeps to complete the set up.
Figure 6: Receiver Set Button
MULTIPLE HANDHELD REMOTE CONTROLS SETUP
You can pair up to five (max.) handheld remote controls. Each handheld remote needs to
be setup individually following the programming steps above.
If you setup a sixth handheld remote, it will override the first handheld remote. If a
seventh handheld remote is setup, it will override the second handheld remote, etc.
Receiver Set Button
14
Page 16
1.5HP Mobile Dust Cyclone Manual
16

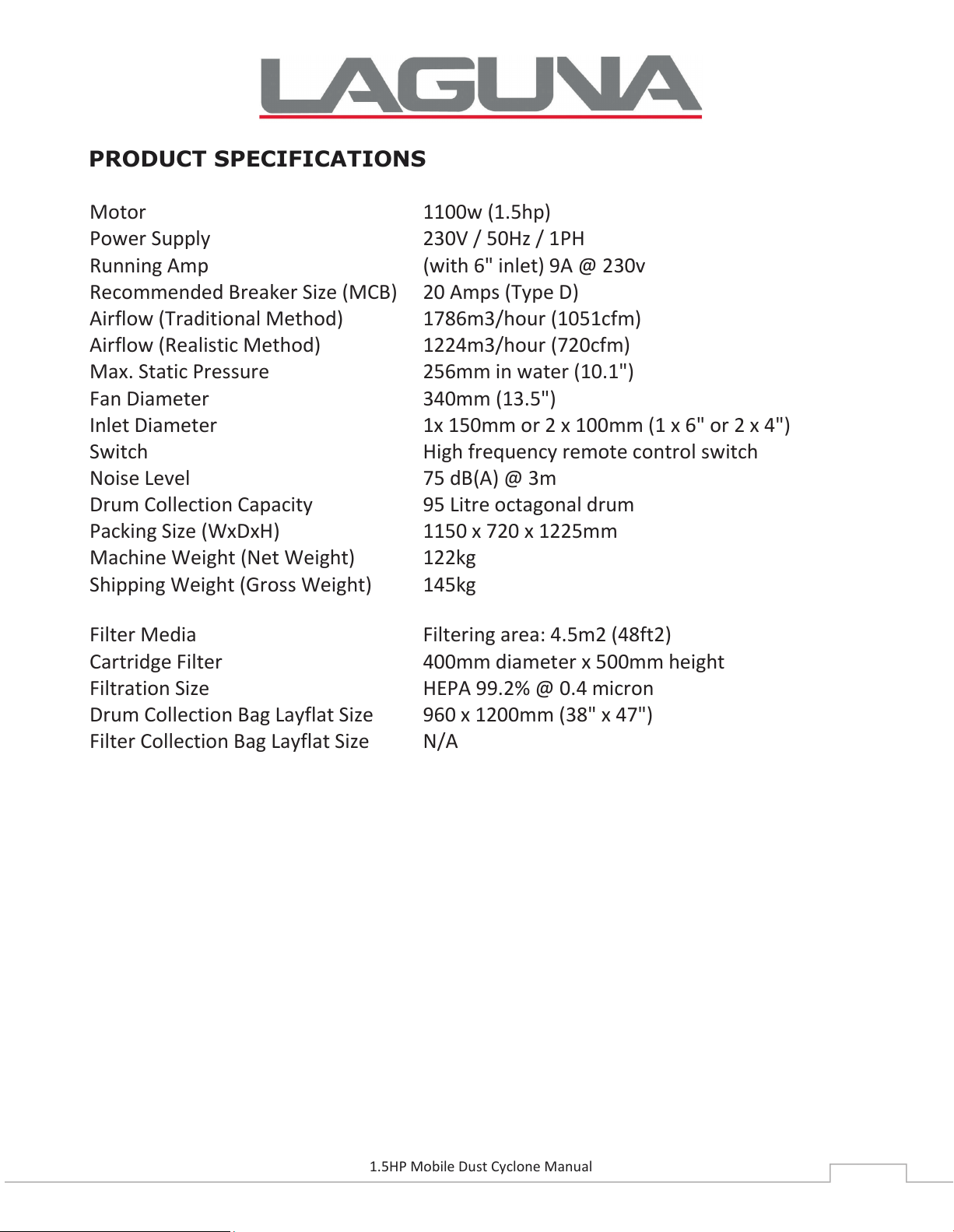

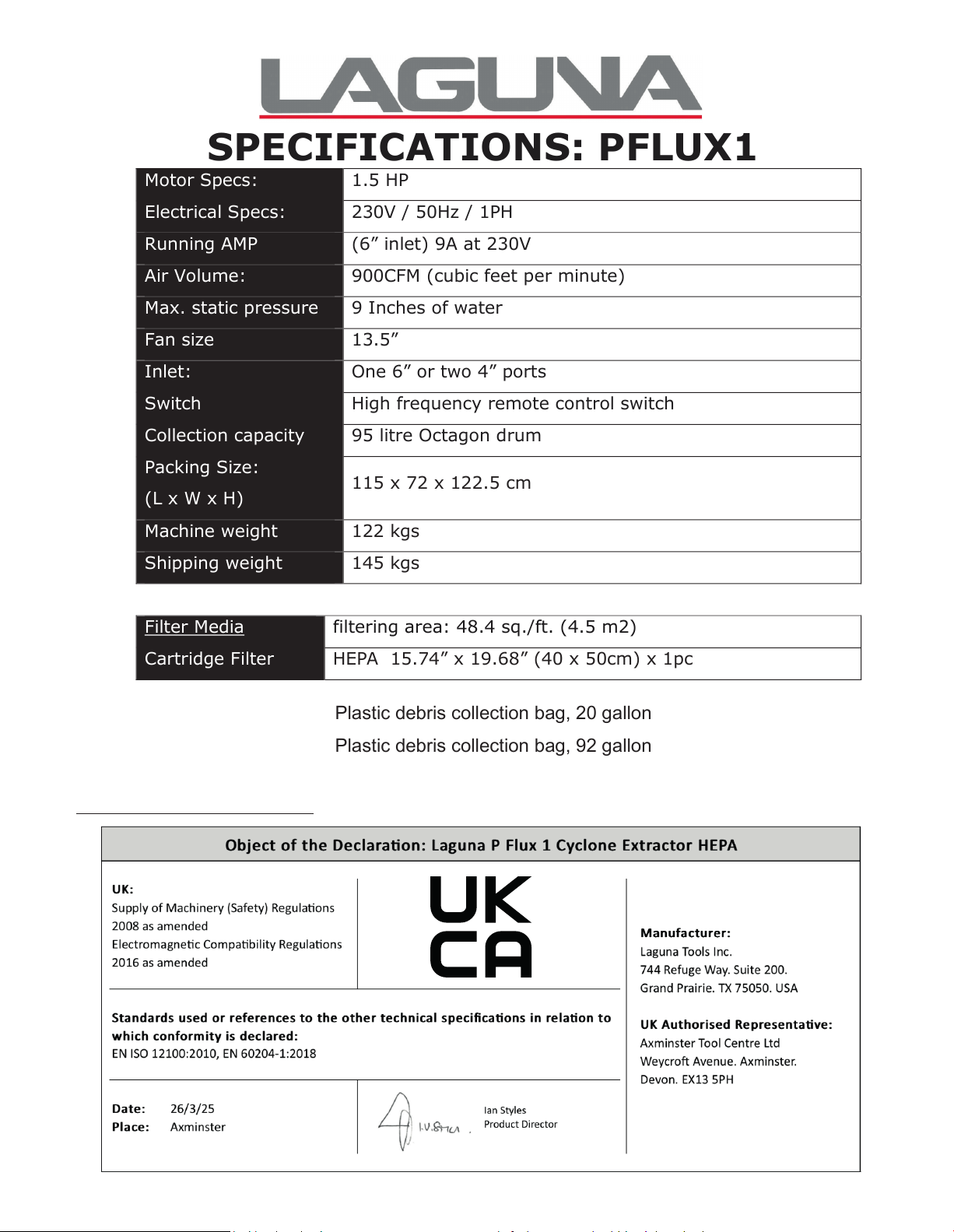

PRODUCT SPECIFICATIONS
Motor
1100w (1.5hp)
Power Supply
230V / 50Hz / 1PH
Running Amp
(with 6" inlet) 9A @ 230v
Recommended Breaker Size (MCB)
20 Amps (Type D)
Airflow (Traditional Method)
1786m3/hour (1051cfm)
Airflow (Realistic Method)
1224m3/hour (720cfm)
Max. Static Pressure
256mm in water (10.1")
Fan Diameter
340mm (13.5")
Inlet Diameter
1x 150mm or 2 x 100mm (1 x 6" or 2 x 4")
Switch
High frequency remote control switch
Noise Level
75 dB(A) @ 3m
Drum Collection Capacity
95 Litre octagonal drum
Packing Size (WxDxH)
1150 x 720 x 1225mm
Machine Weight (Net Weight)
122kg
Shipping Weight (Gross Weight)
145kg
Filter Media
Filtering area: 4.5m2 (48ft2)
Cartridge Filter
400mm diameter x 500mm height
Filtration Size
HEPA 99.2% @ 0.4 micron
Drum Collection Bag Layflat Size
960 x 1200mm (38" x 47")
Filter Collection Bag Layflat Size
N/A
15
Page 17
1.5HP Mobile Dust Cyclone Manual
17

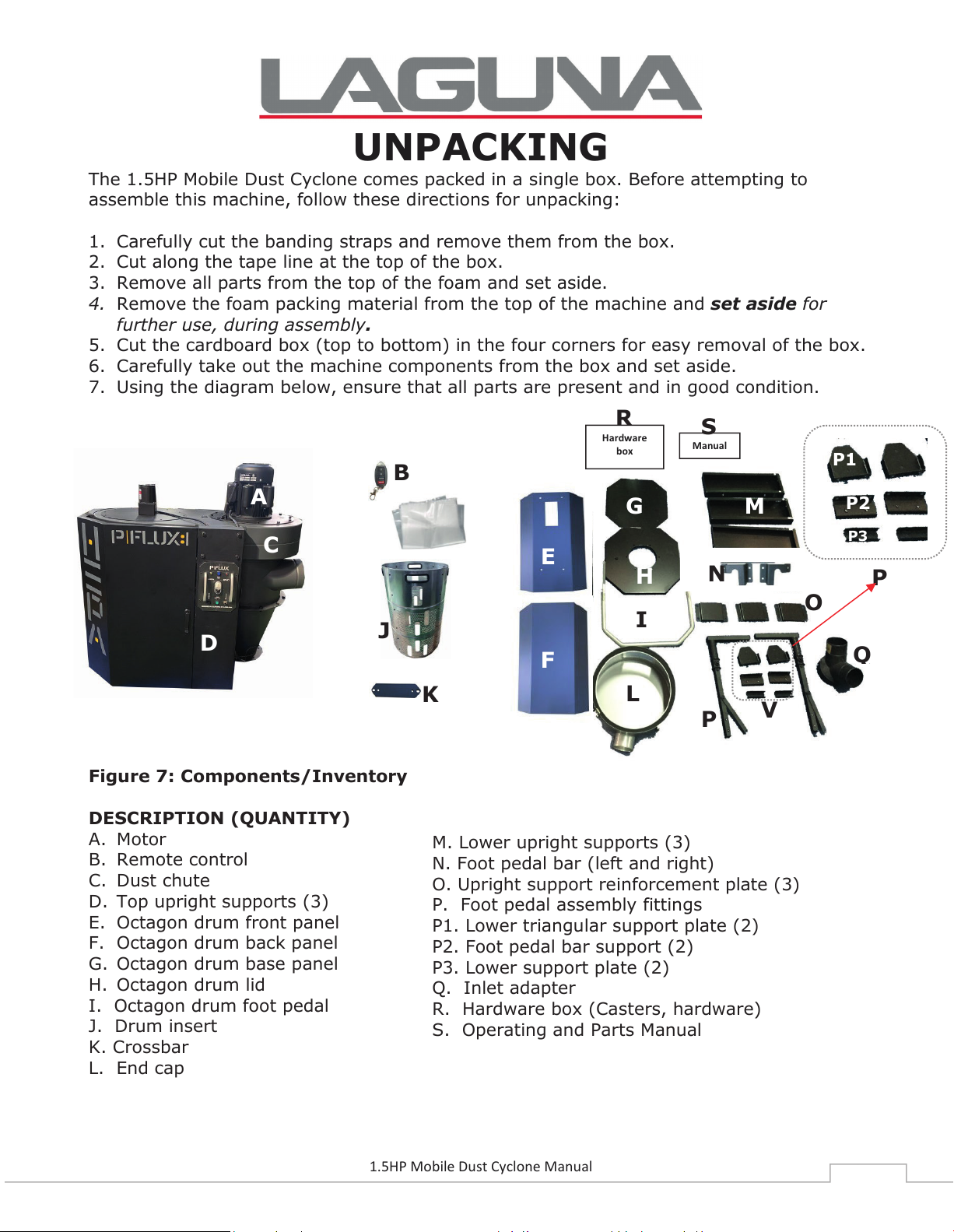

UNPACKING
The 1.5HP Mobile Dust Cyclone comes packed in a single box. Before attempting to
assemble this machine, follow these directions for unpacking:
1. Carefully cut the banding straps and remove them from the box.
2. Cut along the tape line at the top of the box.
3. Remove all parts from the top of the foam and set aside.
4. Remove the foam packing material from the top of the machine and set aside for
further use, during assembly.
5. Cut the cardboard box (top to bottom) in the four corners for easy removal of the box.
6. Carefully take out the machine components from the box and set aside.
7. Using the diagram below, ensure that all parts are present and in good condition.
Figure 7: Components/Inventory
DESCRIPTION (QUANTITY)
A. Motor
B. Remote control
C. Dust chute
D. Top upright supports (3)
E. Octagon drum front panel
F. Octagon drum back panel
G. Octagon drum base panel
H. Octagon drum lid
I. Octagon drum foot pedal
J. Drum insert
K. Crossbar
L. End cap
I
J G H G H
I M O P V
Q
P
P1
P2
P3
Manual
M. Lower upright supports (3)
N. Foot pedal bar (left and right)
O. Upright support reinforcement plate (3)
P. Foot pedal assembly fittings
P1. Lower triangular support plate (2)
P2. Foot pedal bar support (2)
P3. Lower support plate (2)
Q. Inlet adapter
R. Hardware box (Casters, hardware)
S. Operating and Parts Manual
R
S A
B C D
Hardware
box
B L E
F J K
N
16
Page 18
1.5HP Mobile Dust Cyclone Manual
18
Report any missing or damaged parts to your dealer or distributor. Prior to
machine assembly and use, read this manual thoroughly to familiarize yourself
with proper assembly, maintenance, and safety procedures.

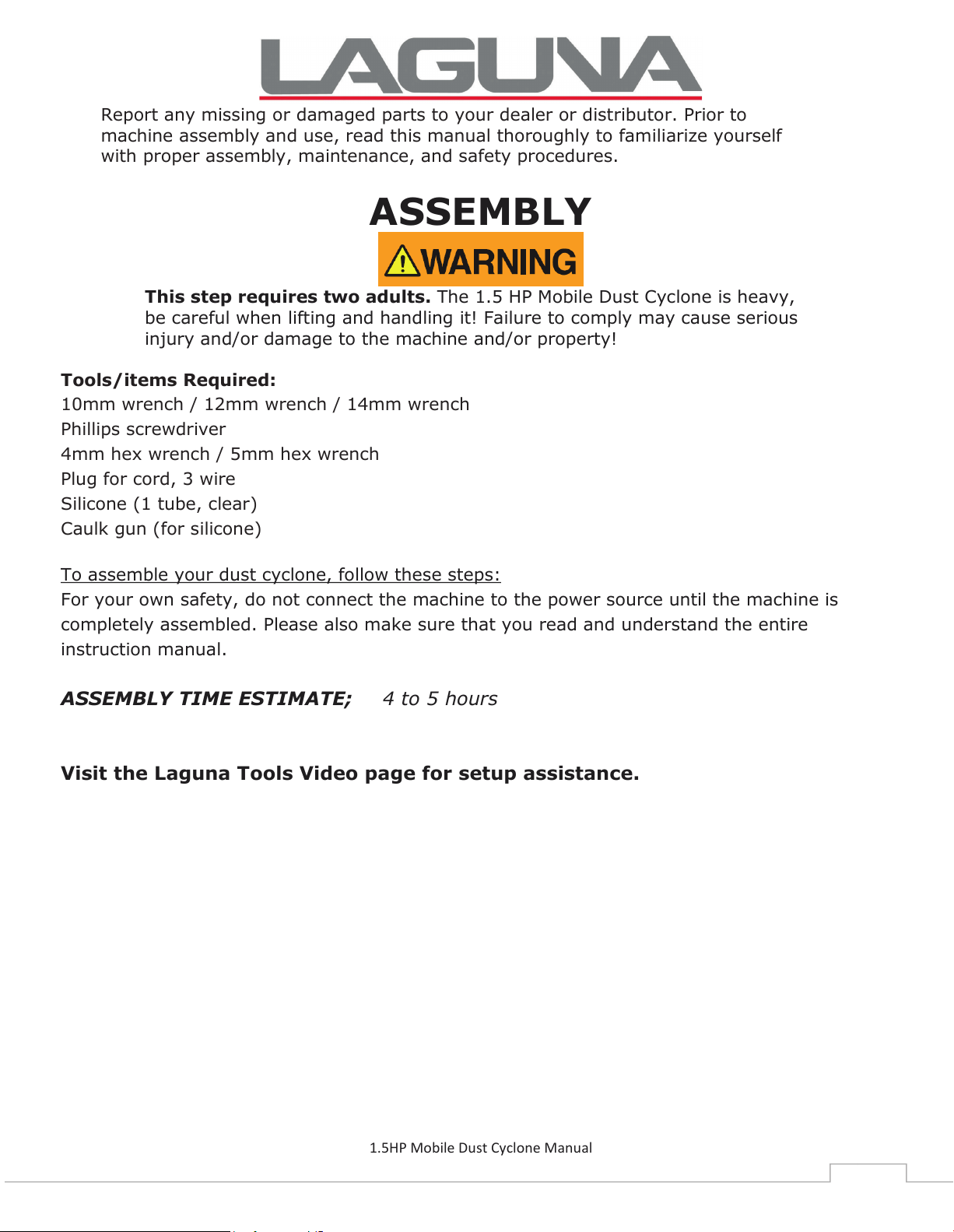

ASSEMBLY
This step requires two adults. The 1.5 HP Mobile Dust Cyclone is heavy,
be careful when lifting and handling it! Failure to comply may cause serious
injury and/or damage to the machine and/or property!
Tools/items Required:
10mm wrench / 12mm wrench / 14mm wrench
Phillips screwdriver
4mm hex wrench / 5mm hex wrench
Plug for cord, 3 wire
Silicone (1 tube, clear)
Caulk gun (for silicone)
To assemble your dust cyclone, follow these steps:
For your own safety, do not connect the machine to the power source until the machine is
completely assembled. Please also make sure that you read and understand the entire
instruction manual.
ASSEMBLY TIME ESTIMATE; 4 to 5 hours
Visit the Laguna Tools Video page for setup assistance.
17
Page 19
1.5HP Mobile Dust Cyclone Manual
19

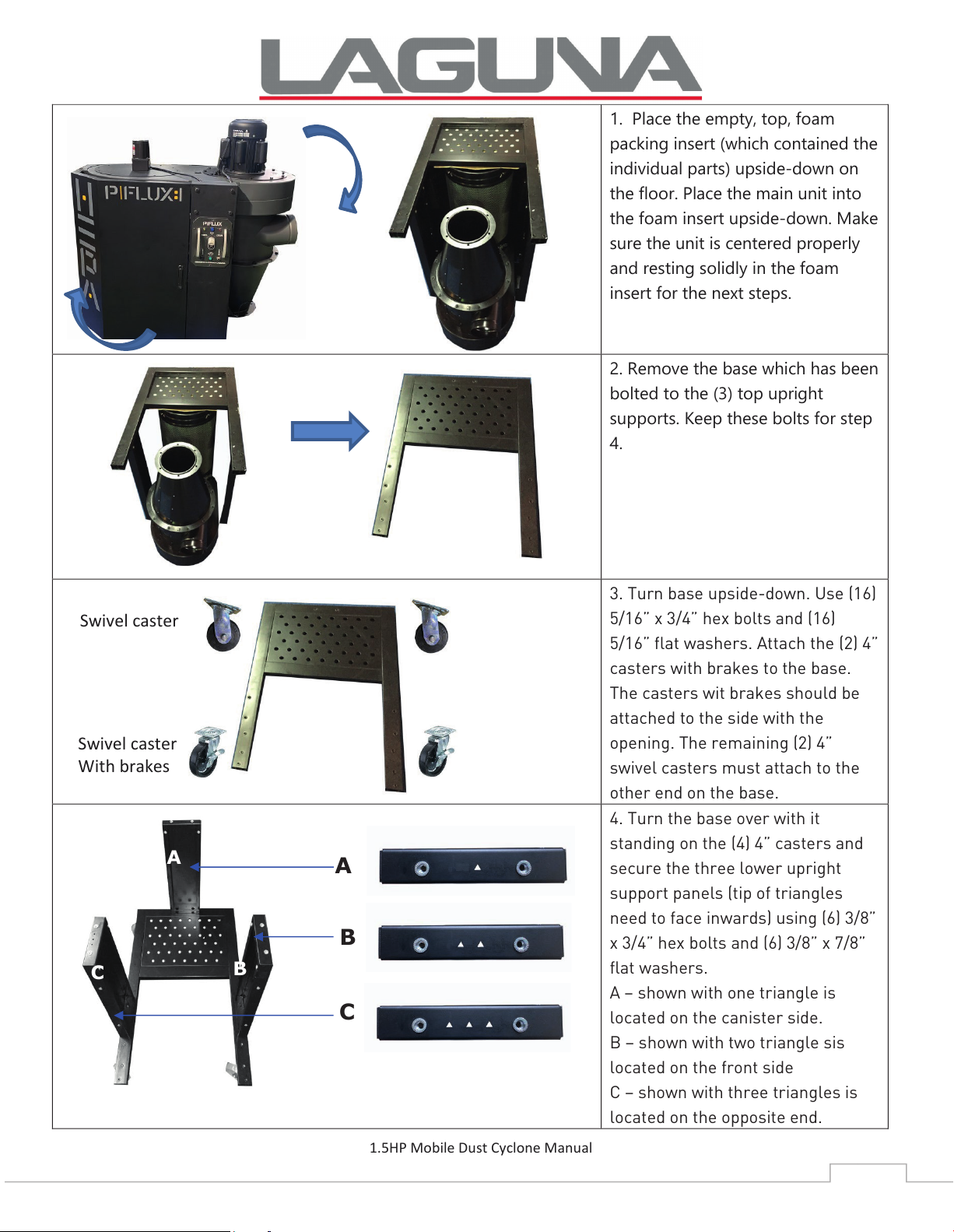

1. Place the empty, top, foam
packing insert (which contained the
individual parts) upside-down on
the floor. Place the main unit into
the foam insert upside-down. Make
sure the unit is centered properly
and resting solidly in the foam
insert for the next steps.
2. Remove the base which has been
bolted to the (3) top upright
supports. Keep these bolts for step
4.
3. Turn base upside-down. Use (16)
5/16” x 3/4” hex bolts and (16)
5/16” flat washers. Attach the (2) 4”
casters with brakes to the base.
The casters wit brakes should be
attached to the side with the
opening. The remaining (2) 4”
swivel casters must attach to the
other end on the base.
4. Turn the base over with it
standing on the (4) 4” casters and
secure the three lower upright
support panels (tip of triangles
need to face inwards) using (6) 3/8”
x 3/4” hex bolts and (6) 3/8” x 7/8”
flat washers.
A – shown with one triangle is
located on the canister side.
B – shown with two triangle sis
located on the front side
C – shown with three triangles is
located on the opposite end.
Swivel caster
Swivel caster
With brakes
A B C
A B C
18
Page 20
1.5HP Mobile Dust Cyclone Manual
20

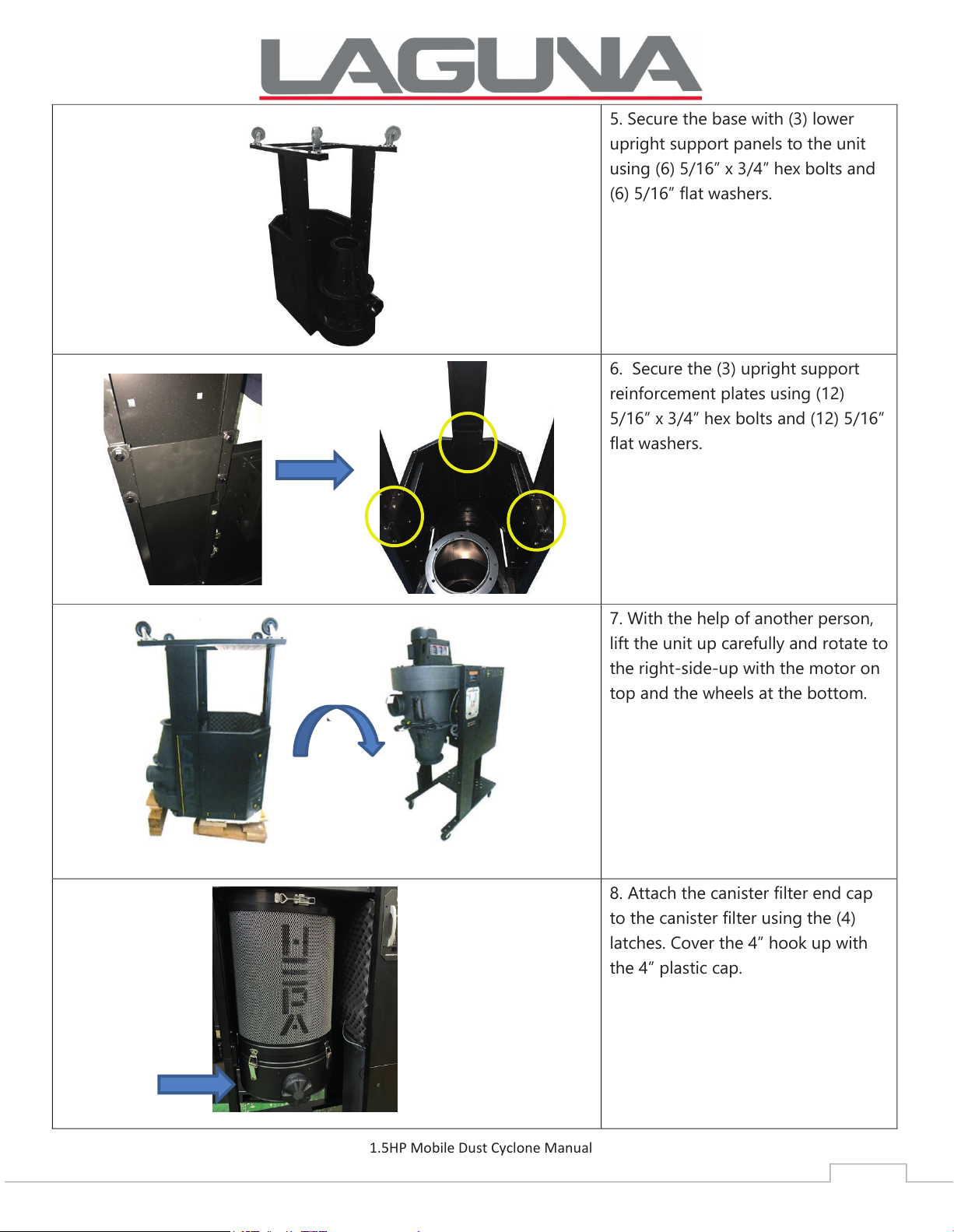

5. Secure the base with (3) lower
upright support panels to the unit
using (6) 5/16” x 3/4” hex bolts and
(6) 5/16” flat washers.
6. Secure the (3) upright support
reinforcement plates using (12)
5/16” x 3/4” hex bolts and (12) 5/16”
flat washers.
7. With the help of another person,
lift the unit up carefully and rotate to
the right-side-up with the motor on
top and the wheels at the bottom.
8. Attach the canister filter end cap
to the canister filter using the (4)
latches. Cover the 4” hook up with
the 4” plastic cap.
19
Page 21
1.5HP Mobile Dust Cyclone Manual
21

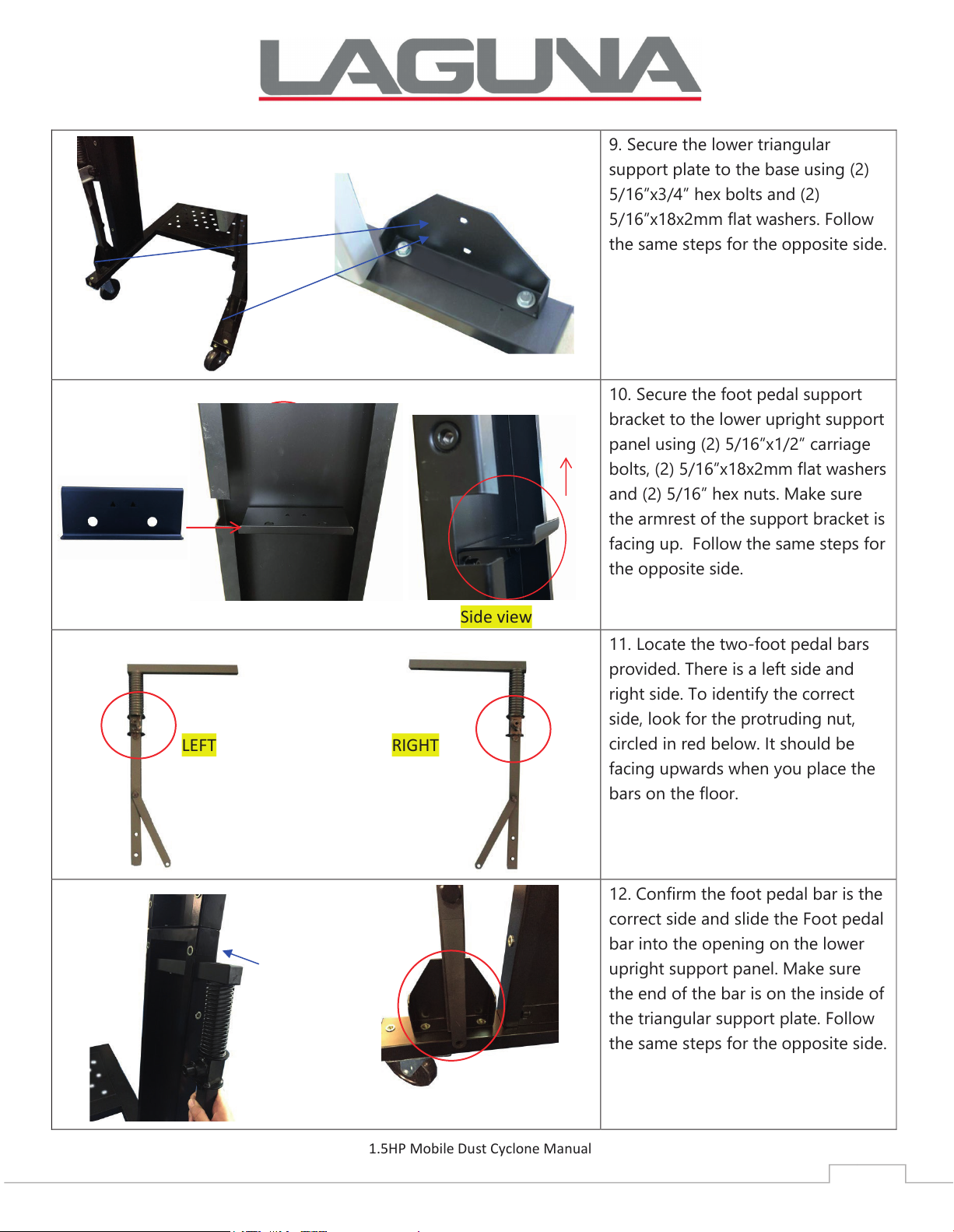

9. Secure the lower triangular
support plate to the base using (2)
5/16”x3/4” hex bolts and (2)
5/16”x18x2mm flat washers. Follow
the same steps for the opposite side.
10. Secure the foot pedal support
bracket to the lower upright support
panel using (2) 5/16”x1/2” carriage
bolts, (2) 5/16”x18x2mm flat washers
and (2) 5/16” hex nuts. Make sure
the armrest of the support bracket is
facing up. Follow the same steps for
the opposite side.
11. Locate the two-foot pedal bars
provided. There is a left side and
right side. To identify the correct
side, look for the protruding nut,
circled in red below. It should be
facing upwards when you place the
bars on the floor.
12. Confirm the foot pedal bar is the
correct side and slide the Foot pedal
bar into the opening on the lower
upright support panel. Make sure
the end of the bar is on the inside of
the triangular support plate. Follow
the same steps for the opposite side.
LEFT
RIGHT
Side view
20
Page 22
1.5HP Mobile Dust Cyclone Manual
22

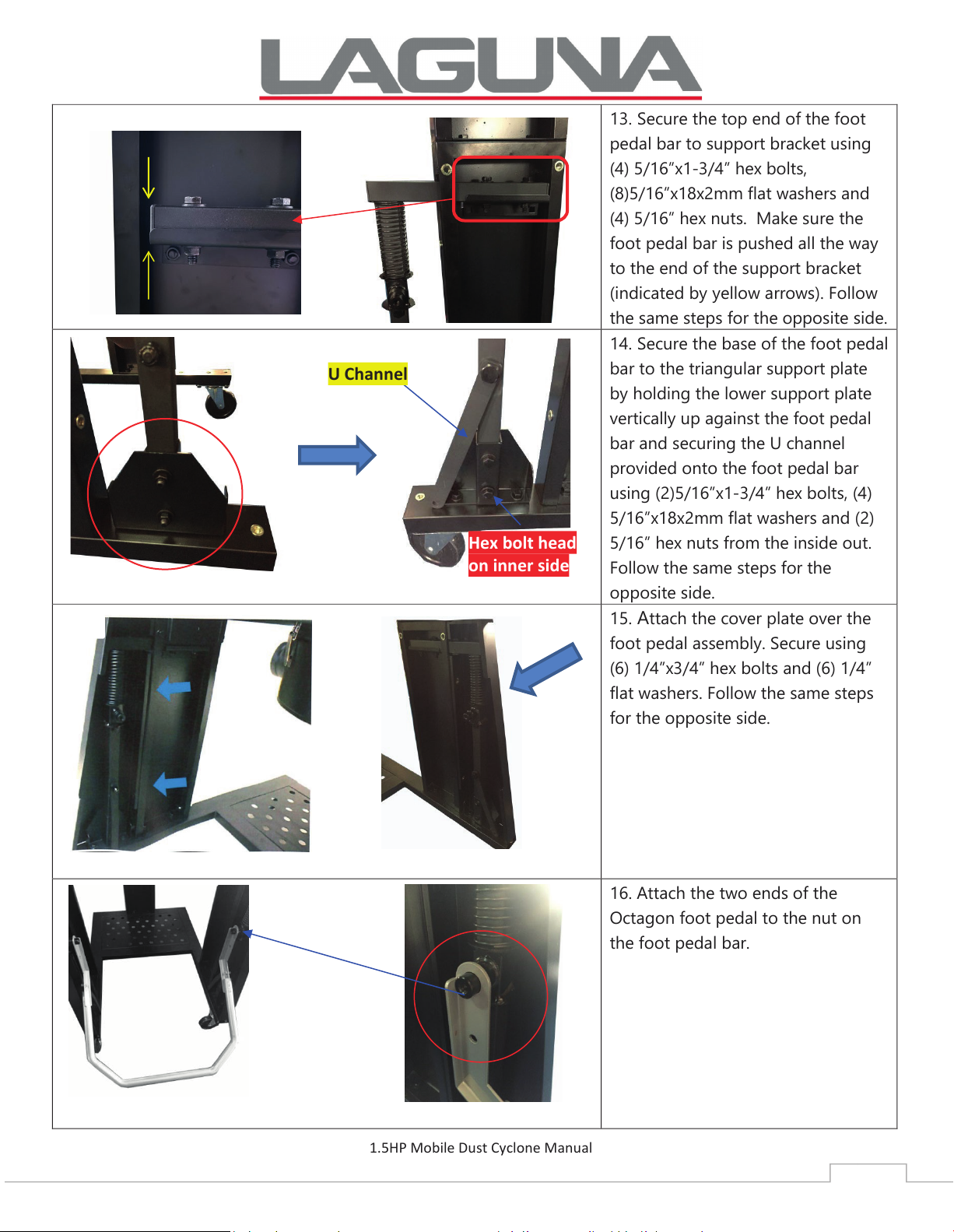

13. Secure the top end of the foot
pedal bar to support bracket using
(4) 5/16”x1-3/4” hex bolts,
(8)5/16”x18x2mm flat washers and
(4) 5/16” hex nuts. Make sure the
foot pedal bar is pushed all the way
to the end of the support bracket
(indicated by yellow arrows). Follow
the same steps for the opposite side.
14. Secure the base of the foot pedal
bar to the triangular support plate
by holding the lower support plate
vertically up against the foot pedal
bar and securing the U channel
provided onto the foot pedal bar
using (2)5/16”x1-3/4” hex bolts, (4)
5/16”x18x2mm flat washers and (2)
5/16” hex nuts from the inside out.
Follow the same steps for the
opposite side.
15. Attach the cover plate over the
foot pedal assembly. Secure using
(6) 1/4”x3/4” hex bolts and (6) 1/4”
flat washers. Follow the same steps
for the opposite side.
16. Attach the two ends of the
Octagon foot pedal to the nut on
the foot pedal bar.
U Channel
Hex bolt head
on inner side
21
Page 23
1.5HP Mobile Dust Cyclone Manual
23

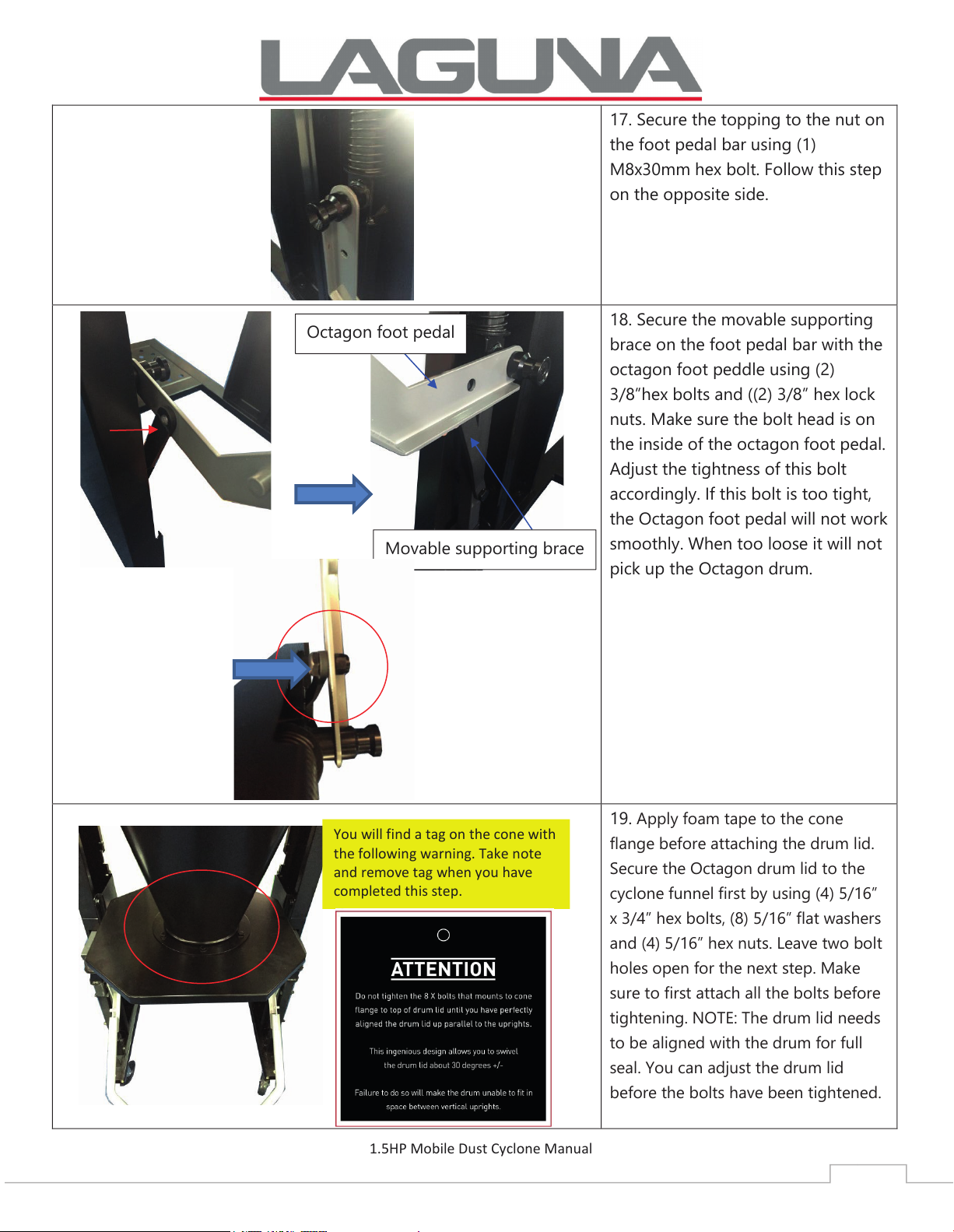

17. Secure the topping to the nut on
the foot pedal bar using (1)
M8x30mm hex bolt. Follow this step
on the opposite side.
18. Secure the movable supporting
brace on the foot pedal bar with the
octagon foot peddle using (2)
3/8”hex bolts and ((2) 3/8” hex lock
nuts. Make sure the bolt head is on
the inside of the octagon foot pedal.
Adjust the tightness of this bolt
accordingly. If this bolt is too tight,
the Octagon foot pedal will not work
smoothly. When too loose it will not
pick up the Octagon drum.
19. Apply foam tape to the cone
flange before attaching the drum lid.
Secure the Octagon drum lid to the
cyclone funnel first by using (4) 5/16”
x 3/4” hex bolts, (8) 5/16” flat washers
and (4) 5/16” hex nuts. Leave two bolt
holes open for the next step. Make
sure to first attach all the bolts before
tightening. NOTE: The drum lid needs
to be aligned with the drum for full
seal. You can adjust the drum lid
before the bolts have been tightened.
You will find a tag on the cone with
the following warning. Take note
and remove tag when you have
completed this step.
Octagon foot pedal
Movable supporting brace
22
Page 24
1.5HP Mobile Dust Cyclone Manual
24

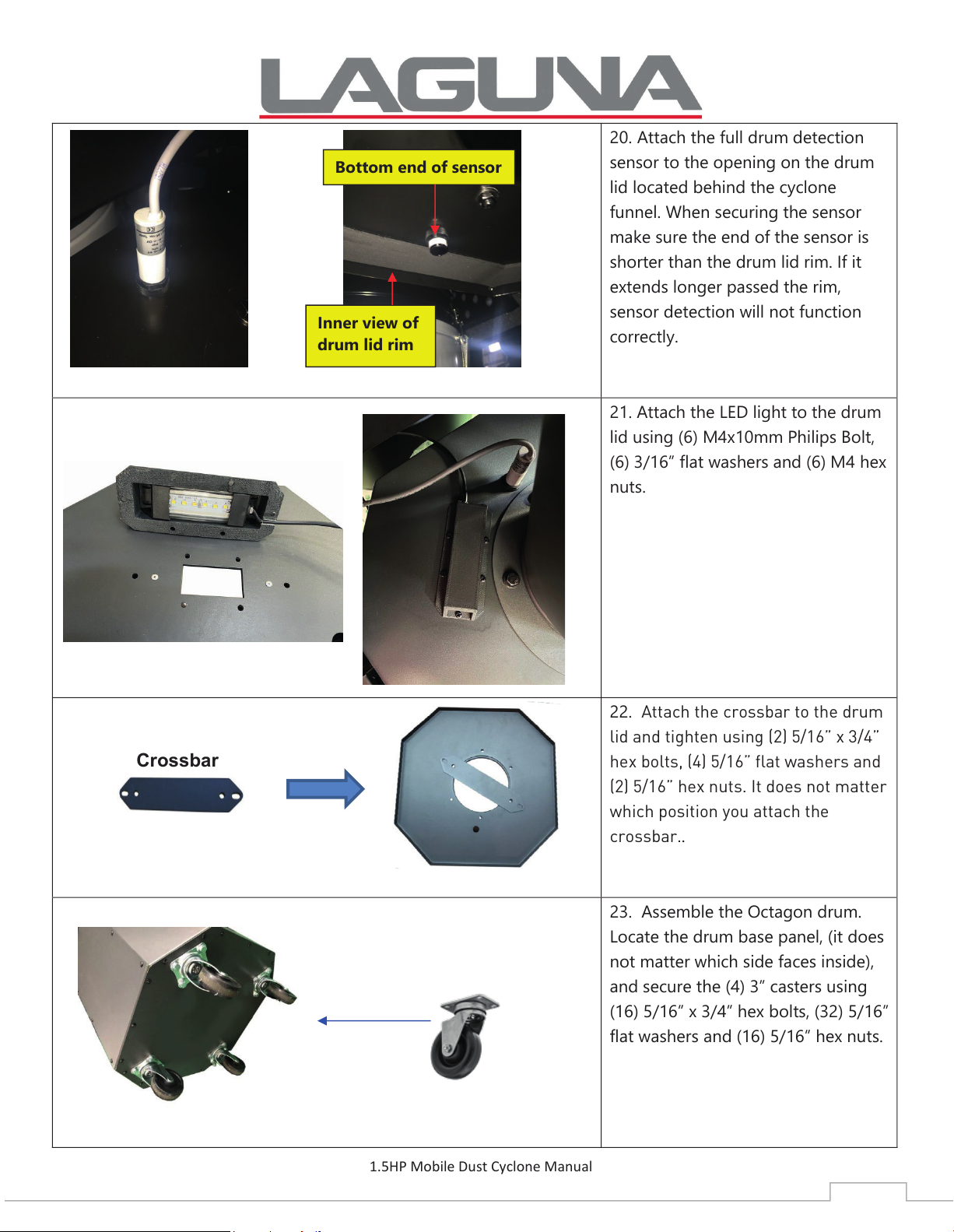

20. Attach the full drum detection
sensor to the opening on the drum
lid located behind the cyclone
funnel. When securing the sensor
make sure the end of the sensor is
shorter than the drum lid rim. If it
extends longer passed the rim,
sensor detection will not function
correctly.
21. Attach the LED light to the drum
lid using (6) M4x10mm Philips Bolt,
(6) 3/16” flat washers and (6) M4 hex
nuts.
22.
Attach the crossbar to the drum
lid and tighten using (2) 5/16” x 3/4”
hex bolts, (4) 5/16” flat washers and
(2) 5/16” hex nuts. It does not matter
which position you attach the
crossbar..
23. Assemble the Octagon drum.
Locate the drum base panel, (it does
not matter which side faces inside),
and secure the (4) 3” casters using
(16) 5/16” x 3/4” hex bolts, (32) 5/16”
flat washers and (16) 5/16” hex nuts.
Bottom end of sensor
Inner view of
drum lid rim
Crossbar
23
Page 25
1.5HP Mobile Dust Cyclone Manual
25

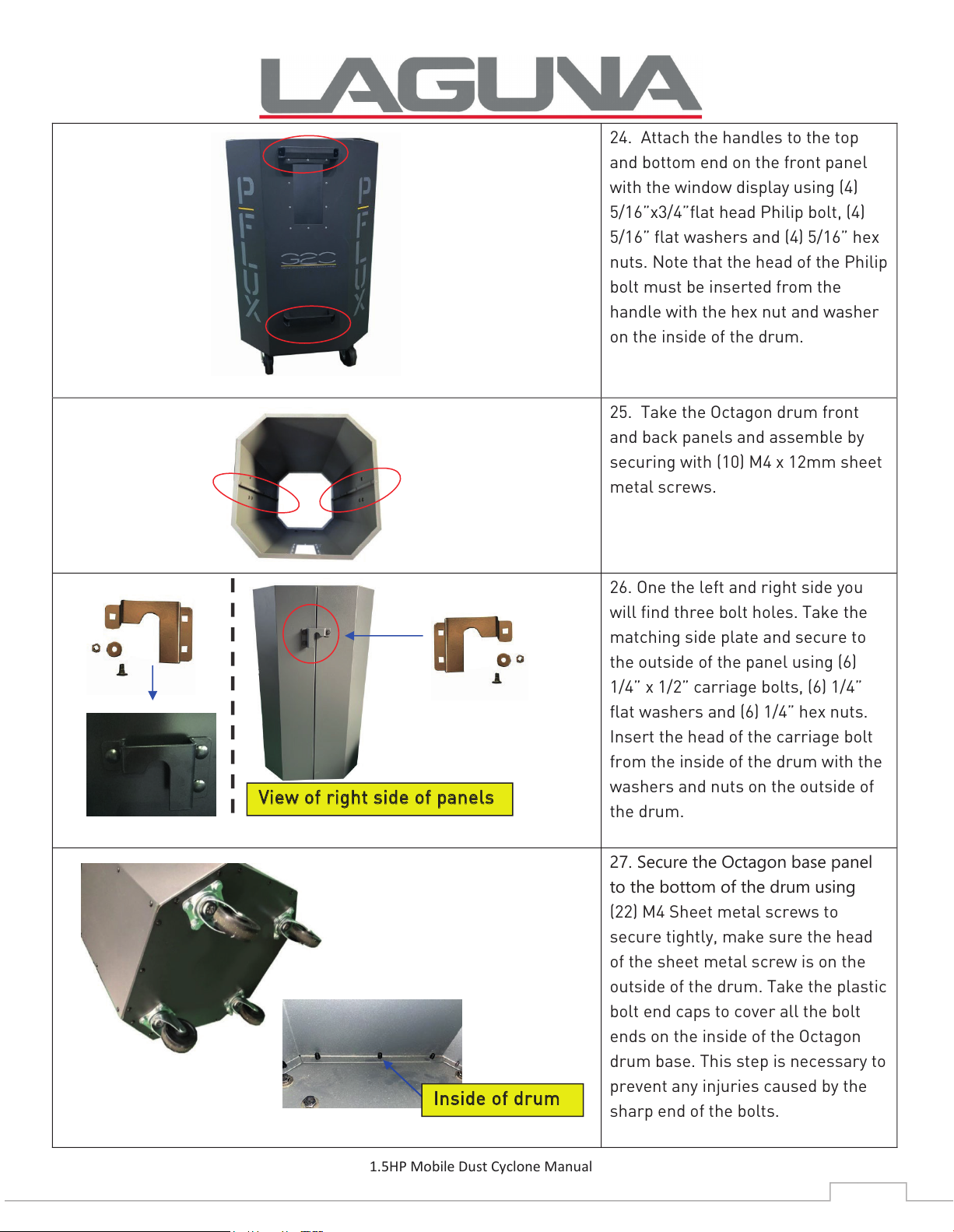

24. Attach the handles to the top
and bottom end on the front panel
with the window display using (4)
5/16”x3/4”flat head Philip bolt, (4)
5/16” flat washers and (4) 5/16” hex
nuts. Note that the head of the Philip
bolt must be inserted from the
handle with the hex nut and washer
on the inside of the drum.
25. Take the Octagon drum front
and back panels and assemble by
securing with (10) M4 x 12mm sheet
metal screws.
26. One the left and right side you
will find three bolt holes. Take the
matching side plate and secure to
the outside of the panel using (6)
1/4” x 1/2” carriage bolts, (6) 1/4”
flat washers and (6) 1/4” hex nuts.
Insert the head of the carriage bolt
from the inside of the drum with the
washers and nuts on the outside of
the drum.
27. Secure the Octagon base panel
to the bottom of the drum using
(22) M4 Sheet metal screws to
secure tightly, make sure the head
of the sheet metal screw is on the
outside of the drum. Take the plastic
bolt end caps to cover all the bolt
ends on the inside of the Octagon
drum base. This step is necessary to
prevent any injuries caused by the
sharp end of the bolts.
VViieeww ooff rriigghhtt ssiiddee ooff ppaanneellss
IInnssiiddee ooff ddrruumm
24
Page 26
1.5HP Mobile Dust Cyclone Manual
26

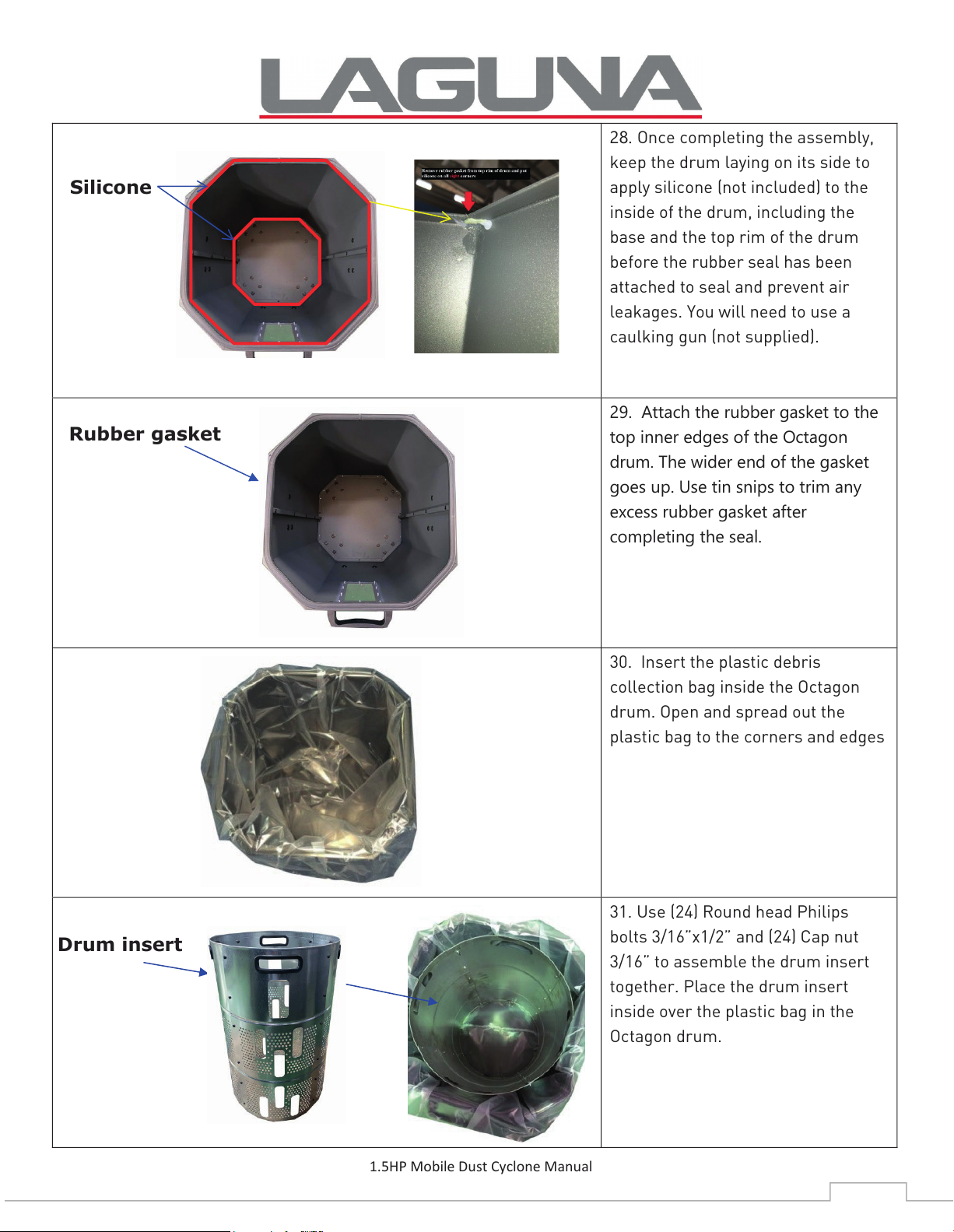

28.
Once completing the assembly,
keep the drum laying on its side to
apply silicone (not included) to the
inside of the drum, including the
base and the top rim of the drum
before the rubber seal has been
attached to seal and prevent air
leakages. You will need to use a
caulking gun (not supplied).
29. Attach the rubber gasket to the
top inner edges of the Octagon
drum. The wider end of the gasket
goes up. Use tin snips to trim any
excess rubber gasket after
completing the seal.
30. Insert the plastic debris
collection bag inside the Octagon
drum. Open and spread out the
plastic bag to the corners and edges
31. Use (24) Round head Philips
bolts 3/16”x1/2” and (24) Cap nut
3/16” to assemble the drum insert
together. Place the drum insert
inside over the plastic bag in the
Octagon drum.
Rubber gasket
Drum insert
Silicone
25
Page 27
1.5HP Mobile Dust Cyclone Manual
27

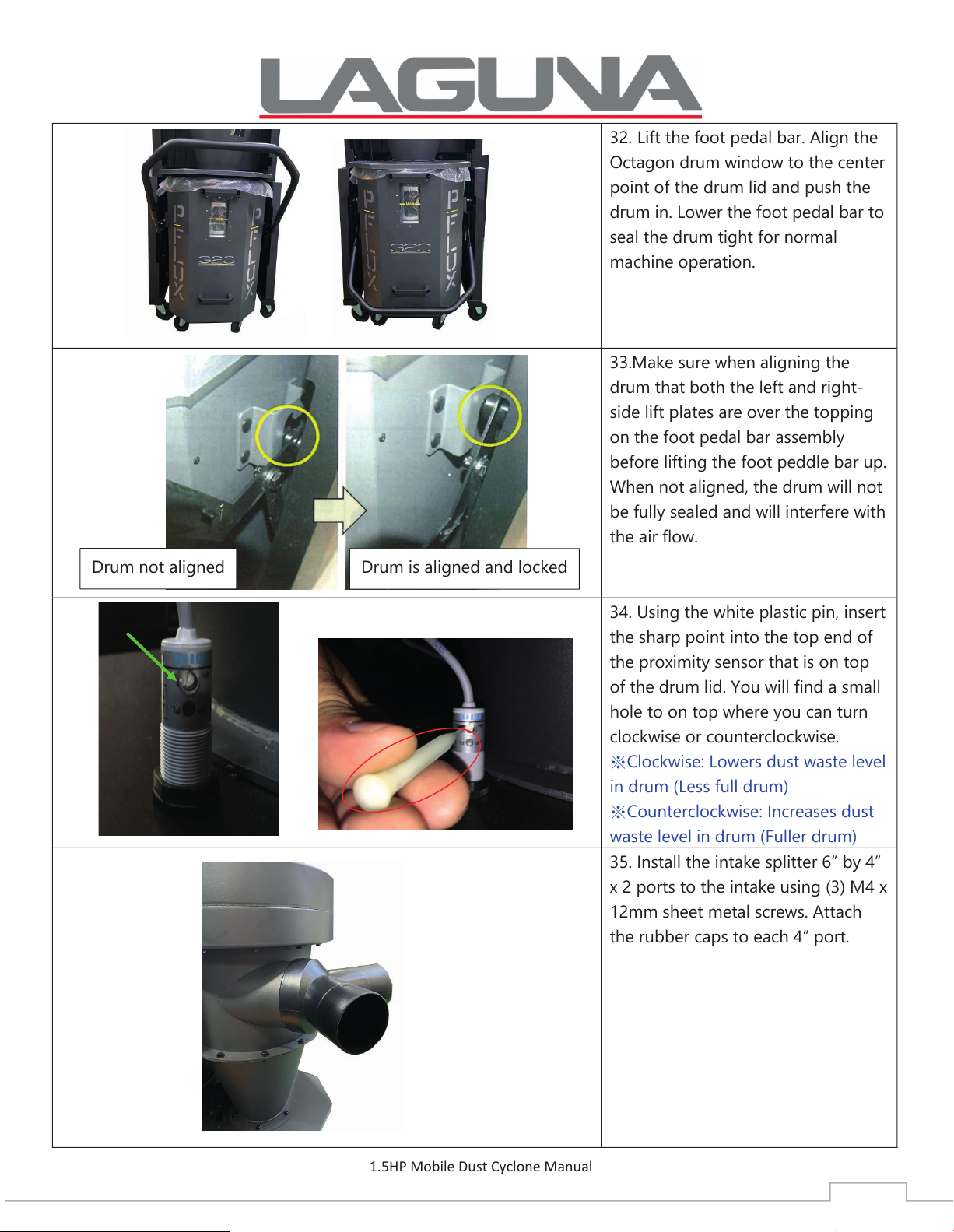

32. Lift the foot pedal bar. Align the
Octagon drum window to the center
point of the drum lid and push the
drum in. Lower the foot pedal bar to
seal the drum tight for normal
machine operation.
33.Make sure when aligning the
drum that both the left and right-
side lift plates are over the topping
on the foot pedal bar assembly
before lifting the foot peddle bar up.
When not aligned, the drum will not
be fully sealed and will interfere with
the air flow.
34. Using the white plastic pin, insert
the sharp point into the top end of
the proximity sensor that is on top
of the drum lid. You will find a small
hole to on top where you can turn
clockwise or counterclockwise.
※Clockwise: Lowers dust waste level
in drum (Less full drum)
※
Counterclockwise: Increases dust
waste level in drum (Fuller drum)
35. Install the intake splitter 6” by 4”
x 2 ports to the intake using (3) M4 x
12mm sheet metal screws. Attach
the rubber caps to each 4” port.
Drum is aligned and locked
Drum not aligned
26
Page 28
1.5HP Mobile Dust Cyclone Manual
28

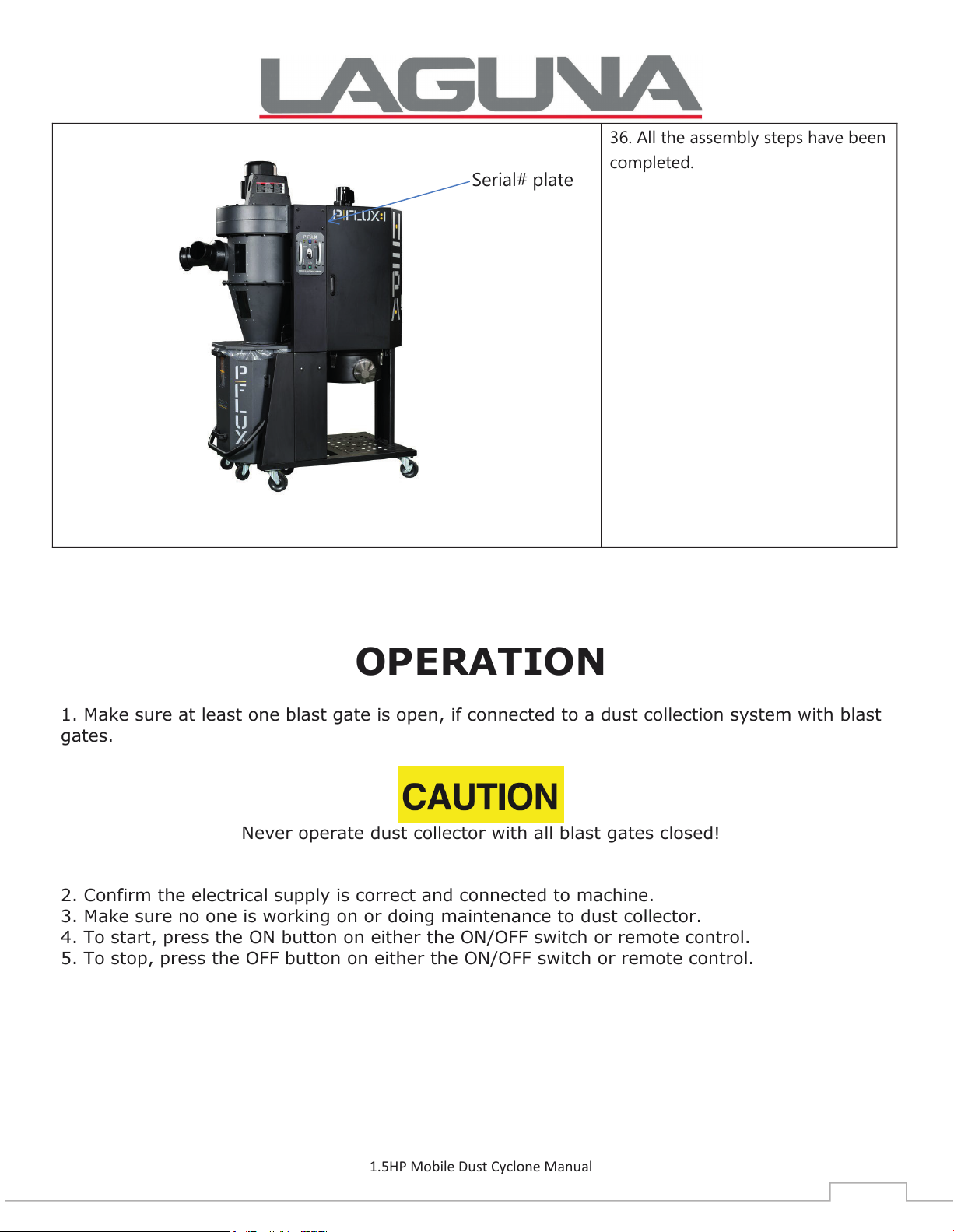

36. All the assembly steps have been
completed.
OPERATION
1. Make sure at least one blast gate is open, if connected to a dust collection system with blast
gates.
Never operate dust collector with all blast gates closed!
2. Confirm the electrical supply is correct and connected to machine.
3. Make sure no one is working on or doing maintenance to dust collector.
4. To start, press the ON button on either the ON/OFF switch or remote control.
5. To stop, press the OFF button on either the ON/OFF switch or remote control.
Serial# plate
27
Page 29
1.5HP Mobile Dust Cyclone Manual
29

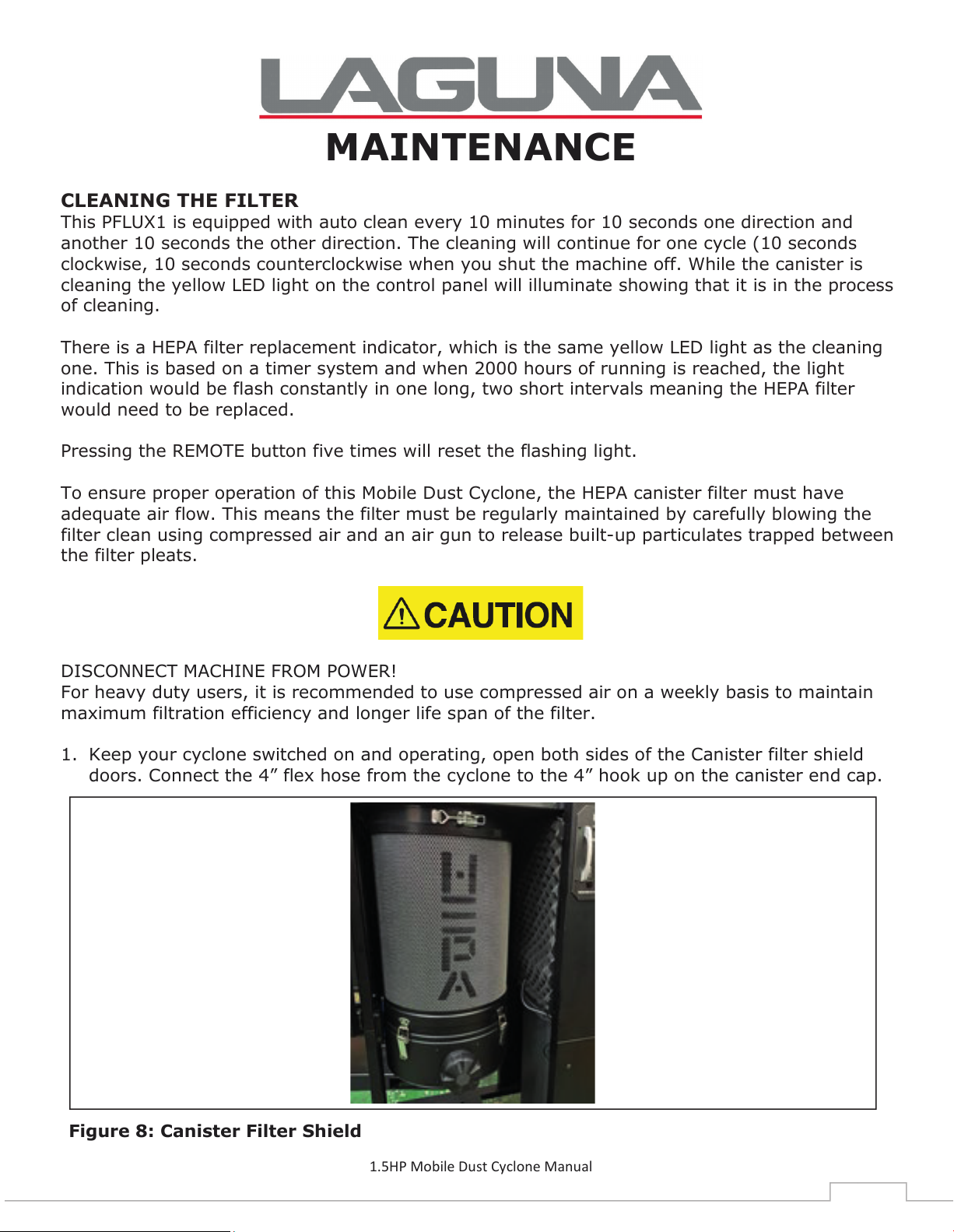

MAINTENANCE
CLEANING THE FILTER
This PFLUX1 is equipped with auto clean every 10 minutes for 10 seconds one direction and
another 10 seconds the other direction. The cleaning will continue for one cycle (10 seconds
clockwise, 10 seconds counterclockwise when you shut the machine off. While the canister is
cleaning the yellow LED light on the control panel will illuminate showing that it is in the process
of cleaning.
There is a HEPA filter replacement indicator, which is the same yellow LED light as the cleaning
one. This is based on a timer system and when 2000 hours of running is reached, the light
indication would be flash constantly in one long, two short intervals meaning the HEPA filter
would need to be replaced.
Pressing the REMOTE button five times will reset the flashing light.
To ensure proper operation of this Mobile Dust Cyclone, the HEPA canister filter must have
adequate air flow. This means the filter must be regularly maintained by carefully blowing the
filter clean using compressed air and an air gun to release built-up particulates trapped between
the filter pleats.
DISCONNECT MACHINE FROM POWER!
For heavy duty users, it is recommended to use compressed air on a weekly basis to maintain
maximum filtration efficiency and longer life span of the filter.
1. Keep your cyclone switched on and operating, open both sides of the Canister filter shield
doors. Connect the 4” flex hose from the cyclone to the 4” hook up on the canister end cap.
Figure 8: Canister Filter Shield
28
Page 30
1.5HP Mobile Dust Cyclone Manual
30
2. While the cyclone is collecting the dust from inside the canister end cap; use compressed air
and an air gun and blow the outer surface of the canister.
3. After cleaning the filter with the compressed air gun, follow the steps in the next section to
remove the end cap to empty out any dust left inside.

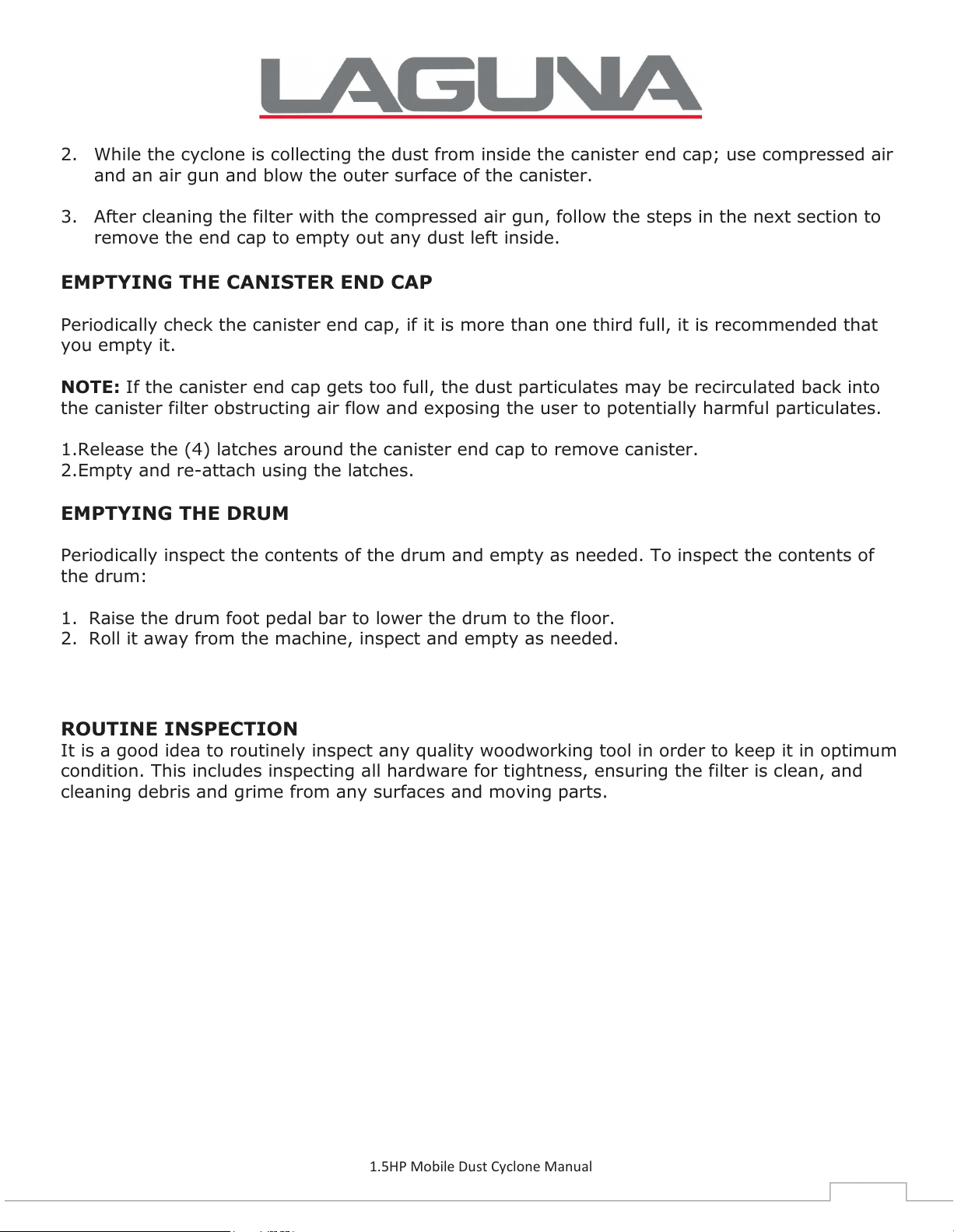

EMPTYING THE CANISTER END CAP
Periodically check the canister end cap, if it is more than one third full, it is recommended that
you empty it.
NOTE: If the canister end cap gets too full, the dust particulates may be recirculated back into
the canister filter obstructing air flow and exposing the user to potentially harmful particulates.
1.Release the (4) latches around the canister end cap to remove canister.
2.Empty and re-attach using the latches.
EMPTYING THE DRUM
Periodically inspect the contents of the drum and empty as needed. To inspect the contents of
the drum:
1. Raise the drum foot pedal bar to lower the drum to the floor.
2. Roll it away from the machine, inspect and empty as needed.
ROUTINE INSPECTION
It is a good idea to routinely inspect any quality woodworking tool in order to keep it in optimum
condition. This includes inspecting all hardware for tightness, ensuring the filter is clean, and
cleaning debris and grime from any surfaces and moving parts.
29
Page 31
1.5HP Mobile Dust Cyclone Manual
31

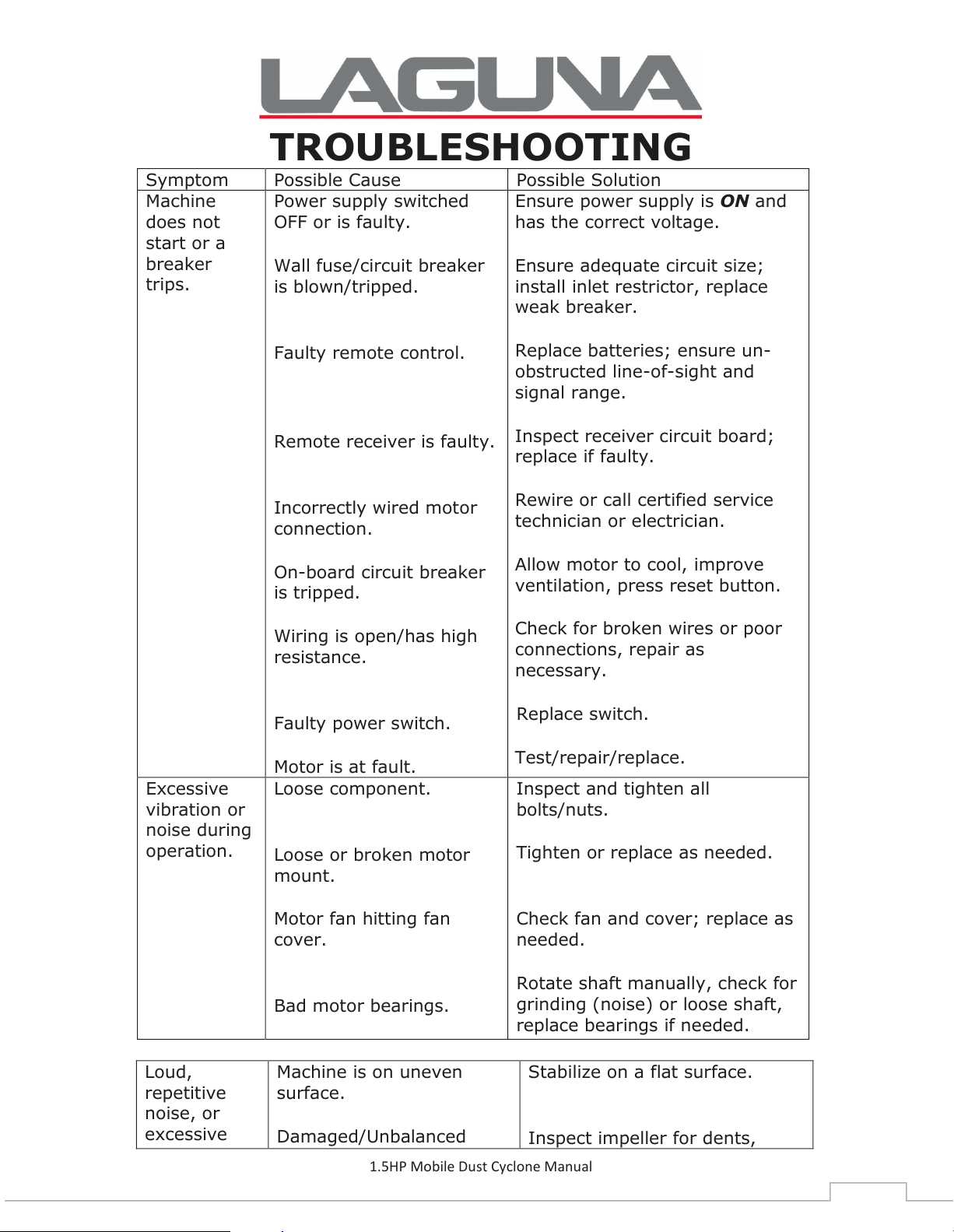

TROUBLESHOOTING
Symptom
Possible Cause
Possible Solution
Machine
does not
start or a
breaker
trips.
Power supply switched
OFF or is faulty.
Wall fuse/circuit breaker
is blown/tripped.
Faulty remote control.
Remote receiver is faulty.
Incorrectly wired motor
connection.
On-board circuit breaker
is tripped.
Wiring is open/has high
resistance.
Faulty power switch.
Motor is at fault.
Ensure power supply is ON and
has the correct voltage.
Ensure adequate circuit size;
install inlet restrictor, replace
weak breaker.
Replace batteries; ensure un-
obstructed line-of-sight and
signal range.
Inspect receiver circuit board;
replace if faulty.
Rewire or call certified service
technician or electrician.
Allow motor to cool, improve
ventilation, press reset button.
Check for broken wires or poor
connections, repair as
necessary.
Replace switch.
Test/repair/replace.
Excessive
vibration or
noise during
operation.
Loose component.
Loose or broken motor
mount.
Motor fan hitting fan
cover.
Bad motor bearings.
Inspect and tighten all
bolts/nuts.
Tighten or replace as needed.
Check fan and cover; replace as
needed.
Rotate shaft manually, check for
grinding (noise) or loose shaft,
replace bearings if needed.
Loud,
repetitive
noise, or
excessive
Machine is on uneven
surface.
Damaged/Unbalanced
Stabilize on a flat surface.
Inspect impeller for dents,
30
Page 32
1.5HP Mobile Dust Cyclone Manual
32

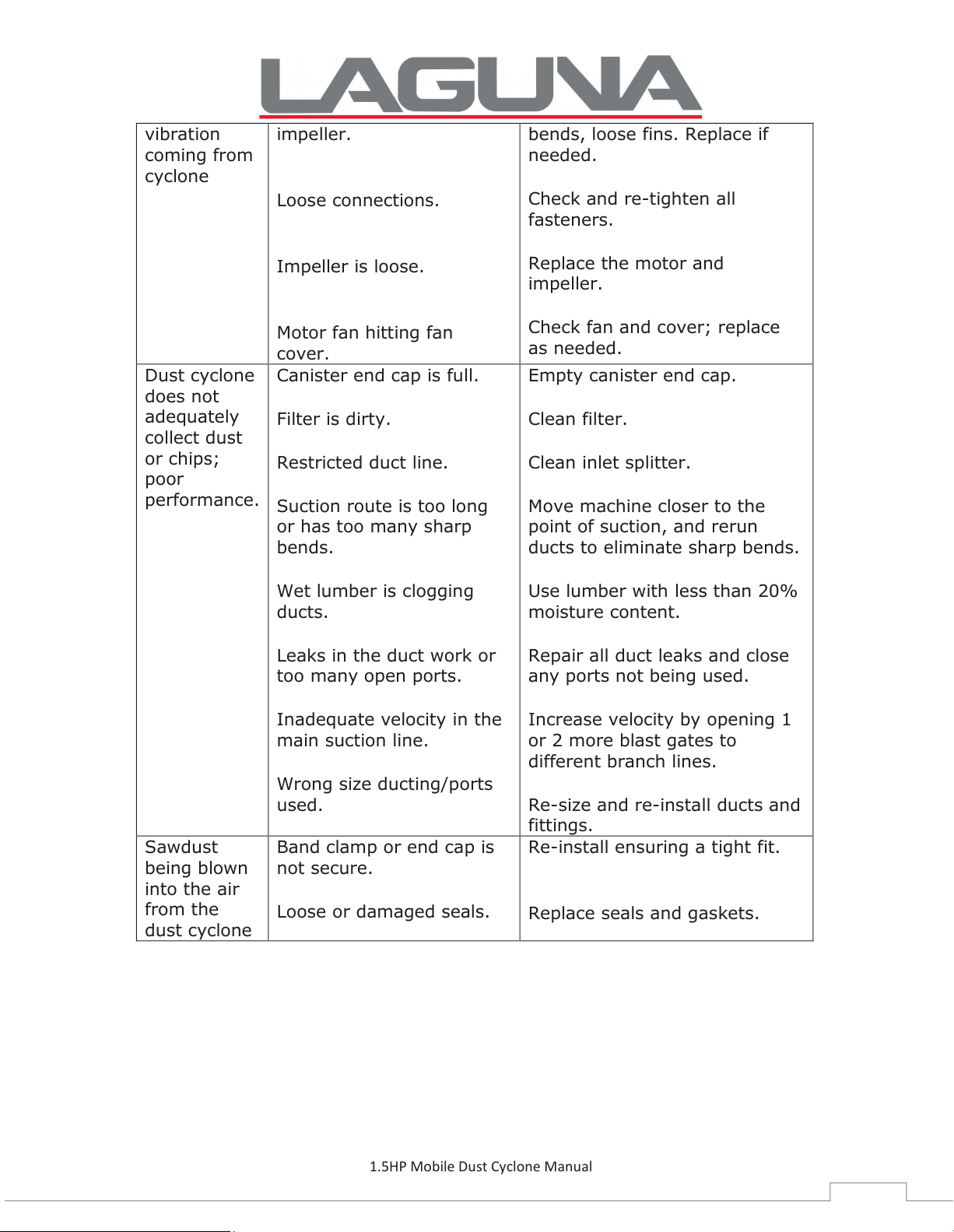

vibration
coming from
cyclone
impeller.
Loose connections.
Impeller is loose.
Motor fan hitting fan
cover.
bends, loose fins. Replace if
needed.
Check and re-tighten all
fasteners.
Replace the motor and
impeller.
Check fan and cover; replace
as needed.
Dust cyclone
does not
adequately
collect dust
or chips;
poor
performance.
Canister end cap is full.
Filter is dirty.
Restricted duct line.
Suction route is too long
or has too many sharp
bends.
Wet lumber is clogging
ducts.
Leaks in the duct work or
too many open ports.
Inadequate velocity in the
main suction line.
Wrong size ducting/ports
used.
Empty canister end cap.
Clean filter.
Clean inlet splitter.
Move machine closer to the
point of suction, and rerun
ducts to eliminate sharp bends.
Use lumber with less than 20%
moisture content.
Repair all duct leaks and close
any ports not being used.
Increase velocity by opening 1
or 2 more blast gates to
different branch lines.
Re-size and re-install ducts and
fittings.
Sawdust
being blown
into the air
from the
dust cyclone
Band clamp or end cap is
not secure.
Loose or damaged seals.
Re-install ensuring a tight fit.
Replace seals and gaskets.
31
Page 33
1.5HP Mobile Dust Cyclone Manual
33
Exploded Views/Parts Breakdown
2021.10.14
出圖章
山富機械公司

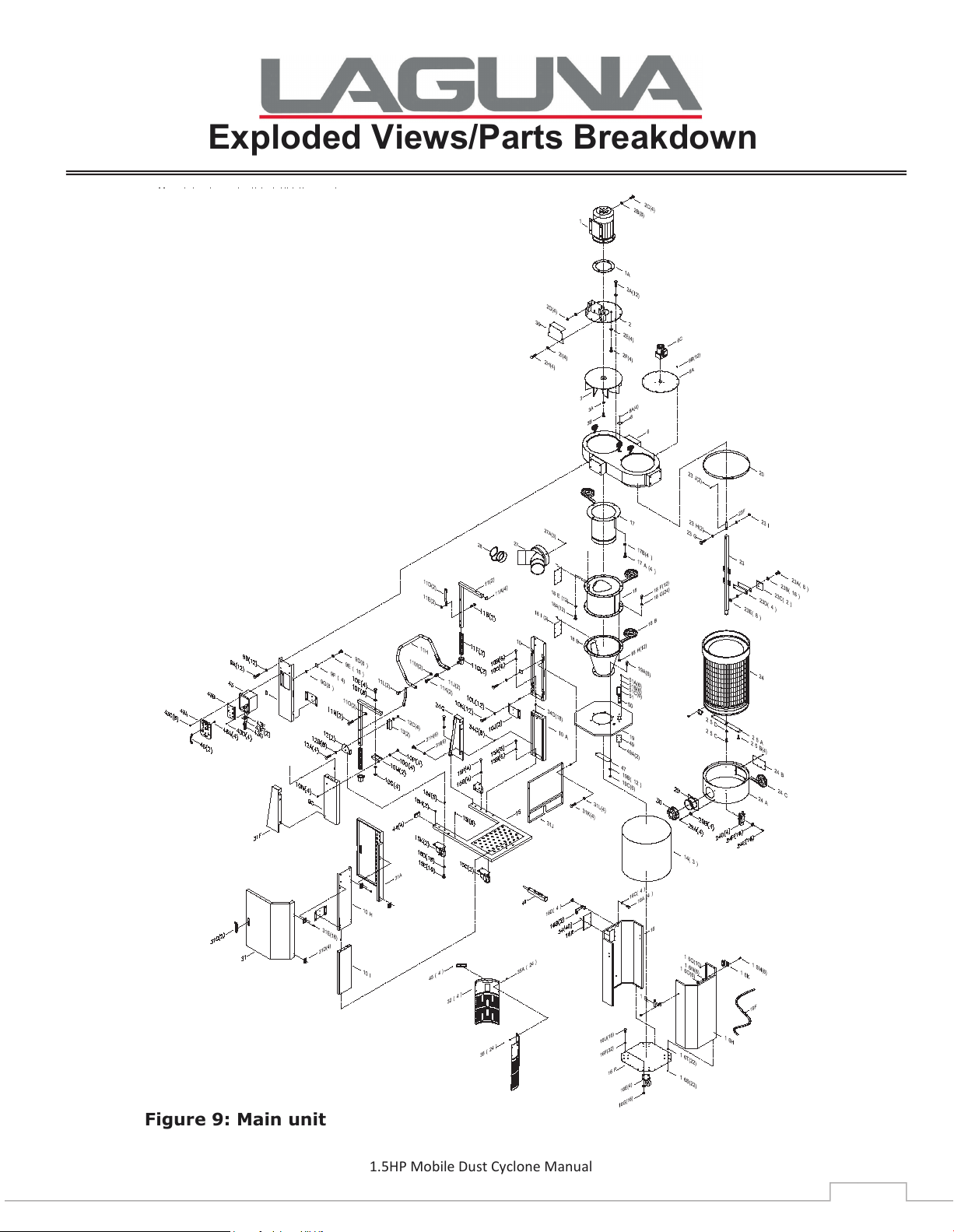

Figure 9: Main unit
32
Page 34
1.5HP Mobile Dust Cyclone Manual
34

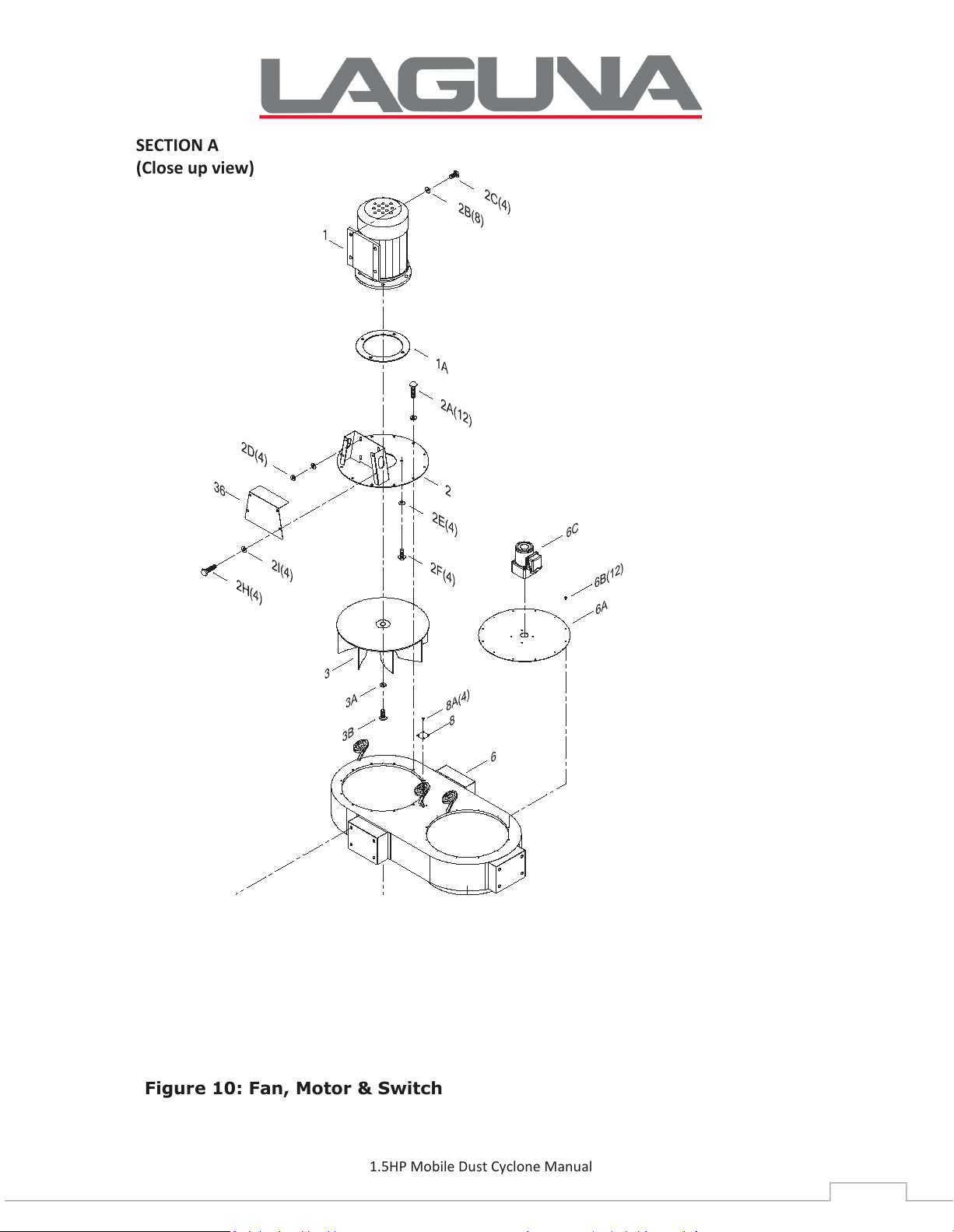

Figure 10: Fan, Motor & Switch
SECTION A
(Close up view)
33
Page 35
1.5HP Mobile Dust Cyclone Manual
35

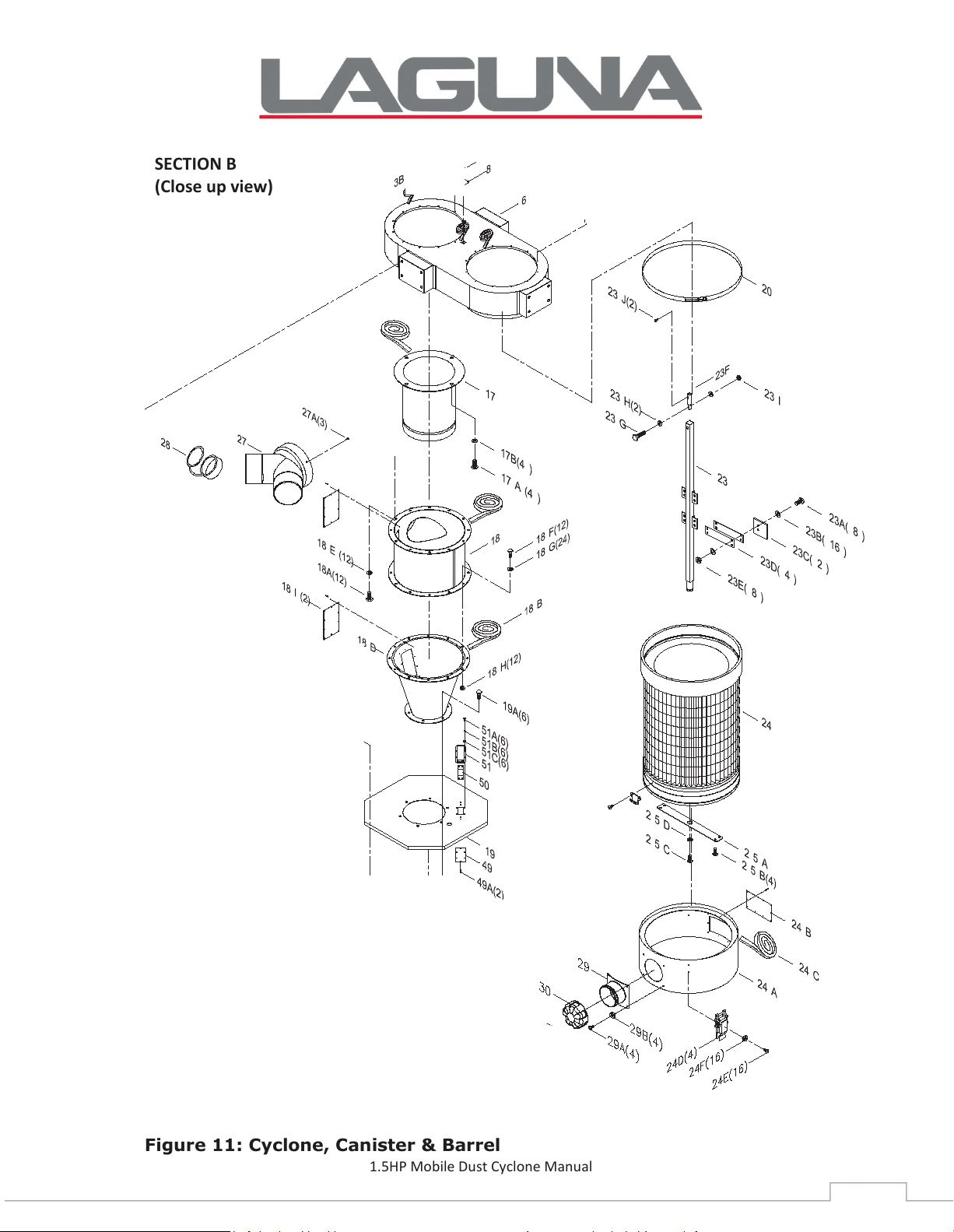

Figure 11: Cyclone, Canister & Barrel
SECTION B
(Close up view)
34
Page 36
1.5HP Mobile Dust Cyclone Manual
36

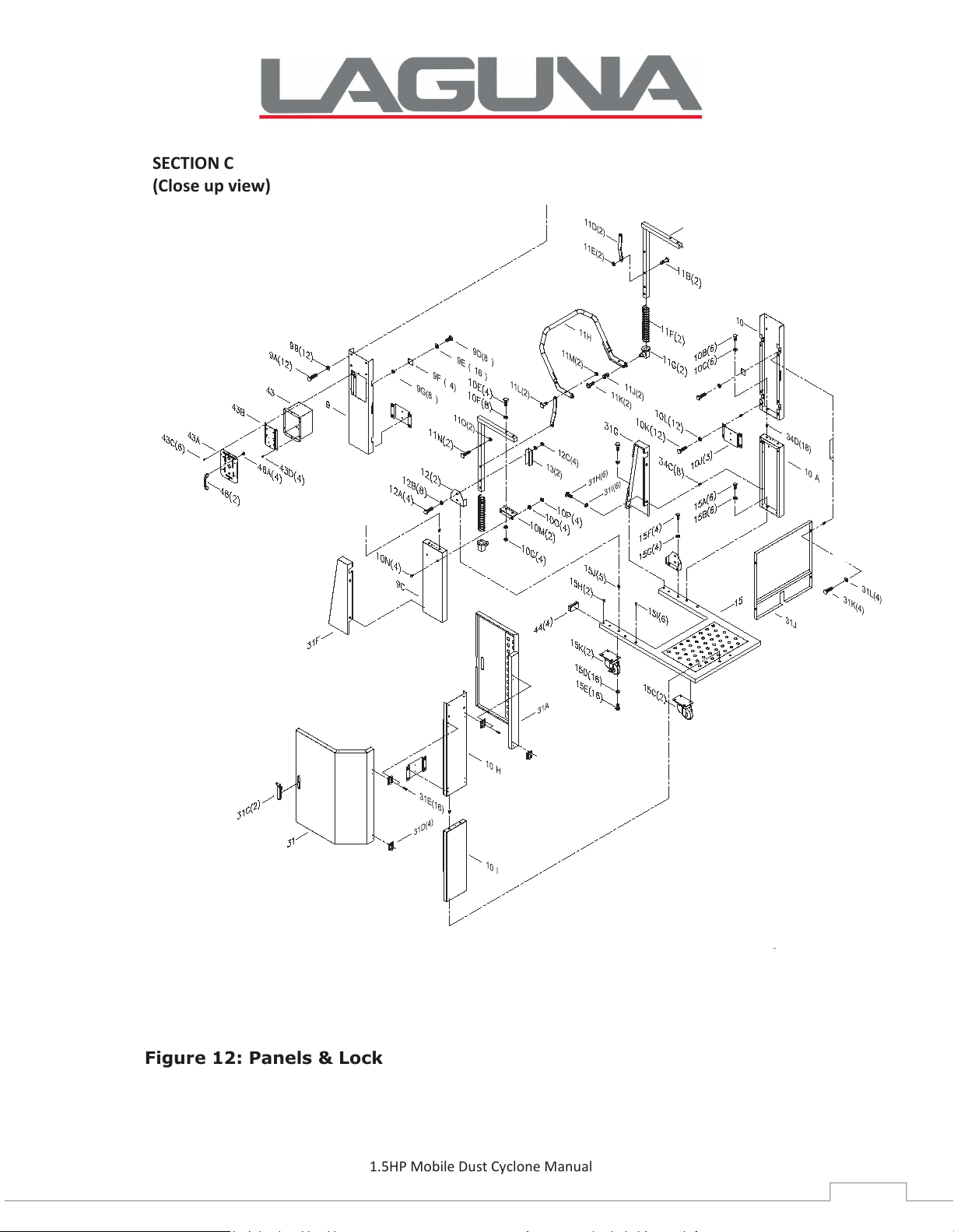

Figure 12: Panels & Lock
SECTION C
(Close up view)
35
Page 37
1.5HP Mobile Dust Cyclone Manual
37

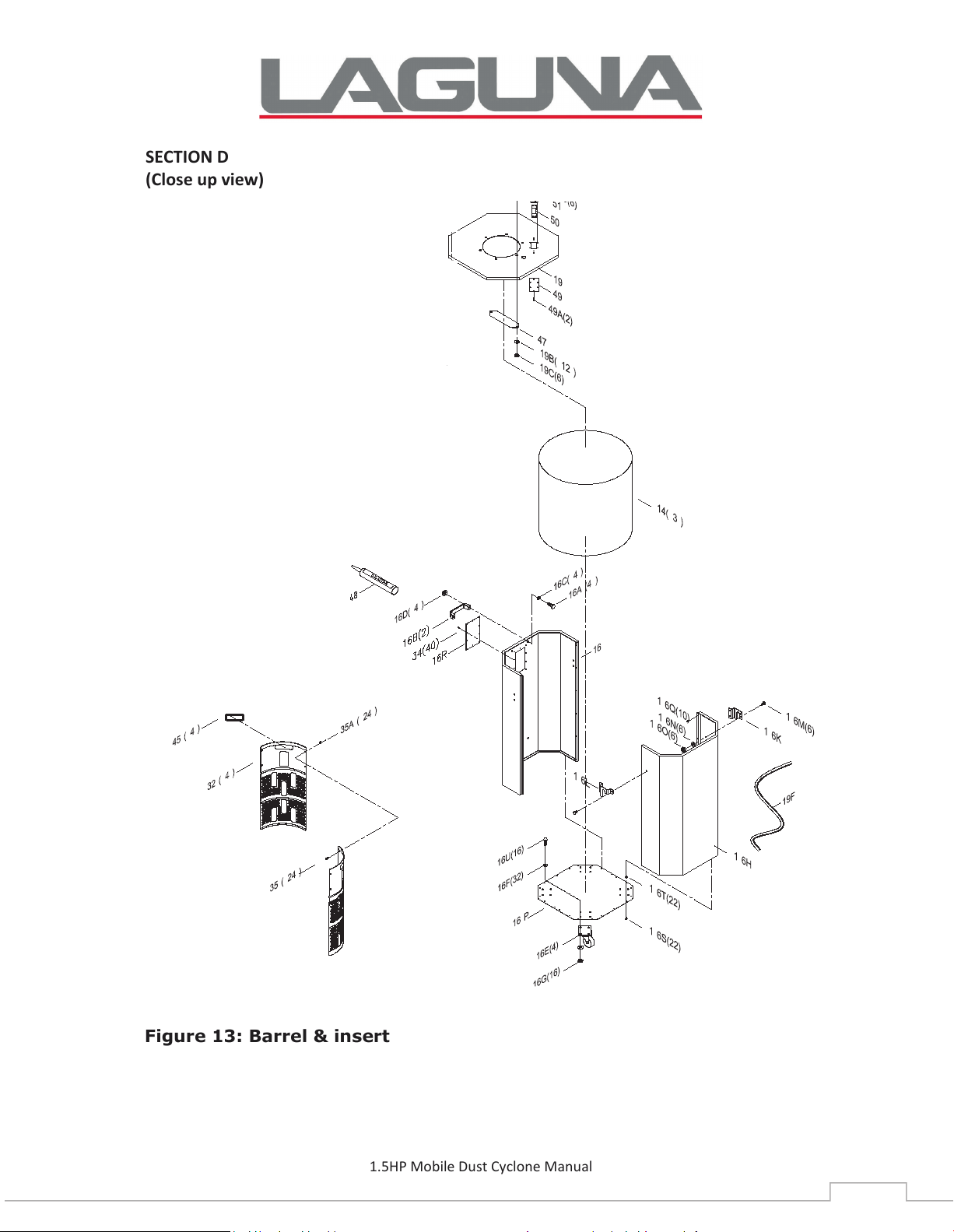

Figure 13: Barrel & insert
36
Page 38
1.5HP Mobile Dust Cyclone Manual
38

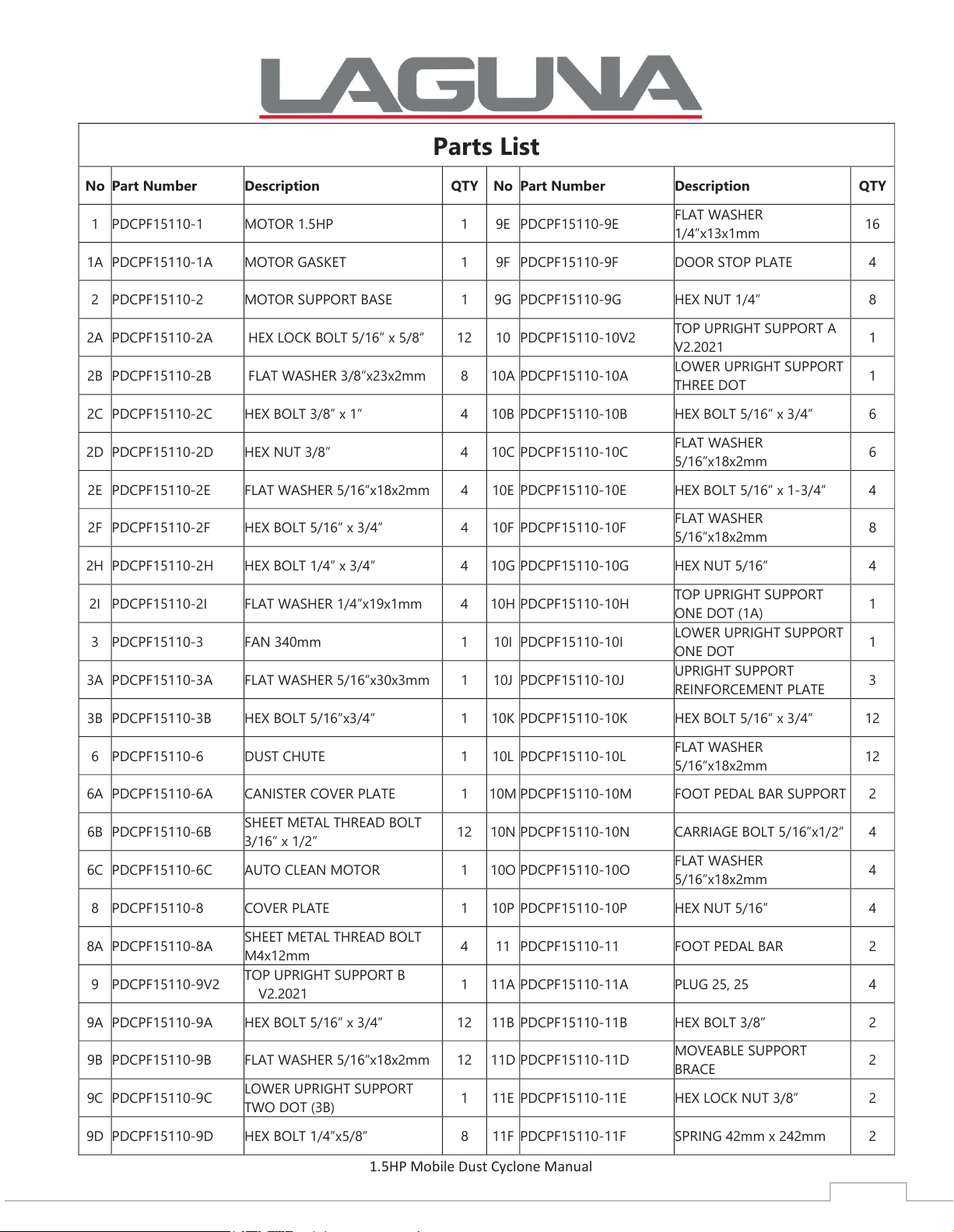

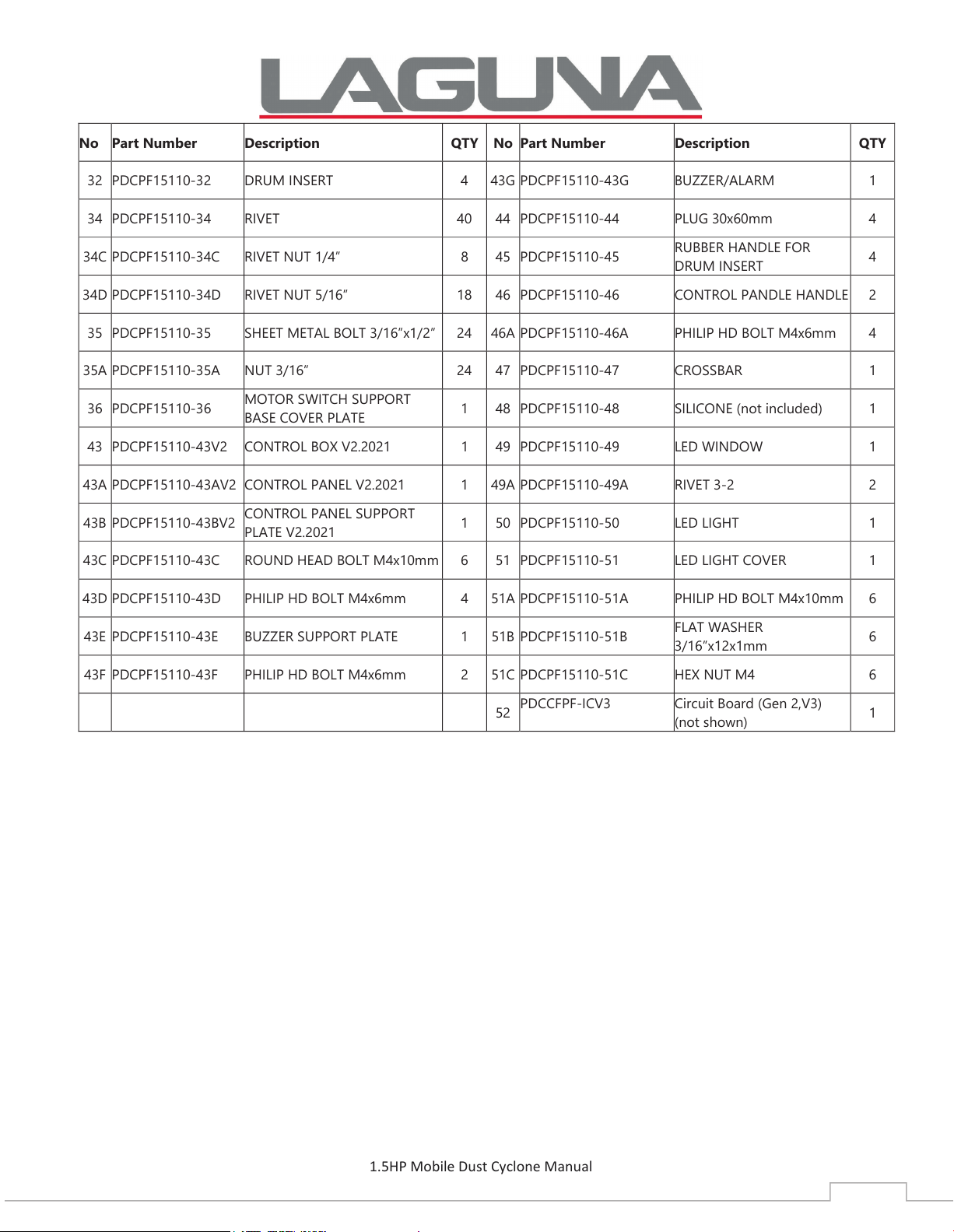

Parts List
No
Part N
umber
Description
QTY No
Part N
umber
Description
QTY
1
PDCPF15110
-1
MOTOR 1.5HP
1 9E
PDCPF15110
-9E
FLAT WASHER
1/4”x13x1mm
16
1A
PDCPF15110
-1A
MOTOR GASKET
1 9F
PDCPF15110
-9F
DOOR STOP PLATE
4
2
PDCPF15110
-2
MOTOR SUPPORT BASE
1 9G
PDCPF15110
-9G
HEX NUT 1/4”
8
2A
PDCPF15110
-2A
HEX LOCK BOLT 5/16” x 5/8” 12 10
PDCPF15110
-10V2
TOP UPRIGHT SUPPORT A
V2.2021
1
2B
PDCPF15110
-2B
FLAT WASHER 3/8”x23x2mm 8 10A
PDCPF15110
-10A
LOWER UPRIGHT SUPPORT
THREE DOT
1
2C
PDCPF15110
-2C
HEX BOLT 3/8” x 1”
4 10B
PDCPF15110
-10B
HEX BOLT 5/16” x 3/4”
6
2D
PDCPF15110
-2D
HEX NUT 3/8”
4 10C
PDCPF15110
-10C
FLAT WASHER
5/16”x18x2mm
6
2E
PDCPF15110
-2E
FLAT WASHER 5/16”x18x2
mm 4 10E
PDCPF15110
-10E
HEX BOLT 5/16” x 1
-3/4” 4
2F
PDCPF15110
-2F
HEX BOLT 5/16” x 3/4”
4 10F
PDCPF15110
-10F
FLAT WASHER
5/16”x18x2mm
8
2H
PDCPF15110
-2H
HEX BOLT 1/4” x 3/4”
4 10G
PDCPF15110
-10G
HEX NUT 5/16”
4
2I
PDCPF15110
-2I
FLAT WASHER 1/4”x19x1
mm 4 10H
PDCPF15110
-10H
TOP UPRIGHT SUPPORT
ONE DOT (1A)
1
3
PDCPF15110
-3
FAN 340mm
1 10I
PDCPF15110
-10I
LOWER UPRIGHT SUPPORT
ONE DOT
1
3A
PDCPF15110
-3A
FLAT WASHER 5/16”x30x3
mm 1 10J
PDCPF15110
-10J
UPRIGHT SUPPORT
REINFORCEMENT PLATE
3
3B
PDCPF15110
-3B
HEX
BOLT 5/16”x3/4” 1 10K
PDCPF15110
-10K
HEX BOLT 5/16” x 3/4”
12
6
PDCPF15110
-6
DUST CHUTE
1 10L
PDCPF15110
-10L
FLAT WASHER
5/16”x18x2mm
12
6A
PDCPF15110
-6A
CANISTER COVER PLATE
1 10M
PDCPF15110
-10M
FOOT PED
AL BAR SUPPORT 2
6B
PDCPF15110
-6B
SHEET METAL THREAD BOLT
3/16” x 1/2”
12 10N
PDCPF15110
-10N
CARRIAGE BOLT 5/16”x1/2”
4
6C
PDCPF15110
-6C
AUTO CLEAN MOTOR
1 10O
PDCPF15110
-10O
FLAT WASHER
5/16”x18x2mm
4
8
PDCPF15110
-8
COVER PLATE
1 10P
PDCPF15110
-10P
HEX NUT 5/16”
4
8A
PDCPF15110
-8A
SHEET METAL THREAD BOLT
M4x12mm
4 11
PDCPF15110
-11
FOOT PED
AL BAR 2
9
PDCPF15110
-9V2
TOP UPRIGHT SUPPORT B
V2.2021
1 11A
PDCPF15110
-11A
PLUG 25, 25
4
9A
PDCPF15110
-9A
HEX BOLT 5/16” x 3/4”
12 11B
PDCPF15110
-11B
HEX BOLT 3/8”
2
9B
PDCPF15110
-9B
FLAT WASHER
5/16”x18x2mm 12 11D
PDCPF15110
-11D
MOVEABLE SUPPORT
BRACE
2
9C
PDCPF15110
-9C
LOWER UPRIGHT SUPPORT
TWO DOT (3B)
1 11E
PDCPF15110
-11E
HEX LOCK NUT 3/8”
2
9D
PDCPF15110
-9D
HEX BOLT 1/4”x5/8”
8 11F
PDCPF15110
-11F
SPRING 42mm x 242mm
2
37
Page 39
1.5HP Mobile Dust Cyclone Manual
39

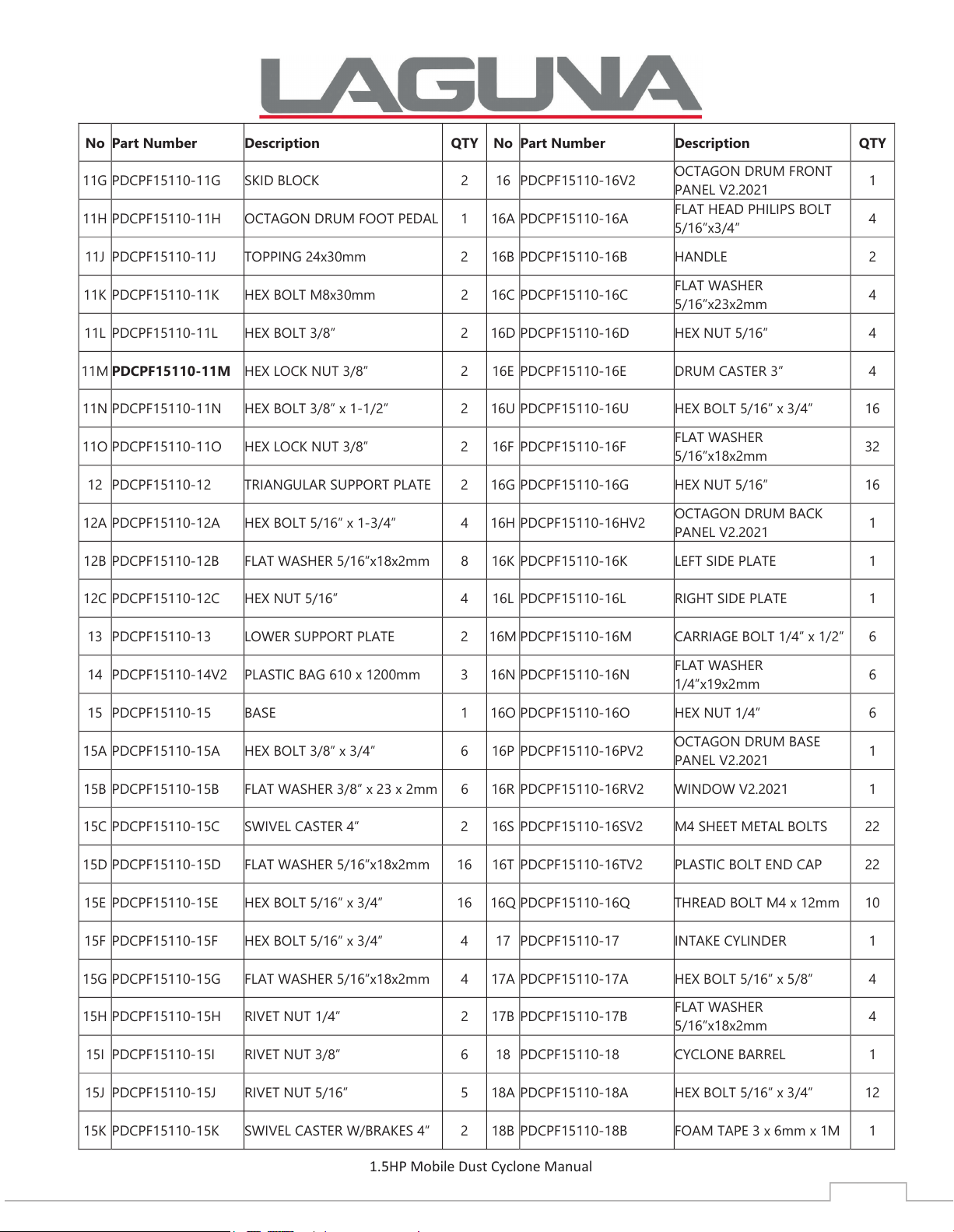

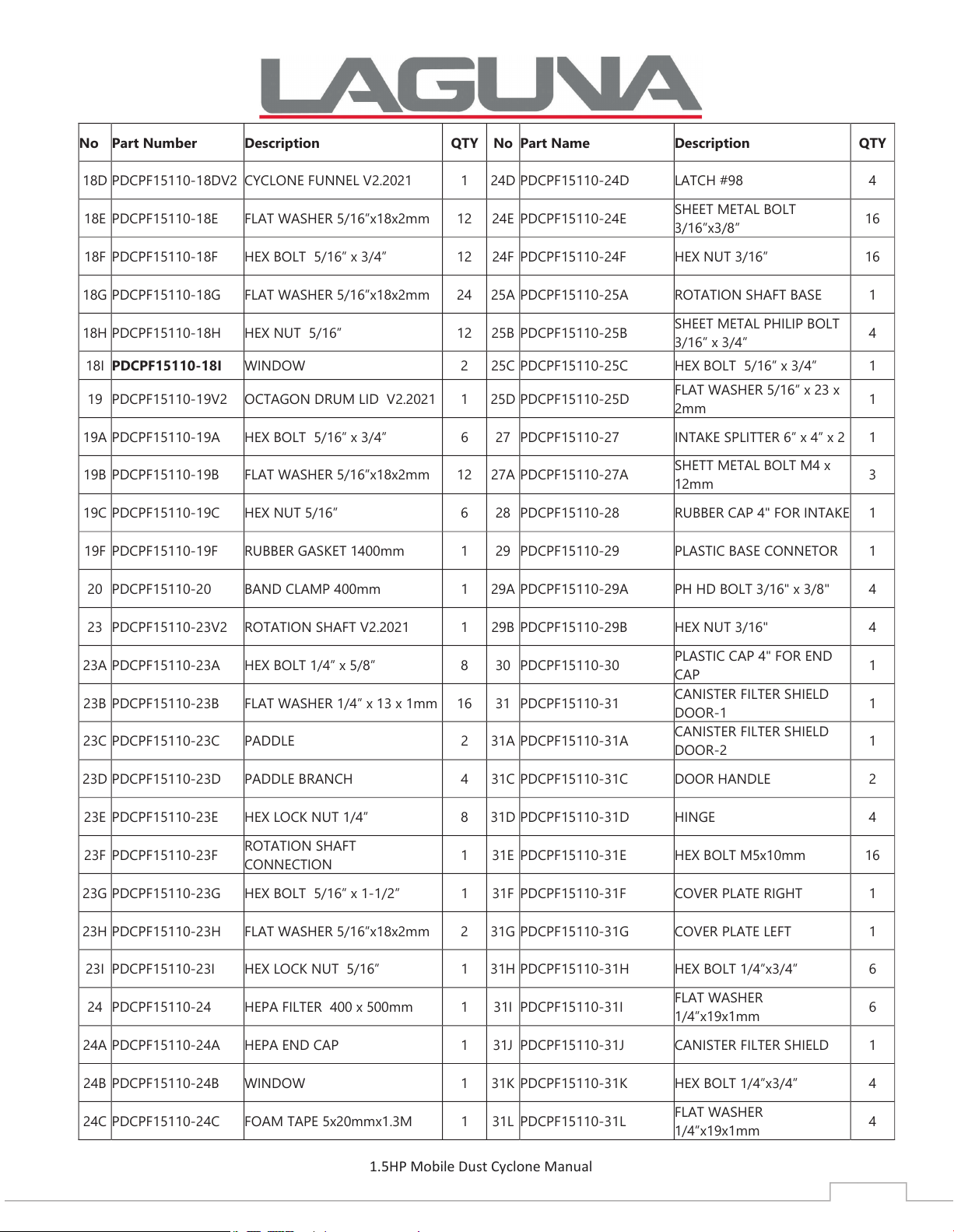

No
Part
Number
Description
QTY No
Part N
umber
Description
QTY
11G
PDCPF15110
-11G
SKID BLOCK
2 16
PDCPF15110
-16V2
OCTAGON DRUM FRONT
PANEL V2.2021
1
11H
PDCPF15110
-11H
OCTAGON DRUM FOOT PED
AL 1 16A
PDCPF15110
-16A
FLAT HEAD PHILIPS BOLT
5/16”x3/4”
4
11J
PDCPF15110
-11J
TOPPING 24
x30mm 2 16B
PDCPF15110
-16B
HANDLE
2
11K
PDCPF15110
-11K
HEX BOLT M8
x30mm 2 16C
PDCPF15110
-16C
FLAT WASHER
5/16”x23x2mm
4
11L
PDCPF15110
-11L
HEX BOLT 3/8”
2 16D
PDCPF15110
-16D
HEX NUT 5/16”
4
11M
PDCPF15110
-11M
HEX LOCK NUT 3/8”
2 16E
PDCPF15110
-16E
DRUM CASTER 3”
4
11N
PDCPF15110
-11N
HEX BOLT 3/8” x 1
-1/2” 2 16U
PDCPF15110
-16U
HEX BOLT 5/16” x 3/4”
16
11O
PDCPF15110
-11O
HEX LOCK NUT 3/8”
2 16F
PDCPF15110
-16F
FLAT WASHER
5/16”x18x2mm
32
12
PDCPF15110
-12
TRIANGULAR SUPPORT PLATE
2 16G
PDCPF15110
-16G
HEX NUT 5/16”
16
12A
PDCPF15110
-12A
HEX BOLT 5/16” x 1
-3/4” 4 16H
PDCPF15110
-16HV2
OCTAGON DRUM BACK
PANEL V2.2021
1
12B
PDCPF15110
-12B
FLAT WASHER 5/16”x18x2
mm 8 16K
PDCPF15110
-16K
LEFT SIDE PLATE
1
12C
PDCPF15110
-12C
HEX NUT 5/16”
4 16L
PDCPF15110
-16L
RIGHT SIDE PLATE
1
13
PDCPF15110
-13
LOWER SUPPORT PLATE
2 16M
PDCPF15110
-16M
CARRIAGE BOLT 1/4” x 1/2”
6
14
PDCPF15110
-14V2
PLASTIC BAG 610 x 1200mm
3 16N
PDCPF15110
-16N
FLAT WASHER
1/4”x19x2mm
6
15
PDCPF15110
-15
BASE
1 16O
PDCPF15110
-16O
HEX NUT 1/4”
6
15A
PDCPF15110
-15A
HEX BOLT 3/8” x 3/4”
6 16P
PDCPF15110
-16PV2
OCTAGON DRUM BASE
PANEL V2.2021
1
15B
PDCPF15110
-15B
FLAT WASHER 3/8” x 23 x 2
mm 6 16R
PDCPF15110
-16RV2
WINDOW V2.2021
1
15C
PDCPF15110
-15C
SWIVEL CASTER 4”
2 16S
PDCPF15110
-16SV2
M4
SHEET METAL BOLTS 22
15D
PDCPF15110
-15D
FLAT WASHER 5/16”x18x2
mm 16 16T
PDCPF15110
-16TV2
PLASTIC BOLT END CAP
22
15E
PDCPF15110
-15E
HEX BOLT 5/16” x 3/4”
16 16Q
PDCPF15110
-16Q
THREAD BOLT M4 x 12mm
10
15F
PDCPF15110
-15F
HEX BOLT
5/16” x 3/4” 4 17
PDCPF15110
-17
INTAKE CYLINDER
1
15G
PDCPF15110
-15G
FLAT WASHER 5/16”x18x2
mm 4 17A
PDCPF15110
-17A
HEX BOLT 5/16” x 5/8”
4
15H
PDCPF15110
-15H
RIVET NUT 1/4”
2 17B
PDCPF15110
-17B
FLAT WASHER
5/16”x18x2mm
4
15I
PDCPF15110
-15I
RIVET NUT
3/8” 6 18
PDCPF15110
-18
CYCLONE BARREL
1
15J
PDCPF15110
-15J
RIVET NUT 5/16”
5 18A
PDCPF15110
-18A
HEX BOLT 5/16” x 3/4”
12
15K
PDCPF15110
-15K
SWIVEL CASTER W/BRAKES 4”
2 18B
PDCPF15110
-18B
FOAM TAPE 3 x 6mm x
1M 1
38
Page 40
1.5HP Mobile Dust Cyclone Manual
40
No Part N
umber
Description
QTY No
Part
Name
Description
QTY
18D
PDCPF15110
-18DV2
CYCLONE FUNNEL V2.2021
1 24D
PDCPF15110
-24D
LATCH #98
4
18E
PDCPF15110
-18E
FLAT WASHER 5/16”x18x2
mm 12 24E
PDCPF15110
-24E
SHEET METAL BOLT
3/16”x3/8”
16
18F
PDCPF15110
-18F
HEX BOLT 5/16” x 3/4”
12 24F
PDCPF15110
-24F
HEX NUT 3/16”
16
18G
PDCPF15110
-18G
FLAT WASHER 5/16”x18x2
mm 24 25A
PDCPF15110
-25A
ROTATION SHAFT BASE
1
18H
PDCPF15110
-18H
HEX NUT 5/16”
12 25B
PDCPF15110
-25B
SHEET METAL PHILIP BOLT
3/16” x 3/4”
4
18I
PDCPF15110
-18I
WINDOW
2 25C
PDCPF15110
-25C
HEX BOLT 5/16” x 3/4”
1
19
PDCPF15110
-19V2
OCTAGON DRUM LID V2.2021
1 25D
PDCPF15110
-25D
FLAT WASHER 5/16” x 23 x
2mm
1
19A
PDCPF15110
-19A
HEX BOLT 5/16” x 3/4”
6 27
PDCPF15110
-27
INTAKE SPLITTER 6”
x 4” x 2 1
19B
PDCPF15110
-19B
FLAT
WASHER 5/16”x18x2mm 12 27A
PDCPF15110
-27A
SHETT METAL BOLT M4 x
12mm
3
19C
PDCPF15110
-19C
HEX NUT 5/16”
6 28
PDCPF15110
-28
RUBBER CAP 4" FOR INTAKE
1
19F
PDCPF15110
-19F
RUBBER GASKET 1400mm
1 29
PDCPF15110
-29
PLASTIC BASE CONNETOR
1
20
PDCPF15110
-20
BAND CLAMP 400mm
1 29A
PDCPF15110
-29A
PH HD BOLT 3/16" x 3/8"
4
23
PDCPF15110
-23V2
ROTATION SHAFT V2.2021
1 29B
PDCPF15110
-29B
HEX NUT 3/16"
4
23A
PDCPF15110
-23A
HEX BOLT 1/4” x 5/8”
8 30
PDCPF15110
-30
PLASTIC CAP 4" FOR END
CAP
1
23B
PDCPF15110
-23B
FLAT WASHER 1/4” x 13 x 1
mm 16 31
PDCPF15110
-31
CANISTER FILTER SHIELD
DOOR-1
1
23C
PDCPF15110
-23C
PADDLE
2 31A
PDCPF15110
-31A
CANISTER FILTER SHIELD
DOOR-2
1
23D
PDCPF15110
-23D
PADDLE BRANCH
4 31C
PDCPF15110
-31C
DOOR HANDLE
2
23E
PDCPF15110
-23E
HEX
LOCK NUT 1/4” 8 31D
PDCPF15110
-31D
HINGE
4
23F
PDCPF15110
-23F
ROTATION SHAFT
CONNECTION
1 31E
PDCPF15110
-31E
HEX BOLT M5
x10mm 16
23G
PDCPF15110
-23G
HEX BOLT 5/16” x 1
-1/2” 1 31F
PDCPF15110
-31F
COVER PLATE RIGHT
1
23H
PDCPF15110
-23H
FLAT WASHER
5/16”x18x2mm 2 31G
PDCPF15110
-31G
COVER PLATE LEFT
1
23I
PDCPF15110
-23I
HEX LOCK NUT 5/16”
1 31H
PDCPF15110
-31H
HEX BOLT 1/4”
x3/4” 6
24
PDCPF15110
-24
HEPA FILTER 400 x 500mm
1 31I
PDCPF15110
-31I
FLAT WASHER
1/4”x19x1mm
6
24A
PDCPF15110
-24A
HEPA END
CAP 1 31J
PDCPF15110
-31J
CANISTER FILTER SHIELD
1
24B
PDCPF15110
-24B
WINDOW
1 31K
PDCPF15110
-31K
HEX BOLT 1/4”
x3/4” 4
24C
PDCPF15110
-24C
FOAM TAPE 5
x20mmx1.3M 1 31L
PDCPF15110
-31L
FLAT WASHER
1/4”x19x1mm
4
39
Page 41
1.5HP Mobile Dust Cyclone Manual
41
No Part N
umber
Description
QTY No
Part N
umber
Description
QTY
32
PDCPF15110
-32
DRUM INSERT
4 43G
PDCPF15110
-43G
BUZZER/ALARM
1
34
PDCPF15110
-34
RIVET
40 44
PDCPF15110
-44
PLUG 30
x60mm 4
34C
PDCPF15110
-34C
RIVET NUT 1/4”
8 45
PDCPF15110
-45
RUBBER HANDLE FOR
DRUM INSERT
4
34D
PDCPF15110
-34D
RIVET NUT
5/16” 18 46
PDCPF15110
-46
CONTROL PANDLE HANDLE
2
35
PDCPF15110
-35
SHEET METAL BOLT 3/16”
x1/2” 24 46A
PDCPF15110
-46A
PHILIP HD BOLT M4
x6mm 4
35A
PDCPF15110
-35A
NUT 3/16”
24 47
PDCPF15110
-47
CROSSBAR
1
36
PDCPF15110
-36
MOTOR SWITCH SUPPORT
BASE COVER PLATE
1 48
PDCPF15110
-48
SILICONE
(not included) 1
43
PDCPF15110
-43V2
CONTROL BOX V2.2021
1 49
PDCPF15110
-49
LED WINDOW
1
43A
PDCPF15110
-43AV2
CONTROL PANEL V2.2021
1 49A
PDCPF15110
-49A
RIVET 3
-2 2
43B
PDCPF15110
-43BV2
CONTROL PANEL SUPPORT
PLATE V2.2021
1 50
PDCPF15110
-50
LED LIGHT
1
43C
PDCPF15110
-43C
ROUND HEAD BOLT M4
x10mm 6 51
PDCPF15110
-51
LED LIGHT COVER
1
43D
PDCPF15110
-43D
PHILIP HD BOLT M4
x6mm 4 51A
PDCPF15110
-51A
PHILIP HD BOLT M4
x10mm 6
43E
PDCPF15110
-43E
BUZZER SUPPORT PLATE
1 51B
PDCPF15110
-51B
FLAT WASHER
3/16”x12x1mm
6
43F
PDCPF15110
-43F
PHILIP HD BOLT M4
x6mm 2 51C
PDCPF15110
-51C
HEX NUT M4
6
52
PDCCFPF-ICV3
Circuit Board (Gen 2,V3)
(not shown)
1
40
Page 42
SPECIFICATIONS: PFLUX1
Motor Specs:
1.5 HP
Electrical Specs:
230V / 50Hz / 1PH
Running AMP
(6” inlet) 9A at 230V
Air Volume:
900CFM (cubic feet per minute)
Max. static pressure
9 Inches of water
Fan size
13.5”
Inlet:
One 6” or two 4” ports
Switch
High frequency remote control switch
Collection capacity
95 litre Octagon drum
Packing Size:
(L x W x H)
115 x 72 x 122.5 cm
Machine weight
122 kgs
Shipping weight
145 kgs
Filter Media
filtering area: 48.4 sq./ft. (4.5 m2)
Cartridge Filter
HEPA 15.74” x 19.68” (40 x 50cm) x 1pc
SPECIFICATIONS: PFLUX1
Motor Specs:
1.5 HP
Electrical Specs:
230V / 50Hz / 1PH
Running AMP
(6” inlet) 9A at 230V
Air Volume:
900CFM (cubic feet per minute)
Max. static pressure
9 Inches of water
Fan size
13.5”
Inlet:
One 6” or two 4” ports
Switch
High frequency remote control switch
Collection capacity
95 litre Octagon drum
Packing Size:
(L x W x H)
115 x 72 x 122.5 cm
Machine weight
122 kgs
Shipping weight
145 kgs
Filter Media
filtering area: 48.4 sq./ft. (4.5 m2)
Cartridge Filter
HEPA 15.74” x 19.68” (40 x 50cm) x 1pc
SUPPLIES:
Plastic debris collection bag, 20 gallon SKU/Part # PDCCF-FB22
Plastic debris collection bag, 92 gallon SKU/Part # ADBAG22CP123X5
Collection bag sizes
Declaration of Conformity
41
Page 43
42
Page 44
Warranty
New machines and accessories sold by Laguna Tools carry a one-year
warranty effective from the date of shipping.
Laguna Tools guarantees all new machines and accessories sold to be
free of manufacturers’ defective workmanship, parts and materials.
We will repair or replace, without charge, any parts determined by
Laguna Tools, Inc. to be a manufacturer’s defect.
We require that the defective item/part be returned to the Laguna
appointed dealer you purchased from with the complaint. Photo
graphic / videos maybe required when any fault is reported so we can
agree action needed. Any machines returned to Laguna appoint
ed dealer must be returned with packaging in the same manner
in which it was received. If a part or blade is being returned it must
have adequate packaging to ensure no damage is received during
shipping. In the event the item/part is determined to be damaged
due to lack of maintenance, cleaning or misuse/abuse, the customer
will be responsible for the cost to replace the item/part, plus all relat
ed shipping charges. This limited warranty does not apply to natural
disasters, acts of terrorism, normal wear and tear, product failure due
to lack of maintenance or cleaning, damage caused by accident,
neglect, lack of or inadequate dust collection, misuse/abuse or dam
age caused where repair or alterations have been made or attempted
by others. Laguna Tools, Inc. is not responsible for additional tools or
modifications sold or performed (other than from/by Laguna Tools,
Inc.) on any Laguna Tools, Inc. machine.
-
-
-
-
Warranty maybe voided upon the addition of such described tools
and/or modifications, determined on a case-by-case basis.
Normal user alignment, adjustment, tuning, machine settings and
consumables I.E; blades are not covered by this warranty. It is the
responsibility of the user to understand basic machinery operation,
settings and procedures and to properly maintain the equipment in
accordance with the standards provided by the manufacturer.
The labour required to install replacement parts is the responsibility
of the user. Laguna Tools is not responsible for damage or loss caused
by a freight company or other circumstances not in our control.
All claims for loss or damaged goods must be notified to the author
ised dealer within twenty-four hours, if the machine is received damaged it must be signed for damaged.
Only new machines sold to the original owner are covered by this
warranty.
-
43
Page 45
Distributed by
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
EU Countries Only
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
For after sales help visit
axminstertools.com or call 03332 406406
Axminster Tools, Axminster Devon EX13 5PH
Loading...
