Pediatric
Multi-Venous IV Arm
Directions for Use
Page 2
TABLE OF CONTENTS
Laerdal Recommends 3
Items Included 4
Skill Taught 4
Multiple Venipuncture Sites 4
Instructions for Use 4
Replacing Skin and Veins 4
Care and Maintenance 6
Replacement Parts 7
375-71001 Laerdal
2
Page 3
The
Pediatric Multi-Venous IV Training Arm (375-
71001) is a lifelike manikin arm, which realistically
simulates a 6-year-old patient. It is specifically
designed for training professionals in the practice of
venipuncture.
The manufacturing excellence and ease of replacing
trainer individual parts should warrant many sessions
of training when reasonable care and maintenance is
practiced.
Cautions and Warnings
This product contains Natural Rubber latex which may
cause allergic reactions when in contact with humans.
Laerdal Recommends:
Catheter – Size 20-gauge
When using a catheter, lubricate with silicone spray
for easier insertion.
Instructor Notes:
375-71001 Laerdal
3
Page 4
Items Included:
(1) Pediatric Multi-Venous IV Training Arm
(1) Manikin Lubricant
(1) Laerdal Global Warranty Booklet
(1) Directions for Use
Skill Taught:
• Venipuncture
Multiple Venipuncture sites:
1. Dorsal Veins of Hand (3)
2. Cephalic Vein
3. Median Vein
4. Basilic Vein
Instructions for Use:
1. Attach IV Bag to IV tubing.
2. Attach IV tubing to either
latex vein.
3. Allow fluid to flow through
arm and out other vein.
4. Clamp off flow of water.
The arm is now ready to practice venipuncture.
Use nothing larger than a
20-gauge catheter. This
will extend life of IV Arm
Skin.
Lubricate catheter with
silicone spray for easier
insertion.
LAERDAL
Recommends:
Replacing Veins and Skin:
When excessive leaking occurs at puncture sites,
either a new multi-vein system or skin should be
installed to reduce loss of fluid. The recommended
work area is at a sink.
Replacing Skin and Veins:
1. Cut off skin. This can be done with a sharp
knife or scalpel.
Replacing Veins:
1. Lubricate inside of skin with liquid detergent.
2. Begin at top of arm and roll skin down and of arm and
hand. Thumb will detach with skin. (See Fig. 1)
375-71001 Laerdal

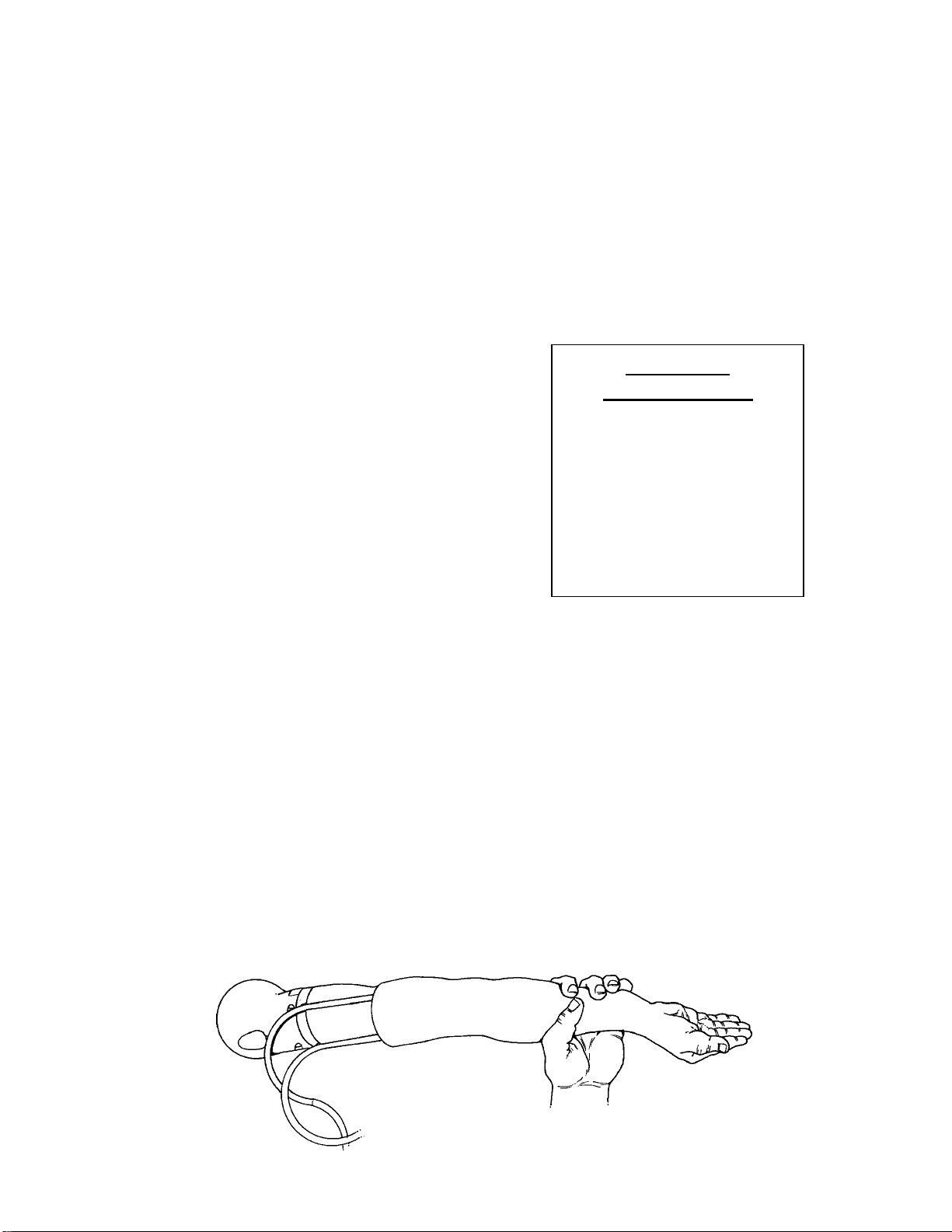

Fig. 1
4
Page 5
If reusing arm skin after replacing tubing, make
sure thumb insert is in place before continuing.
Thumb is already installed in new skin.
3. Remove tubing from track in mandrel. Tack
glue may need to be cut away to allow removal.
4. Rinse and dry vein grooves well and swab with
alcohol. Be sure to remove any excess glue.
5. Place new veins along grooves, spot gluing as
needed. (See Fig. 2)
Laerdal Recommends:

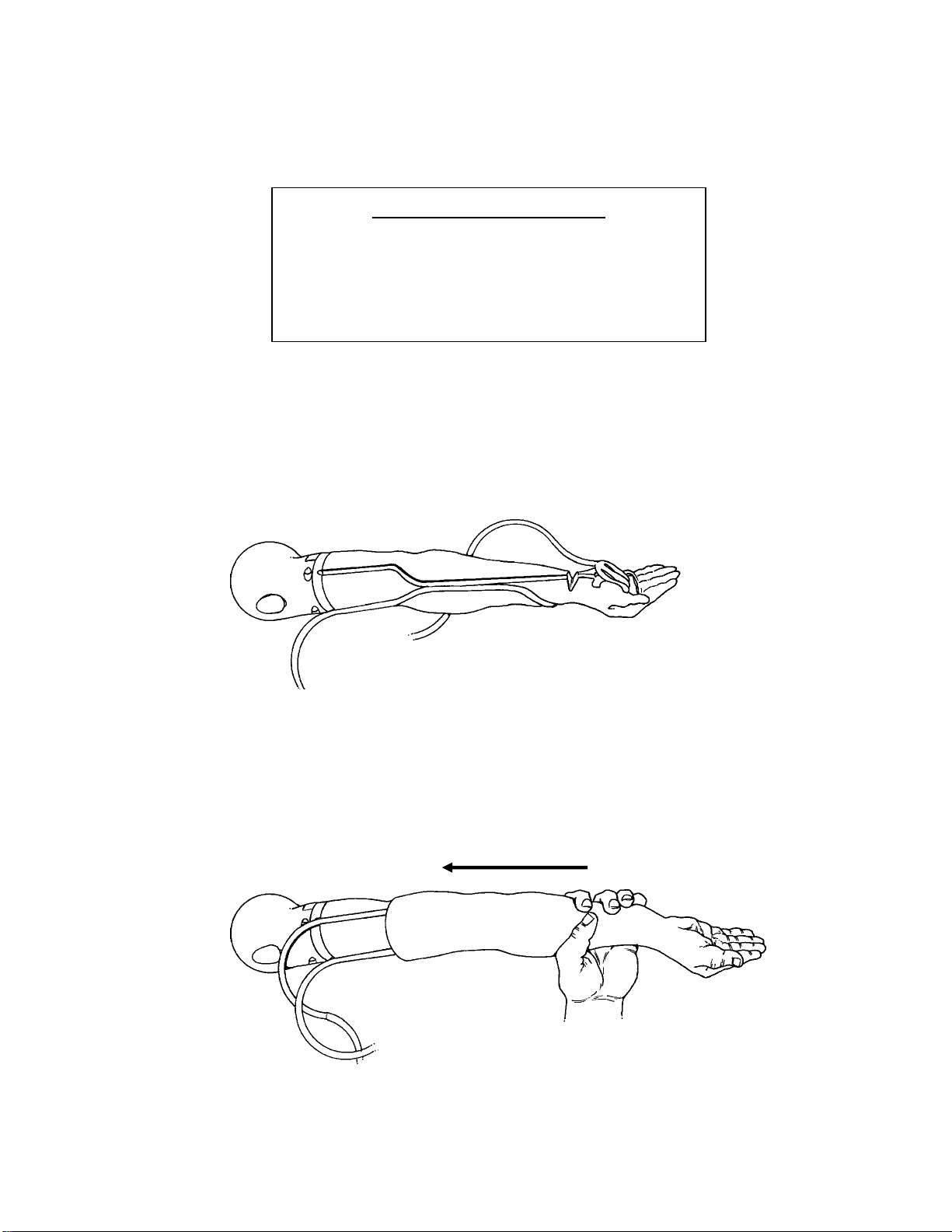

Fig. 2
6. Rinse inside of arm skin with soap and water.
7. Lather arm mandrel with liquid soap.
8. Slide arm skin over mandrel.
9. Work mandrel up into skin's fingers. (See Fig. 3)
10. Rinse off excess soap and dry.
Fig. 3
375-71001 Laerdal
5
Page 6
Care and Maintenance:
1. Clean with mild soap and water; do not submerse
manikin or parts in cleaning fluids or water.
2. Use only on clean surface. Avoid felt tipped
markers, ink pens, acetone, iodine or other staining
products and avoid placing the manikin on
newsprint or inked lines of any kind.
3. To ensure longevity, each manikin and module
should be cleaned after each training session and a
general inspection should be conducted regularly.
4. Modules and all other parts should be drained and
air-dried thoroughly before storage and disinfected
when needed. After use of injection pads (use water
only), accumulated water should be squeezed out.
Do not store wet foam pads in the skin. To
prevent mildew or mold, pads can be soaked in a
mild solution of disinfectant and water or bleach and
water. Squeeze excess solution from pads, allow
them to dry, then store or reinsert in manikin.
5. Articulating parts will benefit from a light application
of talcum powder prior to training sessions.
6. Store properly between teaching sessions.
375-71001 Laerdal
6
Page 7
REPLACEMENT PARTS:
The following replacement part numbers are for
trainers with white skin tone. Please contact Customer
Service Representatives for other replacement part
numbers.
Product Number: Description:
375-70150 Skin & Vein System
375-70250 Hardware Set
231-01250 Pediatric Arm Plug
300-00650 Manikin Lubricant
300-00750 Simulated Blood
Concentrate
375-71001 Laerdal
7
