Laerdal AED Trainer 3 User Manual

AED Trainer 3

Directions for Use

www.laerdal.com

AED Trainer 3 User Interface

A. Training Pads Connector Socket —

Receptacle for the training pads connector plug.

B. Pads Connector LED — Flashes to indicate the

socket location when device is turned on. Inserted pads connector plug covers the LED, which stops flashing when connector plug is properly seated.

C. Remote Control Receiver Window — Receives

signals from the optional remote control.

D. Speaker — Delivers voice instructions from the

AED Trainer 3. Speaker volume can be adjusted with the remote control or set in the device configuration.

E. Connector — For future use.

F. Green Ready Light — Illuminates when the AED

Trainer 3 is turned on; flashes when device is receiving commands from the remote control; stays off when the device is not in use.

G. Infant/Child Key Port — Receptacle for the

Training Infant/Child Key. When Key is inserted, the AED Trainer 3 operates in Infant/Child mode to simulate defibrillation of an infant or child under 8 years old or 25 kg (55 lbs).

H. Green On/Off Button — Turns on the AED

Trainer 3 and starts voice instructions.

I. Orange Shock Button — Controls delivery of

simulated shock. The button flashes when a shock is

advised during a scenario.

J. Battery Compartment — Contains the four

replaceable AA size alkaline batteries used to power the AED Trainer 3.

K. Operating System Card — Contains the Trainer

operating system, all voice commands, and device configuration. The Operating System Card must be installed in the AED Trainer 3 to use the device.

Visit www.laerdal.com for more language versions of these Directions For Use.

Contents

INTRODUCTION

Description and Intended use 6

Features 6

HOW SUPPLIED

Standard Package Contents 7

SETTING UP THE AED TRAINER 3

Checking the Operating System Card 8

Installing the Batteries 8

Selecting a Language 9

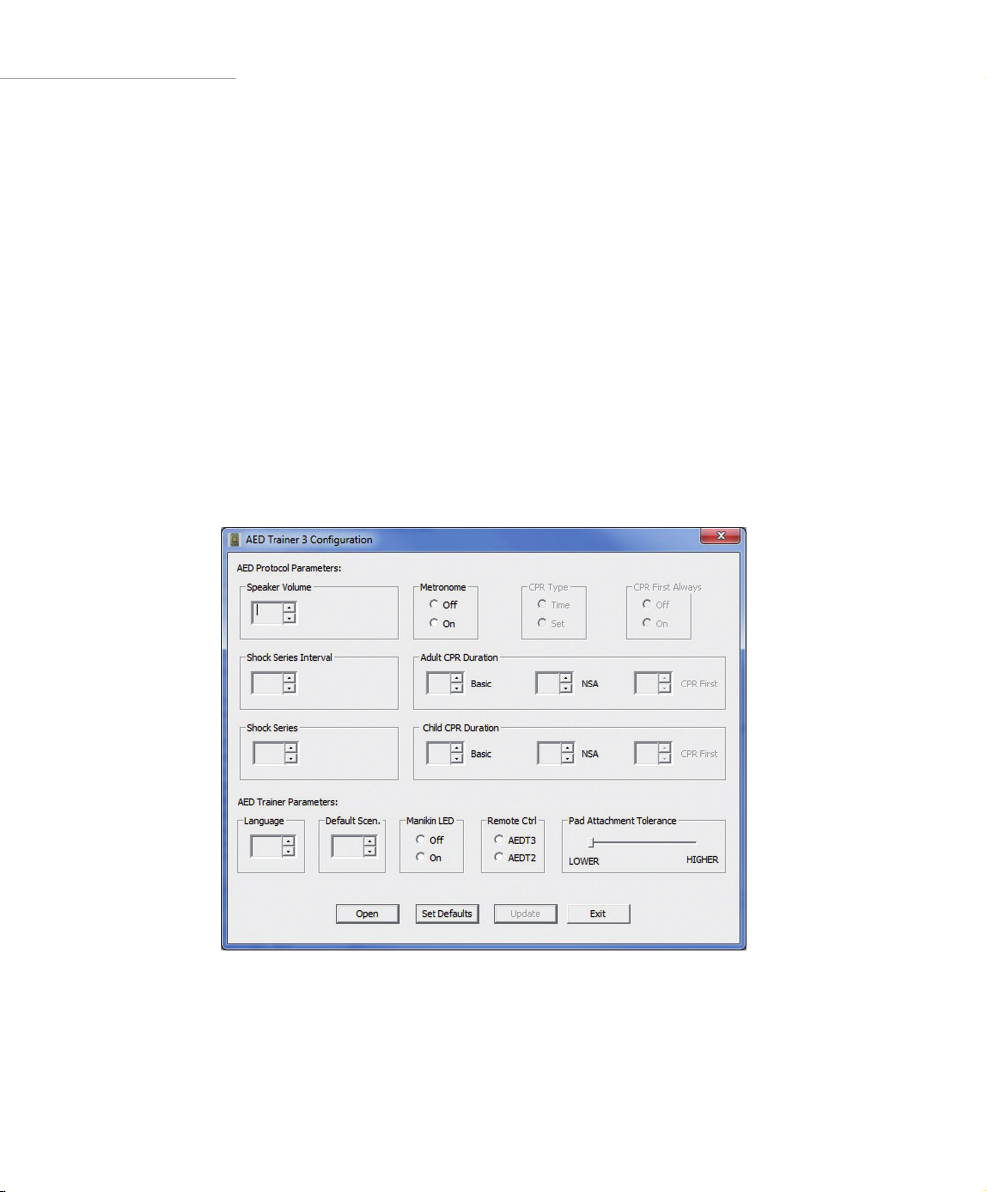

Changing the Configuration 10

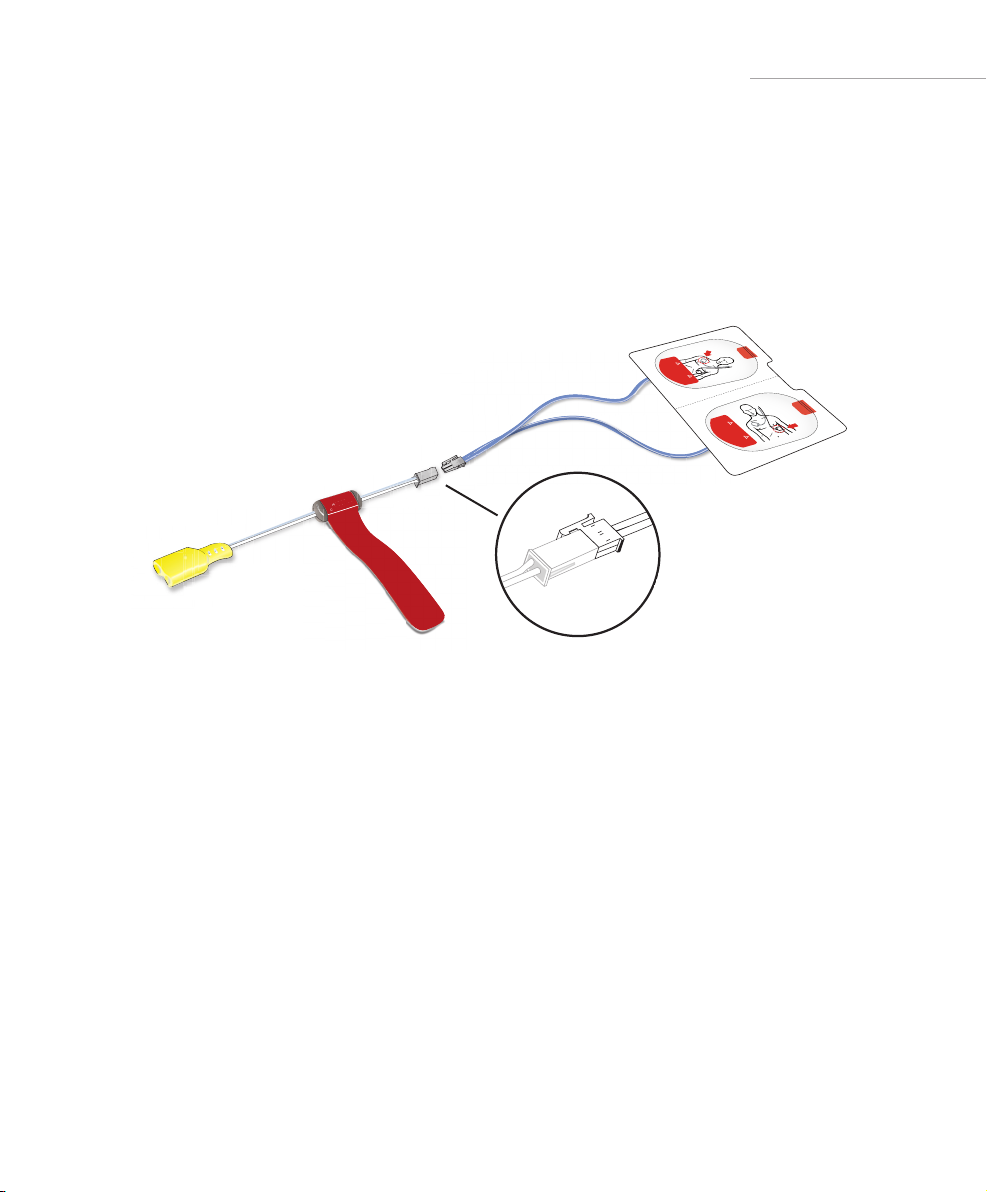

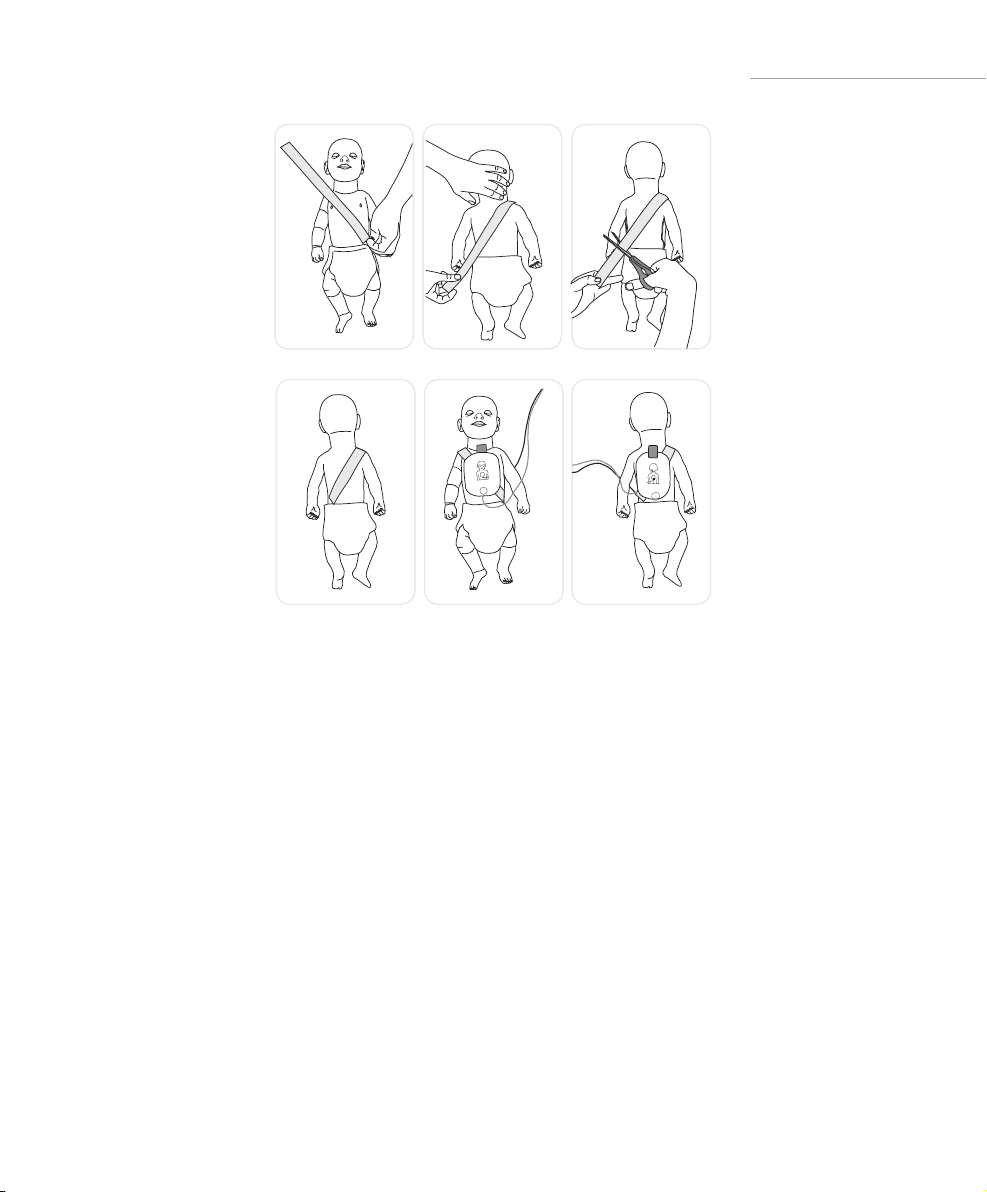

Connecting the Training Pads 11

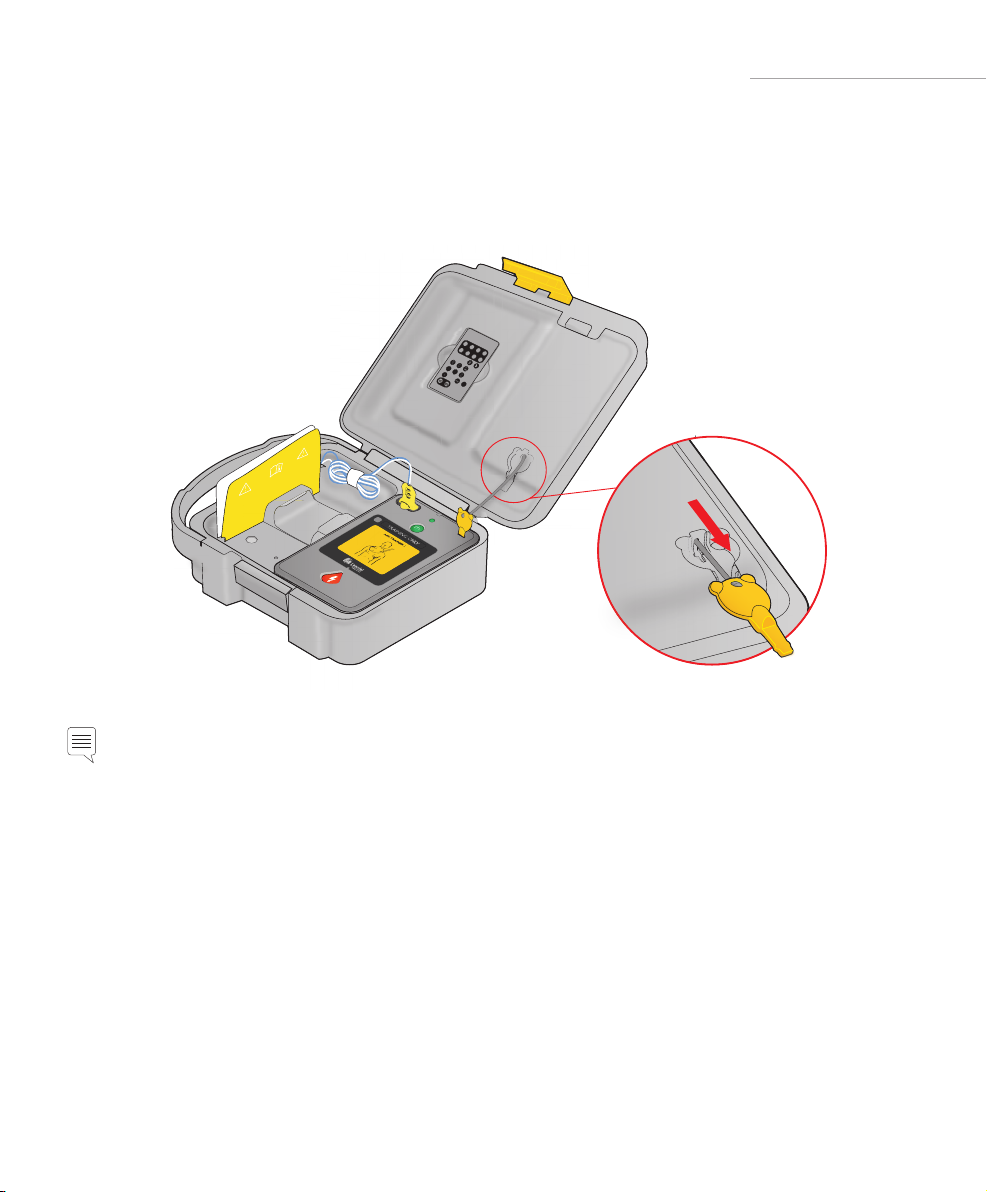

Accessing the Training Infant/Child Key 13

USING THE AED TRAINER 3

Preparing to Use the Trainer 14

Selecting a Training Scenario 16

Running a Training Scenario 16

APPENDICES

Parameter Settings 18

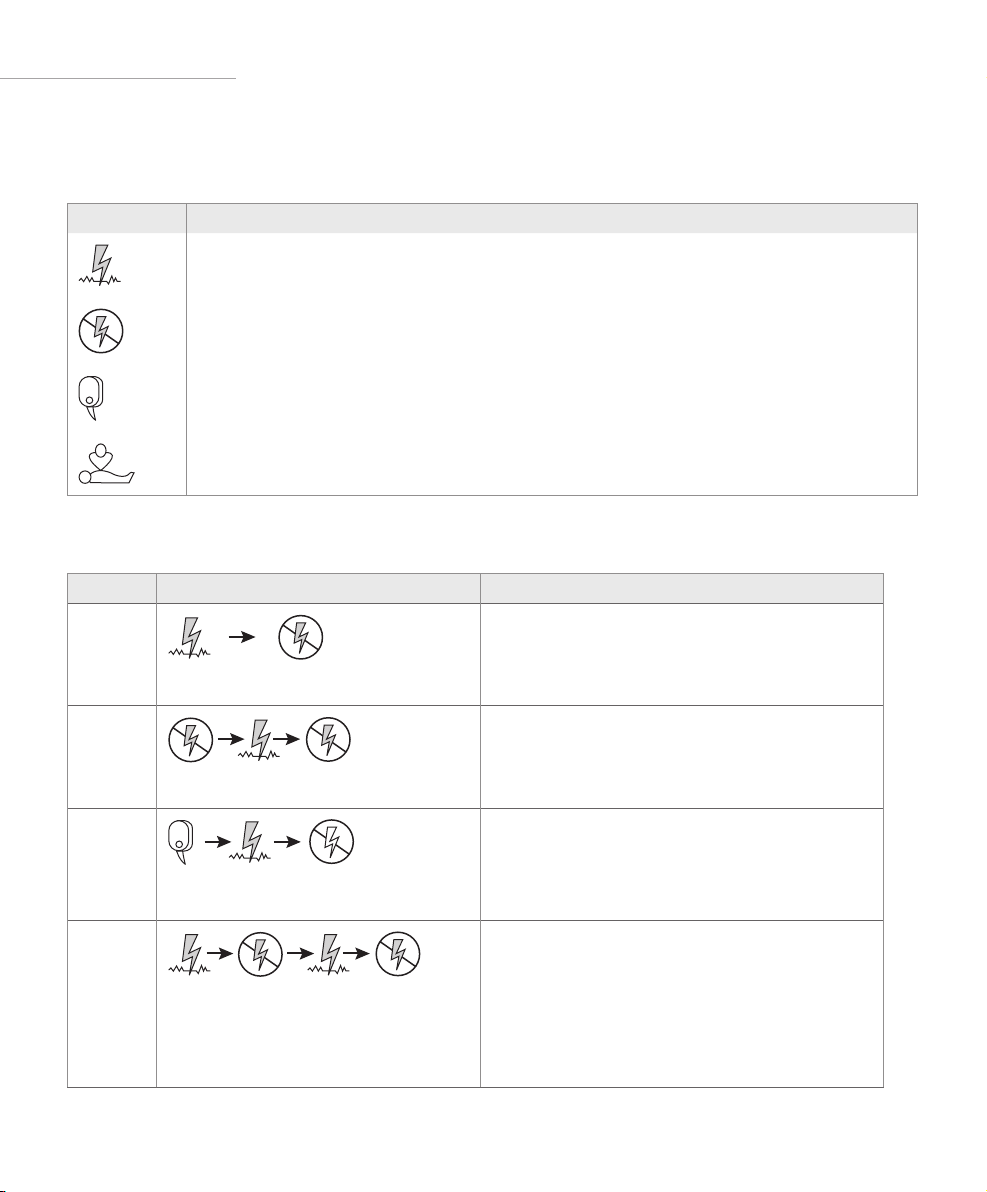

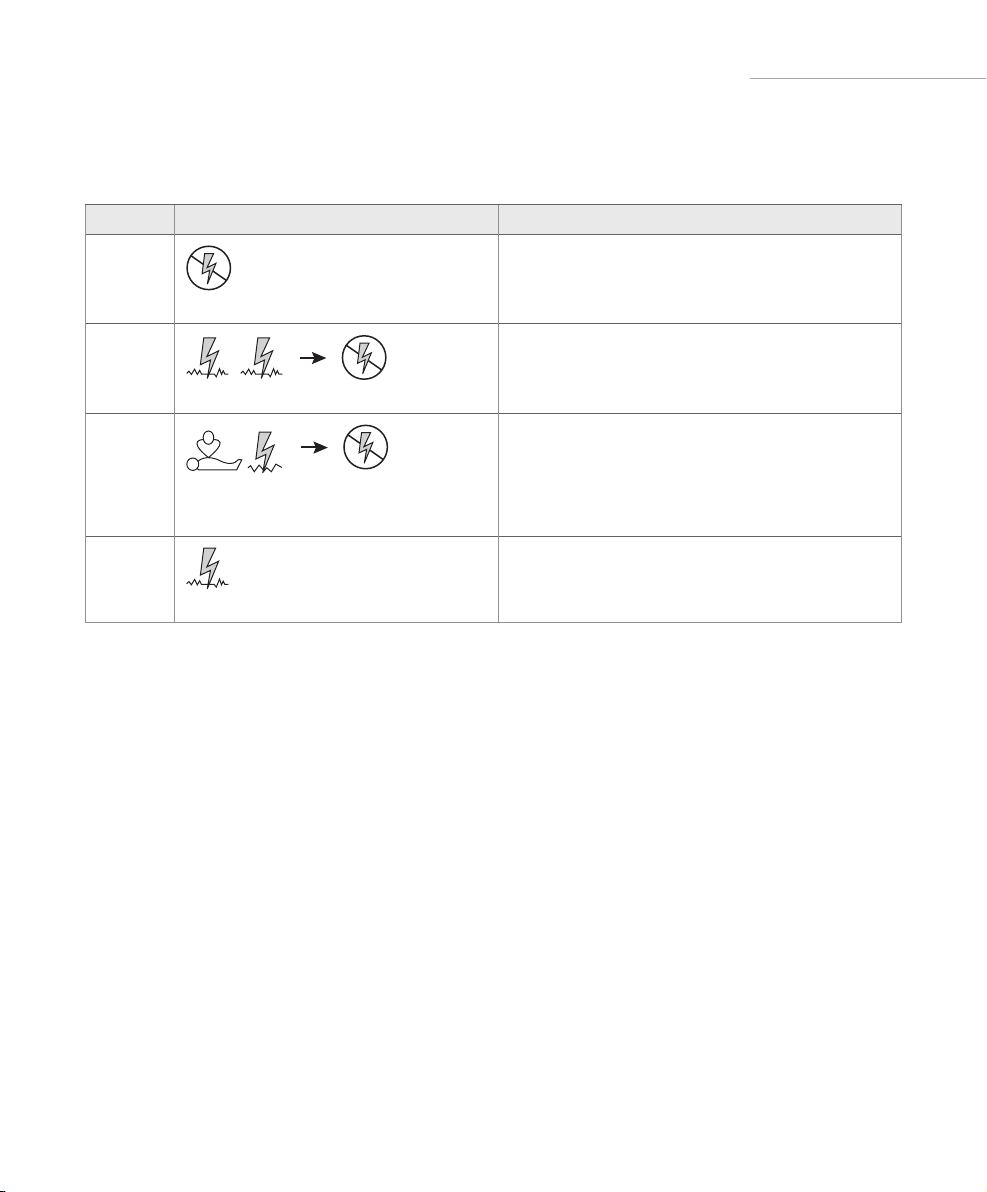

Training Scenarios 20

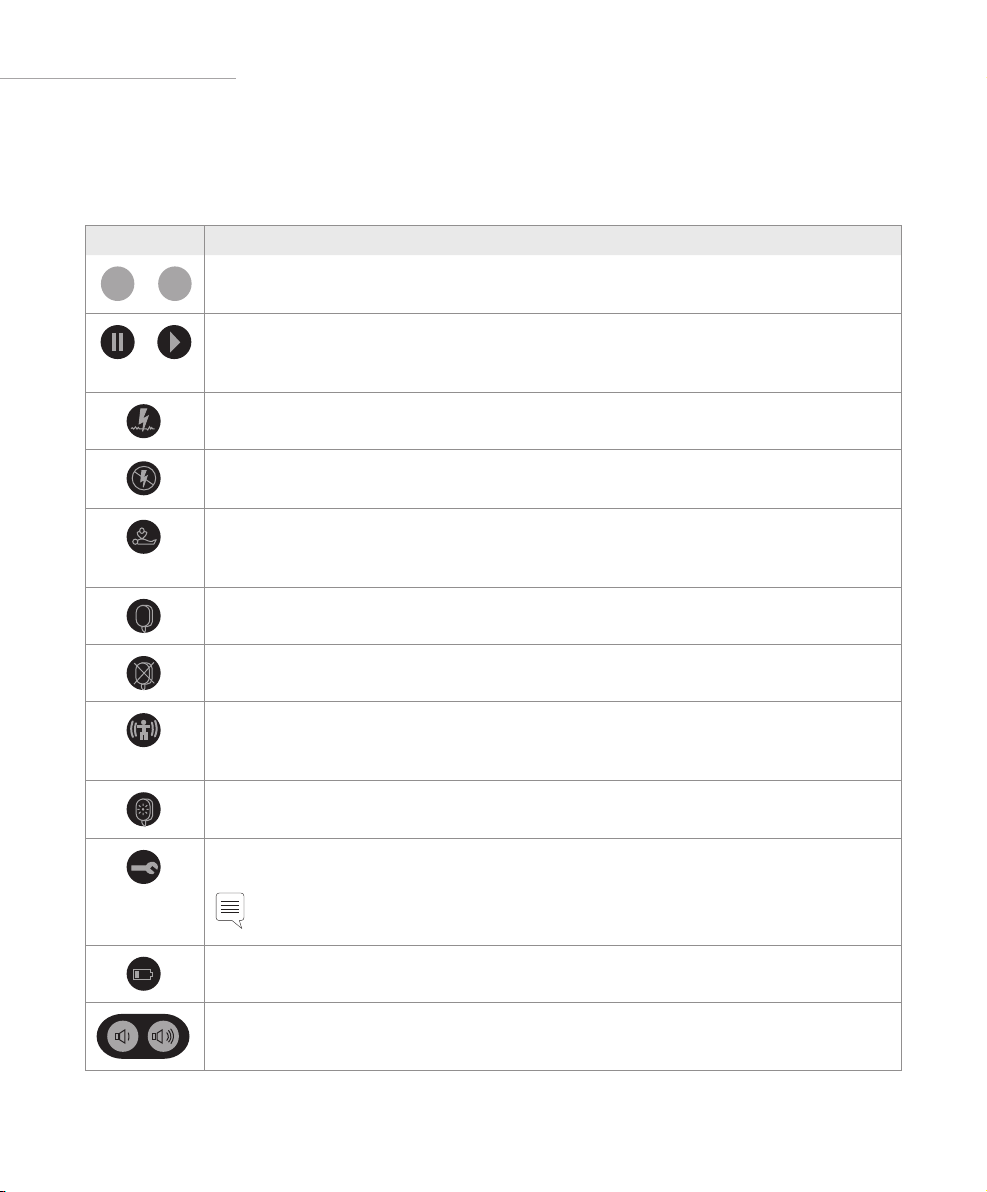

Remote Control 22

Troubleshooting Tips 23

Specifications 24

Regulatory Information 25

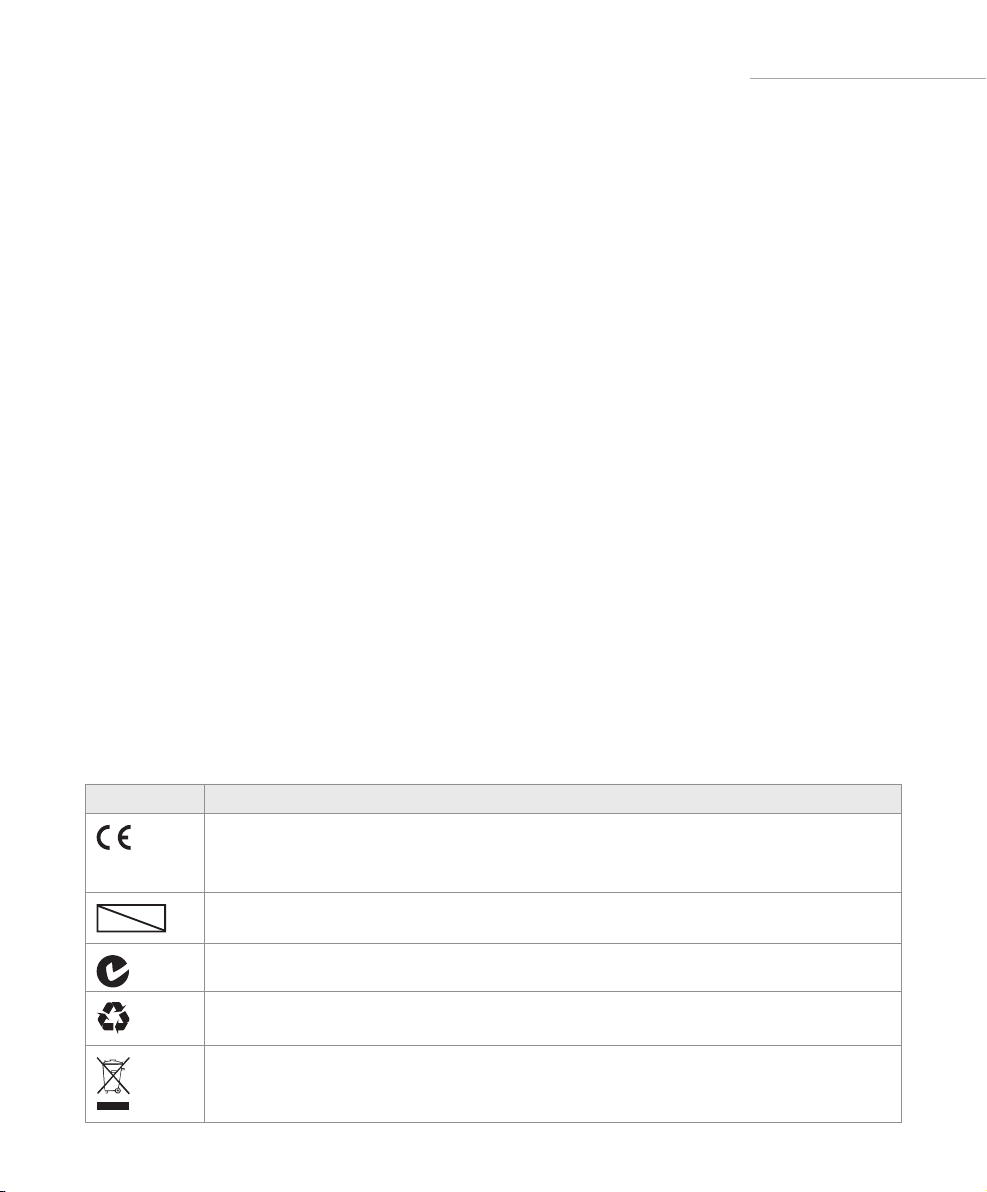

Glossary of Symbols 25

INTRODUCTION

Introduction

DESCRIPTION AND INTENDED USE

The AED Trainer 3 is designed to prepare emergency responders to use the HeartStar t FR3 automatic external defibrillator (AED) and other AEDs. Together with appropriate manikins, the AED Trainer 3 is intended to give realistic training on delivering correct treatment, including shock delivery and CPR, to a cardiac arrest victim.

The AED Trainer 3 provides eight training scenarios that simulate realistic episodes of sudden cardiac arrest (SCA) and help responders become familiar with use of the HeartStart FR3 AED in an emergency. These scenarios are compatible with training programs developed by internationally recognized responder programs.

The AED Trainer 3 is shipped with a factory default setup that complies with the ERC (European Resuscitation Council) and AHA (American Heart Association) 2010 Guidelines. The device may also be configured to conform to local protocols or Guideline Updates.

Note: Before using the HeartStart FR3 Defibrillator, the responder should have completed an appropriate responder training program, which may include the use of the AED Trainer 3. Having completed such a course, the responder should demonstrate a proficiency in assessing the patient for lack of responsiveness and absence of breathing, cardiopulmonary resuscitation (CPR), and knowledge of applicable medical protocols and procedures.

FEATURES

The AED Trainer 3 is designed to replicate the operation of the Hear tStart FR3 AED. However, it has no high-voltage capabilities, ensuring safety during training. It provides simulated shock delivery.

The AED Trainer 3 can be used to provide training on the following key features of the HeartStar t FR3 AED:

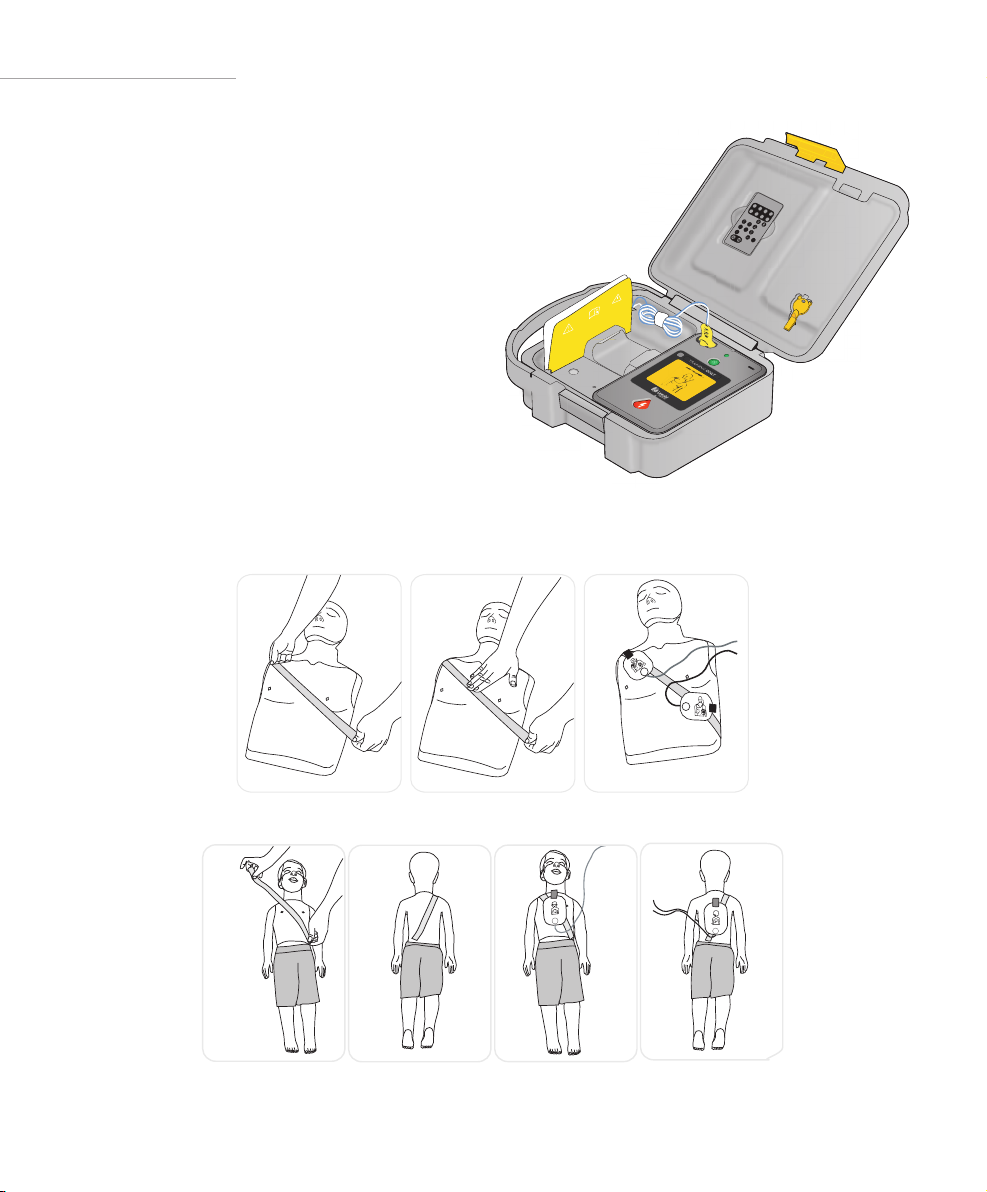

• Fast delivery of therapy. The AED Trainer 3 carry case duplicates the auto-on feature of the FR3 rigid system case. When the case is opened, the AED Trainer 3 automatically turns on.

• Pre-connected pads. Like the FR3 AED, the AED Trainer 3 uses pre-connected pads to help optimize response time.

• Infant/Child Key. The AED Trainer 3 comes with a Training Infant/Child Key to replicate the infant/child mode of the FR3 AED.

• Voice prompts. The AED Trainer 3 guides you through each step of the training scenario with the same voice prompts as the FR3 AED.

• Extensive configurability. Like the FR3 AED, the AED Trainer 3 configuration can be customized and its operation easily updated as needed.

Note: The Training Infant/Child Key cannot be used with the HeartStart FR3 AED. An FR3 Infant/Child Key is required for

use with the AED.

How supplied

INIC

STANDARD PACKAGE CONTENTS

The AED Trainer 3 is shipped with the following items as standard:

• one AED Trainer 3

• one Carry Case/Soft Bag

• one Training Infant/Child Key pre-installed on tether in carry case

• one External Manikin Adapter

• one pre-installed AED Trainer 3 Operating System Card containing the AED Trainer 3 operating system and Configuration program

• one reusable HeartStar t Training Pads III interconnect cable

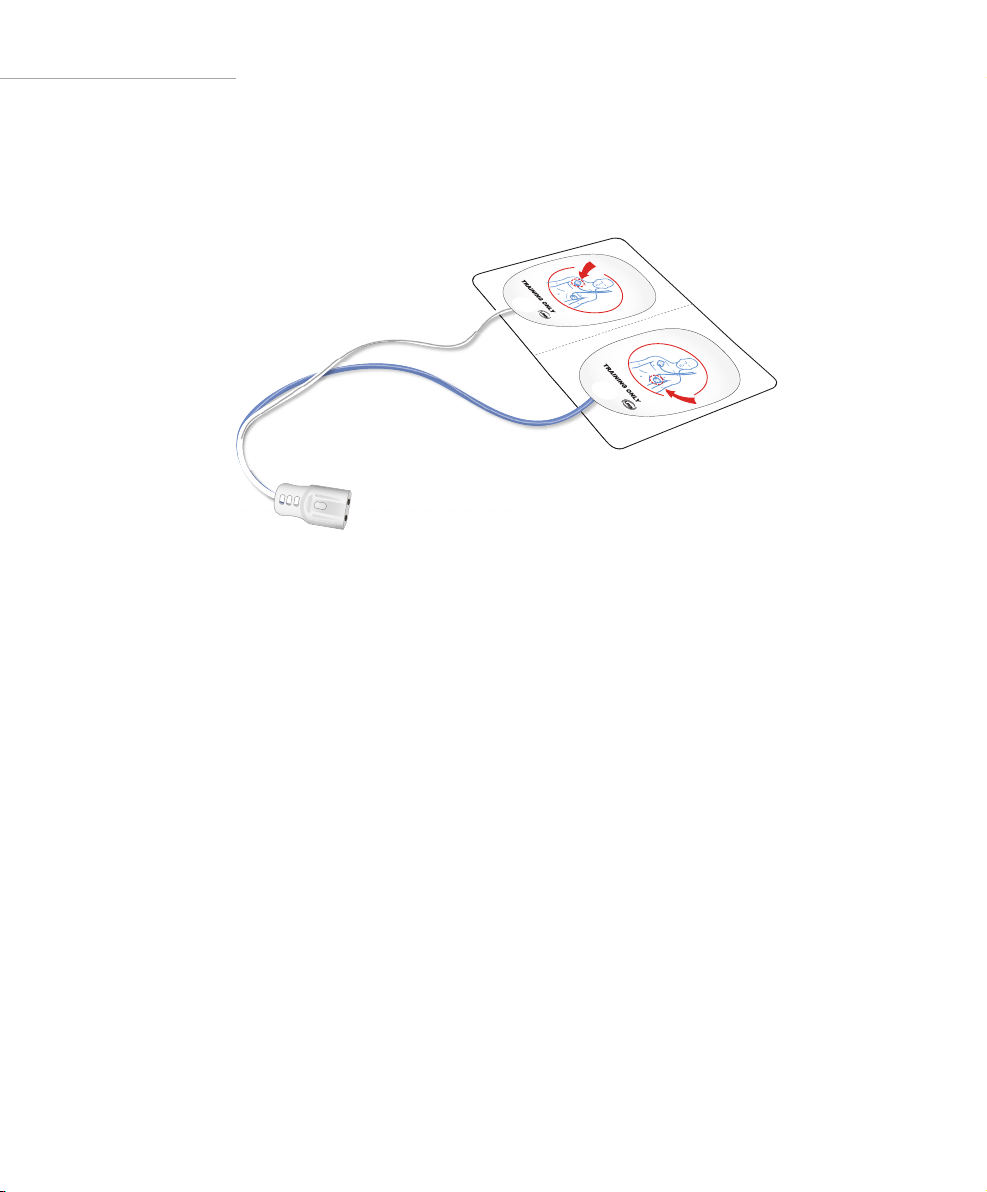

• one set of reusable HeartStar t Training Pads III

• one printed Instructions for Use in English and Japanese

• one multi-language Quick Start Guide

• one set of “Training Only” stickers in multiple languages

• 4 AA size alkaline batteries (not shown).

AED Trainer 3

NOT FOR CLINICAL USE

Reusable Training Pads III Interconnect cable

ITEMS INCLUDED

TRAINING TRAINING

Philips Training Pads III

Training infant/child key

Operating

System Card

For latest version of Spare Parts and Accessories,

visit www.laerdal.com.

Carry Case

AED

Trainer 3

Soft Bag

SETUP

Setting up the AED Trainer 3

To set up the AED Trainer 3 for operation, you will need to ensure that the Operating System Card is properly installed, install the batteries, select a different language if you do not wish to use US English, and connect the training pads. Instructions for each of these tasks follow.

CHECKING THE OPERATING SYSTEM CARD

The AED Trainer 3 Operating System Card contains the operating system for the AED Trainer 3. The AED Trainer 3 is shipped with the Operating System Card pre-installed.

To remove, re-install, or replace the Operating System Card, follow the steps below:

1 Squeeze the latch on the battery compar tment lid to release the lid. Lift out the

lid and set it aside.

2 Check that the Operating System Card is installed in the slot at the top of the

compartment. If not, install the Operating System Card in the orientation shown.

INSTALLING THE BATTERIES

The AED Trainer 3 requires four AA size alkaline batteries. To install or replace the batteries in the AED Trainer 3, follow the steps below:

1 Squeeze the latch on the battery compar tment lid to release the lid. Lift out the lid and set it aside.

2 Install four AA size alkaline batteries in the battery compartment oriented as illustrated inside the compar tment.

Note: Use only fresh batteries of the same type.

3 Replace the battery compar tment lid.

4 Return the AED Trainer 3 to its case.

SETUP

SELECTING A LANGUAGE

The default language of the AED Trainer 3 is US English. To set up the AED Trainer 3 for another language, follow the steps below.

1 Press and hold both the green On/Off button and the orange Shock button for about six seconds. The AED Trainer 3

announces the default language “US English”.

2 Release both buttons.

3 Press and hold the orange shock button to scroll through each available language. The AED Trainer 3 announces each

new language.

4 When the desired language is announced, press the green On/Off button to turn off the AED Trainer 3 and store the

selected language. The AED Trainer 3 will use this language when it is next turned on.*

5 Apply the appropriate “Training Only” sticker for the language selected, as illustrated below.

* The AED Trainer 3 can be turned on by pressing either the on/off button or the shock button.
