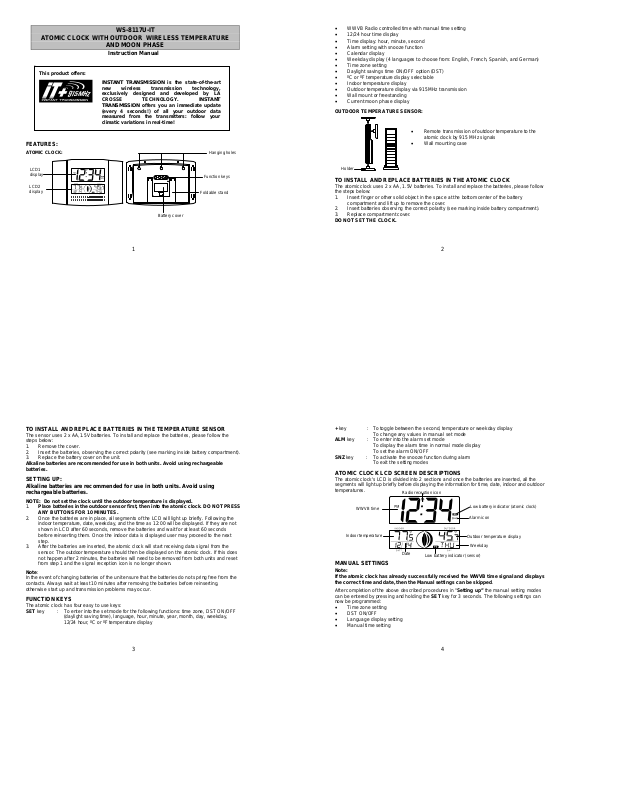

La Crosse Technology WS-8117U-IT User Manual

ATOMIC CLOCK WITH OUTDOOR WIRELESS TEMPERATURE

This product offers:

FEATURES:

ATOMIC CLOCK:

LCD1 display

LCD2 display

WS-8117U-IT

AND MOON PHASE

Instruction Manual

INSTANT TRANSMISSION is the state-of-the-art new wireless transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you an immediate update (every 4 seconds!) of all your outdoor data measured from the transmitters: follow your climatic variations in real-time!

Battery cover

Hanging holes

Function keys

Foldable stand

 WWVB Radio controlled time with manual time setting  12/24 hour time disp lay  Time display: hour, minute, second  Alarm setting with snooze function  Calendar display  Weekday display (4 languages to choose from: English, French, Spanish, and German)  Time zone setting  Daylight savings time ON/OFF option (DST)  ºC or ºF temperature display selectable  Indoor temperature display  Outdoor temperature display via 915MHz transmission  Wall mount or freestanding  Current moon phase display

OUTDOOR TEMPERATURE SENSOR:

 Remote transmission of outdoor temperat ur e to the

atomic clock by 915 MHz signals

 Wall mounting case

Holder

TO INSTALL AND REPLACE BATTERIES IN THE ATOMIC CLOCK

The atomic clock uses 2 x AA, 1.5V batteries. To install and replace the batteries, please follow the steps below:

1. Insert finger or other solid object in the space at the bottom center of the battery compartment and lift up to remove the cover.

2. Insert batteries observing the correct polarity (see marking inside battery compartment).

3. Replace compartment cover.

DO NOT SET THE CLOCK.

TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE SENSOR

The sensor uses 2 x AA,1.5V batteries. To install and replace the batteries, please follow the steps below:

1. Remove the cover.

2. Insert the batteries, observing the correct polarity (see marking inside battery compartment).

3. Replace the battery cover on the unit.

Alkaline batteries are recommended for use in both units. Avoid using rechargeable batteries.

SETTING UP: Alkaline batteries are recommended for use in both units. Avoid using rechargeable batteries.

NOTE: Do not set the clock until the outdoor temperature is displayed.

1. Place batteries in the outdoor sensor first, then into the atomic clock. DO NOT PRESS ANY BUTTONS FOR 10 MINUTES.

2. Once the batteries are in place, all segments of the LCD will light up briefly. Following the indoor temperature, date, weekday, and the time as 12:00 will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed user may proceed to the next step.

3. After the batteries are inserted, the atomic clock will start receiving data sign al from the sensor. The outdoor temperature should then be displayed on the atomic clock. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1 and the signal reception icon is no longer shown.

Note: In the event of changing batteries of the unit ensure that the batteries do not spring free from the contacts. Always wait at least 10 minutes after removing the batteries before reinserting, otherwise start up and transmission problems may occur.

FUNCTION KEYS

The atomic clock has four easy to use keys: SET key : To enter into the set mode for the following functions: time zone, DST ON/OFF

(daylight saving time), language, hour, minute, year, month, day, weekday, 12/24 hour, ºC or ºF temperature display

+ key : To toggle between the second, temperature or weekday display To change any values in manual set mode

ALM key : To enter into the alarm set mode To display the alarm time in normal mode display

To set the alarm ON/OFF SNZ key : To activate the snooze function during alarm To exit the setting modes

ATOMIC CLOCK LCD SCREEN DESCRIPTIONS

The atomic clock's LCD is divided into 2 sections and once the batt er ies are ins er te d, all th e segments will light up briefly before displaying the informatio n for time, date , indoor and out door temperatures.

WWVB time

Indoor temperature

MANUAL SETTINGS

Note: If the atomic clock has already successfully received the WWVB time signal and displays the correct time and date, then the Manual settings can be skipped.

After completion of the above described proc edur es in “Setting up” the manual setting modes can be entered by pressing and holding the SET key for 3 seconds. The following settings c a n now be programmed:

 Time zone setting  DST ON/OFF  Language display setting  Manual time setting

Radio reception icon

Date

Low battery indicator (atomic clock)

larm icon

Outdoor temperature display

Weekday

Low battery indicator (sensor)

 Year setting

 Month setting  Date setting  Weekday setting  12/24 hour time display setting  ºC or ºF setting

TIME ZONE SETTING

After entering the manual setting mode as described above, the time zone can be set between the +12 to –12 hour or Greenwich Mean Time (GMT) range in LCD2. To do this:

1. The time zone (LCD2) will start flashing (Default setting "-5h“). Select the desired time zone by pressing and releasing the + key.

Note: The time zones from –4 to –10 hours will be displayed with 3 characters abbreviations:

 -4 ATL (Atlantic time),  -5 EST (Eastern time; default time zone),  -6 CST (Central time),  -7 MST (Mountain time),  -8 PST (Pacific time),  -9 ALA (Alaska time),  -10 HAW (Hawai i ti me).  "GMT” will be displayed if set to GMT (0).

2. Press and release the SET key to enter the “DST Setting“.

DST SETTING (daylight saving time)

1. The ON digit will start flashing on LCD1. Set the DST ON or OFF by pressing the + key.

2. Press and release the SET key to enter the “Language Setting“.

Note:

The DST default is “ON”, meaning that the WWVB will automatically change the time according to Daylight Saving Time in the spring and fall. For areas that do not recognize DST changes (Arizona and parts of Indiana) turn the DST “OFF”.

LANGUAGE SETTING

The weekdays can be displayed in LCD1 with the pre-set languages: US English, French, Spanish and German (US, F, E, d).

1. Set the desired language for the weekday display in LCD1 by use of the + key.

2. Press and release the SET key to enter the mode “Manual Time Setting”.

MANUAL TIME SETTING

In case the atomic clock is not able to detect the WWVB-signal (dist urbances, transmitting distance, etc.), the time can be manually set. The clock will then work as a normal Quartz clock.

Note: In 12 hours mode the time will be displayed with an additional “PM” for the time from 12:00 noon until 11:59.

1. The hour digits will start flashing on LCD1.

2. Set the desired hours by pressing and releasing the + key followed by pressing the SET key.

3. Now the minute digits will start flashing.

4. Set the desired minutes by pressing and releasing the + key . If the + key is held, the units will increase by 5.

5. Press and release the SET key to move to the “Year Setting”.

Note:

The unit will still try and receive the signal every day despite it being manually set. When it does receive the signal, it will change the manually set time into the received time. During reception attempts the WWVB tower icon will flash. If reception has been unsuccessful, then the WWVB tower icon will not appear but reception will still be attempted the next hour.

WWVB reception occurs daily at 12:00 am and 06:00 am. If the reception is not successful at 12:00 am, then the next reception takes place the next hour and s o on until 06: 00 am, or until the reception is successful. If the reception is not successful at 06:00 am, then the next attempt will take place the next day at 12:00 am.

The other times WWVB reception takes place are upon setup and after manual time set exiting mode. Reception is generally not possible during daylight hours due to the interference of the sun.

YEAR SETTING

The year can be selected sequentially from 2001 to 2029 and will then start over again (default setting 2006). Only the last 2 digits of the year will be visible on LCD2.

1. The year digits will start flashing on LCD2. Select the desired year by use of the + key.

2. Press and release the SET key to switch to the “Month Setting”.

MONTH SET T ING

1. The month digits on LCD2 will start flashing. Set the desired month by use of the + key.

2. Press and release the SET key to move to the mode “Date Setting”.

DATE SETTING

1. The digits for the date will start flashing on LCD2 (Default setting 1). Set the desired date by use of the + key. Note: The date can only be set in conjunction with the selected month. For example, it is not possible to set the date 30 if the month of February is selected.

2. Press and release the SET key to enter the “Weekday Setting”.

WEEKDAY SETTING

1. The weekday symbols will be displayed on LCD2 in the pre-set language and flashing. Set the desired weekday by use of the + key.

2. Press and release the SET key to enter the mode “12/24 Hours Time Display Setting”.

12/24 HOURS TIME DISPLAY SETTING

1. The “12h” or “24h” will start flashing in LCD1 (Default setting 12h). Select the desired time display mode by use of the + key.

2. Press and release the SET key to enter the “ºC/ºF Temperature Setting“.

°C OR °F TEMPERATURE SETTING

1. The characters “°C” or “°F” will start flashing on LCD1 (Default setting °F). By use of the + key select “°C” for temperature display in degrees Celsius or “°F” for degrees Fahrenheit.

2. Press and release the SET key to exit the setting mode and switch back to the normal display mode.

EXIT THE MANUAL SETTING MODES

 To return to the normal display mode from anywhere in manual setting mode simply press

the SNZ key anytime.

 If no keys are pressed for at least 15 seconds in setting mode, the atomic clock will

automatically switch back to normal display mode.

ALARM SETTING

To enter into the alarm setting mode:

1. Hold the ALM key for 4 seconds. The hour digits start flashing.

larm icon

((())) (ON)

2. Press and release the + key to set the hour.

3. Press and release the ALM key to set the minutes. The minute digits start flashing.

4. Press and release the + key to set the minutes.

5. Press and release again the ALM key to exit the Alarm setting mode or wait for 15 seconds automatic timeout.

TO DEACTIVATE THE ALARM:

The alarm will be automatically ON when the alarm time is set. To deactivate the alarm (OFF), press and release once the ALM key in normal mode display. The alarm icon will disappear, the alarm is now off.

SNOOZE SETTING

The snooze can only be activated during alarm time for a snooze duration of 10 minutes by pressing the SNZ key on the back of the clock

OUTDOOR TEMPERATURE SENSOR:

The temperature is measured and transmitted to the atomic clock every 4 seconds. The atomic clock will update the outdoor temperature display every 4 seconds. The range of the outdoor temperature sensor may be affected by the temperature. At cold temperatures the transmitting distance may be decreased. Please bear this in mind when positioning the sensor. Also the batteries may be reduced in power during periods of extreme cold temperatures.

915MHz RECEPTION CHECK FOR OUTDOOR TEMPERATURE SENSOR

The atomic clock will receive the temperature data within 3 minutes. If the temperature data is not being received 3 minutes after setting up (the display shows “- - -”), then please check the following points:

1. The distance of the atomic clock or outdoor temperature sensor should be at least 6 feet (2 meters) away from any interfering sources such as computer monitors or TV sets.

2. Avoid placing the receiver onto or in the immediate proximity of metal window frames.
