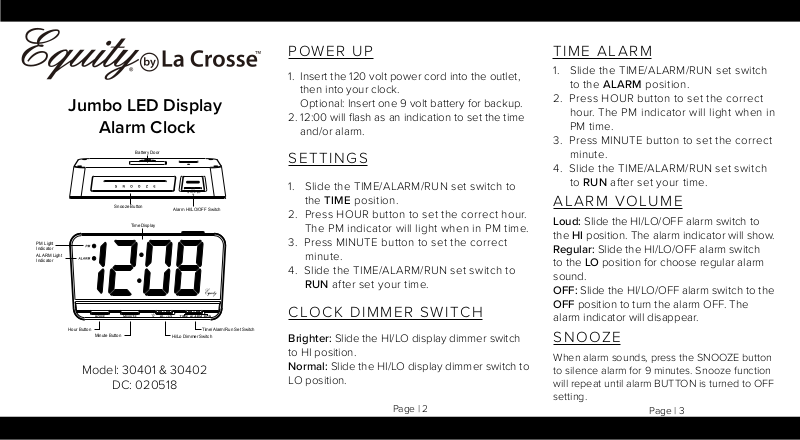

La Crosse Equity 30401, Equity 30402 User Manual
Jumbo LED Display
Alarm Clock
Battery Door
Snooze Button
Time Display
PM Light
Indicator
ALARM Light
Indicator
Hour Button
Minute Button
Model: 30401 & 30402
DC: 020518
Alarm HI/LO/OFF Switch
Time/Alarm/Run Set Switch
Hi/Lo Dimmer Switch
POWER UP
1. Insert the 120 volt power cord into the outlet,
then into your clock.
Optional: Insert one 9 volt battery for backup.
2. 12:00 will flash as an indication to set the time
and/or alarm.
SETTINGS
1. Slide the TIME/ALARM/RUN set switch to
the TIME position.
2. Press HOUR button to set the correct hour.
The PM indicator will light when in PM time.
3. Press MINUTE button to set the correct
minute.
4. Slide the TIME/ALARM/RUN set switch to
RUN after set your time.
CLOCK DIMMER SWITCH
Brighter: Slide the HI/LO display dimmer switch
to HI position.
Normal: Slide the HI/LO display dimmer switch to
LO position.
Page | 2
TIME ALARM
1. Slide the TIME/ALARM/RUN set switch
to the ALARM position.
2. Press HOUR button to set the correct
hour. The PM indicator will light when in
PM time.
3. Press MINUTE button to set the correct
minute.
4. Slide the TIME/ALARM/RUN set switch
to RUN after set your time.
ALARM VOLUME
Loud: Slide the HI/LO/OFF alarm switch to
the HI position. The alarm indicator will show.
Regular: Slide the HI/LO/OFF alarm switch
to the LO position for choose regular alarm
sound.
OFF: Slide the HI/LO/OFF alarm switch to the
OFF position to turn the alarm OFF. The
alarm indicator will disappear.
SNOOZE
When alarm sounds, press the SNOOZE button
to silence alarm for 9 minutes. Snooze function
will repeat until alarm BUTTON is turned to OFF
setting.
Page | 3
BATTERY BACKUP
• Insert one “9V” battery into the battery compartment at
the back of the clock. The battery will keep the alarm
and time settings until the power is restored.
• The LED display will not light-up but the alarm will
sound at the preset alarm time.
• If there is no battery installed but the power is
interrupted, the display will flash at 12:00 and the time
and alarm need to be set again.
Thel ight ning flas h
an da rr ow he ad
within thet riangl e
is aw ar ning si gn
alerting yo uo f
"dangerousvoltage"
inside th ep roduct.
CAUT ION :T OR ED UC ET HE
RISK OF ELEC TR IC SHOC K,
DO NO TR EM OV EC OVER
(O NB AC K) .N OU SE RSE RV IC EA BL EP AR TS
INSI DE .R EF ER SE RVIC IN G
TO QU AL IF IE DS ER VI CE
PERSONNEL.
Thee xc lam at ion
poi nt wi th in th e
trianglei sa warning
sign alerti ng youo f
importan ti nstr uctions accompanying
theproduct.
CARE & MAINTENANCE
• Always purchase the correct size and grade of battery
most suitable for intended use.
• Clean the battery contacts and also those of your clock
prior to battery installation.
• Ensure the battery is installed with correct polarity
(+ and -).
• Remove battery from equipment when it is not used for
an extended period of time.
• Promptly remove an expired battery.
Page | 4
POWER
Power: AC 120V, 60 Hz, ETL approved
Requires one 9V battery for back-up not included
WARRANTY AND SUPPORT
Equity provides a 2-year limited warranty on this product from
the date of consumer purchase against defects for material
and workmanship. During this period such defects will be
repaired, or the product will be replaced at Equity’s option,
without charge. This warranty does not cover damage caused
by misuse or negligence.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
IMPLIED WARRANTIES OR FITNESS AND MERCHANTABILITY,
ARE LIMITED IN DURATION TO A PERIOD ENDING TWO
YEARS FROM DATE OF PURCHASE.
Some states do not allow limitations on how long an implied
warranty lasts so the above limitation may not apply to you.
This warranty gives you specific legal rights and you may also
have other rights which vary from State to State.
If your product is not working properly, please send:
Your product
A letter explaining the problem and $5.00 for postage and
handling to:
Equity by La Crosse
Warranty Department
2830 26th St S.
La Crosse, WI 54601
www.lacrossetechnology.com/support
Page | 5
FCC STATEMENT
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Increase separation between equipment & receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized changes or modifications to this equipment.
Such changes or modifications could void the user authority to
operate the equipment.
All rights reserved. This manual may not be reproduced in any
form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of
the publisher.
This booklet may contain errors or misprints. The information it
contains is regularly checked and corrections are included in
subsequent editions. We disclaim any responsibility for any technical
error or printing error, or their consequences. All trademarks and
patents are recognized.
Page | 6
