La Crosse 1910 Quick Setup Manual

1

QUICK SET UP MANUAL –

WEATHER CENTER

Using 915MHz wireless transmission of weather data, this unique weather station can be
powered using batteries for all your weather needs in the home or office.

Carefully open and check that the following contents are complete:

Item: Consisting of: Fittings: Illustration:
Base

Station

1) Main unit

Thermo­Hygro
Sensor

(TX31U-IT)

1) Main unit

2) Rain
protection
cover

1) Wall mounting
screws

2) Plastic anchors for
screws

3) 2 x cable ties

INSTANT TRANSMISSION is the state-of-the-art
new wireless transmission technology,
exclusively designed and developed by LA
CROSSE TECHNOLOGY. INSTANT
TRANSMISSION offers you an immediate update
(every 4.5 seconds!) (every 6.25 seconds for
rain optional) of all your outdoor data measured
from the transmitters: follow your climatic
variations in real-time!

This product offers:

2

Cable connection between the wind sensor and
the thermo-hygro transmitter

OPTIONAL
Wireless transmission
at 915 MHz – Self­Emptying Rain sensor
to weather station

Wireless transmission a

t

915 MHz - thermo-hygro

transmitter to weathe

r

station

Weather Cente

r

Wind sensor

Rain sensor (sold separately )

Thermo-hygro
transmitter

Wind
Sensor

(TX55U-IT)

1) Main unit
with wind
vane

2) 32ft cable
(already
attached the
main unit)

3) Mast holder

1) 1 x U-bolts for
mast holder

2) 2 x Washers

3) 2 x Nuts

4) 2 x cable ties

SETTING UP:

Note:

When putting the Weather Station into operation, it is important
to perform in close proximity (e.g. on a table) a complete wiring
and set-up of the system. This step is important to test all
components for correct function before placing and mounting
them at their final destinations (See Positioning below):

Socket for wind
sensor

3

1. Unwind the cables of the Wind sensor. Connect the Wind sensor to the Thermo­hygro transmitter by plugging the connector head into the socket of the Thermo­hygro sensor.

2. First insert the batteries into the Thermo-hygro sensor and Rain sensor (purchase
separately) “How to install and replace the batteries into the Thermo-hygro

sensor“ and “How to install and replace the batteries into the Rain sensor
(optional)” below).

3. Then insert the batteries into the Weather Center (see “How to install and replace
the batteries into the Weather Center” below). Once the batteries are installed, all

segments of the LCD will light up. It will then display the time as 12:00, the date as

1.1.09, the weather icons, and air pressure value. "- - -" will be shown for outdoor
data.

4. Afterwards, the Weather Center will start receiving data from the transmitter. The
transmission reception icon will be blinking to indicate that the station is trying to get
the thermo-hygro transmitter data. The outdoor temperature, humidity, wind data
should then be displayed on the Weather Center. If this does not happen after 135
seconds, the batteries will need to be removed from all units. You will have to start
again from step 2.

5. The transmitter reception icon is now blinking again to indicate that the station is
trying to get the rain sensor data. It will stop blinking once the rain sensor has been
detected. If this does not happen after 135 seconds, you will need to start again from
step 2.

6. You may need to check the cable for correct connection and all the components for
correct function by manually turning the wind-gauge by moving the wind-vane; tilting
the rain sensor to hear the impact of the internal moving seesaw, etc. (see
Positioning below).

7. Time and date shall be manually set (See Manual Setting below).

8. After the Weather Center has been checked for correct function with regard to the
above points and found fit, the initial set up of the weather station system is finished
and the mounting of the system components can take place. It must be ensured
however that all components work properly together at their chosen mounting or
standing locations. If e.g. there appear to be problems with the 915 MHz radio
transmission, they can mostly be overcome by slightly changing the mounting
locations or turning the base station.

Note:

The radio communication between the receiver and the transmitters in the open field
reaches distances of max 330 feet, provided there are no interfering obstacles such as
buildings, trees, vehicles, high voltage lines, etc.

4

9. Radio interferences created by PC screens, radios or TV sets can in some cases
entirely cut off radio communication. Please consider this when choosing standing or
mounting locations.

Note :

 After batteries are installed in the transmitter, install the batteries in the weather

center to receive the signal from the transmitters as soon as possible. If the weather
center is powered more than 5 hours after the transmitter is powered, the weather
center will never receive signal successfully from the transmitters. In this case, user
will need to reinstall the batteries from all the transmitters to redo set-up procedure.

After batteries are installed, there will be synchronization between weather center and the
transmitters. At this time, the signal reception icon will be blinking. When the signal is
successfully received by the Weather Center, the icon will be switched on. (If it is not
successful, the icon will not be shown in LCD) So the user can easily see whether the last
reception was successful (icon on) or not (icon off). On the other hand, the short blinking
of the icon shows that a reception is in progress.

 If the signal reception is not successful on the first frequency (915MHz) for 45

seconds, the frequency is changed to 920MHz and the learning is tried another 45
seconds. If still not successful, the reception is tried for 45 seconds on 910MHz. This
will also be done for re-synchronization.

HOW TO INSTALL AND REPLACE THE BATTERIES INTO THE THERMO­HYGRO TRANSMITTER

Transmitter signal
reception icon

5

The outdoor Thermo-hygro transmitter works with 2 x AA IEC LR6,

1.5V batteries. To install and replace the batteries, please follow
the steps below:

1. Uninstall the rain cover of the transmitter.

2. Remove the battery compartment cover.

3. Insert the batteries, observing the correct polarity (see the
marking in the battery compartment).

4. Replace the battery cover and the rain cover onto the unit.

Note:

In the event of changing batteries in any of the units, all units need
to be reset by following the setting up procedures. This is because

a random security code is assigned by the thermo-hygro sensor at
start-up and this code must be received and stored by the Weather Center in the first
several minutes of power being supplied to it.

HOW TO INSTALL AND REPLACE THE BATTERIES INTO THE WEATHER
STATION

The Weather Station works with 3 x AA, IEC LR6,

1.5V batteries. When the batteries need to be
replaced, the low battery symbol will appear on
the LCD.
To install and replace the batteries, please follow
the steps below:

1. Remove the battery compartment cover.

2. Insert the batteries observing the correct
polarity (see the marking in the battery
compartment).

3. Replace the battery cover.

6

HOW TO INSTALL AND REPLACE BATTERIES INTO THE RAIN SENSOR

(OPTIONAL; SOLD SEPERATELY)

1. Unlock the main cover from the rain sensor base and remove the cover.

2. Remove the battery cover at the top of the rain sensor.

3. Insert 2 x AAA, IEC LR3, 1.5V batteries into the battery compartment, observing the
correct polarity.

4. Replace the battery cover and the main cover on the unit.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following
the setting up procedures. This is because a random security code is assigned by the
transmitter and rain sensor (optional) at start-up and this code must be received and
stored by the Weather Station in the first 90 seconds of power being supplied to it.

BATTERY CHANGE:

It is recommended to replace the batteries in all units regularly to ensure optimum
accuracy of these units. (Battery life –see Specifications)

Please participate in the preservation of the environment. Return used
batteries to an authorised depot.

Note:

The stored History record will not be kept after the battery change is done on the weather
station.

Figure 1

Figure 2

Figure 3

7

FUNCTION KEYS:

Weather Station:

The Weather Station has 4 easy-to-use function keys.

SET key

 Press and hold to enter manual setting modes: LCD contrast, Manual time setting,

12/24 hour time display, Calendar setting, ºC/ ºF temperature unit, Wind speed unit,
Rainfall unit, Pressure unit, Relative pressure reference setting, Weather tendency
threshold setting

 Press to toggle between the display of Mode 1 or Mode 2:

Mode1: "Wind speed + outdoor temp + rel. pressure"
Mode 2: "Gust + Dew Point temp + rainfall data (only if there is a rain sensor­optional)"
(Mode 2 displayed will be shown for 30 seconds. Then it will return to normal display

 Press to activate the reset mode when MAX or MIN record is shown

+ key

 In display Mode 1, press to toggle between the display of date, weekday + date,

Indoor temp, or second

 In display Mode 2, press to toggle between the display of Relative Pressure, 24 hour

rainfall and Total rainfall (only if there is a rain sensor- optional).

 Press to adjust (increase) the level of different settings
 Press to confirm to reset the MIN/MAX record

MIN/MAX key

SET key

+ ke

y

HISTORY key

8

Air pressure

history histogram

HISTORY key

 Press to display the weather data history records

 Press to exit manual setting mode

MIN/MAX key

 Press to display MIN/MAX records of various weather data

 Press to adjust (decrease) the level of different settings

LCD SCREEN

The LCD screen is split into 3 sections displaying the following information:

1. Time and date/ indoor temp/ second

2. Wind data, outdoor temperature and humidity, dew point, weather forecast icon and

tendency indicator

3. Air pressure history, relative air pressure, rainfall data (optional)

Wind speed / gust* in
mph, km/h, m/s

Calendar / indoor
temperature / seconds
display

Weather tendenc

y

indicato

r

Time displa

y

Outdoor relative
humidity in %

Weather forecast
Icon

Relative air pressure /
24 hr rainfall / Total
rainfall display* (only if
there is a rain sensor
being used)

Wind Chill in

˚C or ˚F

Low battery indicator
(weather station)

Transmitter signal

reception icon

Low battery
indicator #
(transmitter)

Outdoo

r

temperature

/ dew poin

t

in C or F

MI/MAX icons

HISTORY
icon

Low batter

y

indicator (rain

sensor - optio nal)

9

* When the signal from the transmitter/ or Rain sensor (optional) is successfully received
by the Weather Station, the

icon will be switched on. (If not successful, the icon will

not be shown on the LCD). User can therefore easily see whether the last reception was
successful (“ON”

icon) or not (“OFF” icon). On the other hand, the short blinking of

the

icon shows that a reception is being done at that time.

* In normal display user may press the SET key shortly to toggle between Mode1 and
Mode 2 display:

Mode 1 : Wind speed, outdoor temperature, relative air pressure are shown.

Wind speed icon

Outdoor temp

icon

Rel. Air Pressure icon

In Mode 1, this reception icon is showing the condition of the
reception of the signal from Thermo-hygro transmitter

10

Mode 2 : Wind gust, dew point, and rainfall (optional) reading are shown.
Note: To view the rainfall data, press the + key after entering Mode 2 display.

MANUAL SETTINGS:

The following manual settings can be changed once the SET key is pressed and held for
about 3 seconds:

 LCD contrast setting
 Manual time setting
 12/24 hour time display
 Calendar setting
 °C/ °F temperature unit setting
 Wind speed unit
 Rainfall unit setting
 Air pressure unit setting
 Relative pressure reference value setting
 Weather tendency threshold value
 Storm warning threshold value
 Alarm On/ Off setting

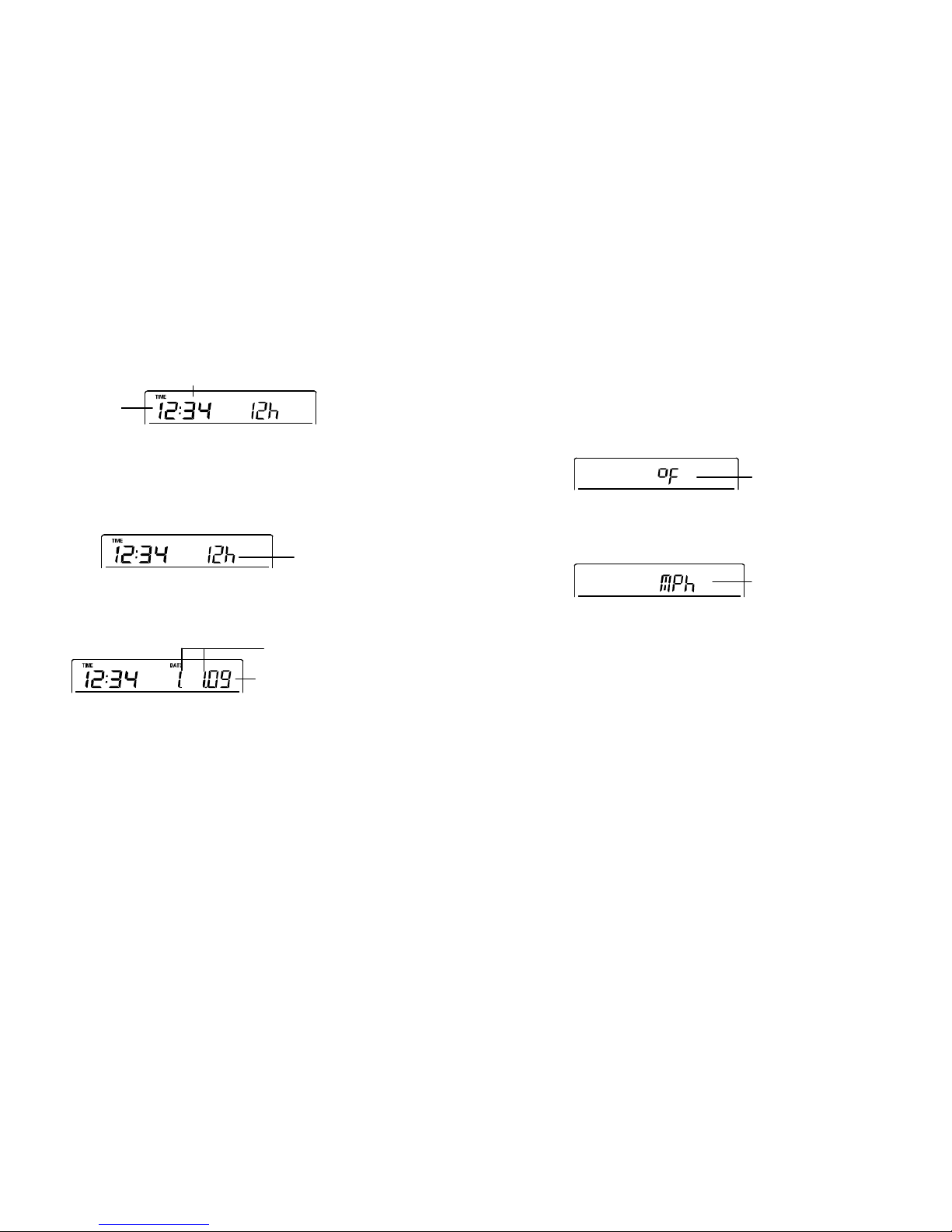

LCD CONTRAST SETTING

Digit flashing

Wind gust icon

Dew point icon

Rainfall icon

In Mode 2, this reception
icon is showing the
condition of the reception
of the signal from Rain
sensor (only if a rain
sensor is being used)

11

Year

"Month. Date." (for 12h time display)
"Date. Month." (for 24h time display)

The LCD contrast can be set within 8 levels, from "LCD 1" to "LCD8" (default setting is
LCD 5):

1. Press the SET key, the contrast level digit will start flashing.

2. Use the + or MIN/MAX key to adjust the level of contrast.

3. Confirm with the SET key and enter the MANUAL TIME SETTING.

MANUAL TIME SETTING:

You then may manually set the time of the clock by following the steps below:

1. The hour digit will start flashing.

2. Use the + or MIN/MAX key to set the hour.

3. Press the SET key to switch to the minutes. The minute digit will start flashing.

4. Use the + or MIN/MAX key to set the minutes (holding of the key will forward the
digit by 5)

5. Confirm the time with the SET key and enter the 12/24 HOUR TIME DISPLAY

SETTING.

12/24 HOUR TIME DISPLAY SETTING:

The time can be set to view as 12 hour or 24 hour format. The default time display mode is
“12h”. To set to “24h” time display:

1. Use the + or MIN/MAX key to toggle the value.

2. Confirm with the SET key and enter the CALENDAR SETT ING.

CALENDAR SETTING:

Digit flashing

Minutes flashing

Hou

r

flashing

12

The date default of the Weather Station is 1. 1. of year 2009. The date can be set
manually by proceeding as follows.

1. The year digit starts flashing.

2. Use the + or MIN/MAX key to set the year (pressing and holding the key will forward
the digit by 5). The range runs from "00" (2000) to "99" (2099).

3. Press the SET key to confirm the year and enter the month setting. The month digit
will start flashing.

4. Use the + or MIN/MAX key to set the month.

5. Press the SET key to confirm the month and enter the date setting mode. The date
digit will start flashing.

6. Use the + or MIN/MAX key to set the date.

7. Confirm all calendar settings with the SET key and enter the °C/°F TEMPERATURE

UNIT SETTING.

°C/°F TEMPERATURE UNIT SETTING

The temperature display can be selected to show temperature data in °F or °C. (default °F)

1. The temperature unit is flashing

2. Use the + or MIN/MAX key to toggle between “°F” or “°C”.

3. Confirm with the SET key and enter the WIND SPEED UNIT SETTING

WIND SPEED UNIT SETTING

The wind speed unit can be set as mph (mile per hour), km/h (kilometre per hour), or m/s
(meter per second). The default unit is mph.

1. Use the + or MIN/MAX key to toggle between the unit “mph”, “km/h”, or “m/s”

2. Confirm with the SET key and enter the RAINFALL UNIT SETTING.

RAINFALL UNIT SETTING (OPTIONAL)

Note: the rain unit setting is only available if there is a rain sensor. Skip this setting
by pressing the SET key again to enter the Relative Air Pressure Unit Setting.

Flashing

Flashing

13

The total rainfall unit can be set as inch or mm. The default unit is inch.

1. Use the + or MIN/MAX key to toggle between the unit “mm” or “Inch”

2. Confirm the unit with the SET key and enter the RELATIVE AIR PRESSURE UNIT

SETTING.

RELATIVE AIR PRESSURE UNIT SETTING

The relative air pressure can be set as hPa of inHg. The default unit is inHg.

1. Use the + or MIN/MAX key to toggle between the unit “hPa" or “inHg”

2. Confirm the unit with the SET key and enter the RELATIVE PRESSURE

REFERENCE VALUE SETTING

RELATIVE PRESSURE REFERENCE VALUE SETTING

Note:

The default reference pressure value of the barometer is 29.91inHg (1013 hPa) when
batteries are first inserted. For an exact measurement, it is necessary to first adjust

the barometer to your local relative air pressure (related to elevation above sea
level). Ask for the current atmospheric pressure of your home area (Local weather service,

www, optician, calibrated instruments in public buildings, airport).
The relative air pressure can be manually set to another value within the range of 27.14 to

31.90 inHg (919 to 1080 hPa)

for a better reference.

1. The current relative pressure value will start flashing

2. Use the + or MIN/MAX key to increase or decrease the value. Keep holding the key
will allow the value to increase faster.

Flashing

Flashing

Flashing

14

3. Confirm with the SET key and enter the WEATHER TENDENCY THRESHOLD
VALUE SETTING

Note:

This calibration facility is useful for those users living at various elevations above sea level,
but wanting their air pressure display to be based on sea level elevation.

WEATHER TENDENCY THRESHOLD VALUE SETTING

You may select a definite switching sensitivity value, .06, .09, or .12 inHg (2-4 hPa) for the
change in the display of weather icons. This represents the "sensitivity" of the weather
forecast (the smaller the value selected, the more sensitive the weather forecast). The
default value is 0.09 inHg (3 hPa).

1. The threshold value will start flashing

2. Use the + or MIN/MAX key to select the value.

3. Confirm with the SET key and enter the STORM WARNING THRESHOLD VALUE

SETTING.

STORM WARNING THRESHOLD VALUE SETTING

You may also define a switching sensitivity value for the Storm warning display at a
decrease of air pressure from .09 inHg to .27 inHg (3 hPa a 9 hPa) over 6 hours (Default

0.15 inHg (5 hPa)).

Flashing

Flashing

15

1. The threshold value will start flashing.

2. Use the + or MIN/MAX key to select the value.

3. Confirm with the SET key and enter the STORM ALARM ON/ OFF SETTING

STORM ALAR M ON/ OFF SETTING

Note: the storm alarm ON/OFF setting is not available on this model. Skip and exit
this setting by pressing the SET key.

TO EXIT THE MANUAL SETTING MODE

To exit the manual setting anytime during the manual setting modes, press the HISTORY
key anytime or wait for the automatic timeout. The mode will return to the normal time
display.

Important Notes:

After you have followed the aforementioned set-up procedures, please read the
main manual for the following important functions of the weather center in detail:

 Viewing wind/ rainfall and air pressure data
 Viewing Max/ Max weather data
 Viewing History data record

Mounting the units:

Using 915MHz wireless transmission gives users little restriction on placement because all
units can be positioned virtually anywhere within a 330 ft / 100 meters radius of the base
station. Please ensure that the cable included in this set meets your distance
requirements (see accessories in the main user manual for adding extension cables).

Important: Ensure all signals can be received and/or all cable distances meet with your
requirements at the point of fixing particularly before you start drilling any mounting holes.

Wind sensor

Secure the main unit to the shaft of the mast holder using the single screw provided with
the front of the sensor (marked E) facing in the East-West direction otherwise wind
direction will not be accurate. Now fix the entire unit to a suitable mast using the U-bolt,
washers and nuts found in this set.
Note: For best results mount the wind sensor onto a mast to allow the wind to freely travel
from all directions to enable an accurate reading (ideal mast size should be from Ø

5

/8” to

1

1

/4”). Ensure that the cable of the wind sensor meets your distance requirements

16

Thermo-hygro Sensor

To wall mount the thermo-hygro sensor, fix the wall holder onto the desired wall (2 screws
are supplied), plug the sensor firmly into the wall holder and then carefully replace the rain
cover back over the thermo-hygro sensor.

Note: After mounting the units, should the weather data not be received, user may need to
remove the batteries from all units and redo the set-up procedures after about 5 minutes.

Rain sensor (optional)

The rain sensor should be mounted horizontally about 2-3ft off from the ground (or higher)
in an open area away from trees or other coverings to allow rain to fall naturally for an
accurate reading.

Note: For best results ensure the base is horizontal to allow maximum drainage of any
collected rain

WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products
purchased and used in North America and only to the original purchaser of this product.
To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for
problem determination and service procedures. Warranty service can only be performed
by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La
Crosse Technology, Ltd’s authorized service center.

La Crosse Technology, Ltd will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and
products become the property of La Crosse Technology, Ltd and must be returned to La
Crosse Technology, Ltd.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer. La Crosse Technology, Ltd will pay all expenses for labor and
materials for all repairs covered by this warranty. If necessary repairs are not covered by
this warranty, or if a product is examined which is not in need or repair, you will be
charged for the repairs or examination.

The owner must pay any shipping charges incurred in getting your La Crosse Technology,
Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse

17

Technology, Ltd will pay ground return shipping charges to the owner of the product to a
USA address only.

Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship
with the following specified exceptions: (1) damage caused by accident, unreasonable use
or neglect (including the lack of reasonable and necessary maintenance); (2) damage
occurring during shipment (claims must be presented to the carrier); (3) damage to, or
deterioration of, any accessory or decorative surface; (4) damage resulting from failure to
follow instructions contained in your owner’s manual; (5) damage resulting from the
performance of repairs or alterations by someone other than an authorized La Crosse
Technology, Ltd authorized service center; (6) units used for other than home use (7)
applications and uses that this product was not intended or (8) the products inability to
receive a signal due to any source of interference.

This warranty covers only actual defects within the product itself, and does not cover the
cost of installation or removal from a fixed installation, normal set-up or adjustments,
claims based on misrepresentation by the seller or performance variations resulting from
installation-related circumstances.

LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH
THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT
TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS
PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH.

This warranty gives you specific legal rights. You may also have other rights specific to
your State. Some States do no allow the exclusion of consequential or incidental
damages therefore the above exclusion of limitation may not apply to you.

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: [phone]

Fax: [phone]

e-mail:

[e-mail]

(warranty work)

[e-mail]

(information on other products)

18

web:

www.lacrossetechnology.com

For more information, please visit:

www.lacrossetechnology.com/1910

All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or
processed using electronic, mechanical or chemical procedures with out wr itten permission of the
publisher.

This handbook may contain mistakes and printing errors. The information in this handboo k is regularl y
checked and corrections made in the next issue. We accept no liability for technical mistakes or printin g
errors, or the i r consequences.
All trademarks and patents are acknowledged.
