Labnet 222DS User Manual

222DS Benchtop Shaking Incubator

User Manual

I-5222-DS

I-5222-D-230V

BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL

TABLE OF CONTENTS Page

1.0. GENERAL INFORMATION 3

1.1 DEFINITION 3

1.2 KEY FEATURES 3

2.0. TECHNICAL DESCRIPTION 3

2.1 CONSTRUCTION 3

3.0 INSTALLATION 4

3.1 UNPACKING 4

3.2 SELECTING THE RIGHT PLACE 4

3.3 ATTACHING POWER CORD 5

3.4 ATTACHING SHAKER PLATFORMS 5

3.5 STARTING UP 5

3.5.1 STARTING UP CHECK LIST 5

3.6 GENERAL SAFETY RECOMMENDATIONS 5

4.0 INSTRUCTION FOR USE 6

4.1 INTRODUCTION 6

4.2 BASIC OPERATIONS 7

4.3 CHANGING PARAMETERS DURING OPERATION 9

4.4 SHAKING WITHOUT HEATING 10

4.5 HEATING WITHOUT SHAKING 10

5.0 TROUBLESHOOTING 10

5.1 ERRORS 10

5.2 DESCRIPTION OF POSSIBLE ERRORS 11

6.0 TECHNICAL SPECIFICATION 11

6.1 TECHNICAL DATA 11

7.0 TEMPERATURE RE-ADJUSTMENT 12

8.0 MAINTENANCE AND CLEANING INSTRUCTIONS 12

8.1 CLEANING OF THE WORKING CHAMBER (PAINTED STEEL) 12

8.2 MAINTENANCE AND CLEANING OF THE PMMA (ACRYLIC) LID 12

9.0 POSITIONING OF ATTACHMENTS ON SHAKING PLATFORM 14

Page 2

BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL

1.0 GENERAL INFORMATION

1.1 DEFINITION
222DS BENCHTOP SHAKING INCUBATOR is a combination product of a shaker and a

temperature chamber, designed for shaking and heat treatment of sensitive samples. It
replaces two devices, reduces time and space needed. It is very suitable for biochemistry,
microbiology and medicine laboratories in which thermal and shaking treatment of samples is
a daily used routine.

1.2 KEY FEATURES

- High temperature working range.

- Large environment temperature range - you can use device also in cold rooms.

- Digital readout of all parameters - you can read temporary or preset RPM, temperature,
time, acceleration, when device is running or when it is in stand-by mode.

- You can change parameter values while the device is running (except timer).

- Last parameter values reside in the memory even if the device was switched off.

- Precisely adjusted and maintained temperature regulation within 0.5°C of absolute
deviation from the set temperature in device working area.

- Incorporated HOLD and STEP time function with 1 minute resolution.

- Special parallel temperature protection for your safety.

- Error number combined indication of possible errors.

- Easy interchangeable platforms.

- Lid sensor.

2.0 TECHNICAL DESCRIPTION

2.1 CONSTRUCTION

The casing of BENCTOP SHAKING INCUBATOR is made of steel plate, varnished with high
resistant polyurethane lacquer. Temperature chamber lid is made of PMMA, which is
resistant to the temperatures up to 90°C.
Basic equipment consists of independent shaking device and temperature chamber. Both
sections are driven and regulated via microcontroller driven electronics, which also controls
all necessary sensors for motor speed, temperature, lid, temperature safety fuse, time and
self diagnostics error levels in variety of margin situations.

Page 3

BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL

3.0 INSTALLATION

3.1 UNPACKING

Before starting the installation, carefully examine the delivery for possible damage or missing
parts:

- Open the box and lift the device, together with the shock absorbers, out of the box.

- Remove the shock absorbers and check that the machine has not been visibly damaged
during the transportation. Keep the packing material until you are sure that the machine
functions properly.

- Check the information on the name plate on the rear side of the machine:

- Type

- Serial number

- Article number

- Check that the mains cord has a pin configuration that fits into a wall socket according to
the local standard.

If any kind of damage occurred during transportation, immediately make a complaint to the
carrier. Any incorrect delivery or missing parts should be reported to the distributor.

3.2 SELECTING THE RIGHT PLACE

When selecting the right place for device, please consider the following:

- Put the device on a smooth, horizontal and stable place.

- Leave enough space on the back side of the device for normal air circulation.

- Leave enough space around the device, that you will easy control and maintain it.

- Don’t use the device in surroundings, where there are fast temperature and humidity
changes. Please avoid also such places, which are under direct access of sunlight or
places nearby heat producing devices.

- Avoid such places, where the possibility of shocks and vibrations exists.

Do not use the device in inflammable or explosive atmosphere!

Note: The equipment shall be placed so that it is not difficult to pull out a cord plug

from mains receptacle.

Page 4

BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL

3.3 ATTACHING POWER CORD

Fit the mains cord, which is included in the delivery, into the mains receptacle. Connect the
other end of the cord to a grounded wall socket.

3.4 ATTACHING SHAKING PLATFORMS

The SHAKING INCUBATOR has a variety of platforms available, to meet most of the shaking
needs. These platforms mount to the shakers via four mounting platforms which easily plug
into four rubber mounting points on the top of the shaking incubator.

3.5 STARTING UP

3.5.1 STARTING UP CHECK LIST

- Unpack and place the device as specified in previous paragraphs.

- Open the lid and fix shaking platform with test samples on the plate.

- Close the lid cover.

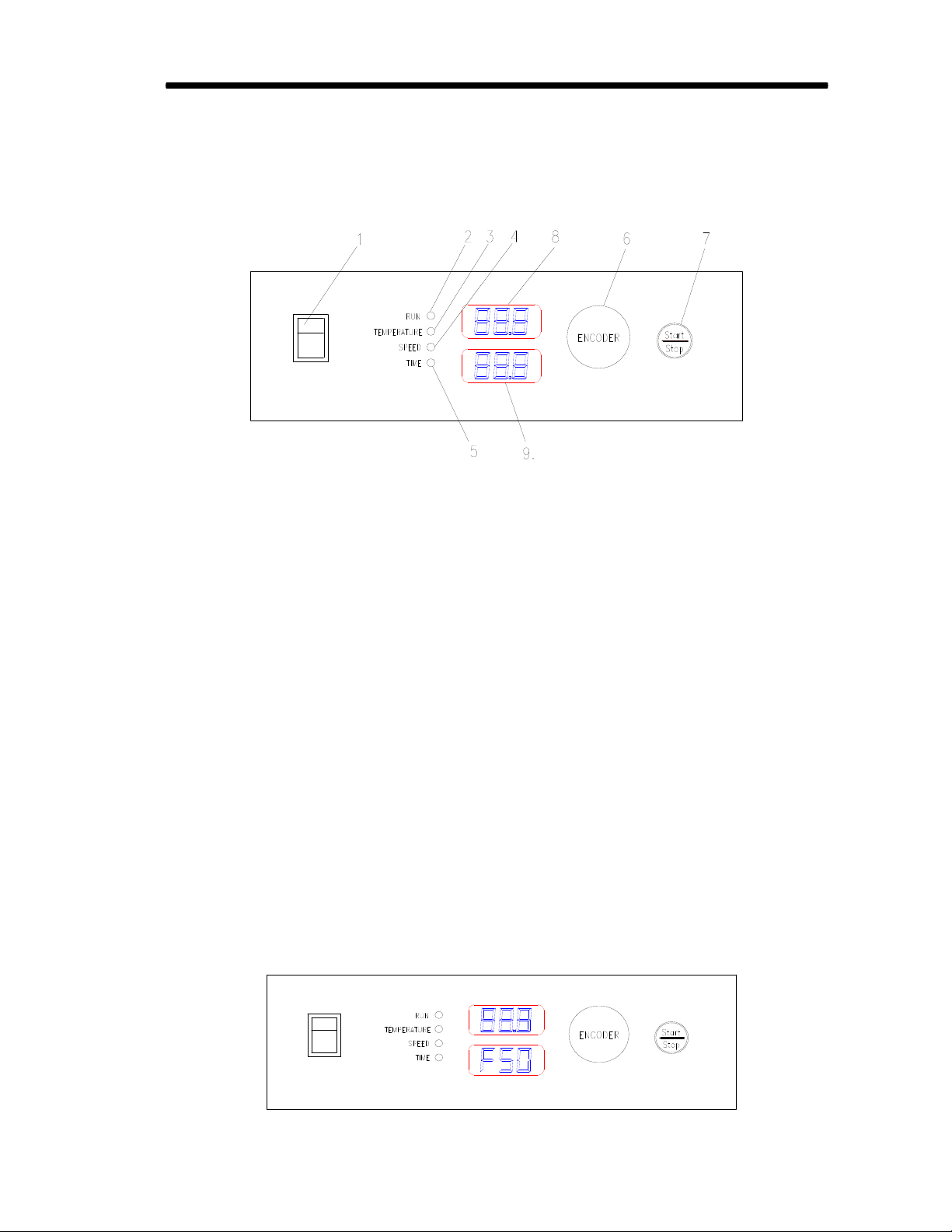

- Switch on the device by the ON/OFF switch on the front panel.

Light in the switch indicates that the power is on.

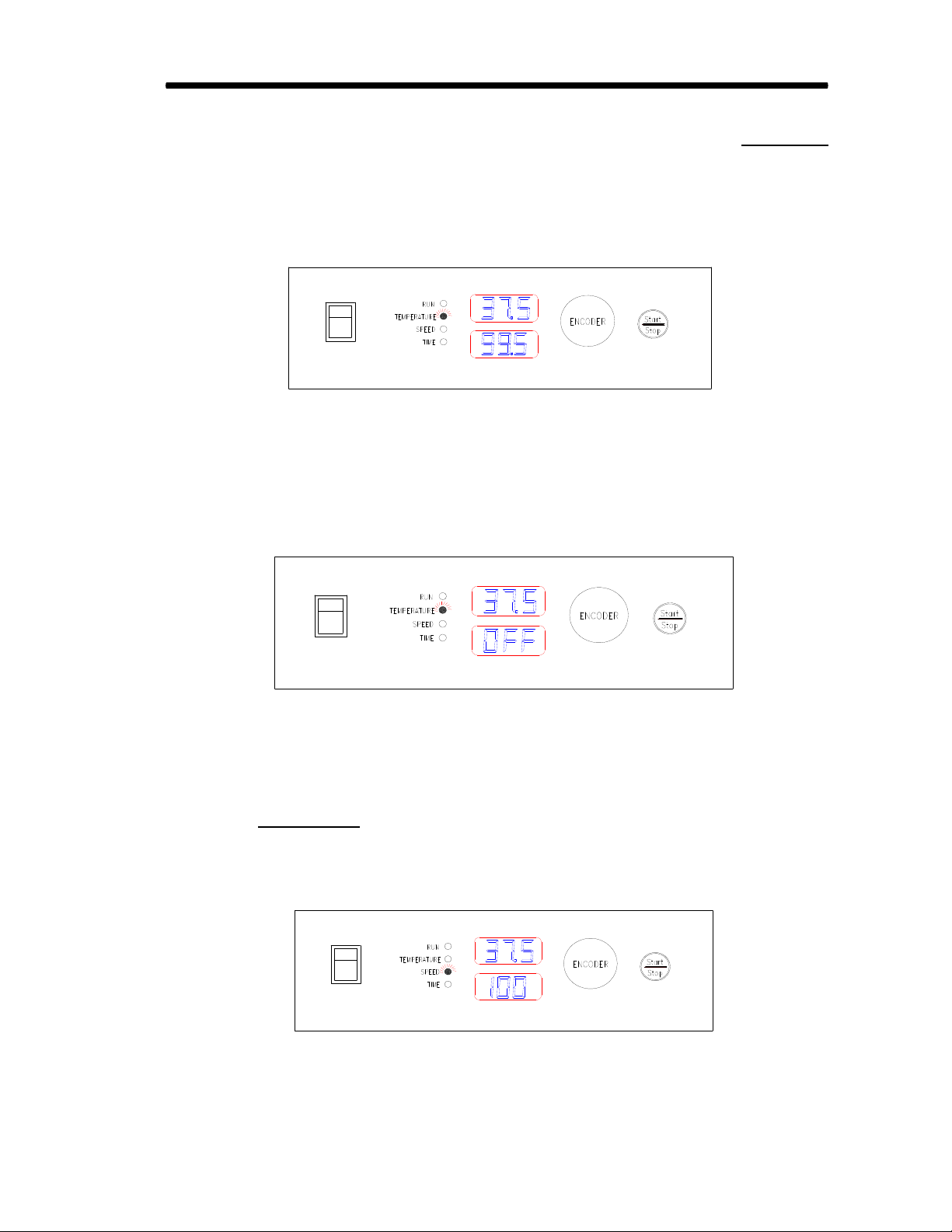

- Check all the parameters and set new parameters values if necessary. Please refer to
procedures described in next chapters.

3.6 GENERAL SAFETY RECOMMENDATIONS

Before any installation read this User’s Manual.

- Before cleaning disconnect the device from mains power supply. Device could be
cleaned with a soft, lightly wet cloth. Don’t use cleaners or liquids on aerosol basis.

- Do not use the device nearby water sources. Take care, that water will not drop in the
device; especially by cleaning procedures.

- Do not use device in aggressive atmosphere.

NOTE:
In case that device is not functioning properly, even if you have exactly followed

instructions described in User’s Manual, you are allowed to use only those commands
and procedures, which are allowed by User’s Manual. Use of any other commands and
procedure’s adjustments could result in device destruction or longer service repair
time.

If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

Do not shake inflammable or explosive samples!

Page 5
