Labconco Protector ClassMate Laboratory Hoods User Manual

User’s Manual

Protector
Laboratory Fume Hoods

®

ClassMate

®

Models
69704 Series 69705 Series
69706 Series 69714 Series
69715 Series 69716 Series

To receive important product updates,

complete your product registration card

online at register.labconco.com

Labconco Corporation
8811 Prospect Avenue
Kansas City, MO 64132-2696
800-821-5525, 816-333-8811
FAX [phone]
E-MAIL [e-mail]
HOME PAGE www.labconco.com

Please read the User’s Manual before operating the equipment.

Copyright © 2001, 2007 Labconco Corporation. All rights reserved.

The information contained in this manual and the accompanying products are copyrighted and all rights
reserved by Labconco Corporation. Labconco Corporation reserves the right to make periodic design
changes without obligation to notify any person or entity of such change.

Warranty

Labconco provides a warranty on all parts and factory workmanship. The warranty includes areas of
defective material and workmanship, provided such defect results from normal and proper use of the
equipment.

The warranty for all Labconco products will expire one year from date of installation or two years from
date of shipment from Labconco, whichever is sooner, except the following;

• Purifier® Delta® Series Biological Safety Cabinets and PuriCare® Lab Animal Research
Stations carry a three-year warranty from date of installation or four years from date of
shipment from Labconco, whichever is sooner.

• SteamScrubber® & FlaskScrubber® Glassware Washers carry a two-year warranty from date
of installation or three years from date of shipment from Labconco, whichever is sooner.

• Blood Drawing Chairs carry a ten year warranty.

• Carts carry a lifetime warranty.

• Glassware is not warranted from breakage when dropped or mishandled.

This limited warranty covers parts and labor, but not transportation and insurance charges. In the event
of a warranty claim, contact Labconco Corporation or the dealer who sold you the product. If the cause
is determined to be a manufacturing fault, the dealer or Labconco Corporation will repair or replace all
defective parts to restore the unit to operation. Under no circumstances shall Labconco Corporation be
liable for indirect, consequential, or special damages of any kind. This statement may be altered by a
specific published amendment. No individual has authorization to alter the provisions of this warranty
policy or its amendments. Lamps and filters are not covered by this warranty. Damage due to
corrosion or accidental breakage is not covered.

Returned or Damaged Goods

Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be
accepted. If your shipment was damaged in transit, you must file a claim directly with the freight carrier.
Labconco Corporation and its dealers are not responsible for shipping damages.

The United States Interstate Commerce Commission rules require that claims be filed with the delivery
carrier within fifteen (15) days of delivery.

Limitation of Liability

The disposal and/or emission of substances used in connection with this equipment may be governed by
various federal, state, or local regulations. All users of this equipment are required to become familiar with
any regulations that apply in the user’s area concerning the dumping of waste materials in or upon water,
land, or air and to comply with such regulations. Labconco Corporation is held harmless with respect to
user’s compliance with such regulations.

Contacting Labconco Corporation

If you have questions that are not addressed in this manual, or if you need technical assistance, contact
Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-5525
or 1-816-333-8811, between the hours of 7:00 a.m. and 6:00 p.m., Central Standard Time.

Part #6985200, Rev. F

ECO E618

T

AABBLLEE

T

CHAPTER 1: INTRODUCTION 1
About This Manual 2
Typographical Conventions 3
Your Next Step 4

CHAPTER 2: PREREQUISITES 7
Location Requirements 8
Support Requirements 8
Exhaust Requirements 8
Electrical Requirements 10
Service Line Requirements 10
Space Requirements 10

CHAPTER 3: GETTING STARTED 11
Unpacking Your Fume Hood 12
Protector ClassMate Components 13
Protector ClassMate Laboratory Hoods Specifications 13
Removing the Shipping Skid 15
Installing the ClassMate on a Supporting Structure & Work Surface17
Connecting to the ClassMate Hood Exhaust System 18
Connecting the Electrical Supply Source 20
Connecting the Service Lines 22
Sealing the Protector ClassMate Hood 24
Certifying the Protector ClassMate Fume Hood 25

CHAPTER 4: OPERATIONS AND SAFETY PRECAUTIONS 27
Safety Precautions 33

CHAPTER 5: USING YOUR PROTECTOR CLASSMATE 37
Operating the A-Style Combination Sash 38
Operating the Blower 39
Operating the Lights 40
Working in your Protector ClassMate Fume Hood 41

O

O

FF

C

C

OONNTTEENNTTSS

CHAPTER 6: MAINTAINING YOUR CLASSMATE 43

Routine Maintenance Schedule 44

Service Operations 45

CHAPTER 7: MODIFYING YOUR CLASSMATE FUME HOOD 47
Installing Additional Service Fixtures 47
Labconco Service Fixture 48
Labconco Service Fixture with Gooseneck 50
WaterSaver Outlet Service Tube Part Numbers 52
Installing Exhaust Adapter for Back to Back Hoods 53
Installing Guardian Digital Airflow Monitor 53
Distillation Grids – Field Installation 57
Installing a 115V Electrical Duplex Outlet 60

CHAPTER 8: TROUBLESHOOTING 63

APPENDIX A: PROTECTOR CLASSMATE COMPONENTS 67

APPENDIX B: PROTECTOR CLASSMATE DIMENSIONS 71

APPENDIX C: PROTECTOR CLASSMATE SPECIFICATIONS 73

APPENDIX D: PROTECTOR CLASSMATE ACCESSORIES 77

Work Surface 77
Cup Sink 78
Storage Cabinet 78
Wood Cabinets 79
Remote Blowers 79
Duct and Accessories 80
Service Fixtures 80
Dual Exhaust Adapter for Back to Back Hoods 80
Digital 335 Airflow Monitor 81
Distillation Grids 81
115V Electrical Duplex Outlet 81
Decorative Rear Panels 82

APPENDIX E: QUICK CHART FOR PROTECTOR

CLASSMATE FUME HOOD 83

APPENDIX F: REFERENCES 84

DECLARATION OF CONFORMITY 90

C

HHAAPPTTEERR

C

I

NNTTRROODDUUCCTTIIOONN

I

Congratulations on your purchase of a Labconco
Protector ClassMate Laboratory Fume Hood. Your
Protector ClassMate is designed to protect you. It is the
result of Labconco’s more than 50 years experience of
manufacturing fume hoods, and users like you
suggested many of its features to us.

The Labconco Protector ClassMate Fume Hood has
been engineered to provide maximum visibility in a
classroom laboratory, and effectively contain toxic,
noxious, or other harmful materials when properly
installed. The Protector ClassMate offers many unique
features to enhance safety, performance and visibility.
To take full advantage of them, please acquaint yourself
with this manual and keep it handy for future reference.
If you are unfamiliar with how fume hoods operate,
please review Chapter 4: Theory of Operation and
Safety Precautions before you begin working in the
fume hood. Even if you are an experienced fume hood
user, please review Chapter 5: Using Your Fume Hood,
which describes your Protector ClassMate features so
that you can use the hood efficiently.

1

1

Product Service 1-800-522-7658

1

Chapter 1: Introduction

About This Manual

This manual is designed to help you learn how to
install, use, and maintain your laboratory fume hood.
Instructions for installing optional equipment on your
hood are also included.

Chapter 1: Introduction provides a brief overview of
the laboratory fume hood, explains the organization of
the manual, and defines the typographical conventions
used in the manual.

Chapter 2: Prerequisites explains what you need to do
to prepare your site before you install your laboratory
fume hood. Electrical and service requirements are
discussed.

Chapter 3: Getting Started contains the information
you need to properly unpack, inspect, install, and
certify your laboratory fume hood.

Chapter 4: Theory of Operation and Safety Precautions
explains how the Protector ClassMate operates and the
appropriate precautions you should take when using the
fume hood.

Chapter 5: Using Your Protector ClassMate discusses
the basic operation of your fume hood. Information on
how to prepare, use and shut down your Protector
ClassMate are included.

Chapter 6: Maintaining Your Protector ClassMate
explains how to perform routine maintenance on your
fume hood.

Chapter 7: Modifying Your Protector ClassMate
describes how to install the optional equipment on the
fume hood.

Chapter 8: Troubleshooting contains a table of
problems you may encounter while using your
laboratory fume hood including the probable causes of
the problems and suggested corrective actions.

2

Product Service 1-800-522-7658

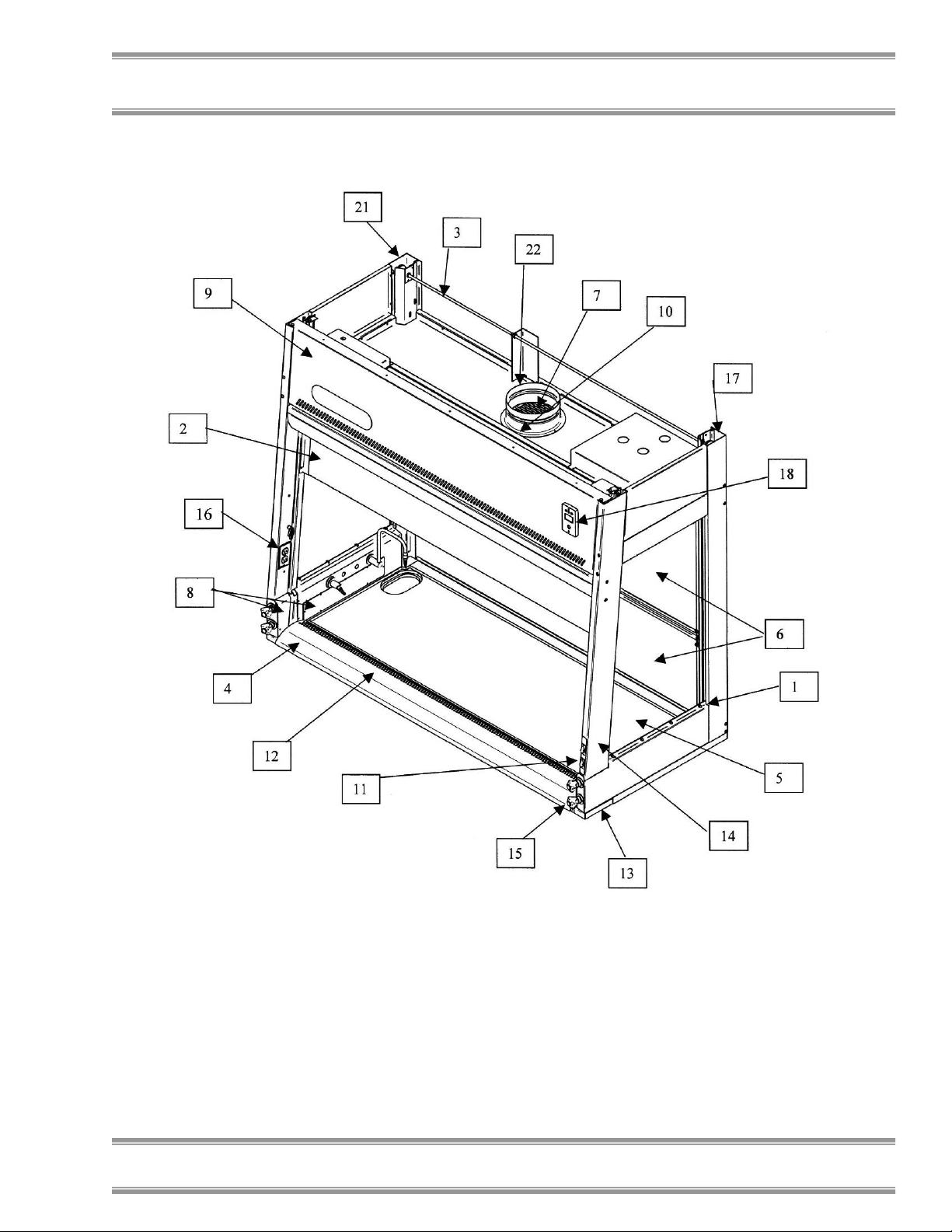

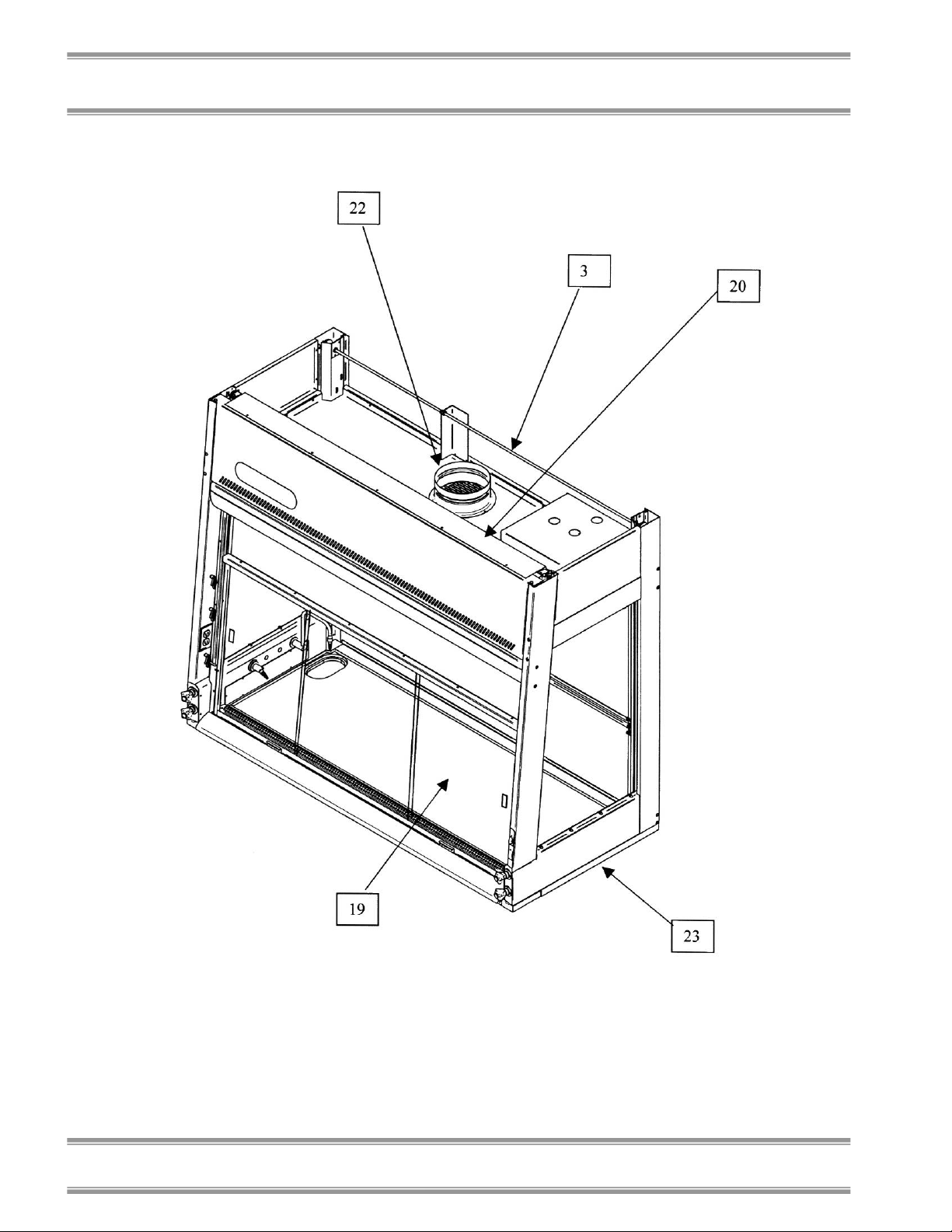

Appendix A: Protector ClassMate Components contains
labeled diagrams of all of the components of the fume
hoods.

Appendix B: Protector ClassMate Dimensions contains
comprehensive diagrams showing all of the dimensions
for the 4, 5 and 6 foot models of the laboratory fume
hoods.

Appendix C: Protector ClassMate Specifications
contains the electrical requirements for laboratory fume
hood. Wiring diagrams are also included.

Appendix D: Protector ClassMate Accessories lists the
part number and descriptions of all of the accessories
available for your laboratory fume hood.

Appendix E: Quick Chart for the Protector ClassMate
Hoods provides useful operating specifications.

Appendix F: References lists the various resources

available that deal with laboratory fume hoods.

Chapter 1: Introduction

Typographical Conventions

Recognizing the following typographical conventions
will help you understand and use this manual:

• Book, chapter, and section titles are shown in italic
type (e.g., Chapter 3: Getting Started).

• Steps required to perform a task are presented in a
numbered format.

• Comments located in the margins provide
suggestions, reminders, and references.

Product Service 1-800-522-7658

3

Chapter 1: Introduction

!

)

4'

5'

6'

S

A

• Critical information is presented in boldface type in
paragraphs that are preceded by the exclamation
icon. Failure to comply with the information
following an exclamation icon may result in injury
to the user or permanent damage to fume hood.

• Critical information is presented in boldface type in
paragraphs that are preceded by the wrench icon.
These operations should only be performed by a
trained certifier or contractor. Failure to comply
with the information following a wrench icon may
result in injury to the user or permanent damage to
your hood.

• Important information is presented in capitalized
type in paragraphs that are preceded by the pointer
icon. It is imperative that the information contained
in these paragraphs be thoroughly read and
understood by the user.

• A number icon precedes information that is specific
to a particular model of laboratory fume hood. The
4' icon indicates the text is specific to the 4-foot
wide model. The 5' icon indicates the text is
specific to the 5-foot model. The 6' icon indicates
the text is specific to the 6-foot model.

• The S icon indicates the text is specific to the
standard model.

• The A icon indicates the text is specific to the A-
Style Combination Sash Model.

4

Your Next Step

If your Fume Hood needs to be installed, proceed to
Chapter 2: Prerequisites to ensure your installation site
meets all of the requirements. Then, go to Chapter 3:
Getting Started for instructions on how to install your
laboratory fume hood and make all of the necessary
connections.

If you would like to review how laboratory fume hoods
operate, go to Chapter 4: Theory of Operation and
Safety Precautions.

For information on the operational characteristics of
your laboratory fume hood, go to Chapter 5: Using
Your Protector ClassMate.

Product Service 1-800-522-7658

If your laboratory fume hood is installed and you need
to perform routine maintenance on the cabinet, proceed
to Chapter 6: Maintaining Your Protector ClassMate.

For information on making modifications to the
configuration of your unit, go to Chapter 7: Modifying
Your Laboratory Fume Hood.

Refer to Chapter 8: Troubleshooting if you are
experiencing problems with your Fume Hood.

Chapter 1: Introduction

Product Service 1-800-522-7658

5

Chapter 1: Introduction

6

Product Service 1-800-522-7658

C

HHAAPPTTEERR

C

P

RREERREEQQUUIISSIITTEESS

P

Before you install your laboratory fume hood, you need
to prepare your site for installation. Carefully examine
the location where you intend to install your hood. You
must be certain that the area is level and of solid
construction. In addition, a dedicated source of
electrical power must be located near the installation
site.

Carefully read this chapter to learn:

• The location requirements for your installation
site.

• The support requirements for your installation
site.

• The exhaust requirements for your installation
site.

• The electrical power requirements for your
installation site.

• The service line requirements for your
installation site.

• The space requirements for your installation
site.

Refer to Appendix B: Protector ClassMate Dimensions
for complete fume hood dimensions.

Refer to Appendix C: Protector ClassMate
Specifications for complete laboratory fume hood
electrical and environmental conditions, specifications
and requirements.

2

2

Product Service 1-800-522-7658

7

Chapter 2: Prerequisites

Location Requirements

The Fume Hood should be located

!

away from traffic patterns, doors,
fans, ventilation registers, and any
other air-handling device that could
disrupt its airflow patterns. All
windows in the room should be closed.

Support Requirements

DO NOT locate the fume hood on a

!

cart, dolly, or mobile bench. ALL
Protector ClassMate installations
must be permanent and stationary.
The supporting structure usually
consists of a base cabinet and
chemically resistant work surface. See

Appendix D: Protector ClassMate
Accessories.

Exhaust Requirements

The exhaust duct connection has been designed for 8"
nominal pipe (8.625" O.D.) to allow for minimum static
pressure loss while operating at 100 fpm face velocities.
The 8" exhaust duct also allows for proper transport
velocities away from the hood in the 1000 fpm to 2500
fpm range. It is acceptable to combine the air from two
hoods with a transition coupling that would basically
have two 8" nominal exhaust inlets and one 12" (12.00"
O.D.) nominal exhaust outlet. See Appendix D
Protector ClassMate Accessories for transition
coupling. The proper exhaust volume and static
pressure loss are listed next for each hood model:

8

Product Service 1-800-522-7658

Chapter 2: Prerequisites

Catalog

Number

69704-00 48" Hood without fixtures & duplexes 60 fpm 340 CFM 0.09" H2O
80 fpm 460 CFM 0.16" H2O
100 fpm 570 CFM 0.24" H2O
69704-01 48" Hood with 4 fixtures & 2 duplexes 60 fpm 340 CFM 0.09" H2O
80 fpm 460 CFM 0.16" H2O
100 fpm 570 CFM 0.24" H2O
69705-00 60" Hood without fixtures & duplexes 60 fpm 440 CFM 0.14" H2O
80 fpm 590 CFM 0.26"H2O
100 fpm 730 CFM 0.39" H2O
69705-01 60" Hood with 4 fixtures & 2 duplexes 60 fpm 440 CFM 0.14" H2O
80 fpm 590 CFM 0.26"H2O
100 fpm 730 CFM 0.39" H2O
69706-00 72" Hood without fixtures & duplexes 60 fpm 540 CFM 0.19" H2O
80 fpm 710 CFM 0.33" H2O
100 fpm 890 CFM 0.51" H2O
69706-01 72" Hood with 4 fixtures & 2 duplexes 60 fpm 540 CFM 0.19" H2O
80 fpm 710 CFM 0.33" H2O
100 fpm 890 CFM 0.51" H2O

Catalog

Number

69714-00 48" Single Sash Hood without monitor, fixtures & duplexes 60 fpm 280 CFM 0.06" H2O
80 fpm 380 CFM 0.11"H2O
100 fpm 470 CFM 0.16" H2O

69714-01

80 fpm 380 CFM 0.11"H2O
100 fpm 470 CFM 0.16" H2O
69715-00 60" A-Style Sash Hood without monitor, fixtures & duplexes 60 fpm 330 CFM 0.08" H2O
80 fpm 440 CFM 0.14" H2O
100 fpm 550 CFM 0.22" H2O

69715-01

80 fpm 440 CFM 0.14" H2O
100 fpm 550 CFM 0.22" H2O
69716-00 72" A-Style Sash Hood without monitor, fixtures & duplexes 60 fpm 410 CFM 0.11" H2O
80 fpm 550 CFM 0.20" H2O
100 fpm 680 CFM 0.30" H2O

69716-01

80 fpm 550 CFM 0.20" H2O
100 fpm 680 CFM 0.30" H2O

48" Single Sash Hood with digital airflow monitor, 4 fixtures & 2
duplexes

60" A-Style Sash Hood with digital airflow monitor, 4 fixtures & 2
duplexes

72" A-Style Sash Hood with digital airflow monitor, 4 fixtures & 2
duplexes

Standard Model Description

Reduced Air Volume Model Description

Total Exhaust at 18" Sash Opening

60% open

Face

Velocity

Total Exhaust at 50% Open Sash

Face

Velocity

60 fpm 280 CFM 0.06" H

60 fpm 330 CFM 0.08" H

60 fpm 410 CFM 0.11" H

Exhaust

Volume

Horizontally or Vertically

Exhaust

Volume

Static

Pressure

Loss

Static

Pressure

Loss

O

2

O

2

O

2

Proper blower selection can be determined from these
exhaust requirements and the total system static
pressure loss. Consult Labconco Sales Engineering
Team if you need help sizing a blower.

Product Service 1-800-522-7658

9

Chapter 2: Prerequisites

Electrical Requirements

The Protector ClassMate Hood models feature internal
wiring for the fluorescent light assembly and light
switch. All hood models with 115V, 60 Hz duplex
outlets are terminated at the internal boxes for hook-up
by a qualified electrician. The blower switch, and light
switch wires are also terminated at the internal boxes
for hook-up by a qualified electrician. Refer to Chapter

3: Getting Started and Appendix C: Protector
ClassMate Specifications for the wiring diagram for

proper electrical installation. All models have 115
VAC, 60 Hz, 12 Amp requirements.

Service Line Requirements

All service lines to the laboratory fume hood should be
¼ inch outside diameter, copper (brass for gas), and
equipped with an easily accessible shut-off valve,
should disconnection be required. If the service line
pressure exceeds 40 PSI, it must be equipped with a
pressure regulator to reduce the line pressure.

On hood models with service fixtures, three of the
fixtures are pre-plumbed using 1/4" copper tubing
between both the valve, and the hose connector. The
upper right hand position fixture is pre-plumbed using
1/4" brass tubing between both the valve, and the hose
connector for usage with natural gas. The supply lines
shall be installed from under the hood and terminated at
the valves by a qualified contractor.

10

Space Requirements

The dimensions for the different models are shown in
Appendix B: Protector ClassMate Dimensions.

Your Next Step

After you have determined that the location you have
selected accommodates the installation and operational
requirements of your fume hood, you are ready to begin
installation. Proceed to Chapter 3: Getting Started.

Product Service 1-800-522-7658

C

HHAAPPTTEERR

C

G

EETTTTIINNGG

G

Now that the site for your laboratory fume hood is
properly prepared, you are ready to unpack, inspect,
install, and certify your unit. Read this chapter to learn
how to:

• Unpack and move your Protector ClassMate
Hood.

• Set up the fume hood with the supporting
structure and work surface.

• Connect to an exhaust system.

• Connect the electrical supply source.

• Connect the service lines.

• Sealing the Protector ClassMate Hood.

• Arrange certification of your Protector

ClassMate Hood.

Depending upon which model you are installing, you
may need common plumbing and electrical installation
tools in addition to 5/16", 3/8", 7/16", and 1/2"
wrenches, ratchets, sockets, a nut driver set, a flat-blade
screwdriver, a Phillips screwdriver, and a carpenter
level to complete the instructions in the chapter.

The Protector ClassMate models
weigh between 400 – 700 lbs. (182-318

!

kg). The shipping skid allows for
lifting with a mechanical lift truck or
floor jack. If you must lift the fume
hood manually, use at least six (6)

S

S

3

3

TTAARRTTEEDD

Product Service 1-800-522-7658

11

Chapter 3: Getting Started

The United States
Interstate Commerce
Commission rules
require that claims be
filed with the delivery
carrier within fifteen (15)
days of delivery.

people and follow safe-lifting
guidelines. Normally, the fume hood
can slide off a hydraulic lift and be
placed into position on top of the work
surface.

Unpacking Your Laboratory
Fume Hood

Carefully remove the shrink-wrap on your fume hood
and inspect it for damage that may have occurred in
transit. If your unit is damaged, notify the delivery
carrier immediately and retain the entire shipment intact
for inspection by the carrier.

DO NOT RETURN GOODS
WITHOUT THE PRIOR

)

Do not discard the shipping skid or packing material for
your fume hood until you have checked all of the
components and installed and tested the unit.

Do not remove the fume hood from its shipping skid
until it is ready to be placed into its final location.
Move the unit by placing a flat, low dolly under the
shipping skid, or by using a floor jack.

!

AUTHORIZATION OF LABCONCO.
UNAUTHORIZED RETURNS WILL
NOT BE ACCEPTED.

IF YOUR HOOD WAS DAMAGED IN
TRANSIT, YOU MUST FILE A
CLAIM DIRECTLY WITH THE
FREIGHT CARRIER. LABCONCO
CORPORATION AND ITS DEALERS
ARE NOT RESPONSIBLE FOR
SHIPPING DAMAGES.

Do not move the hood by tilting it onto
a hand truck.

12

Product Service 1-800-522-7658

Protector ClassMate
Components

Labconco manufactures Protector ClassMate Fume
Hoods for operation with vertical rising sashes or
combination A-Style sashes. Each of the hoods is
available in 4-foot, 5-foot and 6-foot models. Models
are all 115V.

Locate the hood model you received in the following
group of tables. Verify that the components listed are
present and undamaged.

Protector ClassMate

Chapter 3: Getting Started

Laboratory Hoods

General Specifications for All Models

By-pass airflow design. Frame, airfoil and trough
constructed of epoxy-coated steel and aluminum.
Trough extends 1.25" below hood. Tempered safety
glass sash, sides, back and baffle. Factory wired
fluorescent light, blower and light switches. Interior
depth of 25.5" and height of 48". Interior cover plates
for access to plumbing. Factory prepared for up to 4
service fixtures with an additional 4 in the base cabinet,
two duplex electrical receptacles and airflow monitor,
8" diameter exhaust collar. Blower, work surface and
base cabinets are required (not included). For
operation on 115 volts, 60 Hz, 15 amps. Exterior depth
is 32". Exterior height is 59" (overall height including
trough is 60.25").

Additional specifications for Standard Models

Sash provides maximum visibility of 39" high. Vertical
rising sash with anti-racking shaft moves from closed to
18" operating height. Sash moves up past the sash stop
for loading. Fixtured models include two electrical
duplex receptacles and four service fixtures pre­plumbed with copper tubing. Upper right fixture is
plumbed with brass for gas connection.

Product Service 1-800-522-7658

13

Chapter 3: Getting Started

Catalog # Hood Description

69704-00 48" Hood without fixtures & duplexes
69704-01 48" Hood with 4 fixtures & 2 duplexes
69705-00 60" Hood without fixtures & duplexes
69705-01 60" Hood with 4 fixtures & 2 duplexes
69706-00 72" Hood without fixtures & duplexes
69706-01 72" Hood with 4 fixtures & 2 duplexes

Additional Specifications for Models with
Combination A-Style Sashes

4' hoods have a single vertical rising sash; 5' and 6'
hoods have combination horizontal sliding/vertical­rising sashes. Static viewing panel above moveable
sash provides 39" viewing height. Airfoil is yellow
epoxy-coated steel. Fixtured models include factory
installed Guardian Digital Airflow Monitor, two
electrical duplex receptacles, and four WaterSaver
service fixtures plumbed with copper tubing. Upper
right fixture is plumbed with brass for gas connection.

Catalog # Hood Description

69714-00 48" Single Sash Hood without monitor, fixtures & duplexes
69714-01 48" Single Sash Hood with digital airflow monitor, 4 fixtures

& 2 duplexes
69715-00 60" A-Style Sash Hood without monitor, fixtures & duplexes
69715-01 60" A-Style Sash Hood with digital airflow monitor, 4

fixtures & 2 duplexes
69716-00 72" A-Style Sash Hood without monitor, fixtures & duplexes
69716-01 72" A-Style Sash Hood with digital airflow monitor, 4

fixtures & 2 duplexes

Plus the Following:
Part # Component Description

69852-00 User’s Manual

If you did not receive one or more of the components
listed for your fume hood, or if any of the components
are damaged, contact Labconco Corporation
immediately for further instructions.

14

Product Service 1-800-522-7658

Removing the Shipping
Skid

LEAVE THE FUME HOOD

)

After you verify the fume hood components, move your
hood to the location where you want to install it. Then,
follow the steps listed next to remove the shipping skid
from your unit.

ATTACHED TO ITS SHIPPING SKID
UNTIL IT IS AS CLOSE TO ITS
FINAL LOCATION AS POSSIBLE.
MOVE THE UNIT BY USING A
SUITABLE FLOOR JACK, OR BY
PLACING A FURNITURE DOLLY
UNDERDNEATH THE SKID. DO
NOT MOVE THE HOOD BY TILTING
IT ONTO A HAND TRUCK.

Chapter 3: Getting Started

Product Service 1-800-522-7658

15

Chapter 3: Getting Started

1. Remove and discard the
cardboard corner posts
(Figure 3-1).

2. Remove strap that secures
sash. For A-Style
combination sashes
disassemble from skid and
attach to hood per Step 7.

3. Remove the access panels and after
removal, save the access panels and
hardware for re-attachment. (Figure
3-2)

4. Remove and discard the screws and
washers that are located behind the
access panel that attaches the hood
to the skid. Not Shown.

5. Re-attach access panels from Step 3.

(Figure 3-2).

6. Ensure that the cable
on each side is
properly seated in
the front and rear
pulleys. (Figure 3-

3). Releasing the
sash weights with
the cables
improperly
positioned can cause
damage.

7. IMPORTANT: A-

Style Combination

!

Sash version install
horizontal glass
sashes before Step

8.

Follow the instructions as shown in Figures 3-1, 3-2,
and 3-3

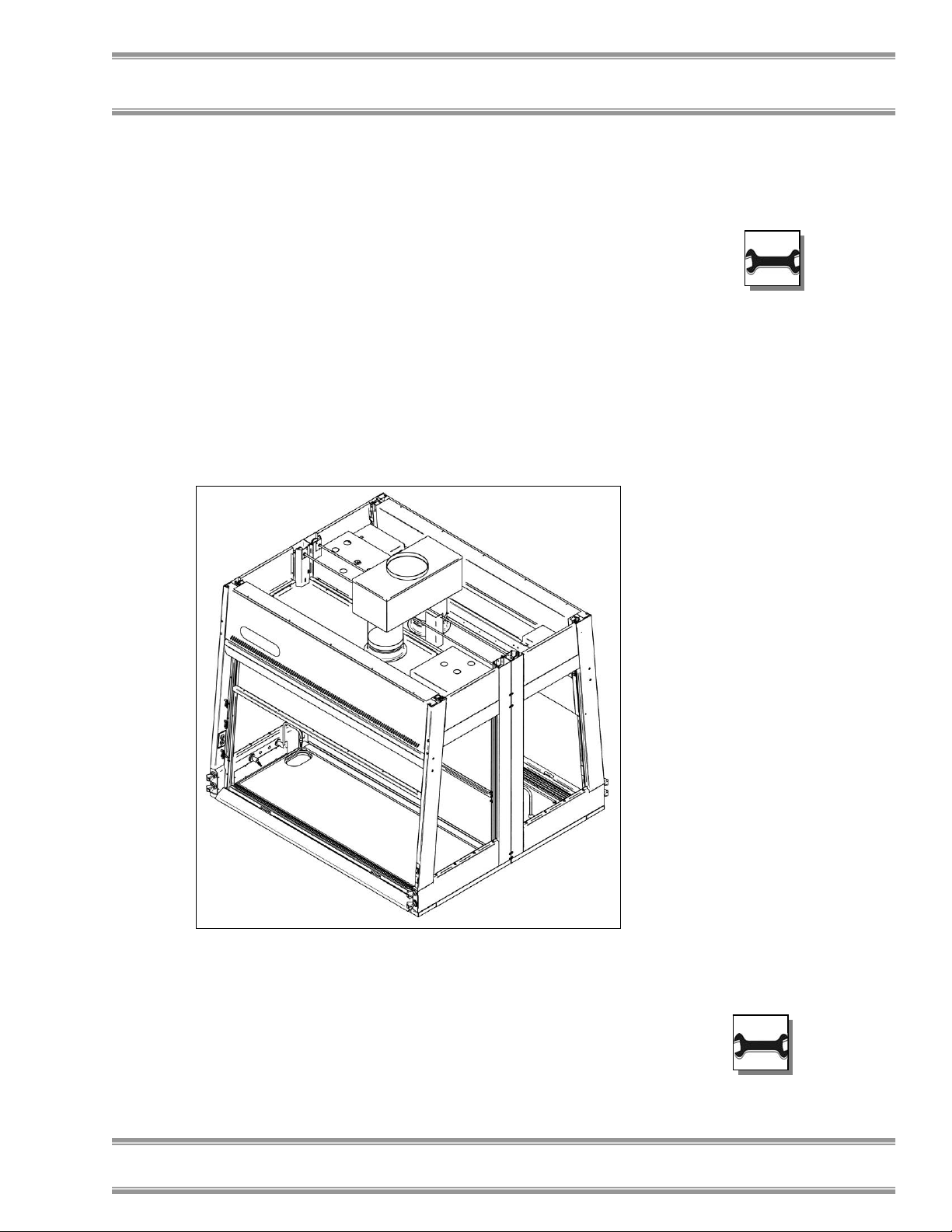

Figure 3-1

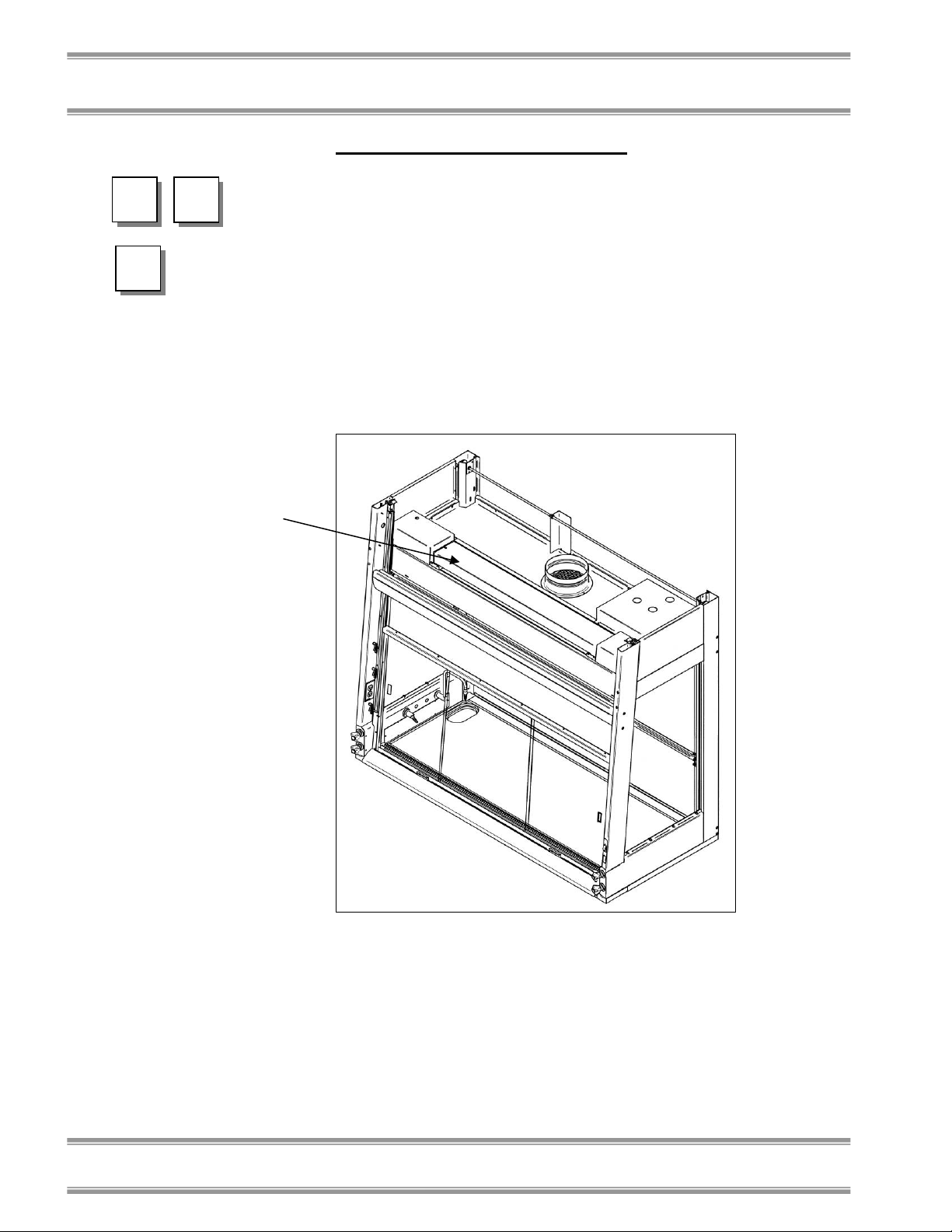

Figure 3-2

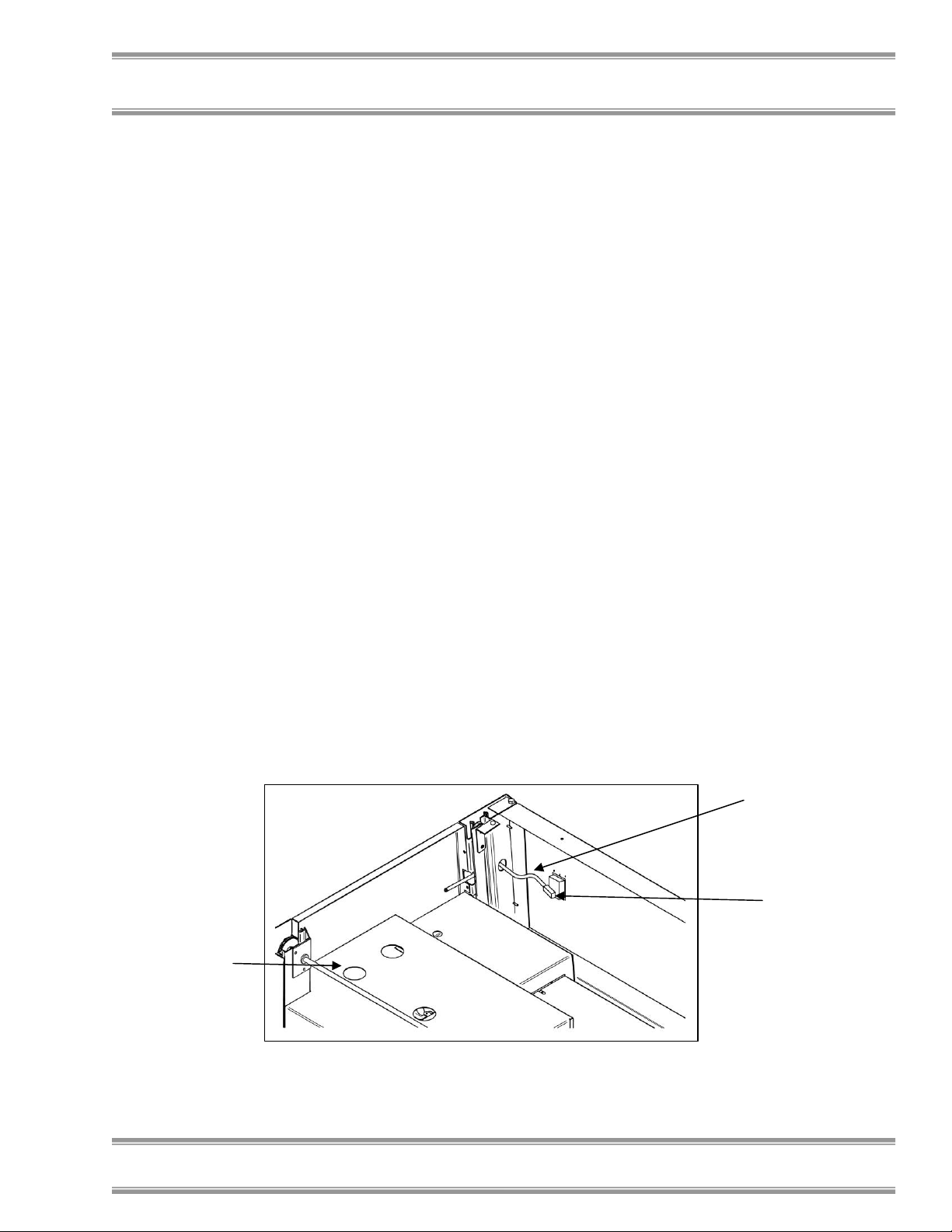

Figure 3-3

8. Release the load
on the bolt by
lifting up slightly
on the cable.
Remove the bolts
straight out of the
rear posts. 2 bolts
per each side to
be removed.
(Figure 3-3)

9. Sash shall raise
smoothly.

16

Product Service 1-800-522-7658

Install the Protector
ClassMate Hood on A
Supporting Structure and
Work Surface

The Protector ClassMate is heavy!

!

When installing the Protector ClassMate Fume Hood
onto a chemically resistant work surface or benchtop,
ensure that the structure can safely support the
combined weight of the fume hood and any related
equipment. The work surface should be at least as wide
as the unit and 25-7/8 inches deep to properly support
the unit.

!

Use caution when lifting or moving the
unit.

WARNING: It is important to support the rear of
the hood. Prior to setting the hood, install the cross
supports after the base cabinets and work surface
are leveled. The wood cross support provides
support for the bottom of the work surface.

Chapter 3: Getting Started

Figure 3-4

Cross
Supports

Product Service 1-800-522-7658

17

Chapter 3: Getting Started

The following are instructions for mounting a 2 x 4
cross support:

1. Level the base cabinets and the work
surface.

2. Scribe a line on the wall or back of the base
cabinet to locate the support under the work
surface.

3. Mount the support by attaching it to the wall
or base cabinet.

4. Place the hood on top of the work surface
and cross support.

The work surface should be smooth and durable, and
made from a chemically resistant epoxy resin. The
surface should be nonporous and resistant to the acids,
solvents, and chemicals used in conjunction with the
Protector ClassMate Fume Hood. The work surface
should also contain a spillway for containing primary
spills.

See Appendix D: Protector ClassMate Accessories for
the work surfaces, and storage cabinets.

Connecting to the Protector
ClassMate Hood Exhaust
System

!

WARNING: The weight of the exhaust
ductwork system must be supported
independently of the hood superstructure. Do
not allow this weight to be supported by the
hood structure as damage to the unit may
occur.

18

Product Service 1-800-522-7658

Chapter 3: Getting Started

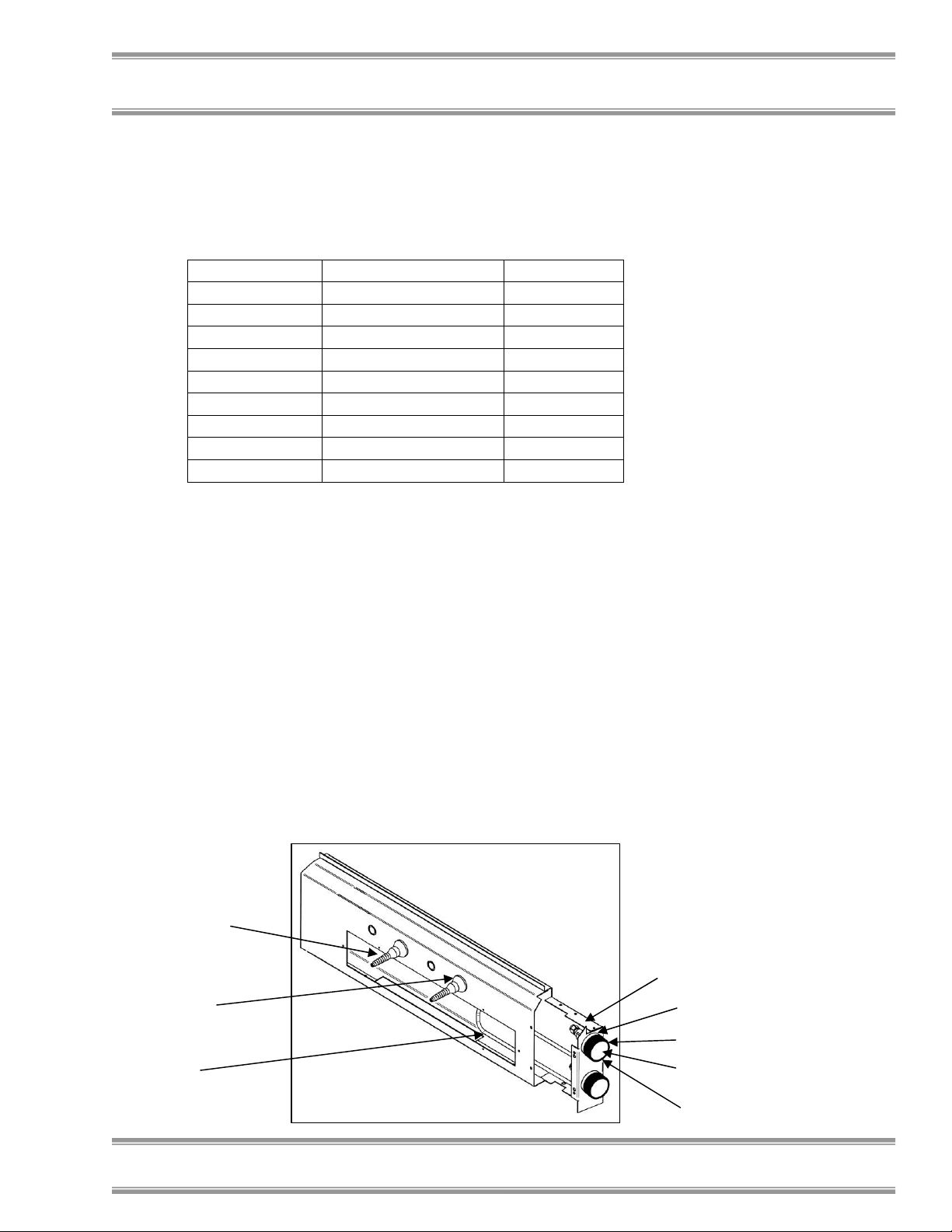

Figure 3-5

The exhaust connection
should be installed by a
qualified HVAC
contractor.

Figure 3-6

Product Service 1-800-522-7658

19

Chapter 3: Getting Started

The exhaust connection on your hood
has been designed for 8" nominal pipe
(8.62" O.D.) to allow for minimum static
pressure loss with proper transport
velocities away from the hood. It is
acceptable to combine the air from two
back to back hoods with a 12" x 8" x 8"
dual exhaust adapter that would
basically have two 8" nominal exhaust
inlets and one 12" (12.00" O.D.)
nominal exhaust outlet. See Appendix
D: Protector ClassMate Accessories for
dual exhaust adapter. Refer to exhaust
requirements in Chapter 3 Fume Hood
Components on exhaust volumes for
your model to properly size the blower.
Consult Labconco Sales Engineering
Team should you require help sizing
your blower for the exhaust volume and
total system static pressure loss.

Connecting the Electrical
Supply Source to the
Protector ClassMate Fume
Hood

Prior to connecting any electrical wiring to the fume
hood structure, refer to the hood identification plate for
the proper electrical characteristics of your specific
model.

!

WARNING: The building electrical supply
system for Protector ClassMate Hoods should
include overload protection. A switch or
circuit breaker should be in close proximity to
the equipment and within easy reach of the
operator. The switch or circuit breaker is to
be marked as the disconnecting device for the
equipment.

20

Product Service 1-800-522-7658

The identification plate, model number, serial number,
and electrical connection boxes are accessible from the
front of the fume hood by removing the front panel.

The remote blower style Protector ClassMate Hood is
fully wired internally for 115 Volt, 60 Hz, 15 Amp
electrical service. The number of circuits varies
depending on the model. The Protector ClassMate
Hood models do not feature internal wiring or electrical
components excluding the fluorescent light assembly.
All of the hood’s electrical connections are terminated
at the internal boxes for hook-up by a qualified
electrician. The specific internal boxes for hook-up are
the lights, blower, and 115V, 60 Hz, 15A duplex
outlets. Refer to the wiring diagram for your Protector
ClassMate in Appendix C: Protector ClassMate Fume

Hood Specifications.

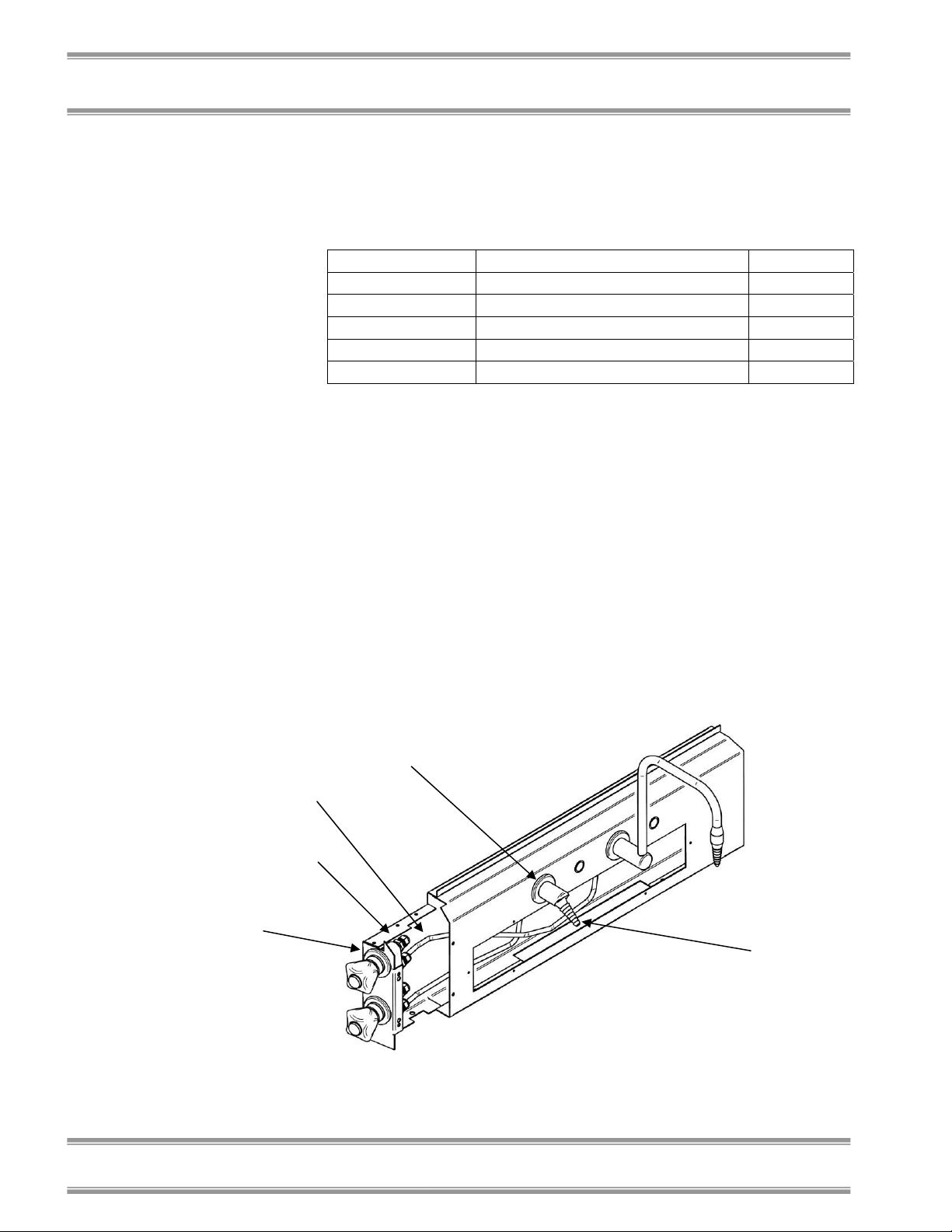

Figure 3-7

Chapter 3: Getting Started

All wiring for the enclosure MUST be
performed by a licensed electrician
and conform to all local codes. In
most cases, the hood will require the
use of shielded conduit to protect the
wiring into the hood. The grounding
connection shall not be made to the
terminal box cover.

Product Service 1-800-522-7658

21

Chapter 3: Getting Started

The fluorescent light has been mounted outside the top
liner panel assembly and is sealed from any vapors used
inside the hood structure. To change the fluorescent
light bulbs in your hood, you must first remove the
front panel from the hood. Next remove the screws
holding down the light reflectors. Remove the light
reflectors and slide them away temporarily.

The fluorescent light assembly is now fully exposed
and ready for service. While the fixture is in this
position, replace the defective bulbs, and reassemble.

Connecting the Service
Lines to the Protector
ClassMate Fume Hood

The hoods with service fixtures have been fully
plumbed for up to four valves on the hood for your
installation convenience. Supply tubing shall be
provided by the qualified contractor. Tubing is to
extend through the work surface to make connections to
the individual supply lines in your facility.

On standard models three of the fixtures are pre­plumbed using 1/4" copper tubing between the valve,
and hose connector. The upper right hand position
fixture is pre-plumbed using ¼" brass tubing between
the valve, and hose connector for use with natural gas.

22

Product Service 1-800-522-7658

Chapter 3: Getting Started

To install the supply tubing, follow these steps:

1. Remove the valve service plate and outlet fitting
access covers by loosening their individual screws.
The valve body and service areas will now be fully
exposed.

Figure 3-8

2. Ensure that the tubing is ¼ inch outside diameter,
soft metal, and that the end has been deburred
completely. (See Appendix D Service Fixture
Accessories to order 5.5' of supply tubing 48899-00
or 49211-00 gas).

3. Route the tubing from under the fume hood through
the slot in the work surface.

Make sure that the tube routing will

!

4. Make sure that the tube fitting on the valve is loose,
but do not remove it. Look inside the fitting to
make sure the tube ferrules are there.

5. Push the tube into the fitting until it is properly
seated. The tube will go approximately ¾ inch into
the fitting.

6. Tighten the tube fitting hand tight and then using a
7/16 inch wrench, tighten it at least ¾ turn more.

not contact any electrical wires.

Product Service 1-800-522-7658

23

Chapter 3: Getting Started

yg

7. Close the service valve in the Protector ClassMate
Fume Hood and then slowly open the shutoff valve
on the service line.

NOTE: Inspect all fittings for

!

!

Should access to the hood plumbing fixture bodies be
required, remove the individual valve service plates on
the corner covers by loosening their individual screws.
The valve body will now be fully exposed for any
service work that may be necessary. The service
fixtures supplied on your laboratory hood are designed
for use with the following services:

• Air • Hot Water • Vacuum

• Cold Water • Natural Gas (upper right)

!

!

leakage. Tighten the tube nut slightly
if needed.

CAUTION: Do not use oxygen with service fixtures
as supplied with this hood. Contact Labconco for
ox

en fixture information.

WARNING: Contact Labconco Corporation
directly before using any service other than
those listed above in these valves to assure full
compatibility.

CAUTION: Natural gas should be used only in
the service fixture that has been pre-plumbed
with brass tubing. Sulfur content of the gas
could cause deterioration of standard copper
supply lines.

24

Sealing the Protector
ClassMate Hood

When the hood has been set in place, ducted, wired, and
plumbed, it should be sealed at the work surface. The
sealing of the hood structure to the work surface will
prevent spilled materials from collecting under the

Product Service 1-800-522-7658
