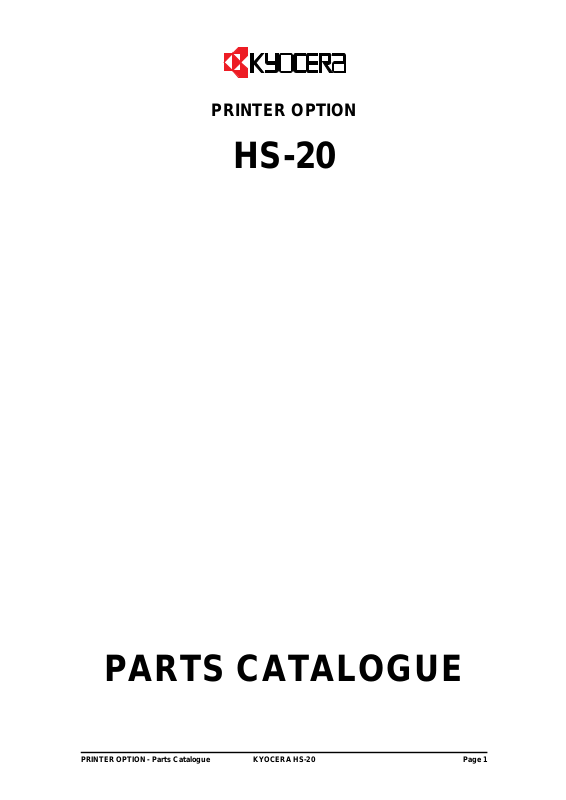

Page 1
PRINTER OPTION
HS-20
PARTS CATALOGUE
PRINTER OPTION - Parts Catalogue KYOCERA HS-20 Page 1
Page 2
HS-20 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
3Top Assembly (Fig.1)
PRINTER OPTION - Parts Catalogue KYOCERA HS-20 Page 2
Page 3
PRINTER OPTION - Parts Catalogue KYOCERA HS-20 Page 3
02-019
02-006
02-018
01-004
01-002
01-008
02-023
Fig.1 - Top Assembly
02-031
02-014
02-011
02-012
02-015
02-025
02-028
02-005
KP-280
KP-270
02-026
02-003
02-004
02-030
02-029
02-040
02-035
02-021
02-002
02-017
02-001
KP-300
02-037
01-011
01-010
01-009
02-039
01-012
01-004
01-006
01-009
02-025
01-005
01-001
01-007
02-027
02-029
02-030
02-020
02-035
02-036
02-013
02-038
02-007
02-010
02-009
02-008
02-016
02-022
Page 4
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1HANDLER STACKERHS-2001-000
1COVER5MVB877SH01001-001
1LID TOP5MVB872SH01201-002
2LEVER LOCK5MVX211DB01101-004
1LID REAR5MVB872SH01501-005
2SPRING ROLLER5MMX222LD01001-006
1COVER CONNECTOR5MVS739SH00101-007
1BRUSH EXIT5MMX711AD00201-008
8ROLLER PINCH5MVM273DB00301-009
3SPRING ROLLER A5MMX621LX00101-010
3SPRING TOP5MML321LD00301-011
2SPRING FU5MVX211LD00901-012
1BASE5MVX877SH00102-001
1GUIDE INNER5MVX866SH00702-002
1LID PWB5MVS667SH00202-003
1LEVER SENSOR5MVX642SH00402-004
1HOLDER SWITCH5MVX542DB00202-005
1GUIDE FLAP5MVX832SB00602-006
1GEAR Z28-P565MVG368DB00102-007
1GEAR Z14-Z365MVG148DB01802-008
1GEAR Z145MVG127DB02902-009
1GEAR FEED Z145MVG127DB03002-010
3PULLEY P175MVG327DB00302-011
3BELT IDLE PULLEY5MVM177DB00402-012
1FRAME RIGHT5MMS777SL00502-013
1BRACKET HOOK5MMX822SL00302-014
1FRAME LEFT5MMS767SL00602-015
1PLATE ENCODER5MVM196DB00302-016
1PLATE EARTH5MML623DB00102-017
1ROLLER EXIT5MMT875SN00102-018
1ROLLER FEED A5MMT875SN00202-019
1ROLLER FEED B5MMT875SN00302-020
1SPRING SENSOR5MMW161LD01402-021
1BELT MOTOR Z705MVM150RB00702-022
1BELT TRANS Z1775MVM180RB01402-023
6BUSHING SBK5MMM176CJ00502-025
1DC MOTOR ASSY5AAYHS1***0402-026
1SOLENOID ASSY5AAYHS1***0502-027
1MICRO SWITCH5ESM010235***0102-028
2MAGNET5MMK224FJ00102-029
4PLATE MAGNET5MMS227SL00302-030
1CONN. CORD S005775AACCNLY0GEA02-031
1SER. NO. LABEL5MVVSHS20**102-032
1RUBBER MOTOR ASSY5MVS808RB00802-035
2RUBBER SCREW5MVS606RB00802-036
PRINTER OPTION - Parts Catalogue KYOCERA HS-20 Page 4
Page 5
QuantityDescriptionPart CodeRef No.
1RUBBER STOPPER5MVS116RB00902-037
2SCREW MOTOR5MMT163SZ01902-038
1FERRITE CORE5EYBZ205100010102-039
2TAPE EARTH5MVS222KF00702-040
1PWB ASSY5AAPRIFR2001AHKP-270
1PWB ASSY5AAPRDVR2001BHKP-280
1PWB ASSY5AAPRSSR2001AHKP-300
PRINTER OPTION - Parts Catalogue KYOCERA HS-20 Page 5
