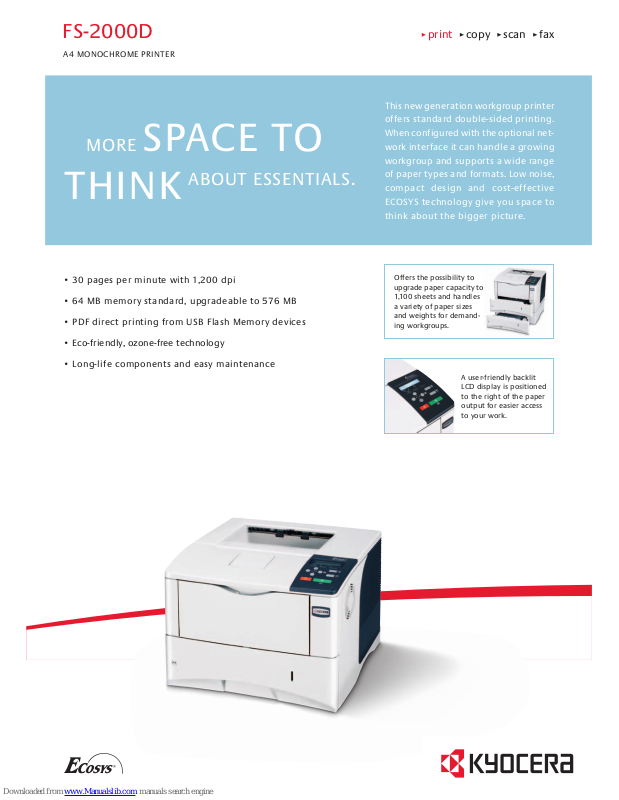

FS-2000D
A4 MONOCHROME PRINTER
A user-friendly backlit
LCD display is positioned
to the right of the paper
output for easier access
to your work.
• 30 pages per minute with 1,200 dpi
• 64 MB memory standard, upgradeable to 576 MB
•
PDF direct printing from USB Flash Memory devices
• Eco-friendly, ozone-free technology
• Long-life components and easy maintenance
This new generation workgroup printer
offers standard double-sided printing.
W
hen configured with the optional network interface it can handle a growing
workgroup and supports a wide range
of paper types and formats. Low noise,
c
ompact design and cost-effective
ECOSYS technology give you space to
think about the bigger picture.
print copy scan fax
MORE
SPACE TO
THINK
ABOUT ESSENTIALS.
Of
fers the possibility to
upgrade paper capacity to
1,100 sheets and handles
a variety of paper sizes
and weights for demanding workgroups.
Page 2
ECOSYS devices are designed
to minimise both direct costs
and indirect costs, such as maintenance,
administration and consumables. The cartridge-free system requires only the toner to
be replaced. The modular design concept
allows you to add workflow-enhancing functions and a wide variety of paper handling
capabilities as required. Integrated system
s
oftware provides long-term cross-network
compatibility. Kyocera’s long-life components
cost you and the environment less.
System platform:
The FS-2000D offers USB and parallel connectivity as standard as well as optional network connectivity and delivers problemfree system administration. Kyocera’s single platform technology means that the same driver can be used for every Kyocera
PCL/PostScript print device on the network; from single-user desktop printers to high-end multifunctional systems. Only Kyocera
offers this effortless combination of IT sophistication and high-performance paper handling expertise.
PRESCRIBE IIe:
W
ith the Kyocera page design and control language PRESCRIBE IIe, even complex graphics, logos and forms (even multipart
forms) can be created independently of the
system and saved and updated in the printer. Consequently,
integration into
print files no longer applies. They are
only accessed as required and therefore relieve the load on the network.
KM-NET for Client/KM-NET Viewer:
The settings of all printers on the network can be checked visually and amended from any Windows® PC. KM-NET for Client
enables easy setup and monitoring of the printer status via parallel, USB or optional network connection. KM-NET Viewer is an
advanced printer management software tool using the standardized protocol SNMP.
Your Kyocera Business Partner:
0306DSE2000DESMC
GENERAL
T
echnology:
K
yocera ECOSYS, Laser
Engine speed: Up to 30 pages per minute A4 simplex
Up to 15.5 pages per minute A4 duplex
Resolution: 1,200 dpi
Time to first page: 9 seconds or less
Warm-up time: 13 seconds or less from power on
Duty cycle: Max. 150,000 pages per month,
max. average 20,000 pages per month
Power source: AC 220~240 V, 50/60 Hz
Power consumption: Printing: 400 W, Stand-by: 9 W,
Power-Saving (ECOpower): 4.4 W
Noise (ISO 7779): Printing: 50 dB(A), Stand-by: 29 dB(A),
Power-Saving (ECOpower): Immeasurably low
Dimensions (W x D x H): Main unit: 382 x 394 x 285 mm
Weight: Main unit: Approx. 15.8 kg
Certifications: TÜV/GS, CE, PTS
This product is manufactured according to ISO 9001 quality
standard and ISO 14001 environmental standard.
PAPER HANDLING
All paper capacities quoted are
based on a paper thickness
of max. 0.11 mm. Please use paper recommended by Kyocera
under normal environmental conditions.
Input capacity: 500-sheet universal paper cassette,
60-120 g/m
2
, A4, A5, B5, Letter, Legal, Custom (148 x 210 mm
to 216 x 356 mm)
100-sheet multi-purpose tray, 60-220 g/m
2
, A4, A5, A6, B5,
Letter, Legal, Custom (70 x 148 mm to 216 x 356 mm)
M
ax. in
put capacity with optional paper feeder PF-310:
1,100 sheets
Duplex as standard supports A4, A5, B5, Letter, Legal,
60-120 g/m
2
Output capacity: 250 sheets face-down with paper full
sensor
C
ONTROLLER
Processor:
PowerPC 440 / 400 MHz
Memory: Standard 64 MB + ECOmemory, max. 576 MB
Emulations: PCL6/PCL5e incl. PJL, KPDL 3 (P
ostScript 3
compatible), PDF direct print, Line Printer, IBM Proprinter
X24E, Epson LQ-850, Diablo 630
Controller language: PRESCRIBE IIe
F
onts:
80 outline f
onts accessible in all emulations,
1 bitmap f
ont, 45 types of one-dimensional bar
codes plus
two-dimensional barcode PDF-417,
Downloadable fonts: Kyocera, PCL + TrueType format,
Type 1 + 3 format
Print f
eatures:
Duplex, A
ccounting, PDF direct printing, eMPS,
low noise, no Ozone, USB-Host
INTERFACES
S
tandard interface:
H
igh speed bi-directional parallel (IEEE
1284), USB 2.0 (Hi-Speed), USB Host Interface dedicated for
USB Flash Memory device, KUIO-LV option interface slot
Multiple interface connection (MIC): Allows simultaneous
data transfer via up to three interfaces, with each interface
having its own virtual printer.
OPTIONS
Paper handling
PF-310 Paper feeder (max. 1 unit): 500 sheets, 60-120 g/m2,
A4, A5, B5, Letter, Legal, Custom (148 x 210 mm to
216 x 356 mm)
CB-310 Printer cabinet: Desk with storage capacity
Memory
Printer memory:
1 DDR SDRAM DIMM slot (64, 128, 256 or
512 MB)
Storage memory: 1 slot for either CompactFlash® memory
card type 1 (up to 2 GB) for forms, fonts, logos, macro storage
or Microdrive
TM
(up to 4 GB) for forms, fonts, logos, macro
storage
as well as document management with eMPS
functions such as quick copy, proof and hold, private print
and job storage.
1 USB Host Interface (USB 1.1) for USB Flash Memory device
supports PDF direct printing
Optional interface
IB-30/IB-21E Network card:
10Base-T/100Base-TX
SB-50 Network card: 10Base-FL, FibreLink
S
B-60 N
etwork card: TokenRing STP/UTP
SB-70 Network card: Wireless LAN – IEEE 802.11b
SB-110FX Network card: 10Base-T/100Base-TX/100Base-FX,
FibreOptic
SB-140 Network card: 10Base-2/10Base-T/100Base-TX
SB-80 Parallel interface: 2nd parallel interface – IEEE 1284
IB-11 Serial interface: RS-232C serial interface
(max. 1
15.2 kbps)
CONSUMABLES
T
K-310 Toner-kit:
M
icrofine toner for 12,000 pages with
5% coverage (ISO/IEC 19752)
Capacity of starter toner is 6,000 pages with 5% coverage
(ISO/IEC 19752)
WARRANTY
2-year warranty as standard. Kyocera guarantees the drum
and developer for 3 years or 300,000 pages (whichever
occurs sooner), provided each printer is used and cleaned in
accordance with the service instructions.
Up to 5-year on-site warranty
extensions available for printer
and options.
MODEL CONFIGURATIONS
FS-2000DN (FS-2000D + Network card
: 10Base-T/100Base-TX)
Kyocera does not warrant that any specifications mentioned will be error-free. Specifications are subject to change without
notice. Inf
or
mation is cor
r
ect at time of going t
o pr
ess. All other brand and product names may be registered trademarks or
trademarks of their respective holders and are hereby acknowledged.
Kyocera Mita Europe B.V., Hoeksteen 40, 2132 MS Hoofddorp, The Netherlands, Tel +31 (0) 20 65 40 000, Fax +31 (0) 20 6531 256,
www.kyoceramita-europe.com, [email protected]
K
y
ocer
a Mita Corpor
ation,
2-28, 1- Chome, Tamatsukuri, Chuo-Ku, Osaka 540-8585, Japan, www.kyoceramita.com
FS-2000D
A4 MONOCHROME PRINTER
Product depicted includes optional extras
