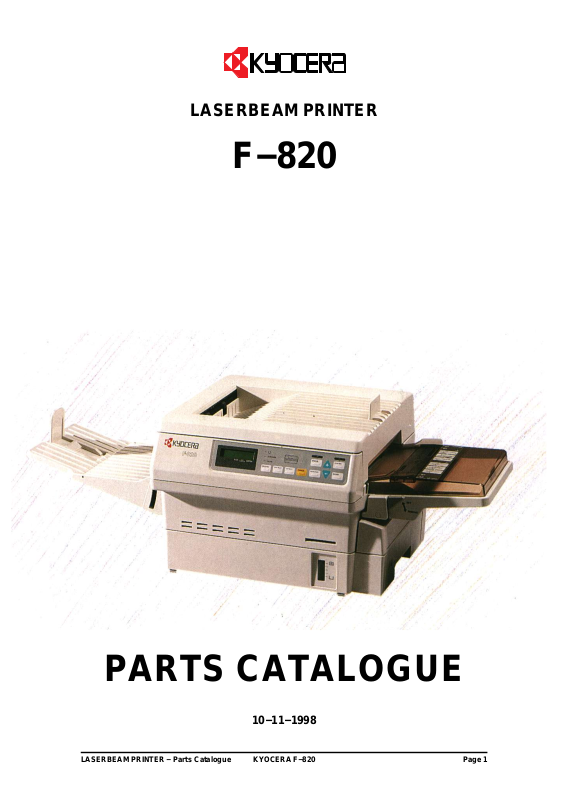

Kyocera F−820 Part List

LASERBEAM PRINTER

F−820

PARTS CATALOGUE

10−11−1998

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 1

F−820 Parts Catalogue

Table of Contents

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure’Ref No.’

Part code which identifies the part’Part code’

A brief description of the part’Part description’

’Quantity’

Quantity of the part used in the printer or option

3Covers (Fig.1)
5Upper Unit (Fig.2)

7Lower Unit (Fig.3)
10Controller Box (Fig.4)
12Drive Assy (Fig.5)
14Fuser (Fig.6)
16Connection Cords (Fig.7)
18Lower Feeder (Fig.8)

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

Consumables and Maintanence Kits

Toner KitTK−6
Drum (12K pages)DK−5
Developer (20K pages)DV−10
Fuser (100K pages)FK−9

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 2

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 3

Fig.1 − Covers

QuantityDescriptionPart CodeRef No.

1Cover Top Assy5AAVCOVER16001−001
1Cover Side5MVB753SH00201−002
1Cleaning Stick5AAVCLEAN01−003
1Key Board Assy5AAFZF820**101−005
4Sponge Top5MVQ642RB00101−006
4Paper Stopper5MVU741SH00101−021

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 4

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 5

Fig.2 − Upper Unit

QuantityDescriptionPart CodeRef No.

1Scanner Unit5AAYF820**5002−00A
1Deve Drive Assy5AAYF820**4602−00B
1Eraser Assy5AAYF800**B102−00D
1Bkt Switch Assy5AAYF800**1902−00E
1Paper Sensor Assy5AAYF820**1802−00F
1Eject Stopper5MMZ321SL00302−013
1Deve Guide A5MVX833SG001−0102−014
1Guide Spring5MMX522LD00302−015
1Deve Guide B5MMX831SL00102−016
1Drum Rail5MVL821SB00202−017
1Drum Spring F5MMW361LJ01902−018
1Drum Spring R5MMW361LJ02002−019
2Spring Foot5MVF166SB00202−020
2Fuser Press SP5MMX442DL00102−021
1Safety Lever5MVX622DG00102−022
2Cord Keep5MMX321SM00102−025
1B−S Angle (FU)5MML363SL00202−032
1B−S Angle (RU)5MMS531SL00302−033
1SCN Angle (F)5MML532SL00202−034
1SCN Angle (r)5MML532SL00302−035
2SCN Shaft5MMT476LD00302−036
1Lever Eject F5MVX644SD00102−041
1Eject Lever R5MVX321SJ00102−042
1Eject Stay5MMT865SD00102−043
1Eject Spring5MMW262LJ00402−044
1Eject Spring5MMW267LJ00102−045

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 6

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 7

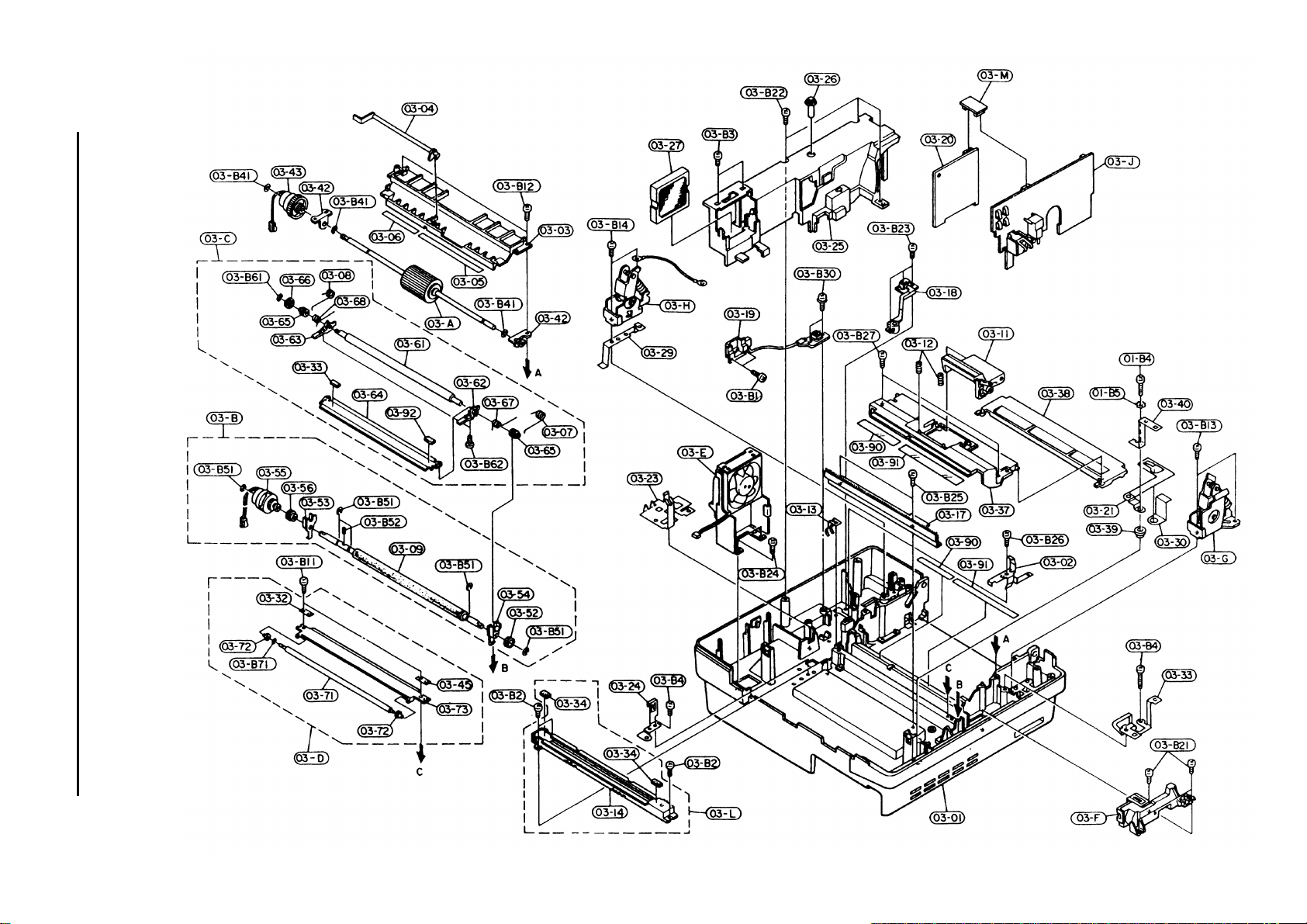

Fig.3 − Lower Unit

QuantityDescriptionPart CodeRef No.

1Feed Assy5AAYF800**9303−00A
1Regist Assy5AAYF800**9403−00B
1Paper Chute T Assy5AAYF800**D603−00C
1Paper Chute B Assy5AAYF800**5603−00D
1Fan Assy5AAYF820**4103−00E
1Counter Gear Assy5AAYF820**5303−00F
1B−S Bkt Assy F5AAYF800**3703−00G
1B−S Bkt Assy R5AAYF800**3803−00H
1PWB Assy5AAPRCZG2009BH03−00J
1PWB Assy5AAPRZZG2005AH03−00K
1SVC TC Assy5AAYF820**6303−00L
1Base Assy5AAVBASE*01003−001
1Plate Clutch Earth5MMX552RD00203−002
1Guide Entrance5MVX864SH003−0103−003
1Actuator Feed5MVX744SB00103−004
2Guide Film A5MVS632KF00103−005
2Guide Film B5MVS723KF00103−006
1Spring Regist F5MMW167LJ00503−007
1Spring Resist R5MMW167LJ00603−008
1Separator Assy5AAVSEPRT00603−011
2Paper Separator SP5MMW365LJ00103−012
1Earth Contact5MML222RD00203−013
1TC Assy5AAVSH1LD03603−016
1Discharger Assy5AAVPLATE01803−017
1TC Receptacle5MVX773XH00103−018
1MCH Connect5MVX853XH00103−019
1Trans Assy5AAYF820**5303−020
1Front Earth Plate5MMS663RD00103−021
1Plate Drum Earth5MMS663RD00103−023
1Drive Earth5MML422RJ00103−024
1Inner Cover5MVB877SB00103−025
1Dens Cont Knob5MVN331SX00103−026
1Ozone Filter5MVX662SB01303−027
1B−S Earth 15MML632RD00103−029
1B−S Earth 25MML643RD00103−030
1P Side Seal F5MVS321KJ00303−031
1P Side Seal R5AAYF820**5603−032
1Earth FF5MMP576RD00103−033
2P Sponge L5AAYF820**6303−034
1Base Separator5MVB874SH00703−037
1Bottom Pan5MVB861SH00103−038
1Spacer BC5MMM122SD00103−039
1Earth Key5MMZ253RD00103−040
1Sponge Rear5MVQ652RB00103−041
2Feed Bearing5MVX422DX00103−042

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 8

QuantityDescriptionPart CodeRef No.

1Feed Clutch5EYYAGAAF02**0103−043
1Sponge Front5MVQ553RB00103−044
1Count Gear Z285MVG137DB00903−052
1Regist Bearing R5MVX421DX00203−053
1Regist Bearing F5MVX421DX00103−054
1Regist Clutch5EYYAGAAF01**0103−055
1Regist Gear5MVG127DB01403−056
1Regist Roller5MMT876SN02303−061
1Regist Arm F5MVX511DB00103−062
1Regist Arm R5MVX511DB00203−063
1Paper Chute T5MML831LD00203−064
1Regist Bearing5MVX211DX00103−065
1Regist Gear T5MVG127DB01303−066
1Arm Spring F5MMW176LJ00403−067
1Arm Spring R5MMW176LJ00503−068
1Paper Roller5MMT863LD00103−071
2Roller Bushing5MMF154CJ00103−072
1Regist P Chute B5MMC183LD00103−073
2Base Sepa Film A5MVS632KJ00103−090
2Base Sepa Film B5MVS732KJ00103−091

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 9

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 10

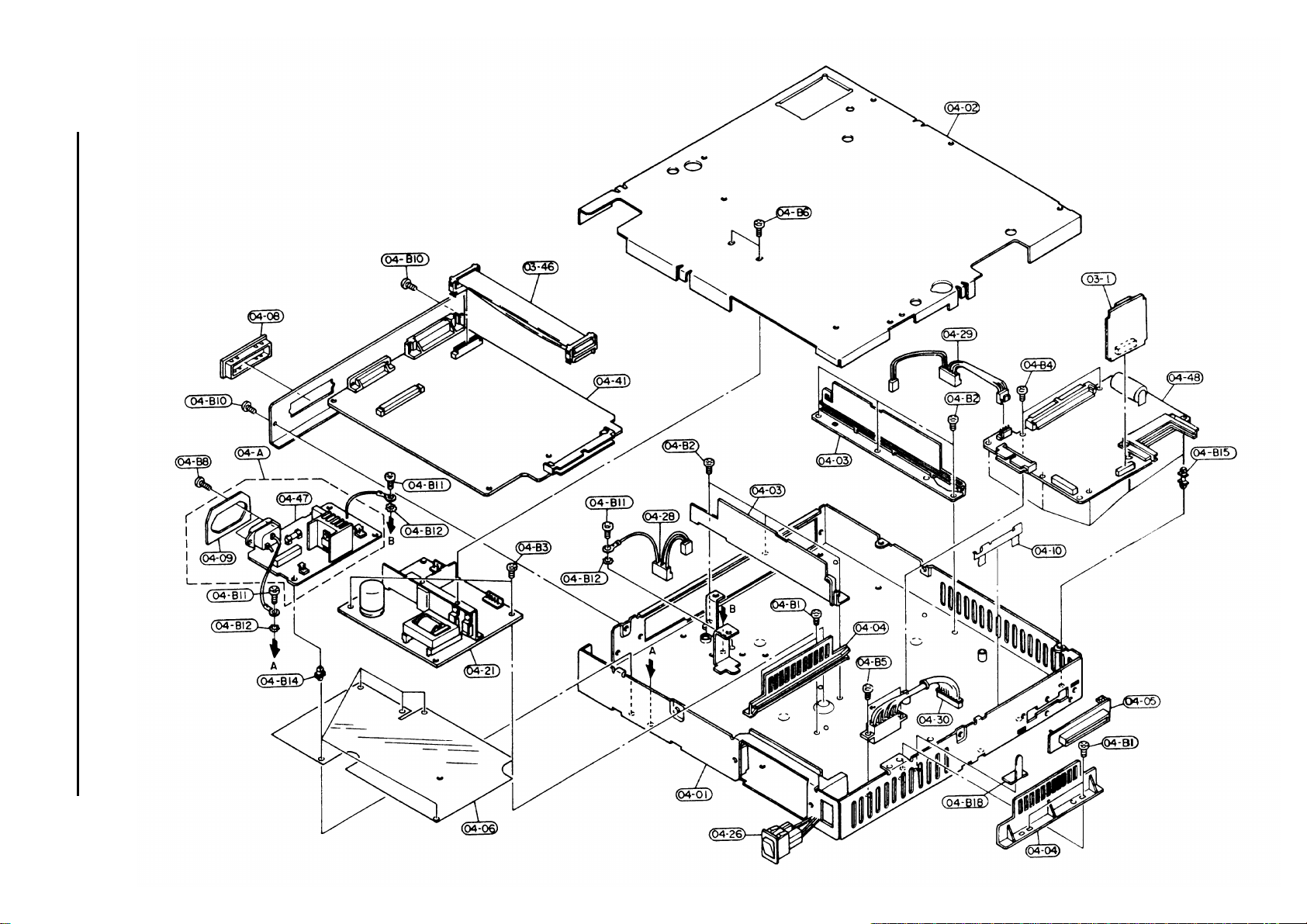

Fig.4 − Controller Box

QuantityDescriptionPart CodeRef No.

1PWB Assy5AAPRZZG2007AH03−001
1Conn. Cord S004675AACCNHK7GEA03−046
1Inlet Assy5AAYF820**4804−00A
1Controller Box Assy5AAVCHASS01704−001
1Cover Cont Box5MMN882SL00404−002
2Guide Main PWB5MVL722SL00204−003
2Guide RAM PWB5MVL722SL00104−004
1Guide Bee Card5MVK261SH00604−005
1Insulator PWB5MVS875VN00104−006
1Connector Lid5MVS627SH00104−008
1Sheet Inlet5AAYF820**4804−009
1Spring PWB5MMX431RD00504−010
1Switching Regulator5AAEZF820**104−021
1See−Saw SW UL VDE S5ESC020103***0204−026
1Conn. Cord Assy5AACCNHK8GEA04−028
1Conn. Cord Assy5AACCNHE6GEA04−029
1Conn. Cord Assy5AACCNHD6GEA04−030
1PWB Assy KP−1665AAPRLGG4008BH04−041
1PWB Assy5AAYF820**4804−047
1PWB Assy KP−1695AAPRIFG2004BH04−048

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 11

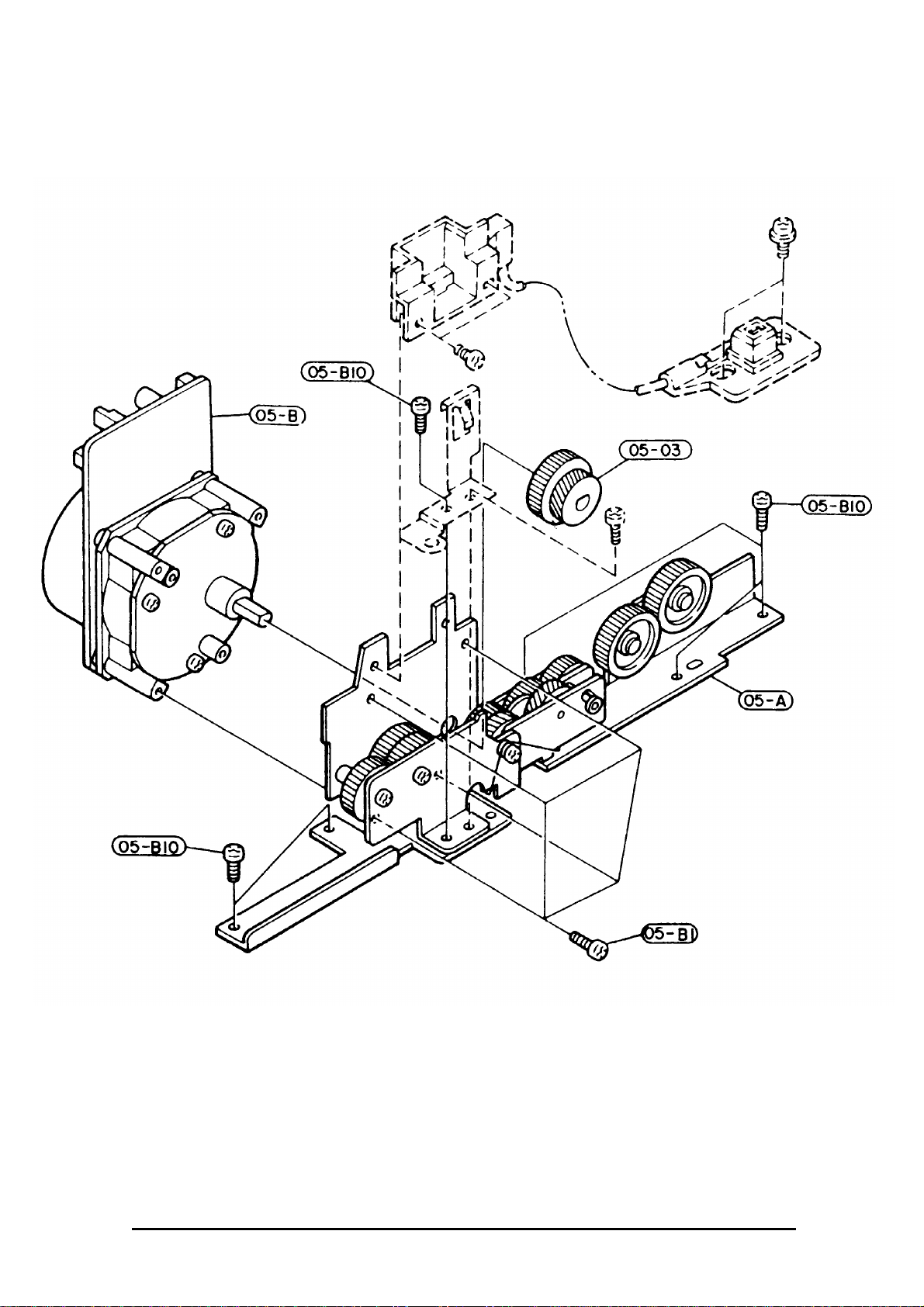

Fig.5 − Drive Assy

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 12

QuantityDescriptionPart CodeRef No.

1Drive Gear Sub5AAYF800**C505−00A
1Main Motor Sub5AAYF800**C605−00B
1Motor Gear Z30 H245MMG038SV00105−003

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 13

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 14

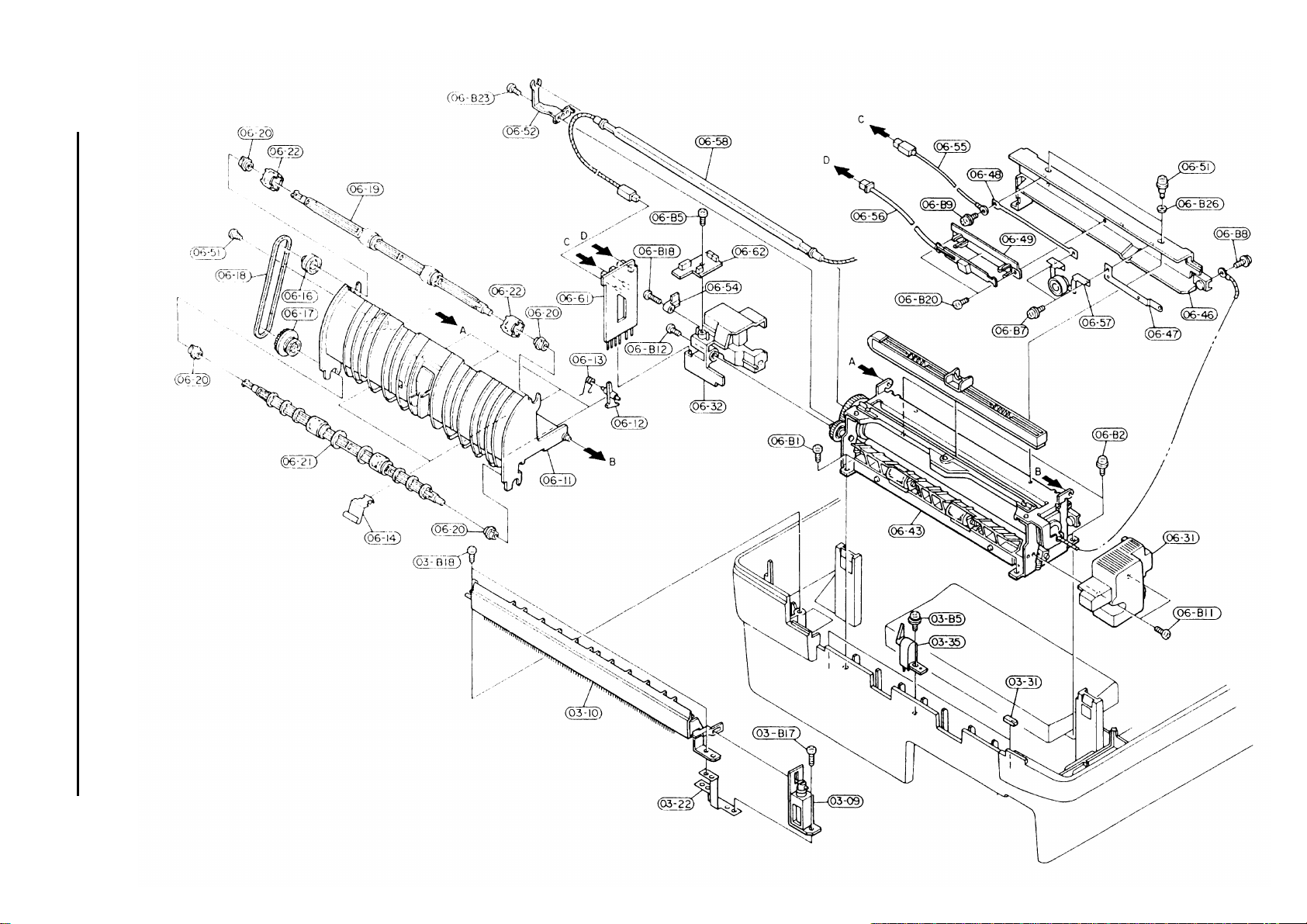

Fig.6 − Fuser

QuantityDescriptionPart CodeRef No.

1Solenoid Assy5AAYF820**2403−009
1Gate Exit Assy5AAYF820**2303−010
1Earth U−D5MMZ153RD00103−022
1Switch Jam5AAXSW027GEA03−035
1Fuser Cover Assy5AAYF820**0106−011
4Separator5MVX332XN00206−012
4Separator Spring5MMW163LJ00306−013
2Cleaner Spring5MMP232LD00106−014
1Exit Roll Pulley5MVG307DB00106−016
1Exit Roll GE Z235MVG038DB00106−017
1Exit Belt5MVS668RB00306−018
1Exit Roller5MVT877CB00106−019
4Exit Roll Bushing5MVM176DB00306−020
1Roller Exit Assy5AAVROLER01806−021
2Exit Tire B5MVM272RB00206−022
1Cover Fuser F5MVB665XB00106−031
1Cover Fuser R5MVB666XB00106−032
1Guide Exit Paper5MVX643XB00106−043
1Inlet Upper Guide5MVX842CB00206−046
1Cord Plate F5MMS623RD00106−047
1Cord Plate R5MMS713RD00106−048
1Thermistor Support5MVX622XB00106−049
1Heater Support5MMP333LD00106−052
1Cord Stopper5MVX221XB00106−054
1Conn Cord Assy5AACCNFROGEA06−055
1Thermistor Assy5AAXTM001GEA06−056
1Thermostat 210C5EYFFQ21001**0106−057
1Heater Lamp 240V5EZPB241252010106−058
1PWB Assy5AAPRHCC1004AH06−061
1PWB Assy5AAPRZZC1020AH06−062

Cleaning Pad5AAVCLEAN06−063

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 15

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 16

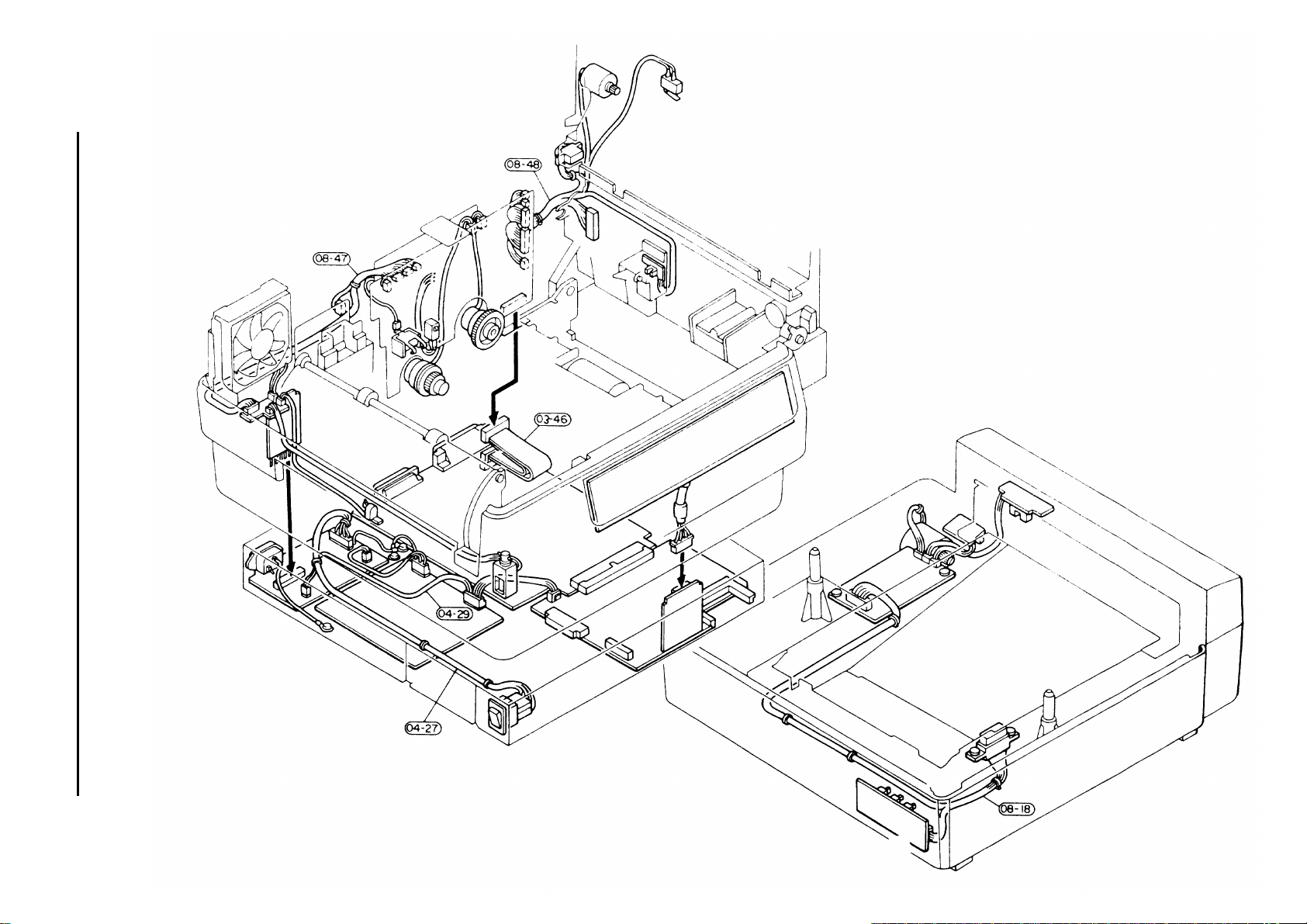

Fig.7 − Connection Cords

QuantityDescriptionPart CodeRef No.

1Conn Cord Assy5AACCNHE7GEA04−027
1Conn Cord Assy5AACCNHE6GEA04−029
1Conn Cord Assy5AACCNHK9GEA08−018
1Conn Cord S004595AACCNHF5GEA08−047
1Conn Cord S004605AACCNHF6GEA08−048

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 17

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−820 Page 18

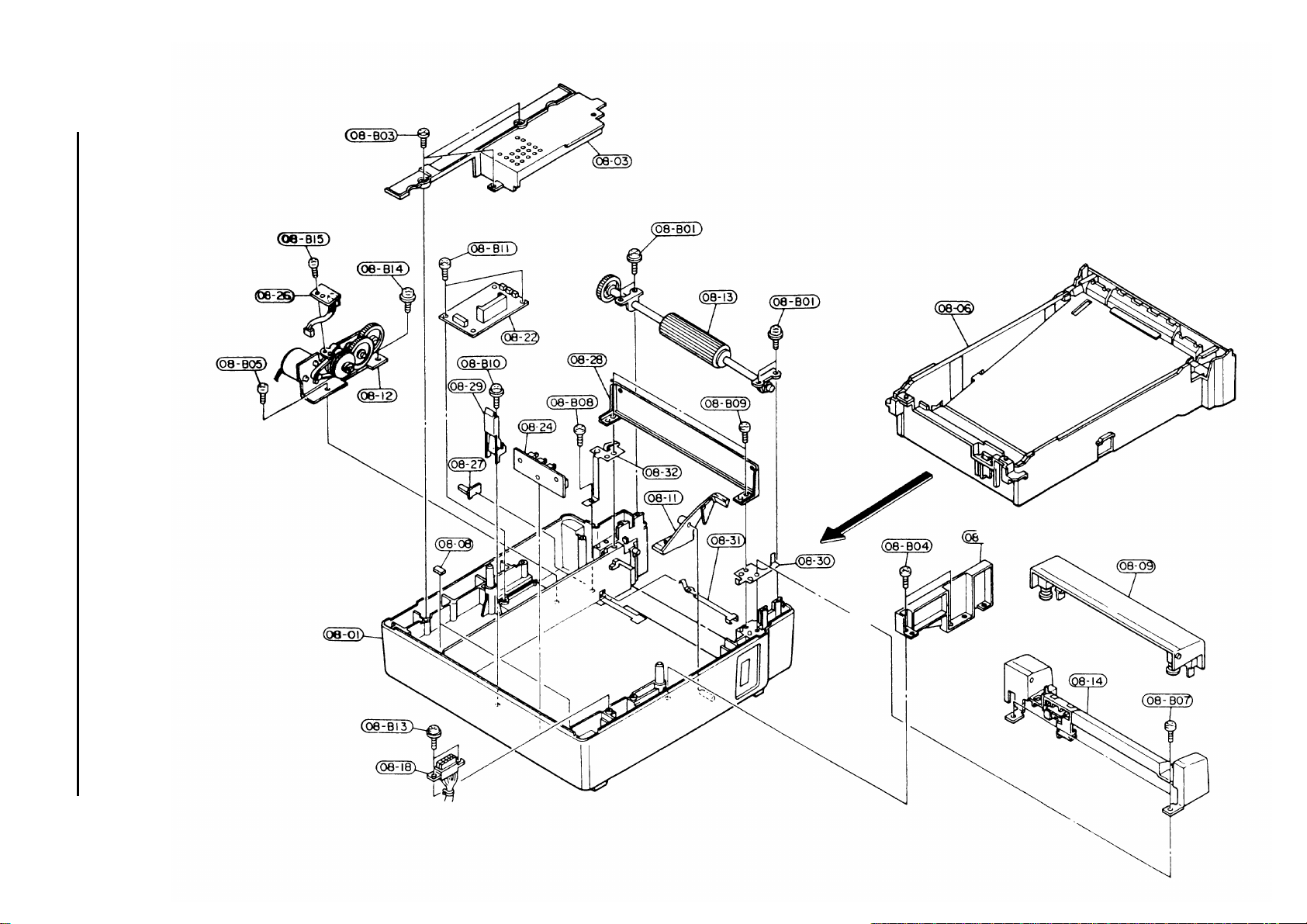

Fig.8 − Lower Feeder

QuantityDescriptionPart CodeRef No.

1Base Feeder Assy (PF−3)5AAVFEEDR01208−001
1Cover Rear5MVS838SH00108−003
1Cover Empty5MVX764DD00108−004
1Paper Cassette A4PC−608−006
2Rubber Cord5MVQ211RB01908−008
1Cover Guide Assy5AAVCOVER16708−009
1Lever Empty Assy5AAYF820**3008−011
1Plate Gear B Assy5AAYF820**3208−012
1Lower Feed Assy5AAYF820**3108−013
1Cover Feeder Assy5AAYF820**3408−014
1Conn Cord Assy5AACCNHK9GEA08−018
1PWB Assy KP−1895AAPRZZC1024AH08−022
1PWB Assy KP−1405AAPRSWC1002AH08−024
1PWB Assy KP−1985AAPRXXC1025AH08−026
1Cord Keep5MMX321SM00108−027
1Stay Right5MML683SD00108−028
1Stay Left Assy5AAVBRCKT05108−029
1Roller Earth F5MML163LD00108−030
1Cassette Earth B5MMU771LD00108−031
1Feeder Earth R5MMZ663LD00108−032
