Kyocera F−3000 Part List

LASERBEAM PRINTER

F−3000

PARTS CATALOGUE

18−11−1998

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 1

F−3000 Parts Catalogue

Table of Contents

3Covers (Fig.1)
5Upper Frame (Fig.2)
7Lower Frame (Fig.3)

9Unit Bottom (Fig.4)
11Drive Mechanism (Fig.5)
13Paper−feed Assembly (Fig.6)
16Face−down Unit (Fig.7)
18Laser Scanner Unit (Fig.8)
20Developer (Fig.9)
22Upper−Half (Electrical) (Fig.10)
24Lower−Half (Electrical) (Fig.11)

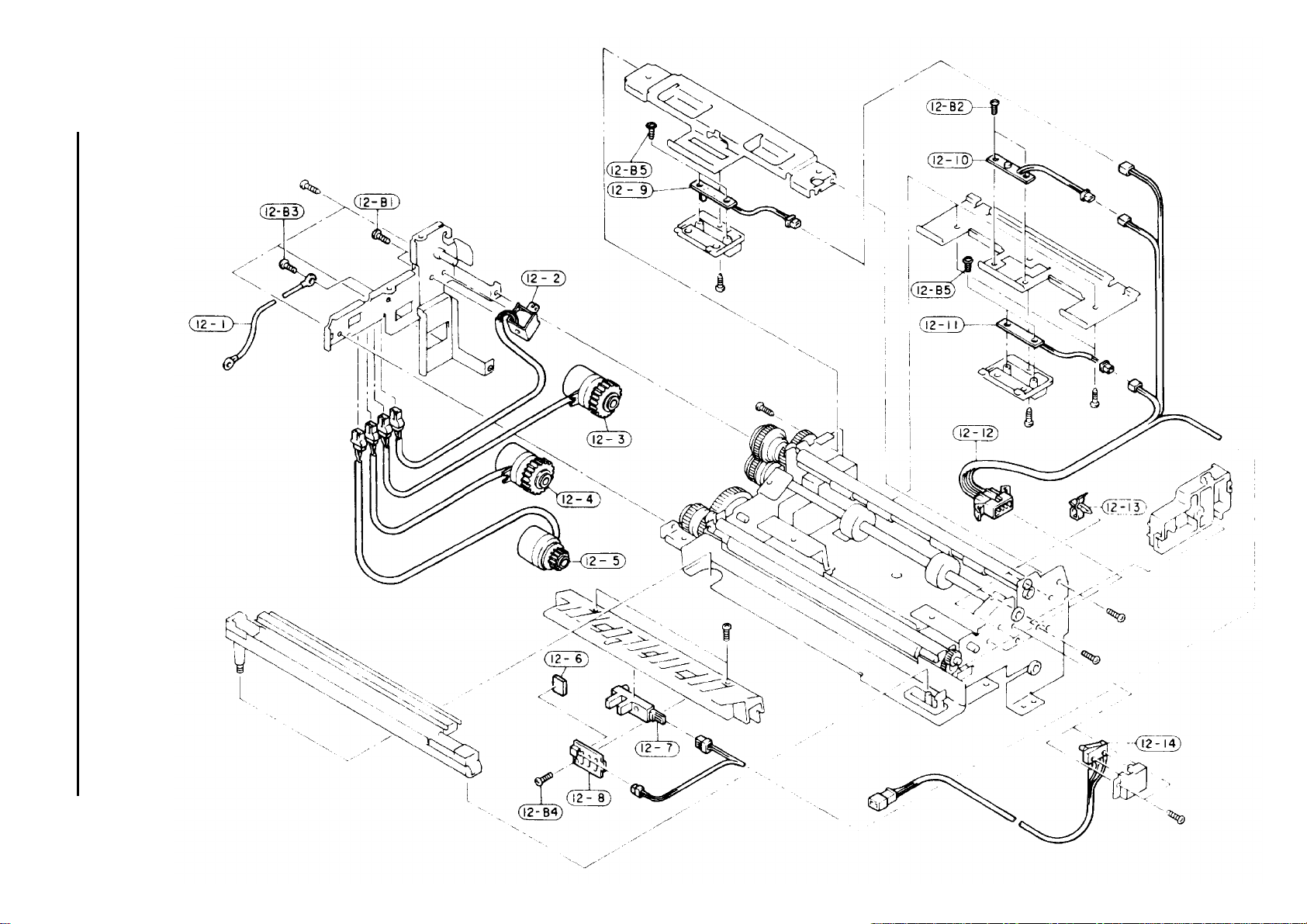

26Paper−Feed (Electrical) (Fig.12)

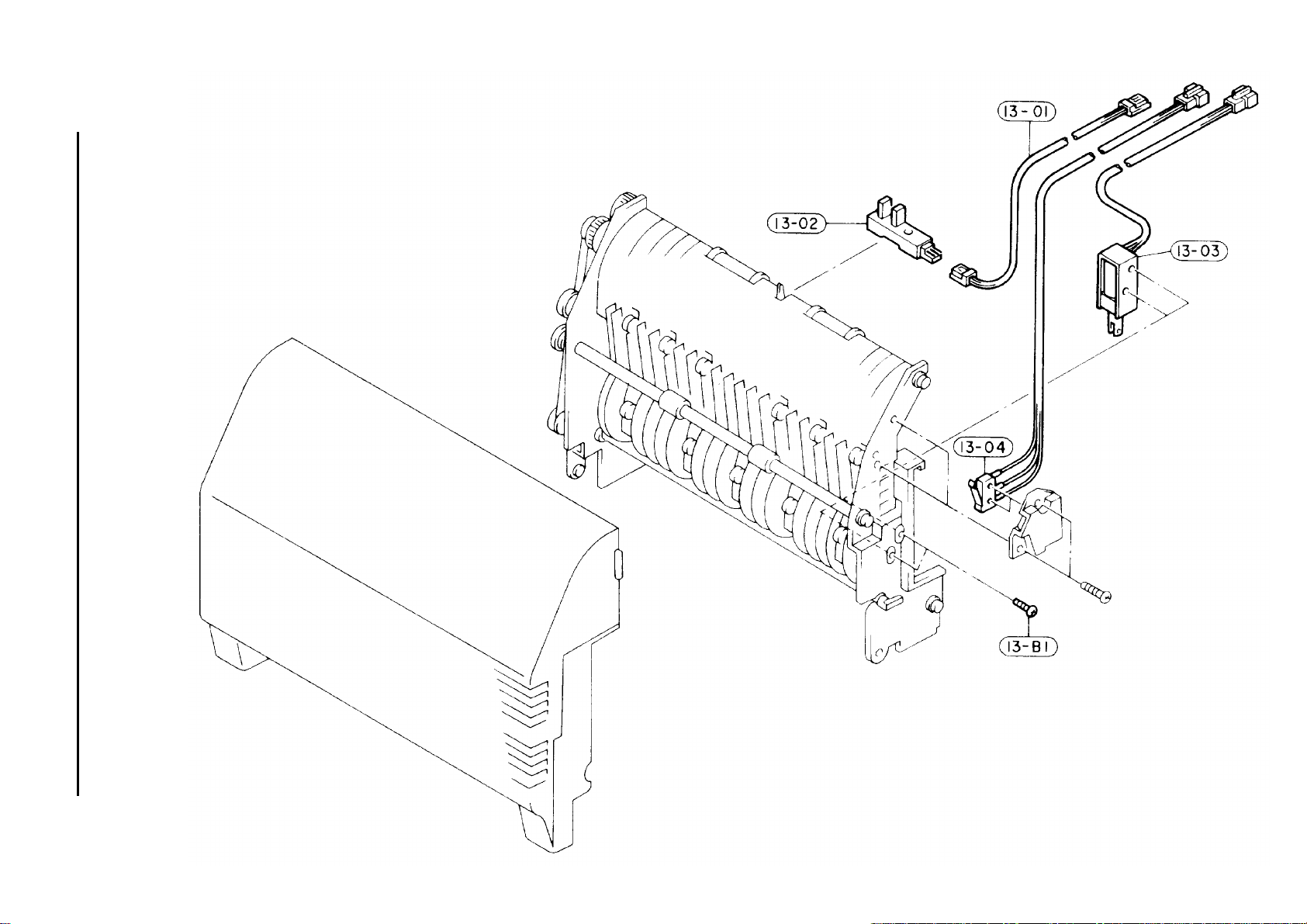

28Face−Down Unit (Electrical) (Fig.13)

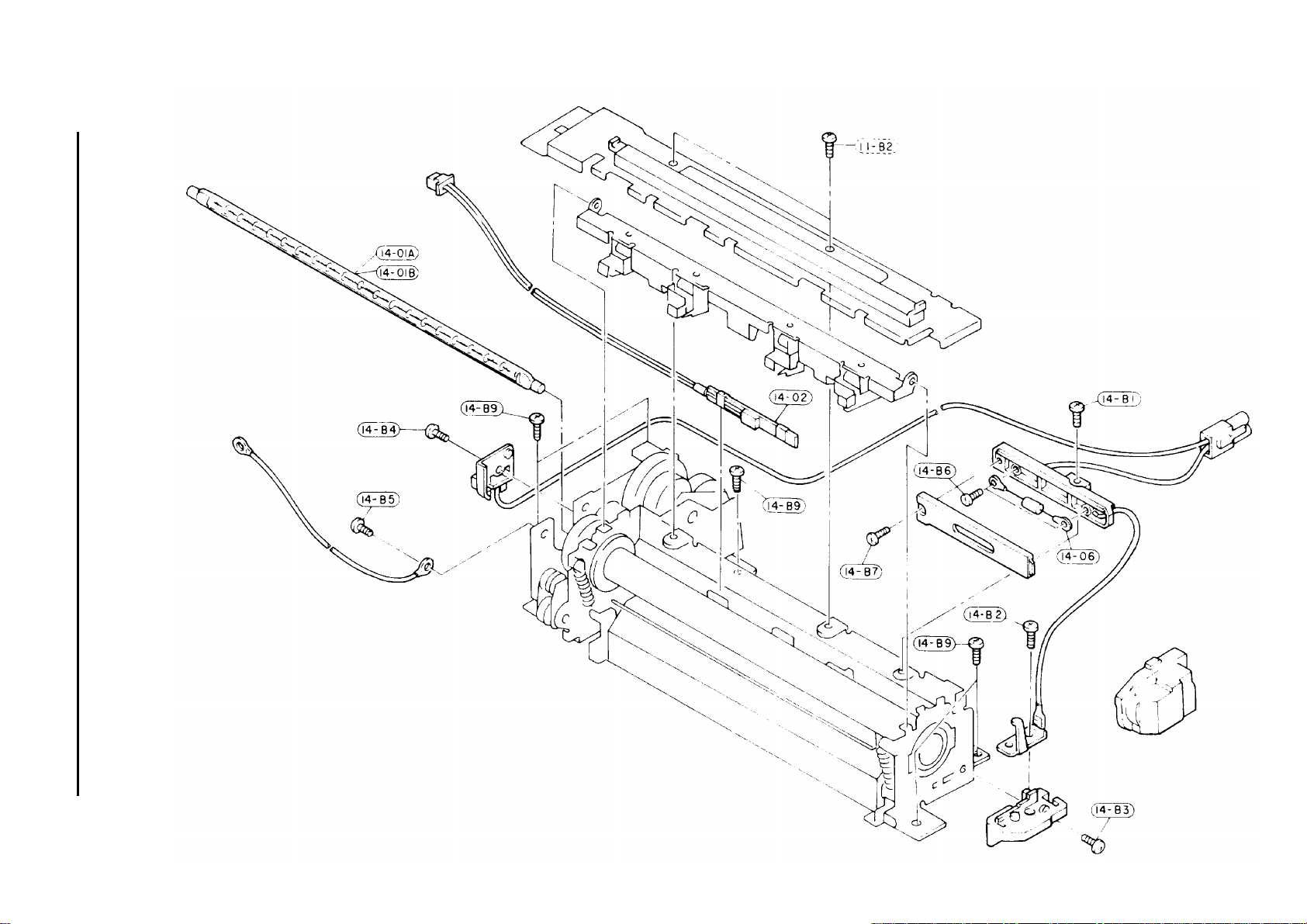

30Fuser (Electrical) (Fig.14)

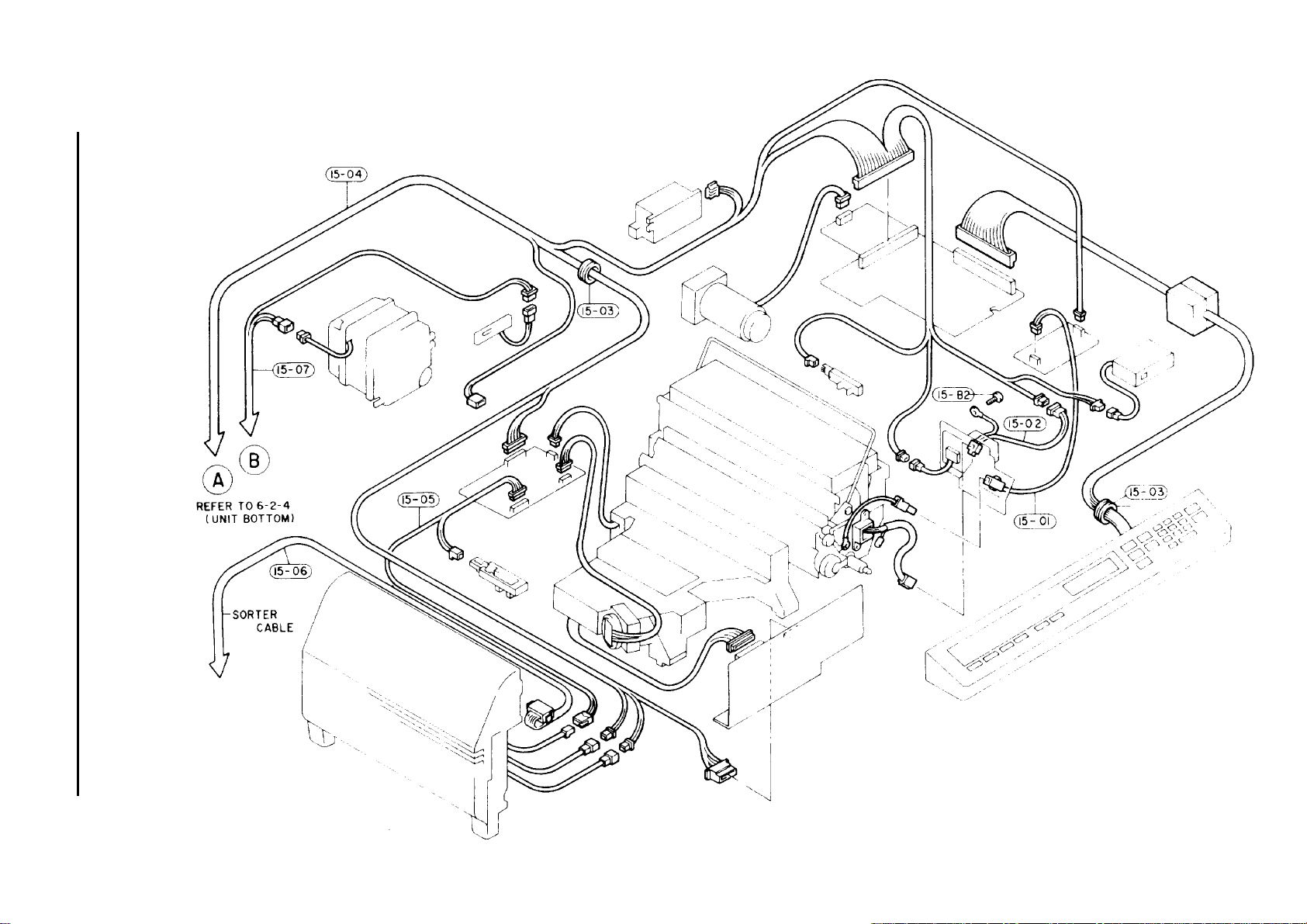

32Upper−Half (Harness) (Fig.15a)

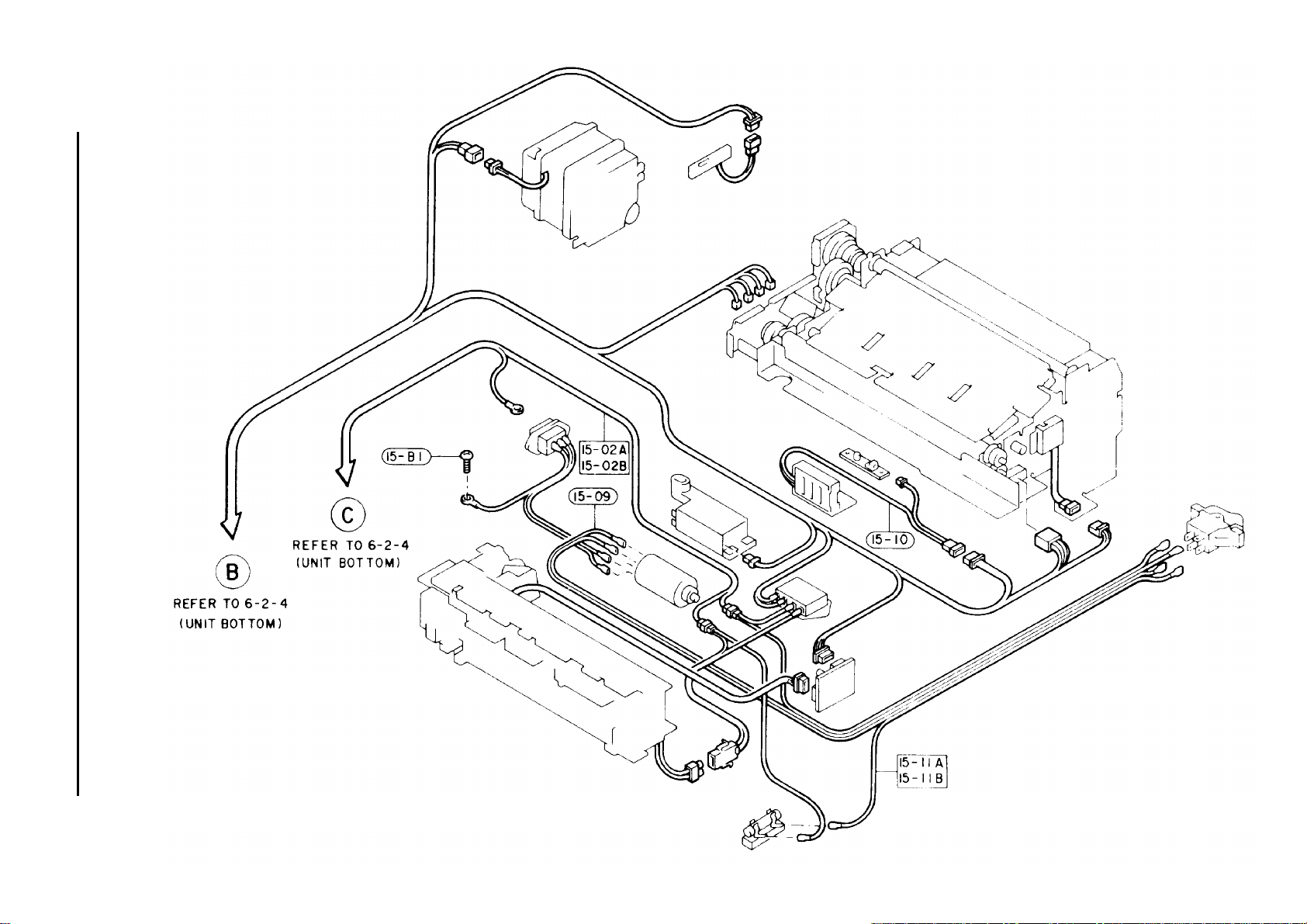

34Lower−Half (Harness) (Fig.15b)

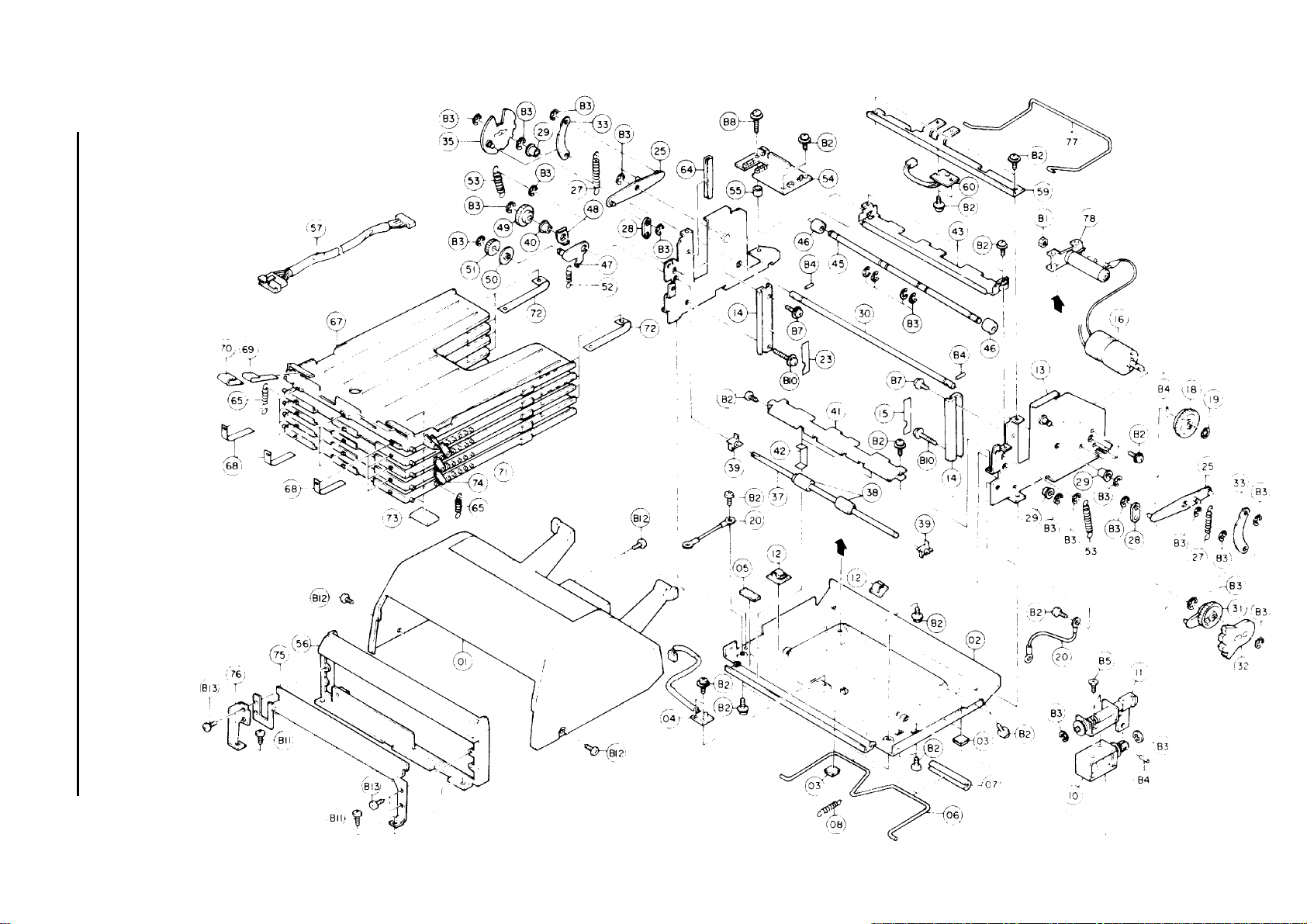

36Sorter (Optional) (Fig.16)

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure’Ref No.’

Part code which identifies the part’Part code’

A brief description of the part’Part description’

Quantity of the part used in the printer or option’Quantity’

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

Consumables and Maintanence Kits

Toner KitTK−2
Drum (10K pages)DK−2
Developer (50K pages)DV−3
Fuser (80K pages)FK−2

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 2

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 3

Fig.1 − Covers

QuantityDescriptionPart CodeRef No.

2Tray Assy5AAMW1****0901−00A
1Top Cover Assy5AAVCOVER12101−00B
1Front Cover Assy5AAVCOVER12301−00C
1Base Assy5AAVBASE*00601−00D
1Right Cover5MVX875SW00301−005
1Keyboard Assy5AAYF2010*2301−006
3Lock Nut01−009
1Controller Panel F5MVX864SH00101−011
1Panel Cover5MVX531SH00101−012
1Rear Cover5MVX962SW00201−013
1Blind Cover5MVX942SW00101−014
1Left Cover5MVB762SW01201−015
1Controller Panel R5MVB873SH01101−016
2Cord Press5MVB222RB00101−017
1Option Cover5MVX631SH00101−018
1FD Sub Cover5MVX866SW00301−019
1FD ES Eliminator5MMX863SX00101−020
2Paper Stopper5MMW904LJ00201−022
1DLP COVER5MVB873SH012

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 4

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 5

Fig.2 − Upper Frame

QuantityDescriptionPart CodeRef No.

1DLP Lever Assy5AAVLEVER01002−00A
1DLP Guide R5MVX662SB01102−007
1DLP Guide F5MVX662SB01202−008
1Torsion Bar A5MMW905SM00102−009
1Torsion Bar B5MMW905SM00202−010
1Frame Assy5AAVFRAME04802−011
1Wire Support5MMX744SL00102−012
1Drum Gear Z305MVG138DB00202−013
1Drum Bearing5MVX665CB01%02−014
1Nozzle B5MVB773SB00202−015
1Filter Assy5AAYW3****0102−016
1Nozzle Seal5MVS229RB00802−017
1Wind Seal5MVS619RB00102−018
1Top Cover Plate5MMS876SL00302−019
1Toner Shutter5MVS732KN00102−020
1Scanner Pad5MVS838RB00202−021
2Cleaner Pressure5MMX433LJ00202−022
1Fuser Upper Pad B5MVS648RB00302−023
1Fuser Upper Pad A5MVS768RB00302−024
1Earth Plate C5MMX474RJ00102−025
1Connector Bkt5MMX653SL00602−026
1Inter LOck SW Lever5MVU122DB00202−027
1Inter Lock SW Bkt B5MVX443DB00102−028
1Hopper SW Assy5AAXSW020GEA02−029
1M Feed Upper Guide5MVB862SB00102−030
1Frame Earth F5MMP153CJ00102−031
1Sensor Spring A5MMW161LJ00802−032
1M Feed Sens Actuator5MVX442SB00302−033
1Drum Brushing R5MVM177DJ00102−034
1DLP Cam Lever B5MVX622DB00102−035
1DLP Cam Lever5MVX643CX00102−036
1Hinge Arm5MVX861SL00302−037
1Hook Plate B5MML144SL00102−038
1Hinge Hook B5MVX632DN00102−039
1Hinge Spring5MMW172LJ00302−040
1Unit Rail C Assy5AAMF3000*0202−041
1Sorter Connector Bkt5MMU541SL00102−042
1Hook Plate A5MMX433SL00202−043
1Hinge Hook A5MVX654DN00102−044
1Edging Saddle5MVK121NN00102−045
1Wire Saddle5MVX331NN00202−046
1Frame Guide R5MVX221DN00502−047
1Frame Guide F5MVX221DB00602−048

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 6

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 7

Fig.3 − Lower Frame

QuantityDescriptionPart CodeRef No.

1Lock Plate Assy5AAYF3000*0103−00A
1Pressure Arm Assy5AAYF3000*0203−00B
1Seal A5MVS618RB00503−001
1TC UP Spring5MMX641LJ00103−002
1TC Discharger5MMX852AJ00203−003
1Blind Sheet5MVS533KN00103−004
1Paper Guide Plate5MMU863SX00103−005
1Seal D5MVS218RB00503−006
1Seal C5MVS618RB00303−007
1Base Hinge Plate R5MMX662SL00303−008
1Frame Arm R5MMX764SL00203−009
1Frame Arm L5MMX764SL00403−010
1Inner Cover R5MVX865SB00203−011
8Cord Press5MVB222RB00103−012
1Base Hinge Plate L5MMX622SL00103−013
1Bar Stopper5MMT264LJ00603−014
1Bar Stopper Spring5MML622LJ00103−015
1Controller Earth B5MMX762CJ00103−016
1Earth Plate5MMZ173SL00103−017
1Inner Cover F5MVX964SB00203−018
1Sensor Earth Plate5MMX222RJ00103−021
1Sensor Plate5MMS746SB00103−022
1Guide Sheet R5MVS622KF00103−023
1Guide Sheet F5MVS722KF00103−024
1Tank Pad A5MVS428RH00203−025
1Tank Pad B5MVS439RH00203−026
1Base Support5MMC832SL00103−027
1Controller Guide B5MVX832DB00103−029
1Controller Earth A5MMX752CJ00103−030
1Controller Guide A5MVX822DB00103−031

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 8

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 9

Fig.4 − Unit Bottom

QuantityDescriptionPart CodeRef No.

2Knob5MVN273SB00204−001
1Fan Motor B5EZNF2402501*0104−002
1Cont.Box R Cov Assy5AAVCOVER10204−003
1Conn Cord Assy CA35AACCNDE8GEA04−005
1DC Power Supply 240V5AAEZF1000*404−006
1P/S Support KC5MML876SL00204−007
1Sheet MT5MVS872KF00104−008
4Socket Main Logic5MMT263SN00104−009
2PCB Guide Rail5MVC811CL00104−011
1P.W.B KP−017 1332.405AAPRCZG4004CH04−012
1Cont Middle Plate KC5MMX876SL00704−013
1Conn Cord Assy CA95AACCNBZ2GEA04−014
1Cont Box Stopper KC5MMX421SL00204−015
1Cont Boc Assy KC5AAVFRAMEE04404−016

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 10

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 11

Fig.5 − Drive Mechanism

QuantityDescriptionPart CodeRef No.

1Drive Unit5AAYF3000*0905−00A
1Motor Gear Z305MMG138SX00505−010
1DC Motor Gear Assy5EZNS200R701*0105−011

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 12

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 13

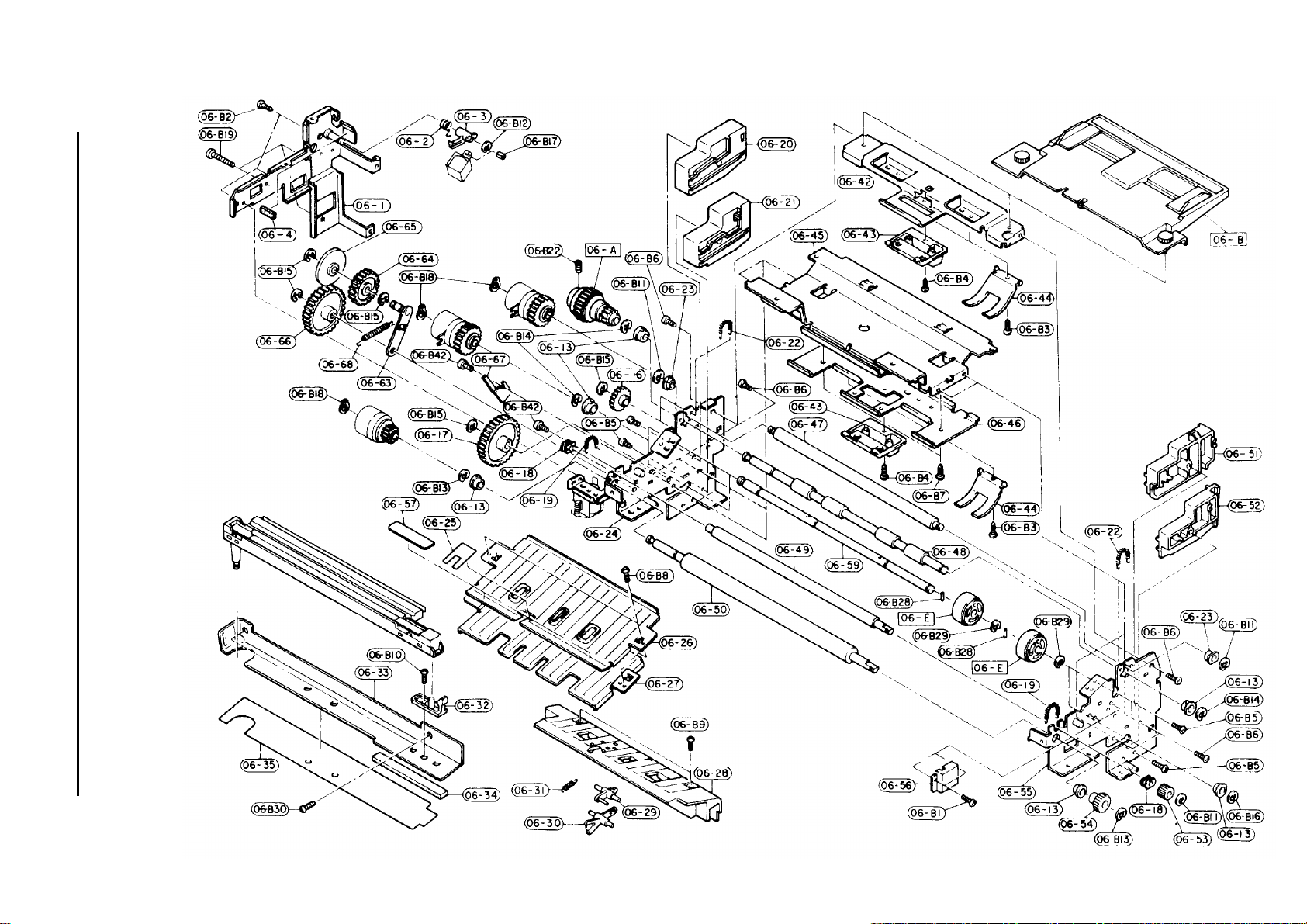

Fig.6 − Paper−feed Assembly

QuantityDescriptionPart CodeRef No.

Paper−Feed Assy5AAYF3000*3706−000

Manual Feed Clutch5AAVCLTCH00506−00A
MF Plate Assy5AAMF2010*0106−00B
Feed Tyre Assy5AAVROLL*00806−00E

Feed Clutch Bkt06−001
M Feed CL Cam Spring06−002
M Feed CL Cam Lev B5MMVX432DW00106−003
Solenoid Pad06−004
Metal Bush KD5MMM176CJ00306−013
Feed Unit Gear Z285MVG136DN01106−016
Feed Unit Gear Z655MVG169DB00106−017
Regist Roller Bush5MMM121XJ00106−018
Regist Spring A5MMW345LJ00206−019
Cassette Guide UR06−020
Cassette Guide LR06−021
M Feed Spring5MMW341LJ00106−022
MF Bush06−023
Feed Unit Frame R06−024
Guide Sheet PS06−025
M Feed Paper Chute A06−026
M Feed Paper Chute B06−027
Paper Guide06−028
Actuator B5MVX331DB00306−029
Actuator A5MVX532DB00206−030
Sensor Spring5MMW163LJ00206−031
TC Guide5MVX532DD00206−032
TC Supporter06−033
Seal B06−034
Cover Sheet06−035
Feed Unit Stay A06−042
Sensor Cover06−043
Paper Holder06−044
Feed Unit Stay B06−045
Sensor Plate A06−046
M Feed Roller B5MMT876SN00906−047
M Feed Roller A5MMT876SN00806−048
Regist Roller A5MMT866SN00306−049
Regist Roller B5MMT876SN01806−050
Cassette Guide UF06−051
Cassette Guide LF06−052
Regist Gear Z205MVG127DN01706−053
Regist Gear Z325MVG147DN00106−054
Feed Unit Frame F5MMX875SL00106−055

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 14

QuantityDescriptionPart CodeRef No.

Main SW Bkt5MVX532SB00206−056
Paper Chute Guide5MVS521KC00106−057
Feed Roll Shaft06−059
Joint Gear Plate06−063
Gear Z365MVG148DN00806−064
Collar 405MVM197DN00106−065
Feed Gear Z655MVG169DN00306−066
Joint Support06−067
Regist Spring5MMW241LJ00906−068

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 15

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 16

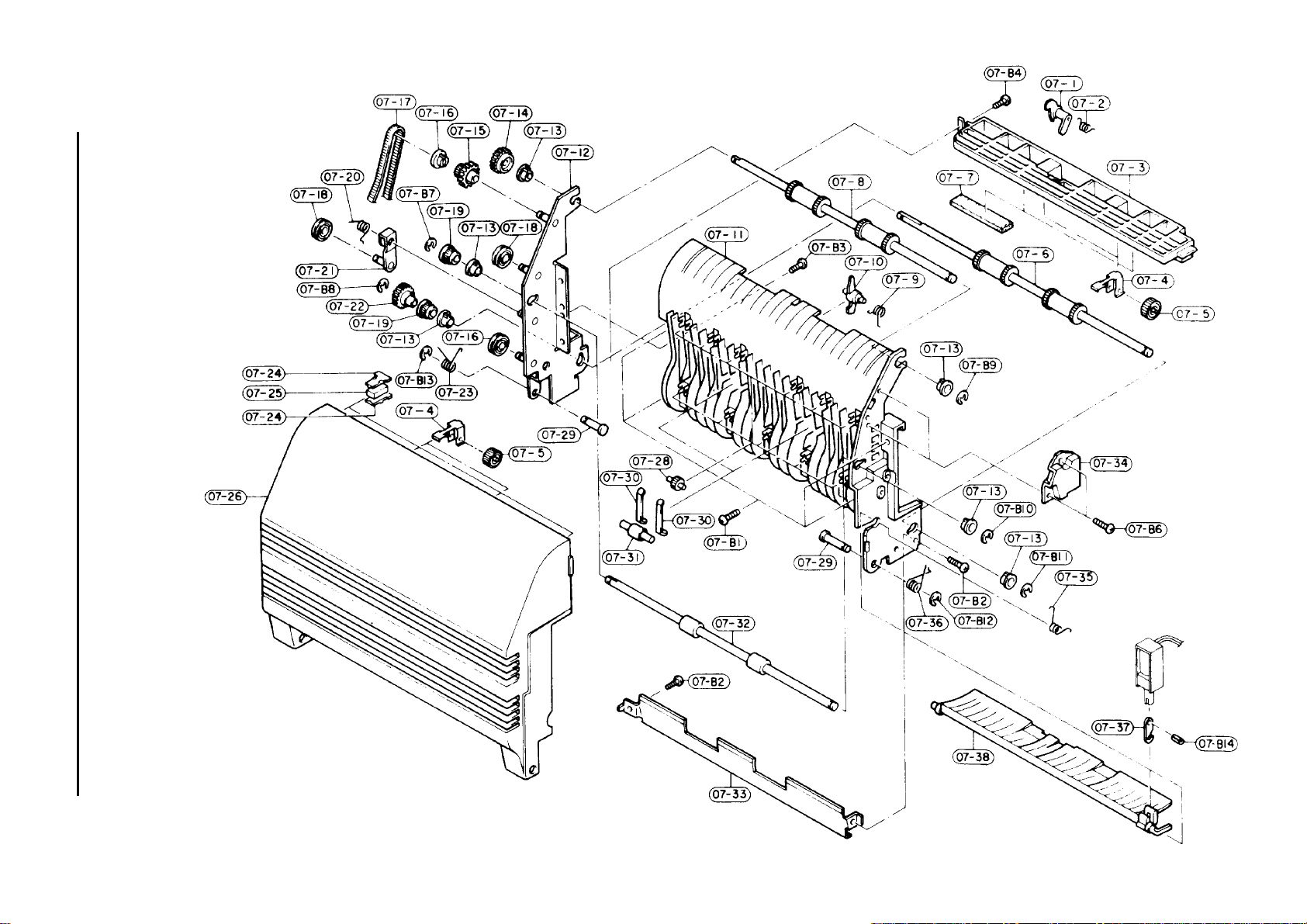

Fig.7 − Face−down Unit

QuantityDescriptionPart CodeRef No.

1Face−Down Unit5AAYF3000*4107−000

1Jam Actuator5MVX422DB00207−001
1FU Actuator Spring07−002
1FD Paper Guide5MVX852CB00107−003
4Exit Pulley Bracket5MMX321LJ00507−004
4FD Feed Pulley5MVM123DB00107−005
1FD Enter Roller5MMT876SN01607−006
2Seal C07−007
1FD Exit Roller5MMT876SN01507−008
1FD Actuator SP5MMW163LJ00107−009
1FD Jam Actuator5MVX422DB00307−010
1FD Guide07−011
1Side Plate07−012
6Bearing5MVM176DN00907−013
1FD Exit Gear5MVG127DB00207−014
1Belt Pulley Gear5MVG022DB00107−015
1Pulley Flange07−016
1FD Belt5MVX917RB00107−017
3Belt Idle Pulley5MVM177DB00407−018
2Belt Pulley5MVG327DB00107−019
1Idle Spring07−020
1Idle Bracket07−021
1FD Joint Gear Z205MVG127DB00107−022
1FD Spring R07−023
4FD Magnet Plate07−024
2FD Magnet07−025
1FD Cover07−026

11FD Exit Pulley5MVM174DB00107−028

2FD Pin07−029
4FD Presser5MMU131LX00107−030
2FD Pulley B5MVM474DB00107−031
1FD Middle Roller5MMT876SN01707−032
1FD Outlet Cover Assy07−033
1FD Switch Cover07−034
1Solenoid Spring07−035
1FD Spring F07−036
1Link Plate5MVX211DB00207−037
1Change Plate07−038

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 17

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 18

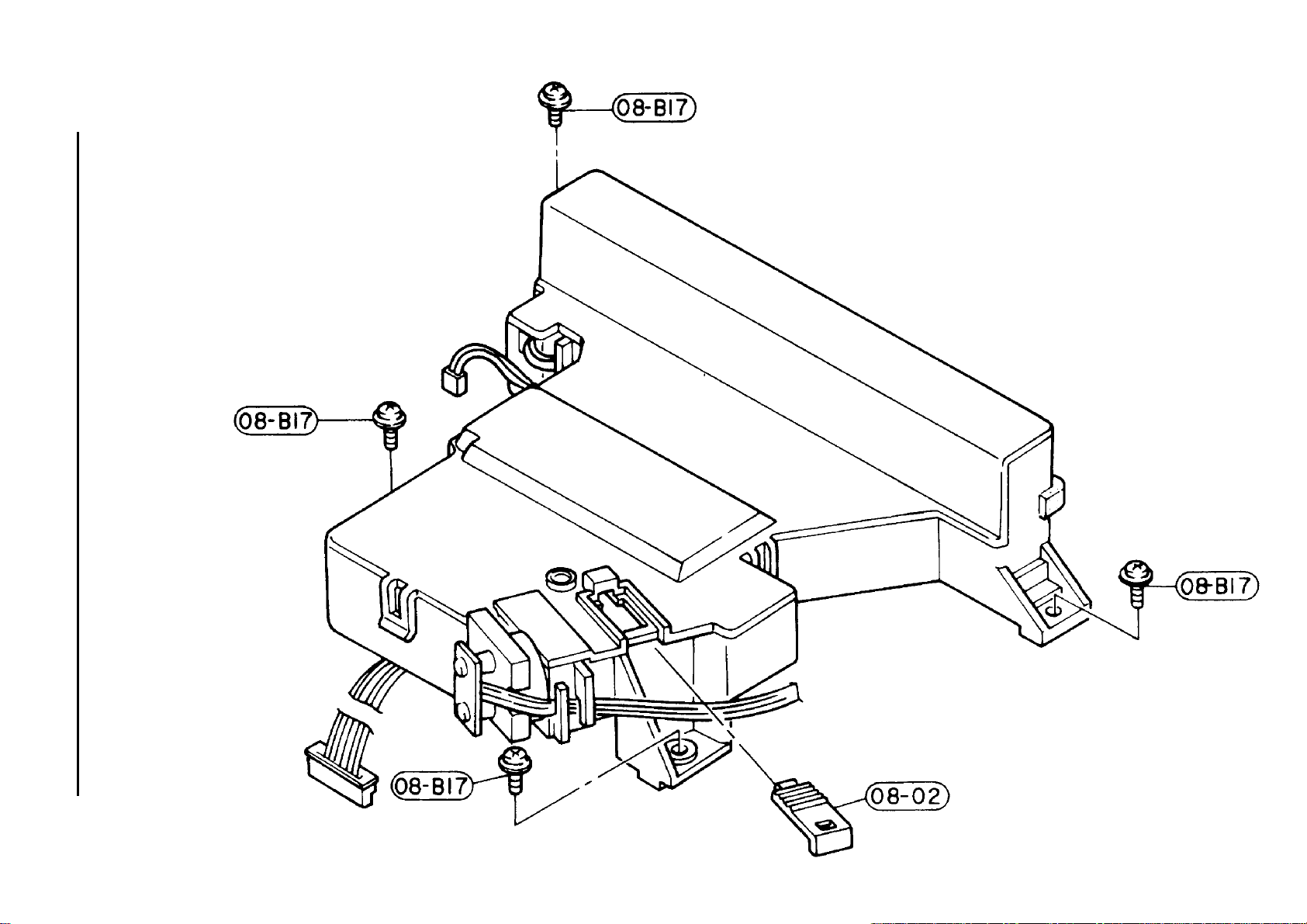

Fig.8 − Laser Scanner Unit

QuantityDescriptionPart CodeRef No.

1Scanner Unit 240V5AAYF3000*1108−000

1Scanner Cover Lid5MVS422SB00108−002

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 19

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 20

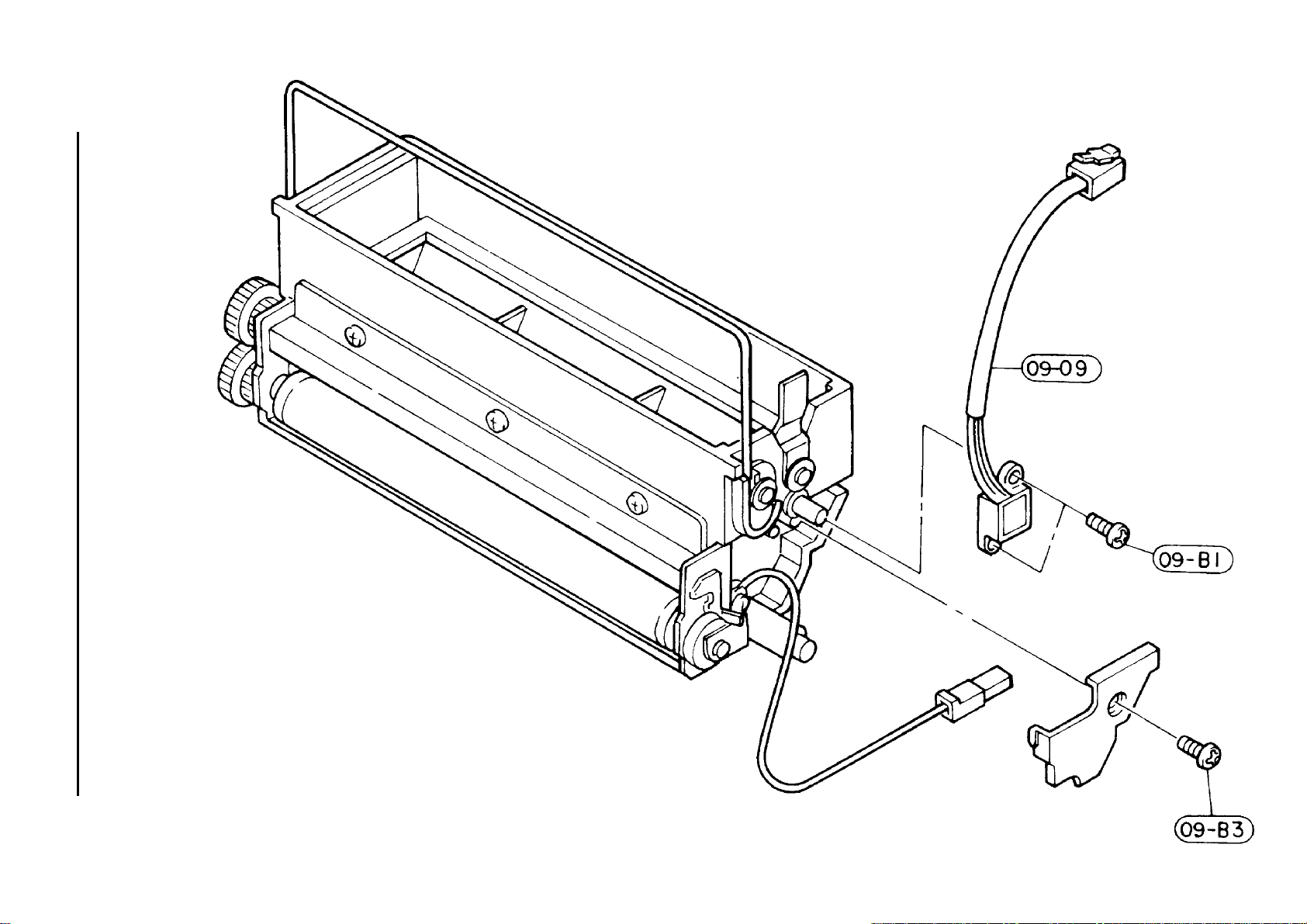

Fig.9 − Developer

QuantityDescriptionPart CodeRef No.

1Developer UnitDV−309−000
1Toner Sensor Assy5AAXTS003GEA09−009

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 21

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 22

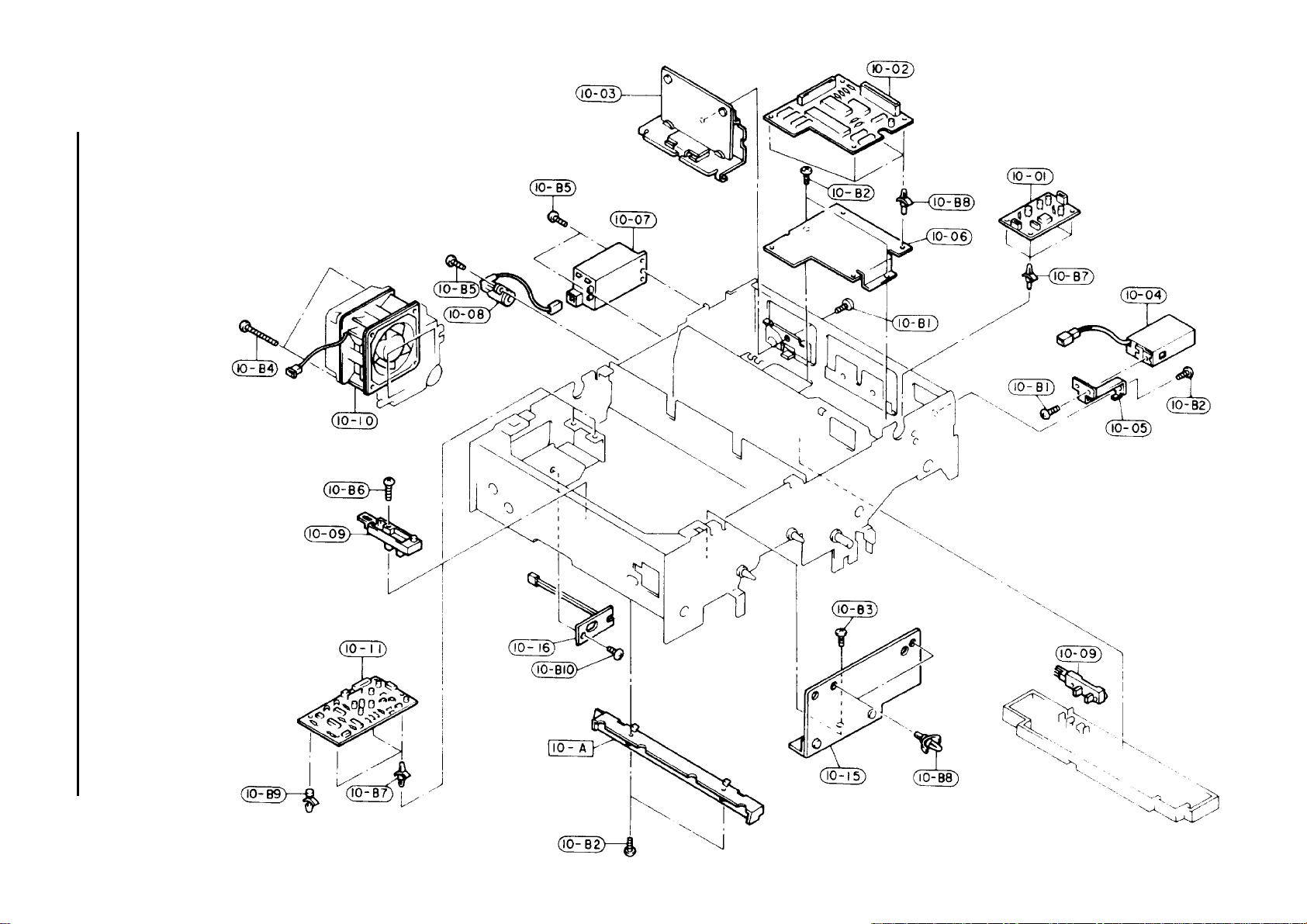

Fig.10 − Upper−Half (Electrical)

QuantityDescriptionPart CodeRef No.

1Eraser Assy5AAYF3000*2910−00A

1Developer Bias PWB5ETNB60101***0110−001
1Panel Cont.Board5AAPRCZG2003BH10−002
1Motor Control PWB5AAPRZZ003BA10−003
1Total Counter10−004
1Counter Bkt KC10−005
1Panel Board Bkt10−006
1Main Hv Unit5ETNB66202***0110−007
1MCH Connect5MVX543XN00110−008
2Sensor GP1A05HR5ENXGP1A05HR*0110−009
1Fan Motor A5EZNF2403001*0110−010
1APC PWB5AAPRAPC1004*0110−011
1Polygon Driver PWB5AAPRZZC1005AH10−015
1PWB Assy Life Count5AAPRZZ005AA10−016

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 23

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 24

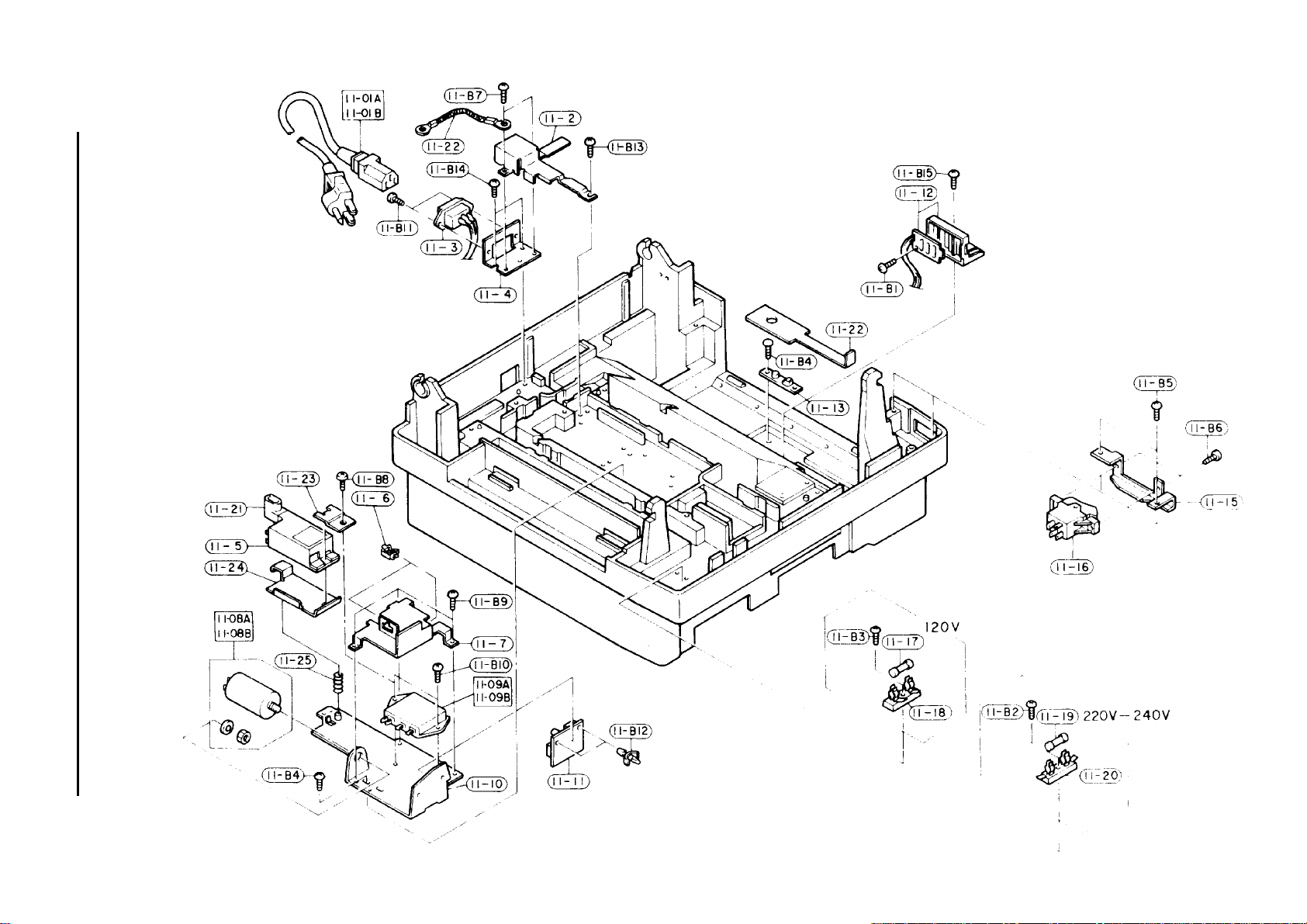

Fig.11 − Lower−Half (Electrical)

QuantityDescriptionPart CodeRef No.

1POWER CORD ASSY 250V 6A 5AACAC278EEA11−001
1INLET COVER 11−002
1INLET ASSY CCA4001 5AACCNDE7GEA11−003
1INLET BRACKET 11−004
1TRANSFER HV UNIT HVC−3MC60 5ETNB66201***0111−005
2EDGING SADDLE EDS−1 11−006
1CORD PART PLATE 11−007
1NOISE FILTER 250V 15A(EUROPE) 5EFNZSB2210050111−008
1SOLID STATE RELAY 220V−240V 5EZRlG012301*0111−009
1ELEC.PLATE 11−010
1HEAT CONTROL PWB 5AAPRHCG2004AH11−011
1CASSETTE SENSOR ASSY 5AAXAP002GEA11−012
1PEP BOARD ASSY B PHOTOTRANSISTOR 5AAPRSS005FA11−013
1SW BRACKET 11−015
1MAIN SWITCH J−U1054 5ESC020103***0111−016
1LINE FUSE 125V lOA 11−017
1FUSE BLOCK 120V 11−018
1LINE FUSE 250V 5A 5EYFBQ50205**0111−019
1FUSE BLOCK 220V−240V 5EYHF102004**0111−020
1TC RECEPTACLE 5MVX332XHOO111−021
1HARNESS 11−022
1HVC PLATE 11−023
1HVC HOLDER 11−024
1HVC SPRING 11−025

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 25

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 26

Fig.12 − Paper−Feed (Electrical)

QuantityDescriptionPart CodeRef No.

1Cable Assy PCA203212−001
1Solenoid A−35EZSA240301030512−002
1Micro Clutch5EYYAFAAE03**0112−003
1Micro Clutch5EYYAFAAE02**0112−004
1Micro Clutch5EYYAFAAE01**0112−005
1Solenoid Pad12−006
1Sensor GP1A05HR5ENXGP1A05HR*0112−007
1Cassette Sensor Assy5AAXAP002GEA12−008
1PEP PWB Assy H LED5AAPRSS005HA12−009
1PEP Board Assy E5AAPRSS005EA12−010
1PEP Board Assy D5AAPRSS005DA12−011
1Cable Assy CCA502212−012
1Mini Clamp12−013
1Inter Lock SW Assy5AAXSW018GEA12−014

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 27

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 28

Fig.13 − Face−Down Unit (Electrical)

QuantityDescriptionPart CodeRef No.

1Cable Assy CCA202013−001
1Sensor GP1A05HR5ENXGP1A05HR*0113−002
1Solenoid C TDS−KN07A5EZSA240102030113−003
1FD SW Assy CCA20175AAXSW019GEA13−004

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 29

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 30

Fig.14 − Fuser (Electrical)

QuantityDescriptionPart CodeRef No.

1Fuser 220V−240VFK−214−000
1Heater Lamp 240V 800W5EZPB241332020214−001
1Thermistor5ENTTC180P1.20314−002
1Thermal Fuse Assy5AAXTF005VDA14−006
1FIXING ROLLER5MMT887AM00314−007
1PRESS ROLLER5MMT886SX01214−008

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 31

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 32

Fig.15a − Upper−Half (Harness)

QuantityDescriptionPart CodeRef No.

1Cable Assy PCA203915−001
1Cable Assy PCA304115−002
2Bushing15−003
1Cable Assy YC−515−004
1Cable Assy CCA302115−005
1Cable Assy Sorter15−006
1Cable Assy CA115−007

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 33

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 34

Fig.15b − Lower−Half (Harness)

QuantityDescriptionPart CodeRef No.

1Cable Assy CA815−002
1Cable Assy CCA400215−009
1Cable Assy CCA402315−010
1Cable Assy CCA400415−011

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 35

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 36

Fig.16 − Sorter (Optional)

QuantityDescriptionPart CodeRef No.

1Cabinet16−001
1Base Plate16−002
3Foot16−003
1Photo Sensor Assy L5SNSP000696416−004
2Cushioning16−005
1Stand16−006
2Stand Cover16−007
1Stand Spring16−008
1Solenoid Assy5SNSP000697016−010
1Stopper Assy16−011
2Cable Clamp DNK−0516−012
1Side Frame R H16−013
2Tray Guide16−014
1Sheet R16−015
1Motor5SNSP000698116−016
1Motor Harness Assy16−017
1Motor Gear16−018
1SE RING16−019
2Ground Wire Assy16−020
1Left Frame16−021
1Sheet L16−023
2Arm16−025
2Stud Spring16−027
2Link Plate B16−028
3Bearing Bush16−029
1Drive Shaft16−030
1Clank Pulley Gear16−031
1Stopper Plate16−032
1Link Plate C16−033
1Sensor Plate16−035
1Feed Roller Shaft16−037
2Roller16−038
2Feed Pulley16−039
2Bearing Bush16−040
1Down B Baffle16−041
2Front Paper Stopper16−042
1Up B Baffle16−043
1Feed Shaft16−045
2Roller16−046
1Idler Bkt Assy16−047
1Idler Spacer16−048
1Feed Roller Gear16−049
1Idler Gear Collar16−050
1Idler Gear16−051
1Gear Idler16−052

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 37

QuantityDescriptionPart CodeRef No.

2Roller Rension Spring16−053
1Main PWB Assy5SNSP000702116−054
1PWB Spacer16−055
1Joint Bracket16−056
1Control Cable Assy16−057
1Sensor Bracket16−059
1Up Sensor5SNSP000702816−060
1L−50 Support Wire16−064
2Tray Spring16−065
15 Bin A Tray16−067

12Tongue16−068

2Paper Stopper16−069
2Paper Guide Tongue16−070
45 Bin B Tray16−071
8Rear Paper Stopper16−072
2Cushion Tray Assy16−073
8A Plate Link16−074
1Erase Assy16−075
1Support Bracket16−076
1#1 Paper Holder16−077
1PWB Support16−078

LASERBEAM PRINTER − Parts Catalogue KYOCERA F−3000 Page 38
