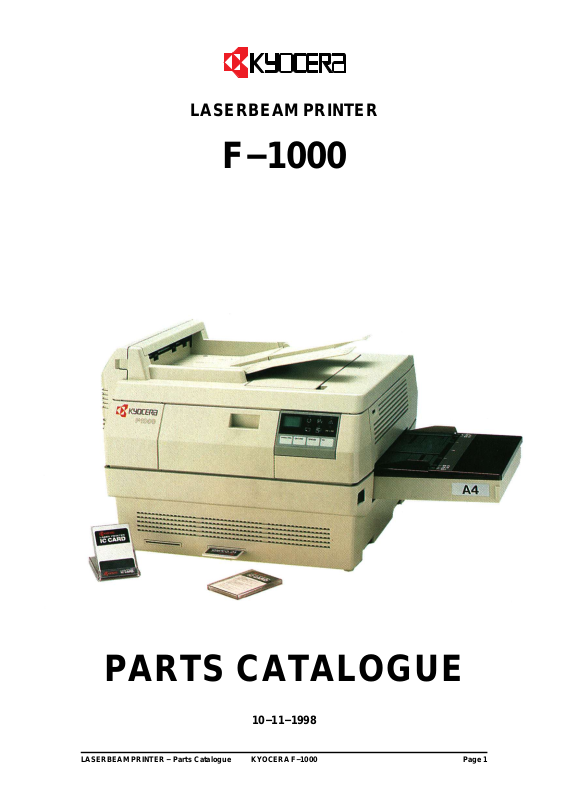

Page 1
LASERBEAM PRINTER
F−1000
PARTS CATALOGUE
10−11−1998
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 1
Page 2
F−1000 Parts Catalogue
Table of Contents
3Covers (Fig.1)
5Upper Frame (Fig.2a)
7Face Down Unit (Fig.2b)
9Upper−Half Electrical (Fig.3)
11Lower Frame (Fig.4)
13Lower−Half Electrical (Fig.5)
15Controller (Fig.6)
17Motor and Main Drive Gears (Fig.7)
19Paper−Feed Assembly (Fig.8)
21Paper−Feed Electrical (Fig.9)
23Developer (Fig.10)
25Scanner (Fig.11)

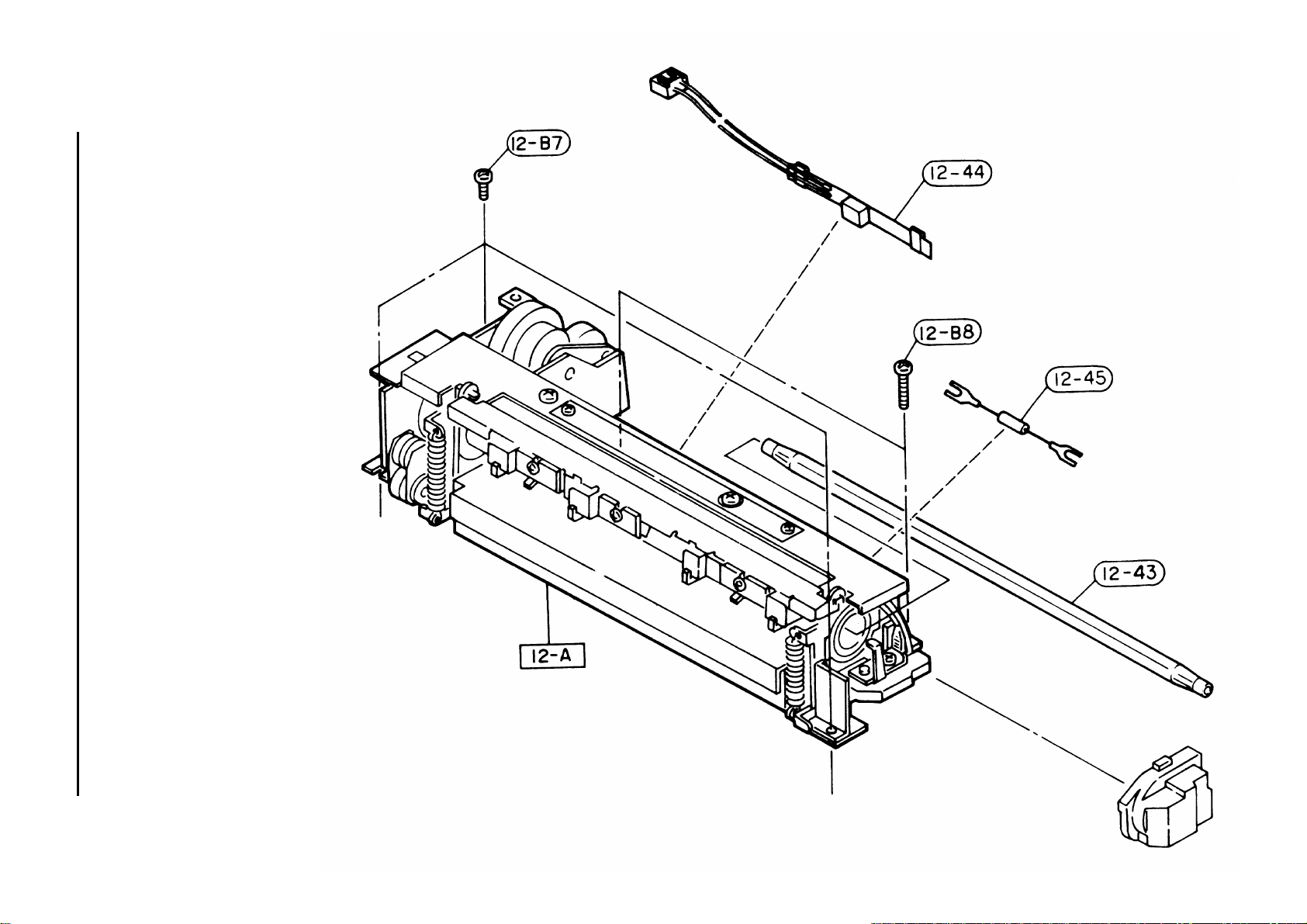

27Fuser (Fig.12)

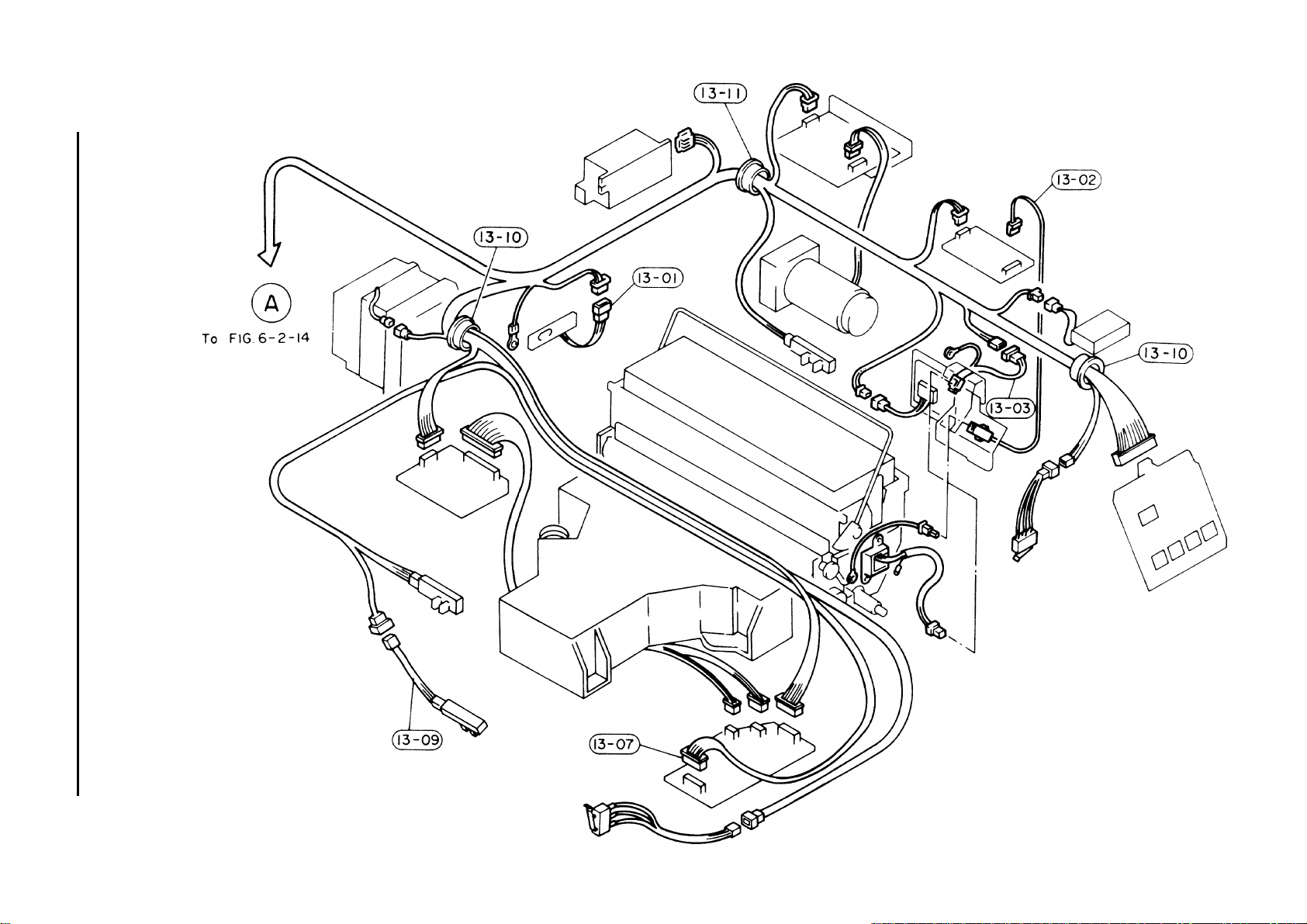

29Harnesses − Upper Half (Fig.13)

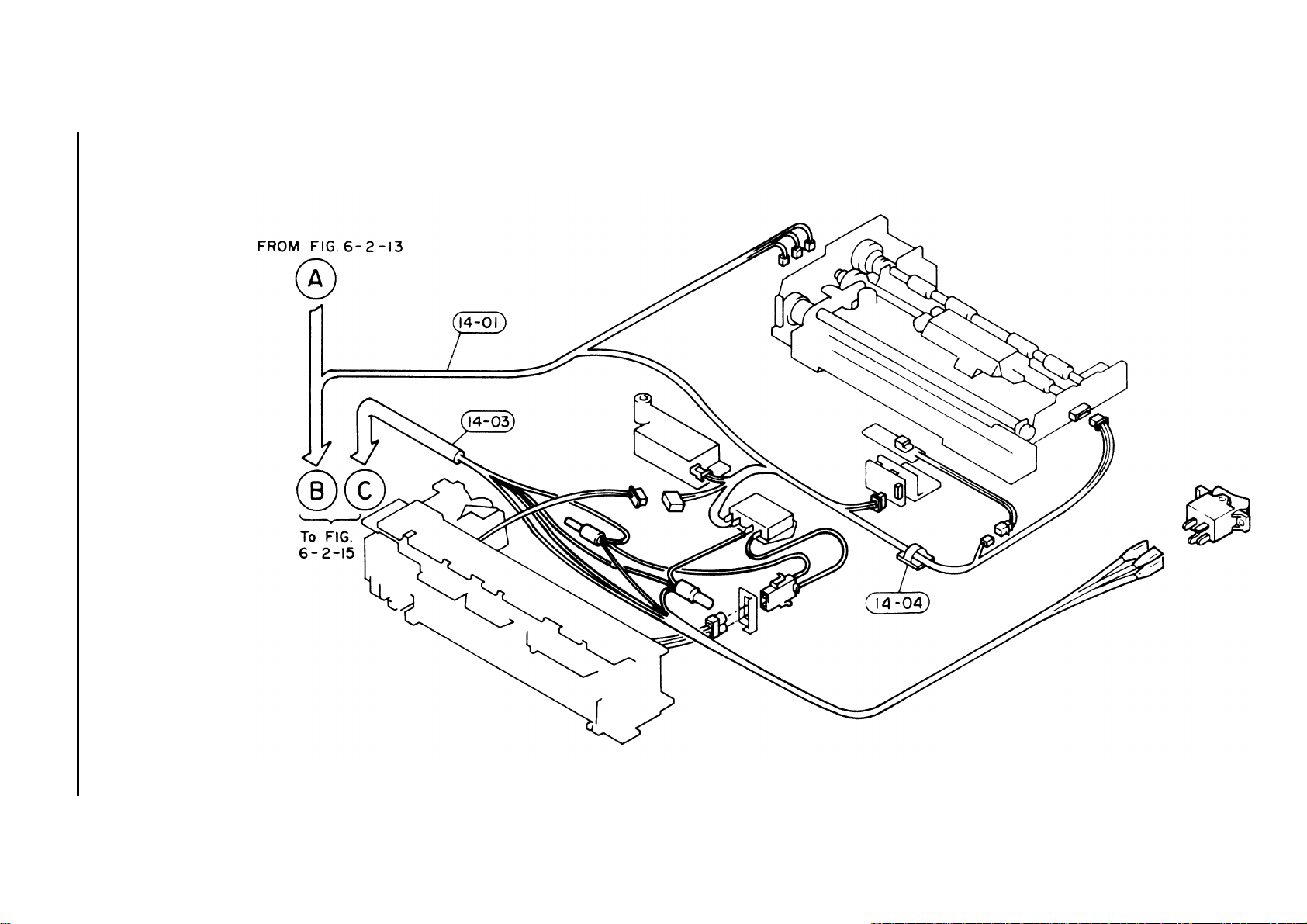

31Harnesses − Lower Half (Fig.14)

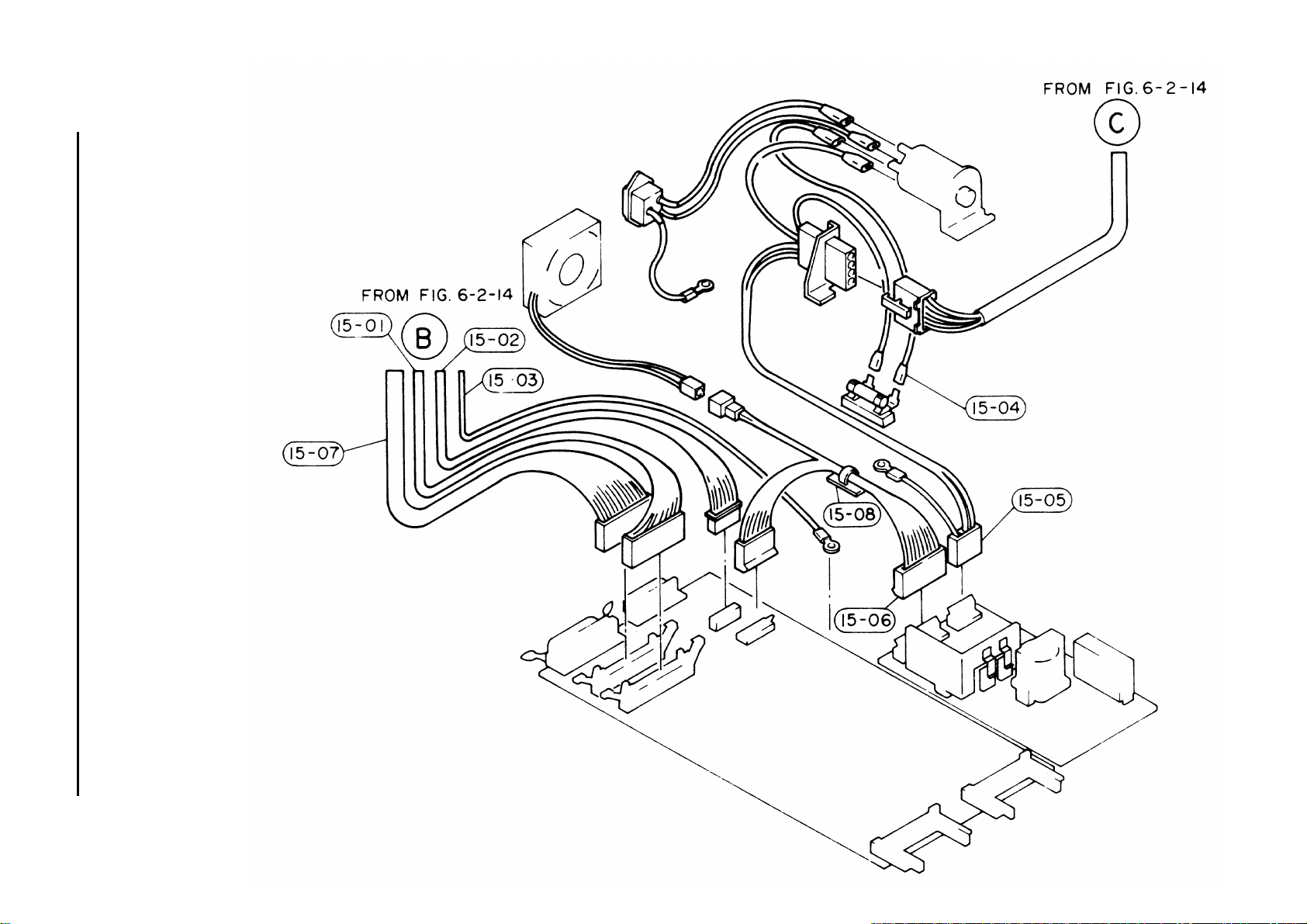

33Harnesses − Controller Etc. (Fig.15)
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
’Ref No.’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
Reference number which corresponds to the parts in the figure
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Consumables and Maintanence Kits
Toner KitTK−4
Drum (10K pages)DK−3
Developer (50K pages)DV−4
Fuser (80K pages)FK−4
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 2
Page 3
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 3
Fig.1 − Covers
Page 4
QuantityDescriptionPart CodeRef No.
1Assy F Cov 220−240V5AAVCOVER11501−00A
1Assy Top Cover5MVB986SH00601−00B
1Assy Keyboard5AAFZF1000*101−001
1FD Subcover5MVL832SH00201−003
1Rear Cover5MVX876SH02401−006
1Cover Right5MVB873SH01301−007
1Blind Cover5MVX843SH00201−008
1Assy Base5AAMF1000*0301−010
1Print Tray5MVX872SH00101−012
1Bracket Subcover5MML822SL00601−024
1Discharger FD5MVX821XJ00101−025
1Plate FD Ground5MMS323RD00101−026
1Sheet Top Cover5MVS623KF00101−027
1Holder Paper5MMW904LJ00201−028
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 4
Page 5
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 5
Fig.2a − Upper Frame
Page 6
QuantityDescriptionPart CodeRef No.
1Assy DLP Lock Lever5AAYF1010*6302−00A
1Cover Scanner Area5MMZ871SL00102−001
1Assy Rail A5AAMF1000*0402−002
2Cleaner Press5MMX644LD00202−003
1Frame Assy5AAVFRAME04502−004
1Pad Scanner Seal5MVS838RB00302−006
1Sheet Cover5MVS635CH00102−007
1Plate Barrier Top5MVS663KF00102−024
1Plate A Hook5MMX644SL00102−027
1Plate B Hook5MMX444SL00302−028
1Hook A Hinge5MVX654DN00102−029
1Hook B Hinge5MVX632DN00102−030
1Arm Hinge5MMX861SL00102−031
1Spring Hinge5MMW172LJ00302−032
1Plate Ground C5MMX474RJ00102−033
1Plate Ground A5MMS334RJ00102−034
1Guide Frame F5MVX221DB00602−035
1Guide Frame R5MVX221DN00502−036
1Guide Regist Roller5MVB773SB00502−037
1Guide Upper M−Feed5MVB862SB00102−038
1Actuator Sens M−Feed5MVX422SB00302−039
1Spring Sensor5MMW161LJ00802−040
1Bracket Interlock5MMX653SL00602−041
1Lever Interlock5MVU122DB00202−042
1Bracket Interlock5MVX443DB00102−043
1Bearing Drum5MVX665CB01%02−048
1Gear Drum Z305MVG138DB00202−049
1Nozzle B5MVB773SB00202−050
1Filter Assy5AAMW1****2002−051
1Seal Nozzle5MVS229RB00102−052
1Seal5MVS519RB00102−053
1Lever DLP CAM5MVX643CX00102−054
1Lever DLP CAM B5MVX622DB00102−055
1Bushing R Drum5MVM177DJ00102−056
1Guide R DLP5MVX662SB01102−062
1Guide F DLP5MVX662SB01202−063
1Sheet Seal5MVS227RF00902−081
1Switch Interlock5MVS622KF00202−083
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 6
Page 7
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 7
Fig.2b − Face Down Unit
Page 8
QuantityDescriptionPart CodeRef No.
1Face Down Unit5AAYF1000*6302−000
1Cover Switch5MVB651SB00302−005
1Shaft FD Cover5MMT8668Z01502−011
1Roller FD B5MMT876SN01302−012
1Gear FD Z205MVG127DB00302−013
1Roller FD C5MMT876SN01402−014
1Spring Idle5MMW161LJ02102−015
1Plate FD Side R5MMX765SL00502−016
1Plate FD Side F5MMS767SL00302−017
1Guide FD5MVB773SB00502−018
1Guide FD Paper5MVB854CB00102−019
1Flange Pulley5MVM176DB00202−020
2Bracket Ext Pulley5MMX311LD00102−021
1Belt FD5MVX811RB00102−022
2Pulley FD Feed5MVM123DB00102−023
2POulley Outlet5MVM177DB00302−064
1Spring Jam Actuator5MMW161LJ01202−065
1Jam Actuator5MVX422DB00202−066
1Bracket Idle5MMT421SL00102−067
2Spring FD Enter5MMU131LJ00202−068
6Bearing5MVM176DN00902−069
1Jam Actuator FD5MVX422DB00302−070
1Spring FD Actuator5MMW163LJ00102−071
2Pulley FD B5MVM474DB00102−072
4FD Pressure5MMU131LD00102−073
1Gear Joint FD5MVG127DN01502−074
1Roller Middle FD5MMT876SN01002−075
4Pulley Idle Belt5MVM177DB00402−076
1Bracket Idle5MMX421SL00102−077
1Gear Belt Pulley5MVG022DB00102−078
2Pulley Belt5MVG327DB00102−079
1Cover FD5MVB876SH02502−084
1Switch Interlock02−085
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 8
Page 9
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 9
Fig.3 − Upper−Half Electrical
Page 10
QuantityDescriptionPart CodeRef No.
1Eraser LED Assy5AAYF1000*5303−0A
1Assy PWB DLP Bias5ETNB60101***0103−001
1Counter Print5EZKD6Z02301*0103−002
1Bracket Counter5MML252SL00103−003
1PWB Motor Control5AAPRZZ003AA03−004
1Main HV Unit5ETNB66202***0103−005
1Fan DC5EZNF2403001*0103−006
3Photosensor5ENXGP1A05HR*0103−007
1PWB Drum Life5AAPRZZ005AA03−008
1Connect MCH03−010
6Support PWB03−012
1Assy PWB Polygon5AAPRZZC1004BH03−013
1Switch Interlock5AAXSW020GEA03−014
1Cover FD Switch03−015
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 10
Page 11
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 11
Fig.4 − Lower Frame
Page 12
QuantityDescriptionPart CodeRef No.
2Support Base5MMU832SL00104−001
1Plate Sheild5MMZ886SL00104−002
2Plate Ground5MML232RD00104−003
2Plate Ground5MMX431RD00204−005
1Cover Inside F5MVB866SB00204−007
1Plate Fuser5MVS836CB00104−008
1Plate Sensor5MMS746SB00104−010
1Plate Ground Sensor5MMX222RJ00104−011
1Plate Paper Ramp5MMU833SM00104−015
1Seal A5MVS618RB00504−016
1Seal D5MVS213RB00504−017
1Seal C5MVS618RB00304−018
1Guide R5MVS732KN00204−019
1Guide F5MVS632KN00104−020
1Pad B Tank5MVS439RH00204−021
1Pad A Tank5MVS428RH00204−022
1Plate B Ground5MMX542RJ00104−023
2Plate Ground Fuser5MMX332RJ00104−024
1Cover Inside RB5MVX764SB00204−025
1Cover Inside RA5MVX764SB00304−026
2Plate Hinge Base5MMS657SL01004−027
2Pin Stopper5MMT326LJ00104−028
1Arm Frame L5MMX763SL00604−029
1Arm Frame R5MMX763SL00504−030
1Stopper L5MMS637SL00304−031
1Stopper R5MML264SL00104−032
1Spring Stopper5MMW172LJ00404−033
1Stopper5MMS226SL00204−034
1Rod Torsion A5MMW908SM00204−035
1Rod Torsion B5MMW908SM00104−036
1Discharger Transfer5MMX852AJ00104−037
5Rubber Piece5MVB222RB00104−039
1Hold Corotron5MMX641LJ00104−040
1Ass’y Actuator HVU04−041
1Assy TR Corotron5AAUSHILD03304−064
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 12
Page 13
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 13

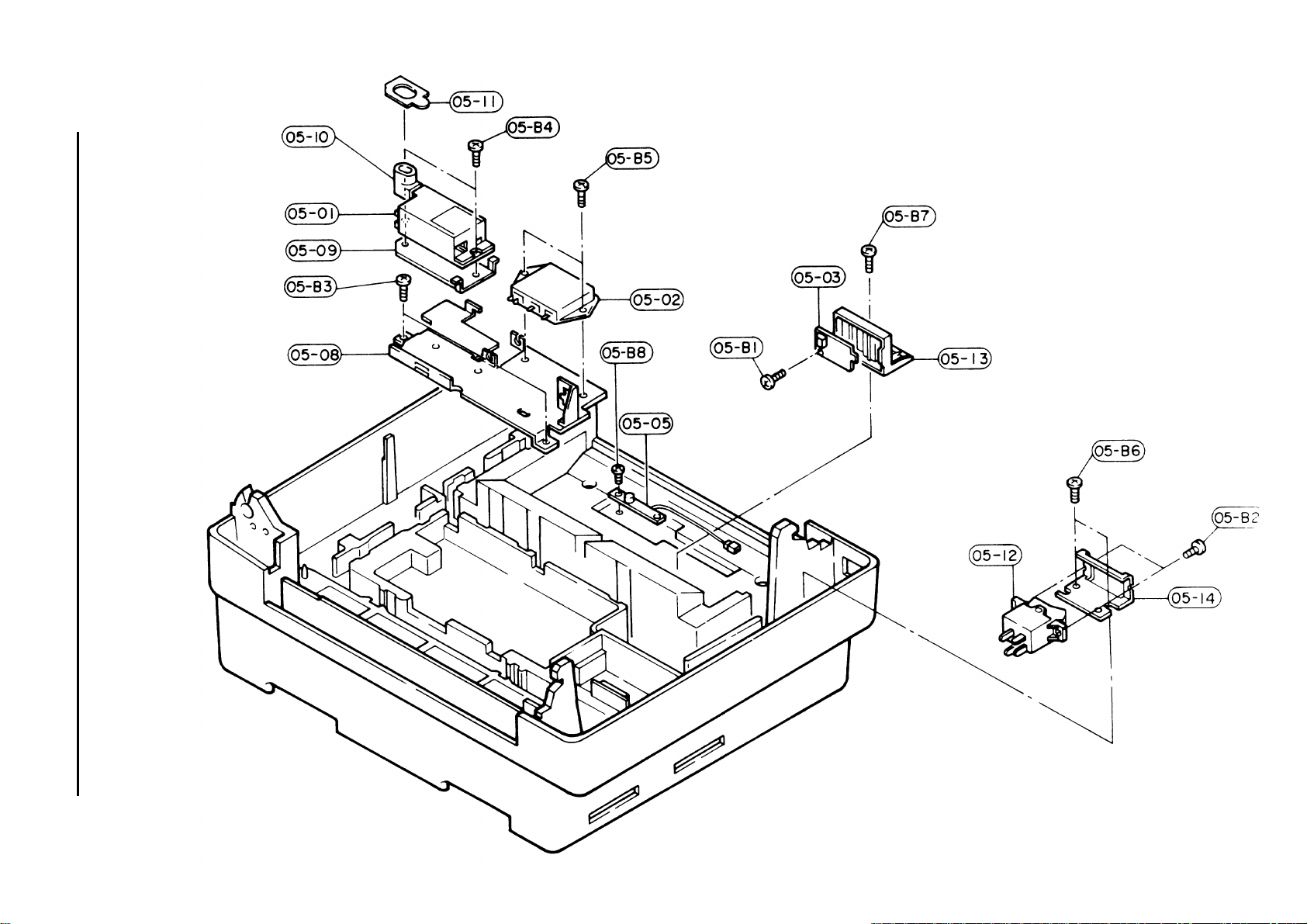

Fig.5 − Lower−Half Electrical
Page 14
QuantityDescriptionPart CodeRef No.
1HV Unit Transfer5ETNB66201***0105−001
1Relay SS 220−240V5EZR1G012301*0105−002
1PWB Assy Cassette5AAXAP002GEA05−003
1Assy PWB Paper5AAPRSS005BA05−005
1Base SSR Etc.05−008
1Assy Actuator HVU5AAVHOLDR01605−009
1Receptacle TC5MVX332XH00105−010
1Blind5MVS533KN00105−011
1Switch Power5ESC020103***0105−012
1Bracket. Sensor Cas.05−013
1Bracket Switch Power05−014
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 14
Page 15
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 15

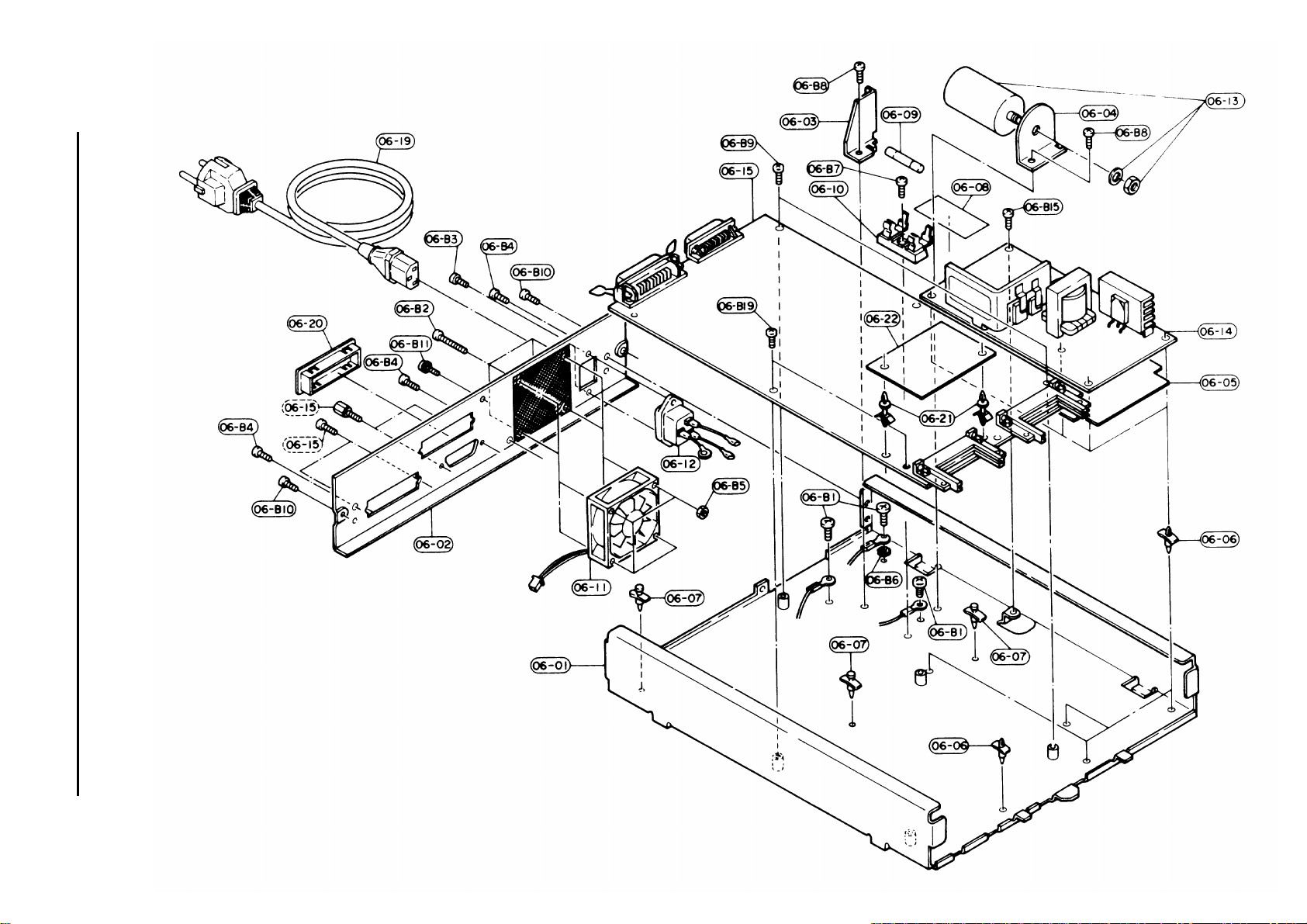

Fig.6 − Controller
Page 16
QuantityDescriptionPart CodeRef No.
1Box Controller5MMU886SL00206−001
1Panel Rear5MML861SM00106−002
1Bracket Connector5MMX533Sl00106−003
1Bracket Filter5MML452SL00206−004
1Insulator5MVS875VF00106−005
1Spacer Locking5MVX221NN01906−006
1Spacer Card5MVX221NN02206−007
1Decal Fuse 220−240V5MVL631WN4906−008
3Fuse 220−240V5EYFBQ50205**0106−009
1Block Fuse 220−240V5EYHF102004**0106−010
1Fan DC5EZNF2403401*0106−011
1Inlet Assy5AACCNCP0GEA06−012
1Filt Noise 220−240V5EFNZSB2210050106−013
1Regulator Swing 240V5AAEZF1000*206−014
1PWB Assy 220−240V5AAPRCZG2005AH06−015
1Cable Ass’y5AACCNCH4GEA06−018
1Cable Power 220−240V5AACAC278EEA06−019
1Cover Blind5MVS627SH00206−020
1PWB Support Nylon06−021
1PWB Ass’y 1MB RAM06−022
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 16
Page 17
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 17

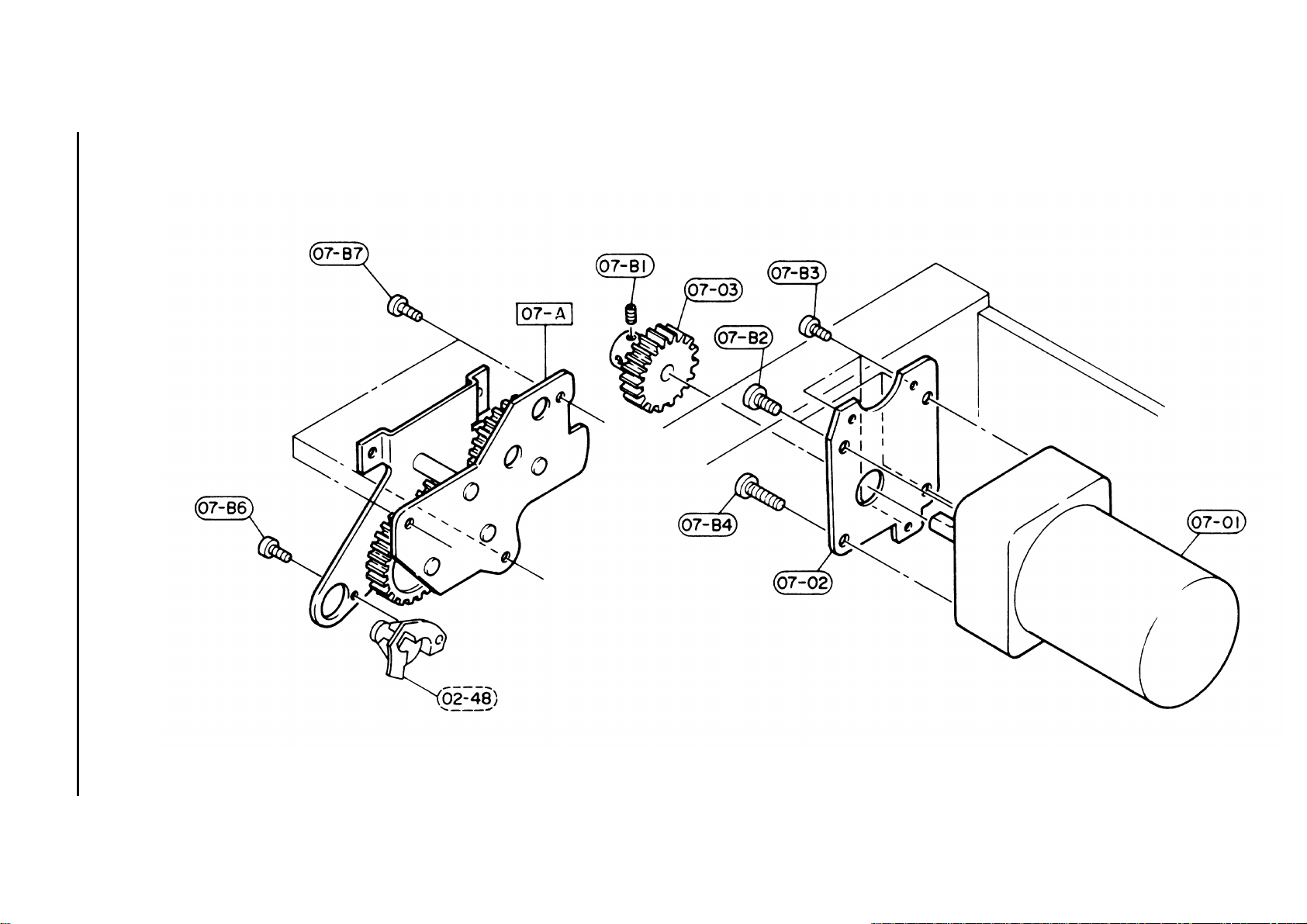

Fig.7 − Motor and Main Drive Gears
Page 18
QuantityDescriptionPart CodeRef No.
1Assy Drive Gears5AAYF1000*3707−00A
1Motor DC5EZNS180R401*0107−001
1Plate Motor5MMX642SL00507−002
1Gear Z305MMG138SX00507−003
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 18
Page 19
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 19

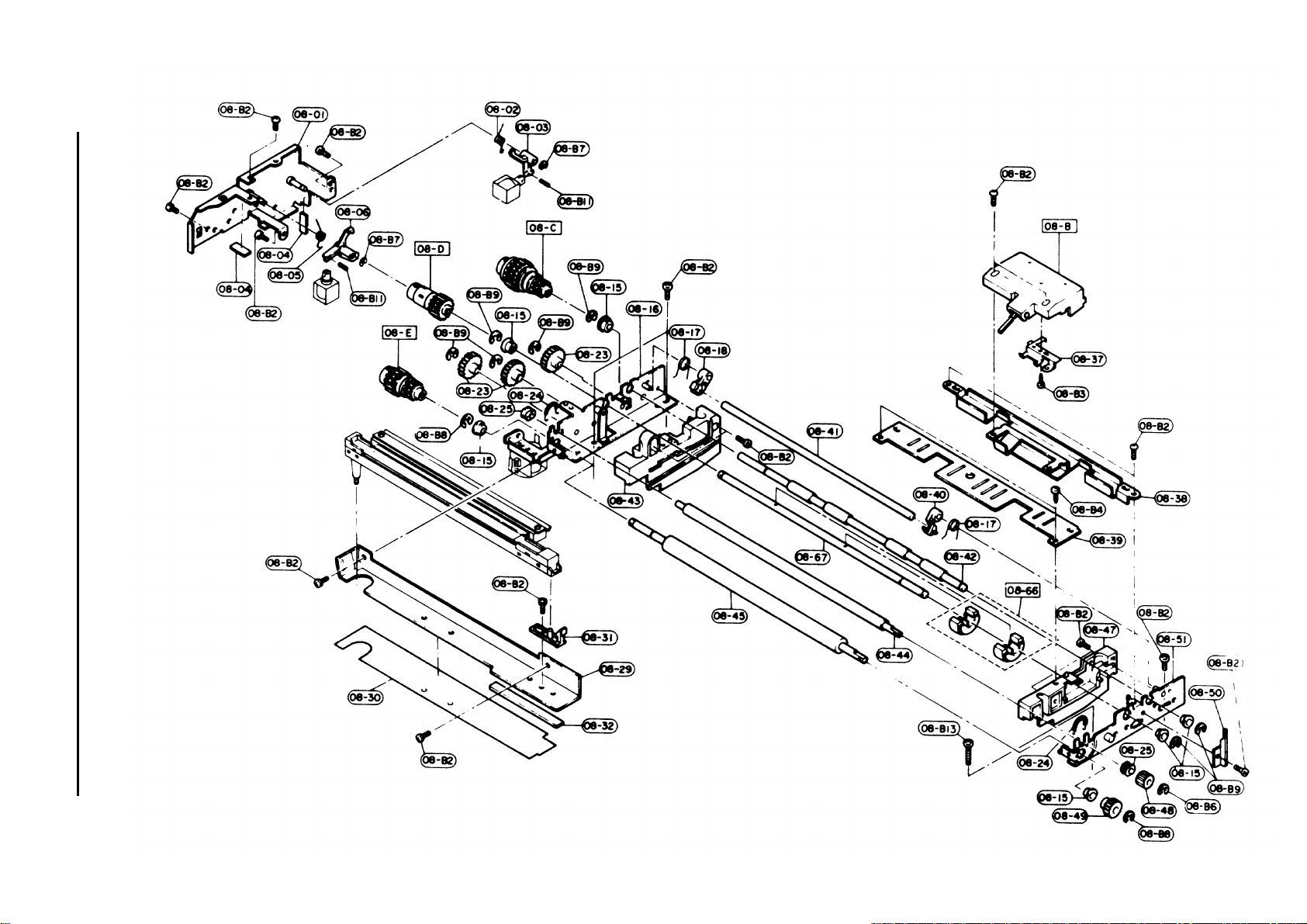

Fig.8 − Paper−Feed Assembly
Page 20
QuantityDescriptionPart CodeRef No.
1Paper−Feed Assembly5AAYF1000*3608−00A
1Assy Cover Sensor5AAYF1000*5208−00B
1Assy Clutch M−Feed5AAYF1010*2608−00C
1Assy Clutch Feed5AAYF1010*2708−00D
1Assy Clutch Regist5AAYF1010*2808−00E
1Bracket Solenoid5MMX766SL00208−001
1Spring Cam M5MMW171LJ00408−002
1Lever Cam M5MVX442DN00108−003
2Pad Solenoid5MVS226RB00508−004
1Spring Cam5MMW171LJ00308−005
1Lever Cam5MVX552DN00108−006
6Bush Metal KD5MMM176CJ00308−015
1Frame R5MMX776SL00108−016
2Spring Roller M5MMW171LJ00208−017
1Bush R5MVX322DB00108−018
3Gear Z285MVG138DN01108−023
2Spring Regist5MMW241LJ00908−024
2Bush Roller Regist5MMM121XJ00108−025
1Support TC5MML833SL00208−029
1Cover5MVS852K100208−030
1Guide TC5MVX532DD00208−031
1Seal B5MVS618RB00408−032
1Bracket Sensor5MMX543LJ00108−037
1Paper Chute A5MMX865SN00108−038
1Paper Chute B5MMS856SN00108−039
1Bush Tension F5MVX332DB00208−040
1Roller B M5MMX866SN00208−041
1Roller A M5MMT876SN00708−042
1Guide Cassette R5MVX764SB00108−043
1Roller A Regist5MMT866SN00308−044
1Roller B Regist5MMT876SN01908−045
1Guide Cassette F5MVX763SB00308−047
1Gear Z205MVG127DN01708−048
1Gear Z325MVG147DN00108−049
1Actuator Interlock5MML531SL00108−050
1Frame F5MMX775SL00108−051
1Assy Wheel Feed5AAMF1000*0508−066
1Shaft Roller Feed5MMT866SJ00108−067
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 20
Page 21
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 21

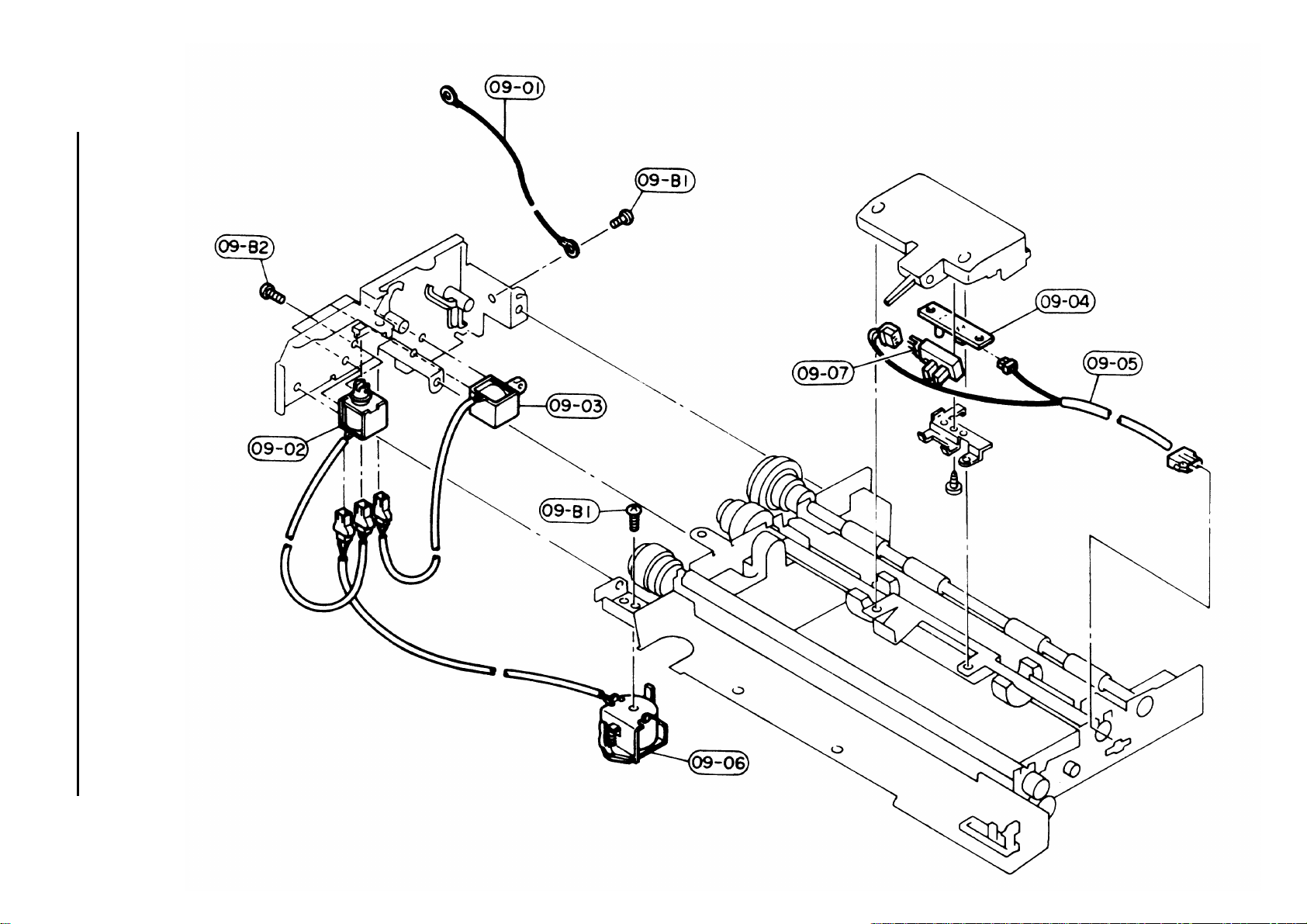

Fig.9 − Paper−Feed Electrical
Page 22
QuantityDescriptionPart CodeRef No.
1Cable Assy5AACCNAN8GEA09−001
1Solenoid Feed5EZSA240301030209−002
1Solenoid Manual5EZSA2403010303 09−003
1Assy PWB5AAPRSS005AA09−004
1Cable Assy5AACCNAG4GEA09−005
1Solenoid Regist5EZSA240301010209−006
1Photosensor5ENXGP1A05HR*0109−007
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 22
Page 23
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 23

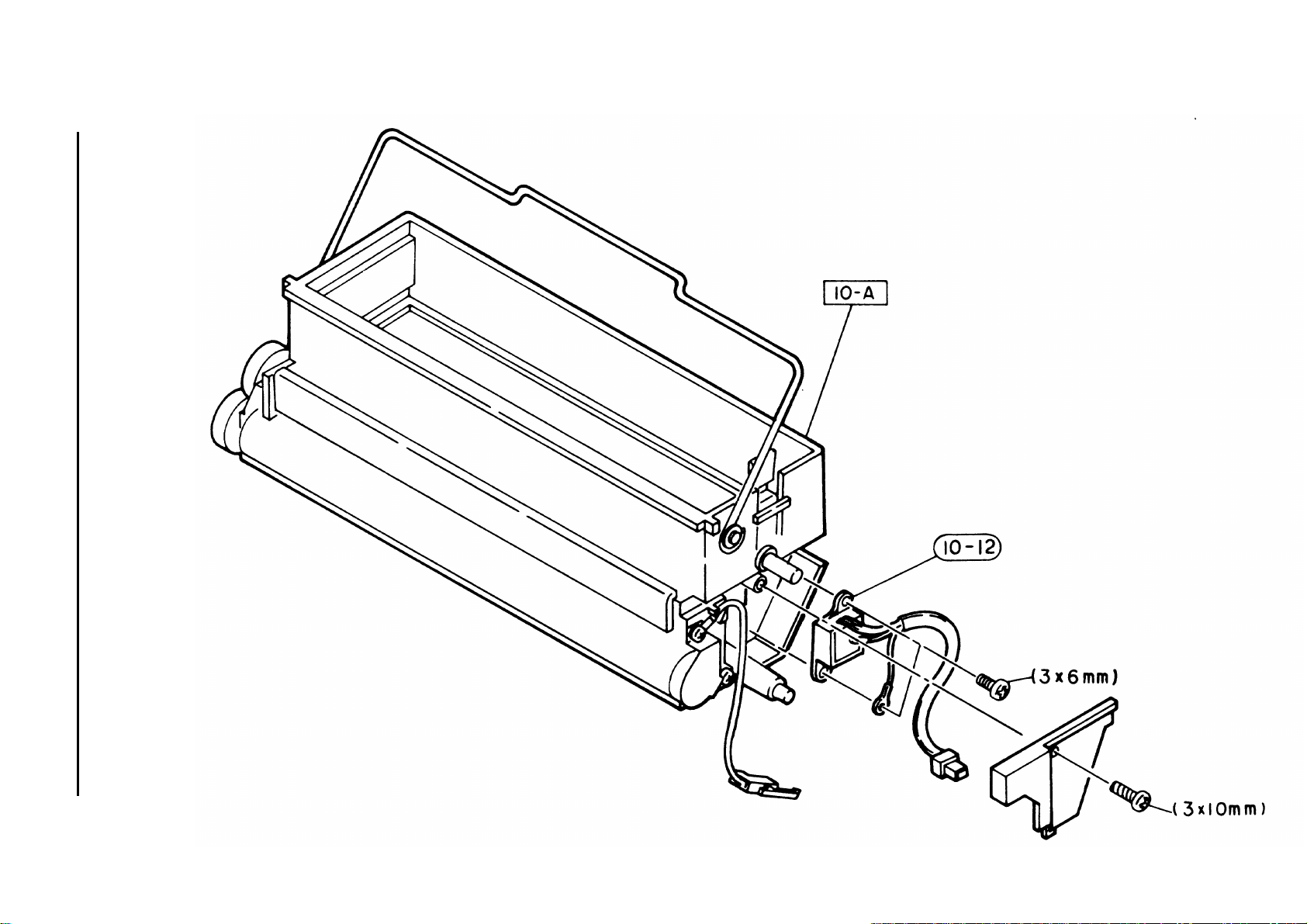

Fig.10 − Developer
Page 24
QuantityDescriptionPart CodeRef No.
1Ass’y DeveloperDV−410−00A
1Sensor Toner5AAXTS002GEA10−012
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 24
Page 25
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 25

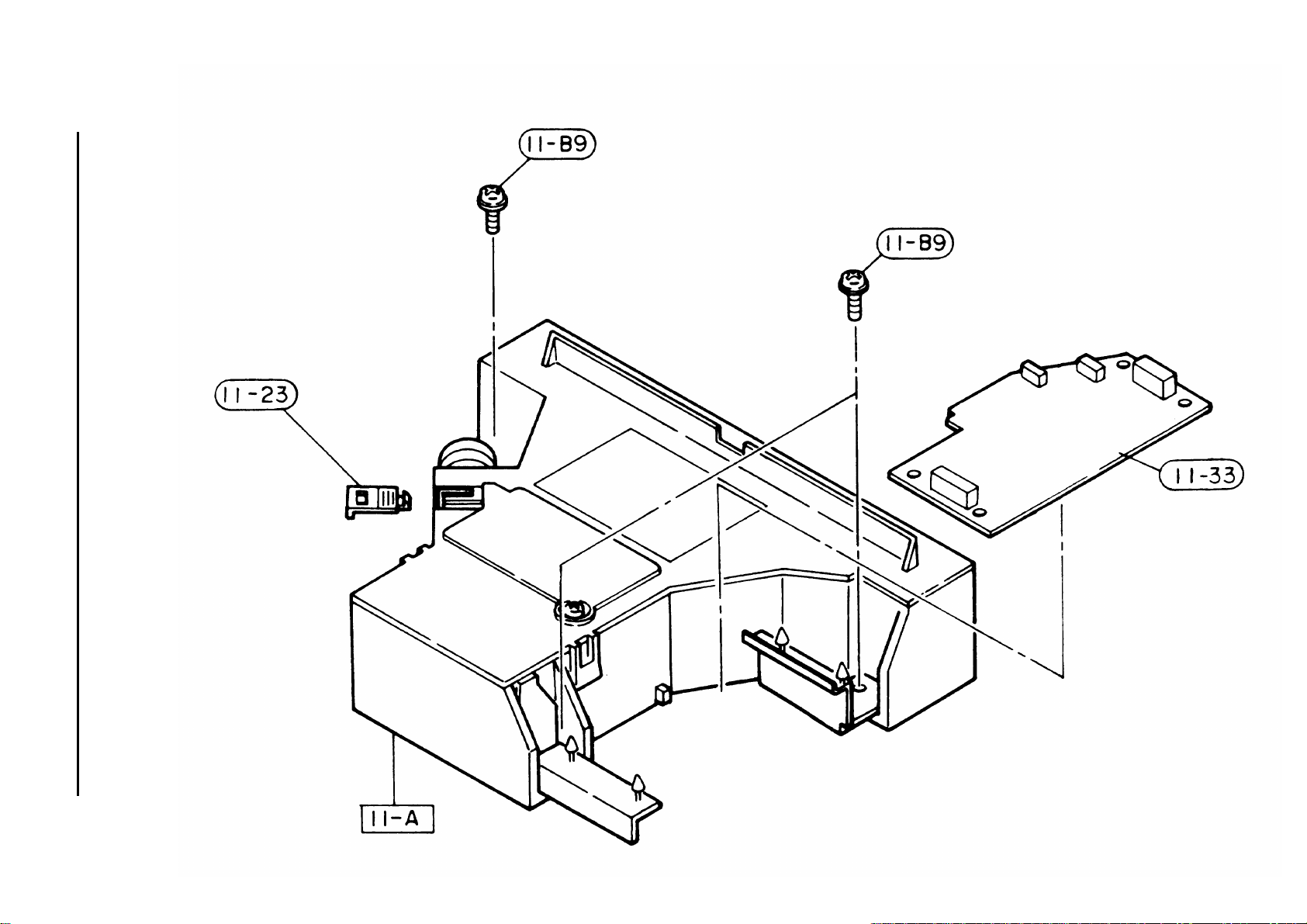

Fig.11 − Scanner
Page 26
QuantityDescriptionPart CodeRef No.
1Assy Scn’r 220−240V5AAYF1000*6311−00A
1Lid Adjust5MVS422SB00111−023
1Assy PWB APC5AAPRAPC1003AH11−033
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 26
Page 27
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 27
Fig.12 − Fuser
Page 28
QuantityDescriptionPart CodeRef No.
1Assy Fuser 200−240VFK−412−00A
1Heater 800W / 220−240V5EZPB241332010112−043
1Thermistor5AACCNAP6GEA12−044
1Fuse Thermal 220−240V5AAXTF005VDA12−045
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 28
Page 29
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 29
Fig.13 − Harnesses − Upper Half
Page 30
QuantityDescriptionPart CodeRef No.
1Harness5AACCNCG9GEA13−002
1Harness5AACCNCR7GEA13−003
1Harness5AACCNCR9GEA13−007
1Harness5AACCNAP2GEA13−009
2Strain Relief5AACCNAP4GEA13−010
1Strain Relief5AACCNDB7GEA13−011
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 30
Page 31
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 31
Fig.14 − Harnesses − Lower Half
Page 32
QuantityDescriptionPart CodeRef No.
1Harness14−001
1Harness14−003
1Clamp14−004
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 32
Page 33
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 33
Fig.15 − Harnesses − Controller Etc.
Page 34
QuantityDescriptionPart CodeRef No.
1Harness15−001
1Harness15−002
1Harness15−003
1Harness 220−240V15−004
1Harness 220−240V15−005
1Harness15−006
1Harness15−007
1Clamp15−008
LASERBEAM PRINTER − Parts Catalogue KYOCERA F−1000 Page 34
Loading...
