OPERATOR'S MANUAL

M4N-071 MODELS M5N-091

English (U.S.A.) Code No. 3B481-9971-1

M5N-111

M4N

071·M5N

091·M5N

111

1ABCW00001A01

1ABCW00051A01

PRINTED IN JAPAN

KUBOTA Corporation 2017

READ AND SAVE THIS MANUAL

ABBREVIATION LIST

Abbreviations Definitions

2WD 4WD

API

ASABE

ASTM

DIN DEF DPF

fpm GST

Hi-Lo

HST

m/s PTO

RH/LH

ROPS

rpm

r/s

2 Wheel Drive 4 Wheel Drive American Petroleum Institute American Society of Agricultural and Biological Engineers, USA American Society for Testing and Materials, USA Deutsches Institut für Normung, GERMANY Diesel Exhaust Fluid Diesel Particulate Filter Dual Traction [4WD] Feet Per Minute Glide Shift Transmission High Speed-Low Speed Hydrostatic Transmission Meters Per Second Power Take Off Right-hand and left-hand sides are determined by facing

in the direction of forward travel Roll-Over Protective Structures Revolutions Per Minute Revolutions Per Second

KUBOTA Corporation is ···

Since its inception in 1890, KUBOTA Corporation has grown to rank as one of the major firms in Japan.

To achieve this status, the company has through the years diversified the range of its products and services to a remarkable extent. 30 plants and 35,000 employees produce over 1,000 different items, large and small.

All these products and all the services which accompany them, however, are unified by one central commitment. KUBOTA makes products which, taken on a national scale, are basic necessities. Products which are indispensable. Products which are intended to help individuals and nations fulfill the potential inherent in their environment. KUBOTA is the Basic Necessities Giant.

This potential includes water supply, food from the soil and from the sea, industrial development, architecture and construction, and transportation.

Thousands of people depend on KUBOTA's know-how, technology, experience and customer service. You too can depend on KUBOTA.

SAE

SCR SMV

Society of Automotive Engineers, USA Selective Catalytic Reduction Slow Moving Vehicle

California Proposition 65

WARNING

Engine exhaust, some of its constituents, certain vehicle components and fluids, contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Canadian Electromagnetic Compatibility (EMC): This machine complies with Industry Canada ICES-002.

M4N-071/M5N-091/M5N-111 AV . E . 2 - 2 . 3 . AK

UNIVERSAL SYMBOLS

As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning.

B General

Safety alert symbol

Master system warning

Fast

Slow

Creep

Lock

ON (engaged)

OFF (disengaged)

B Engine-related

Diesel fuel

Fuel level

Hourmeter/elapsed operating hours

Engine coolant-temperature

Low temperature regulation

Engine intake/combustion air-filter

Engine oil-pressure

Water separator

Engine-warning

Engine-rev limiter

Engine-constant RPM management

Engine-over speed

Engine-RPM increase

Engine-run

Engine-start

Engine-stop

Electrical power-accessories

Diesel preheat/glow plugs

(low temperature start aid)

Emission control

Regeneration

Regeneration inhibit

Regeneration (switch)

Parked regeneration

DEF/AdBlue®-level

DEF/AdBlue®-low level

DEF/AdBlue®-poor quality

DEF/AdBlue®-trouble

DEF/AdBlue®-thawing

B Vehicle body-related

4-wheel drive-on

Bi-speed turn

Clutch

Brake

Parking brake

Differential lock

Steering wheel-tilt

PTO-off (disengaged)

PTO-on (engaged)

PTO-540 rpm

PTO-540E rpm

B Hydraulic-related

Draft control-shallow position

Draft control-deep position

Position control-raised position

Position control-lowered position

3-Point lowering speed control

Remote cylinder-retract

Remote cylinder-extend

B Electric-related

Battery charging condition

Headlight-low beam

Headlight-high beam

Turn signal

Hazard warning lights

FOREWORD

You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service. To obtain the best use of your tractor, please read this manual carefully. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance. It is KUBOTA's policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.

This symbol, the industry's ''Safety Alert Symbol'', is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use this unit.

3 3 3

IMPORTANT :

NOTE :

DANGER :

WARNING :

CAUTION :

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

Indicates that equipment or property damage could result if instructions are not followed.

Gives helpful information.

SAFETY FIRST

M4N-071, M5N-091, M5N-111

SAFE OPERATION......................................................................................................................7

VICING OF TRACTOR .......................................................................................................19

SER

WARRANTY........................................................................................................................................................ 20

SCRAPPING THE TRACTOR AND ITS PROCEDURE ..................................................................................... 20

SPECIFICATIONS......................................................................................................................21

SPECIFICATION TABLE..................................................................................................................................... 21

TRAVELING SPEEDS ........................................................................................................................................ 23

IMPLEMENT LIMITATIONS.......................................................................................................25

IMPLEMENT SPECIFICATION TABLE............................................................................................................... 26

INSTRUMENT PANEL AND CONTROLS .................................................................................27

SWITCHES AND HAND CONTROLS ................................................................................................................27

INSTRUMENT PANEL ........................................................................................................................................ 28

FOOT AND HAND CONTROLS .........................................................................................................................29

PRE-OPERATION CHECK ........................................................................................................30

DAILY CHECK .................................................................................................................................................... 30

OPERATING THE ENGINE .......................................................................................................31

EXHAUST AFTERTREATMENT DEVICES ........................................................................................................ 31

1. Dual exhaust aftertreatment devices ......................................................................................................... 31

DIESEL PARTICULATE FILTER (DPF) MUFFLER ............................................................................................31

1. Handling points.......................................................................................................................................... 32

2. DPF regeneration process......................................................................................................................... 32

3. Operating procedure for auto regeneration mode .....................................................................................33

3.1 PM warning level and required procedures........................................................................................ 34

4. Operating procedure for regeneration inhibit mode................................................................................... 35

4.1 PM warning level and required procedures........................................................................................ 36

5. Operating procedure for parked regeneration ...........................................................................................37

6. Tips on diesel particulate filter (DPF) regeneration ...................................................................................38

SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER................................................................................. 38

1. Outline of the SCR..................................................................................................................................... 38

2. DEF/AdBlue®............................................................................................................................................. 38

3. Warning indication and countermeasures .................................................................................................39

3.1 SCR system inducement display on the LCD ....................................................................................39

3.2 SCR system icon on inducement display........................................................................................... 39

3.2.1 Diagnostic trouble code (DTC) .................................................................................................. 39

3.3 SCR system inducement display and measures................................................................................ 40

4. Storing and handling DEF/AdBlue®........................................................................................................... 42

STARTING THE ENGINE ................................................................................................................................... 42

1. Checking Easy Checker™ indicators ......................................................................................................... 44

OPERATING THE ENGINE IN FREEZING CONDITIONS................................................................................. 44

1. Block heater (if equipped).......................................................................................................................... 44

2. Engine low temperature regulation............................................................................................................ 44

3. DEF/AdBlue® freeze warning (M5N-091, M5N-111).................................................................................. 45

STOPPING THE ENGINE................................................................................................................................... 45

WARMING UP THE ENGINE .............................................................................................................................45

1. Warm-up and transmission fluid at low temperature range ....................................................................... 45

JUMP STARTING ............................................................................................................................................... 46

OPERATING THE TRACTOR....................................................................................................47

OPERATING NEW TRACTOR ........................................................................................................................... 47

1. Do not operate the tractor at full speed for the first 50 hours ....................................................................47

2. Changing lubricating oil for new tractors ................................................................................................... 47

M4N-071, M5N-091, M5N-111

BOARDING AND LEA

VING THE TRACTOR ..................................................................................................... 47

OPERATING FOLDABLE ROPS ........................................................................................................................ 47

1. Folding the ROPS...................................................................................................................................... 47

2. Raising the ROPS to upright position ........................................................................................................ 48

STARTING THE TRACTOR................................................................................................................................ 49

1. Operator's seat .......................................................................................................................................... 49

2. Glove box .................................................................................................................................................. 50

3. Seat belt .................................................................................................................................................... 50

4. Muffler (M5N-091, M5N-111) ..................................................................................................................... 50

5. Tilt steering adjustment.............................................................................................................................. 50

6. Light switch................................................................................................................................................ 51

7. Turn signal switch and hazard light switch ................................................................................................51

8. Rear turn signal light and hazard light ....................................................................................................... 51

9. Front work light switch ............................................................................................................................... 52

10. Brake pedals (right and left) .................................................................................................................... 52

10.1 4WD braking system (4WD model).................................................................................................. 52

11. Parking brake lever .................................................................................................................................. 53

12. Clutch pedal............................................................................................................................................. 53

13. Travel speed control ................................................................................................................................ 54

14. Travel speed limiter .................................................................................................................................55

15. Main gear shift lever ................................................................................................................................55

16. Range gear shift lever ............................................................................................................................. 55

16.1 Creep speed (if equipped)................................................................................................................ 55

17. Shuttle shift lever ..................................................................................................................................... 55

18. Dual speed shift switch (dual speed model).......................................................................................... 56

19. 4WD and Bi-speed turn switch ................................................................................................................56

19.1 Front-wheel drive and Bi-speed turn usage .....................................................................................57

20. Hand throttle lever ...................................................................................................................................57

21. Foot throttle ............................................................................................................................................. 57

STOPPING THE TRACTOR............................................................................................................................... 57

CHECK DURING DRIVING ................................................................................................................................58

1. Engine over-speed limiting indicator.......................................................................................................... 58

2. Easy Checker™ ........................................................................................................................................ 58

3. Fuel gauge................................................................................................................................................. 59

4. DEF/AdBlue® gauge (M5N-091, M5N-111) ............................................................................................... 60

5. Coolant temperature gauge....................................................................................................................... 60

6. Tachometer ................................................................................................................................................ 60

LCD MONITOR................................................................................................................................................... 60

1. Various setting mode ................................................................................................................................. 61

1.1 Clock setting....................................................................................................................................... 62

1.2 Setting the clock display ON/OFF ...................................................................................................... 62

1.3 Setting the tire circumference ............................................................................................................ 62

1.4 Setting the unit ...................................................................................................................................63

1.5 Setting the PTO speed display........................................................................................................... 63

2. Performance monitor ................................................................................................................................. 64

ELECTRONIC ENGINE CONTROL.................................................................................................................... 65

1. RPM dual memory setting .........................................................................................................................65

2. Constant RPM Management control ......................................................................................................... 66

PARKING THE TRACTOR.................................................................................................................................. 67

OPERATING TECHNIQUES............................................................................................................................... 67

1. Differential lock .......................................................................................................................................... 67

2. Operating the tractor on a road ................................................................................................................. 68

3. Operating on slopes and rough terrain ...................................................................................................... 68

4. Transporting the tractor safely................................................................................................................... 68

5. Directions for use of power steering .......................................................................................................... 69

6. Trailer electrical outlet................................................................................................................................ 69

7. Electrical outlet ..........................................................................................................................................69

PTO ............................................................................................................................................70

M4N-071, M5N-091, M5N-111

O OPERATION............................................................................................................................................... 70

1. PTO clutch control switch .......................................................................................................................... 70

2. PTO clutch indicator ..................................................................................................................................70

3. PTO gear shift lever................................................................................................................................... 71

4. PTO speed limiter...................................................................................................................................... 71

5. PTO rpm display........................................................................................................................................ 71

6. PTO shaft cover and shaft cap .................................................................................................................. 72

3-POINT HITCH AND DRAWBAR.............................................................................................73

THE 3-POINT HITCH SETUP............................................................................................................................. 74

1. Selecting the holes of lower links .............................................................................................................. 74

2. Selecting the top link mounting holes ........................................................................................................ 74

3. Drawbar ..................................................................................................................................................... 74

4. Lifting rod (left)........................................................................................................................................... 74

5. Lifting rod (right) ........................................................................................................................................ 75

6. Top link ...................................................................................................................................................... 75

7. Stabilizer.................................................................................................................................................... 75

7.1 Turnbuckle unlocked position............................................................................................................. 76

7.2 Rotating the turnbuckle ......................................................................................................................76

DRAWBAR.......................................................................................................................................................... 76

1. Adjusting drawbar length ........................................................................................................................... 76

HYDRAULIC UNIT.....................................................................................................................78

3-POINT HITCH CONTROL SYSTEM................................................................................................................ 78

1. Position control .......................................................................................................................................... 78

2. Draft control ............................................................................................................................................... 78

3. Mixed control .............................................................................................................................................78

4. Float control............................................................................................................................................... 79

5. 3-point hitch lowering speed...................................................................................................................... 79

REMOTE HYDRAULIC CONTROL SYSTEM..................................................................................................... 79

1. Remote control valve................................................................................................................................. 79

2. Remote control valve lever ........................................................................................................................ 80

3. Remote control valve coupler .................................................................................................................... 81

4. Controlling and adjusting the flow rate ...................................................................................................... 81

5. Hydraulic control unit use-reference chart................................................................................................. 83

TIRES, WHEELS AND BALLAST.............................................................................................84

TIRES.................................................................................................................................................................. 84

1. Inflation pressure ....................................................................................................................................... 84

2. Dual tires ................................................................................................................................................... 84

WHEEL ADJUSTMENT ...................................................................................................................................... 84

1. Safe replacement of the wheel .................................................................................................................. 84

2. Front wheels-4WD..................................................................................................................................... 85

2.1 Front jack point................................................................................................................................... 86

3. Rear wheels............................................................................................................................................... 87

3.1 Rear jacking point .............................................................................................................................. 89

BALLAST ............................................................................................................................................................89

1. Front ballast............................................................................................................................................... 89

1.1 Front end weights (option) ................................................................................................................. 89

2. Rear ballast ............................................................................................................................................... 89

2.1 Rear wheel weights (option)............................................................................................................... 89

2.2 Liquid ballast in rear tires ...................................................................................................................90

MAINTENANCE.........................................................................................................................91

SERVICE INTERVALS........................................................................................................................................ 91

MAINTENANCE ITEMS CHART......................................................................................................................... 92

LUBRICANTS, FUEL AND COOLANT ............................................................................................................... 94

BIODIESEL FUEL (BDF) B0-B5 .........................................................................................................................96

M4N-071, M5N-091, M5N-111

PERIODIC SER

HOW TO OPEN THE HOOD .............................................................................................................................. 97

1. Hood .......................................................................................................................................................... 97

2. Side cover.................................................................................................................................................. 98

DAILY CHECK .................................................................................................................................................... 98

1. Walk around inspection .............................................................................................................................98

2. Checking and refueling.............................................................................................................................. 98

3. Checking DEF/AdBlue® level and adding fluid (M5N-091, M5N-111) ....................................................... 99

4. Checking water separator........................................................................................................................ 100

5. Checking engine oil level......................................................................................................................... 100

6. Checking transmission fluid level ............................................................................................................ 101

7. Checking coolant level............................................................................................................................. 101

8. Cleaning evacuator valve ........................................................................................................................102

9. Checking dust indicator ...........................................................................................................................102

10. Cleaning grill, radiator screen, oil cooler, fuel cooler, and battery mount .............................................. 102

10.1 Detaching the panel .......................................................................................................................102

10.2 Cleaning ......................................................................................................................................... 103

11. Checking DPF/SCR muffler ................................................................................................................... 103

12. Checking brake pedal............................................................................................................................ 103

13. Checking parking brake......................................................................................................................... 104

14. Checking gauges, meter and Easy Checker™...................................................................................... 104

15. Checking headlight, turn signal light, hazard light, and so on ............................................................... 104

16. Checking seat belt and ROPS............................................................................................................... 104

17. Checking movable parts ........................................................................................................................ 104

INITIAL 50 HOURS........................................................................................................................................... 104

1. Changing engine oil................................................................................................................................. 104

2. Replacing engine oil filter ........................................................................................................................ 104

EVERY 50 HOURS........................................................................................................................................... 104

1. Checking engine start system ................................................................................................................. 104

1.1 Preparation before testing................................................................................................................ 104

1.2 Testing switch for the shuttle shift lever............................................................................................ 104

1.3 Testing switch for PTO clutch control switch .................................................................................... 105

1.4 Checking operator presence control (OPC) system......................................................................... 105

2. Checking wheel bolt torque .....................................................................................................................105

3. Checking tie-rod dust cover..................................................................................................................... 106

EVERY 100 HOURS......................................................................................................................................... 106

1. Lubricating grease fittings........................................................................................................................ 106

2. Cleaning air cleaner primary element...................................................................................................... 107

3. Adjusting fan belt tension ........................................................................................................................ 107

4. Adjusting brake pedal .............................................................................................................................. 108

4.1 Checking brake pedal free travel ..................................................................................................... 108

4.2 Checking brake pedal stroke............................................................................................................ 109

4.3 Checking equalizer working level (anti-imbalance device)............................................................... 109

5. Checking gear locked parking brake .......................................................................................................109

6. Checking battery condition ......................................................................................................................109

6.1 How to read indicator ....................................................................................................................... 110

6.2 Charging the battery......................................................................................................................... 110

6.3 Directions for battery storage ............................................................................................................111

EVERY 200 HOURS..........................................................................................................................................111

1. Adjusting toe-in.........................................................................................................................................111

1.1 Adjusting toe-in procedure ................................................................................................................111

2. Draining fuel tank water............................................................................................................................111

EVERY 400 HOURS......................................................................................................................................... 112

1. Cleaning water separator ........................................................................................................................ 112

2. Cleaning fuel solenoid pump element (M5N-091, M5N-111) ................................................................... 112

EVERY 500 HOURS......................................................................................................................................... 113

VICE .................................................................................................................97

1. Changing engine oil................................................................................................................................. 113

M4N-071, M5N-091, M5N-111

2. Replacing engine oil filter

........................................................................................................................ 114

3. Replacing fuel filter .................................................................................................................................. 115

4. Replacing hydraulic oil filter..................................................................................................................... 115

5. Checking power steering line .................................................................................................................. 116

6. Checking radiator hose and clamp .......................................................................................................... 117

6.1 Overheating countermeasures......................................................................................................... 118

7. Checking fuel line .................................................................................................................................... 118

8. Checking intake air line ........................................................................................................................... 119

9. Checking lift cylinder hose....................................................................................................................... 120

EVERY 600 HOURS......................................................................................................................................... 120

1. Adjusting front axle pivot ......................................................................................................................... 120

EVERY 1000 HOURS....................................................................................................................................... 121

1. Changing transmission fluid .................................................................................................................... 121

2. Changing front axle gear case oil and front differential case oil .............................................................. 121

3. Adjusting engine valve clearance ............................................................................................................ 122

EVERY 1000 HOURS OR 1 YEAR................................................................................................................... 122

1. Replacing air cleaner primary element and secondary element.............................................................. 122

2. Checking exhaust manifold ..................................................................................................................... 122

EVERY 1500 HOURS....................................................................................................................................... 122

1. Cleaning fuel injector nozzle tip............................................................................................................... 122

2. Checking DEF/AdBlue® injector tip (M5N-091, M5N-111) ....................................................................... 122

3. Checking DEF/AdBlue® line (M5N-091, M5N-111).................................................................................. 122

4. Replacing oil separator element .............................................................................................................. 122

5. Checking positive crankcase ventilation (PCV) valve.............................................................................. 123

6. Checking and cleaning EGR cooler......................................................................................................... 123

EVERY 2000 HOURS OR 2 YEARS ................................................................................................................123

1. Flushing cooling system and changing coolant ....................................................................................... 123

2. Antifreeze ................................................................................................................................................ 124

EVERY 3000 HOURS....................................................................................................................................... 125

1. Checking turbocharger ............................................................................................................................125

2. Checking supply pump ............................................................................................................................125

3. Checking intake air heater....................................................................................................................... 125

4. Checking and cleaning EGR system ....................................................................................................... 125

5. Cleaning DPF muffler ..............................................................................................................................125

6. Checking DEF/AdBlue® injector (M5N-091, M5N-111)............................................................................ 125

7. Replacing DEF/AdBlue® pump filter (M5N-091, M5N-111) ..................................................................... 126

EVERY 1 YEAR ................................................................................................................................................ 126

1. Checking antifrost heater for oil separator (if equipped).......................................................................... 126

2. Checking DPF differential pressure sensor pipe .....................................................................................126

3. Checking EGR pipe ................................................................................................................................. 126

EVERY 2 YEARS.............................................................................................................................................. 126

1. Replacing oil separator hose ................................................................................................................... 126

2. Replacing boost sensor hose ..................................................................................................................126

3. Replacing DPF differential pressure sensor hose ...................................................................................126

4. Replacing EGR cooler hose ....................................................................................................................126

5. Cleaning master cylinder filter .................................................................................................................126

EVERY 3 YEARS.............................................................................................................................................. 126

1. Replacing parking brake cable ................................................................................................................126

EVERY 4 YEARS.............................................................................................................................................. 126

1. Replacing radiator hose (water pipes)..................................................................................................... 126

2. Replacing fuel lines ................................................................................................................................. 126

3. Replacing intake air line .......................................................................................................................... 126

4. Replacing power steering line ................................................................................................................. 126

5. Replacing lift cylinder hose...................................................................................................................... 127

6. Replacing brake hose.............................................................................................................................. 127

7. Replacing master cylinder kit................................................................................................................... 127

8. Replacing equalizer kit ............................................................................................................................ 127

9. Replacing brake seal 1 and 2 .................................................................................................................. 127

M4N-071, M5N-091, M5N-111

SER

VICE AS REQUIRED................................................................................................................................. 127

1. Bleeding fuel system ............................................................................................................................... 127

2. Bleeding brake system ............................................................................................................................128

3. Draining clutch housing water ................................................................................................................. 128

4. Replacing fuses ....................................................................................................................................... 128

5. Replacing slow-blow fuses ......................................................................................................................129

5.1 Replacement procedure................................................................................................................... 130

6. Replacing light bulb .................................................................................................................................130

7. Replacing head lamp............................................................................................................................... 130

STORAGE................................................................................................................................132

TRACTOR STORAGE ...................................................................................................................................... 132

REMOVING THE TRACTOR FROM STORAGE.............................................................................................. 132

TROUBLESHOOTING.............................................................................................................133

ENGINE TROUBLESHOOTING ....................................................................................................................... 133

POWER TRAIN TROUBLE SHOOTING........................................................................................................... 135

OPTIONS .................................................................................................................................136

LIST OF OPTIONS ...........................................................................................................................................136

INDEX.......................................................................................................................................137

SAFE OPERATION

M4N-071, M5N-091, M5N-111

Careful operation is your best insurance against an accident. Read operating the tractor. All operators, no matter how much experience they may have, should read this and other related manuals before operating the tractor or any implement attached to it. It is the owner's obligation to instruct all operators in safe operation.

and understand this manual carefully before

BEFORE OPERATING THE TRACT

Know your equipment and its limitations. Read this entire the tractor.

1. General

• Pay tractor.

• Do not operate the tractor or any implement attached to it while under the influence of alcohol, medication, controlled substances or while fatigued.

• Before allowing other people to use your tractor, explain how to operate and have them read this manual before operation.

• Never wear loose, torn, or bulky clothing around tractor. It may catch on moving parts or controls, leading to the risk of an accident. Use additional safety items, such as a hard hat, safety boots or shoes, eye and hearing protection, gloves and so on, as appropriate or required.

• Do not allow passengers to ride on any part of the tractor at any time. The operator must remain in the tractor seat during operation.

• Check brakes, clutch, linkage pins and other mechanical parts for improper adjustment and wear. Replace worn or damaged parts promptly. Check the tightness of all nuts and bolts regularly. (See MAINTENANCE on page 91.)

• Keep your tractor clean. Dirt, grease, and trash build up may contribute to fires and lead to personal injury.

• Use only implements meeting the specifications listed in this manual or implements approved by KUBOTA. (See IMPLEMENT LIMITATIONS on page 25.)

• Use proper weights on the front or rear of the tractor to reduce the risk of upsets. Follow the safe operating procedures specified in the implement or attachment manual.

manual before attempting to start and operate

special attention to the safety labels on the

• The

(1) Rear wheels (A) Tread width

• Do

narrower the tread, the greater the risk of a tractor upset. For maximum stability, adjust the wheels to the widest practical tread width for your application. (See TIRES, WHEELS AND BALLAST on page

84.)

not modify the tractor. Unauthorized modification may affect the function of the tractor, which may result in personal injury.

2. CAB and ROPS

• KUBOTA recommends the use of a CAB or roll over protective almost all applications. This combination will reduce the risk of serious injury or death, should the tractor be upset. Check for overhead clearance which may interfere with a CAB or ROPS.

• Set the parking brake and stop the engine. Remove any obstructions that may prevent the ROPS from rising or folding. Do not allow any bystanders near the tractor. Always perform the adjustment from a stable position at the rear of the tractor. Hold the top of the ROPS securely when raising or folding. Make sure that all pins are installed and locked.

• If the CAB or ROPS is loosened or removed for any reason, make sure that all parts are reinstalled correctly before operating the tractor.

• Never modify or repair any structural member of a CAB or ROPS because welding, bending, drilling, grinding, or cutting may weaken the structure.

• A damaged CAB or ROPS structure must be replaced, not repaired or revised.

• If any structural member of the CAB or ROPS is damaged, replace the entire structure at your local KUBOTA Dealer.

structures (ROPS) and seat belt in

• If

SAFE OPERATION

M4N-071, M5N-091, M5N-111

the tractor is equipped with a foldable ROPS, it may be temporarily lowered only when absolutely necessary for areas with height constraints. There is no operator protection provided by the ROPS in the lowered position. For operator safety, the ROPS should be placed in the upright and locked position and the seat belt fastened for all other operations.

• Always use the seat belt if the tractor has a CAB or ROPS. Do not use the seat belt if the foldable ROPS is down or if there is no ROPS. Check the seat belt regularly and replace if frayed or damaged.

machine may start in gear and move if the normal starting circuitry is bypassed.

• Do

• Check that the operator presence control (OPC)

not operate or idle the engine in a nonventilated area. Carbon monoxide gas is colorless, odorless, and deadly.

system is functioning correctly before each time you use the tractor. Test the safety systems. (See 1.4 Checking operator presence control

(OPC) system on page 105.)

Do not operate unless they are functioning correctly.

2. Working the tractor

(1) ROPS (2) Seat belt

OPERATING THE TRACTOR

Operator safety is a priority. Safe operation, specifically with understanding the equipment and environmental conditions at the time of use. Some prohibited uses which can affect overturning hazards include traveling and turning with implements, loads carried too high and so on. This manual sets forth some of the obvious risks, but the list is not, and cannot be, exhaustive. It is the operator's responsibility to be alert for any equipment or environmental condition that could compromise safe operation.

1. Starting to operate the tractor

respect to overturning hazards, entails

• Always engine or operating levers or controls. Adjust seat per instructions in the operating the tractor section. Never start engine while standing on the ground.

• Before starting the engine, make sure that all levers (including auxiliary control levers) are in their neutral positions, that the parking brake is engaged, and that both the clutch and the power take-off (PTO) are disengaged or “OFF”. Fasten the seat belt if the tractor has a CAB, a fixed ROPS or a foldable ROPS in the upright and locked position.

• Do not start engine by shorting across starter terminals or bypassing the safety start switch. The

sit in the operator's seat when starting

• Pull

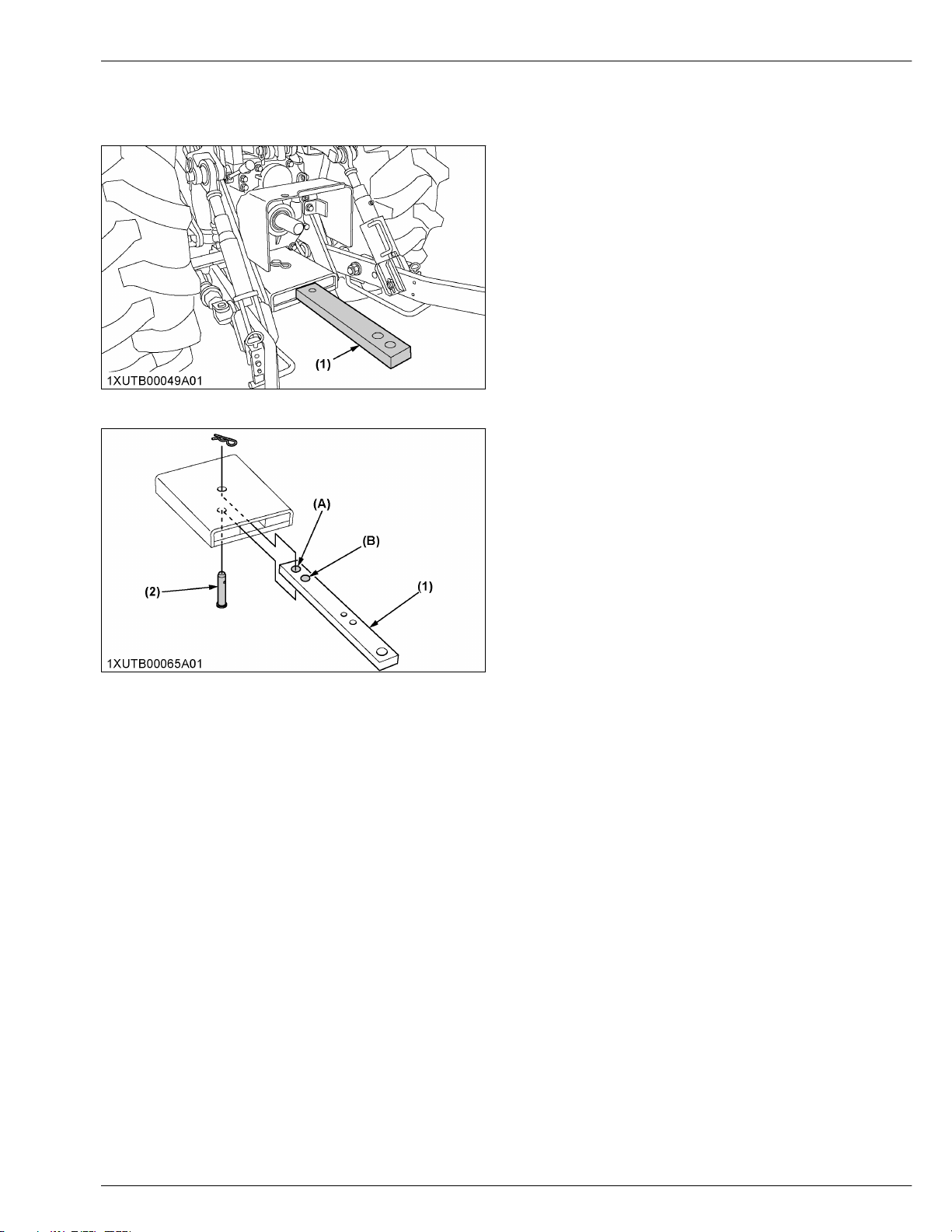

(1) Drawbar

• For trailing PTO-driven implements, set the drawbar

•

• Keep all shields and guards in place. Replace any

• Avoid sudden starts. To avoid upsets, slow down

• The tractor cannot turn with the differential locked

• Do not operate near ditches, holes, embankments,

• Watch where you are going at all times. Watch for

• When working in groups, always let the others

• Never try to get on or off a moving tractor.

only from the drawbar. Never hitch to axle housing or any other point except the drawbar; such arrangements will increase the risk of serious personal injury or death due to a tractor upset.

to the towing position. Attach pulled or towed loads to the drawbar only.

that are missing or damaged.

when turning, on uneven ground, and before stopping.

and attempting to do so could be dangerous.

or other ground surface features which may collapse under the tractor's weight. The risk of tractor upset is even higher when the ground is loose or wet. Tall grass can hide obstacles; walk the area first to be sure.

and avoid obstacles. Be alert at row ends, near trees, and other obstructions.

know what you are going to do before you do it.

• Always

SAFE OPERATION

M4N-071, M5N-091, M5N-111

levers or controls.

• Do not use Bi-speed turn at high speed.

• Bi-speed turn enables short and fast turns, therefore, become familiar with its performance before operating in close or confined areas.

• Do not stand between tractor and implement or trailed vehicle unless the parking brake is applied.

sit in the operator's seat when operating

3. Safety for children

Tragedy can occur if the operator is not alert to the presence machines and the work they do.

• Never assume that children will remain where you

• Keep children out of the work area and under the

• Be alert and shut your machine down if children

• Never carry children on your machine. There is no

• Never allow children to operate the machine even

• Never allow children to play on the machine or on

• Use extra caution when backing up. Look behind

of children. Children generally are attracted to

last saw them.

watchful eye of another responsible adult.

enter the work area.

safe place for them to ride. They may fall off and be run over or interfere with your control of the machine.

under adult supervision.

the implement.

and down to make sure area is clear before moving.

• T

o improve stability on slopes, set the widest possible wheel tread. (See TIRES, WHEELS AND BALLAST on page

84.)

Follow the recommendations for proper ballasting.

• To avoid free wheeling: – Do not shift the shuttle lever while on a slope. – Stop completely by using the brakes and by

depressing the clutch pedal, then shift the shuttle lever.

– Start off after selecting shuttle direction, by

releasing the clutch pedal.

• When driving down a slope, ensure that 4-wheel

drive is engaged to increase traction.

5. Driving the tractor on the road

• Lock

the 2 brake pedals together to help assure straight-line stops. Uneven braking at road speeds could cause the tractor to tip over.

4. Operating on slopes

Slopes are a major factor related to loss-of-control and tip-over death. All slopes require extra caution.

• To avoid upsets, always back up steep slopes. If

• Driving forward out of a ditch, mired condition or up

• Keep all movement on slopes slow and gradual. Do

• Avoid disengaging the clutch or changing gears

• Special attention should be paid to the weight and

accidents, which can result in severe injury or

you cannot back up the slope or if you feel uneasy on it, do not operate on it. Stay off slopes too steep for safe operation.

a steep slope increases the risk of rear rollovers. Always back out of these situations. Extra caution is required with 4-wheel drive models because their increased traction can give the operator false confidence in the tractor's ability to climb slopes.

not make sudden changes in speed, direction or braking, nor make sudden motions with the steering wheel.

when climbing or going down a slope. If on a slope, disengaging the clutch or changing gears to neutral could cause the loss of control.

location of implements and loads as such will affect the stability of the tractor.

(1) Brake pedal (LH) (2) Brake pedal (RH) (3) Brake pedal lock

• Check characteristics are different between 2 and 4-wheel drive. Be aware of the difference and use carefully.

• Always slow down the tractor before turning. Turning at high speed may tip over the tractor.

• Make sure that the slow moving vehicle (SMV) sign is clean and visible. Use hazard lights and turn signals as required.

the front-wheel engagement. The braking

(A) Whenever traveling on the

road

(1) SMV emblem (2) Bracket

SAFE OPERATION

M4N-071, M5N-091, M5N-111

(1) Safety chain

• On

public roads use the SMV emblem and hazard lights, if required by local traffic and safety regulations.

• Observe all local traffic and safety regulations.

• Turn the headlights on. Dim them when meeting another vehicle.

• Drive at speeds that allow you to maintain control at all times.

• Do not apply the differential lock while traveling at road speeds. The tractor may run out of control.

• Avoid sudden motions of the steering wheel as they can lead to a dangerous loss of stability. The risk is especially great when the tractor is traveling at road speeds.

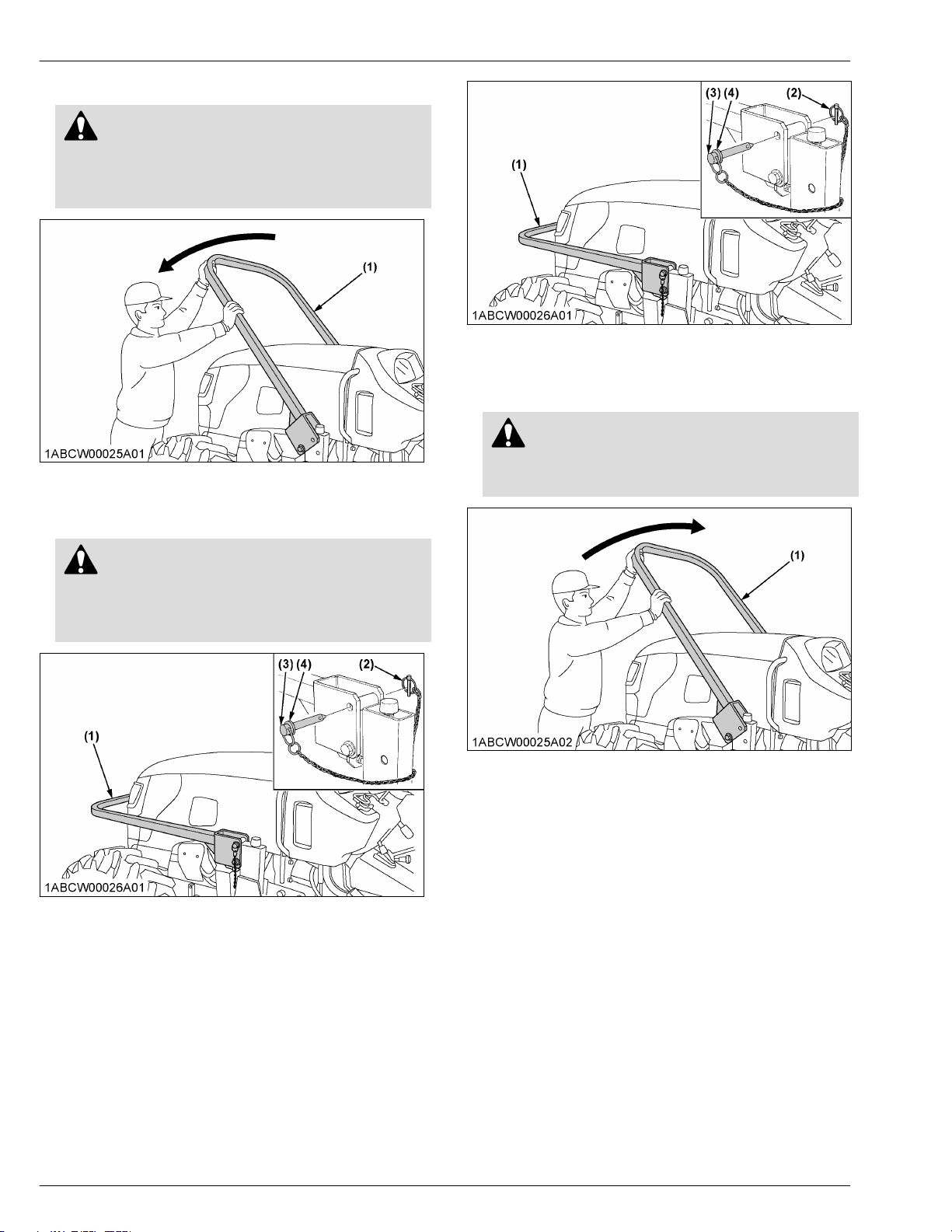

• Keep the ROPS in the upright position and wear the seat belt when driving the tractor on the road. Otherwise, you will not be protected in the event of a tractor roll-over.

• Do not operate an implement while the tractor is on the road. Lock the 3-point hitch in the raised position.

• Do not ride or stand on the step during operation. Riding or standing there could result in being crushed under the rear tire due to slippage or the step fracturing or being displaced by the unintended load.

• Set

(1) 3-point hitch lowering speed

(A)

the implement lowering speed lever in the “LOCK” position to hold the implement in the raised position.

lever “FAST”

(B) “SLOW” (C) “LOCK”

PARKING THE TRACTOR

• Disengage ground, place all control levers in their neutral positions, set the parking brake, stop the engine, remove the key from the ignition and lock the CAB door (if equipped). Leaving transmission in gear with the engine stopped will not prevent tractor from rolling.

• Make sure that the tractor has come to a complete stop before dismounting.

• Avoid parking on steep slopes. If at all possible, park on a firm and level surface; if not, park across a slope and chock the wheels. Failure to comply with this warning may allow the tractor to move and could cause injury or death.

the PTO, lower all implements to the

(1) Step

• When and place an SMV emblem on it as well.

towing other equipment, use a safety chain

OPERATING THE PTO

ait until all moving components have completely

• W stopped before getting off the tractor, connecting,

disconnecting, adjusting, cleaning, or servicing any

SAFE OPERATION

M4N-071, M5N-091, M5N-111

O driven equipment.

• Keep the PTO shaft cover in place at all times. Replace the PTO shaft cap when the shaft is not in use.

(1) Groove

SERVICING THE TRACTOR

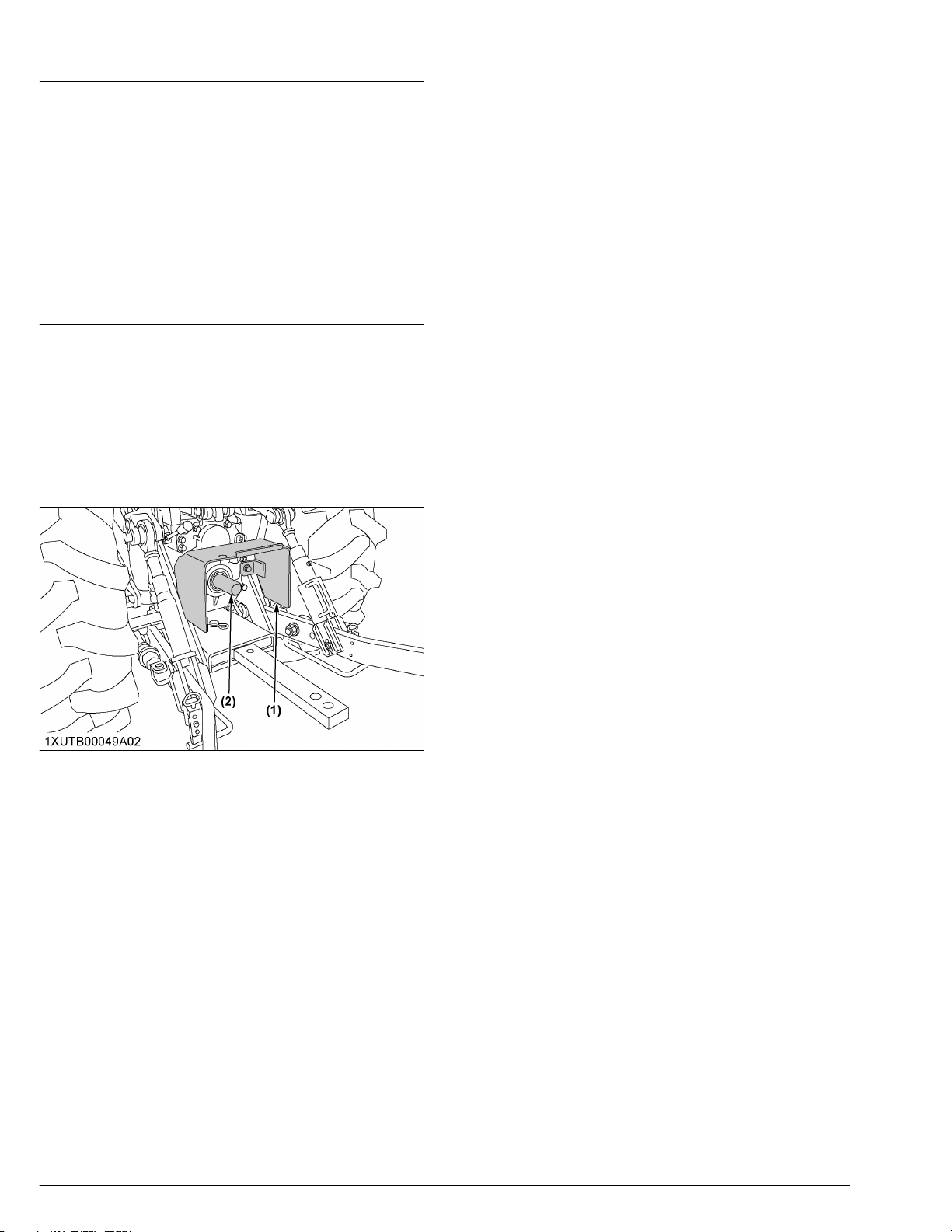

(1) PTO shaft cover (2) PTO shaft cap

• Before read the manufacturer's manual and review the safety labels attached to the equipment. To prevent PTO driven equipment from improper or unsafe use, select the lower speed (540 rpm) unless the higher one is specifically recommended as safe by the equipment manufacturer.

• When operating stationary PTO driven equipment, always apply the tractor parking brake and place chocks behind and in front of the rear wheels. Stay clear of all rotating parts. Never step over rotating parts.

installing or using PTO driven equipment,

USING 3-POINT HITCH

• Use

• When using a 3-point hitch mounted implement, be

• To avoid injury from separation:

the 3-point hitch only with equipment designed

for 3-point hitch usage.

sure to install the proper counterbalance weight on the front of the tractor.

Do not extend the lift rod beyond the groove on the threaded rod.

Before servicing the tractor, park it on a firm, flat and level implements to the ground, place the gear shift lever in neutral, stop the engine and remove the key.

surface, set the parking brake, lower all

• Allow

• Do not remove radiator cap while coolant is hot.

• Always stop the engine before refueling. Avoid

• Always use grounded refueling facilities.

• Do not smoke when working around battery or

• Before “jump starting” a dead battery, read and

• Keep first aid kit and fire extinguisher handy at all

• Disconnect the battery's ground cable before

• To avoid the possibility of battery explosion, do not

• To avoid sparks from an accidental short circuit,

the tractor time to cool off before working on

or near the engine, muffler, radiator and so on.

When cool, slowly rotate cap to the first stop and allow sufficient time for excess pressure to escape before removing the cap completely. If the tractor has a coolant recovery tank, add coolant or water to the tank, not the radiator. (See 7. Checking coolant level on page 101.)

spills and overfilling. Use only approved fuels.

when refueling. Keep all sparks and flames away from battery and fuel tank. The battery presents an explosive hazard, because it gives off hydrogen and oxygen especially when recharging.

follow all of the instructions. (See JUMP STARTING on page 46.)

times.

working on or near electric components.

use or charge the refillable type battery if the fluid level is below the “LOWER” (lower limit level) mark. Check the fluid level regularly and add distilled water as required so that the fluid level is between the “UPPER” and “LOWER” levels.

always disconnect the battery's ground cable (-) first and reconnect it last.

M4N-071

SAFE OPERATION

M4N-071, M5N-091, M5N-111

(1) Battery

M5N-091, M5N-111

runaway due to 4WD braking system during testing, service

or repair with only rear wheels off the

ground.

• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be accidentally lowered. If it is necessary to work under tractor or any machine elements for servicing or adjustment, securely support them with stands or suitable blocking beforehand.

• Escaping hydraulic fluid under pressure has sufficient force to penetrate skin, causing serious personal injury. Before disconnecting hydraulic lines, be sure to release all residual pressure. Before applying pressure to the hydraulic system, make sure that all connections are tight and that all lines, pipes, and hoses are free of damage.

(1) Battery

• Do

not attempt to mount a tire on a rim. This should be done by a qualified person with the proper equipment.

• Always maintain the correct tire pressure. Do not inflate tires above the recommended pressure shown in the operator's manual.

• Securely

support the tractor when either changing

wheels or adjusting the wheel tread width.

• Make sure that wheel bolts have been tightened to the specified torque.

• Disconnect the battery's ground cable and stop the engine to avoid the possibility of the machine

• Fluid

escaping from pinholes may be invisible. Do not use hands to search for suspected leaks; use a piece of cardboard or wood. Use of safety goggles or other eye protection is also highly recommended. If injured by escaping fluid, see a medical doctor at once. This fluid will produce gangrene or severe allergic reactions.

(1) Cardboard (2) Hydraulic line

(3) Magnifying glass

• Do not open the high-pressure fuel system. High-pressure

fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors, or any other components between the high-pressure fuel pump

and injectors on engines with high pressure

SAFE OPERATION

M4N-071, M5N-091, M5N-111

common rail fuel system.

• T

o avoid hazardous high voltage, turn the key switch to the “OFF” position if it is necessary to check or repair the computer, harness or connectors.

• During diesel particulate filter (hereinafter called DPF) regenerating operations, exhaust gases and exhaust filter components reach temperatures hot enough to burn people, or ignite or melt common materials.

• Keep the tractor away from people, animals or structures which may be susceptible to harm or damage from hot exhaust gases.

• To prevent fires, keep the DPF/SCR muffler and its surroundings clear of anything flammable and keep clean at all times (selective catalytic reductionhereinafter called SCR).

• During regeneration, white exhaust gas may be visible. Do not allow regeneration in a nonventilated space.

• During regeneration, do not leave the tractor.

• Waste products such as used oil, fuel, hydraulic fluid, urea aqueous solution (DEF/AdBlue®) and batteries, can harm the environment, people, pets and wildlife. Please dispose properly. See your local recycling center or KUBOTA Dealer to learn how to recycle or get rid of waste products.

SAFETY LABELS

SAFE OPERATION

M4N-071, M5N-091, M5N-111

SAFE OPERATION

M4N-071, M5N-091, M5N-111

SAFE OPERATION

M4N-071, M5N-091, M5N-111

SAFE OPERATION

M4N-071, M5N-091, M5N-111

SAFE OPERATION

M4N-071, M5N-091, M5N-111

CARE OF THE SAFETY LABELS

• Keep the safety labels clean and free from obstructing material. Clean the safety labels with soap and water, dry with a soft cloth.

•

• Replace damaged or missing safety labels with new labels from your local KUBOTA Dealer.

• If a component with safety label(s) affixed is replaced with new part, make sure new label(s) is (are) attached in the same location(s) as the replaced component.

• Mount new safety labels by applying on a clean dry surface and pressing any bubbles to outside edge.

SERVICING OF TRACTOR

M4N-071, M5N-091, M5N-111

Your dealer has knowledge of your new tractor and has the desire to help you get the most value from it. After

reading this manual thoroughly, you will find that you can do some of the regular maintenance yourself. However, when in need of parts or major service, be sure to see your KUBOTA Dealer. For service, contact the KUBOTA Dealership from which you purchased your tractor or your local KUBOTA Dealer. When in need of parts, be prepared to give your dealer the tractor, CAB/ROPS and engine serial numbers. Locate the serial numbers now and record them in the space provided.

Type Serial No.

Tractor

CAB/ROPS

Engine

Date of purchase

Name of dealer

To be filled in by purchaser

(1) Tractor serial number

M4N-071

SERVICING OF TRACTOR

(1) Tractor identification plate

(1) Engine serial number

M5N-091, M5N-111

(1) Engine serial number

SERVICING OF TRACTOR WARRANTY

M4N-071, M5N-091, M5N-111

operator's manual, even if it is within the warranty period.

SCRAPPING THE TRACTOR AND ITS PROCEDURE

To put the tractor out of service, correctly follow the

rules and regulations of the country or territory

local where you scrap it. If you have questions, consult your local KUBOTA Dealer.

(1) ROPS identification plate

(ROPS serial no.)

M4N-071

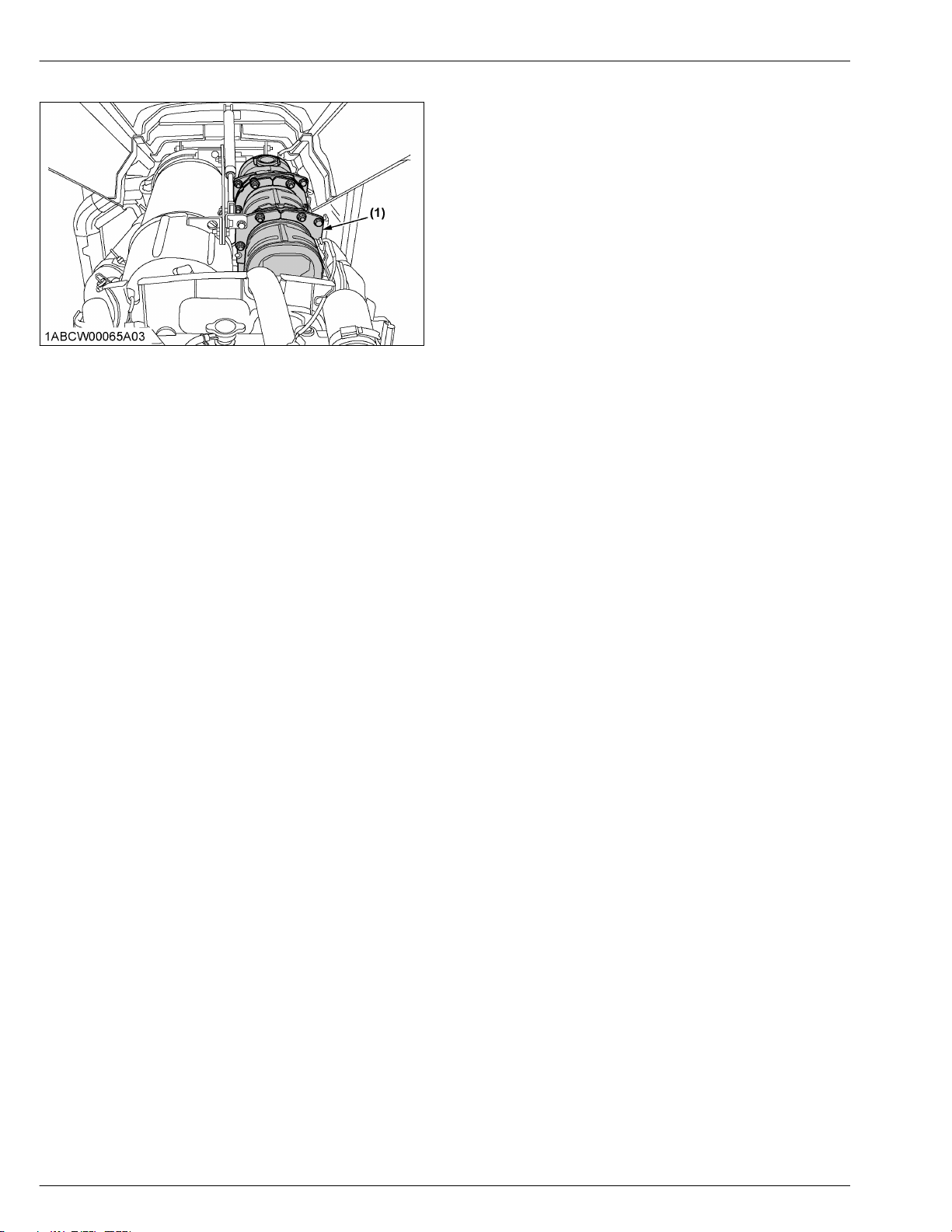

(1) Diesel particulate filter (DPF)

serial number

M5N-091, M5N-111

(1) Diesel particulate filter (DPF) serial number

Selective catalytic reduction (SCR) muffler serial number

(2)

WARRANTY

This tractor is warranted under the KUBOT Express Warranty, a copy of which may be obtained

from your selling dealer. No warranty shall, however, apply if the tractor has not been handled according to the instruction given in the

A Limited

SPECIFICATION TABLE SPECIFICATIONS

M4N-071, M5N-091, M5N-111

SPECIFICATIONS

SPECIFICATION TABLE

Model

Model V3800-TE4 V3800-TIEF4

Type

Number of cylinders 4

Total displacement cm3 (cu.in.) 3769 (230)

Bore and stroke mm (in.) 100 x 120 (3.9 x 4.7)

Rated revolution rpm 2400

Low idling revolution rpm 800 to 850

Engine

Dimensions

Weight kg (lbs.) 2290 (5049) 2430 (5357)

Traveling system

Rated engine HP (97/68/EC) kW (HP) 54.1 (72.6) 69.1 (92.6) 78.8 (105.7)

Net power

PTO power (factory observed)

Maximum torque

Battery capacity 12V, RC: 160 min, CCA 900A

Fuel tank capacity L (U.S.gals.) 76 (20.1)

Engine oil capacity L (U.S.qts.) 10.7 (11.3)

Coolant capacity L (U.S.qts.) 10.0 (11)

DEF/AdBlue® capacity L (U.S.gals.) --- 12.3 (3.2)

Overall length mm (in.) 3750 (147.6) 3950 (155.5)

Overall width (minimum tread) mm (in.) 1310 (51.6) 1360 (53.5)

Overall height mm (in.) 2504 (98.6) 2529 (99.6)

Wheel base mm (in.) 2130 (83.9)

Tread

Minimum ground clearance mm (in.) 290 (11.4) (drawbar bracket)

Standard tire size

Clutch Multiple wet disc, electronic hydraulically operated

Steering Hydraulic power steering

Front mm (in.) 1050 (41.3) 1100 (43.3)

Rear mm (in.) 945 to 1385 (37.2 to 54.5)

Front tires 8-16

Rear tires

kW (HP) 52.5 (70.4) 64.7 (86.7) 74.4 (99.8)

kW (HP) 45.5 (61)

N⋅m/rpm

(ft⋅lbs/rpm)

M4N-071 M5N-091 M5N-111

4WD

Direct injection, water-

cooled 4 cycle diesel,

common rail system,

turbocharger

270/1500

(199/1500)

Direct injection, water-cooled 4 cycle diesel,

common rail system, turbocharger

[without DS] 58.1 (78)

[with DS] 55.9 (75)

307/1500

(226/1500)

12.4-24

[without DS] 67.9 (91)

[with DS] 65.6 (88)

, intercooler

345/1500

(254/1500)

(Continued)

SPECIFICATIONS

M4N-071, M5N-091, M5N-111

Model

Traveling system

Braking system Hydraulically operated wet disc

Differential Bevel gears with differential lock (rear)

Hydraulic control system Position, draft (top link sensing) and mix control

L/min

Pump capacity

(U.S.gals./

min)

3-point hitch Category 2

Hydraulic unit

Max. lifting force

At lifting

points

24 in. behind lifting point

kg (lbs.) 2300 (5071)

kg (lbs.) 1500 (3307)

Remote hydraulic control 2 standard valves

System pressure

MPa (kgf/

cm2)

Traction system Rigid drawbar

Direction of turning Clockwise, viewed from tractor rear

PTO

The company reserves the right to change the specifications without notice.

Live PTO (independent)

PTO/engine speed

rpm

*1 Manufacturer's estimate

*2 Cast iron disks available for wheels.

*3 At lower link end with links horizontal.

M4N-071 M5N-091 M5N-111

4WD

63.3 (16.7)

19.1 (195)

6 spline: 540/2385

6 spline: 540E/1764

TRAVELING SPEEDS SPECIFICATIONS

M4N-071, M5N-091, M5N-111

TRAVELING SPEEDS

M4N-071

Model

Rear tire size 12.4-24

Shuttle shift

lever

Forward

Reverse

At rated engine rpm The company reserves the right to change the specifications without notice

Range gear

shift lever

Creep

(option)

Creep

(option)

Main gear shift

lever

1 0.28 0.17

2 0.38 0.24

3 0.46 0.29

4 0.63 0.39

5 0.78 0.49

6 1.11 0.70

1 1.9 1.2

2 2.6 1.6

3 3.1 2.0

4 4.3 2.7

5 5.3 3.3

6 7.6 4.7

1 9.6 6.0

2 13.1 8.2

3 16.0 10.0

4 21.9 13.7

5 27.0 16.9

6 35.5 22.2

1 0.27 0.17

2 0.38 0.23

3 0.46 0.29

4 0.63 0.39

5 0.77 0.48

6 1.11 0.69

1 1.9 1.2

2 2.6 1.6

3 3.1 1.9

4 4.3 2.7

5 5.3 3.3

6 7.5 4.7

1 9.6 6.0

2 13.1 8.2

3 15.9 9.9

4 21.8 13.6

5 26.9 16.8

6 35.2 22.0

km/h mph

M4N-071

F12/R12 model

SPECIFICATIONS

M4N-071, M5N-091, M5N-111

M5N-091, M5N-111

Model

Rear tire size 12.4-24

Shuttle shift

lever

Forward

Reverse

At rated engine rpm The company reserves the right to change the specifications without notice

Range gear

shift lever

Creep

(option)

Creep

(option)

Main gear shift

lever

1 0.28 0.17 0.27 0.17 0.23 0.14

2 0.38 0.24 0.37 0.23 0.31 0.20

3 0.46 0.29 0.45 0.28 0.38 0.24

4 0.63 0.39 0.62 0.39 0.52 0.33

5 0.78 0.49 0.77 0.48 0.65 0.40

6 1.11 0.70 1.10 0.69 0.93 0.58

1 1.9 1.2 1.9 1.2 1.6 1.0

2 2.6 1.6 2.5 1.6 2.1 1.3

3 3.1 2.0 3.1 1.9 2.6 1.6

4 4.3 2.7 4.2 2.6 3.6 2.2

5 5.3 3.3 5.2 3.3 4.4 2.8

6 7.6 4.7 7.5 4.7 6.3 3.9

1 9.6 6.0 9.5 5.9 8.0 5.0

2 13.1 8.2 13.0 8.1 11.0 6.8

3 16.0 10.0 15.8 9.9 13.3 8.3

4 21.9 13.7 21.7 13.5 18.2 11.4

5 27.0 16.9 26.8 16.7 22.5 14.1

6 35.5 22.2 35.1 21.9 29.5 18.5

1 0.27 0.17 0.28 0.17 0.23 0.15

2 0.38 0.23 0.38 0.24 0.32 0.20

3 0.46 0.29 0.46 029 0.39 0.24

4 0.63 0.39 0.63 0.39 0.53 0.33

5 0.77 0.48 0.78 0.49 0.66 0.41

6 1.11 0.69 1.12 0.70 0.94 0.59

1 1.9 1.2 1.9 1.2 1.6 1.0

2 2.6 1.6 2.6 1.6 2.2 1.4

3 3.1 1.9 3.1 2.0 2.6 1.6

4 4.3 2.7 4.3 2.7 3.6 2.3

5 5.3 3.3 5.3 3.3 4.5 2.8

6 7.5 4.7 7.6 4.7 6.4 4.0

1 9.6 6.0 9.6 6.0 8.1 5.1

2 13.1 8.2 13.2 8.2 11.1 6.9

3 15.9 9.9 16.0 10.0 13.5 8.4

4 21.8 13.6 21.9 13.7 18.5 11.5

5 26.9 16.8 27.1 16.9 22.8 14.2

6 35.2 22.0 35.6 22.2 29.9 18.7

F12/R12 model Dual speed model

--- Dual speed: H Dual speed: L

km/h mph km/h mph km/h mph

M5N-091, M5N-111

IMPLEMENT LIMITATIONS

M4N-071, M5N-091, M5N-111

IMPLEMENT LIMITATIONS

The tractor has been thoroughly tested for proper performance with implements sold or approved by KUBOTA. Use with implements which are not sold or approved by KUBOTA and which exceed the maximum specifications listed

in the following table, or which are otherwise unfit for use with the tractor may result in malfunctions or failures of the tractor, damage to other property and injury to the operator or others. Any malfunctions or failures of the tractor resulting from use with improper implements are not covered by the warranty.

Tread (max. width) with farm tire

Front Rear

M4N-071

M5N-091

M5N-1

Implement weight: W1 Max. drawbar load: W2 Trailer loading weight: W3

(See IMPLEMENT SPECIFICA

W0 Lower link end max, hydraulic lifting capacity W1 W2 Max. drawbar load W3 Trailer loading weight-the max. loading weight for trailer

As in the following list

on page 26.)

Implement weight-the implement's weight which can be put on the lower link

TION TABLE

1050 mm

(41.3 in.)

1100 mm (43.3 in.)

1000 kg

(2200 lbs.)

1385 mm

(54.5 in.)

Lower link end max. lifting ca-

pacity: W0

2300 kg

(5071 lbs.)

5000 kg

(11000 lbs.)

NOTE :

Implement size may vary depending on soil operating conditions.

•

• Strictly follow the instructions outlined in the operator's manual of the mounted or trailed machinery or trailer, and do not operate the combination tractor-machine or tractor-trailer unless all instructions have been followed

• Forestry application Following hazards exist:

– toppling trees, primarily in case a rear-mounted tree grab-crane is mounted at the rear of the tractor. – penetrating objects in the operator's enclosure, primarily in case a winch is mounted at the rear of the

Optional equipments such as operator protective structure (OPS), falling object protective structure (FOPS), etc. to deal with these hazards and other related hazards are not available for this tractor. Without such optional equipment use is limited to tractor specific applications like transport and stationary work.

tractor.

IMPLEMENT LIMITATIONS IMPLEMENT SPECIFICATION TABLE

M4N-071, M5N-091, M5N-111

IMPLEMENT SPECIFICATION TABLE

No. Implement Remarks

1 Trailer

2 Mower

3 Sprayer

4 Rotary tiller

5 Bottom plow

6 Disk harrow

7 Disc plow

8 Subsoiler

9 Cultivator

Rotary-cutter

Flail mower (heavy)

Sickle bar Max. cutting width mm (in.) 2130 (84)

3P type

Drawbar type Max. harrowing width mm (in.) 2750 (108)

Max. load capacity kg (lbs.) 5000 (11000)

Max. drawbar load kg (lbs.) 1000 (2200)

Max. cutting width mm (in.) 2130 (84)

Max. weight kg (lbs.) 540 (1200)

Max. cutting width mm (in.) 3050 (120)

Max. weight kg (lbs.) 800 (1760)

Max.tank capacity

Max. tilling width mm (in.) 2130 (84)

Max. weight kg (lbs.) 800 (1760)

Max. size

Max. weight kg (lbs.) 3P type 450 (1000)

Max. size 18 in. x 24

Max. harrowing width mm (in.) 2130 (84)

Max. weight kg (lbs.) 450 (1000)

Max. size

Max. weight kg (lbs.) 450 (1000)

Numbers of cultivating tines 2

Cultivating depth mm (in.) 400 (16)

Max. width mm (in.) 3660 (144)

Number of rows 4 6

Max. weight kg (lbs.) 450 (1000)

Mid L (gals.) 680 (180)

Rear 3P L (gals.) 680 (180)

Drawbar L (gals.) 4000 (1030)

M4N-071 M5N-091 M5N-111

4WD 4WD 4WD

14 in. x 3 16 in. x 2 18 in. x 1

24 in. x 3 26 in. x 2

NOTE :

Implement size may vary depending on soil operating conditions.

•

SWITCHES AND HAND CONTROLS

M4N-071, M5N-091, M5N-111

INSTRUMENT PANEL AND CONTROLS

SWITCHES AND HAND CONTROLS

Illustrated contents

(1) Shuttle shift lever…55 (2) Hazard light switch…51 (3) Clutch pedal…53 (4) Steering wheel tilt pedal…50 (5) Turn signal and headlight switch…51 (6) Front work light switch…52 (7) Constant RPM Management switch…66 (8) DPF inhibit switch…35 (9) Parked regeneration switch…37 (10) 4WD and Bi-speed turn switch…56 (11) Key switch… (12) Brake pedals…52

INSTRUMENT PANEL AND CONTROLS

M4N-071, M5N-091, M5N-111

INSTRUMENT PANEL

Illustrated contents

(1) Tachometer…60 (2)

DEF/AdBlue® gauge (M5N-091, M5N-111)…60 (3) Hazard and turn signal indicator…51 (4) Electrical charge warning indicator…58 (5) Engine oil pressure warning indicator…58 (6) Engine warning indicator…58 (7) Master system warning indicator…58 (8) PTO clutch indicator…70 (9) High beam indicator…51 (10) Liquid crystal display (LCD)…60 (11) Coolant temperature gauge…60 (12) Fuel gauge…59 (13) Rev-limiter indicator…55 (14) Fuel level indicator…58 (15) Emission indicator…58

(16) DEF/AdBlue® system warning indicator (M5N-091, M5N-111)…58 (17) DEF/AdBlue® warning indicator (M5N-091, M5N-111)…58 (18) Regeneration indicator…33 (19) Parked regeneration indicator…35 (20) Engine rpm increase indicator…33 (21) 4WD indicator…56 (22) Bi-speed turn indicator…56 (23) Water separator indicator…58 (24) Heater indicator…44 (25) Dual speed shift indicator (dual speed model for M5N-091,

M5N-111)…56 (26) Parking brake warning indicator…42 (27) Mode selector switch…61 (28) Select switch…61

FOOT AND HAND CONTROLS

M4N-071, M5N-091, M5N-111

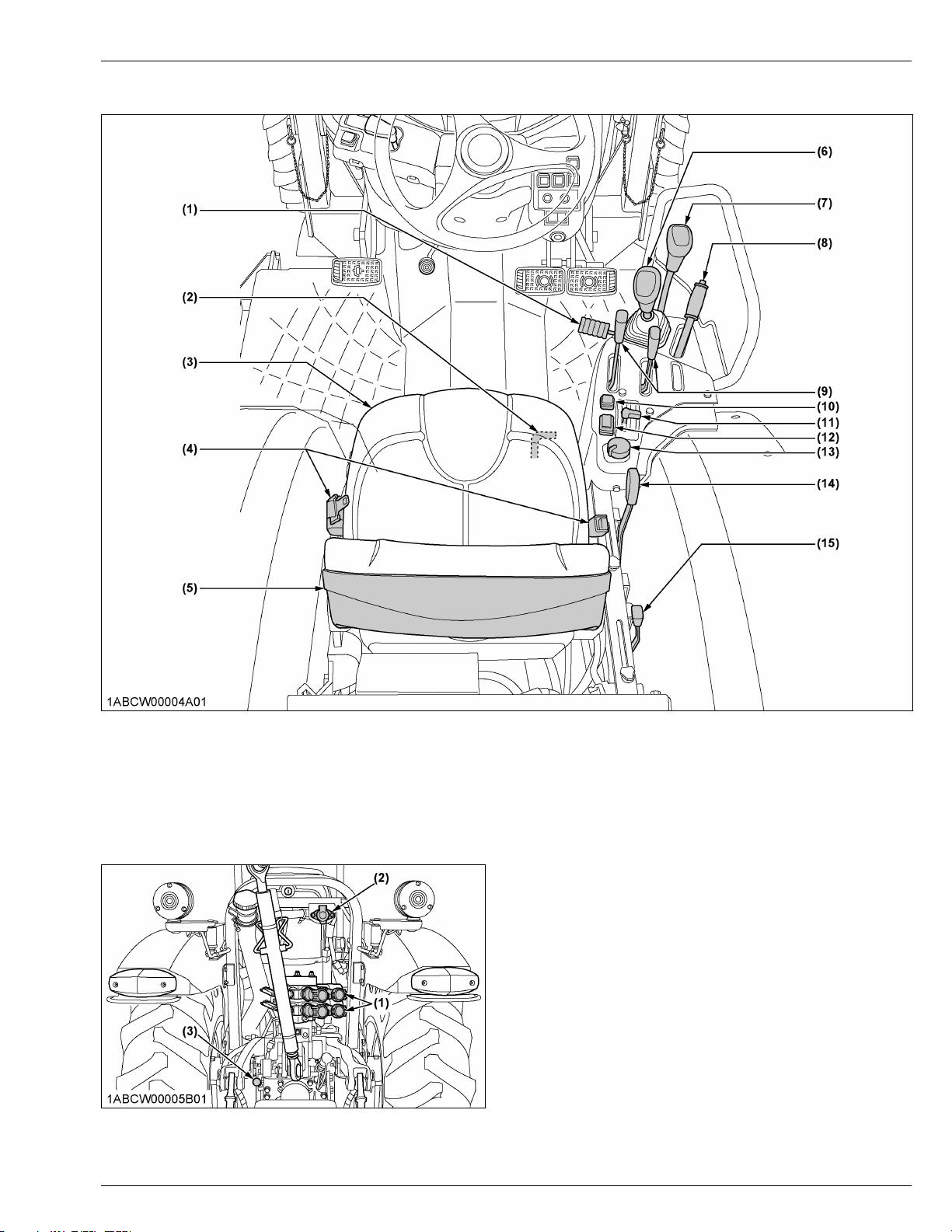

FOOT AND HAND CONTROLS

INSTRUMENT PANEL AND CONTROLS

Illustrated contents

(1) Foot throttle…57

Differential lock pedal…67

(2) (3) Operator's seat…49 (4) Seat belt…50 (5) Glove box…50 (6) Main gear shift lever…55 (7) Range gear shift lever…55 (8) Parking brake lever…53

(9) Remote control valve lever…80 (10) Dual speed shift switch (dual speed model for M5N-091, M5N-111)

…56 (11) Hand throttle lever…57 (12) RPM dual memory switch…65 (13) PTO clutch control switch…70 (14) Position control lever…78 (15) Draft control lever…78

Illustrated contents

(1) Remote control valve…79 (2)

Trailer electrical outlet…69

(3) PTO gear shift lever…71

PRE-OPERATION CHECK DAILY CHECK

M4N-071, M5N-091, M5N-111

PRE-OPERATION CHECK

DAILY CHECK

o prevent trouble from occurring, it is important to

T know the condition of the tractor. Check it before starting.

WARNING

o avoid personal injury or death:

• Be sure to check and service the tractor on a level surface with the engine shut off, the parking brake “ON” and the implement lowered to the ground.

Check item

Walk around inspection

•

• Check engine oil level

• Check transmission oil level

• Check coolant level

• Check water separator

• Clean grill and radiator screen

• Clean intercooler

• Clean fuel cooler

• Clean oil cooler

• Check DPF muffler (M4N-091) Check DPF/SCR muffler (M5N-091, M5N-111)

• Check air cleaner evacuator valve (when used in a dusty place)

• Check air cleaner dust indicator (When used in a dusty place)

• Check brake pedal

• Check parking brake lever

• Check indicators, gauges and meter

• Check lights

• Check seat belt and ROPS

• Check movable parts

• Supply DEF/AdBlue® (M5N-091, M5N-111)

• Refuel (See DAILY CHECK on page 98.)

• Care of the safety labels (See SAFETY LABELS on page 14.)

EXHAUST AFTERTREATMENT DEVICES OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

OPERATING THE ENGINE

Model Exhaust aftertreatment device

WARNING

To avoid personal injury or death:

• Read and understand the safe operation section.

• Understand the safety labels located on the tractor.

• To avoid the danger of exhaust fume poisoning, do not operate the engine in a closed building without proper ventilation.

• Never start engine while standing on ground. Start engine only from operator's seat.

• Make it a rule to set all shift levers to the “NEUTRAL” positions and to place PTO clutch control switch in “OFF” position before starting the engine.

Details regarding safe operation can be found in a different section. (See SAFE OPERATION on page 7.)

IMPORTANT :

• Do not use starting fluid or ether.

• To protect the battery and the starter, make sure that the starter is not continuously turned for more than 10 seconds.

EXHAUST AFTERTREATMENT DEVICES

M4N-071 DPF muffler only

M5N-091

M5N-1

DPF and SCR muffler

1. Dual exhaust aftertreatment devices

Particulate matter (PM) and black smoke contained in exhaust particulate filter (DPF) muffler. The SCR system then decomposes residual nitrogen oxides (NOx) into harmless nitrogen (N2) and water (H2O) for purification. This dual exhaust gas purifying device provides for clean exhaust gas at low fuel consumption.

gases are trapped and removed by the diesel

DIESEL PARTICULATE FILTER (DPF) MUFFLER

This tractor is equipped with an engine with a diesel particulate hydrocarbons, carbon monoxide and other toxic gases, all of which are contained in diesel engine emissions, to harmless carbon dioxide and water. The DPF also traps particulate matter (PM). Please handle exhaust aftertreatment devices correctly and in an environmentally responsible manner.

filter (DPF) muffler which serves to reduce

WARNING

To avoid personal injury or death:

• During diesel particulate filter (DPF) regenerating operations, exhaust gases and exhaust filter components reach temperatures hot enough to burn people, or ignite or melt common materials.

• Keep tractor away from people, animals or structures which may be susceptible to harm or damage from hot exhaust gases.

• During regeneration, white exhaust gases may be visible. Do not allow regeneration in a non ventilated garage or confined area.

• During regeneration, do not leave the tractor.

NOTE :

• Exhaust aftertreatment devices vary depending on the model. In accordance with the following table, refer to the appropriate item.

M4N-071

(1) Diesel Particulate Filter

(DPF)

OPERATING THE ENGINE DIESEL PARTICULATE FILTER (DPF) MUFFLER

M4N-071, M5N-091, M5N-111

M5N-091, M5N-111

(1) Diesel particulate filter (DPF)

1. Handling points

When a specific amount of particulate matter (PM) has accumulated refresh the DPF muffler by burning the PM inside it. This burning off work is called “Regeneration”. To extend operating time to reach this regeneration, and to avoid DPF muffler trouble, make sure to observe the following handling matters.

Fuel

Be sure to use ultra low sulfur fuel (S15).

IMPORTANT :

• Use of diesel fuel other than ultra low sulfur fuel may adversely affect the engine and DPF performance. Use of fuels other than ultra low sulfur fuel (S15) may not meet regulations for your region.

Engine oil

Use DPF-compatible oil (CJ-4) for the engine.

IMPORT

• If any engine oil other than CJ-4 is used, the DPF may become clogged earlier than expected and the fuel economy may drop.

in the DPF muffler, it is necessary to

ANT :

2. DPF regeneration process

regeneration process can be performed by

DPF choosing “Auto regeneration” or “Regeneration inhibit” mode according to your job conditions. For jobs not affected by hot gases emitted during regeneration, “Auto regeneration” is advisable.

Auto regeneration mode

When starting the engine (switch operation is unnecessary), the “Auto regeneration” mode is automatically activated. With the auto regeneration mode on, when a specific amount of PM has accumulated, and the regeneration conditions are satisfied, the DPF will be automatically regenerated whether the tractor is in motion or parked. (See 6. Tips on diesel particulate filter (DPF)

regeneration on page 38.)

In this way, work efficiency is improved. For more details, read the “Auto regeneration” section of this manual. (See 3. Operating procedure for auto regeneration

mode on page 33.)

Regeneration inhibit mode

After starting the engine, if the “DPF inhibit switch” is pressed to turn on the switch lamp, the “Regeneration inhibit” mode will be activated. With “Regeneration inhibit” mode on, the PM which has accumulated inside the DPF will not be burnt, unless the operator performs the regeneration work manually. The “Regeneration inhibit” mode is effective for work in poorly ventilated work spaces. For more details, read the regeneration prohibition section of this manual. (See 4. Operating procedure for regeneration inhibit

mode on page 35.)

NOTE :

the engine is stopped once, the “Auto

• If regeneration” mode will be activated.

Prohibition of unnecessary idling operation

Generally exhaust gas temperature is, so the PM contained in exhaust gas will not be burnt, and begins to accumulate. Therefore, do not idle unnecessarily.

Regeneration

When there is “Regeneration” instruction sign by lamp or buzzer, immediately perform the required procedure for regeneration.

IMPORTANT :

• Interrupting the regeneration cycle or

, the lower the engine speed, the lower the

continuing operation while ignoring the warning signs may cause DPF and engine damage.

DIESEL PARTICULATE FILTER (DPF) MUFFLER OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

3. Operating procedure for auto regeneration mode

(1) Parked regeneration switch (2)

DPF inhibit switch

(3) Regeneration indicator (4) Parked regeneration indicator

(5) Engine rpm increase indicator (6) Engine warning indicator

Regeneration operating procedure

Start the engine.

Make sure that the DPF inhibit switch lamp is “OFF”.

Switch lamp “OFF”: Auto regeneration mode activated. Switch lamp “ON”: Regeneration inhibit mode activated.

NOTE :

•

When the engine is started, the “Auto regeneration” mode is automatically activated.

• “Regeneration inhibit” mode is activated when the DPF inhibit switch is pushed after the engine is started.

2. When the regeneration indicator

A specific amount of PM has built up in the DPF

starts flashing:

. Continue to operate the tractor, and the regeneration process will begin automatically; make sure the working place is in a safe area as DPF and exhaust temperature will rise.

3. When the engine rpm increase indicator

starts flashing:

Keep on working and increase the engine rpm until the indicator turns “OFF”.

NOTE :

• Even requirements have not been satisfied.

• The engine rpm increase indicator is used as a guide to satisfy the regeneration conditions. If the engine load is too heavy, the engine rpm increase indicator may continue to flash, even though regeneration system conditions are satisfied and regeneration may begin automatically. (See 6. Tips on diesel particulate filter (DPF) regeneration on page 38.)

if the auto regeneration mode is selected, DPF regeneration may not begin because system

OPERATING THE ENGINE DIESEL PARTICULATE FILTER (DPF) MUFFLER

M4N-071, M5N-091, M5N-111

3.1 PM warning level and required procedures

During

auto regeneration mode when the PM level has built up in the DPF, the regeneration cycle will begin automatically. If the regeneration cycle is interrupted or the regeneration conditions are not satisfied, the buzzer starts sounding and the indicator display changes in response to the PM level in order to prompt the operator to perform the required procedure listed in the following table.

IMPORTANT :

• Once the regeneration level has been reached, immediately perform the required procedure for regeneration. Interrupting the regeneration cycle or continuing operation while ignoring the warning signs may cause DPF and engine damage.

Auto mode

DPF system status Required procedure

PM warning level: 1 Buzzer: Not sounding

The regeneration indicator starts flashing. A specific amount of PM has accumulated in

The rpm increase indicator starts flashing. Continue the work and increase the engine

The regeneration indicator will stop flashing and remain “ON” constantly

the DPF muf Continue to work the tractor to raise the DPF temperature.

rpm until the indicator turns “OFF”.

The regeneration cycle begins and continues until cycle is complete then the indicator will turn “OFF”.

fler.

PM warning level: 2-1 Buzzer: Sounding every 5 seconds

PM warning level: 2-2 Buzzer: Sounding every 3 seconds

PM warning level: 3 Buzzer: Sounding every 1 second Engine output: 50%

PM warning level: 4 Buzzer: Sounding every 1 second Engine output: 50%

If the regeneration cycle was interrupted or conditions are not satisfied for regeneration then DPF system is now in Level 2.

The regeneration indicator starts flashing. Start the regeneration, referring to PM warn-

The rpm increase indicator starts flashing.

The parked regeneration indicator starts flashing.

If the regeneration fails in the warning level 2:

The engine warning indicator starts flashing. Immediately discontinue working the tractor

The parked regeneration indicator starts flashing.

If the parked regeneration is interrupted or the tractor is continuously operated in the warning level 3:

The engine warning indicator remains constantly “ON”.

ing level: 1 above. Now the parked regeneration indicator starts flashing, and the parked regeneration can also be started. If the regeneration conditions are not met, perform the parked regeneration procedure. (See 5. Operating procedure for parked re-

generation

and begin the parked regeneration cycle process. (See 5. Operating procedure for parked re-

generation

At this PM warning level, the auto regeneration mode does not function. If the tractor is operated further, the regeneration cycle will be disabled.

Immediately move the tractor to a safe place, park it there and turn the engine “OFF”. Contact your local KUBOT

• At this level, do not continue to operate

on page 37.)

A Dealer.

the tractor; otherwise, damage will result to the DPF and engine.

DIESEL PARTICULATE FILTER (DPF) MUFFLER OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

4. Operating procedure for regeneration inhibit mode

(1) Parked regeneration switch (2)

DPF inhibit switch

(3) Regeneration indicator (4) Parked regeneration indicator

Regeneration operating procedure

Start the engine.

2. Press the DPF inhibit switch , and the switch lamp illuminates.

Switch lamp “ON”: Regeneration inhibit mode selected. Switch lamp “OFF”: Auto regeneration mode selected.

When the parked regeneration indicator

A specific amount of PM has accumulated in the DPF muf

starts flashing:

fler. Move the tractor to a safe place and activate the DPF muffler. (See 5. Operating procedure for parked regeneration on page 37.)

(5) Engine rpm increase indicator (6) Engine warning indicator

OPERATING THE ENGINE DIESEL PARTICULATE FILTER (DPF) MUFFLER

M4N-071, M5N-091, M5N-111

4.1 PM warning level and required procedures

the regeneration inhibit mode, the buzzer starts sounding and the indicator display changes in response to the PM

In level in order to prompt the operator to perform the required procedure listed in the following table.

IMPORTANT :

Regeneration inhibit mode

DPF system status Required procedure

PM warning level: 1 Buzzer: Not sounding

The regeneration indicator starts flashing. A specific level of PM has built up in the DPF

At PM warning levels range from 1 to 2-2, it is also possible to change DPF inhibit switch to auto regeneration mode, then perform the regeneration.

muf

fler.

Continue with the operation as it is.

PM warning level: 2-1 Buzzer: Sounding every 5 seconds

PM warning level: 2-2 Buzzer: Sounding every 3 seconds

PM warning level: 3 Buzzer: Sounding every 1 second Engine output: 50%

PM warning level: 4 Buzzer: Sounding every 1 second Engine output: 50%

The regeneration indicator starts flashing. Move the tractor to a safe area, then begin

The parked regeneration indicator starts flashing.

If the parked regeneration cycle is interrupted or the tractor is continuously operated in the PM warning level 2:

The engine warning indicator starts flashing. Immediately stop working the tractor, move

The parked regeneration indicator starts flashing.

If the regeneration cycle is interrupted or the tractor is continuously operated ignoring the warning signs, in the PM warning level 3:

The engine warning indicator remains constantly “ON”.

the parked regeneration cycle process. (See 5. Operating procedure for parked re-

generation on page 37.)

the tractor to a safe area, then begin the parked regeneration cycle process. (See 5. Operating procedure for parked re-

generation

If the tractor is operated further and the operator ignores the warning signs, then regeneration will be disabled.

Immediately move the tractor to a safe place, park it there and turn the engine “OFF”. Contact your local KUBOT

• At this level, do not continue to operate

on page 37.)

A Dealer.

the tractor; otherwise, damage may result to the DPF and engine.

DIESEL PARTICULATE FILTER (DPF) MUFFLER OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

5. Operating procedure for parked regeneration

Park the tractor in a safe area away from buildings, people, and animals.

2. Apply the parking brake.

3. Set the shuttle shift lever to the neutral position.

4. Turn “OFF” the PTO clutch control switch.

5. Return the engine rpm to the idle speed.

6. Lower the implement to the ground.

7. Press the DPF inhibit switch

8. When the regeneration conditions are satisfied (2 to 5 and 7 mentioned previously), the parked regeneration

switch lamp starts flashing.

Press the parked regeneration switch

The switch lamp will stop flashing and remain “ON” constantly during the cycle. The engine rpm will automatically rise, and the regeneration process will begin.

10.

11. Both indicators

They turn “OFF” when the cycle is complete.

12. After the lamp turns “OFF”, normal tractor work may resume. When driving in “Regeneration inhibit” mode, press the DPF inhibit switch to turn on the switch lamp.

NOTE :

• During the engine rpm other than for an emergency stop. Otherwise, the regeneration will be interrupted.

• Never leave the tractor when the parked regeneration process is activated.

• If the parked regeneration cycle is interrupted, the engine rpm is fixed at the idling level for about 30 seconds. For this period, keep the hand throttle lever and foot throttle pedal at the idle position. Do not move them. They will function again in 30 seconds.

the regeneration cycle, do not touch the above levers and switches (in steps 2, 3, 4), nor change

, and the switch lamp turns “OFF”.

to start the regeneration cycle.

stay “ON”

while regenerating the DPF.

NOTE : M5N-091, M5N-111

• If one of the following conditions applies to the tractor, the parked regeneration will not function. (See 3. Warning indication and countermeasures on page 39.)

–

DEF/AdBlue® warning indicator

(limited engine output).

–

DEF/

AdBlue® system warning indicator

–

Freeze icon of DEF/

•

Diagnostic trouble code (DTC) DTC can be used to diagnose the problem in the engine and SCR muffler. For example, “ENG P-208B”: The code beginning with the letter “P” or “U” is the DTC.

AdBlue

lights up and “Lv.1” or “Lv.2” is being displayed on the LCD

lights up and the DTC is being displayed on the LCD.

or limited engine output is displayed on the LCD.

OPERATING THE ENGINE DIESEL PARTICULATE FILTER (DPF) MUFFLER

M4N-071, M5N-091, M5N-111

6. Tips on diesel particulate filter (DPF) regeneration

• Operation

higher in speed or load the engine operates,

The the higher the exhaust temperature rises. As a result, particulate matter (PM) inside the DPF is consumed and the regeneration process is required less frequently over time. The lower in speed or load the engine operates, the lower the exhaust temperature. Accordingly, less particulate matter (PM) inside the DPF is consumed and more accumulation of PM will occur, which requires frequent regeneration. Therefore, avoid prolonged idling if possible.

• Necessary conditions for “Regeneration”

When the conditions below are all satisfied, regeneration will start. However, if even one condition is deviated from during the process, the regeneration will be interrupted.

– The engine coolant temperature. – The DPF temperature. – The engine speed is 1200 rpm or higher.

• Usually it takes 15-20 minutes to complete the regeneration cycle. Actual regeneration time may depend on ambient temperature, exhaust temperature and engine speed.

• It is recommended to do the regenerating while the engine is warm.

• Do not unnecessarily start and interrupt the regeneration process. Otherwise, a small amount of fuel becomes mixed with the engine oil, which degrades the oil quality.

• While the DPF is being regenerated, the engine air flow rate is automatically limited to keep up the exhaust temperature. Because of this, the engine may sound differently, but this is normal for this engine.

• Just after the regeneration has ended, the DPF muffler remains hot. It is advisable to keep the engine running for about 5 minutes to allow cooling of the exhaust components.

(1) SCR muffler

2. DEF/AdBlue

CAUTION

o avoid personal injury:

• The urea aqueous solution (DEF/AdBlue®) is colorless, odorless and harmless. If the solution gets on your skin, immediately wash it away with water.

The DEF/AdBlue®, used as reducing agent of SCR, is a

32.5% urea aqueous solution. No qualification for handling the urea aqueous solution is needed. As well, the solution is not designated as a hazardous material. The product is available at gas stations, truck stops and specialty shops. Be sure to use the genuine product only. Do not use any poor-quality products, or the engine may have trouble and be damaged.

SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER

1. Outline of the SCR

The injector jets urea aqueous solution (DEF/AdBlue®) into

the muffler, and the solution is hydrolyzed with the heat of exhaust gas to generate ammonia (NH3). The ammonia generated thus is mixed with exhaust gas by the SCR muffler. In this way, nitrogen oxides (NOx) contained in exhaust gases are reduced by ammonia and decomposed into nitrogen and water vapor.

(1) DEF/AdBlue® tank (blue

cap)

NOTE :

• On

the North American market, the high-grade NOx reducing agent called urea aqueous solution is sold in the name of diesel exhaust fluid (DEF). On the European and Japanese

SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

markets, it is on sale under the trade name of AdBlue®.

3. Warning indication and countermeasures

Before starting the day's job, check the fluid level with the DEF/AdBlue® gauge on the instrument panel. If the fluid runs short during operation, the warning indicator lights up. If you continue running the machine as it is, the engine output will be limited by 50% or so. If running is continued, the engine will be limited to idling. (See 3.3 SCR system inducement display and

measures on page 40.)

These limitations are stipulated in conformity with the emission controls of each country and territory.

(1) DEF/AdBlue® gauge (2)

DEF/AdBlue® warning indicator

3.1 SCR system inducement display on the LCD

(3) DEF/AdBlue® system warn-

ing indicator

3.2 SCR system icon on inducement display

Low-level icon of DEF/AdBlue

Poor-quality icon of DEF/AdBlue

Trouble icon of SCR system

Freeze icon of DEF/AdBlue

3.2.1 Diagnostic trouble code (DTC)

DTC can be used to diagnose the problem in engine and SCR muf For example “ENG P-208B”: The code beginning with the letter “P” or “U” is the DTC. If a DTC appears, immediately contact your local KUBOTA Dealer.

NOTE :

• When operating in cold weather, the DEF/ AdBlue® is automatically thawed while the engine is running. However, in weather conditions of under -30 ℃ (- 22 ℉), the DEF/ AdBlue® cannot be completely thawed and thus, a DTC (“ENG P-208B”) appears on the instrument panel's LCD screen. If the DTC (“ENG P-208B”) appears on the screen, stop the engine and restart it after 10 seconds. After restarting the engine, the DTC (“ENG P-208B”) will disappear and the thawing of the DEF/AdBlue® will resume. In case the DTC (“ENG P-208B”) remains on the screen even after restarting the engine several times, contact your local KUBOTA Dealer.

fler.

(1) SCR system icon

Engine output level

(2) (3) Time limit to next level or re-

maining DEF/AdBlue

(4) Performance monitor (error

code and DTC)

OPERATING THE ENGINE SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER

M4N-071, M5N-091, M5N-111

3.3 SCR system inducement display and measures

On the SCR system, the remaining amount and quality of DEF/AdBlue® as

well as machine troubles are monitored. If anything goes wrong during operation, the following warnings are issued. Follow the warning contents to take proper measures.

Displays

Warning

indicator

Status Measures

The amount of remaining DEF/AdBlue®

the maximum capacity. Refuel the DEF/AdBlue® tank to reset the warning system. If operation is continued without refueling, the engine output will be limited.

The amount of remaining DEF/AdBlue® the maximum capacity.

Refuel the DEF/AdBlue® tank. The engine output is limited to 50% (“Lv.1”).

If operation is continued without refueling, the engine output will be limited to idle status (“Lv.2”).

The amount of remaining DEF/AdBlue® the maximum capacity.

Refuel the DEF/AdBlue® tank. The engine output is limited to 50% (“Lv.1”).

If operation is continued without refueling, after 30 minutes, the engine output will be limited to idle status (“Lv.2”).

The amount of remaining DEF/AdBlue® the maximum capacity.

The engine output will remain limited. Refuel the DEF/AdBlue® tank.

The engine output is limited to idle status (“Lv.2”).

Contains poor quality DEF/AdBlue® or other non-regulated solutions. After draining the tank, refuel with DEF/AdBlue® to reset the warning

system. If operation is continued without refueling the DEF/ 60 minutes, the engine output will be limited to 50% (“Lv.1”).

Contains poor quality DEF/AdBlue® or other non-regulated solutions. After draining the tank, refuel with DEF/AdBlue®.

The engine output is limited to 50% (

“Lv.1”).

If operation is continued without refueling the DEF/AdBlue® tank, after 25 minutes, the engine output will be limited to idle status (“Lv.2”).

Contains poor quality DEF/AdBlue® or other non-regulated solutions.

After draining the tank, refuel with DEF/AdBlue®. The engine output is limited to idle status (

has decreased up to 15% of

has decreased up to 5% of

AdBlue® tank, after

“Lv.2”).

DPF

parked re-

generation

permit

inhibit

permit

inhibit

When DEF/AdBlue® has been added or a poor-quality solution replaced by a genuine product, the low-level warning indicator and icons turn

off. The engine output limitation will also be cleared.

SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

Displays

Warning

indicator

--- ---

Status Measures

The SCR system has experienced an abnormality. V

erify the DTC displayed on the performance monitor and contact your local KUBOTA Dealer. The engine output is unrestricted. After 120 minutes, the engine output will be limited to 50% (“Lv.1”).

The SCR system has experienced an abnormality. V

erify the DTC displayed on the performance monitor and contact your local KUBOTA Dealer. The engine output is limited to 80%. After 120 minutes, the engine output will be limited to 50% (“Lv.1”).

The SCR system has experienced an abnormality. V

erify the DTC displayed on the performance monitor and contact your local KUBOTA Dealer. The engine output is limited to 50% (“Lv.1”). After 25 minutes, the engine output will be limited to idle status (“Lv.2”).

The SCR system has experienced an abnormality.

erify the DTC displayed on the performance monitor and contact your

V local KUBOTA Dealer. The engine output is limited to idle status (“Lv.2”).

Due to low temperatures, the DEF/AdBlue® has frozen. Continue the warm-up operation and the DEF/

AdBlue® will thaw.

DPF

parked re-

generation

inhibit

Due to low temperatures, the DEF/AdBlue® has frozen. The engine

--- ---

output is limited to 80%. Continue the warm-up operation and the DEF/

AdBlue® will thaw.

inhibit

NOTE :

The limited engine output level:

• “Lv.1” (Level 1): Within 50% of max torque and 60% of engine speed. “Lv.2” (Level 2): Within engine near idling speed.

• After an error has occurred, it may be necessary for the engine output to become limited to “Lv.2”. Depending on trouble spots and contents, the indicator-prompted warnings and the engine output limits and timings may vary accordingly. The SCR warning status (from 1 to 3) represents the severity order of the engine output limitation. If the SCR system experiences abnormalities, an error code will be displayed, and it may be necessary to limit the engine output to idle status (“Lv.2”). For example, when a “ENG P-204F” error code is displayed, the engine output changes from unrestricted to “Lv.2” limited.

• Points after taking measures. After the engine has stopped and the DEF/AdBlue® has drained, if the amount that was refueled is less than the pre-drain amount, the SCR system may experience a malfunction (“P20F5” error code is displayed). When the error occurs, turn the key switch to “OFF”, wait for the SCR system to complete the purge process (this may take several minutes) and then turn the key switch to “ON” again in order to clear the SCR system malfunction.

• The time displayed on the lower right of the icon represents the minimum time until the limitation begins.

• The 40 hours warning record.

1. Basically, warning and/or inducement reduction cancel when the fault location is repaired.

2. However, if it detects any fault within 40 hours of the restoration, it soon returns to the previous failure

and the timer restarts counting down.

3. The 40 hours warning record will be reset if any fault has not been detected over 40 hours from the

repair. If a fault is detected after the 40 hours warning record reset, then the new countdown will be stated.

OPERATING THE ENGINE SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER

M4N-071, M5N-091, M5N-111

4. Storing and handling DEF/ AdBlue

• Because solution, it begins to freeze at ambient temperatures below –11 ℃ (12 ℉). In winter, handle it with sufficient care.

• DEF/AdBlue® may be stored in the tractor's tank for up to 4 months. If the storage area's ambient temperature rises above 30 ℃ (86 ℉), however, its storage life will be markedly reduced.

Storage method

• Store the solution in a well-sealed container.

• Place the container in a location not exposed to direct sunlight.

• Place the container in a well-ventilated spot.

• Keep the container in a spot without violent temperature changes.

• Keep the container away from any containers of gasoline and diesel fuel.

DEF/AdBlue® is an urea aqueous

STARTING THE ENGINE

1. Make sure the parking brake is set. Pull the parking brake lever to parking position.

parking brake warning indicator on the Easy

The Checker™ will come on while the parking brake is set.

(1) Parking brake warning indicator

IMPORTANT :

• If

the tractor is operated with the parking brake set, the parking brake will be damaged.

• If the parking brake lever is moved while the shuttle shift lever is placed in forward or reverse position, an alarm buzzer will sound.

NOTE :

• In moving the parking brake lever, you may feel it heavy some time or light other time. This is not a trouble, however.

2. Make sure the fuel shutoff-valve is in the “OPEN” position.

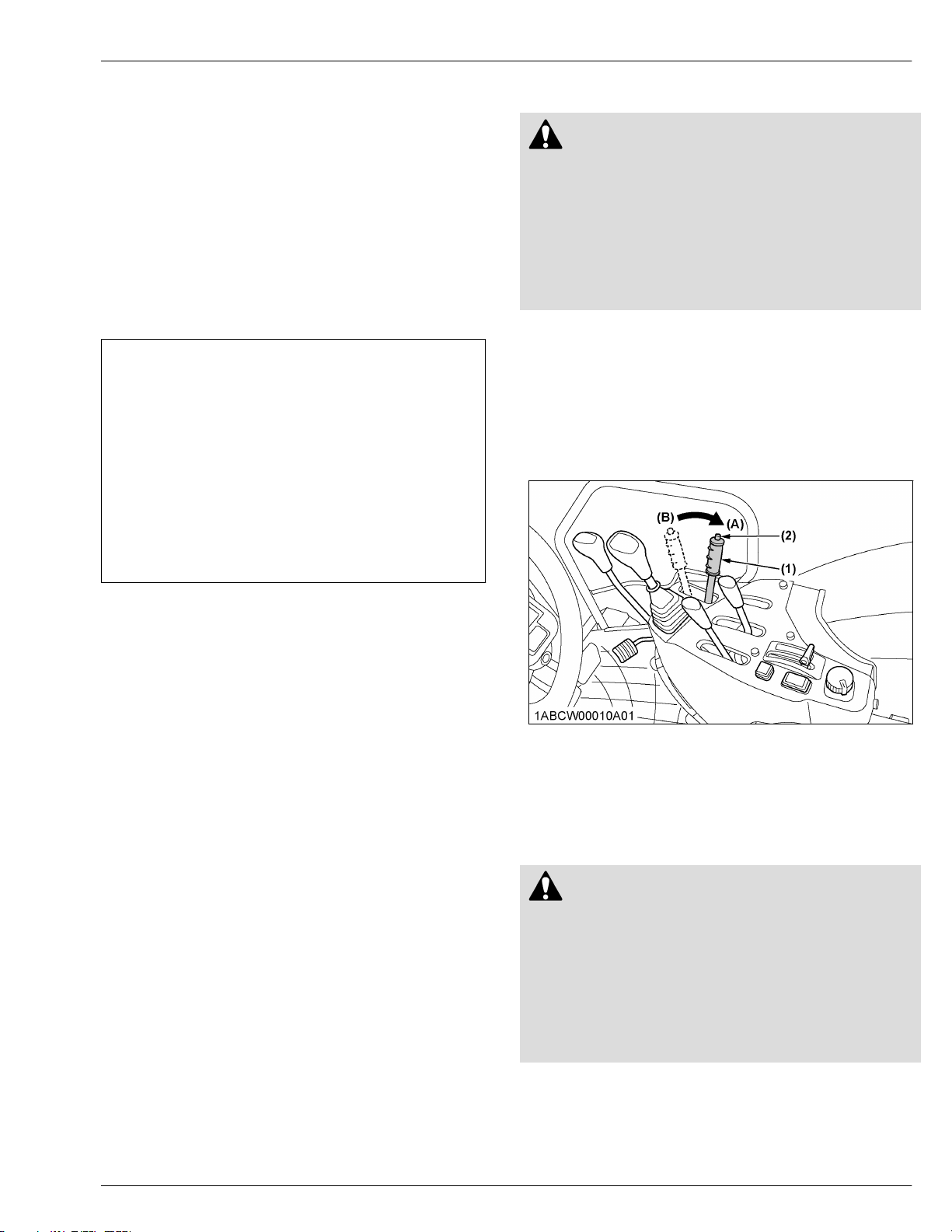

(1) Parking brake lever (2)

Release button

(A) “PARKING POSITION”

(B) “TRANSPORT POSITION”

(1) Fuel shutoff-valve (A)

“CLOSE”

(B) “OPEN”

[A] M4N-071 [B] M5N-091, M5N-111

STARTING THE ENGINE OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

3. Place the shift levers in “NEUTRAL” position.

(1) Hydraulic-shuttle shift lever

Main gear shift lever

(2) (F) “FORWARD”

4. Place

the PTO clutch control switch in the “OFF”

(N) “NEUTRAL POSITION” (R) “REVERSE”

position and hydraulic control levers in the “LOWEST” position.

6. Insert the key into the key switch and turn it “ON”. If

the ambient temperature is below 0 ℃ (32 ℉) and

the engine is very cold, turn the key to “ON” position and hold it until the heater indicator turns off.

“OFF” (Engine-stop) “ON” (Engine-run) “ACC” (Electrical power-ac-

cessories)

“START” (Engine-start)

(1) PTO clutch control switch (2)

Position control lever

(3) Draft control lever

“ON”

5. Set

the throttle lever at the minimum speed

position.

(1) Hand throttle lever (2)

Foot throttle “INCREASE”

“OFF” “DOWN”

(A)

“DECREASE”

(1) Heater indicator

NOTE :

• The

accessories can be used while the

engine is stopped.

• Do not leave the key at “ACC” position. The battery will be quickly discharged. Turn it back to “OFF” after use.

7. Check the Easy Checker™ indicators. (See 1. Checking Easy Checker™ indicators on

page 44.)

8. Fully depress the clutch pedal.

OPERATING THE ENGINE STARTING THE ENGINE

M4N-071, M5N-091, M5N-111

9. T

urn the key to “START” position and release when

the engine starts.

IMPORTANT :

• Because of the safety devices, the engine will not start except when the PTO clutch control switch is placed in the “OFF” position and the shuttle shift lever is placed in the “NEUTRAL” position.

• If the engine fails to start after 10 seconds, turn off the key for 30 seconds. Then repeat steps 6 through 9. To protect the battery and the starter, make sure that the starter is not continuously turned for more than 10 seconds.

NOTE : M5N-091, M5N-111

• DEF/AdBlue® freezes at temperatures below

-11 ℃ (12 ℉). Even if it is frozen, the engine is not affected at its start-up and running.

10. Check to see that all the indicators on the Easy Checker™ are “OFF”. If an indicator is still on, immediately stop the engine and determine the cause.

11. Release the clutch pedal.

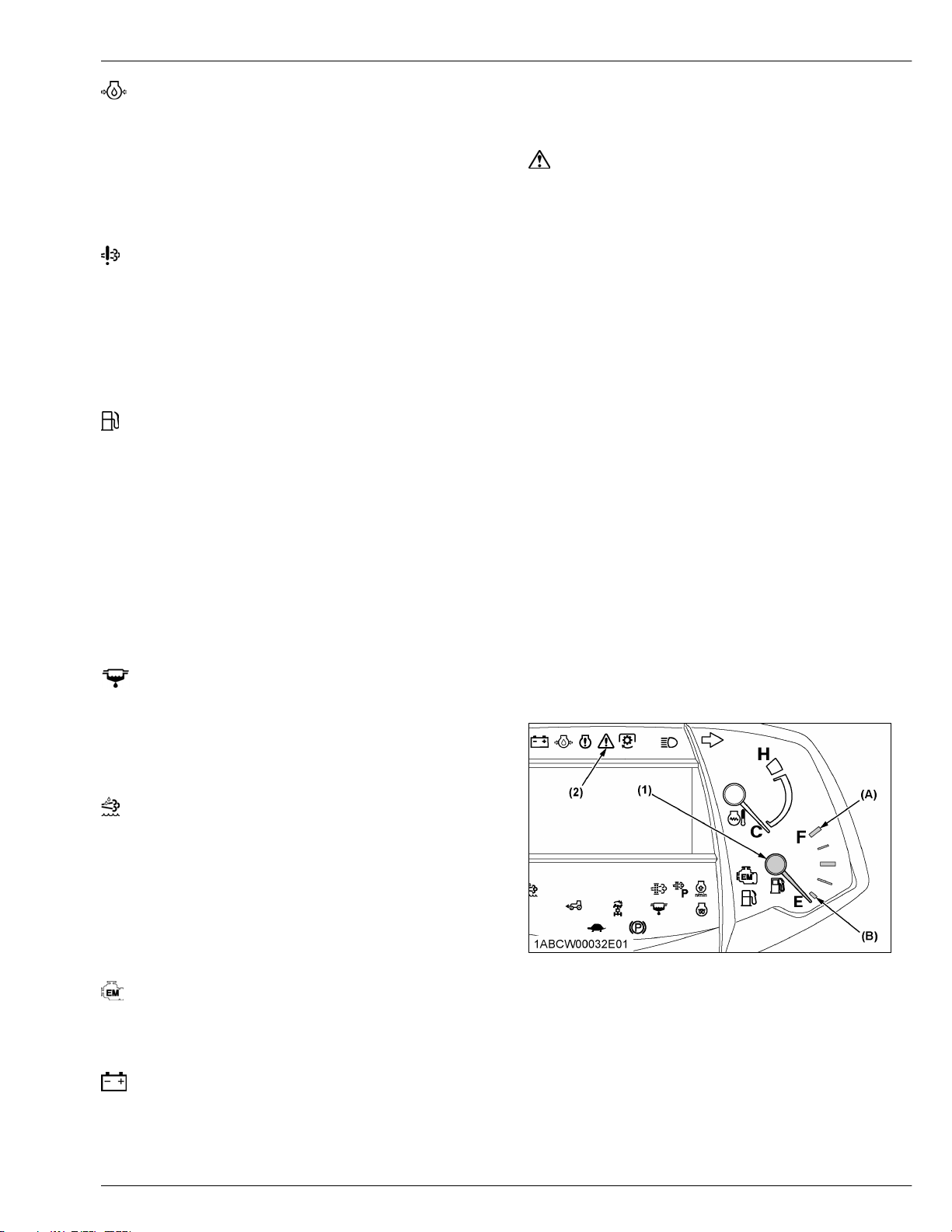

3. The

4. If the fuel level indicator (8) lights up, the fuel level

5. If the DEF/AdBlue® warning indicator (4) lights up,

6. If the water separator indicator (6) lights up, the

7. If the parking brake warning indicator (5) does not

PTO clutch indicator (3) comes on while PTO clutch control switch is engaged “ON” and goes off when disengaged.

is very low. Add fuel and the indicator will turn “OFF”.

check to see icon on LCD (M5N-091, M5N-111). (See 3. Warning indication and countermeasures on

page 39.)

water in the water separator is very high. Drain the water and the indicator will turn “OFF”.

illuminate, set the parking brake.

1. Checking Easy Checker

™

indicators

IMPORTANT :

• Daily

NOTE :

• Some of the Easy Checker™ indicators may

• The DEF/AdBlue® warning indicator

1. When

2. Suppose that the engine coolant temperature is not

checks with the Easy Checker™ only, are not sufficient. Never fail to conduct daily checks carefully by referring to the daily check. (See DAILY CHECK on page 98.)

illuminate or start flashing depending on the positions of the levers and switches.

corresponds only to the M5N-091 and M5N-111 tractor models.

the key is turned “ON”, indicators (1) (2) should come on. If trouble should occur at any location while the engine is running, the indicator corresponding to problem will turn “ON”.

high enough yet. The heater indicator (7) also turns “ON” when the key is turned “ON” to preheat the engine and goes off automatically when preheat is completed. Illumination time of indicator varies according to the temperature of coolant.

(1) Electrical charge warning in-

dicator Engine oil pressure warning

(2)

indicator (3) PTO clutch indicator (4) DEF/AdBlue® warning indi-

cator (M5N-091, M5N-111)

(5) Parking brake warning indi-

cator (6) Water separator indicator (7) Heater indicator (8) Fuel level indicator

OPERATING THE ENGINE IN FREEZING CONDITIONS

1. Block heater (if equipped)

A block heater is available as an option from your

. It will assist you in starting your tractor when the

dealer ambient temperature is below -20 ℃ (-4 ℉).

2. Engine low temperature regulation

In order to prevent engine damage due to rapid acceleration, temperature is approximately 0 ℃ (32 ℉) or below, the engine rpm will be kept at approximately 1400 for up to 3 minutes, and the operator will be informed by indicator and intermittent buzzer. The regulation time varies in response to the coolant temperature. During regulation, perform warm-up operation without using the accelerator. After regulation, the engine rpm can be gradually increased. When regulation has been

if starting the engine when coolant

OPERATING THE ENGINE IN FREEZING CONDITIONS OPERATING THE ENGINE

M4N-071, M5N-091, M5N-111

completely released, the indicator will go off and the buzzer will stop.

(1) Low temperature regulation

indicator

3. DEF/AdBlue® freeze warning (M5N-091, M5N-1

When operating in cold weather, the DEF/AdBlue® is automatically However, in weather conditions of under -30 ℃(-22 ℉), the DEF/AdBlue® cannot be completely thawed and thus, an error/warning code “ENG P-208B” appears on the instrument panel's LCD screen. If the error/warning code “ENG P-208B” appears on the screen, stop the engine and restart it after 10 seconds. After restarting the engine, the error/warning code “ENG P-208B” will disappear and the thawing of the DEF/AdBlue® will resume. In case the error/warning code “ENG P-208B” remains on the screen even after restarting the engine several times, contact your local KUBOTA Dealer.

thawed while the engine is running.

11)

lines and related piping and returned back into

DEF/AdBlue® tank after cooling the DEF/

the AdBlue® injector. The SCR system continues working several minutes after engine shutdown to complete this purge process.

• Do not turn the machine main battery power off to the engine until the DEF/AdBlue® return cycle purge process is completed. Turning off the main battery power to the engine and aftertreatment system prior to completion may damage the system or cause it to malfunction.

NOTE :

• If removing the key does not stop the engine, consult your local KUBOTA Dealer.

• Some noise heard for a couple of minutes after the engine has been stopped. This is because DEF/AdBlue® is still flowing through the circuit to cool down the DEF/AdBlue® injector.

1. After slowing the engine to idle, wait 3 to 5 minutes for turbo to slow down and then turn the key to “OFF”.

2. Remove the key.

WARMING UP THE ENGINE

WARNING

o avoid personal injury or death:

• Be sure to set the parking brake during warmup.

• Be sure to set all shift levers to the “NEUTRAL” positions and to place PTO switch in “OFF” position during warm-up.

(1) Error/warning code

STOPPING THE ENGINE

IMPORTANT : M5N-091

• When the engine is stopped-shutdown, DEF/

, M5N-111

AdBlue® flow is reversed in the DEF/AdBlue

For 5 minutes after engine start-up, allow the engine to warm up without applying any load; this is to allow oil to reach every engine part. If load should be applied to the engine without this warm-up period, trouble such as seizure, breakage or premature wear may develop.

1. Warm-up and transmission fluid at low temperature range

Hydraulic oil serves as transmission fluid. In cold weather This can cause delayed oil circulation or abnormally low hydraulic pressure for some time after engine startup. This in turn can result in trouble in the hydraulic system. To prevent the above, observe the following instructions: Warm up the engine at about 50% of rated rpm according to the following table:

, the oil may be cold with increased viscosity.

OPERATING THE ENGINE JUMP STARTING

M4N-071, M5N-091, M5N-111

Ambient temperature Warm-up time requirement

Higher than 0 ℃ (32 ℉) Approx. 5 minutes

0 to -10 ℃ (32 to 14 ℉) 10 to 20 minutes

-10 to -20 ℃ (14 to -4 ℉) 20 to 30 minutes

Below -20 ℃ (-4 ℉) More than 30 minutes

IMPORTANT :

• Do

not operate the tractor under full load

condition until it is sufficiently warmed up.

JUMP STARTING

WARNING

o avoid personal injury or death:

• Battery gases can explode. Keep cigarettes, sparks, and flames away from battery.

• If the tractor battery is frozen, do not jump start engine.

• Do not connect the other end of the negative (-) jumper cable to the negative (-) terminal of the tractor battery.

• When taking out the dead battery, putting in the battery or fixing the battery, do not allow the positive (+) terminal of the battery to touch other parts.

When jump starting the engine, follow the instructions below to safely start the engine.

1. Bring

the helper vehicle with a battery of the same voltage as the disabled tractor within easy cable reach.

IMPORTANT :

• The vehicles must not touch.

(1) Dead battery (2)

Jumper cables

(3) Helper battery

IMPORTANT :

• This

machine has a 12 volt negative (-)

ground starting system.

• Use only the same voltage for jump starting.

• Use of a higher voltage source on tractor's electrical system could result in severe damage to tractor's electrical system. Use only matching voltage source when “Jump starting” a low or dead battery condition.

• Do not operate the tractor with the battery cable disconnected from the battery.

• Do not operate the tractor without the battery mounted.

• Do not operate the tractor with the battery dead. Charge the battery fully before operating the tractor. Otherwise, the tractor might malfunction.

2. Engage the parking brakes of both vehicles and put the shift levers in neutral. Shut both engines off.

3. Wear eye protection and rubber gloves.

4. Attach the red clamp to the positive (red, (+) or positive) terminal of the dead battery and clamp the other end of the same cable to the positive (red, (+) or positive) terminal of the helper battery.

5. Clamp the other cable to the negative (black, (-) or negative) terminal of the helper battery.

6. Clamp the other end to the engine block or frame of the disabled tractor as far from the dead battery as possible.

7. Start the helper vehicle and let its engine run for a few moments. Start the disabled tractor.

8. Disconnect the jumper cables in the exact reverse order of attachment (steps 6, 5 and 4).

Connect cables in numerical order. Disconnect in reverse order after use.

OPERATING NEW TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

OPERATING THE TRACTOR

OPERATING NEW TRACTOR

a new tractor is handled and maintained

How determines the life of the tractor. A new tractor just off the factory production line has been, of course, tested, but the various parts are not accustomed to each other, so care should be taken to operate the tractor for the first 50 hours at a slower speed and avoid excessive work or operation until the various parts become “broken-in”. The manner in which the tractor is handled during the “breaking-in” period greatly affects the life of your tractor. Therefore, to obtain the maximum performance and the longest life of the tractor, it is very important to properly break-in your tractor. In handling a new tractor, the following precautions should be observed.

1. Do not operate the tractor at full speed for the first 50 hours

• Do not start quickly nor apply the brakes suddenly.

• In

winter, operate the tractor after fully warming up

the engine.

• Do not run the engine at speeds faster than necessary.

• On rough roads, slow down to suitable speeds. Do not operate the tractor at high speed.

The above precautions are not limited only to new tractors, but to all tractors. However, they should be especially observed in the case of new tractors.

• Face

• Always keep steps and floor clean to avoid slippery

the tractor when getting into or out of the tractor. Do not use the controls as hand holds to prevent inadvertent machine movements.

conditions.

OPERATING FOLDABLE ROPS

WARNING

o avoid personal injury or death:

• When raising or folding the ROPS, apply the parking brake, stop the engine, and remove the key. Always perform the adjustment from the operator's seat.

• Fold the ROPS down only when absolutely necessary and raise it up and lock it again as soon as possible.

• Before proceeding to fold the ROPS, check for any possible interference with installed implements and attachments. If interference occurs, contact your KUBOTA dealer.

1. Folding the ROPS

1. Remove both lock pins.

2. Changing lubricating oil for new tractors

The lubricating oil is especially important in the case of a

new tractor. The various parts are not “broken-in” and are not accustomed to each other; small metal grit may develop during the operation of the tractor; and this may wear out or damage the parts. Therefore, care should be taken to change the lubricating oil a little earlier than would ordinarily be required. For more details, read the maintenance section of this manual. (See MAINTENANCE on page 91.)

BOARDING AND LEAVING THE TRACT

• Never off the tractor to exit.

try to get on or off a moving tractor or jump

(1) ROPS (2)

Lynch pin

(3) Lock pin

(4) Cushion

OPERATING THE TRACTOR OPERATING FOLDABLE ROPS

M4N-071, M5N-091, M5N-111

2. Fold the ROPS.

CAUTION

o avoid personal injury:

• Hold the ROPS tightly with both hands and fold the ROPS slowly and carefully.

(1) ROPS

3. Reinstall

the lock pins with cushions and lynch pins

into the holes of the ROPS frame.

CAUTION

o avoid personal injury:

• Make sure that both lock pins are properly installed and secured with the lynch pins.

(1) ROPS (2)

Lynch pin

(3) Lock pin

(4) Cushion

2. Raise the ROPS to the upright position.

CAUTION

o avoid personal injury:

• Raise the ROPS slowly and carefully.

(1) ROPS

(1) ROPS (2)

Lynch pin

(3) Lock pin

(4) Cushion

2. Raising the ROPS to upright position

1. Remove both lynch pins and lock pins.

STARTING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

3. Align

the lock pin holes, insert both lock pins with

cushions and secure them with the lynch pins.

CAUTION

o avoid personal injury:

• Make sure that both lock pins are properly installed as soon as the ROPS is in the upright position and secured with the lynch pins.

(1) ROPS (2)

Lynch pin

(3) Lock pin

(4) Cushion

STARTING THE TRACTOR

1. Adjusting the operator's position.

NOTE :

The seat and suspension should be adjusted

• to ensure that the controls are comfortably at hand for the operator, ensuring that the operator maintains a good posture and minimizes risks from whole body vibration.

(1) Position control lever (A) “UP”

(See HYDRAULIC UNIT

5. Depress the brake pedals and release the parking brake lever.

• 11. Parking brake lever on page 53

6. Depress the clutch pedal.

• 12. Clutch pedal on page 53

7. Selecting the travel speed.

• 13. Travel speed control on page 54

• 14. Travel speed limiter on page 55

• 15. Main gear shift lever on page 55

• 16. Range gear shift lever on page 55

• 16.1 Creep speed (if equipped) on page 55

• 17. Shuttle shift lever on page 55

• 18. Dual speed shift switch (dual speed

model) on page 56

• 19. 4WD and Bi-speed turn switch on page 56

8. Accelerate the engine.

• 20. Hand throttle lever on page 57

• 21. Foot throttle on page 57

9. Unlock the brake pedals and slowly release the clutch.

on page 78.)

• 1. Operator's seat on page 49

• 2. Glove box on page 50

• 3. Seat belt on page 50

• 4. Muffler (M5N-091, M5N-111) on page 50

• 5. Tilt steering adjustment on page 50

2. Selecting light switch position.

• 6. Light switch on page 51

• 7. Turn signal switch and hazard light switch on

page 51

• 8. Rear turn signal light and hazard light on

page 51

• 9. Front work light switch on page 52

3. Checking the brake pedal.

• 10. Brake pedals (right and left) on page 52

4. Raise the implement. a. Pull the position control lever.

1. Operator's seat

WARNING

o avoid personal injury or death:

• Make adjustments to the seat only while the tractor is stopped.

• Make sure that the seat is completely secured after each adjustment.

• Do not allow any person other than the operator to ride on the tractor.

IMPORTANT :

• After adjusting the operator's seat, be sure to check to see that the seat is properly locked.

OPERATING THE TRACTOR STARTING THE TRACTOR

M4N-071, M5N-091, M5N-111

(1) Travel adjust lever (2)

Suspension adjust lever

(3) Backrest tilt adjust lever

(A) “UNLOCK” (B) “TO INCREASE TENSION” (C) “TO DECREASE TENSION”

Travel adjustment

Pull

the travel adjust lever and slide the seat backward or forward, as required. The seat will lock in position when the lever is released.

Suspension adjustment

Turn the suspension adjust knob to achieve the optimum suspension setting.

Tilt adjustment

Pull the backrest tilt adjust lever and move the backrest to the desired angle.

2. Glove box

(1) Seat belt

4. Muffler (M5N-091, M5N-111)

WARNING

o avoid personal injury or death:

• Do not touch the muffler pipe or muffler while the engine is running or while muffler pipes are hot. The high temperature will cause burning.

• Remove all weeds, straw, and combustible material from the muffler pipe, muffler and exhaust manifold to prevent fires.

If necessary, loosen the bolt and adjust the muffler pipe to the proper direction for the work. Muffler pipe is not directed toward of the front tire or fuel tank.

(1) Glove box (A)

“LOCK”

(B) “UNLOCK”

3. Seat belt

WARNING

o avoid personal injury or death:

• Always use the seat belt when a ROPS or CAB is installed.

• Do not use the seat belt if the foldable ROPS is down or if there is no ROPS.

Adjust the seat belt for proper fit and connect the buckle. This seat belt is auto-locking retractable type.

(1) Muffler pipe (2) Bolt (M6)

5. Tilt steering adjustment

CAUTION

o avoid personal injury:

• Do not adjust the steering wheel while the tractor is in motion.

STARTING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

Press down the steering wheel tilt pedal, to release the lock

so the steering wheel can be adjusted to the

desired position.

(1) Steering wheel tilt pedal (A) “PRESS DOWN”

6. Light switch

Turn the light switch clockwise, and the following lights are activated on the switch position.

NOTE :

• The

hazard light switch is operative when the key switch is in the “ON”, “ACC” or “OFF” position.

• The turn signal light switch is only operative when the key switch is in the “ON” position.

• Be sure to return the turn signal switch to center position after turning.

(1) Hazard light switch (2)

Turn signal light switch

(3) Hazard and turn signal indi-

cator

(A) “RIGHT TURN” (B) “LEFT TURN”

(1) Head light switch

Head lights OFF. Head lights dimmed, low beam. T

ail lights ON.

Head lights ON, high beam. T

ail light ON.

7. Turn signal switch and hazard light switch

Hazard light

1. When

2. Push the hazard light switch again to turn off the

Turn signal light

To indicate a right turn, turn the turn signal light switch clockwise. To indicate a left turn, turn the turn signal light switch counter-clockwise. The corresponding right and left turn signal lights and indicator on the instrument panel will flash.

the hazard light switch is pushed, the hazard lights flash, along with the LH and RH indicators on the instrument panel.

hazard lights.

(1) Hazard and turn signal light (2) Tail and turn signal light

8. Rear turn signal light and hazard light

If necessary, raise and turn the light stay to the rearward for the work. Return traveling on a road.

the light stay to the original position when

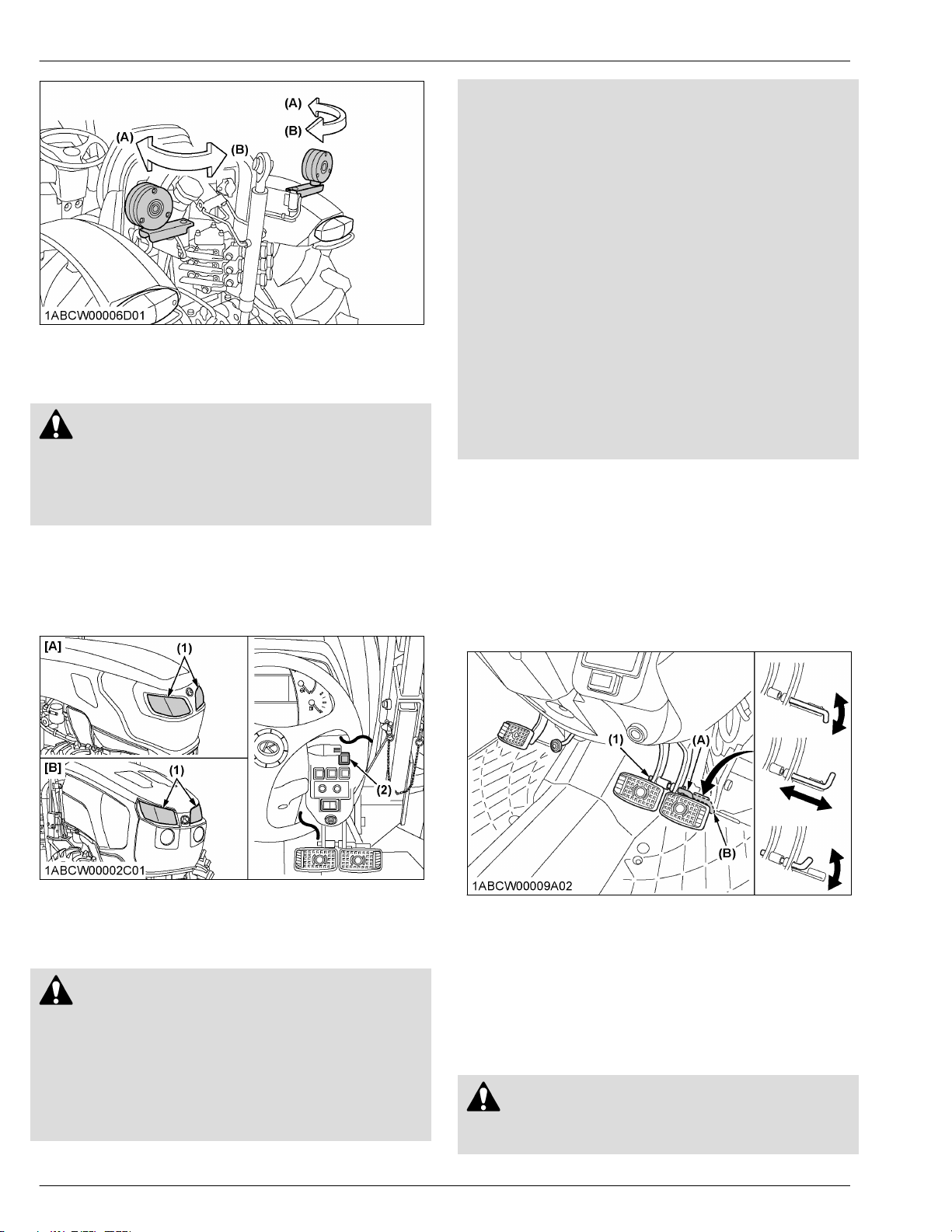

OPERATING THE TRACTOR STARTING THE TRACTOR

M4N-071, M5N-091, M5N-111

unequal brake pedal adjustment can cause the tractor to swerve or roll-over

• Be aware of the enhanced braking characteristics of 4-wheel braking system. Appropriate care should be taken during hard braking and/or when pulling towed loads.

• Do not brake suddenly. An accident may occur as a result of a heavy towed load shifting forward or loss of control.

• To avoid skidding and loss of steering control when driving on icy, wet, or loose surfaces, make sure the tractor is correctly ballasted, operated at reduced speed and operated with

(A) “ORIGINAL POSITION” (B) “WORK POSITION”

the front-wheel drive engaged (if equipped).

• The braking characteristics are different between 2 and 4-wheel drive. Be aware of the

9. Front work light switch

difference and use carefully.

• When driving down a slope, ensure that the 4-

WARNING

o avoid personal injury or death:

• Do not operate on roads with work lights on. Work lights may blind or confuse the drivers of oncoming vehicles.

Turn on the key switch and press the front work light switch. The work lights and the switch's indicator light up. Press the switch again to turn off the lights and indicator.

wheel drive is engaged to increase traction (if equipped).

1. Before operating the tractor on the road, be sure to interlock the right and left pedals as in the following illustration.

2. Use individual brakes to assist in making sharp turns at low speeds (field operation only). Disengage the brake pedal lock and depress only one brake pedal.

3. Be sure brake pedals have equal adjustment when being used locked together.

(1) Front work light

Front work light switch with

(2)

indicator

[A] M4N-071 [B] M5N-091, M5N-111

10. Brake pedals (right and left)

WARNING

o avoid personal injury or death:

• Be sure to interlock the right and left pedals. Applying only one rear wheel brake at high speeds could cause the tractor to swerve or roll-over.

• Be sure brake pedals have equal adjustment when using locked together. Incorrect or

(1) Brake pedal lock

“LOCK”

(A)

(B) “RELEASE”

10.1 4WD braking system (4WD model)

The 4WD model tractor is equipped with 4WD braking system.

When both brake pedals are applied together, the front axle is engaged for 4-wheel braking regardless of the mode selected at the 4WD switch.

WARNING

o avoid the possibility of personal injury, death or

property damage from machine runaway during

STARTING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

testing, service or repair with the rear wheels off the ground, make sure:

• Battery

is disconnected and engine is not

started.

If it is necessary to run the engine, make sure:

• Both front and rear wheels are off the ground and secured with stands before starting engine.

When you step on the brake pedal while driving in 2WD mode, the “4WD braking system” gets activated and the 4WD indicator lights up.

NOTE :

• The 4WD braking system is active even when the hydraulic system is damaged or the engine is stopped.

11. Parking brake lever

To release the parking brake, depress the brake pedal,

the release button and move the lever to transport

push position.

(1) Clutch pedal

IMPORTANT : T

o help prevent premature clutch wear:

• The clutch pedal must be quickly disengaged and be slowly engaged.

• Avoid operating the tractor with your foot resting on the clutch pedal.

• Select proper gear and engine speed depending on the type of job.

(1) Parking brake lever

Release button

(2)

(A) “TRANSPORT POSITION”

NOTE :

• The

parking brake warning indicator on the Easy Checker™ will turn off when the parking brake is unlocked.

• If the shuttle shift lever is moved when the parking brake is applied, a warning buzzer will sound.

12. Clutch pedal

WARNING

o avoid personal injury or death:

• Sudden release of the clutch may cause the tractor to lunge in an unexpected manner.

The clutch is disengaged when the clutch pedal is fully pressed down.

OPERATING THE TRACTOR STARTING THE TRACTOR

M4N-071, M5N-091, M5N-111

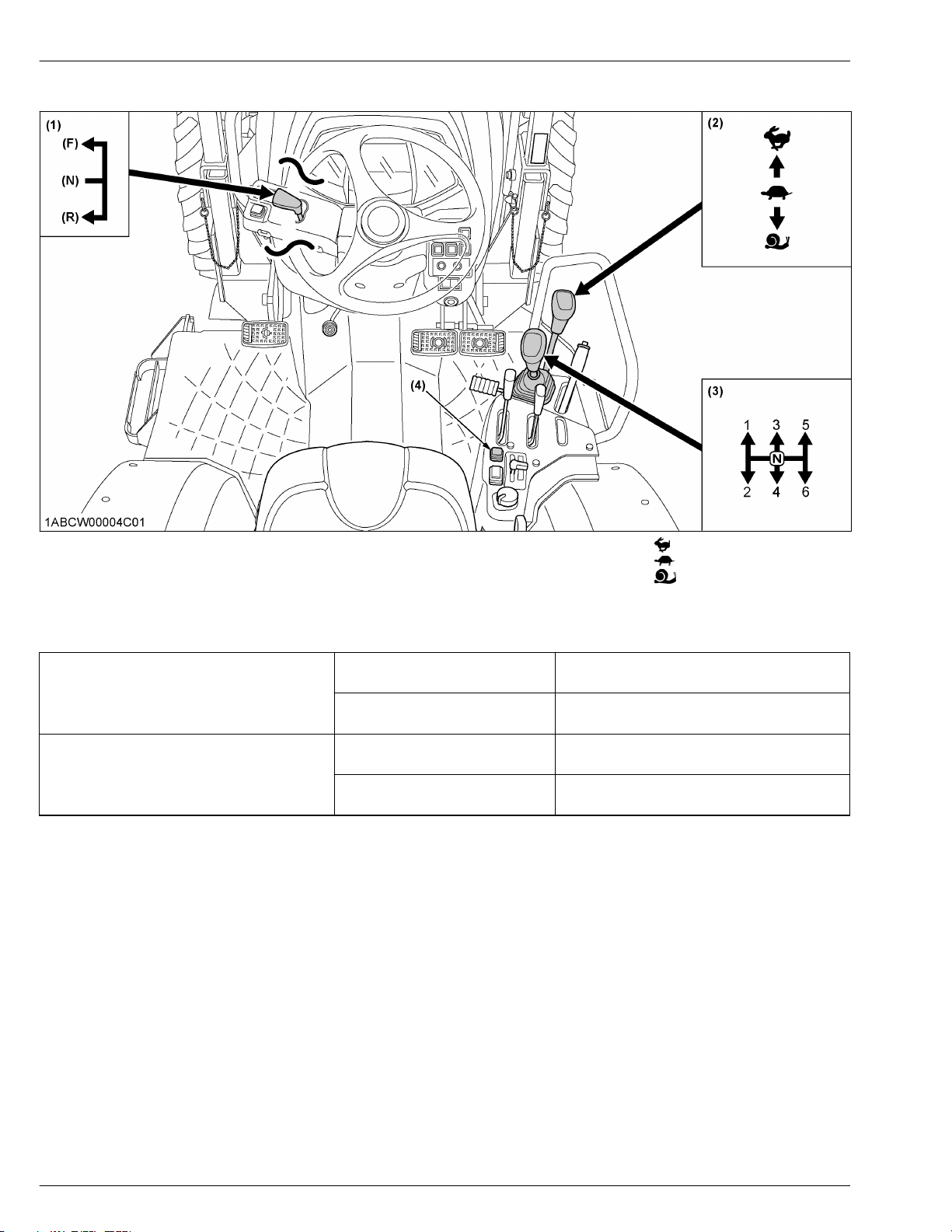

13. Travel speed control

(1) Shuttle shift lever (2)

Range gear shift lever

(3) Main gear shift lever

(4) Dual speed shift switch (dual

speed model for M5N-091, M5N-111)

(F) “FORWARD” (N) “NEUTRAL POSITION” (R) “REVERSE”

“HIGH” “LOW”

“CREEP” (if equipped)

By using the main gear shift lever, dual speed shift switch (if equipped), range gear shift lever and shuttle shift lever combination, the forward speeds and reverse speeds shown in the following table are obtained.

without creep

Standard model (F12/R12)

with creep

without creep

Dual speed model (F24/R24)

with creep

12 forward speeds 12 reverse speeds

18 forward speeds 18 reverse speeds

24 forward speeds 24 reverse speeds

36 forward speeds 36 reverse speeds

STARTING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

14. Travel speed limiter

highest travel speed is reachable when the engine

The rpm is at around the middle level with the maximum travel speed range. This provides for a fuel-efficient run while traveling along roads, pulling a trailer, etc. Step on the foot throttle, and the engine rpm rises proportionally and the travel speed goes up accordingly. But the engine speed is limited to 2080 rpm or so, and it does not increase even if the foot throttle is increased. When the main gear shift lever is set to the “H-6” position, the rev-limiter indicator illuminates.

– The

– When starting to operate the tractor, be sure

IMPORTANT :

• Press the clutch pedal completely down and stop the tractor's motion before shifting the range gear shift lever.

Shift the range gear shift lever to speeds. This shifting requires clutch operation.

torque of the wheel axle is extremely high while creep speed is being used. Be sure to step down on the clutch pedal completely before applying the brakes, or they will not work.

to release the parking brakes. Misuse of the brakes may cause damage to the transmission and is therefore not acceptable to KUBOTA for coverage under the warranty.

to obtain low

(1) Rev-limiter indicator

15. Main gear shift lever

The main gear shift is fully synchronized to shift without stopping.

IMPORT

• The main gear shift may be shifted between

ANT :

speeds on-the-go, but the clutch must be depressed.

16. Range gear shift lever

The range gear shift can only be shifted when the tractor depressed.

IMPORTANT :

• To avoid transmission damage, depress clutch

16.1 Creep speed (if equipped)

is completely stopped and the clutch is

pedal and stop the tractor before shifting between ranges.

(1) Range gear shift lever Creep on

Creep speed should be used only when doing one of the following jobs:

•

Deep rotary-tilling and harrowing

• Planting

• Turf application

Creep speed cannot be used for any of the following jobs:

• Pulling a trailer

• Front-loader operation

• Front-blade operation

• Earth-moving

• Entering and leaving a field

• Loading onto and unloading from a truck

17. Shuttle shift lever

WARNING

o avoid personal injury or death:

• When you leave the tractor, be sure to apply the parking brake and stop the engine.

• In applying the brakes:

WARNING

o avoid personal injury or death:

• If the shuttle shift lever is moved in forward or reverse position while the parking brake is applied, an alarm buzzer will sound.

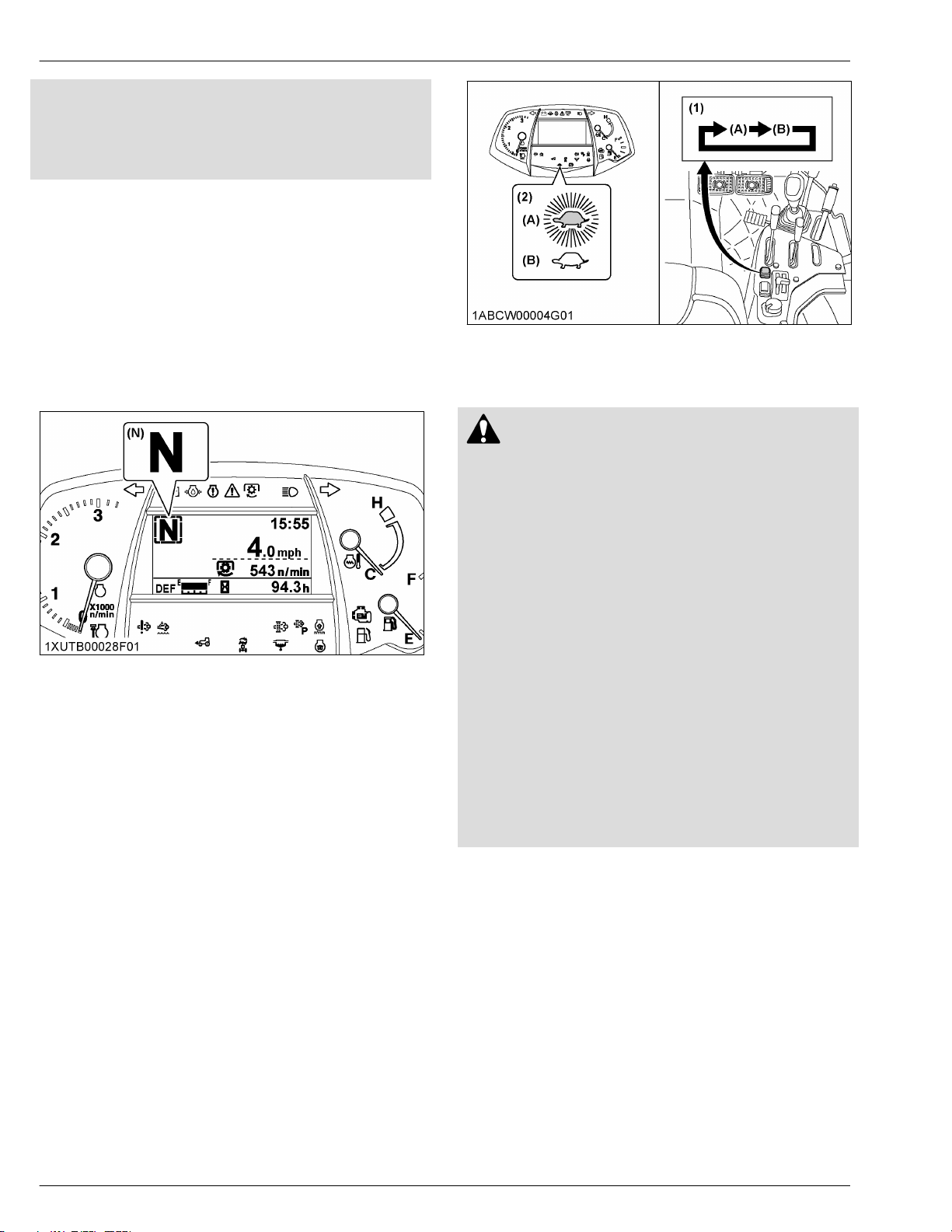

OPERATING THE TRACTOR STARTING THE TRACTOR

M4N-071, M5N-091, M5N-111

If the buzzer sounds, return the shuttle shift lever to neutral position.

• If

the parking brake lever is released while the buzzer is sounding, the tractor will lunge unexpectedly.

Raise up and shift the shuttle shift lever forward to obtain forward speeds and shift back to obtain reverse speeds. This shifting does not require clutch operation.

IMPORTANT :

• The shuttle shift lever may be shifted while the tractor is moving slowly.

NOTE :

• While the shuttle shift lever is at the “NEUTRAL” position, the “N” character appears on the LCD monitor.

(N) “NEUTRAL”

18. Dual speed shift switch (dual speed model)

The dual tractor is traveling without using the clutch. This switch affects tractor travel speed change by about 19%. “LO” speed and “HI” speed switch back and forth each time this switch is pushed.

Dual speed indicator

The indicator comes on when the dual speed switch is set to “LO”. The indicator goes off when the dual speed switch is set to “HI”.

speed shift switch can be operated when the

(1) Dual speed shift switch (2) Dual speed indicator

19. 4WD and Bi-speed turn

(A) “LO” (B)

“HI”

switch

WARNING

o avoid personal injury or death:

• Do not engage the front-wheel drive when traveling at road speed.

• When driving on icy, wet, or loose surfaces, make sure the tractor is correctly ballasted to avoid skidding and loss of steering control. Operate at reduced speed and engage frontwheel drive.

• 4WD model tractor is equipped with 4-wheel braking and appropriate care should be taken during hard braking.

• Do not brake suddenly. An accident may occur as a result of a heavy towed load shifting forward or loss of control.

• The braking characteristics are different between 2 and 4-wheel drive tractor models. Be aware of the difference and use carefully.

• Do not use Bi-speed turn at high speed.

• Bi-speed turn enables short and fast turns, therefore, become familiar with its performance before operating in close or confined areas.

Press the right half of this switch;

• The front wheel drive (4WD) is engaged.

• The 4WD indicator comes on when the system is in 4WD mode.

Press the left half;

• The Bi-speed turn system activates.

• The 4WD indicator and Bi-speed turn indicator come on when the system is in Bi-speed turn mode.

It returns to a central position;

• The drive system returns to 2WD mode

• The all indicators goes off when the system is in 2WD mode.

STARTING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

• T

urning at the end of rows. (planting, cultivating,

harrowing.)

• Increasing maneuverability when working in tight spaces.

IMPORTANT :

• Tires will wear quickly if the front-wheel drive is engaged on paved roads.

20. Hand throttle lever

Pulling the throttle lever back decreases engine speed, and pushing it forward increases engine speed.

(1) 4WD switch and Bi-speed

turn switch

(A)

4WD “ON”

(B) Bi-speed turn “ON” (C) 2WD “ON”

(1) 4WD indicator (2) Bi-speed turn indicator

NOTE :

• This

switch can be operated when the tractor is on the go or at rest without depressing the clutch.

• Bi-speed turn system works when you press the 4WD and Bi-speed turn switch and the front tire (inside of the turn) exceeds 35 degrees. Bi-speed turn makes the front tire speed 1.6 times faster than the standard 4WD front tire speed.

• Bi-speed turn operates only when the tractor travel speed is 10 km/h (6.2 mph) or less at the start of the turn.

19.1 Front-wheel drive and Bi-speed turn usage

Front-wheel drive is effective for the following jobs:

• When working in a wet field, when pulling a trailer, disking or harrowing.

• When working in sandy soil.

• When working on a hard soil where a rotary tiller might push the tractor forward.

• For increased braking at reduced speed.

Bi-speed turn use is effective for the following jobs:

greater pulling force is needed, such as

(1) Hand throttle lever

“INCREASE”

“DECREASE”

21. Foot throttle

Use the foot throttle when traveling on the road. Press down

on it for higher speed. The foot throttle is interlocked with the hand throttle lever; when using the foot throttle, keep the hand throttle lever in low idling position.

(1) Foot throttle

STOPPING THE TRACTOR

1. Slow down the engine.

Step on the clutch and brake pedal.

3. Wait for the tractor to stop.

OPERATING THE TRACTOR CHECK DURING DRIVING

M4N-071, M5N-091, M5N-111

4. Disengage the PTO.

Lower the implement to the ground.

6. Shift the transmission to neutral.

7. Release the clutch pedal.

8. Set the parking brake.

CHECK DURING DRIVING

IMPORTANT : Immediately stop the engine if:

• The accelerates.

• Unusual noises are suddenly heard.

• Exhaust fumes suddenly become very dark.

While driving, check the following items to see that the all parts are functioning normally:

• 1. Engine over-speed limiting indicator on page 58

• 2. Easy Checker™ on page 58

• 3. Fuel gauge on page 59

• 4. DEF/AdBlue® gauge (M5N-091, M5N-111) on

page 60

• 5. Coolant temperature gauge on page 60

• 6. Tachometer on page 60

1. Engine over-speed limiting indicator

The engine over-speed limiting indicator informs the operator buzzer. If the warning sounds, immediately lower engine rpm with brakes, etc. When the engine rpm decreases, the warning will stop.

(1) Engine over-speed limiting

indicator

NOTE :

• Normal but, for instance, if suddenly shifting down when running with a trailer at full speed, the tractor will be pushed by the trailer and may go into over-speed.

engine suddenly slows down or

of engine over-speed by indicator and warning

operation will not lead to over-speed,

2. Easy Checker

the warning indicators on the Easy Checker™ come on during operation, immediately stop the engine and find the cause as follows. Never operate the tractor while an Easy Checker indicator is on.

(1) Easy Checker

Engine warning

This indicator serves the following 2 functions. If the warning indicator lights up, pinpoint the cause and take proper measures.

1. Error with the engine control system If during operation the water temperature gauge reads an acceptable level but the warning indicator on the Easy Checker™ comes on, stop the engine and then restart it. If the error happens again, consult your local KUBOTA Dealer.

IMPORTANT :

2. Engine overheat If the water temperature gauge reads an unusual level and the warning indicator on the Easy Checker™ comes on, the engine may have overheated. Check the tractor by reading the troubleshooting section of this manual. (See TROUBLESHOOTING on page 133.)

™

• If the warning indicator lights up, the following phenomena may appear depending on the engine's trouble spot.

– The engine stops unexpectedly. – The engine fails to start or gets

interrupted just after starting. – The engine output is not enough. – The engine output is enough, but the

warning indicator stays on.

If the engine output is not enough, immediately interrupt the operation and move the tractor to a safe place and stop the engine.

™

CHECK DURING DRIVING OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

Engine oil pressure

If the oil pressure in the engine drops below the prescribed level, the warning indicator on the Checker™ will come on. If this should happen during operation, and it does not go off when the engine is accelerated to more than 1000 rpm, check the engine oil level. (See 5. Checking engine oil level on page 100.)

DEF/AdBlue® system warning (M5N-091

M5N-111)

If trouble should occur in the DEF/AdBlue® system, the warning indicator on the Easy Checker™ will light up. If this should happen during operation, check the DEF/AdBlue® system or consult your local KUBOTA Dealer.

Fuel level

If the fuel in the tank drops below the prescribed level (less than 17 L (4.9 gals.)), the indicator on the Easy Checker™ will come on. If this should happen during operation, refuel as soon as possible. (See 2. Checking and refueling

on page 98.)

IMPORTANT :

• When the fuel indicator lights up, refuel the tank as soon as possible. If the tractor runs out of fuel and stalls, the engine and its components may be damaged.

Water separator

If water or impurities collect in the water separator the indicator on the Easy Checker™ will light up. If this should happen during operation, drain the water from the water separator as soon as possible. (See 4. Checking water separator on page 100.)

Easy

If this should happen during operation, check the electrical charging system or consult your local KUBOT

A Dealer.

Master system warning

If trouble should occur at the engine, transmission or other control parts, the warning indicator flashes as a warning. If the trouble is not corrected by restarting the tractor

, consult your local KUBOTA Dealer.

NOTE :

• For checking and servicing of your tractor, consult your local KUBOTA Dealer for instructions.

• The DEF/AdBlue® system warning indicator and the DEF/AdBlue® level indicator correspond only to the M5N-091 and M5N-111 tractor models.

3. Fuel gauge

When the key switch is on, the fuel gauge indicates the fuel level.

careful not to empty the fuel tank. Otherwise air may

Be enter the fuel system. Should this happen, the system should be bled. (See 1. Bleeding fuel system on page 127.) If the engine runs out of fuel and stalls, the master system warning indicator lights up. When the indicator appears, turn the key switch to “OFF” and then to “ON” again in order to turn off the indicator.

If the indicator does not turn off by restarting the tractor, consult your local KUBOTA Dealer.

DEF/AdBlue® level (M5N-091

If the DEF/AdBlue® in the tank drops below the prescribed level, or if a poor-quality product is added, the indicator on the Easy Checker™ will light up. If this should happen during operation, refill or replace with DEF/AdBlue® as soon as possible. (See SELECTIVE CATALYTIC REDUCTION (SCR)

MUFFLER on page 38.)

Emission indicator

If this indicator lights up, take the steps to lower the water temperature. This helps keep the emission clean.

Electrical charge

If the alternator is not charging the battery indicator on the Easy Checker™ will come on.

, M5N-111)

, the

(1) Fuel gauge (2)

Master system warning indicator

(A) “FULL” (B) “EMPTY”

OPERATING THE TRACTOR CHECK DURING DRIVING

M4N-071, M5N-091, M5N-111

4. DEF/AdBlue®

gauge (M5N-091,

M5N-111)

The DEF/AdBlue® level in the DEF/AdBlue® tank is indicated with LCD blocks. If DEF/AdBlue® level drops too low, the engine output is restricted. With this in mind, be careful not to empty the tank. When the fluid level in the tank has dropped below 15%, the DEF/AdBlue® warning indicator on the instrument panel lights up and stays on. Immediately add DEF/AdBlue® to the specified level.

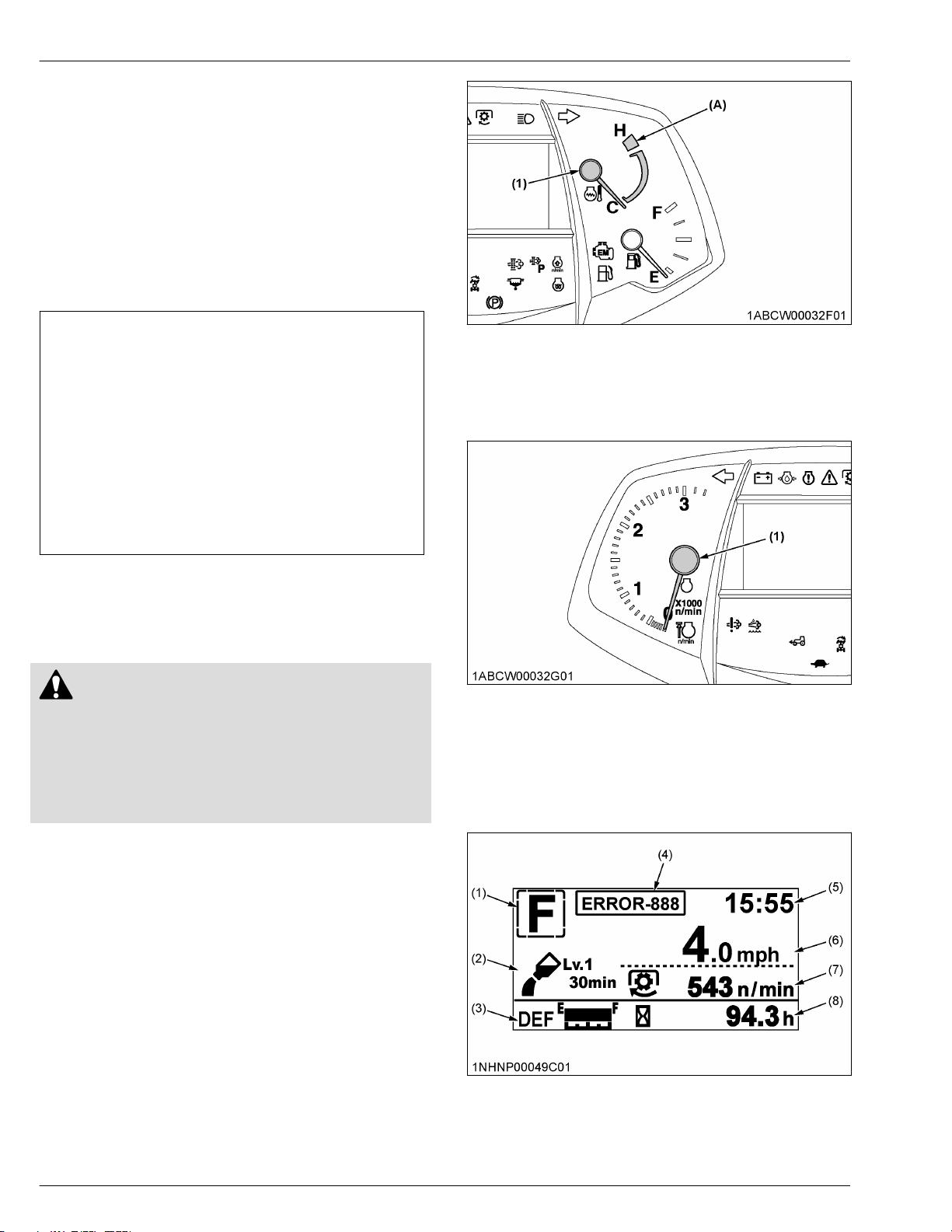

(1) Coolant temperature gauge (A) “RED ZONE”

6. Tachometer

The tachometer indicates the engine speed on the dial.

(1) DEF/AdBlue® gauge

DEF/AdBlue® warning indi-

(2)

cator

(A) “FULL” (B) “EMPTY”

5. Coolant temperature gauge

WARNING

o avoid personal injury or death:

• Do not remove radiator cap until coolant temperature is well below its boiling point. Then, loosen the cap slightly to the first stop to relieve any pressure before removing the cap completely.

1. With the key switch at “ON”, this gauge indicates

the temperature of the coolant. “C” is for cold and “H” is for hot.

2. If the indicator reaches the red zone position, the engine coolant is overheated. Check the tractor by reading the troubleshooting section of this manual. (See TROUBLESHOOTING on page 133.)

(1) Engine revolution

LCD MONITOR

This display provides the operator with a variety of information part of the display can be modified by the operator as required.

necessary to operate the tractor. Further,

LCD MONITOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

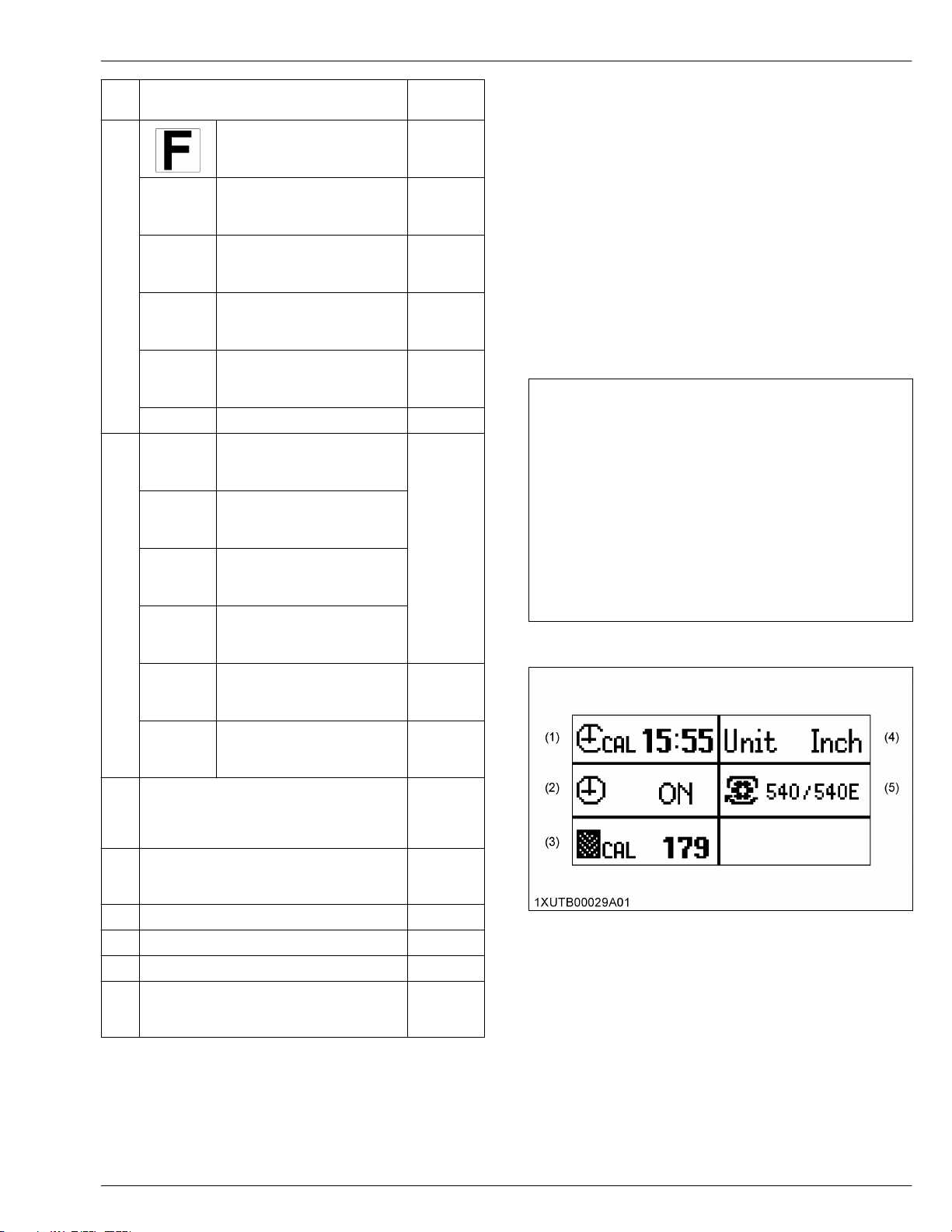

No. Description

Forward operation is selected with the shuttle lever

Reverse operation is selected with the shuttle lever

The shuttle lever is at neutral position.

(1)

The parking brake lever is at parking position.

Travel when the parking brake lever is locked.

No display Shuttle lever system trouble. ---

DEF/AdBlue® low level icon indicator

(M5N-091, M5N-1

DEF/AdBlue® poor quality icon indicator

(M5N-091, M5N-1

DEF/AdBlue® freeze icon indicator

(M5N-091, M5N-1

(2)

SCR system trouble

(M5N-091, M5N-111)

11)

Reference

page

---

consumption display mode in place of the fuel gauge.

• The

travel speed displayed when the wheels slip under traction is different from the actual one.

• In cold weather, the LCD monitor response will normally be slower and the visibility be less than in warmer weather.

1. Various setting mode

While pressing the mode selector switch, turn the key switch to “ON” The various setting mode screen appears on the LCD monitor. The various setting mode can set 5 items. Turn the key switch to “OFF” position to finish setting.

(1) Key switch (2)

Mode selector switch

position.

(3) Select switch (4) LCD monitor

Low temperature regulation indicator

Engine over-speed limiting indicator

DEF/AdBlue® gauge (M5N-091, M5N-1

(3)

Displays the fluid level in the DEF/AdBlue tank.

Trouble display

(4)

A trouble-spot-pinpointing error code and the related control unit are displayed.

(5) Clock 61

(6) Travel speed 61

(7) PTO speed 61

Performance monitor

(8)

Various information can be selected by the operator.

11)

NOTE :

• Errors

may occur in the fuel consumption display depending on the conditions of use. Use the displayed data only as an approximate guide. In particular, do not use the total fuel

135

(1) Clock setting

Clock ON/OFF setting

(2) (3) Tire circumference setting

(4) Unit setting (5) PTO speed display setting

OPERATING THE TRACTOR LCD MONITOR

M4N-071, M5N-091, M5N-111

1.1 Clock setting

1. Press

the mode selector switch to choose “Clock setting”. Then press the “Select” switch, and the clock setting screen appears.

(1) Clock setting

(1) Clock ON/OFF setting

(1) Hour

Minute

(2)

(3) Set switch

2. Setting the “Hour” of the clock: a. Press

the mode selector switch to choose the

“Hour” (highlighted).

b. To put the clock forward, press the “Select”

switch.

3. Setting the “Minute” of the clock: a. Press the mode selector switch to choose the

“Minute” (highlighted).

b. Carry out the “Minute” setting in the same way

as the “Hour” setting.

4. Press the mode selector switch.

5. To complete the setting, select “Set” with the “Select” switch. The various setting mode screen appears again.

(1) Clock ON/OFF setting screen

2. Press the “Select” switch and select

“ON” or “OFF”.

3. Press the mode selector switch.

4. To complete the setting, select “Set” with the

“Select” switch. The various setting mode screen appears again.

1.3 Setting the tire circumference

When optional different-diameter tires are fitted on the machine, changed. Otherwise, the travel speed will not be correctly displayed. Such mode switching is also needed when the original tires are back on the machine.

the travel speed display mode must be

1.2 Setting the clock display ON/OFF

1. Press ON/OFF setting”. Then press the “Select” switch, and the clock ON/OFF setting screen appears.

the mode selector switch to choose “Clock

LCD MONITOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

1. Press

the mode selector switch to choose “Tire circumference”. Then press the “Select” switch, and the tire circumference setting screen appears.

(1) Tire circumference

1.4 Setting the unit

1. Press setting”. Then press the “Select” switch, and the unit setting screen appears.

(1) Unit setting

the mode selector switch to choose “Unit

(1) Tire circumference screen

2. According

to the following table, enter the tire circumference value. a. Press the mode selector switch to select a digit. b. To put the number forward, press the “Select”

switch. The numeral changes from 0 to 9 at each push of the switch.

Tire circumference table (reference)

Rear tire size Entry (in.) Entry (cm)

12.4-24 R1 136 345

380/85 R24 146 371

18.4-16.1 R1 133 338

320/85 R20 123 312

480/65 R24 148 376

3. Press the mode selector switch.

4. T

o complete the setting, select “Set” with the

“Select” switch. The various setting mode screen appears again.

(1) Unit setting screen

2. Press the “Select”

switch to select “Inch” or “cm”.

3. Press the mode selector switch.

4. To complete the setting, select “Set” with the

“Select” switch. The various setting mode screen appears again.

1.5 Setting the PTO speed display

The PTO rpm is set automatically and does not require adjusting.

OPERATING THE TRACTOR LCD MONITOR

M4N-071, M5N-091, M5N-111

2. Performance monitor

Display change

the mode selector switch and “Select” switch to

Use choose one of the items shown in the following table to be displayed on screen.

Priority display

1. When the RPM dual memory setting is “ON”, the engine rpm A or B is displayed on the screen. When selecting any other information such as “Hour meter” or “PM buildup”, the item will displayed for approximately 5 seconds before resuming the engine rpm A or B display.

2. Turn “OFF” the RPM dual memory setting to display any other information continuously. (See 1. RPM dual memory setting on page 65.)

List of types of information displayed on the performance monitor

(1) Performance

monitor

(2) Mode selector

switch

(3) Select switch

Selected

screen (mode)

1/4

2/4

3/4

4/4

Display Remarks

• The

Elapsed time (hour meter)

Trip meter

Instantaneous fuel consumption

Average fuel consumption

Total fuel consumption

PM buildup (percentage) • The PM buildup inside the DPF muffler is displayed.

PM buildup (graph)

Memory A rpm

Memory B rpm

hour meter indicates in 6 digits the hours the tractor

has been used; the last digit indicates 1/10 of an hour.

• The

total operating hours, counted from the previous re-

setting, is displayed.

• The “Instantaneous hour.

• The “A

• The

• Regeneration

• The more the bar is extended to the right, the more PM

• Engine RPM dual memory A rpm is displayed.

• Engine RPM dual memory B rpm is displayed.

verage fuel consumption” is measured per hour

from the previous resetting.

total fuel consumption, measured from the previous

resetting, is displayed.

is needed when the 100% level has been

reached.

has built up.

fuel consumption” is measured per

Reference

page

---

NOTE :

• Hold down the mode selector switch for 2 seconds or longer to reset the “Trip meter”, “Average fuel consumption” and “Total fuel consumption” displays to “0.0”.

ELECTRONIC ENGINE CONTROL OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

ELECTRONIC ENGINE CONTROL

The electronically controlled engine which is installed in this tractor performs the following 2 types of control.

1. RPM dual memory setting

2. Constant RPM Management control

1. RPM dual memory

Two different engine speeds can each be set with a single touch by pressing the RPM dual memory switch to the (A) or (B) side. This can be used to eliminate troublesome acceleration operations.

(1) RPM dual memory switch (A) Switch A

setting

(B) Switch B

During work, simply press the switch to the (A) side to auto-

Work

Turning

Work

• Keep

the hand throttle lever above the minimum

matically set an engine speed of 2000 rpm.

When turning, press the switch to the (B) side to lower the speed to 1000 rpm, allowing turning at low speed.

After turning, press the switch again to the (A) side to resume a speed of 2000 rpm.

speed. At the minimum speed, a memory setup cannot be performed.

• You can also depress the foot throttle to increase the engine speed above the set speed.

Setting the speeds or changing the speed settings

Setting RPM dual memory switch (A).

Example of use

Consider

an example in which an engine speed of 2000 rpm is set for the switch (A) side and a speed of 1000 rpm is set for the switch (B) side.

(A) Light up

Engine revolution is operating in the rpm memory setting value. Flashing Engine revolution is less than the rpm memory setting value.

1. Turn the key switch to “ON”. The

speed setting can be made both when the

engine is running and when it is stopped.

2. Set

the hand throttle lever slightly toward the

higher-speed side.

OPERATING THE TRACTOR ELECTRONIC ENGINE CONTROL

M4N-071, M5N-091, M5N-111

3. Press switch.

4. Press seconds) until the buzzer sounds and then release the switch.

(A) Flashes

5. Press the switch to the (A) or (B) side and set the speed. Pressing and holding down the switch will cause the speed to change continuously. Pressing and releasing the switch changes the speed by 10 rpm each time. Set the desired engine speed while watching the speed display.

the switch (A) side and then release the

again and hold down the switch (A) side (2.5

(A) Increase speed (B) Decrease speed

6. If

the switch is released and not operated for 4 seconds, a continuous buzzer sounds and the setting is completed.

7. Follow the same procedure as for the (A) side to set the speed for the switch (B) side.

NOTE :

• The set speeds will be stored even after the engine is stopped.

Canceling the setting

of the actions below will cancel the RPM dual

Any memory settings.

1. For the switch (A) side, when the memory speed is engaged, press the switch (A) again to cancel. For the switch (B) side, when the memory speed is engaged, press the switch (B) again to cancel.

2. When the memory speed is canceled, the speed will return to the speed that is determined by the hand throttle lever (foot throttle). When the switch is pressed, the LCD will display the engine speed that is in effect after memory speed is canceled.

3. Return the hand throttle lever to the lowest speed position.

4. Turn the key switch to “OFF”.

2. Constant RPM Management

control

Constant RPM Management “OFF” by operating the switch.

Pressing the switch turns the control “ON” and pressing the switch again turns it “OFF”.

can be turned “ON” or

PARKING THE TRACTOR OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

When Constant RPM Management

Fluctuations in the engine speed due to load fluctuations are reduced and the travel speed and PTO speed are kept nearly constant, allowing stable work. When Constant RPM Management is “ON”, the switch's indicator lights up.

When Constant RPM Management is “OFF”

As in a conventional engine, the engine speed increases or decreases according to changes in the load. The operator judges the size of the load from the engine speed and engine sound, and can adjust the travel speed or plowing depth to prevent overload on the tractor.

is “ON”

PARKING THE TRACTOR

WARNING

o avoid personal injury or death:

T Before dismounting tractor

• Always set parking brake and lower all implements to the ground. Leaving the transmission in gear with the engine stopped will not prevent the tractor from accidental rolling.

• Stop the engine and remove the key.

1. Before lower all implements, place all control levers in their neutral positions, pull the parking brake lever to parking position, stop the engine and remove the key.

2. If it is necessary to park on an incline, be sure to chock the wheels to prevent accidental rolling of the tractor.

getting off the tractor, disengage the PTO,

(1) Constant RPM Management switch with indicator

NOTE :

• In

a mechanically-controlled engine, the engine speed changes according to increases and decreases in the load. For example, when working in a hilly area, the load increases and engine speed drops while ascending a slope, and conversely the engine speed increase and the load drops when descending. These changes in engine speed affect the travel speed and PTO-driven implements. In order to minimize these effects, the operator must make fine adjustments to the travel speed and hand throttle lever. When the Constant RPM Management switch in this tractor with its electronically controlled engine is turned “ON”, the engine speed will be kept nearly constant in response to a certain level of load fluctuations. This improves the accuracy of work without the need for troublesome manipulation of the travel speed and hand throttle lever.

• There is a limit to the range within which a constant speed can be maintained. If a load exceeding the engine performance is applied, the engine speed will drop.

• The purpose of Constant RPM Management is not to increase the engine power.

(1) Parking brake lever

Release button

(2) (A) “PARKING POSITION”

(B) “TRANSPORT POSITION”

OPERATING TECHNIQUES

1. Differential lock

WARNING

To avoid personal injury or death due to loss of steering control:

• Do not operate the tractor at high speed with differential lock engaged.

• Do not attempt to turn with the differential lock engaged.

• Be sure to release the differential lock before making a turn in field conditions.

If one of the rear wheels should slip, step on the differential lock pedal. Both wheels will turn together, then reduce slippage. Differential lock is maintained only while the pedal is depressed.

OPERATING THE TRACTOR OPERATING TECHNIQUES

M4N-071, M5N-091, M5N-111

(1) Differential lock pedal (A)

Press to “ENGAGE”

IMPORTANT :

• When the engine down.

• To prevent damage to the power train, do not engage the differential lock when one wheel is spinning and the other is completely stopped.

• If the differential lock cannot be released, step lightly on the brake pedals alternately.

using the differential lock, always slow

(B) Release to “DISENGAGE”

2. Operating the tractor on a road

WARNING

o avoid personal injury or death:

• To help assure straight line stops when driving at transport speeds, lock the brake pedals together. Uneven braking at road speeds could cause the tractor to roll-over.

• When traveling on road with 3-point hitch mounted implement attached, be sure to have sufficient front weight on the tractor to maintain steering ability.

• When traveling on road with or without trailer, you must comply with local regulations at all time. The maximum traveling speed with trailer is determined by each country, and regulated speeds may vary according to the size of trailer and type of trailer brake system.

Be sure the SMV emblem and warning lamps are clean and visible. If towed or rear-mounted equipment obstructs these safety devices, install the SMV emblem and warning lamps on the equipment. Consult your local KUBOTA Dealer for further details.

(1) SMV emblem (2) Bracket

3. Operating on slopes and rough terrain

WARNING

o avoid personal injury or death:

• Always back up when going up a steep slope. Driving forward could cause the tractor to tip over backward. Stay off hills and slopes too steep for safe operation.

• Avoid changing gears when climbing or descending a slope.

• If operating on a slope, never disengage the clutch or shift levers to neutral. Doing so could cause loss of control.

• Do not drive the tractor close to the edges of ditches or banks which may collapse under the weight of the tractor, especially when the ground is loose or wet.

1. Be

2. Slow down for slopes, rough ground, and sharp

3. Before descending a slope, shift to a gear low

sure wheel tread is adjusted to provide maximum stability. (See WHEEL ADJUSTMENT on page 84.)

turns, especially when transporting heavy, rear mounted equipment.

enough to control the speed without using brakes.

4. Transporting the tractor safely

1. The

2. Follow the instructions below when towing the

tractor, if damaged, must be carried on a truck.

Secure the tractor tightly with ropes.

tractor. Otherwise, the tractor's powertrain may be damaged.

• Set all the shift levers to “NEUTRAL” position.

• If possible, start the engine and select 2WD; if creep speed is fitted ensure that it is disengaged.

• Tow the tractor using its front hitch or drawbar.

• Never tow faster than 10 km/h (6.2 mph).

OPERATING TECHNIQUES OPERATING THE TRACTOR

M4N-071, M5N-091, M5N-111

5. Directions for use of power steering

• Power running. Slow engine speeds make the steering a little heavier. While the engine is stopped, the tractor functions in the same manner as tractors without power steering.

• When the steering wheel is turned all the way to the stop, the relief valve is activated. Do not hold the steering wheel in this position for a long period of time.

• Avoid turning the steering wheel while the tractor is stopped, or tires may wear out sooner.

• The power steering mechanism makes the steering easier. Be careful when driving on a road at high speeds.

steering is activated only while the engine is

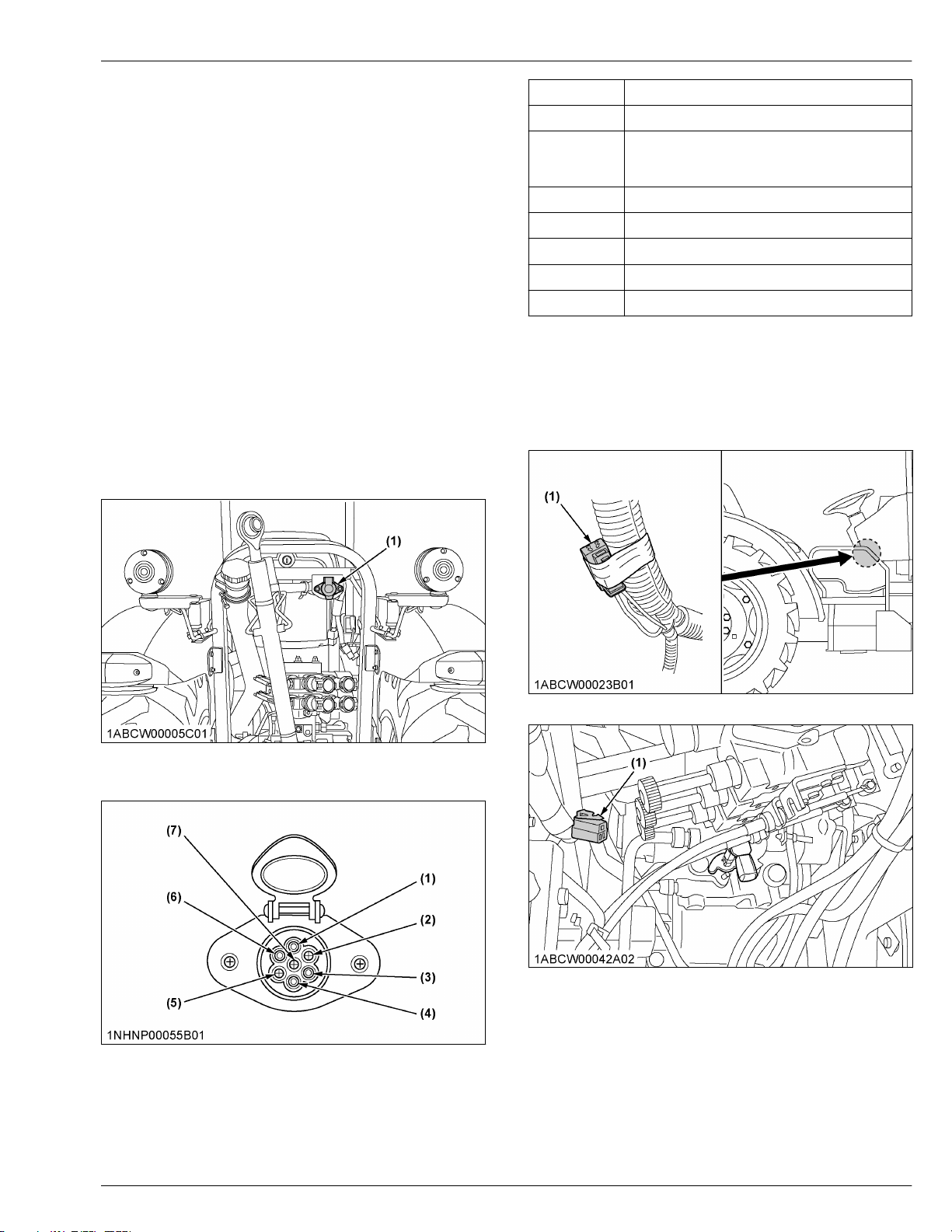

6. Trailer electrical outlet

A trailer electrical outlet is supplied for use with trailer or implement.

Terminal Function

(1) Ground

(2)

(3) Turn signal light (LH)

(4) Brake stop light

(5) Turn signal light (RH)

(6) Registration plate light

(7) ---

Tail light Side marker light Parking light

7. Electrical outlet

The tractor is equipped with electrical outlets which serve the following functions.

For use with accessory

(1) Trailer electrical outlet

Function of each terminal in trailer electrical outlet

(1) Accessory electrical outlet (max 15 A)

PTO PTO OPERATION

M4N-071, M5N-091, M5N-111

PTO

PTO OPERATION

WARNING

o avoid personal injury or death:

• Disengage the PTO, stop the engine, and allow all rotating components to come to a complete stop before connecting, disconnecting, adjusting, or cleaning any PTO driven equipment.

1. PTO clutch control switch

The PTO clutch control switch engages or disengages the

PTO clutch which gives the PTO independent

control.

To turn “ON”

1. While

To turn “OFF”

1. T

pushing the switch, turn clockwise to the position and release your hand. (In the ON position, switch slightly rises itself.)

ap on top of the switch, and the switch will return

to the OFF position.

(1) PTO clutch control switch

“ON”

Turn the switch to “ON” to the switch to “OFF” to disengage the PTO clutch.

IMPORTANT :

• To avoid shock loads to the PTO, reduce engine speed when engaging the PTO, then open the throttle to the recommended speed.

NOTE :

• Tractor engine will not start if PTO clutch control switch is in the engaged “ON” position.

• If the PTO system is engaged and you stand up from the seat, the warning buzzer will whistle for about 10 seconds after standing up. This is because the tractor is equipped with “Operator Presence Control System”.

“OFF”

engage the PTO clutch. Turn

(A) “PUSH”

2. PTO clutch indicator

The PTO clutch indicator turns on while PTO clutch control switch is in “ON” (engage) position.

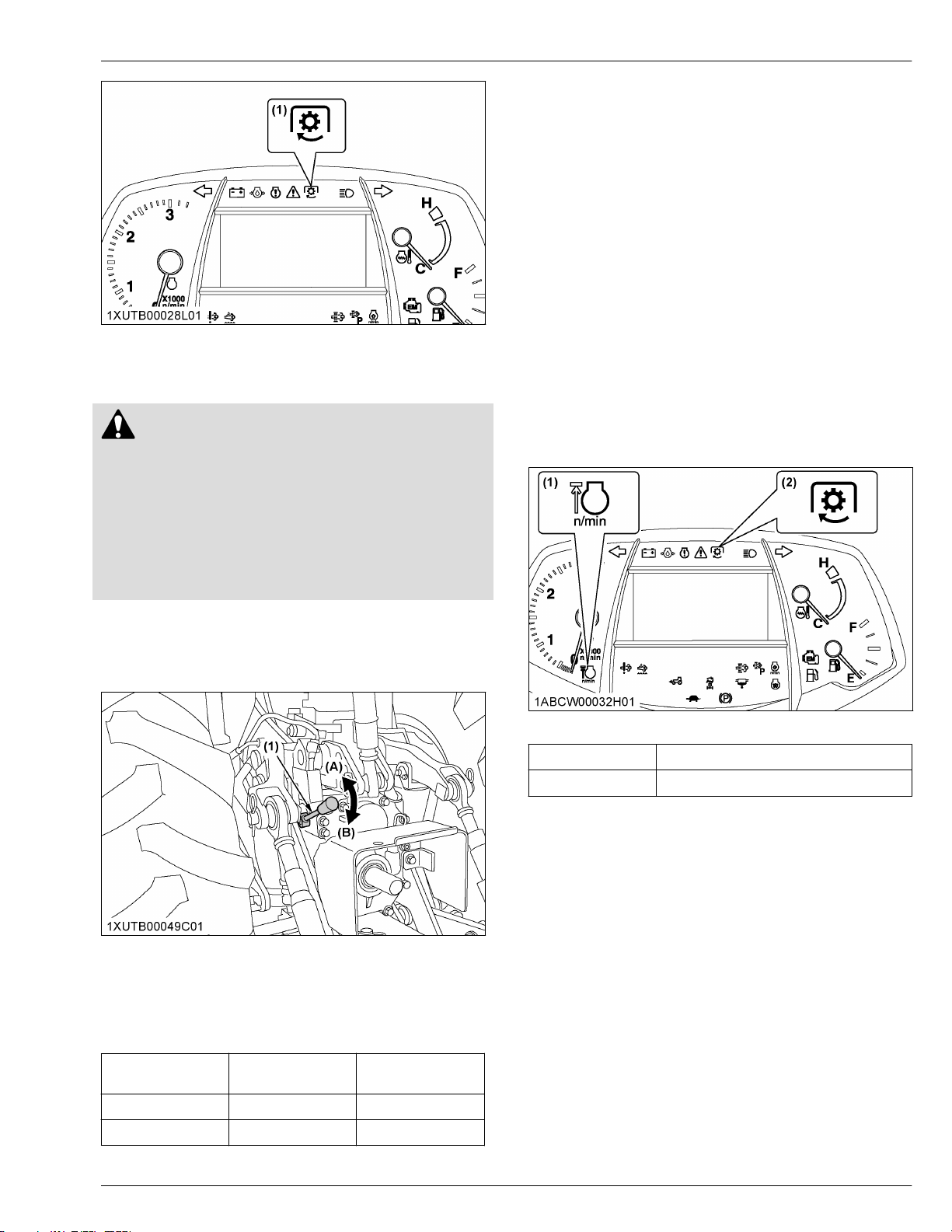

PTO OPERATION PTO

M4N-071, M5N-091, M5N-111

4. PTO speed limiter

NOTE :

the PTO gear shift lever to “540E” and

(1) PTO clutch indicator

3. PTO gear shift lever

WARNING

o avoid personal injury or death:

• Be sure to observe the PTO shaft speed prescribed for the individual implements. It is extremely dangerous to run an implement at high speed that is meant to be operated at low speed. Use only when this higher rpm is specifically recommended by the implement manufacturer.

• Move then turn on the PTO clutch control switch, and the rev-limiter indicator lights up on the meter panel.

• If the PTO clutch control switch is turned on with the engine rpm higher than the PTO 540E limit level, the PTO clutch indicator on the meter panel starts blinking and the PTO is disabled. After a while, the engine rpm automatically drops below the PTO 540E limit level and the PTO starts functioning. At the same time, the flashing PTO clutch indicator stays “ON”.

• If the PTO clutch control switch is turned “OFF” but the engine rpm fails to rise with the throttle, return the engine rpm to a lower level. This enables acceleration again.

The PTO gear shift lever can be set to either 540 rpm or 540E rpm positions. Move this lever to either position with the PTO clutch control switch set to “OFF”.

(1) PTO gear shift lever

540 rpm

(A)

(B) 540E rpm

NOTE :

• When

light load, select the “540E” position for

economical operation.

PTO gear shift lev-

540 2385 540

540E 1764 540

Engine speed rpm PTO speed rpm

(1) Rev-limiter indicator (2) PTO clutch indicator

PTO Limitation PTO/Engine speed (rpm)

540E 630/2057

5. PTO rpm display

The PTO rpm can be checked on the LCD monitor. When the PTO system gets engaged (ON), the indicator lights up.

PTO PTO OPERATION

M4N-071, M5N-091, M5N-111

(1) PTO rpm (2) PTO clutch indicator

6. PTO shaft cover and shaft cap

Keep the PTO shaft cover in place at all times.

back the PTO shaft cap when the PTO is not in

Put use. Before connecting or disconnecting a drive shaft to PTO shaft, be sure engine is “OFF”.

(1) PTO shaft cover (2) PTO shaft cap

IMPORTANT :

• The

universal joint of the PTO drive shaft is technically limited in its moving angle. Refer to the PTO Drive Shaft Instructions for proper use.

3-POINT HITCH AND DRAWBAR

M4N-071, M5N-091, M5N-111

3-POINT HITCH AND DRAWBAR

(1) Top link (2)

Lifting rod (left) (3) Stabilizer (4) Lower link (5) Lifting rod (right) (6) Drawbar

3-POINT HITCH AND DRAWBAR THE 3-POINT HITCH SETUP

M4N-071, M5N-091, M5N-111

THE 3-POINT HITCH SETUP

1. Make preparations for attaching implement.

• 1. Selecting the holes of lower links on page

• 2. Selecting the top link mounting holes on page

• 3. Drawbar on page 74

2. Attaching and detaching implements

WARNING

o avoid personal injury or death:

• Be sure to stop the engine.

• Do not stand between tractor and implement unless the parking brake is applied.

• Before attaching or detaching the implement, locate the tractor and implement on a firm level surface.

• Whenever an implement or other attachment is connected to the tractor 3-point hitch, check full range of operation for interference, binding or PTO separation.

• Do not exceed the maximum allowable length of either lifting rod, or the lifting rod will come apart and the 3-point equipment may fall.

• Install lower link.

• Tighten the nut by hand and fix the nut with the cotter pin.

the thrust collar in the outside of the

2. Selecting the top link mounting holes

Select the proper set of holes. (See 5.

page 83.)

If the hydraulic unit is set for draft control, draft response is more sensitive when an implement is connected to the lower set of top link mounting holes. If draft control is not required, it is recommended to use the top set (1).

Hydraulic control unit use-reference chart on

• 4. Lifting rod (left) on page 74

• 5. Lifting rod (right) on page 75

• 6. Top link on page 75

• 7. Stabilizer on page 75

1. Selecting the holes of lower links

There are 2 holes in the lower links. For most operations, hole.

(1) Lower link

Lifting rod

(2) (3) Split pin (4) Nut

the lifting rods should be attached to the (B)

(5) Lift rod pin (6) Thrust collar (A) Hole (B) Hole

3. Drawbar

Remove the drawbar if a close mounted implement is attached.

4. Lifting rod (left)

By turning the rod itself, the lifting rod varies its length. When

extending the rod, do not exceed the groove on

the rod thread.

NOTE :

• The

lifting rods may be attached to (A) for

greater lifting force.

(1) Lifting rod (A) “GROOVE”

THE 3-POINT HITCH SETUP 3-POINT HITCH AND DRAWBAR

M4N-071, M5N-091, M5N-111

5. Lifting rod (right)

WARNING

o avoid personal injury or death:

• Do not extend lifting rod beyond the groove on the thread rod.

o adjust the length of the lifting rod, lift the

1. T adjusting handle and turn to desired length.

2. After adjusting, the lifting rod adjusting handle must be returned and stored in the fore and aft position.

3. When extending the rod using the adjusting handle, do not exceed the groove on the rod thread.

(1) Top link (A) “Length of the screw”

NOTE :

• The

length of the screw at both ends of the

7. Stabilizer

The stabilizer is used to adjust the lower link width. Rotate the turnbuckle to adjust the stabilizer length.

adjusting, make sure both the stabilizers are

(1) Lifting rod

Adjusting handle

(2)

When equal in overall length.

Turnbuckle locked position

After adjusting the stabilizer length, the turnbuckle must remain in the locked position.

(A) “GROOVE”

(1) Adjusting handle (2)

Lock pin

(A) “LOCK POSITION”

6. Top link

1. Adjust position by shortening or lengthening the top link.

2. The proper length of the top link varies according to the type of implement being used.

(B) “UNLOCK POSITION”

the angle of the implement to the desired

(1) Turnbuckle

Set-pin

(2)

(3) Hex wrench handle (4) Stabilizer

3-POINT HITCH AND DRAWBAR THE 3-POINT HITCH SETUP

M4N-071, M5N-091, M5N-111

7.1 Turnbuckle unlocked position

1. Lift

(1) Set-pin (2) Hex wrench handle (A) “Lift”

2. Lower

the set-pin and slide the hex wrench handle

forward.

(B) “Slide forward”

the set-pin and make sure the hex wrench

handle cannot move past the set-pin tip.

Example: turnbuckle (RH) counterclockwise

(1) Set-pin (2) Hex wrench handle

7.2 Rotating the turnbuckle

1. Use

2. Slide the hex wrench handle forward to release it

3. Rotate the hex wrench handle and slide it backward

4. Repeat steps 1 to 3 until the desired stabilizer

the hexagonal part of the wrench and the hex

wrench handle to rotate the turnbuckle once.

from the turnbuckle.

until the hexagonal part is locked on the turnbuckle.

length is achieved.

(1) Hexagonal part (2)

Turnbuckle (3) Hex wrench handle (A) “Rotate”

(B) “Slide forward” (C) “Slide backward”

NOTE :

• Adjusting

the left hand side stabilizer is done the same way as for the right hand side stabilizer.

DRAWBAR

WARNING

o avoid personal injury or death:

• Never pull from the top link, the rear axle or any point above the drawbar. Doing so could cause the tractor to tip over rearward.

1. Adjusting drawbar length

1. When towing an implement, it is recommended that the (A) hole in drawbar be utilized.

Rotating Stabilizer length Lower link width

clockwise Shorten Widen

Counterclockwise Lengthen Narrow

DRAWBAR 3-POINT HITCH AND DRAWBAR

M4N-071, M5N-091, M5N-111

2. For

information about the drawbar load, read the implement limitations section of this manual. (See IMPLEMENT LIMITATIONS on page 25.)

(1) Drawbar

(1) Drawbar (2)

Pivot pin

(A) Hole

(B) Hole

HYDRAULIC UNIT 3-POINT HITCH CONTROL SYSTEM

M4N-071, M5N-091, M5N-111

HYDRAULIC UNIT

IMPORTANT :

not operate until the engine is warmed up. If

• Do operation is attempted when the engine is still cold, the hydraulic system may be damaged.

• If noises are heard when implement is lifting after the hydraulic control lever has been activated, the hydraulic mechanism is not adjusted properly. Unless corrected, the unit will be damaged. Contact your KUBOTA Dealer for adjustments.

A standard tractor has the following hydraulic control systems. Choose the most appropriate system for the implement you are using.

3-point hitch control system

• Position control

• Draft control

• Mixed control

• Float control

Remote hydraulic control system

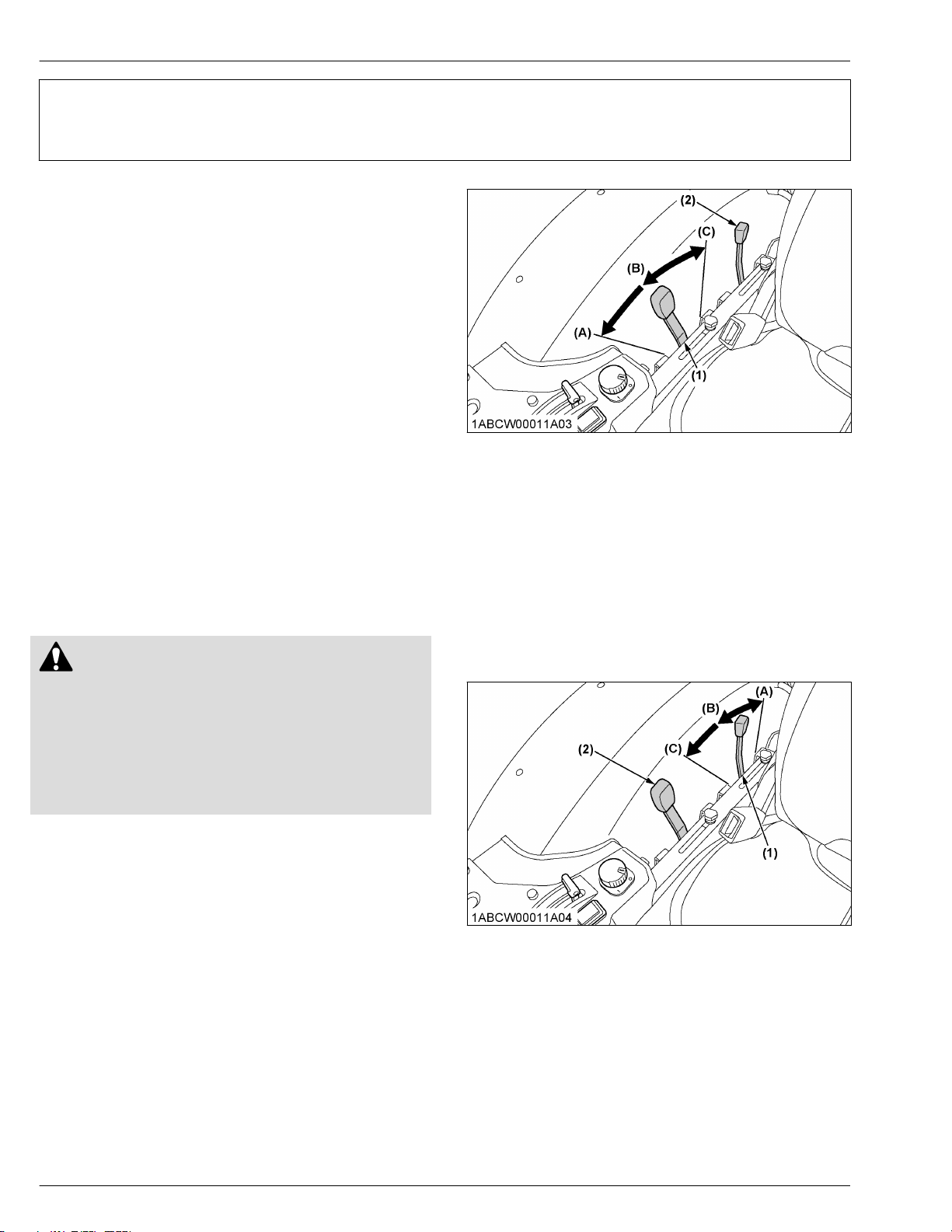

3-POINT HITCH CONTROL SYSTEM

WARNING

o avoid personal injury or death:

• Before using the 3-point hitch controls, ensure that no person or object is in the area surrounding the implement or 3-point hitch. Do not stand on or near the implement or between the implement and tractor when operating the 3point hitch controls.

(1) Position control lever (2)

Draft control lever

(A) “FLOAT” (B) “DOWN” (C) “UP”

2. Draft control

This will control the pull of the 3-point implement.

the load on the 3-point hitch changes due to various

As soil conditions, the draft control system automatically responds to these changes by either raising or lowering the implement slightly to maintain a constant pull. Place the position control lever in the lowest position and set the implement pull with the draft control lever.

1. Position control

This will control the working depth of the 3-point hitch mounted required.

implement regardless of the amount of pull

(1) Draft control lever

Position control lever

(2) (A) “SENSITIVE”

(B) “INSENSITIVE” (C) “FLOAT”

3. Mixed control

In draft control, when draft decreases, the implement automatically lowers to increase draft. However To limit the degree to which the implement can be lowered, set the position control lever at the lowest working depth desired for the implement. Lower the

, the implement sometimes lowers too much.

3-POINT HITCH CONTROL SYSTEM HYDRAULIC UNIT

M4N-071, M5N-091, M5N-111

draft control lever to the point where the implement is at the desired depth. This

stops the implement from going too deep and

causing loss of traction and ground speed.

(1) Ground surface

Implement penetration limit

(2) (3) Light soil

4. Float control

Place both the draft control lever and the position control

lever in the float position to make the lower links

move freely along with the ground conditions.

5. 3-point hitch lowering speed

WARNING

o avoid personal injury or death:

• A fast lowering speed may cause damage or injury. Lowering speed of implement should be adjusted to 2 or more seconds.

REMOTE HYDRAULIC CONTROL SYSTEM

hydraulic auxiliary control valves can be installed

The with up to 5 segments.

1. Remote control valve

There are 3 types of remote valves available for these models.

•

Double acting valve with detents and self canceling: This valve may be placed in the detent mode. The lever will stay in this position until the pressure reaches a predetermined level or a cylinder reaches the end of its stroke. Then it will automatically return to neutral.

• Double acting valve with float position: This valve may be placed in the float mode with the control lever all the way forward. The cylinder is free to extend or retract, letting an implement such as a loader bucket follow the ground.

• Single or double acting valve: This valve can be utilized as single or double acting valve by adjusting the auxiliary control valve selector knob located on the valve.

1. Turn the auxiliary control valve selector knob

clockwise all the way to utilize as single acting valve.

2. Turn the auxiliary control valve selector knob

anticlockwise all the way to utilize as double acting valve.

The lowering speed of the 3-point hitch can be controlled by adjusting the 3-point hitch lowering speed knob.

(1) 3-point hitch lowering speed

knob

(A)

“FAST”

(B) “SLOW” (C) “LOCK”

(1) Single or double acting valve (2)

Auxiliary control valve selector knob

(A) Double acting (B) Single acting

HYDRAULIC UNIT REMOTE HYDRAULIC CONTROL SYSTEM

M4N-071, M5N-091, M5N-111

2. Remote control valve lever

remote control valve lever directs pressurized oil

The flow to the implement hydraulic system.

Example: Installing fifth segment valves

Double acting valve with detents and self

1st

Standard

valves

Optional

valves

(selectable

configura-

tion)

canceling

Double acting valve with detents and self

2nd

canceling

3rd Double acting valve with float position

4th Double acting valve with float position

5th Single or double acting valve

Pressure Returning

Double acting valve with detents and self canceling

Lever 1

Port

Z (detent) Y X Z (detent)

(A) out

(B) in out

Lever position

(1) Remote control valve lever 1

(standard)

(2) Remote control valve lever 2

(standard)

(3) Remote control valve lever 3

(option)

(4) Remote control valve lever 4

(option)

(5) Remote control valve lever 5

(option)

[A] Double acting valve with de-

tents and self canceling

[B] Double acting valve with

float position

[C] Single or double acting valve

Double acting valve with detents and self canceling

Lever 2

Port

Z (detent) Y X Z (detent)

(D) in out

Lever position

Double acting valve with float position

Lever 3

Port

Z (detent) Y X

(E) in

(F) out in out

Lever position

out in

Float

Double acting valve with float position

Lever 4

Port

Z (detent) Y X

(G) in

(H) out in out

Lever position

out in

Float

Single or double acting valve

Double-acting Single-acting

Lever 5

Y X Y X

(I) out

Port

(J) in out in out

Lever position

in - -

IMPORTANT :

• Do

not hold the lever in the “Pull” or “Push”

position once the remote cylinder has reached

REMOTE HYDRAULIC CONTROL SYSTEM HYDRAULIC UNIT

M4N-071, M5N-091, M5N-111

the end of the stroke, as this will cause oil to flow

through the relief valve. Forcing oil through the relief valve for extended periods will overheat the oil.

NOTE :

• Connect the pressure of load side of implement cylinders to ports (B), (D), (F), (H) or (J) which have built-in load check valves to prevent leakage.

• To use the single-acting cylinder with the float valve, connect this cylinder to the (B), (D), (F), (H) or (J) port. To extend a single-acting cylinder, pull the remote control valve lever rearward. To retract a cylinder, push it fully forward to the “FLOAT” position. Do not hold it in the down position or the transmission fluid may overheat.

3. Remote control valve coupler

WARNING

o avoid personal injury or death:

• Stop the engine and relieve pressure before connecting or disconnecting lines.

• Do not use your hands to check for leaks.

Connecting

Clean both couplers.

2. Remove dust plugs.

3. Insert the implement coupler into the tractor hydraulic coupler.

4. Pull the implement coupler slightly to make sure couplers are firmly connected.

Disconnecting

1. Lower

hydraulic pressure from the hoses.

2. Clean the couplers.

3. Relieve pressure by moving hydraulic control levers

with engine shut off. Pull the hose straight from the hydraulic coupler to release it.

4. Clean oil and dust from the coupler, then replace

the dust plugs.

the implement to the ground to release

4. Controlling and adjusting the flow rate

WARNING

o avoid the possibility of personal injury or death

T be aware of the following when making adjustments:

• The 3-point hitch operation is influenced by the combination of the adjustment of the flow control valve and the engine speed.

• The 3-point hitch may rise slowly or not at all at low engine rpm.

• The 3-point hitch may rise suddenly if engine rpm is increased, or, flow control adjustment is changed.

Flow control

remote control valve with flow control may be

The added for the following purposes.

1. The attachments that are connected with the auxiliary control valve can be independently adjusted for flow rate.

2. To operate within limits, the remote control valves (1) and/or (2) and the 3-point hitch at the same time without one affecting the other.

3. To maintain within limits, the constant speed of an attachment (hydraulic motor RPM, for example) when connected to the remote control valves (1) and/or (2).

NOTE :

• At slower engine speeds the total hydraulic flow rate may be inadequate for simultaneous operation of the remote control valves (1) and/or (2) and the 3-point hitch, or operation of an attachment connected to the remote control valves (1) (2). Under these conditions, the engine speed must be increased to provide additional hydraulic flow.

NOTE :

• Your local KUBOTA Dealer can supply parts for adapting couplers to hydraulic hoses.

HYDRAULIC UNIT REMOTE HYDRAULIC CONTROL SYSTEM

M4N-071, M5N-091, M5N-111

(1) Remote control valve (1)

with flow control

(2)

Remote control valve (2) with flow control

(3) Flow control knob for valve

(1)

(4) Flow control knob for valve

(2)

Adjusting the flow rate

1. The

flow rate for the remote control valves (1) and

(2) can be adjusted.

2. Turn the flow control knobs (3) and/or (4) counterclockwise (A), and the flow rate for the remote control valves (1) and/or (2) increases. A clockwise turn (B) of the knob causes the flow to decrease. If the knob is turned all the way (C), there will be no flow.

3. To adjust the flow rate, set the engine speed to the operating RPM, turn the flow control knob once all the way clockwise (C), and then turn it gradually counterclockwise until a required flow rate is reached.

NOTE :

• Oil from the pump flows by priority to the auxiliary control valve. Surplus oil is fed to the 3-point hitch. With the auxiliary control valve at neutral, the total flow from the pump is fed to the 3-point hitch.

(1) Remote control valve (1)

with flow control

(2)

Remote control valve (2) with flow control

(3) Flow control knob for valve

(1)

(4) Flow control knob for valve

(2) (A) “INCREASE” (B) “DECREASE” (C) “STOP”

IMPORTANT :

• When there is no need to adjust the flow rate, turn the flow control knob all the way counterclockwise and keep it in this position.

REMOTE HYDRAULIC CONTROL SYSTEM HYDRAULIC UNIT

M4N-071, M5N-091, M5N-111

5. Hydraulic control unit use-reference chart

In order to handle the hydraulics properly, the operator must be familiar with the following. Although conditions.

this information may not be applicable to all types of implements and soil conditions, it is useful for general

Implement

Soil condition

Moldboard plow

Disc plow --- 2 or 3

Harrow (spike, springtooth, disc type)

Subsoiler, etc.

Weeder, ridger, etc.

Earth mover, digger,

, manure fork,

scraper rear carrier, etc.

Mower (mid-and rearmount type) Hay rake, tedder, etc.

Light soil

Medium soil

Heavy soil

--- 2

--- 1

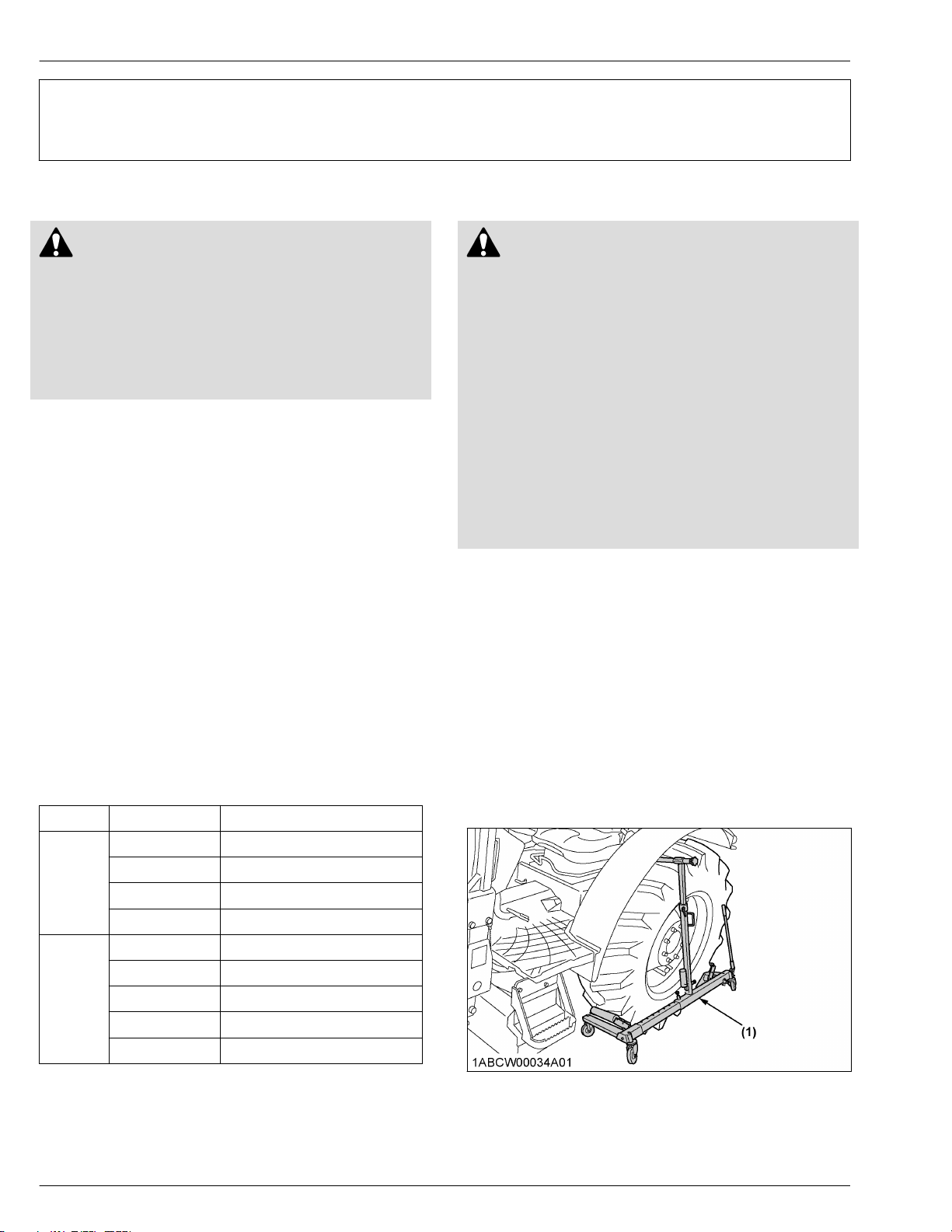

TIRES, WHEELS AND BALLAST

TIRES

WARNING

o avoid personal injury or death:

• Do not attempt to mount a tire on a rim. This should be done by a qualified person with the proper equipment.

• Always maintain the correct tire pressure. Do not inflate tires above the recommended pressure shown in the operator's manual.

IMPORTANT :

• Do not use tires other than those approved by KUBOTA.

NOTE :

• When optional different-diameter tires are fitted on the machine, the travel speed display mode must be changed. Otherwise, the travel speed will not be correctly displayed. Such mode switching is also needed when the original tires are back on the machine. (See 1.3 Setting the tire circumference on page

62.)

1. Inflation pressure

Although the tire pressure is factory-set to the prescribed of time. Thus, check it every day and inflate as necessary.

Front

Rear

level, it naturally drops slowly in the course

Tire sizes Inflation pressure

8.0-16, 6PR 240 kPa (2.4 kgf/cm2, 34 psi.)

9.5-16, 6PR 196 kPa (2.0 kgf/cm2, 29 psi.)

27x8.5-15, 4PR 151 kPa (1.5 kgf/cm2, 22 psi.)

280/70R18 241 kPa (2.5 kgf/cm2, 35 psi.)

12.4-24, 6PR 160 kPa (1.6 kgf/cm2, 23 psi.)

380/85R24, 6PR 138 kPa (1.4 kgf/cm2, 20 psi.)

380/85R24 165 kPa (1.7 kgf/cm2, 24 psi.)

320/85R20 160 kPa (1.6 kgf/cm2, 23 psi.)

480/65R24 160 kPa (1.6 kgf/cm2, 23 psi.)

WHEEL ADJUSTMENT

WARNING

o avoid personal injury or death:

• When working on slopes or when working with a trailer, set the wheel tread as wide as practical for maximum stability.

• Support the tractor securely on stands before removing a wheel.

• Do not work under any hydraulically supported devices. They can settle, suddenly leak, or be accidentally lowered. If necessary to work under the tractor or any machine elements for servicing or adjustments, securely support them with stands or suitable blocking beforehand.

• Never operate the tractor with a loose rim, wheel or axle.

1. Safe replacement of the wheel

The wheel is heavy. Take the following precautions when removing the wheel.

1. Park the tractor on a solid, level place.

Apply the parking brake and use chocks.

3. In detaching the rear wheels, apply a wedge in place to keep the front axle from oscillating.

4. Use a jack or the like that withstands the relevant weight.

5. Use an appropriate tire remover.

6. Tighten the bolts and nuts to their specified torques.

2. Dual tires

Dual tires are not approved.

(1) Tire remover

WHEEL ADJUSTMENT TIRES, WHEELS AND BALLAST

M4N-071, M5N-091, M5N-111

2. Front wheels-4WD

Front tread width can be adjusted as shown with the standard equipped tires. T

o change the tread width:

1. Remove the wheel rim and disk mounting bolts.

2. Change the position of the rim and tire to the desired position, and tighten the bolts.

3. Adjust the toe-in as 2 to 8 mm. (See 1. Adjusting toe-in on page 111.)

IMPORTANT :

• Always attach wheels as shown in the drawing.

• If not attached as illustrated, transmission parts may be damaged.

• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving the tractor 200 m and 10 times of shuttle movement by 5 m, and thereafter according to service interval. (See MAINTENANCE on page 91.)

NOTE :

• Wheels

with beveled or tapered holes: Use the

tapered side of lug nut.

(1) 260 to 304 N

⋅

m / 26.5 to 31 kgf⋅m / 192 to 224 ft⋅lbs

TIRES, WHEELS AND BALLAST WHEEL ADJUSTMENT

M4N-071, M5N-091, M5N-111

8.0-16 1050 mm (41.3 in.) 1255 mm (49.4 in.)

M4N-071

M5N-091 M5N-1

(1) Rear wheel disc

read

(2) T

27x8.5-15 1100 mm (43.3 in.) 1205 mm (47.4 in.)

9.5-16 1100 mm (43.3 in.) 1200 mm (47.2 in.)

280/70R18 --- 1185 mm (46.7 in.)

8.0-16 1100 mm (43.3 in.) 1305 mm (51.4 in.)

27x8.5-15 1150 mm (45.3 in.) 1255 mm (49.4 in.)

9.5-16 1150 mm (45.3 in.) 1250 mm (49.2 in.)

280/70R18 --- 1235 mm (48.6 in.)

2.1 Front jack point

WARNING

To avoid personal injury or death:

• Before jacking up the tractor, park it on a firm and level ground and chock the rear wheels.

• Fix the front axle to keep it from pivoting.

• Select jacks that withstand the machine weight and set them up as follows.

(1) Jack point

WHEEL ADJUSTMENT TIRES, WHEELS AND BALLAST

M4N-071, M5N-091, M5N-111

3. Rear wheels

Rear tread width can be adjusted, as shown, with the standard equipped tires.

o change the tread width:

1. Remove the wheel rim and/or disc mounting bolts.

2. Change the position of the rim and/or disc (right and left) to the desired position, and tighten the bolts.

IMPORTANT :

• Always attach wheels as shown in the drawing.

• If not attached as illustrated, transmission parts may be damaged.

• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving the tractor 200 m (200 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according to service interval. (See MAINTENANCE on page 91.)

(1)

260 to 304 N⋅m

26.5 to 31.0 kgf⋅m

191.8 to 224.2 ft⋅lbs

Steel disk Cast iron disk

244 N⋅m

24.9 kgf⋅m 180 ft⋅lbs

(2)

260 to 304 N⋅m

26.5 to 31.0 kgf⋅m

191.8 to 224.2 ft⋅lbs

12.4-24

380/85R24 ---

380/85R24 Cast ---

480/65R24 ---

(1) Rear wheel disc (2) Rear wheel rim

read

(3) T

945 mm

(37.2 in.)

1000 mm

(39.4 in.)

1090 mm

(42.9 in.)

1130 mm

(44.5 in.)

1125 mm

(44.3 in.)

1230 mm

(48.4 in.)

1135 mm

(44.7 in.)

1110 mm

(43.7 in.)

1115 mm

(43.9 in.)

1335 mm

(52.6 in.)

1240 mm

(48.8 in.)

1185 mm

(46.7 in.)

1195 mm

(47.0 in.)

1280 mm

(50.4 in.)

1375 mm

(54.1 in.)

1355 mm

(53.3 in.)

1345 mm

(53.0 in.)

1385 mm

(54.5 in.)

---

TIRES, WHEELS AND BALLAST WHEEL ADJUSTMENT

M4N-071, M5N-091, M5N-111

320/85R20

(1) Rear wheel disc (2) Rear wheel rim

read

(3) T

18.4-16.1

(1) Rear wheel disc (2) T

read

1055 mm

(41.5 in.)

1170 mm (46.1 in.)

1160 mm

(45.7 in.)

1270 mm

(50.0 in.)

WHEEL ADJUSTMENT TIRES, WHEELS AND BALLAST

M4N-071, M5N-091, M5N-111

3.1 Rear jacking point

WARNING

o avoid personal injury or death:

• Before jacking up the tractor, park it on a firm and level ground and chock the front wheels.

• Fix the front axle to keep it from pivoting.

• Select a jack that withstands the machine weight and set it up as follows.

(1) Front end weights (2) Bumper

IMPORTANT :

•

Do not overload tires.

• Add no more weight than indicated in chart.

(1) Jack point

BALLAST

WARNING

o avoid personal injury or death:

• Additional ballast will be needed for transporting heavy implements. When the implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

• Do not fill the front wheels with liquid to maintain steering control.

1. Front ballast

Add weights if needed for stability and improve traction. Heavy tend to lift front wheels. Add enough ballast to maintain steering control and to prevent tipping over. Remove the weight when it is no longer needed.

pulling and heavy rear mounted implements

Maximum weight

45 kg x 10 pieces

(1036 lbs.)

2. Rear ballast

Add weight to rear wheels if needed to improve traction or for stability. The amount of rear ballast should be matched to job and the ballast should be removed when it is not needed. The weight should be added to the tractor in the form of liquid ballast, rear wheel weights or a combination of both.

2.1 Rear wheel weights (option)

Rear wheel weights can be attached to the rear wheel. See

your implement operator's manual for required number of weights or consult your local KUBOTA Dealer about their usage.

1.1 Front end weights (option)

Front end weights can be attached to the bumper. See

your implement operator's manual for required number of weights or consult your local KUBOTA Dealer about their usage.

(1) Rear wheel weights

IMPORTANT :

•

Do not overload the tires.

• Add no more weight than indicated in the chart.

TIRES, WHEELS AND BALLAST BALLAST

M4N-071, M5N-091, M5N-111

Rear wheel weight

47 kg x 2 pieces

(206 lbs.)

2.2 Liquid ballast in rear tires

A water and calcium chloride solution provides safe

economical ballast. Used properly, it will not

and damage tires, tubes or rims. The addition of calcium chloride is recommended to prevent the water from freezing. Use of this method of weighting the wheels has the full approval of the tire companies. See your tire dealer for this service.

Liquid weight per tire (75% filled)

Tire sizes 12.4-24 380/85R24

Slush free at -24 ℃ (-1 Solid at -47 ℃ (-53 ℉) [Approx.1.5 kg (3.5 lbs.) CaCl2 per 4 L (1 gal.) of water]

Slush free at -47 ℃ (-53 ℉) Solid at -52 ℃ (-62 ℉) [Approx.2.25 kg (5 lbs.) CaCl2 per 4 L (1 gal.) of water]

1 ℉)

139.7 kg

(308 lbs.)

151.0 kg

(333 lbs.)

215.0 kg

(474 lbs.)

230.0 kg

(507 lbs.)

IMPORTANT :

• Do not fill tires with water or solution to more than 75% of full capacity (to the valve stem level).

(1) Air (2)

Water

(A) Correct - 75% full, air com-

presses like a cushion

(B) Incorrect - 100% full, water

cannot be compressed

SERVICE INTERVALS MAINTENANCE

M4N-071, M5N-091, M5N-111

MAINTENANCE

SERVICE INTERVALS

Interval Items

initial 50 Hr

every 50 Hr

every 100 Hr

every 200 Hr

every 400 Hr

every 500 Hr

every 600 Hr

every 1000 Hr

Engine oil Change 104

Engine oil filter Replace 104

Engine start system Check 104

Wheel bolt torque Check 105

Tie-rod dust cover Check 106

Greasing --- 106

Air cleaner primary element

Clean 107

Fan belt Adjust 107

Brake pedal Adjust 108

Parking brake Check 109

Battery condition Check 109

Toe-in Adjust 111

Fuel tank water Drain 111

Water separator Clean 112

Fuel solenoid pump Clean 112

Engine oil Change 113

Engine oil filter Replace 114

Fuel filter Replace 115

Hydraulic oil filter Replace 115

Power steering oil line

Radiator hose and clamp

Check 116

Check 117

Fuel line Check 118

Intake air line Check 119

Lift cylinder hose Check 120

Front axle pivot Adjust 120

Transmission fluid Change 121

Front differential case oil

Front axle gear case oil

Engine valve clearance

Change 121

Adjust 122

Ref.

page

(Continued)

Interval Items

Air cleaner primary element

Air cleaner secondary element

every 1000 Hr or 1 year

Exhaust manifold Check 122

Fuel injector nozzle tip

DEF/AdBlue® injector tip

DEF/AdBlue® line Check 122

every 1500 Hr

Oil separator element

Positive crankcase ventilation (PCV) valve (oil separator)

EGR cooler

every 2000 Hr or 2 years

Cooling system Flush 123

Coolant Change 124

Turbocharger Check 125

Supply pump Check 125

Intake air heater Check 125

every 3000 Hr

EGR system

DPF muffler Clean 125

DEF/AdBlue® injector

DEF/AdBlue® pump filter

Anti-frost heater for oil separator (if equipped)

every 1

year

DPF differential pressure sensor pipe

EGR pipe Check 126

Oil separator hose Replace 126

Boost sensor hose Replace 126

DPF differential

every 2 years

pressure sensor rubber hose

Ref.

page

Replace 122

Clean 122

Replace 122

Check 123

Check

Clean

Check

Clean

123

125

Check 125

Replace 126

Check 126

Replace 126

(Continued)

MAINTENANCE MAINTENANCE ITEMS CHART

M4N-071, M5N-091, M5N-111

Interval Items

every 2

years

every 3

years

every 4

years

Service

as required

Consult your local KUBOTA Dealer for this service.

*2 Air cleaner should be cleaned more often in dusty conditions

than in normal conditions.

*3 When the battery is used for less than 100 hours per year,

check the battery condition by reading the indicator annually.

*4 The initial 50 hours should not be a replacement cycle.

*5 Replace if any deterioration (crack, hardening, scar, or defor-

mation) or damage occurred.

*6 Every 1000 hours or every 1 year, whichever comes first.

*7 Every 2000 hours or every 2 years, whichever comes first.

EGR cooler hose Replace 126

Master cylinder filter Clean 126

Parking brake cable Replace 126

Radiator hose and clamp

Fuel line Replace 126

Intake air line Replace 126

Power steering oil line

Lift cylinder hose Replace 127

Master cylinder kit Replace 127

Brake seal 1 and 2 Replace 127

Brake hose Replace 127

Equalizer kit Replace 127

Fuel system Bleed 127

Brake system Bleed 128

Clutch housing water

Fuse Replace 128

Light bulb Replace 130

Replace 126

Drain 128

Ref.

page

2. Details

regarding maintenance items can be found in a different section. (See SERVICE INTERVALS on page 91.)

IMPORTANT :

• The items marked with @ are registered as emission related critical parts by KUBOTA in the U.S.EPA nonroad emission regulation. As the engine owner, you are responsible for the performance of the required maintenance on the engine according to the above instructions. See the Warranty Statement for details.

MAINTENANCE ITEMS CHART

How to use the chart

1. The

circles in this at-a-glance chart indicate the relevant points between the tractor's hour meter readings and the service intervals. Following these circles and the maintenance item group (A thru P), keep up your tractor.

MAINTENANCE

M4N-071, M5N-091, M5N-111

Chart at a glance

Hour

meter

1000 ○ ○ ○ ○ ○

1050 ○

1100 ○ ○

1150 ○

1200 ○ ○ ○ ○ ○

1250 ○

1300 ○ ○

1350 ○

1400 ○ ○ ○

1450 ○

1500 ○ ○ ○ ○

1550 ○

1600 ○ ○ ○ ○

1650 ○

1700 ○ ○

1750 ○

1800 ○ ○ ○ ○

1850 ○

1900 ○ ○

A B C D E F G H I J K L M N O P

50 ○ ○

100 ○ ○

150 ○

200 ○ ○ ○

250 ○

300 ○ ○

350 ○

400 ○ ○ ○ ○

450 ○

500 ○ ○ ○

550 ○

600 ○ ○ ○ ○

650 ○

700 ○ ○

750 ○

800 ○ ○ ○ ○

850 ○

900 ○ ○

950 ○

Maintenance items

(Continued)

Hour

meter

1950 ○

2000 ○ ○ ○ ○ ○ ○

2050 ○

2100 ○ ○

2150 ○

2200 ○ ○ ○

2250 ○

2300 ○ ○

2350 ○

2400 ○ ○ ○ ○ ○

2450 ○

2500 ○ ○ ○

2550 ○

2600 ○ ○ ○

2650 ○

2700 ○ ○

2750 ○

2800 ○ ○ ○ ○

2850 ○

2900 ○ ○

2950 ○

3000 ○ ○ ○ ○ ○ ○ ○ ○

Every

1000

Hr or 1

year

Every

2000

Hr or 2

years

Every 1

year

Every 2

years

Every 3

years

Every 4

years

A B C D E F G H I J K L M N O P

Maintenance items

○

MAINTENANCE LUBRICANTS, FUEL AND COOLANT

M4N-071, M5N-091, M5N-111

LUBRICANTS, FUEL AND COOLANT

No. Locations

1 Fuel

2 DEF/AdBlue

3 Coolant

Engine crankcase

(with filter)

5 Transmission case

Front differential case

oil

7 Front axle gear case oil

Greasing No. of greasing points Capacity Type of grease

Kubota M5N-091, M5N-111, M4N-071 Operators Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

SAFE OPERATION

SERVICING OF TRACTOR

SCRAPPING THE TRACTOR AND ITS PROCEDURE

WARRANTY

SPECIFICATIONS

SPECIFICATION TABLE

TRAVELING SPEEDS

IMPLEMENT LIMITATIONS

IMPLEMENT SPECIFICATION TABLE

SWITCHES AND HAND CONTROLS

INSTRUMENT PANEL AND CONTROLS

INSTRUMENT PANEL

FOOT AND HAND CONTROLS

PRE-OPERATION CHECK

DAILY CHECK

OPERATING THE ENGINE

EXHAUST AFTERTREATMENT DEVICES

1. Dual exhaust aftertreatment devices

DIESEL PARTICULATE FILTER (DPF) MUFFLER

1. Handling points

2. DPF regeneration process

3. Operating procedure for auto regeneration mode

3.1 PM warning level and required procedures

4. Operating procedure for regeneration inhibit mode

4.1 PM warning level and required procedures

5. Operating procedure for parked regeneration

6. Tips on diesel particulate filter (DPF) regeneration

SELECTIVE CATALYTIC REDUCTION (SCR) MUFFLER

1. Outline of the SCR

3. Warning indication and countermeasures

3.1 SCR system inducement display on the LCD

3.2 SCR system icon on inducement display

3.2.1 Diagnostic trouble code (DTC)

3.3 SCR system inducement display and measures

STARTING THE ENGINE

OPERATING THE ENGINE IN FREEZING CONDITIONS

1. Block heater (if equipped)

2. Engine low temperature regulation

WARMING UP THE ENGINE

STOPPING THE ENGINE

1. Warm-up and transmission fluid at low temperature range

JUMP STARTING

OPERATING THE TRACTOR

OPERATING NEW TRACTOR

1. Do not operate the tractor at full speed for the first 50 hours

OPERATING FOLDABLE ROPS

1. Folding the ROPS

2. Changing lubricating oil for new tractors

2. Raising the ROPS to upright position

STARTING THE TRACTOR

1. Operator's seat

2. Glove box

4. Muffler (M5N-091, M5N-111)

3. Seat belt

5. Tilt steering adjustment

6. Light switch

7. Turn signal switch and hazard light switch

8. Rear turn signal light and hazard light

9. Front work light switch

10. Brake pedals (right and left)

10.1 4WD braking system (4WD model)

11. Parking brake lever

12. Clutch pedal

13. Travel speed control

14. Travel speed limiter

15. Main gear shift lever

16. Range gear shift lever

16.1 Creep speed (if equipped)

17. Shuttle shift lever

18. Dual speed shift switch (dual speed model)

20. Hand throttle lever

19.1 Front-wheel drive and Bi-speed turn usage

21. Foot throttle

STOPPING THE TRACTOR

CHECK DURING DRIVING
