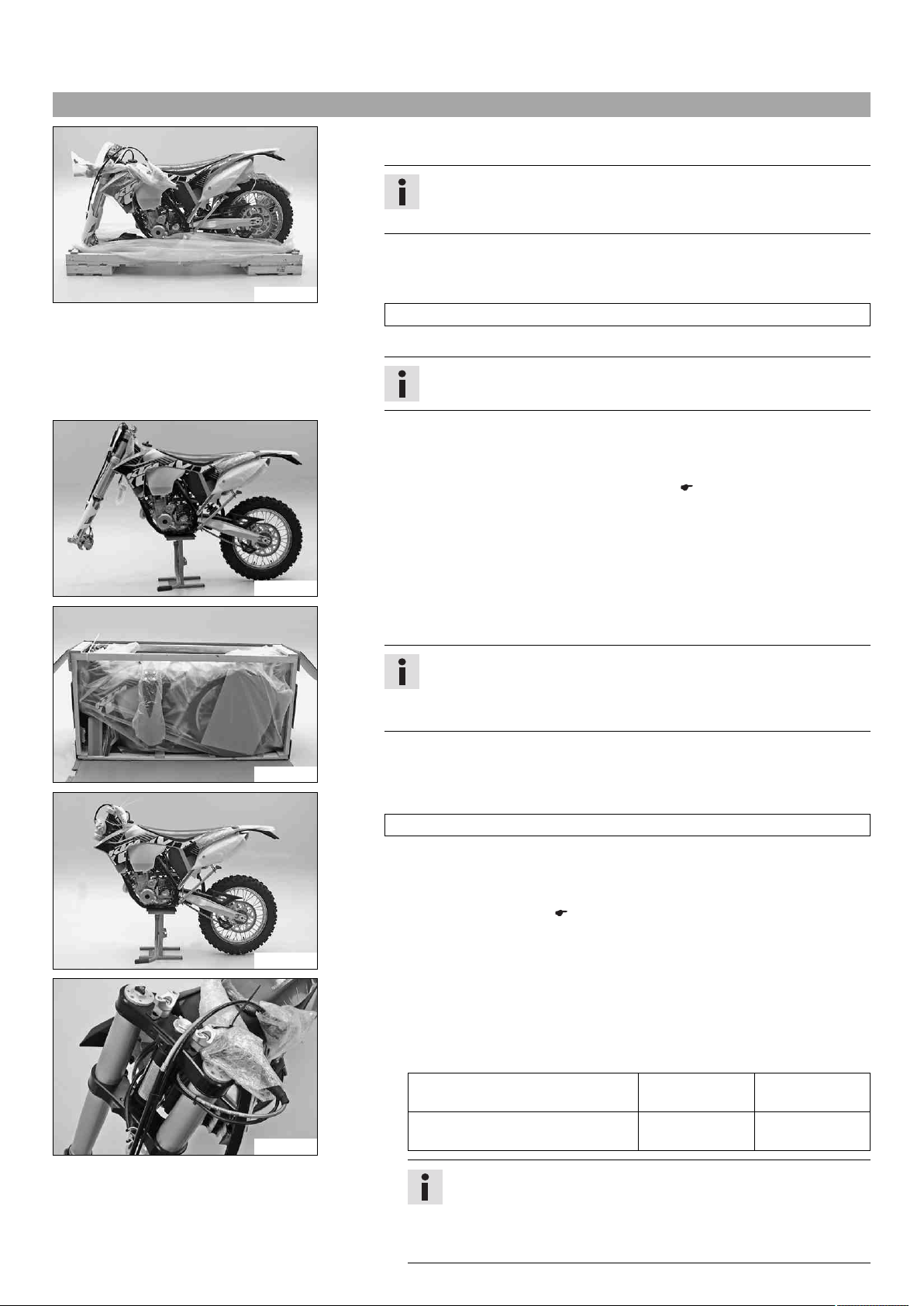

2.1 Unpacking and setting up the vehicle

Packaging 2

– Remove the box and the plastic packaging.

Info

To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.

– Remove the separate enclosure and unpack it. Check that the scope of delivery

is complete on the basis of the enclosed packing list.

C00103-01

– Have a lift stand available.

Lift stand (54829055000)

– Carefully loosen and remove the footrest mount.

Info

An assistant prevents the motorcycle from falling over.

– Together with an assistant, take the vehicle off the palette.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.
– Remove the headlight mask with the headlight. ( p. 8)

601706-01

C00104-01

C00105-01

600814-01

Package 12

– Remove the box and the plastic packaging.

Info

An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.

– Remove the separate enclosure and unpack it. Check that the scope of delivery

is complete on the basis of the enclosed packing list.

– Have a lift stand available.

Lift stand (54829055000)

– Together with an assistant, take the vehicle off the palette.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.

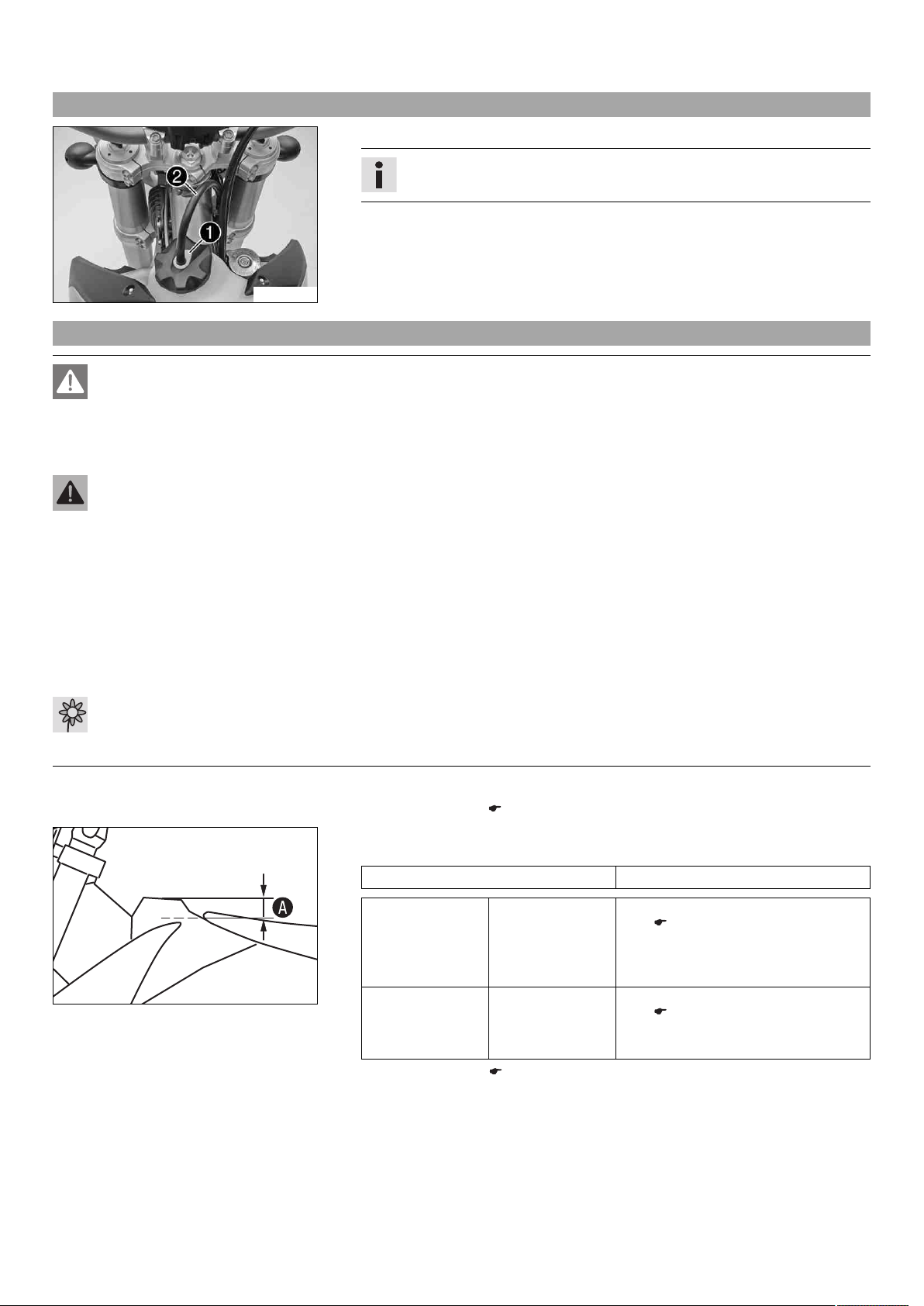

– Install the shock absorber. ( p. 10)

– Route the clutch line with the clutch master cylinder toward the front between

the upper and lower triple clamps.

(EXC‑F EU, EXC‑F AUS, EXC-F USA, XCF‑W)

– Position the fork legs and tighten the screws of the triple clamp.

Guideline

Screw, top triple clamp M8 20 Nm

(14.8 lbf ft)

Screw, bottom triple clamp M8 15 Nm

(11.1 lbf ft)

Info

Grooves are milled into the side of the top end of the fork legs. The
second milled groove (from the top) in the fork leg must be flush
with the top edge of the upper triple clamp.
Position the bleeder screws toward the front.

2 SETUP 4

(All SIXDAYS models)

– Position the fork legs and tighten the screws of the triple clamp.

Guideline

Screw, top triple clamp M8 17 Nm

(12.5 lbf ft)

Screw, bottom triple clamp M8 15 Nm

(11.1 lbf ft)

Info

The rebound damping is located in the right fork leg REB (red
adjusting screw). The compression damping is located in the left
fork leg COMP (white adjusting screw).
Grooves are milled into the side of the top end of the fork legs. The
topmost milled groove must be flush with the top edge of the upper
triple clamp.
Position the bleeder screws toward the front.

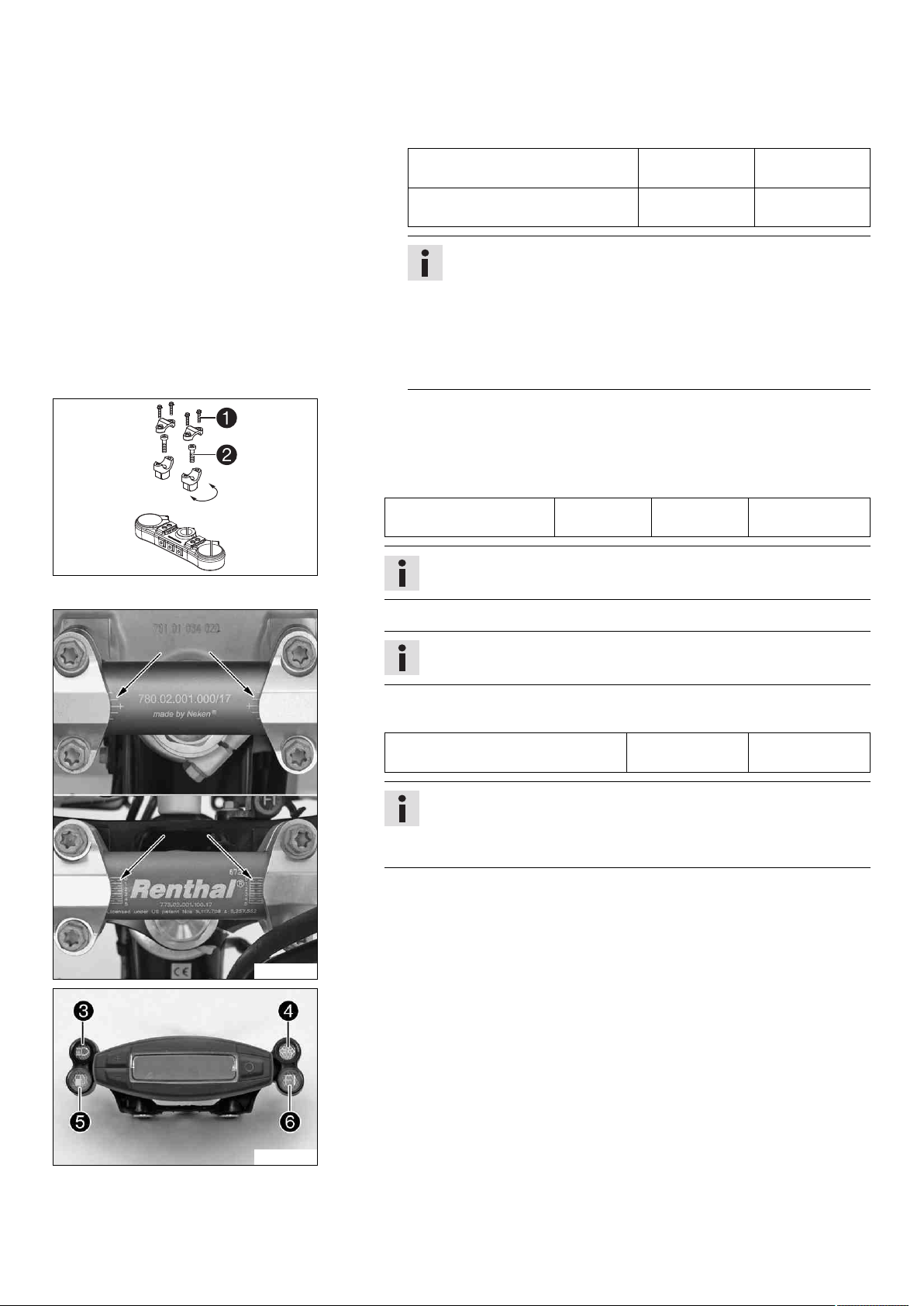

– Remove screws 1. Take off the handlebar clamps.
– Remove screws 2. Take off the handlebar supports.
– Place the handlebar supports in the required position. Mount and tighten

screws 2.
Guideline

Screw, handlebar holder M10 40 Nm

(29.5 lbf ft)

Loctite®243™

101488-10

C00108-10

C00521-01

Info

Position the left and right handlebar supports evenly.

– Position the handlebar.

Info

Make sure the cables and wiring are positioned correctly.

– Position the handlebar clamps. Mount and tighten the screws evenly.

Guideline

Screw, handlebar clamp M8 20 Nm

(14.8 lbf ft)

Info

The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.

(EXC‑F EU, EXC‑F AUS, EXC-F USA)

– Insert the indicator lamp with the black and black cable colors into

socket 3.

– Insert the indicator lamp with the black and violet cable colors into

socket 4.

– Insert the indicator lamp with the orange and brown cable colors into

socket 5.

– Insert indicator lamp LED with the black and black cable colors into

socket 6.

2 SETUP 5

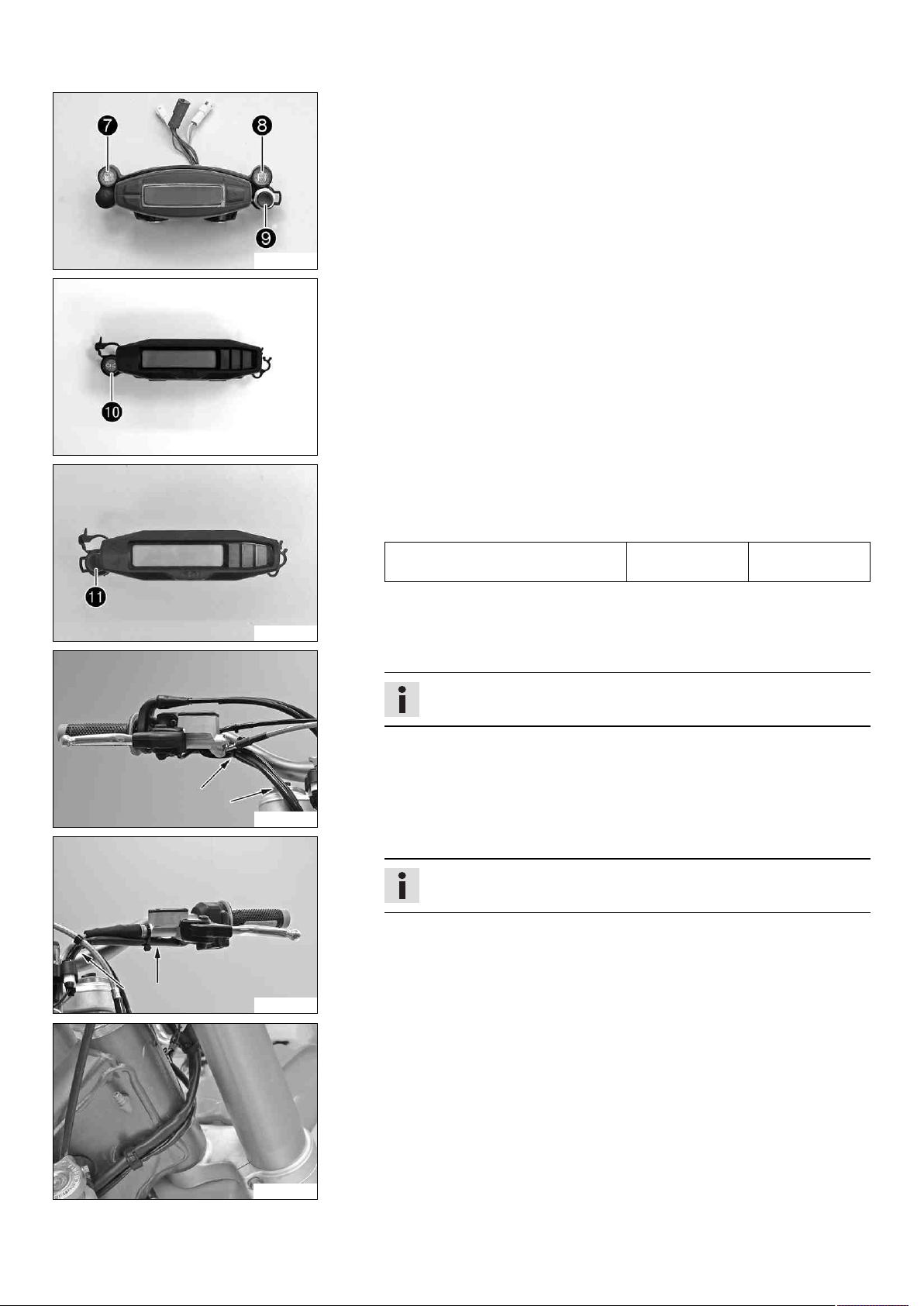

(XCF‑W)

– Insert the indicator lamp with the orange and brown cable colors into

socket 7.

– Insert indicator lamp LED with the black and black cable colors into

socket 8.

– Connect pull switch 9 with the yellow and white cables.

C00522-10

(EXC-F SIX DAYS)

– Insert the indicator lamp with the black and violet cable colors into

socket bk.

C00539-10

(XCF-W SIX DAYS)

– Connect pull switch bl with the yellow and white cables.

– Position the speedometer and connector board. Mount and tighten screws.

Guideline

Remaining screws, chassis M6 10 Nm

(7.4 lbf ft)

C00540-10

C00523-10

C00524-10

– Position the controls on the right half of the handlebar.

Info

The routing of the cables can be seen in the figure.

– Position the controls on the left half of the handlebar.

Info

The figure shows how to route the clutch line and wiring harness.

(All EXC‑F models)

– Remove the fuel tank.
– Position the turn signal wiring harness against the main wiring harness and

secure with cable binders.

B01749-01

2 SETUP 6

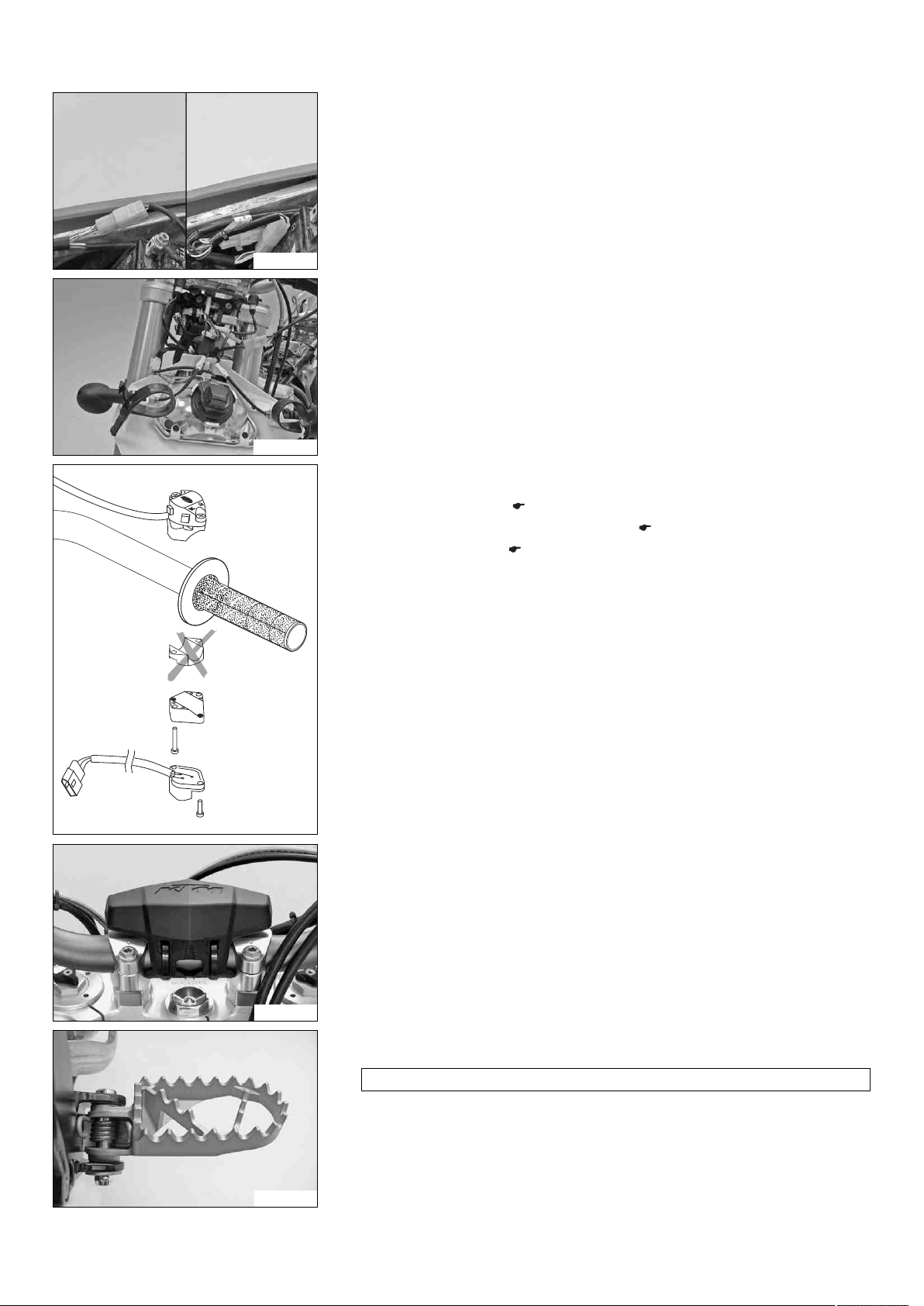

– Disconnect the plug-in connection from the main wiring harness and con-

nect the turn signal wiring harness.

– Install the fuel tank.

B01750-01

– Position the turn signal on each side and mount and tighten nuts.
– Connect plug-in connection of the right turn signal using the black and

brown cable colors.

– Connect plug-in connection of the left turn signal using the violet and

brown cable colors.

B01753-01

(All EXC‑F models)

– Mount the turn signal switch.
– Install the front fender. ( p. 11)
– Refit the headlight mask with the headlight. ( p. 9)
– Install the front wheel. ( p. 10)
– Correctly mount the fuel tank breather.

401382-01

601710-01

101019-01

– Secure the handlebar cushion with two cable binders.

– Mount the footrests with the springs and bolts. Secure the bolts using the washers

and pins.

Pliers for footrest spring (58429083000)

2 SETUP 7

(EXC‑F EU, EXC‑F AUS, EXC-F SIX DAYS)

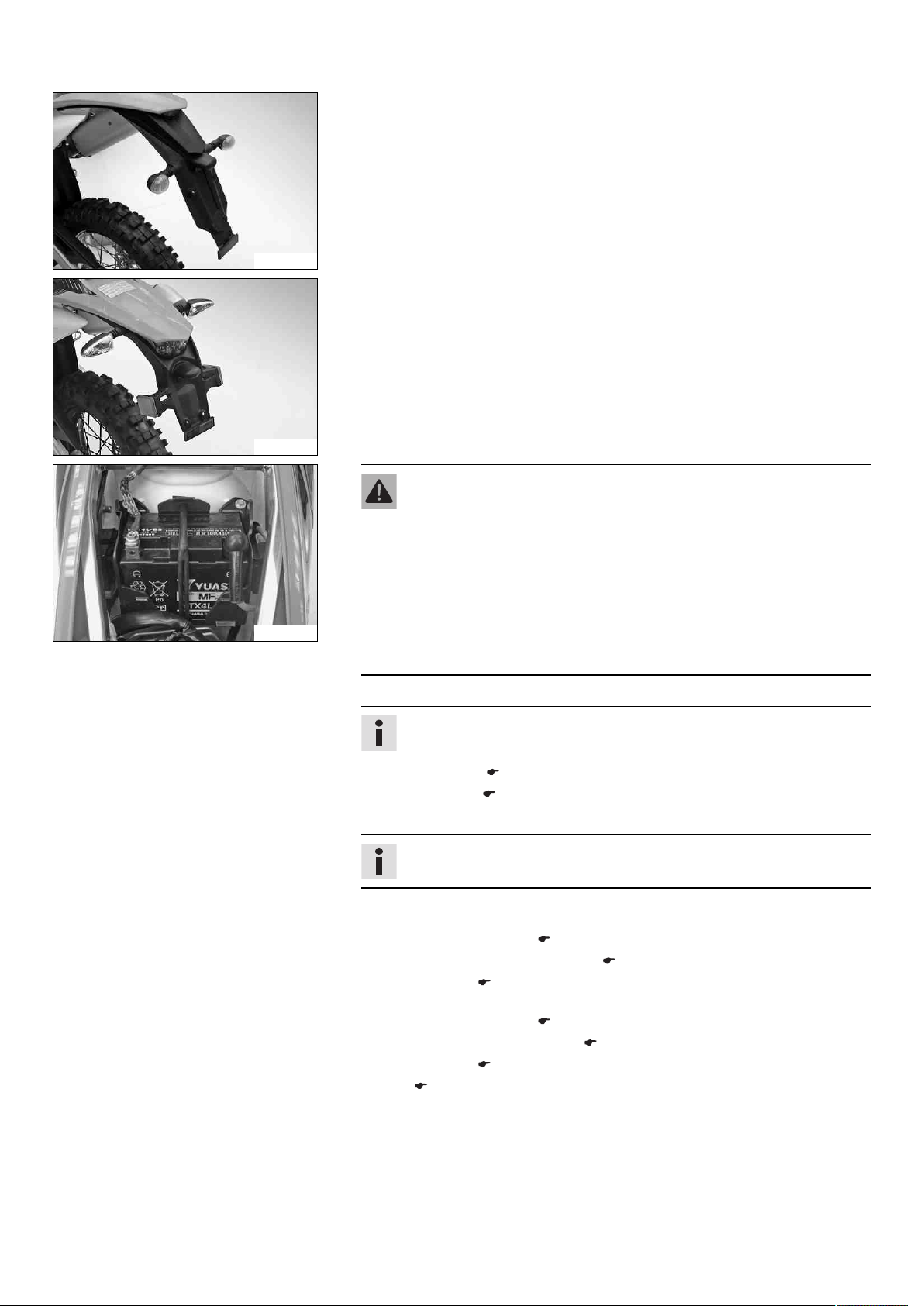

– Mount the license plate holder with the license plate lamp, turn signals, and

reflector.

– Connect the electrical components.

– Connect the connector of the left turn signal with connector that is marked red.

– Connect the connector of the right turn signal with the connector that is marked

green.

601711-01

(EXC-F USA)

– Mount the license plate holder with the license plate lamp, turn signals, and

reflector.

– Connect the electrical components.

– Connect the connector of the left turn signal with connector that is marked red.

– Connect the connector of the right turn signal with the connector that is marked

green.

C00117-01

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in

well-ventilated rooms.

101393-12

– In the event of skin contact, rinse with large amounts of water. If battery

acid gets in the eyes, rinse with water for at least 15 minutes and con­tact a physician.

– Fill the battery.

Info

Read the notes in the battery package.

– Charge the battery. ( p. 12)
– Install the battery. ( p. 12)
– Unpack and mount the KTM PowerParts included in the delivery (optional).

Info

Read the accompanying KTM PowerParts installation instructions.

– Apply the label included in the delivery (optional).
(EXC‑F EU, EXC‑F AUS, EXC-F USA, XCF‑W)

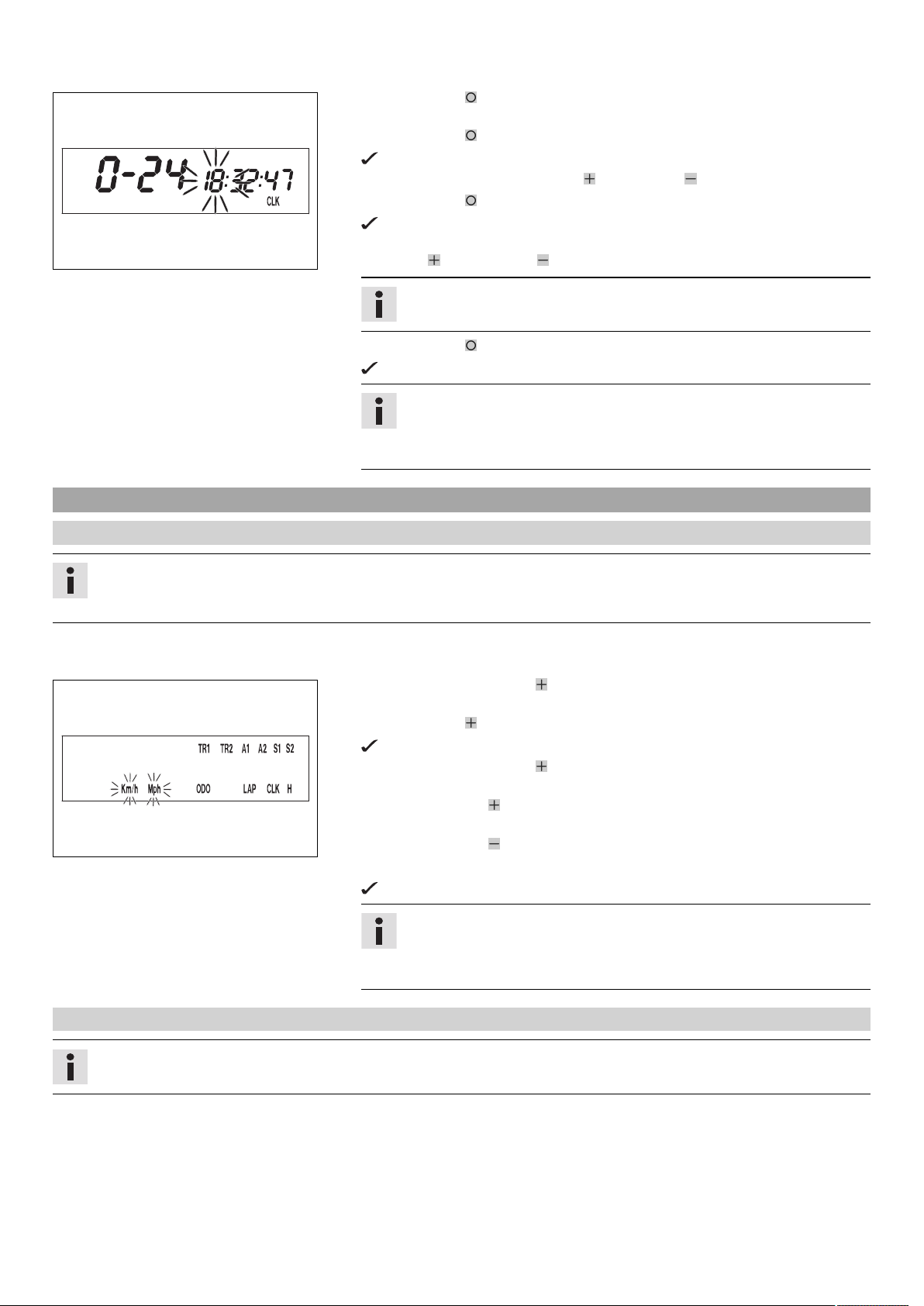

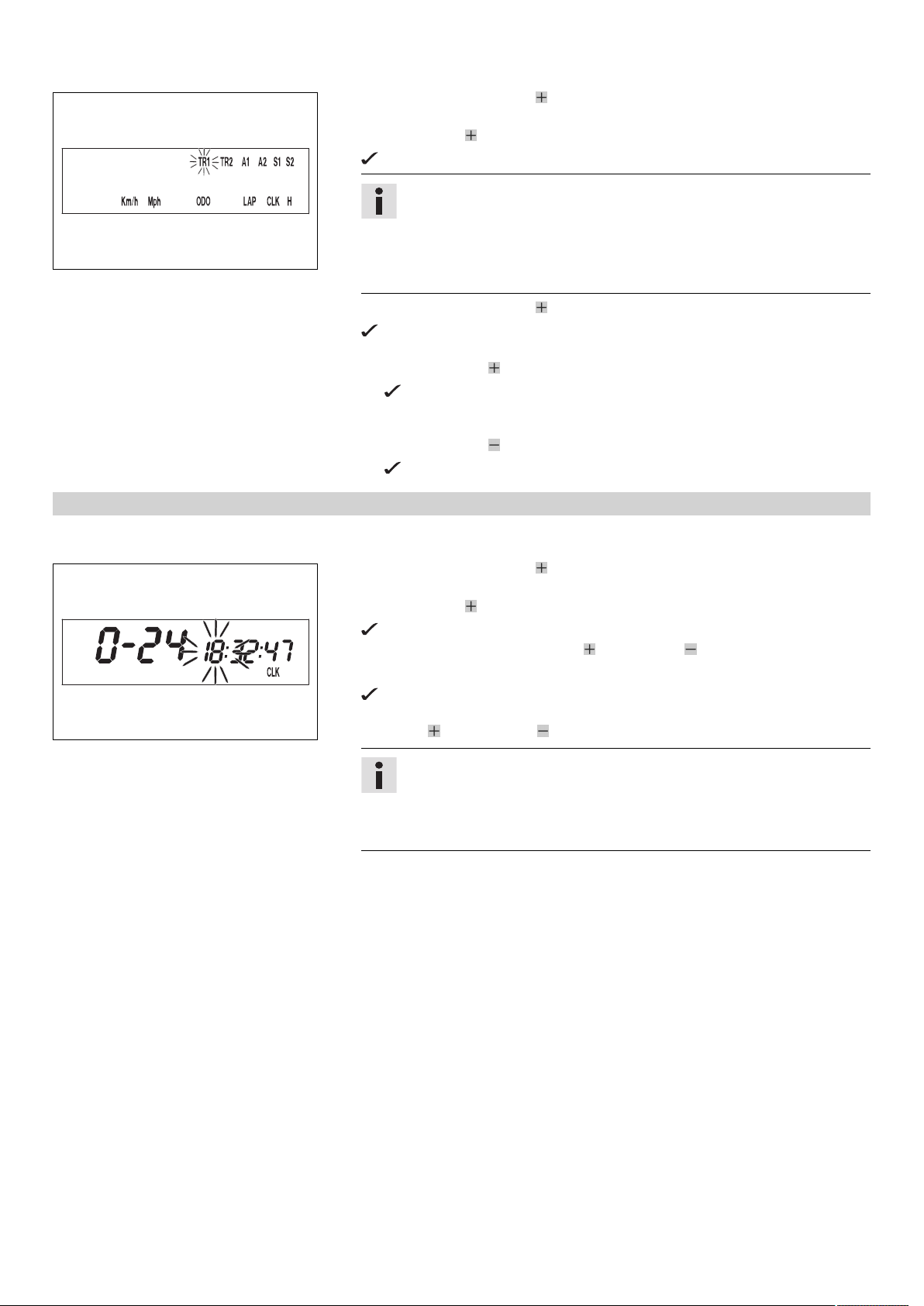

– Set kilometers or miles. ( p. 15)

– Adjust the speedometer functions. ( p. 15)

– Set the clock. ( p. 15)

(All SIXDAYS models)

– Set kilometers or miles. ( p. 16)

– Set the speedometer functions. ( p. 16)

– Set the clock. ( p. 17)
– Refuel. ( p. 14)
– Position all controls in their exact positions on the handlebar. Tighten all screws.
– Print out the current PDI form found on KTM DEALER.NET and perform the delivery

inspection.

3 WORK 8

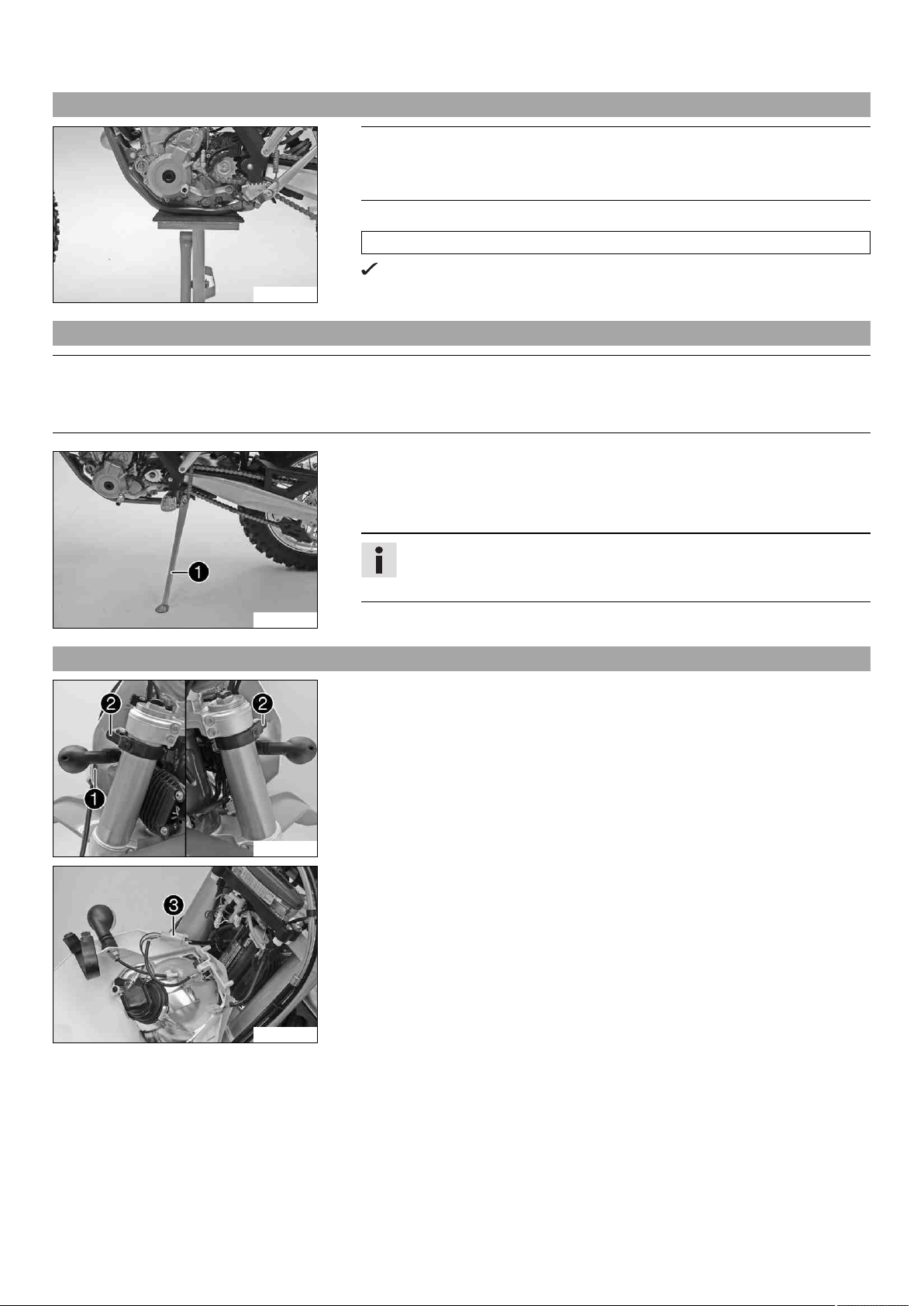

3.1 Raising the motorcycle with the lift stand

Note

Danger of damage The parked vehicle may roll away or fall over.

– Always place the vehicle on a firm and even surface.

– Raise the motorcycle at the frame underneath the engine.

Lift stand (54829055000)

The wheels should no longer touch the ground.

B01513-01

3.2 Removing the motorcycle from the lift stand

Note

Danger of damage The parked vehicle may roll away or fall over.

– Always place the vehicle on a firm and even surface.

– Secure the motorcycle against falling over.

– Remove the motorcycle from the lift stand.
– Remove the lift stand.
– To park the motorcycle, press the side stand 1 to the ground with your foot and

lean the motorcycle on it.

B01506-10

3.3 Removing headlight mask with headlight

– Switch off all electrical equipment.

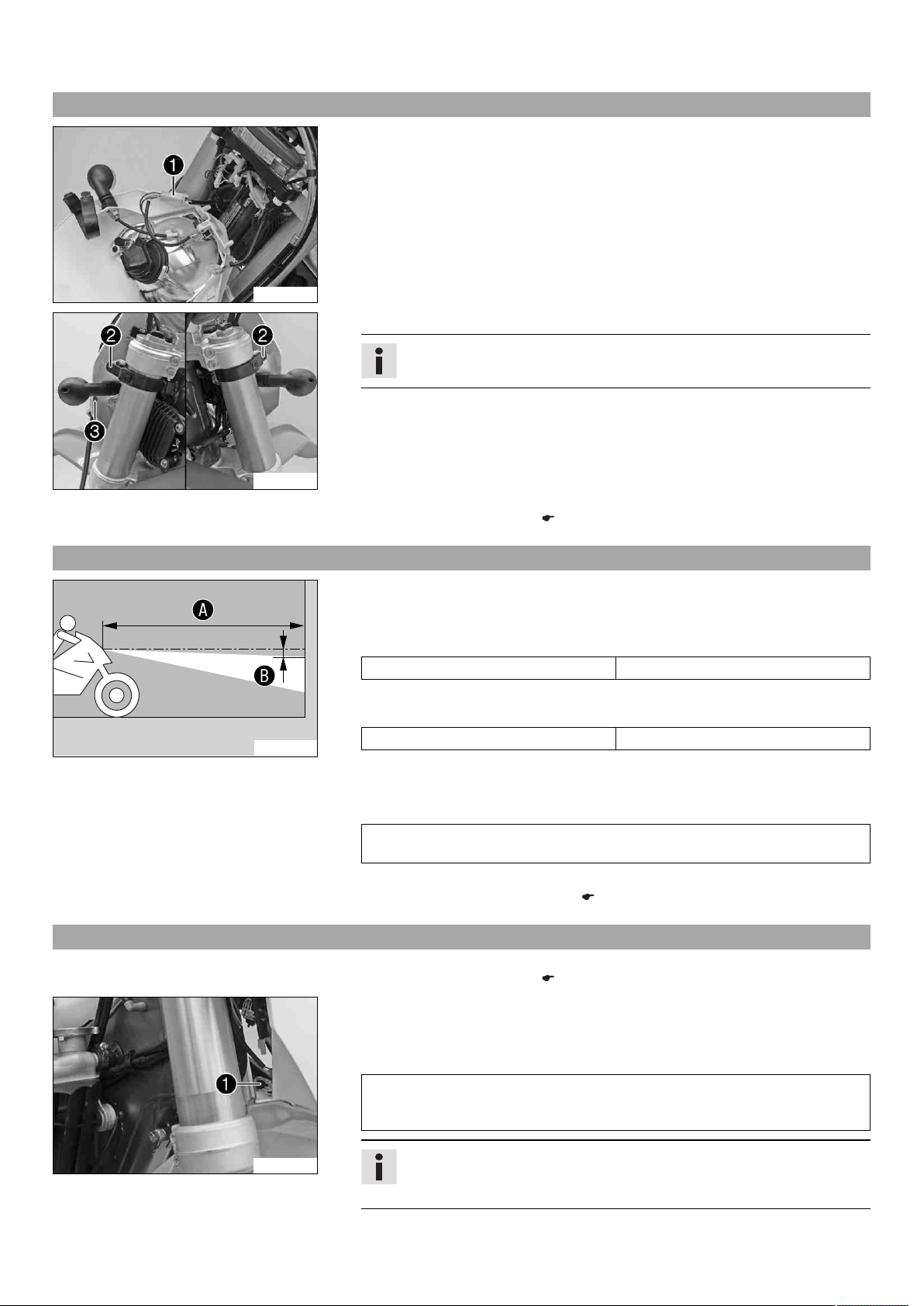

– Remove screw 1 and take off clamp.
– Loosen the rubber band 2. Push up the headlight mask and swing it forwards.

B01560-10

– Pull out the electric plug connector 3 and remove the headlight mask with the

headlight.

Info

When you are riding, the side stand must be folded up and secured with the
rubber band.

B01561-10

3 WORK 9

3.4 Refitting the headlight mask with the headlight

Main work

– Connect the electric plug connector 1.

B01561-11

– Position the headlight mask and fix it with the rubber band 2.

Info

Ensure that the retaining lugs engage in the fender.

– Position the brake line and wiring harness. Put the clamp on, mount and tighten

screw 3.

B01560-11

Finishing work

– Check the headlight setting. ( p. 9)

3.5 Checking the headlight setting

400726-10

3.6 Adjusting the headlight range

– Position the vehicle upright on a horizontal surface in front of a light wall and make

a mark at the height of the center of the low beam headlight.
– Make another mark a distance B under the first mark.

Guideline

Distance B 5 cm (2 in)

– Position the vehicle vertically a distance A away from the wall.

Guideline

Distance A 5 m (16 ft)

– The rider now sits down on the motorcycle.
– Switch on the low beam.
– Check the headlight setting.

The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.

» If the light-dark border does not meet specifications:

– Adjust the headlight range. ( p. 9)

Preparatory work

– Check the headlight setting. ( p. 9)

Main work

– Loosen screw 1.
– Adjust the headlight range of the headlight by moving it up or down.

Guideline

The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).

B01620-10

Info

A change in weight on the vehicle may require a correction of the headlight
range.

3 WORK 10

– Tighten screw 1.

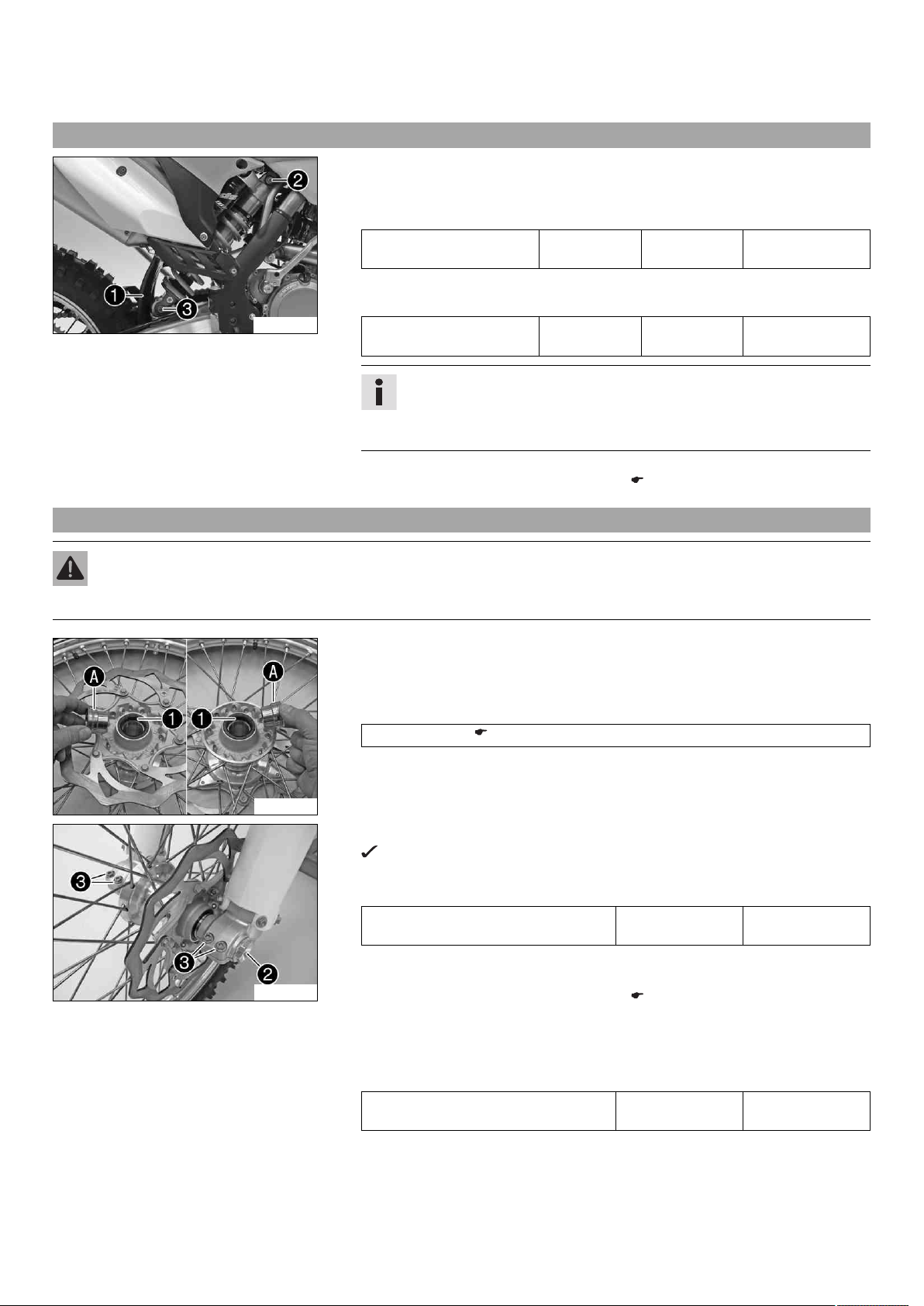

3.7 Installing the shock absorber

Main work

– Push splash protector 1 to the side and position the shock absorber. Mount and

tighten screw 2.

Guideline

B01525-11

Screw, top shock absorber M12 80 Nm

– Mount and tighten screw 3.

Guideline

Screw, bottom shock
absorber

M12 80 Nm

Info

The heim joint for the shock absorber at the swing arm is Teflon coated. It
must not be greased with grease or with other lubricants. Lubricants dis­solve the Teflon coating, thereby drastically reducing the service life.

Finishing work

–

Remove the motorcycle from the lift stand. ( p. 8)

(59 lbf ft)

(59 lbf ft)

Loctite®2701™

Loctite®2701™

3.8 Installing the front wheel

Warning

Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.

– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.

– Check the wheel bearing for damage and wear.

» If the wheel bearing is damaged or worn:

– Change the wheel bearing.

– Clean and grease shaft seal rings 1 and bearing surface A of the spacers.

Long-life grease ( p. 21)

– Insert the spacers.

101388-11

– Position the front wheel and insert the wheel spindle.

The brake linings are correctly positioned.

– Mount and tighten screw 2.

Guideline

Screw, front wheel spindle M24x1.5 45 Nm

– Activate the hand brake lever multiple times until the brake linings are in contact

101386-11

with the brake disc.

– Remove the motorcycle from the lift stand. ( p. 8)
– Pull the front wheel brake and push down hard on the fork several times to align

the fork legs.
– Fully tighten screw 3.

Guideline

Screw, fork stub M8 15 Nm

(33.2 lbf ft)

(11.1 lbf ft)

3 WORK 11

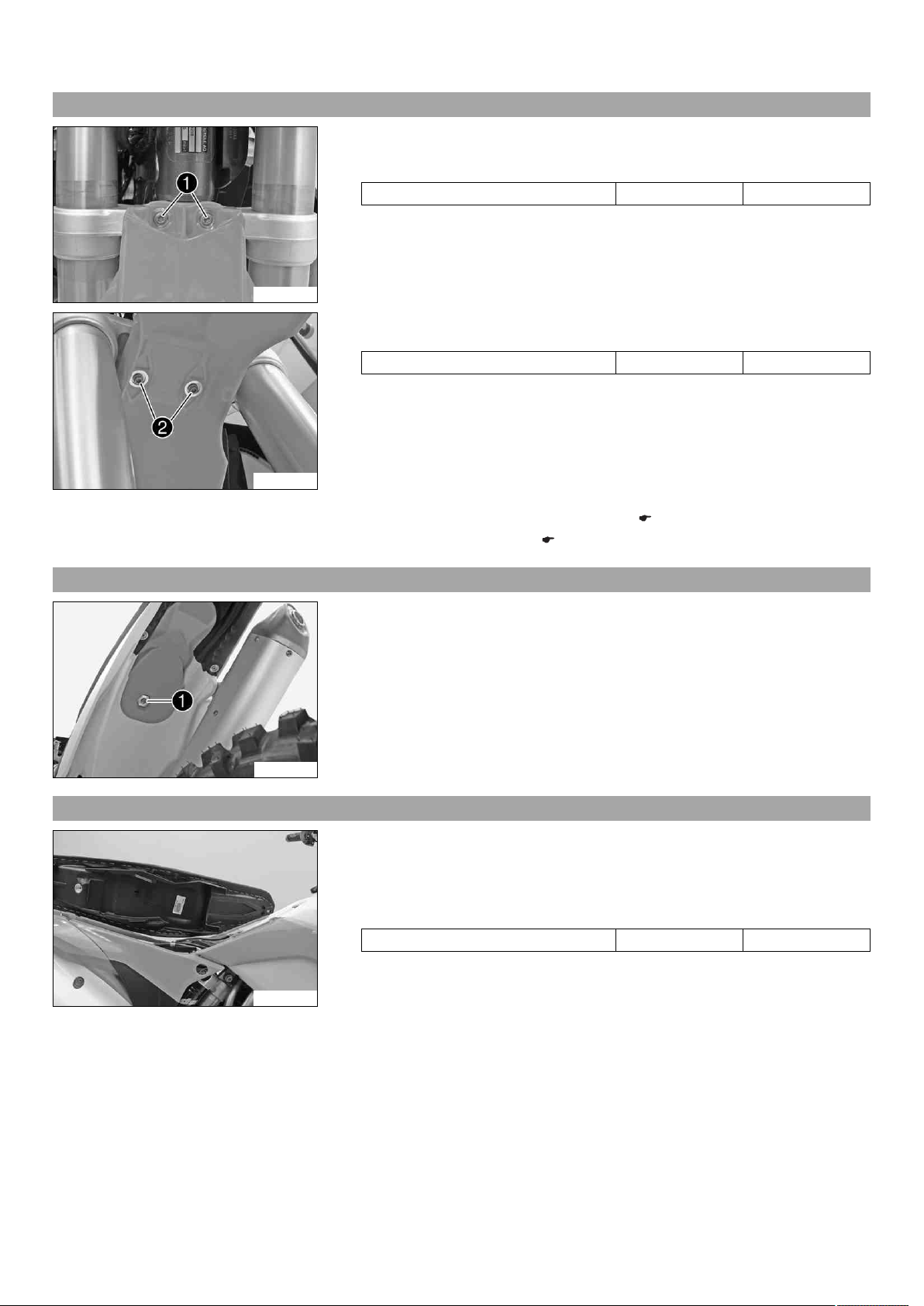

3.9 Installing the front fender

Main work

– Position the front fender. Mount and tighten screws 1.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

B01602-10

– Mount and tighten screws 2.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

B01603-11

Finishing work

– Refit the headlight mask with the headlight. ( p. 9)
– Check the headlight setting. ( p. 9)

3.10 Removing the seat

3.11 Mounting the seat

– Remove screw 1.
– Lift up the seat at the rear, pull it back and then remove it from above.

101346-10

– Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear

and simultaneously push it forward.

– Make sure that the seat is correctly locked in.
– Mount and tighten the screw of the seat fixing.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

B01526-01

3 WORK 12

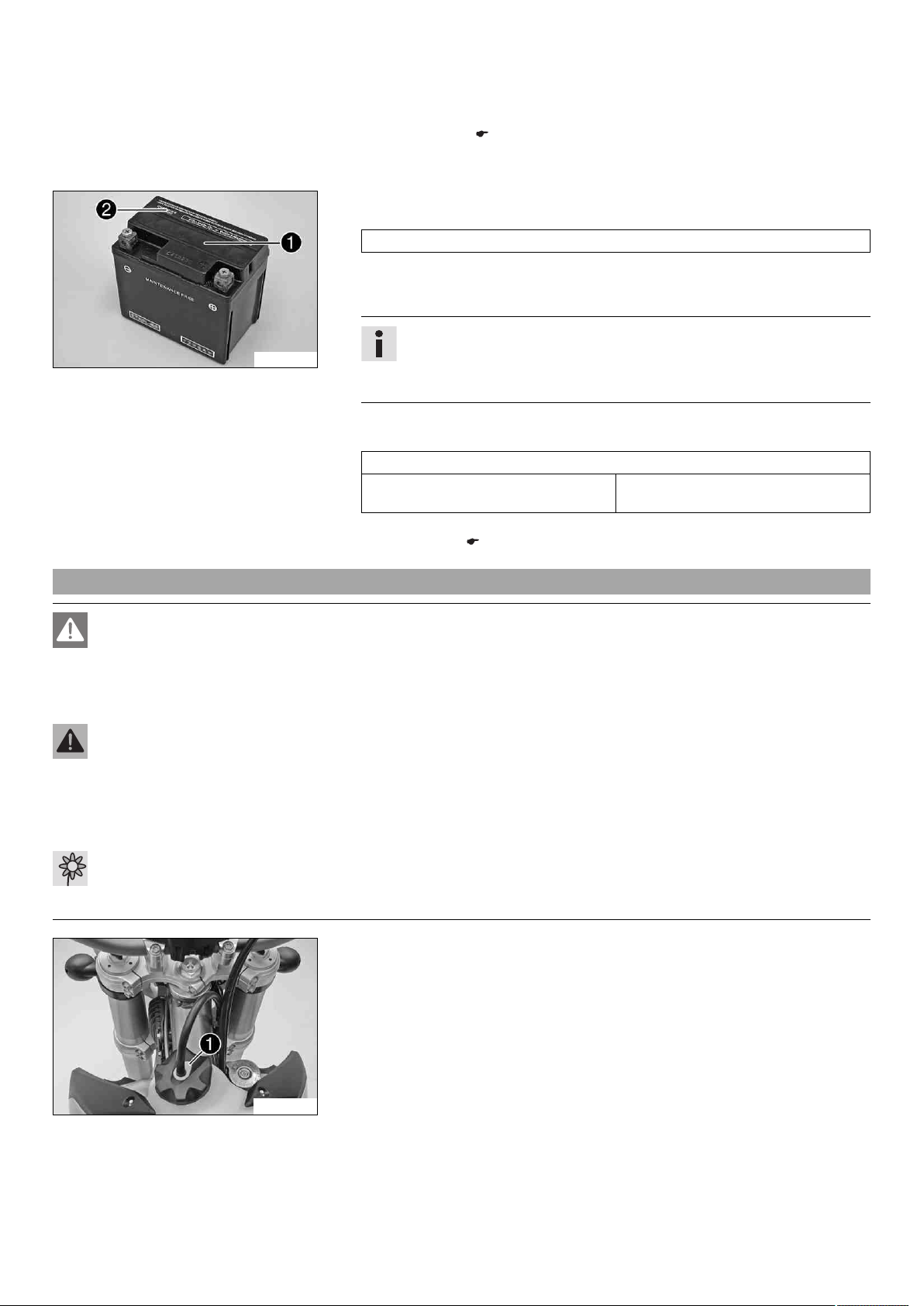

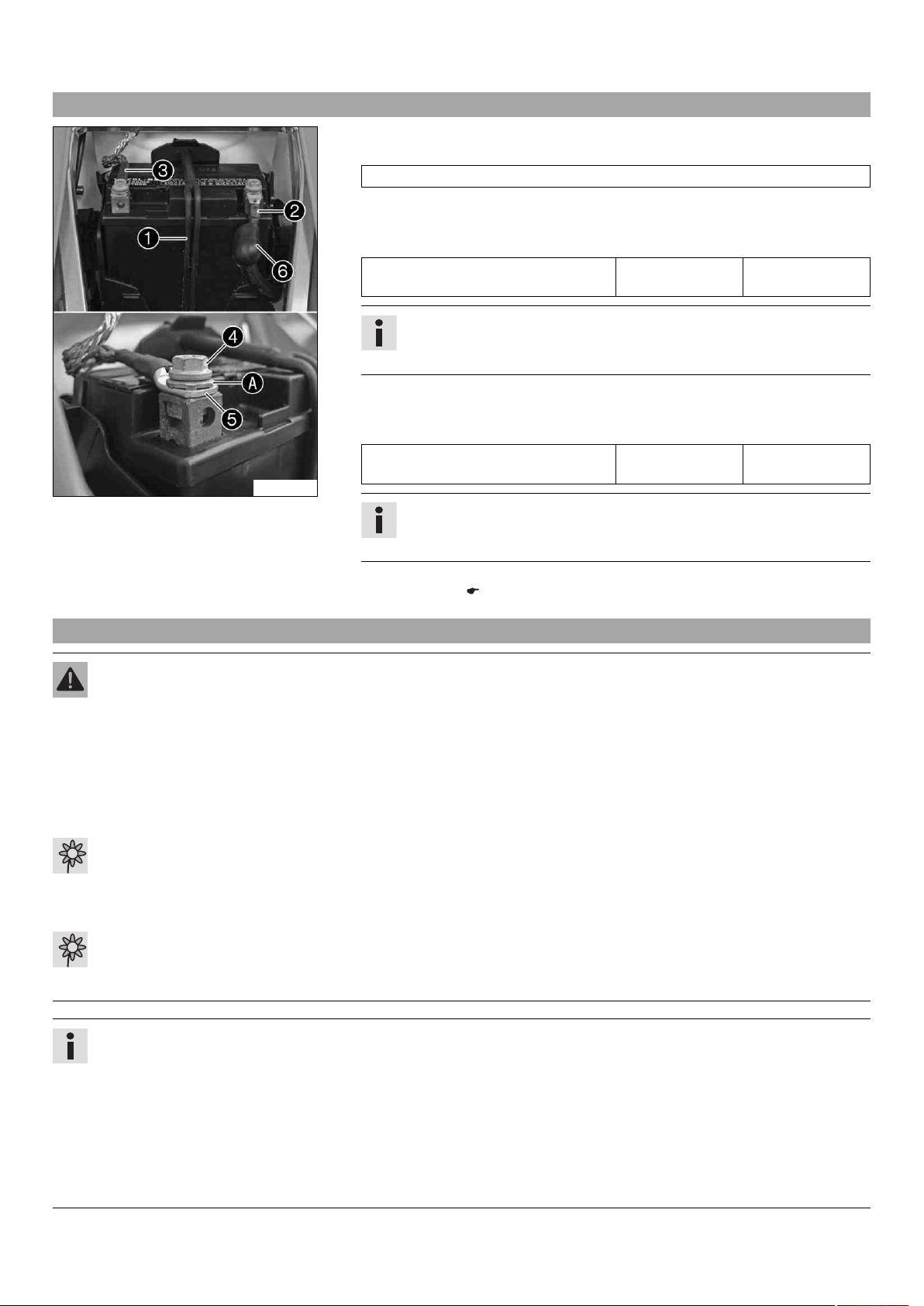

3.12 Installing the battery

Main work

– Insert battery into the battery compartment with the terminals facing to the front.

Battery (YTX4L-BS)

– Reconnect rubber band 1.
– Connect positive cable 2.

Guideline

Screw, battery terminal M5 2.5 Nm

(1.84 lbf ft)

Info

Contact disk A must be mounted between screw 4 and cable socket 5
with the claws facing down.

– Slide positive terminal cover 6 over the positive terminal.
– Connect negative cable 3.

Guideline

Screw, battery terminal M5 2.5 Nm

B01237-10

Info

Contact disk A must be mounted between screw 4 and cable socket 5
with the claws facing down.

(1.84 lbf ft)

Finishing work

– Mount the seat. ( p. 11)

3.13 Charging the battery

Warning

Risk of injury Battery acid and battery gases cause serious chemical burns.

– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least

15 minutes and contact a physician.

Warning

Environmental hazard The battery contains elements that are harmful to the environment.

– Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner.

Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.

Warning

Environmental hazard Hazardous substances cause environmental damage.

– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Info

Even when there is no load on the battery, it still loses power steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, which means that the acid level does not need to be checked.

3 WORK 13

Preparatory work

– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 11)
– Disconnect the negative cable of the battery to avoid damage to the onboard elec-

tronics.

Main work

– Connect the battery charger to the battery. Switch on the battery charger.

Battery charger (58429074000)

You can also use the battery charger to test the open-circuit voltage and starting

voltage of the battery, and to test the alternator. With this device, you cannot over-

charge the battery.

Info

400240-10

– Switch off the battery charger after charging. Disconnect the battery.

Never remove lid 1.
Charge the battery with a maximum of 10% of the capacity specified on
battery housing 2.

Guideline

The charge current, charge voltage, and charge time must not be exceeded.
Charge the battery regularly when the

motorcycle is not in use

3 months

Finishing work

– Mount the seat. ( p. 11)

3.14 Opening filler cap

Danger

Fire hazard Fuel is highly flammable.

– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no

fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.

– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with

the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.

Warning

Environmental hazard Improper handling of fuel is a danger to the environment.

– Do not allow fuel to get into the ground water, the ground, or the sewage system.

– Press release button 1, turn filler cap counterclockwise and lift it upwards and

remove.

B01502-10

3 WORK 14

3.15 Closing filler cap

– Replace the filler cap and turn clockwise until the release button 1 locks in place.

Info

Route the fuel tank breather hose 2 without kinking.

B01502-11

3.16 Refueling

Danger

Fire hazard Fuel is highly flammable.

– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no

fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.

– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with

the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.

Note

Material damage Premature clogging of the fuel filter.

– In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with

the fuel system.

– Only refuel with clean fuel that meets the specified standards.

Warning

Environmental hazard Improper handling of fuel is a danger to the environment.

– Do not allow fuel to get into the ground water, the ground, or the sewage system.

– Switch off engine.
– Open the filler cap. ( p. 13)
– Fill the fuel tank with fuel up to measurement A.

Guideline

Measurement of A 35 mm (1.38 in)

401226-10

Total fuel tank
capacity, approx.
(EXC‑F EU,
EXC‑F AUS,
EXC-F SIX DAYS)

Total fuel tank
capacity, approx.
(EXC-F USA, All
XCF-W models)

9 l (2.4 US gal) Super unleaded (ROZ 95/RON 95/PON

91) ( p. 20)

8.5 l
(2.25 US gal)

Super unleaded (ROZ 95/RON 95/PON

91) ( p. 20)

– Close the filler cap. ( p. 14)

3 WORK 15

3.17 EXC‑F EU, EXC‑F AUS, EXC-F USA, XCF‑W

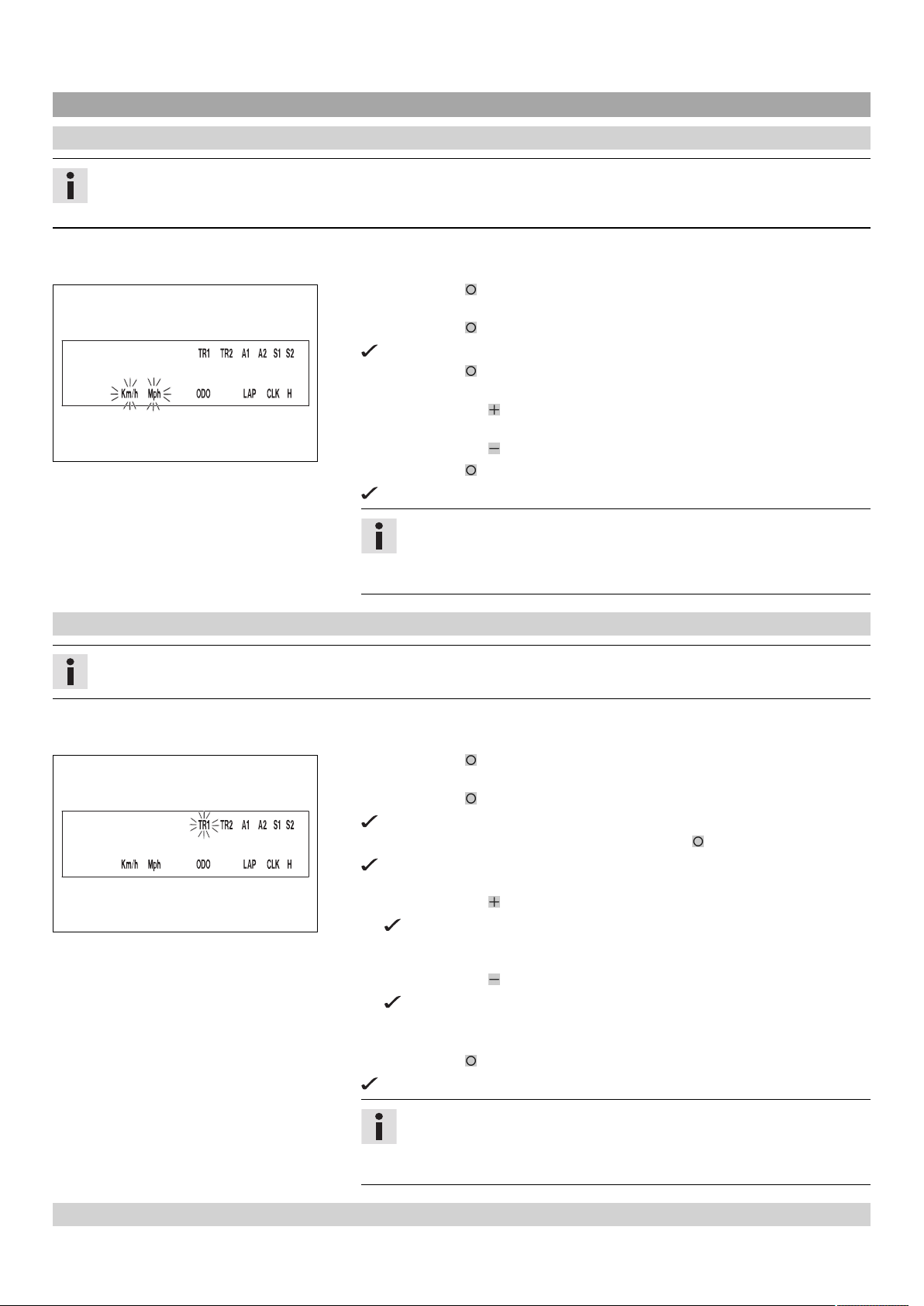

3.17.1 Setting kilometers or miles

Info

If you change the unit of measure, the ODO value is retained and converted accordingly.
The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed.

Condition

The motorcycle is stationary.
– Press the button briefly and repeatedly until H appears at the bottom right of the

display.
– Press the button for 3 - 5 seconds.

The Setup menu is displayed and the active functions are shown.

– Press the button repeatedly until the Km/h/Mph display flashes.
Adjusting Km/h

– Press the button .

Adjusting Mph

400329-01

– Press the button .
– Press the button for 3 - 5 seconds.

The settings are stored and the Setup menu is closed.

Info

If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.

3.17.2 Adjusting the speedometer functions

Info

When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.

Condition

The motorcycle is stationary.
– Press the button briefly and repeatedly until H appears at the bottom right of the

display.
– Press the button for 3 - 5 seconds.

The Setup menu is displayed and the activated functions are shown.

– Change to the desired function by pressing the button briefly.

The selected function flashes.

Activating a function

– Press the button .

400318-01

Deactivating the function

– Press the button .

– All desired functions are activated or deactivated accordingly.
– Press the button for 3 - 5 seconds.

The symbol remains on the screen and the display changes to the next
function.

The symbol on the screen goes out and the display changes to the next
function.

The settings are stored and the Setup menu is closed.

3.17.3 Setting the clock

Info

If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.

Condition

The motorcycle is stationary.

3 WORK 16

– Press the button briefly and repeatedly until CLK appears at the bottom right of

the display.
– Press the button for 3 - 5 seconds.

The hour display flashes.

– Set the hour display with the button and/or button .
– Press the button briefly.

The next segment of the display flashes and can be set.

– You can set the following segments in the same way as the hours by pressing

400330-01

the button and the button .

Info

The seconds can only be set to zero.

– Press the button for 3 - 5 seconds.

The settings are stored and the Setup menu is closed.

Info

If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.

3.18 All SIXDAYS models

3.18.1 Setting kilometers or miles

Info

If you change the unit, the value ODO is retained and converted accordingly.
The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed.

Condition

The motorcycle is stationary.
– Repeatedly press the button briefly until H appears at the bottom right of the

display.
– Press the button for 2–3 seconds.

The Setup menu is displayed and the active functions are shown.

– Repeatedly press the button briefly until Km/h/Mph flashes.
Setting the Km/h

– Press the button .

Setting the Mph

400329-01

– Press the button .
– Wait 3–5 seconds

The settings are stored.

Info

If no button is actuated for 10–12 seconds or there is no signal from the
wheel speed sensor, then the settings are automatically stored and the
Setup menu is closed.

3.18.2 Setting the speedometer functions

Info

When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.

Condition

The motorcycle is stationary.

3 WORK 17

– Repeatedly press the button briefly until H appears at the bottom right of the

display.
– Press the button for 2–3 seconds.

The Setup menu is displayed and the active functions are shown.

Info

If no button is pressed for 10–12 seconds, the settings are automatically
stored.
If no button is actuated for 20 seconds or there is no signal from the wheel

400318-01

– Repeatedly press the button briefly until the desired function flashes.

Activating the function

Deactivating a function

speed sensor, then the settings are automatically stored and the Setup
menu is closed.

The selected function flashes.

– Press the button .

The symbol continues to appear in the display and the next function
appears.

– Press the button .

The symbol disappears in the display and the next function appears.

3.18.3 Setting the clock

400330-01

Condition

The motorcycle is stationary.
– Repeatedly press the button briefly until CLK appears at the bottom right of the

display.
– Press the button for 2–3 seconds.

The hour display flashes.

– Set the hour display with the button and/or button .
– Wait 3–5 seconds

The next segment of the display flashes and can be set.

– You can set the following segments in the same way as the hours by pressing

the button and the button .

Info

The seconds can only be set to zero.
If no button is actuated for 15–-20 seconds or there is no signal from the
wheel speed sensor, then the settings are automatically stored and the
Setup menu is closed.

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 18

Screw, pressure regulator EJOT PT
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft) –
Screw, intake air temperature sensor M5 2 Nm (1.5 lbf ft) –
Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft) –
Screw, spoiler on fuel tank

(EXC-F USA, All XCF-W models)
Nut, cable on starter motor M6 4 Nm (3 lbf ft) –
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft) –
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) –
Screw, ball joint of push rod on foot

brake cylinder
Screw, chain sliding guard M6 6 Nm (4.4 lbf ft)
Screw, front brake disc M6 14 Nm (10.3 lbf ft)
Screw, rear brake disc M6 14 Nm (10.3 lbf ft)
Screw, throttle grip M6 5 Nm (3.7 lbf ft) –
Fuel connection on fuel pump M8 10 Nm (7.4 lbf ft) –
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft) –
Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701™
Nut, rim lock M8 12 Nm (8.9 lbf ft) –
Remaining nuts, chassis M8 25 Nm (18.4 lbf ft) –
Remaining screws, chassis M8 25 Nm (18.4 lbf ft) –
Screw, bottom triple clamp (All SIX-

DAYS models)
Screw, bottom triple clamp (EXC‑F EU,

EXC‑F AUS, EXC-F USA, XCF‑W)
Screw, chain sliding piece M8 15 Nm (11.1 lbf ft) –
Screw, engine brace M8 33 Nm (24.3 lbf ft) –
Screw, fork stub M8 15 Nm (11.1 lbf ft) –
Screw, front brake caliper M8 25 Nm (18.4 lbf ft)
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) –
Screw, side stand attachment M8 45 Nm (33.2 lbf ft) Loctite®2701™
Screw, subframe M8 35 Nm (25.8 lbf ft) Loctite®2701™
Screw, top steering stem (All SIXDAYS

models)
Screw, top steering stem (EXC‑F EU,

EXC‑F AUS, EXC-F USA, XCF‑W)
Screw, top triple clamp (All SIXDAYS

models)
Screw, top triple clamp (EXC‑F EU,

EXC‑F AUS, EXC-F USA, XCF‑W)
Engine attachment bolt M10 60 Nm (44.3 lbf ft) –
Remaining nuts, chassis M10 45 Nm (33.2 lbf ft) –
Remaining screws, chassis M10 45 Nm (33.2 lbf ft) –
Screw, handlebar holder M10 40 Nm (29.5 lbf ft)
Nut, fuel pump fixation M12 15 Nm (11.1 lbf ft) –
Screw, bottom shock absorber M12 80 Nm (59 lbf ft) Loctite®2701™
Screw, top shock absorber M12 80 Nm (59 lbf ft) Loctite®2701™
Nut, seat fixing M12x1 20 Nm (14.8 lbf ft) –
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) –
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft) –
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft) –
Screw-in nozzles, cooling system M20x1.5 12 Nm (8.9 lbf ft)

®

M5x12 1.5 Nm (1.11 lbf ft) –

M6 10 Nm (7.4 lbf ft)

M8 15 Nm (11.1 lbf ft) –

M8 15 Nm (11.1 lbf ft) –

M8 17 Nm (12.5 lbf ft)

M8 20 Nm (14.8 lbf ft) –

M8 17 Nm (12.5 lbf ft) –

M8 20 Nm (14.8 lbf ft) –

3 Nm (2.2 lbf ft) –

Loctite®243™

Loctite®243™

Loctite®243™

Loctite®243™

Loctite®243™

Loctite®243™

Loctite®243™

Loctite®243™

4 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS 19

Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –

5 SUBSTANCES 20

Super unleaded (ROZ 95/RON 95/PON 91)

According to

– DIN EN 228 (ROZ 95/RON 95/PON 91)

Guideline

– Only use unleaded super fuel that matches or is equivalent to the specified fuel grade.
– Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use.

Info

Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).

6 AUXILIARY SUBSTANCES 21

Long-life grease

Guideline
– KTM recommends Motorex®products.

Supplier

®

Motorex
– Bike Grease 2000

*3213134en*

3213134en

08/2013

KTM-Sportmotorcycle AG

5230 Mattighofen/Austria

http://www.ktm.com

Photo: Mitterbauer/KTM
