KT&C Omni-IP KNR-p4Px4, OMNI-IP KNR-p16Px8 User Manual
KNR-p4Px4
KNR-p16Px8
Network Video Recorder
User Manual
KNR-p4Px4 KNR-p16Px8 User Manual
Regulatory information
FCC information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive
2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste
in the European Union. See the product documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.
2
KNR-p4Px4 KNR-p16Px8 User Manual
Series
Model
Type
Omni IP
KNR-p4Px4
KNR-p16Px8
Network Video Recorder
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may
cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent
type only. Dispose of used batteries according to the instructions provided by the battery manufacturer. Thank you
for purchasing our product. If there is any question or request, please do not hesitate to contact your dealer.
KT&C Certified Dealers can contact KT&C directly.
This manual is applicable to the models listed in the following table.
3
KNR-p4Px4 KNR-p16Px8 User Manual
Product Key Features
General
Connectable to network cameras and encoders.
Connectable to the third-party network cameras like Acti, Arecont, Axis, Bosch, Brickcom, Canon,
Hikvision, Hunt, Panasonic, Pelco, Samsung, Sanyo, Sony, Vivotek, Zavio, and network cameras that
adopt ONVIF or PSIA protocol.
PAL/NTSC adaptive video inputs.
Each channel supports dual-stream.
Up to 4 or 16 network cameras can be connected (depending on model).
Independent configuration for each channel, including resolution, frame rate, bit rate, image quality, etc.
The quality of the input and output record is configurable.
Local Monitoring
Simultaneous HDMI and VGA outputs.
HDMI output and VGA output at up to 1920×1080 resolution.
Multiple screen display in live view is supported, and the display sequence of channels is adjustable.
Live view screen can be switched in group, and manual switch and automatic cycle live view are also
provided, and the interval of automatic cycle can be adjusted.
Quick setting menu is provided for live view.
Motion detection, video tampering, video exception alert and video loss alert functions.
Privacy mask.
Multiple PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
Up to 2 SATA hard disks can be connected. (Each disk with a maximum of 4TB storage capacity.)
8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
Supports S.M.A.R.T. and bad sector detection.
HDD group management.
Support HDD standby function.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Recording and Playback
Holiday recording schedule configuration.
Continuous and event video recording parameters.
Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.
8 recording time periods with separated recording types.
Pre-record and post-record for alarm, motion detection for recording, and pre-record time for schedule
and manual recording.
Searching record files by events (alarm input/motion detection).
Tag adding for record files, searching and playing back by tags.
Locking and unlocking record files.
4
KNR-p4Px4 KNR-p16Px8 User Manual
Local redundant recording.
Searching and playing back record files by channel number, recording type, start time, end time, etc.
Smart search for the selected area in the video.
Zooming in when playback.
Reverse playback of multi-channel.
Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when playback,
and locating by dragging the mouse.
Up to 8-ch synchronous playback at 4CIF real time.
Backup
Export video data by USB or SATA device.
Export video clips when playback.
Management and maintenance of backup devices.
Alarm and Exception
Configurable arming time of alarm input/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard
mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and
HDD full, etc.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and alarm
output.
Automatic restore when system is abnormal.
Other Local Functions
Operable by mouse and remote control.
Three-level user management; admin user is allowed to create many operating accounts and define their
operating permission, which includes the limit to access any channel.
Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Import and export of device configuration information.
Network Functions
1 self-adaptive 10M/100M/1000M network interface.
Up to 8 independent PoE network interfaces for KNR-p16Px8, and 4 independent PoE network interfaces
for KNR-p4Px4.
IPv6 is supported.
TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, and iSCSI are
supported.
TCP, UDP and RTP for unicast.
Auto/Manual port mapping by UPnP.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback via RTSP.
Support accessing by the platform via ONVIF.
Remote search, playback, download, locking and unlocking of the record files, and support downloading
files broken transfer resume.
Remote parameters setup; remote import/export of device parameters.
5
KNR-p4Px4 KNR-p16Px8 User Manual
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of mouse.
Remote HDD initializing and program upgrading.
Remote system restart and shutdown.
RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host.
Remotely start/stop recording.
Remotely start/stop alarm output.
Remote PTZ control.
Two-way audio and voice broadcasting.
Embedded WEB server.
6
KNR-p4Px4 KNR-p16Px8 User Manual
TABLE OF CONTENTS
Product Key Features .............................................................................................................................. 4
Chapter 1 Introduction ................................................................................................................................ 11
1.1 Front Panel .................................................................................................................................... 12
1.2 IR Remote Control Operations ...................................................................................................... 13
1.3 USB Mouse Operation .................................................................................................................. 16
1.4 Input Method Description .............................................................................................................. 17
1.5 Rear Panel ..................................................................................................................................... 18
Chapter 2 Getting Started ............................................................................................................................ 19
2.1 Starting Up and Shutting Down the NVR ...................................................................................... 20
2.2 Using the Wizard for basic configuration ...................................................................................... 22
2.3 Adding and Connecting the IP Cameras ........................................................................................ 26
2.3.1 Adding the Online IP Cameras .................................................................................... 26

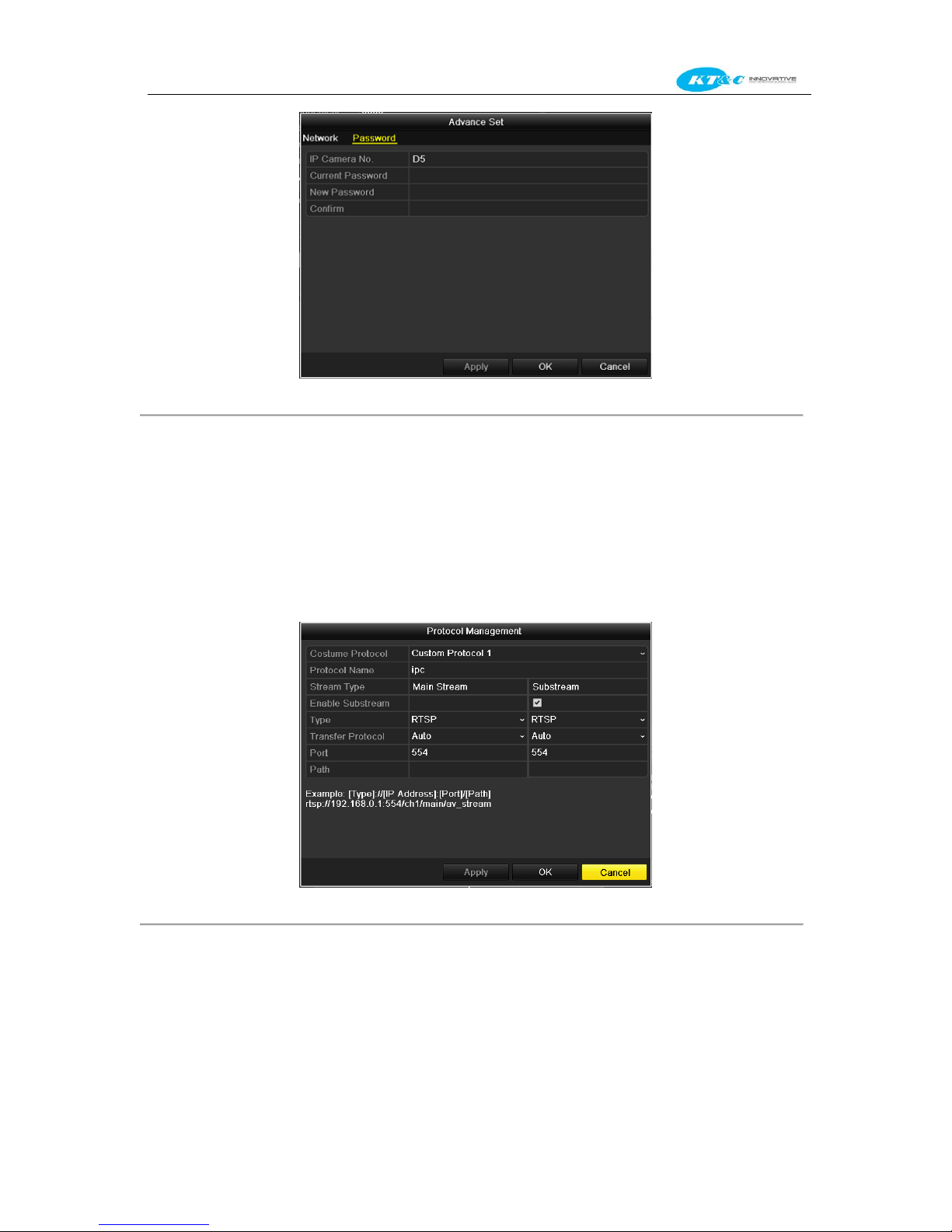

2.3.2 Editing the Connected IP cameras and Configuring Customized Protocols ................ 29
2.3.3 Editing IP cameras connected to the PoE interfaces .................................................... 32
Chapter 3 Live View ................................................................................................................................... 34
3.1 Introduction of Live View ............................................................................................................. 35
3.2 Operations in Live View Mode ...................................................................................................... 36

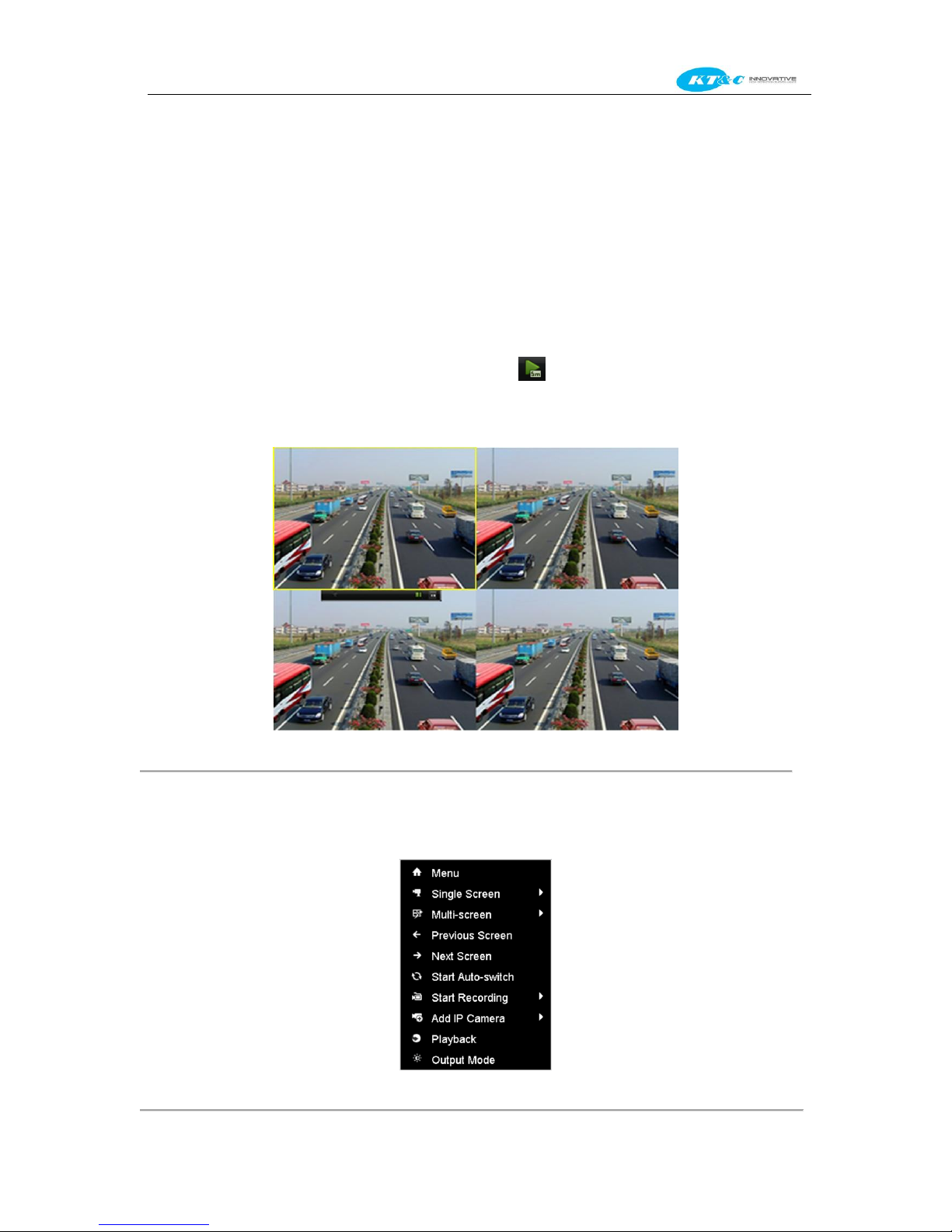

3.2.1 Using the Mouse in Live View .................................................................................... 36

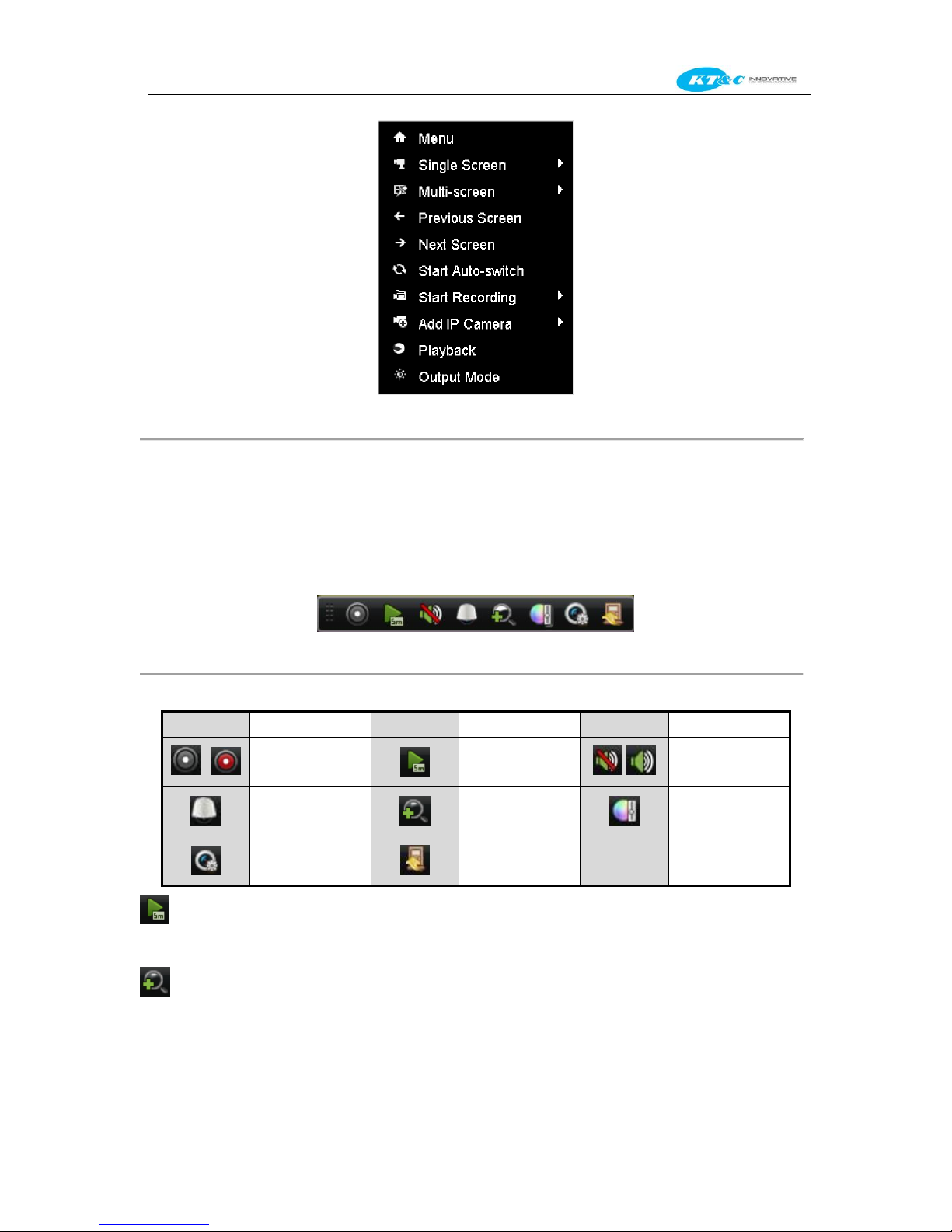

3.2.2 Quick Setting Toolbar in Live View Mode.................................................................. 37
3.3 Adjusting Live View Settings ........................................................................................................ 40
3.4 User Logout ................................................................................................................................... 42
Chapter 4 PTZ Controls ............................................................................................................................. 43

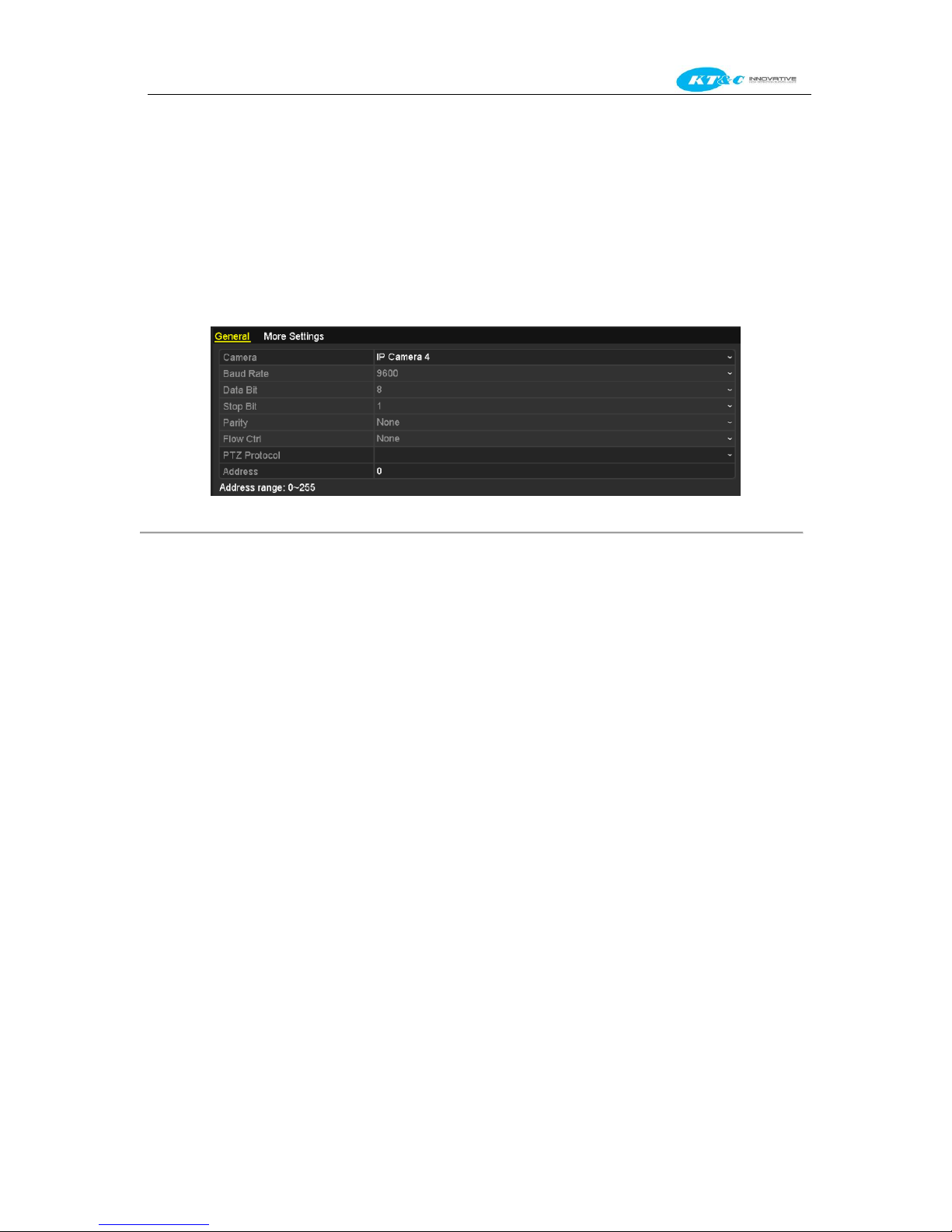

4.1 Configuring PTZ Settings .............................................................................................................. 44

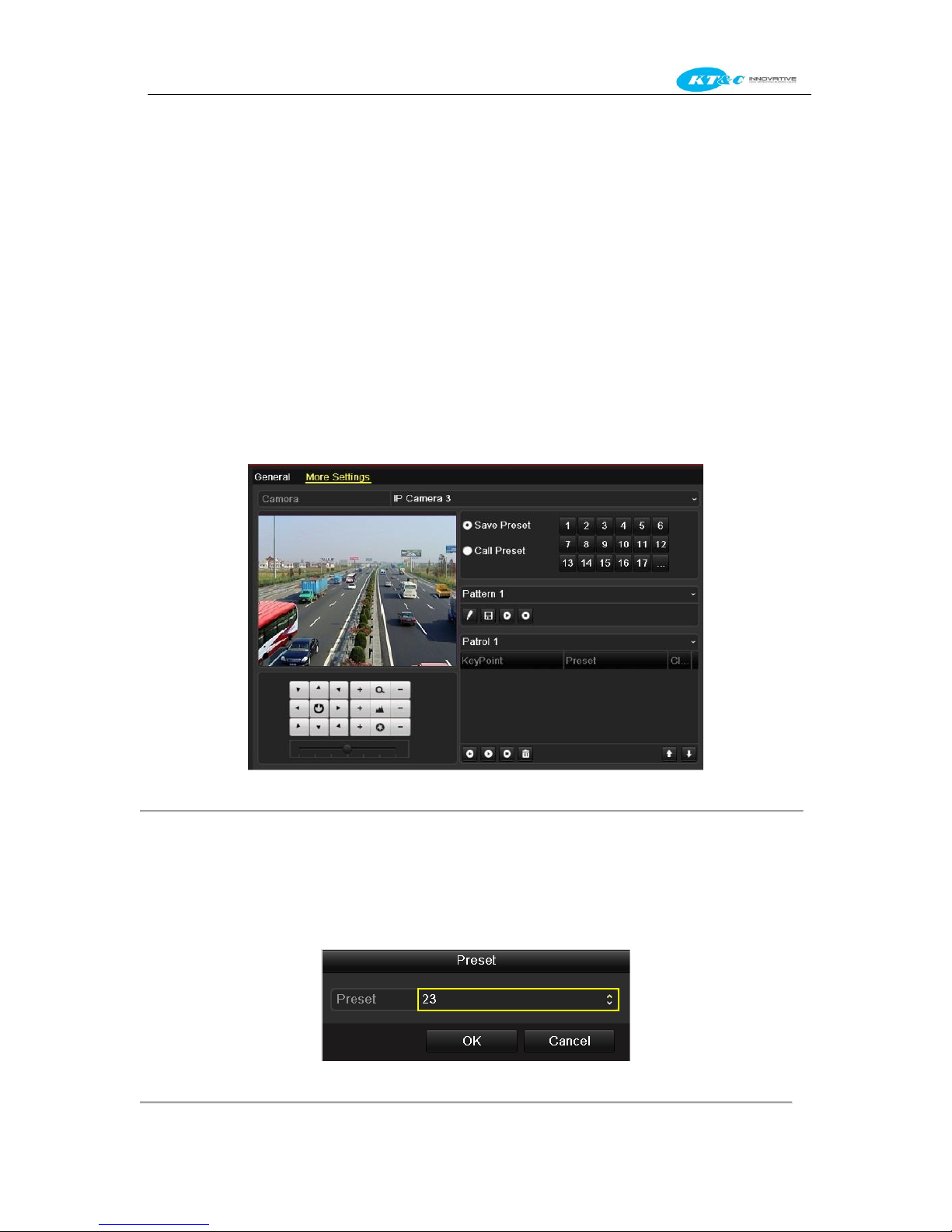

4.2 Setting PTZ Presets, Patrols & Patterns......................................................................................... 45
4.2.1 Customizing Presets .................................................................................................... 45
4.2.2 Calling Presets ............................................................................................................ 46

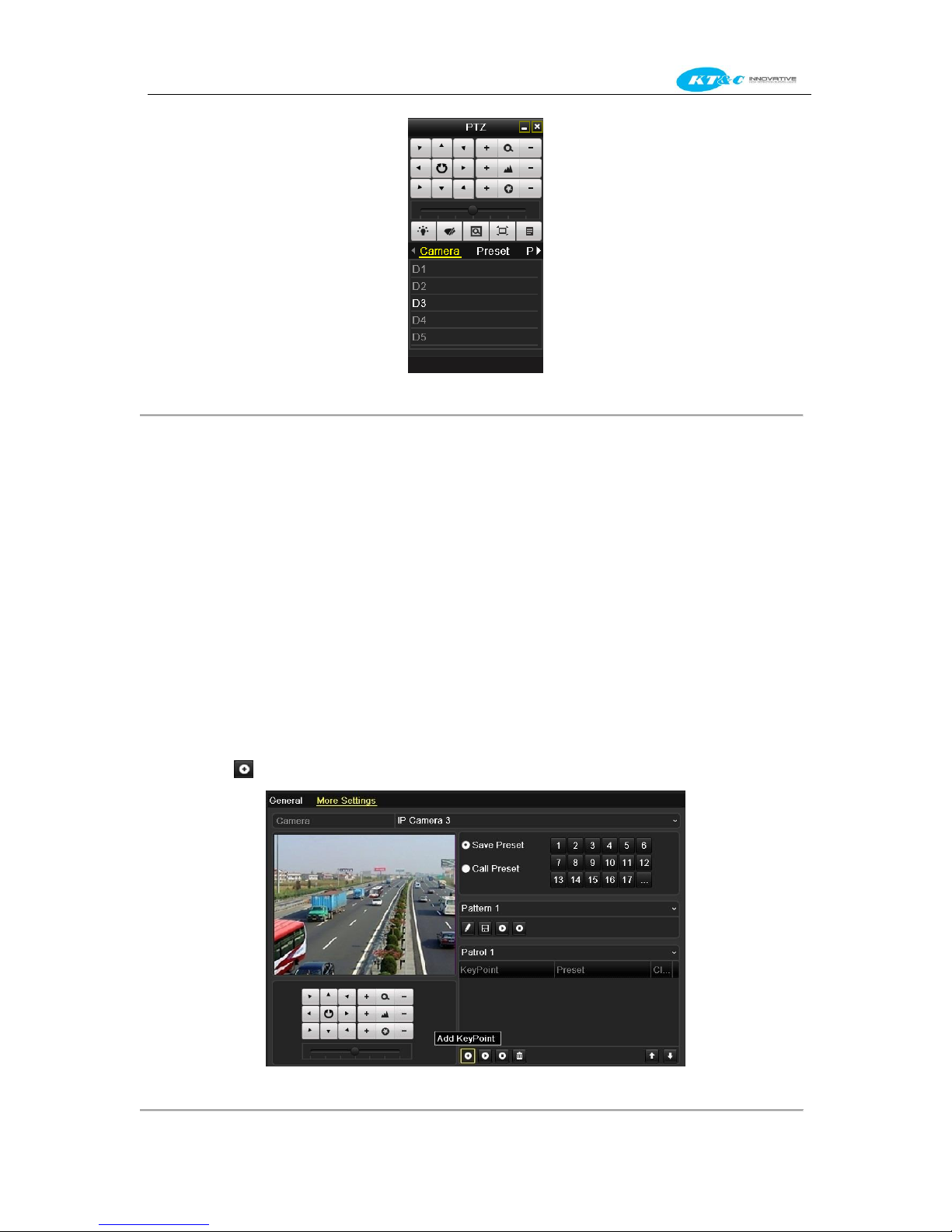

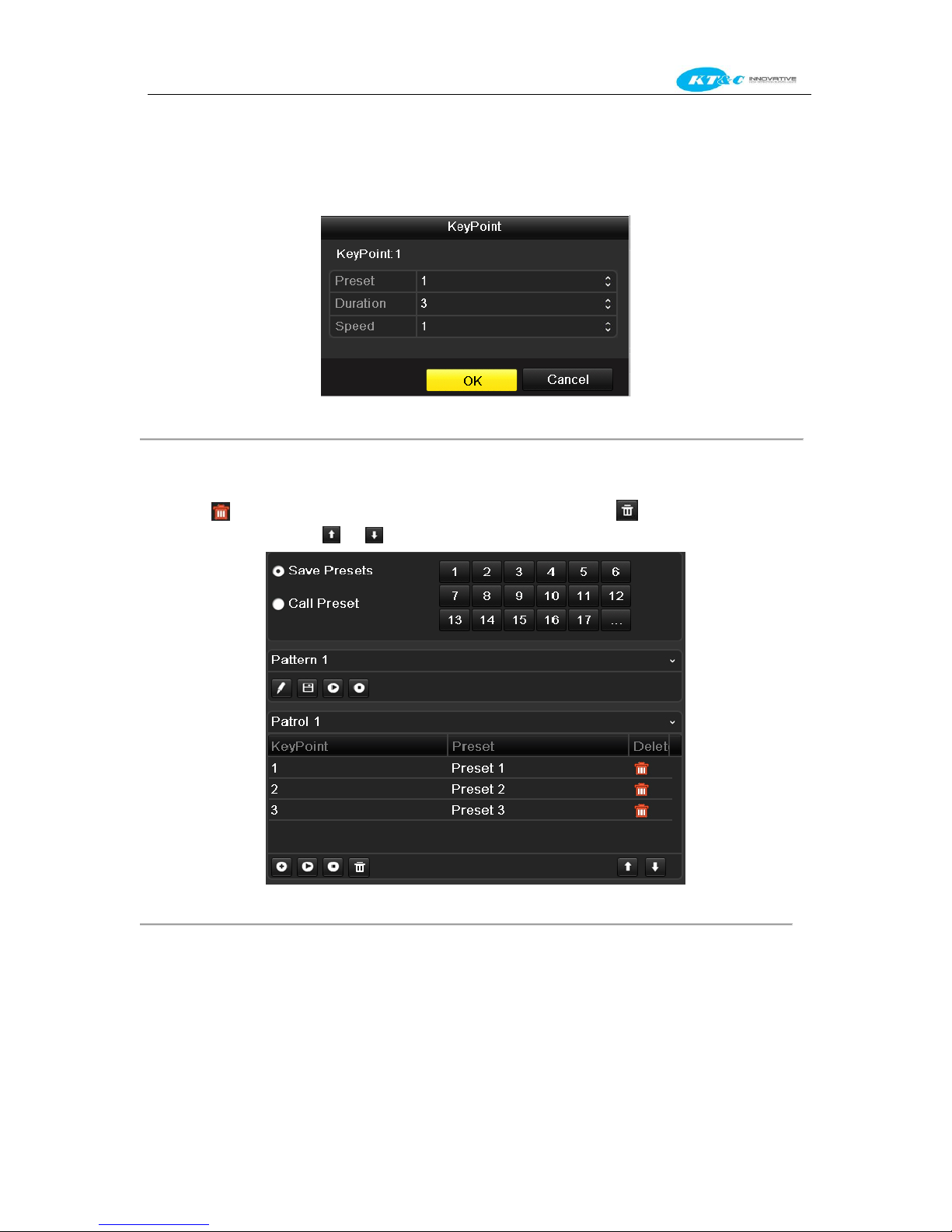

4.2.3 Customizing Patrols .................................................................................................... 47
4.2.4 Calling Patrols ............................................................................................................. 48
4.2.5 Customizing Patterns .................................................................................................. 49
4.2.6 Calling Patterns ........................................................................................................... 50
4.3 PTZ Control Toolbar ..................................................................................................................... 52
Chapter 5 Record Settings……. .................................................................................................................. 53

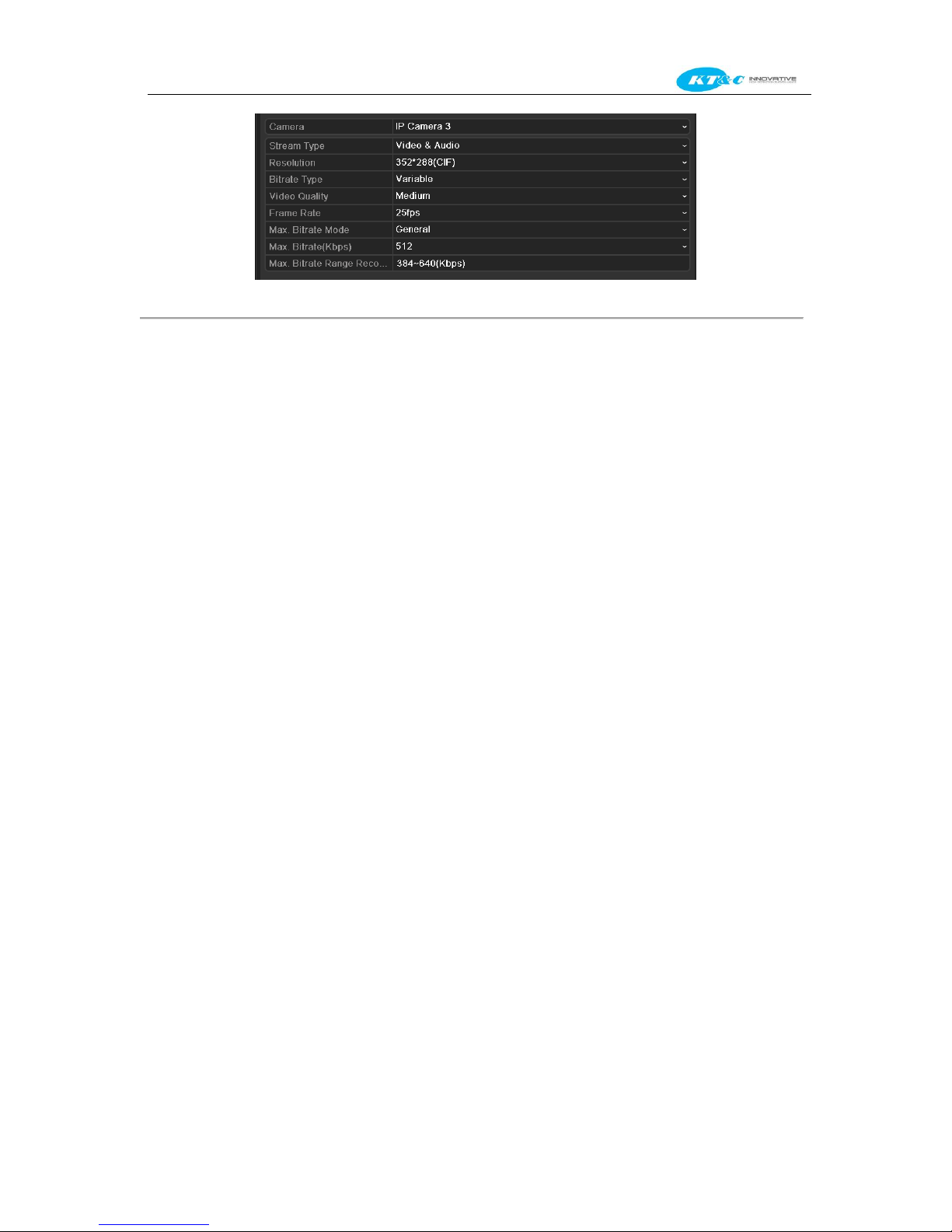

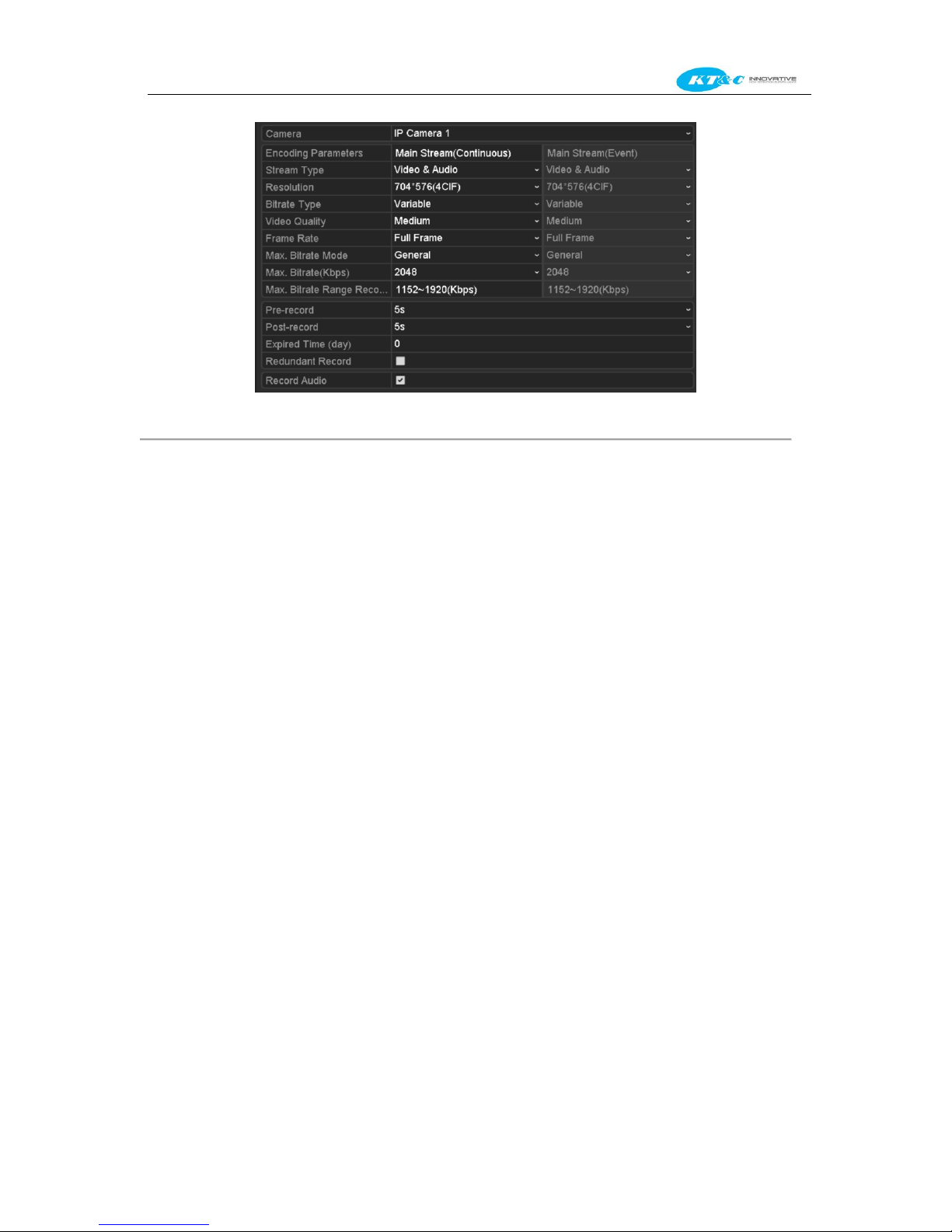

5.1 Configuring Recording Parameters ............................................................................................... 54
5.2 Configuring Record Schedule ....................................................................................................... 57
5.3 Configuring Motion Detection Record .......................................................................................... 60

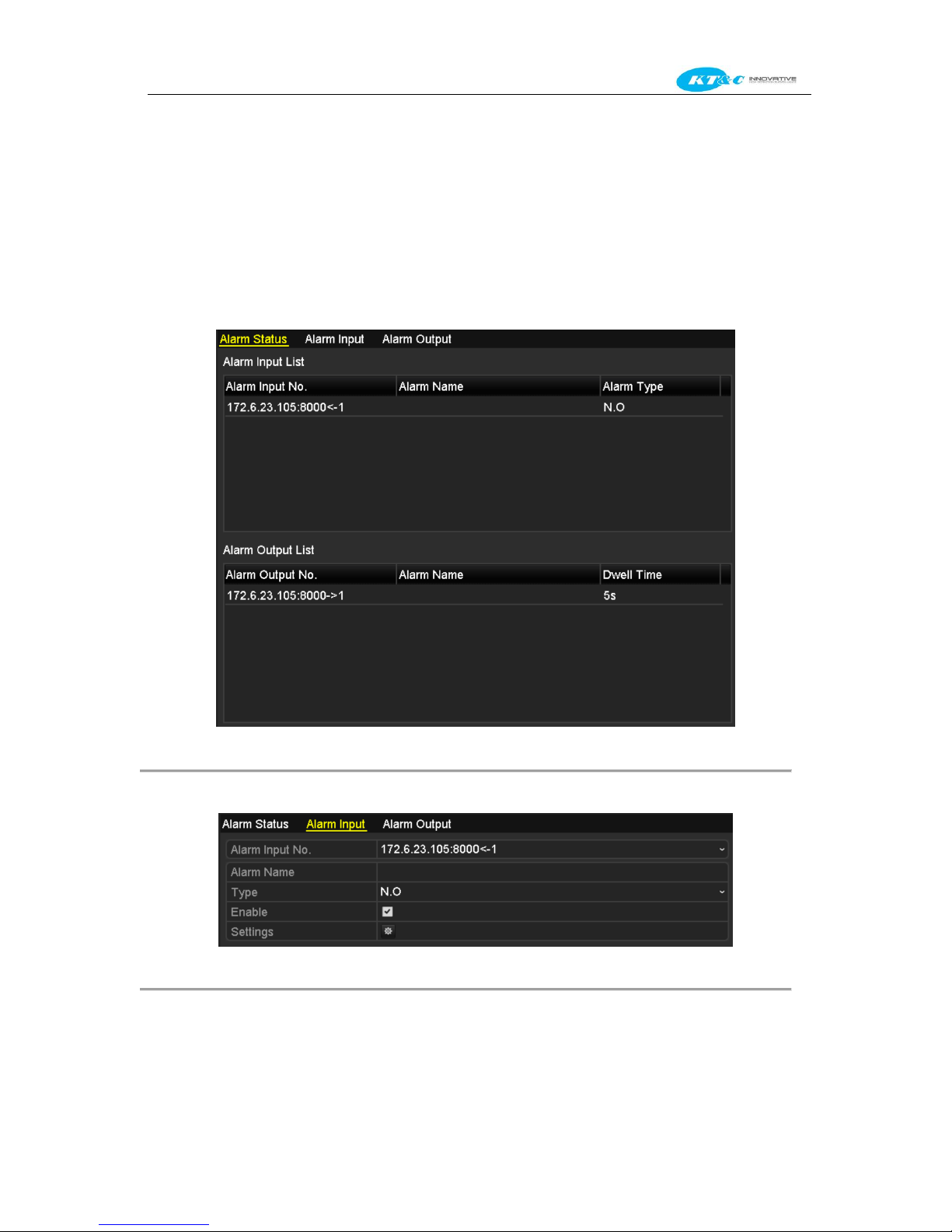

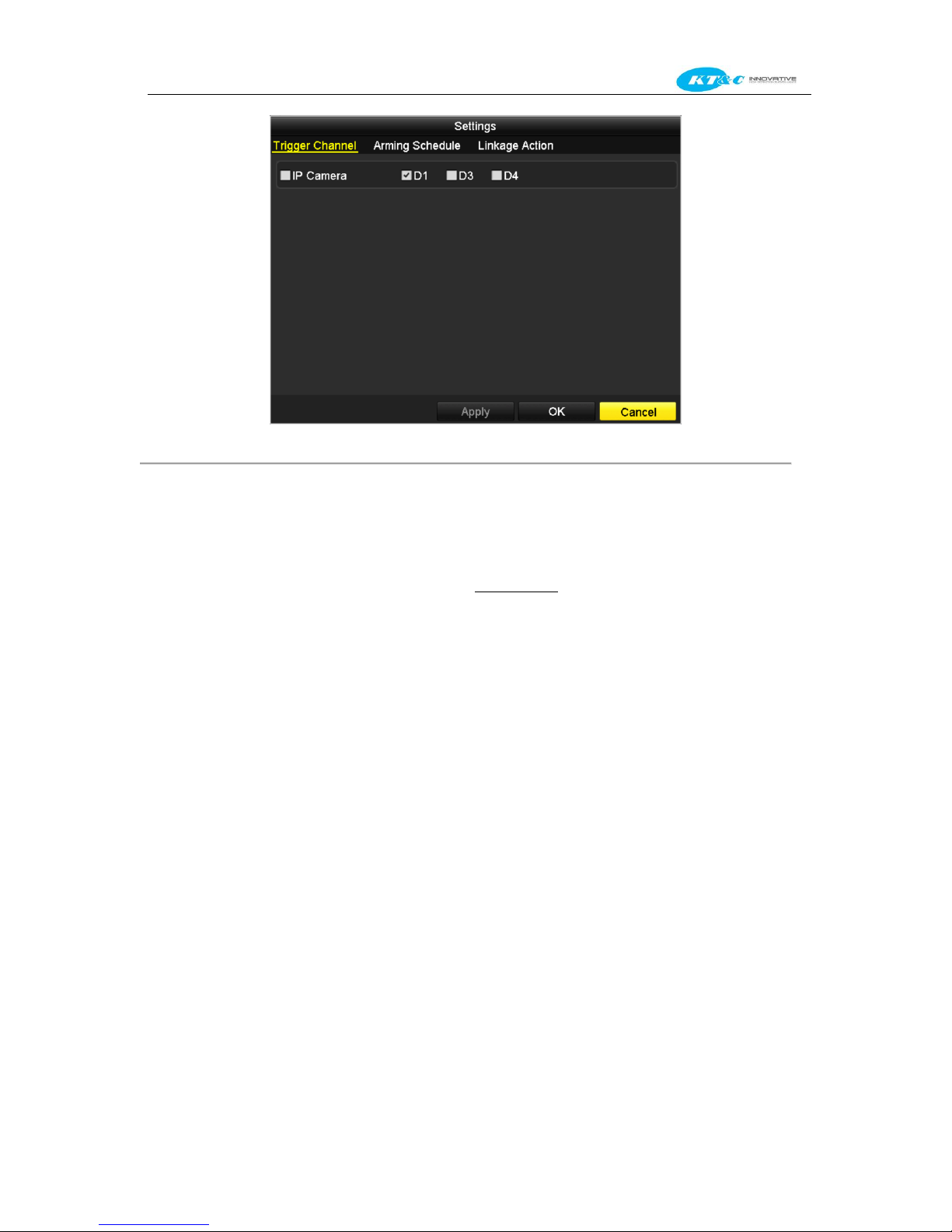

5.4 Configuring Alarm Triggered Record ............................................................................................ 62
7
KNR-p4Px4 KNR-p16Px8 User Manual
5.5 Manual Record .............................................................................................................................. 64
5.6 Configuring Holiday Record ......................................................................................................... 65
5.7 Configuring Redundant Recording ................................................................................................ 67
5.8 Configuring HDD Group for Recording ........................................................................................ 69
5.9 Files Protection .............................................................................................................................. 70
Chapter 6 Playback .................................................................................................................................... 73

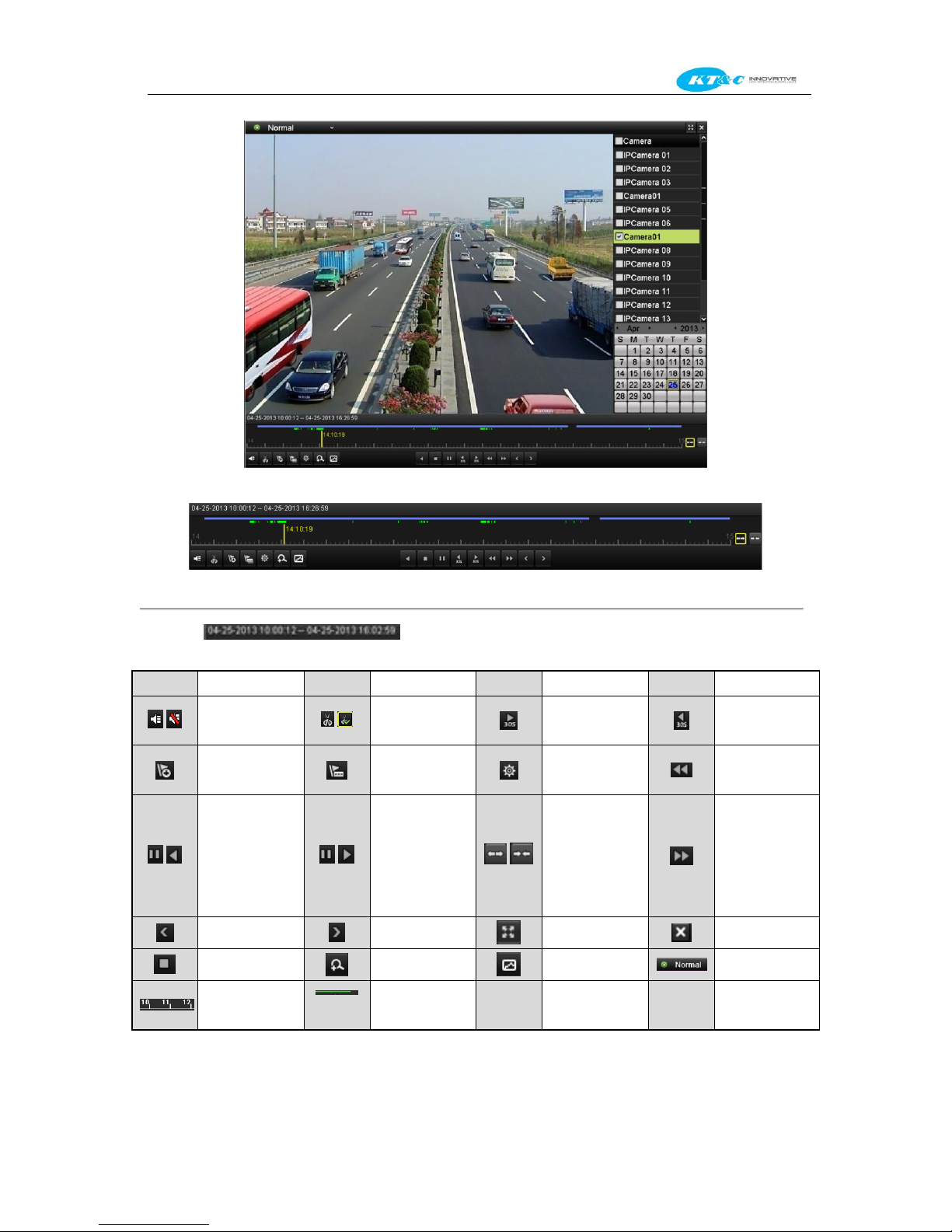

6.1 Playing Back Record Files ............................................................................................................ 74
6.1.1 Playing Back by Channel ............................................................................................ 74
6.1.2 Playing Back by Time ................................................................................................. 76

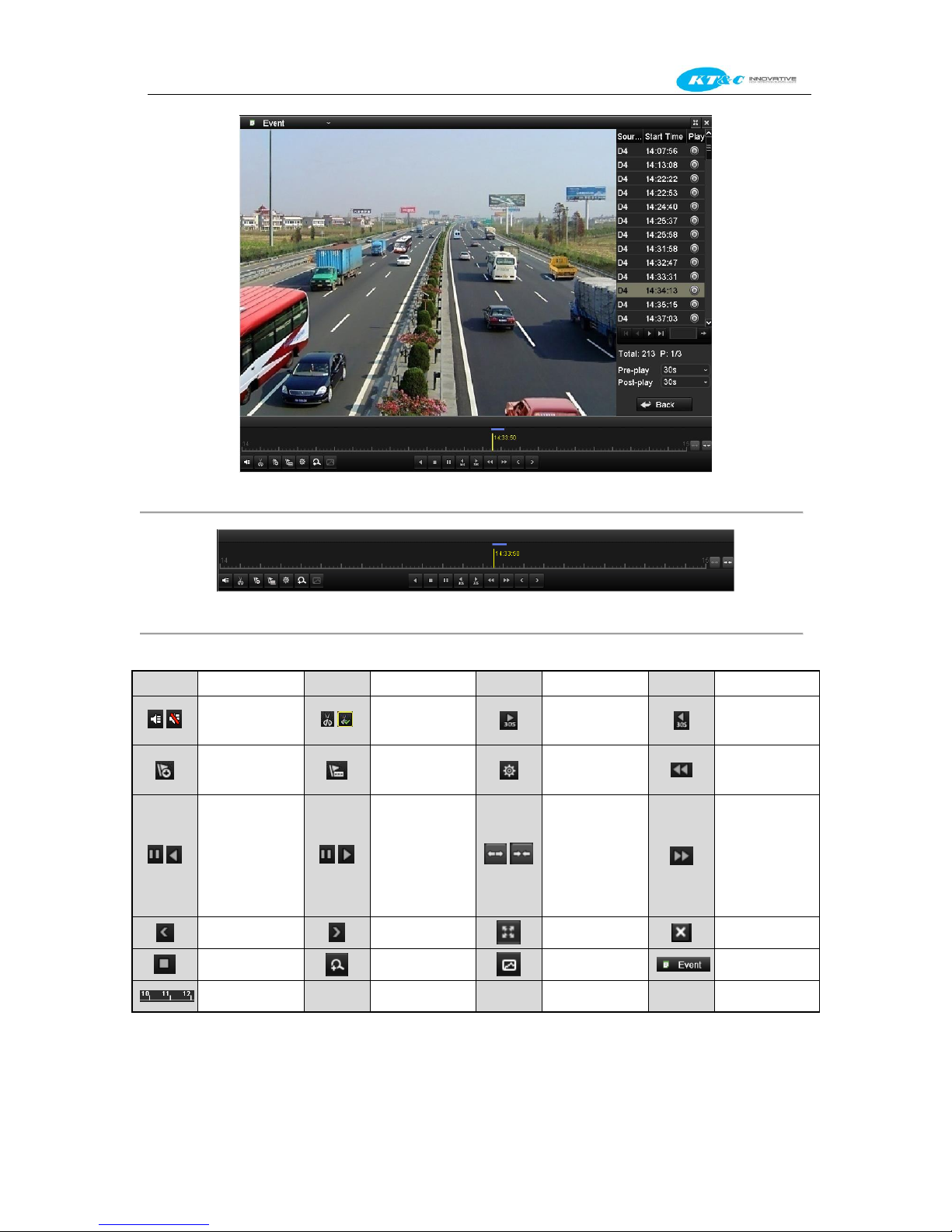

6.1.3 Playing Back by Event Search .................................................................................... 78
6.1.4 Playing Back by Tag ................................................................................................... 81

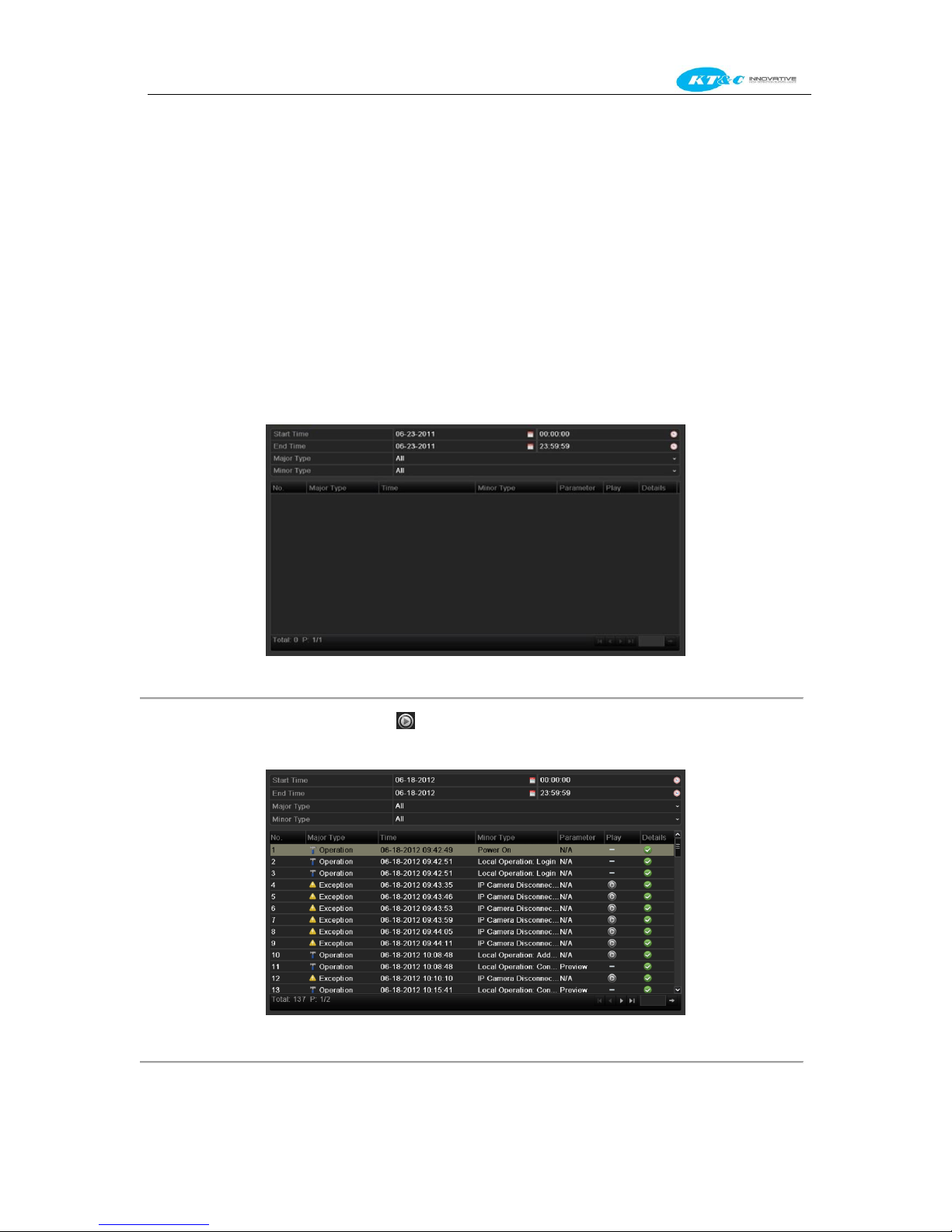

6.1.5 Playing Back by System Logs ..................................................................................... 84

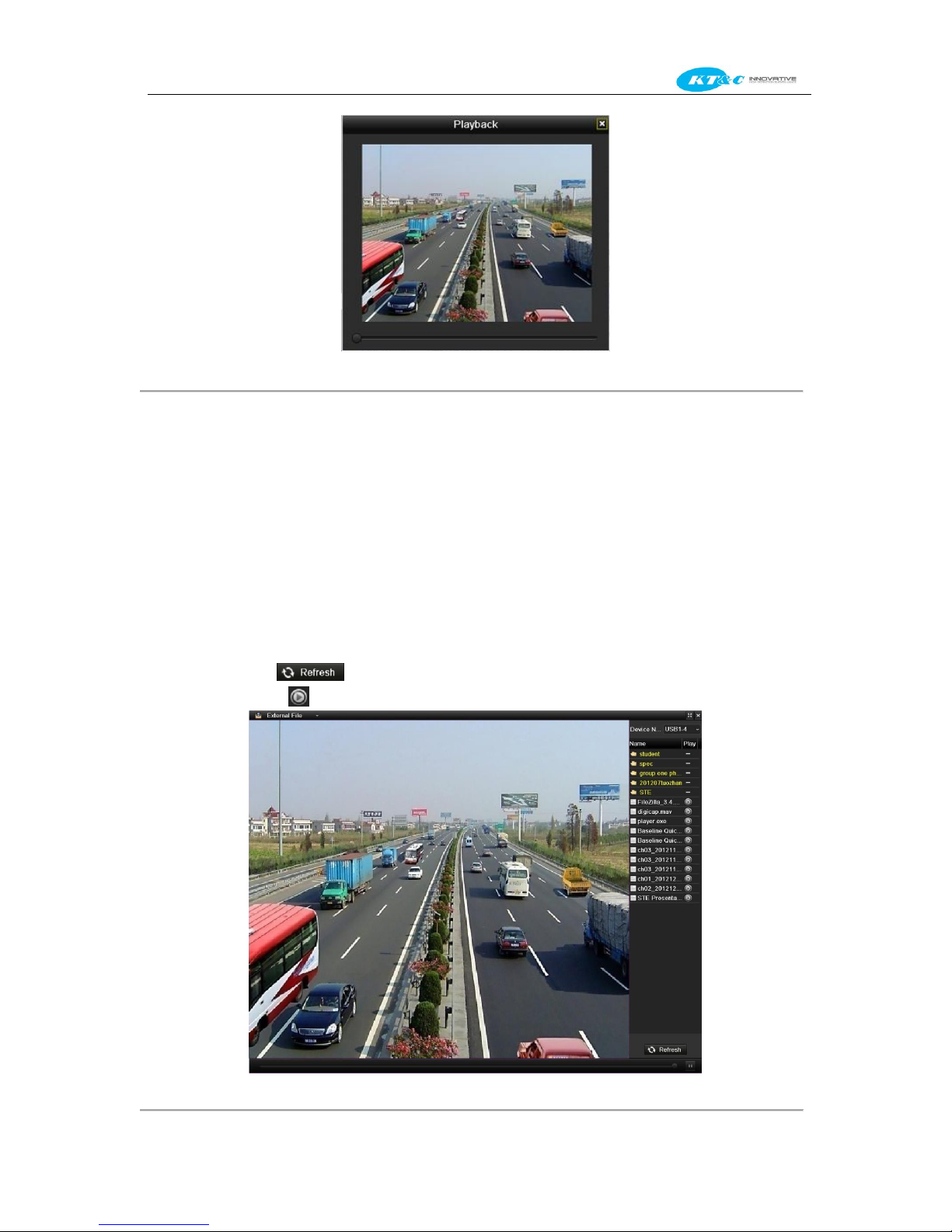

6.1.6 Playing Back External File .......................................................................................... 85
6.2 Auxiliary Functions of Playback ................................................................................................... 87
6.2.1 Playing Back Frame by Frame .................................................................................... 87

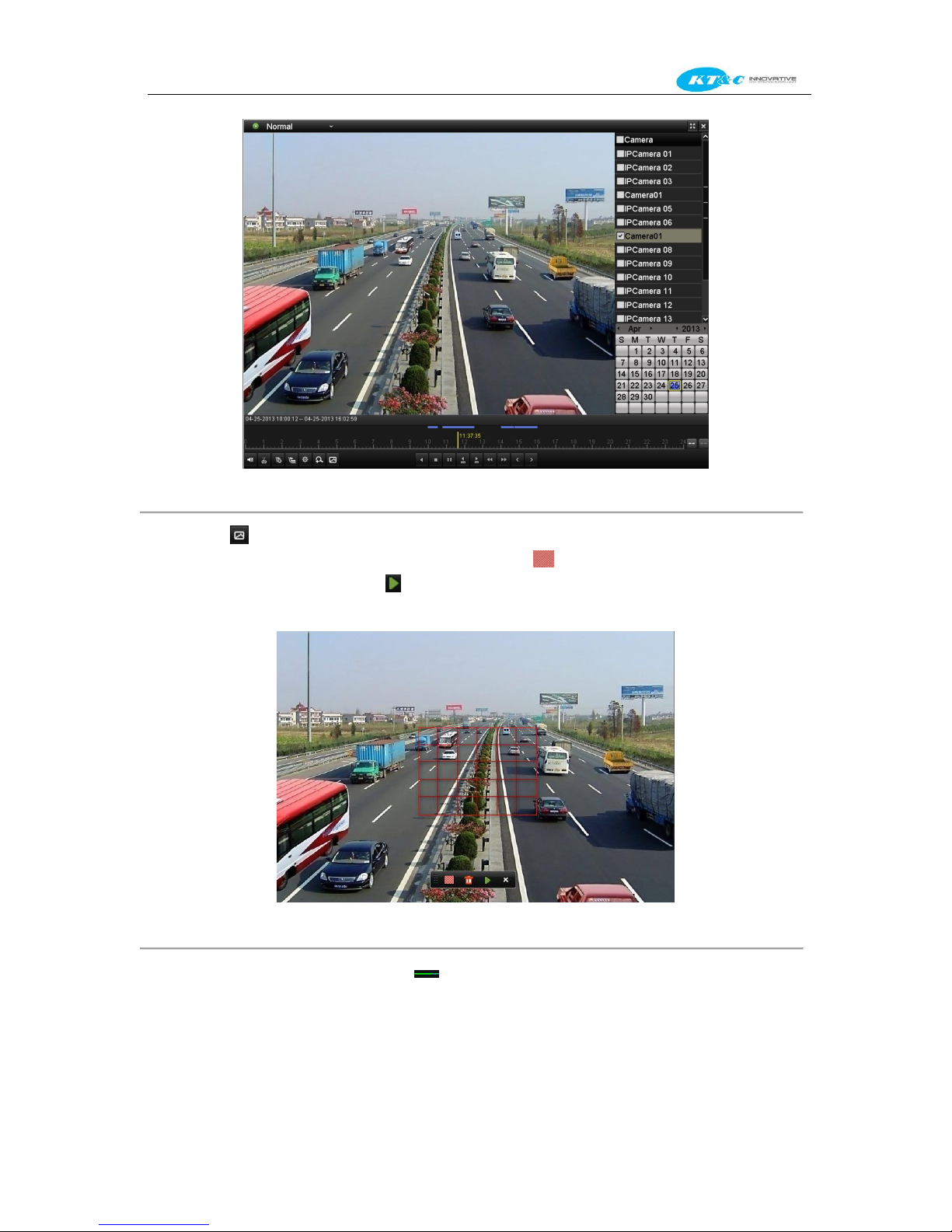

6.2.2 Smart Search ............................................................................................................... 87
6.2.3 Digital Zoom ............................................................................................................... 90

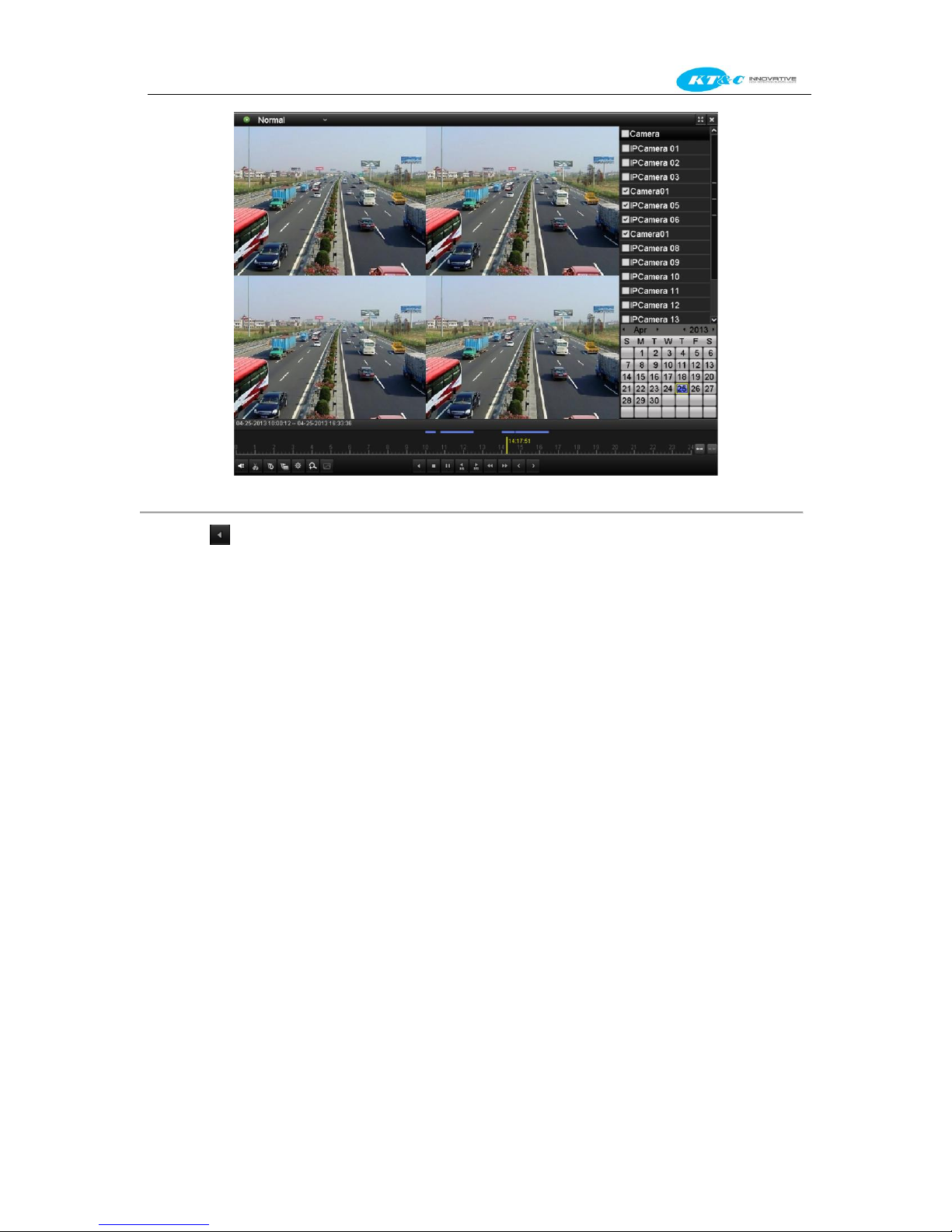

6.2.4 Reverse Playback of Multi-channel ............................................................................ 90
Chapter 7 Backup ....................................................................................................................................... 92
7.1 Backing up Record Files ............................................................................................................... 93

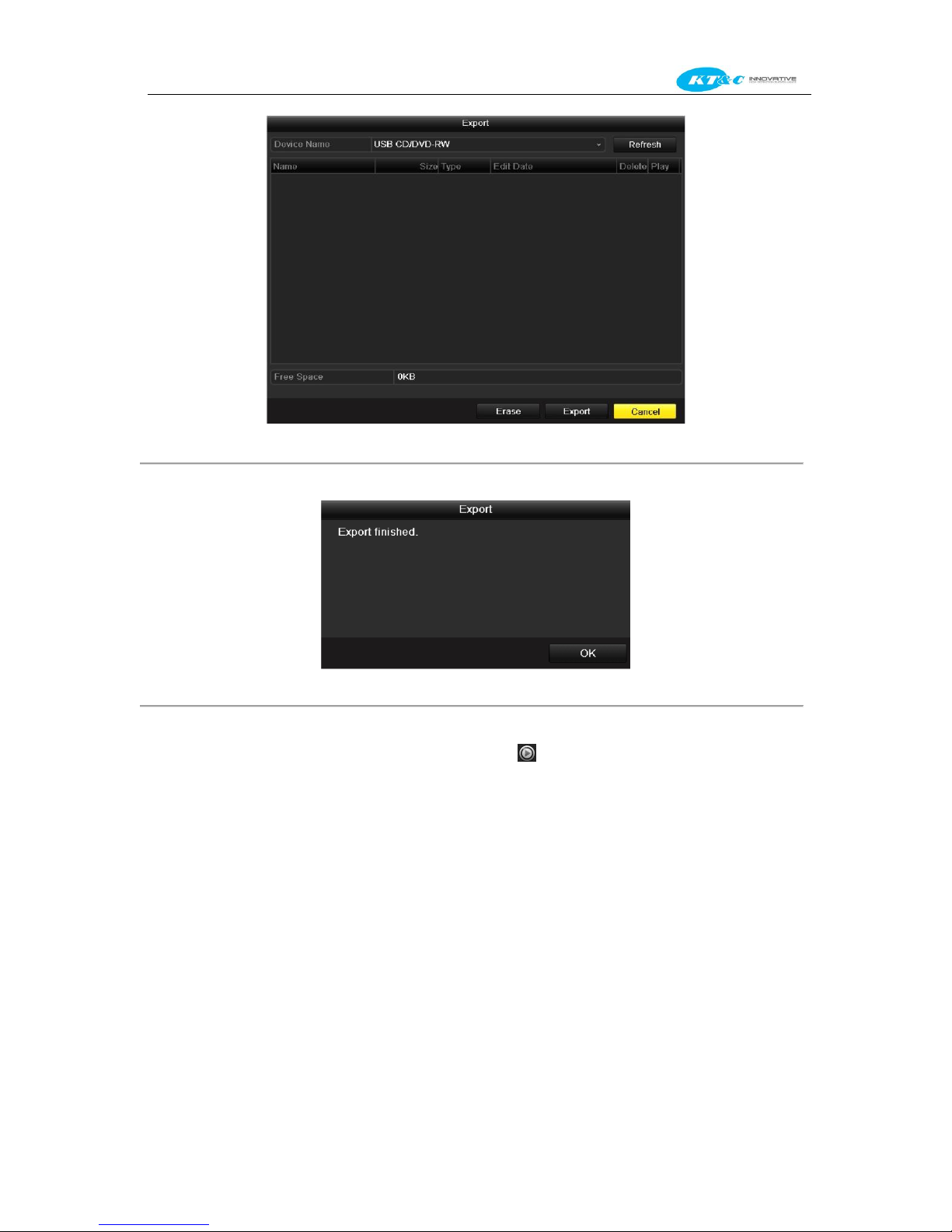

7.1.1 Quick Export ............................................................................................................... 93
7.1.2 Backing up by Normal Video Search .......................................................................... 95
7.1.3 Backing up by Event Search ..................................................................................... 100
7.1.4 Backing up Video Clips ............................................................................................ 103
7.2 Managing Backup Devices .......................................................................................................... 105
Chapter 8 Alarm Settings .......................................................................................................................... 109
8.1 Setting Motion Detection Alarm .................................................................................................. 110
8.2 Setting Sensor Alarms ................................................................................................................. 112
8.3 Detecting Video Loss Alarm ........................................................................................................ 115
8.4 Detecting Video Tampering Alarm .............................................................................................. 117
8.5 Handling Exceptions Alarm ......................................................................................................... 119
8.6 Setting Alarm Response Actions ................................................................................................. 120
8.7 Triggering or Clearing Alarm Output Manually .......................................................................... 123
Chapter 9 Network Settings ................................................................ ....................................................... 124
9.1 Configuring General Settings ...................................................................................................... 125
9.2 Configuring Advanced Settings ................................................................................................... 126
9.2.1 Configuring PPPoE Settings ..................................................................................... 126
9.2.2 Configuring DDNS ................................................................................................... 126
9.2.3 Configuring NTP Server ........................................................................................... 130
9.2.4 Configuring SNMP ................................................................................................... 131
9.2.5 Configuring Remote Alarm Host .............................................................................. 131
8
KNR-p4Px4 KNR-p16Px8 User Manual
9.2.6 Configuring Multicast ............................................................................................... 132
9.2.7 Configuring RTSP ..................................................................................................... 133
9.2.8 Configuring Server and HTTP Ports ......................................................................... 133
9.2.9 Configuring HTTPS Port .......................................................................................... 134
9.2.10 Configuring Email .................................................................................................... 134
9.2.11 Configuring UPnP™ ................................................................................................. 136
9.2.12 Configuring High-speed Download .......................................................................... 137
9.3 Checking Network Traffic ........................................................................................................... 139
9.4 Configuring Network Detection .................................................................................................. 140
9.4.1 Testing Network Delay and Packet Loss ................................................................... 140
9.4.2 Exporting Network Packet ........................................................................................ 140
9.4.3 Checking the Network Status .................................................................................... 141
9.4.4 Checking Network Statistics ..................................................................................... 142
Chapter 10 HDD Management............................................................................................................ 144
10.1 Initializing HDDs ........................................................................................................................ 145
10.2 Managing Network HDD ............................................................................................................ 147
10.3 Managing HDD Group ................................................................................................................ 150
10.3.1 Setting HDD Groups ................................................................................................. 150
10.3.2 Setting HDD Property ............................................................................................... 151
10.4 Configuring Quota Mode............................................................................................................. 153
10.5 Checking HDD Status ................................................................................................................. 155
10.6 HDD Detection ............................................................................................................................ 157
10.7 Configuring HDD Error Alarms .................................................................................................. 159
Chapter 11 Camera Settings ............................................................................................................... 160
11.1 Configuring OSD Settings ........................................................................................................... 161
11.2 Configuring Privacy Mask........................................................................................................... 162
11.3 Configuring Video Parameters .................................................................................................... 163
Chapter 12 NVR Management and Maintenance ............................................................................. 164
12.1 Viewing System Information ....................................................................................................... 165
12.1.1 Viewing Device Information ..................................................................................... 165
12.1.2 Viewing Camera Information .................................................................................... 165
12.1.3 Viewing Record Information ..................................................................................... 165
12.1.4 Viewing Alarm Information ...................................................................................... 166
12.1.5 Viewing Network Information .................................................................................. 166
12.1.6 Viewing HDD Information ....................................................................................... 167
12.2 Searching & Export Log Files ..................................................................................................... 167
12.3 Importing/Exporting Configuration Files .................................................................................... 171
12.4 Upgrading System ....................................................................................................................... 172
12.4.1 Upgrading by Local Backup Device ......................................................................... 172
12.4.2 Upgrading by FTP ..................................................................................................... 172
12.5 Restoring Default Settings ........................................................................................................... 174
9
KNR-p4Px4 KNR-p16Px8 User Manual
Chapter 13 Other Settings ................................................................................................................... 175
13.1 Configuring General Settings ...................................................................................................... 176
13.2 Configuring DST Settings ........................................................................................................... 177
13.3 Configuring More Settings for Device Parameters ...................................................................... 178
13.4 Managing User Accounts............................................................................................................. 179
13.4.1 Adding a User ........................................................................................................... 179
13.4.2 Deleting a User ......................................................................................................... 182
13.4.3 Editing a User ........................................................................................................... 182
Appendix…………… ................................................................................................................................... 184
Glossary ................................................................................................................................................. 185
Troubleshooting ..................................................................................................................................... 186
Summary of Changes ............................................................................................................................. 192
List of Compatible IP Cameras .............................................................................................................. 193
10
KNR-p4Px4 KNR-p16Px8 User Manual
Chapter 1 Introduction
11
KNR-p4Px4 KNR-p16Px8 User Manual
No.
Name
Function Description
1
POWER
POWER indicator turns green when NVR is powered up.
STATUS
STATUS indicator lights in red when data is being read from or written to HDD.
Tx/Rx
Tx/Rx indictor blinks green when network connection is functioning properly.
2
DIRECTION
The DIRECTION buttons are used to navigate between different fields and items
in menus.
In the Playback mode, the Up and Down button is used to speed up and slow
down recorded video. The Left and Right button will select the next and previous
record files.
In Live View mode, these buttons can be used to cycle through channels.
In PTZ control mode, it can control the movement of the PTZ camera.
ENTER
The ENTER button is used to confirm selection in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance the video by a
single frame.
3
MENU
Access the main menu interface.
4
ESC
Exit and back to the previous menu.
5
IR Receiver
Receiver for IR remote.
6
USB Interface
Connects USB mouse or USB flash memory devices.
1.1 Front Panel
Figure 1. 1 Front Panel
Table 1. 1 Description of Front Panel
12
KNR-p4Px4 KNR-p16Px8 User Manual
No.
Name
Description
1
POWER
Power on/off the device.
2
DEV
Enables/Disables Remote Control.
3
Alphanumeric Buttons
Switch to the corresponding channel in Live view or PTZ Control mode.
Input numbers and characters in Edit mode.
Switch between different channels in All-day Playback mode.
4
EDIT Button
Edit text fields. When editing text fields, it will also function as a
Backspace button to delete the character in front of the cursor.
On checkbox fields, pressing the button will tick the checkbox.
In PTZ Control mode, the button adjusts the iris of the camera.
In Playback mode, it can be used to generate video clips for backup.
Enter/exit the folder of USB device.
5
‘A’ Button
Adjust focus in the PTZ Control menu.
1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote, shown in Figure 1. 2.
Note: Batteries (2×AAA) must be installed before operation.
Figure 1. 2 Remote Control
Table 1. 2 Description of the Remote Control Key Functions
13
KNR-p4Px4 KNR-p16Px8 User Manual
It is also used to switch between input methods (upper and lowercase
alphabet, symbols and numeric input).
6
REC Button
Enter the Manual Record setting menu.
In PTZ control settings, press the button and then you can call a PTZ
preset by pressing Numeric button.
It is also used to turn audio on/off in the Playback mode.
7
PLAY Button
The button is used to enter the All-day Playback mode.
It is also used to auto scan in the PTZ Control menu.
8
INFO Button
Reserved.
9
VOIP Button
Switch between main and spot output.
In PTZ Control mode, it can be used to zoom out the image.
10
MENU Button
Press the button will help you return to the Main menu (after successful
login).
Press and hold the button for 5 seconds will turn off audible key beep.
In PTZ Control mode, the MENU/WIPER button will start wiper (if
applicable).
In Playback mode, it is used to show/hide the control interface.
11
PREV Button
Switch between single screen and multi-screen mode.
In PTZ Control mode, it is used to adjust the focus in conjunction with the
A/FOCUS+ button.
12
DIRECTION Button
Navigate between different fields and items in menus.
In the Playback mode, the Up and Down button is used to speed up and
slow down recorded video. The Left and Right button will select the next
and previous record files.
In Live View mode, these buttons can be used to cycle through channels.
In PTZ control mode, it can control the movement of the PTZ camera.
ENTER Button
Confirm selection in any of the menu modes.
It can also be used to tick checkbox fields.
In Playback mode, it can be used to play or pause the video.
In single-frame Playback mode, pressing the button will advance the
video by a single frame.
13
PTZ Button
In Auto-switch mode, it can be used to stop /start auto switch.
14
ESC Button
Back to the previous menu.
Press for Arming/disarming the device in Live View mode.
15
RESERVED
Reserved for future usage.
16
F1 Button
Select all items on the list when used in a list field.
In PTZ Control mode, it will turn on/off PTZ light (if applicable).
In Playback mode, it is used to switch between play and reverse play.
17
PTZ Control Buttons
Buttons to adjust the iris, focus and zoom of a PTZ camera.
18
F2 Button
Cycle through tab pages.
In synchronous playback mode, it is used to switch between channels.
Troubleshooting Remote Control:
14
KNR-p4Px4 KNR-p16Px8 User Manual
Note: Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at
the IR receiver in the front panel.
If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.
Steps:
1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.
2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.
3. Press the DEV button on the remote control.
4. Enter the NVR ID# you set in step 2.
5. Press the ENTER button on the remote.
If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator does
not turn blue and there is still no response from the remote, please check the following:
1. Batteries are installed correctly and the polarities of the batteries are not reversed.
2. Batteries are fresh and not out of charge.
3. IR receiver is not obstructed.
If the remote still can’t function properly, please change a remote and try again, or contact the device provider.
15
KNR-p4Px4 KNR-p16Px8 User Manual
Name
Action
Description
Left-Click
Single-Click
Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double-Click
Live view: Switch between single-screen and multi-screen.
Click and Drag
PTZ control: pan, tilt and zoom.
Video tampering, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar.
Right-Click
Single-Click
Live view: Show menu.
Menu: Exit current menu to upper level menu.
Scroll-Wheel
Scrolling up
Live view: Previous screen.
Menu: Previous item.
Scrolling down
Live view: Next screen.
Menu: Next item.
1.3 USB Mouse Operation
A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:
1. Plug USB mouse into one of the USB interfaces on the front panel of the NVR.
2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible reason
may be that the two devices are not compatible, please refer to the recommended device list.
The operation of the mouse:
Table 1. 3 Description of the Mouse Control
16
KNR-p4Px4 KNR-p16Px8 User Manual
Icon
Description
Icon
Description
Caps Lock (Yellow when active)
Switch to Alphanumeric Keyboard
Switch to Numeric Keyboard
Switch to Symbols Keyboard
Move cursor left/right
Backspace
Space
Enter/Done
1.4 Input Method Description
Initial Alphanumeric Numeric Symbols
Figure 1. 3 Soft Keyboards
Description of the buttons on the soft keyboard:
Table 1. 4 Description of the Soft Keyboard Function Keys
17
KNR-p4Px4 KNR-p16Px8 User Manual
No.
Item
Description
1
LAN Network Interface
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connects to RS-485 devices.
3
Power Supply
100~240VAC power supply
4
Power Switch
Switch for turning on/off the device.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
GND
Ground (recommended to be connected before NVR starts up).
7
HDMI Interface
HDMI video output connector.
8
VGA Output
DB9 connector for VGA output. Display local video output and menu.
9
Audio In
RCA connector for voice talk input
10
Audio Out
RCA connector for audio output
11
Network interfaces with
PoE function
Network interface for the cameras and to provide Power over Ethernet.
1.5 Rear Panel
Figure 1. 4 KNR-p4Px4
Figure 1. 5 KNR-p16Px8
18
KNR-p4Px4 KNR-p16Px8 User Manual
Chapter 2 Getting Started
19
KNR-p4Px4 KNR-p16Px8 User Manual
2.1 Starting Up and Shutting Down the NVR
Purpose:
Proper startup and shutdown procedures are important to reliable operation of the NVR.
Before you start:
Check that the voltage of the power supply matches the NVR’s requirement, and the ground connection is made.
Starting up the NVR:
Steps:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible
Power Supply (UPS) be used in conjunction with the device.
2. Turn on the power switch on the rear panel.
3. After startup, the Power LED indicator turns on. A splash screen appears on the monitor. The row of icons at the
bottom of the screen shows the HDD status. ‘X’ means that the HDD is not installed or cannot be detected.
Shutting down the NVR
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
Figure 2. 1 Shutdown Menu
2. Click the Shutdown button.
3. Click the Yes button.
4. Turn off the power switch on the rear panel when the attention pops up.
20
KNR-p4Px4 KNR-p16Px8 User Manual
Figure 2. 2 Shutdown Attention
Rebooting the NVR
In the Shutdown menu, you can also reboot the NVR.
Steps:
1. Enter the Shutdown menu by clicking Menu > Shutdown.
2. Click the Logout button to lock the NVR or the Reboot button to reboot the NVR.
21
KNR-p4Px4 KNR-p16Px8 User Manual
2.2 Using the Wizard for basic configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure below.
Figure 2. 3 Start Wizard Interface
Operating the Setup Wizard:
1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the Setup
Wizard at that moment, click the Exit button. You can also choose to use the Setup Wizard next time by
leaving the “Start wizard when the device starts?” checkbox checked.
2. Click Next button on the Wizard window to enter the Login window, as shown in Figure 2. 4.
3. Enter the admin password. By default, the password is 12345.
4. To change the admin password, check the New Admin Password checkbox. Enter the new password and
Figure 2. 4 Login Window
22
KNR-p4Px4 KNR-p16Px8 User Manual
confirm the password in the given fields.
5. Click the Next button to enter the date and time settings window, as shown in Figure 2. 5.
Figure 2. 5 Date and Time Settings
6. After the time settings, click Next button which takes you back to the Network Setup Wizard window, as shown
in Figure 2. 6.
Note: For the KNR-p4Px4/KNR-p16Px8 NVRs, the internal NIC IPv4 address should be configured to match the
cameras connected to the PoE network interfaces of the NVR (typically 192.168.254.1).
7. Click Next button after you configured the network parameters, which takes you to the HDD Management
window, shown in Figure 2. 7.
Figure 2. 6 Network Configuration
23
KNR-p4Px4 KNR-p16Px8 User Manual
Figure 2. 7 HDD Management
8. To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.
9. Click Next button to enter the Adding IP Camera interface.
10. Click Search to find online IP Camera. Select the IP camera to be added, and click the Add button.
11. Click Next button. Configure the recording for the searched IP Cameras.
Figure 2. 8 Search for IP Cameras
24
KNR-p4Px4 KNR-p16Px8 User Manual
Figure 2. 9 Record Settings
12. Click Copy to copy the settings to other channels, as shown in Figure 2. 10.
13. Click OK to complete the startup Setup Wizard.
Figure 2. 10 Copy Record Settings
25
KNR-p4Px4 KNR-p16Px8 User Manual
2.3 Adding and Connecting the IP Cameras
2.3.1 Adding the Online IP Cameras
Purpose:
The main function of the NVR is to connect the network cameras and record the video got from it. So before you can
get a live view or record of the video, you should add the network cameras to the connection list of the device.
Before you start:
Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please see
Chapter Checking Network Traffic and Chapter Configuring Network Detection.
• OPTION 1:
Steps:
1. Right-click the mouse when in the live view mode to show the right-click menu.
2. Select Add IP Camera in the pop-up menu and select Auto or Manual on your demand.
Figure 2. 11 Right-click Menu of Adding IP Camera
• Auto
The device will add the detected IP cameras or encoders automatically by the default user name and password of
administrator.
26
KNR-p4Px4 KNR-p16Px8 User Manual
Icon
Explanation
Icon
Explanation
Edit basic parameters of the camera
Add the detected IP camera.
The camera is connected; you can
click the icon to get the live view of
the camera.
The camera is disconnected; you can
click the icon to get the exception
information of camera.
The camera is connected.
Advanced settings of the camera.
Figure 2. 12 Auto Adding IP Camera Interface
Note: If the user name and password is changed, the auto adding of IP camera will be failed, you may add it
manually.
• Manual
Steps:
1. To add the online cameras with same network segment:
1) The detected online camera will be listed in the camera list, as shown in the figure below.
Figure 2. 13 Manual Adding IP Camera Interface
2) Click the button to add the camera.
Explanation of the icons:
27
KNR-p4Px4 KNR-p16Px8 User Manual
Delete the IP camera
2. To add other IP cameras:
1) Click the Custom Add button to pop up the Add IP Camera (Custom) interface.
Figure 2. 14 Custom Adding IP Camera Interface
2) You can edit the IP address, protocol, management port, and other information of the IP camera to be
added.
3) Click Add to add the camera.
• OPTION 2:
Steps:
1. Enter the Camera Management interface.
Menu> Camera> Camera
2. Repeat the step 1 and 2 of adding IP cameras manually to add the camera.
Figure 2. 15 Main Menu
28
KNR-p4Px4 KNR-p16Px8 User Manual
Figure 2. 16 IP Camera Management Interface
3. (For the encoders with multiple channels only) check the checkbox of Channel No. in the pop-up window, as
shown in the following figure, and click OK to finish adding.
2.3.2 Editing the Connected IP cameras and Configuring
Customized Protocols
After the adding of the IP cameras, the basic information of the camera lists in the page, you can configure the basic
setting of the IP cameras.
Figure 2. 17 Selecting Multiple Channels
29
KNR-p4Px4 KNR-p16Px8 User Manual
Steps:
1. Click the icon to edit the parameters; you can edit the IP address, protocol and other parameters.
Figure 2. 18 Edit the Parameters
2. Click OK to save the settings and exit the editing interface.
To edit advanced parameters:
1. Drag the horizontal scroll bar to the right side and click the icon.
Figure 2. 19 Network Configuration of the Camera
2. You can edit the network information and the password of the camera.
30
Loading...
