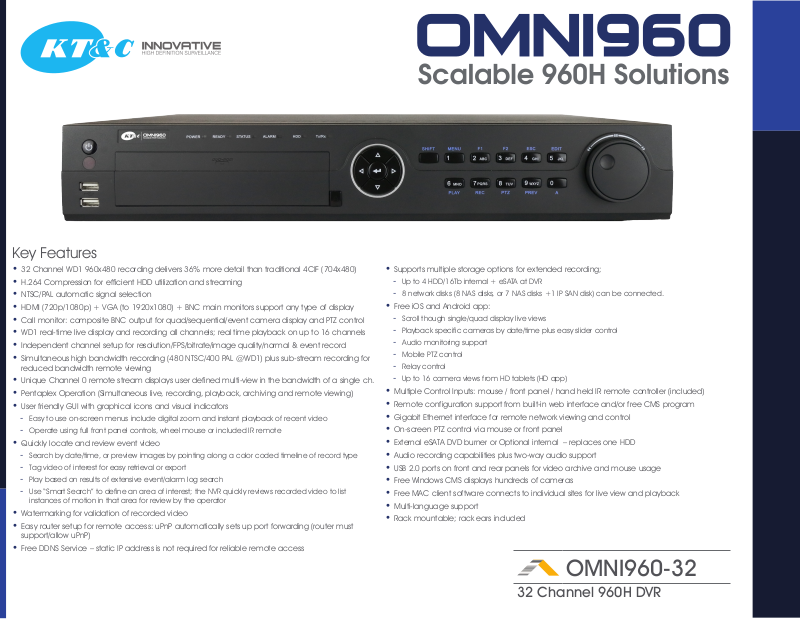

KT&C OMNI960-32 Specsheet
Key Features
• 32 Channel WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
• H.264 Compression for efficient HDD utilization and streaming
• NTSC/PAL automatic signal selection
• HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
• Call monitor: composite BNC output for quad/sequential/event camera display and PTZ control
• WD1 real-time live display and recording all channels; real time playback on up to 16 channels
• Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
• Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for
reduced bandwidth remote viewing
• Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single ch.
• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
• User friendly GUI with graphical icons and visual indicators
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using full front panel controls, wheel mouse or included IR remote
• Quickly locate and review event video
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Tag video of interest for easy retrieval or export
- Play based on results of extensive event/alarm log search
- Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list
instances of motion in that area for review by the operator
• Watermarking for validation of recorded video
• Easy router setup for remote access: uPnP automatically sets up port forwarding (router must
support/allow uPnP)
• Free DDNS Service – static IP address is not required for reliable remote access
• Supports multiple storage options for extended recording;
- Up to 4 HDD/16Tb internal + eSATA at DVR
- 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) can be connected.
• Free iOS and Android app:
- Scroll though single/quad display live views
- Playback specific cameras by date/time plus easy slider control
- Audio monitoring support
- Mobile PTZ control
- Relay control
- Up to 16 camera views from HD tablets (HD app)
• Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
• Remote configuration support from built-in web interface and/or free CMS program
• Gigabit Ethernet interface for remote network viewing and control
• On-screen PTZ control via mouse or front panel
• External eSATA DVD burner or Optional internal – replaces one HDD
• Audio recording capabilities plus two-way audio support
• USB 2.0 ports on front and rear panels for video archive and mouse usage
• Free Windows CMS displays hundreds of cameras
• Free MAC client software connects to individual sites for live view and playback
• Multi-language support
• Rack mountable; rack ears included
OMNI960-32
32 Channel 960H DVR
OMNI960-32
32 Channel 960H DVR
BNC
Main Monitor
FREE
MAC
Client
Remote
Preview
The KT&C OMNI960-32 brings you the next generation of analog recording. Now you can take full advantage of the 750+ HTVL cameras
that give you such precise LIVE views. Now you can RECORD that image detail and deliver the same clarity improvement during PLAYBACK. This WD1/960H technology can record images at a resolution of 960 x 480 pixels (720HTVL), a 36% increase over traditional analog
528HTVL from NTSC 704x480 (4CIF) images. This new application of H.264 compression technology still delivers enhanced recording
capacity and improved network image transmission speed, even while it improves image quality. Mix and match ‘standard’ resolution
cameras (up to 540HTVL) with ‘improved’ (600~700 HTVL) and (720~750+ HTVL) cameras to record as much detail as is available from
each one.
This incredibly detailed recording is just the start for the OMNI960-32 DVRs: record up to 30FPS @ full 960H/WD1 resolution – REAL TIME
on ALL channels. To help manage LAN/WAN bandwidth for efficient remote monitoring the OMNI960 series implements sub-stream
recording. The DVR simultaneously creates and captures both the 960H high resolution image and a second stream at a separately
controllable lower resolution and rate that conserves bandwidth for remote display of single or multiple displays of live and playback
camera images on a PC, smart phone or tablet via cellular or low bandwidth WAN networks. With sub-stream LIVE and PLAYBACK, it is
practical to remotely display multi-camera views at low bandwidth, yet at the click of a mouse the DVR can be directed to supply a fully
detailed high resolution image on demand. For extreme bandwidth conservation, the OMNI960 DVRs offer a unique Channel 0 remote
stream which displays a user defined multi-view in the bandwidth of a single channel.
Choose the browser you prefer: IE, Chrome, Firefox and Safari are all supported. Go beyond the DVR’s web interface: use our free CMS
client software on your Windows PC to view and play images from multiple sites. Download the free OMNI Remote app for iOS or Android
to scroll though single/quad display live views on your tablet or smart phone (up to 16 live views on HD tablets) or play back specific
cameras by date/time with easy slider control. Using internal hard drives of up to 4Tb each, the OMNI960-32 DVR can store up to 16Tb
internally (optional mirroring with multiple drives); in addition, up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) and eSATA
storage can be connected.
Review recorded video by date and time; by alarm/event; from a bookmark; scan a color coded graphical display of record type
(e.g. continuous, motion, event, etc.) versus time to drag the on screen ‘time line’ to the desired point and immediately begin playback
from any time slot. Or, use Smart Search to quickly locate relevant video for review: designate areas of interest and let the DVR scan the
recoded video to create an ad-hoc event list when motion is detected in those areas. These fully featured DVRs includes all the control
and functional capabilities you expect from high performance platforms: full front panel controls including jog/shuttle, eSATA or USB for
export, included IR remote control, full OSD GUI, dual 1080HD main monitors (HDMI and VGA), a BNC main monitor output PLUS a BNC
Call monitor, and full web and smart phone/tablet viewer remote operation (including PTZ control).
The OMNI960 Series DVRs come with multiple control inputs. These inputs include USB mouse control, full front panel controls and included
IR hand held remote control. Mouse control is combined with a simple Graphical User Interface (GUI), offering experienced PC users the
similarity of interactive command to that employed with other computer-controlled devices. With the GUI, users can command specific
actions on the OMNI960 Series DVRs through graphical icons and visual indicators. All GUI functions can also be controlled via the front
panel keys and IR remote as well.
The OMNI960-32 incorporates a powerful combination of local and remote high resolution monitoring, recording and playback capabilities in a user friendly, easy to operate, familiar DVR system. Get the most out of your 600~750HTVL cameras and experience flexible
analog video surveillance with the OMNI960-32.
KT&C America reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Front
Panel
Controls
Smart
Search
Digital
Zoom
H.264
uPnP
Router Setup
Dual Stream
Record
HDMI
Main Monitor
View up to
Cameras On
Tablet
IR Remote
Included
VGA
Main Monitor
FREE APP
IOS/Android
OSD
Water-
marking
FREE
CMS
Realtime
at WD1
960 x 480
FREE
DDNS
BNC
Call Monitor
Video inputs 32-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL /NTSC auto detection
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ) for recording
Line in 1 RCA for two way audio
Audio compression G.711
Two-way audio
Encoding resolution WD1 / 4CIF / 2CIF / CIF / QCIF
Video compression H.264
Dual-stream Supported; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N)
Stream types Channel 1-4: Video, Video & Audio; Other channels: Video
Frame rate per camera 25 fps (P) / 30 fps (N) record Playback up to 16 simultaneous cameras
Video bit rate per camera 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Recording Modes Continuous, Motion, Alarm, Motion + Alarm, Motion or Alarm
Motion Detection
Schedule Period
Pre- & Post- Event Recording Pre-record 0~30 seconds; post record 5s~10 minutes
Audio compression G.711
Audio bit rate 64 Kbps
HDMI/VGA output
CVBS Main Monitor 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
CVBS Spot Monitor 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio output 2-ch, RCA (Linear, 600 Ω) synchronized with CVBS & VGA
Synchronous playback 16-ch
Playback search modes
Playback Controls
Digital Zoom During Playback Supported on Local Displays and CMS
SATA 4 SATA interfaces for 2HDDs + 1 DVD-R/W (default), or 4 HDDs
Capacity Up to 4TB capacity for each disk
eSATA 1 eSATA interface
NAS/SAN up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
Network interface 1, RJ45 10M / 100M / 1000M Ethernet interface
DST/NTP Supported; choice of time zone, NTP server, DST start/end/offset
Port Mapping/uPnP Automatic port forwarding/redirection using uPnP on routers with this capability
Serial interface 1 RS-232, RS-485(full-duplex), Keyboard
USB interface 3 × USB 2.0
Alarm in 16
Alarm out 8
Built in Web Server Interface
CMS
Mobile Apps
User Rights Control Per user-per camera for multiple functions
Event Logging
Firmware Upgrade From USB or remotely
Backup/Restore Config From USB or remotely
Power supply 100~240VAC, 5A, 50~60Hz
Consumption ≤ 40 W (without HDD or DVD-R/W)
Operating Temperature -10 ºC ~+55 ºC
Operating Humidity Range 10% ~ 90%
Chassis Type 19-inch rack-mountable 1.5U chassis; rack ears included
Dimensions (W × D × H) 17.52” x 15.35” x 2.76” | 445 × 390 × 70 mm
Weight ≤ 11 lbs. | ≤ 5 kg (without HDD or DVD-R/W)
Audio input pass through to remote web or CMS client; remote audio from web or
CMS client pass through to audio output
Configurable per camera for area(s), sensitivity and arming schedule programmable
by day of week and hour of day
Per day in 1 hour blocks; or 8 time periods per day, each with different record mode;
plus holidays
1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA:
1024×768/60Hz
Time/Date; alarm (motion or log event); Manual Tags; Smart Search for motion events
from recorded video
Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position
Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/
extension installed)
PC and MAC Client supports multiple device viewing, playback (with digital zoom) and
configuration; user rights per camera; E-map support; live view up to 64 cameras in
4:3 and 48 cameras in 16:9; up to 16 cameras in playback
iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD
version of app, optimized for tablets, displays up to 16 live view cameras
Multiple types: alarm, exception, operation, information; dozens of sub-types within
each major type
www.ktncusa.comOrdering Information:
OMNI960-32/2TB: 32 Ch, 2 TB | OMNI960-32/4TB: 32 Ch, 4 TB | OMNI960-32/8TB: 32 Ch, 8 TB
OMNI960-32/12TB: 32 Ch, 12 TB | OMNI960-32/16TB: 32 Ch, 16 TB
