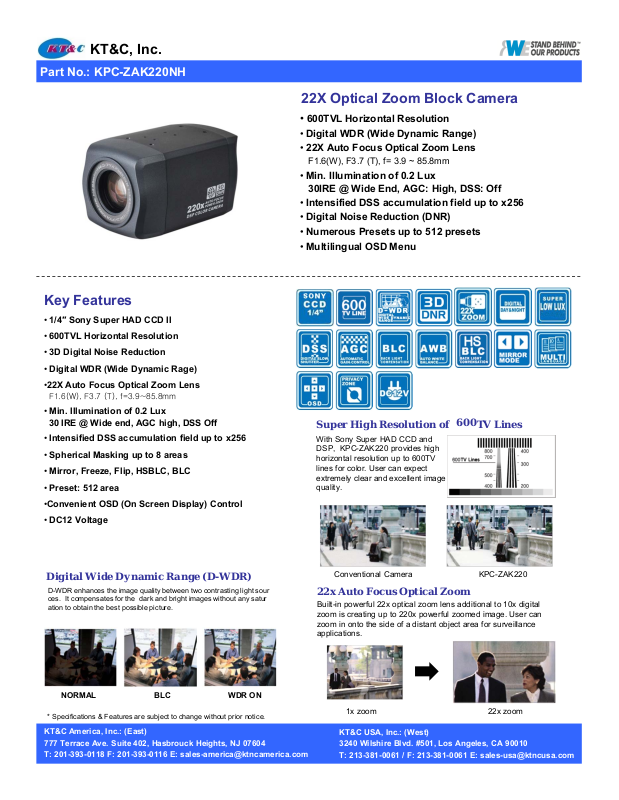

KT&C KPC-ZAK220NH Specsheet

KT&C, Inc.

Part No.: KPC-ZAK220NH

Key Features

• 1/4″ Sony Super HAD CCD II

• 600TVL Horizontal Resolution

• 3D Digital Noise Reduction

• Digital WDR (Wide Dynamic Rage)

•22X Auto Focus Optical Zoom Lens

F1.6(W), F3.7 (T), f=3.9~85.8mm

• Min. Illumination of 0.2 Lux
30 IRE @ Wide end, AGC high, DSS Off

• Intensified DSS accumulation field up to x256

• Spherical Masking up to 8 areas

• Mirror, Freeze, Flip, HSBLC, BLC

• Preset: 512 area

•Convenient OSD (On Screen Display) Control

• DC12 Voltage

22X Optical Zoom Block Camera

• 600TVL Horizontal Resolution

• Digital WDR (Wide Dynamic Range)

• 22X Auto Focus Optical Zoom Lens

F1.6(W), F3.7 (T), f= 3.9 ~ 85.8mm

• Min. Illumination of 0.2 Lux

30IRE @ Wide End, AGC: High, DSS: Off

• Intensified DSS accumulation field up to x256

• Digital Noise Reduction (DNR)

• Numerous Presets up to 512 presets

• Multilingual OSD Menu

Super High Resolution of TV Lines

With Sony Super HAD CCD and
DSP, KPC-ZAK220 provides high
horizontal resolution up to 600TV
lines for color. User can expect
extremely clear and excellent image
quality.

600

Digital Wide Dynamic Range (D-WDR)

D-WDR enhances the image quality between two contrasting light sour
ces. It compensates for the dark and bright images without any satur
ation to obtain the best possible picture.

NORMAL

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

BLC

WDR ON

Conventional Camera KPC-ZAK220

22x Auto Focus Optical Zoom

Built-in powerful 22x optical zoom lens additional to 10x digital
zoom is creating up to 220x powerful zoomed image. User can
zoom in onto the side of a distant object area for surveillance
applications.

1x zoom 22x zoom

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-ZAK220NH

3

D Digital Noise Reduction ( D DNR)

The amount of low luminance noise if remarkably reduced and signal-to-noise
ratio (S/N) as well as horizontal resolution dramatically improved, it results in a
clear and sharp image display even in the dark lighting condition.

CONVENTIONAL CAMERA

3

KPC-ZAK220

Motion Detection

When user is simultaneously monitoring at the same time,
KPC-ZAK220 detects a motion of any objects on the screen
and transmits alert signal into the external alarm to have
user’s attention on the screen.

Convenient OSD Menu

All camera operations can be easily controlled by OSD (On­Screen Display) menu on the monitor screen that the user can
adjust this camera for optimum setup with great convenience.

Multi-Languages: English, Korean

General Feature Diagram

DSS Low Light Technology

Digital Slow Shutter (DSS) technology enhances the low light
performance of the camera, producing outstanding images in low
light conditions. DSS slows the shutter speed and increases the
camera’s light sensitivity.

Conventional Camera KPC-ZAK220

Back Light Compensation zone & level

According to various user environment, user can set the back
light compensation zone and adjust levels to optimize desired
picture.

BLC Off BLC On

Privacy Image Masking

For the privacy protection in the
open area observation, some
particular area can be masked for
privacy purposes. User can easily
setup the masking sizes and
positions of the desired zones.
8 privacy zone available.

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

(Unit: mm)
