Quick Operation Guide
KNC-p3DR3IR
KNC-p3DR4IR
KNC-p3DR6IR
KNC-p3DR12IR
3 Megapixel Plug & Play Capable 3-Axis
IP66 IR Mini IP Dome Cameras with SD
KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide
1
1
Thank you for selecting this KT&C Omni IP Series product. For
additional information please refer to the complete User Guide for
this cameras series. End users should contact their KT&C Certified
Dealer for service. Certified Dealers can obtain support directly from
KT&C.
About This Guide
While KT&C makes every effort to insure the completeness and
accuracy of the information contained in this Guide, we are not
responsible for typographical errors or misprints. At the same time,
KT&C reserves the right to make changes to improve the performance
of our products at any time without notice, and so the specifications
and content of this document are subject to change without notice.
Every effort will be made to include updates in new versions of this
manual and/or online.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.
KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the
EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide
3
3
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
dispose of it at designated collection points. For more information
see: www.recyclethis.info.
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier
or to a designated collection point. For more information see:
www.recyclethis.info
upon the purchase of equivalent new equipment, or
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
4
4
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Safety Instructions
These instructions are intended to ensure that the camera is installed
in a manner that avoids danger to persons or property loss.
These precautionary measures are divided into “Warnings” and
“Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment/property damage may occur if any of
the cautions are neglected.
Warnings
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet the requirements for both the SELV
(Safety Extra Low Voltage) and Limited Power Source for 12 VDC
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
5
5
according to the IEC60950-1 standard; or 802.3af PoE. Please
refer to technical specifications for detailed information.
● If connecting several devices to one power supply, to avoid any
overload that may cause over-heating or a fire hazard insure that
the power supply is adequate for the power load.
● Please make sure that all plugs are firmly connected to the
power sockets. When the product is mounted on wall or ceiling,
the device shall be firmly attached, taking into consideration any
wind, snow loading, or other factors. The mounting surface shall
be capable of supporting several times the base weight of the
camera.
● If smoke, unusual odors or noise come from the device, turn off
the power at once and unplug the power cable, and then
contact authorized service personnel.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch lenses or sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe gently.
If the camera will not be used for an extended period, please
protect the lens openings from damage and/or debris.
● Avoid aiming the camera at the sun or extremely bright light
sources. Blooming or smearing may occur in excessive light
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
6
6
(which is not a malfunction), and could compromise the
performance of the sensor.
● The sensor may be damaged if exposed to laser energy, so when
any laser equipment is in use, make sure that the sensor will not
be exposed to the laser beam.
● Do not place the camera in extremely hot or cold (see camera
specifications) locations. Do not exceed the rated environmental
(IP66) conditions. Do not expose the camera to high levels of
electromagnetic (RF) radiation.
● To avoid heat accumulation, good ventilation is required in the
operating environment.
● Keep the camera away from solvents while in use; exposure to
liquids should not exceed IP66 environmental conditions.
● During shipping, the camera shall be packed in its original
packing, or packing providing the equivalent protection.
● Improper use or replacement of any batteries (if so equipped)
may result in the hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the
instructions provided by the battery manufacturer.
● If the product does not function properly, Dealers please contact
KT&C; End Users please contact your KT&C Certified Dealer or an
authorized service center. Do not disassemble the camera for
repair or maintenance by yourself. (KT&C shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
7
7
Table of Contents
1 Appearance and Description .......................................................... 8
2 Installation .................................................................................... 10
Mounting ...................................................................... 11
Micro SD Card Installation ............................................. 16
3 Setting the Camera Parameters over the LAN .............................. 18
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
8
8
No.
Description
1
Camera Base
2
Rotation Mechanism
3
Pan/Tilt Mechanism
2
3
4
6
7
8
9
5
1
1 Appearance and Description
Figure 1-1 Overview
Table 1-1 Description
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
9
9
No.
Description
4
Cover and Dome Bubble
5
Power/Network Cables
6
IR LEDs
7
Lens
8
Dome Liner (conceals direction)
9
Safety Cord
Press RESET about 10s when the camera is powering on or
rebooting to restore the default settings, including the user name,
password, IP address, port No., etc.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
10
10
2 Installation
Before you start:
This is a 3-axis camera, so mounting to the ceiling or wall is
suitable.
Make sure the camera is in good condition and all the accessory
parts are included.
Make sure all related equipment is powered-off during the
installation.
Check to insure that the specifications of the camera are correct
for the installation environment.
Make sure the power supply voltage is 12VDC or PoE compliant to
avoid damage to the camera.
If the product does not function properly, Dealers please contact
KT&C; End Users please contact your KT&C Certified Dealer or an
authorized service center. Do not disassemble the camera for
repair or maintenance by yourself.
Make sure that the mounting surface is strong enough to withstand
three times the weight of the camera.
If the IR LEDS in this camera will be active, you must observe the
following precautions to prevent IR reflection:
● Dust or grease on the lens/dome cover will cause IR reflection.
Please do not remove the cover protective film until the
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
11
11
Screw Hole
Screw Hole
Screw Hole
Ceiling Mounting
installation is finished. If there is dust or grease on the
lens/dome cover, clean the lens/dome cover with clean soft
cloth and isopropyl alcohol.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing haze, distortion or improper scene exposure.
● The foam ring around the lens must be seated flush against the
inner surface of the cover/bubble to isolate the lens from the IR
LEDS. Fasten the lens/dome cover to camera body so that the
foam ring and the dome cover are attached seamlessly.
Mounting
Steps:

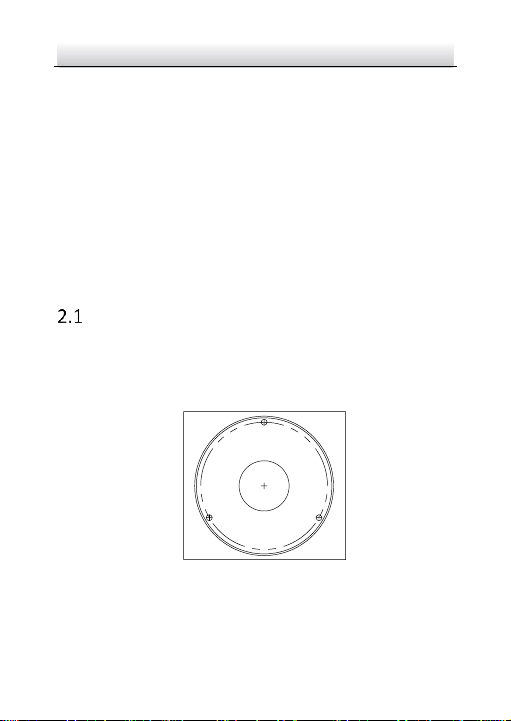

1. Drill the screw holes into the ceiling according to the drill
template.
Figure 2-1 Drilling Template
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
12
12
2. Loosen the cover screws with a hex key (supplied) to remove the
cover and dome bubble.
Figure 2-2 Remove the Bubble
3. Attach the mounting base on the wall or ceiling with screws and
anchors if required.
Figure 2-3 Attach the Mounting Base
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
13
13
Tilt Lock Screw
Black Liner
PAN
TILT
Side Opening
If surface mounting, you can route the cable through the side
opening in the mounting base.
Figure 2-4 Side Opening
4. Loosen the tilt lock screws, adjust the tilt position in a range of 75
degrees, and tighten the tilt lock screws. Figure 2-5
5. Rotate the pan mechanism to adjust the pan and camera body
rotation positions in a range of 0~355 degrees until you align in
the desired direction and the image is upright. Remove the black
liner to adjust the camera module rotation. Figure 2-6
Figure 2-5 Pan/Tilt Angle Adjustment – Liner Removed
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
14
14
Figure 2-6 3-Axis Angle Adjustment – Liner Removed
As the lens has already been factory adjusted to the best imaging
effect, you just need to adjust the pan position and tilt position to get
the desired field of view.
6. Reinstall the liner if it has been removed, reinstall the
cover/bubble and tighten the screws.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
15
15
Bubble Reinstallation
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
16
16
Micro SD Card Installation
Steps:
1. Loosen the lock screws on the bubble to disassemble the camera.
Disassemble the Camera
2. Insert the micro SD card to the card slot.
3. (Optional) Push the inserted micro SD card inside, and the micro
SD card will be sprung out.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
17
17
Insert the Micro SD Card
4. Install the bubble back, and tighten the lock screws on it.
Install the Bubble
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
18
18
3 Setting the Camera Parameters over
the LAN
Purpose:
To view and configure the camera via a LAN, you need to connect the
network camera in the same subnet with your computer, and install
the OMNI Finder or OMNI CMS software to search and change the IP
of the network camera.
The following figure shows a camera and PC connected through a
switch:
Figure 3-1 Typical LAN Connection
Set the IP address of the camera for accessing via LAN.
Steps:
1. To get the IP address, you can choose either of the following
methods:
Use OMNI Finder, a software tool which can automatically detect
network camera on the LAN and list device information such as IP
address, subnet mask, port number, device serial number, device
version, etc., as shown in Figure 3.2 below.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
19
19
Use OMNI CMS software and to list the online devices. Please
refer to the user manual for the OMNI CMS software for detailed
information.
2. Change the IP address and subnet mask to the same subnet as
that of your computer, or change your computer to match the
address/subnet of the camera.
Refer to the following introductions to set IP address with OMNI
Finder software:
Search active devices online
Search online devices automatically:
After launching the OMNI Finder software, it automatically
searches for online devices every 15 seconds on the subnet
where your computer is connected. It displays the total
number and information of the discovered devices in the
Online Devices interface. Device information including the
device type, IP address, port number, gateway, etc. will be
displayed.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
20
20
Figure 3-2 Search Online Devices
Devices can be discovered and displayed in the list in 15
seconds after they go online; devices will be removed from
the list in 45 seconds after going offline.
Search online devices manually:
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
21
21
You can also click to refresh the online device
list manually. The newly searched devices will be added to the
list.
You can click or on each column heading to order
the information; you can click to show the device table
and hide the network parameter panel on the right side, or
click to show the network parameter panel.
1.2 Modify device information
Steps:
1) Select the device to be modified in the device list as shown
in Figure 3-3. The network parameters of the device will be
displayed in the Modify Network Parameters panel on the
right side as shown in Figure 3-4.
2) Edit the modifiable network parameters, e.g. IP address,
subnet, port number and gateway. NOTE: This port if the
CONTROL port used by the Finer and CMS. It is NOT the
HTTP web browsing port (which defaults to 80).
3) Enter the password of the admin account of the device in
the Password field and click Save to save the changes.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
22
22
Figure 3-3 Select a Device
Figure 3-4 Modify Network Parameters
4) Enter the IP address of network camera in the address field of
the web browser to view the live video.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
23
23
The default value of the IP address is “192.0.0.64”. The default
user name is “admin”, and password is “12345”.
For accessing the network camera from different subnets, please set
the gateway for the network camera after you log in.
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version /
Vista / Win7 / Server 2003 / Server 2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 6.0 and above version, Apple Safari
5.02 and above version, Mozilla Firefox 3.5 and above version and
Google Chrome8 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, e.g., 192.0.0.64 and press the Enter key to enter the
login interface.
3. Input the user name and password.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
24
24
4. Click Login.
Figure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the plugin.
It is recommended to close the web browser before finishing the
installation of the plug-in.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
25
25
Figure 4-2 Download Plug-in
Figure 4-3 Install Plug-in (1)
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
26
26
Figure 4-4 Install Plug-in (2)
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2-4 to login.
For more detailed instructions about further configuration, please
refer to the user manual for this series of network cameras.
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide
27
27
Loading...
