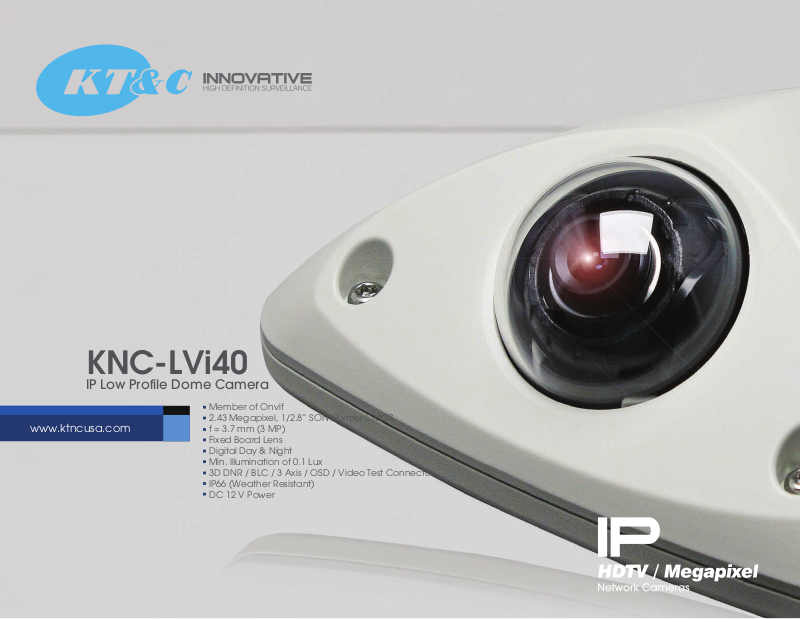

KT&C KNC-LVi40B Specsheet
KNC-LVi40
IP Low Profile Dome Camera
www.ktncusa.com
Member of Onvif
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night
Min. Illumination of 0.1 Lux
3D DNR / BLC / 3 Axis / OSD / Video Test Connector
IP66 (Weather Resistant)
DC 12 V Power
KNC-LVi40
IP Low Profile Dome Camera
Member of Onvif
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night
Min. Illumination of 0.1 Lux
3D DNR / BLC / 3 Axis / OSD / Video Test Connector
IP66 (Weather Resistant)
DC 12 V Power
3D DNR (Digital Noise Reduction)
The amount of low luminance noise is remarkably
reduced and signal-to-noise ratio (S/N) as well as
horizontal resolution is improved, resulting in a clear
and sharp image display even in dark condition.
IP66 Rating (Weather Resistant)
With Dust and Rain Resistant Design, this camera boasts IP66 rating that resist dust
and rain of outdoor environment. It can be a perfect solution for outdoor surveillance.
Vandalproof Housing
The die-casting aluminum dome housing and polycarbonate dome cover
ensures the perfect durability and protects the camera from external shock.
General Feature Diagram Unit: (mm)
134
49
OSD Controller
Video Test Connector
Technical Specification
Image Sensor
Total Pixels (H x V)
Camera
Lens
Video
Network
Intelligent Video
Alarm and Event
General
Day & Night
Min. Illumination
Shutter Speed
Lens
Lens Type
Maximum Resolution
Frame Rate
Compression
Streaming
Digital Slow Shutter
Image Settings
LAN
Security
Protocol
ONVIF Compliant
Interface
Video Motion Detection
Alarm Triggers
Alarm Events
Processors
Memory
Power
Interface
Local storage
IP Rating
Operating Temperature
Dimension
Weight
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
2000 x 1241
Digital Day & Night
0.1 Lux / F2.0
1/30 ~ 1/8000
3.7 mm (3 MP)
Fixed Board Lens
H.264 1920 x 1080 (16:9)
H.264 30 fps MJPEG 30 fps
H. 264
Dual-Stream at different frame rate and bandwidth
Off, 2x, 4x (AUTO)
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure
control, Image rotation, Text and image overlay, Privacy masking,
BLC, D-WDR, 3D DNR
Ethernet 10/100 Base-T (RJ-45 Type)
Multiple user access levels with password protection, HTTPS (SSL)
IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP,
DNS, DDNS, HTTPS, UPnP
Yes
OS Windows XP, Vista, 7 Browser Internet Explorer
Yes
Intelligent video, manual triggers, network fail, SD card scheduling,
reboot
JPEG image upload via FTP & Email, notification via E-mail,
recording AVI or JPEG using Micro-SD
CPU: ARM 1136J-S
RAM: 128 MB, Flash: 256 MB
PoE class 3 (IEEE 802.3af) DC12V 200 mA
Analog Composite Output
Power (DC 12V) Input
MicroSD/SDHC up to 32 GB
IP66 (Weather Resistant)
14 ˚F ~ 122 ˚F (-10 ˚C ~ 50 ˚C)
5.5 x 2 x 5.3 inch (139 x 49 x 134 mm)
1.1 lbs (500 g)
MJPEG 1280 x 720 (16:9)
MJPEG
139
