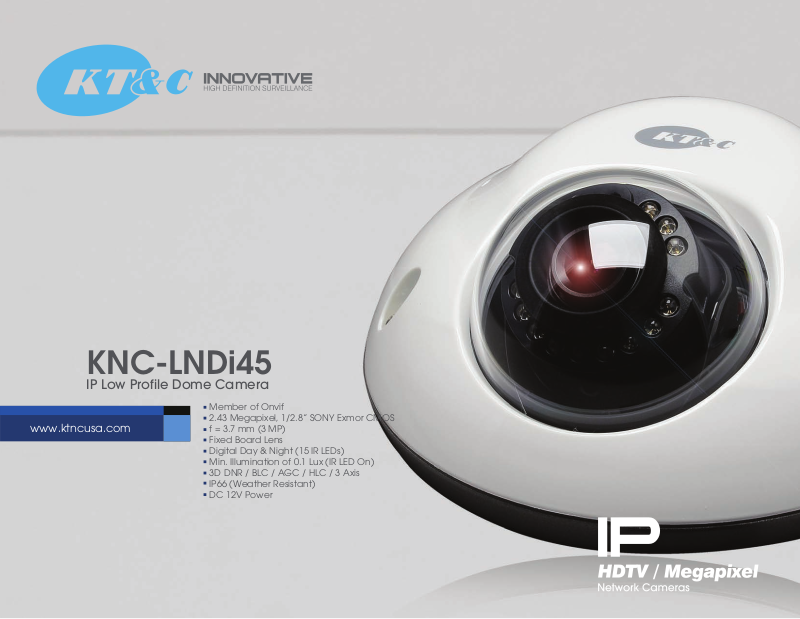

KT&C KNC-LNDi45 Specsheet
KNC-LNDi45
IP Low Profile Dome Camera
www.ktncusa.com
Member of Onvif
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night (15 IR LEDs)
Min. Illumination of 0.1 Lux (IR LED On)
3D DNR / BLC / AGC / HLC / 3 Axis
IP66 (Weather Resistant)
DC 12V Power
KNC-LNDi45
IP Low Profile Dome Camera
Technical Specification
Member of Onvif
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night (15 IR LEDs)
Min. Illumination of 0.1 Lux (IR LED On)
3D DNR / BLC / AGC / HLC / 3 Axis
IP66 (Weather Resistant)
DC 12V Power
3D DNR (Digital Noise Reduction)
The amount of low luminance noise is remarkably
reduced and signal-to-noise ratio (S/N) as well as
horizontal resolution is improved, resulting in a clear
and sharp image display even in dark condition.
WDR (Wide Dynamic Range)
To get detailed information from dark and bright
combination image without any saturation, the WDR
Technology is required. It combines bright areas with
high shutter speed exposure and dark areas with low
shutter speed exposure into one composite image.
2.1Mega Pixel (1920x1080)
General Feature Diagram Unit: (mm)
55
Ø120
Camera
Lens
Video
Audio
Network
Intelligent Video
Alarm and Event
General
Image Sensor
Total Pixels (H x V)
Day & Night
Min. Illumination
Shutter Speed
Lens
Lens Type
Maximum Resolution
Frame Rate
Compression
Streaming
Digital Slow Shutter
Image Settings
Streaming
Compression
Input / Output
LAN
Security
Protocol
ONVIF Compliant
Interface
Record Schedule
Video Motion Detection
Alarm Triggers
Alarm Events
Processors
Memory
Power
Interface
Local storage
IP Rating
Operating Temperature
Dimension
Weight
2.43 Megapixel, 1/2.8” SONY Exmor CMOS
2000 x 1241
Digital Day & Night
0 Lux (IR LED On)
15 IR LEDs
1/30 ~ 1/8000
3.7 mm (3 MP)
Fixed Board Lens
H.264 1920 x 1080 (16:9)
H.264 30 fps MJPEG 30 fps
H.264
Dual-Stream at different frame rate and bandwidth
Off, 2x, 4x (AUTO)
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure
control, Image rotation, Text and image overlay, Privacy masking,
BLC, D-WDR, 3D DNR
One-way
G.711, G.726
Internal Microphone
Ethernet 10/100 Base-T (RJ-45 Type)
Multiple user access levels with password protection, HTTPS (SSL)
IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP,
DNS, DDNS, HTTPS, UPnP
Yes
OS Windows XP, Vista, 7 Browser Internet Explorer
Continuous, Motion, Sensor, Pre & Post Alarm
Yes
Intelligent video, manual triggers, network fail, SD card scheduling,
reboot
JPEG image upload via FTP & Email, notification via E-mail,
recording AVI or JPEG using Micro-SD
CPU: ARM 1136J-S
RAM: 256 MB, Flash: 256 MB
PoE class 3 (IEEE 802.3 af) DC 12V 340 mA
Analog Composite Output
Power (DC 12V) Input
MicroSD/SDHC up to 32 GB
IP66 (Weather Resistan)
14 ˚F ~ 122 ˚F (-10 ˚C ~ 50 ˚C)
Φ4.7 x 2.2 inch (Ф120 x 55 mm)
0.8 lbs (350 g)
Max. 65 ft (DSS: Auto, AGC: 48 dB)IR LED Distance
MJPEG 1280 x 720 (16:9)
MJPEG
