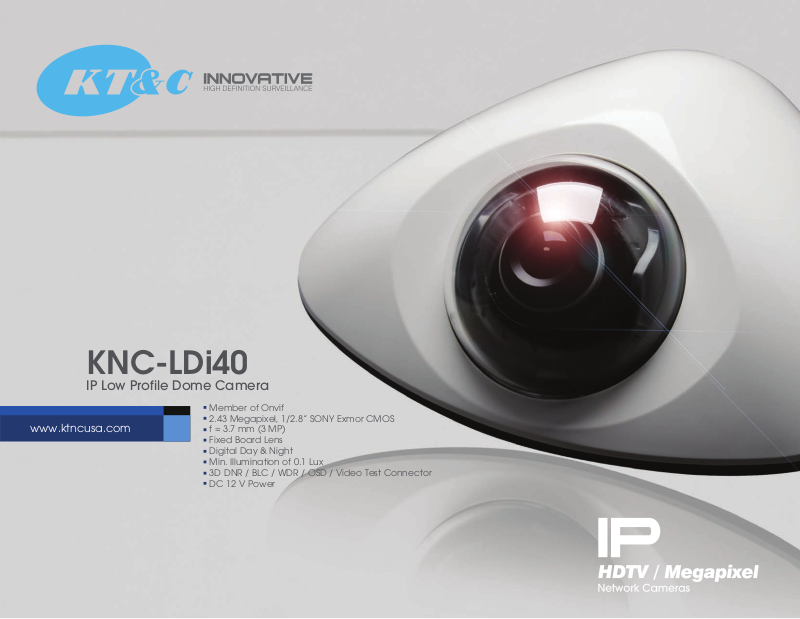

KT&C KNC-LDi40B Specsheet

KNC-LDi40

IP Low Profile Dome Camera

www.ktncusa.com

Member of Onvif

2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night
Min. Illumination of 0.1 Lux
3D DNR / BLC / WDR / OSD / Video Test Connector
DC 12 V Power

KNC-LDi40

IP Low Profile Dome Camera

Technical Specification

Member of Onvif

2.43 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.7 mm (3 MP)
Fixed Board Lens
Digital Day & Night
Min. Illumination of 0.1 Lux
3D DNR / BLC / WDR / OSD / Video Test Connector
DC 12 V Power

3D DNR (Digital Noise Reduction)

The amount of low luminance noise is remarkably
reduced and signal-to-noise ratio (S/N) as well as
horizontal resolution is improved, resulting in a clear
and sharp image display even in dark condition.

WDR (Wide Dynamic Range)

To get detailed information from dark and bright
combination image without any saturation, the WDR
Technology is required. It combines bright areas with
high shutter speed exposure and dark areas with low
shutter speed exposure into one composite image.

2.1Mega Pixel (1920x1080)

General Feature Diagram Unit: (mm)

119

119

42

OSD Controller

Video Test Connector

Camera

Lens

Video

Audio

Network

Intelligent Video

Alarm and Event

General

Image Sensor

Total Pixels (H x V)

Day & Night

Min. Illumination

IR LED

Shutter Speed

Lens

Lens Type

Maximum Resolution

Frame Rate

Compression

Streaming

Digital Slow Shutter

Image Settings

Streaming

Compression

Input / Output

LAN

Maximum User Access

Security

Protocol

ONVIF Compliant

Interface

Record Schedule

Video Motion Detection

Alarm Triggers

Alarm Events

Processors

Memory

Power

Interface

Local storage

IP Rating

Operating Temperature

Conditions

Dimension

Weight

Distance

2.43 Megapixel, 1/2.8” SONY Exmor CMOS

2000 x 1241

Digital Day & Night

0.1 Lux / F2.0

N/A

1/30 ~ 1/8000

3.7 mm (3 MP)

Fixed Board Lens

H.264 1920 x 1080 (16:9)

H.264 30 fps MJPEG 30 fps

H.264

Dual-Stream at different frame rate and bandwidth

Off, 2x, 4x (AUTO)

Brightness, Contrast, Saturation, Sharpness, White balance, Exposure
control, Image rotation, Text and image overlay, Privacy masking,
BLC, D-WDR, 3D DNR

N/A

N/A

N/A

Ethernet 10/100 Base-T (RJ-45 Type)

N/A

Multiple user access levels with password protection, HTTPS (SSL)

IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP,
DNS, DDNS, HTTPS, UPnP

Yes

OS Windows XP, Vista, 7 Browser Internet Explorer

N/A

Yes

Intelligent video, manual triggers, network fail, SD card scheduling,
reboot

JPEG image upload via FTP & Email, notification via E-mail,
recording AVI or JPEG using Micro-SD

CPU: ARM 1136J-S

RAM: 128 MB, Flash: 256 MB

PoE class 3 (IEEE 802.3af) DC 12V 200 mA

Analog Composite Output
Power (DC 12 V) Input

MicroSD/SDHC up to 32 GB

N/A

-10 ˚C ~ 50 ˚C (14 ˚F ~ 122 ˚F)

Humidity 20 ~ 80 % RH (No Condensing)

119 x 42 x 119 mm (4.7 x 1.7 x 4.8 inch)

200 g (0.4 lb.)

MJPEG 1280 x 720 (16:9)

MJPEG
