KT&C KNC-HNDi100V Specsheet

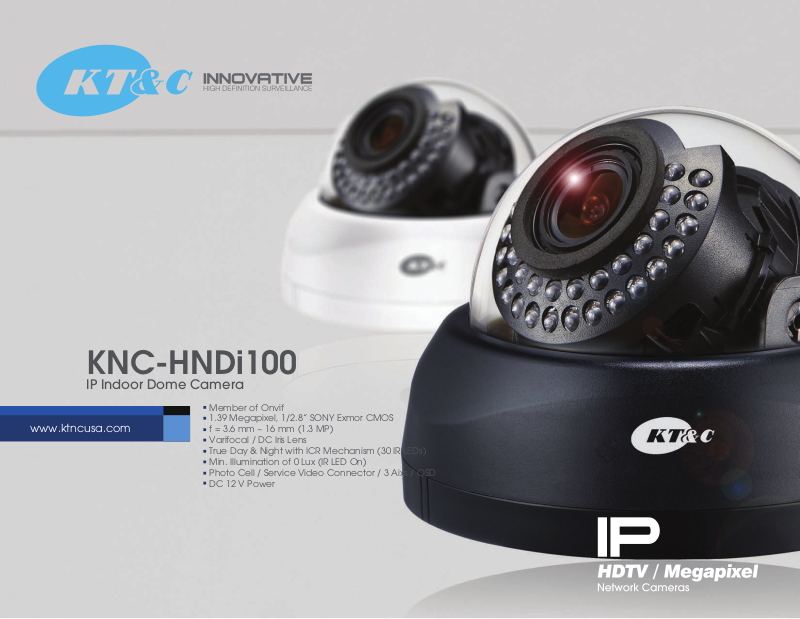

KNC-HNDi100

IP Indoor Dome Camera

www.ktncusa.com

Member of Onvif

1.39 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.6 mm ~ 16 mm (1.3 MP)
Varifocal / DC Iris Lens
True Day & Night with ICR Mechanism (30 IR LEDs)
Min. Illumination of 0 Lux (IR LED On)
Photo Cell / Service Video Connector / 3 Aixs / OSD
DC 12 V Power

KNC-HNDi100

IP Indoor Dome Camera

Technical Specification

Member of Onvif

1.39 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.6 mm ~ 16 mm (1.3 MP)
Varifocal / DC Iris Lens
True Day & Night with ICR Mechanism (30 IR LEDs)
Min. Illumination of 0 Lux (IR LED On)
Photo Cell / Service Video Connector / 3 Aixs / OSD
DC 12 V Power

General Feature Diagram Unit: (mm)

Camera

Lens

Video

Audio

Network

Intelligent Video

Alarm and Event

General

Image Sensor

Total Pixels (H x V)

Day & Night

Min. Illumination

IR LED Distance

Shutter Speed

Lens

Lens Type

Maximum Resolution

Frame Rate

Compression

Streaming

Digital Slow Shutter

Image Settings

Streaming

Compression

Input / Output

LAN

Maximum User Access

Security

Protocol

ONVIF Compliant

Interface

Record Schedule

Video Motion Detection

Alarm Triggers

Alarm Events

Processors

Memory

Power

Interface

Local storage

IP Rating

Operating Temperature

Conditions

Dimension

Weight

1.39 Megapixel, 1/3” SONY Exmor CMOS

1384 x 1076

True Day & Night with ICR Mechanism

0 Lux (IR LED On)

30 IR LEDs Max. 20 m (65 ft) (DSS: x4)

1/50 ~ 1/2000

3.6 mm ~16 mm (1.3 MP)

Varifocal, DC Iris Lens

H.264

1280 x 1024 (5:4)

H.264 MJPEG

30fps 30fps

H.264

Dual-Stream at different frame rate and bandwidth

Off, 2x, 4x

Brightness, Contrast, Saturation, Sharpness, White balance,
Exposure control, Image rotation, Text and image overlay,
Privacy masking
N/A

N/A

N/A

Ethernet 10/100 Base-T (RJ-45 Type)

N/A

Multiple user access levels with password protection

IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP,
ARP, DNS, DDNS, HTTPS, UPnP

Yes

OS Windows XP, Vista, 7 Browser Internet Explorer

N/A

Yes

Intelligent video, manual triggers, network fail, reboot

JPEG image upload via FTP & Email, notification via E-mail

CPU: ARM 926EJ-S

RAM: 128 MB, Flash: 64 MB

PoE class 3 (IEEE 802.3af) DC 12 V 560 mA

Service video connector
Power DC 12 V Input
Status LED
N/A

N/A

-10 ˚C ~ 50 ˚C (14 ˚F ~ 122 ˚F)

Humidity 20 ~ 80 % RH (No Condensing)

Bubble(Φ100), Φ136.4 x 95.3 mm (Bubble(Φ3.9), Φ5.4 x 3.8 inch)

350 g (0.8 lb.)

MJPEG

MJPEG

1280 x 720 (16:9)
