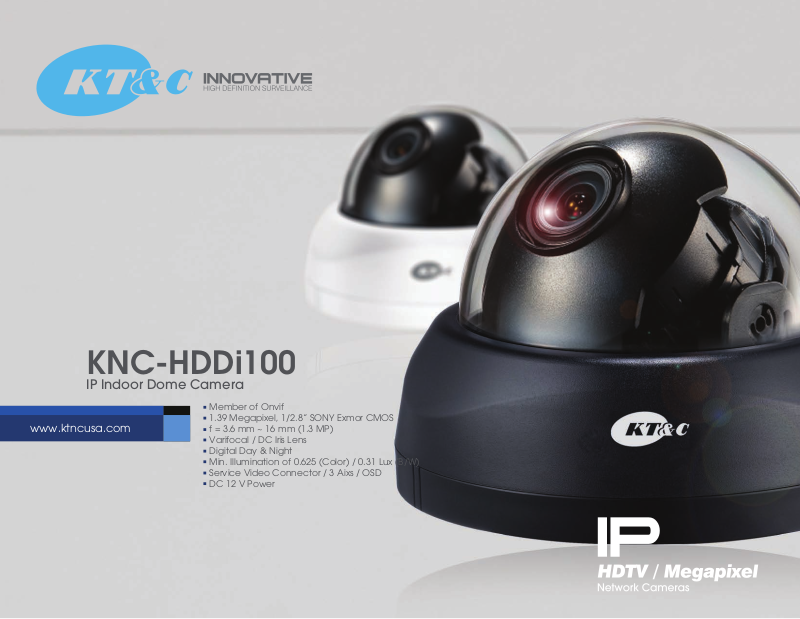

KT&C KNC-HDDi100V Specsheet

KNC-HDDi100

IP Indoor Dome Camera

www.ktncusa.com

Member of Onvif

1.39 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.6 mm ~ 16 mm (1.3 MP)
Varifocal / DC Iris Lens
Digital Day & Night
Min. Illumination of 0.625 (Color) / 0.31 Lux (B/W)
Service Video Connector / 3 Aixs / OSD
DC 12 V Power

KNC-HDDi100

IP Indoor Dome Camera

Technical Specification

Member of Onvif

1.39 Megapixel, 1/2.8” SONY Exmor CMOS
f = 3.6 mm ~ 16 mm (1.3 MP)
Varifocal / DC Iris Lens
Digital Day & Night
Min. Illumination of 0.625 (Color) / 0.31 Lux (B/W)
Service Video Connector / 3 Aixs / OSD
DC 12 V Power

General Feature Diagram Unit: (mm)

Ø136.4

Camera

Lens

Video

Audio

Network

Intelligent Video

Alarm and Event

General

Image Sensor

Total Pixels (H x V)
Day & Night
Min. Illumination
IR LED Distance
Shutter Speed

Lens
Lens Type
Maximum Resolution

Frame Rate
Compression
Streaming

Digital Slow Shutter

Image Settings

Streaming
Compression
Input / Output

LAN
Maximum User Access
Security

Protocol

ONVIF Compliant
Interface
Record Schedule
Video Motion Detection

Alarm Triggers

Alarm Events
Processors
Memory

Power

Interface

Local storage

IP Rating

Operating Temperature
Conditions

Dimension
Weight

1.39 Megapixel, 1/2.8” SONY Exmor CMOS

1384 x 1076
Digital Day & Night

0.625 Lux (Color) / 0.31 Lux (B/W) (30 IRE@F1.4)
N/A
1/50 ~ 1/2000

3.6 mm ~16 mm (1.3 MP)
Varifocal, DC Iris Lens

1280 x 1024 (5:4)

H.264
H.264 MJPEG
H.264
Dual-Stream at different frame rate and bandwidth

Off, 2x, 4x

Brightness, Contrast, Saturation, Sharpness, White balance,
Exposure control, Image rotation, Text and image overlay,
Privacy masking

N/A
N/A
N/A

Ethernet 10/100 Base-T (RJ-45 Type)

N/A

Multiple user access levels with password protection

IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP,
ARP, DNS, DDNS, HTTPS, UPnP

Yes
OS Windows XP, Vista, 7 Browser Internet Explorer
N/A

Yes

Intelligent video, manual triggers, network fail, reboot

JPEG image upload via FTP & Email, notification via E-mail
CPU: ARM 926EJ-S

RAM: 128 MB, Flash: 64 MB

PoE class 3 (IEEE 802.3 af) DC 12V 310 mA

Service video connector
Power DC 12V Input
Status LED

N/A
N/A

-10 ˚C ~ 50 ˚C (14 ˚F ~ 122 ˚F)

Humidity 20 ~ 80 % RH (No Condensing)

Bubble(Φ100), Φ136.4 x 95.3 mm (Bubble(Φ3.9), Φ5.4 x 3.8 inch)
350 g (0.8 lb.)

MJPEG

MJPEG

1280 x 720 (16:9)

30 fps30 fps
