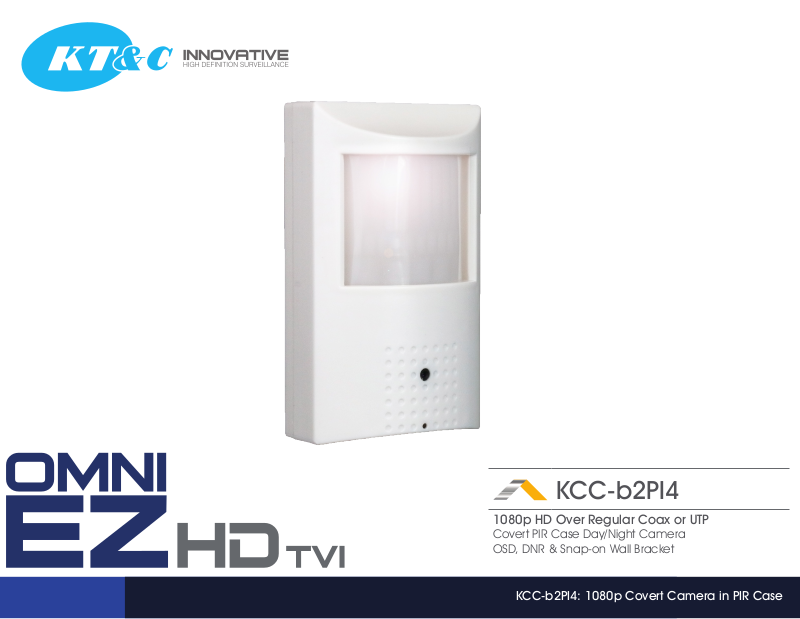

KT&C KCC-b2PI4 Specsheet
KCC-b2PI4
1080p HD Over Regular Coax or UTP
Covert PIR Case Day/Night Camera
OSD, DNR & Snap-on Wall Bracket
KCC-b2PI4: 1080p Covert Camera in PIR Case
Technical Specifications:
KCC-b2PI4
1080p HD Over Regular Coax or UTP
Covert PIR Case Day/Night Camera
OSD, DNR & Snap-on Wall Bracket
Features
• Superlative HD resolution of 1080p Full HD for amazing image quality
- useful digital zoom on live view and playback
- Field select 30 or 25 Hz
• Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
• HD-TVI HD BNC main output
- Field select CVBS analog service video for test/alignment
• Covert PIR shaped housing for unobtrusive surveillance
• CMOS Sensor size 1/2.8” with 2.4 Megapixels
• OSD joystick at camera
- Auto Electronic Shutter (AES)
- Back Light (BLC) and Front Light (FLC) Compensation
- White balance for colorful or monochrome environments
- D/N operation with selectable auto/color/monochrome
- 2D Noise Reduction (2DNR) with separate Y & C control
- Sharpness control for detail, edge and saturation
• 12VDC power with low current draw
Model
Image Sensor
Eective Picture Elements
Video Output
Minimum Illumination
Lens Furnished
S/N Ratio
OSD Menu
Scanning system
Auto Electronic Shutter
Gamma Characteristic
Day/Night
Gain Control
White Balance
Back/Front Light Compensation
Noise Reduction
Sharpness
KCC-b2PI4
1/2.8’’ 2.4 Megapixel CMOS
1920x1080 pixels
HD-TVI: 1080p 30/25Hz nominal 960H CVBS for test/alignment switchable at
camera
0.01LUX @ F1.2 (AGC on)
Pinhole lens 3.7mm
More than 52 dB
3-axis joystick on cable
NTSC/PAL selectable
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
0.45
Internal/Color/Mono
Automatic, adjustable for brightness
Auto/Gray
O/BLC/FLC
O/On for 2DNR, Y, C
Adjustable for Detail, Edge and Saturation
Option: Switch between HD-TVI & CVBS mode, push the OSD button to
"up" position and hold for 6 seconds
KT&C America reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Synchronization
OSD Language
Video Output
Operating Temperature
Humidity
Power Supply Requirements
Weight
Dimensions
KCC-b2PI4: 1080p Covert Camera in PIR Case, 3.7mm, 12VDC
Internal
English and Chinese
BNC-F; 1 V p-p / 75 ohm HD-TVI or CVBS
14°F to 113°F (-10°C to 45°C)
Indoor 85% non-condensing
12VDC regulated; 300mA recommended
4.2 oz. / 120 gm
2.72“ w x 4.72“ H x 1.85” d (69mm w x 120mm h x 47mm d) Add 1.18“ (30mm) to
depth for mount
www.ktncusa.com
