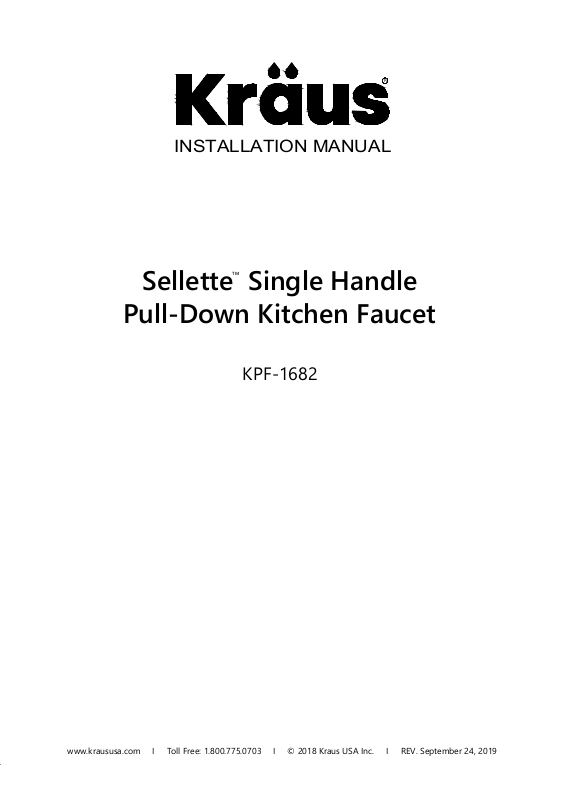

Page 1

Sellette Single Handle

Pull-Down Kitchen Faucet

KPF-1682

INSTALLATION MANUAL

Page 2

Congratulations on the purchase of your new Kraus plumbing fixture!

Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / customerservice@kraususa.com

Have the model number available and retain a copy of your receipt with purchase date for reference.

If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

Page 3

Prior to Installation:

· Make sure you have all necessary parts by checking the diagram and

parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.

· Turn off the hot and cold water supply at the angle stops and turn on

the old faucet to release any built up pressure. Remove existing faucet. Clean sink or countertop to remove any debris, plumber’s putty, or silicone.

· Flush angle stops to release any debris prior to installation.

· Pre-drilled hole size requirement: 1 3/8" (min) - 1 1/2" (max)

· Max countertop thickness: 1 3/8”

· 1, 2 or 3 hole installation

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or customerservice@kraususa.com

Page 4

Diagram and Parts List

Page 5

Diagram and Parts List Tools you will need

1. Spray Head

2. Faucet Body

3. Deck Plate Assembly A. Deck Plate

B. Base Plate

4. Mounting Hardware A. Rubber Washer

B. Metal Washer C. Mounting Nut D. Mounting Screws

5. Spray Hose

6. Weight

7. Quick Connector

8. Hot and Cold Waterlines

9. Hex Wrench

10. Washer

11. Base O-Ring

Adjustable Wrench

Silicone Sealant

(optional)

Phillips Screwdriver

Safety Goggles

Page 6

Installer Tip:

Shut off main water supply before installing new faucet.

Faucet Installation Procedure

7 1/2"

(189mm)

8 1/2"

(217mm)

16 1/2"

(420mm)

3 3/4"

(95mm)

9 1/4"

(234mm)

(151mm)

5°

2-M10

Ø1 3/8~1 1/2"

(35~38mm)

Max.

1 3/8"

(35mm)

Page 7

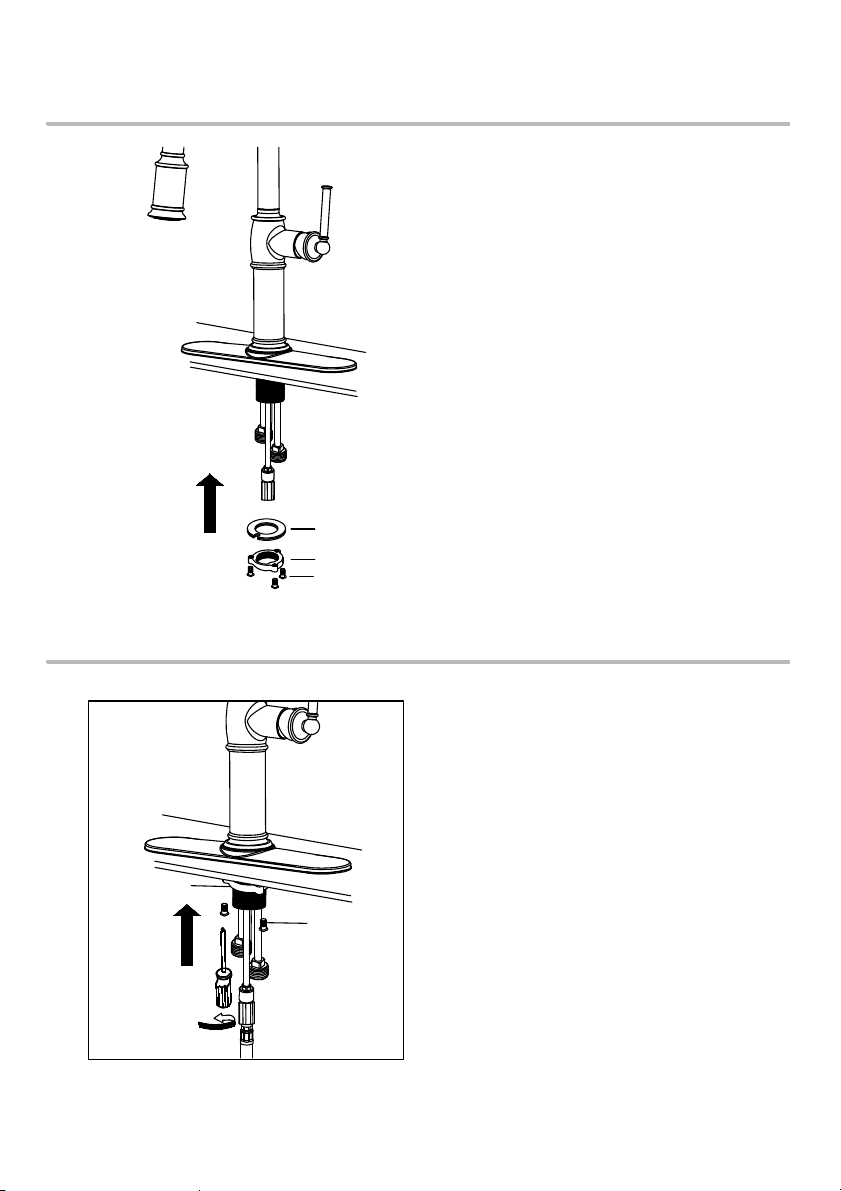

Step 1A. Faucet installation - with deck plate

Step 1B. Faucet installation - without deck plate

For three-hole installation: Deck plate (3A), base plate (3B), and silicone sealant (optional) are required.

For single-hole installation: Deck plate (3A), base plate (3B) and silicone sealant are NOT required.

3A 3B

Page 8

Step 2. Install faucet and mounting hardware

Step 3. Secure mounting hardware

Insert faucet body (2) into hole in countertop or deck plate assembly (3). Install mounting hardware (4A, B &C) from underneath the countertop.

Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (4B) until snug.

Tighten mounting screws (4C) to nut with a Phillips screwdriver until snug.

4B 4C

Page 9

Step 4. Attach spray hose and counterweight

Step 5. Connect waterlines

Connect spray hose (5) to quick connector (7) attached to supply line. Install weight (6) on lowest

vertical point on spray hose (5).

Connect waterlines (8) to angle stops. Tighten both ends of

waterlines with a wrench until snug. Turn on hot and cold angle stops and check

for leaks.

NOTE: Make sure filter washers are installed.

Page 10

Step 6. Flush spray hose

Remove spray head (1) from spray hose (5). Hold tip of spray hose (5). Turn faucet on and let the water run for 60 seconds to flush any debris.

Step 7. Check for leaks

Check for leaks at the connections. Retighten if necessary.

NOTE: Please make sure washer (10) is installed attaching spray head to hose.

Page 11

Replacement Parts

1. Spray Head

2. Check Valve

3. Washer

4. Spray Hose

5. Hose Guide

6. Plastic Clip

7. Handle Button

8. Set Screw

9. Metal Handle

10. Cartridge Cover

11. Locking Nut

12. Washer

13. Cartridge

14. Base O-Ring

15. Protective Sleeve

16. Check Valve

17. Quick Connector

18. Rubber Washer

19. Metal Washer

20. Mounting Nut

21. Mounting Screws

22. Filter Washers

23. EZ-Weight

24. 2.5mm Hex Wrench

25. Deck Plate

26. Base Plate

Replacement Parts List Finish/Color Part #

KP06092

KP06105

KP06074

KP06098

KP06045

KP06159

KP06030

KP06055

KP06160

KP06021

KP06018

KP06069

KP06100

KP06062

KP06161

KP06104

KP06108

KP06041

KP06028

KP06067

KP06068

KP06185

KP06015

KP06050

KP06010

KP06013

CH,SFS,ORB*

BL,GR*

*Denotes faucet component color options: CH - Chrome SFS - Spot Free Stainless Steel ORB - Oil Rubbed Bronze BL - Black GR - Grey

CH,SFS,ORB*

BL,GR*

CH,SFS,ORB*

Page 12

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Leakage under faucet handle

PROBLEM CAUSE ACTION

Locking nut has come loose or cartridge needs to be reseated.

Remove button located at top of handle. Loosen set screw with hex wrench. Remove handle and unscrew cartridge cover by hand. Tighten locking nut with an adjustable wrench.

Leaking between spray head

and the hose

Spray head may be loose or washer is not seated correctly in the hose connection.

Tighten spray head by hand until snug. Make sure washer is seated correctly.

Care & Maintenance

To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners

3. Do not use cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice.

Water does not shut off

completely

Cartridge may need to be adjusted or replaced.

Remove button located at top of handle. Loosen set screw with hex wrench. Remove handle and unscrew cartridge cover by hand. Unscrew locking nut with an adjustable wrench. Remove ceramic disc cartridge. Check for cracks, and if O-ring is seated correctly. Reseat cartridge.

Hose does not retract

Weight may be installed incorrectly.

Readjust weight on hose.

Low flow

Aerator may be clogged Unscrew aerator with aerator key. Hold tip

of spray head and turn on water to flush debris.

ACID

The screen filter in the hose connectors is dirty.

Turn off the water supply at water valve and unscrew the hose connectors from water supply lines. Clean the screen in the water lines with hot water, removing any debris or calcium build up.

Page 13

Maintenance - Cartridge Replacement

Step 1: Remove button located

at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand.

Step 2: Unscrew the locking nut

with an adjustable wrench. Remove ceramic disc cartridge.

Step 3: Place the new cartridge

in the handle seat. Secure the cartridge with the locking nut and assemble the handle.

Page 14

FAUCET WARRANTY

Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. ("Kraus").

Kraus extends this warranty to the original purchaser for personal household use of the "Faucet" in its original location.

The warranty is non-transferable.

Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.

Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators,

structure, restrictors, back flow preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel,etc) of the product to be free from defects in material and workmanship under normal usage for a period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional, from an

authorized Kraus dealer, through the one (1) year term of the original owner or end-user.

Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and workmanship under normal usage for a period of five (5) years. The warranty commences from the initial date of purchase by the owner

or trade professional, from an authorized Kraus dealer, through the five (5) year term of the original owner or end-user.

Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.

RESTRICTIONS

This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at

discount outlets, unauthorized dealers, and/or sold on clearance.

This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard

water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance,

alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using

abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and wear down the finish.

This warranty does not apply to Products that have not been installed or operated in accordance with instructions

supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.

This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.

This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not

allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other

consequential damages, and Kraus accepts no liability for such damages.

This warranty does not cover Marine or Outdoor Installation.

Codes/Standards Applicable:

NSF/ANSI 372 NSF/ANSI 61-9

ASME A112.18.1

1.8GPM 6.8L/min maximum

Page 15

Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of

merchantability and fitness for a particular purpose, or compliance with any code.

Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included.

COMMERCIAL WARRANTY

Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.

All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to

date comprehensive warranty, go to www.kraususa.com/warranty

If you are a homeowner please contact a Kraus Customer Service Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050

Toll-free 800-775-0703

Customerservice@kraususa.com

If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050

516-801-8955 Proservice@kraususa.com

If you are an Authorized Partner please contact a Partner Support Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050

516-801-8954 Partnersupport@kraususa.com

In requesting warranty service, please be ready to provide:

1. Proof of purchase.

2. A description of the problem.

Download the Kraus Care & Maintenance Guide at:

http://www.kraususa.com/maintenance

Page 16

Activate Your Warranty

Access Premium Customer Support

Get Product Information

http://www.kraususa.com/registration
