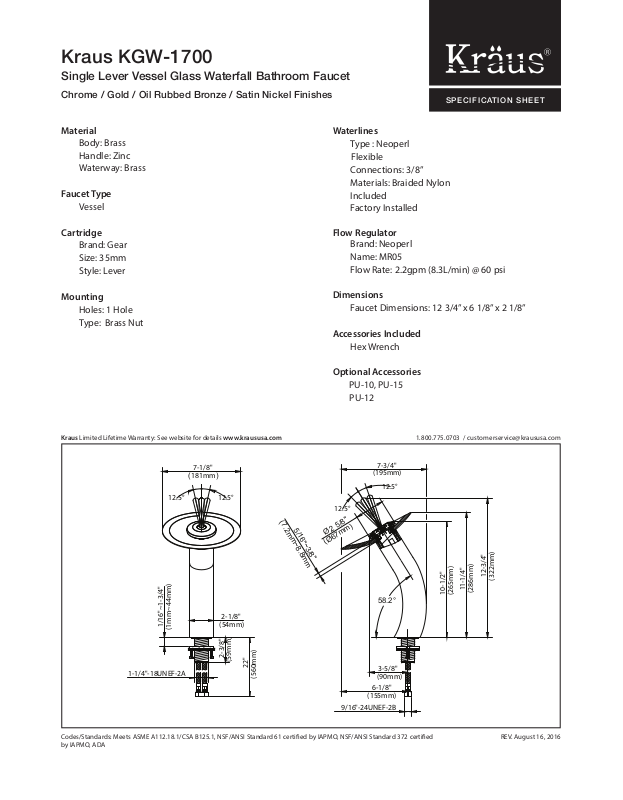

Page 1

Kraus KGW-1700

Single Lever Vessel Glass Waterfall Bathroom Faucet

Chrome / Gold / Oil Rubbed Bronze / Satin Nickel Finishes

Material

Body: Brass Handle: Zinc Waterway: Brass

Faucet Type

Vessel

Cartridge

Brand: Gear Size: 35mm Style: Lever

Mounting

Holes: 1 Hole Type: Brass Nut

SPECIFICATION SHEET

Waterlines

Type : Neoperl Flexible Connections: 3/8” Materials: Braided Nylon Included Factory Installed

Flow Regulator

Brand: Neoperl Name: MR05 Flow Rate: 2.2gpm (8.3L/min) @ 60 psi

Dimensions

Faucet Dimensions: 12 3/4” x 6 1/8” x 2 1/8”

Accessories Included

Hex Wrench

Optional Accessories PU-10, PU-15

PU-12

12.5°

1/16"~1-3/4"

(1mm~44mm)

1-1/4"-18UNEF-2A

7-1/8"

(181mm)

12.5°

2-1/8"

(54mm)

2-3/8"

(59mm)

22"

(560mm)

(7.2mm~8.8mm

5/16"~3/8"

Ø 2 5/8" (Ø67mm)

(195mm)

12.5°

6-1/8"

(155mm)

9/16"-24UNEF-2B

7-3/4"

12.5°

58.2°

3-5/8" (90mm)

1.800.775.0703 / customerservice@kraususa.comKraus Limited Lifetime Warranty: See website for details www.kraususa.com

12-3/4"

(322mm)

11-1/4"

(286mm)

10-1/2"

(265mm)

Codes/Standards: Meets ASME A112.18.1/CSA B125.1, NSF/ANSI Standard 61 certied by IAPMO, NSF/ANSI Standard 372 certied by IAPMO, ADA

REV. August 16, 2016
