Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer TOOLS VP-350 1:3 High
Resolution UXGA DA which is ideal for:
Multi monitor applications or presentation systems requiring local
monitors and large screen display devices such as a projector
Rental and staging systems
Schools, churches and corporate applications
The package includes the following items:
VP-350 1:3 High Resolution UXGA DA
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
3 Overview
The Kramer VP-350 is a high performance 1:3 distribution amplifier for
UXGA and higher resolution signals.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Your VP-350 1:3 High Resolution UXGA DA
Top Side Panel
Lower Side Panel
The VP-350:
Accepts one input, provides correct buffering and isolation, and then distributes
the signal to 3 identical outputs on high-density 15-pin HD connectors
Has a video bandwidth exceeding 400MHz, ensuring that the machine
remains transparent even at high-resolution graphics modes such as
UXGA (1600x1200)
Accepts analog or digital syncs1 and provides ID Bit control2
Can output video signals that are DC or AC coupled for maximum
flexibility (selected via the red, green and blue coupling buttons)
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VP-350 away
from moisture, excessive sunlight and dust
4 Your VP-350 1:3 High Resolution UXGA DA
Figure 1, Figure 2 and Table 1 define the VP-350 unit:
1 The polarity is determined via a pair of underside switches. Note that both the Hs (horizontal sync) switch and the Vs
(vertical sync) switch should be set identically
2 Via an underside switch. Sometimes notebook computers refuse to output a VGA signal to an external VGA monitor. By
setting the ID BIT to ON, the notebook will output to an external VGA monitor
2

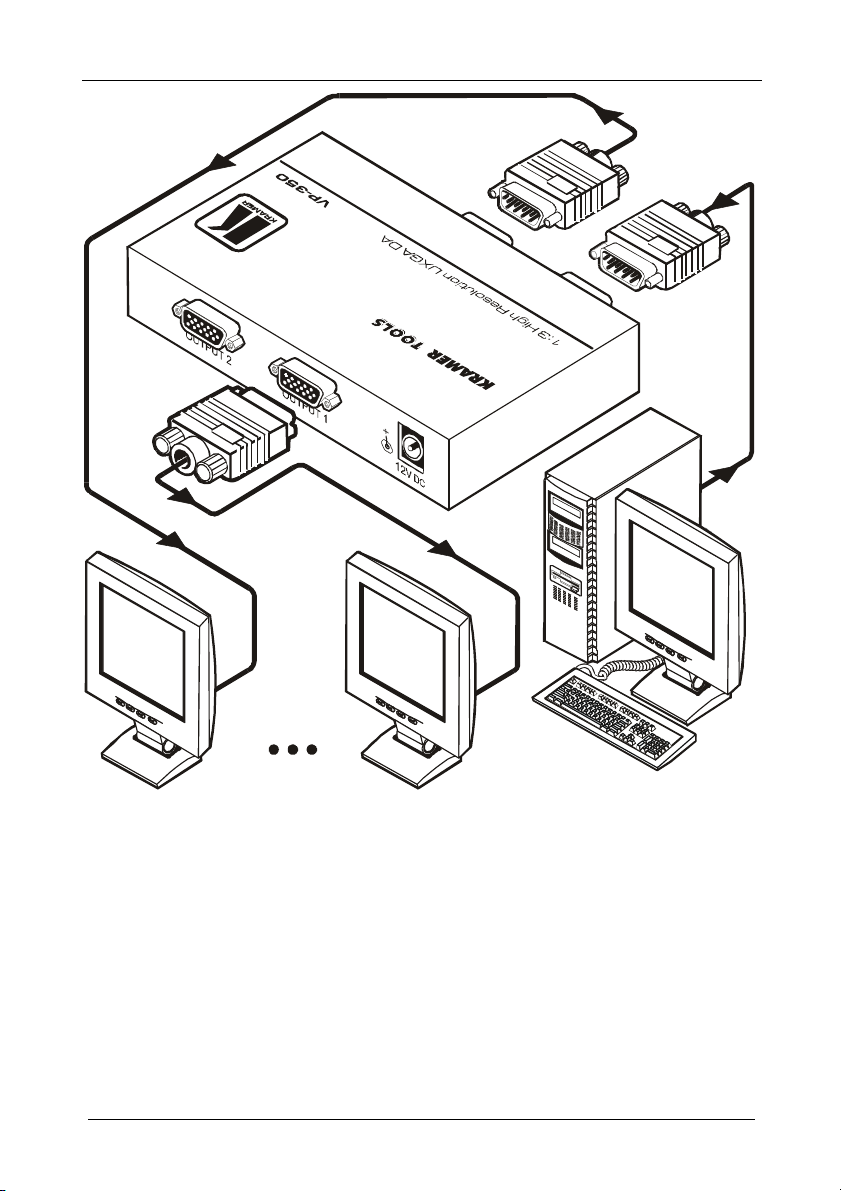

Figure 1: VP-350 1:3 High Resolution UXGA DA
