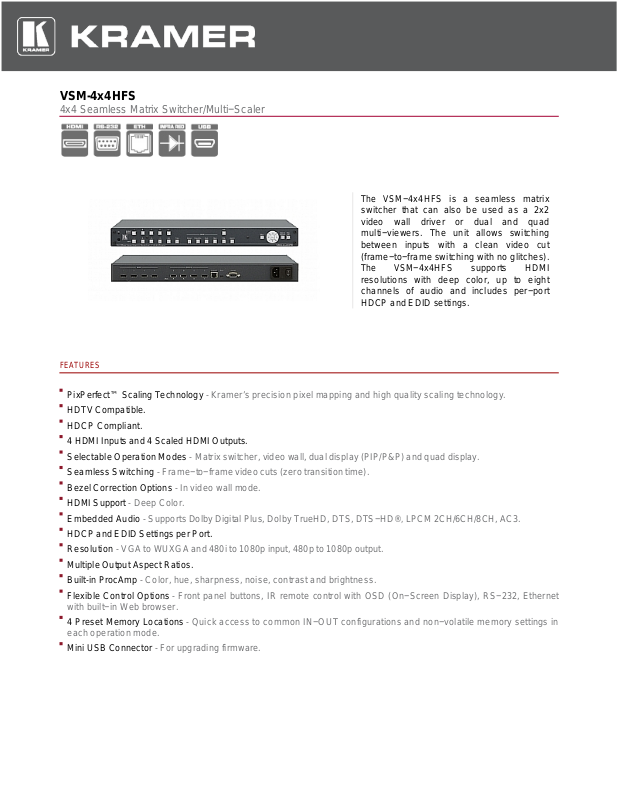

Kramer VSM-4X4HFS Datasheet

VSM-4x4HFS

4x4 Seamless Matrix Switcher/Multi−Scaler

The VSM

−4x4HFS is a seamless matrix
switcher that can also be used as a 2x2
video wall driver or dual and quad
multi−viewers. The unit allows switching
between inputs with a clean video cut
(frame−to−frame switching with no glitches).
The VSM

−4x4HFS supports HDMI
resolutions with deep color, up to eight
channels of audio and includes per−port
HDCP and EDID settings.

PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high quality scaling technology.
HDTV Compatible.
HDCP Compliant.
4 HDMI Inputs and 4 Scaled HDMI Outputs.
Selectable Operation Modes - Matrix switcher, video wall, dual display (PIP/P&P) and quad display.
Seamless Switching - Frame−to−frame video cuts (zero transition time).
Bezel Correction Options - In video wall mode.
HDMI Support - Deep Color.
Embedded Audio - Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS−HD®, LPCM 2CH/6CH/8CH, AC3.
HDCP and EDID Settings per Port.
Resolution - VGA to WUXGA and 480i to 1080p input, 480p to 1080p output.
Multiple Output Aspect Ratios.
Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
Flexible Control Options - Front panel buttons, IR remote control with OSD (On−Screen Display), RS−232, Ethernet

with built−in Web browser.

4 Preset Memory Locations - Quick access to common IN−OUT configurations and non−volatile memory settings in

each operation mode.

Mini USB Connector - For upgrading firmware.

FEATURES

VSM-4x4HFS

TECHNICAL SPECIFICATIONS

INPUTS:

4 HDMI connectors (HDMI, HDCP version 1.1).

OUTPUTS:

4 HDMI connectors (HDMI, HDCP version 1.1).

OUTPUT
RESOLUTIONS:

NATIVE, 480p, 576p, 720p50, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800,
1280x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050 or 1920x1200.

POWER SOURCE:

100−

240V AC, 27VA max.

OPERATING
TEMPERATURE:

0° to +40°C (32° to 104°F).

STORAGE
TEMPERATURE:

−40° to +70°C (−40° to 158°F).

HUMIDITY:

10% to 90%, RHL non−condensing.

DIMENSIONS:

19" x 7" x 1U (W, D, H) rack mountable.

WEIGHT:

2.7kg (6lbs) approx.

INCLUDED
ACCESSORIES:

Power cord, rack "ears", IR remote control.
