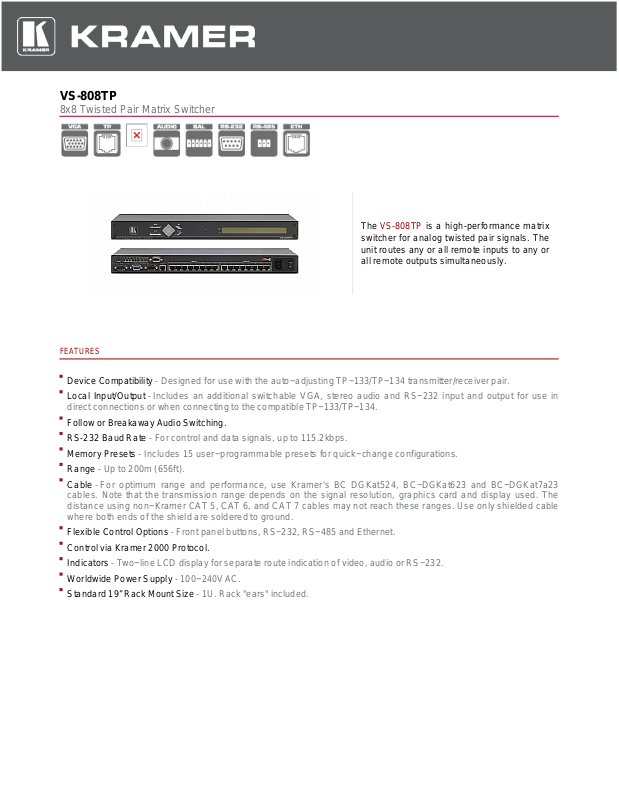

Kramer VS-808TP Datasheet

VS-808TP
8x8 Twisted Pair Matrix Switcher
The VS-808TP is a high-performance matrix switcher for analog twisted pair signals. The unit routes any or all remote inputs to any or all remote outputs simultaneously.
Device Compatibility - Designed for use with the autoadjusting TP−133/TP−134 transmitter/receiver pair. Local Input/Output - Includes an additional switchable VGA, stereo audio and RS232 input and output for use in
direct connections or when connecting to the compatible TP−133/TP−134.
Follow or Breakaway Audio Switching. RS-232 Baud Rate - For control and data signals, up to 115.2kbps. Memory Presets - Includes 15 userprogrammable presets for quickchange configurations. Range - Up to 200m (656ft). Cable - For optimum range and performance, use Kramer's BC DGKat524, BCDGKat623 and BC−DGKat7a23
cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using nonKramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
Flexible Control Options - Front panel buttons, RS232, RS485 and Ethernet. Control via Kramer 2000 Protocol. Indicators - Twoline LCD display for separate route indication of video, audio or RS232. Worldwide Power Supply - 100
240V AC.
Standard 19” Rack Mount Size - 1U. Rack "ears" included.
FEATURES
VS-808TP
TECHNICAL SPECIFICATIONS
INPUTS:
8 remote twisted pairs on RJ45 connectors, 1 RGBHV/WUXGA on a 15pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a 5pin terminal block.
OUTPUTS:
8 remote twisted pairs on RJ45 connectors, 1 RGBHV/WUXGA on a 15pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a 5pin terminal block.
PORTS:
1 RS232 (data) on a 9pin Dsub connector, 1 RS−485/RS−422 on a 5pin terminal block.
CONTROL:
1 RS232 (control) input on a 9pin Dsub connector, 1 Ethernet LAN on an RJ45 connector.
RESOLUTION:
Up to 1920x1200 @60Hz (WUXGA) depending on the transmitter/receiver.
VIDEO CONTROL:
EQ/GAIN adjustment is done automatically at every connection change or can be forced manually via the front panel.
AUDIO GAIN:
015 where 0=mute, 01=–25dB and 15=6dB.
MAXIMUM CABLE LENGTH:
300m (984ft).
BAUD RATE (RS
-
232):
9600, 19200, 38400, 115200.
POWER CONSUMPTION:
100
240VAC, 50/60Hz, 23VA.
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:
40° to +70°C (40° to 158°F).
HUMIDITY:
10% to 90%, RHL non−condensing.
DIMENSIONS:
19" x 9.4" x 1U (W, D, H).
WEIGHT:
3kg (6.6lbs) approx.
INCLUDED ACCESSORIES:
Power cord, rack “ears”
.
