Kramer VS-66HDMI User Manual

Kramer Electronics, Ltd.

USER MANUAL



Model:

VS-66HDMI

6x6 HDMI Matrix Switcher

Contents

i

Contents

1

Introduction 1

2

Getting Started 1

2.1

Quick Start 2

3

Overview 3

3.1

Defining EDID 3

3.2

About HDMI 3

3.3

Recommendations for Best Performance 4

3.4

Terminology Used in this User Manual 5

4

Your VS-66HDMI 6x6 HDMI Matrix Switcher 5

4.1

Using the IR Transmitter 8

5

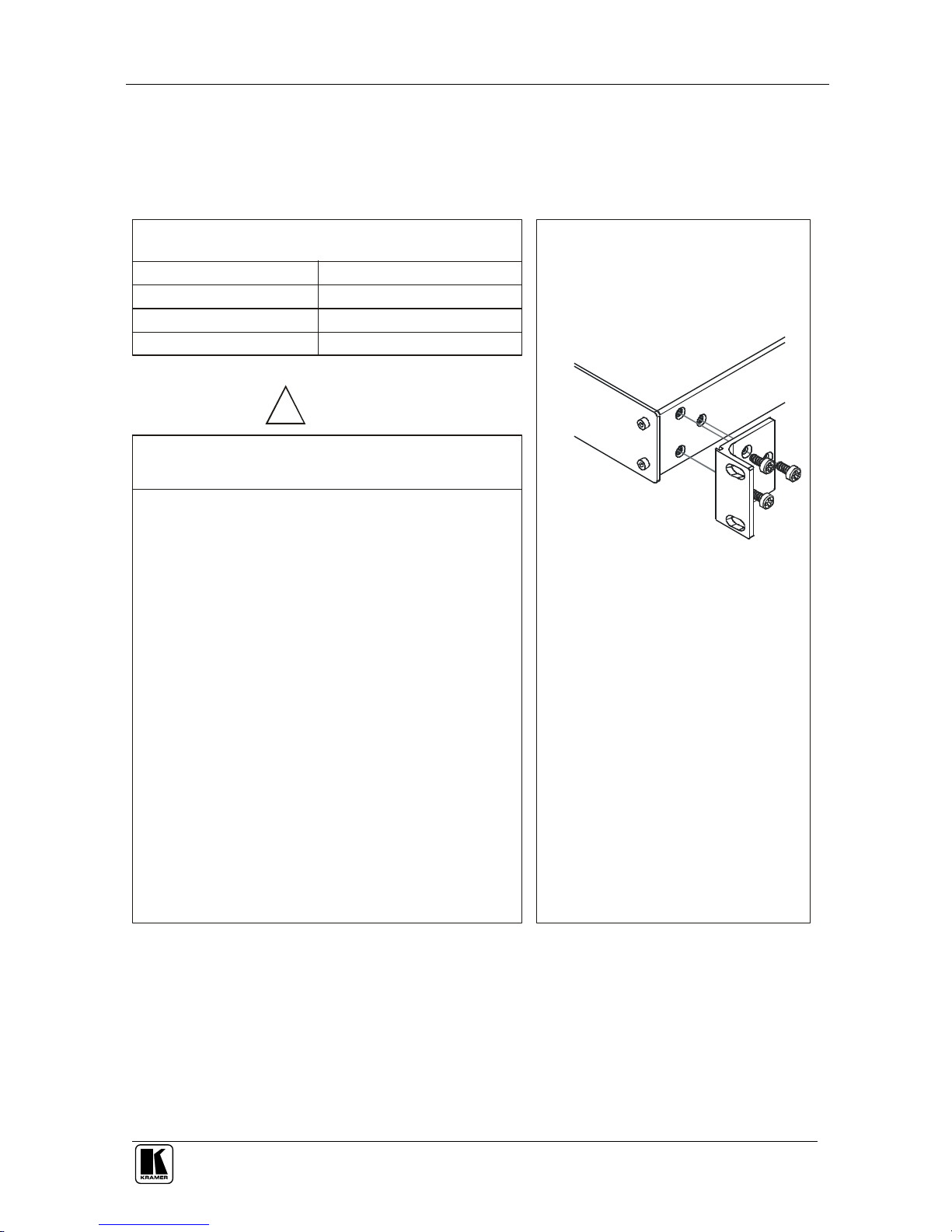

Installing the VS-66HDMI on a Rack 9

6

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 10

7

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 12

7.1

Switching an Input to an Output 12

7.2

Acquiring the EDID 12

7.2.1 Acquire an EDID from a Connected Output 12

7.2.2 Acquire an EDID from Several Sets of Inputs and Outputs 13

7.2.3 Acquire an EDID from Several Connected Outputs (Auto) 13

7.2.4 Acquire the Default EDID 14

7.3

Storing and Recalling a Setting 14

7.4

Controlling via RS-232 (for example, using a PC) 15

7.5

Controlling via ETHERNET 15

7.5.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) 15

7.5.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 17

8

Technical Specifications 17

9

Kramer Protocol 2000 18

Figures

Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher 6

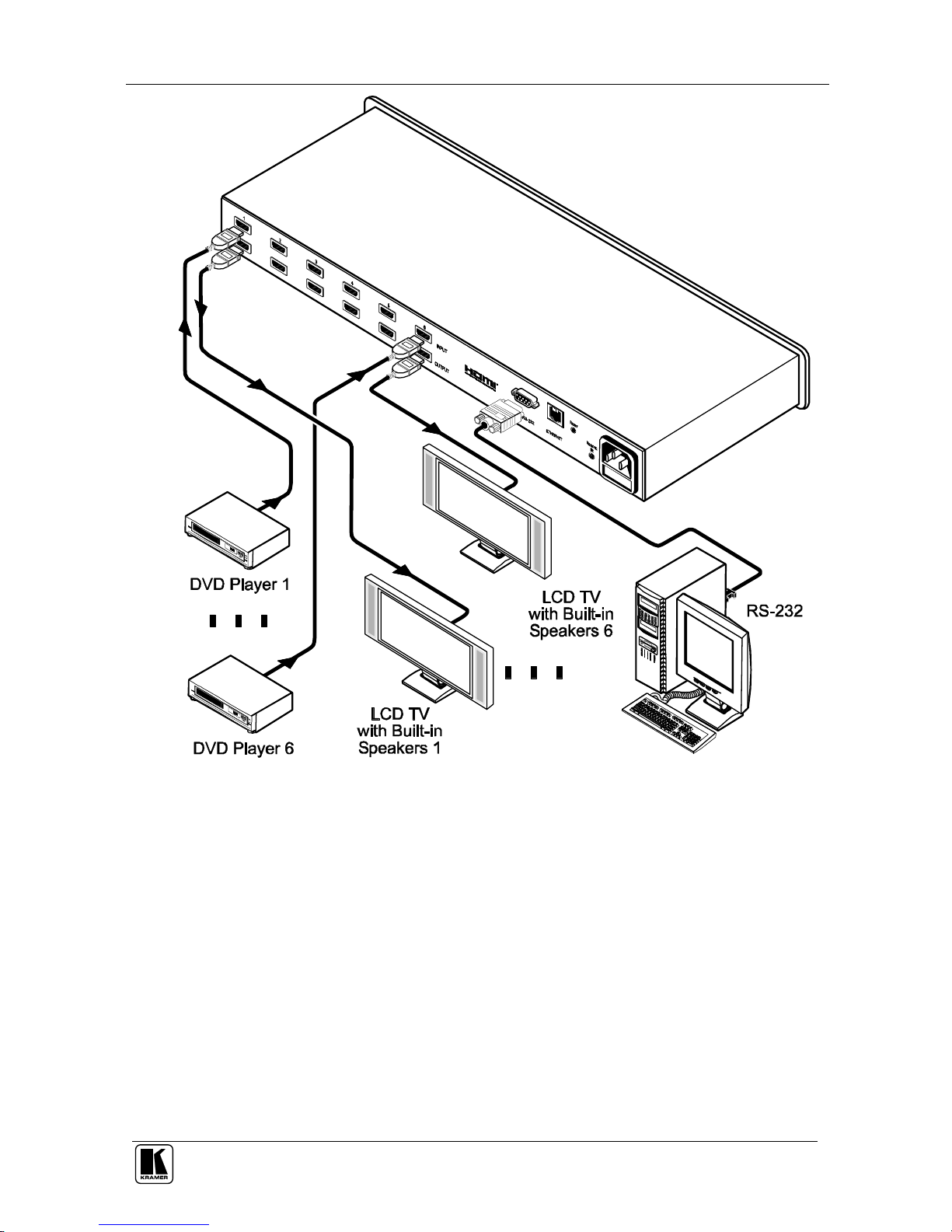

Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 11

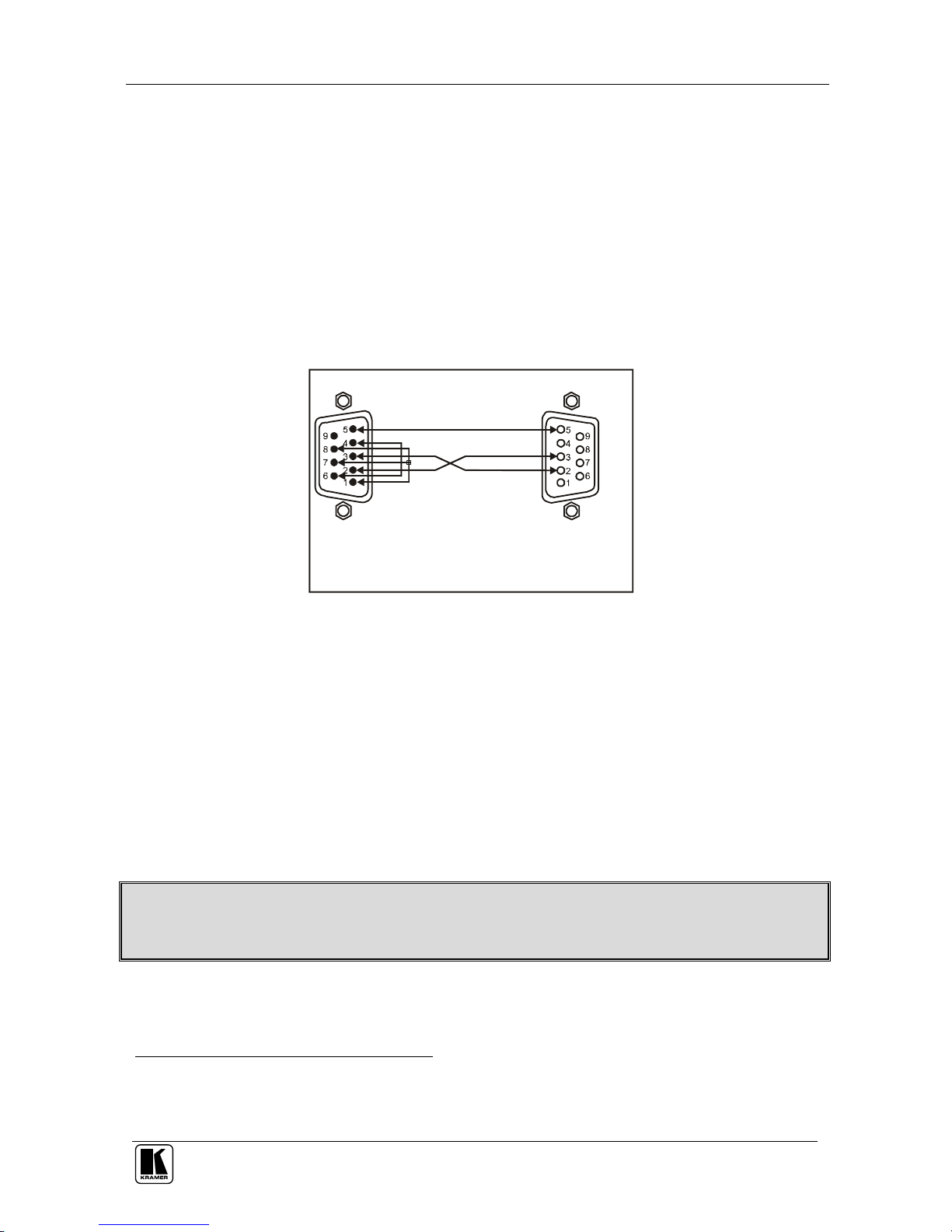

Figure 3: Connecting a PC without using a Null-modem Adapter 15

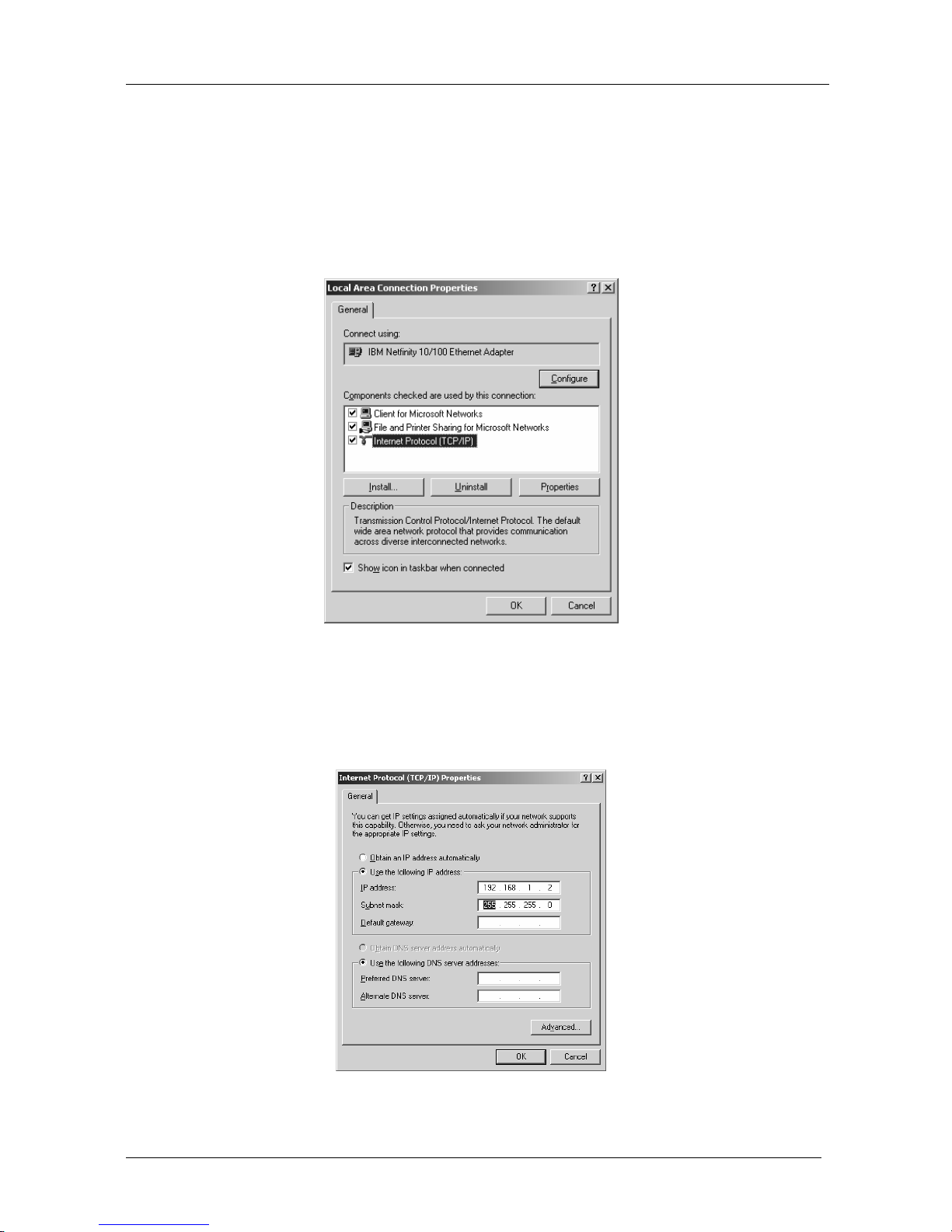

Figure 4: Local Area Connection Properties Window 16
Figure 5: Internet Protocol (TCP/IP) Properties Window 16

Tables

Table 1: Terminology Used in this User Manual 5
Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features 7
Table 3: Technical Specifications of the VS-66HDMI 17
Table 4: Protocol Definitions 18
Table 5: Instruction Codes for Protocol 2000 19

Introduction

1

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function.

Congratulations on purchasing your Kramer VS-66HDMI 6x6 HDMI Matrix
Switcher.

The VS-66HDMI is ideal for conference room presentations and advertising
applications, as well as for rental and staging.

Each package includes the following items:

 VS-66HDMI 6x6 HDMI Matrix Switcher
 Power cord and Null-modem adapter
 Windows®-based Kramer control software2
 Windows®-based Ethernet Configuration Manager and Virtual Serial Port

Manager

 Kramer RC-IR2 Infra-Red Remote Control Transmitter (including the

required batteries and a separate user manual3)

 This user manual3

2 Getting Started

We recommend that you:
 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual
 Use Kramer high performance high resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Downloadable from our Web site at http://www.kramerelectronics.com
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

Getting Started

KRAMER: SIMPLE CREATIVE TECHNOLOGY

2

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3

3 Overview

The VS-66HDMI is a high quality 6x6 matrix switcher for HDMI signals.
In particular, the VS-66HDMI:

 Supports up to 1.65Gbps bandwidth per graphic channel1
 Supports HDCP (High Definition Digital Content Protection)
 Includes an OFF button to disconnect an output
 Includes a PANEL LOCK button to prevent unwanted tampering with the

buttons on the front panel

 Has 12 preset memory locations for quick access to common configurations
 Fits into one vertical space of a standard 19” professional rack enclosure

Control the VS-66HDMI using the front panel buttons, or remotely via:
 RS-232 serial commands transmitted by a touch screen system, PC, or

other serial controller

 The Kramer infra-red remote control transmitter
 The ETHERNET
 An external remote IR receiver (optional), see section 4.1

3.1 Defining EDID

The Extended Display Identification Data (EDID2) is a data-structure,
provided by a display, to describe its capabilities to an HDMI source. The
EDID enables the VS-66HDMI to “know” what kind of monitor is connected
to the output. The EDID includes the manufacturer’s name, the product type,
the timing data supported by the display, the display size, luminance data and
(for digital displays only) the pixel mapping data. See section 7.1 for details
of how to acquire the EDID.

3.2 About HDMI

High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital3
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note that
Kramer Electronics Limited is an HDMI Adopter4 and an HDCP Licensee5.

1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
2 Defined by a standard published by the Video Electronics Standards Association (VESA)
3 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital­to-analog conversions
4 See http://www.hdmi.org/about/adopters_founders.asp
5 See http://www.digital-cp.com/list/

Overview

KRAMER: SIMPLE CREATIVE TECHNOLOGY

4

In particular, HDMI1:
 Provides a simple2 interface between any audio/video source, such as a

set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy3 cable

 Supports standard, enhanced, high-definition video, and multi-channel

digital audio4 on a single cable

 Transmits all ATSC HDTV standards and supports 8-channel digital audio,

with bandwidth to spare to accommodate future enhancements and
requirements

 Benefits consumers by providing superior, uncompressed digital video

quality via a single cable5, and user-friendly connector

 Is backward-compatible with DVI (Digital Visual Interface)
 Supports two-way communication between the video source (such as a

DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play

HDMI has the capacity to support existing high-definition video formats
(720p, 1080i, and 1080p/60), standard definition formats such as NTSC or
PAL, as well as 480p and 576p.

3.3 Recommendations for Best Performance

To achieve the best performance:
 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)

 Avoid interference from neighboring electrical appliances and position

your VS-66HDMI away from moisture, excessive sunlight and dust

1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
3 HDMI technology has been designed to use standard copper cable construction at up to 15m
4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

Your VS-66HDMI 6x6 HDMI Matrix Switcher

5

3.4 Terminology Used in this User Manual

Table 1 defines some terms that are used in this user manual.

Table 1: Terminology Used in this User Manual

Term Definition

802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical
and Electronics Engineers (IEEE).

Dynamic Host
Configuration
Protocol (DHCP)

Allows the network administrator to distribute IP addresses from a central point and
automatically send a new IP address when an Ethernet point is plugged into a different
network location

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets
across the Internet. Every device connected to an IP network must have a unique IP
address. This address is used to reference the specific unit.

Local Area Network
(LAN)

Computers sharing a common communications line or wireless link, which often share a
server within a defined geographic area.

Media Access
Control (MAC)
Address

A computer's unique hardware number (or address) in a LAN or other network. On an
Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission
Control
Protocol/Internet
Protocol (TCP/IP)

The basic communication language or protocol of the Internet that breaks the message
into appropriately sized packets for the network, and can be used as a communications
protocol in an intranet or an extranet.

4 Your VS-66HDMI 6x6 HDMI Matrix Switcher

Figure 1 and Table 2 define the front and rear panels of the VS-66HDMI.

Your VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECH NOLOGY

6

Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher

Your VS-66HDMI 6x6 HDMI Matrix Switcher

7

Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features

# Feature Function

1 IR Receiver The red LED lights when receiving signals from the Infra-red remote

control transmitter

2 POWER Switch Illuminated switch for turning the unit ON or OFF

3 ALL Button Pressing ALL before pressing an input button, connects that input to

all outputs1

4 OFF Button Pressing OFF after pressing an output button disconnects that output

from the inputs. To disconnect all the outputs,

press the ALL button and

then the OFF button

5 OUT Select the output to which the input is switched (from 1 to 6). The

selected button illuminates if an acceptor is connected

6

SELECT

Buttons2

IN Select the input to switch to the output (from 1 to 6). The selected

button illuminates if a source is connected
7 STO Button Press to store an input setting (see section 7.3)

8 RCL Button Press to recall an input setting (see section 7.3)

9 LOCK Button Press to toggle disengaging the front panel buttons and to acquire

the EDID (see section 7.1)

10 EDID Button3 Press to acquire the EDID (see section 7.1)

11 OUTPUT/ INPUT

LCD Display

Displays the selected input switched to the output (marked above

each input)

12 INPUT HDMI Connectors Connect to the HDMI sources (from 1 to 6)
13 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 6)

14 RS-232 DB-9F Port Connects to the PC or other RS-232 Remote Controller

15 ETHERNET Connector Connects to the PC or other Ethernet Controller

16 RESET Button Press the ETHERNET factory reset button to reset to the factory default

definitions4:

IP number  192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1
17 REMOTE IR Opening5 Connects to an external IR receiver unit6 for controlling the machine via an

IR remote controller (instead of using the front panel IR receiver)
18 Power Connector with Fuse AC connector enabling power supply to the unit

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
2 Are also used for storing machine setups (see section 7.3)
3 Illuminates when configuring the EDID
4 First turn the VS-66HDMI OFF and then turn it ON again while pressing the RESET button. The unit will power up and
load its memory with the factory default definitions
5 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening
6 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal
IR connection cable has been installed)

Your VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

8

4.1 Using the IR Transmitter

You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an optional external IR
receiver1. The external IR receiver can be located up to 15 meters away from
the machine. This distance can be extended to up to 60 meters when used
with three extension cables2.

Before using the external IR receiver, be sure to arrange for your Kramer
dealer to insert the internal IR connection cable3 with the 3.5mm connector
that fits into the REMOTE IR opening on the rear panel.

Connect the external IRreceiver to the REMOTE IR 3.5mm connector.

1 Model: C-A35M/IRR-50
2 Model: C-A35M/A35F-50
3 P/N: 505-70434010-S

Installing the VS-66HDMI on a Rack

9

5 Installing the VS-66HDMI on a Rack

This section describes what to do before installing on a rack and how to rack
mount.

Before installing on a rack, be sure that the environment is
within the recommended range:

Operating temperature range +5 to +45 Deg. Centigrade

5 to 65% RHL, non-condensing

-20 to +70 Deg. Centigrade

5 to 95% RHL, non-condensing

Operating humidity range

Storage temperature range

Storage humidity range

When installing on a 19" rack, avoid hazards by taking
care that:

It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.

Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.

Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.

Note that:

Detachable rack ears can be removed
for desktop use

Always mount the machine in the rack
before you attach any cables or
connect the machine to the power

If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)









In some models, the front panel
may feature built-in rack ears

Once rack mounted, enough air will still flow around the
machine.

The machine is placed straight in the correct horizontal
position.

You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.

The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to supply
connections other than direct connections to the
branch circuit (for example, the use of power strips),
and that you use only the power cord that is supplied
with the machine.



CAUTION!!

Before Installing on a Rack

How to Rack Mount

To rack-mount a machine:

1

1

2

2

3

4

5

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

10

6 Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher

To connect the VS-66HDMI 6x6 HDMI Matrix Switcher, as illustrated in the
example in Figure 2, do the following1:

1. Connect2 up to six HDMI sources (for example, DVD players) to the six
INPUT HDMI connectors.

2. Connect3 the six OUTPUT HDMI connectors to up to six HDMI acceptors (for
example, LCD displays with built-in speakers).

3. If required, connect a PC and/or controller to the RS-232 port (see section 7.4)
and/or the ETHERNET port (see section 7.5).

4. Connect the power connector to the mains electricity (not shown in Figure 2).

5. If required, acquire the EDID (see section 7.1)

Press the SELECT IN and OUT buttons to choose which HDMI input to route
to a selected output.

1 Switch OFF the power on each device before connecting it to your VS-66HDMI. After connecting your VS-66HDMI,
switch on its power and then switch on the power on each device
2 You do not have to connect all the HDMI sources
3 You do not have to connect all the outputs

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher

11

Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

12

7 Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

This section describes how to:

 Route an input to an output (see section 7.1)
 Acquire the EDID (see section 7.2)
 Store and recall a setting (see section 7.3)
 Control the machine via RS-232 (see section 7.4)
 Control the machine via the ETHERNET port (see section 7.5)

7.1 Switching an Input to an Output

To route an input to an output, press an output key, followed by an input key
to route this input to that output.

7.2 Acquiring the EDID

You can acquire the EDID:

 From one output to any of the six inputs (see section 7.2.1)
 From several sets of inputs and outputs (see section 7.2.2)
 From several connected outputs to any of the inputs (see section 7.2.3)
 From the default EDID (see section 7.2.4)

7.2.1 Acquire an EDID from a Connected Output

To acquire or change the EDID of a new output display:

1. Turn the VS-66HDMI ON.

2. Connect the required acceptor to the output from which you want to acquire the
EDID.

3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.

4. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.

5. Select the output from which the EDID will be acquired.

6. Press the EDID button.
The process is complete when the display returns to normal.

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

13

7.2.2 Acquire an EDID from Several Sets of Inputs and Outputs

To acquire the EDID for more than one output (for example, OUT 1 to IN 1
and OUT 6 to IN 3), do the following:

1. Turn the VS-66HDMI ON.

2. Connect the required acceptor to the output from which you want to acquire the
EDID.

3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.

4. Press the input button to which the EDID will be copied (for example, IN 1).
The selected input number blinks on the display.

5. Select the output from which the EDID will be acquired (for example, OUT 1).

6. Press the IN 1 button.
The IN 1 button ceases to blink.

7. Press the next input button to which the EDID will be copied (for example,
IN 3).
The selected input number blinks on the display.

8. Select the output from which the EDID will be acquired (for example, OUT 6).

9. Press the IN 3 button.
The IN 3 button ceases to blink.

10. Press the input buttons to which you want to copy the EDID (for example, IN 1
and IN 3).

11. Make sure that the relevant input numbers blink on the display.

12. Press the EDID button.
The process is complete when the display returns to normal.

7.2.3 Acquire an EDID from Several Connected Outputs (Auto)

To acquire or change the EDID of several output displays1:

1. Turn the VS-66HDMI ON.

2. Connect the required acceptors to the outputs from which you want to acquire
the EDID.

3. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.

1 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

14

4. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.

5. Press the OFF button until the numeric – (hyphen) appears on the display.

6. Press the EDID button.
The process is complete when the display returns to normal.

7.2.4 Acquire the Default EDID

To reset to the default EDID, do the following:

1. Turn the VS-66HDMI ON.

2. Press the EDID and STO buttons simultaneously and hold them for 3 seconds.
Both buttons blink.

3. Press the input button to which the EDID will be copied.
The selected input number blinks on the display.

4. Press the OFF button until a "0" (zero) appears on the display.

5. Press the EDID button.
The process is complete when the display returns to normal.

7.3 Storing and Recalling a Setting

You can use the STO and RCL buttons to store up to 12 setups and then recall
them.

To store a setting:

1. Set the machine to the desired setting.
For example, press the OUT 3 button and IN 4 button1.

2. Press the STO button.
The STO button blinks.

3. Select an OUT or IN SELECT button to store the machine setting (for example,
OUT 5).

4. Press the LOCK button2 to store the current setup.
In this example, the OUT 5 button stores the setting.

To recall a setup:

1. Press the RCL button.
The RCL button blinks.

2. Press the relevant OUT or IN button that stored the setting.
In this example, press OUT 5.

3. Press the LOCK button to recall the stored setting.

1 You can set all the switcher IN-OUT buttons
2 You have to press the LOCK button within 10 seconds, before the store operation times out

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

15

7.4 Controlling via RS-232 (for example, using a PC)

To connect a PC to the VS-66HDMI unit, using the Null-modem adapter
provided with the machine (recommended):

 Connect the RS-232 DB9 rear panel port on the VS-66HDMI unit to the

Null-modem adapter and connect the Null-modem adapter with a 9-wire
flat cable to the RS-232 DB9 port on your PC

To connect a PC to the VS-66HDMI unit, without using a Null-modem adapter:
 Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel

port on the Master VS-66HDMI unit, as Figure 3 illustrates

Female DB9 (From PC)
PIN 4 Connected to PIN 6
PINS 8, 7, 1 Connected together

If a Shielded cable is used, connect the shield to PIN 5

PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3

Male DB9

Figure 3: Connecting a PC without using a Null-modem Adapter

7.5 Controlling via ETHERNET

You can connect the VS-66HDMI via the Ethernet, using a crossover cable
(see section 7.5.1) for direct connection to the PC or a straight through cable
(see section 7.5.2) for connection via a network hub or network router1.

7.5.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)

You can connect the Ethernet port of the VS-66HDMI to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.

This type of connection is recommended for identification of the factory default

IP Address of the VS-66HDMI during the initial configuration

After connecting the Ethernet port, configure your PC as follows:

1. Right-click the My Network Places icon on your desktop.

1 After connecting the Ethernet port, you have to install and configure your Ethernet Port. For detailed instructions, see the
“Ethernet Configuration (FC-11) guide.pdf” file in the technical support section on our Web site:
http://www.kramerelectronics.com

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

16

2. Select Properties.

3. Right-click Local Area Connection Properties.

4. Select Properties.
The Local Area Connection Properties window appears.

5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 4).

Figure 4: Local Area Connection Properties Window

6. Select Use the following IP Address, and fill in the details as shown in
Figure 5.

7. Click OK.

Figure 5: Internet Protocol (TCP/IP) Properties Window

Technical Specifications

17

7.5.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)

You can connect the Ethernet port of the VS-66HDMI to the Ethernet port on
a network hub or network router, via a straight-through cable with RJ-45
connectors.

8 Technical Specifications

Table 3 includes the technical specifications:

Table 3: Technical Specifications1 of the VS-66HDMI

INPUTS: 6 HDMI Connectors

OUTPUTS: 6 HDMI Connectors
BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel

COMPLIANCE WITH

HDMI STANDARD:

Supports HDMI 1.1 and HDCP

RESOLUTION: Up to UXGA; 1080p

POWER SOURCE:

100240VAC; 50/60Hz, 32VA
CONTROLS: Front panel buttons, Infra-red remote control transmitter, RS-232, Ethernet

DIMENSIONS: 19-inch (W), 7-inch (D), 1U (H)

WEIGHT: 2.5 kg. (5.5 lbs.) approx.

ACCESSORIES: Power cord, IR transmitter

OPTIONS: Kramer HDMI cables2

1 Specifications are subject to change without notice
2 For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber
optics C-FOHM/FOHM series

Kramer Protocol 2000

KRAMER: SIMPLE CREATIVE TECHNOLOGY

18

9 Kramer Protocol 20001

The VS-66HDMI is compatible with Kramer’s Protocol 20002 (version 0.49)
(below). This RS-232/RS-485 communication protocol uses four bytes of
information as defined below. For RS-232, a null-modem connection between
the machine and controller is used. The default data rate is 9600 baud, with
no parity, 8 data bits and 1 stop bit.

Table 4: Protocol Definitions

MSB LSB
DESTI-

NATION

INSTRUCTION

0 D N5 N4 N3 N2 N1 N0

7 6 5 4 3 2 1 0

1st byte

INPUT

1 I6 I5 I4 I3 I2 I1 I0

7 6 5 4 3 2 1 0

2nd byte

OUTPUT

1 O6 O5 O4 O3 O2 O1 O0

7 6 5 4 3 2 1 0

3rd byte

MACHINE NUMBER

1 OVR X M4 M3 M2 M1 M0

7 6 5 4 3 2 1 0

4th byte

1

st

BYTE: Bit 7 – Defined as 0.
D – “DESTINATION” : 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher).
N5…N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits). Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO., which was performed. The
instruction codes are defined according to the table below (INSTRUCTION NO. is the value to be set for N5…N0).

2

nd

BYTE: Bit 7 – Defined as 1.
I6…I0 – “INPUT”.
When switching (ie. instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.

3

rd

BYTE: Bit 7 – Defined as 1.
O6…O0 – “OUTPUT” .
When switching (ie. instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.

4

th

BYTE: Bit 7 – Defined as 1.
Bit 5 – Don’t care.
OVR – Machine number override.
M4…M0 – MACHINE NUMBER.

1 You can download our user-friendly “Software for Calculating Hex Codes for Protocol 2000” from the technical support
section on our Web site at: http://www.kramerelectronics.com
2 The instruction codes in Table 5 are a sub-set of the Protocol 2000. You can find the full protocol on our Web site at
http://www.kramerelectronics.com

Kramer Protocol 2000

19

Used to address machines in a system via their machine numbers. When several machines are controlled from a single serial
port, they are usually configured together with each machine having an individual machine number. If the OVR bit is set, then
all machine numbers will accept (implement) the command, and the addressed machine will reply.
For a single machine controlled via the serial port, always set M4…M0 = 1, and make sure that the machine itself is
configured as MACHINE NUMBER = 1.

Table 5: Instruction Codes for Protocol 2000

Note: All values in the table are decimal, unless otherwise stated.

INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT

NOTE

0 RESET VIDEO 0 0 1
1 SWITCH VIDEO Set equal to video input

which is to be switched

(0 = disconnect)

Set equal to video output which is
to be switched
(0 = to all the outputs)

2, 15

3 STORE VIDEO STATUS Set as SETUP # 0 - to store

1 - to delete

2, 3, 15

4 RECALL VIDEO STATUS Set as SETUP # 0 2, 3, 15
5 REQUEST STATUS OF A

VIDEO OUTPUT

Set as SETUP # Equal to output number whose

status is reqd

4, 3

15 REQUEST WHETHER SETUP

IS DEFINED / VALID INPUT IS
DETECTED

SETUP #
or
Input #

0 - for checking if setup is defined
1 - for checking if input is valid

8

30 LOCK FRONT PANEL 0 - Panel unlocked

1 - Panel locked

0 2

31 REQUEST WHETHER PANEL

IS LOCKED

0 0 16

61 IDENTIFY MACHINE 1 - video machine name

2 - audio machine name
3 - video software version
4 - audio software version
5 - RS422 controller name
6 - RS422 controller

version
7 - remote control name
8 - remote software

version
9 - Protocol 2000 revision

0 - Request first 4 digits
1 - Request first suffix
2 - Request second suffix
3 - Request third suffix
10 - Request first prefix
11 - Request second prefix
12 - Request third prefix

13

62 DEFINE MACHINE 1 - number of inputs

2 - number of outputs
3 - number of setups

1 - for video
2 - for audio
3 - for SDI
4 - for remote panel
5 - for RS-422 controller

14

NOTES on the above table:

NOTE 1 - When the master switcher is reset, (e.g. when it is turned on), the reset code is sent to the PC. If this code is sent to
the switchers, it will reset according to the present power-down settings.

NOTE 2 - These are bi-directional definitions. That is, if the switcher receives the code, it will perform the instruction; and if
the instruction is performed (due to a keystroke operation on the front panel), then these codes are sent. For example, if the
HEX code
01 85 88 83
was sent from the PC, then the switcher (machine 3) will switch input 5 to output 8. If the user switched input 1 to output 7
via the front panel keypad, then the switcher will send HEX codes:
41 81 87 83
to the PC.
When the PC sends one of the commands in this group to the switcher, then, if the instruction is valid, the switcher replies by
sending to the PC the same four bytes that it was sent (except for the first byte, where the DESTINATION bit is set high).

NOTE 3 - SETUP # 0 is the present setting. SETUP # 1 and higher are the settings saved in the switcher's memory, (i.e. those
used for Store and Recall).

NOTE 4 - The reply to a "REQUEST" instruction is as follows: the same instruction and INPUT codes as were sent are
returned, and the OUTPUT is assigned the value of the requested parameter. The replies to instructions 10 and 11 are as per
the definitions in instructions 7 and 8 respectively. For example, if the present status of machine number 5 is breakaway
setting, then the reply to the HEX code

0B 80 80 85

Kramer Protocol 2000

KRAMER: SIMPLE CREATIVE TECHNOLOGY

20

would be HEX codes
4B 80 81 85

NOTE 8 - The reply is as in TYPE 3 above, except that here the OUTPUT is assigned with the value 0 if the setup is not
defined / no valid input is detected; or 1 if it is defined / valid input is detected.

NOTE 13 - This is a request to identify the switcher/s in the system. If the OUTPUT is set as 0, and the INPUT is set as 1, 2,
5 or 7, the machine will send its name. The reply is the decimal value of the INPUT and OUTPUT. For example, for a 2216,
the reply to the request to send the audio machine name would be (HEX codes):
7D 96 90 81 (i.e. 128dec+ 22dec for 2nd byte, and 128dec+ 16dec for 3rd byte).

If the request for identification is sent with the INPUT set as 3 or 4, the appropriate machine will send its software version
number. Again, the reply would be the decimal value of the INPUT and OUTPUT - the INPUT representing the number in
front of the decimal point, and the OUTPUT representing the number after it. For example, for version 3.5, the reply to the
request to send the version number would be (HEX codes):
7D 83 85 81 (i.e. 128dec+ 3dec for 2nd byte, 128dec+ 5dec for 3rd byte).

If the OUTPUT is set as 1, then the ASCII coding of the lettering following the machine’s name is sent. For example, for the
VS-7588YC, the reply to the request to send the first suffix would be (HEX codes):
7D D9 C3 81 (i.e. 128dec+ ASCII for “Y” ; 128dec+ ASCII for “C”).

NOTE 14 - The number of inputs and outputs refers to the specific machine which is being addressed, not to the system. For
example, if six 16X16 matrices are configured to make a 48X32 system (48 inputs, 32 outputs), the reply to the HEX code
3E 82 81 82 (ie. request the number of outputs)
would be HEX codes
7E 82 90 82
ie. 16 outputs

NOTE 15 – When the OVR bit (4th byte) is set, then the “video” commands have universal meaning. For example, instruction
1 (SWITCH VIDEO) will cause all units (including audio, data, etc.) to switch. Similarly, if a machine is in “FOLLOW”
mode, it will perform any “video” instruction.
NOTE 16 - The reply to the “REQUEST WHETHER PANEL IS LOCKED” is as in NOTE 4 above, except that here the
OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked.

8

21

LIMI TED WARRANTY

WHO IS PROTECTED?

WHAT IS COVERED AND WHAT I S NOT COVERED

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

HOW YOU CAN GET WARRANTY SERVICE

LIMI TATION OF IMPLIED WARRANTI ES

EXCLUSION OF DAMAGES

CAUTION!

Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.

Kramer

HOW LONG IS THE WARRA NTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

Only the first purchase customer may enforce this warranty.

We will pay labor and material expenses for covered items. We will not pay for the following:

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC);

generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:

Part 15: “Radio frequency devices

Subpart B Unintentional radiators”

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered

by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are

uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site

www.kramerelectronics.com.

2. Any product, on which the serial number has been defaced, modified or removed.

3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

1. Removal or installations charges.

2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the

responsibility of the Kramer dealer from whom the product was purchased.

3. Shipping charges.

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.

2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty

coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).

3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss

of time, commercial loss; or:

2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an

implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.

Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.

NOTE:

Part 1:

Kramer Electronics, Ltd.

Web site: www.kramerelectronics.com

E-mail: [email protected]

P/N: 2900-000315 REV 1

For the latest information on our products and a list of Kramer

distributors, visit our Web site: www.kramerelectronics.com,

where updates to this user manual may be found.

We welcome your questions, comments and feedback.

Caution

Safety Warning:

Disconnect the unit from the power supply before
opening/servicing.
