Page 1
Kramer Electronics, Ltd.
USER MANUAL
Model:
VS-311HDMI
Automatic HDMI / Audio Switcher
Page 2
Contents
i
Contents
1
Introduction 1
2
Getting Started 1
2.1
Quick Start 1
3
Overview 3
3.1
About HDMI 4
3.2
Recommendations for Best Performance 5
3.3
Terminology Used in this User Manual 5
4
Your VS-311HDMI Automatic HDMI / Audio Switcher 6
5
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher 8
5.1
Setting the Dipswitches 10
5.1.1 Priority Switching Applications 11
5.2
Connecting the Contact Closure Remote Control PINs 11
5.3
Controlling via RS-232 (for example, using a PC) 12
5.4
Controlling via the ETHERNET 13
5.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) 13
5.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 15
5.5
Configuring the Ethernet Port 15
5.5.1 Setting a Virtual Port 17
5.5.2 Setting an Ethernet Connection 18
6
Technical Specifications 19
7
Kramer Protocol 2000 20
Figures
Figure 1: VS-311HDMI Automatic HDMI / Audio Switcher 6

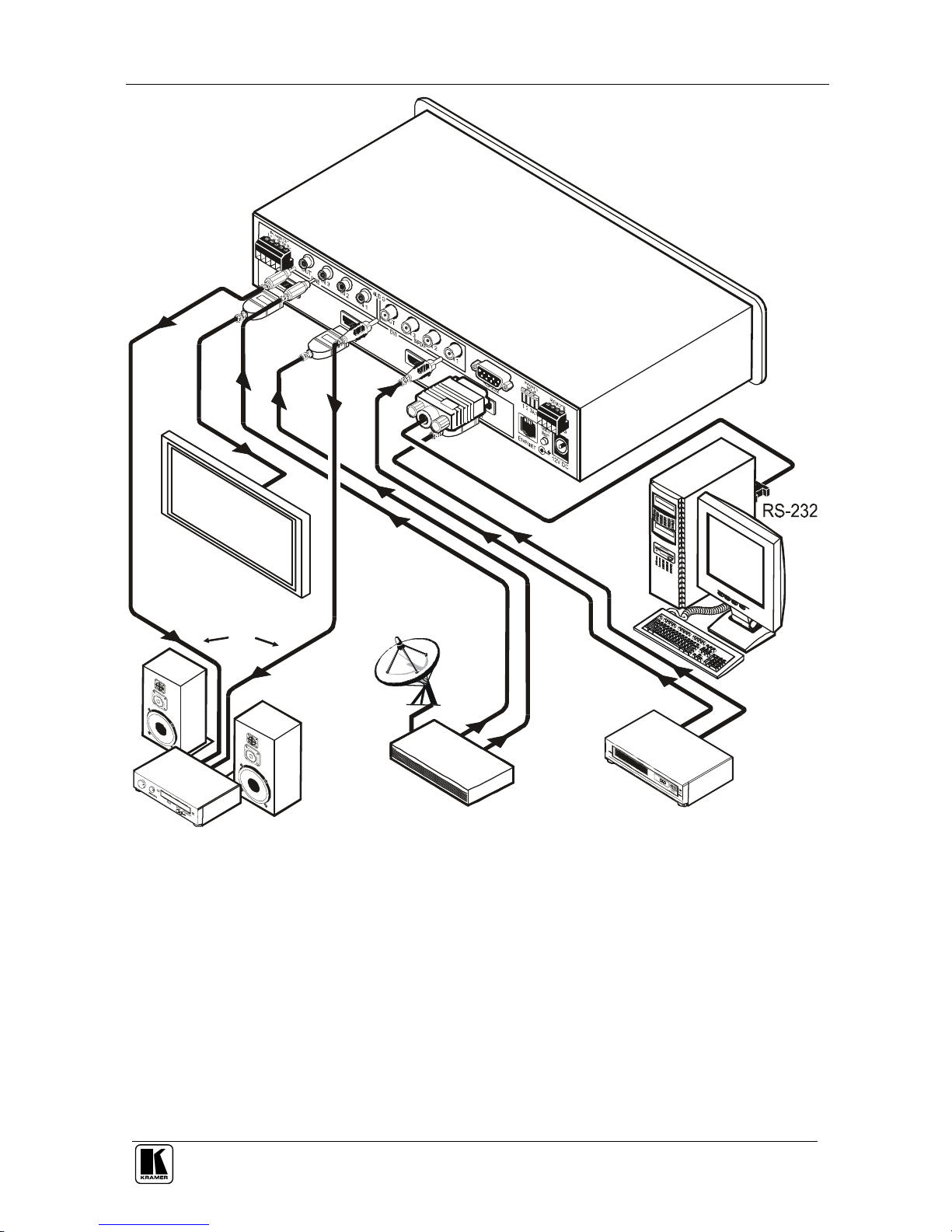

Figure 2: Connecting the VS-311HDMI Automatic HDMI / Audio Switcher 9

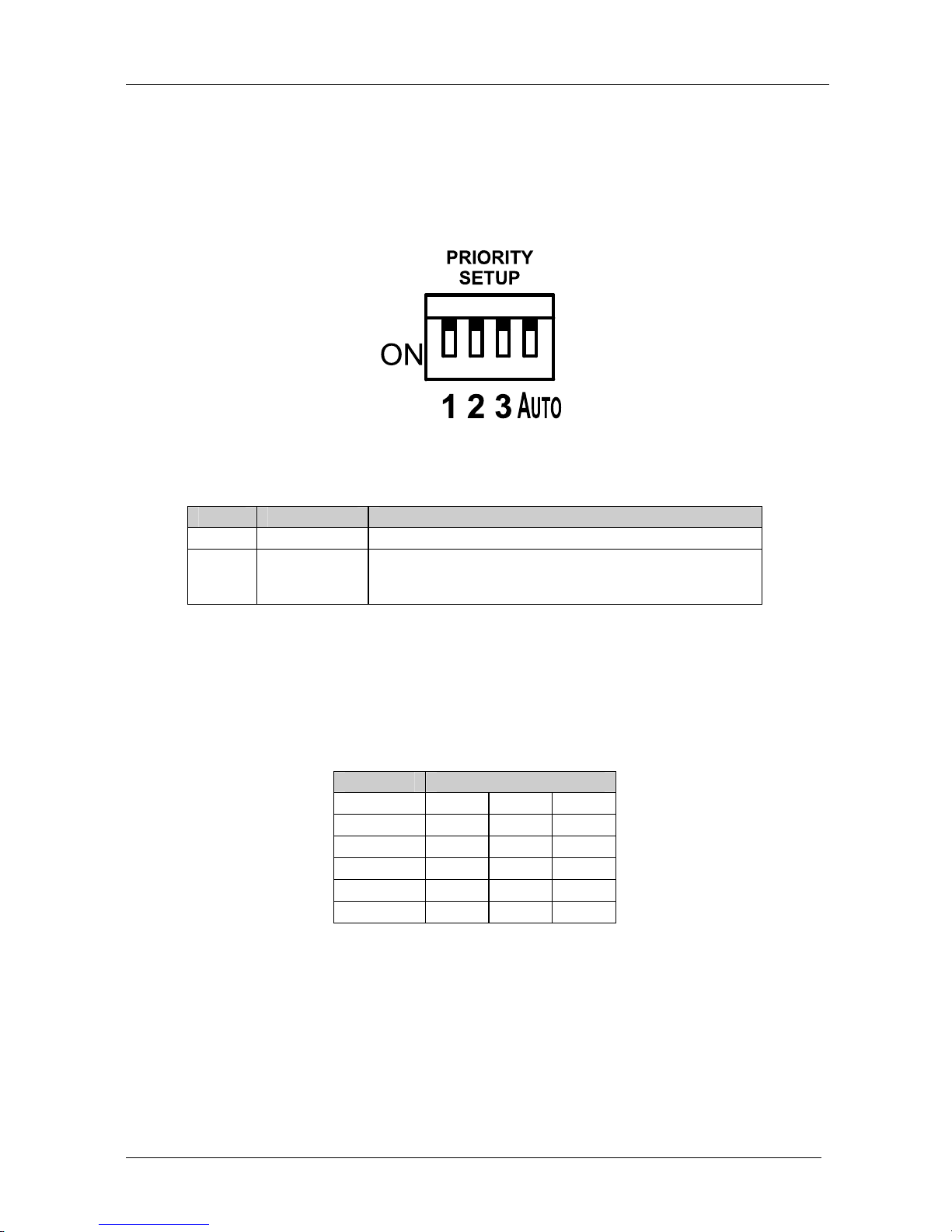

Figure 3: Dipswitches 10

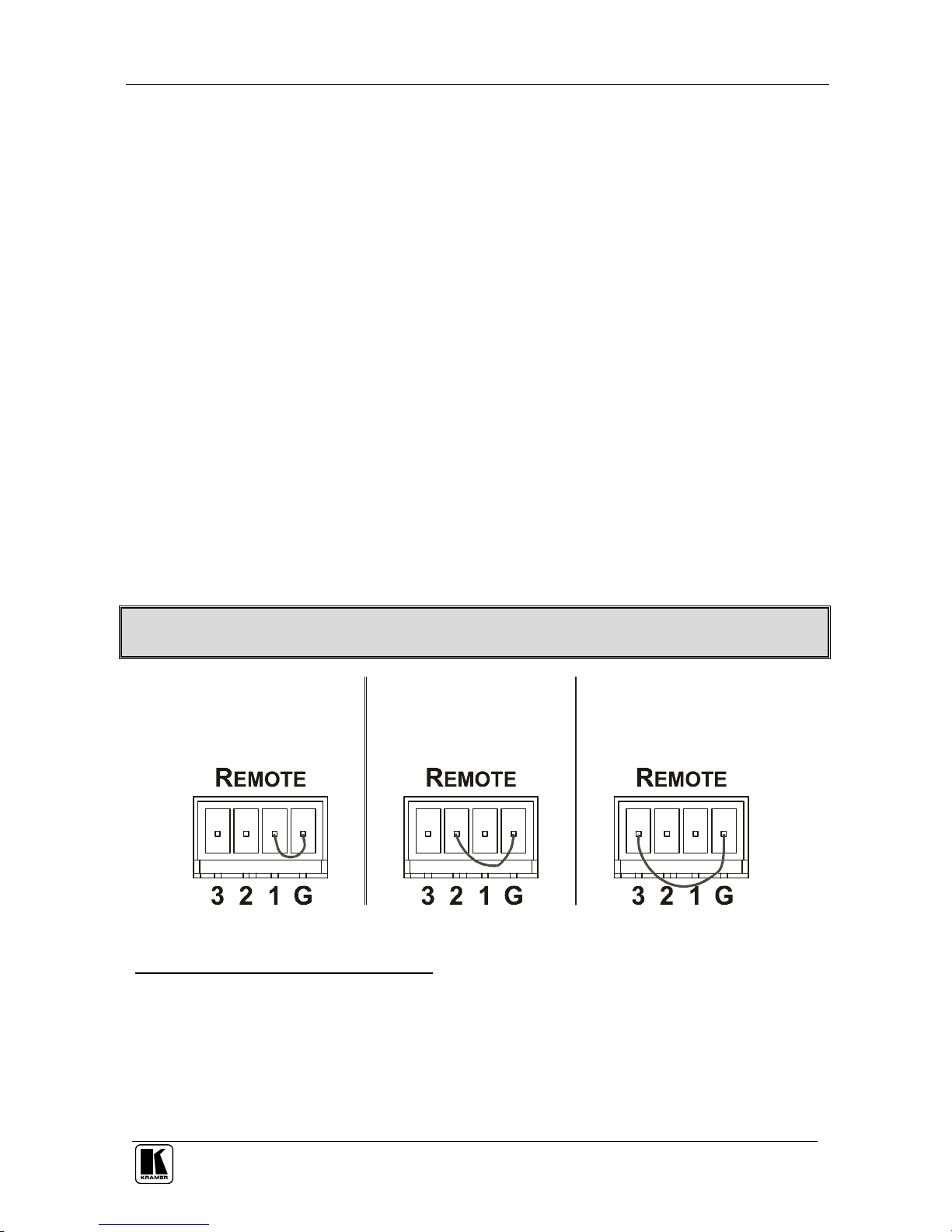

Figure 4: Connecting the Contact Closure Remote Control PINS 11

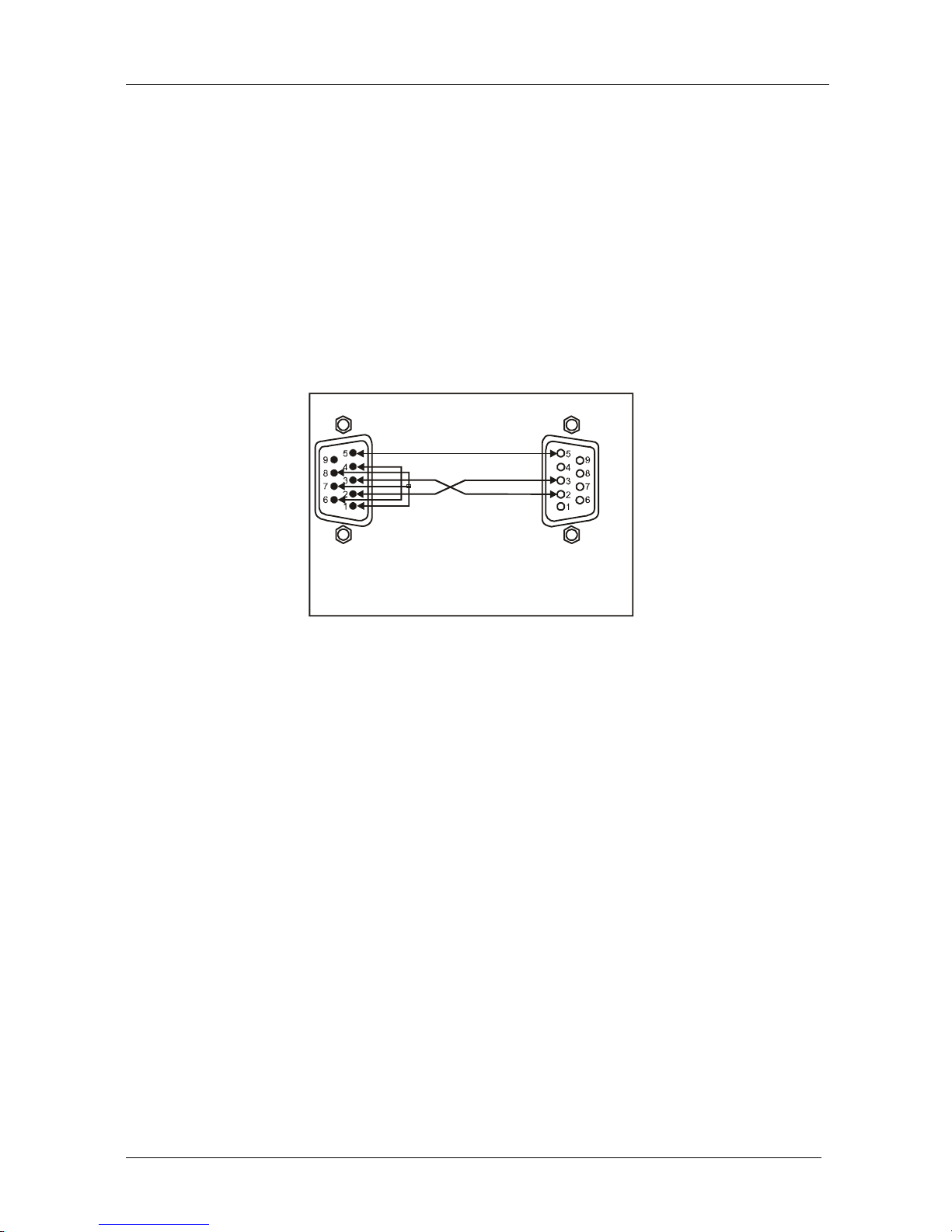

Figure 5: Connecting a PC without using a Null-modem Adapter 12

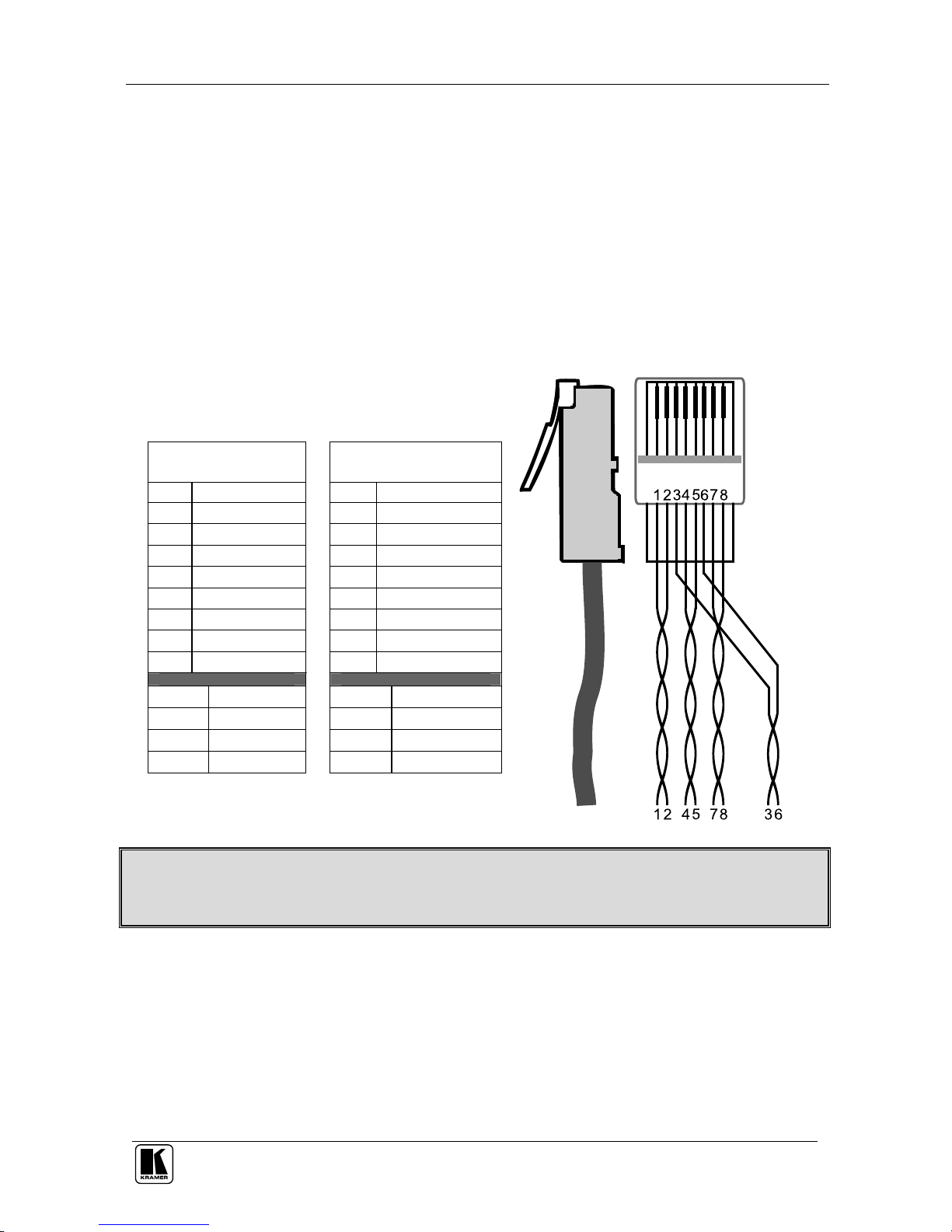

Figure 6: RJ-45 PINOUT 13

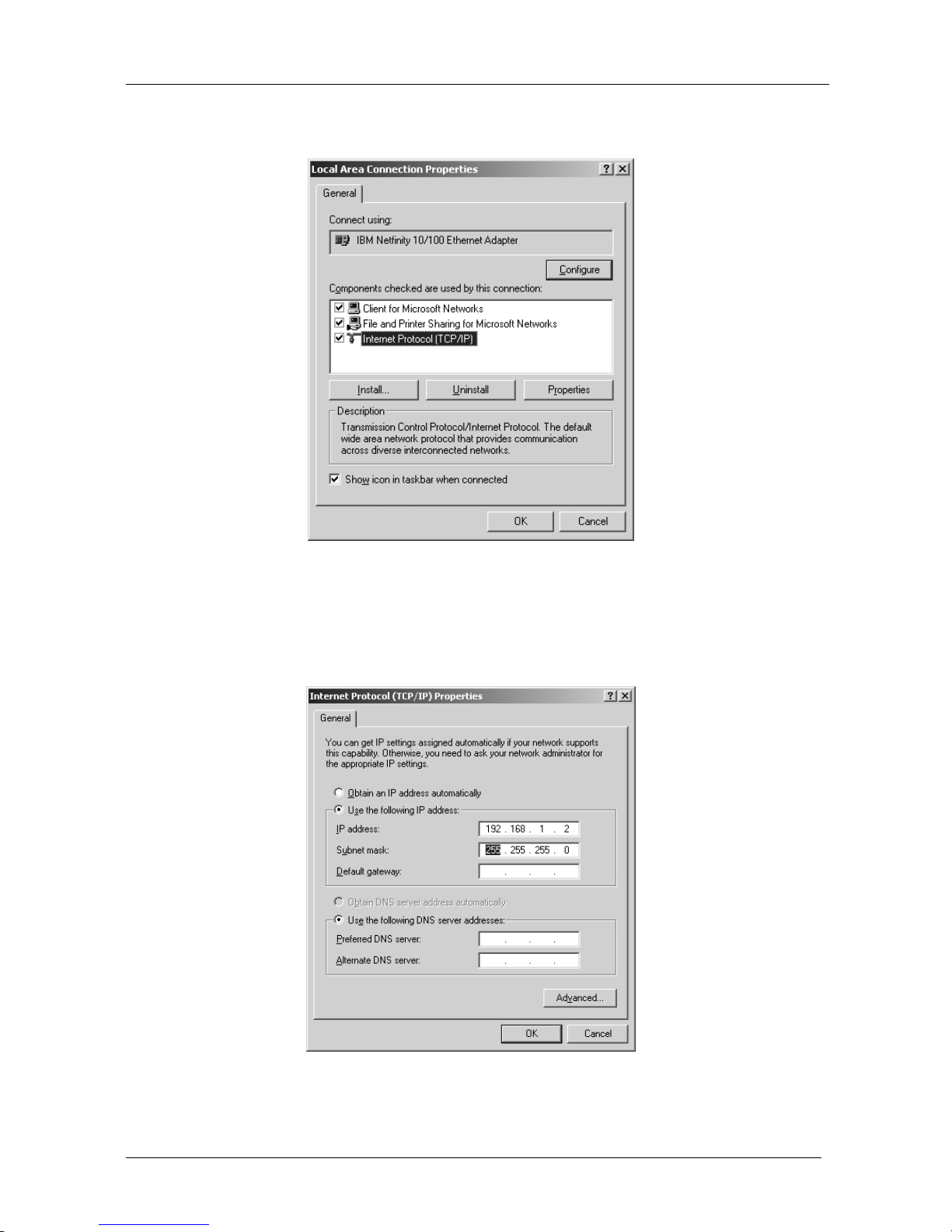

Figure 7: Local Area Connection Properties Window 14
Figure 8: Internet Protocol (TCP/IP) Properties Window 14

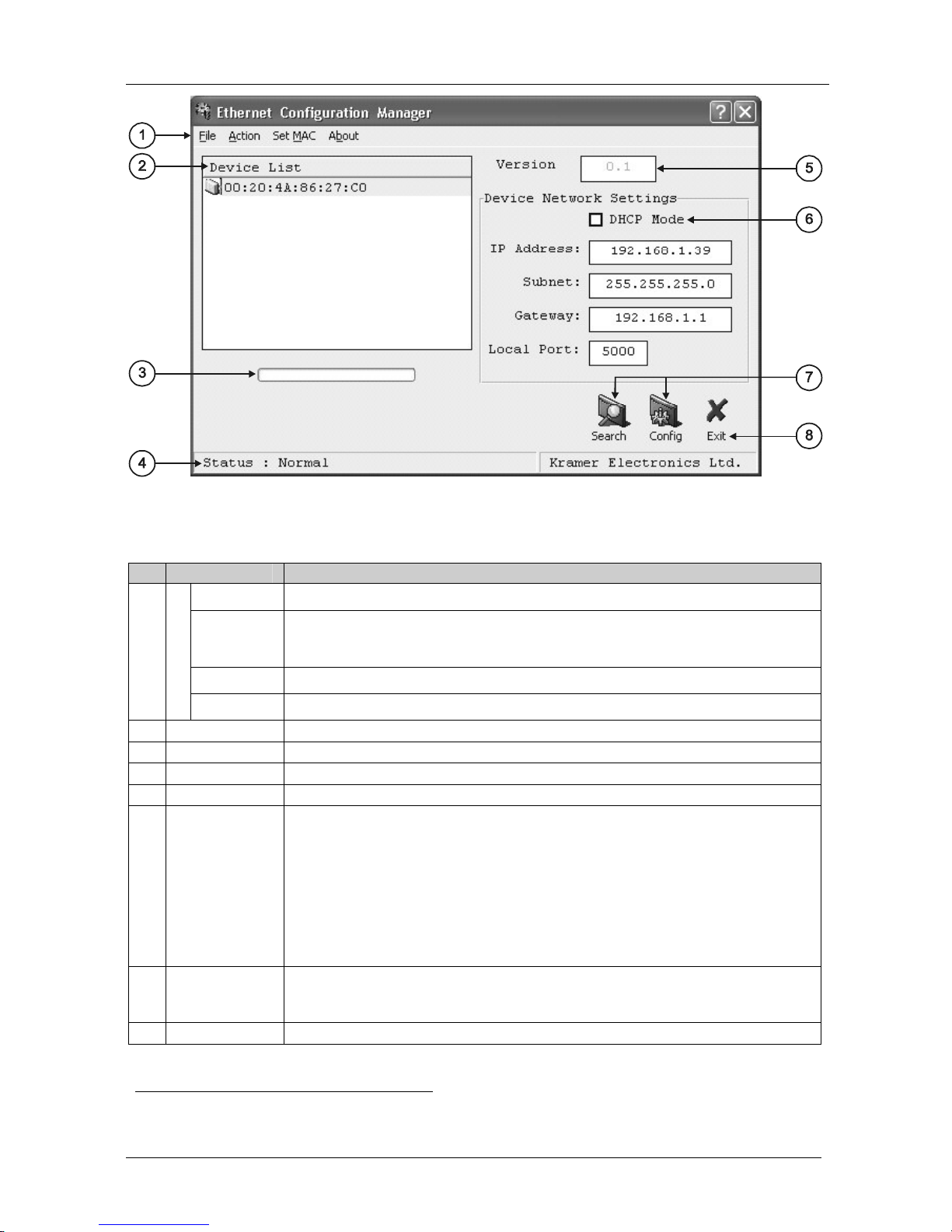

Figure 9: The Ethernet Configuration Manager Window 16

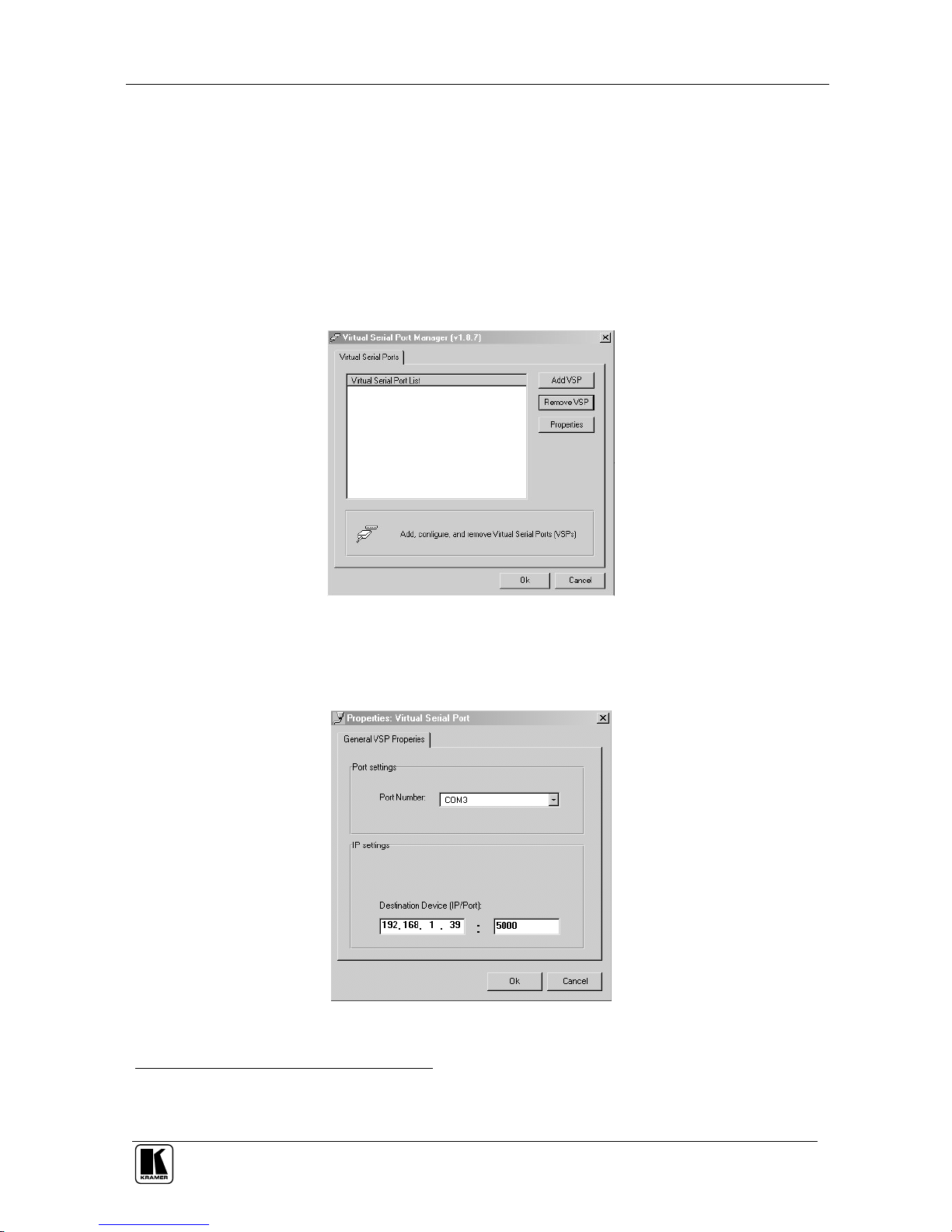

Figure 10: The Virtual Serial Port Manager Window 17
Figure 11: The Virtual Serial Port Properties Window 17
Figure 12: The Virtual Serial Port Properties Window (COM 3 and COM 4) 18

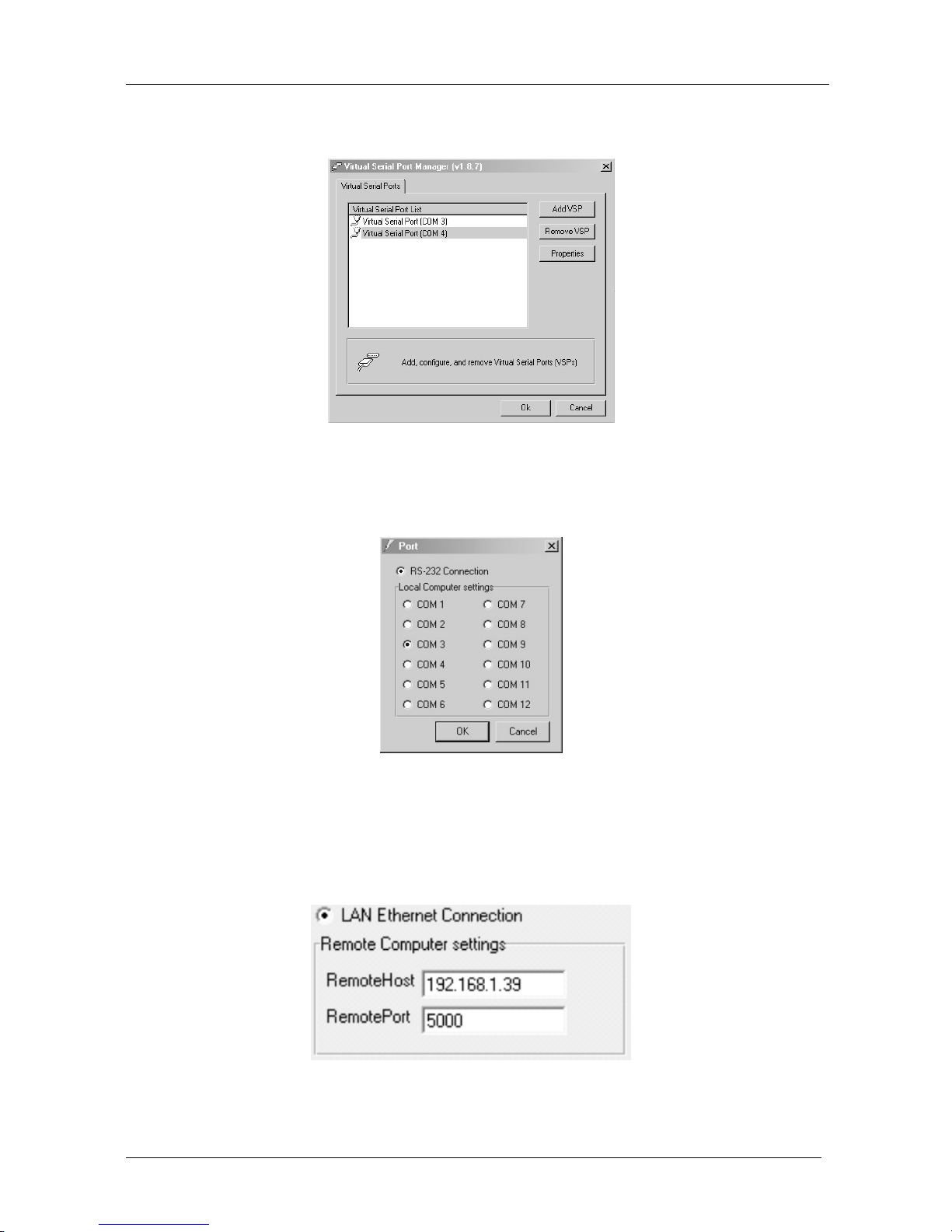

Figure 13: The Port Window – Selecting a Virtual Serial Port 18
Figure 14: The Port Window – Selecting a Remote Connection 18
Page 3
Contents
KRAMER: SIMPLE CREATIVE TECHNOLOGY
ii
Tables
Table 1: Terminology Used in this User Manual 5
Table 2: VS-311HDMI Automatic HDMI / Audio Switcher Features 7
Table 3: Dipswitch Settings 10
Table 4: Dipswitch Priority Setup 10
Table 5: Crossover Cable RJ-45 PINOUT 13
Table 6: Straight-through Cable RJ-45 PINOUT 15
Table 7: Ethernet Configuration Manager Window Functionality 16
Table 8: Technical Specifications of the VS-311HDMI 19
Table 9: Protocol Definitions 20
Table 10: Instruction Codes for Protocol 2000 21
Page 4
Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 500-plus different
models now appear in 8 Groups1, which are clearly defined by function.
Congratulations on purchasing your Kramer VS-311HDMI Automatic HDMI
/ Audio Switcher, which is ideal for:
Systems requiring automatic HDMI routing
Presentation and multimedia applications
Each package includes the following items:
VS-311HDMI Automatic HDMI / Audio Switcher
Power adapter and Null-modem adapter
Windows®-based Kramer control software2
Windows®-based Ethernet Configuration Manager and Virtual Serial Port
Manager
Kramer RC-IR1 Infra-Red Remote Control Transmitter3 (including the
required battery and a separate user manual4)
This user manual4
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution HDMI cables5
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Downloadable from our Web site at http://www.kramerelectronics.com
3 Previously known as the IR-1 / IR-1-01
4 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
Page 5
Getting Started
KRAMER: SIMPLE CREATIVE TECHNOLOGY
2
Page 6
Overview
3
3 Overview
The Kramer VS-311HDMI is a high performance 3x1 HDCP (high definition
digital content protection) compatible1 automatic switcher for HDMI signals,
digital audio (S/PDIF) signals, and stereo audio signals.
The VS-311HDMI switches any one of three HDMI HDCP compliant1
sources to a single display device, on HDMI connectors with the
corresponding:
Digital audio (S/PDIF) input signals switched to an S/PDIF output, on
RCA connectors and/or
Unbalanced stereo audio input signals on 3.5 mini-jack connectors
switched to an unbalanced stereo audio output on a 3.5 mini-jack
connector, as well as to a balanced stereo audio output on a 5-pin terminal
block connector
The VS-311HDMI can operate either in the manual mode or in the auto mode.
In the manual mode, the VS-311HDMI acts as a regular switcher, switching
the input video and audio signals to the output via the three front panel
INPUT SELECT buttons.
In the auto mode, you can switch any input to the output via the three front
panel INPUT SELECT buttons, but once the selected video signal is lost, the
machine automatically switches to the highest priority input, according to the
input priority setup2. The VS-311HDMI will switch back to the primary input
when an HDMI signal is detected on that input.
The VS-311HDMI is housed in a desktop-sized enclosure and is 12 VDC fed.
Control the VS-311HDMI using the front panel buttons, or remotely via:
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
The Kramer infra-red remote control transmitter
The ETHERNET
Remote control contact closure
1 HDCP is a standard, developed by Intel, to protect copyright holders (movie studios, and so on) from having their programs
copied and shared. The HDCP standard provides for the secure, encrypted transmission of digital signals over HDMI or DVI
connections between two HDCP-enabled devices. The source device (such as a DVD player or HDTV tuner) encrypts the
digital signal using the HDCP standard, and then sends that signal over the HDMI or DVI connection to the receiving device
(for example, an HDTV). The receiving device decodes the signal using HDCP and uses the signal as it is allowed
2 As described in section 5.1
Page 7
Overview
KRAMER: SIMPLE CREATIVE TECHNOLOGY
4
3.1 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note that
Kramer Electronics Limited is an HDMI Adopter2 and an HDCP Licensee3.
In particular, HDMI:
Provides a simple4 interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy5 cable
Supports standard, enhanced, high-definition video, and multi-channel
digital audio6 on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital
audio, with bandwidth to spare to accommodate future enhancements and
requirements
Benefits consumers by providing superior, uncompressed digital video
quality via a single cable7, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface)
Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats
(720p, 1080i, and 1080p/60), as well as standard definition formats such as
NTSC or PAL.
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digitalto-analog conversions
2 See http://www.hdmi.org/about/adopters_founders.asp
3 See http://www.digital-cp.com/list/
4 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
5 HDMI technology has been designed to use standard copper cable construction at up to 15m
6 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
7 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner
Page 8
Overview
5
3.2 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your VS-311HDMI away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
3.3 Terminology Used in this User Manual
Table 1 defines some terms that are used in this user manual.
Table 1: Terminology Used in this User Manual
Term Definition
802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical
and Electronics Engineers (IEEE).
Dynamic Host
Configuration
Protocol (DHCP)
Allows the network administrator to distribute IP addresses from a central point and
automatically send a new IP address when an Ethernet point is plugged into a different
network location
Gateway A network position serving as an entry to another network. On the Internet, a node or
stopping point can be either a gateway node or a host (end-point) node.
IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a
particular server or workstation) of data (HTML pages or e-mails) that is sent in packets
across the Internet. Every device connected to an IP network must have a unique IP
address. This address is used to reference the specific unit.
Local Area Network
(LAN)
Computers sharing a common communications line or wireless link, which often share a
server within a defined geographic area.
Media Access
Control (MAC)
Address
A computer's unique hardware number (or address) in a LAN or other network. On an
Ethernet LAN, the (MAC) address is identical to the Ethernet address.
Transmission
Control
Protocol/Internet
Protocol (TCP/IP)
The basic communication language or protocol of the Internet that breaks the message
into appropriately sized packets for the network, and can be used as a communications
protocol in an intranet or an extranet.
1 For example: model number AD2512C, part number 2535-000251
Page 9
Your VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
6
4 Your VS-311HDMI Automatic HDMI / Audio Switcher
Figure 1 illustrates the front and rear panels of the VS-311HDMI. Table 2
defines the front and rear panels of the VS-311HDMI.
Figure 1: VS-311HDMI Automatic HDMI / Audio Switcher
Page 10
Your VS-311HDMI Automatic HDMI / Audio Switcher
7
Table 2: VS-311HDMI Automatic HDMI / Audio Switcher Features
# Feature Function
1 IR Receiver The red LED lights when receiving signals from the
Infra-red remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 INPUT SELECT Buttons Press the INPUT button to select the input to switch to the
output (from 1 to 3)
4 BALANCED OUT
Terminal Block Connector
Connect the balanced stereo audio output to a balanced
stereo audio acceptor
5 OUT 3.5mm Mini Jack Connect to an unbalanced stereo audio output
6
LINE
IN 3.5mm Mini Jack Connect to the unbalanced stereo audio inputs (from 1 to 3)
7 OUT RCA Connector Connect to a digital audio (S/PDIF) output
8
AUDIO
S/PDIF
IN RCA Connectors Connect to the digital audio (S/PDIF) inputs (from 1 to 3)
9 RS-232 DB 9F Port Connect to the PC or the Remote Controller
10 PRIORITY SETUP Dipswitches Dipswitches for setup of the machine: DIPs 1, 2 and 3 are for
setting the signal priorities; DIP 4 is for setting to the manual
or the AUTO mode (see section 5.1)
11 REMOTE Terminal Block Connects to a dry contact switch (see section 5.2)
12 OUT HDMI Connector Connect to the HDMI acceptor
13 IN HDMI Connectors Connect to the HDMI sources (from 1 to 3)
14 ETHERNET Connector Connect to the PC or other Serial Controller through computer
networking
15 FACTORY RESET Button Press the ETHERNET factory reset button to reset to the
factory default definitions1:
IP number 192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
16 12V DC +12V DC connector for powering the unit
1 First, disconnect the power and then connect it again while pressing the RESET button. The unit will power up and load its
memory with the factory default definitions
Page 11
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
5 Connecting the VS-311HDMI Automatic HDMI / Audio
Switcher
To connect1 the VS-311HDMI Automatic HDMI / Audio Switcher, as
illustrated in the example in Figure 2, do the following2:
1. Connect an HDMI source (for example, an HDMI DVD player3) to the IN 1
HDMI connector and connect the digital audio input4 to the IN 1 S/PDIF RCA
connector.
2. Connect an HDMI source (for example, an HDMI set top box source) to the
IN 3 HDMI connector and connect the digital audio input5 to the IN 3 3.5
mini-jack connector.
3. Connect the OUT HDMI connector to the HDMI acceptor (for example, an
HDMI plasma display).
4. Connect the AUDIO OUT S/PDIF RCA connector6 and the AUDIO OUT 3.5
mini-jack connector to a digital audio acceptor (for example, an AV receiver).
5. Set the PRIORITY SETUP dipswitches (see section 5.1)
6. If required, connect a PC and/or controller to the RS-232 port (see section 5.3)
and/or the ETHERNET port (see section 5.4).
7. If required, connect7 the contact closure remote control PINs (see section
5.2).
8. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
1 You do not need to connect all the inputs
2 Switch OFF the power on each device before connecting it to your VS-311HDMI. After connecting your VS-311HDMI,
switch on its power and then switch on the power on each device
3 You can also connect a DVD player with a DVD connector, using an DVI-HDMI adapter to transfer video signals
4 Alternatively you can connect it to the 3.5 mini-jack connector
5 Alternatively you can connect it to the S/PDIF RCA connector
6 If the inputs are connected only to the 3.5 mini-jack connectors, connect the AUDIO OUT 3.5 mini-jack connector and/or
the BALANCED OUT terminal block connector only
7 The connection is not illustrated in Figure 2
Page 12
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
9
HDMI
DVD Player
HDMI
Plasma Display
AV Receiver
HDMI Set Top Box
Source
or
Figure 2: Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
Page 13
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
5.1 Setting the Dipswitches
This section describes the machine set-up and dipswitch selection.
By default, all the VS-311HDMI dipswitches are set to OFF.
Figure 3 and Table 3 describe the VS-311HDMI unit dipswitches.
Figure 3: Dipswitches
Table 3: Dipswitch Settings
DIPS Function Description
1, 2, 3 Priority setup Set the inputs priority (see Table 4)
4 AUTO OFF: manual mode, switch between channels manually;
ON: automatic mode, inputs switch automatically to the
output according to the priority setup
Inputs 1, 2 and 3 can be set in priority according to your needs. The VS-311HDMI
will switch to the secondary input upon loss of the primary input signal, and back to
the primary input when a signal is detected.
Table 4 describes the priority setup:
Table 4: Dipswitch Priority Setup
Priority Dip Position
1, 2, 3 OFF OFF OFF
3, 2, 1 OFF OFF ON
2, 3, 1 OFF ON OFF
1, 3, 2 ON OFF OFF
3, 1, 2 ON OFF ON
2, 1, 3 ON ON OFF
Page 14
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
11
5.1.1 Priority Switching Applications
In the following example, dipswitches 1, 2, and 3 are set to OFF, OFF and
OFF respectively, meaning that the highest priority input is IN 1; IN 2 is the
secondary input; and IN 3 the third. Dipswitch 4 is set ON, enabling AUTO
mode operation.
If all the inputs are connected, you can, for example, press the INPUT SELECTOR
2 button to switch IN 2 to OUT. The plasma display shows the IN 2 signal.
If the HDMI signal on IN 2 is cut off, the switcher automatically switches IN 1 to
the output, and if that fails too, IN 3 is automatically switched to the output. If, in
the meantime, the IN 2 signal is restored, IN 2 will take priority once again.
5.2 Connecting the Contact Closure Remote Control PINs
The contact closure remote control pins operate in a similar way to the input
buttons.
For example, you may override1 the presently routed input by using the
remote control contact closure. To do so2, connect the appropriate input
number3 pin on the REMOTE terminal block connector to the G (Ground) pin4,
as Figure 4 illustrates.
DO NOT Connect more than one PIN to the Ground PIN at the same time
To route IN 1 to the
output, temporarily
attach PIN 1 to
PIN G (Ground)
To route IN 2 to the
output, temporarily
attach PIN 2 to
PIN G (Ground)
To route IN 3 to the
output, temporarily
attach PIN 3 to
PIN G (Ground)
Figure 4: Connecting the Contact Closure Remote Control PINS
1 Equivalent to pressing a different input button
2 When in the manual mode (dipswitch 4 set to OFF), you can switch an input to the output using the front panel INPUT
SELECT buttons
3 Input 1, 2 or 3
4 Note that unless the connection is permanent, the VS-311HDMI will revert to an automatic switcher when the connection is
removed
Page 15
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
12
5.3 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VS-311HDMI unit, using the Null-modem adapter
provided with the machine (recommended):
Connect the RS-232 DB9 rear panel port on the Master VS-311HDMI
unit to the Null-modem adapter and connect the Null-modem adapter with
a 9-wire flat cable to the RS-232 DB9 port on your PC
To connect a PC to the VS-311HDMI unit, without using a Null-modem
adapter:
Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the Master VS-311HDMI unit, as Figure 5 illustrates
Female DB9 (From PC)
PIN 4 Connected to PIN 6
PINS 8, 7, 1 Connected together
If a Shielded cable is used, connect the shield to PIN 5
PIN 5 Connected to PIN 5 (Grou nd)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Male DB9
Figure 5: Connecting a PC without using a Null-modem Adapter
Page 16
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
13
5.4 Controlling via the ETHERNET
You can connect the VS-311HDMI via the Ethernet, using a crossover cable
(see section 5.4.1) for direct connection to the PC or a straight through cable
(see section 5.4.2) for connection via a network hub or network router.
5.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the VS-311HDMI to the Ethernet port
on your PC, via a crossover cable with RJ-45 connectors, as Table 5 and
Figure 6 define.
Table 5: Crossover Cable RJ-45 PINOUT
EIA /TIA 568A
Side 1
EIA /TIA 568B
Side 2
PIN Wire Color PIN Wire Color
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 1 and 2 Pair 2 3 and 6
Pair 3 3 and 6 Pair 3 1 and 2
Pair 4 7 and 8
Pair 4 7 and 8
Figure 6: RJ-45 PINOUT
This type of connection is recommended for identification of the factory default
IP Address of the VS-311HDMI during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
Page 17
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
14
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 7).
Figure 7: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 8.
7. Click OK.
Figure 8: Internet Protocol (TCP/IP) Properties Window
Page 18
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
15
5.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)
You can connect the Ethernet port of the VS-311HDMI to the Ethernet port
on a network hub or network router, via a straight-through cable with RJ-45
connectors, as Table 6 defines:
Table 6: Straight-through Cable RJ-45 PINOUT
Side 1 Side 2
PIN Wire Color PIN Wire Color
1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown
8 Brown
5.5 Configuring the Ethernet Port
To configure the ETHERNET port, do the following:
1. Connect the ETHERNET port as described in section 5.4.1.
2. Insert the CD-ROM in the CD-ROM drive, double click the Set
Setfc11eth_confxx.exe
1
file and follow the on-screen instructions2.
The Ethernet Configuration Manager is installed.
3. Click the appropriate shortcut in the Start menu’s Programs folder. The
Configuration Manager window (see Figure 9) opens.
4. Click the Search button3 (or the Action menu’s, Search Board command).
The MAC Address for the found ETHERNET port appears in the Device List.
5. Change the settings according to your network requirements and then click the
Config button (or the Action menu’s, Config command) to apply the settings.
Note that clicking the Config button will alter the IP settings of the ETHERNET
port
1 File names are liable to change from time to time
2 The latest version appears on our Web site at http://www.kramerelectronics.com
3 To automatically search for devices
Page 19
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
16
Figure 9: The Ethernet Configuration Manager Window
Table 7: Ethernet Configuration Manager Window Functionality
# Feature Function
File The Exit command closes the Configuration Manager application
Action
The Search Board command seeks the VS-311HDMI device that connects to the PC
via the ETHERNET port, and displays it and its corresponding settings;
The Config command adjusts the VS-311HDMI according to the displayed data
Set MAC1 For factory use only (click the Password command to enter the password)
1
Menu bar
About Displays software information, including the software version
2 Device List Displays the MAC Address
3 Progress Bar Shows the progress
4 Status Bar Shows the status
5 Version Displays the firmware version
6 Device Network
Settings Area
DHCP1 Mode Check Box: When selected, configures the Ethernet port to obtain an IP
address automatically from the DHCP server. When cleared, manual configuration of
the Ethernet port is required to obtain an IP address (Static IP)
IP Address: A 32-binary digit number obtained from your Network Administrator that
identifies the Ethernet port that is currently being configured
Subnet: A 32-binary digit number obtained from your Network Administrator, which
combined with the IP Address, identifies which network your device is on
Gateway: A network position serving as an entry to another network or to the Internet
(only relevant in the Active Routing mode)
7 Action Buttons
Search: seeks the devices that connect to the PC via the ETHERNET port, and
displays them and their corresponding settings
Config: adjusts the according to the displayed data
8 Exit Button Closes the Configuration Manager application
1 See the definition in Table 1
Page 20
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
17
5.5.1 Setting a Virtual Port
If the control application cannot work with an Ethernet driver, use the Kramer
Virtual port driver as follows:
1. Insert the CD-ROM in the CD-ROM drive, double click the SetKVSP_xx.exe1
file and follow the on-screen instructions2.
The virtual serial port is installed.
2. Run the Virtual Serial Port Manager Application.
The Virtual Serial Port Manager window appears (see Figure 10).
Figure 10: The Virtual Serial Port Manager Window
3. Press the Add VSP button to add a serial port and type the IP settings according
to the IP address and local port of your VS-311HDMI (see Figure 11).
Figure 11: The Virtual Serial Port Properties Window
1 File names are liable to change from time to time
2 The latest version appears on our Web site at http://www.kramerelectronics.com
Page 21
Connecting the VS-311HDMI Automatic HDMI / Audio Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
18
4. You can set a virtual port for each local port on your VS-311HDMI (see
Figure 12).
Figure 12: The Virtual Serial Port Properties Window (COM 3 and COM 4)
5. In the control application, choose the COM-port connection according to your
virtual serial port connections (see Figure 13).
Figure 13: The Port Window – Selecting a Virtual Serial Port
5.5.2 Setting an Ethernet Connection
If the control application can directly connect to the Ethernet driver, select the
host IP and port number, as illustrated in Figure 14.
Figure 14: The Port Window – Selecting a Remote Connection
Page 22
Technical Specifications
19
6 Technical Specifications
Table 8 includes the technical specifications:
Table 8: Technical Specifications1 of the VS-311HDMI
INPUTS: 3 HDMI connectors
3 S/PDIF digital audio on RCA connectors
3 unbalanced stereo audio +4dBm on 3.5mm mini jacks
OUTPUT: 1HDMI connector
1 S/PDIF digital audio on an RCA connector
1 unbalanced stereo audio + 4dBm on a 3.5mm mini jack, with 1 balanced
stereo audio on a 5-pin detachable terminal block
DATA RATE: Up to 1.65Gbps
POWER SOURCE: 12 VDC, 270mA
CONTROLS: Front panel buttons, infra-red remote control transmitter, RS-232, Ethernet
DIMENSIONS: 21.6cm x 16.1cm x 4.4cm (8.5” x 6.3” x 1.7”, W, D, H)
WEIGHT: 1.2 kg. (2.6 lbs.) approx.
ACCESSORIES: Power supply
OPTIONS: Rack adapter RK-80
1 Specifications are subject to change without notice
Page 23
Kramer Protocol 2000
KRAMER: SIMPLE CREATIVE TECHNOLOGY
20
7 Kramer Protocol 20001
The VS-311HDMI is compatible with Kramer’s Protocol 2000 (version 0.46)
(below). This RS-232/RS-485 communication protocol uses four bytes of
information as defined below. For RS-232, a null-modem connection between
the machine and controller is used. The default data rate is 9600 baud, with
no parity, 8 data bits and 1 stop bit.
Table 9: Protocol Definitions
MSB LSB
DESTI-
NATION
INSTRUCTION
0 D N5 N4 N3 N2 N1 N0
7 6 5 4 3 2 1 0
1st byte
INPUT
1 I6 I5 I4 I3 I2 I1 I0
7 6 5 4 3 2 1 0
2nd byte
OUTPUT
1 O6 O5 O4 O3 O2 O1 O0
7 6 5 4 3 2 1 0
3rd byte
MACHINE NUMBER
1 OVR X M4 M3 M2 M1 M0
7 6 5 4 3 2 1 0
4th byte
1st BYTE: Bit 7 – Defined as 0.
D – “DESTINATION”: 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher).
N5…N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits). Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO., which was performed. The
instruction codes are defined according to the table below (INSTRUCTION NO. is the value to be set for N5…N0).
2nd BYTE: Bit 7 – Defined as 1.
I6…I0 – “INPUT”.
When switching (ie. instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
3rd BYTE: Bit 7 – Defined as 1.
O6…O0 – “OUTPUT”.
When switching (ie. instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
4th BYTE: Bit 7 – Defined as 1.
Bit 5 – Don’t care.
OVR – Machine number override.
M4…M0 – MACHINE NUMBER.
Used to address machines in a system via their machine numbers. When several machines are controlled from a single serial
port, they are usually configured together with each machine having an individual machine number. If the OVR bit is set, then
all machine numbers will accept (implement) the command, and the addressed machine will reply.
1 You can download our user-friendly “Software for Calculating Hex Codes for Protocol 2000” from our Web site:
http://www.kramerelectronics.com
Page 24
Kramer Protocol 2000
21
For a single machine controlled via the serial port, always set M4…M0 = 1, and make sure that the machine itself is
configured as MACHINE NUMBER = 1.
Table 10: Instruction Codes for Protocol 2000
Note: All values in the table are decimal, unless otherwise stated.
INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT
NOTE
0 RESET VIDEO 0 0 1
1 SWITCH VIDEO Set equal to video input which is to
be switched
(0 = disconnect)
Set equal to video output which is
to be switched
(0 = to all the outputs)
2, 15
2 SWITCH AUDIO Set equal to audio input which is to
be switched
(0 = disconnect)
Set equal to audio output which
is to be switched
(0 = to all the outputs)
2
3 STORE VIDEO
STATUS
Set as SETUP # 0 - to store
1 - to delete
2, 3, 15
4 RECALL VIDEO
STATUS
Set as SETUP # 0 2, 3, 15
5 REQUEST STATUS
OF A VIDEO OUTPUT
Set as SETUP # Equal to output number whose
status is reqd
4, 3
6 REQUEST STATUS
OF AN AUDIO
OUTPUT
Set as SETUP # Equal to output number whose
status is reqd
4, 3
7 VIS SOURCE Set as input # when
OUTPUT byte = 6;
OR
set as output # when
OUTPUT byte = 7;
OR
set as blank period
(in steps of 25ms) when
OUTPUT byte = 32;
OR
set = 0. *****
0 - No VIS (immediate)
1 - Input # 1
2 - External digital sync
3 - External analog sync
4 - Dynamic sync
5 - Inter-machine sync
6 - Input # (INPUT byte)
7 - Output #(INPUT byte)
8 - User-defined sync
32 - RGBHV seamless switching
64 - Set for delayed switch
65 - Execute delayed switch
66 - Cancel delayed switch
setting
2, 5, 17, 18
BREAKAWAY
SETTING
0
0 - audio-follow-video
1 - audio breakaway
2 8
1 0 - FOLLOW mode
1 - Normal mode
15
VIDEO / AUDIO TYPE
SETTING
0 - for video
0 - CV
1 - YC
2 - YUV
3 - RGBS
4 - SDI
5 - CV+YC
6 - VGA scaler
7 - DVI
1 - for audio O0=0 – Unbalanced audio
O0=1 – Balanced audio
O1=0 – Digital audio
O1=1 – Analog audio
O4=0, O3=0, O2=0-Mono
O4=0, O3=0,O2=1-Stereo
9
2 - for VGA and DVI 1 - 640X480
2 - 800X600
3 - 1024X768
2
10 REQUEST VIS
SETTING
Set as SETUP #, or
set to 126 or 127 to request if
machine has this function
0 - VIS source
1 - Input # or output # of source
2 - Vertical sync freq (Hz)
3, 4, 6, 7
11 REQUEST
BREAKAWAY
SETTING
Set as SETUP #, or
set to 126 or 127 to request if
machine has this function
0 - Request audio breakaway
setting
1 - Request “FOLLOW” setting
3, 4, 6, 15
12 REQUEST VIDEO /
AUDIO TYPE
SETTING
Set as SETUP #, or
set to 126 or 127 to request if
machine has this function
0 - for video
1 - for audio
2 - for VGA
3, 4, 6
13 SET HIGHEST
MACHINE ADDRESS
0 - for video
1 - for audio
Set equal to highest machine
address
2
14 REQUEST HIGHEST
MACHINE ADDRESS
0 - for video
1 - for audio
0 4
Page 25
Kramer Protocol 2000
KRAMER: SIMPLE CREATIVE TECHNOLOGY
22
INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT
NOTE
15 REQUEST WHETHER
SETUP IS DEFINED /
VALID INPUT IS
DETECTED
SETUP #
or
Input #
0 - for checking if setup is defined
1 - for checking if input is valid
8
16 ERROR / BUSY For invalid / valid input (i.e.
OUTPUT byte = 4 or OUTPUT byte
= 5),
This byte is set as the input #
0 - error
1 - invalid instruction
2 - out of range
3 - machine busy
4 - invalid input
5 - valid input
9, 25
17 RESERVED - - - - - - - - 10
18 RESET AUDIO 0 0 1
19 STORE AUDIO
STATUS
Set as SETUP # 0 - to store
1 - to delete
2, 3
20 RECALL AUDIO
STATUS
Set as SETUP # 0 2, 3
21 SET VIDEO
PARAMETER
Equal to input / output number
whose video parameter is to be set
(0 = all)
Set as parameter value 2, 11, 24
22 SET AUDIO
PARAMETER
Equal to input / output number
whose gain is to be set
(0 = all)
Set as parameter value 2, 11, 24
23 INCREASE /
DECREASE VIDEO
PARAMETER
Equal to input / output number
whose video parameter is to be
increased / decreased
(0 = all)
0 - increase video gain
1 - decrease video gain
2 - increase contrast
3 - decrease contrast
4 - increase brightness
5 - decrease brightness
6 - increase color
7 - decrease color
8 - increase hue
9 - decrease hue
16 - increase H-phase
17 - decrease H-phase
18 - increase V-position
19 - decrease V-position
24
24 INCREASE /
DECREASE AUDIO
PARAMETER
Equal to input / output number
whose parameter is to be
increased / decreased
(0 = all)
0 - increase output
1 - decrease output
2 - increase left output
3 - decrease left output
4 - increase right output
5 - decrease right output
6 - increase input
7 - decrease input
8 - increase left input
9 - decrease left input
10 - increase right input
11 - decrease right input
24
25 REQUEST AUDIO
PARAMETER
Equal to input / output number
whose parameter is requested
0 6, 24
26 REQUEST VIDEO
PARAMETER
Equal to input / output number
whose video parameter is
requested
0 6, 24
30 LOCK FRONT PANEL 0 - Panel unlocked
1 - Panel locked
0 2
31 REQUEST WHETHER
PANEL IS LOCKED
0 0 16
32
to
35
RESERVED - - - - - - - - 10
40 DIRECT MEMORY
SAVE
Memory address Data 20
Page 26
Kramer Protocol 2000
23
INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT
NOTE
42 AUDIO PARAMETER
SETTINGS FOR
INSTRUCTIONS 22,
24, 25
INPUT Bit:
I0 - 0=input; 1=output
I1 - Left
I2 - Right
0 - Gain
1 - Bass
2 - Treble
3 - Midrange
24
43 VIDEO PARAMETER
SETTINGS FOR
INSTRUCTIONS 21,
23, 26
1 – Input
2 – Output
0 - video gain
1 - contrast
2 - brightness
3 - color
4 - hue
5 - H-phase
6 - V-position
24
56 CHANGE TO ASCII 0 1 - SVS protocol
2 - Generic protocol
19
57 SET AUTO-SAVE I3 - no save
I4 - auto-save
0 12, 2
58 EXECUTE LOADED
DATA
Set as 0, or as SETUP #. 1-Take
2-Cancel
22, 3
LOAD VIDEO DATA Set equal to video input
(0 = disconnect)
Set equal to video output
(0 = to all the outputs)
59
(127 = load SETUP #) or SETUP #
22, 23
LOAD AUDIO DATA Set equal to audio input
(0 = disconnect)
Set equal to audio output
(0 = to all the outputs)
60
(127 = load SETUP #) or SETUP #
22, 23
61 IDENTIFY MACHINE 1 - video machine name
2 - audio machine name
3 - video software version
4 - audio software version
5 - RS422 controller name
6 - RS422 controller version
7 - remote control name
8 - remote software version
9 - Protocol 2000 revision
0 - Request first 4 digits
1 - Request first suffix
2 - Request second suffix
3 - Request third suffix
10 - Request first prefix
11 - Request second prefix
12 - Request third prefix
13
62 DEFINE MACHINE 1 - number of inputs
2 - number of outputs
3 - number of setups
1 - for video
2 - for audio
3 - for SDI
4 - for remote panel
5 - for RS-422 controller
14
63 EXTENDED DATA 7 MSBs for INPUT data 7 MSBs for OUTPUT data 20
NOTES on the above table:
NOTE 1 - When the master switcher is reset, (e.g. when it is turned on), the reset code is sent to the PC. If this code is sent to
the switchers, it will reset according to the present power-down settings.
NOTE 2 - These are bi-directional definitions. That is, if the switcher receives the code, it will perform the instruction; and if
the instruction is performed (due to a keystroke operation on the front panel), then these codes are sent. For example, if the
HEX code
01 85 88 83
was sent from the PC, then the switcher (machine 3) will switch input 5 to output 8. If the user switched input 1 to output 7
via the front panel keypad, then the switcher will send HEX codes:
41 81 87 83
to the PC.
When the PC sends one of the commands in this group to the switcher, then, if the instruction is valid, the switcher replies by
sending to the PC the same four bytes that it was sent (except for the first byte, where the DESTINATION bit is set high).
NOTE 3 - SETUP # 0 is the present setting. SETUP # 1 and higher are the settings saved in the switcher's memory, (i.e. those
used for Store and Recall).
NOTE 4 - The reply to a "REQUEST" instruction is as follows: the same instruction and INPUT codes as were sent are
returned, and the OUTPUT is assigned the value of the requested parameter. The replies to instructions 10 and 11 are as per
the definitions in instructions 7 and 8 respectively. For example, if the present status of machine number 5 is breakaway
setting, then the reply to the HEX code
0B 80 80 85
would be HEX codes
4B 80 81 85
Page 27
Kramer Protocol 2000
KRAMER: SIMPLE CREATIVE TECHNOLOGY
24
NOTE 5 – For the OUTPUT byte set as 6, the VIS source is the input selected using the OUTPUT byte. Similarly, for the
OUTPUT byte set as 7, the VIS source is the output selected using the OUTPUT byte. Note also, that on some machines the
sync source is not software selectable, but is selected using switches, jumpers, etc!
NOTE 6 – If INPUT is set to 127 for these instructions, then, if the function is defined on this machine, it replies with
OUTPUT=1. If the function is not defined, then the machine replies with OUTPUT=0, or with an error (invalid instruction
code).
If the INPUT is set to 126 for these instructions, then, if possible, the machine will return the current setting of this function,
even for the case that the function is not defined. For example, for a video switcher which always switches during the VIS of
input #1, (and its VIS setting cannot be programmed otherwise), the reply to the HEX code
0A FE 80 81 (ie. request VIS setting, with INPUT set as 126
dec
)
would be HEX codes
4A FE 81 81 (ie. VIS setting = 1, which is defined as VIS from input #1).
NOTE 7 – Setting OUTPUT to 0 will return the VIS source setting as defined in instruction #7. Setting to 1 will return the
input # or output # of the sync source (for the case where the VIS source is set as 6 or as 7 in instruction #7). Setting to 2
returns the vertical sync frequency (0 for no input sync, 50 for PAL, 60 for NTSC, 127 for error).
NOTE 8 - The reply is as in TYPE 3 above, except that here the OUTPUT is assigned with the value 0 if the setup is not
defined / no valid input is detected; or 1 if it is defined / valid input is detected.
NOTE 9 - An error code is returned to the PC if an invalid instruction code was sent to the switcher, or if a parameter
associated with the instruction is out of range (e.g. trying to save to a setup greater than the highest one, or trying to switch an
input or output greater than the highest one defined). This code is also returned to the PC if an RS-232 instruction is sent
while the machine is being programmed via the front panel. Reception of this code by the switcher is not valid.
NOTE 10 – This code is reserved for internal use.
NOTE 11 – For machines where the video and / or audio gain is programmable.
NOTE 12 - Under normal conditions, the machine's present status is saved each time a change is made. The "power-down"
save (auto-save) may be disabled using this code. Note that whenever the machine is turned on, the auto-save function is set.
NOTE 13 - This is a request to identify the switcher/s in the system. If the OUTPUT is set as 0, and the INPUT is set as 1, 2,
5 or 7, the machine will send its name. The reply is the decimal value of the INPUT and OUTPUT. For example, for a 2216,
the reply to the request to send the audio machine name would be (HEX codes):
7D 96 90 81 (i.e. 128
dec
+ 22
dec
for 2nd byte, and 128
dec
+ 16
dec
for 3rd byte).
If the request for identification is sent with the INPUT set as 3 or 4, the appropriate machine will send its software version
number. Again, the reply would be the decimal value of the INPUT and OUTPUT - the INPUT representing the number in
front of the decimal point, and the OUTPUT representing the number after it. For example, for version 3.5, the reply to the
request to send the version number would be (HEX codes):
7D 83 85 81 (i.e. 128
dec
+ 3
dec
for 2nd byte, 128
dec
+ 5
dec
for 3rd byte).
If the OUTPUT is set as 1, then the ASCII coding of the lettering following the machine’s name is sent. For example, for the
VS-7588YC, the reply to the request to send the first suffix would be (HEX codes):
7D D9 C3 81 (i.e. 128
dec
+ ASCII for “Y”; 128
dec
+ ASCII for “C”).
NOTE 14 - The number of inputs and outputs refers to the specific machine which is being addressed, not to the system. For
example, if six 16X16 matrices are configured to make a 48X32 system (48 inputs, 32 outputs), the reply to the HEX code
3E 82 81 82 (ie. request the number of outputs)
would be HEX codes
7E 82 90 82
ie. 16 outputs
NOTE 15 – When the OVR bit (4th byte) is set, then the “video” commands have universal meaning. For example, instruction
1 (SWITCH VIDEO) will cause all units (including audio, data, etc.) to switch. Similarly, if a machine is in “FOLLOW”
mode, it will perform any “video” instruction.
NOTE 16 - The reply to the “REQUEST WHETHER PANEL IS LOCKED” is as in NOTE 4 above, except that here the
OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked.
NOTE 17 – For clean switching of RGBHV video, the “seamless switching” option may be used. The blanking period for the
transition of the RGB sources may be set in this case, in steps of 25 milliseconds.
For example, to set for 350ms blanking time (14 steps), send HEX codes
07 8E A0 81
Page 28
Kramer Protocol 2000
25
NOTE 18 – Delayed execution allows switching after a delay dictated by RS-232. To do this, the user sends instruction 7
with the “Set for delayed switch” option (64
dec
) before sending the switch command (instruction 1) or pressing via front panel.
The switch is not executed (unless timed-out) until the “Execute delayed switch” code is sent, or the “Set for delayed switch”
code is sent again. (The mode is automatically cancelled after implementation of the switch if the “execute” command is
used).
For example, to connect input 4 to output 3 after a delay, send HEX codes
07 80 C0 81 (set for delayed switch)
01 84 83 81 (switch code)
then, after the required delay, send HEX codes
07 80 C1 81 (execute delayed switch)
to implement the switch.
NOTE 19 – After this instruction is sent, the unit will respond to the ASCII command set defined by the OUTPUT byte. The
ASCII command to operate with the HEX command set must be sent in order to return to working with HEX codes.
NOTE 20 – When data (ie. the INPUT and/or OUTPUT bytes) of more than 7 bits is required, this instruction is sent before
sending the instruction needing the additional bits. The data in this intruction then becomes the Most Significant Bits of that
next instruction. For example, to set the audio gain (instruction 22) of output 3 to 681
dec
(2A9
hex
), you would first send HEX
codes
3F 80 85 81
and then send HEX codes
16 83 A9 81.
To set the audio gain of output 6 to 10013
dec
(271D
hex
), first send HEX codes
3F 80 CE 81
followed by HEX codes
16 86 9D 81.
NOTE 21 – To store data in the non-volatile memory of the unit, eg. the EEPROM for saving SETUPS. The EEPROM
address is sent using the INPUT byte, and the data to be stored is sent using the OUTPUT byte. To use this instruction, it is
necessary to understand the memory map, and memory structure of the particular machine.
NOTE 22 – Instruction 59 and instruction 60 load data for sending to the crosspoint switcher (or for storing in a SETUP), ie.
the data is “lined-up” to be executed later. Instruction 58 executes the loaded data.
NOTE 23 – If the INPUT byte is set as 127
dec
, then the data stored in a SETUP is loaded. The SETUP # is in the OUTPUT
byte.
NOTE 24 – Further information needed in instructions 21, 22, 25 and 26, is sent using instruction 42 – which is sent prior to
the instruction. For example, to request the audio gain value of right input # 9, send hex codes
2A 84 80 81
and then send HEX codes
19 89 81 81.
NOTE 25 – For units which detect the validity of the video inputs, Instruction 16 will be sent whenever the unit detects a
change in the state of an input (in real-time).
For example, if input 3 is detected as invalid, the unit will send the HEX codes
10 83 84 81
If input 7 is detected as valid, then the unit will send HEX codes
10 87 85 81.
Page 29
KRAMER: SIMPLE CREATIVE TECHNOLOGY
26
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Part 1: Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
Page 30
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000224 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Loading...
