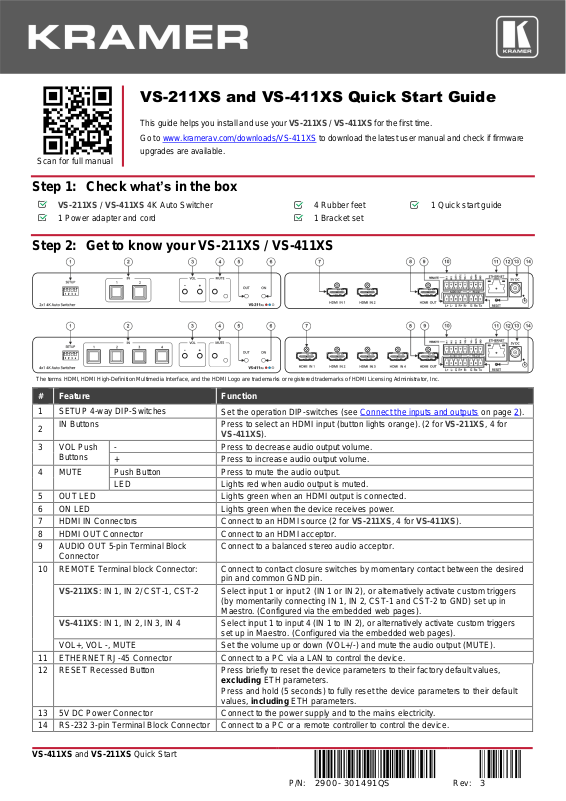

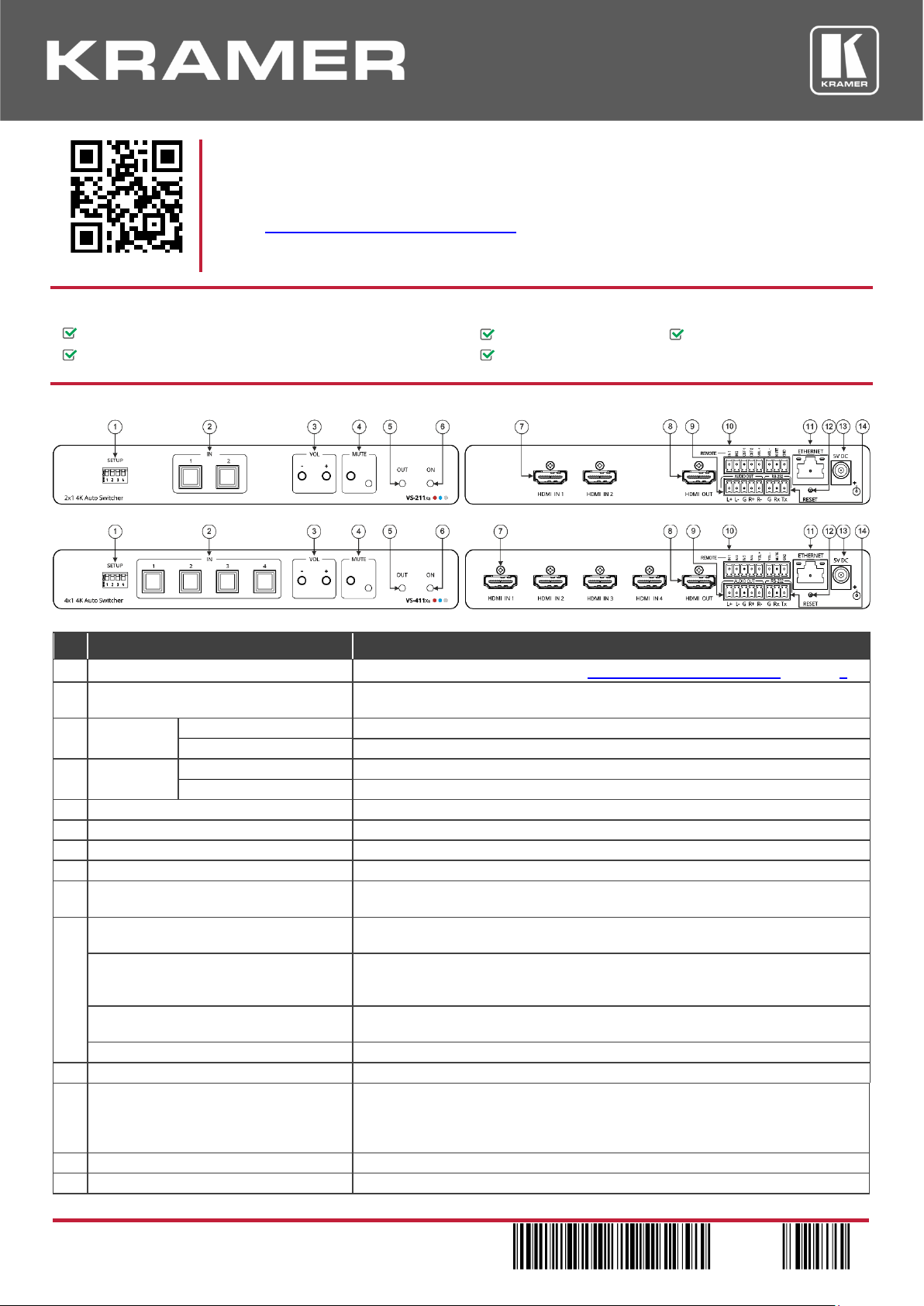

VS-411XS and VS-211XS Quick Start
P/N:
Rev:
3
Scan for full manual
VS-211XS and VS-411XS Quick Start Guide
This guide helps you install and use your VS-211XS / VS-411XS for the first time. Go to www.kramerav.com/downloads/VS-411XS to download the latest user manual and check if firmware
upgrades are available.

Step 1: Check what’s in the box

VS-211XS / VS-411XS 4K Auto Switcher
4 Rubber feet
1 Quick start guide
1 Power adapter and cord
1 Bracket set

Step 2: Get to know your VS-211XS / VS-411XS

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
#
Feature
Function
1
SETUP 4-way DIP-Switches
Set the operation DIP-switches (see Connect the inputs and outputs on page 2).
2
IN Buttons
Press to select an HDMI input (button lights orange). (2 for VS-211XS, 4 for
VS-411XS).
3
VOL Push Buttons
-
Press to decrease audio output volume.
+ Press to increase audio output volume.
4
MUTE Push Button
Press to mute the audio output.
LED
Lights red when audio output is muted.
5
OUT LED
Lights green when an HDMI output is connected.
6
ON LED
Lights green when the device receives power.
7
HDMI IN Connectors
Connect to an HDMI source (2 for VS-211XS, 4 for VS-411XS).
8
HDMI OUT Connector
Connect to an HDMI acceptor.
9
AUDIO OUT 5-pin Terminal Block Connector
Connect to a balanced stereo audio acceptor.
10
REMOTE Terminal block Connector:
Connect to contact closure switches by momentary contact between the desired pin and common GND pin.
VS-211XS: IN 1, IN 2/ CST-1, CST-2
Select input 1 or input 2 (IN 1 or IN 2), or alternatively activate custom triggers (by momentarily connecting IN 1, IN 2, CST-1 and CST-2 to GND) set up in Maestro. (Configured via the embedded web pages).
VS-411XS: IN 1, IN 2, IN 3, IN 4
Select input 1 to input 4 (IN 1 to IN 2), or alternatively activate custom triggers set up in Maestro. (Configured via the embedded web pages).
VOL+, VOL -, MUTE
Set the volume up or down (VOL+/-) and mute the audio output (MUTE).
11
ETHERNET RJ-45 Connector
Connect to a PC via a LAN to control the device.
12
RESET Recessed Button
Press briefly to reset the device parameters to their factory default values, excluding ETH parameters. Press and hold (5 seconds) to fully reset the device parameters to their default values, including ETH parameters.
13
5V DC Power Connector
Connect to the power supply and to the mains electricity.
14
RS-232 3-pin Terminal Block Connector
Connect to a PC or a remote controller to control the device.

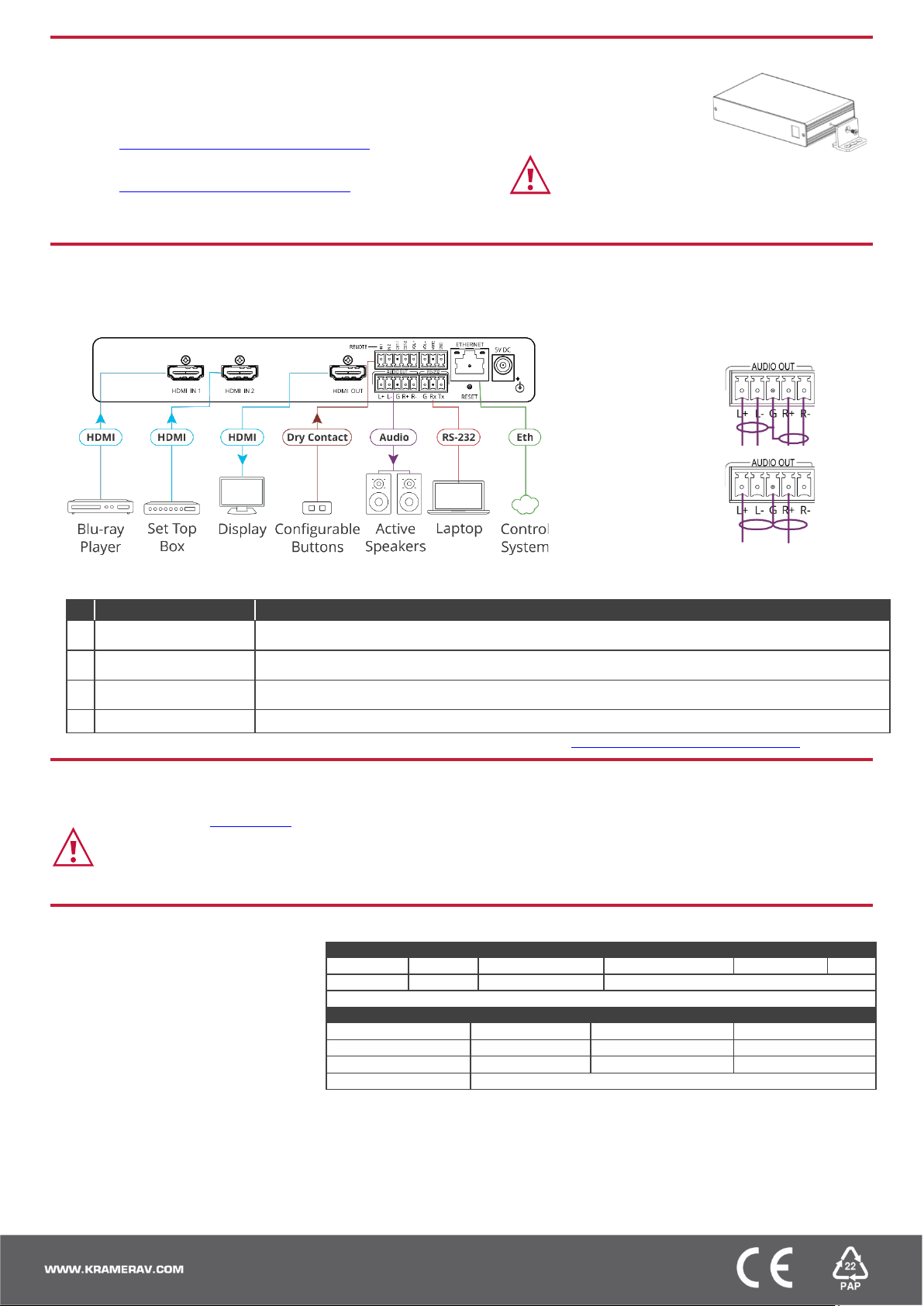

Page 2

Step 3: Install the VS-211XS and VS-411XS

Install VS-411XS using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/VS-411XS).
• Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/VS-411XS).
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VS-211XS. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the VS-211XS. VS-211XS and VS-411XS are identical except for the number of inputs.
Connect the Audio Output:
To a balanced stereo audio acceptor:
To an unbalanced stereo audio acceptor:
Setting the DIP-Switches
All DIP-switches are set to Off (up) by default. DIP-switch changes take effect immediately.
#
Feature
Dip-Switch Settings
1
Switching Mode
OFF (up) – Auto-switching mode. ON (down) – Manual mode.
2
Auto-switching Mode
OFF (up) – Last connected switching mode: the last detected active source is auto-switched to the output. ON (down) – Priority switching mode: the device switches the source with the highest priority to the output.
3
CEC Notifications
OFF (up) – CEC notifications enabled. ON (down) – CEC notifications disabled.
4
Reserved for Factory Use
It is mandatory to keep set to OFF (up).
For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/VS-411XS

Step 5: Connect the power

Connect the power adapter and cord to VS-211XS / VS-411XS and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information).
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.

Step 6: Control VS-211XS and VS-411XS

Operate VS-211XS and VS-411XS:
• Remotely, by IP or RS-232
serial commands transmitted by a touch screen system, PC, or other serial controller.
• Embedded web pages via the Ethernet.
RS-232 Control / Protocol 3000
Baud Rate:
115,200
Parity:
None
Stop Bits:
1
Data Bits:
8
Command Format:
ASCII
Example: (Switch video input 2 to the output): #ROUTE 1,1,2<CR>
Default IP Parameters – Set to DHCP On
Fallback IP Address:
192.168.1.39
UDP Port #:
50000
Fallback Subnet Mask:
255.255.255.0
TCP Port #:
5000
Fallback Gateway:
192.168.1.1
User/Password:
Admin/Admin
Host name
VS-211XS-xxxx (where xxxx are the last 4 digits of the S/N)
When using VS-211XS for the first time, the fallback IP address is set until DHCP server is discovered and a new IP address is acquired. DHCP discovery is retried every 1 minute, approximately.
To discover IP address:
• Connect to device via Eth and browse to default host name (e.g., http://VS-211XS-0024), where xxx are last digits of the S/N;
alternatively, perform factory reset (via reset button) and browse to fallback IP address.
• Connect to subnet via a router with built-in DHCP server (a basic home router will do) to subnet for identifying subnet-connected
devices via router web-UI, using their unique hostname and/or L2 MAC address.
