Page 1
KRAMER ELECTRONIC S LTD.
USER MANUAL
MODEL:
VP-4 41
Presentation Switcher/Scaler
P/N: 2900-300040 Rev 7
Page 2
Page 3
Page 4
VP-441 - Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the VP-441 Presentation Switcher/Scaler 5
4 Installing in a Rack 8
5 Connecting the VP-441 9
6 Controlling the VP-441 11
6.1 Controlling via the Front Panel Buttons 11
6.2 Using the OSD Menu 12
6.3 Connecting to the VP-441 via RS-232 15
6.4 Connecting the VP-441 via the ETHERNET Port 15

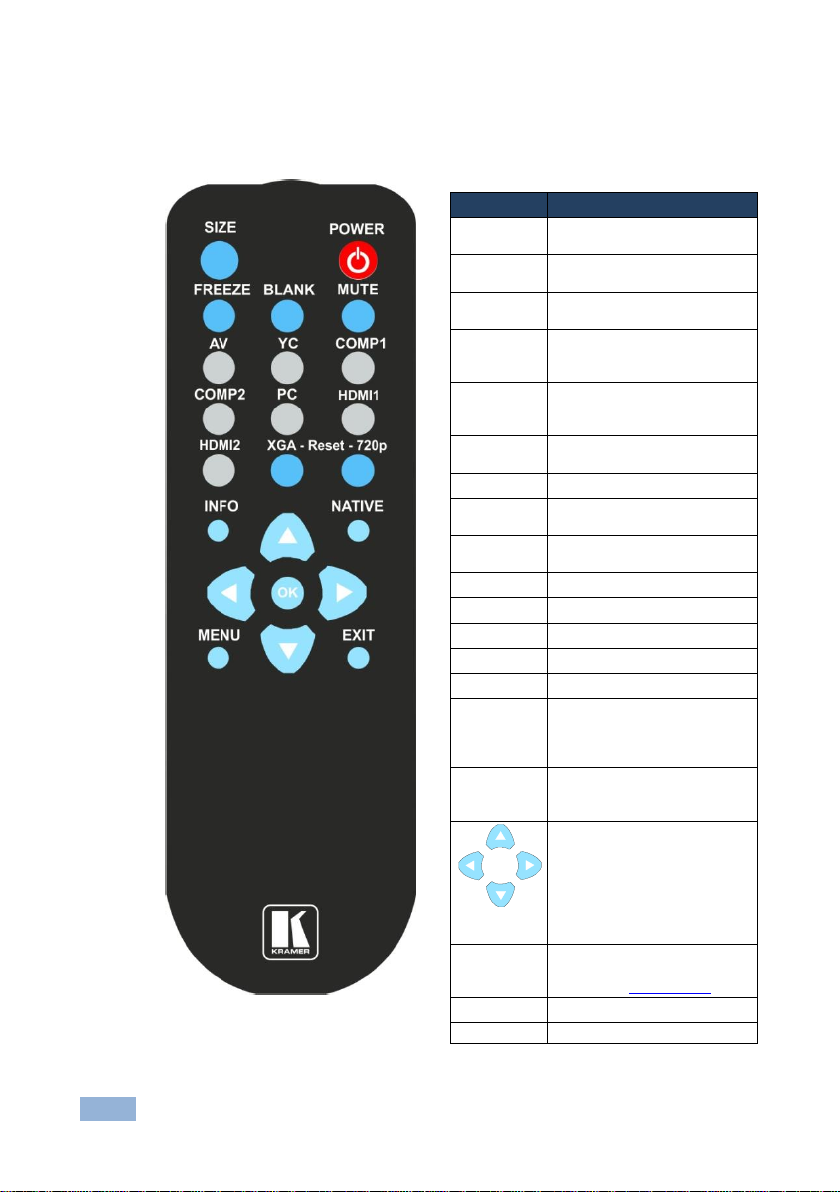

6.5 Controlling via the Infrared Remote Control Transmitter 16
7 Technical Specifications 17
7.1 Input Resolutions 18
8 RS-232 Communication Protocol 19
8.1 RS-232 Protocol Table 20
Figures
Figure 1: VP-441 Presentation Switcher/Scaler Front Panel 6
Figure 2: VP-441 Presentation Switcher/Scaler Rear Panel 7
Figure 3: Connecting the VP-441 Presentation Switcher / Scaler 10
Figure 4: Infrared Remote Control Transmitter 16
Page 5
VP-441 – Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products.
Congratulations on purchasing your Kramer VP-441 Presentation Switcher/Scaler.
This product, which incorporates HDMI™ technology, is ideal for:
Projection systems in conference rooms, boardrooms, hotels and churches
Home theater up-scaling
Page 6
2
VP-441 - Getting Started
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate).
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VP-441 away from moisture, excessive sunlight and dust
Page 7
VP-441 – Getting Started
3
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
!
2.2 Safety Instructions
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
Page 8
4
VP-441 - Overview
3 Overview
The Kramer VP-441 is a high quality presentation switcher and scaler. It accepts
one of seven inputs: a component video on RCA connectors, computer graphics on
a 15-pin HD connector, composite video on an RCA connector, s-Video on a
4-pin connector and two HDMI signals. It scales the video, embeds the audio, and
outputs the signal as follows: to the HDMI output, to the computer graphics output,
and to the RGBHV video output together with a digital audio output and an analog
stereo audio output.
Component video is also known as Y, Pb, Pr, or Y, Cb, Cr or YUV; compatible with both SD
and HD component
The VP-441 is HDTV compatible and the resolution can be up- or down-scaled as
follows: Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 576i, 576p,
720p (@50 and 60Hz), 1080i (@50 and 60Hz), 1080p (@50 and 60Hz), WXGA,
WSXGA, WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900 and 2K resolutions
(2048x1080@50Hz and 2048x1080@60Hz).
The VP-441 Presentation Switcher / Scaler:
Features K-Storm™ Scaling Technology - Kramer’s extremely high
performance scaling technology. High-quality 3:2 and 2:2 pull down
de-interlacing and full up and down scaling of computer graphics video input
signals
Has analog audio inputs and digital (S/PDIF) and analog stereo audio
outputs as well as 5.1 analog audio bypass
The VP-441 converts digital audio information to Dolby 5.1 analog outputs, facilitating
the routing of up to six analog audio inputs (left, center, right, left surround, right
surround and subwoofer) directly to the output without being processed
Automatically detects and selects the audio source for the HDMI input.
Default selection is HDMI – if this is not present, the machine uses the audio
from the analog input
Comes with an On-Screen Display (OSD) for easy setup and adjustment,
accessible via the IR remote control and via the front-panel buttons
Has an HDTV compatible component input
Page 9
VP-441 – Overview
5
Is HDCP Compliant - The HDCP (High Definition Content Protection) license
agreement allows copy-protected data on the HDMI input to pass only to the
HDMI output
Has a non-volatile memory that retains the last settings used
Supports firmware upgrade via RS-232
Control your VP-441:
Directly, via the front panel push buttons
By RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
Remotely, from the infrared remote control transmitter
Via the Ethernet
The VP-441 is housed in a 19” 1U rack mountable enclosure, with rack “ears”
included, and is fed from a 100-240 VAC universal switching power supply.
3.1 Defining the VP-441 Presentation Switcher/Scaler
This section defines the VP-441.
Page 10
#
Feature
Function
1
POWER Switch
Illuminated switch for turning the unit ON or OFF
2
IR Receiver
Receives signals from the remote control transmitter
3
INPUT
SELECTOR
Buttons
CV
Press to select the composite video input
4
YC
Press to select the s-Video input
5
COMPONENT
Press to select the component video input (from 1 to 2)
6
VGA
Press to select the computer video graphics input
7
HDMI
Press to select the HDMI input (from 1 to 2)
8
BLANK Button
Press to toggle between a blank screen (blue or black screen) and the display
9
MUTE Button
Press to toggle between muting (blocking out the sound) and enabling the audio output
The FREEZE button can be programmed to follow MUTE (see Section 6.2.3)
10
FREEZE Button
Press to freeze/unfreeze the output video image
This button can be programmed to follow MUTE (see Section 6.2.3)
11
MENU Button
Displays the OSD menu (see Section 6.2)
12
ENTER Button
Press to accept changes, change the SETUP parameters (see Section 6.2) and to auto adjust the image (when not within the OSD
menu), see Section 6.1.1
13
- Button
Press to decrease numerical values or select from several definitions
When not within the OSD menu mode, press to reduce volume (for embedded HDMI inputs, this does not affect the embedded output)
14
Button
Press to move up the menu list values (see Section 6.2)
15
+ Button
Press to increase numerical values or select from several definitions
When not within the OSD menu mode, press to increase volume (for embedded HDMI inputs, this does not affect the embedded output)
16
Button
Press to move down the menu list (see Section 6.2)
17
PANEL LOCK Button
Press and hold for about 2 seconds to lock/unlock the front panel buttons
18
RESET TO XGA/720p Button
Press to reset the video resolution to XGA or 720p
Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p
6
VP-441 – Overview

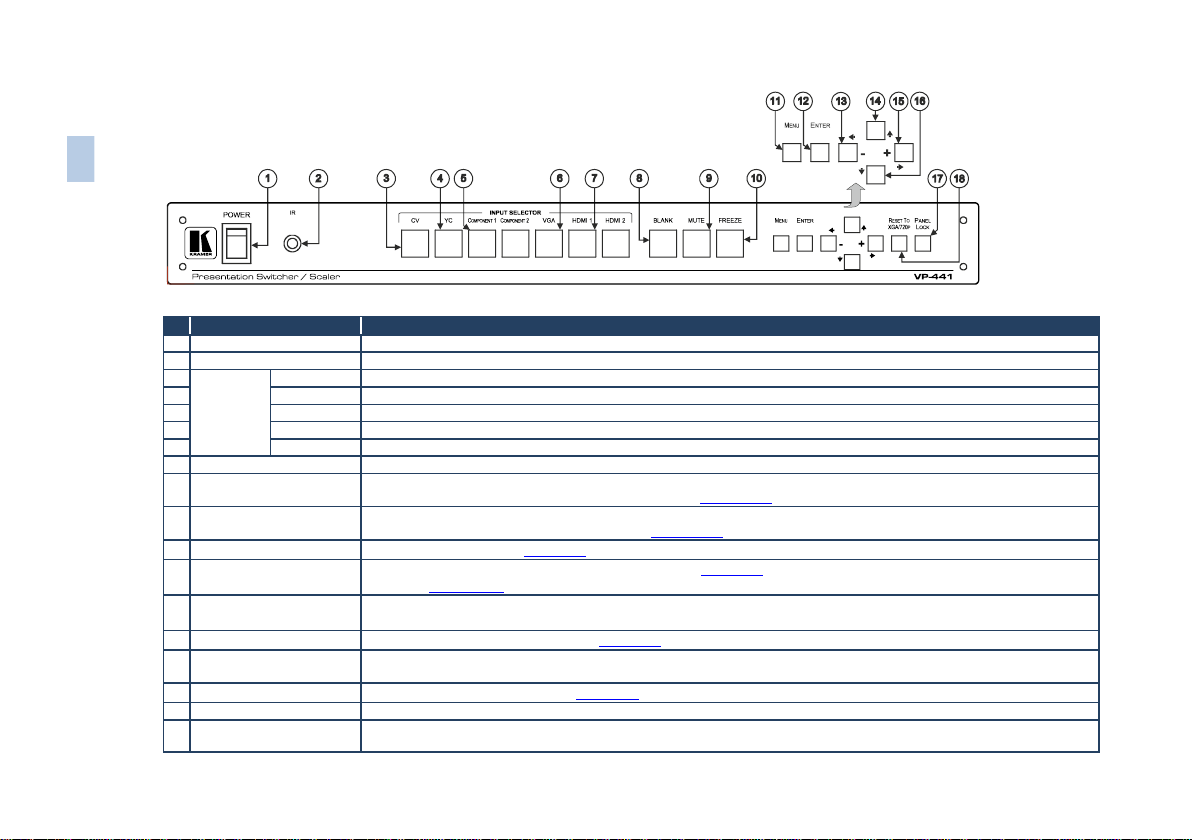

Figure 1: VP-441 Presentation Switcher/Scaler Front Panel
Page 11
VP-441 – Overview
7
#
Feature
Function
19
VIDEO INPUT
Connectors
HDMI
Connect to the HDMI source (from 1 to 2)
20
VGA 15-pin HD
Connect to the computer graphics source
21
CV RCA
Connect to the composite video source
22
YC 4-pin
Connect to the s-Video source
23
Pr/Cr RCA
Connect all three connectors to the component video source (from 1 to 2)
24
Pb/Cb RCA
25
Y RCA
26
VIDEO OUTPUT
Connectors
R BNC
27
G BNC
28
B BNC
Connect to the RGBHV video acceptor
29
H BNC
30
V BNC
31
HDMI
Connect to the HDMI acceptor
32
VGA 15-pin HD
Connect to a VGA acceptor
33
AUDIO IN Unbalanced
Stereo Terminal Block
Connectors
HDMI
Connect to the analog audio HDMI source (from 1 to 2)
VGA
Connect to the analog audio computer graphics source
COMP
Connect to the analog audio component video source (from 1 to 2)
CV
Connect to the analog audio composite video source
YC
Connect to the analog audio s-Video source
34
RS-232 9-pin D-sub Port
Connect to the PC or the remote controller
35
OUT RCA Connectors
LEFT
Connect to the left stereo analog audio acceptor
36
RIGHT
Connect to the right stereo analog audio acceptor
37
S/PDIF
Connect to a digital audio acceptor
38
ETHERNET Connector
Connects to the PC or other Serial Controller through computer networking
39
Power Connector with Fuse
AC connector, enabling power supply to the unit

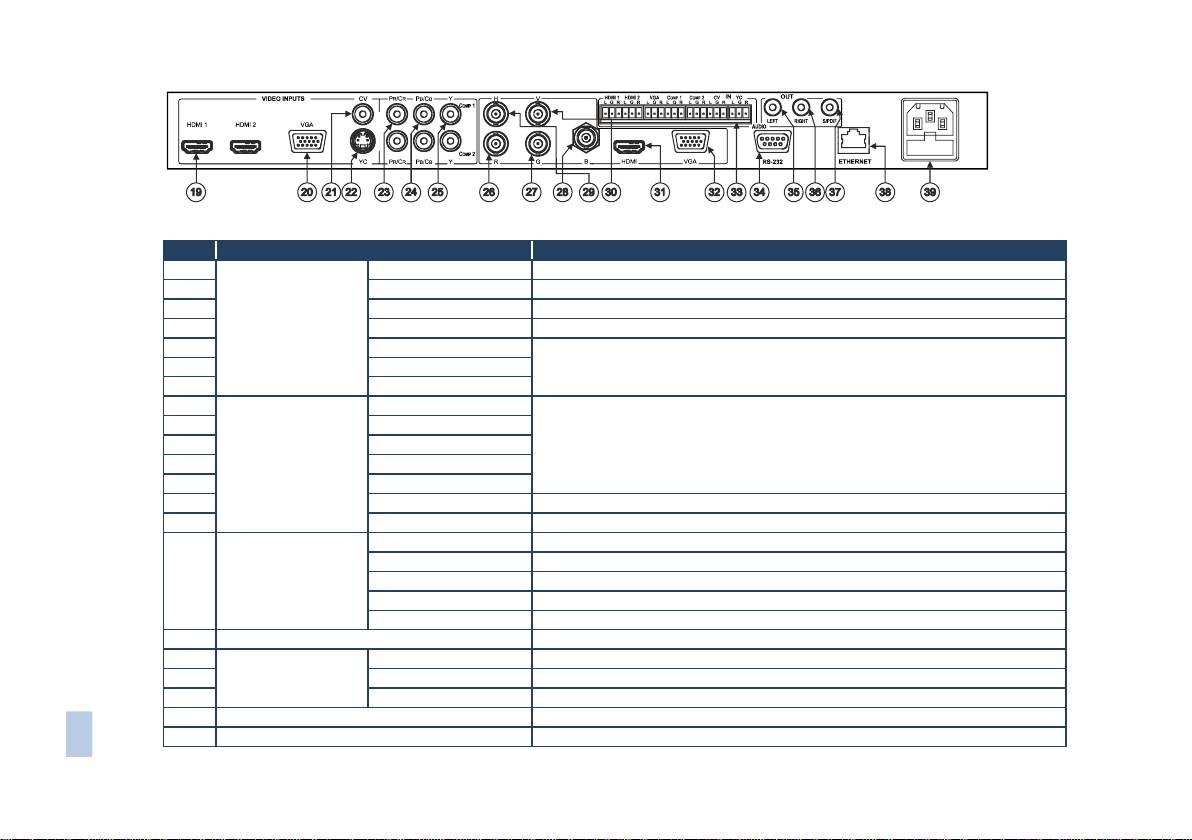

Figure 2: VP-441 Presentation Switcher/Scaler Rear Panel
Page 12
8
VP-441 - Installing in a Rack

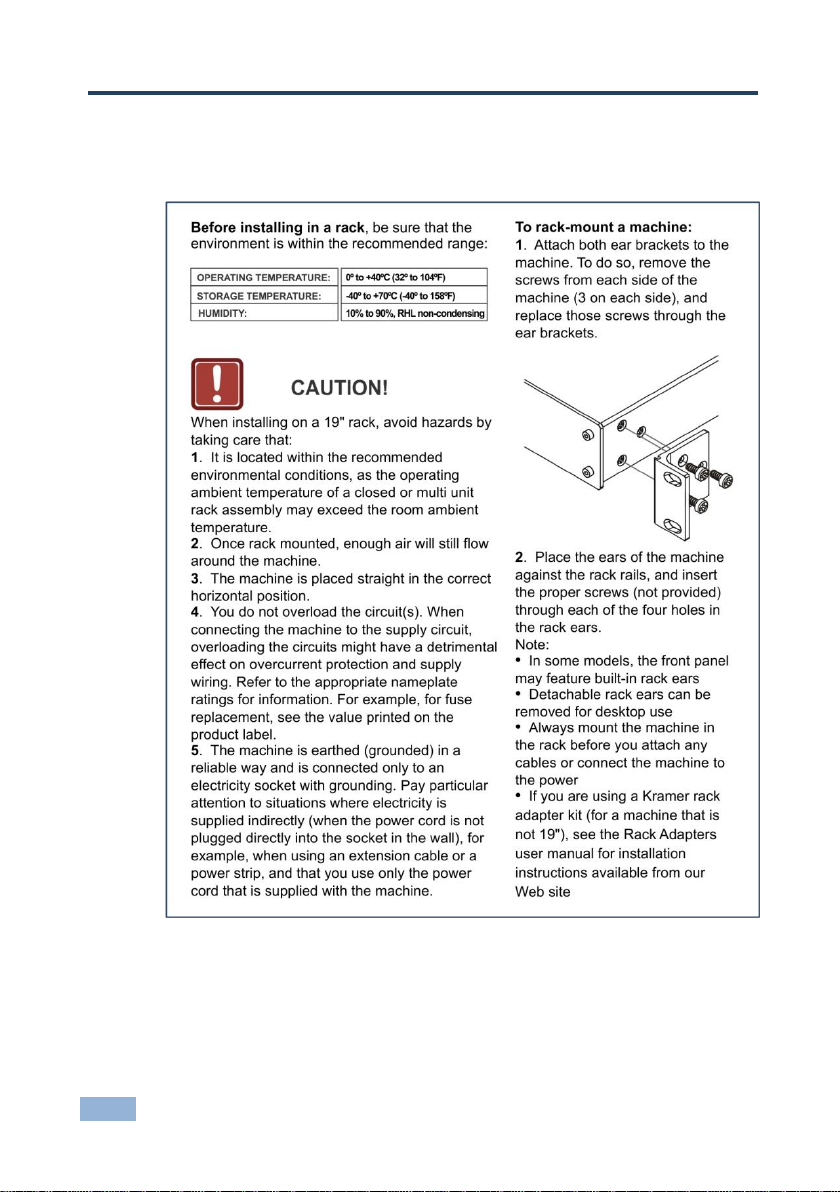

4 Installing in a Rack
This section provides instructions for rack mounting the unit.
Page 13
VP-441 - Connecting the VP-441
9
9
Always switch off the power to each device before connecting it to
your VP-441. After connecting your VP-441, connect its power and
then switch on the power to each device.
You do not have to connect all the inputs and outputs, connect only
those that are required.
!
i
5 Connecting the VP-441

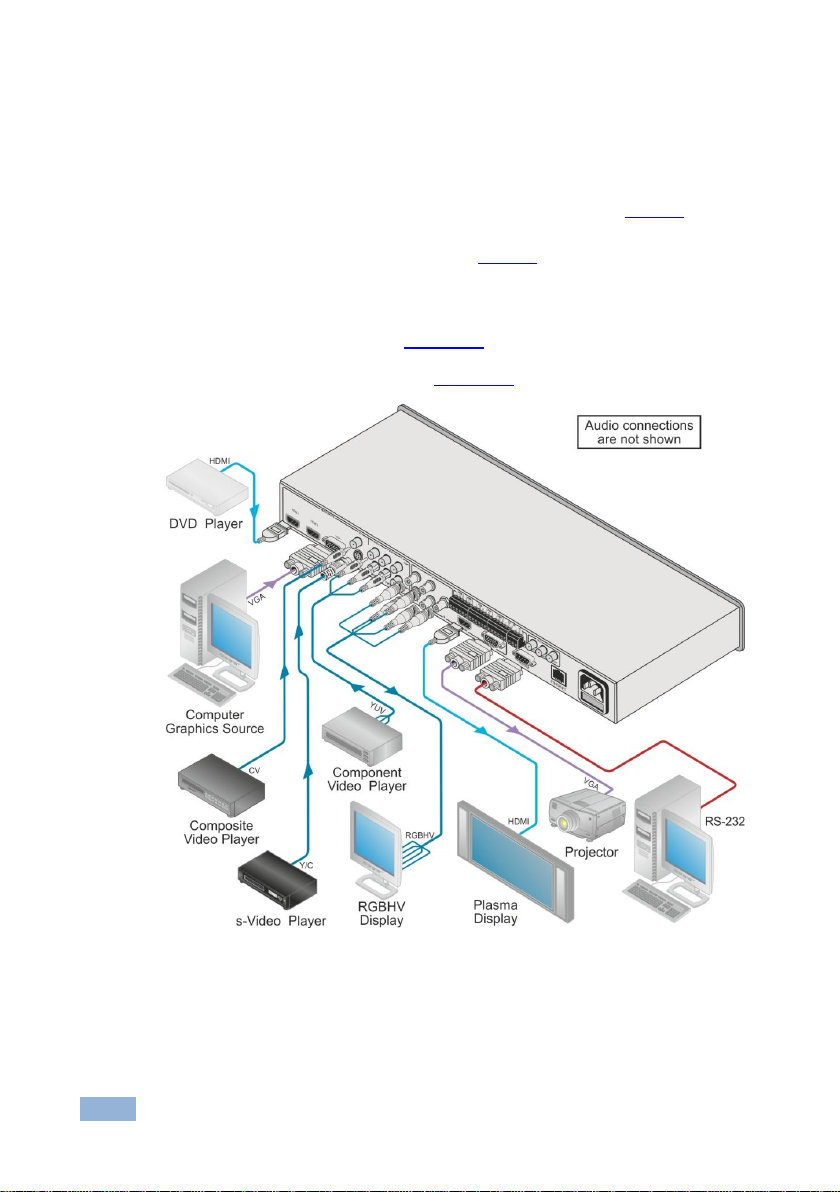

To connect the VP-441, as illustrated in the example in Figure 3, do the following:
1. Connect an HDMI source (for example, a DVD player) to the HDMI 1 VIDEO
INPUT connector.
Alternatively, you can connect the DVI connector on the DVD player to the HDMI
connector on the VP-441 via a DVI-HDMI adapter. When using this adapter, you can
connect the audio signal via the terminal block connector
2. Connect a computer graphics source to the VGA 15-pin HD VIDEO INPUT
connector.
3. Connect a composite video source (for example, a composite video player)
to the CV VIDEO INPUT RCA connector.
4. Connect an s-Video source (for example, an s-Video player) to the YC 4-pin
VIDEO INPUT connector.
5. Connect a component video source (for example, a component video player)
to the COMP 1 PR, PB and Y, VIDEO INPUT RCA connectors.
6. Connect the audio input signals to the AUDIO IN terminal block connectors,
as required (not shown in Figure 3).
7. Connect the RGBHV VIDEO OUTPUT BNC connectors to an RGBHV
acceptor (for example, an RGBHV display).
8. Connect the HDMI VIDEO OUTPUT connector to an HDMI acceptor (for
example, a plasma display).
Page 14
10
VP-441 - Connecting the VP-441
9. Connect the VGA VIDEO OUTPUT 15-pin HD connector to a VGA acceptor
(for example, a projector).
10. Connect the audio output signals to the OUT stereo analog audio acceptor
and/or the digital audio acceptor, as required (not shown in Figure 3).
11. Connect the power cord (not shown in Figure 3).
12. If required, connect:
A PC via RS-232, see Section 6.3
The ETHERNET port, see Section 6.4
Figure 3: Connecting the VP-441 Presentation Switcher / Scaler
Page 15
VP-441 - Controlling the VP-441
11
11
6 Controlling the VP-441
The VP-441 can be controlled via:
The front panel buttons (see Section 6.1)
The OSD menu (see Section 6.2)
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller (see Section 6.3)
The ETHERNET (see Section 6.4)
The infrared remote control transmitter (see Section 6.5)
6.1 Controlling via the Front Panel Buttons
The VP-441 includes the following front panel buttons:
Input selector buttons for selecting the required input: CV, YC,
COMPONENT (1 and 2), VGA or HDMI (1 and 2)
BLANK, MUTE and FREEZE buttons
MENU, ENTER, and up, down, left and right arrow buttons
RESET TO XGA/720p and PANEL LOCK buttons
6.1.1 The Auto Adjust (Auto Tune) Feature
The auto adjust feature (applies only to the VGA input) automatically centers the
image on the screen when pressing the ENTER front panel button or the OK button
on the remote control transmitter (when not within the OSD menu).
You can also implement this feature every time the input is switched to VGA or
when the input resolution changes, via the FINETUNE menu (see Section 6.2.2).
Page 16
12
VP-441 - Controlling the VP-441
Mode
Function
CONTRAST
Set the contrast
The range and default values vary according to the input signal
BRIGHTNESS
Set the brightness
The range and default values vary according to the input signal
FINETUNE
Optimize the image quality (see Section 6.2.2)
COLOR
Set the red, green and blue shades (0 to 100, default 48, 48 and 52 respectively)
SIZE
Select the size of the display: FULL, OVERSCAN, UNDER1, UNDER2,
LETTER BOX, PANSCAN, BEST FIT (default, FULL)
UNDER1 refers to an underscan of 6%
UNDER2 refers to an underscan of 9%
SOURCE
Select the source: (default VGA)
Source input
Appears as:
Source input
Appears as:
CV
CVBS
VGA
PC YC
SVIDEO
HDMI 1
HDMI1
COMP 1
YPBPR1
HDMI 2
HDMI2
COMP 2
YPBPR2
CVBS means Composite Video Baseband Signal
OUTPUT
Select the output resolution from the menu (default NATIVE):
Output resolution:
Appears as:
Output resolution:
Appears as:
1080i @60Hz
1080I60
800x600
SVGA
1080p @60Hz
1080P60
1024x768
XGA
576i
576I
1280x1024
SXGA 576p
576P
1600x1200
UXGA
720p @50Hz
720P50
480i
480I 1080i @50Hz
1080I50
480p
480P 1080p @50Hz
1080P50
720p @50Hz
720P60
1280x800
1280x800
1600x900
1600x900
1680x1050
WSXGA
2048x1080 @50Hz
2K50 1920x1200
WUXGA
2048x1080 @60Hz
2K60
1440x900
WXGA+
480I59
6.2 Using the OSD Menu
The control buttons let you control the VP-441 via the OSD menu. Press the:
MENU button to enter the menu
The default timeout is set to 10 seconds
ENTER button to accept changes and to change the menu settings
Arrow buttons to move through the OSD menu, which is displayed on the
video output
On the OSD menu, select EXIT to exit the menu.
6.2.1 The MAIN MENU
Page 17
VP-441 - Controlling the VP-441
13
13
Mode
Function
Output resolution:
Appears as:
Output resolution:
Appears as:
1400x1050
SXGA+
480P59
1366x768
WXGA
720P59
NATIVE
1080I59
640x480
VGA
1080P59
NATIVE - Select NATIVE to select the output resolution from the EDID of the
connected HDMI monitor
AUDIO
Adjust audio parameters (see Section 6.2.3)
OSD
Set the OSD parameters: H POSITION, V POSITION, TIMER,
BACKGROUND and DISPLAY (see Section 6.2.4)
HDCP ON
INPUT
Set to ON or OFF.
HDCP support can be enabled (ON) or disabled (OFF) for each of the
HDMI inputs, allowing the source to transmit a non-HDCP signal if required
HDCP ON
OUTPUT
Select Follow Input or Follow Output to define whether the HDCP will follow
the input or the output
When Follow Input is selected, the scaler changes its HDCP output setting
(for the HDMI output) according to the HDCP of the input.
This option is recommended when the HDMI scaler output is connected to a
splitter/switcher
When Follow Output is selected, the scaler matches its HDCP output to the
HDCP setting of the HDMI acceptor to which it is connected.
FACTORY
RESET
Resets to the default parameters
If you cannot see the display after factory reset, use the front panel Res. button to
set the correct resolution: press continuously for 2 seconds to reset to XGA, or
continuously for 5 seconds to reset to 720p
INFORMATION
Displays the source, the input resolution, the output resolution and the
software version and the H/W version
AUTO SYNC
OFF
Turn the auto sync ON/OFF. When ON, a short period after not detecting a
valid video signal on the selected input, the unit will disable the H and V
syncs on the analog outputs until a valid input is again detected
EXIT
Select to exit the menu
Page 18
14
VP-441 - Controlling the VP-441
Input Signal
Parameter
Function
CV, YC,
COMPONENT
HUE
Set the color hue
SATURATION
Set the color saturation
SHARPNESS
Set the sharpness of the picture
NOISE
REDUCTION
Select the noise reduction: OFF, HI, LOW and MID
(middle)
COLOR FILTER
Set to ON to enable color filtering
VGA
PHASE
Set the clock phase
CLOCK
Set the clock frequency
H-POSITION
Set the horizontal position of the picture
V-POSITION
Set the vertical position of the picture
AUTO TUNE
When set to ON, auto adjusts the image (centers it
correctly on the screen) every time the input is
switched to VGA or when the input resolution changes
Alternatively, you can auto adjust the image by pressing
the ENTER button when not within the OSD menu
COLOR FILTER
Set to ON to enable color filtering
HDMI
COLOR FILTER
Set to ON to enable color filtering
DROP LINES
Set it to ON to eliminate the green line (default is OFF)
With some sources (mostly Apple devices) a green line
sometimes appears at the bottom of the display. By factory
default this option is set to OFF.
COLOR FILTER may improve the output image for certain graphic
cards where color fringing is seen.
Parameter
Function
OUTPUT
VOLUME
Set the output volume (from 0 to 100)
Not applicable for embedded HDMI inputs
INPUT VOLUME
Set the input volume (from 0 to 100)
Not applicable for embedded HDMI inputs
DELAY
Select the audio delay time: OFF, 40ms, 110ms and 150ms
SOUND
Select the sound options: ON, MUTE
MUTE FOLLOWS
Select the action that will be followed by mute:
INDEPENDENT: the audio muting is independent of the FREEZE and
BLANK functions
FREEZE
BLANK
FREEZE/BLANK: when freezing or blanking the video, the audio will be
muted (the MUTE function follows the FREEZE and the BLANK
functions)
i
6.2.2 The FINETUNE Menu
6.2.3 The AUDIO Menu
Page 19
VP-441 - Controlling the VP-441
15
15
Parameter
Function
HDMI AUDIO IN
Select:
AUTOMATIC: the embedded audio on the HDMI input is selected for an
HDMI signal, or the analog audio input is selected if the input is not
HDMI (for example, for a DVI input signal)
EMBEDDED: the embedded audio in the HDMI signal is selected
ANALOG: the analog audio input is selected
HDMI AUDIO IN is enabled only when one of the HDMI inputs is selected
Parameter
Function
H POSITION
Set the horizontal position of the OSD (from 0 to 100)
V POSITION
Set the vertical position of the OSD (from 0 to 100)
TIMER
Set the timeout period in seconds (from 5 to 100)
BACKGROUND
Set the OSD background between 0 (solid black) and 8 (transparent)
DISPLAY
Select the information shown on the screen during operation:
ON - the information is shown permanently
OFF - the information is not shown
INFO - the information is shown for a few seconds
6.2.4 The OSD Menu
6.3 Connecting to the VP-441 via RS-232
You can connect to the VP-441 via an RS-232 connection using, for example, a PC.
Note that a null-modem adapter/connection is not required.
To connect to the VP-441 via RS-232:
Connect the RS-232 9-pin D-sub rear panel port on the VP-441 unit via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need
to be connected) to the RS-232 9-pin D-sub port on your PC
6.4 Connecting the VP-441 via the ETHERNET Port
To connect and configure the Ethernet port of the VP-441, refer to the ETHERNET
Configuration (Lantronix) GUIDE on our Web site:
http://www.kramerelectronics.com/support/product_downloads.asp
Page 20
16
VP-441 - Controlling the VP-441
Figure 4: Infrared Remote Control
Transmitter
Keys
Function
SIZE
Set the size of the image
displayed
POWER
Toggle the power save mode
ON or OFF
FREEZE
Freeze/unfreeze the output
video image
BLANK
Toggle between a blank screen
(blue or black screen) and the
display
MUTE
Toggle between muting
(blocking out the sound) and
enabling the audio output
AV
Select the composite video
input
YC
Select the s-Video input
COMP1
Select the component video 1
input
COMP2
Select the component video 2
input
PC
Select the UXGA input
HDMI1
Select the HDMI1 input
HDMI2
Select the HDMI2 input
XGA Reset
Reset the resolution to XGA
720p Reset
Reset the resolution to 720p
INFO
Displays the selected input, the
input and output resolutions and
the firmware versions on the
OSD
NATIVE
Select the output resolution via
the EDID of the connected
HDMI monitor
Four navigation keys
When not in the OSD, the left and
right arrows also control the output
volume
For embedded HDMI inputs, this
does not affect the embedded
output
OK
Press to accept changes
Press also to auto adjust the
picture (see Section 6.1.1)
MENU
Enter the OSD menu
EXIT
EXIT the menu
6.5 Controlling via the Infrared Remote Control Transmitter
You can control the VP-441 from the infrared remote control transmitter:
Page 21
VP-441 - Technical Specifications
17
17
INPUTS:
2 HDMI connectors
1 VGA on a 15-pin HD connector
1 composite video on an RCA connector
1 Y/C on a 4-pin connector
2 component video each on 3 RCA connectors
2 HDMI, 1 VGA, 2 COMP, 1 CV, 1 Y/C unbalanced stereo
audio on seven 3-pin terminal block connectors
OUTPUTS:
1 RGBHV on 5 BNC connectors
1 HDMI connector
1 VGA (RGBHV) on a 15-pin HD connector
1 S/PDIF on an RCA connector
1 unbalanced stereo audio on RCA connectors
OUTPUT COLORSPACE:
RGB
H FREQUENCY:
15.63-90kHz
V FREQUENCY:
50-100Hz
RGB SYNCS:
H and V TTL separated syncs
RGB LEVEL:
1.2Vpp max, 75 load
XGA OUT LEVEL:
1.2Vpp max, 75 load
S/PDIF OUT LEVEL:
0.55Vpp constant
OUTPUT RESOLUTIONS:
Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p,
576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA,
WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900,
2048x1080/50Hz, 2048x1080/60Hz, 480i59.94,
480p59.94, 720p59.94, 1080i59.94, 1080p59.94
OUTPUT REFRESH RATE:
60Hz for computer graphics resolutions, 50/60Hz for HDTV
resolutions
CONTROLS:
CV, YC, component 1, component 2, VGA, HDMI 1, HDMI
2, input selector buttons; blank, mute, freeze buttons;
menu, enter, menu arrows, reset to XGA/720p, lock
buttons, RS-232, Ethernet, IR
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
POWER CONSUMPTION:
100-240V AC, 20VA max.
DIMENSIONS:
19" x 7" x 1U (W, D, H) rack mountable
WEIGHT:
2.7kg (6lbs) approx.
ACCESSORIES:
Power cord, rack “ears”, IR remote control
Specifications are subject to change without notice at http://www.kramerelectronics.com
7 Technical Specifications
Page 22
18
VP-441 - Technical Specifications
Resolution/Refresh Rate
CV/s-Video
Component
VGA
HDMI
480I/576I(NTSC/PAL)
Yes (480i30x2 / 576i25x2)
Yes
No
Yes
480P/576P
No
Yes
No
Yes
720P@(60/50)
No
Yes
No
Yes
1080I@(60/50)
No
Yes
No
Yes
1080P@(60/50)
No
Yes
No
Yes
1080P@(24/25/30)
No
Yes
No
Yes
480P/576P-RGB
No
No
Yes
Yes
720P@(60/50)-RGB
No
No
Yes
Yes
1080I@(60/50)-RGB
No
No
No
Yes
1080P@(60/50)-RGB
No
No
Yes
Yes
1080P@(24/25/30)-RGB
No
No
No
Yes
VGA@(60/67/72/75/85)
No
No
Yes
Yes
SVGA@(56/60/72/75)
No
No
Yes
Yes
XGA@(60/70/75)
No
No
Yes
Yes
SXGA@(60/75)
No
No
Yes
Yes
1280X960
No
No
Yes
Yes
1600X900@60
No
No
Yes
Yes
UXGA@60 ( 1600X1200 )
No
No
Yes
Yes
WXGA@60(1280x800)
No
No
Yes
Yes
WXGA+@60(1440x900)
No
No
Yes
Yes
WXGA@60(1366x768)
No
No
Yes
Yes
SXGA+@60(1400x1050)
No
No
Yes
Yes
WSXGA@60(1680x1050)
No
No
Yes
Yes
WUXGA@60(1920x1200)
No
No
Yes
Yes
2K@50 ( 2048X1080)
No
No
Yes
Yes
2K@60 ( 2048X1080)
No
No
Yes
Yes
7.1 Input Resolutions
Page 23
VP-441 - RS-232 Communication Protocol
19
19
Character Symbols Definitions
Symbol
Meaning
Space
[CR]
Carriage Return, ASCII code 0x0D
[LF] or >
Line Feed, ASCII code 0x0A
8 RS-232 Communication Protocol
The following is the COM port setting:
Baud Rate: 9600bps
Parity: None
Data Bits: 8bits
Stop Bits: 1bit
Set CTS Mode: Off
Set XON/XOFF: Off
Set and Get Command
Set Command:
Type in: YControl_TypeFunctionParam[CR]
Reply: ZControl_TypeFunctionParam[CR][LF]
Get Command:
Type in: YControl_TypeFunction[CR]
Reply: ZControl_TypeFunctionParam[CR][LF]
When sending a command, a blank character may precede [CR] if desired
Example:
Example 1: set brightness value as 32
Send: Y11632[CR]
Reply: Z11632[CR][LF]
Example 2: get current output resolution. (2 = SVGA)
Send: Y421[CR]
Reply: Z4212[CR][LF]
Page 24
20
VP-441 - RS-232 Communication Protocol
Control
Type
Function
Param
(for Set)
Function Description
Comment
0 0 N/A
SIZE button on remote control
0 1
N/A
POWER button on remote control
0 2 N/A
FREEZE button on remote control
0 3
N/A
480p button on remote control
0 4 N/A
576p button on remote control
0 5
N/A
720p button on remote control
0 6
N/A
1080i button on remote control
0 7
N/A
1080p button on remote control
0 8 N/A
VGA button on remote control
0 9
N/A
SVGA button on remote control
0
10
N/A
XGA button on remote control
0 11
N/A
SXGA button on remote control
0 12
N/A
WXGA button on remote control
0 13
N/A
UXGA button on remote control
0
14
N/A
INFO button on remote control
0 15
N/A
UP button on remote control
0 16
N/A
NATIVE button on remote control
0
17
N/A
LEFT button on remote
control/Volume down
Volume down when not
in OSD
0
18
N/A
OK button on remote control
0
19
N/A
RIGHT button on remote
control/Volume up
Volume up when not in
OSD 0 20
N/A
MENU button on remote control
0 21
N/A
DOWN button on remote control
0
22
N/A
EXIT button on remote control
0 23
N/A
AV button on remote control
0 24
N/A
YC button on remote control
0 25
N/A
COMP1 button on remote control
0 26
N/A
HDMI1 button on remote control
0
27
N/A
HDMI2 button on remote control
0
28
N/A
COMP2 button on remote control
0 29
N/A
VGA button on remote control
0
30
N/A
BLANK button on remote control
0 31
N/A
MUTE button on remote control
0 33
N/A
Auto adjust
FW V6.12
1: Set
2: Get
4
0~100
Color: Red
1: Set
2: Get
5
0~100
Color: Green
1: Set
2: Get
6
0~100
Color: Blue
1: Set
16
0~100
Brightness
8.1 RS-232 Protocol Table
Page 25
VP-441 - RS-232 Communication Protocol
21
21
Control
Type
Function
Param
(for Set)
Function Description
Comment
2: Get
1: Set
2: Get
17
0~100
Contrast
1: Set
2: Get
25
0~100
Hue
1: Set
2: Get
26
0~100
Sharpness
1: Set
2: Get
29
0~100
Saturation
1: Set
2: Get
33
0~100
Set an absolute volume for Output
For embedded HDMI inputs,
this does not affect the
embedded output
1: Set
2: Get
34
0~100
Set an absolute volume for Input
For embedded HDMI inputs,
this does not affect the
embedded output
1: Set
2: Get
41
0~100
OSD Setting :H-Position
1: Set
2: Get
42
0~100
OSD Setting: V-Position
1: Set
2: Get
43
0~100
OSD Timeout
1: Set
2: Get
44
0~8
OSD Background
1: Set
2: Get
50
0~3
NR (Noise Reduction)
0: Off
1: Low
2: Mid
3: High
1: Set
2: Get
51
0~3
Audio delay
0: Off
1: 40ms
2: 110ms
3: 150ms
1: Set
2: Get
52
0~2
HDMI AUDIO IN
0 : AUTOMATIC
1 : EMBEDDED
2 : ANALOG
1: Set
2: Get
84
(0~1)
Auto Sync Off
0 : OFF
1 : ON
1: Set
2: Get
95
0~1
DROP LINE
0 : OFF
1 : ON
1: Set
2: Get
160
0~1
HDCP ON INPUT
0 : OFF (FW : 1.05 )
1 : ON
1: Set
2: Get
161
0~1
HDCP ON OUTPUT
0 : FOLLOW INPUT
(FW :1.07 )
1 : FOLLOW OUTPUT
3: Set
4: Get
0
1~7
Select Input Source
1: AV
2: YC
3: COMP1
4: COMP2
5: VGA
6: HDMI1
7: HDMI2
Page 26
22
VP-441 - RS-232 Communication Protocol
Control
Type
Function
Param
(for Set)
Function Description
Comment
3: Set
4: Get
1
0~6
Size
0: Full
1: Panscan
2: Overscan
3: Underscan
4: Letterbox
5: Underscan2
6: Best Fit
3: Set
4: Get
21
0~29
Output Resolution
0: Native
1: VGA
2: SVGA
3: XGA
4: SXGA
5: UXGA
6: 480i
7: 480p
8: 720p60
9: 1080i60
10: 1080p60
11: 576i
12: 576p
13: 720p50
14: 1080i50
15: 1080p50
16: WXGA
17: WSXGA
18: WUXGA
19: 1280x800,
20: WXGA+ (1440X900)
21: SXGA+ (1400X1050)
22: 1600x900 (FW 1.32)
23: 2048x1080/50
24: 2048x1080/60
25: 480i59
26: 480p59
27: 720p59
28: 1080i59
29: 1080p59
3: Set
23 1 Factory Reset
4: Get
24
0 ~ 24
INPUT Resolution
0: Unknown
1: VGA
2. SVGA
3: XGA
4: SXGA
5: UXGA
6: 480i
7: 480p
8: 720p60
9: 1080i60
10: 1080p60
11: 576i
12: 576p
Page 27
VP-441 - RS-232 Communication Protocol
23
23
Control
Type
Function
Param
(for Set)
Function Description
Comment
13: 720p50
14: 1080i50
15: 1080p50
16: WXGA
17: WSXGA
18: WUXGA
19: 1280x800
20: WXGA+
(1440X900)
21: SXGA+
(1400X1050)
22: 1600X900
23: 2048X1080/50
24: 2048X1080/60
6: Set
7: Get
0
0~2
Power
0: Power Down
1: Power On
2: Firmware reset
6: Set
7: Get
1
0~1
Freeze
0: Off
1: On
6: Set
7: Get
2
0~1
Blank
0: Off
1: On
6: Set
7: Get
3
0~1
Mute
0: Off
1: On
6: Set
7: Get
4
0~1
Key lock
0: Off
1: On
6: Set
7: Get
140
0~1
Auto Tune (under fine tune)
0: clear Auto Tune
1: set auto Tune
Page 28
Page 29
For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N:
2900-300040
Rev:
7
!
SAFETY WARNIN G
Disconnect the unit from the power
supply before opening and servicing
Loading...
